LIfe Size X-Wing

Discussion in 'Star Wars Costumes and Props' started by kattosha, Jul 6, 2015.

  1. kattosha

    kattosha New Member

    Trophy Points:
    2
    A group of us are working on a project that would produce a life size X-wing (from the original movie) which would make a great prop for photo ops. It will be in a publicly accessible area, so it's not restricted as to who uses it.I have a model that I am using for dimensions, but that is a slow and painful process. I'm certain that someone out there has measured one of these before, does anyone know where I could find a dimensional drawing?

  2. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    Hi K,

    I dont have the 1:1 scale dimensions. But I do have several pics that will def help! The original designers created a steel subframe before adding the plywood skin - might be something to consider since there will be heavy traffic.

    Enjoy!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    ESB Cockpit
    [​IMG]

    [​IMG]

    [​IMG]

  3. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    Also... the original seat was a Huntmaster seat - VERY tough to find

    [​IMG]

    mugatu and newmagrathea like this.
  4. kattosha

    kattosha New Member

    Trophy Points:
    2
    Thanks, some of those pictures will definitely help. we haven't decided if we are going to have the cockpit openable yet as we may want it to remain sealed just to avoid liability issues. You always have the idiots out that that want to sue the car manufacturer because they got their fingers caught in the door. That part of the equation will probably require a talk with the locations lawyers and insurance company.But the seat shouldn't be too much of an issue our sponsor has access to some comparable racing seats and a reupholster.

  5. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    If access might be an issue, you could always create just a shell of a cockpit with minimal details & greeblies - unless there would be no way to get that high? If this is sitting say... in a park, you know kids and fans alike will be climbing all over it. :)

    Just a thought

  6. Wolfsburg

    Wolfsburg Sr Member

    Trophy Points:
    1,730
    Awesome pics! I never noticed that the "screen" that R2 communicates with Luke on appears to just be a sheet of paper or card stock somewhat sloppily stuck under some sort of transparent framing.

  7. pandatrooper

    pandatrooper Well-Known Member

    Trophy Points:
    635
    Have you tried the more recent SW blueprint books? Mine is in storage but it might have dimensions on the plans.

  8. Halliwax

    Halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    is that hunt master seat used for hunting? like being placed in tree stands? or is that a race car seat?

  9. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    Hi H,

    They were a race car seat found primarily in the UK - if I remember correctly. They are really tough to find. Huntmaster's were also used in the Millennium Falcon cockpit - pilot & co-pilot chairs. We're hoping to find 1 and then reverse engineer and create a template.

  10. chizbot

    chizbot Active Member

    Trophy Points:
    262

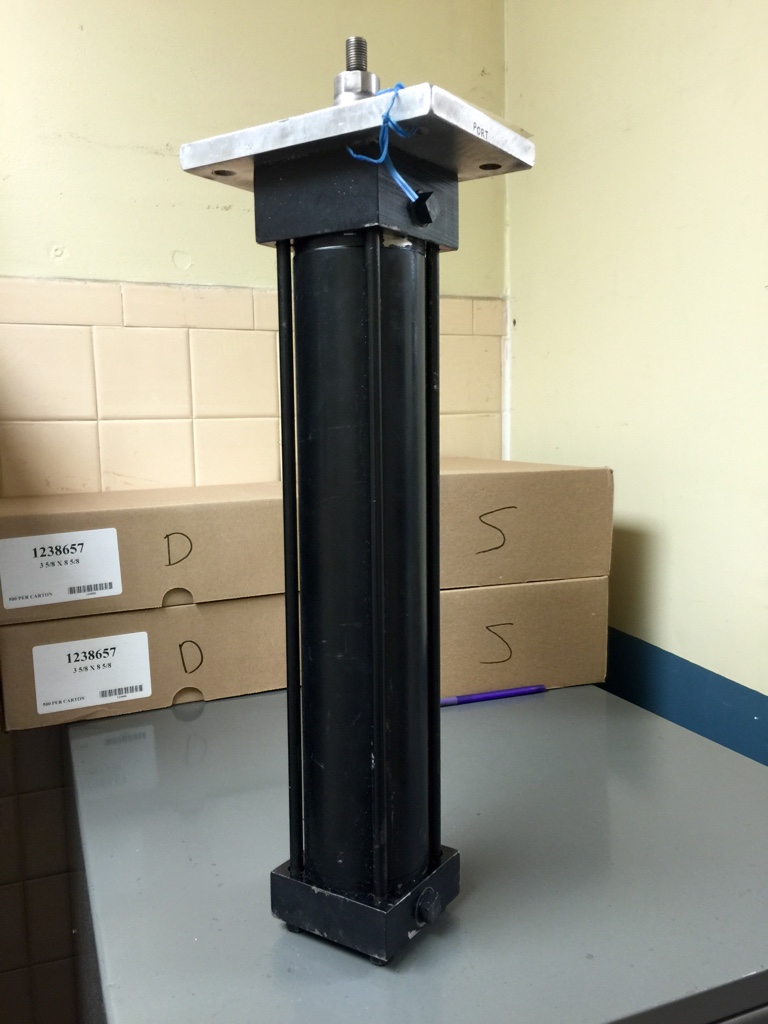

    ImageUploadedByTapatalk1436290120.809327.jpg Ep V looks like this Parker hydraulic cylinder to open cockpit. We use them at work. About $1400 new...


    Sent from my iPhone using Tapatalk

  11. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    COUGH COUGH COUGH... 1400 ea?

  12. chizbot

    chizbot Active Member

    Trophy Points:
    262
  13. StevenBills

    StevenBills Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,136
    You're just now realizing that this isn't going to be cheap?

    monker67 likes this.
  14. OldKen

    OldKen Master Member

    Trophy Points:
    2,850
    "Only now... Do you understand..."



    Do you know who you are talking to???

    First off, Sofaking is NOT the OP of this thread...

    You might ought to check out his full scale Falcon cockpit thread before that kind of comment....

    Yes, for this one function... That is expensive in the grand scheme of things...

    More can often be done for less...




    Last edited: Jul 7, 2015
  15. rbeach84

    rbeach84 Sr Member

    Trophy Points:
    1,406
    Even SK has a threshold of pain! ;^P
    However, before he gets there, he just fabricates his own!

    Cheers - Robert

    TinyTim likes this.
