Iron Man Mark 45 3D Modeling

[WescleyAzevedo]

Found this pic in high res http://cyberclays.tumblr.com/tagged/joshhermanavengers



[Yasser Stark]

This is a 3d model



[Armorer]

Don't know if this could help, from HERE.



[SOUTHPAW]

Don't know if this could help, from HERE.

Unfortunately that is a fairly inaccurate image..



[Armorer]

Oww... You are so right. I just make it match with some HotToy pictures... Wow. Helmet/Arm/foot/tigh totaly different. Thank SouthPaw



[iNSPIRATION]

for Download click here

..so this is the highest resultion which i have - but better than a scan



[iNSPIRATION]

one scan from my (avengers age of ultron) artbook .



[JKKS]

View attachment 478353

for Download click here

..so this is the highest resultion which i have - but better than a scan

No this is the highest res: https://cdn.artstation.com/p/assets...original/josh-herman-mk45after.jpg?1431709531 4856X5050



[blue2k]

Thank you Wesclay and INSPIRATION. Very useful images.



[ChronosDiox]

No this is the highest res: https://cdn.artstation.com/p/assets...original/josh-herman-mk45after.jpg?1431709531 4856X5050

OMG!! Nice finding man! That's some serious details!!!!



[JayCVenlo]

This suit likes it will be damn difficult to make it nicely mobile.
The abs, the neck, the hips... it all looks so thight.. :cry



[IndridColdx]

I personally cannot wait until we get high res of the Bleeding Edge armor...it will be very hard seeing as there are large lights on multiple parts



[Yasser Stark]

This is Mark 46 Civil War suit



[iNSPIRATION]

i have also another scan from my avengers artbook which could be interessting - it's not the final mk45 design! it's only a concept art - but i think the chest design is also realy cool!



[blue2k]

I quite like the earlier design revisions too.



[KadzaNeon]

Awesome job getting these references, they're a huge help!



[KadzaNeon]

I'll be back working on this tomorrow had to finish up some foam batman armor modeling for the DC folk.
link for it is here http://www.therpf.com/showthread.php?t=239462



[brand]

This suite looks more like a nanosuite than an Iron Man suite.

At a first sight it's not as complicated as the MK42/43. But I might be wrong.

The unfold of each part could be made in a single piece where possible (or a couple of) and then all the lines and details could be traced with a wood burner or a pencil or carved with a blade. If I remember correctly there's someone here who did the same with a MK42 leg piece. And it came out great!

This would make the pieces sturdier, less time consuming to build because there would be less paper to cut. And hey, cheaper, because a lot less glue would be needed. And there would be less issues with seam lines.



[ChronosDiox]

I just found this image and got surprised by how different the helmet looks here..



[KadzaNeon]

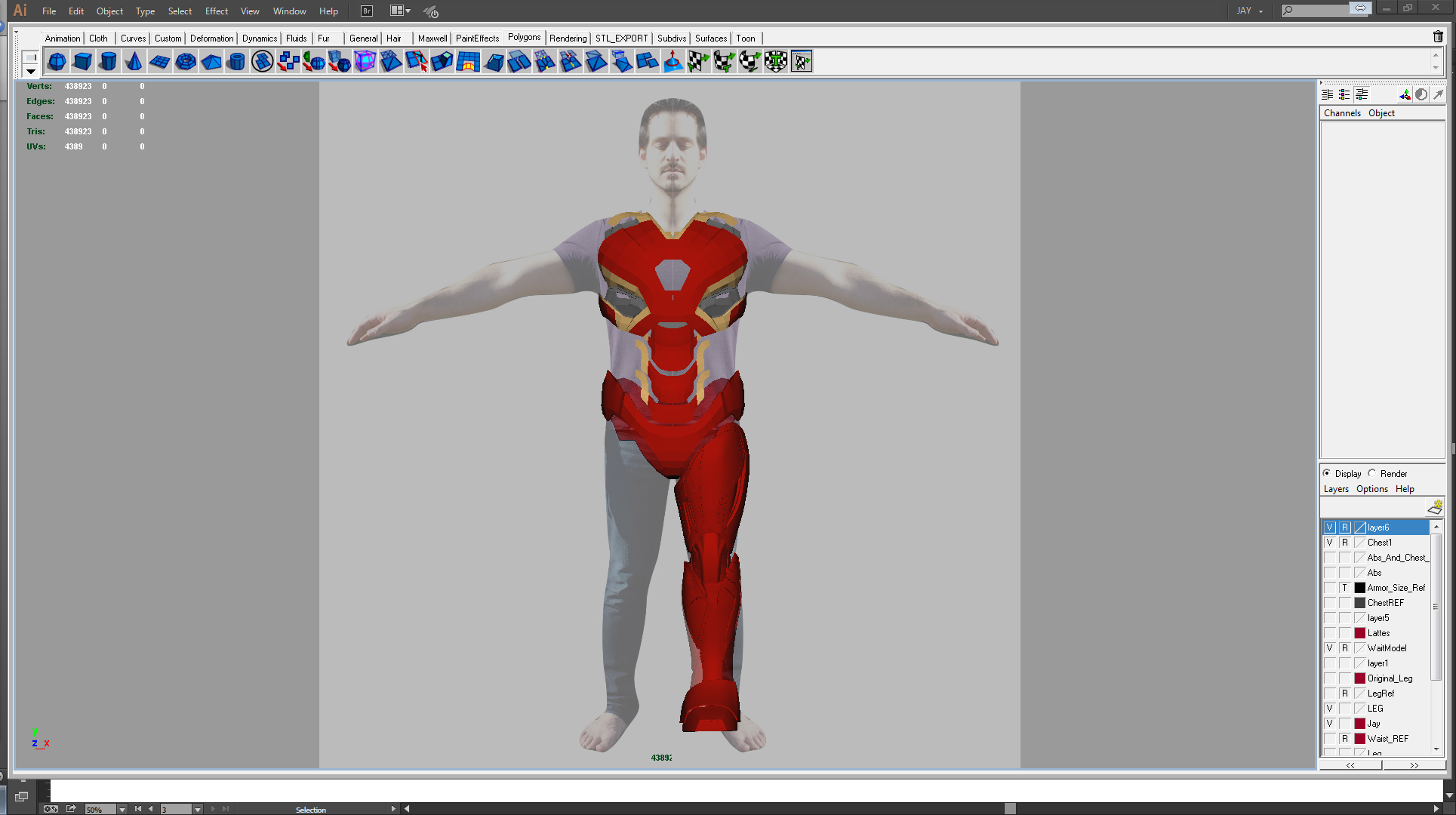

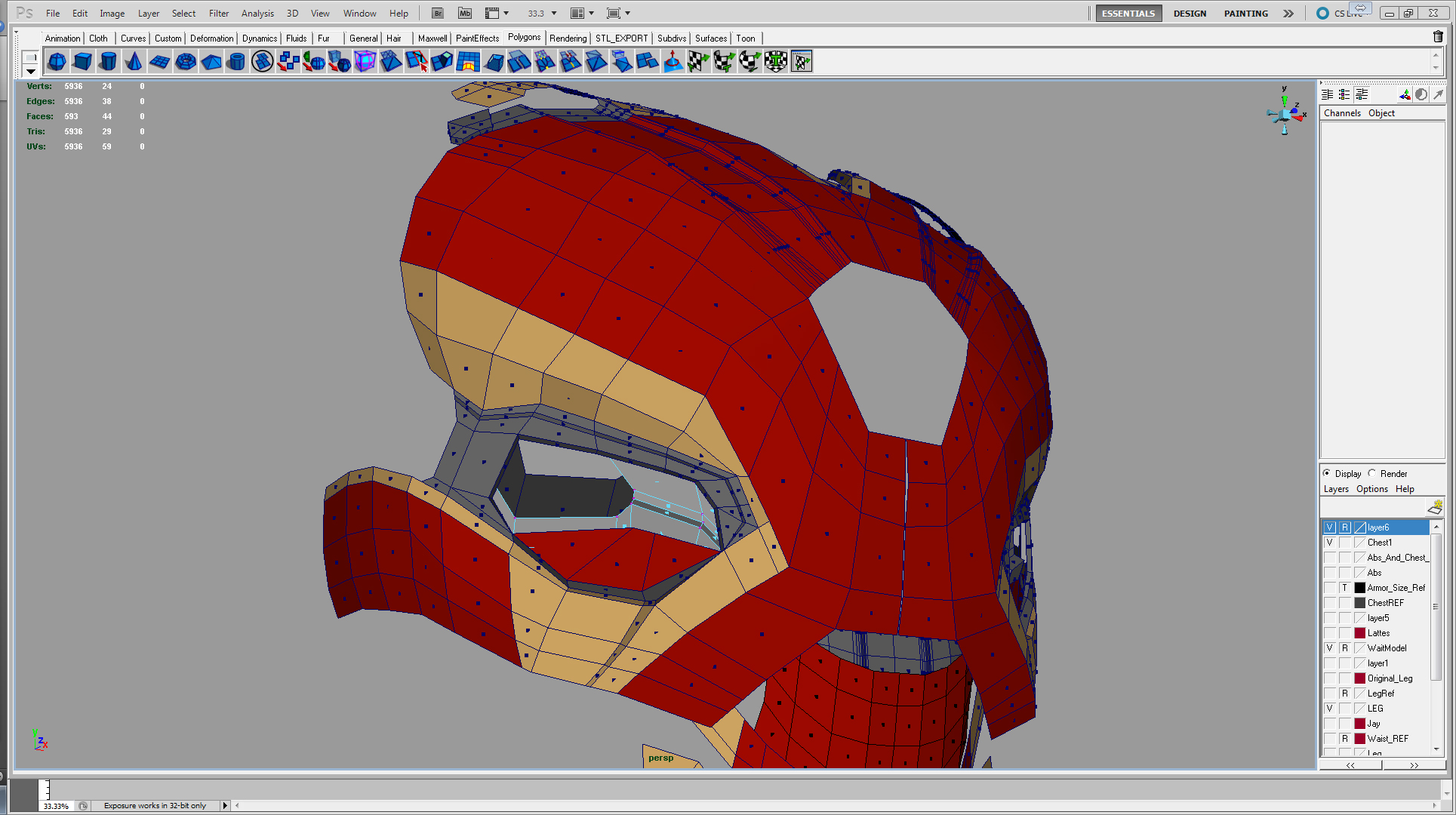

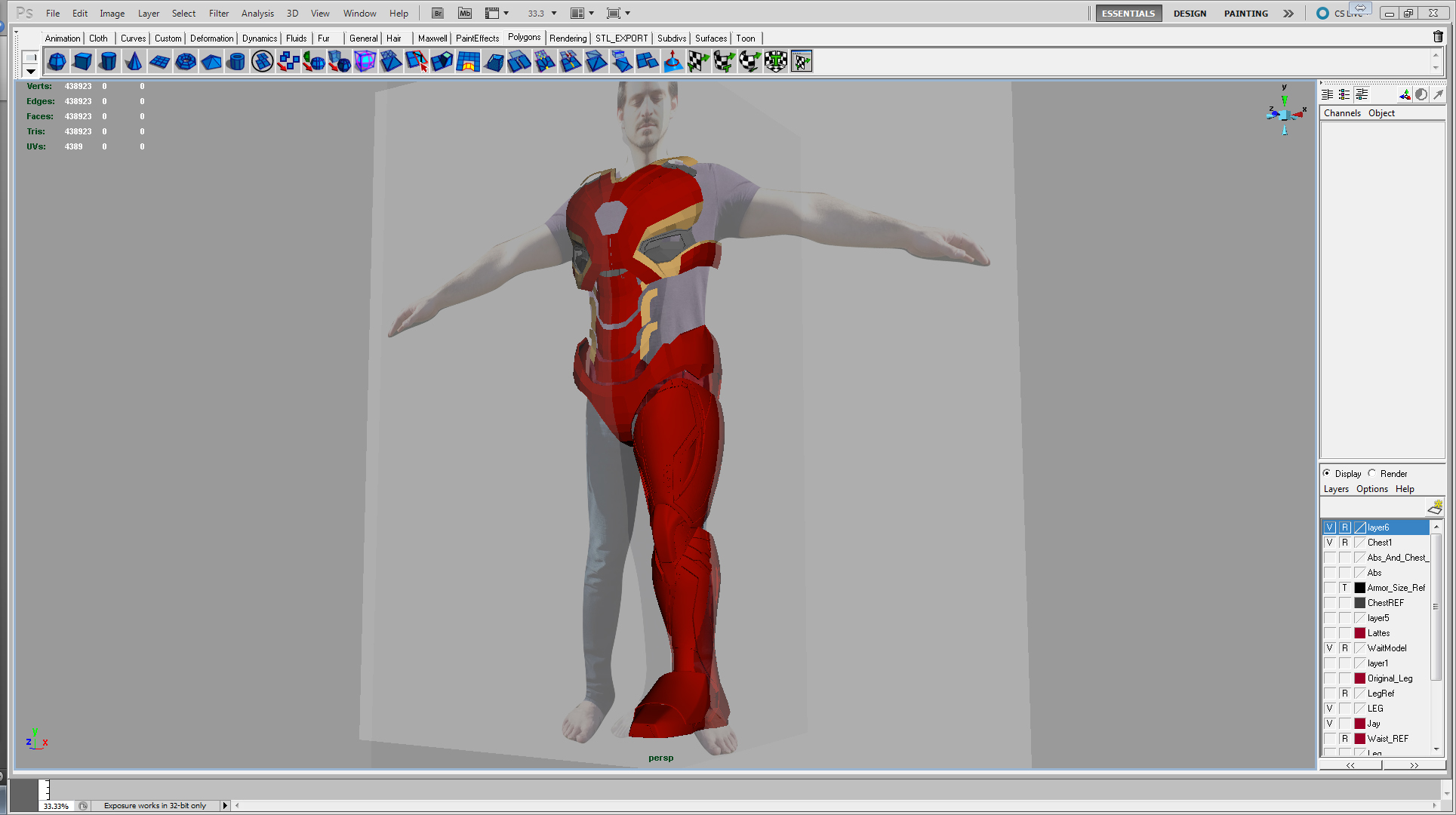

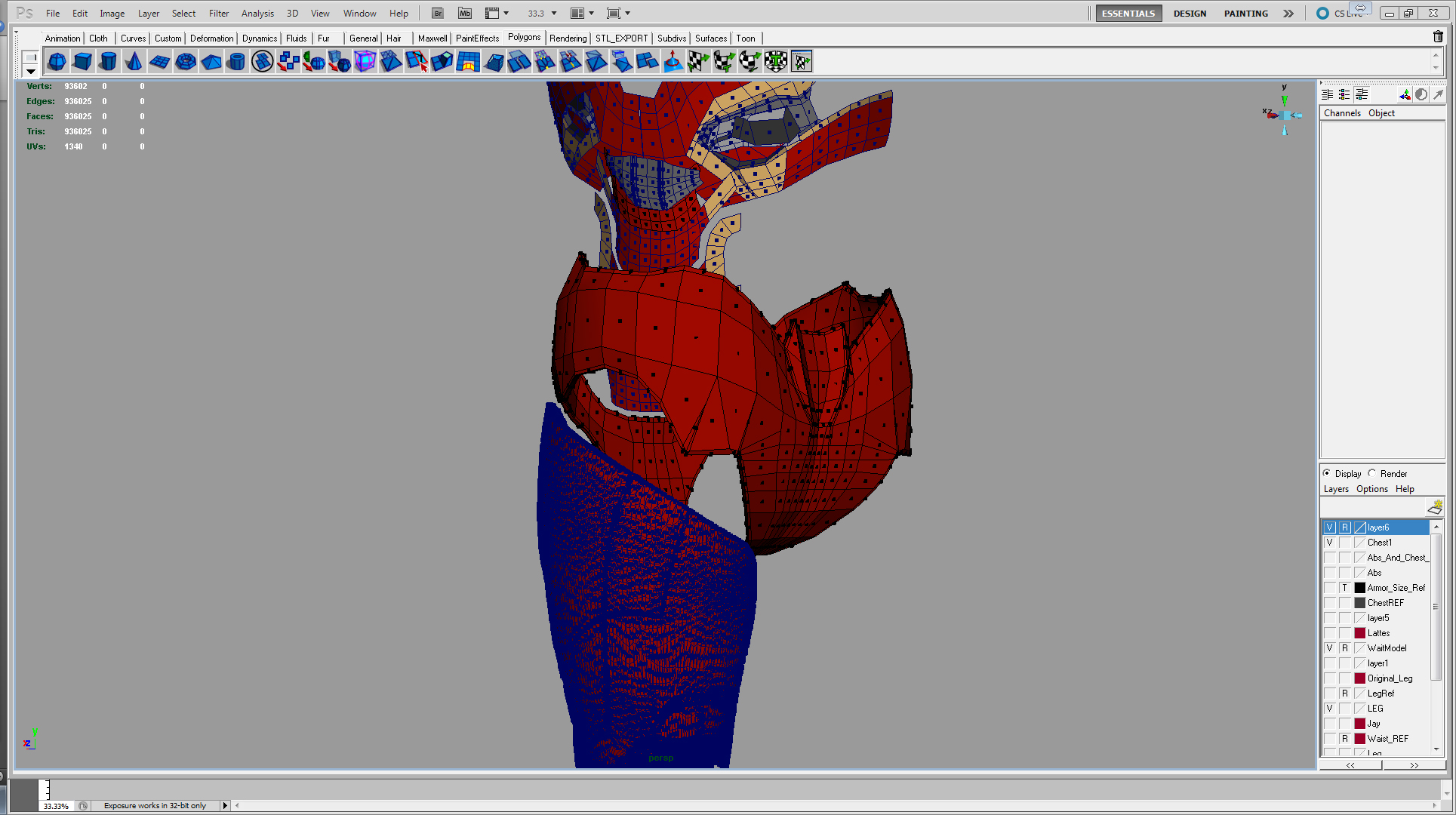

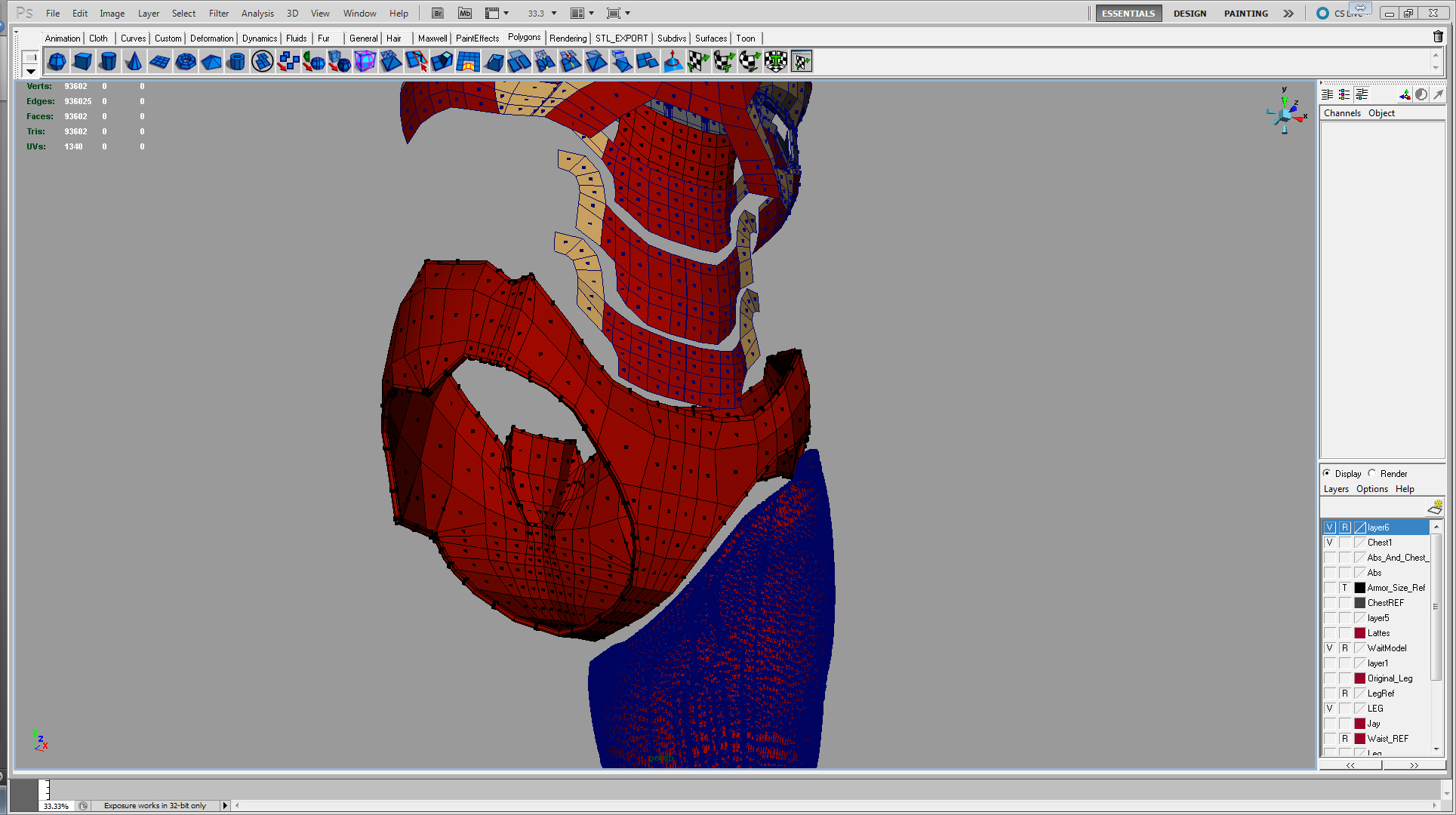

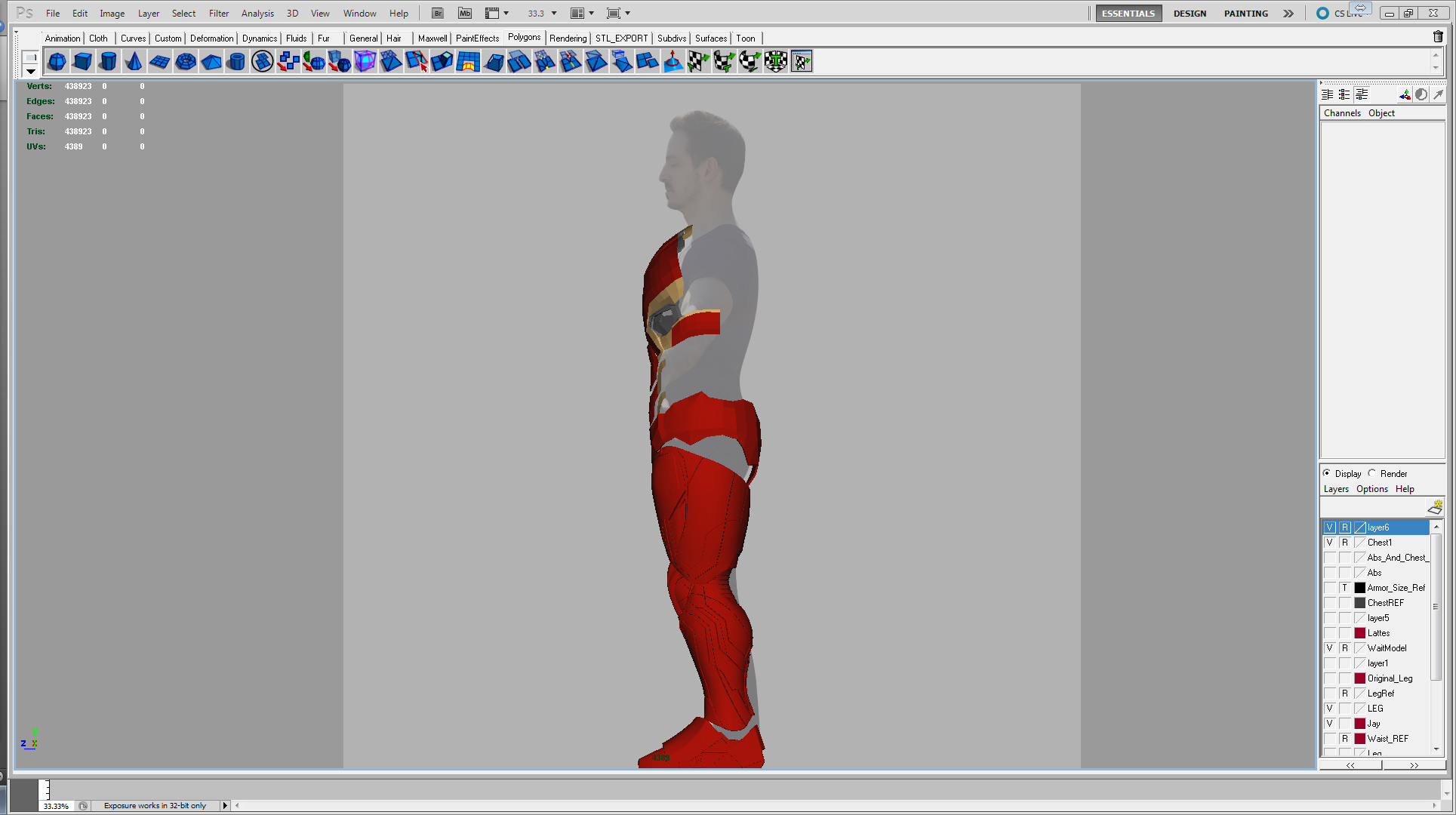

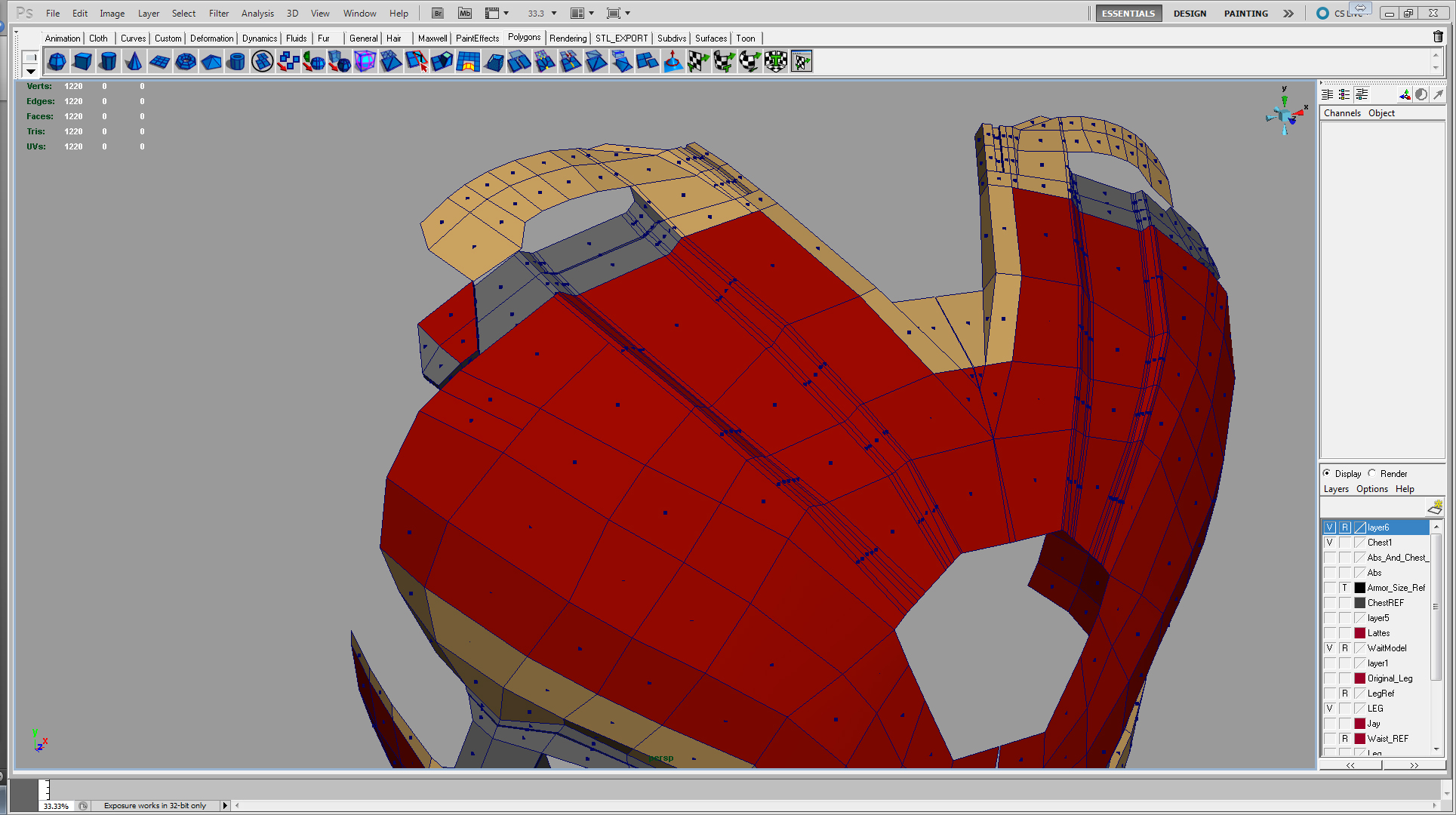

A quick update of my progress from today. Got the chest fleshed out, waste area all set but now after seeing the great references you guys posted i might tweak it a bit. And finally working on the abs messing around with the angles of the "C" looking gold bits trying to get them correct as well as the overall length of the center ab section. once all that is done ill take it into Zbrush and add all the little groves and stuff.
