Help finding parts for badge - Ahsoka series

Wonkybonkers

New Member
Hi everyone, I've tried searching everywhere, using image searches and just straight up browsing electrical parts sites, but I can't find anything!

I'm trying to recreate this badge from Ahsoka that Carson Teva and Hera Syndulla wear.
Does anyone have any ideas of what it could be made from?


Attachments

  • Screenshot_20240131-170651~4.png
    692.2 KB · Views: 100
The more I look at it the more I think scratch made…

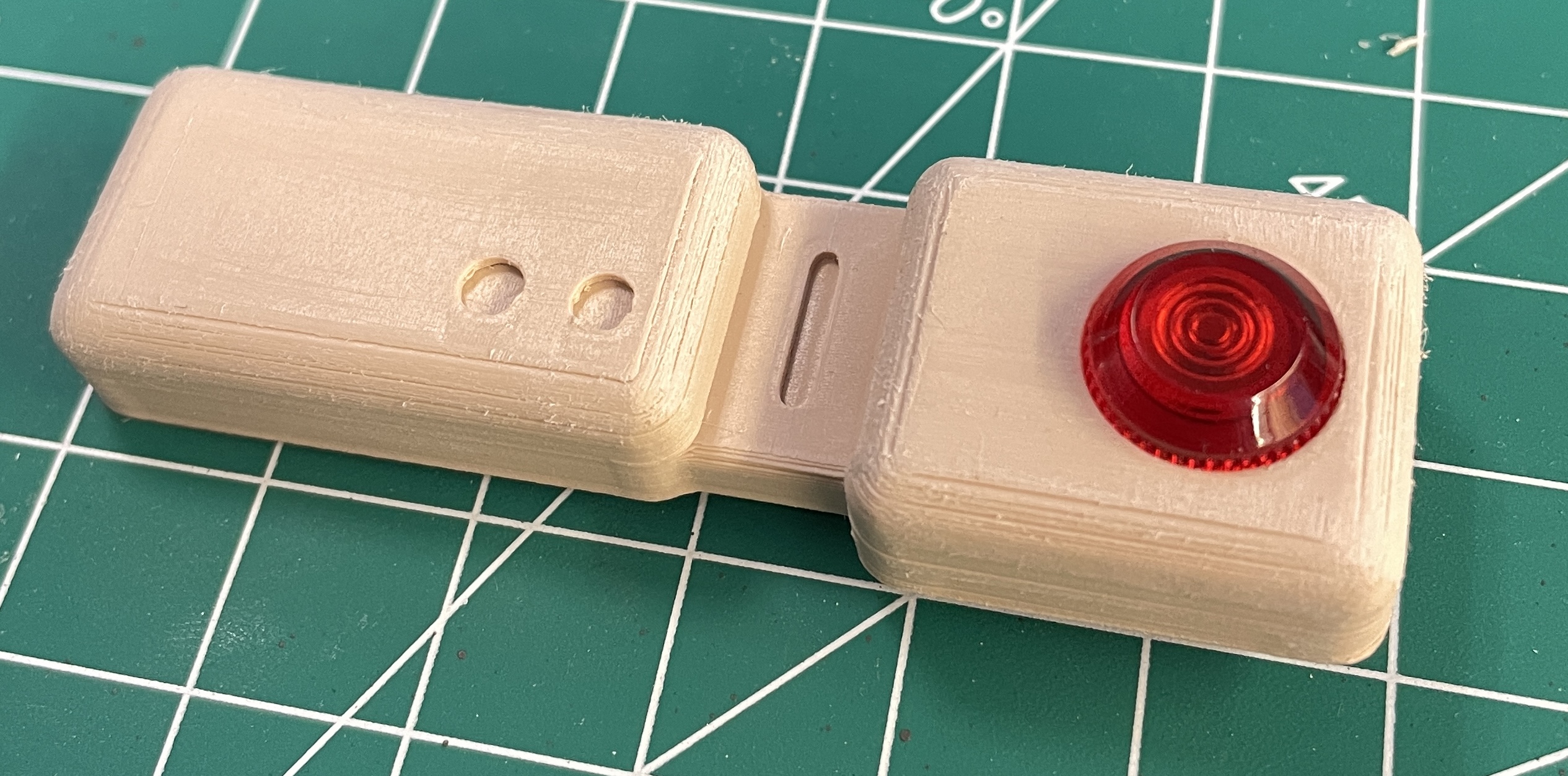

Been puzzling over this one since this morning. I think the red lens is a found object - it would be about 11-12mm in diameter if my measurements are accurate on this. I'd guess the rest is scratch built and printed. So... I designed and printed one really quickly.

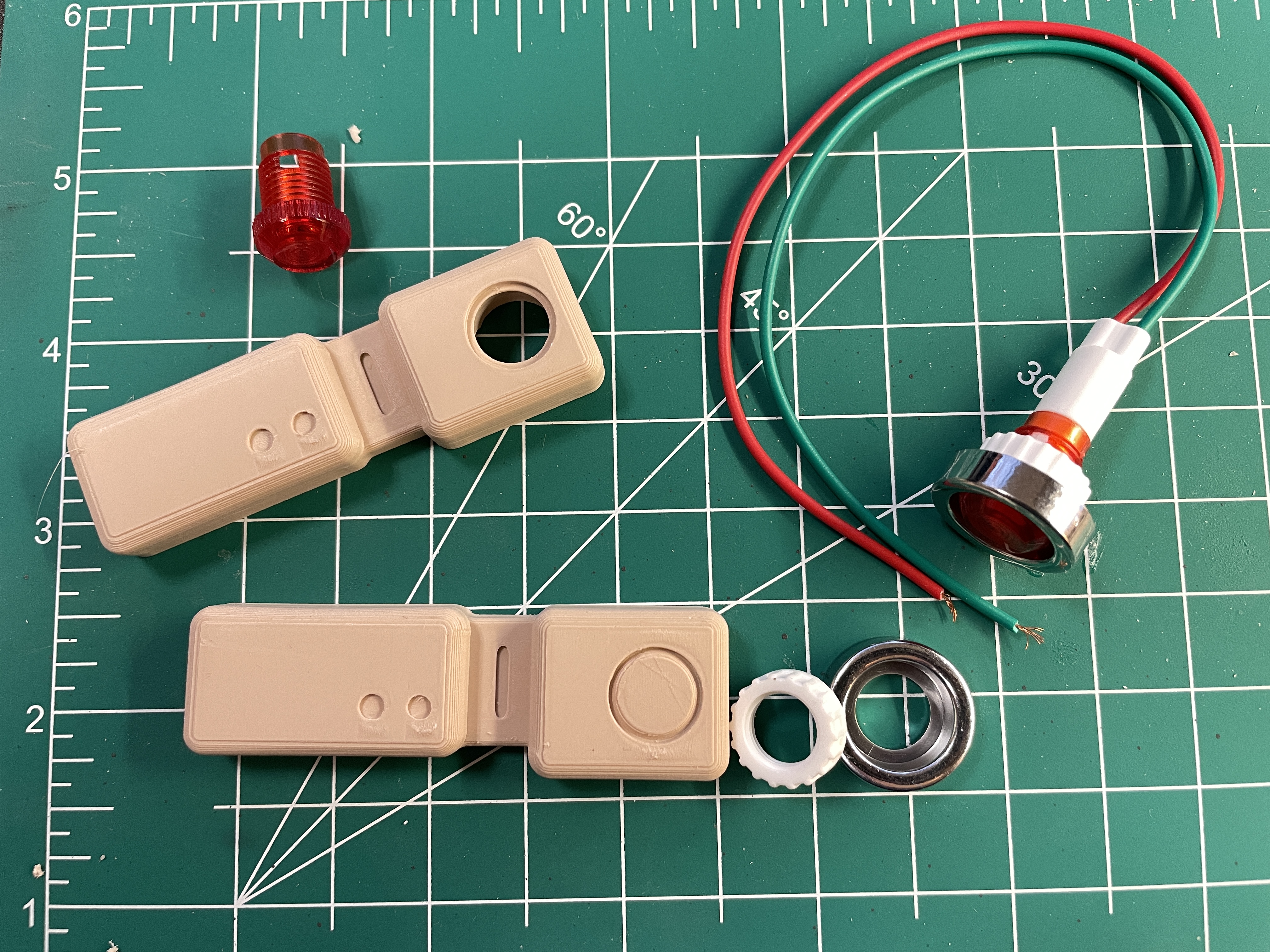

Then I came to that I knew the shape of that red lens - I think it's the lens from an off-the-shelf LED housing. Sure enough, that housing is 12mm. The ones I have are more conical than fully rounded, but it's at least a place to start looking for the right one.


Quick update - I bumped the scale of my model slightly to snuggly fit the lens I have. I was eyeballing the size based on the rank badges anyways, so it's still in the right ballpark.



All-in-all I'm getting happy with the build - I'll post the file in a day or two. Just gotta "live" with the part for a bit to see if I'm happy with it.

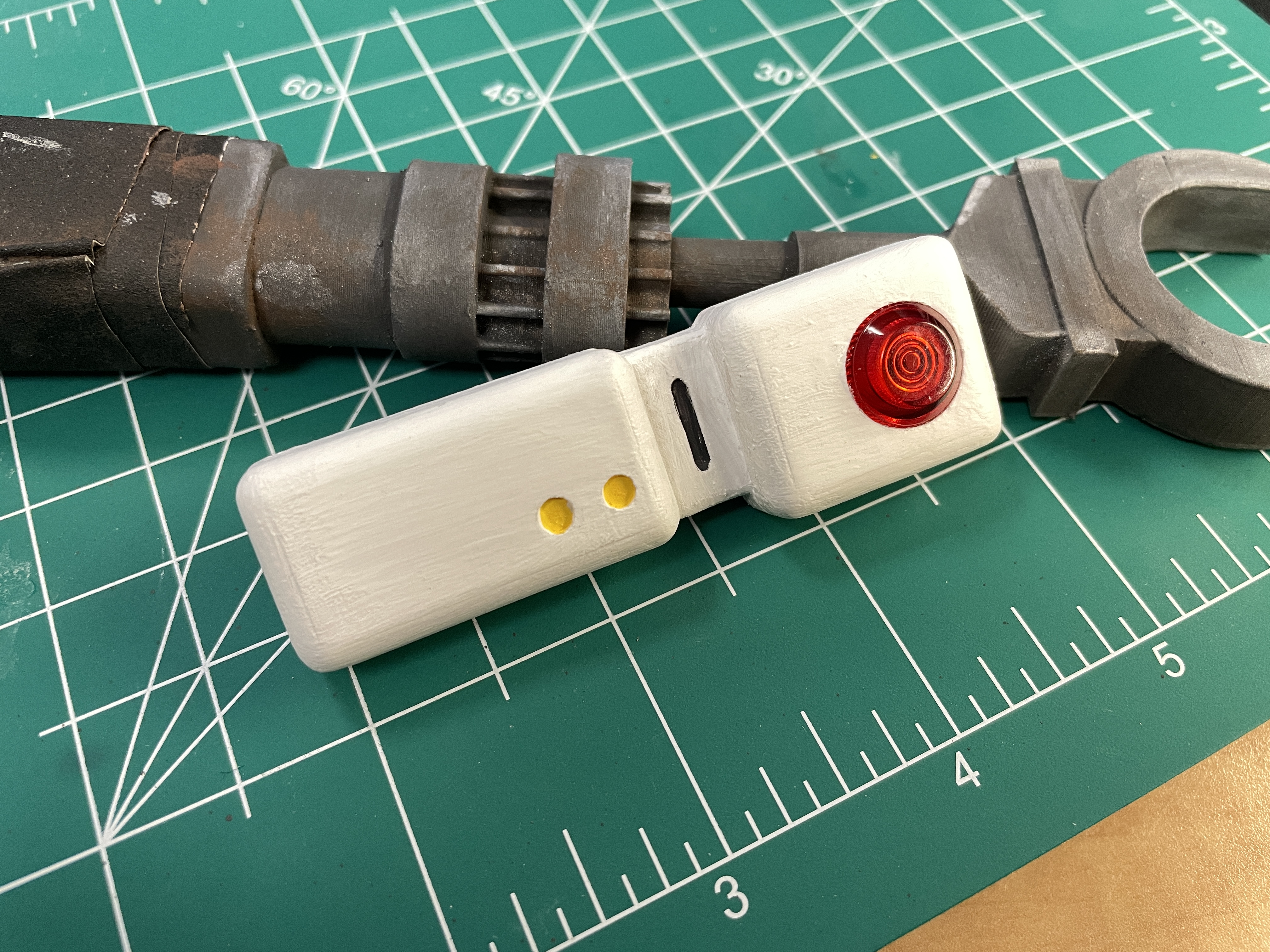

Once more, this time with some paint and rattle can sealant on top. I think this is about ready for primetime - it passes the 6 foot test really well:



I've uploaded the file over on Printables: Printables

If anyone does end up ID'ing the lens, I'll make a redesign of this to fit the correct lens. But for now, I'm calling this one done.

Once more, this time with some paint and rattle can sealant on top. I think this is about ready for primetime - it passes the 6 foot test really well:

View attachment 1794200

I've uploaded the file over on Printables: Printables

If anyone does end up ID'ing the lens, I'll make a redesign of this to fit the correct lens. But for now, I'm calling this one done.
thanks so much! I totally forgot about this, as I was working on something else.
I just got a 3d printer, so ill give it a whirl!
thanks again
