Halo warthog build (power wheels)
- Thread starter mysticmakings
- Start date
mysticmakings
Member
Re: Halo warthog Mini build

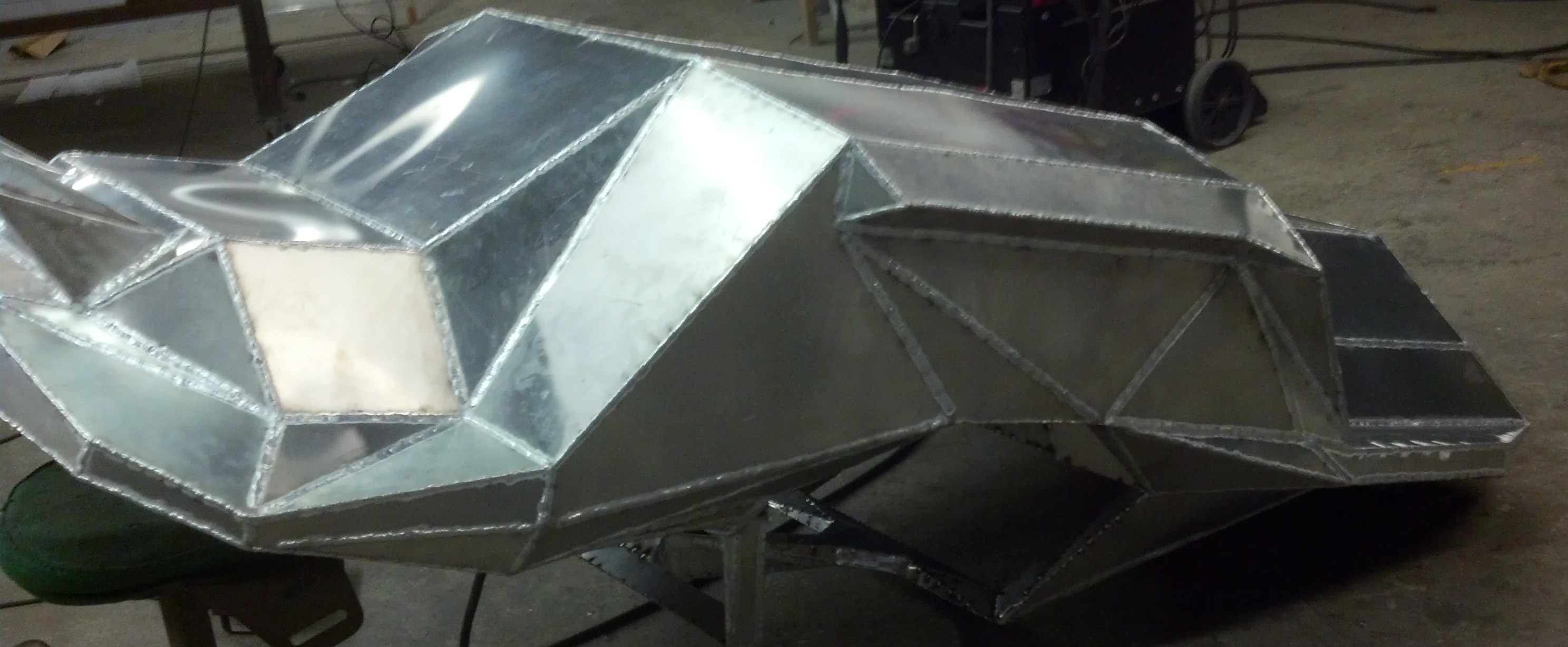

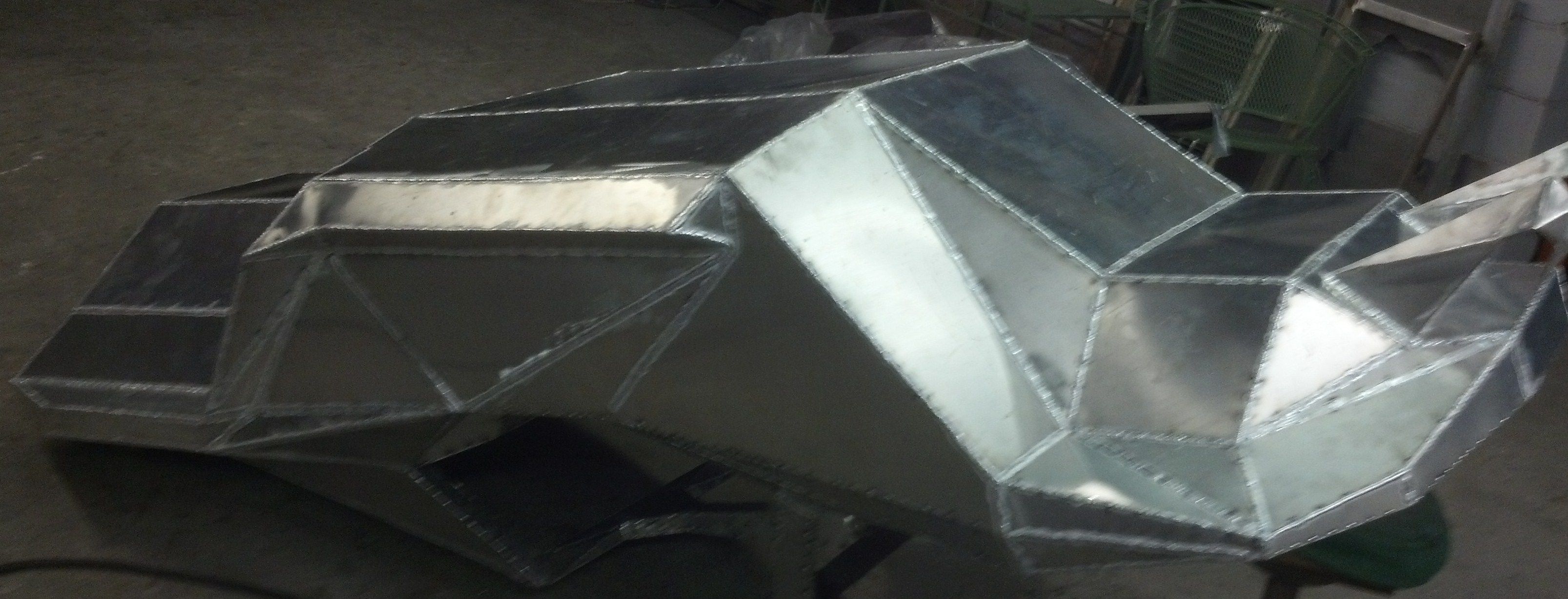

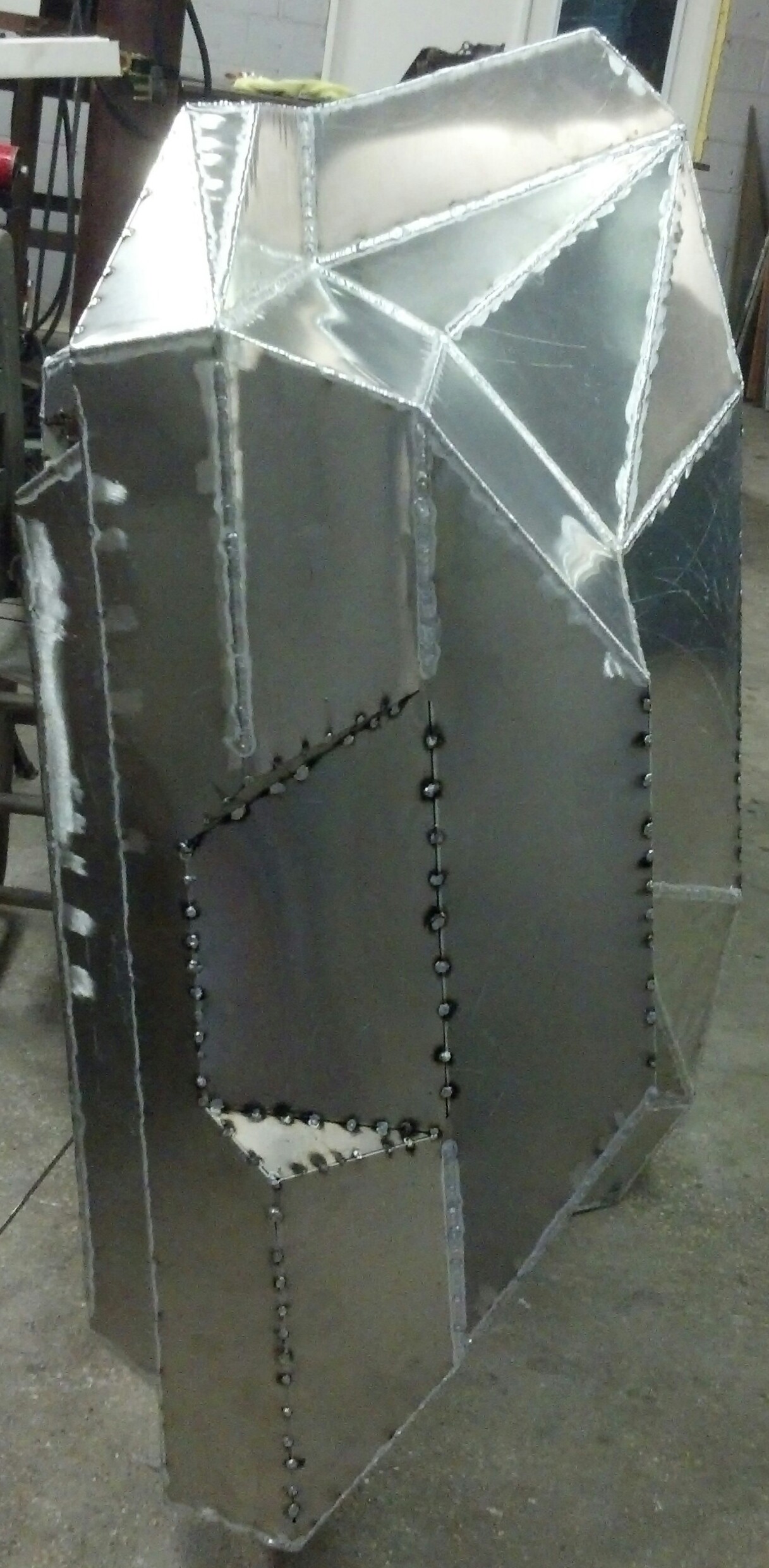

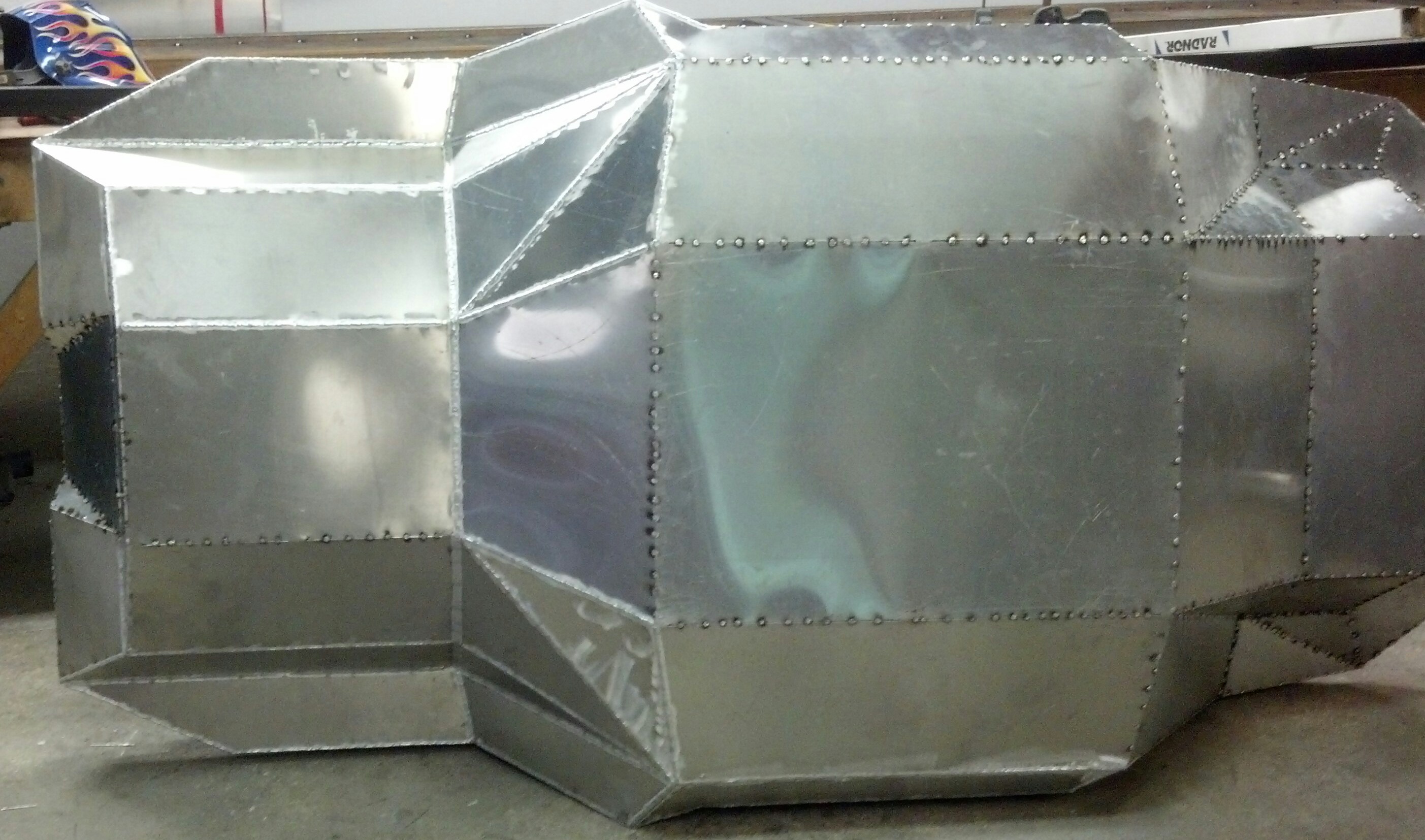

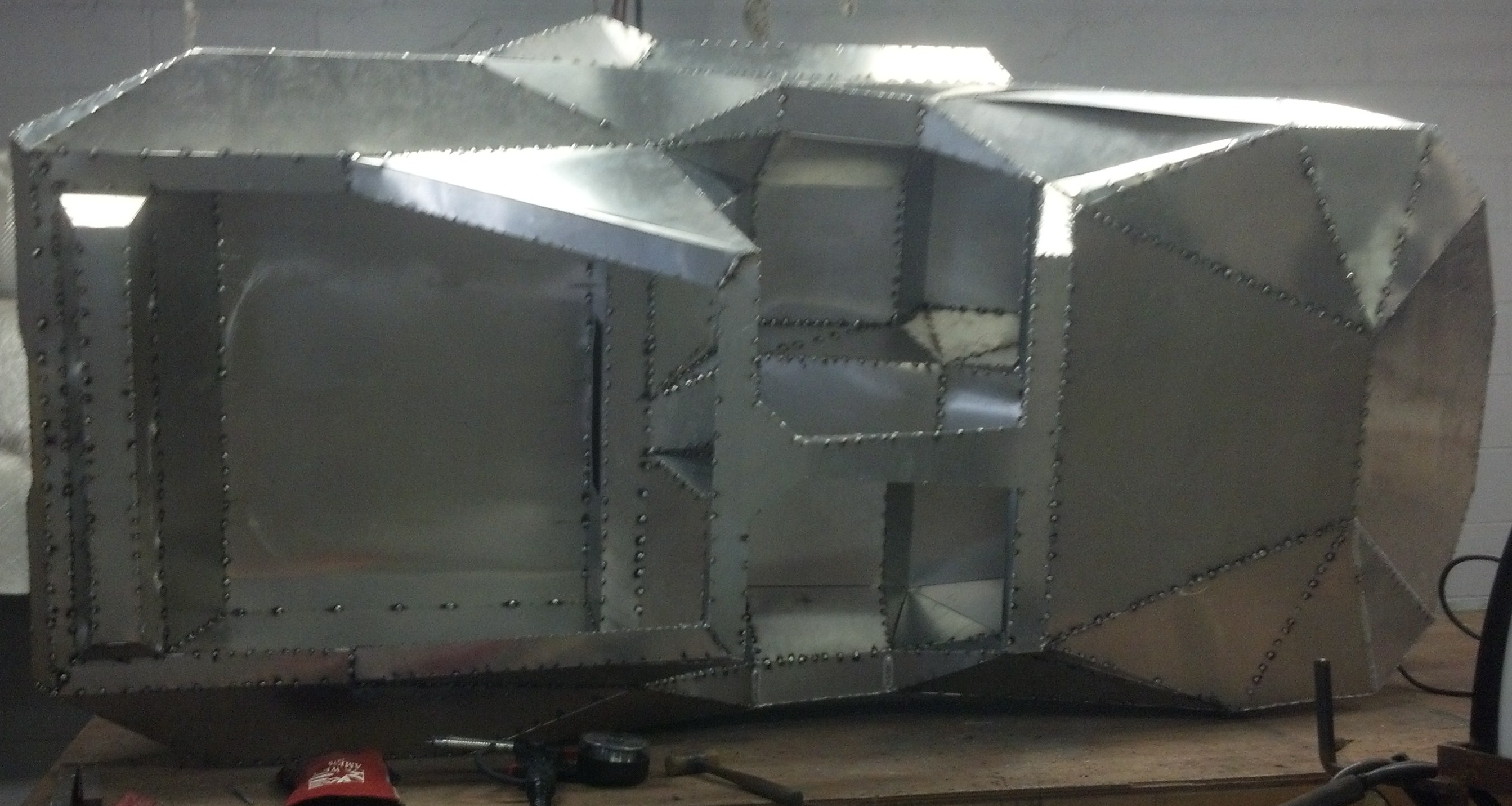

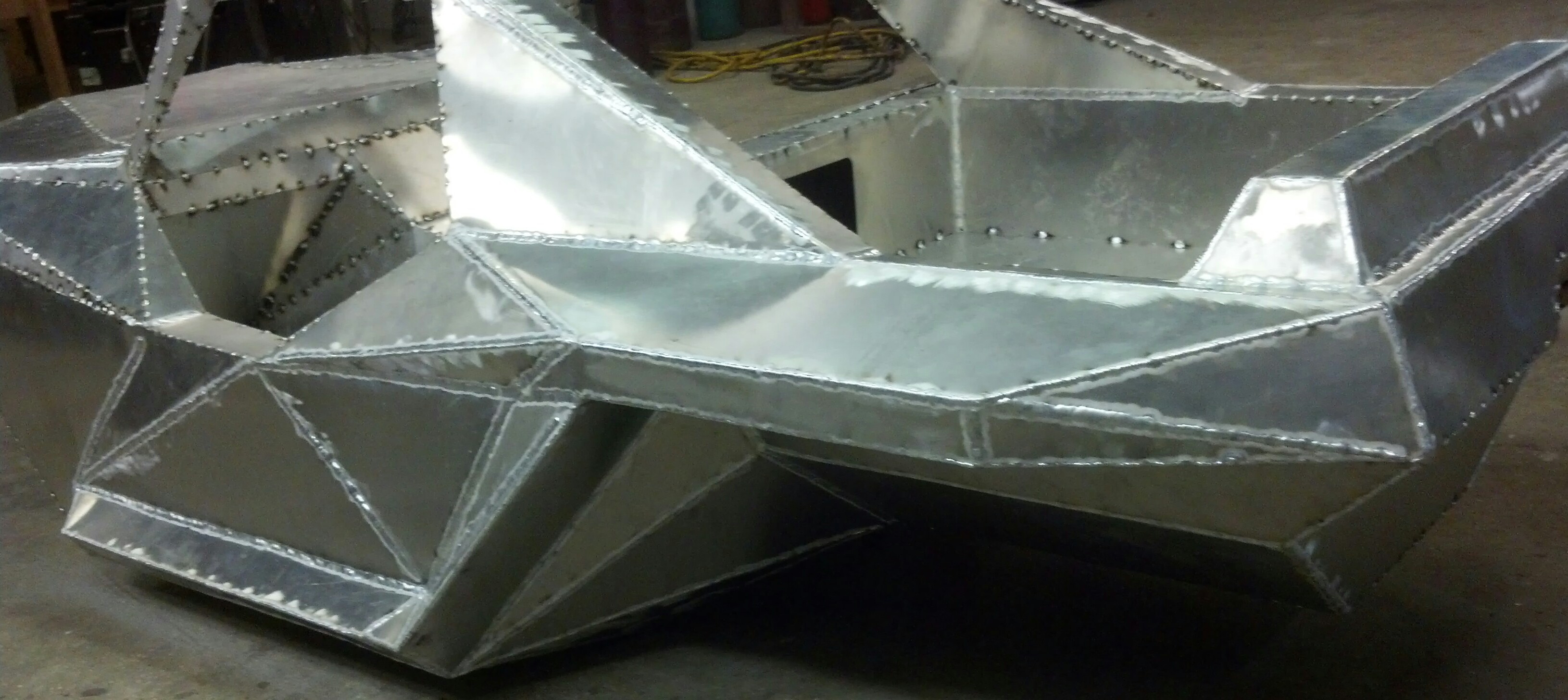

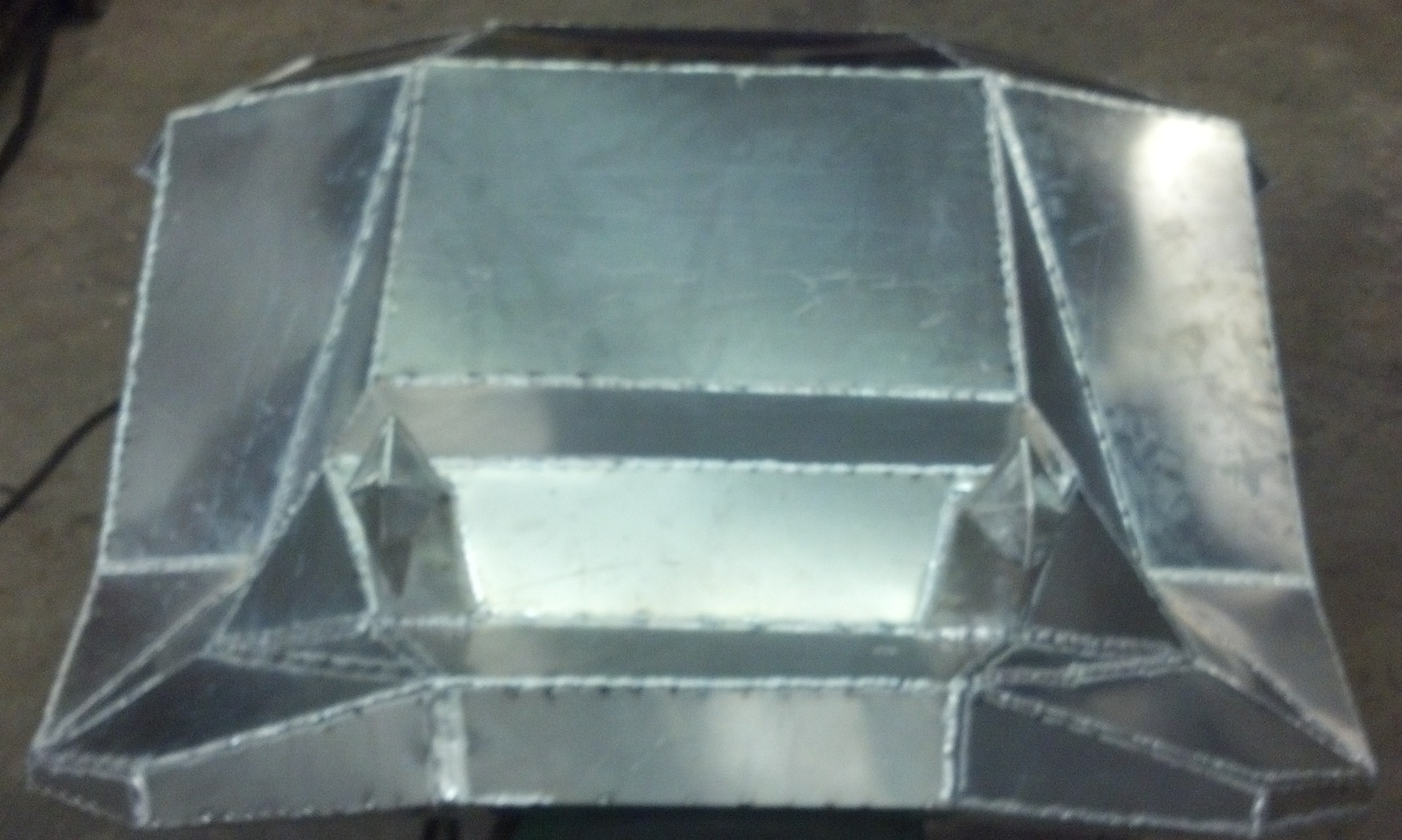

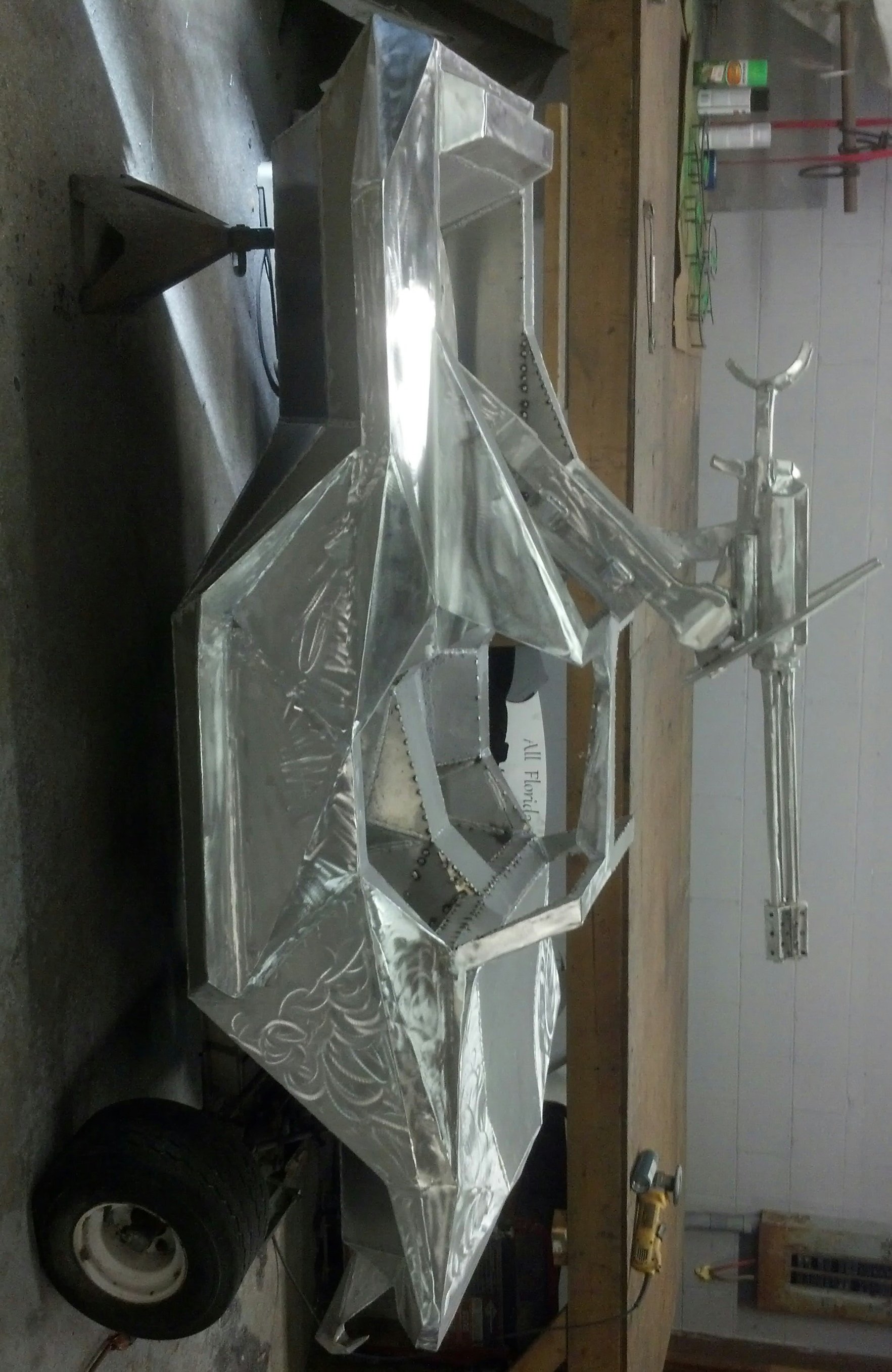

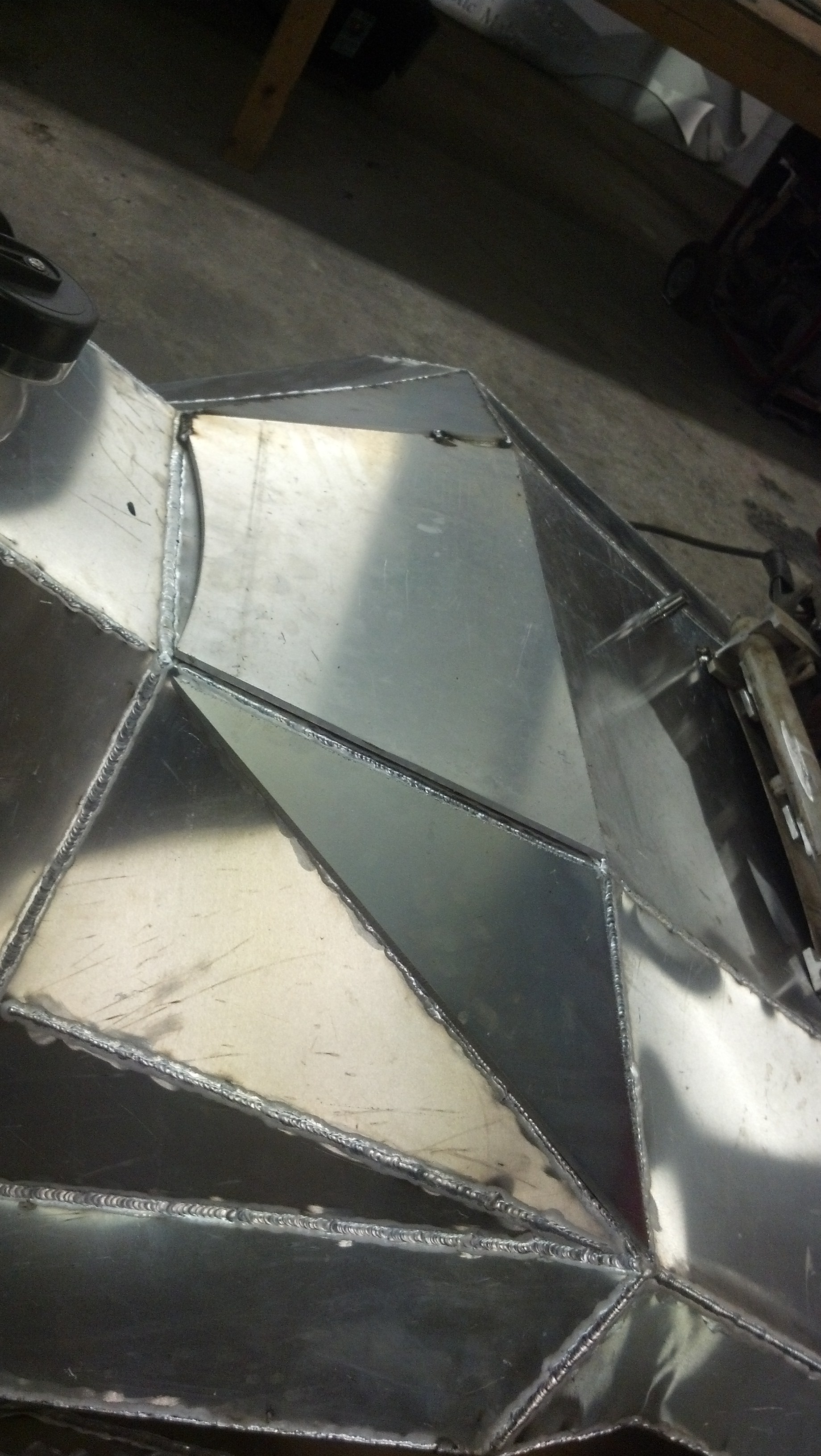

i got the bottom, sides, front and back welded up today. all is left is the cockpit
- - - Updated - - -
i got the bottom, sides, front and back welded up today. all is left is the cockpit
- - - Updated - - -
mysticmakings
Member
Re: Halo warthog Mini build

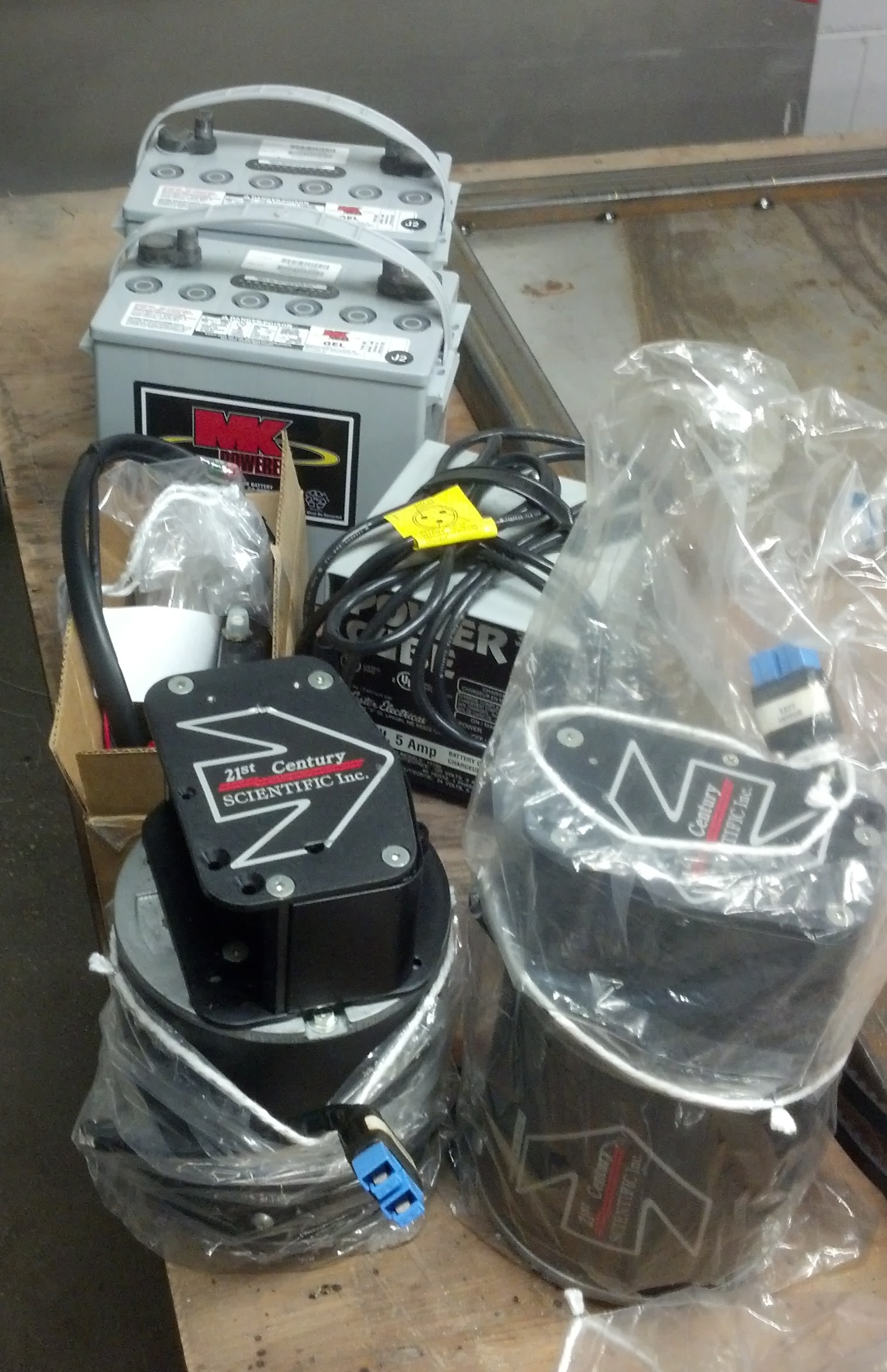

christmas came early. motors, charger, and batteries!!
christmas came early. motors, charger, and batteries!!Re: Halo warthog Mini build
going by the quality of work you are doing you are a engineer of some sort, that is one very nice piece of engineering and are looking forward to the completion of it.
did you laser cut the parts out or cut by hand. it is very tidy.
Pedronz
going by the quality of work you are doing you are a engineer of some sort, that is one very nice piece of engineering and are looking forward to the completion of it.
did you laser cut the parts out or cut by hand. it is very tidy.
Pedronz
mysticmakings
Member
Re: Halo warthog Mini build
Those are some very nice comment, thank you. I'm not an engineer I'm just a welder fabricator with ideas. I have built mud buggies and rock crawlers. Building this is ALL trial and error. The cutter is plasma, not as nice as laser. Draus or slag has been my enemy on this build. THANKS AGAIN!!
Those are some very nice comment, thank you. I'm not an engineer I'm just a welder fabricator with ideas. I have built mud buggies and rock crawlers. Building this is ALL trial and error. The cutter is plasma, not as nice as laser. Draus or slag has been my enemy on this build. THANKS AGAIN!!
mysticmakings
Member
Re: Halo warthog Mini build

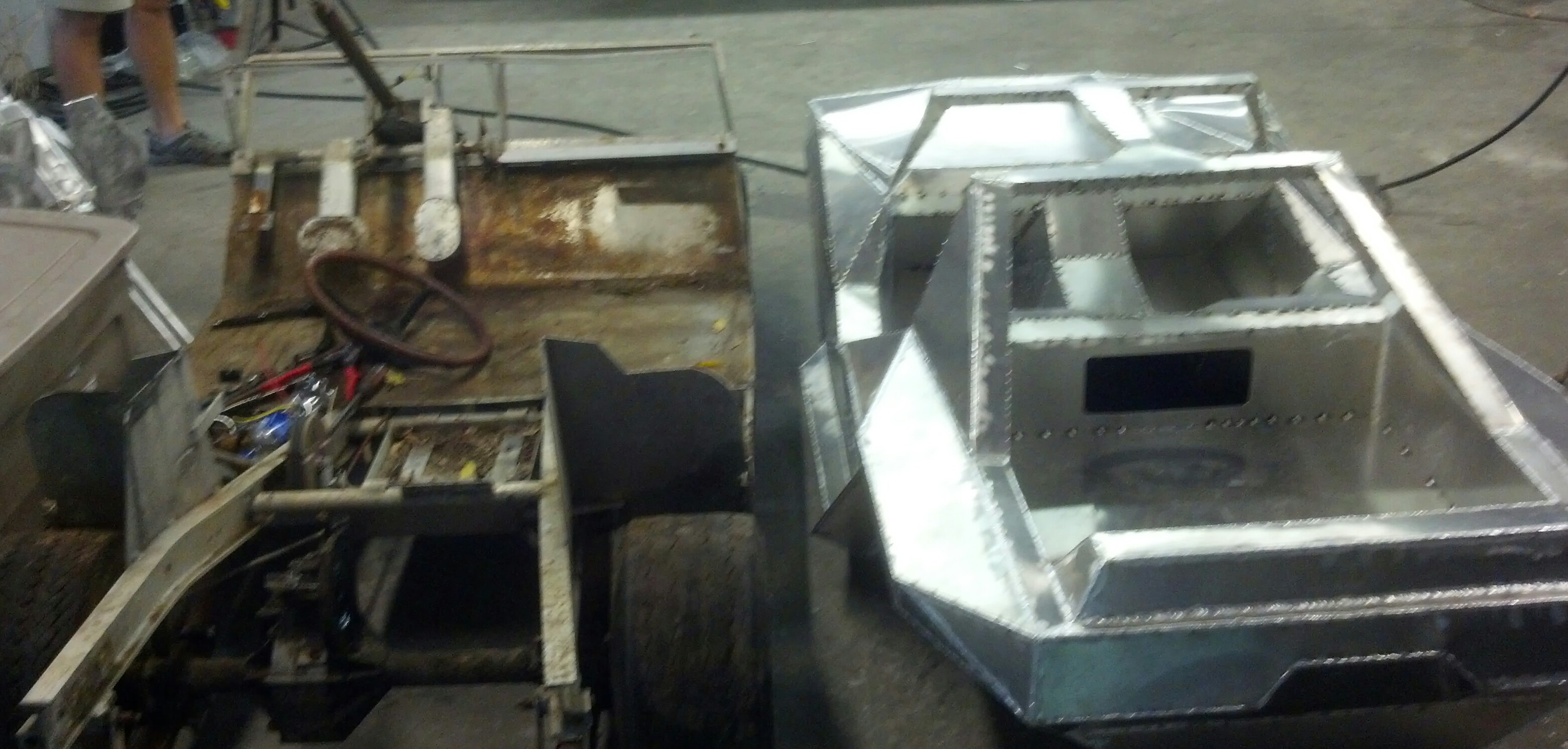

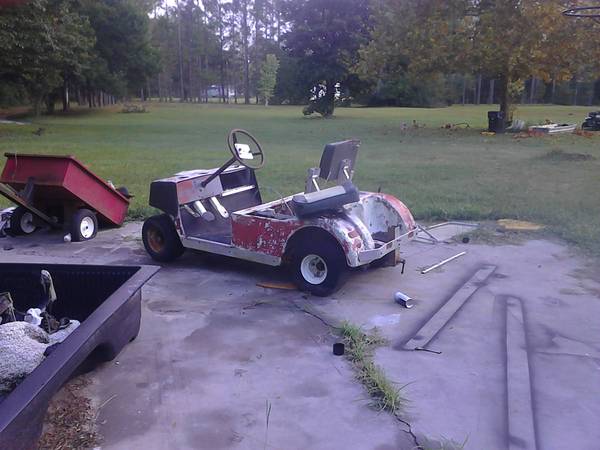

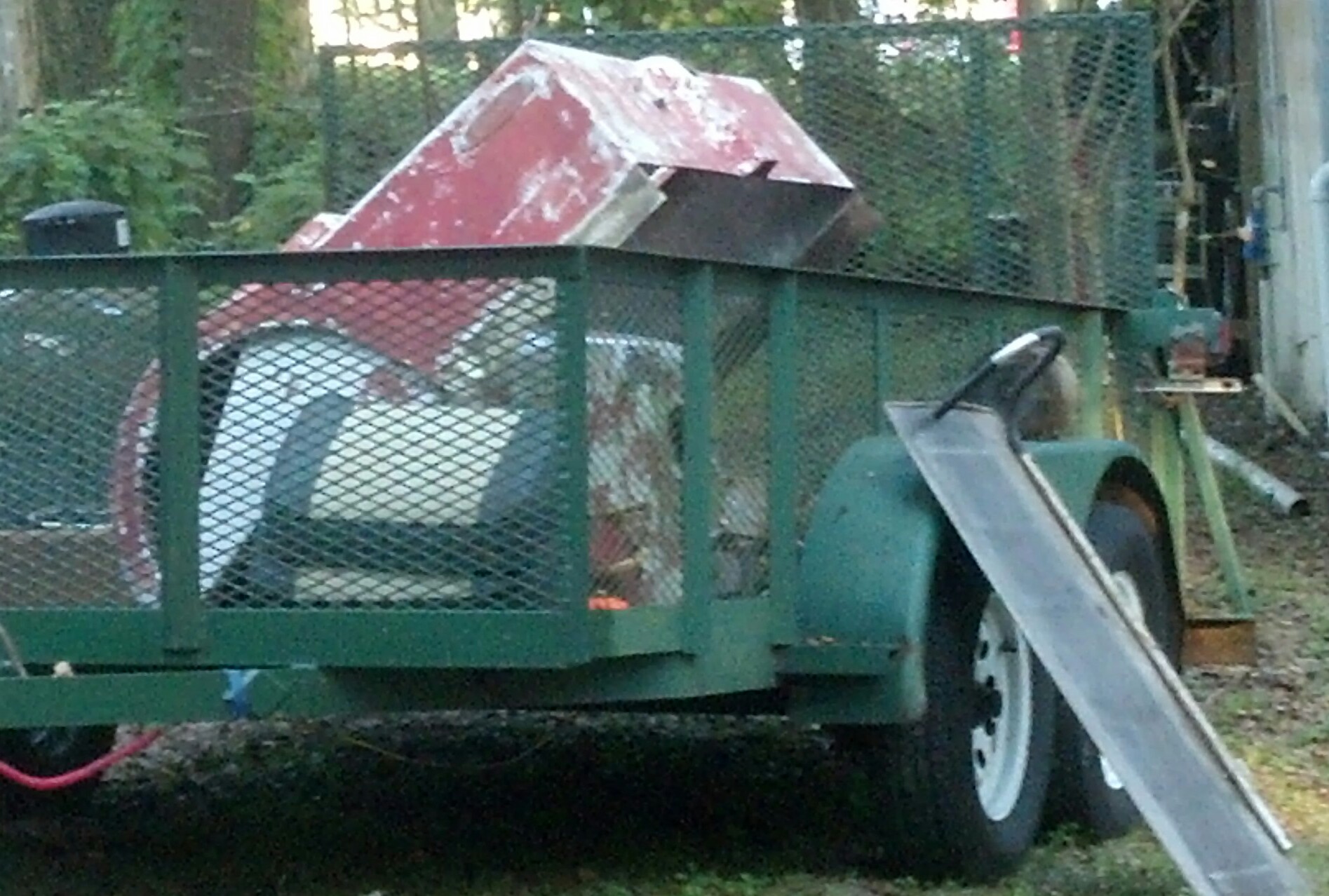

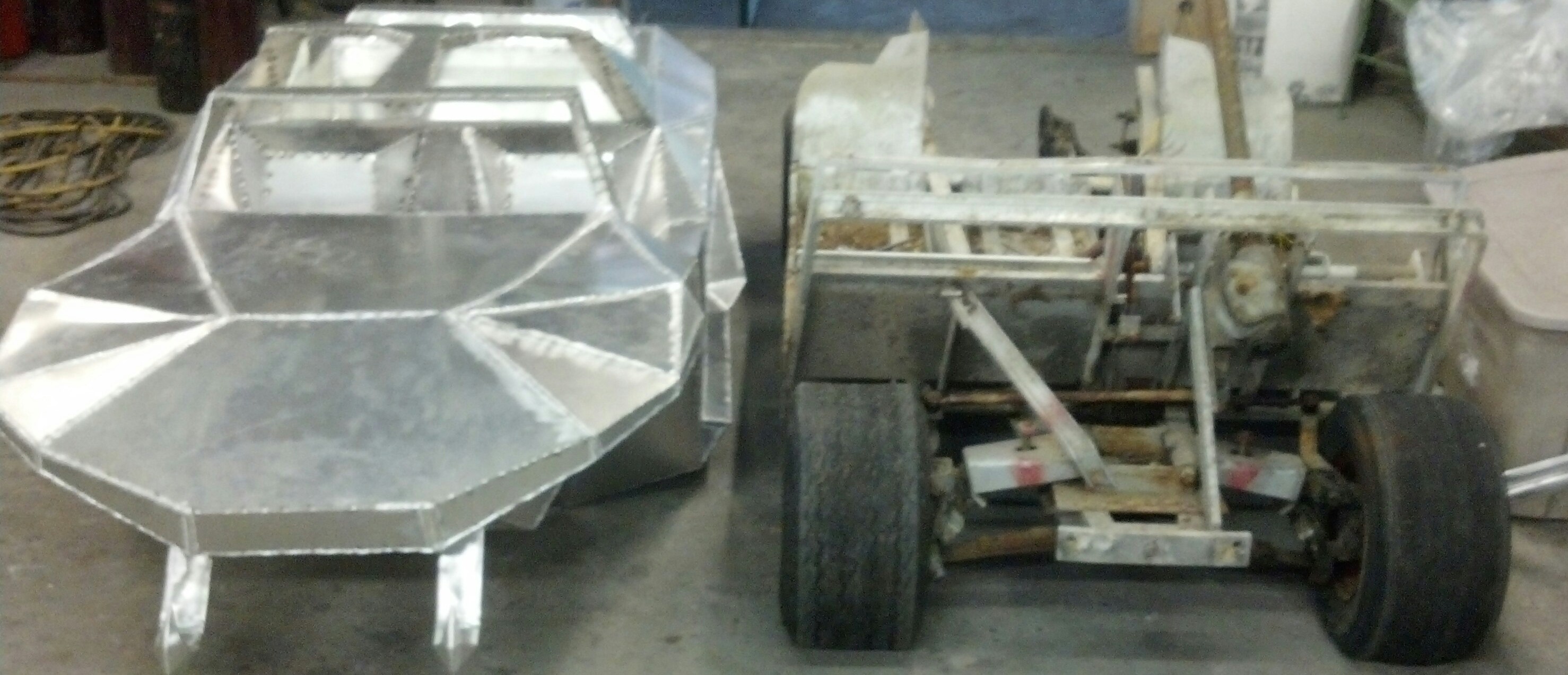

Well I found a donor for my drive train:devil Chopping it up and getting things ready to go together.
Well I found a donor for my drive train:devil Chopping it up and getting things ready to go together.
mysticmakings
Member
Re: Halo warthog Mini build

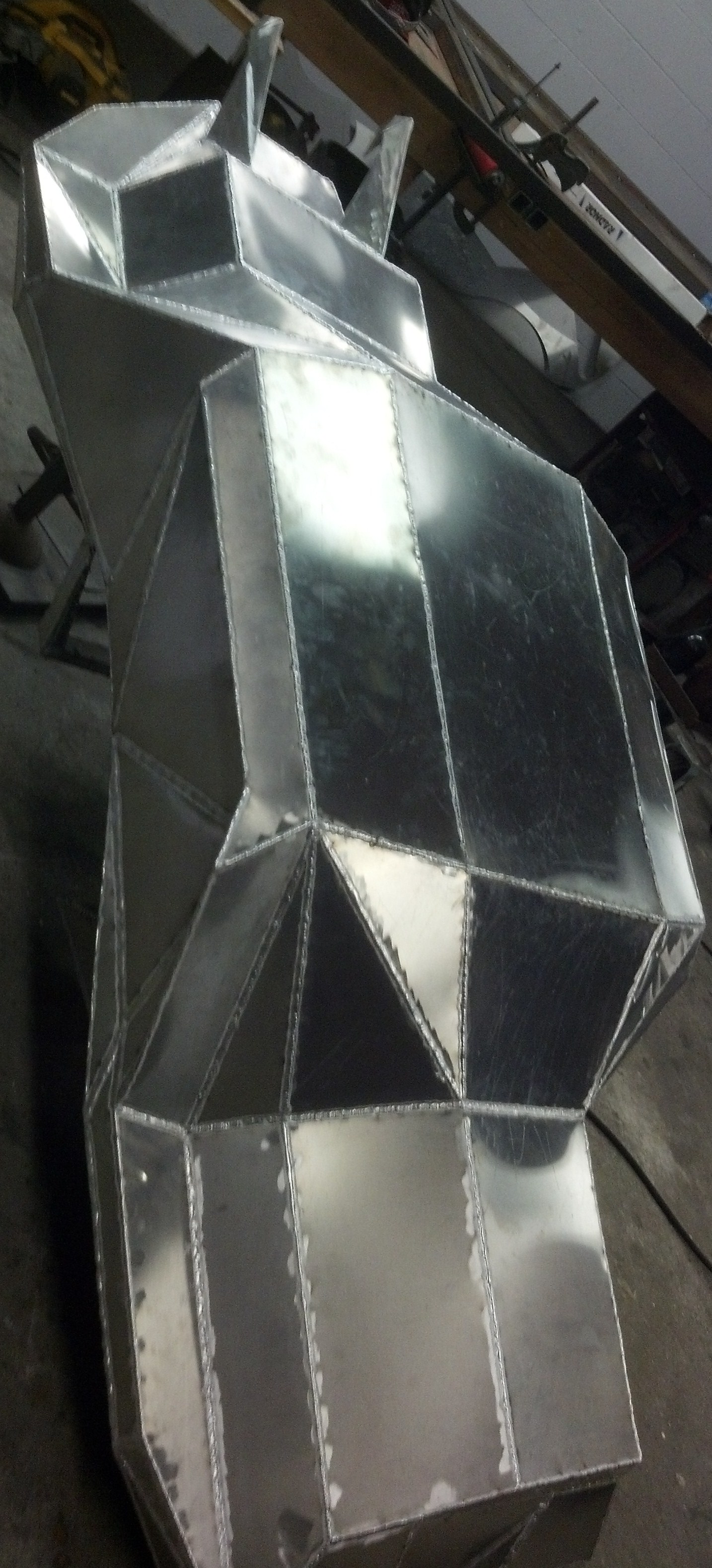

still much to be done...:facepalm
still much to be done...:facepalm
Last edited:
metal wood
Well-Known Member
Re: Halo warthog Mini build
think the drive train in that will do the warthog justice? still loving this build though, some beautiful welding!
think the drive train in that will do the warthog justice? still loving this build though, some beautiful welding!
Heroic Replicas
Active Member
Re: Halo warthog Mini build
Looks fantastic! Be sure to add as much safety gear as you can to this piglet. If the old jump videos are any indication, you can't have too much rollbar.
Looks fantastic! Be sure to add as much safety gear as you can to this piglet. If the old jump videos are any indication, you can't have too much rollbar.
mysticmakings
Member
Re: Halo warthog Mini build
- - - Updated - - -
I haven't gotten much done. Just some grinding and setting ride height. Pictures pretty soon
I think with 25" four wheeler tires will help. Thanks for the complements
- - - Updated - - -
I haven't gotten much done. Just some grinding and setting ride height. Pictures pretty soon
mysticmakings
Member
Re: Halo warthog Mini build

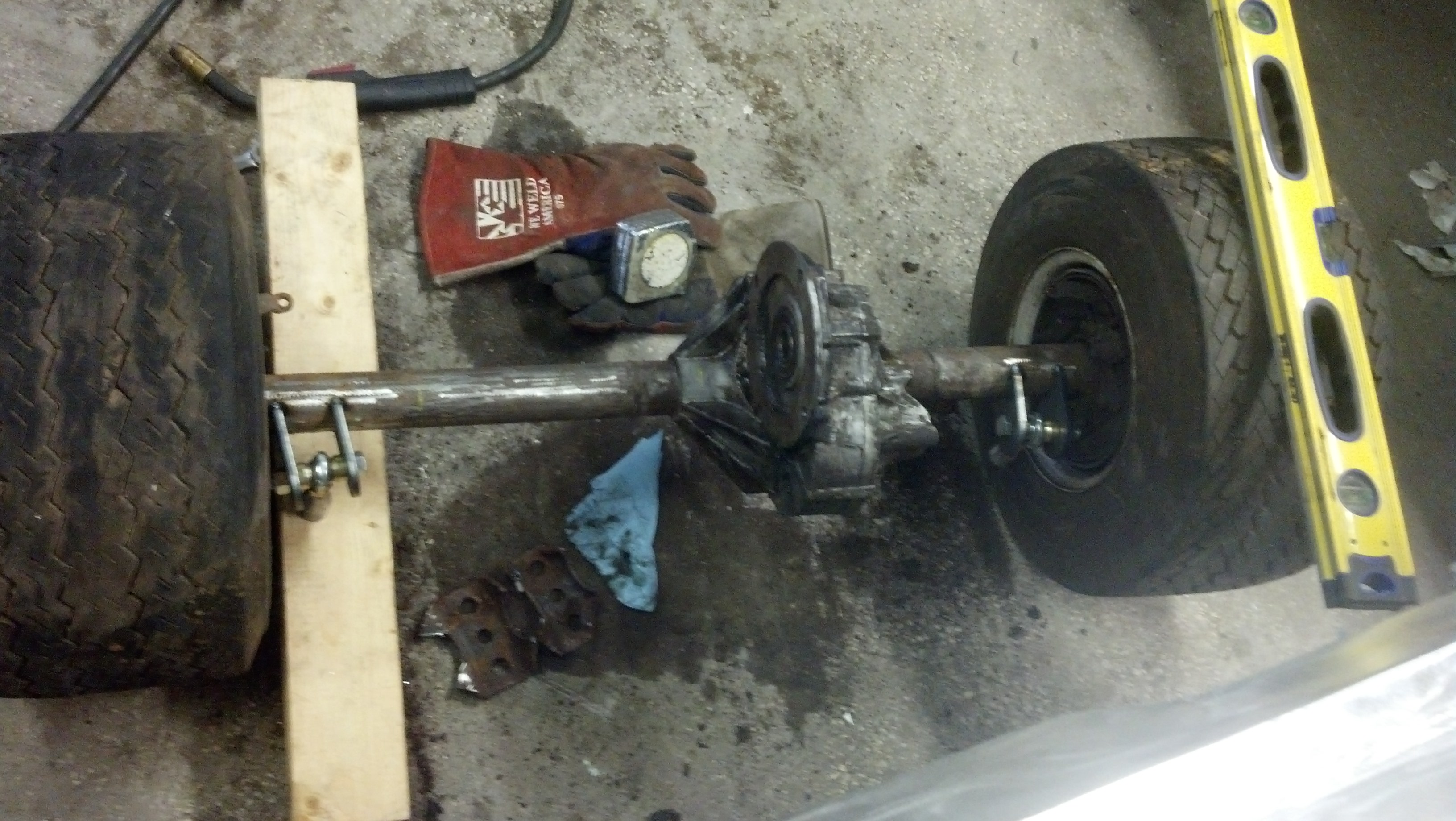

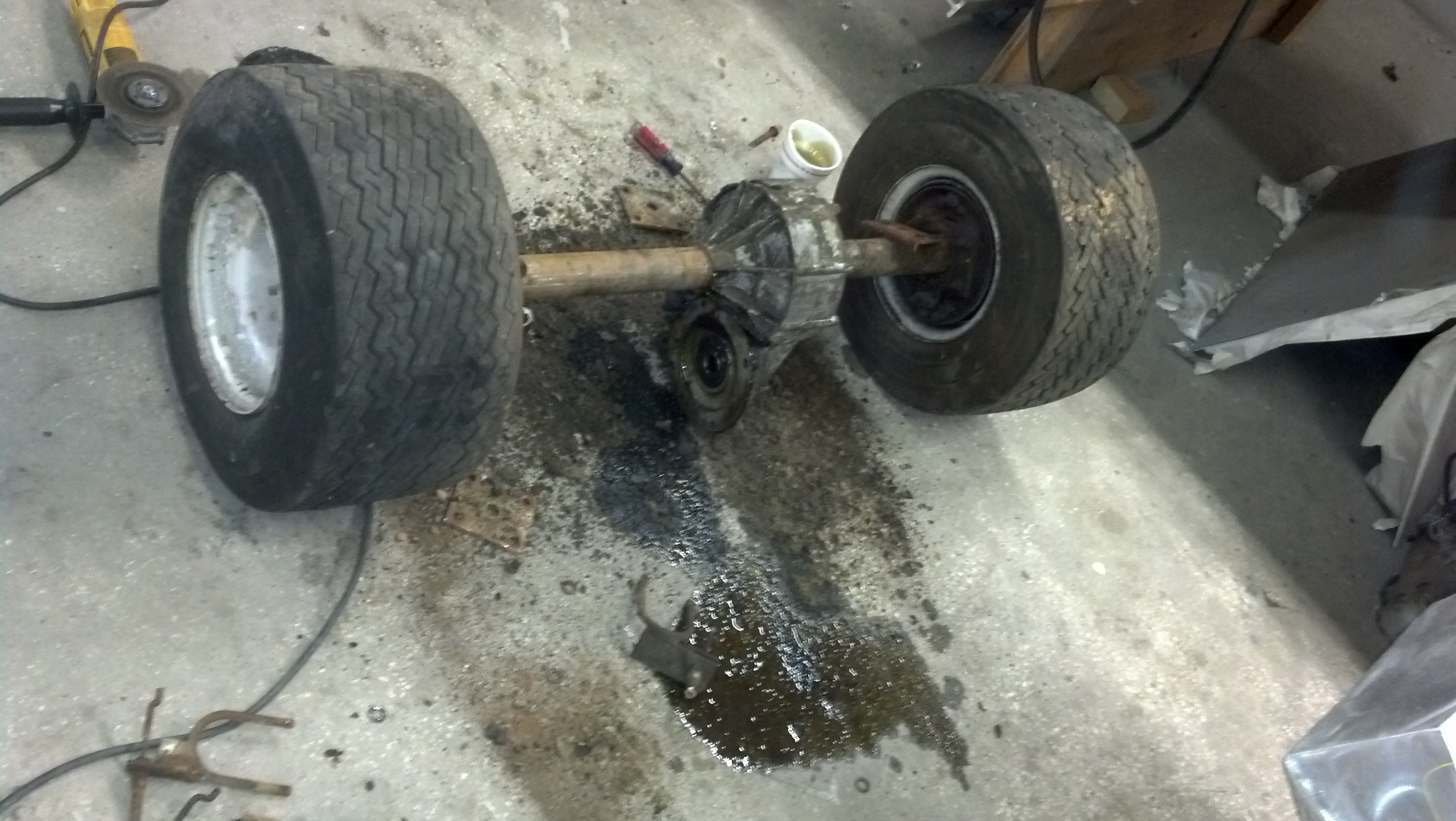

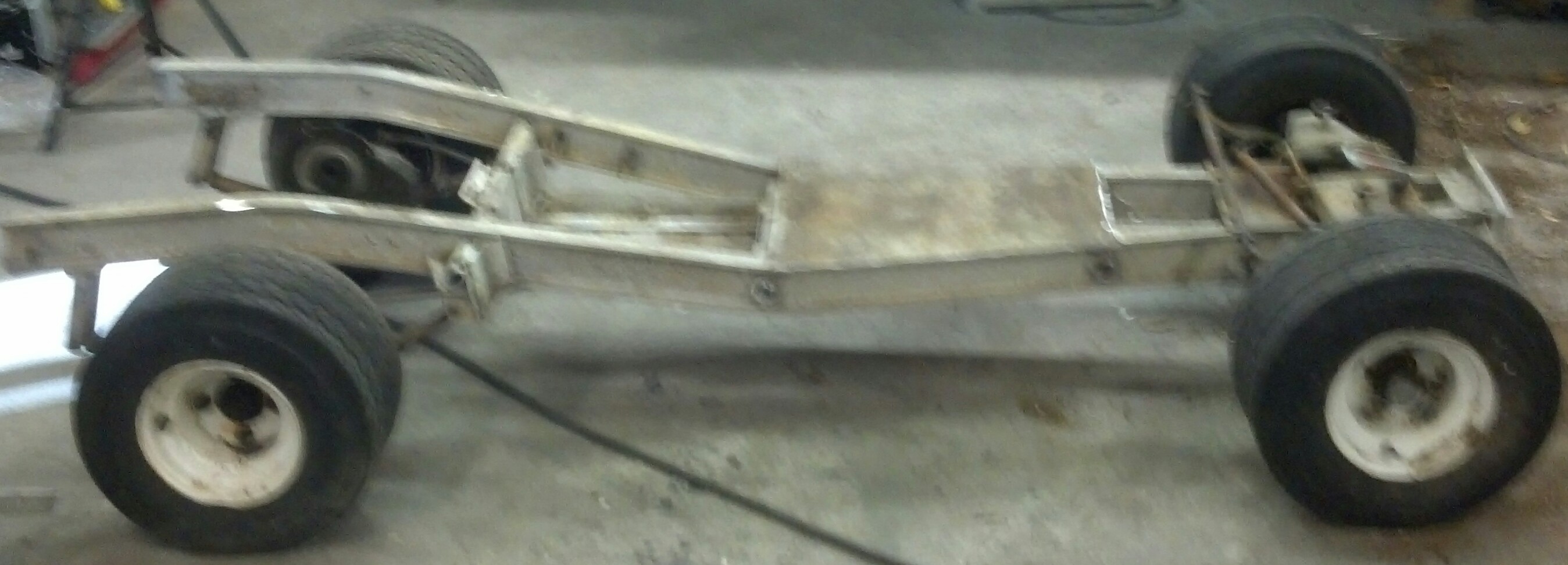

here is as far as I have gotten the axle was pretty dirty.
here is as far as I have gotten the axle was pretty dirty.
mysticmakings
Member
Re: Halo warthog Mini build

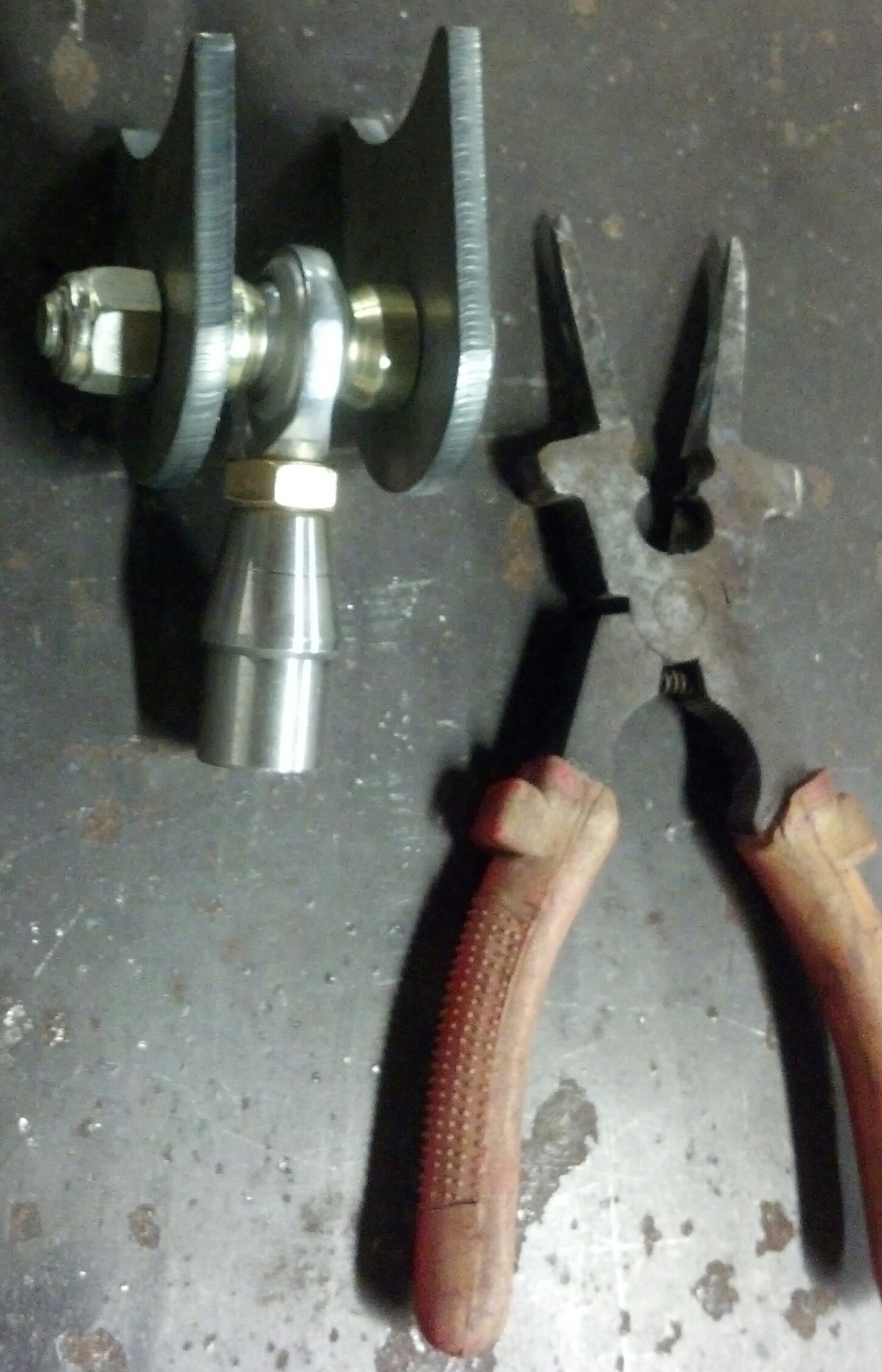

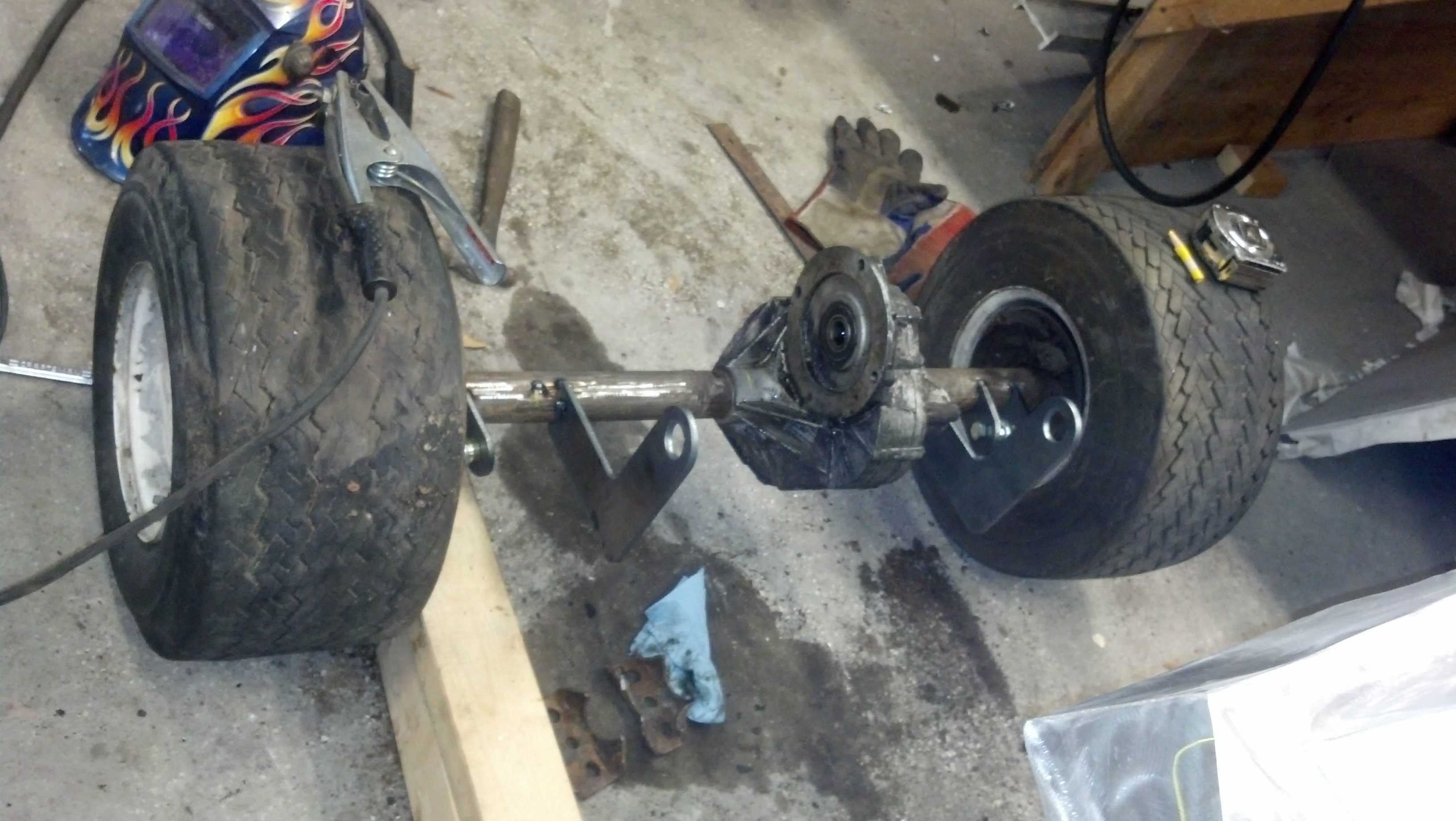

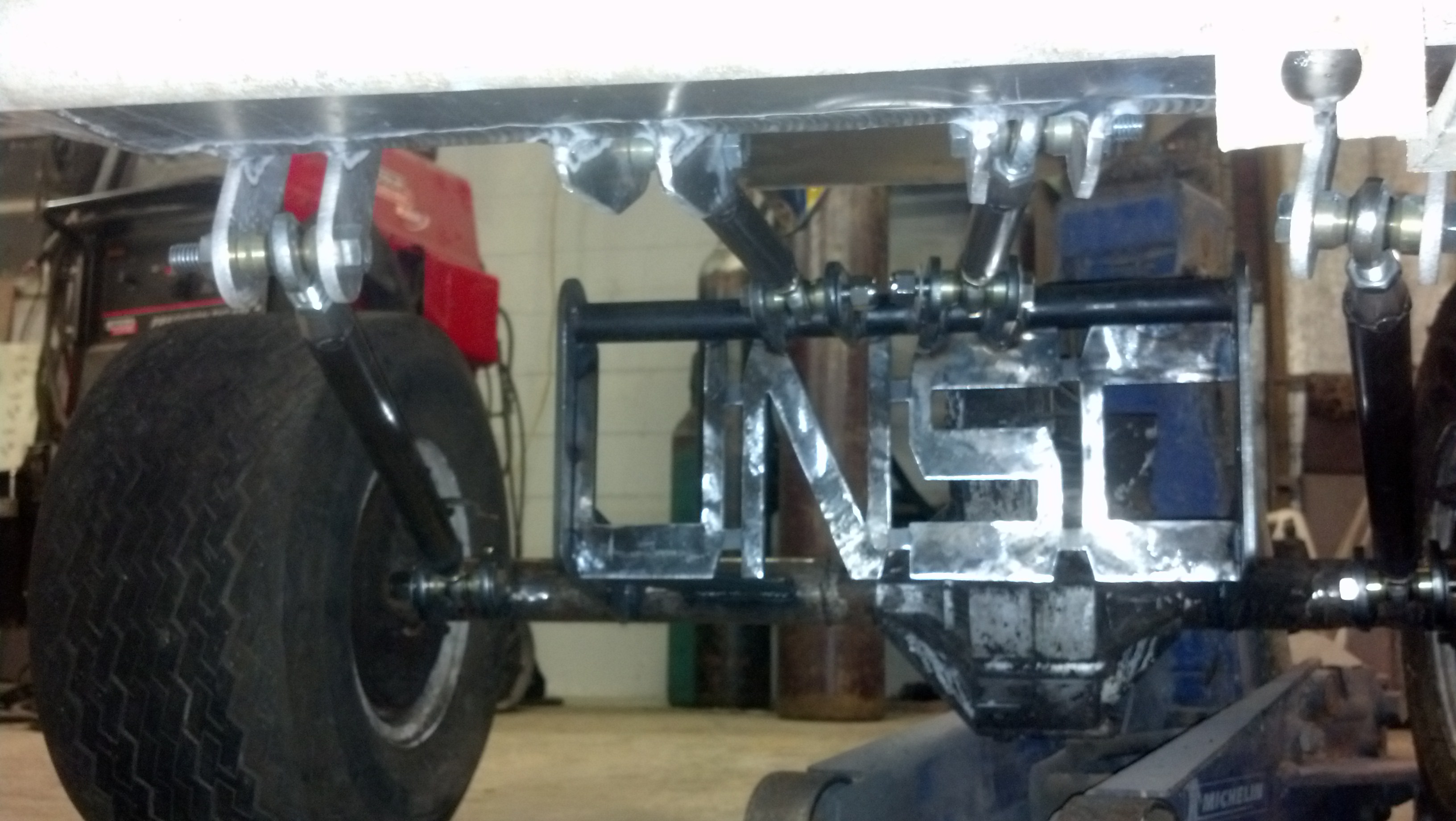

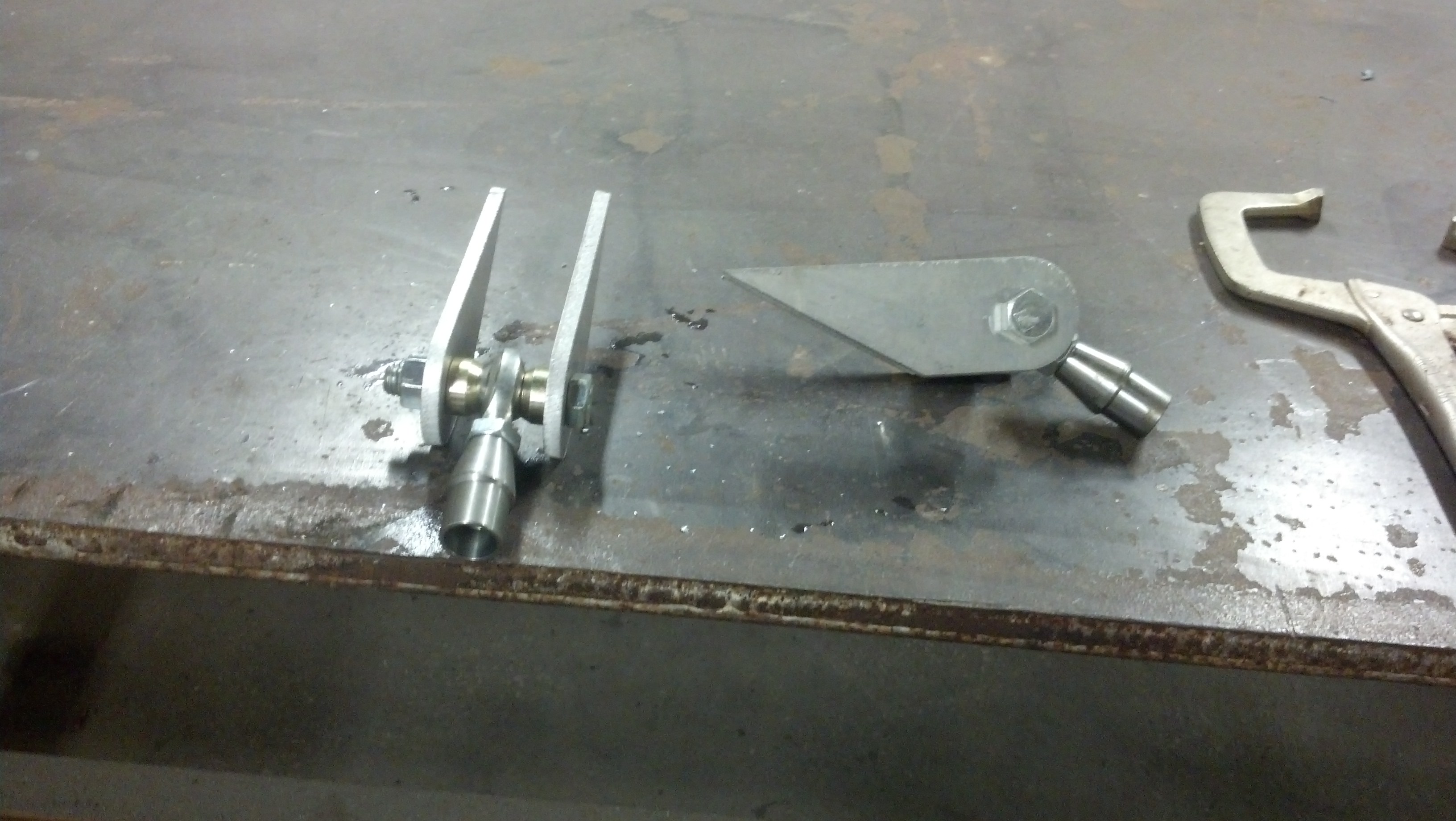

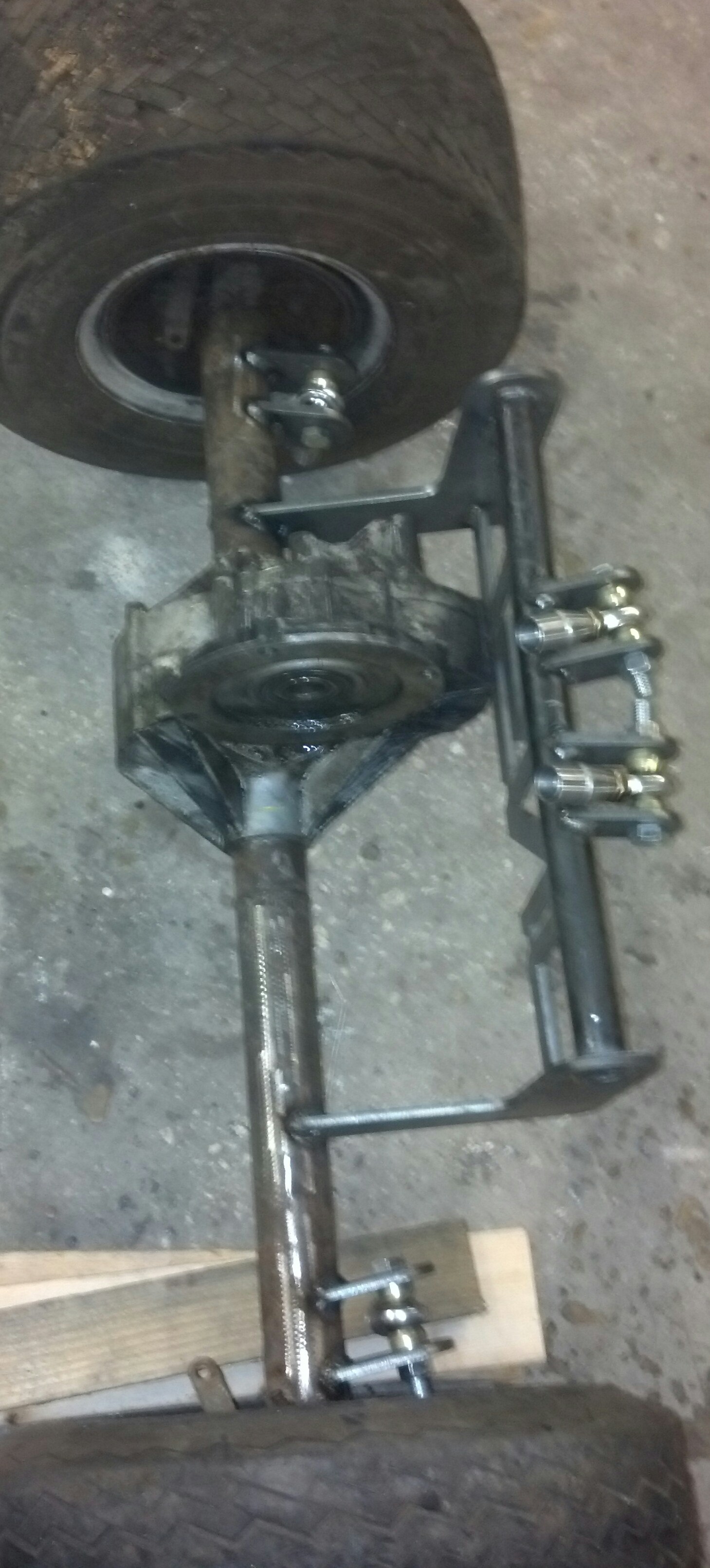

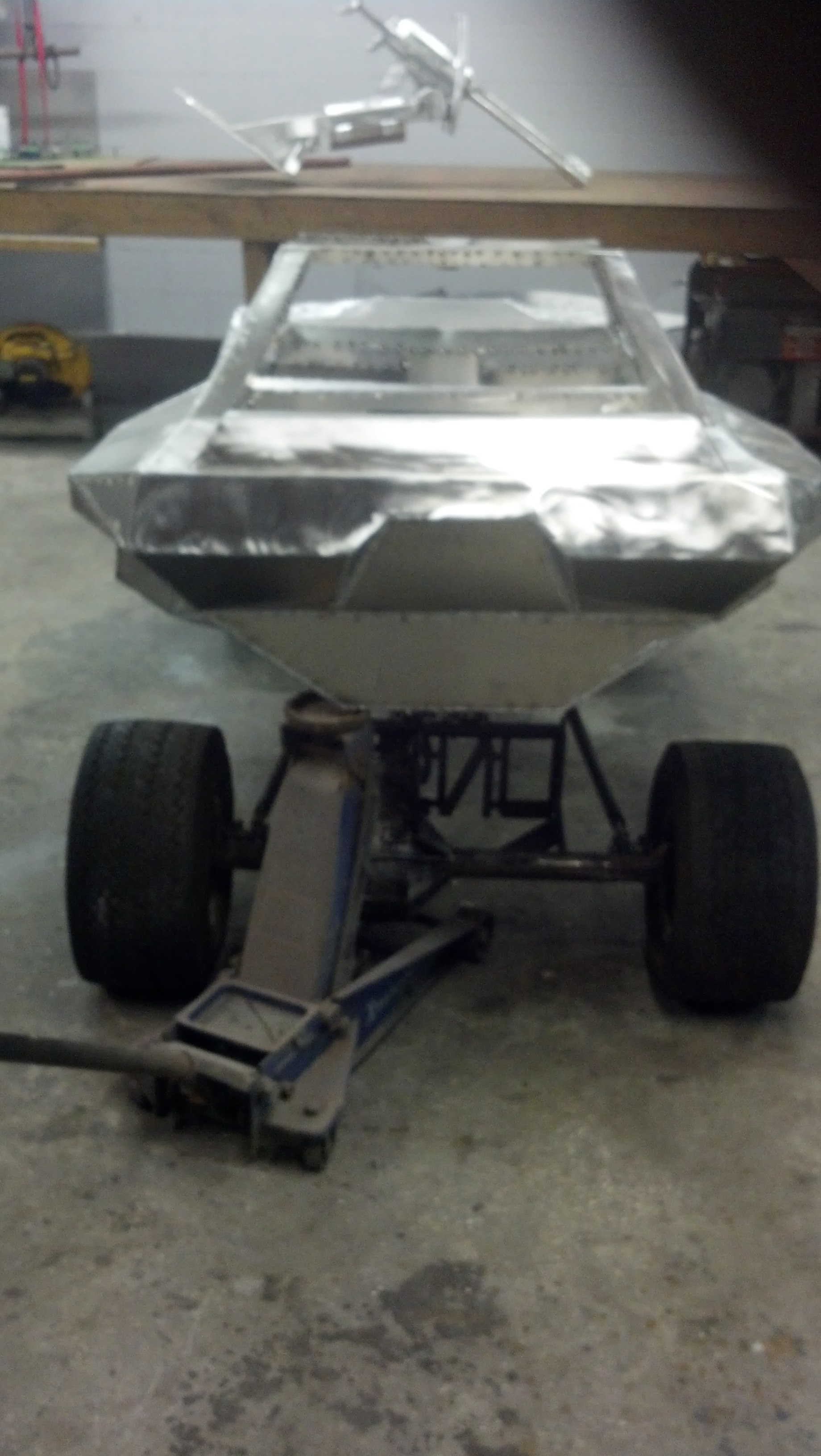

made some side four link brackets for the rear
cut off the spring perches and added the side link mounts
made a bracket to go around the motor and diff. to attach the center two mounts without interfering withe anything
rear axle ready to go.
the body is only 16ga aluminum so i had to make some plates out of 1/4" aluminum to attach my mounts to the body.
made some 1/4" aluminum body mounts and welded everything together.

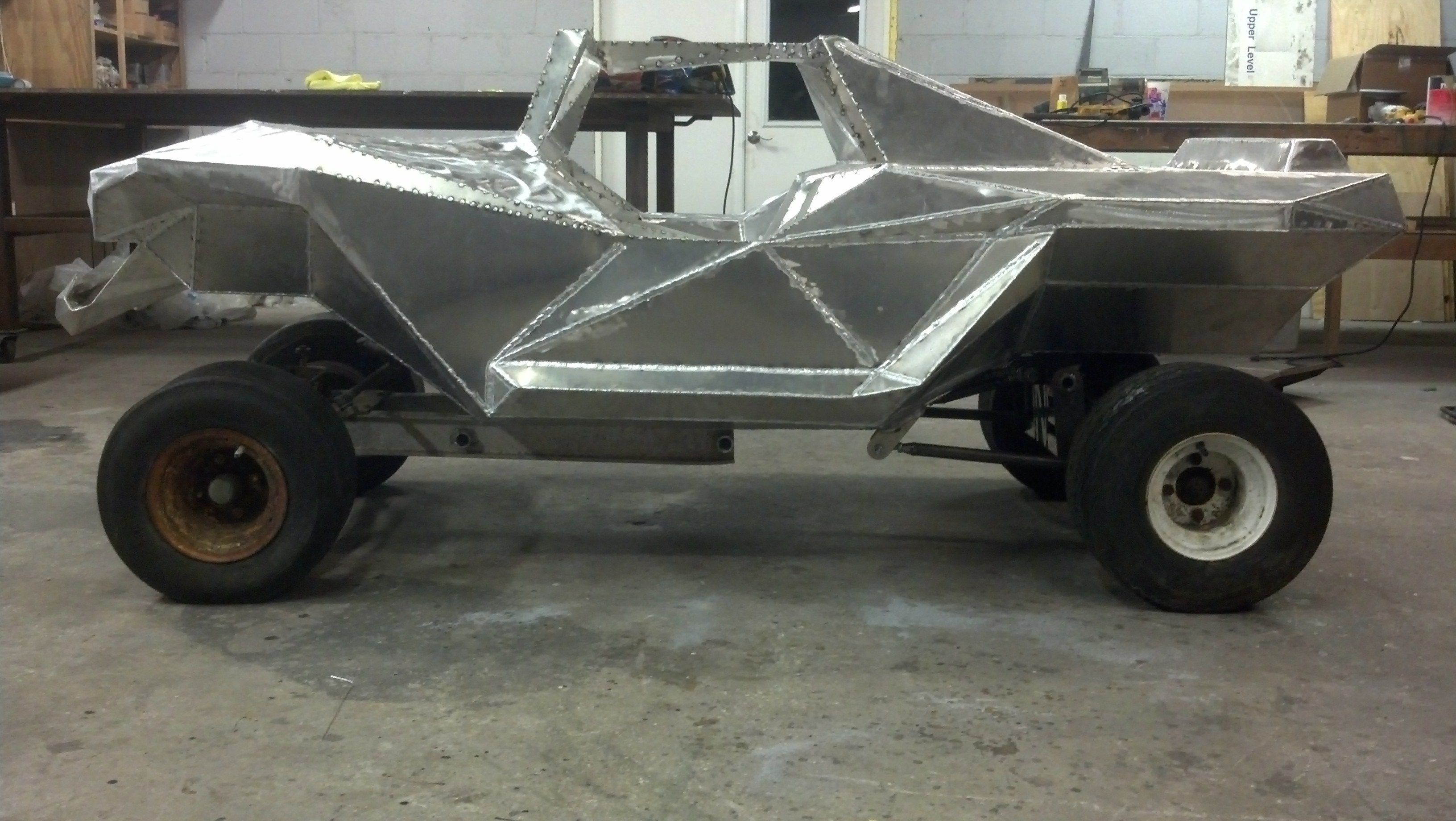

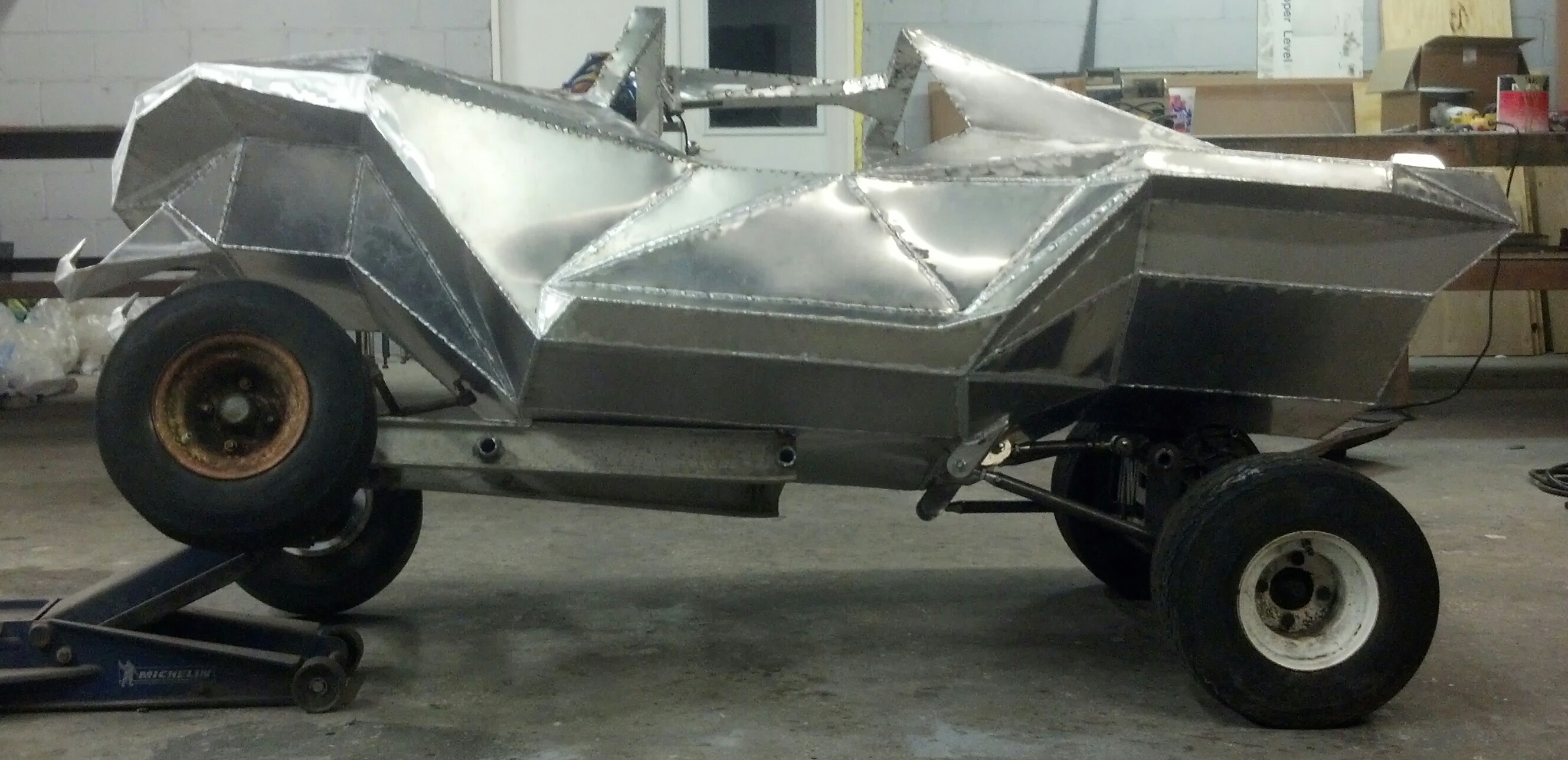

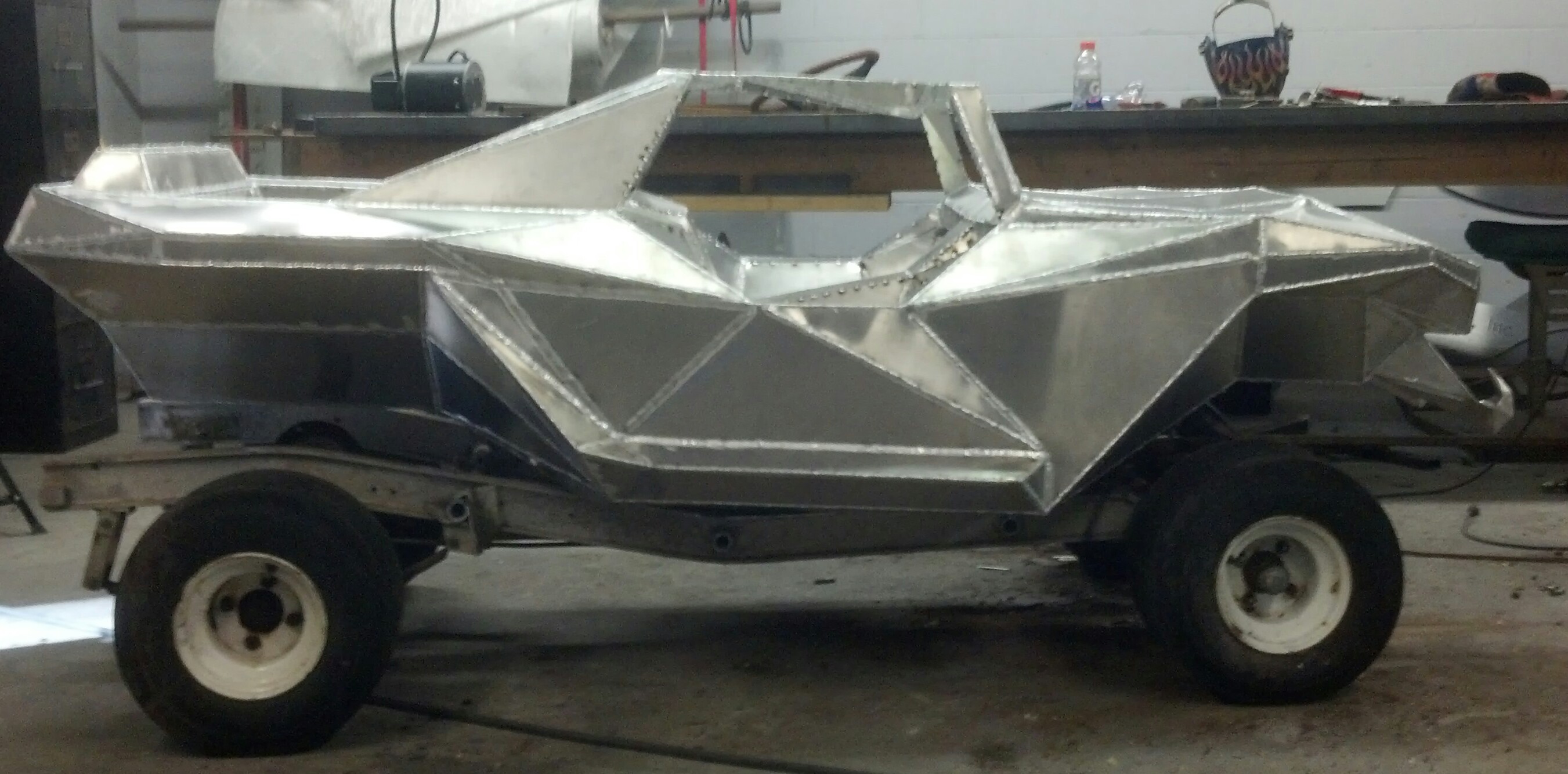

she sits pretty well with no shocks. It has great flex in the rear.
Just a little something i wanted to add to the under carrige. If you get run over by this beast then you will remember what hit you.
made some side four link brackets for the rearcut off the spring perches and added the side link mountsmade a bracket to go around the motor and diff. to attach the center two mounts without interfering withe anythingrear axle ready to go.the body is only 16ga aluminum so i had to make some plates out of 1/4" aluminum to attach my mounts to the body.made some 1/4" aluminum body mounts and welded everything together.she sits pretty well with no shocks. It has great flex in the rear.Just a little something i wanted to add to the under carrige. If you get run over by this beast then you will remember what hit you.
mysticmakings
Member
Re: Halo warthog Mini build
Its about a third of the original size. What is small to you?
mysticmakings
Member
Re: Halo warthog Mini build

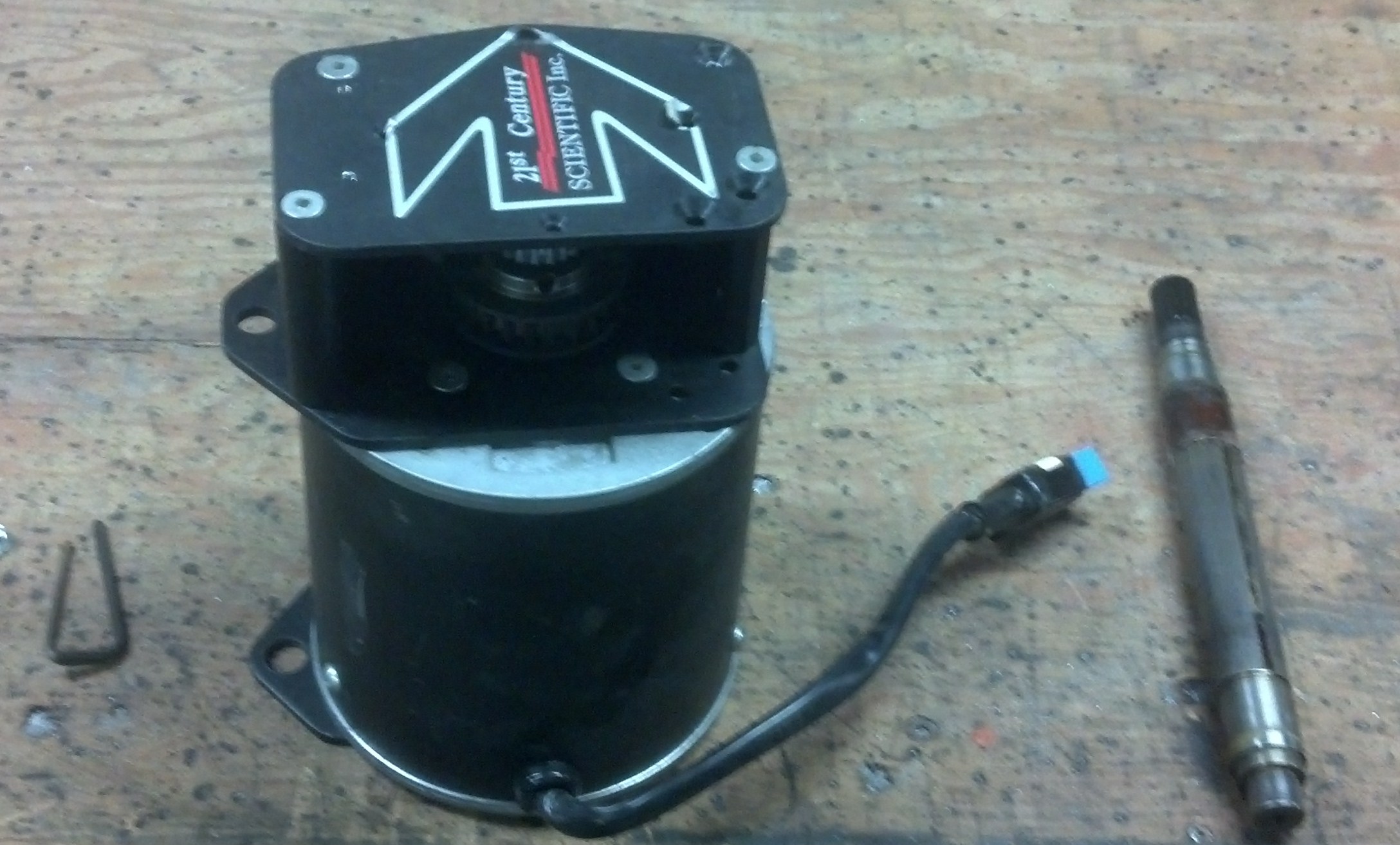

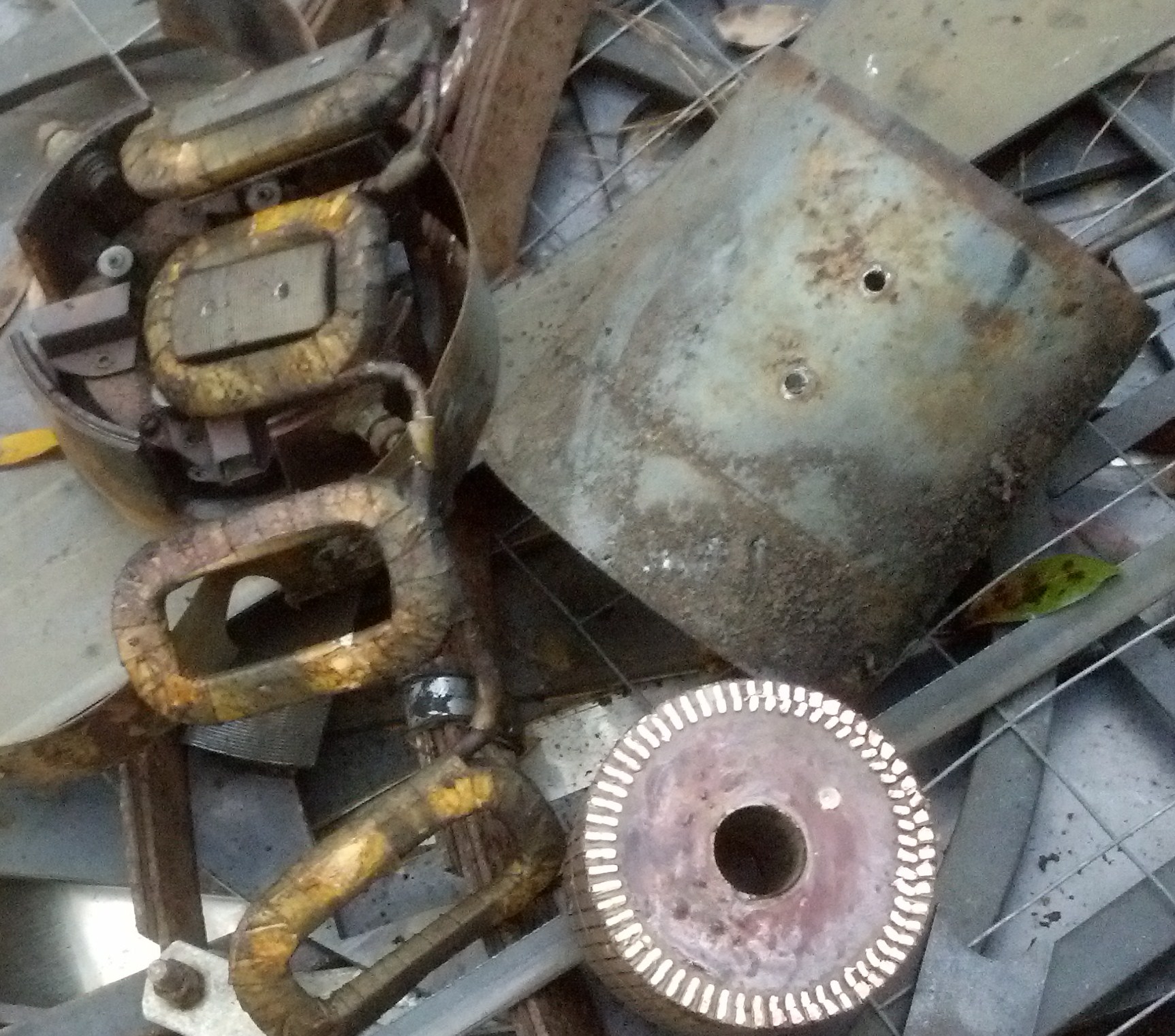

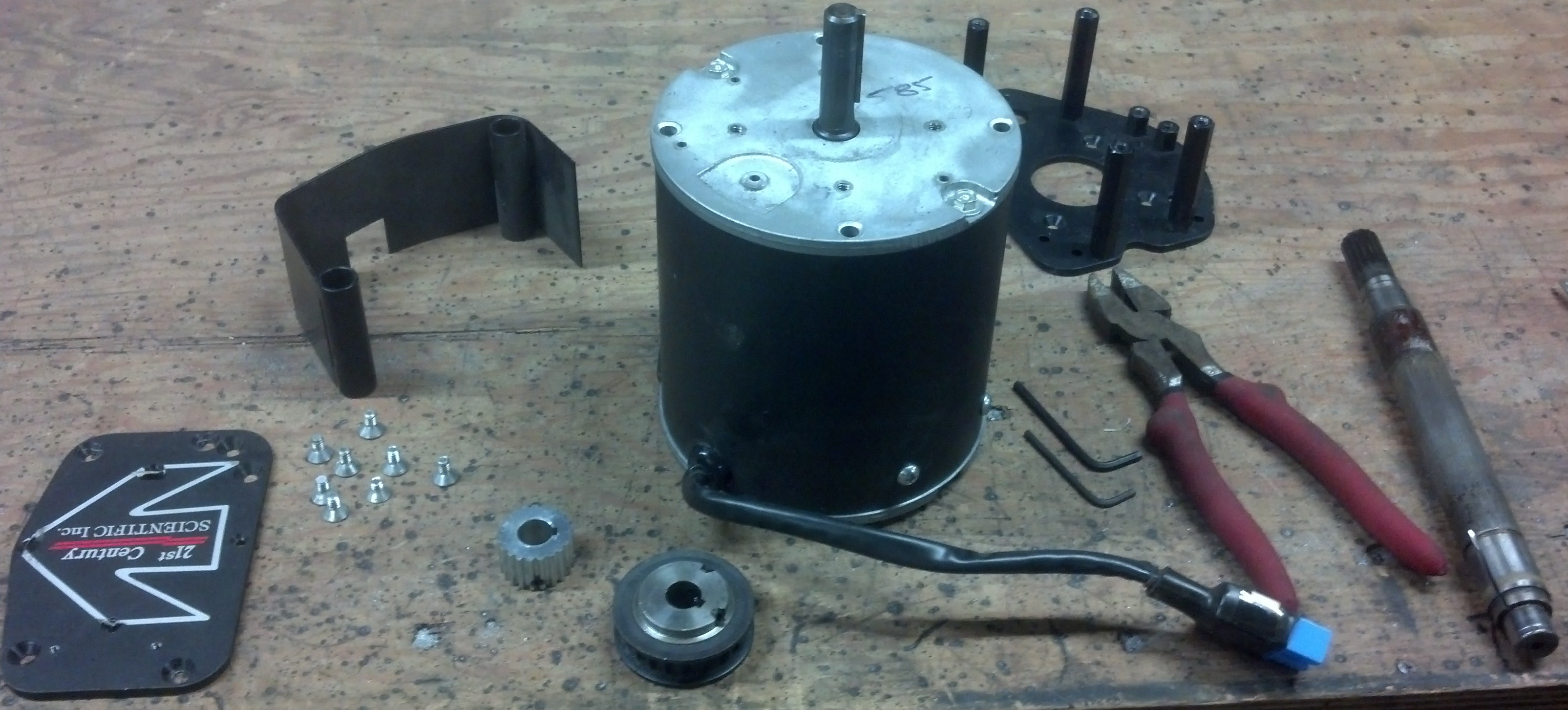

this is what is left of the original electric motor. I tore it all apart just for this

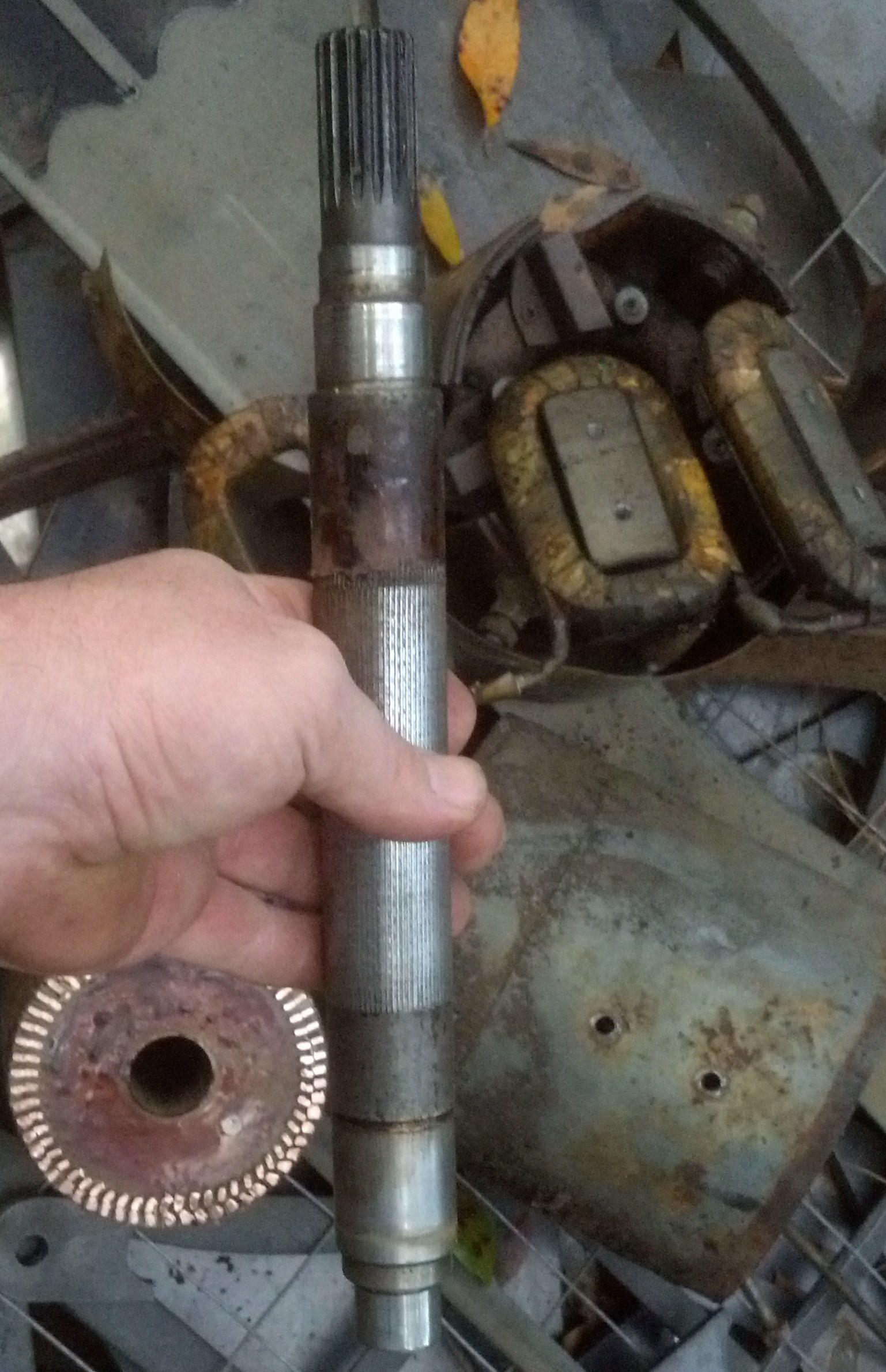

Now that I got the original shaft out I need to attach it to the new electric motor.
its a 24volt motor.
this is what is left of the original electric motor. I tore it all apart just for thisNow that I got the original shaft out I need to attach it to the new electric motor. its a 24volt motor.
mysticmakings
Member
Re: Halo warthog Mini build
mysticmakings
Member
Re: Halo warthog Mini build

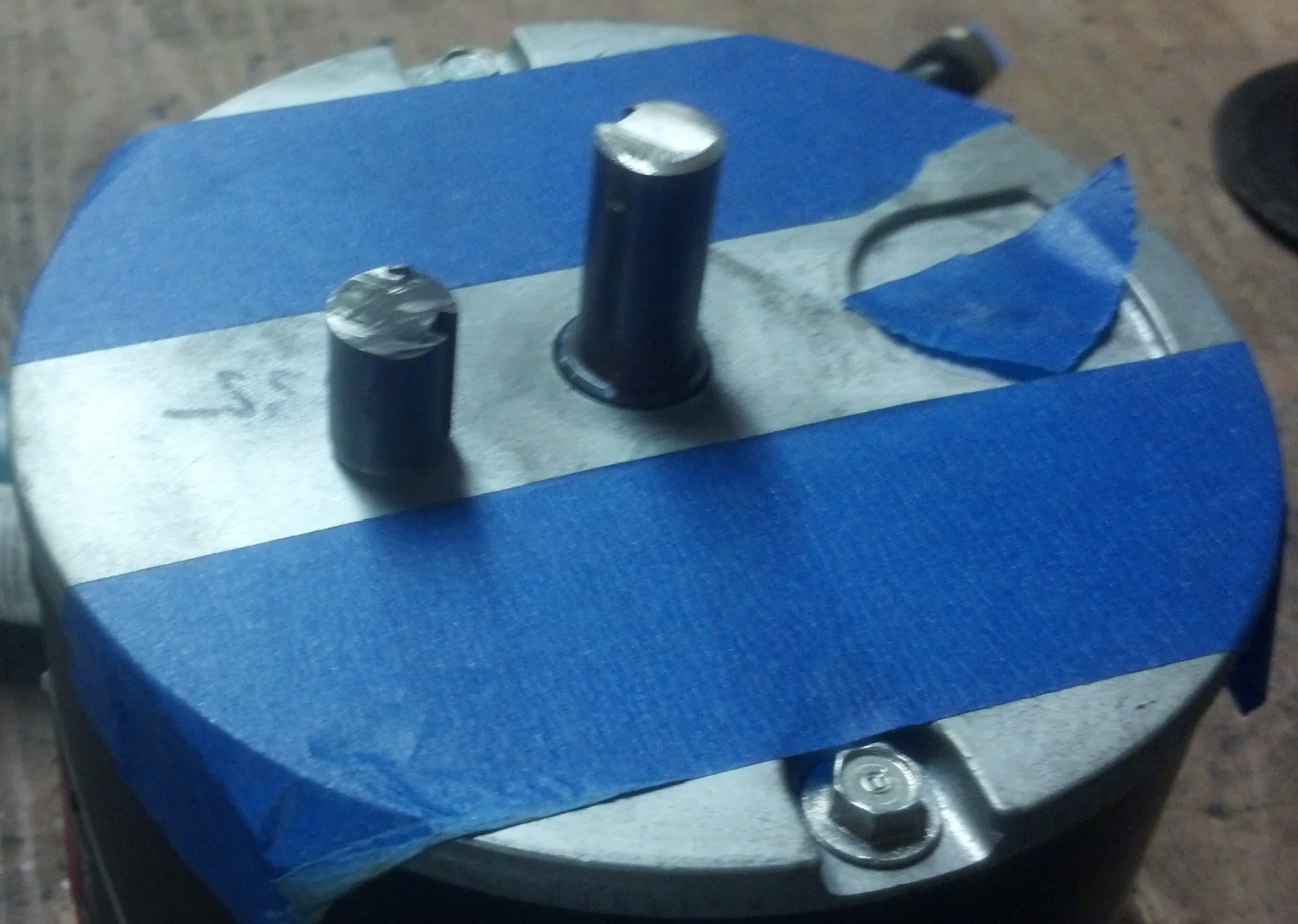

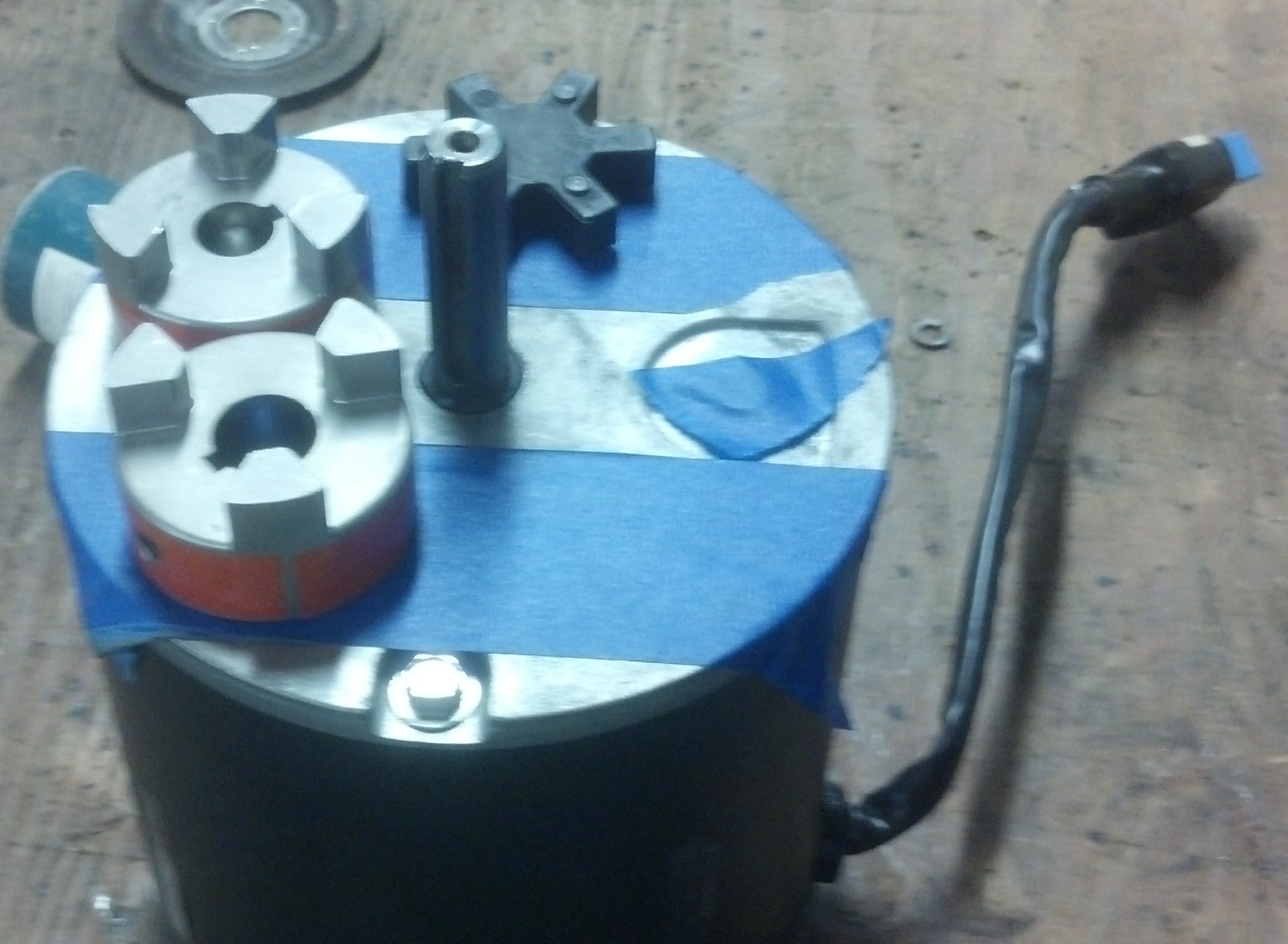

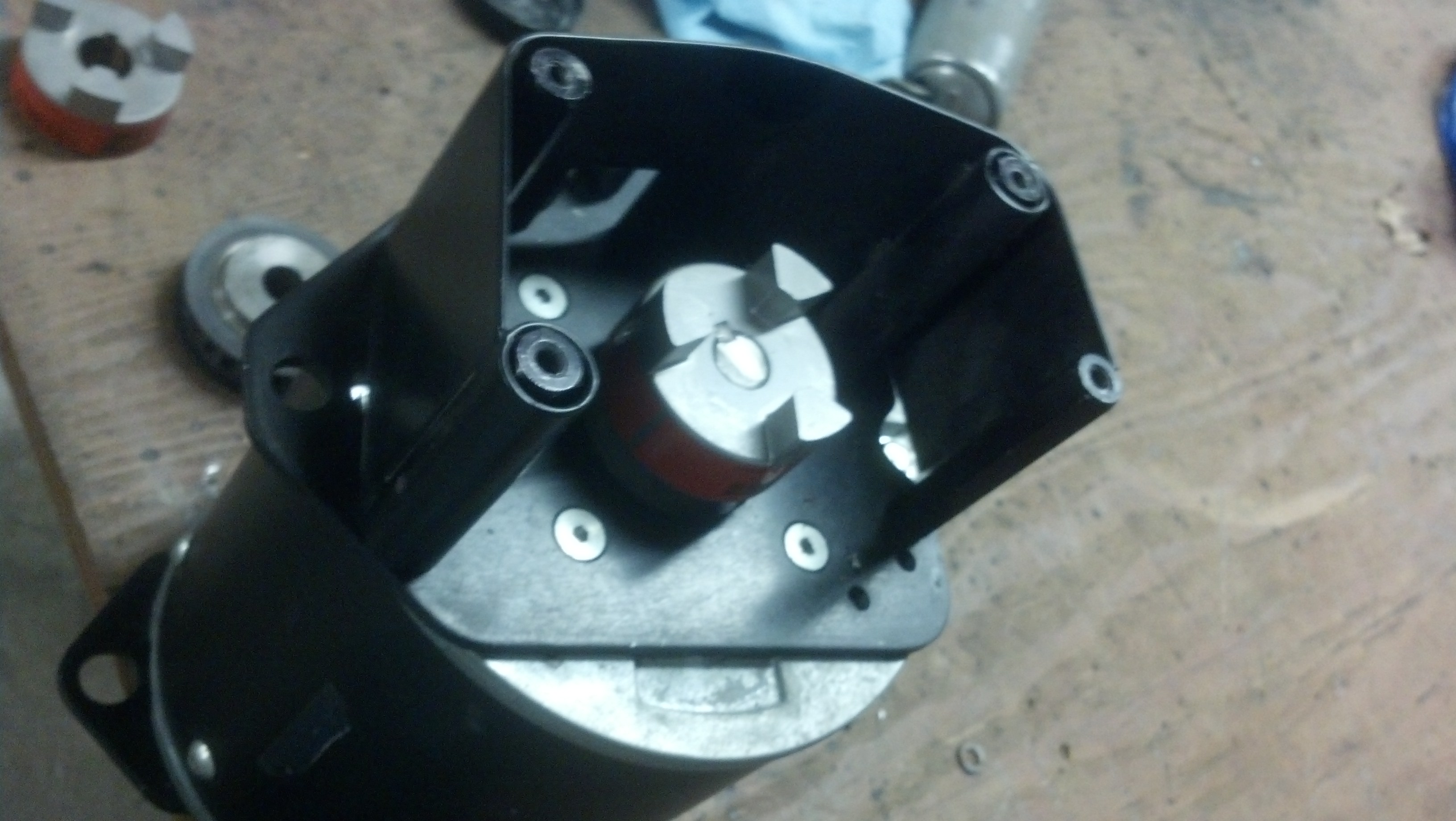

the last post from left to right 1: i had to remove all of the top parts and pulleys to see what adapters i need. 2: adapter parts 3: shaft was too long so i trimmed it up. 4: adapter placed and top reinstalled. 5: i need an adapter to fit the motor to the diff. on the axle. I used the bolt pattern off the top plate of the electric motor and the bolt pattern off the original gasket.
the last post from left to right 1: i had to remove all of the top parts and pulleys to see what adapters i need. 2: adapter parts 3: shaft was too long so i trimmed it up. 4: adapter placed and top reinstalled. 5: i need an adapter to fit the motor to the diff. on the axle. I used the bolt pattern off the top plate of the electric motor and the bolt pattern off the original gasket.
mysticmakings
Member
Re: Halo warthog Mini build
- - - Updated - - -

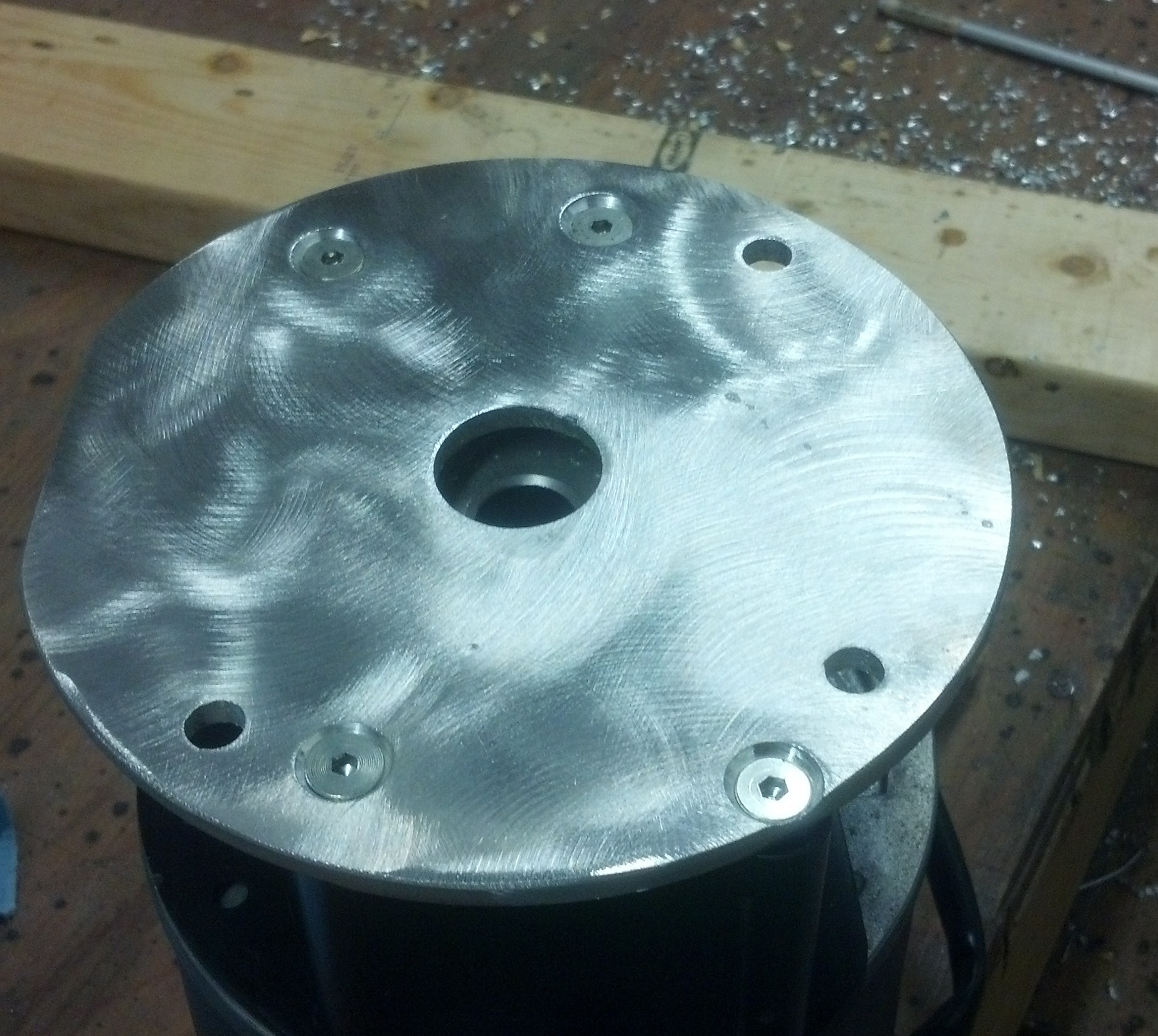

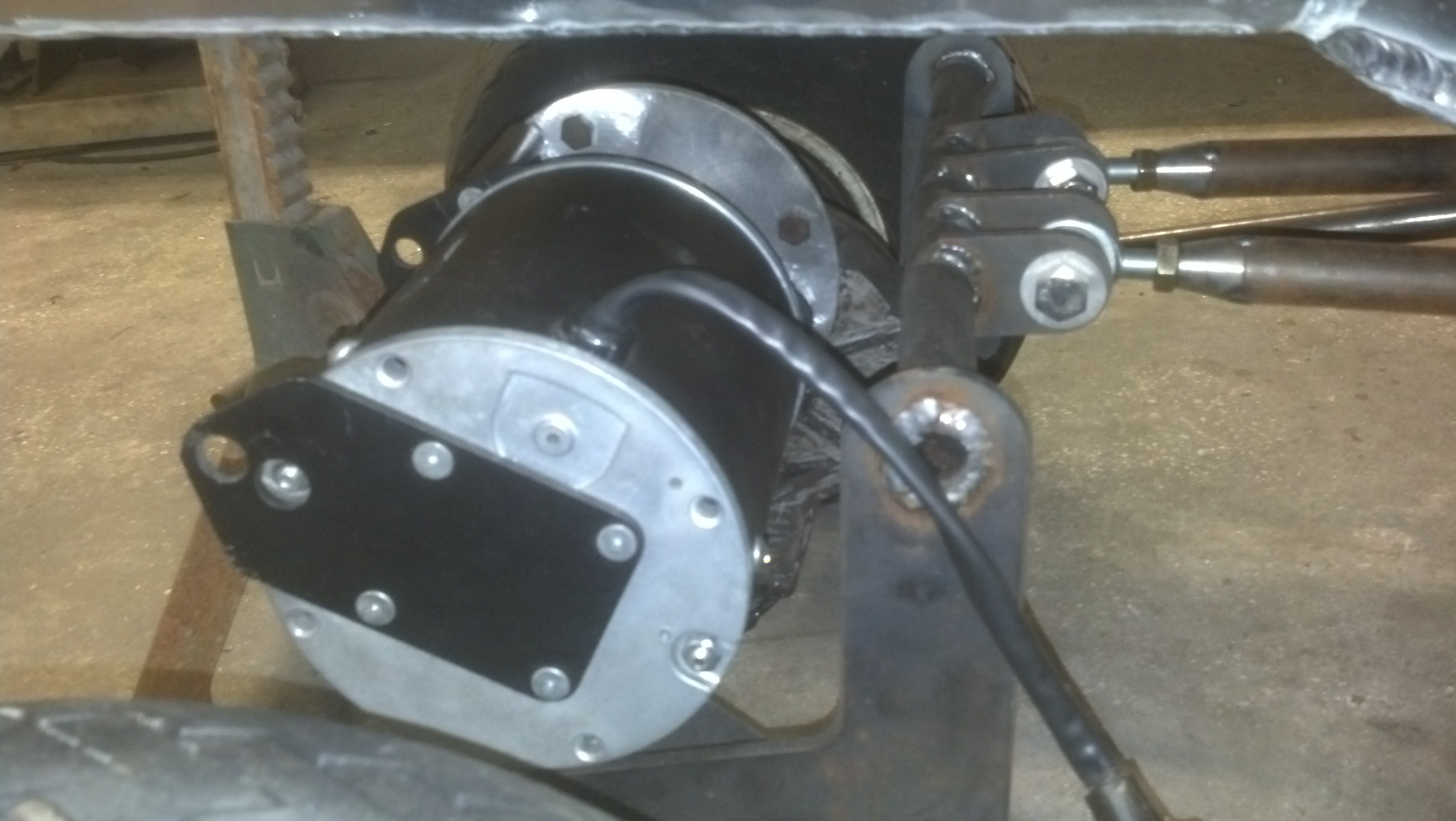

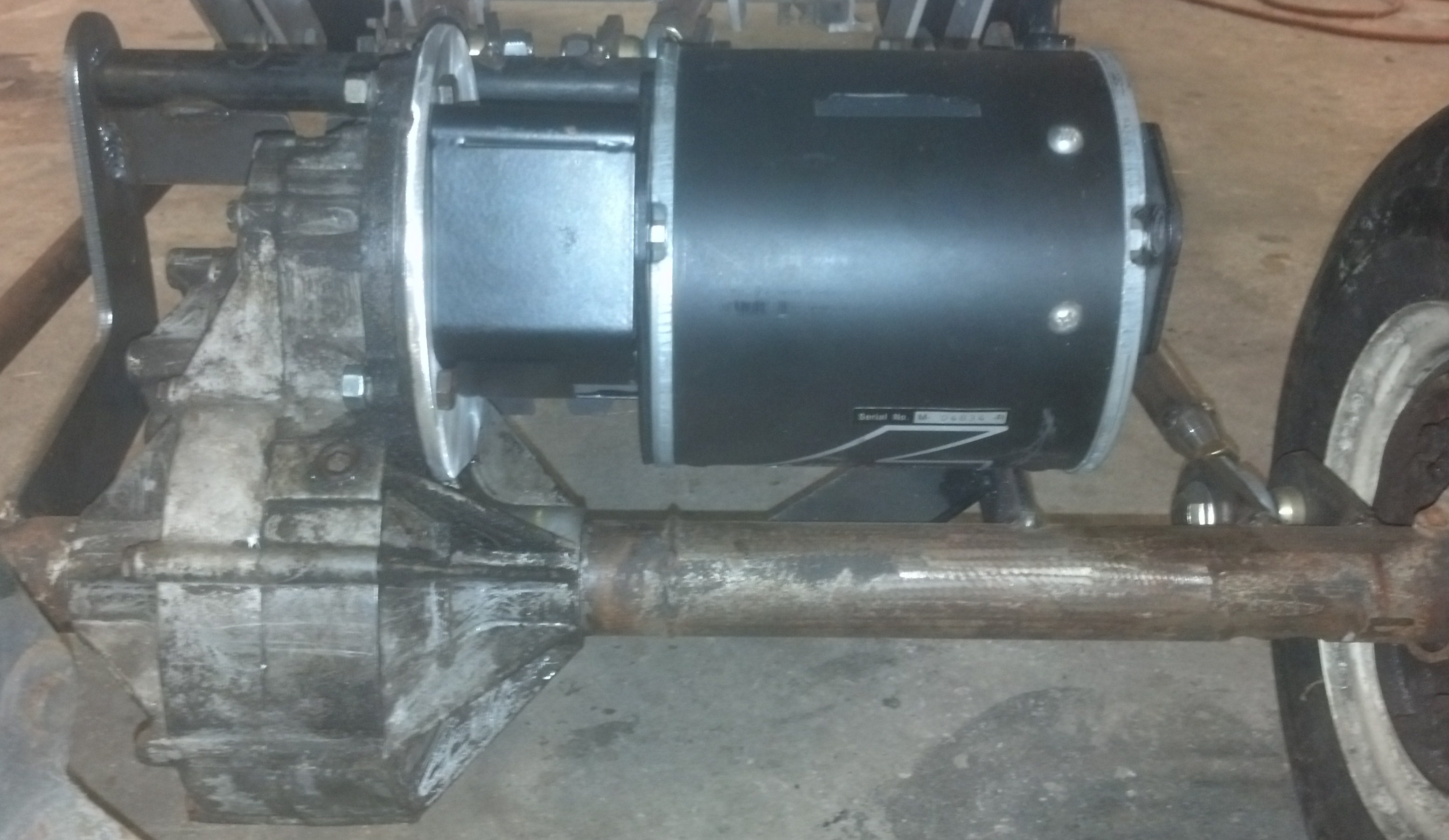

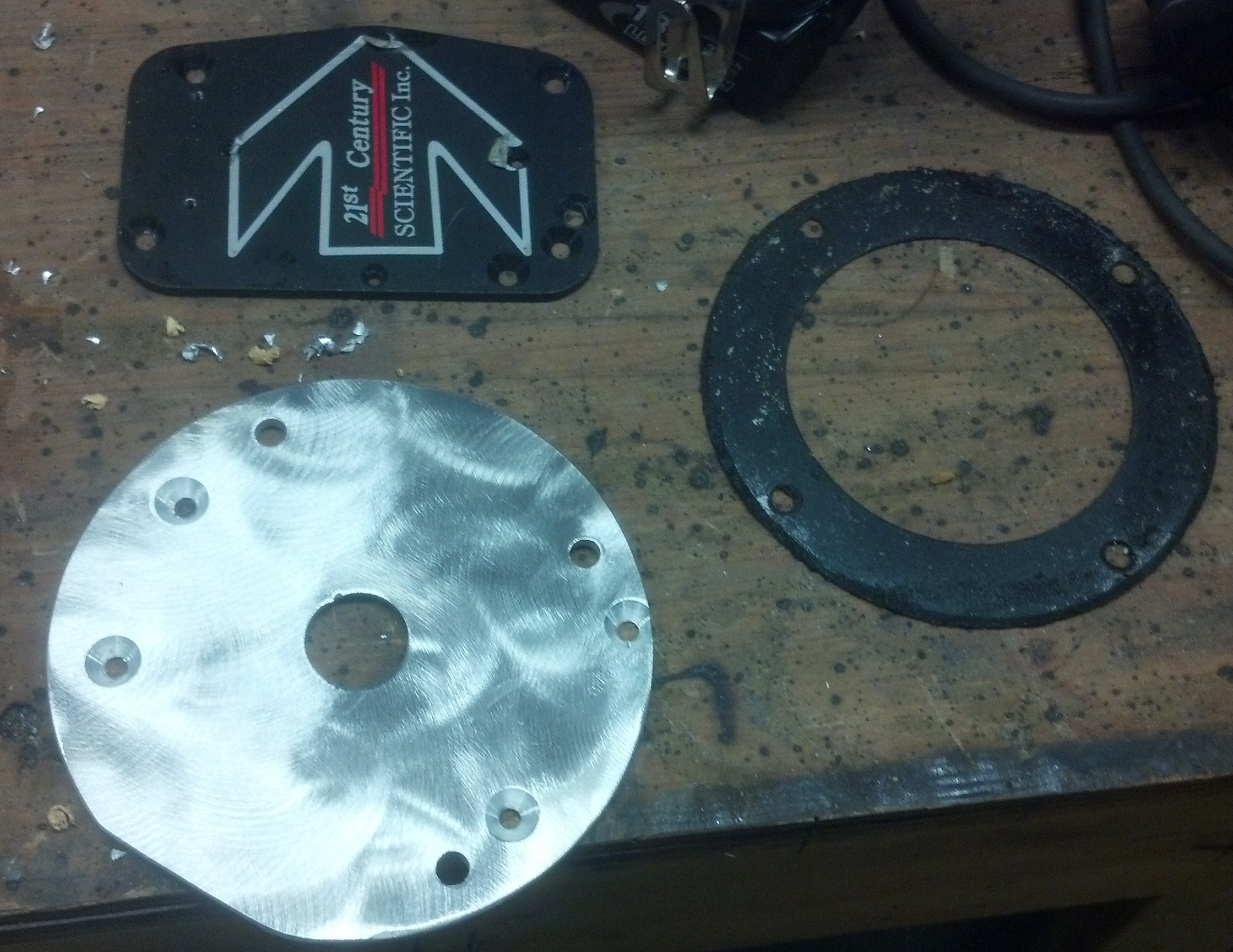

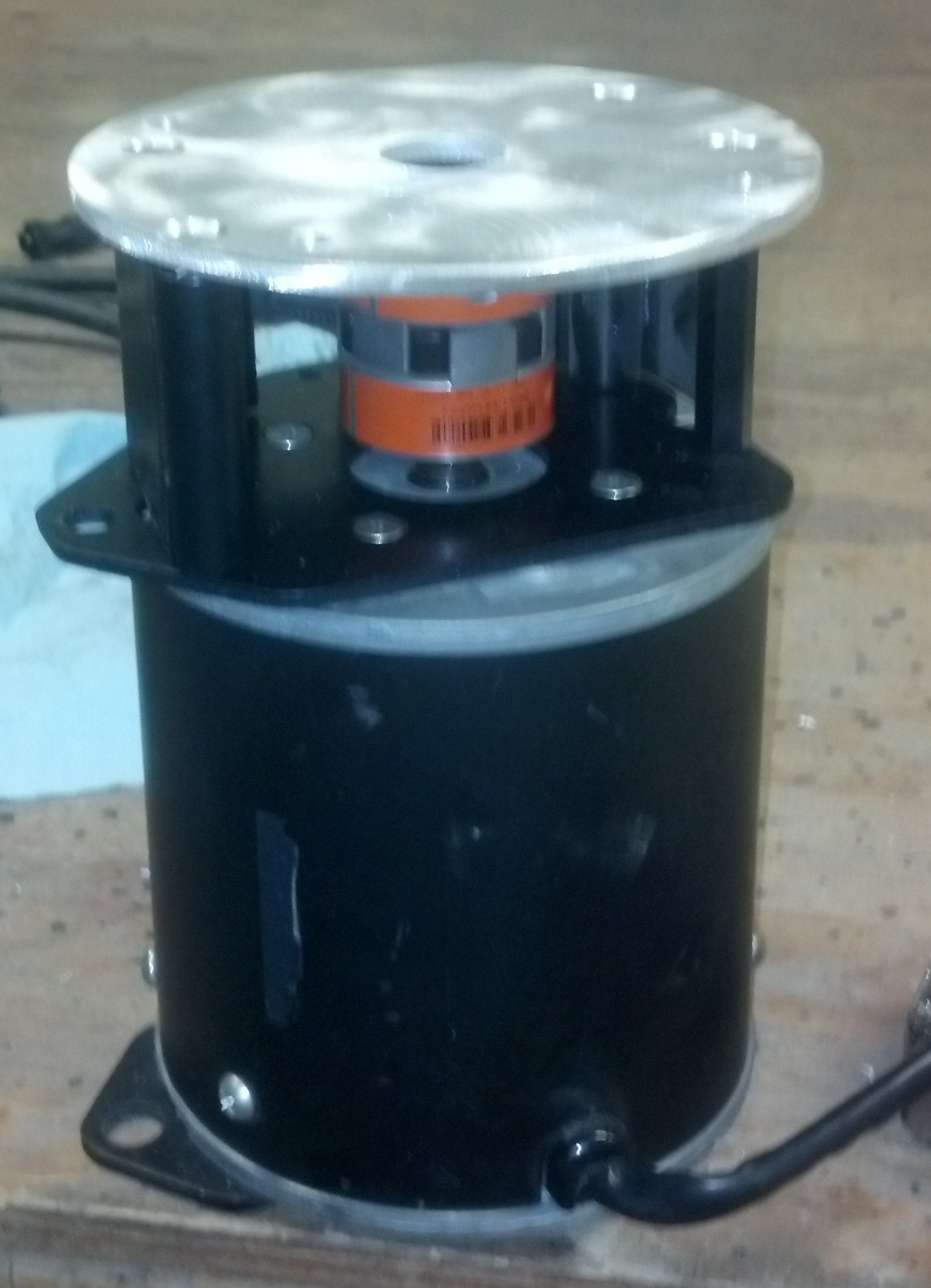

last post left to right. 1: plate fit nicely to the new motor with the clocked pattern for the axle. 2: the bolts have to be countersunk to fit flush. 3: the motor FIT!!! 4: side view
- - - Updated - - -
last post left to right. 1: plate fit nicely to the new motor with the clocked pattern for the axle. 2: the bolts have to be countersunk to fit flush. 3: the motor FIT!!! 4: side view Next week i will get the original shaft turned down on a lathe to fit the adapters i choose.
- - - Updated - - -
last post left to right. 1: plate fit nicely to the new motor with the clocked pattern for the axle. 2: the bolts have to be countersunk to fit flush. 3: the motor FIT!!! 4: side view
- - - Updated - - -
last post left to right. 1: plate fit nicely to the new motor with the clocked pattern for the axle. 2: the bolts have to be countersunk to fit flush. 3: the motor FIT!!! 4: side view Next week i will get the original shaft turned down on a lathe to fit the adapters i choose.
Re: Halo warthog Mini build
Small to me is 1/35th scale for model Military Vehicles I like to assemble. For R/C Vehicles I would say 1/10 or smaller. However the term small scale is different for different people. My main limiting factor is where do I store it if I build something big! I have a 1/6th scale model tank sitting in my hobby room which I think is pushing the limits of small scale for me.
Small to me is 1/35th scale for model Military Vehicles I like to assemble. For R/C Vehicles I would say 1/10 or smaller. However the term small scale is different for different people. My main limiting factor is where do I store it if I build something big! I have a 1/6th scale model tank sitting in my hobby room which I think is pushing the limits of small scale for me.
