jdubs
New Member
I love mine as well, just came in today, but am having the same issue. Was thinking small slips of aluminum foil or maybe even fine lines of JB weld. interested to hear what others have done with the circuit board clamp.
-
Welcome to the Project Runs Forum!
This forum is intended for interest gauging and active runs. Due to the transient nature of this forum, please keep all research and ongoing discussion in one of our main forums so your information is not lost.
Only Premium Members can start a new run.
Limited Run Graflex 2.0 and Crossguard saber run - sign up thread
I love mine as well, just came in today, but am having the same issue. Was thinking small slips of aluminum foil or maybe even fine lines of JB weld. interested to hear what others have done with the circuit board clamp.
Skigoddard
New Member
I placed a pad of double sided tape from 3M on the back of the board, slid it into place and it's holding fine. I did the same thing for the button.
Last edited:
... Yeah, that would be helpful. And if anyone puts together a electronics kit for this saber, that would be even better! I'm sure there are a lot of us ready and willing to send money.
ichnob
Sr Member
There is someone who made a two-part full reveal capable chassis on Shapeways. It is too pricey and elaborate for me being a first time builder, but part 1 is the same for everyone, and part 2 depends on the sound card you choose. Seems to have been a popular request on IRA Forums.
G.O.T.H. 3D Designs Graflex 2.0 Chassis on Shapeways
G.O.T.H. 3D Designs Graflex 2.0 Chassis on Shapeways
audiophile777
New Member
It looks like the inner diameter, not counting where the screws come through with the ESB grip pieces, is about 32mm.

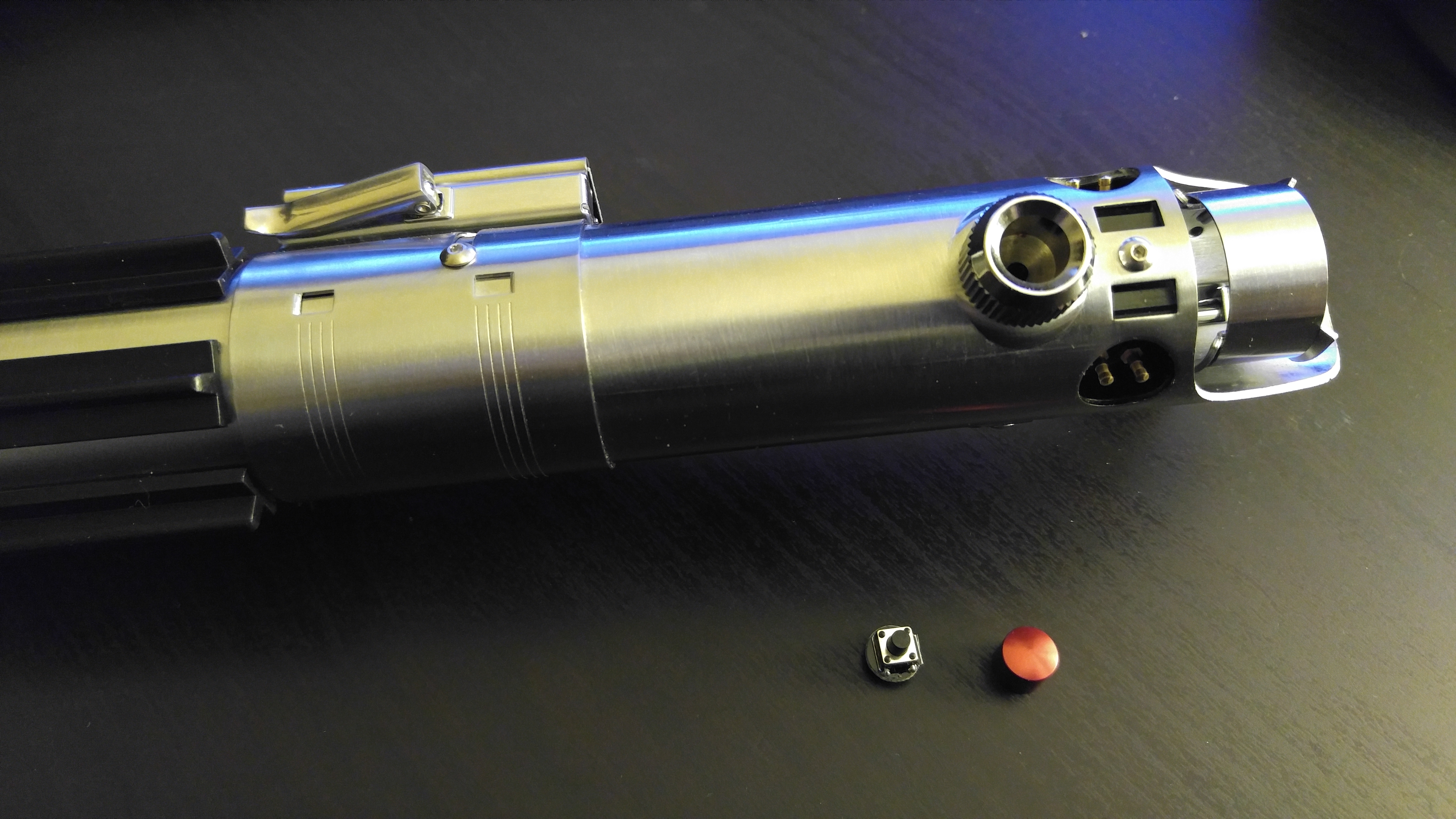

As an aside, anyone know what to do with these? I can't figure out how to get the red buttons to stay in... and the switches do not fit in either end of the switch cavity.
Last edited:
AgentOfShield
Well-Known Member
You need to sand the excess pcb material from the switch until it is round enough to fit inside the button housing.
kontherun
Well-Known Member
A few tips that helped me. I put a small amount of oil on all parts that had to be screwed in, it fixed the tight fit of the second button attachment. I applied a tiny drop of cyanoacrylate to the switch to get the red button to stick. To get the circuit board fixed in place I put a piece of insulation from a thin electrical wire between the clamp and the board, just on one side.
Oh yes, try different combinations of the switches and red buttons, some of them will not allow for switch to activate, and some will.
Oh yes, try different combinations of the switches and red buttons, some of them will not allow for switch to activate, and some will.
audiophile777
New Member
That is what figured, thanks!
The unfortunate part that I noticed is that neither of the red buttons actuate the switches I have, so I'll have to stick a small piece in there and MacGyver something to make these switch work.
Has anybody made completed Crystal Chambers with lights and sounds for these Graflex and crossguards? I'd be interested in commissioning someone to complete a ANH, ESB, and TFA crystal chamber Lightsaber with lights and sounds and a Kylo Ren Cross Guard too with cracked red crystal.
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
dk0r
New Member
A new run crystal chamber chassis kit is being developed for the graflex 2.0 (no crossguards) over at the saber-fx forums.
See the FX-SABERS Chassis Kits for 2.0 Korbanth/Parks hilt and my post clarifying details on page-6.
Last edited:
ichnob
Sr Member
Just going to cross-post this from the Junkyard thread in case anyone missed it. Crazy how that thread blew up with requests for the Graflex 2.0 kit.
Doh! too much SW to digest lately....thats it? thanks!
