Good Samaritan aluminium build

[CpFlint]

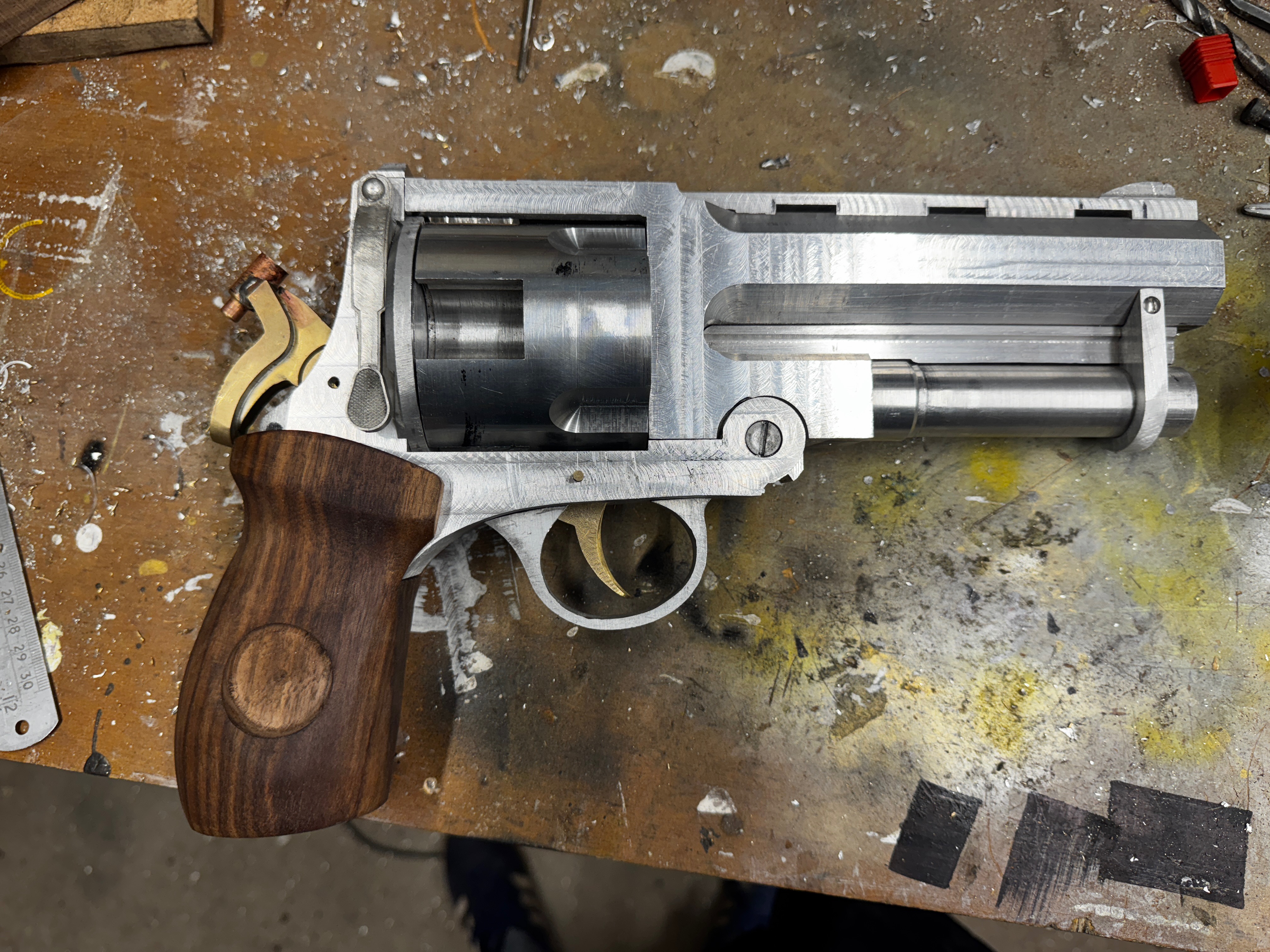

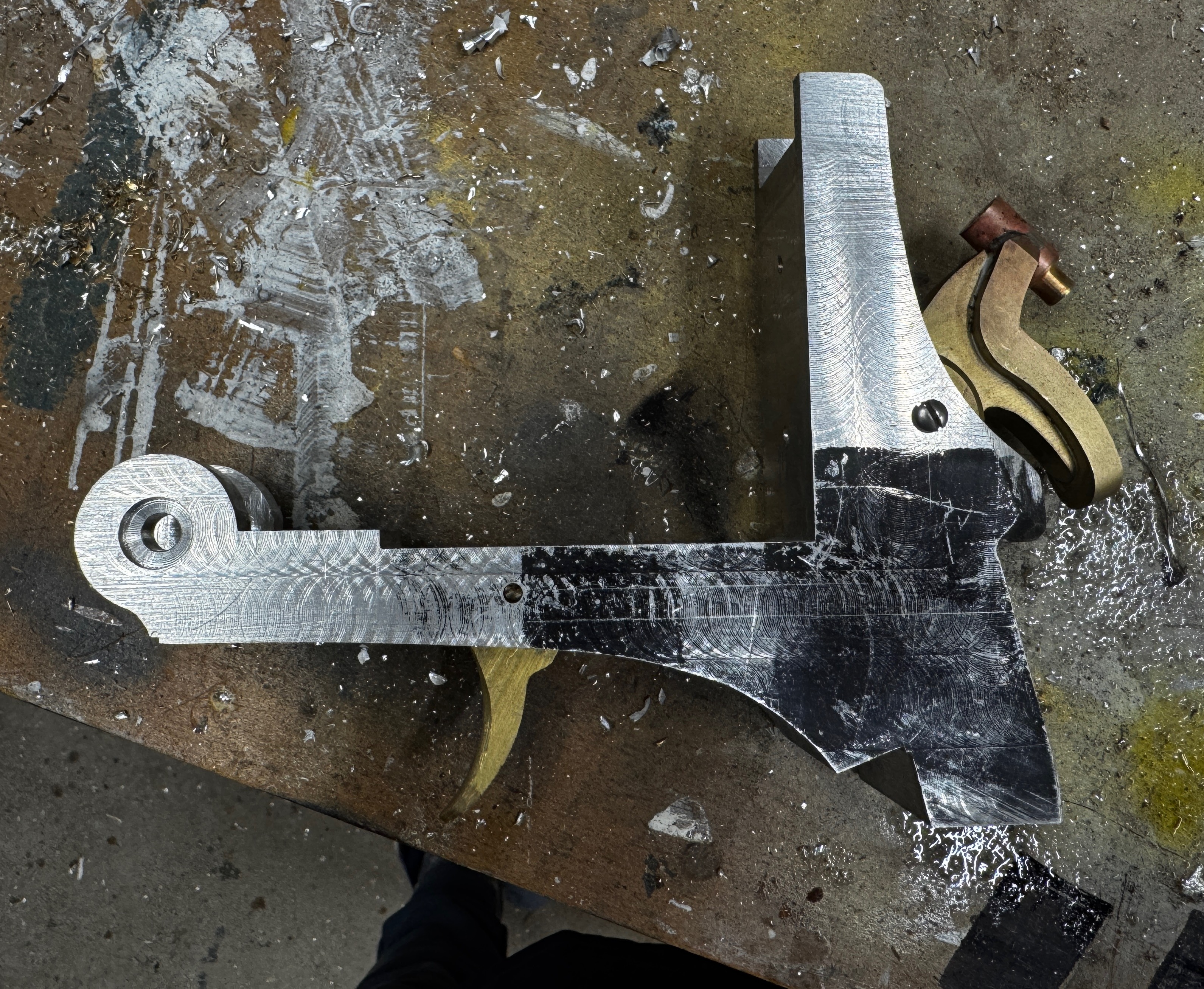

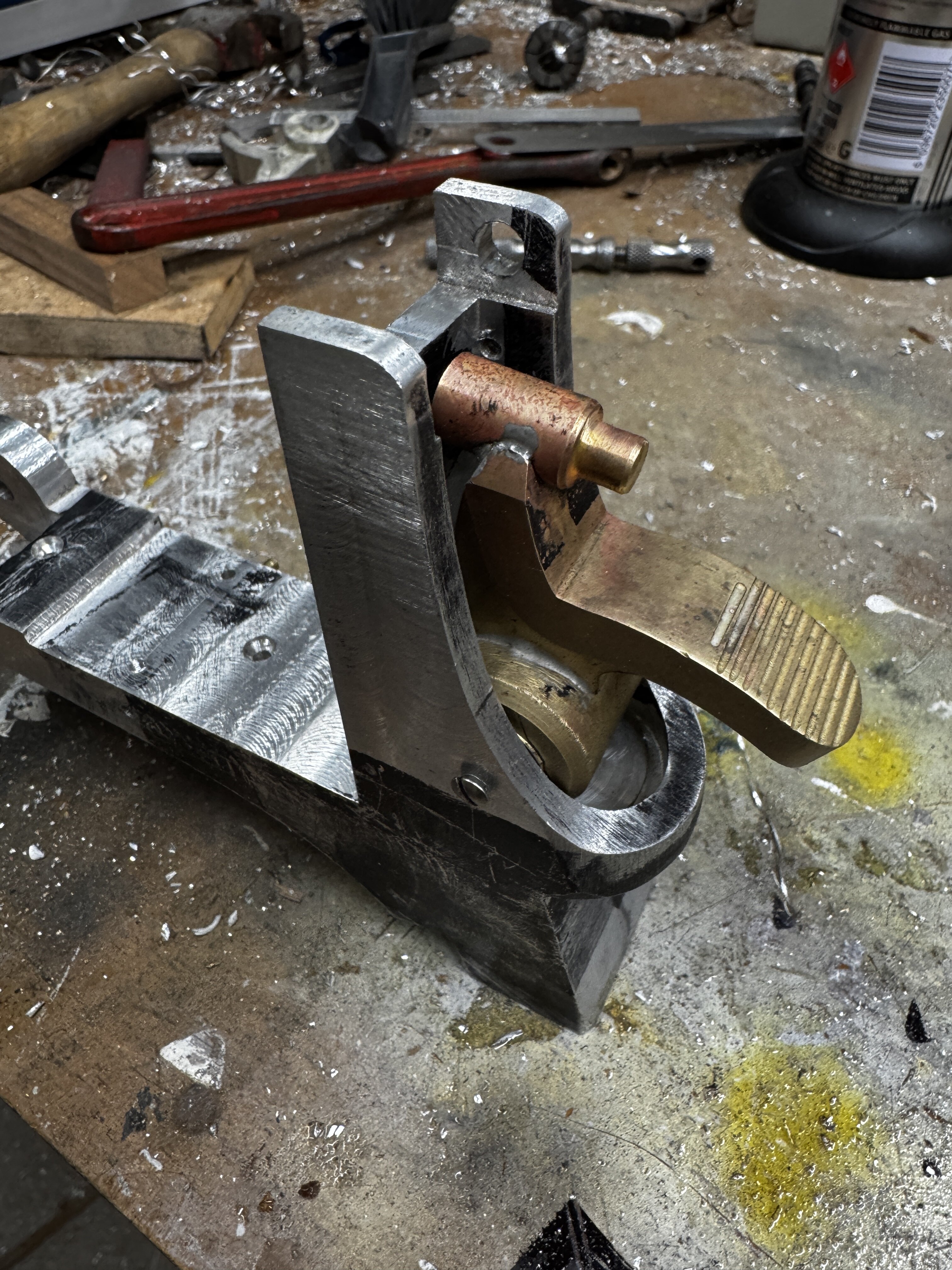

Been working on the hammer and its mechanism, I’m starting to get somewhere with it now. It’s taken a surprising amount of faffing around and patience to get it to work.



[orntar]

That is seriously impressive!



[DaveChaos]

What a beauty!



[joberg]

What an update I'm sure it's hefty too...weight of that beauty?



[Anakin Starkiller]

Awesome built. I remember watching Adam Savage build his replica on tested every week and really enjoying those videos. My wife would tease me when she'd walking in the room and say "Are you watching Adam Sandwich making his Looney toons gun again?". And it would crack me up bc the gun did look pretty amazingly massive in Adam's hand.



[CpFlint]

What an update I'm sure it's hefty too...weight of that beauty?

It currently weighs 2kg. Which makes it a hefty beast. I’d like to make it a little lighter but there isn’t much I can do to lighten it other than drill a few discrete holes to remove some material.



[CpFlint]

Awesome built. I remember watching Adam Savage build his replica on tested every week and really enjoying those videos. My wife would tease me when she'd walking in the room and say "Are you watching Adam Sandwich making his Looney toons gun again?". And it would crack me up bc the gun did look pretty amazingly massive in Adam's hand.

View attachment 1897061

He’s actually the reason I started this project. I’ve watched his build at least twice all the way through.



[Anakin Starkiller]

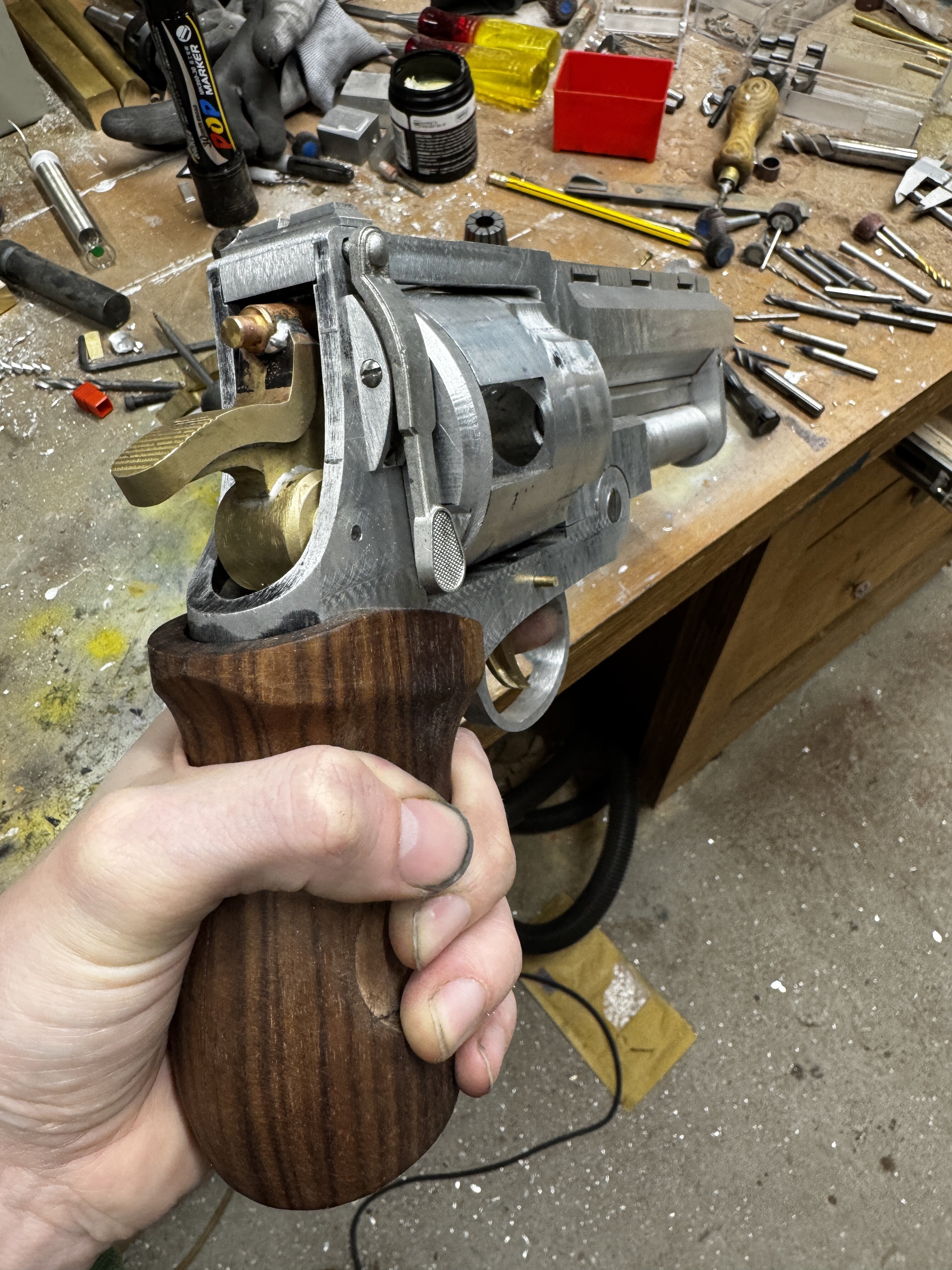

View attachment 1896771Been working on the hammer and its mechanism, I’m starting to get somewhere with it now. It’s taken a surprising amount of faffing around and patience to get it to work.

It's an amazing bit of machining. Truly very impressive



[GrenadeKing]

How'd you do the release lever? Is it a casting, print, cnc, or did you do it by hand?



[CpFlint]

How'd you do the release lever? Is it a casting, print, cnc, or did you do it by hand?

At the moment the release lever is the pewter lever from the replica that I got from Tiptop Workshop. But I will be making a new one out of brass soon.



[joberg]

It currently weighs 2kg. Which makes it a hefty beast. I’d like to make it a little lighter but there isn’t much I can do to lighten it other than drill a few discrete holes to remove some material.

So it's a four pounder



[prev]

Awesome effort dude.

I love following these metal builds.



[CpFlint]

I’ve been making a brass release lever today to replace the pewter one that I’ve been borrowing from a kit that I had. It still needs a bit of fettling but it’s starting to look good now.



[KramStaar]

Insanely good!



[eethan]

oh, that's clever, I was wondering how to go about that part, did you machine it flat then bent it? looks great



[CpFlint]

oh, that's clever, I was wondering how to go about that part, did you machine it flat then bent it? looks great

Yes, I machined it flat then bent it to the correct shape. If you look closely you can see a small crack in the tight bend that I’ve had to solder up. I think it adds a bit of character to it .



[joberg]

Amazing workmanship and results



[CpFlint]

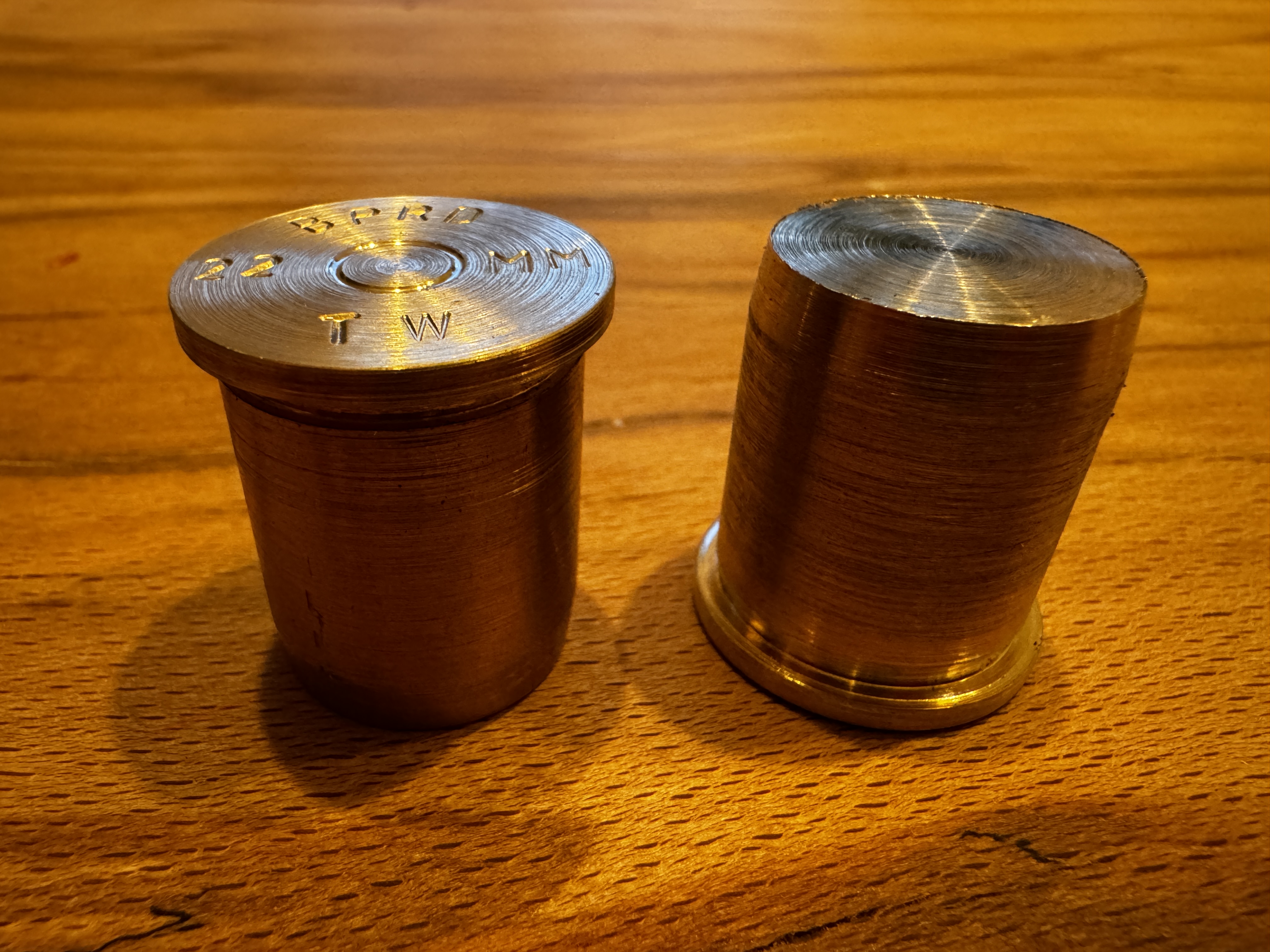

Just thought I’d make a quick update post as I’ve made a good start on the bullet casings.

I’ve got the design and dimensions that I need. I think that I want a total of 12, because I’m going to make some different ammo types.
4 clear Perspex
4 hollow point
4 ‘silver’

I’ve also thrown some parts of the gun in a tumbler to see what the final finish will be and I’m pretty happy with it.

Here is a photo of all the parts that I’ve made so far.



[eethan]

Awesome!
Can you explain how you got to that clean finish on the pistol on that last photo? Looks great



[CpFlint]

Awesome!
Can you explain how you got to that clean finish on the pistol on that last photo? Looks great

Hi
I emery clothed it with some 240 cloth then I put it in a vibrating bead tumbler for 2-3 hours. This gave it a nice even finish. It gives it a nice feel too.
