Fusion furnace

[Ryan Clinton]

Th

I live in Houston, so sounds like a road trip!!

There will be a few commissions i did there. A vibro axe, the maximilion robot i made the blades for, rancor gate control switch, and this fusion furnace.



[Ryan Clinton]

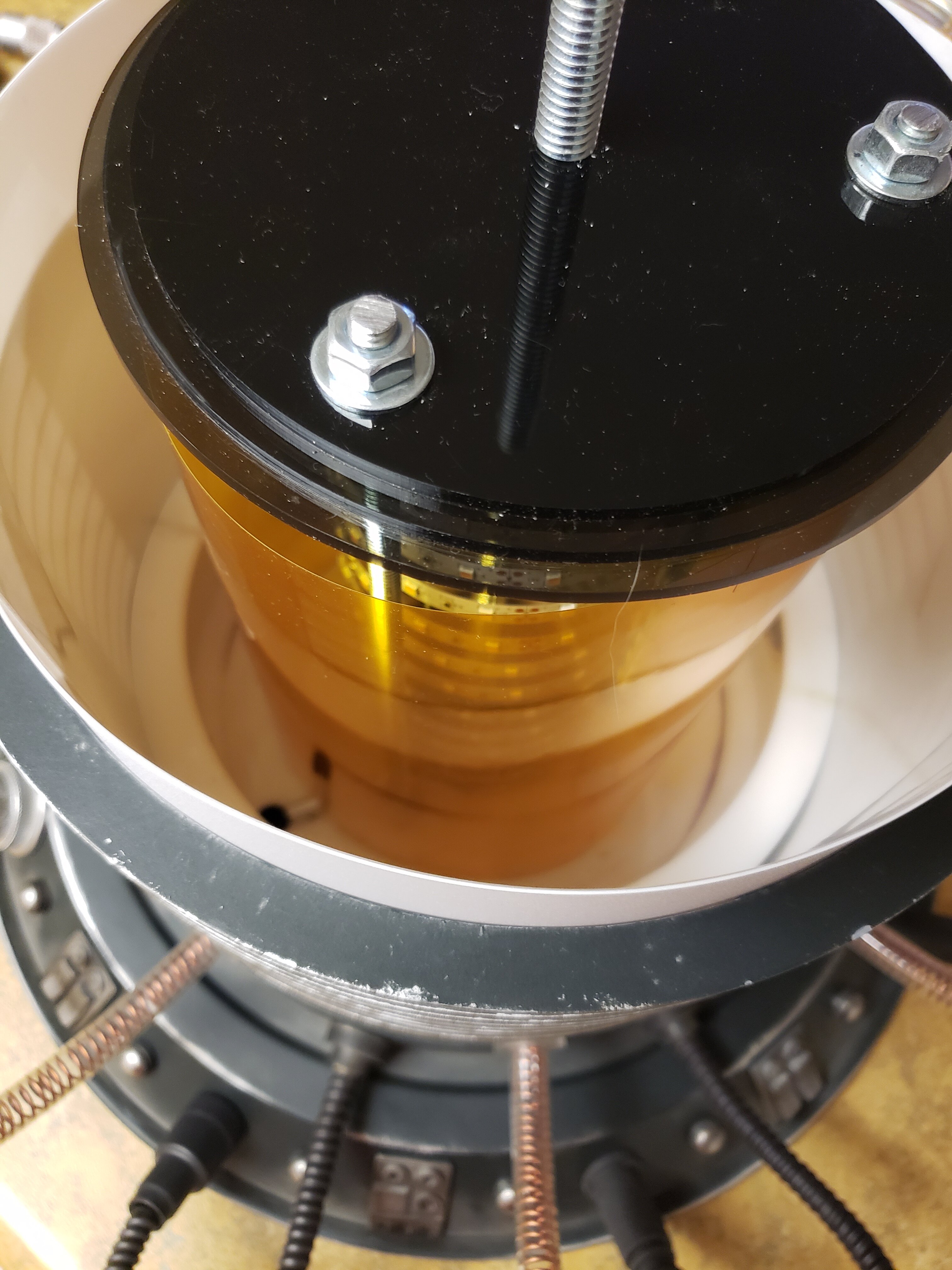

This is how I got the yellow orangish color



[eethan]

I don't know how much of a rush job that was but it doesn't show at all! the result is amazing Ryan! congrats again



[Cameron]

Badass my friend.



[Ryan Clinton]

Badass my friend.

Thanks man. I'll get the next 3 more dialed in but for a 1st go at this thing I'm pretty happy with it.



[Massassi]

Very nice. Now I need to update mine ;-)
Fusion Furnace - Live size prop | 3D Print Model



[Halliwax]

This came out amazing!



[SCREAMINYELLOW]

Incredible!!



[3Dsf]

By the way - the greebly details on the bottom-most ring - the details that are rectangles with small things inside. Did you base those on sekkrit fotos that you have? Or are they conjecture based on the low-rez images we have?



[Ryan Clinton]

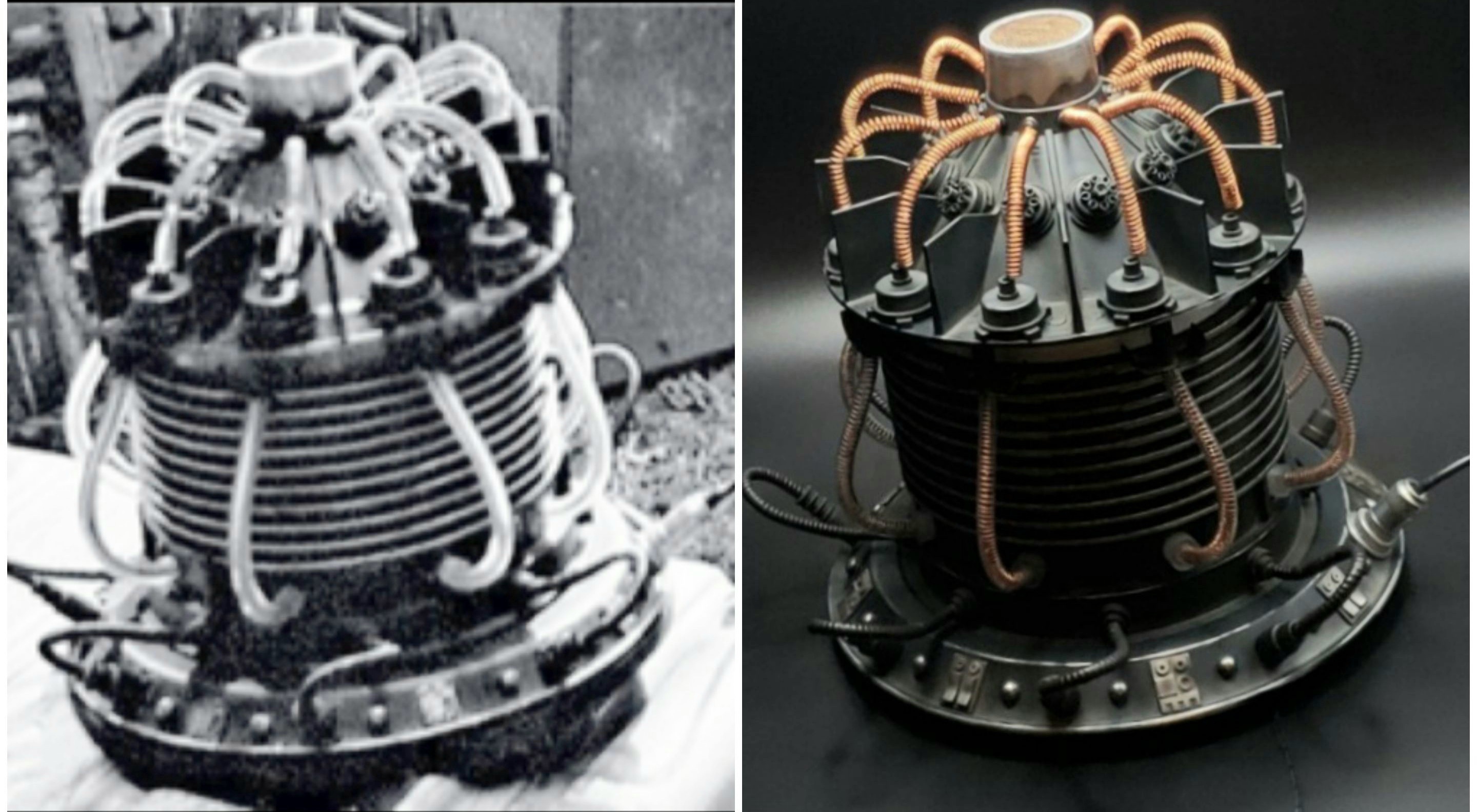

Honestly its sort of a mixture of both. The high resolution photos I have i can see only the bottom half or corner of the rectangle greeblies because there's a cord right in front of it. Those greeblies I'll end up re-doing. We had literally no time to deep dive into it. The shapes we were seeing we're more rounded and not so much square. I could make out 3 different rectangle greeblies. The one with the two switches on it with two circles above it is to closest one we have. It's Slightly too big. I didn't round off the top of the bevel just above the rectangle greeblies enough. So we made it slightly bigger so it lined up better with the top and bottom of the bevel. This image may help. The top cap is slightly too tall and so is the fan. Its pretty close but as I said we really were working against the clock on this one. We can better dial things in now that we don't have any deadlines.



[Ryan Clinton]

I'll be making the clear tube connectors slightly smaller in diameter as well. And I mean by like a couple millimeters.



[Ryan Clinton]

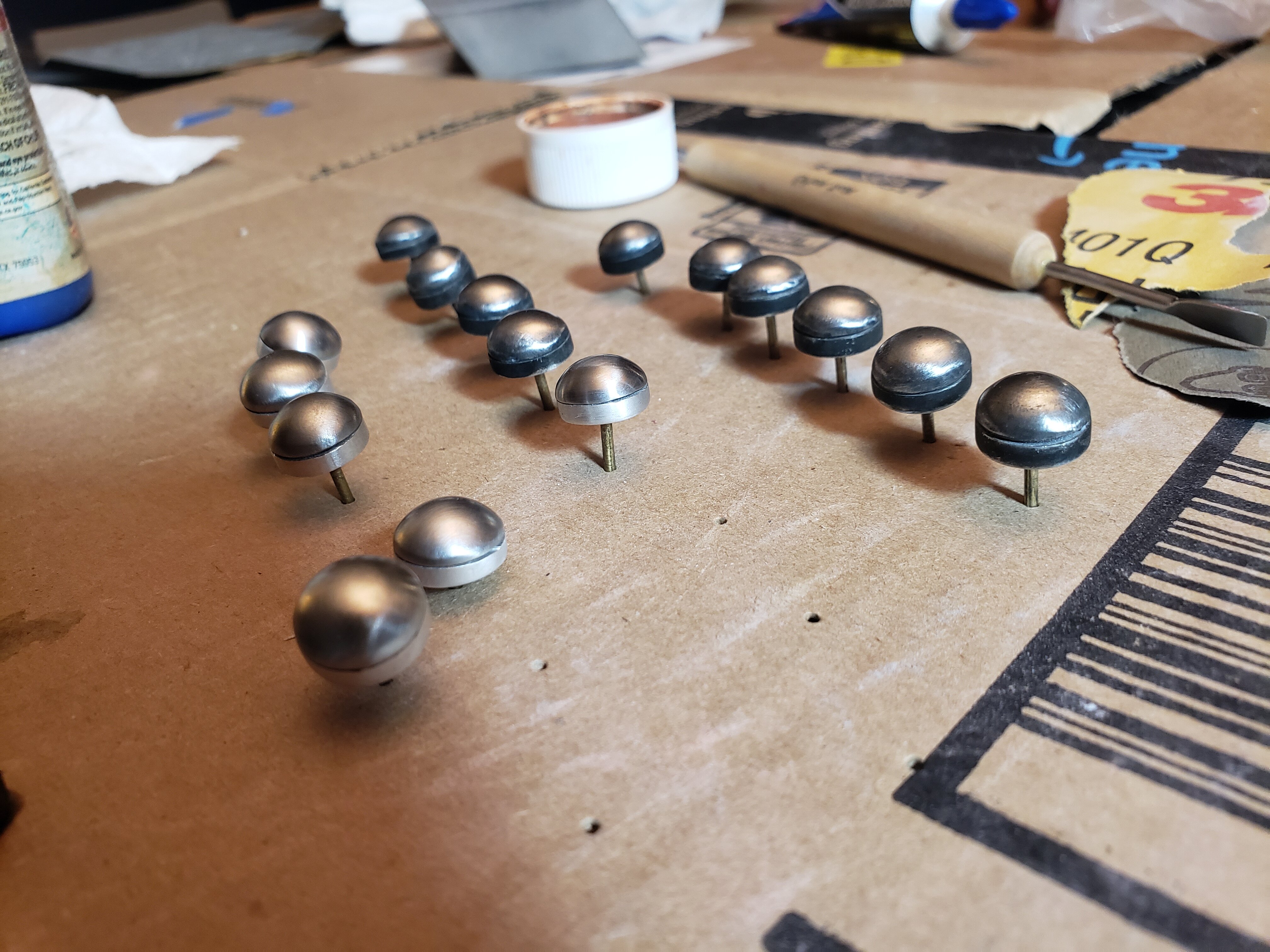

The round silver studs on the base have a seam about midway down. I can definitely see it in the images we have



[3Dsf]

Awesome. Thank you!



[Ryan Clinton]

Awesome. Thank you!

No problem any time



[3Dsf]

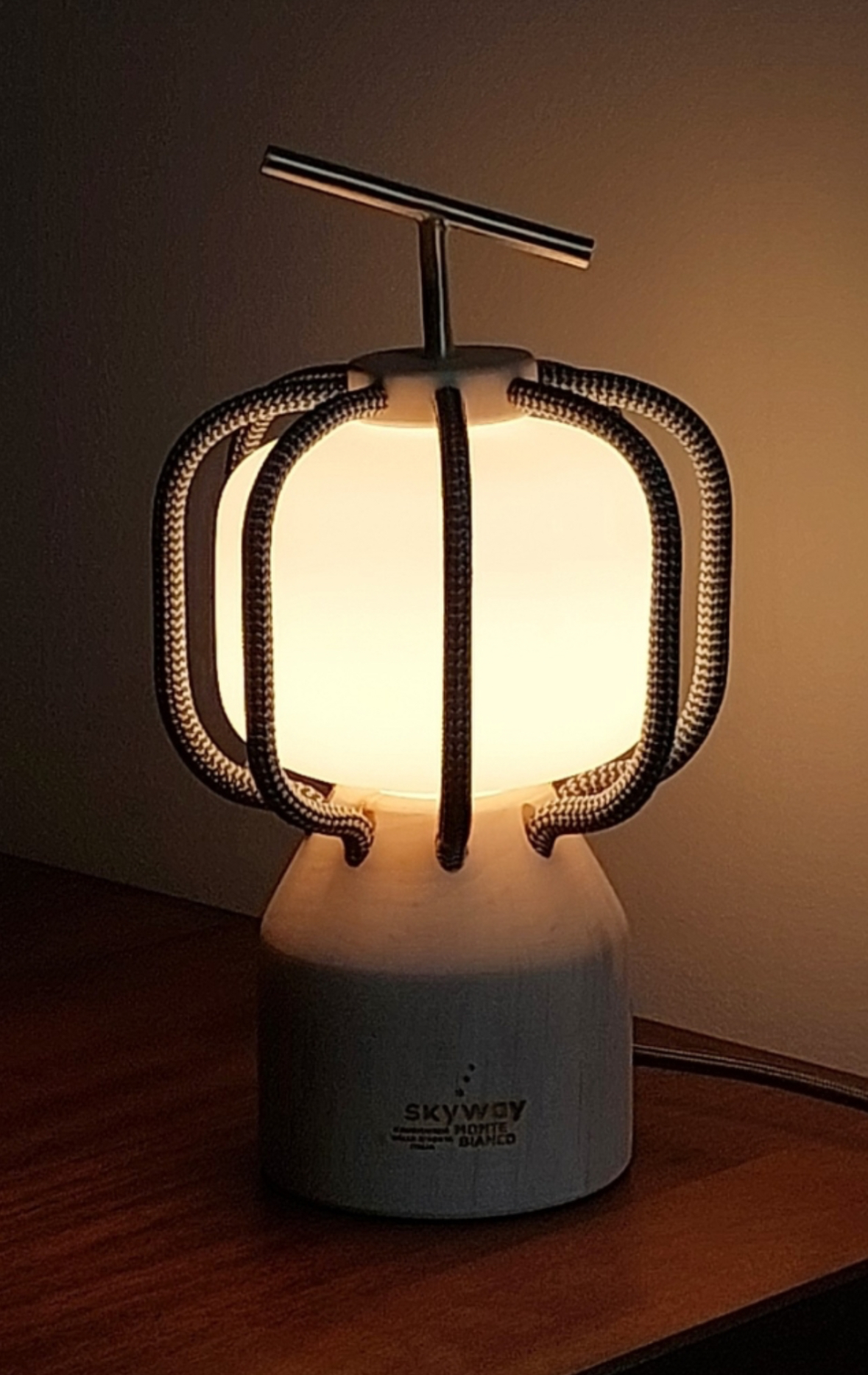

Desk lamp advert that appeared on my phone today.

I’m sure there’d be a market for “fusion furnace” desk lamps.

Maybe not very big, though.



[Ryan Clinton]

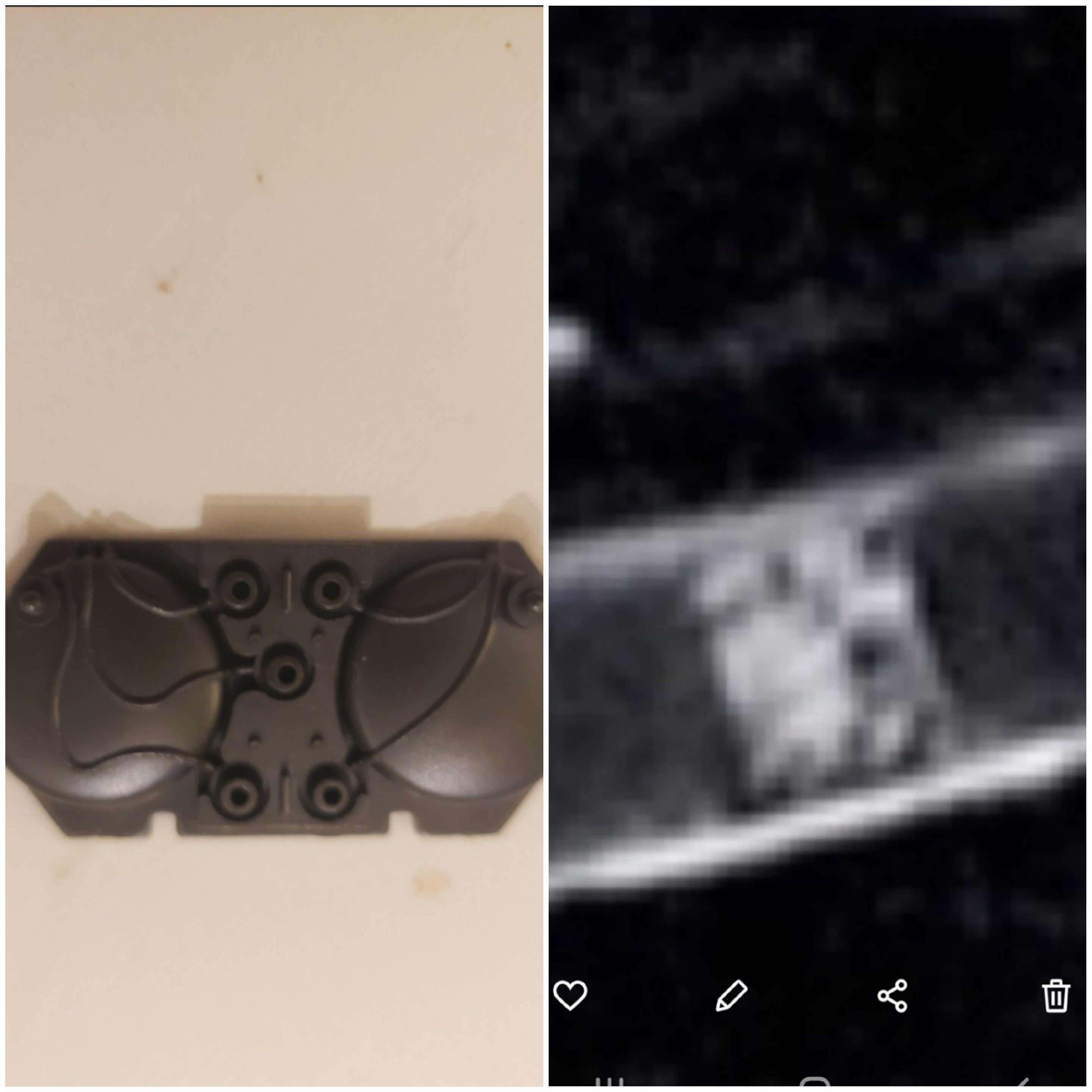

Based on this reference and some I'm unfortunately unable to share, I believe I found the rectangle greeblie part. There are a bunch of different ways you can cut this thing up and it does match the scaled size.



[Ryan Clinton]

Right now we're in the process of refining, re-scaling, correcting all errors and imperfections we had made in our first build. We're really trying to dial this thing in as best as we can.



[Ryan Clinton]

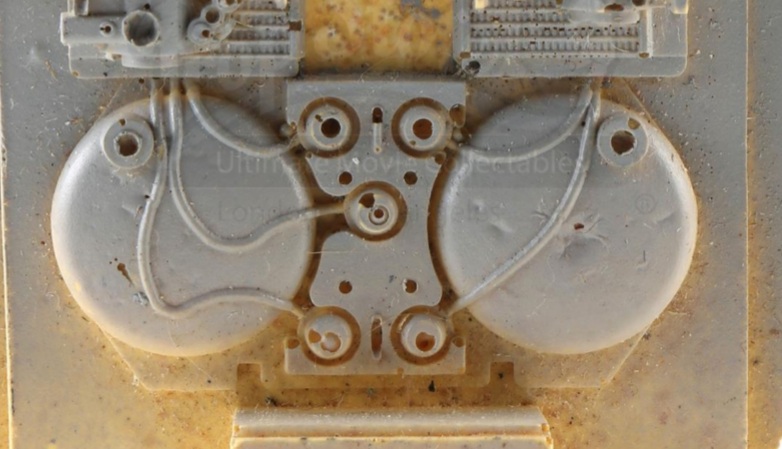

Screen used casts usually turn out slightly different than the actual model kit parts. This cast is probably a better comparison.



[Halliwax]

What the hell is that from…



[OddballFett]

What the hell is that from…

Also used on Rebel Admiral/General rank badges in ROTJ. My guess is something from the Panzer Tank model kits?
