Flux Capacitor Redux

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Valor

Sr Member
RPF PREMIUM MEMBER
As quarantine has dragged on I've been revisiting a few props I build years ago. One of those is the Flux Capacitor I made about 7 years ago. I build it off the best info I had at the time. But there are things I want to improved.

Pics here are the current state. A fine flux, but a few things to redo:
  1. The color: I used a gray that is too dark
  2. The Torr Relays:
    1. Upon inspection I'm about 1/8" too small in diameter and 1/4" too short.
    2. Also, I really want these to be real brass!
    3. I'll be rebuilding the glass relay tubes out of acrylic tubes and spheres.
  3. The Elbow Connectors: I used 2 simple plumbing elbows originally. I want to create the set of three connectors that are commonly shown. I'll be modelling the two obscure elbows in 3D and printing them on my resin printer.
  4. Latches: My box came without latches. The door is held on with velcro, which is fine. But I'd like to get my hands on two latches.
Here we go.



Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Valor

Sr Member
RPF PREMIUM MEMBER
I've been working on the Torr relays. Again, my goal is correct size and BRASS. To do this I created a solid puck of resin the size of the body of the relay. I'm covering this with brass sheet. Really thin stuff around the side (securing in the back with the bracket. And a thicker round piece for the top. I'm also making all the brackets out the thicker brass sheet.


Valor

Sr Member
RPF PREMIUM MEMBER

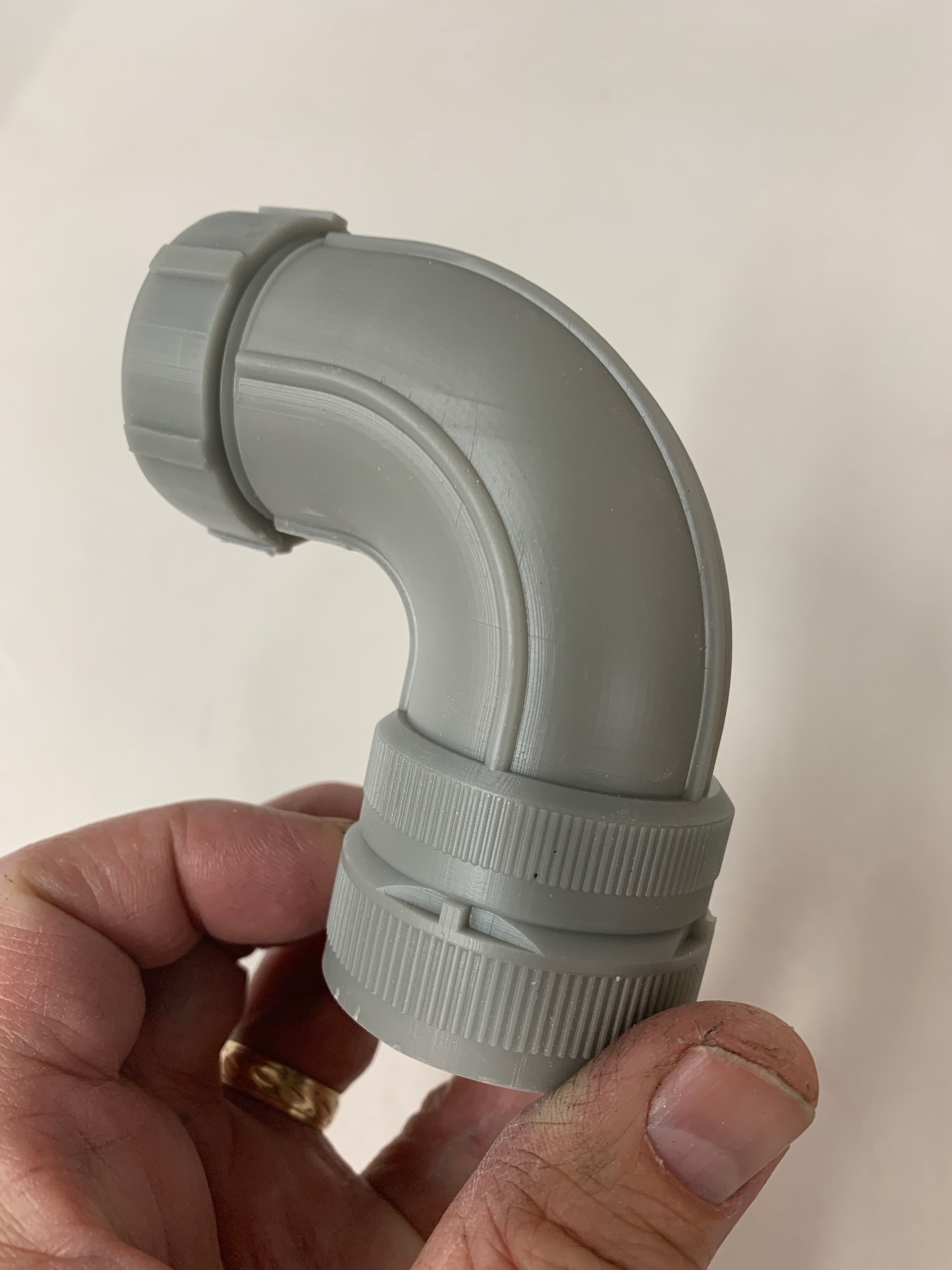

I spent the night modeling the two "CANNON" elbows used on the top and bottom of the Flux. I'm not an expert, but I believe these were some sort of vintage computer connector? I'm ballparking these based on limited imagery I can find. But they are way closer than what I had. The big fat top elbow is a modified PVC elbow. Close enough for me.
Screen Shot 2021-01-17 at 10.42.11 AM.png


Attachments

  • IMG_5018.jpeg
    1.2 MB · Views: 18

Valor

Sr Member
RPF PREMIUM MEMBER
The acrylic glass tubes are finished. I’m now waiting for a couple details to finish the capacitors. The new accurate size is more different. Than I thought when you lay everything out. Looks like I need a new backboard as well. I got a deal on a damaged Stahlin enclosure on eBay. I’ll be stealing the hinge and latches off it to add to mine.


Valor

Sr Member
RPF PREMIUM MEMBER
I bought a damaged Stahlin enclosure on eBay. I was able to transfer the hinges and latched to my Box. FINALLY feels right.

The inside bits are coming along. I'm waiting a a couple details (flux labels, paint the acrylic block sides gold, etc.

I also made up a little data plate for the bottom. Something to commemorate the build.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

MattgomeryBurns

Sr Member
RPF PREMIUM MEMBER
Your craftsmanship is amazing. I’m constantly impressed with each of your builds and the dedication to making them better (and not just another carbon copy).


ChaosX

New Member

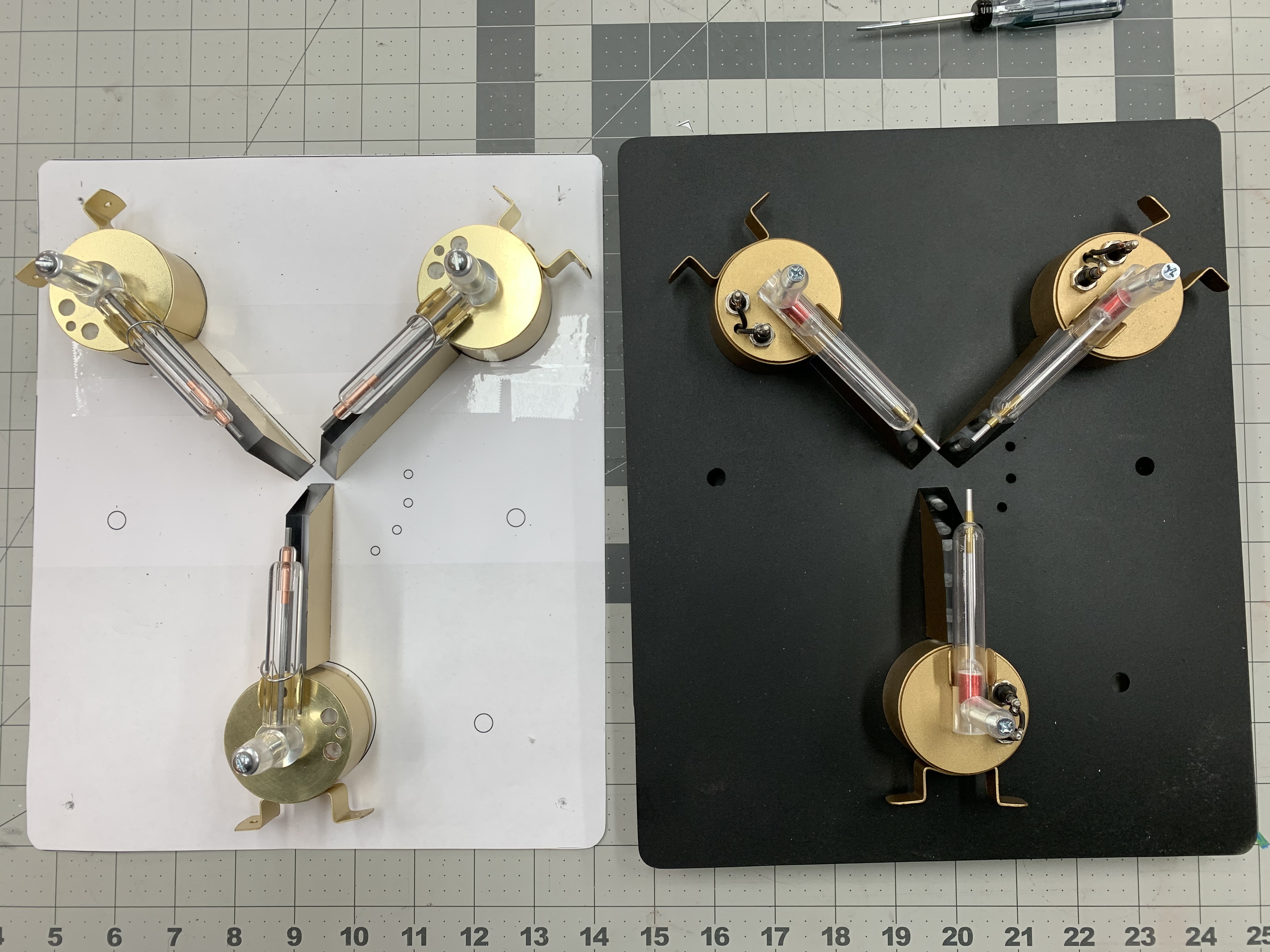

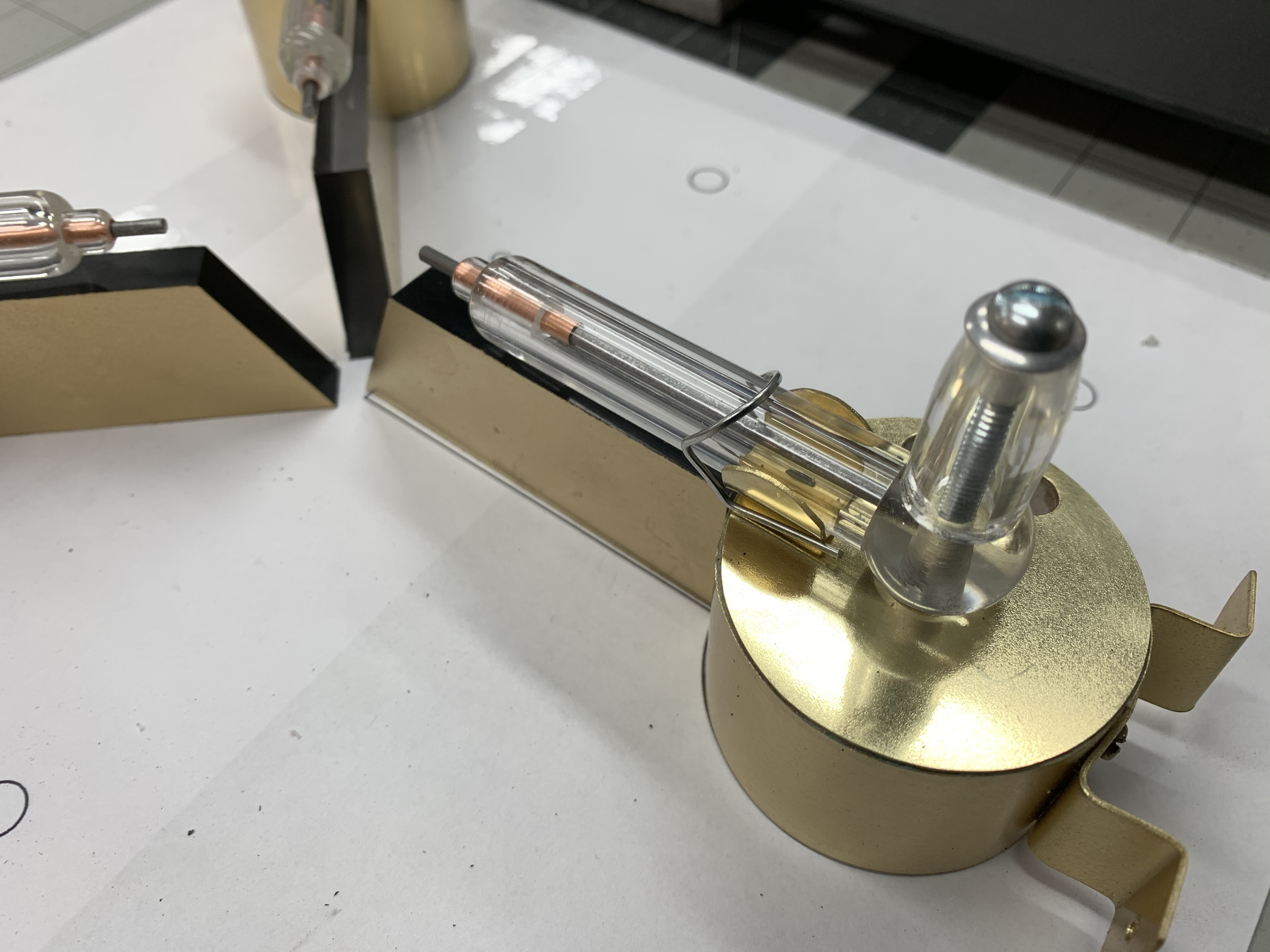

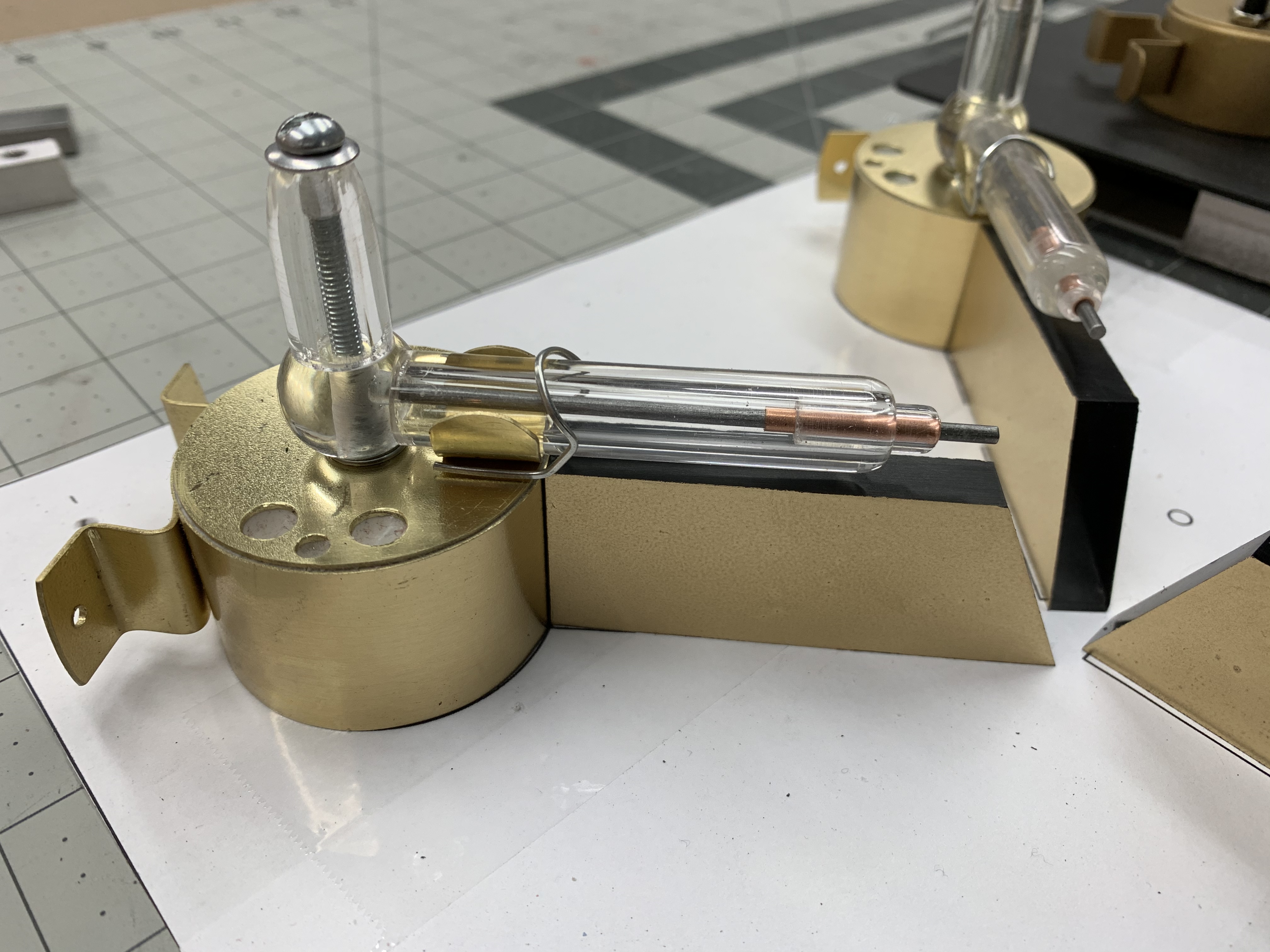

The acrylic glass tubes are finished. I’m now waiting for a couple details to finish the capacitors. The new accurate size is more different. Than I thought when you lay everything out. Looks like I need a new backboard as well. I got a deal on a damaged Stahlin enclosure on eBay. I’ll be stealing the hinge and latches off it to add to mine. View attachment 1413766 View attachment 1413767 View attachment 1413768
Do you have a printable template for the back board?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Valor

Sr Member
RPF PREMIUM MEMBER

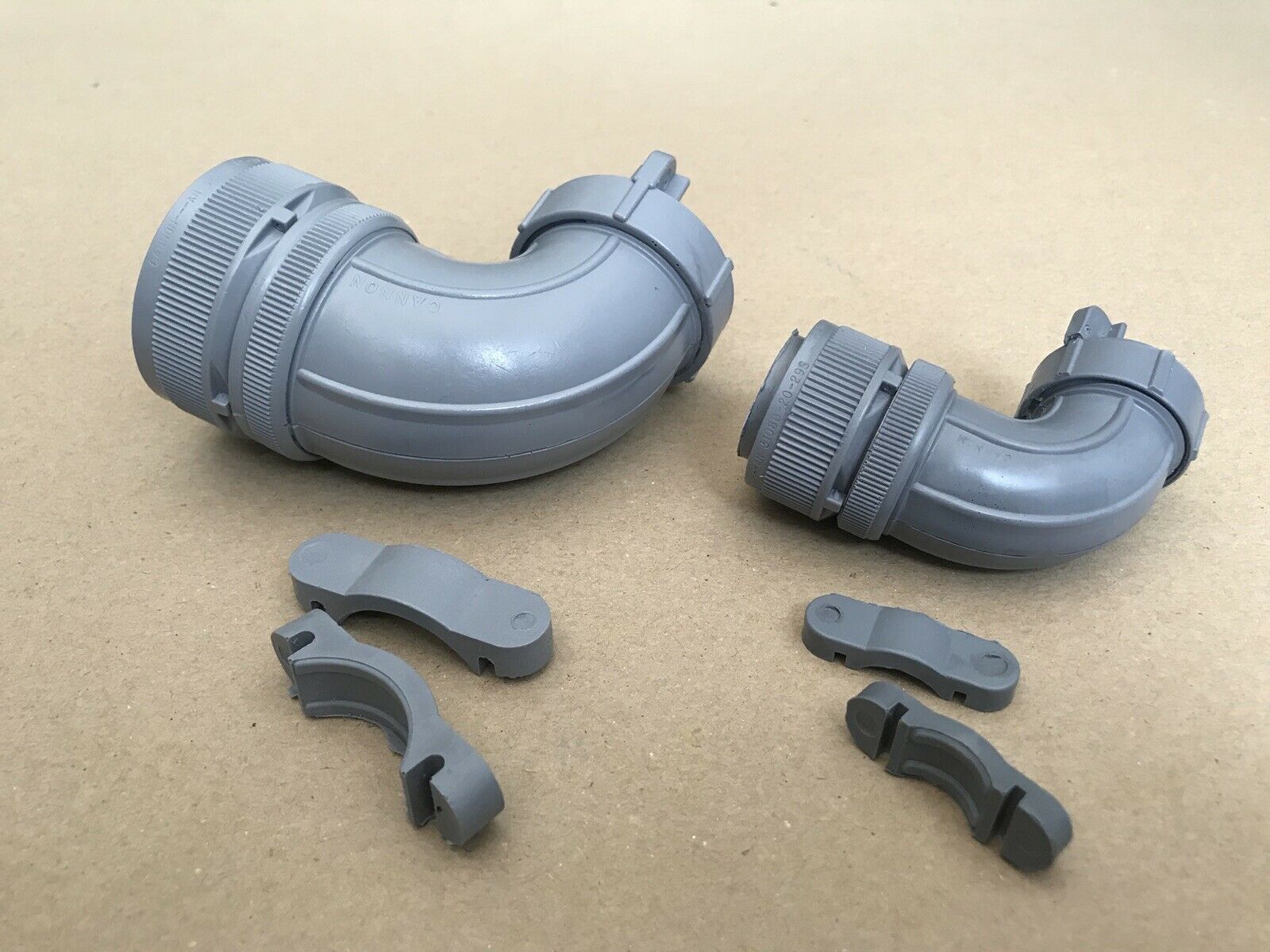

Interesting. Slightly different from these (which I know are a casting) ... Seems like there are severals versions of these.


Attachments

  • s-l1600.jpg
    237.4 KB · Views: 11

propmainiac

Sr Member
RPF PREMIUM MEMBER
Very nice work! Don't know if I'll go that far with the electrical box elbows....I picked up a box( not stahlin) but dimensions are the same for 45 off ebay..how does that hinge attach and where?


Valor

Sr Member
RPF PREMIUM MEMBER
Very nice work! Don't know if I'll go that far with the electrical box elbows....I picked up a box( not stahlin) but dimensions are the same for 45 off ebay..how does that hinge attach and where?
It fits between the door and the body when it's closed. Because this was an exact match from the one I salvaged it from it was pretty easy.
