FINISHED!! MY Interrogator / Torture Droid Build
- Thread starter Droidboy
- Start date
Peacefrog35
Sr Member
Re: MY Interrogator / Torture Droid Build
Oh yes..mold it up! I'd love one of those but I have no building skills.
Chris
Oh yes..mold it up! I'd love one of those but I have no building skills.
Chris
OldKen
Master Member
Re: MY Interrogator / Torture Droid Build
NICE!!! That looks perfect!
I don't want to know what you have had to spend on those medical tools...
THAT'S what you need to cast up!
Very awesome project.
You need to make an armature for it. So you can make it "float" in on guests at your house! Lol!
NICE!!! That looks perfect!
I don't want to know what you have had to spend on those medical tools...
THAT'S what you need to cast up!
Very awesome project.
You need to make an armature for it. So you can make it "float" in on guests at your house! Lol!
Re: MY Interrogator / Torture Droid Build

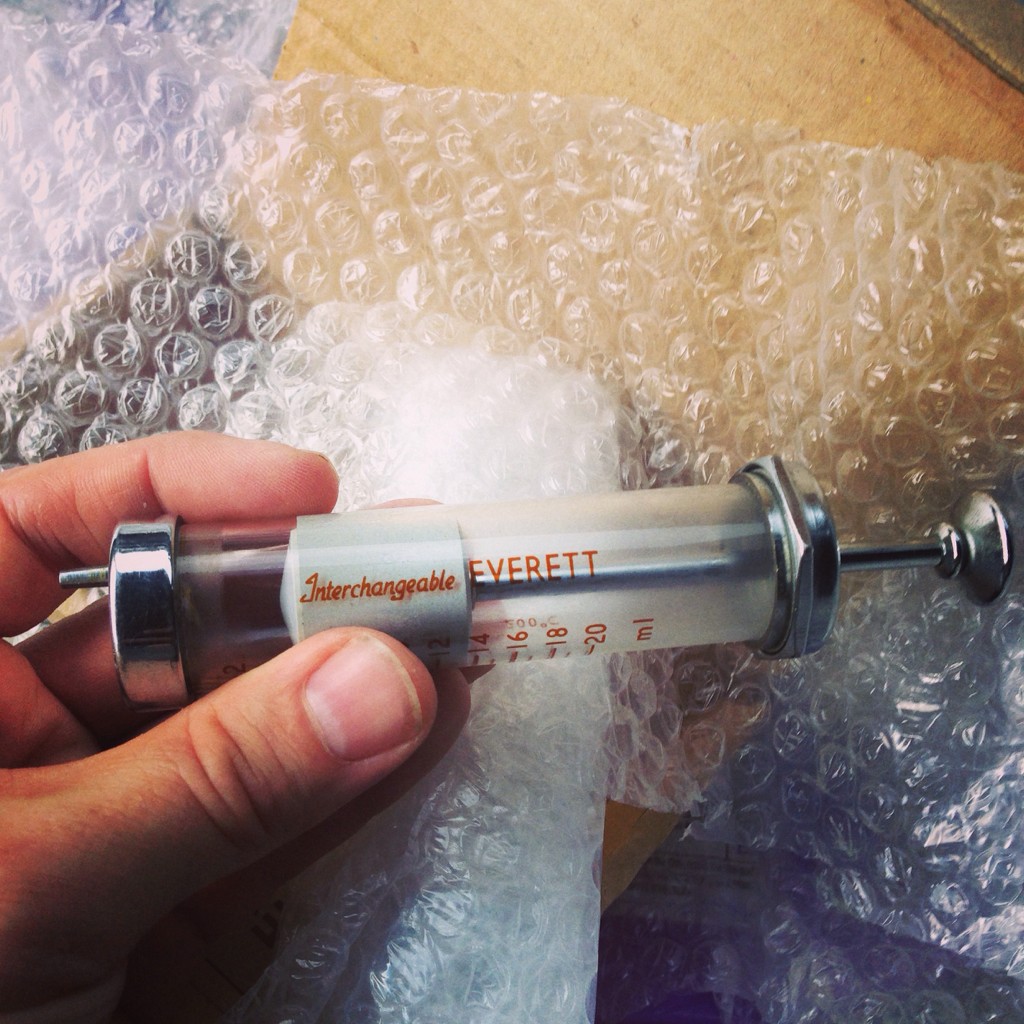

A couple of the medical pieces were definitely expensive, but I got lucky on others. The syringe was about the most expensive next to the tonsilectome tool.

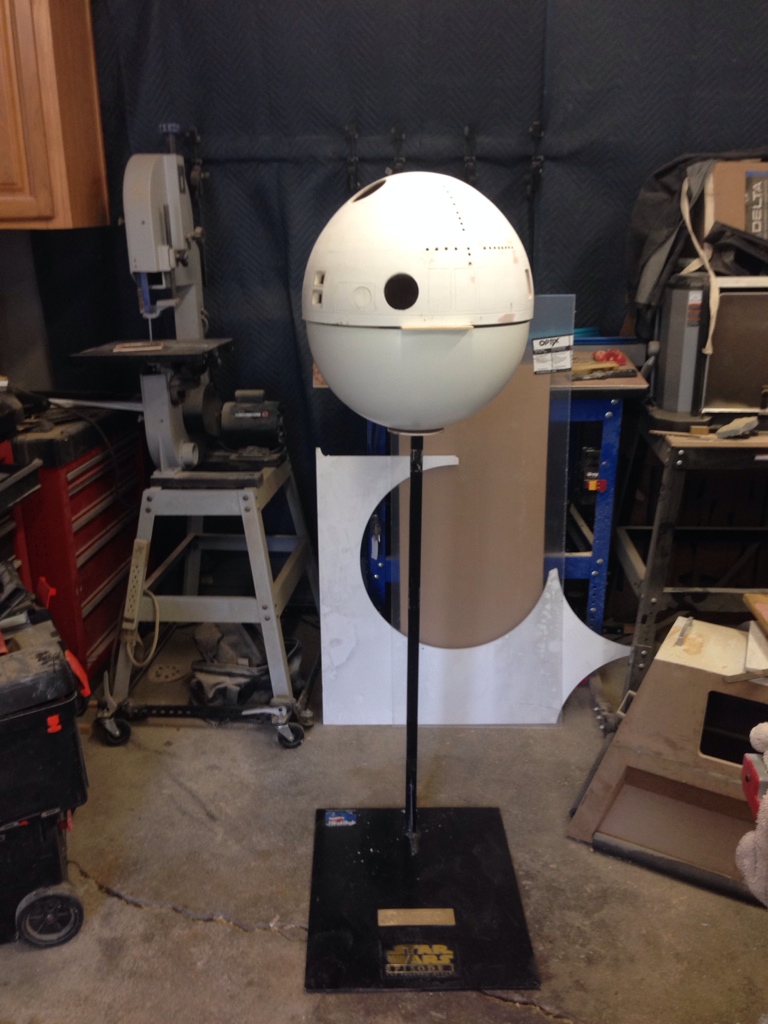

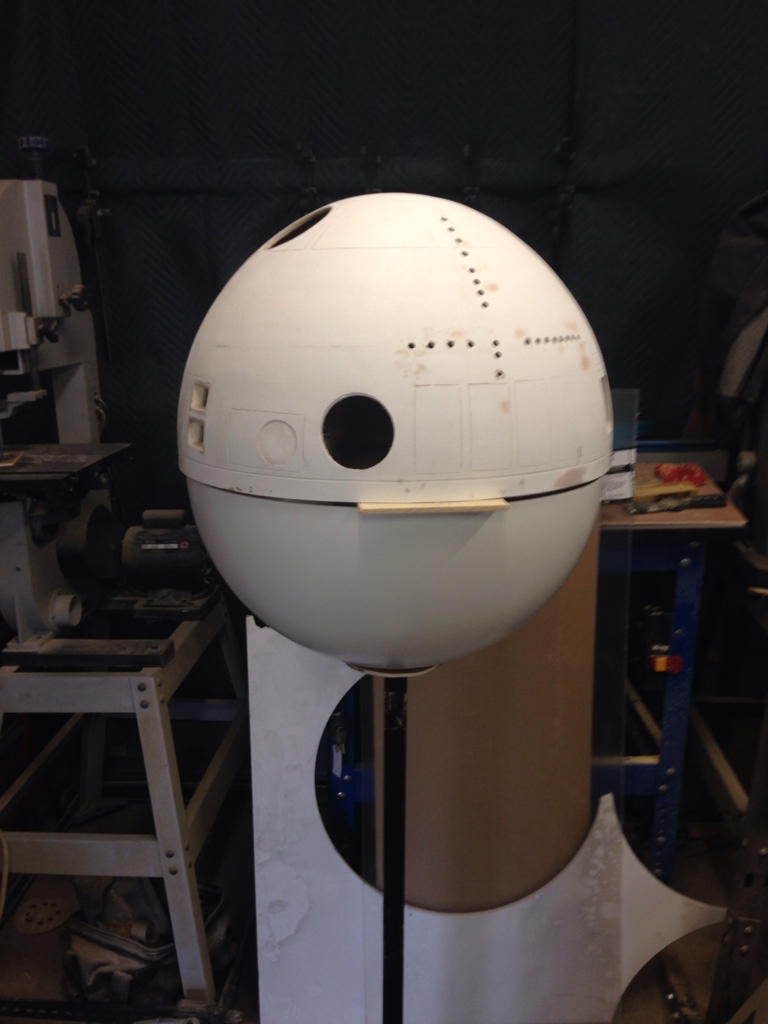

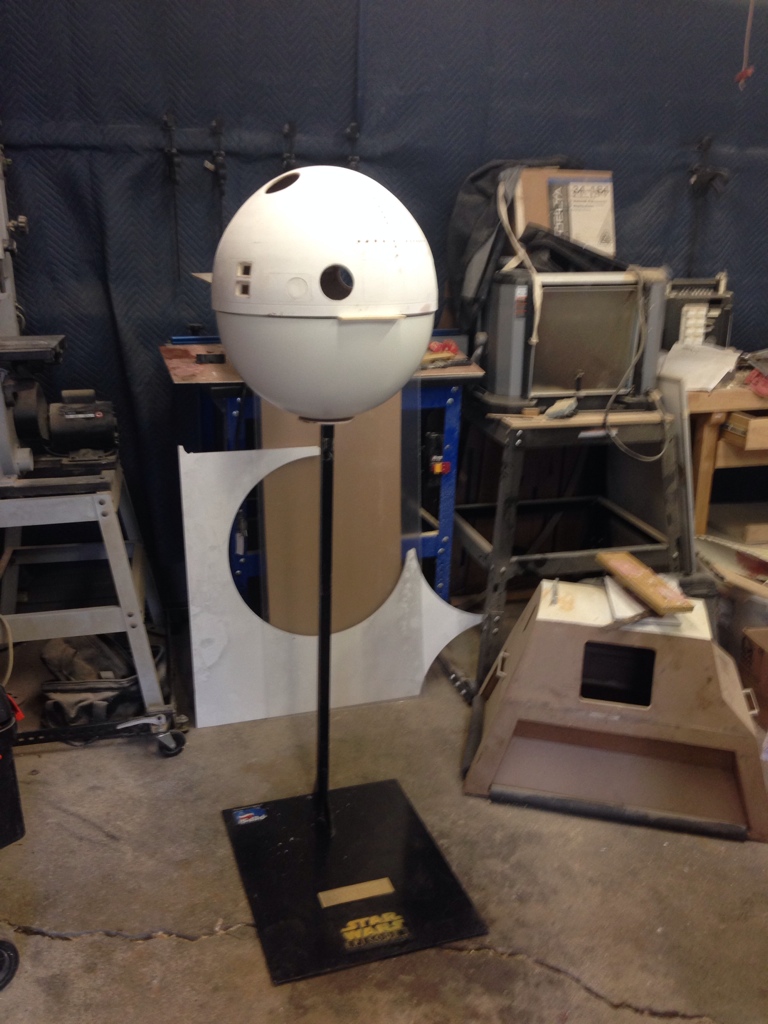

Here is what I'm using as the base. It came with the episode 1 Watto statue that I sold. I kept the base just for this
A couple of the medical pieces were definitely expensive, but I got lucky on others. The syringe was about the most expensive next to the tonsilectome tool.
Here is what I'm using as the base. It came with the episode 1 Watto statue that I sold. I kept the base just for this
Re: MY Interrogator / Torture Droid Build

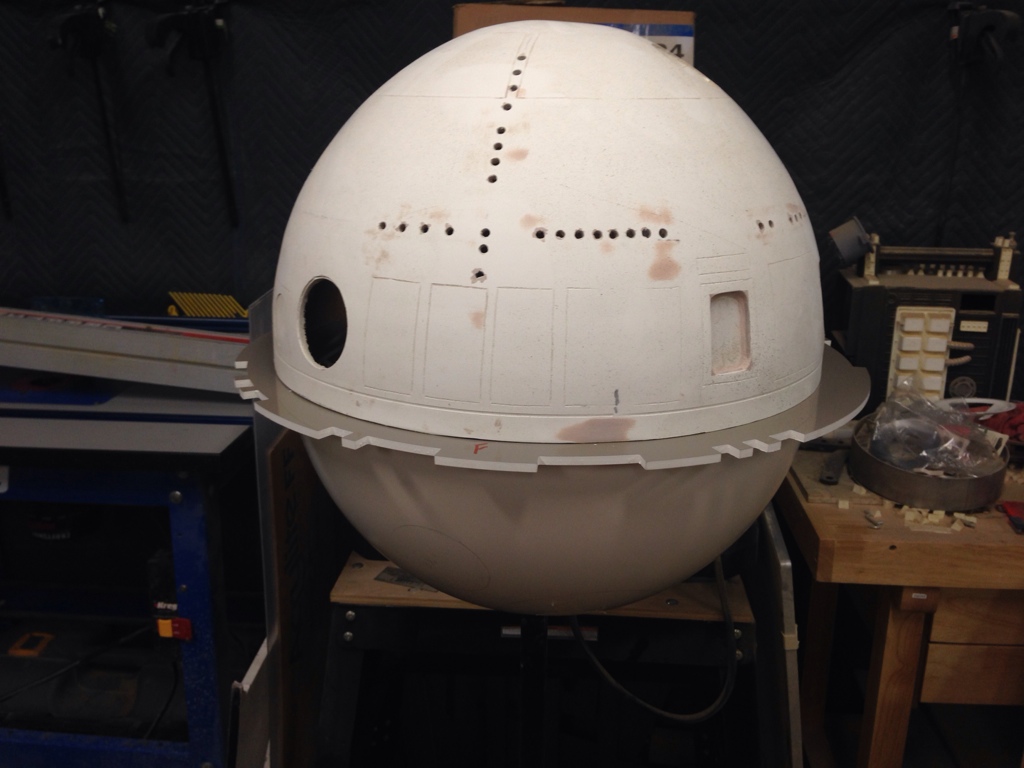

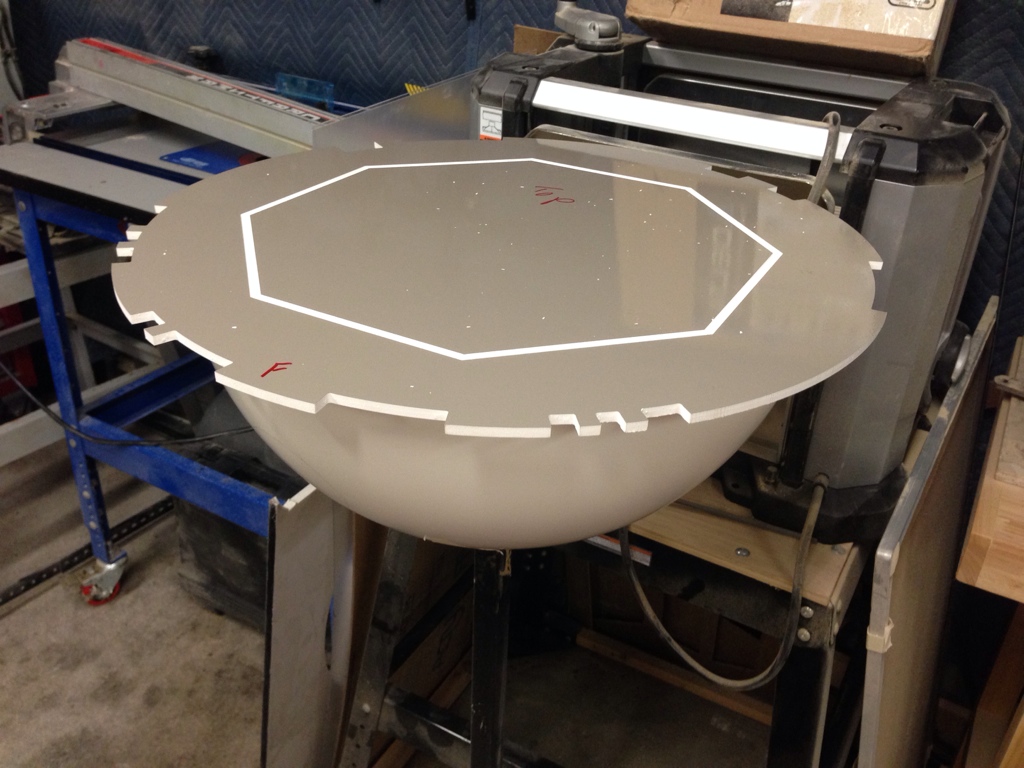

Finally something to update on this. I had a set of plates made for the center section. The bottom plate has the pattern cut out of the sides, a circle on the bottom to receive the lower dome and an octagon for the hemisphere to go into.
The top disk will fit in the bottom of the top dome and have a marching place for the octagon. This will allow everything to sandwich together. Ultimately I see running a rod through the center to hold it all together.
It's not aligned but you get the idea.
Finally something to update on this. I had a set of plates made for the center section. The bottom plate has the pattern cut out of the sides, a circle on the bottom to receive the lower dome and an octagon for the hemisphere to go into.
The top disk will fit in the bottom of the top dome and have a marching place for the octagon. This will allow everything to sandwich together. Ultimately I see running a rod through the center to hold it all together.
It's not aligned but you get the idea.
Re: MY Interrogator / Torture Droid Build
A couple of things....
I posted an interest thread for a run of these:
http://www.therpf.com/f75/possible-interrogator-droid-body-kit-224596/#post3429225
I started a FB group about this :
https://www.facebook.com/interrogatordroidbuilders
And here are a couple of small update pictures. I'm fine tuning the indented hemispheres.
[URL=http://s139.photobucket.com/user/protowerks/media/IMG_4542_zpsb69c62aa.jpg.html]
[/URL]
A couple of things....
I posted an interest thread for a run of these:
http://www.therpf.com/f75/possible-interrogator-droid-body-kit-224596/#post3429225
I started a FB group about this :
https://www.facebook.com/interrogatordroidbuilders
And here are a couple of small update pictures. I'm fine tuning the indented hemispheres.
[URL=http://s139.photobucket.com/user/protowerks/media/IMG_4542_zpsb69c62aa.jpg.html]
[/URL]
Re: MY Interrogator / Torture Droid Build
I haven't forgotten about this....just had to switch gears on a couple of things.

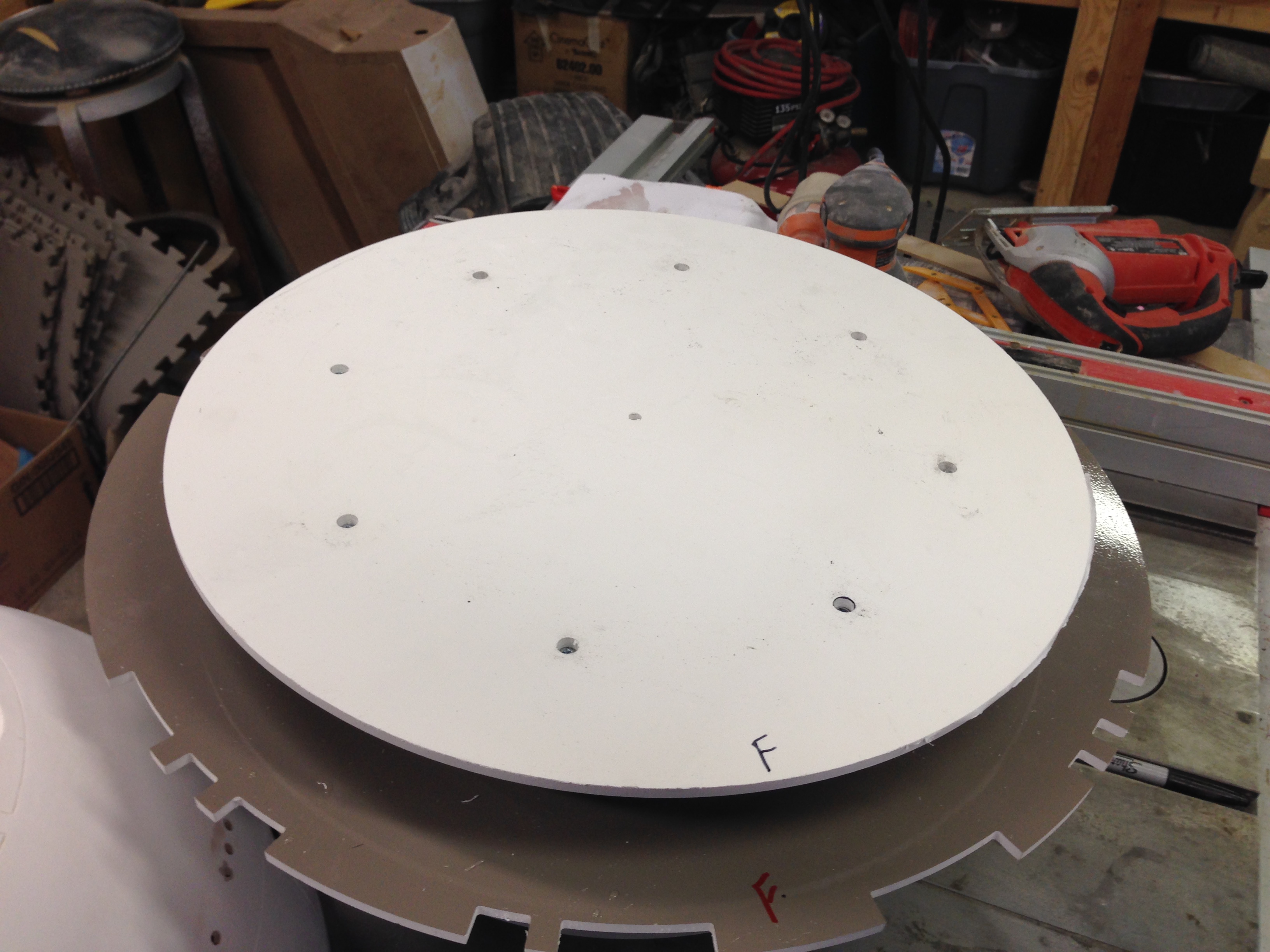

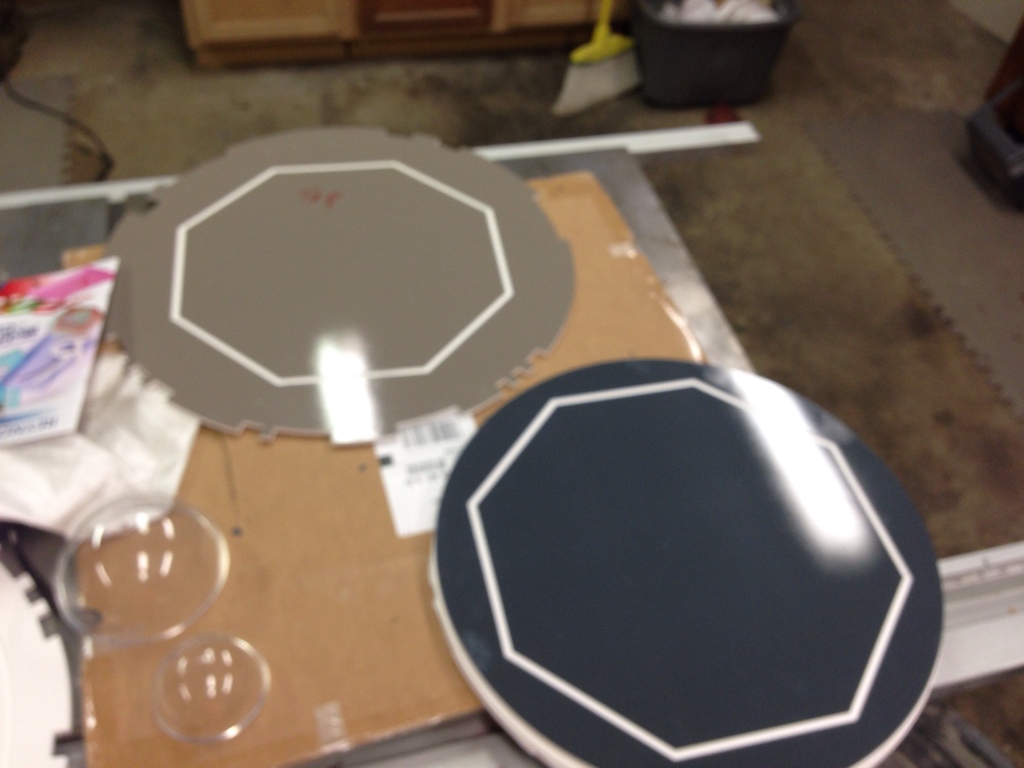

Anyhow... So I started playing around with the equator part and decided that it needed some more stability than my original plan, so I had two octagons cut and screwed them together with a 1" nylon spacer in between them. The two plates are screwed to the bottom plate as one piece, and then the top piece will nestle on top of it.
I also drilled a 1/4" hole through the center of all of the plates and plan on drilling a hole through the top and bottom of the hemispheres so that a long 1/4" threaded rod can go through everything bolt it all together.
Here are some pics from what I did.
View attachment 387043View attachment 387044View attachment 387045View attachment 387046View attachment 387047View attachment 387048View attachment 387049
I haven't forgotten about this....just had to switch gears on a couple of things.
Anyhow... So I started playing around with the equator part and decided that it needed some more stability than my original plan, so I had two octagons cut and screwed them together with a 1" nylon spacer in between them. The two plates are screwed to the bottom plate as one piece, and then the top piece will nestle on top of it.
I also drilled a 1/4" hole through the center of all of the plates and plan on drilling a hole through the top and bottom of the hemispheres so that a long 1/4" threaded rod can go through everything bolt it all together.
Here are some pics from what I did.
View attachment 387043View attachment 387044View attachment 387045View attachment 387046View attachment 387047View attachment 387048View attachment 387049
Re: MY Interrogator / Torture Droid Build
One thing that has always bothered me about this done is that the etchings were soft and I wanted them deeper. After inspecting some pics of the real thing at the MotM exhibit, I realized that the real one had hand etched lines, so I'm making these so they aren't as soft before I mold it.
One thing that has always bothered me about this done is that the etchings were soft and I wanted them deeper. After inspecting some pics of the real thing at the MotM exhibit, I realized that the real one had hand etched lines, so I'm making these so they aren't as soft before I mold it.
rootman055
Jr Member
Re: MY Interrogator / Torture Droid Build
It's all in the details, keep up the fantastic work Droidboy!
It's all in the details, keep up the fantastic work Droidboy!
Re: MY Interrogator / Torture Droid Build
The domes are a good place to start
. I'm planning on molding he tonsilectome tool very soon and I'm working on having the prosthetic arm 3d printed so that can be molded as well.
I'd look for the chemistry pieces and the forceps first since I'm going to mold the expensive parts.
The domes are a good place to start
. I'm planning on molding he tonsilectome tool very soon and I'm working on having the prosthetic arm 3d printed so that can be molded as well. I'd look for the chemistry pieces and the forceps first since I'm going to mold the expensive parts.
