rbeach84

Sr Member
Appreciate the reference images, Jason. RE: the SSM site, I was referring to not being able to gain membership which allows access to the kit scans archive (for one.) Perhaps the site is just 'saturated' but didn't hear anything back so all I'm left with is speculation, unfortunately. ( I was requesting access to support the 5-foot Mill Falcon markings survey effort...)
Regards, Robert


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

bwayne64

Sr Member

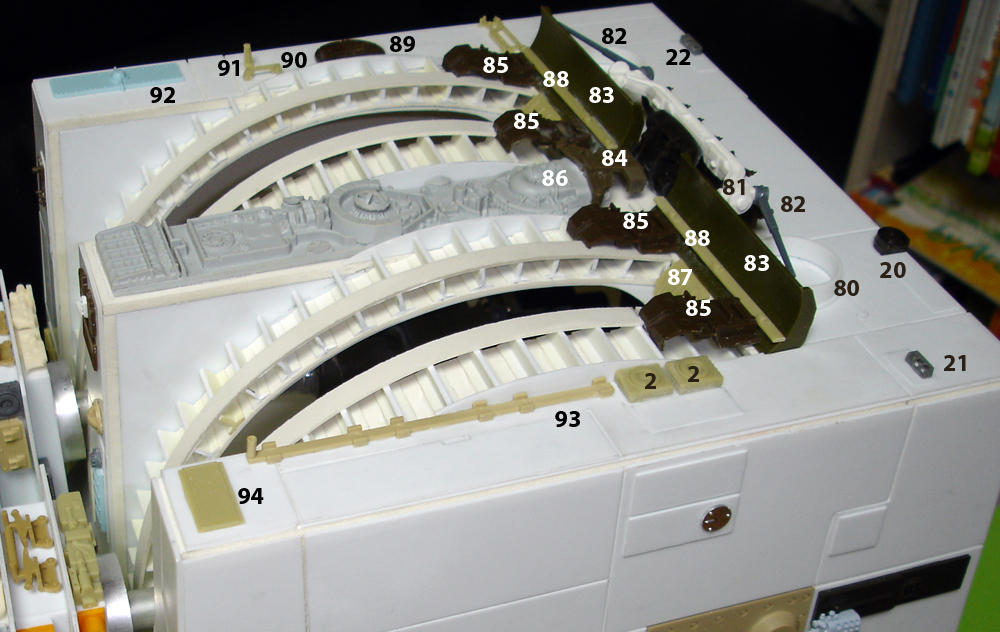

Here are those Maps. Feel free to move them to the start of thread if need be.




1. Bandai 1/15 Hummel
(Below #1 is another part from a 1/15 Bandai kit - fellas?)
2. Bandai 1/48 Panther G (also in King Tiger, Jagdtiger, etc)
3. Bandai 1/48 Panther G
4. Nichimo 1/35 Tiger-II
5. Peerless 1/35 1 1/2 Ton
6. Bandai 1/48 Panther G
7. Nichimo 1/35 Tiger II
8. Bandai 1/48 Panther G
9. Bandai 1/15 Hummel
10. Fujimi 1/76 Sherman w/ Jeep
11. Bandai 1/48 88mm/8ton
12. Aurora 1/600 Forrestal/Saratoga
13. Nichimo 1/35 Tiger II
14. Bandai 1/15 Hummel
15. Bandai 1/15 Stug
16. Bandai 1/15 Stug 4
17. Bandai 1/48 Panther G
18. Tamiya 1/12
19. Scratchbuilt
20. Bandai 1/24 M60
21. Aurora 1/600 Saratoga
22. Aurora 1/600 Saratoga




23. AMT 1/25 Freuhauf Tanker
24. Airfix 1/24 ME 109
25. Nichimo 1/35 Pz.Kpfw.VI Tiger II (Henschel turret)
26. Bandai 1/24 M60
27. Bandai 1/24 Jagdpanther
28. Banda 1/15 Stug 4
29. Bandai 1/48 Matilda
30. Bandai 1/24 Jagdpanther
31. Fujimi 1/76 Panther G
32. AMT 1/25 Freuhauf Tanker
33. AMT 1/25 Freuhauf Tanker
34. Bandai 1/24 Jagdpanther
35. Bandai 1/48 Panther G
36. Nichimo 1/35 Pz.Kpfw.VI Tiger II (Henschel turret)
37. Bandai 1/24 Panther G
38. Panzer IV (Is this supposed to be the Panzer III M/N?)
39. Bandai 1/48 Panther G
40. Bandai 1/48 Panther G
41. Bandai 1/48 Panther G
42. Nichim 1/500 Yamato
43. Bandai 1/48 8ton semi truck




44. Revell 1/32 Mig 21
45. Heller 1/400 La Seine
46. Bandai 1/48 Matilda
47. Hasegawa Yamato
48. Bandai 1/48 Panther G
49. Bandai 1/48 Panther G
50. Tamiya 1/16 Sherman
51. Tamiya 1/12 Honda F1 ?
52. Bandai 1/48 Panther G
53. Aurora Sealab
54. Aurora Sealab
55. Airfix Graf Spee
56. Bandai 1/48 Panther G
57. Bandai 1/48 Panther G
58. Bandai 1/48 Panther G
59. Bandai 1/48 Panther G
60.
61.




62. Aurora 1/600 Saratoga
63. Bandai 1/48 Panther G
64. Fujimi 1/76 Sherman w/ Jeep
65. Bandai 1/48 Panther G
66. Bandai 1/48 Panther G
67. Nichimo 1/35 Tiger II
68. Bandai 1/24 M60
69. Bandai 1/48 Matilda
70. Airfix 1/24 Mustang
71. Bandai 1/48 Matilda
72. Bandai 1/48 Panther G
73. Bandai 1/15 Hummel
74. Bandai 1/15 Hummel
75. Bandai 1/24 Panther G
76. Bandai 1/24 M60
77. Peerless Max 1/35 1 1/2 Ton
78. Tamiya 1/35 8-Rad
79. AMT 1/25 Freuhauf Tanker




80. Amt 1/25 Fruehauf Trailer (?)
81. AMT 1/25 - Movin' On (?)
82.
83. Aurora M8 Munitions Carrier
84. Tamiya 1/35 M10 Tank Destroyer
85. Fujimi 1/76 Jeep?
86. Droid Strip with Tamiya Kampfpanzer Leopard (thanks, Scott!)
87. Bandai 1/48 Panther G
88. Bandai 1/48 Panther G
89. Fujimi 1/76 Sherman
90. Bandai 1/48 Panther G
91. Bandai 1/48 Panther G
92. Bandai 1/24 Messerchmitt ME109
93. Bandai 1/24 Panther G
94. Bandai 1/48 Panther G




96. Bandai 1/48 Panther G
97. Airfix 1/24 ME 109
98. Bandai 1/48 Panther G
99. Bandai 1/15
100. Bandai 1/48 Matilda
101. Bandai 1/15 Hummel
102.
103.
104. Bandai 1/48 Panther G




105. Fujimi 1/76 Jeep
106. Fujimi 1/76 Jeep
107. AMT 1/25 Frehauf Tanker
108. Fujimi 1/76 Jeep
109. Nichimo 1/500 Yamato
110. Bandai 1/24 Messerchmitt ME109
111. Fujimi 1/76 Sherman w/ Willy's Jeep
112. Bandai 1/24 M60
113. Bandai 1/48 Panther G
114. Bandai 1/48 Panther G
115. Bandai 1/48 Panther G
116. Bandai 1/48 Panther G
117. Bandai 1/48 Panther G
118. Bandai 1/48 Panther G
119. Bandai 1/48 Matilda
Then my brain had a break from reason and I jumped to)
200. Tamiya 1/35 M36 Jackson
201.

.

Last edited:

MonsieurTox

Master Member
I still miss a part from Mike that was not in any of the 2 parcels (the first set of parts and the second was some missing parts). It' sa part from an AMT trailer that goes between the 2 jeep willys parts on the front of the turret, between the barrels.


Lee S

Sr Member
I'm about to start my build, but never received the second batch. I'll give Mike a shout once I know what I need :)
Still trying to decide if I'll motorize it or not........


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

bwayne64

Sr Member
Suuuure. Soon as I finish my build and start painting you post the maps! :lol

Yep, always a day late and a dollar short ;) Cheers,

Joe

- - - Updated - - -

I'm so glad someone saved those!

Oh yea, anytime I see a good pic on the interweb, I steal, I mean, save it, LOL. I know how perishable the posts are. If you don't grab them, they'll disappear on ya . Hope they help, Cheers,

Joe


Lee S

Sr Member

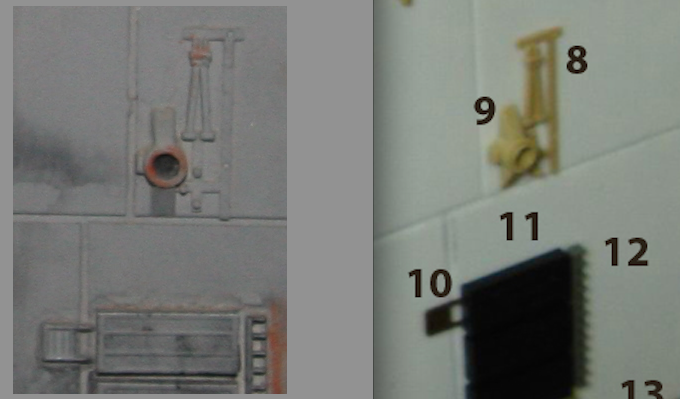

Anyone have an update on part #9? It's listed as from the 1/15 Hummel, but it's not. Only a small part on the rear so it's not a biggie, would just like the right part :)

L
Screen Shot 2015-11-24 at 8.46.51 AM.png


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Lee S

Sr Member
Has anyone ever figured out what was originally here on the back of the turret? I can't find any pictures of this area before it was damaged.
Screen Shot 2015-12-02 at 11.04.59 AM.png
