Galactica Shuttle Parts Maps

[bwayne64]

Found these maps that we made years ago. They're over at SSM but a few people said they aren't able to get in. Thought I'd put them here. I made the maps, but many folks have supplied the ID's. Sean C being the main one, and Phil C ( the Wombat ). Sorry if I don't remember everyone. We had a few ID's and he came in and finished several maps. A few have gaps so if anyone wants to finish them off, I will be a happy camper.

Galactica Shuttle Top Map

1. 1/72 Hasegawa Leopold Railway Gun # B 32 (cut)
2. 1/72 Hasegawa Leopold Railway Gun # A 20
3. 1/350 Lindberg Tirpitz # 26
4.
5. 1/72 Hasegawa Morser Karl # F 41
6. 1/72 Hasegawa Morser Karl # F 2 (Cut)
7. 1/72 Airfix German "E" Boat ( # 7 and # 11 on map are one part )
8. Roco 257 Crane Base
9. Tamiya British 25 PDR Field Gun # Y 31
10. Doyushu Yamato
11. 1/72 Airfix German "E" Boat
12. 1/72 Hasegawa Morser Karl # F 29
13. 1/72 Airfix German "E" Boat
14. 1/72 Hasegawa Morser Karl # F 11
15. Plastic coated wire or brass rod
16. 1/48 Otaki Marder
17. 1/48 Otaki Marder
18. 1/72 Hasegawa Morser Karl # F 37
19. 1/72 Hasegawa Morser Karl # F 37
20. 1/72 Hasegawa Morser Karl # F 30
21. 1/72 Hasegawa Morser Karl # F 14 (cut)
22. 1/72 Airfix German "E" Boat # 254 or 257
23. 1/72Hasegawa Morser Karl # F 12
24. 1/72 Hasegawa Morser Karl # F 31
25. Otaki D51 Locomotive # D 8
26. 1/350 Lindberg Tirpitz # 27
27. 1/72 Hasegawa Morser Karl
28. 1/24 Bandai Panther G
29. 1/24 Bandai Panther G
30. 1/24 Bandai Panther G
31. 1/24 Bandai Panther G
32. 1/72 Hasegawa Morser Karl # F 34
33. 1/24 Bandai Panther G
34. 1/8 Nitto Motocrosser
35. 1/72 Airfix German "E" Boat # 90 or 91
36.
37. 1/72 Airfix German "E" Boat # 215 or 218
38. 1/8 Nitto Motocrosser
39. 1/8 Nitto Motocrosser
40. 1/72 Airfix German "E" Boat # 90 or 92
41. 1/72 Airfix German "E" Boat #126
42. 1/72 Hasegawa Morser Karl # F 32
43. 1/8 Nitto Motocrosser
44. 1/48 Otaki Marder Body (cut)
45. 1/8 Nitto Motocrosser
46. 1/8 Nitto Motocrosser
47. 1/8 Nitto Motocrosser
48. 1/350 Lindberg Tirpitz # 14
49. 1/12 Tamiya JPS Lotus 72D # C 7 ( Port Side ) # C 8 ( Starboard Side )
50. 1/8 Nitto Motocrosser
51. 1/8 Nitto Motocrosser
52. 1/8 Nitto Motocrosser
53. 1/8 Nitto Motocrosser
54. 1/72Hasegawa Morser Karl # D 4 or 5
55. 1/72 Hasegawa Morser Karl # F 27
56. 1/72 Airfix German E Boat # 213 or 217
57. Multiple Parts, see picture
58. 1/8 Nitto Motocrosser
59. Airfix Harrier
60. Airfix Harrier
61. Possibly Legg's egg ( Cut ) Still Debated ?
62. 1/48 Otaki Marder Body (cut)



There's a part behind # 2 on the map that I forgot to number. I didn't want to redo the whole map. If anybody knows the ID on that one I'll just put it in the map.

I didn't number the Antenna assembly as it is multiple parts. I see a Morser Karl # F 26 (cut) I believe and a # F 28 as its base. There is the dish which I don't know and a part behind it. Sorry, not a lot of help I know, ; )

# 44 and 62 are the Otaki Marder body cut in half, The front section has been flipped around, and butts against the rear section.


I haven't got the size of the Plastruct domes yet, I was just going to use some parts in that area to get that measurement.

Part # 57 is another part that has multiple pieces I believe. I don't have any ID's on that one yet.

Thanks to Jon Billings for the picture, I found it on the RI a while back, so Thank You, ; )

The part I numbered 57 is multiple parts, the front two parts are from the Morser Karl # D 9. On the back is the Morser Karl # F 12. Center Section is from Bandai 1/24 Panther # F 14, courtesy of Phil C, ; )

I have to give a hearty thanks to Sean C at the RI for almost finishing the maps for us. Thanks to Phil for letting him know about it. Thanks to all here that have helped, you know who you are,
; ) You all rock hard, Thank You !!!

Part # 57 Breakdown.

Part in the red square above, is from the Bandai 1/24 Panther G, # F 14.


Antenna Parts

Galactica Shuttle Side Map

1. Antenna assembly (See Close-up above)
2. 1/525 Lindberg Yorktown or whatever
3. 1/350 Lindberg Tirpitz
4. 1/535 Lindberg Yorktown
5. 1/72 Hasegawa Morser
6. 1/24 Bandai Panther
7. Airfix B-29 (Fat Boy bomb halves)
8. 1/72 Hasegawa Leopold
9. 1/72 Hasegawa Leopold
10. Doyusha Yamato
11. Doyusha Yamato
12. 1/72 Hasegawa Leopold or Morser (these are 2 pieces joined and trimmed).
13. 1/35 Tamiya Panther A ( Cut from tank hull )
14. 1/72 German E-boat # 55
15. 1/72 Hasegawa Leopold barrel
16. Airfix Harrier
17. Airfix Harrier
18. 1/72 Hasegawa 88mm Flak 18 or something like that
19. 1/12 Tamiya 312T
20. 1/72 Hasegawa Leopold barrel
21. 1/72 Hasegawa 88mm Flak 18
22. Saturn V
23. 1/72 Hasegawa 88mm Flak
24. 1/72 Hasegawa Morser
25. 1/35 Tamiya 8rad
26. Airfix Harrier
27. 1/72 Hasegawa Leopold I think
28. Airfix Harrier
29. Aifrix Harrier
30. Hasegawa 88mm I think
31.

Don't know if both sides are the same. Any experts please chime in, ; )

Again, this is from memory, so there may be some wrong ones here. Sean C.

Galactica Shuttle Front Map

1. 1/350 Lindberg Yorktown # 42 ( Also in the Lexington )
2. 1/72 Hasegawa Morser Karl # C 11
3. Amt Peterbuilt ?
4. Amt White Road Boss ( Upper Oil Cooler ) also in White Freightliner
5. Amt Peterbuilt ?
6. 1/25 Tamiya Centurion MK III # L 9
7. 1/25 Tamiya Centurion MK III # K 29
8. 1/72 Hasegawa Leopold # B 14
9. Monogram B 17 G ( Bomb Trolley )


Only a few parts on the front, thank the Lord,

Galactica Shuttle Bottom Map ( Front )

1. Marui McLaren
2. 1/24 Bandai Panther
3. Marui McLaren ( Sprue from part # 1 )
4. 1/48 Monogram B 17 G ( Bomb Trolley, one piece )
5. 1/25 Tamiya Centurion MK III # L 9
6. 1/25 Tamiya Centurion MK III # K 29
7. 1/72 Hasegawa Leopold # B26 (cut)


# 5 is the spare tank rounds from the Centurion. Makes sense they would use those for missiles.

Put in a Pic of the Bomb Trolley ID'ed by Scott, Thanks

Galactica Shuttle Back Map

1. 1/8 Entex JPS 72 D
2. 1/24 Airfix Harrier (Weapons Pod Cut)
3. Amt Truck ?
4. 1/48 Aurora Chi - Ha or Type 97 Japanese Tank
5. 1/7 Hasegawa Leopold # B 41
6. Jo Han Mercedes 500 K # 19

I've heard the Engine Nozzles were Legg's eggs, but as Sean C said, still being debated, ; )

Galactica Shuttle Bottom Map (Rear)

1. 1/8 Entex JPS 72D
2. 1/72 Airfix Saab Draken
3. 1/35 Tamiya Panther ( Cut )
4. 1/35 Tamiya Panther ( Cut )
5. 1/72 Airfix Saab Draken
6. 1/35 Tamiya 8 Rad # A 9
7. 1/35 Tamiya 8 Rad # A 3
8. 1/35 Tamiya 8 Rad # B 24 or 25
9. 1/35 Tamiya 8 Rad # A 5
10. 1/35 Tamiya 8 Rad # A 22
11. 1/35 Tamiya 8 Rad # A 18
12. 1/35 Tamiya 8 Rad # C 37
13. 1/35 Tamiya 8 Rad # B 30 or 35
14. 1/35 Tamiya 8 Rad # C 13 and 14
15. 1/35 Tamiya 8 Rad # A 14
16. 1/35 Tamiya 8 Rad # C 10
17. 1/35 Tamiya 8 Rad # B 31
18. 1/35 Tamiya 8 Rad # B 26
19. 1/34 Tamiya 8 Rad # B 15
20. 1/350 Lindberg Yorktown ( Vintage ) or sister ships
21. 1/350 Lindberg Yorktown ( Vintage ) or sister ships
22. 1/35 Tamiya 8 Rad # B 24 or 25
23. 1/24 Airfix Harrier
24. 1/12 Tamiya Ferrari 312T # G3
25. 1/12 Tamiya Ferrari 312T # F 36
26. 1/12 Tamiya Ferrari 312T # F 36
27. Plastruct/ EMA
28. 1/72 Hasegawa Leopold # B26 (cut)
29. 1/72 Hasegawa Leopold # B 14
30. 1/72 Hasegawa Morser Karl # B 17
31. 1/72 Hasegawa Leopold Railway Gun # C 8 and 10 ( Cut and Joined )
32. 1/72 Hasegawa Morser Karl # F 38
33. 1/72 Hasegawa Leopold Railway Gun # A 17 ( Morser Karl # F 40- Depending on if you want nipples or no nipples, ; )
34. 1/72 Hasegawa Morser Karl # F 38
35. 1/12 Tamiya Ferrari 312T # D13

Don't who drew this, I found it many Yahrens ago on the interwebs. Don't know how accurate the dimensions are. That would be above my pay grade. Thanks to whoever drew it. Been meaning to redraw it at higher resolution. But it is what it is.


Again thanks to everyone who contributed to these maps. You know who you are. If anyone sees anything obviously wrong or missing, feel free to let us know. Enjoy !

I believe the pictures are of Jon Billings model. Thanks Jon !

Correction :
Top, side and front pictures are of original model, according to Satazius. Sorry don't know your real name, ; )


Kit List

AIRFIX:

1/72 Saab Draken
1/144 Saturn V
1/24 Harrier
1/72 German E Boat

AMT

1/25 White Road Boss
1/25 Kenworth W-925 (any version)
1/25 Texico tanker

BANDAI

1/24 King Tiger

DOYUSHA

1/250 Yamato

ENTEX

1/8 John Player Special

HASEGAWA

1/72 88mm Gun Flak 18 or 36
1/72 Hasegawa Leopold
1/72 Hasegawa Morser

JOHAN

1/25 1934 Mercedes 500K


LINDBERG

1/350 Tirpitz German Battleship
1/525 USS Yorktown ( Vintage Kit
not New Release )


Marui

1/24 McLaren

MONOGRAM

1/48 B-29
1/48 Monogram B 17 G

OTAKI

1/48 Marder
1/50 D 51 - 101 Locomotive

ROCO

1/87 Leopard tank Recovery Vehicle (#257)

TAMIYA

1/35 Tamiya Quad gun tractor
1/35 Tamiya 8rad
1/35 Tamiya 25 PDR Field Gun
1/25 Tamiya Centurion
1/12 Tamiya JPS 72D



[TazMan2000]

I always liked this ship. A shame Monogram, or any other company didn't make this commercially.

TazMan2000



[bwayne64]

I always liked this ship. A shame Monogram, or any other company didn't make this commercially.

TazMan2000

Yep, very cool ship. Like the Uss Grissom it doesn't get enough love. But at least the Grissom has had several commercial models.



[Rick Deckard]

Very cool Model! Thanks for sharing!



[satazius]

Again thanks to everyone who contributed to these maps. You know who you are. If anyone sees anything obviously wrong or missing, feel free to let us know. Enjoy !

I believe the pictures are of Jon Billings model. Thanks Jon !

The Top, Side and Front maps are the original model.



[Searun]

bwayne64,
Really nice of you to provide this model map. This kit part art form is an incredibly unique & clever to provide details to a scratch built model. So applicable to creative space craft design. Somewhat a dying skill with the evolution of today’s technology.

Thanks to you and many others that offer your very time consuming research. Great help whenever a model enthusiast gets “bitten” by a particular subject.



[bwayne64]

The Top, Side and Front maps are the original model.

Thanks man. I made these a loooooong time ago. My memory isn't that good, lol. Glad it's the original on those. Better to use the original when you're able.



[bwayne64]

bwayne64,
Really nice of you to provide this model map. This kit part art form is an incredibly unique & clever to provide details to a scratch built model. So applicable to creative space craft design. Somewhat a dying skill with the evolution of today’s technology.

Thanks to you and many others that offer your very time consuming research. Great help whenever a model enthusiast gets “bitten” by a particular subject.

Thanks man. Don't know if I'll ever get around to.building this one. Too many projects. Maybe it will help those who are building it, or those people who are curious about which kit parts were used. To be honest, I've already been searching Evilbay for old kits. Uh oh ! LOL.



[jcoffman99]

It always amazes me the work you guys did on those Galactica maps.



[bwayne64]

It always amazes me the work you guys did on those Galactica maps.

Yes we all had the bug back then. It's an addiction, lol.



[Sparky70]

Bottom Map (Rear) 35 is Tamiya 1/12 Ferrari 312T



[satazius]

Bottom Map Front. #1 is Marui McLaren and #3 is the attached sprue.



[bwayne64]

Bottom Map (Rear) 35 is Tamiya 1/12 Ferrari 312T

Thanks man that sucker is buried in there. How do you guys see this stuff. I can make the maps, but I suck at IDs, lol. I mean if it's a Leopold and Morser, I got those, but anything else.....



[bwayne64]

Bottom Map Front. #1 is Marui McLaren and #3 is the attached sprue.

Thanks man, is that a 1/24 scale ?



[bwayne64]

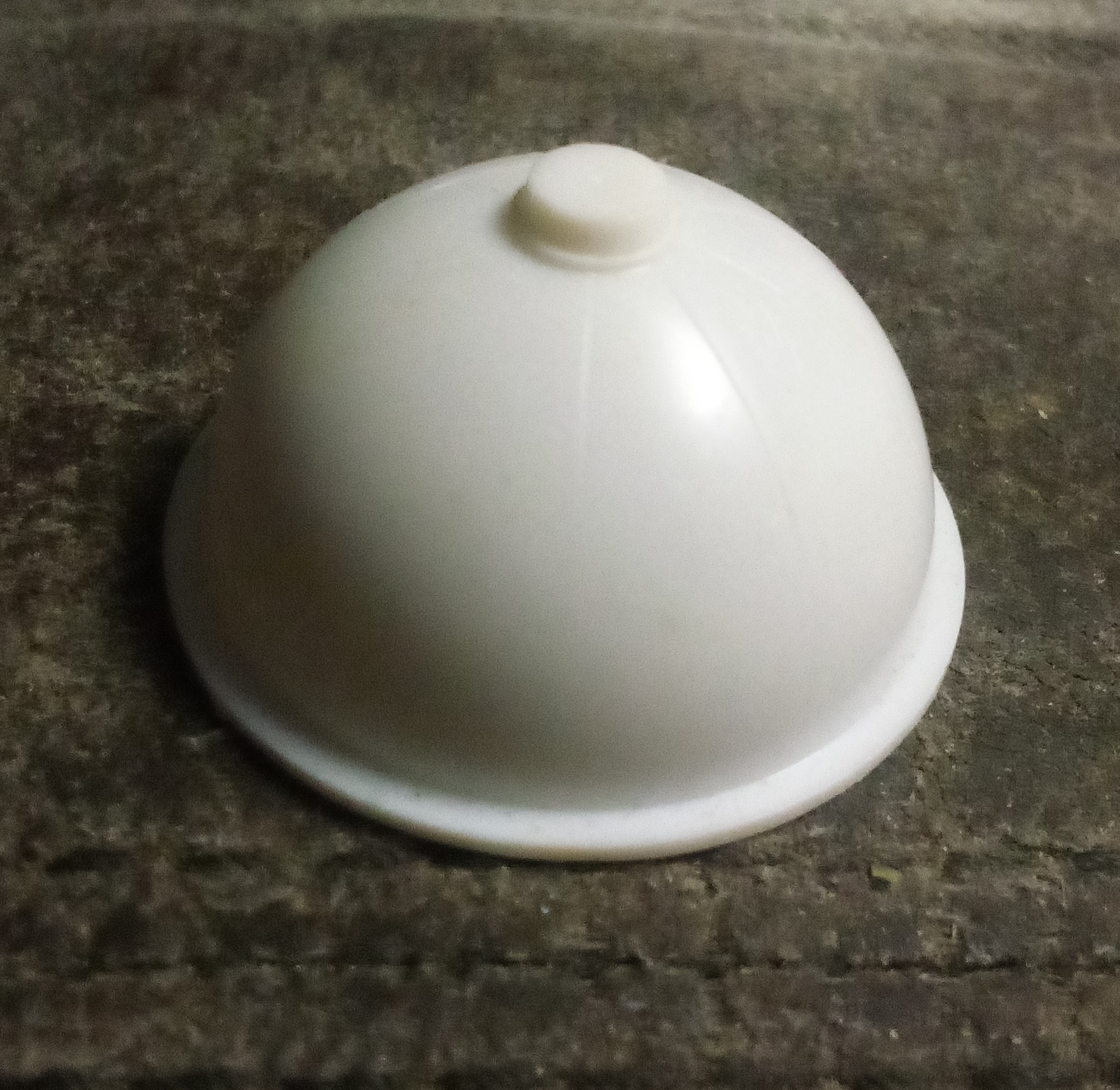

I think # 7 on the Side map is wrong. It shows the Fat Boy bomb halves, from the B29. I think the part should be from the Saturn V. Part # 21 I believe. These domed parts have the flange and the raised weld lines you see in some Shuttle pics. You still have to cut the hole for the gear. Confirmation will be appreciated, ; )



[satazius]

I think # 7 on the Side map is wrong. It shows the Fat Boy bomb halves, from the B29. I think the part should be from the Saturn V. Part # 21 I believe. These domed parts have the flange and the raised weld lines you see in some Shuttle pics. You still have to cut the hole for the gear. Confirmation will be appreciated, ; )

As I recall the Fat Boy is the correct ID. It is not very intuitive. I did mock one up at one time for my build a million years ago. It's a tricky angle cut on the back side.



[bwayne64]

As I recall the Fat Boy is the correct ID. It is not very intuitive. I did mock one up at one time for my build a million years ago. It's a tricky angle cut on the back side.

Darn, I thought I actually found an ID. It has the flange already built in. Oh well, I tried, ; )



[satazius]

Darn, I thought I actually found an ID. It has the flange already built in. Oh well, I tried, ; )

That "dome" feature is not half-round, but actually oblong if you look at it closely from different angles.



[enterprise0216]

Awesome!! Great mapping and reference materials. Thanks for sharing the pics and info with the rest of us Bwayne64 much appreciated



[bwayne64]

Awesome!! Great mapping and reference materials. Thanks for sharing the pics and info with the rest of us Bwayne64 much appreciated

You're welcome. I love maps, ; )
