tengel07

Active Member

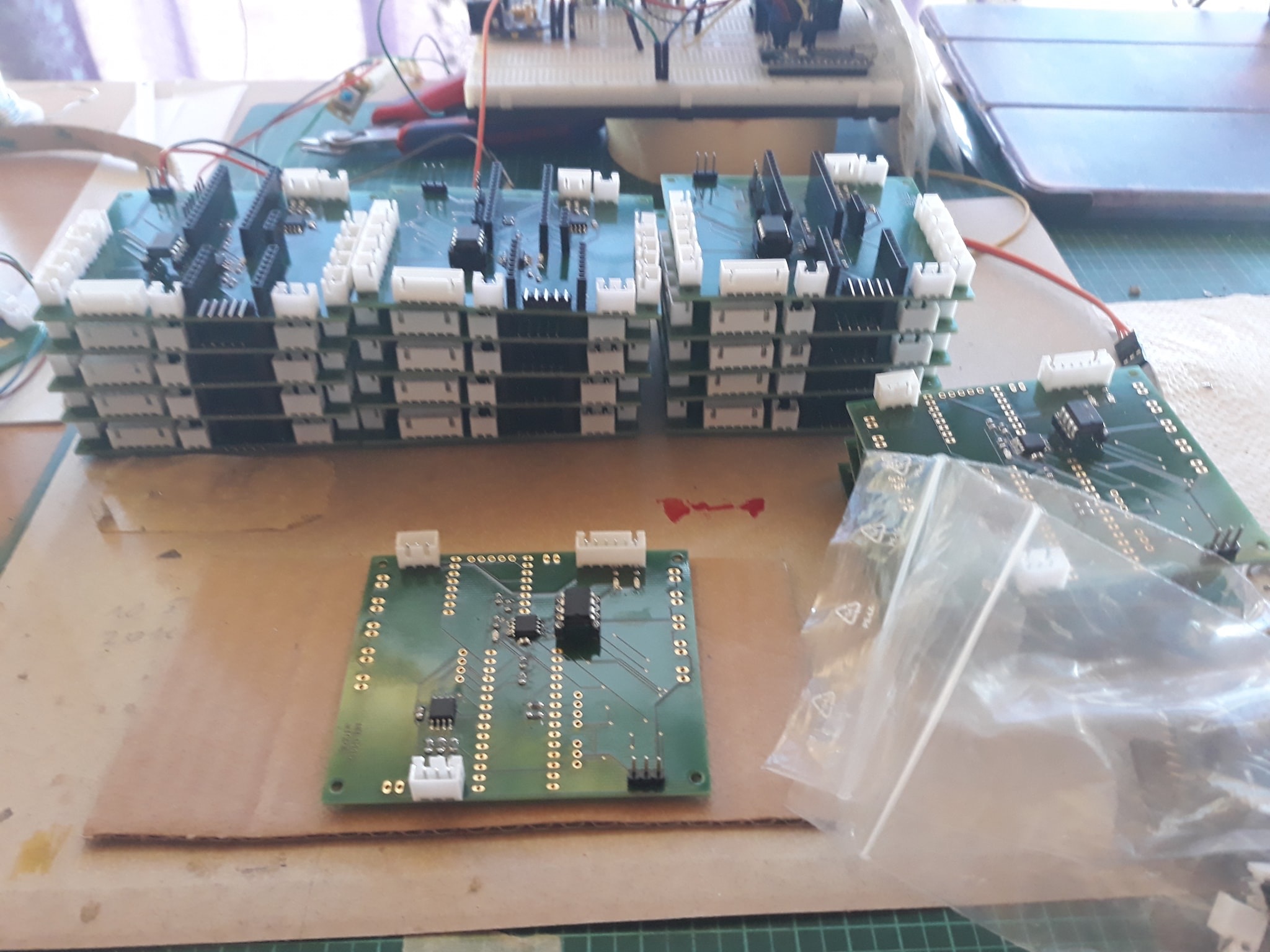

All sold, production in progress.




Rahn420

Active Member
I see mine!

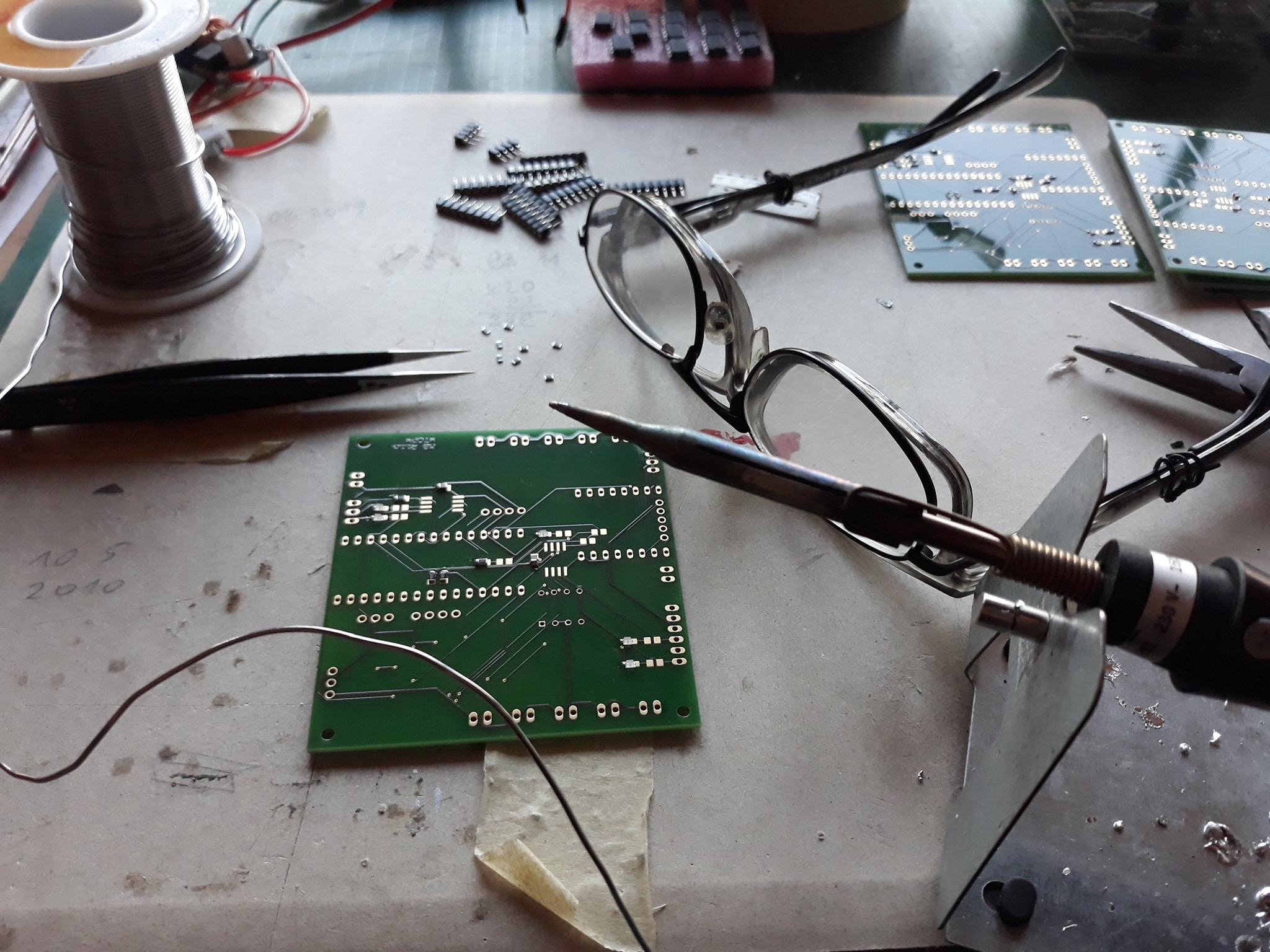

I like the high tech eye gear. ;)

Sometimes I feel like my magnifying visor should be permanently attached to my head.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

DaddyfromNaboo

Master Member
RPF PREMIUM MEMBER
Hooookayyyyy... another day, another chance to add depth to the Falcon...

tengel07 Torsten, are you going to update info on here on a regular basis or is FB the preferred place for staying informed and, more importantly, not miss out on the new run?


gedmac66

Sr Member
Need help/clarification regarding the Deago board please !
The boards made to work with a 9V@1A adapter right ?, but due to some issues with the ‘transistors’ there’s a possibility of causing damage, however , I’ve tried using a 6V@1.5mA and the Engine strips fail to light up. The ramp still works but at a slower speed too....,and that result was just running power through 1 board with no ‘added’ lighting !?

So my question is - would using a 6V@3A(+ increased Amps ) be o.k., will it provide enough power to light everything Deago supplied, plus additional lighting ‘shared’ over 2x Deago boards, or will it also cause further problems ( the extra ampere’s) - or should I just stick to 9V@1A to power my setup below ?
Any help is greatly appreciated.

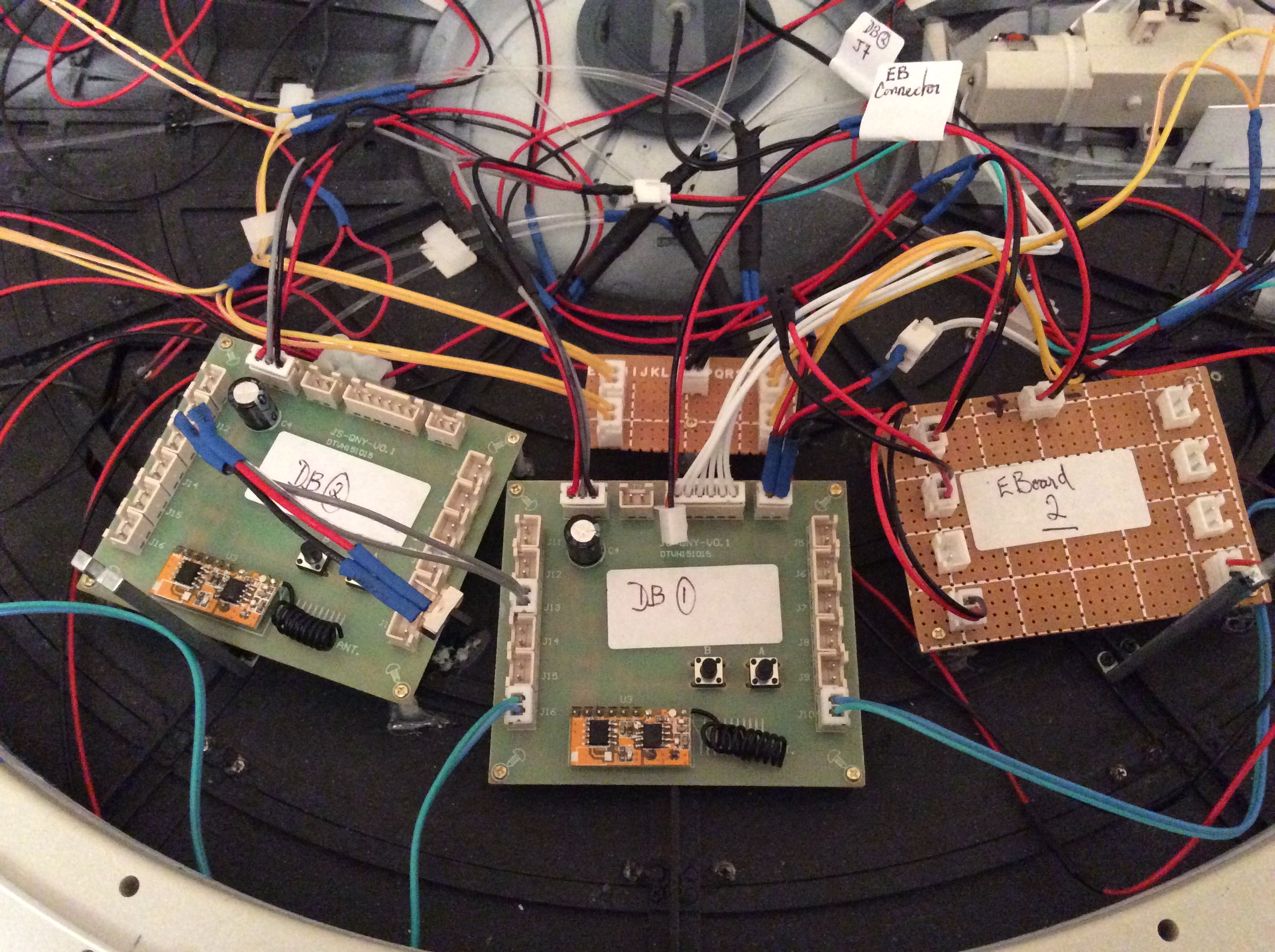

I’ve included a pic of my current setup.

Last edited:

tengel07

Active Member
1,5mA?
The main point is, the de Ago Board is bad designed, the voltage of the power supply is provided to the leds, only the resistors on the led strips and soldered to the leds reduces the current. But, it makes a difference in the current goes throught the led with different voltage.
So, with 6V the max. Current runs through the transistors and the leds, with the 9V power supply the current goes over the limit of transistors and leds, especially with additional leds. This cause the dead of the board soon or later.
So, its a good choice to use a power supply with 6V, the current should by at least 1A - more is better to keep the power supply safe.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

gedmac66

Sr Member
1,5mA?
The main point is, the de Ago Board is bad designed, the voltage of the power supply is provided to the leds, only the resistors on the led strips and soldered to the leds reduces the current. But, it makes a difference in the current goes throught the led with different voltage.
So, with 6V the max. Current runs through the transistors and the leds, with the 9V power supply the current goes over the limit of transistors and leds, especially with additional leds. This cause the dead of the board soon or later.
So, its a good choice to use a power supply with 6V, the current should by at least 1A - more is better to keep the power supply safe.

Thanks for responding Torsten. It must be frustrating to repeat yourself (to me), but I do appreciate your time & help.
The 6V @ 1.5mA is the output on my already purchased variable (3-12V) adapter.
When I tested this output on a single Deago board (Y - connector wasn’t attached) with only the supplied ramp & Engine strips connected - only the Ramp worked at a slower speed which I don’t mind, but the engine (led) strips didn’t work at all !

That’s why I’m asking if I should purchase another (specific) 6V adapter with a higher Amps output @ 3A or higher , and will that be enough to power everything Deago supplied & my own additions which all have resistors soldered on to them ?

Ged


tengel07

Active Member
For all who want to get a replacement board: i plan to run a new batch with 20 boards in November - planned delivery is first week of december.
PM for details.
Also a replacement board is under development for the de Ago X-wing....

regards
Torsten.


Redman99

Active Member
Hi Torsten, just wondering if you are making anymore Falcon replacement boards? Thanks a lot
i paid and was waiting, but he cancelled and refunded.
In the end, I went with cheap arduiono mega and got leds, fibre, audio, and neopixel engines. all boiught cheap online from Aliexpress.


DaddyfromNaboo

Master Member
RPF PREMIUM MEMBER
i paid and was waiting, but he cancelled and refunded.
In the end, I went with cheap arduiono mega and got leds, fibre, audio, and neopixel engines. all boiught cheap online from Aliexpress.

That is what I have in mind doing, but atm nonidea where to start. Would you mind posting a few specs of your solution and probably a few wip pics?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

alanpji

New Member
[QUOTE = "tengel07, publicação: 4303258, membro: 134742"]
Isso é algo que você planeja disponibilizar para compra? - Sim
É para ser mais robusto do que a placa anêmica Deago? - Sim
Poderia ser feito para ter soquetes extras para iluminação adicional? - Sim

Arduino nano
14 canais de saída
Rampa
pode ser ligado / desligado pelo Dego Remote Control

Opcional
Aplicativo Bluetooth + Android (sem IOS, por causa de coisas inúteis e interrompidas para o desenvolvimento da maçã ...)
Som (arquivos mp3)
[/ CITAR]

ainda disponível?


paul0617

New Member
For all who want to get a replacement board: i plan to run a new batch with 20 boards in November - planned delivery is first week of december.
PM for details.
Also a replacement board is under development for the de Ago X-wing....

regards
Torsten.
are you still making boards. im in nyc


PDitta

New Member
I am SUPER late to this party, but if there's an elegant solution to the whoe lighting problem, i would really appreciate a pointer, please.
