Re: Cyborg Ninja (Metal Gear Solid)
Sorry for the lack of updates. I've been busy so the progress has been kind of slow. It took a while to find a good method to get the cut parts realigned properly but that's thankfully done. I'm currently working on all the detail areas where all the sensors go. I hope to get pictures up in the next few days.
Sorry for the lack of updates. I've been busy so the progress has been kind of slow. It took a while to find a good method to get the cut parts realigned properly but that's thankfully done. I'm currently working on all the detail areas where all the sensors go. I hope to get pictures up in the next few days.
pandamajik
Member
Re: Cyborg Ninja (Metal Gear Solid)
Sorry again for people who have been following this. I've been quite busy lately but I should have more time after my exams this week. Expect somewhat more regular updates in the next few weeks.
So leaving off from the last post, I then heat formed the sintra templates to the actual cheek pieces so I can get the cheek pieces to match these templates. That made the cheek pieces more symmetrical with each other.
Here's the forehead piece with the sintra circle from earlier. It was hot glued into place and then skimmed with body filler to create the bevel.
For the "bondo squish" method I use a brush and some chapstick to coat one surface, apply some body filler to the other side, and press together. The side with chapstick comes off without any body filler sticking to it.
Here's the forehead piece connected to the back of the helmet. The connection made between those two pieces is really quite nice thanks to the above method.
Mockup of the pieces together. The cheek pieces still need to have the central eye area cut out.
I cut out some sintra pieces.
Which are then hot glued in place and then skimmed over in body filler before being sanded down.
More body filler followed by more sanding.
Detail shot of the central eye area. Still needs a bit of work on the cheek pieces. It needs to be widened up a bit to match the top.
Cutting out some more pieces out of sintra for the smaller sensors.
Here are some of those sintra pieces fit in place. They're pressure fit for now.
I had to cut some of them in half where pieces come apart. These were hot glued in place and skimmed with body filler to create the bevel. All of these pieces are sunk 1/8" - the thickness of a the sintra I'm using (I used a circle of sintra as a gauge).
I realized that the center line wasn't actually straight in the back so I had to redraw it. Coincidentally the pentagon wasn't symmetrical so I just redid all of those detail areas. Two layers of masking tape makes it a bit easier to work along.
The lines were cut using a dremel with a cutoff wheel and a steady hand. I went back over it with a small hand file to clean it up. The circles were marked using a drafting template from an engineering class.
Circles cut out using a dremel.
Sintra circles inserted and hot glued in place.
Again, skimmed in body filler. I find it's easy to use a utility/hobby knife after it sets to trim and clean it up (for me is about after 10-15 minutes). Timing will vary based on how much hardener you use but it's best to carve when it's firm but before it fully cures.
Another test fit of all the pieces together. This should be the final iteration. Every time I make some small change it messes with the fit of the pieces and this time when I corrected the lines where the pieces meet on the side (namely where the cheek meets the forehead piece and the back of the helmet) it really messed it up. It took me about 2 hours to get the fit to this level. Referencing some earlier images it seems like the fit isn't quite as good but I think at this point it'll still work fine.
Back of the helmet. The top hole contains a piece of 1/4" acrylic rod which is what the small sensors will be made of.
Sorry again for people who have been following this. I've been quite busy lately but I should have more time after my exams this week. Expect somewhat more regular updates in the next few weeks.
So leaving off from the last post, I then heat formed the sintra templates to the actual cheek pieces so I can get the cheek pieces to match these templates. That made the cheek pieces more symmetrical with each other.
Here's the forehead piece with the sintra circle from earlier. It was hot glued into place and then skimmed with body filler to create the bevel.
For the "bondo squish" method I use a brush and some chapstick to coat one surface, apply some body filler to the other side, and press together. The side with chapstick comes off without any body filler sticking to it.
Here's the forehead piece connected to the back of the helmet. The connection made between those two pieces is really quite nice thanks to the above method.
Mockup of the pieces together. The cheek pieces still need to have the central eye area cut out.
I cut out some sintra pieces.
Which are then hot glued in place and then skimmed over in body filler before being sanded down.
More body filler followed by more sanding.
Detail shot of the central eye area. Still needs a bit of work on the cheek pieces. It needs to be widened up a bit to match the top.
Cutting out some more pieces out of sintra for the smaller sensors.
Here are some of those sintra pieces fit in place. They're pressure fit for now.
I had to cut some of them in half where pieces come apart. These were hot glued in place and skimmed with body filler to create the bevel. All of these pieces are sunk 1/8" - the thickness of a the sintra I'm using (I used a circle of sintra as a gauge).
I realized that the center line wasn't actually straight in the back so I had to redraw it. Coincidentally the pentagon wasn't symmetrical so I just redid all of those detail areas. Two layers of masking tape makes it a bit easier to work along.
The lines were cut using a dremel with a cutoff wheel and a steady hand. I went back over it with a small hand file to clean it up. The circles were marked using a drafting template from an engineering class.
Circles cut out using a dremel.
Sintra circles inserted and hot glued in place.
Again, skimmed in body filler. I find it's easy to use a utility/hobby knife after it sets to trim and clean it up (for me is about after 10-15 minutes). Timing will vary based on how much hardener you use but it's best to carve when it's firm but before it fully cures.
Another test fit of all the pieces together. This should be the final iteration. Every time I make some small change it messes with the fit of the pieces and this time when I corrected the lines where the pieces meet on the side (namely where the cheek meets the forehead piece and the back of the helmet) it really messed it up. It took me about 2 hours to get the fit to this level. Referencing some earlier images it seems like the fit isn't quite as good but I think at this point it'll still work fine.
Back of the helmet. The top hole contains a piece of 1/4" acrylic rod which is what the small sensors will be made of.
Re: Cyborg Ninja (Metal Gear Solid)
Looks very nice, I'm planning to sculpt the pieces (including a latex jaw piece) for Raiden from MGS Rising as soon as I finish this Cobra Commander that I'm doing for someone.
BTW, you should really look into molding the pieces of this seperatly and doing a run of castings in the JY I know I for one for be intrested.
Looks very nice, I'm planning to sculpt the pieces (including a latex jaw piece) for Raiden from MGS Rising as soon as I finish this Cobra Commander that I'm doing for someone.
BTW, you should really look into molding the pieces of this seperatly and doing a run of castings in the JY I know I for one for be intrested.
pandamajik
Member
Re: Cyborg Ninja (Metal Gear Solid)
Yes the plan is to do the whole suit. I've got some progress on the sword which I'll post later on. I also have pretty much all the materials for the suit so I'll be working on that after I get the helmet done.
Also just out of curiosity would people be interested if I made plans to cast the helmet? I'm also not totally sure about the protocols but am I supposed to do that only in the Junkyard?
Yes the plan is to do the whole suit. I've got some progress on the sword which I'll post later on. I also have pretty much all the materials for the suit so I'll be working on that after I get the helmet done.
Also just out of curiosity would people be interested if I made plans to cast the helmet? I'm also not totally sure about the protocols but am I supposed to do that only in the Junkyard?
Re: Cyborg Ninja (Metal Gear Solid)

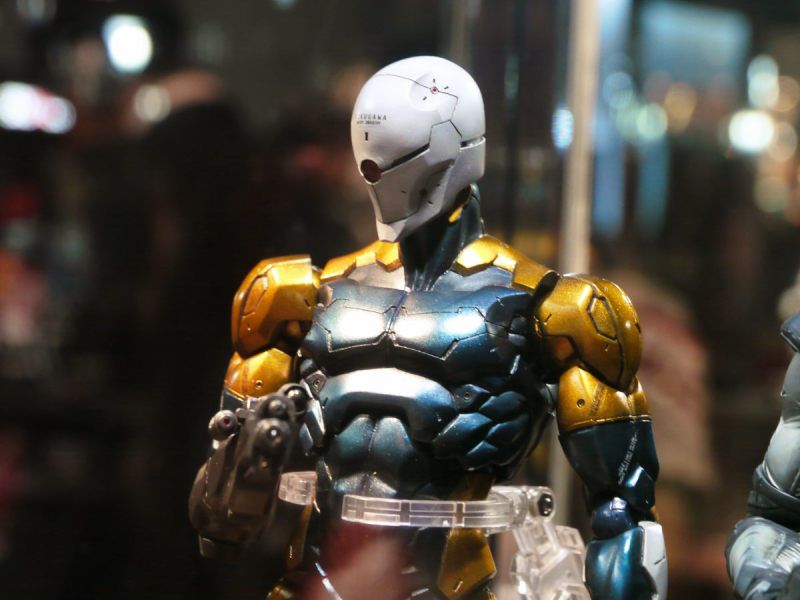

Have you seen the new action figure coming out from Play Arts? Yoji Shinkawa changed up the design a little bit.
