Down to 22 days and I've started to get the torso ready for paint!
I have a question about the battle damage on the chest... does anyone have any tips/tricks on how this could be done?

The back and front of the torso were actually the first pieces I built of my cosplay... however I never actually got around to finishing them.

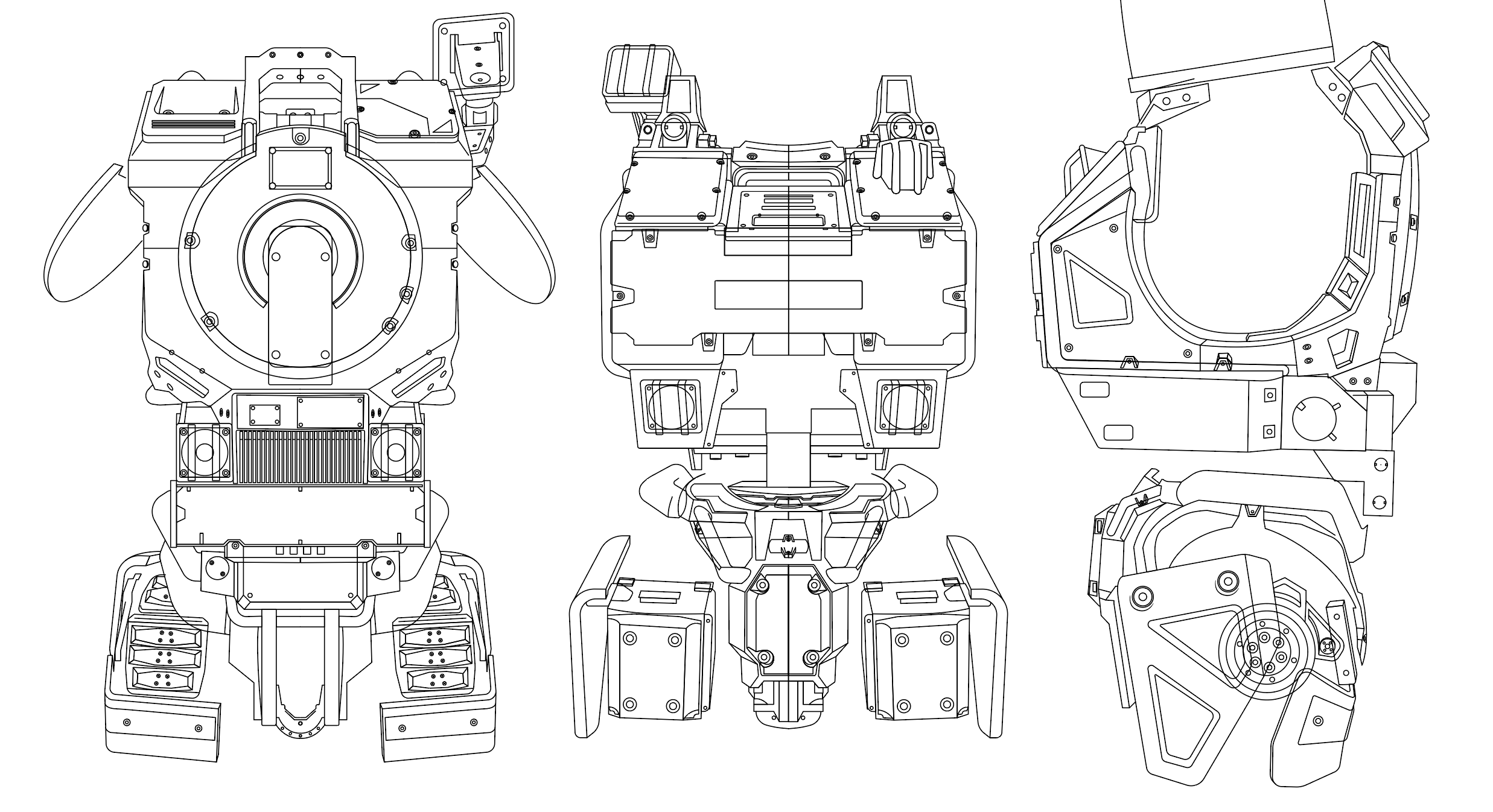

I started off by building a pattern of the body in Adobe Illustrator
Screen Shot 2018-01-30 at 9.39.48 AM.png

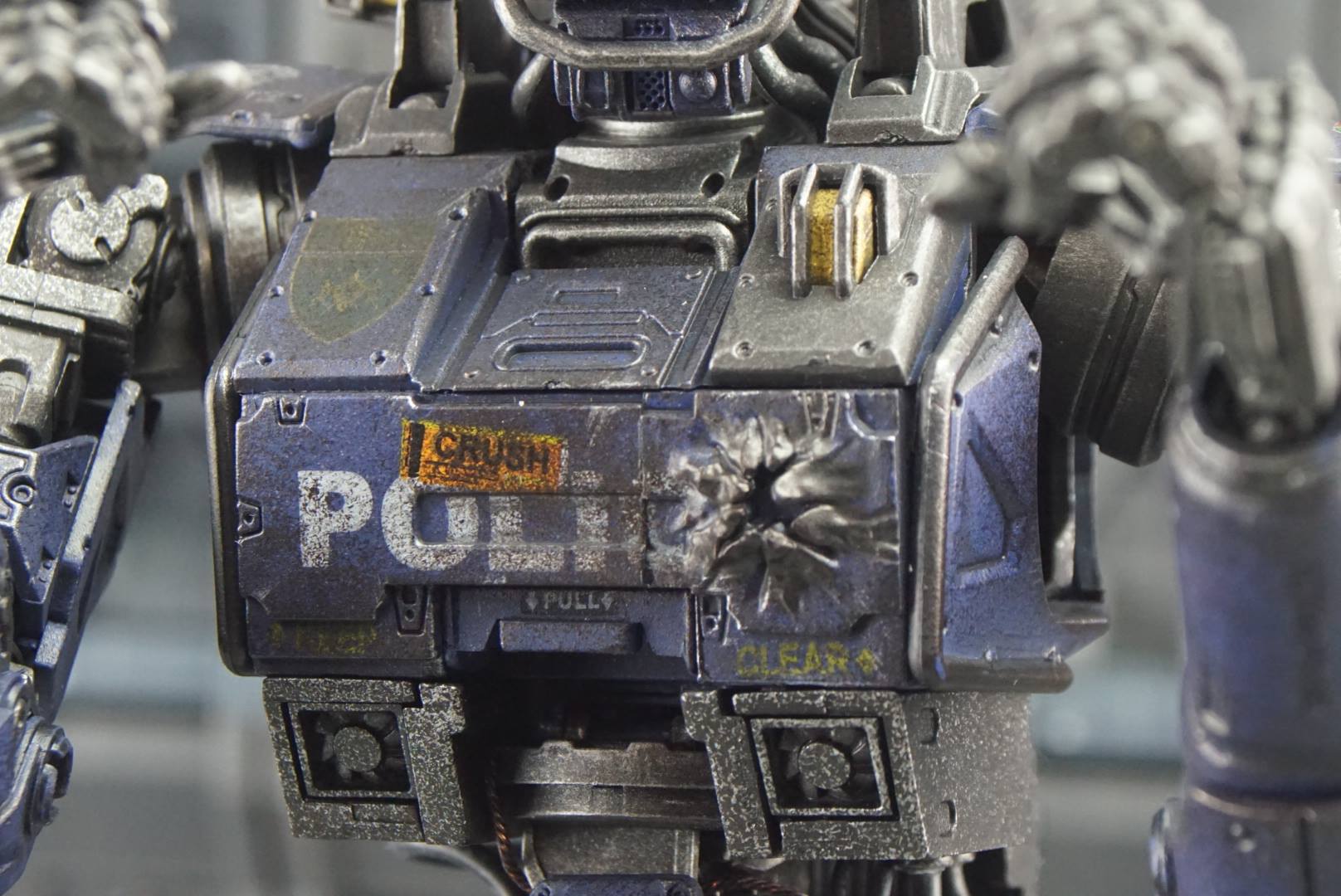

Some of my references varied between renders by Weta Workshop, movie screengrabs and photographs of the very detailed Chappie 1:6 model from Bens Collectables (youtube).
Screen Shot 2018-03-02 at 10.13.38 AM.png Screen Shot 2018-03-02 at 10.13.04 AM.png
26781380_1754504027963776_1494195161_o.jpg 26828796_1754504064630439_851475992_o.jpg

combining my references with my patterns, I got to work. Each piece is made out of layers and layers of EVA foam.

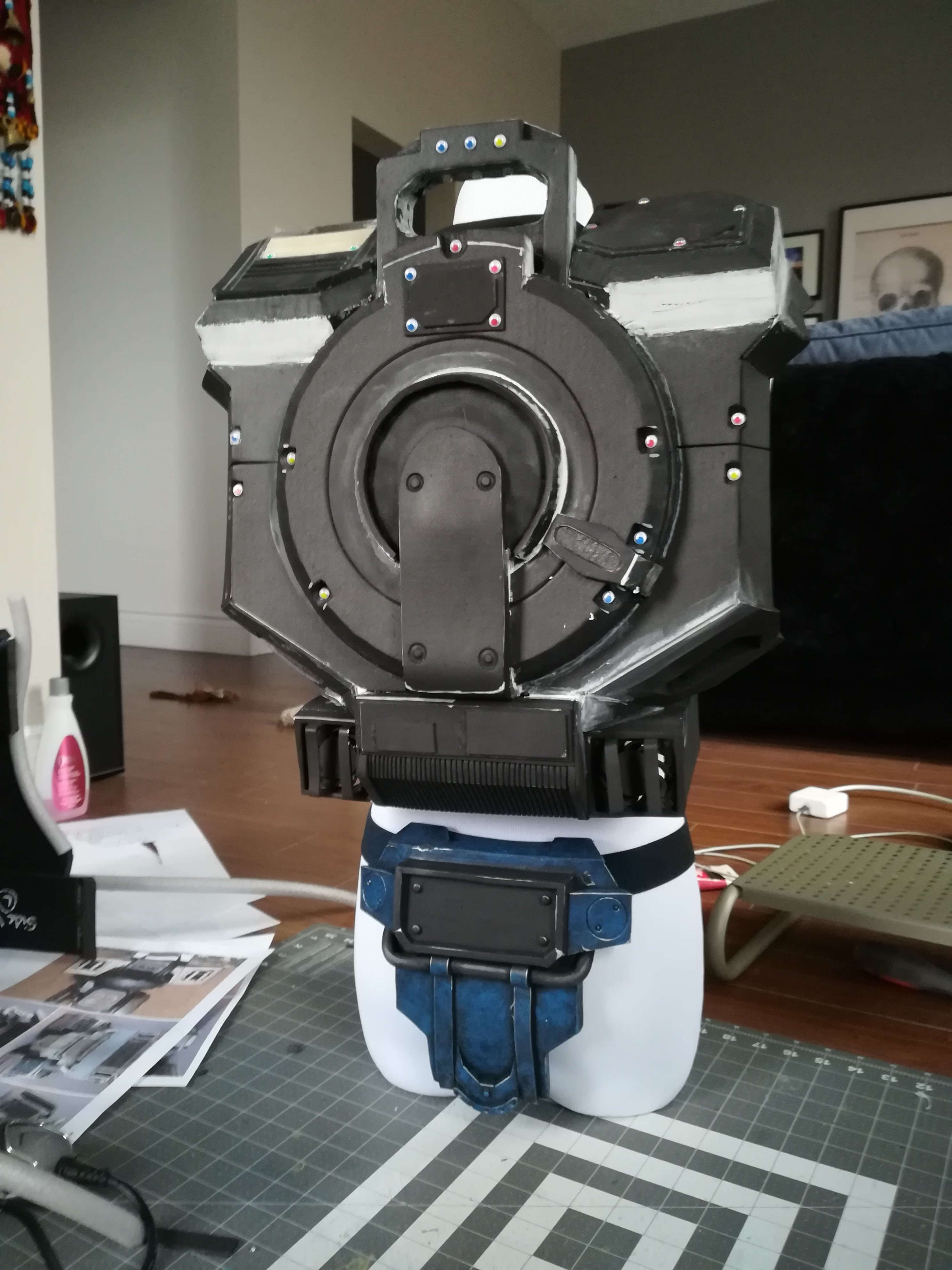

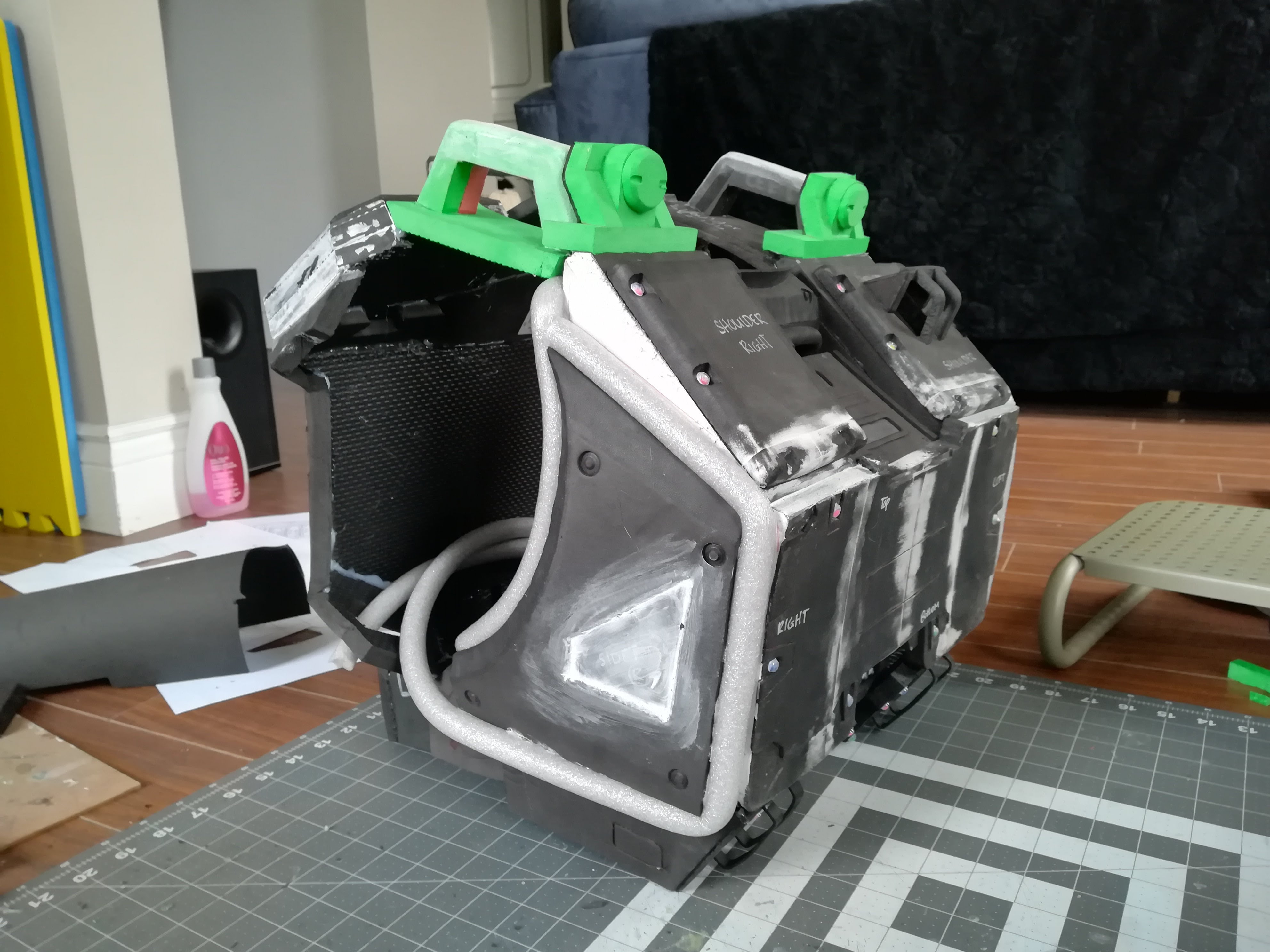

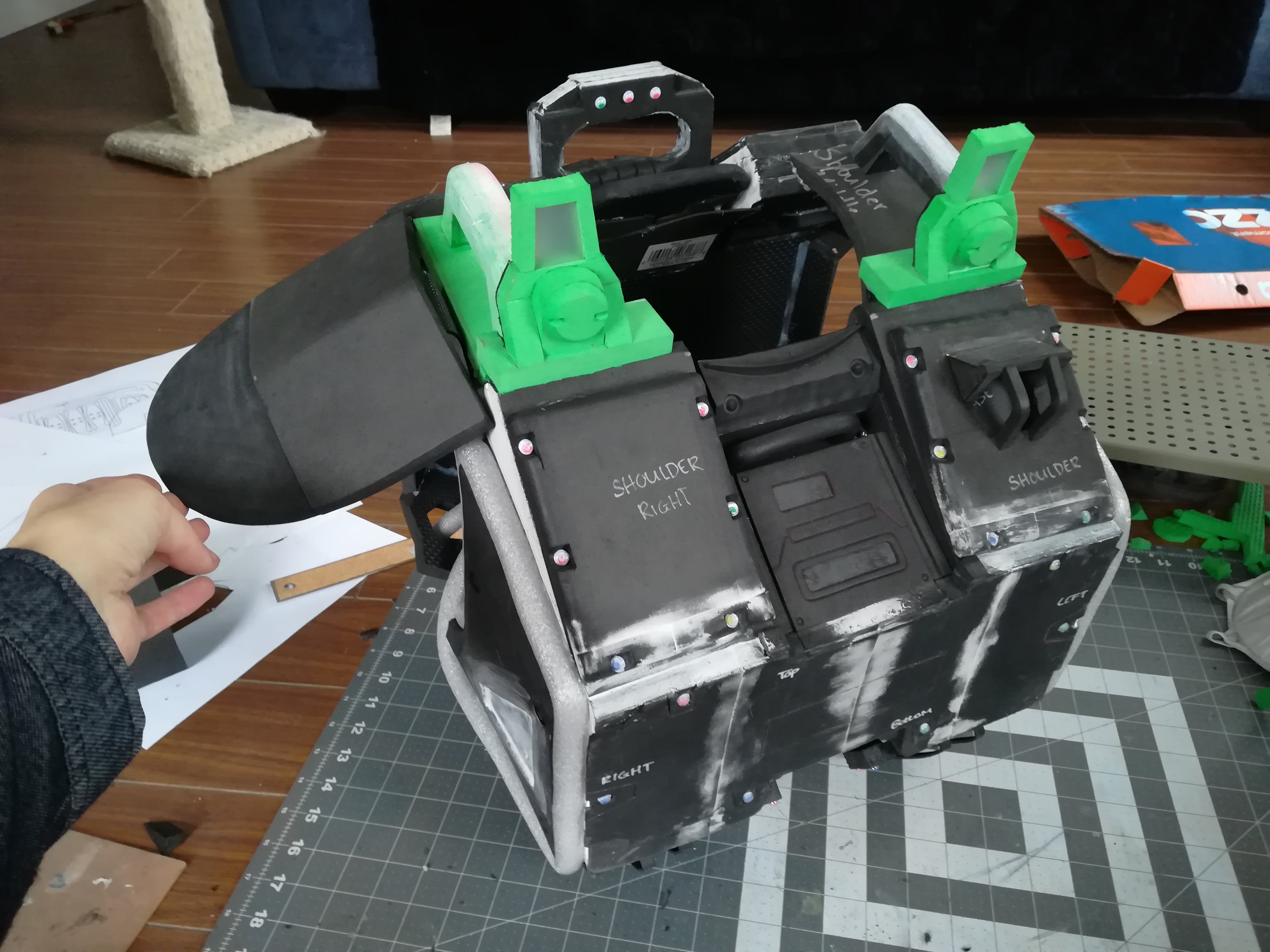

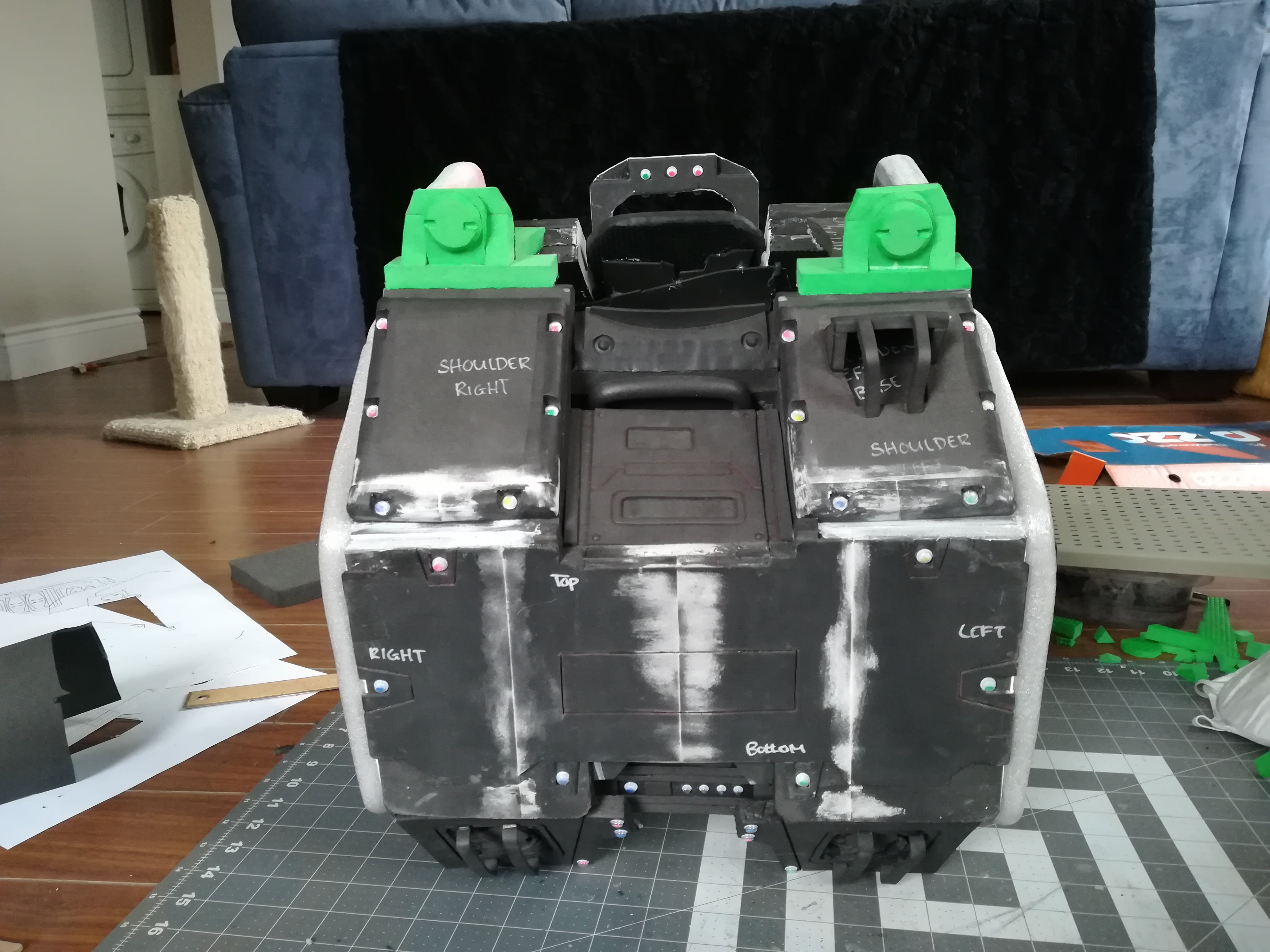

So here's where I am now! this piece is finally ready for a coat of plastidip and paint, however in Canada we just got a big ice storm... SO I cant get any painting done
until the weather finally clears up! (fingers crossed for this weekend!)
IMG_20180415_155359.jpg IMG_20180415_160010.jpg
IMG_20180417_082526.jpg IMG_20180417_082204.jpg IMG_20180417_082152.jpg IMG_20180417_082132.jpg IMG_20180417_082213.jpg

My foam tubing needs to be trimmed and secured still, Im missing two side panels, the shoulders need some rivets drilled in and obviously attaching. But I think it's coming along okay.
Any advice on the battle damage is always appreciated!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

joberg

Master Member
Battle damage should be easy to do: take your piece of foam and cut the different "exploded" pieces. You can take your hairdryer to make them curl (like in the pic) and then, when you're satisfied with the look, you can use a hot iron( the one you use to weld) and damage/round the edges. Hopes it helps:)


amuelb

Active Member
Finally have the torso in paint mode, the head is fully wired up and animating, and my vinyls have been printed, now working on cutting them all out. 15 days left until Comic Con.

Took a mix of suggestions for my battle damage (thank you @joberg for your input!)

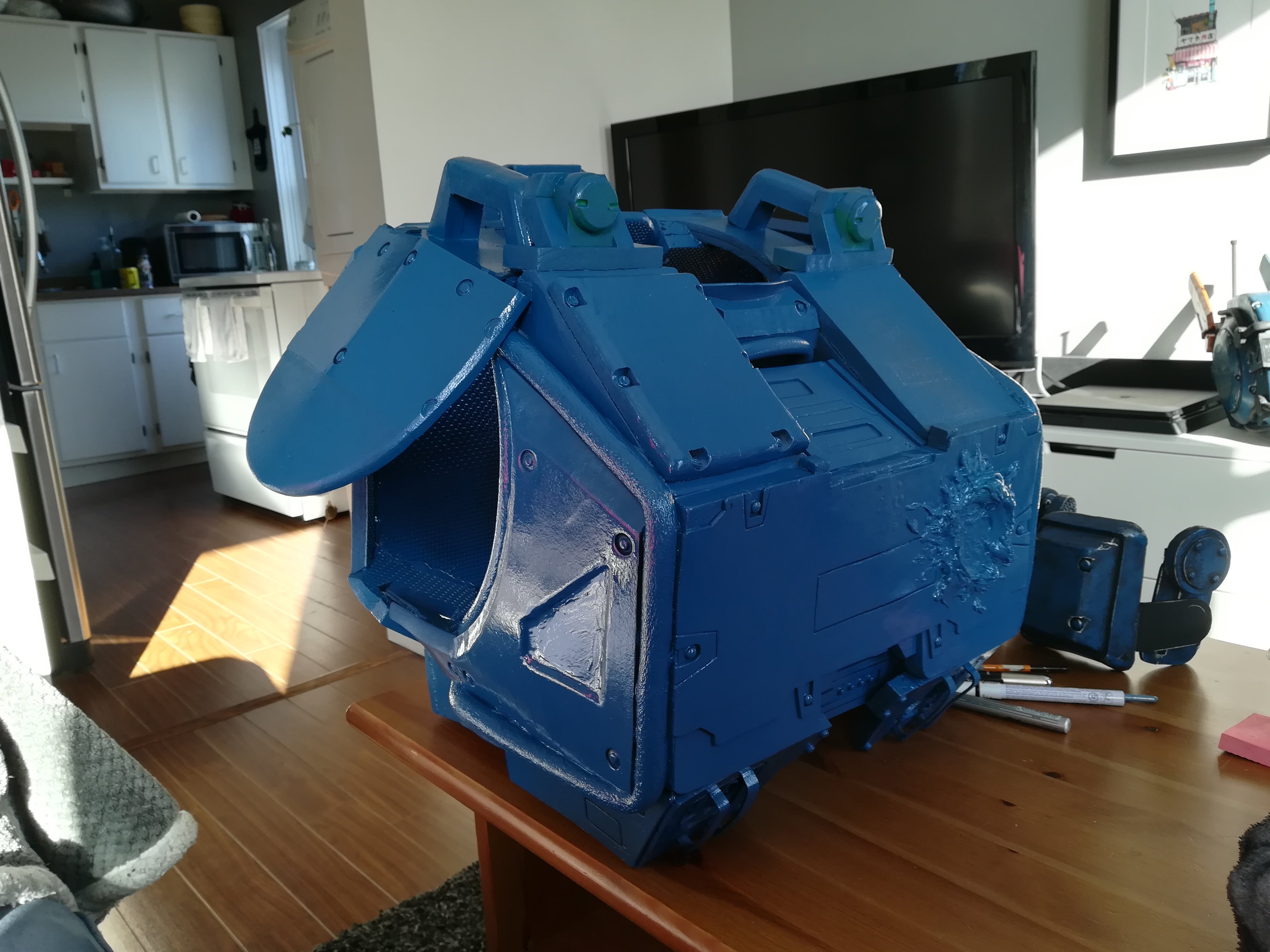

Base Coat:
IMG_20180421_110407.jpg IMG_20180423_174607.jpg IMG_20180423_174618.jpg

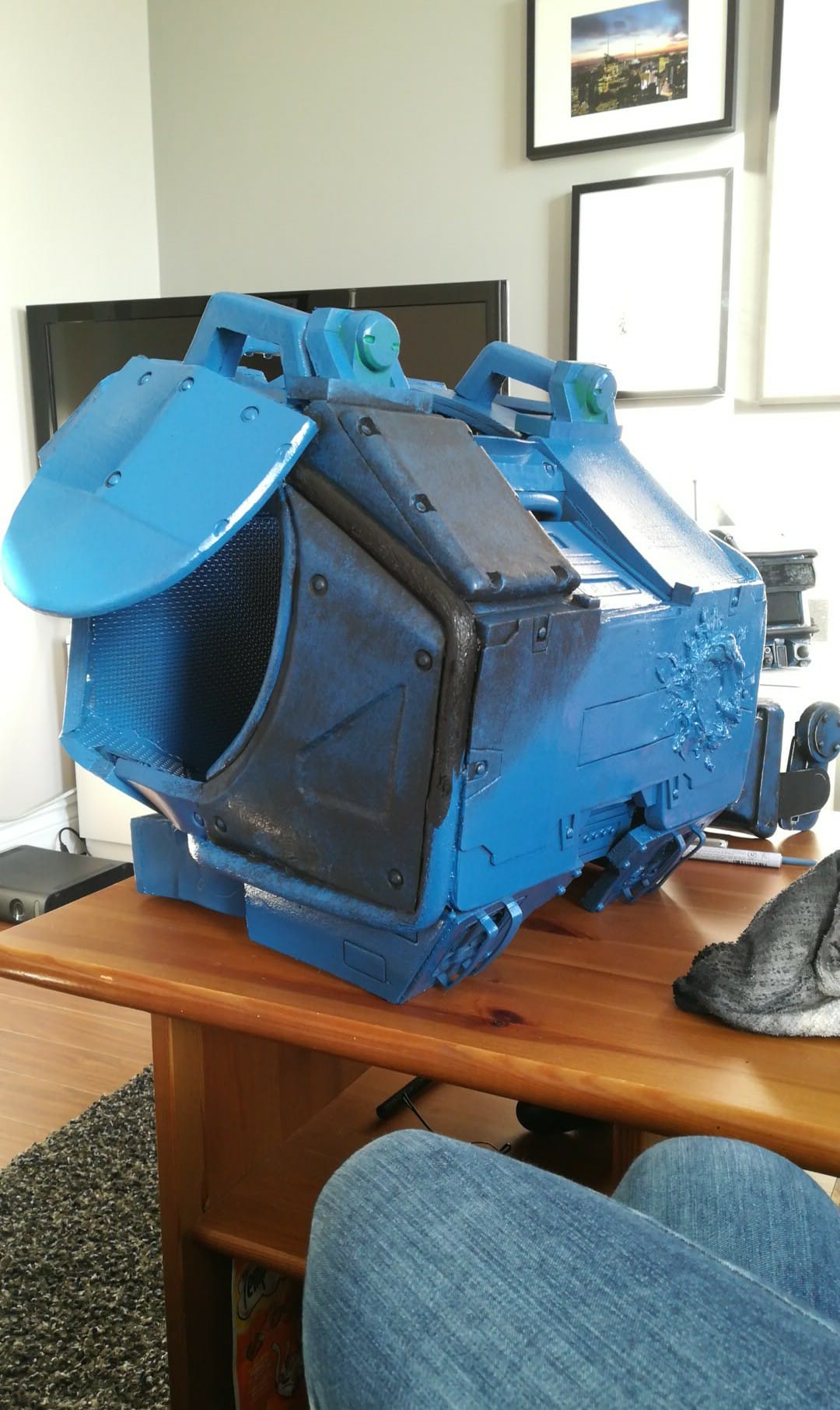

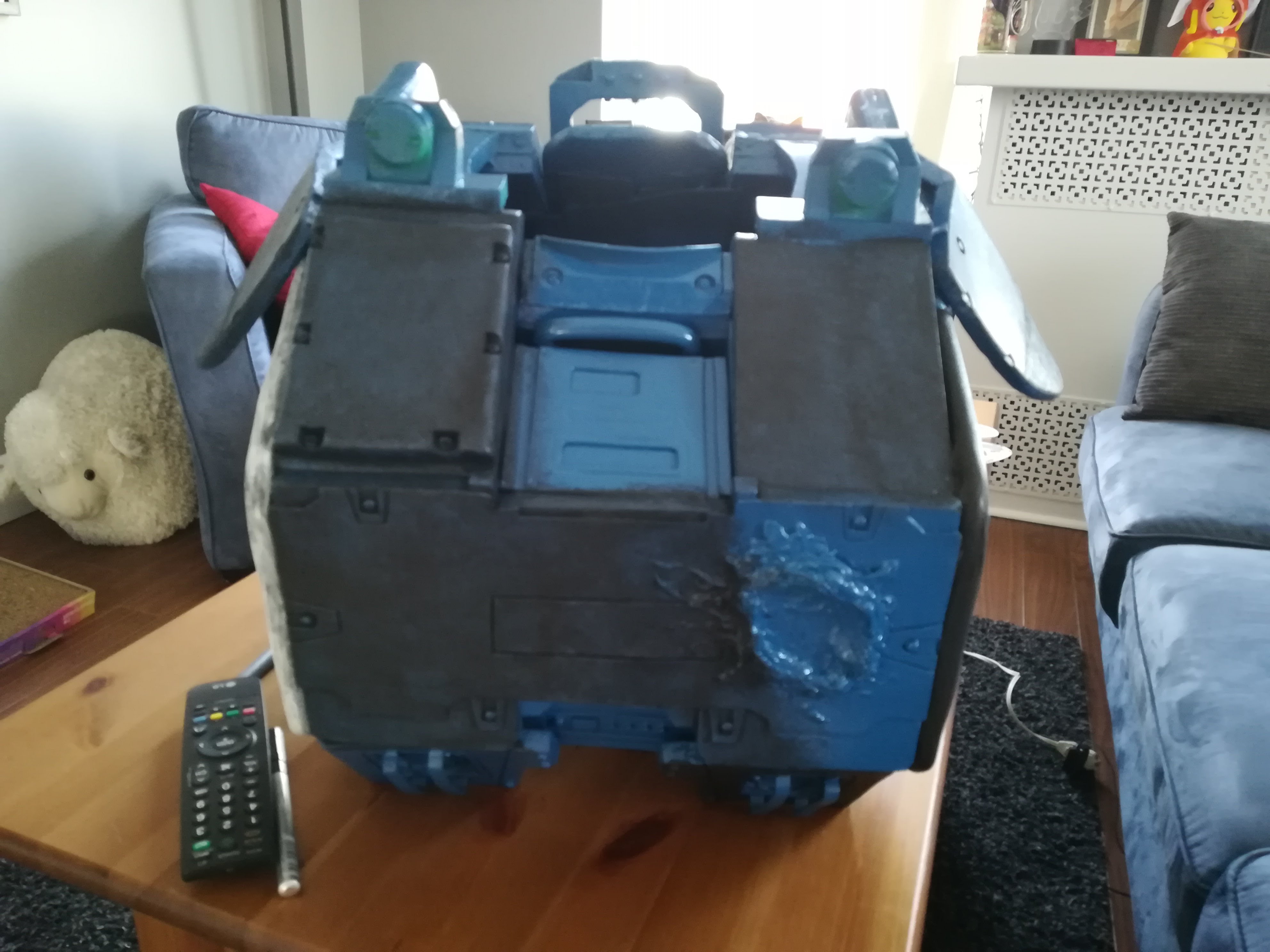

First round of blackwash:
31183569_10155214015020458_485240629098446848_n.jpg IMG_20180424_082600.jpg 31253104_10155215879230458_1163467281406099456_n.jpg

Printed matte adhesive vinyl decals: (special thanks to @Kenobi for exchanging sticker files with me)

Cutting out all the stickers individually:
this is still a work in progress... painting will need to be finished for the rest to be stuck on... the cutting is also time consuming, the white decals on the front panel are smaller than my pinky fingernail and took around 2 hours of constant cutting to get be done correctly and placed as per my reference. I only finished right before going to bed yesterday, so I thought I'd give you a sneak peak!
IMG_20180425_225726.jpg 31349923_10155218067275458_5007710848118947840_n.jpg IMG_20180426_082542.jpg

I really feel like the decals help bring the design to life, I can't wait to add the rest! (No decals vs. first few decals)
IMG_20180424_222458.jpg IMG_20180425_223205.jpg

I also got around to building and painting the knees:
IMG_20180418_212221.jpg IMG_20180422_162713.jpg

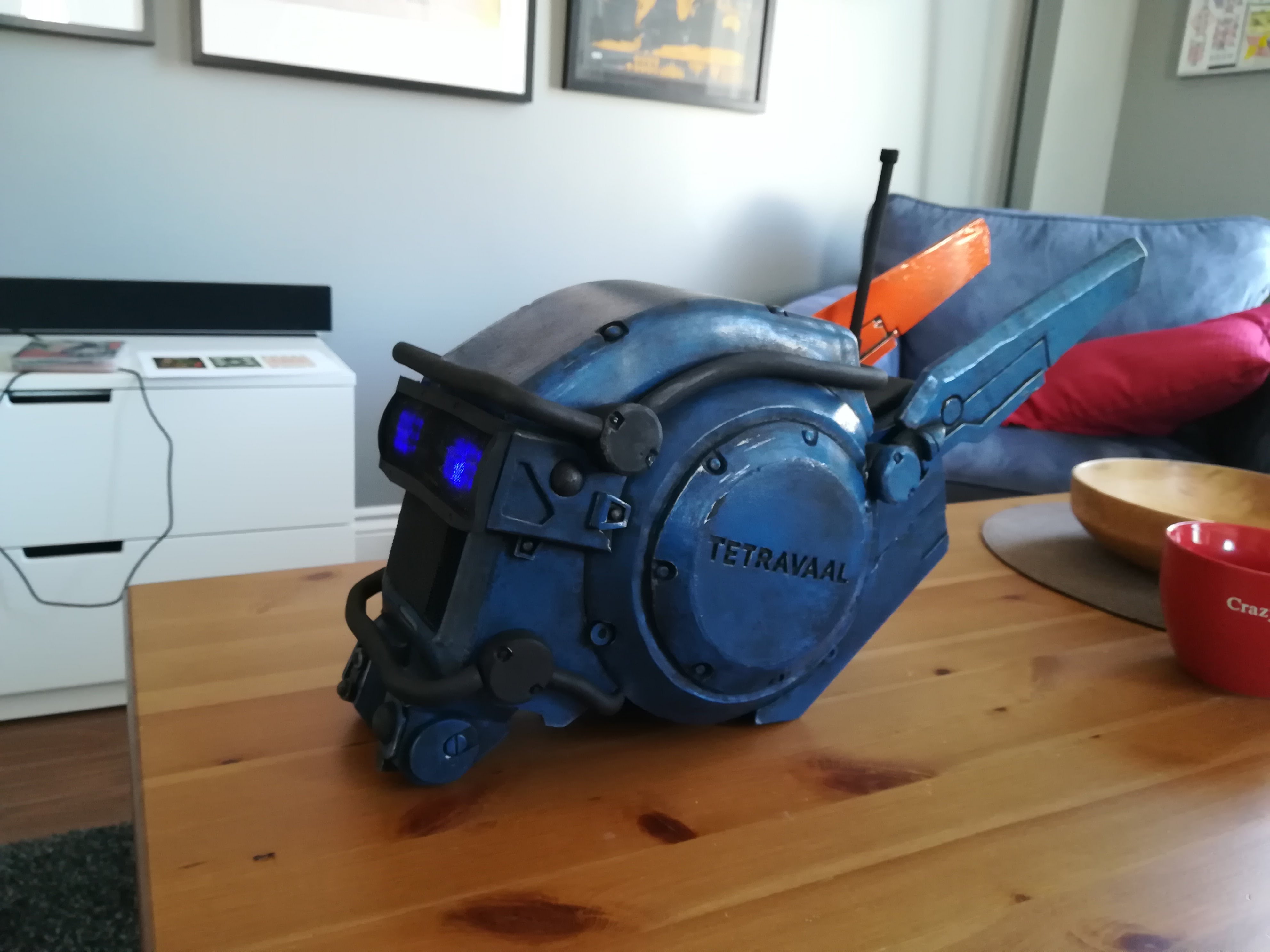

and some shots of the head, I did actually add a bit more silver to the head after reviewing these photos:
I promise it does actually animate now and fully fit on my head. I'll upload some test fits and videos soon!
(a special thanks to TJack for providing me with the mesh material on the head, without you I wouldn't have been able to bring this character to the level of realism I had hoped to achieve) :)
IMG_20180421_103826.jpg IMG_20180421_103753.jpg IMG_20180421_103803.jpg IMG_20180421_103815.jpg IMG_20180421_103728.jpg

Last edited by a moderator:

joberg

Master Member
Great stuff! Yep, lettering is always tricky to do...to make sure that the letters are straight, you'll always make sure to have a L pattern to place each one of them at the correct place (vertically and horizontally). Did you do the "exploded" part with hot glue? Really eager to see that costume on you.:cool


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

amuelb

Active Member
Great stuff! Yep, lettering is always tricky to do...to make sure that the letters are straight, you'll always make sure to have a L pattern to place each one of them at the correct place (vertically and horizontally). Did you do the "exploded" part with hot glue? Really eager to see that costume on you.:cool

The writing was painful to do... I used a ruler and basically just took hours and hours placing letters then peeling them back up if they didnt look straight... never again.

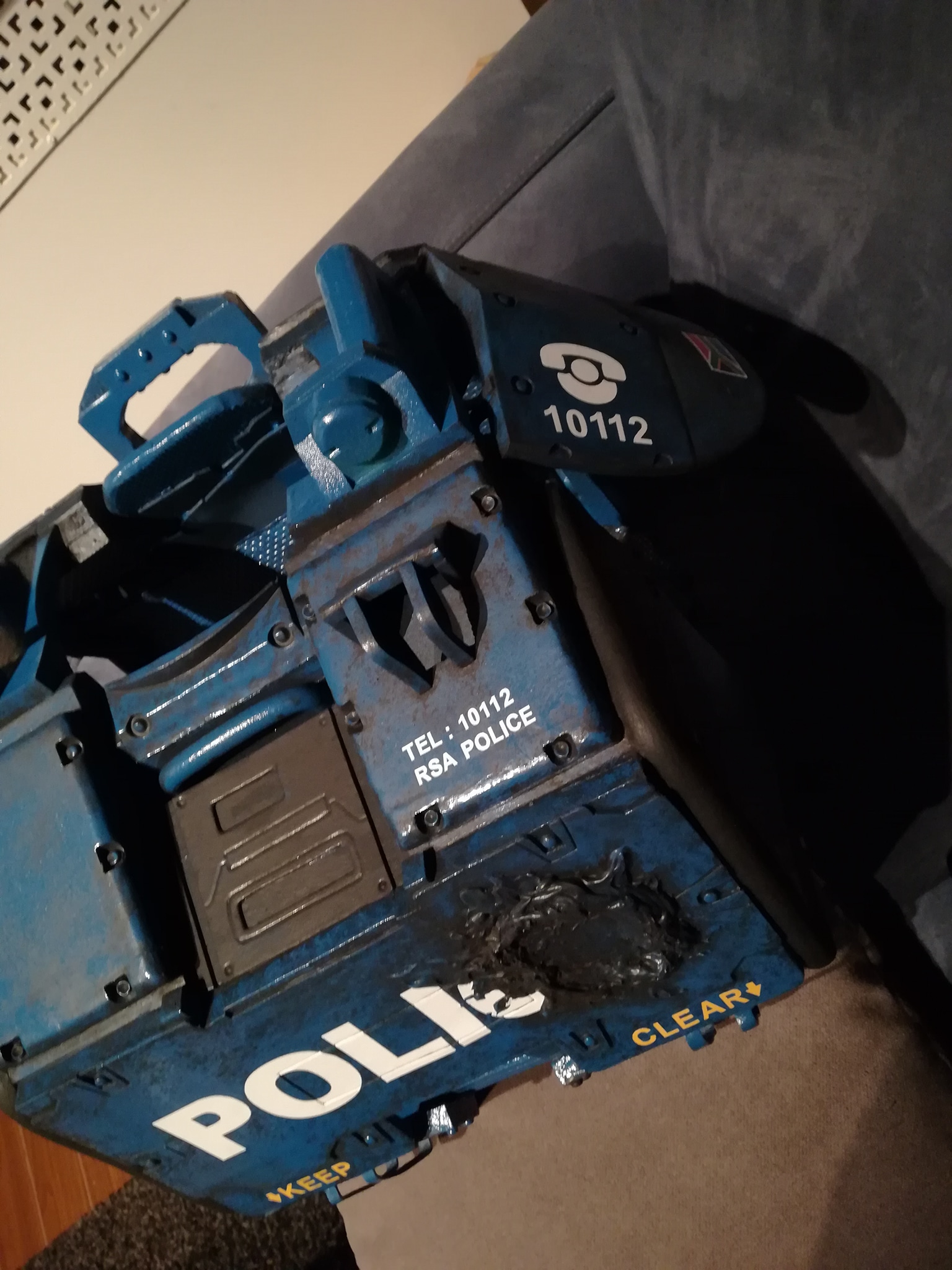

The exploded part ended up being Drywall putty, PVA glue, and caulking all mixed together (I do a lot of stuff with Drywall putty surprisingly) I think it worked out okay!


amuelb

Active Member

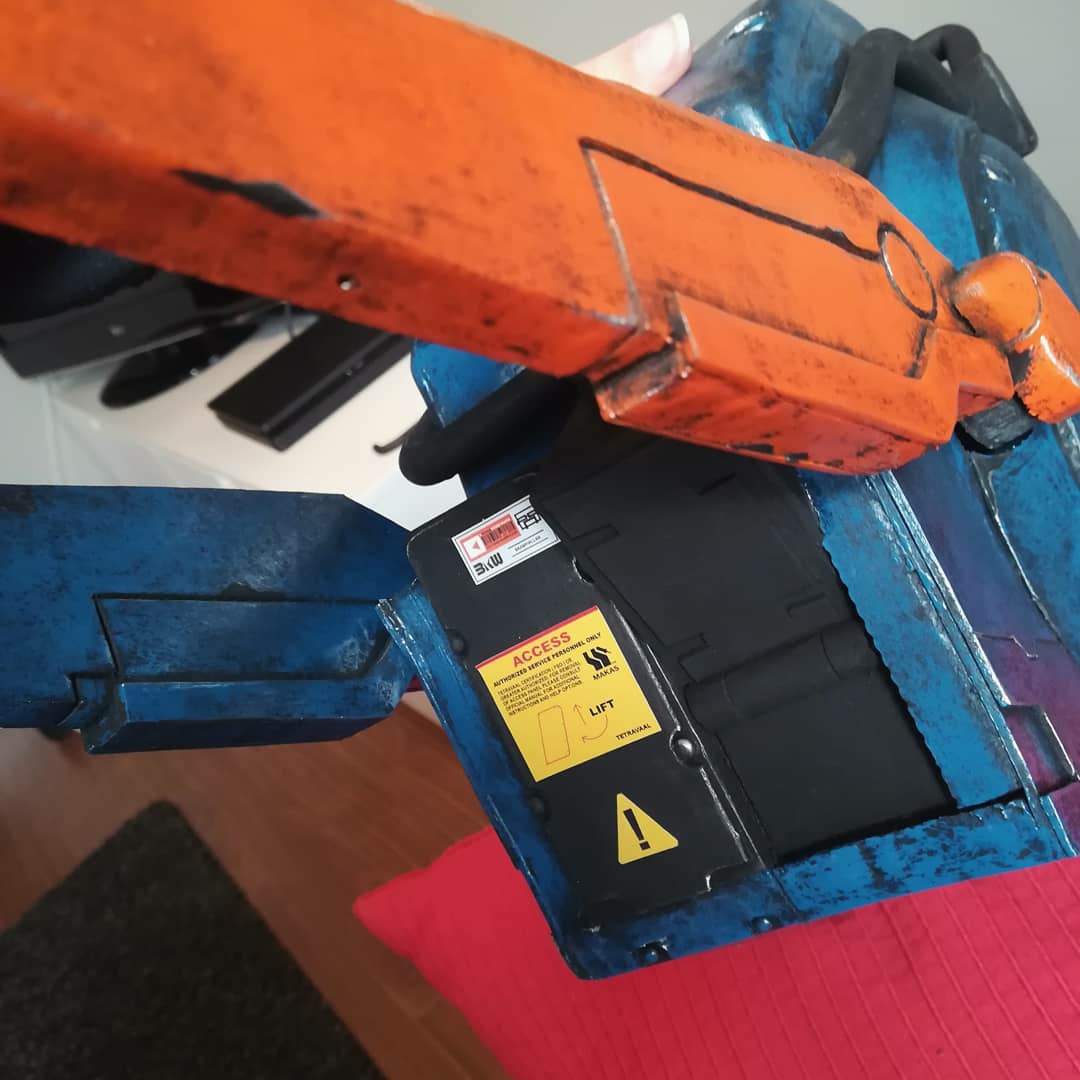

Finally got around to doing some weathering... with 10 days left, I'm feeling the pressure now!
I still need to add the crush sticker to the front and weather the middle blue piece on the back.

Front and back when they're not attached together:
IMG_20180502_082427.jpg IMG_20180502_082320.jpg

Some close ups:
IMG_20180502_082403.jpg IMG_20180502_082332.jpg IMG_20180502_082339.jpg

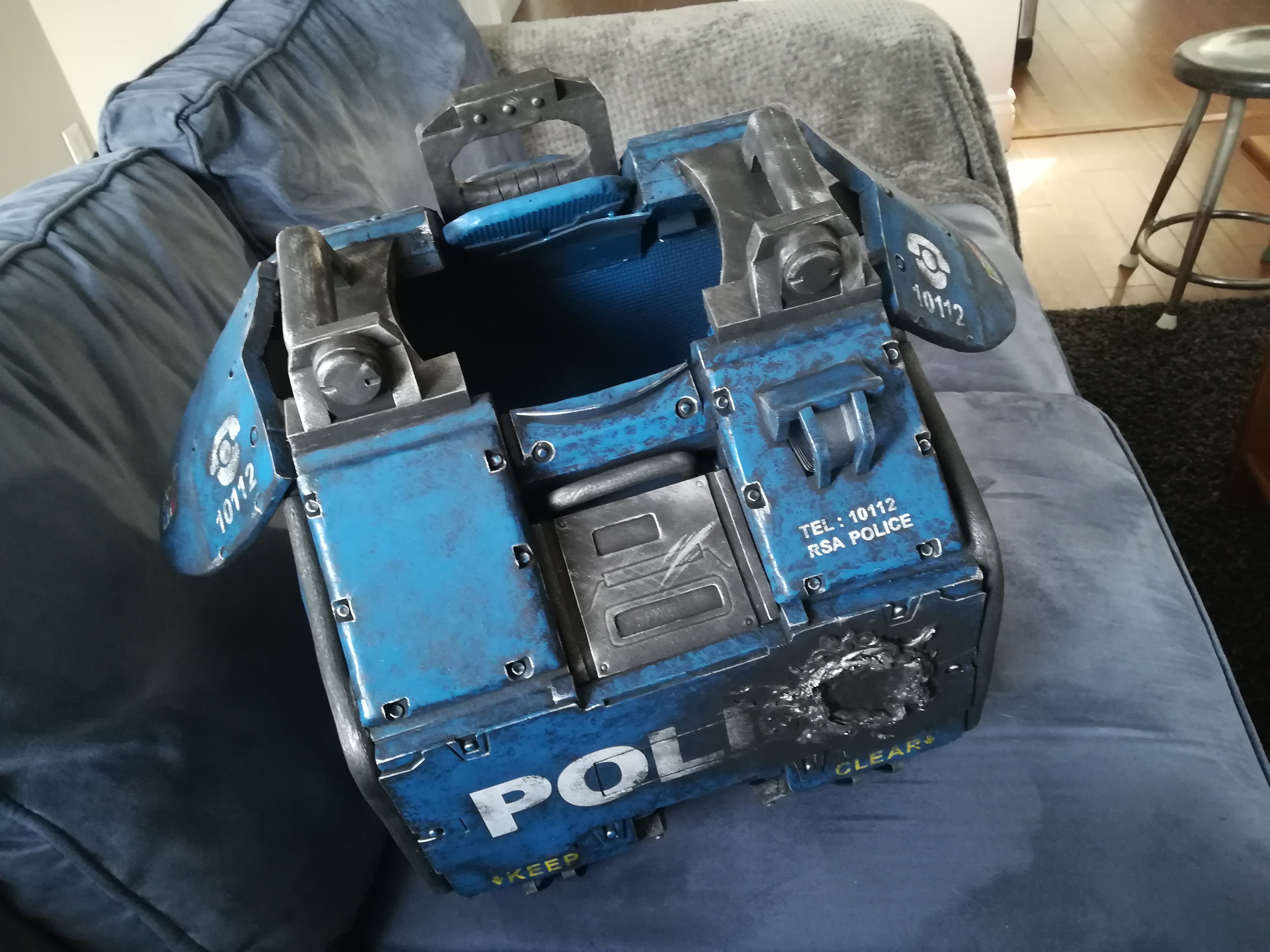

When the front and back are attached together:
IMG_20180502_082659.jpg IMG_20180502_082627.jpg IMG_20180502_082552.jpg IMG_20180502_082414.jpg

I cant tell you guys how much I appreciate having you here to motivate me and keep me moving on this build. I am so close to the deadline now and I hope to make you all proud! I hope to get a test fitting complete by this weekend with some better quality images for you all to see!
(yes, the camera on my cellphone is HORRIBLE, I'm aware... I'm just always snapping photos in a rush!)


joberg

Master Member
Yep, I use a lot of Drywall putty myself...good compound and sands easily! Very good weathering (are you using crumpled plastic bags/saran wrap)?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

amuelb

Active Member
Hey guys!

Ottawa comiccon has now come and gone... and WOW, it was crazy! The costume was a major hit with so many people (including kids... which was odd since it's an R rated film). It was AMAZING to meet/get photos with/talk to so many people... and to even get a shoutout from Neill Blomkamp both on Twitter and Instagram. It's been a hell of an experience!

Of course theres always an issue with the costume the day of — as you can see in chocobomeow's photo my right eye was dim for the first two hours of the day — le sigh. By the way HELLO chocobomeow, and thank you for coming to say "hi" and for posting a picture! <3 It means more to me than you know!

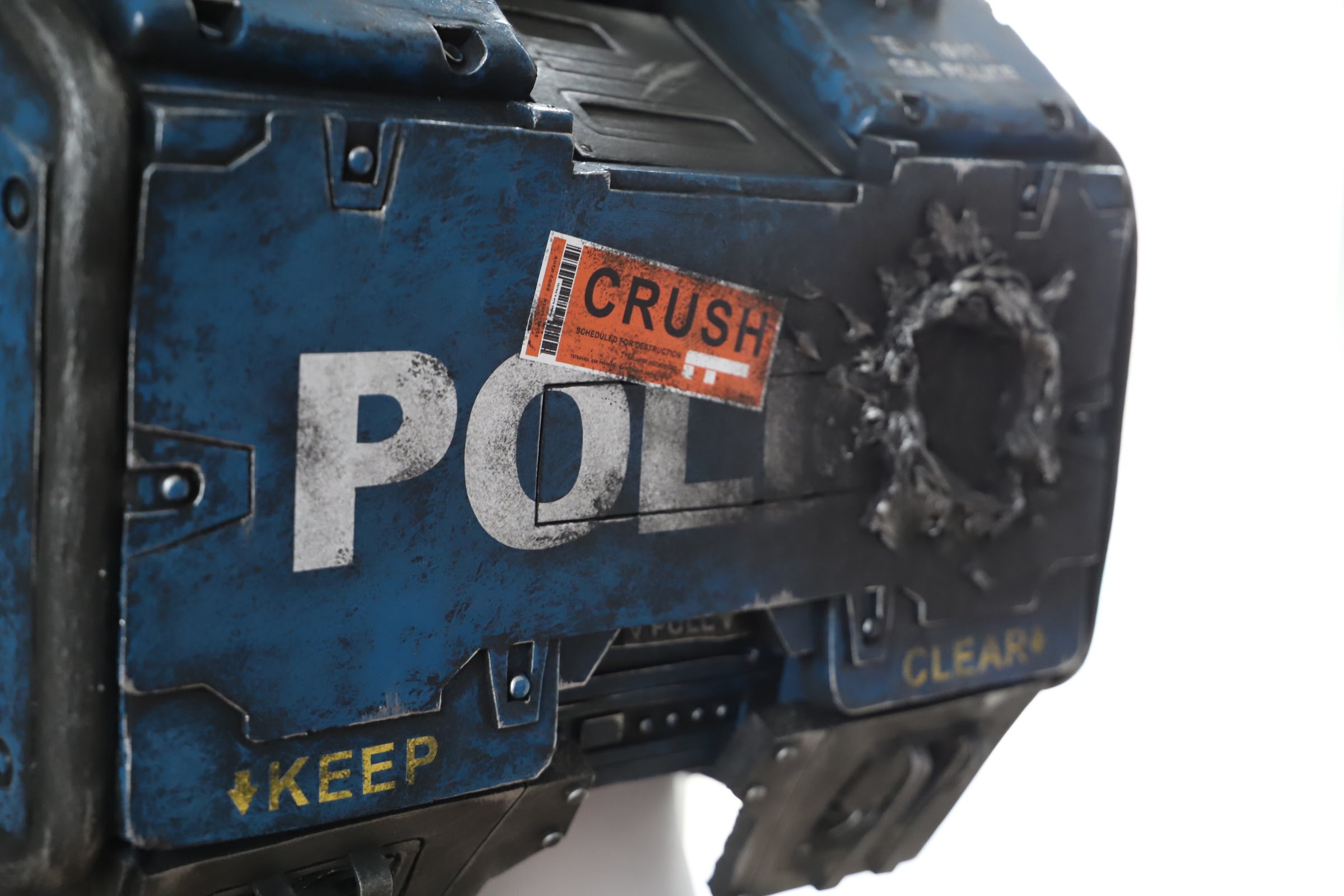

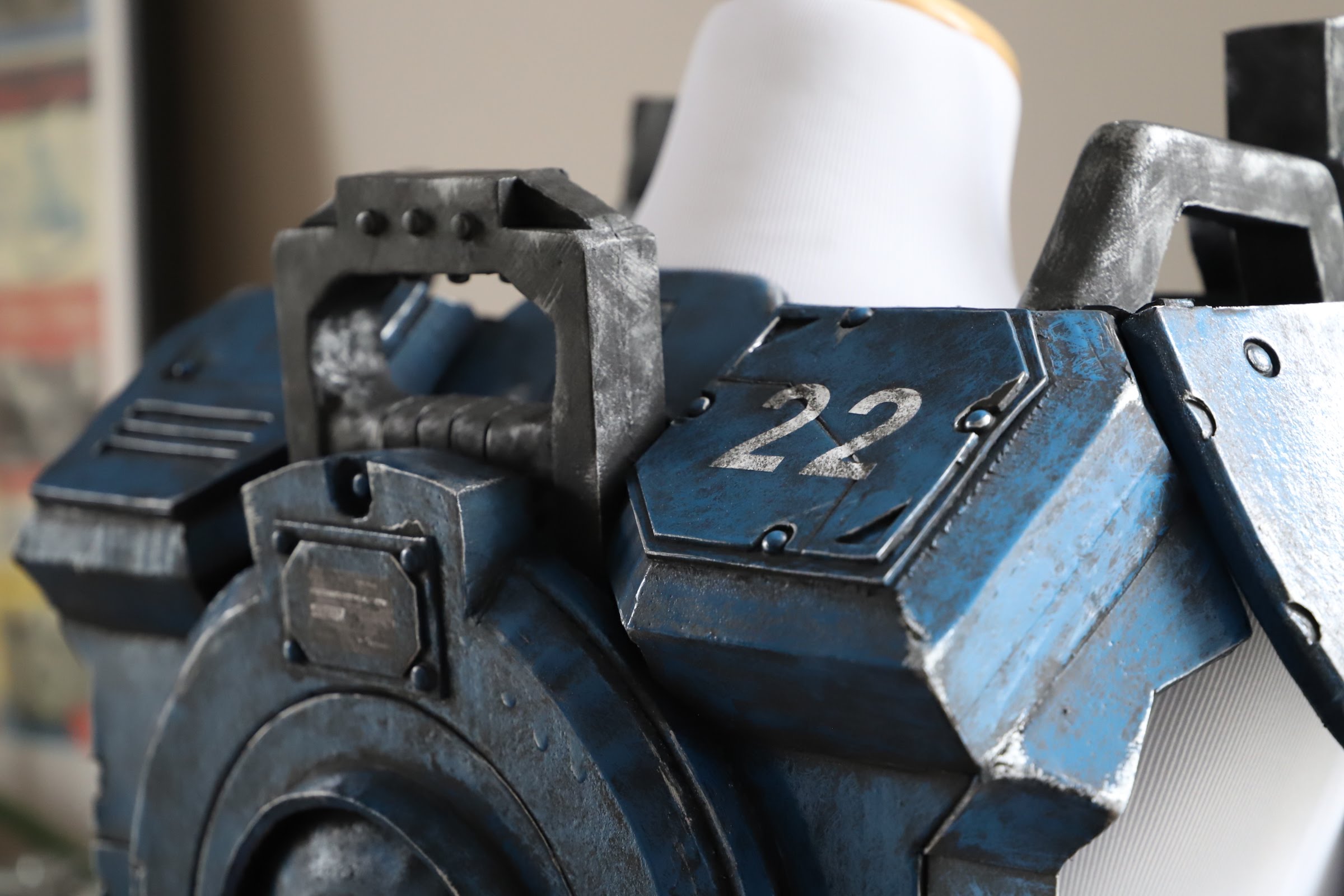

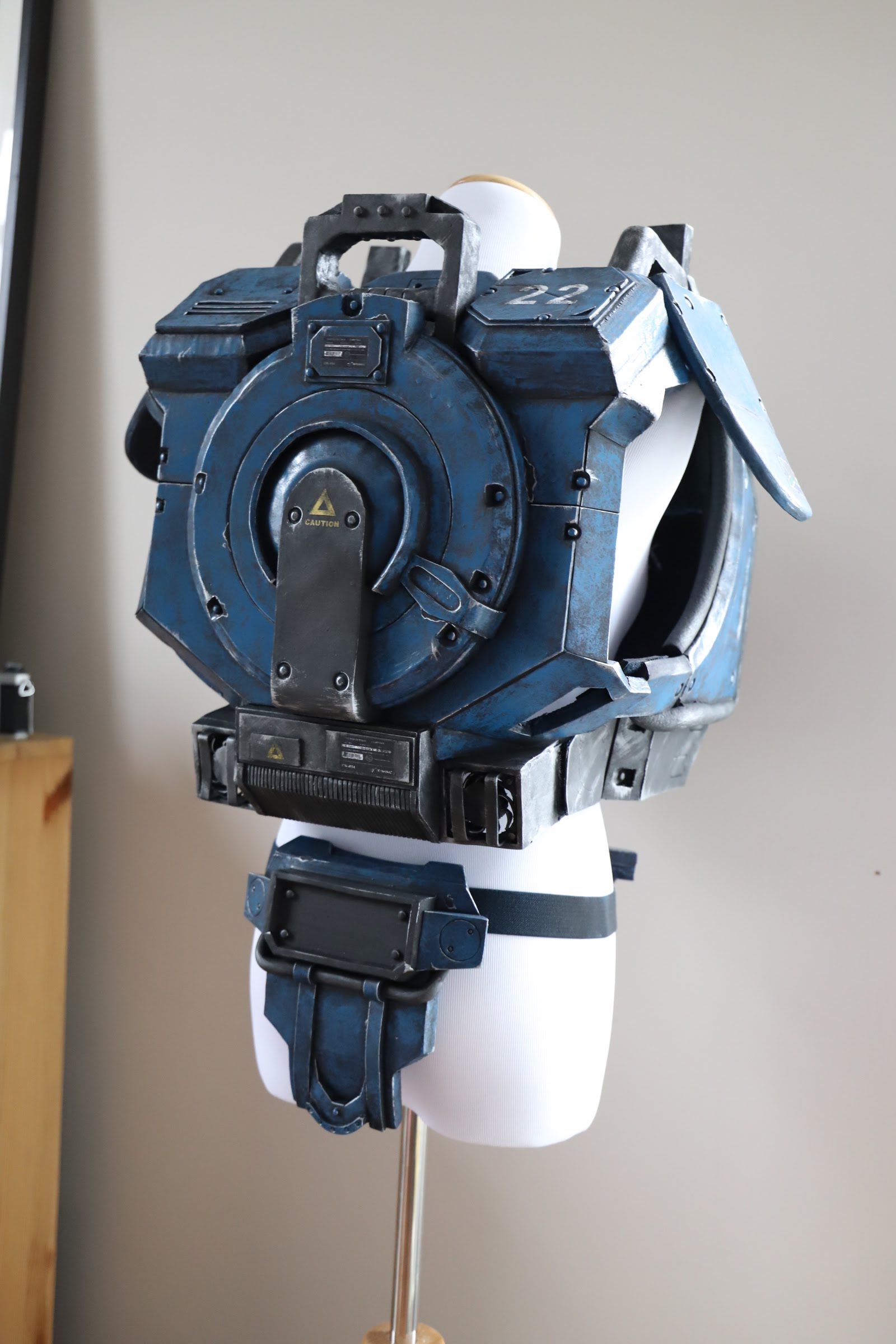

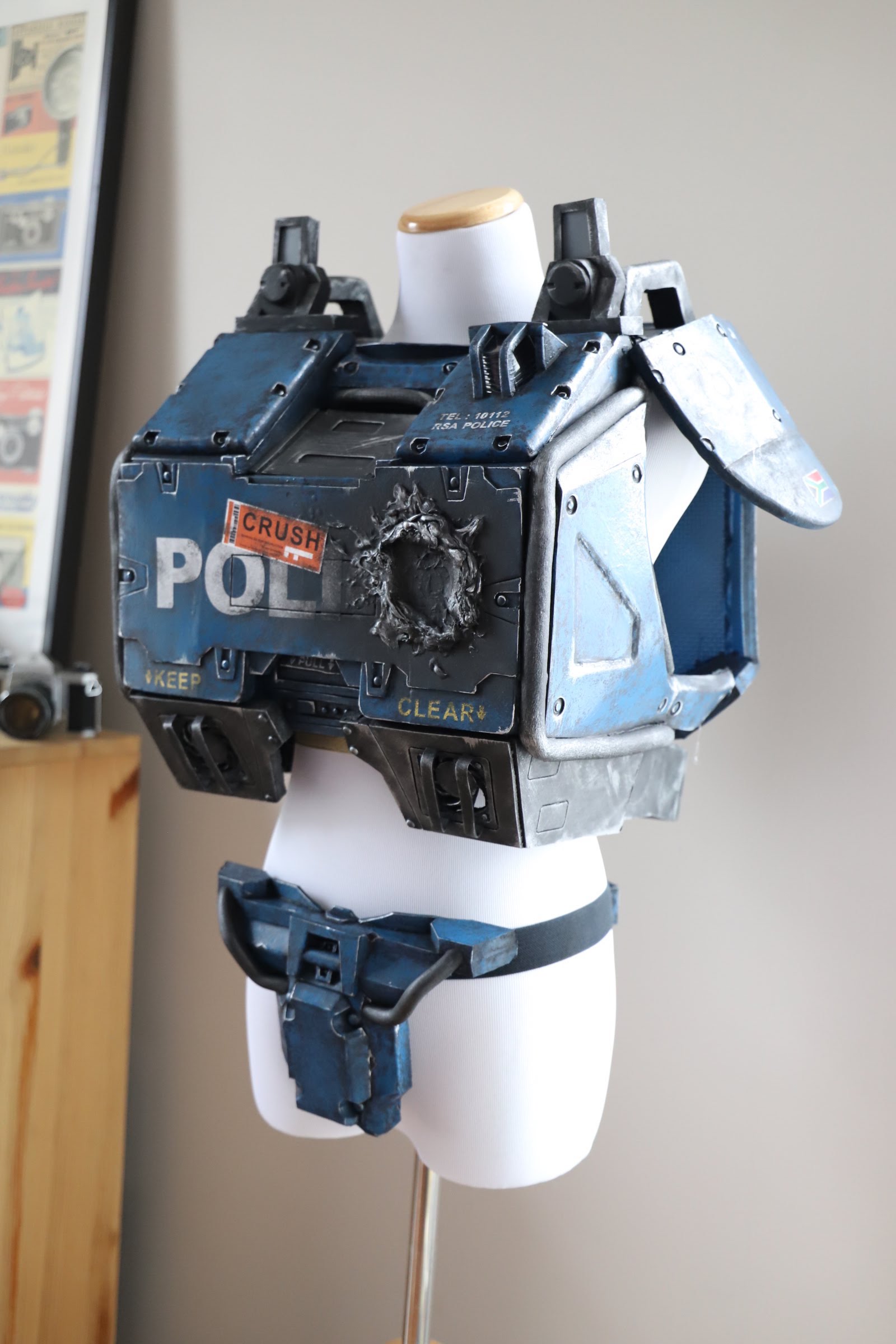

So, beyond all that, here's what you all have been waiting for — the final images and closeups!

20180503071447_IMG_4263.jpg 20180503071456_IMG_4264.jpg 20180503071521_IMG_4266.jpg 20180503071543_IMG_4268.jpg
20180503071711_IMG_4275.jpg 20180503071734_IMG_4277.jpg
20180503071627_IMG_4272.jpg 20180503071605_IMG_4270.jpg 20180503071631_IMG_4273.jpg

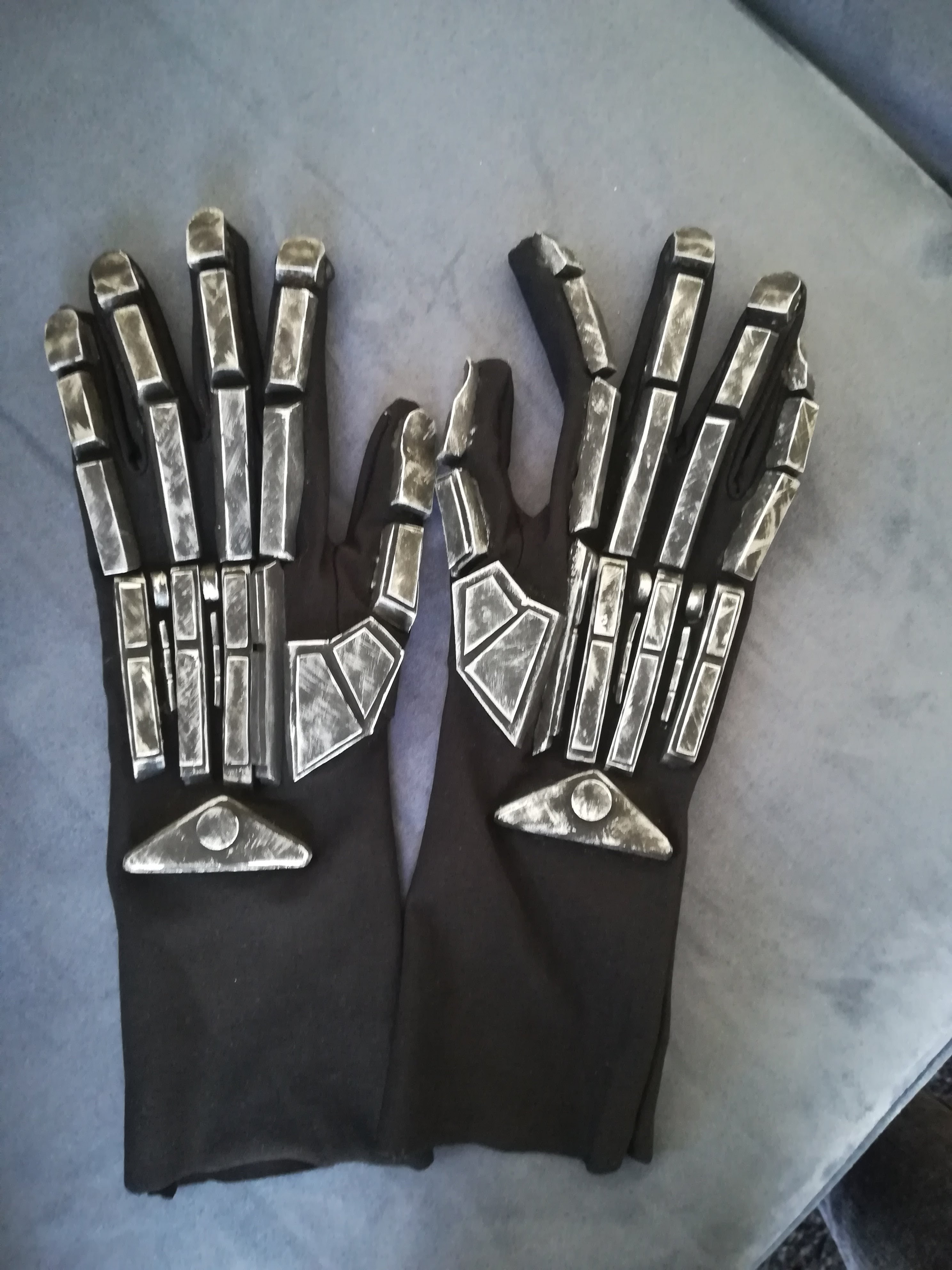

OH YES, also... i finished my hands and feet about two days before ComicCon... always a last minute person I swear... so here's those!
IMG_20180511_083050.jpg IMG_20180511_190128.jpg IMG_20180511_083121.jpg

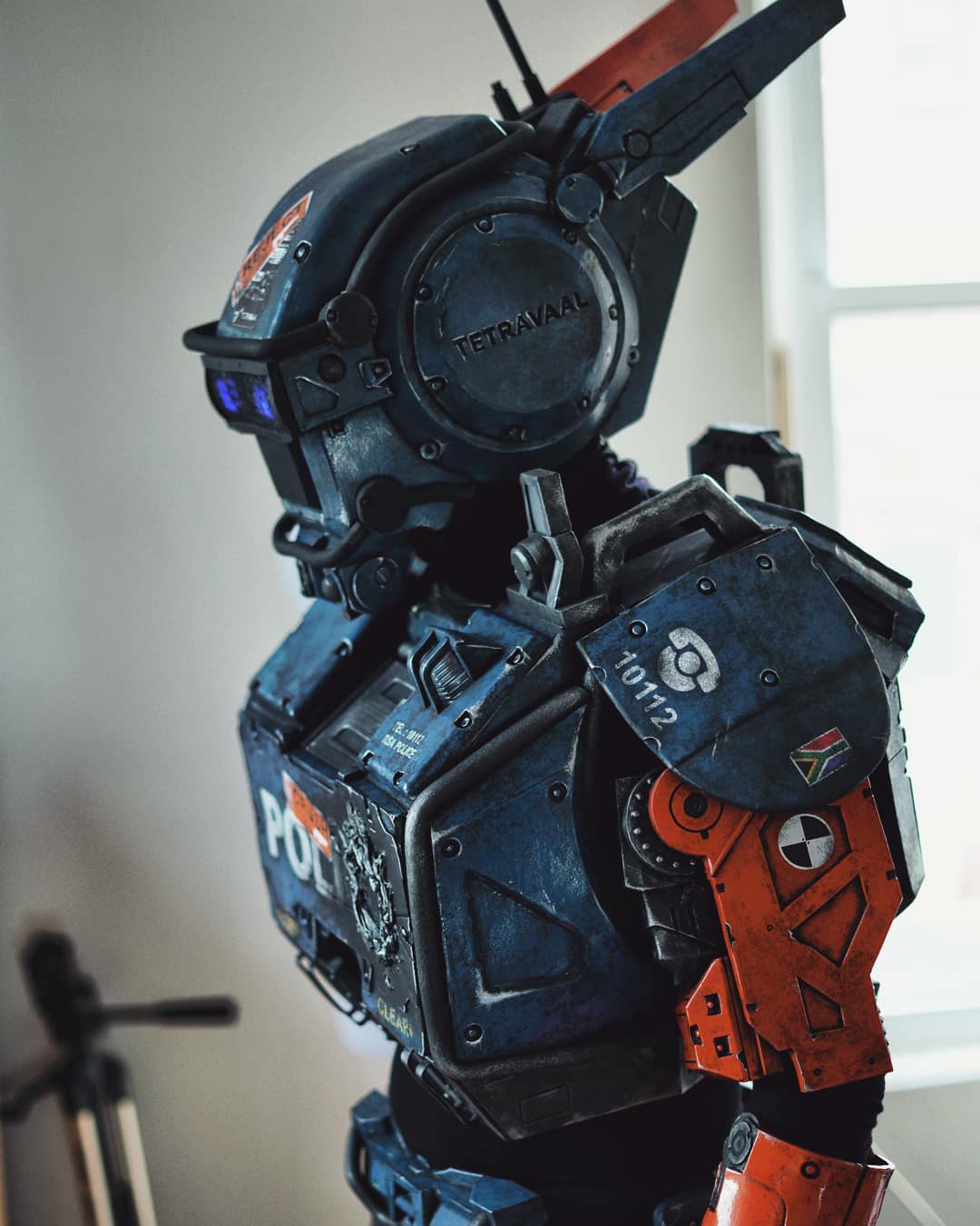

Here is my last test fitting:
31960192_10155239101870458_6711642314244096_o (2).jpg

I'll upload some images from the convention shortly!
I need to resize some of the files! <3

Last edited:

frasic

Active Member
Hey guys!

Ottawa comiccon has now come and gone... and WOW, it was crazy! The costume was a major hit with so many people (including kids... which was odd since it's an R rated film). It was AMAZING to meet/get photos with/talk to so many people... and to even get a shoutout from Neill Blomkamp both on Twitter and Instagram. It's been a hell of an experience!

Of course theres always an issue with the costume the day of — as you can see in chocobomeow's photo my right eye was dim for the first two hours of the day — le sigh. By the way HELLO chocobomeow, and thank you for coming to say "hi" and for posting a picture! <3 It means more to me than you know!

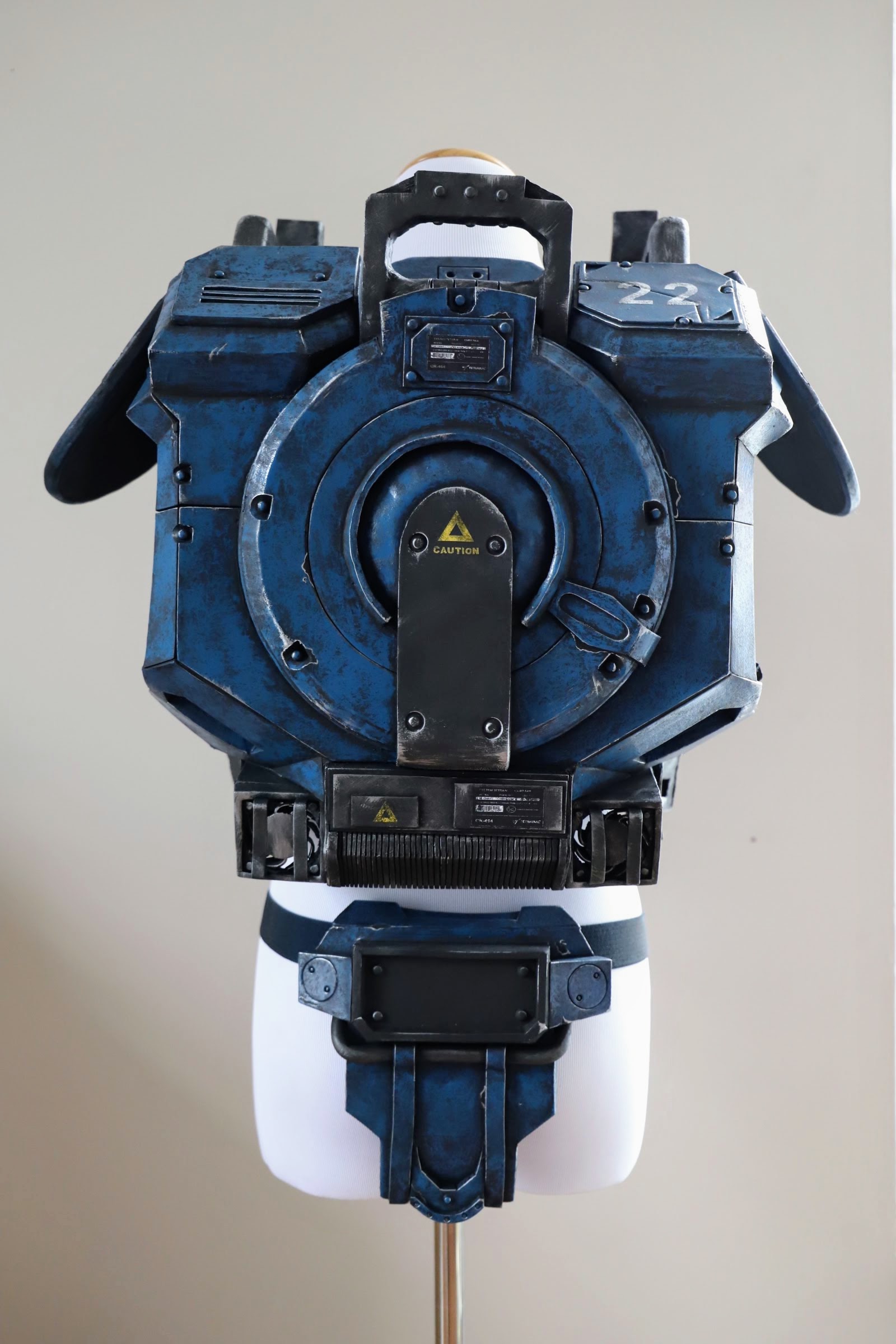

So, beyond all that, here's what you all have been waiting for — the final images and closeups!

View attachment 816934 View attachment 816944 View attachment 816936 View attachment 816945
View attachment 816942 View attachment 816943
View attachment 816939 View attachment 816938 View attachment 816940

OH YES, also... i finished my hands and feet about two days before ComicCon... always a last minute person I swear... so here's those!
View attachment 816920 View attachment 816923 View attachment 816922

Here is my last test fitting:
View attachment 816952

I'll upload some images from the convention shortly!
I need to resize some of the files! <3

Amazing costume!!!


Sent from my iPhone using Tapatalk


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

joberg

Master Member
Fantastic costume and result: you deserve all the praises in the world to have tackled that one! I wish you could take more pics in some kind of appropriate light/set...that would be awesome!!:cool


amuelb

Active Member
Thank you all so much! I couldn't have done it without all your help and support!
I am happy to say that I will be attending Montreal ComicCon in July, so If you're there please come and say hello!

I will be posting more pictures soon — Sadly none that are in the appropriate setting joberg, it's just TOO HOT outside to get any photographs out and about right now. Phew! Hopefully soon though!

Last edited by a moderator:

amuelb

Active Member
Heres some photos from the amazing Ottawa ComicCon!
There are some of the talented cosplayers in these photos with me, I will list the names of the ones I know here incase you want to check them out:
CHAPPiE (me): Amuelb (https://www.instagram.com/amuelb/)
Warhammer 40k: f3Props (https://www.instagram.com/f3props/)
Canadian Mccree: LittleAl (https://www.instagram.com/littleal1990/)
Hermione Granger: Chloe (no social media)
Daft Punk: Lexa LeFay (https://www.instagram.com/lexalefaycosplay/)
Velociraptor: The Zolak (https://www.instagram.com/the_zolak/)

32547758_10155260678375458_966804435479035904_o.jpg 32763407_10155260672265458_7535921970857115648_o.jpg 32482792_10155260670550458_2176909641470967808_o.jpg 32834824_10155260670350458_748165882575847424_o.jpg 32837210_10155260681325458_9197101280978272256_o.jpg 32325778_10155253028470458_5553930954734567424_n.jpg
32817970_10155260680170458_8481389481256026112_o.jpg 32718486_10155260683245458_2297534253245661184_o.jpg 32679703_10155260680530458_5904843745756446720_o.jpg 32732015_10155260675200458_5139443495156580352_o.jpg 32747842_10155260671835458_1249397563975532544_o.jpg 32542334_10155253028380458_6865842184315207680_o.jpg 32392125_10155260677600458_5768242332382003200_o.jpg 32349094_10155253028130458_1496721365930082304_o.jpg






























Last edited by a moderator:

amuelb

Active Member
Also, after so many people have asked for assistance building CHAPPiE... I'd like to share with you guys my Dielines/Patterns for all of my CHAPPiE build. I hope if anyone starts to make one, that you'll share the progress with me. I'd love to see it!

Simply download my Adobe Illustrator files from this Dropbox link and scale them to match your body (I've included reference images to help with the build):
https://www.dropbox.com/sh/1gt2kh4jmp5i9o6/AACeRB2d6lgdRQroCDnaI3A8a?dl=0

If you'd like a copy of all the CHAPPiE body vinyls, send me a message on Instagram! <3
tmax: THANK YOU! :D
