INVAR

Sr Member
This fella found and interesting way to add red colorization to the window holes in various areas with a mix of fiber and some red Tamiya paint without getting all birds nesty with miles of fiber as those of us slaving away on the Zvezda 1/2700 have.



Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

r0ver

Well-Known Member
r0ver i think it just might - Here is what I got be removing the lower middle tabs so far from each of the 4 trench inserts. I also widened the tab holes for remaining tabs to help remove some of the stress bringing the bow up. Additionally i shaved the front peg down a bit and removed all the tabs from the top port side. Starboard side seems perfect, port side is still a bit curved but I think the clamp and glue final assembly will take care of that.
I noticed when i assemble the entire thing with the white light blocking interior parts the curve comes back a bit more. not sure if I will just sand away more or do the lighting without the interior parts and go the fiber route.
Thanks for posting this mate.


This fella found and interesting way to add red colorization to the window holes in various areas with a mix of fiber and some red Tamiya paint without getting all birds nesty with miles of fiber as those of us slaving away on the Zvezda 1/2700 have.
Need to watch it again in less of a rush but didn’t quite get it on the first watch through.

Last edited:

edge10

Sr Member
RPF PREMIUM MEMBER
Thanks for posting this mate.




Need to watch it again in less of a rush but didn’t quite get it on the first watch through.
He shows it in episode 2, not 2.1 which was linked.

Correction, he shows something in episode 2.1 with clear red paint, but shows more detail in Episode 2.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

jusdrewit

Active Member
So I'm really leaning towards the non lighted SD now as it seems like the holes are predrilled. Does anyone recommend a relatively cheap Led kit that could do a decent job or just scour fleabay for one? I can't see spending $140-150, double the price of the non lighted version.


Fett_Ish

Well-Known Member
I might be insane, and may not eventually go through with it, but I've thought about filling the kit supplied window holes because they are far too large. I thought about taking a mini drill and then putting in my own smaller windows. We'll see.
I had an idea on this as I also think the windows are too big. Smaller fiber than the hole white glue to secure fiber and fill hole, paint an viola smaller windows. It seems the fibers just need to be long enough to get into the hull and to cut off from the outside after painting. Still not enough windows, but it saves drilling. They may seem too far apart now, but its a trade off I suppose. Thoughts?


Analyzer

Sr Member
So I'm really leaning towards the non lighted SD now as it seems like the holes are predrilled. Does anyone recommend a relatively cheap Led kit that could do a decent job or just scour fleabay for one? I can't see spending $140-150, double the price of the non lighted version.
If you want easy and about as plug and play as it gets for a decent price, I would probably just get some pre-wired LEDs

I've usually get stuff from this place


I'd go with a miix of warm white's and cool white's. Maybe one red

...as well as a few flickering cool whites and/or blues for the engines

you get choices to run off of 3 volt battery, 5 to 13 volt battery/transformer if you like to plug it in) or 7 to 19 volt DC

With something needing that many LEDs, I would go for the "5 to 13 volt" option and pick up one of their adaptors/transformers to power them.

You could also run it from a 9 volt battery


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

DanielB

Sr Member
I had an idea on this as I also think the windows are too big. Smaller fiber than the hole white glue to secure fiber and fill hole, paint an viola smaller windows. It seems the fibers just need to be long enough to get into the hull and to cut off from the outside after painting. Still not enough windows, but it saves drilling. They may seem too far apart now, but its a trade off I suppose. Thoughts?
Well, as of last night having seen the holes in person, I'm thinking maybe they aren't too big after all. I think the light sources are just "blooming" in the photography making them seem bigger than they are. I think I may just leave them as is, but figure out a way to put some kind of diffuser material behind them to lessen hot spots.

As to the number of windows, it looks like there are indeed less than the ESB Star Destroyer. But if you look at Rogue One, those have far fewer windows (I know they are a different class). I may drill in some more windows, I may not.

The only lighting not covered in the kit is the trench self illumination spotlights. Think similar to the Enterprise self spots. Perhaps one could run a much thicker fiber optic out to the trench from one of the LEDs to add in this missing light.


INVAR

Sr Member
It seems the fibers just need to be long enough to get into the hull and to cut off from the outside after painting. Still not enough windows, but it saves drilling. They may seem too far apart now, but its a trade off I suppose. Thoughts?
That is precisely what the fella in the video I linked to above had done for his red windows. He inserted 3 cm length .5mm fiber into the holes, glued them and pushed them flush against the plastic. He then simply glued the strand on the inside facing the direction of the LED light source and painted the end of the strand red. I supposed you could employ that same method for all the holes to opaque the windows to cut down on hotspots. It looked like he was using .5mm fiber which may indicate the size of the holes. Hopefully I will find out myself soon when my kit shows up today.


INVAR

Sr Member

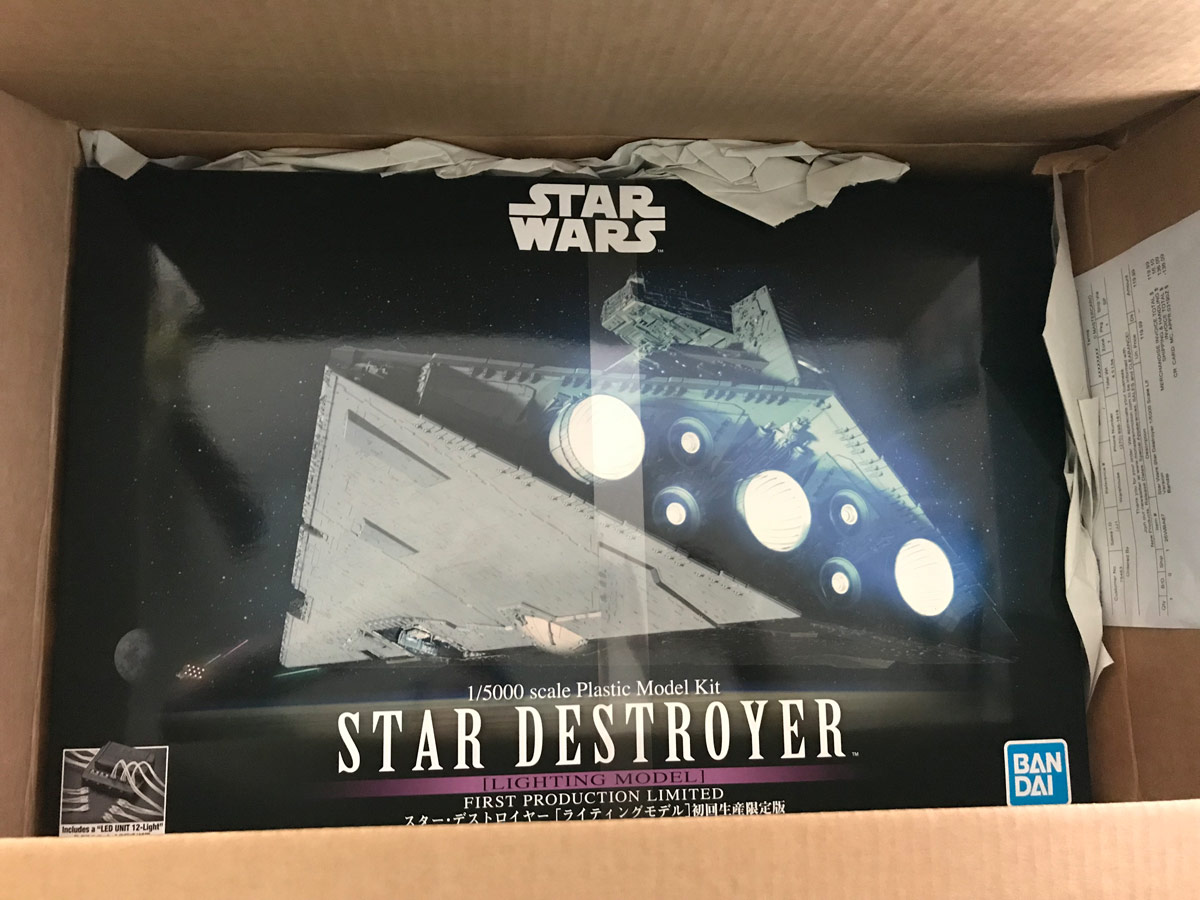

Very happy to see my delivery guy this morning:

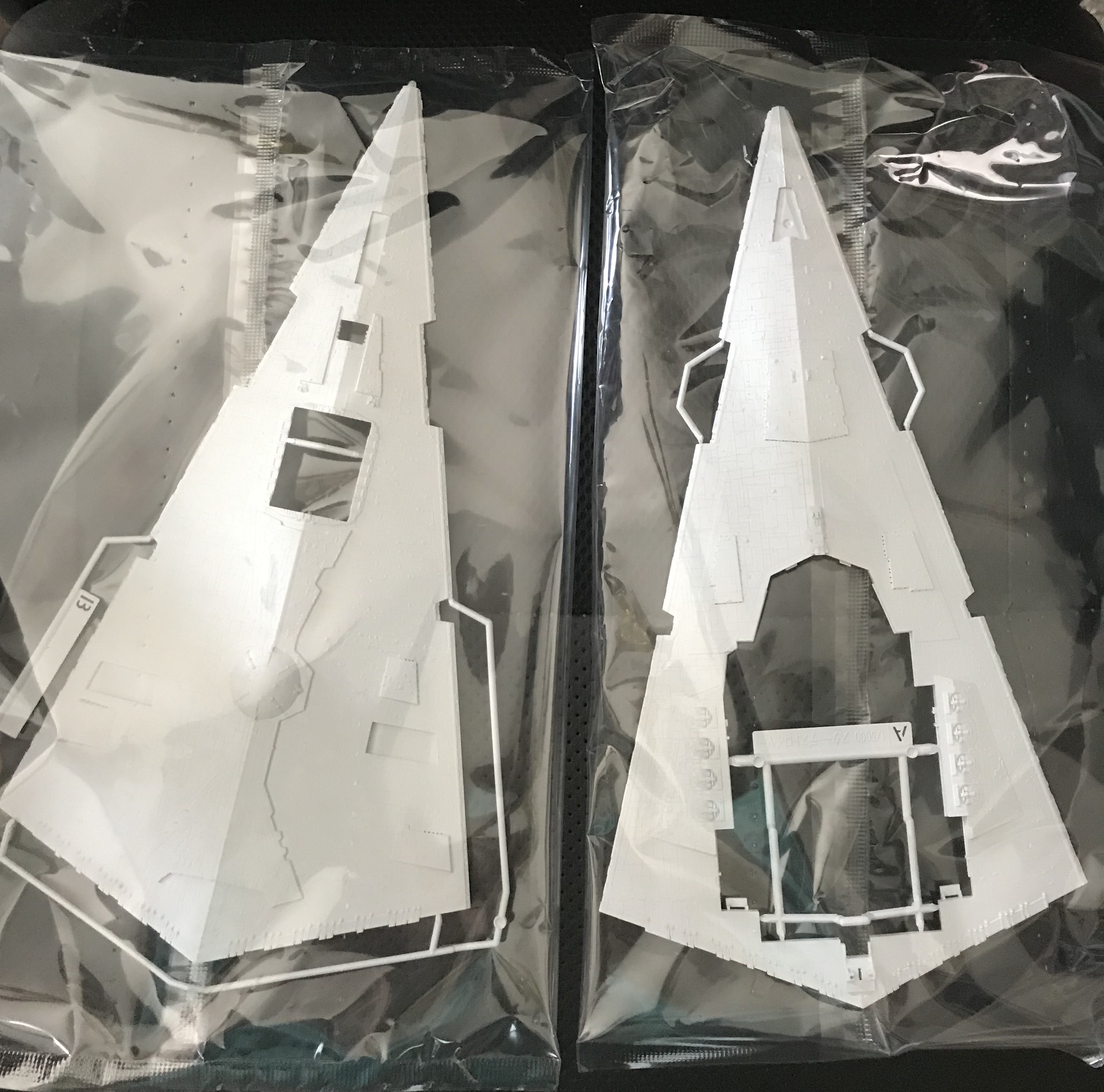

First thing I noticed upon opening the kit - is that the upper and lower hulls ARE NOT taped to cardboard as a lot of unboxing videos from Japan have showed. My kit had them loose in the clear mylar bags:

Pkg Hulls.jpg

I do not know if that will in any wise lessen the warping of the bow in a lot of the builds I have seen. Thanks to what Wolfy762 has shared with his kit, I may employ the same method of shaving down the pegs and gluing the hulls and using clamps for the final assembly.

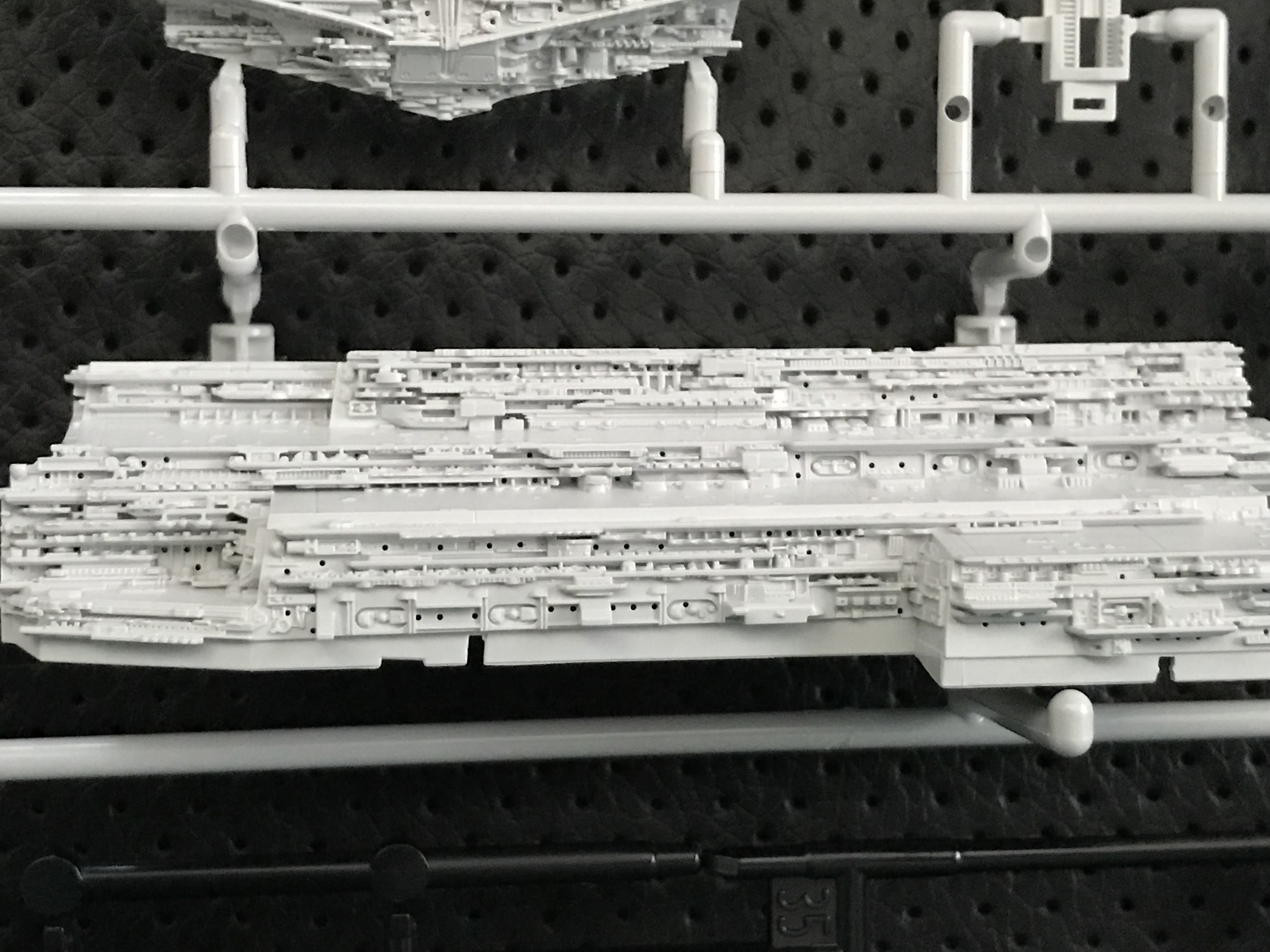

The level of detail on this kit is unbelievably OUTSTANDING and dead-balls accurate in most places I have glanced over. I can say that as an amateur expert given the couple of years I have spent staring at High-Res pics of the ILM 8 foot model and carving styrene details to put on the comparably plain Zvezda. This photo does no justice to the level of minuscule detail and depth Bandai has managed to obtain on a kit at this scale:

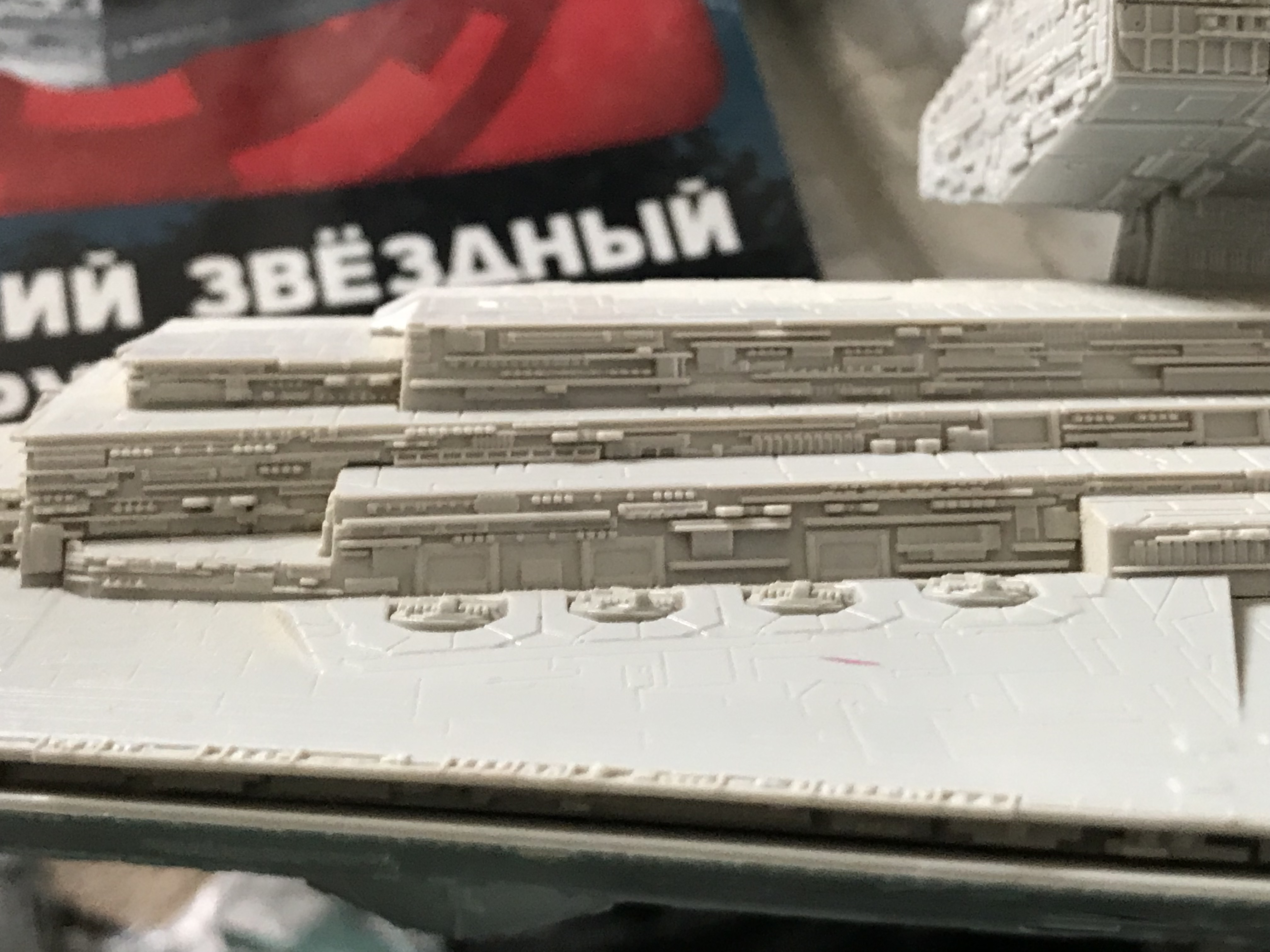

For shiggles and mirth here is the same exact section on the larger scaled Revell 'build and play' model toy:

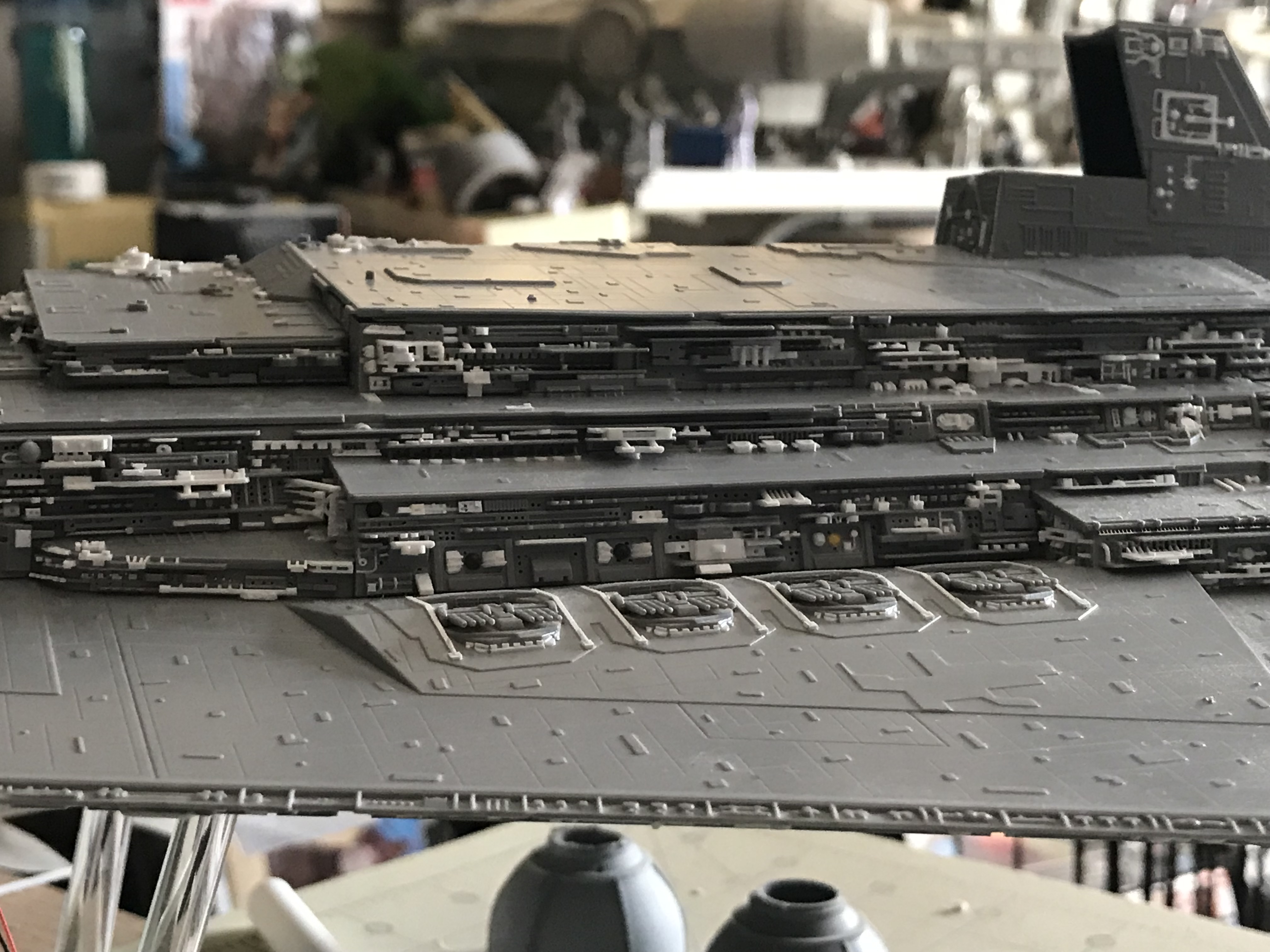

And here is the same section I carved up and built on the Zvezda:

Zvezda portcake.jpg


Looking at the holes pre-fabbed into the kit - I tried to thread a strand of .5mm fiber and a .25mm fiber strand. The holes are likely .30mm to .35 mm because the .25mm fiber threaded just fine and was loose in the hole, the .5mm is too big.

Fiber onBandai.jpg


Since I am using a majority of .25mm fiber on the Zvezda, the Bandai will appear to have much larger holes in comparison and likely make the finished scale look smaller - but as far as aesthetics it will still pay off the illusion very well with .25mm fiber.

So, on opening the box and looking at the details, seeing about the holes - I am very excited to get into this build. Thanks to everyone who has been sharing their reviews and suggestions of approach on this kit.


edge10

Sr Member
RPF PREMIUM MEMBER
Very happy to see my delivery guy this morning:

View attachment 1058381

First thing I noticed upon opening the kit - is that the upper and lower hulls ARE NOT taped to cardboard as a lot of unboxing videos from Japan have showed. My kit had them loose in the clear mylar bags:

View attachment 1058385

I do not know if that will in any wise lessen the warping of the bow in a lot of the builds I have seen. Thanks to what Wolfy762 has shared with his kit, I may employ the same method of shaving down the pegs and gluing the hulls and using clamps for the final assembly.

The level of detail on this kit is unbelievably OUTSTANDING and dead-balls accurate in most places I have glanced over. I can say that as an amateur expert given the couple of years I have spent staring at High-Res pics of the ILM 8 foot model and carving styrene details to put on the comparably plain Zvezda. This photo does no justice to the level of minuscule detail and depth Bandai has managed to obtain on a kit at this scale:

View attachment 1058384

For shiggles and mirth here is the same exact section on the larger scaled Revell 'build and play' model toy:

View attachment 1058386

And here is the same section I carved up and built on the Zvezda:

View attachment 1058387

Looking at the holes pre-fabbed into the kit - I tried to thread a strand of .5mm fiber and a .25mm fiber strand. The holes are likely .30mm to .35 mm because the .25mm fiber threaded just fine and was loose in the hole, the .5mm is too big.

View attachment 1058388

Since I am using a majority of .25mm fiber on the Zvezda, the Bandai will appear to have much larger holes in comparison and likely make the finished scale look smaller - but as far as aesthetics it will still pay off the illusion very well with .25mm fiber.

So, on opening the box and looking at the details, seeing about the holes - I am very excited to get into this build. Thanks to everyone who has been sharing their reviews and suggestions of approach on this kit.
Great pictures Invar!

They demonstrate why Bandai needs to produce a 1/2500 Star Destroyer next.

Zvezda was cool, but next to Bandai's smaller kit, it is a dead thing.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

COlson

New Member
They demonstrate why Bandai needs to produce a 1/2500 Star Destroyer next.

Zvezda was cool, but next to Bandai's smaller kit, it is a dead thing.
At 1/2500, Bandai would just be phenomenal. I was SOOOO looking forward to their supposed 1/1700 studio scale SSD they showed a couple years back. Wish that would've come together.


Zombie_61

Master Member
The level of detail on this kit is unbelievably OUTSTANDING...This photo does no justice to the level of minuscule detail and depth Bandai has managed to obtain on a kit at this scale:

View attachment 1058384

For shiggles and mirth here is the same exact section on the larger scaled Revell 'build and play' model toy:

View attachment 1058386
Yeah...I don't see much of a difference.





*ducks and runs for cover*


r0ver

Well-Known Member
I was SOOOO looking forward to their supposed 1/1700 studio scale SSD they showed a couple years back. Wish that would've come together.
You mean SD right? At 1/1700 an SSD would be gigantic!

Was that model not the Randy Cooper kit at any rate? I always thought it was like the huge Vader TIE. That is, just a showpiece and not meant for production.


ggriffaw

Sr Member
Given the amount of research Bandai must have put into the SD, it would be surprising if they did not create a larger PG version at some point.
