B-Wing Studio Scale

[motero96]

Another contribution, there are fewer boys left.



[Magoscher]

Up

I was wrong in a kit, I thought it was a 1/32 Falcon but I think 90% that it is the A-10 1/48.

Hello Motero !!! I want to tell you that Tamiya 1/48 is the correct donor for B-wing turbines ...



[Magoscher]

Up

Motero, please let me know how you know that the main wing is donated by the B36?



[motero96]

Hello Motero !!! I want to tell you that Tamiya 1/48 is the correct donor for B-wing turbines ...

Thanks Magoscher



[Magoscher]

Thanks Magoscher

You are welcome...



[Magoscher]

[QUOTE = "motero96, post: 5059137, membro: 11701"]
Acima
[/CITAR]
Motero, quero dizer que o criador de modelos Bill George, da ILM, a construiu do zero e formou a cabine, todas as carenagens das armas, a asa principal, as partes gêmeas que o motor está entre elas e a carenagem do motor ...
Isso já é conhecido por muitos aqui, como o próprio Bill George deixou isso claro para alguns amigos ...
Veja a foto, existem algumas peças de vácuo formadas a partir da cabine, por exemplo ...



[Magoscher]

Up

Motero, I want to tell you that model maker Bill George of ILM built it from scratch and vacuum formed the cabin, all fairings for the guns, the main wing, the twin parts that the engine is between them and the engine fairing ...
This is already known to many here, as Bill George himself made this clear to some friends ...
See the photo, there are some vacuum parts formed from the cabin for example ...



[Magoscher]

Up.

Motero, it's not Airfix 1/200, as far as I know ILM only used two brands of space shuttle manufacturer to detail the models, but in the 1/144 scale that were Airfix and Entex, there is no way to know which one was used, both are good and very similar to each other, I think is Entex and it’s already separate for my B-wing ...



[Magoscher]

Up

Motero,It's not Tamiya 1/35 SU 100, it's Tamiya 1/25 SU 100 ... Gradually I will help you with these killer pieces ...



[motero96]

[CITA = "Magoscher, publicación: 5063245, miembro: 207132"]
Motero, no es Tamiya 1/35 SU 100, es Tamiya 1/25 SU 100 ... Poco a poco te ayudaré con estas piezas asesinas ...
[/ CITAR]

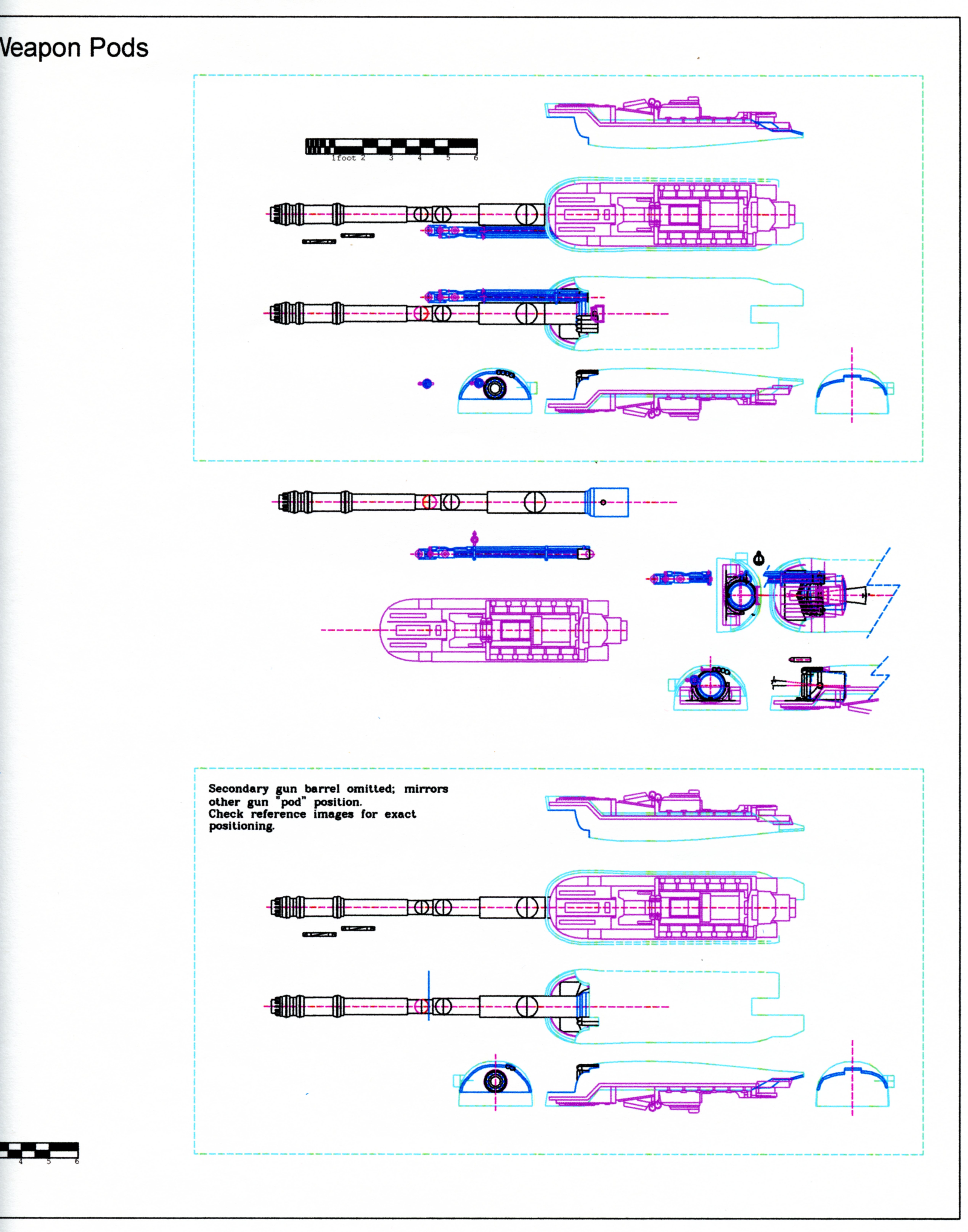

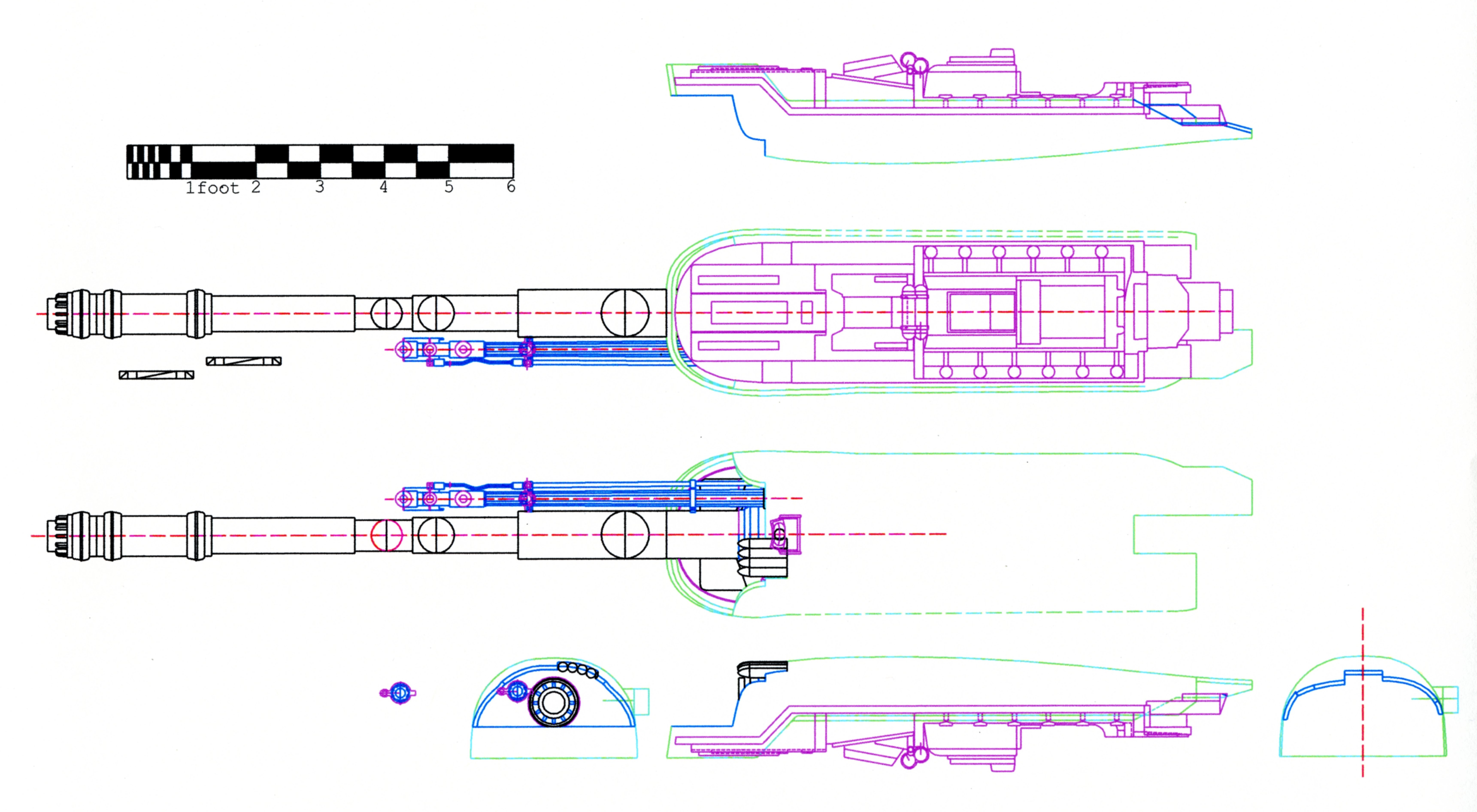

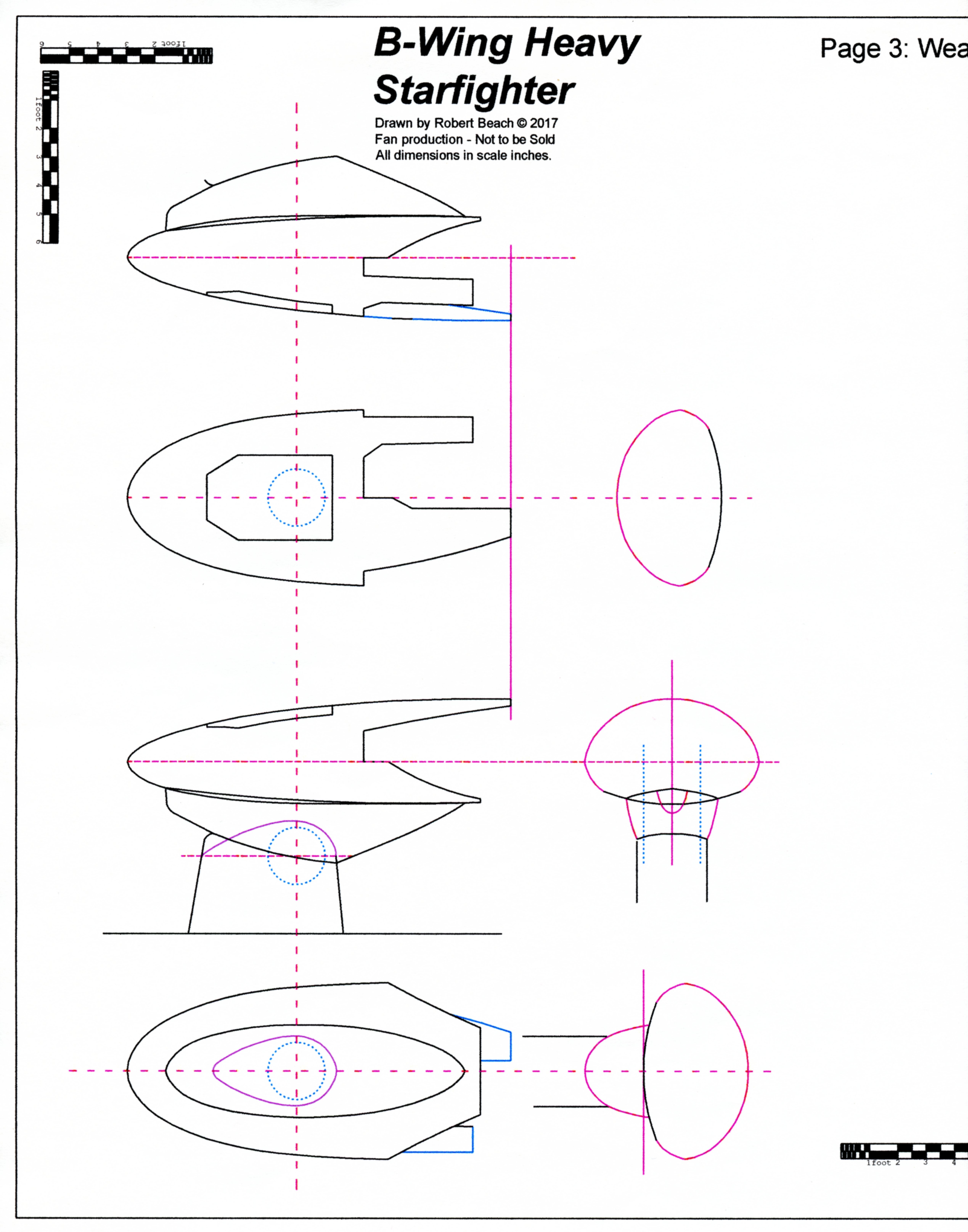

Thank you very much for your help, I am collecting all the information that I am finding. These plans are from Robert Beach, it is a great job, does anyone know if the measurements are correct?
a greeting



[Magoscher]

[CITA = "Magoscher, publicación: 5063245, miembro: 207132"]
Motero, no es Tamiya 1/35 SU 100, es Tamiya 1/25 SU 100 ... Poco a poco te ayudaré con estas piezas asesinas ...
[/ CITAR]

Thank you very much for your help, I am collecting all the information that I am finding. These plans are from Robert Beach, it is a great job, does anyone know if the measurements are correct?
a greeting

Motero, You are always welcome...
I also collected these drawings, it really is a very good job and very well done but unfortunately they do not correspond correctly to the true forms of the B-wing Studio Scale ...
Nowadays the best reference we have is the Bandai 1/72 B-wing kit, it is very perfect and from what I understand it was scanned from one of the originals and I believe it was from the B-wing blue and then you can find all the correct facets and build an excellent model ...



[motero96]

Thank you very much for the information. I am going to redraw the plans from the Bandai model.



[Magoscher]

Thank you very much for the information. I am going to redraw the plans from the Bandai model.

Motero, You are always welcome...
Congratulations!!! This is the way...



[gboy1801]

I think Hasegawa 1/32 F16A gives the detail around the thruster A10 parts and a lot of detail in the 2 wing guns.



[gboy1801]

Wing for the B-wing.



[gboy1801]



[Magoscher]

I think Hasegawa 1/32 F16A gives the detail around the thruster A10 parts and a lot of detail in the 2 wing guns.View attachment 1303479

I know these pieces well, they are very well made by Gui Coen ...



[Magoscher]

Wing for the B-wing.View attachment 1303828

Hey gboy1801, please tell me where did you get the information that the main wing of B-wing is composed of a Monogram 1/72 B 36 peace maker ?



[gboy1801]

By looking all over the Internet, on different forum.



[gboy1801]

And now that I have wings in my hands, I think I've found the origin of other parts.
These, for example.

I am pretty sure this is the beginning of the wing, the part that normally starts at the plane fuselage.
We have the same part twice, with the same shape, but the one on the side of the cockpit seems less broad.Normal, to get the big wing, we used both extrados and for this part we used the two intrados.
I'll check my theory on Sunday.
