ANH Obi Wan LIghtsaber with Crystal Chamber ( Modifications ect..)

[Spirit of ob1]

Goth came out with a chassis for the crystal chamber. Check it out at goth-3designs.com



[Spirit of ob1]

Dmitry also has a chassis for Crystal chambers

https://www.facebook.com/ShtokCustomWorx/posts/981405988683849



[Obi Coop]

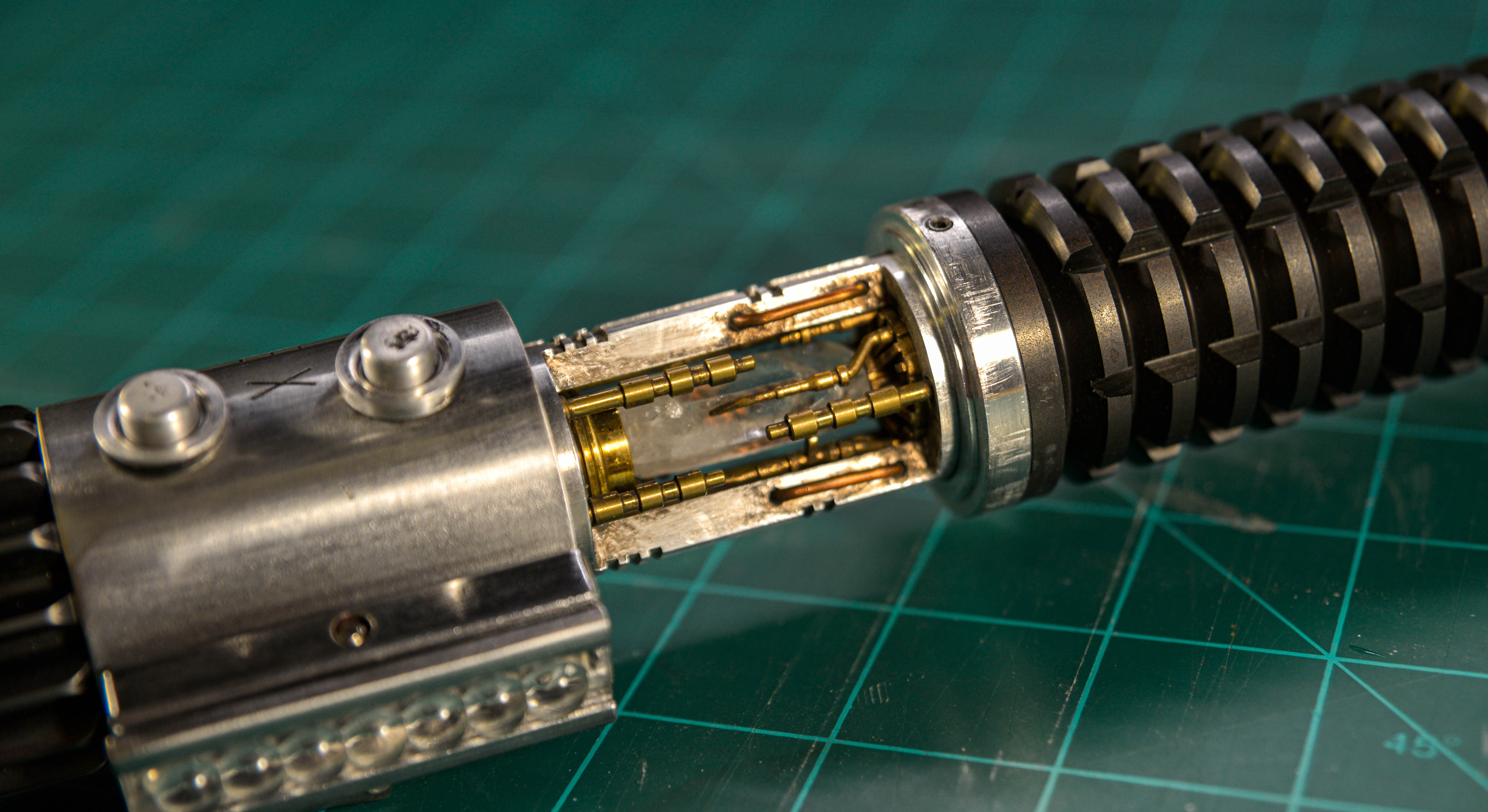

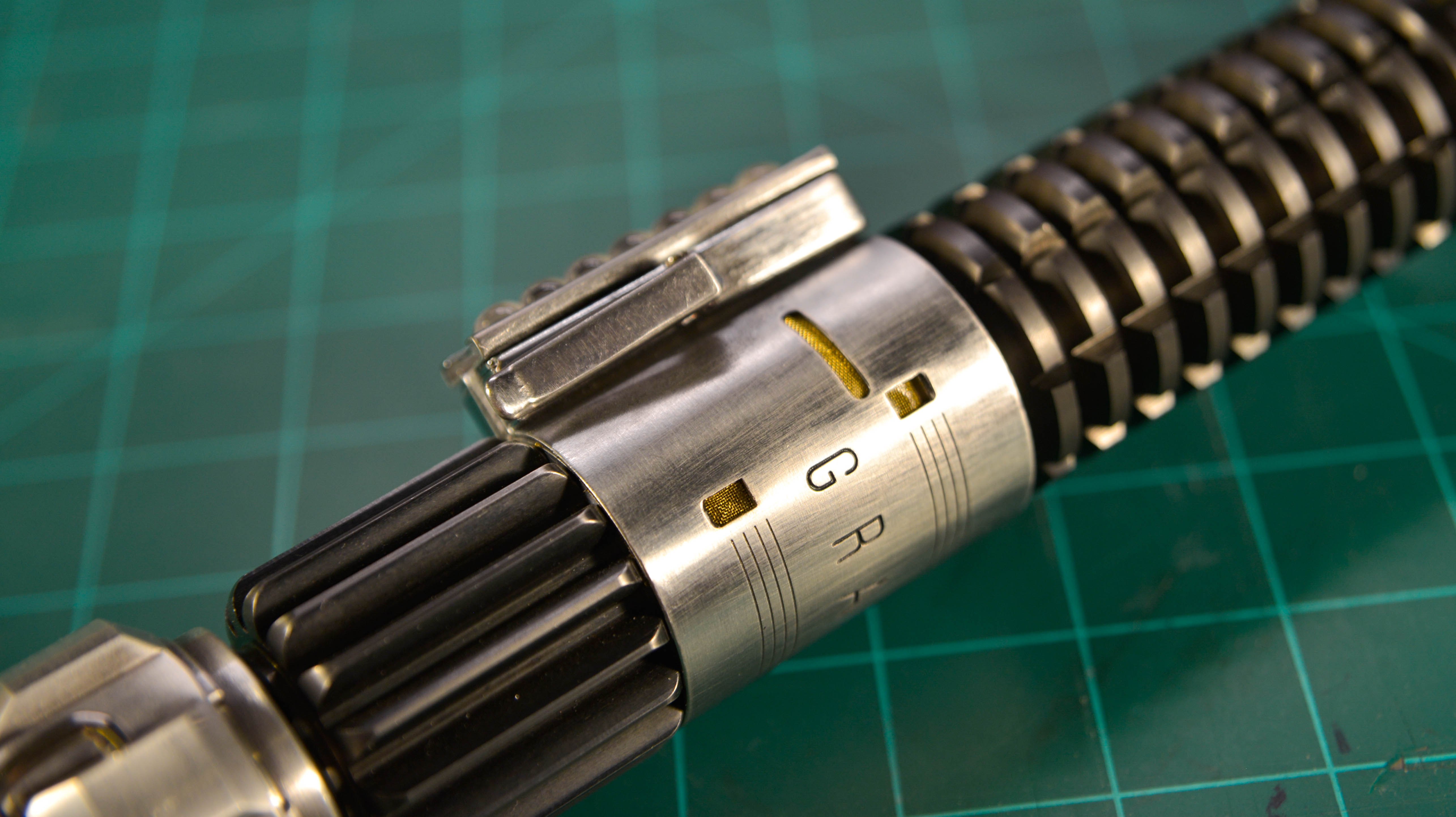

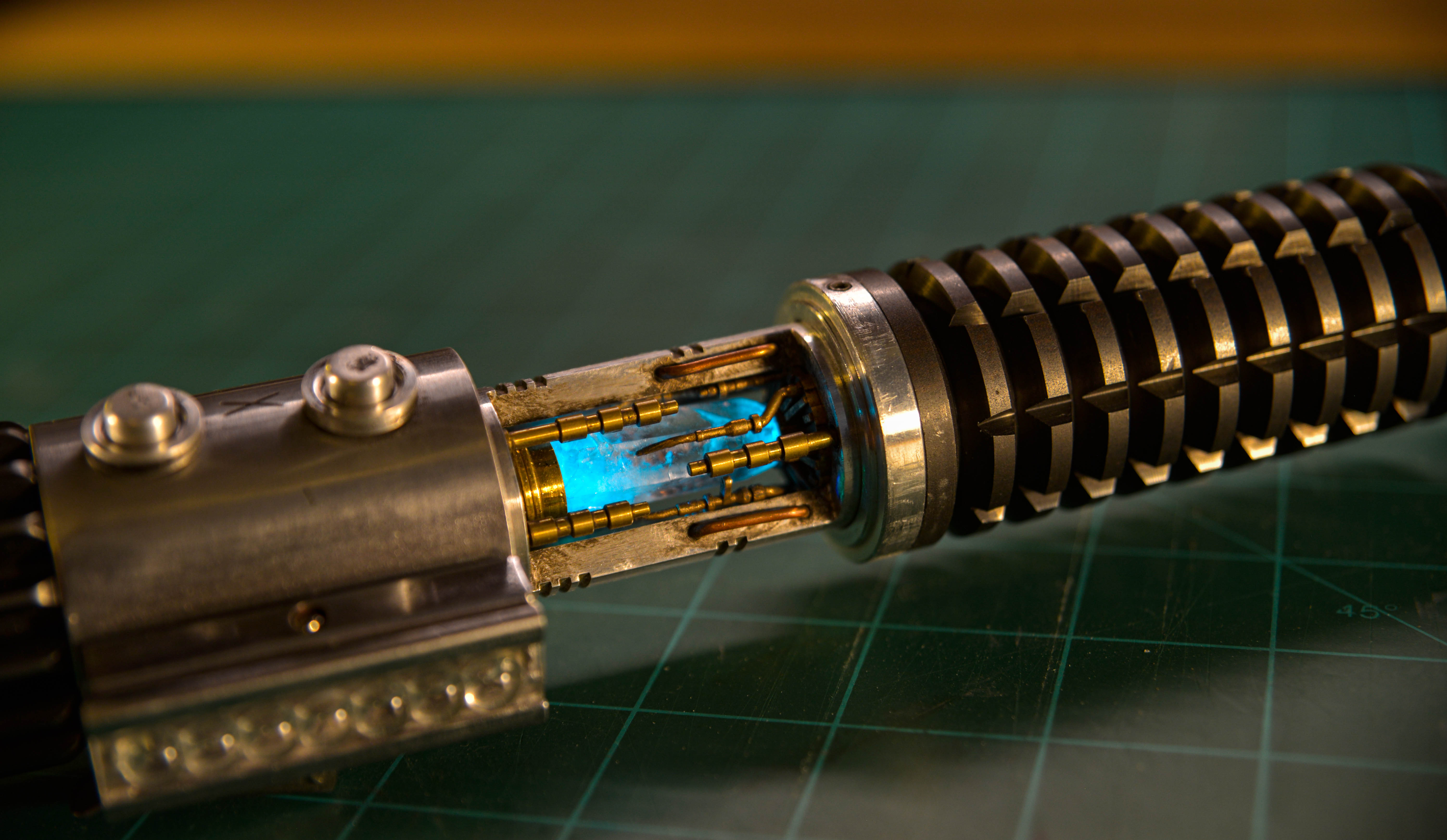

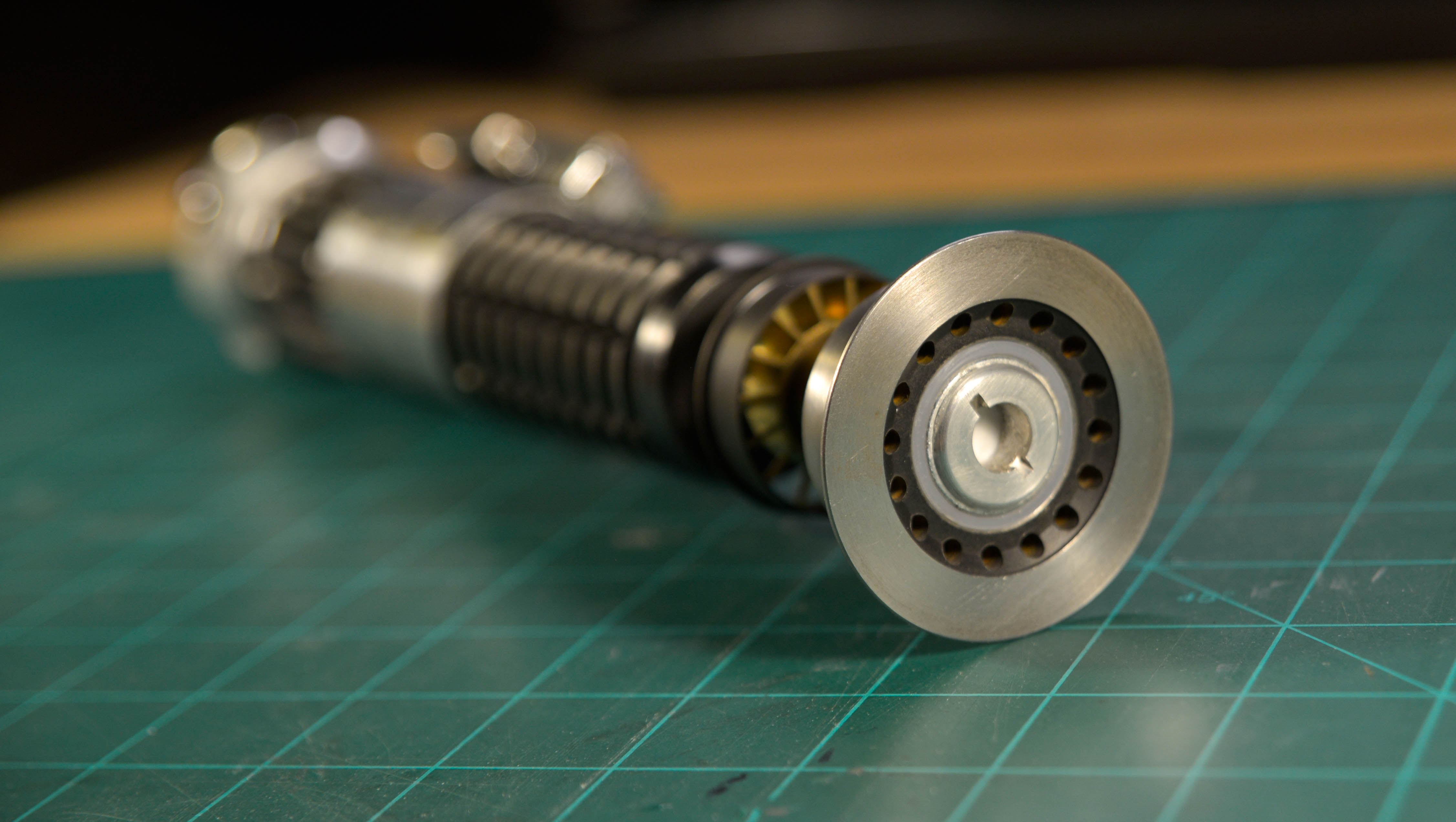

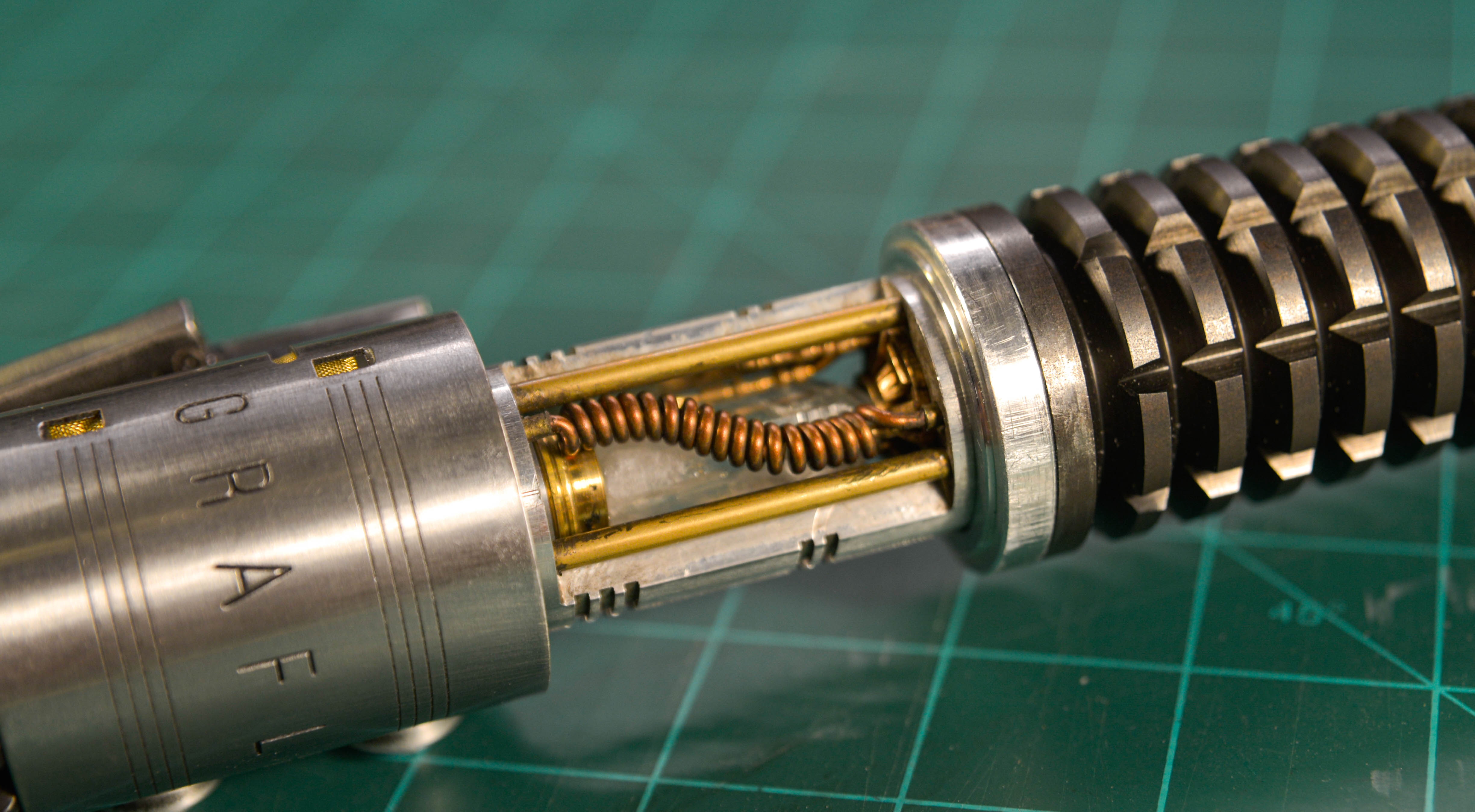

Hi. Finally, my Obi-Wan Saber is complete... and fully loaded. To celebrate, I've put together a review & demonstration video with a twist The video details the full technical spec of the build and show everything in action. Enjoy https://vimeo.com/268036330 [video=vimeo;268036330]https://vimeo.com/268036330[/video]



[Obi Coop]

View attachment 815384View attachment 815385View attachment 815386



[Spirit of ob1]



[Kokanee]

Just received this crystal chamber and my Roman's Mk I (static) in the mail today. Might I inquire if anyone knows what thread/size the two large screws are that will replace the threaded rod running through the static lightsaber currently in order to allow me to install the crystal chamber?

Going to hit up home depot on the way home and it would be handy to already know what i'm looking for.

Cheers



[Spirit of ob1]

i believe they were 3/8-16 thread bolts, either 2 inch or 2 1/2 inch long. and a few washers..



[Kokanee]

i believe they were 3/8-16 thread bolts, either 2 inch or 2 1/2 inch long. and a few washers..

Awesome thanks! I can't wait to get this all put together.



[Halliwax]

Just received this crystal chamber and my Roman's Mk I (static) in the mail today. Might I inquire if anyone knows what thread/size the two large screws are that will replace the threaded rod running through the static lightsaber currently in order to allow me to install the crystal chamber?

Going to hit up home depot on the way home and it would be handy to already know what i'm looking for.

Cheers

See if this works, I don’t know if the pictures still will..

i am a visual learner so i threw this together to try and help others understand how to convert a static Romans Obi wan to except Spirits crystal chamber, very easy to do!

I dont know if this is the right place to post this but i converted my static romans to except this crystal chamber. i had to get

1) booster washer (go to hardware store with booster and try and find one that fits snug, i had no problem finding one)
1) 3/8-16 x2" bolt
1) 3/8-16 x2-1/4" bolt

take it all apart, and gather your pieces
https://i.imgur.com/8layT9R.jpg

grab you washers and bore them out to except the 2 bolts

https://i.imgur.com/nYDWXTT.jpg

before boring on left, after boring on right
https://i.imgur.com/bAeHJvq.jpg

slide 2" bolt into washer, and insert into booster
https://i.imgur.com/SS9uEXW.jpg

here it is sticking out, just enough. i thought the bolt was going to be too long, i bought more washers to space the bolt inside the booster. but in the end all i needed was 1 washer. the 2" bolt sticks out just enough thread to grab the sink knob.
https://i.imgur.com/KLHnvGQ.jpg

heres what it looks like bolted to the sink knob
https://i.imgur.com/A83B7FX.jpg

now the emitter, separate the emitter
https://i.imgur.com/7sR9xH0.jpg

grab the 2-1/4" long bolt, and put that up the wind vane
https://i.imgur.com/KCH56s7.jpg

it was a snug fit at the neck of the bolt, it wouldnt fit all the way up, so i threw the bolt in the drill, spun it while applying 150grit sand paper. this took maybe 30 seconds before it could fit, very easy
https://i.imgur.com/UB7DhEP.jpg

perfect fit now
https://i.imgur.com/eR1qpFK.jpg

all together ready to strip it all apart now and weather the heck out of this thing!
https://i.imgur.com/kZV8iaB.jpg

here is a little video i made of the chamber
https://www.youtube.com/watch?v=oHpv4Qwwu2k

special thank you to Spirit of OB1 for making this happen! this is a awesome piece!!!

UPDATE: ​i have received a few PM's about this post so i figured i would update it with all the new links hosted by IMGUR, may photo bucket burn in hell. Anyway, i updated all my pictures, but for the guys who were on the early runs with the electronics it seems that Rudy has lost his picture of the wiring diagram. thanks to photo bucket again... so digging through my old hard drive i found the picture i used to wire it up.

https://i.imgur.com/PaU5HsV.jpg

Hope this helps!!

Sent from my iPhone using Tapatalk



[Halliwax]

I think if I were to do it again, I would use a 2-1/4” bolt in the booster as well. There is barely any thread in the sink knob with 1 washer and a 2” bolt

I get it to work, but I think it would work easier just with 2, 2-1/4” bolts


Sent from my iPhone using Tapatalk



[Seth Skywalker]

Hi. Finally, my Obi-Wan Saber is complete... and fully loaded. To celebrate, I've put together a review & demonstration video with a twist The video details the full technical spec of the build and show everything in action. Enjoy https://vimeo.com/268036330 https://vimeo.com/268036330

That's an awesome cc, and very cool weathering and greeblies! The video is pretty cool too. Where'd you get the music/edit in the background?



[Obi Coop]

Thanks very much! The music is a remix by DJ AG called 'Star Wars - Binary Sunset'. He publishes his work on YouTube and it's royalty free, in exchange for a credit if used. Glad you enjoyed it

- - - Updated - - -

That's an awesome cc, and very cool weathering and greeblies! The video is pretty cool too. Where'd you get the music/edit in the background?

Thanks very much! The music is a remix by DJ AG called 'Star Wars - Binary Sunset'. He publishes his work on YouTube and it's royalty free, in exchange for a credit if used. Glad you enjoyed it



[morningtide13]

Apologies for the necro, but hoping to find some experienced advice from others with Rudy's chamber on this hilt.

The chamber fit into my hilt great, but I am having a small issue when I tighten the bottom fins/pommel. Shown in photo below, the clamp cylinder gets pushed up a bit when I screw together and the vent cutout becomes obscured by the chamber lip inside.

If I try an leave it positioned correctly, and tighten the transistor screws down to alleviate any play, the bottom fins get stopped from fully tightening because the clamp is too far down and blocking the last couple threads.

Wondering if anyone ran into this issue or has advice? Thanks.



[Romans Empire]

Rudy will probably chime in soon. Spirit of ob1



[Spirit of ob1]

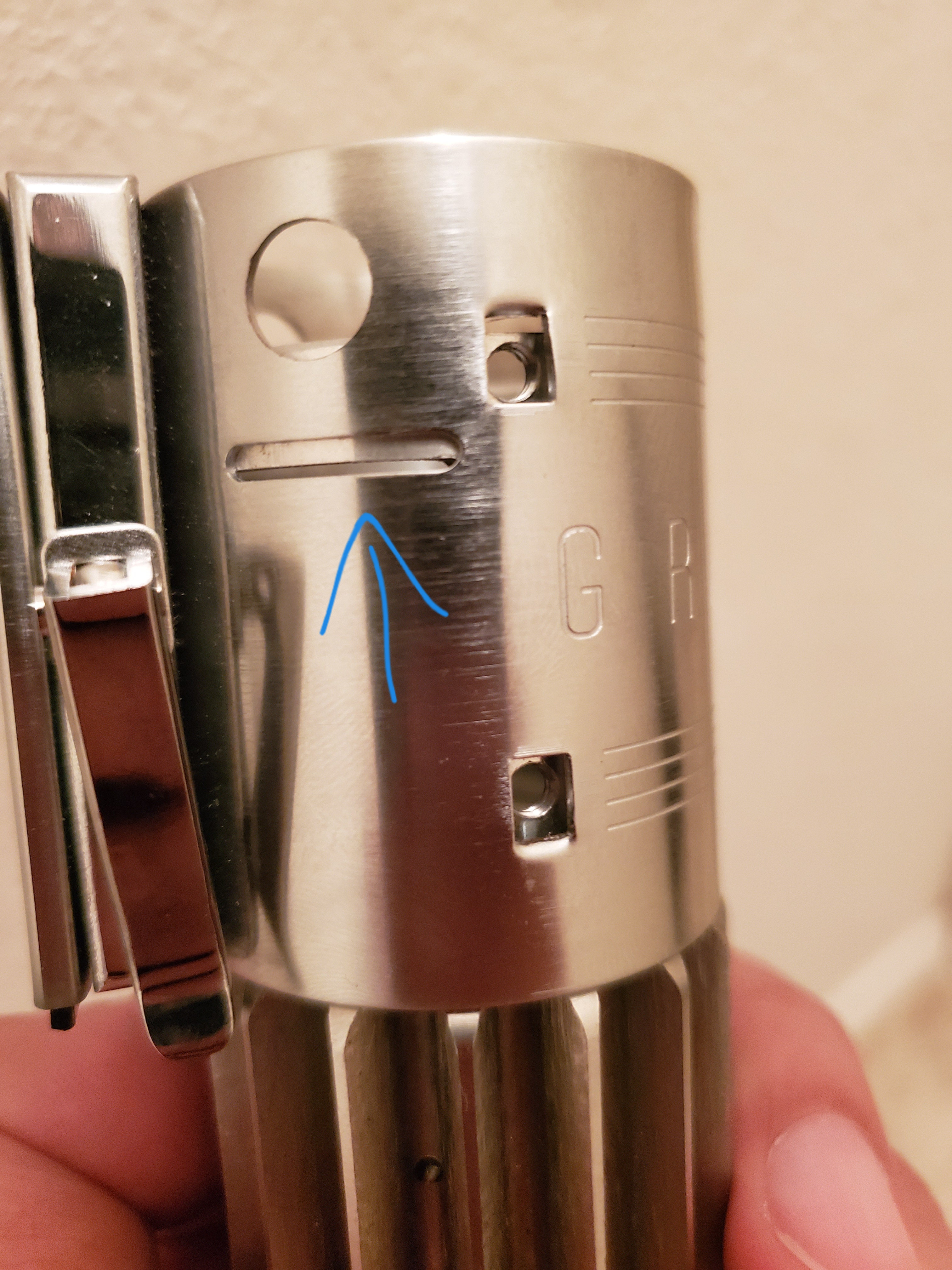

Are u talking about this vent ? If so it is correct the chamber will block this vent



[morningtide13]

Are u talking about this vent ? If so it is correct the chamber will block this vent View attachment 1045006

Oh, no worries then. Thanks for confirming Rudy!



[Halliwax]

Had me really thinking there lol glad it’s not a issue



[Spirit of ob1]

Thought i resurrect this thread now with the new guys with crystal chambers.. any pics and advice on installs?????



[Captain Deadpool]

Don’t have a lot of advice to offer but I’ll share some pics! Put it all together towards the end of last year.
Romans MK1 weathered
Plecter labs CFX
Shtokcustomworx chassis and crystal chamber elements
Spirit crystal chamber (modified)
Custom cut quartz crystal lit with NeoPixel
Custom NeoPixel Blade
In hilt NeoPixel Blade connector.
High amp output 18650 battery.



[Spirit of ob1]

Awsome if you can share on FB page also
