An RPF Open Source 5 ft Millennium Falcon Build/Reference Thread. All Are Welcome

[jcoffman99]

Finished! Thanks for all the help.



[bwayne64]

You've got #161 listed as 1/3 scale, that's one big model, lol. I know my eyes used to cross after 8 to 10 hours of doing those things, ; )



[jcoffman99]

Today's progress. Just need one piece.



[Rick Deckard]

Today's progress. Just need one piece.
View attachment 1692008

The piece you need is from the Nitto 1/1100 Yamato.



[jcoffman99]

The piece you need is from the Nitto 1/1100 Yamato.

Thank you.



[jcoffman99]

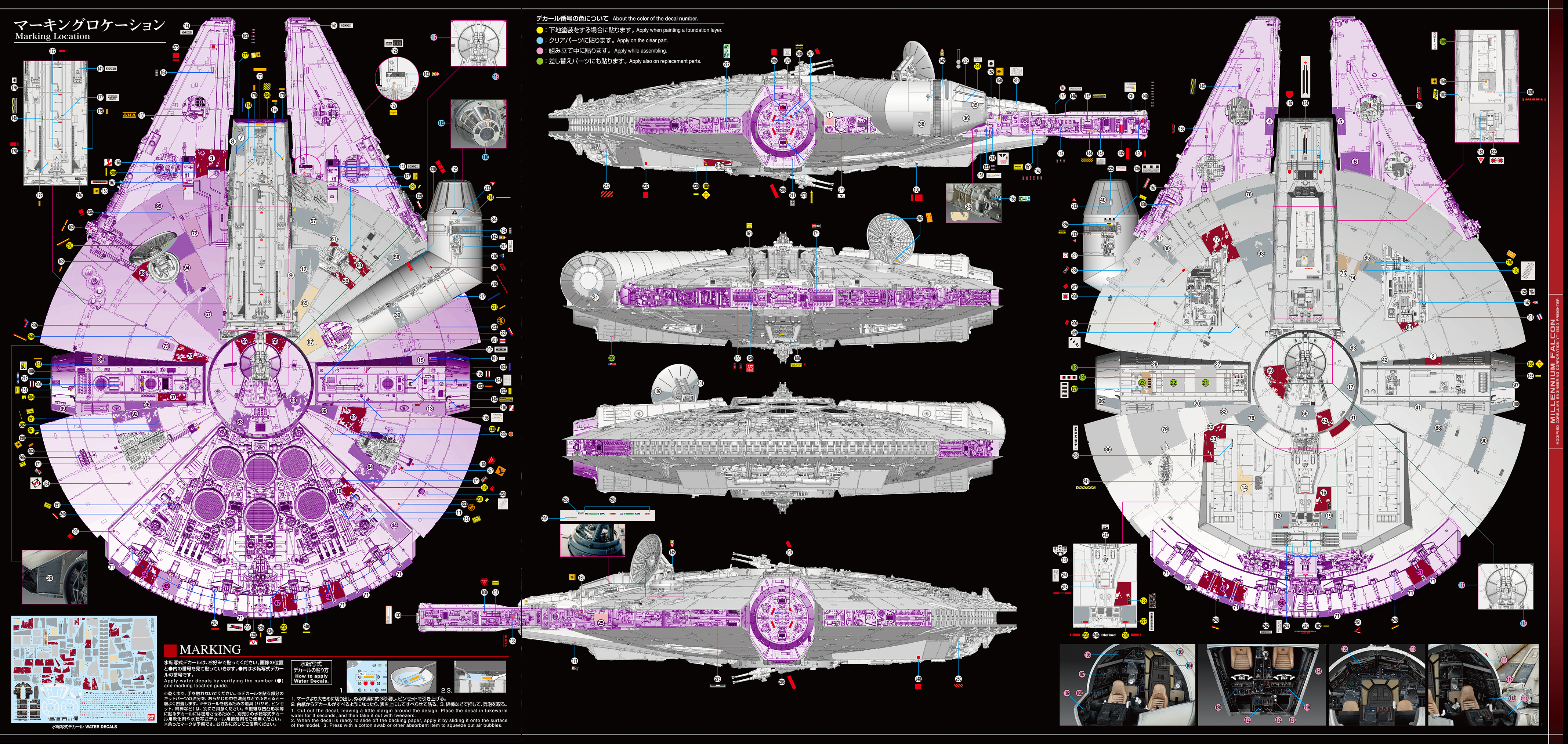

This is just a little thing I did for fun. This is what we have mapped so far. Thanks everyone for all the help over the last 16 months!!!



[manugu]

This is just a little thing I did for fun. This is what we have mapped so far. Thanks everyone for all the help over the last 16 months!!!
View attachment 1692044

Very cool!
(plus radar dish front )



[jcoffman99]

Very cool!
(plus radar dish front )

I'm hoping to knock out the radar in the next day or two.



[jcoffman99]

Finished another. Thanks everyone.



[jcoffman99]

Just so I'm clear, the radar dish in the museum photos is actually mounted upside down from its appearance in ANH correct?



[manugu]

I think the base is rotated 180 deg. In respect to ANH resulting in a flip of the dish when pointed forward. Don’t remember where I read that.



[jcoffman99]

I think the base is rotated 180 deg. In respect to ANH resulting in a flip of the dish when pointed forward. Don’t remember where I read that.

I see it now. Thanks!



[jcoffman99]

Working on the radar now. Nichimo Hyuga?



[JSchneider]

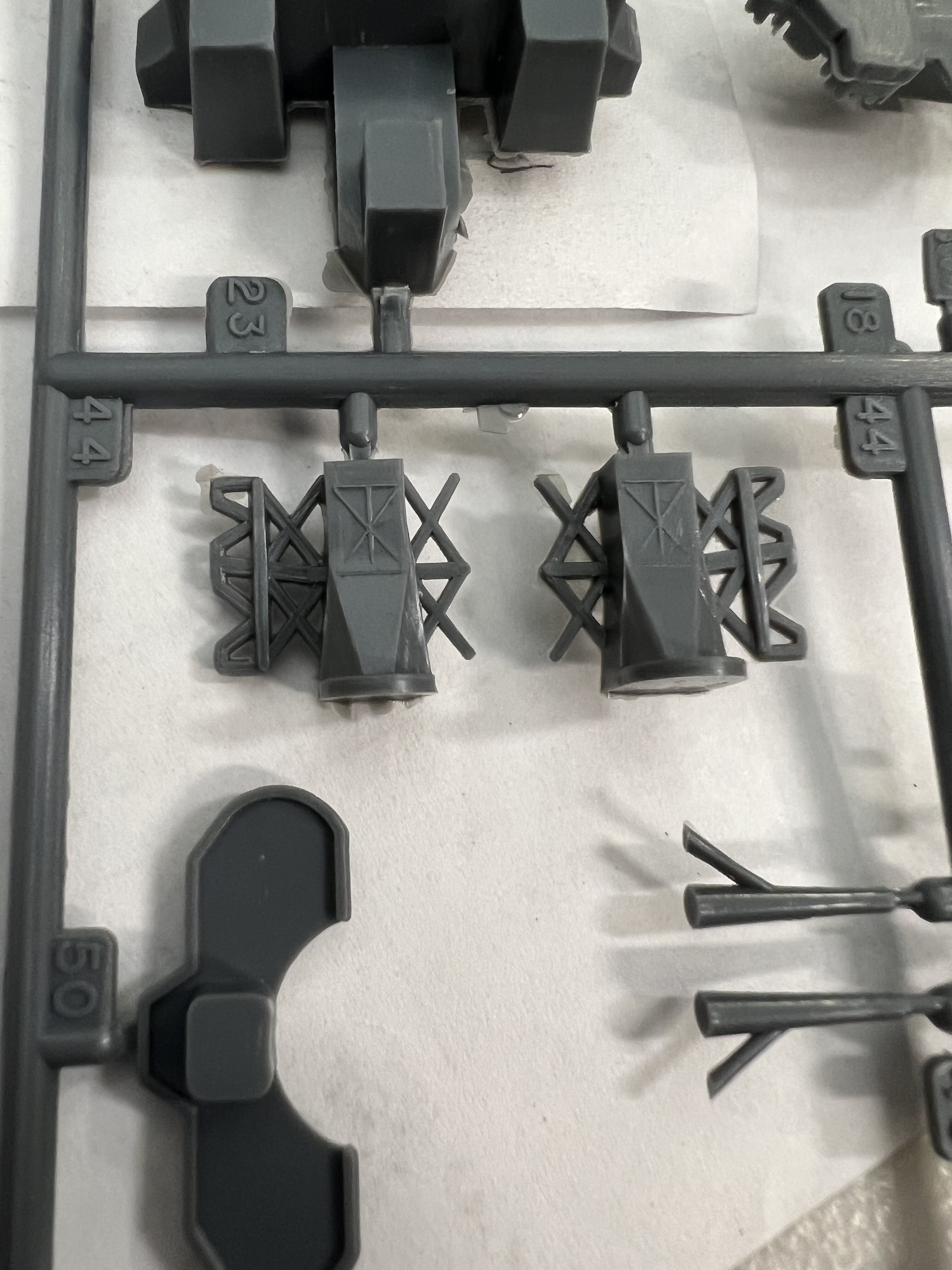

Sprue A #44 Nichimo Ise. I have kit U-5009. There's 2 parts there labeled #44, but they are different. They are mirrors of each other. I'd guess Hyuga is the same since I think Ise was re-issued as Hyuga later according to my notes, but I don't have that kit.



[jcoffman99]

I don't have the ISE on ly master list. Time to update I guess.

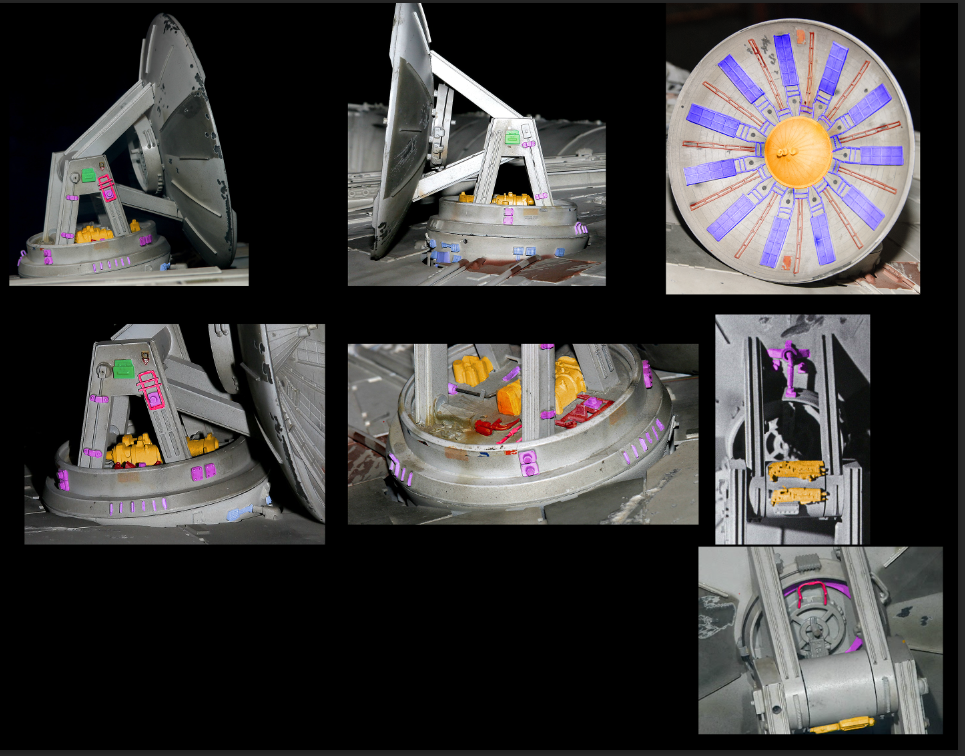

Here's where we are so far with today's work.



[JSchneider]

Working on the radar now. Nichimo Hyuga?

View attachment 1692899View attachment 1692900

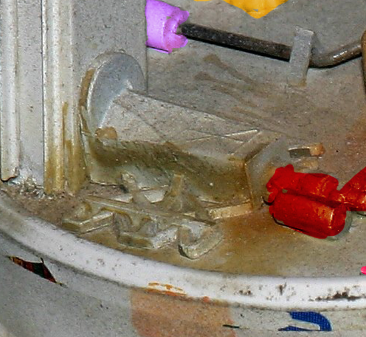

Wonder what the little triangle piece holding the piping down in the background is from? Hmm? Off the top of my head I don't remember seeing that before, but maybe. Hard to keep track of what you've seen, and have not seen on this thing. LOL

EDIT: NEVERMIND! That's Ise too. Haha!

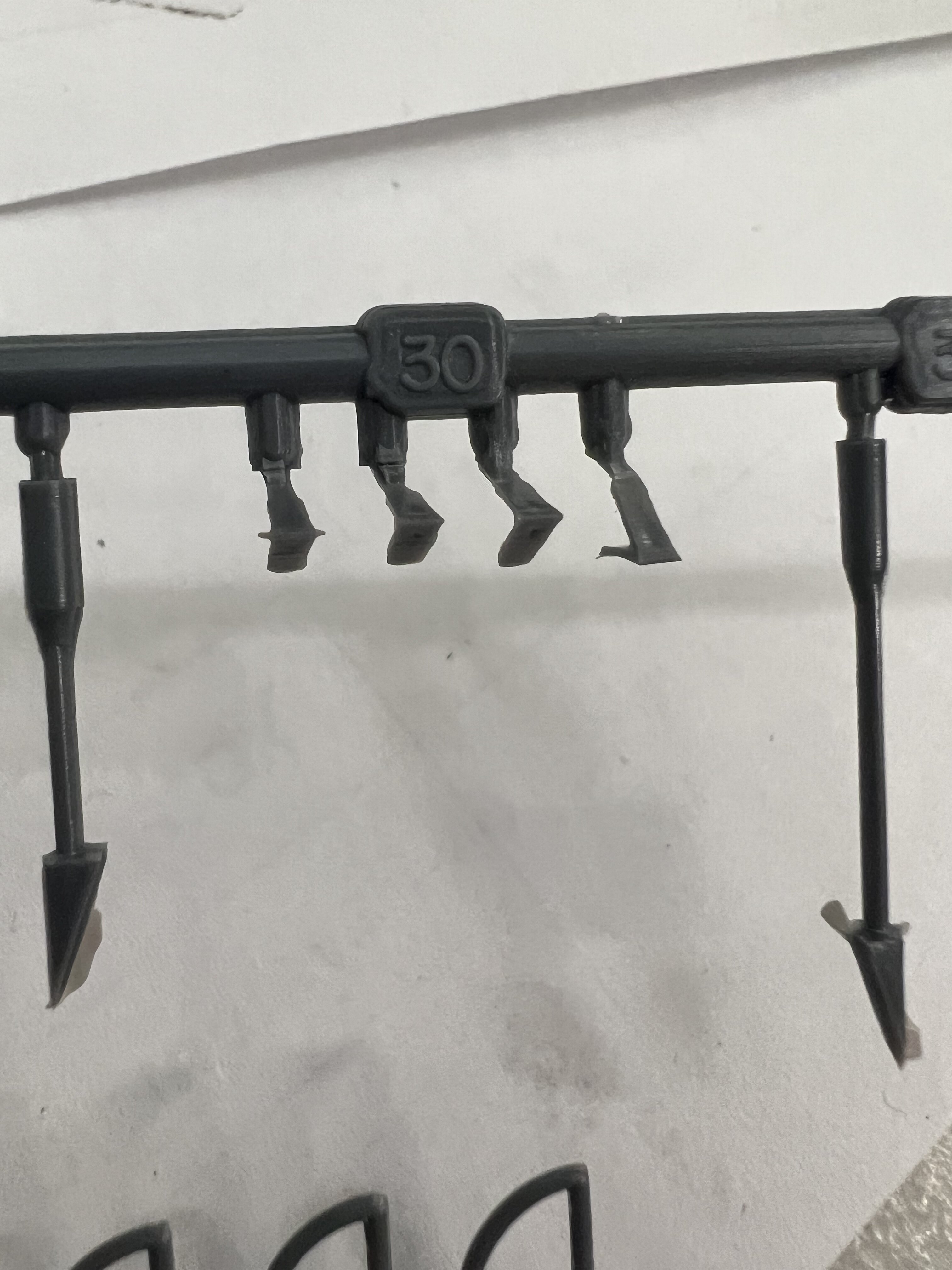

Part #30 same sprue



[jcoffman99]

Does anyone have a good scan of the Stug IV? The only one I see is on SSModelrs, but you can't zoom in very much. I'm trying to see some details on really small parts.



[JSchneider]

I’ll get you one of you give me a bit. Need to make some room here!



[JSchneider]

After these messages we'll be right back... My camera battery died right in the middle of taking pics. Ugh!



[jcoffman99]

So I drew up my frame. I could use the feedback.
2.25" pipe. 6" downtube. 3/4" mandible support 5" from center on each side. (I have 40" but that leaves room to cut down). 46" long.

I need to finalize this before school is out or else I'll have to wait until the fall to get it welded.

Thoughts?

Thanks!
