An articulating mount for a Falcon?

Discussion in 'General Modeling' started by Booyotch, Apr 12, 2015.

  1. Booyotch

    Booyotch Active Member

    Trophy Points:
    261
    Hey all,
    I was searching the forum, trying to find some info on a sturdy articulating mount that I could put my custom 32" Falcon on. I found a few pics, but nothing explaining what they were or where to find them.

    I'm just looking for something that I could attach to the bottom, some kind of ball-joint with a support rod.

    Any ideas on where to look, or are all these kinds of things custom machined?

  2. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
  3. Booyotch

    Booyotch Active Member

    Trophy Points:
    261
    Ohh, that's great! I never thought about a camera mount like that! That'd be perfect!

  4. rbeach84

    rbeach84 Sr Member

    Trophy Points:
    1,406
    Say, how much does your MF weigh and what is it made of? Obviously, those are important when looking for something to hold it up. Plus, where will the mount attach? If straight up and down (like a stand) or off a vertical surface (wall mount) that is also a factor...

    R/ Robert

  5. kruleworld

    kruleworld Well-Known Member

    Trophy Points:
    635
    I was thinking a desk lamp folding arm would make a nice sturdy base, as they have a desk clamp base
    [​IMG]

  6. Victor3

    Victor3 Well-Known Member

    Trophy Points:
    835
    Check out:

    http://www.yetistand.com/

    He's designed an awesome and secure customizable acrylic stand, originally for 1/60 Macross toys. However, he's branched out and has designed many custom adapters for it.
    I don't have one (as they're a little pricey for me) but I understand that they can support a lot of weight. You could always message him with weight concerns, too.

  7. LrdSatyr8

    LrdSatyr8 Sr Member

    Trophy Points:
    1,506
    I was thinking more along the lines of something like this for my 28" Hasbro Falcon

    [​IMG]

  8. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    My Hasbro Falcon is way to heavy for a "gooseneck" stand like that. Resin reinforcements and the Resin parts from RC plus the Mainframe and the cables/LED's I estimate 1-2 kg at least.

  9. LrdSatyr8

    LrdSatyr8 Sr Member

    Trophy Points:
    1,506
    They do make heavier more rigid goosenecks that can hold up to 50kg that are just as easy to bend and shape. You tighten up with a screw at the base and they hold that shape. I'm thinking more of the ones that hold the glass lamp shades. Those shade weigh close to 5lbs on their own. I think the Falcon wouldn't come close to that weight with all the resin pieces unless you put a steel reinforcement frame inside that made it weigh in the neighborhood of 25lbs.

  10. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    Ignore...tired today as I am home sick...did not read above post properly my bad and I hope all is good.

  11. LrdSatyr8

    LrdSatyr8 Sr Member

    Trophy Points:
    1,506
    Hey don't feel bad bro... am sick myself so I know the feeling! :)

  12. ChaoticYeti

    ChaoticYeti New Member

    Trophy Points:
    2
    Hello! This is my webstore you have linked. I would be more than happy to work with OP on a mount. Send me a message!

  13. LrdSatyr8

    LrdSatyr8 Sr Member

    Trophy Points:
    1,506
    There's a 28" Hasbro Falcon that is begging for a mount for it that will allow people to position it in various ways. What can you come up with to support it... it's a very large model.

  14. ChaoticYeti

    ChaoticYeti New Member

    Trophy Points:
    2
    Can you post a link to which one you are talking about? I see a "Rebels" branded one.

    My stands hold up pretty well. I am down for making adapters for whatever customers request. If it is something I can get a hold of, I can make it work.

    The hexagon base is 7" point to point and 9mm thick. Here are some larger items on the stands:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Some people get extra creative with the dual arms and extras:

    http://www.macrossworld.com/mwf/index.php?showtopic=41509&p=1184570

    [​IMG]

    [​IMG]

  15. JPCOdessa70

    JPCOdessa70 Active Member

    Trophy Points:
    262
    Hi Yeti,

    Lrdsatry8 was speaking of this Hasbro Falcon, its 28 inch + around 2 -2.5 kg of electronic, lights, and resin upgrades added to it.


    How much would a stand like this be? If it is with in my reach I would surely buy it.. your stands are Great!!

  16. Booyotch

    Booyotch Active Member

    Trophy Points:
    261
    Yeah, that's just like mine. Big, heavy, and awesome. Yeti, your stands look great!

    Off the top of my head, I would think a plate, properly sized to distribute the strain, and attaching to one of the flat areas of a the Falcon with 4 screws would work well, but the base plate on the table surface would have to be pretty big, since the stand can't attach to the center of the Falcon. It'd be a lot of weight, pivoting way off the center of gravity.

    Here's a pic of the most logical place for the mount plate, devoid of electronics and flat. Although, again it'll have 6-8 lbs hanging off of it, plus if you wanted to to be able to pose banked, more shear force on the stand.


    Last edited: Apr 18, 2015
  17. ChaoticYeti

    ChaoticYeti New Member

    Trophy Points:
    2
    I had a post answering questions, but it looks likes like a mod deleted it. Did I do something wrong? Those of you with questions, send me a pm and I will answer it there.

  18. Victor3

    Victor3 Well-Known Member

    Trophy Points:
    835
    Hey, Yeti!

    Good to see you over here too! (Kelsain @MW)
    I love your stands, and figured these guys should see them too.
    Someday when I have shelves again, I'll pick one up for myself!

  19. CAPTAINCOX

    CAPTAINCOX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    Well sheit happens :) This is what happens when you get cheap stuff of ebay.

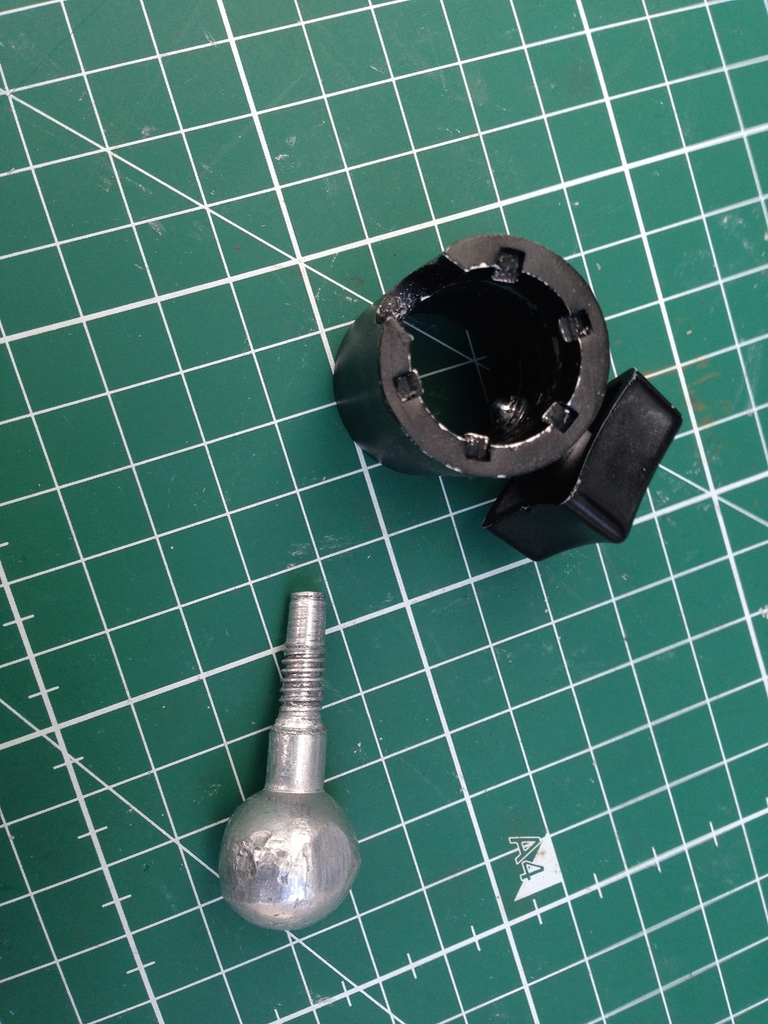

    Thats the "ball joint" from my stand and if you look close the thread on the shaft is completely gone. The nut that came with it has a completely different thread to the shaft and the rest is as one says history. Now to plan B, have to go to my nearest hardware store in the morn and find a "large" screw that fits the socket of the ball joint and take it from there. I simply don't want to order a new stand and wait for a week or two...just want to get the darn Falcon finished :(

    Oh well, somebody told me rule one when it comes to modeling is...PATIENCE!, and patience is a virtue and all that, well...I STILL WANT TO FINSH THIS BUILD NOW!!!! :p

  20. ChaoticYeti

    ChaoticYeti New Member

    Trophy Points:
    2
    Can someone post a shop link to the falcon we are talking about? I'll see if I can get one in and work out an adapter.

  21. LrdSatyr8

    LrdSatyr8 Sr Member

    Trophy Points:
    1,506
