Here's what has been developed over quite a while (due to the big move, etc.)

Predwolf wanted some amber LEDs that would brighten and dim added to the Nolan P1.

I had to get creative and a) design the circuit with as few parts as possible and :lol: figure a way to add it without having to redo the existing layout of the Nolan P1.

I found a relatively empty corner of the board and squeezed it in.

The board fits in the right corner of the Nolan P1:

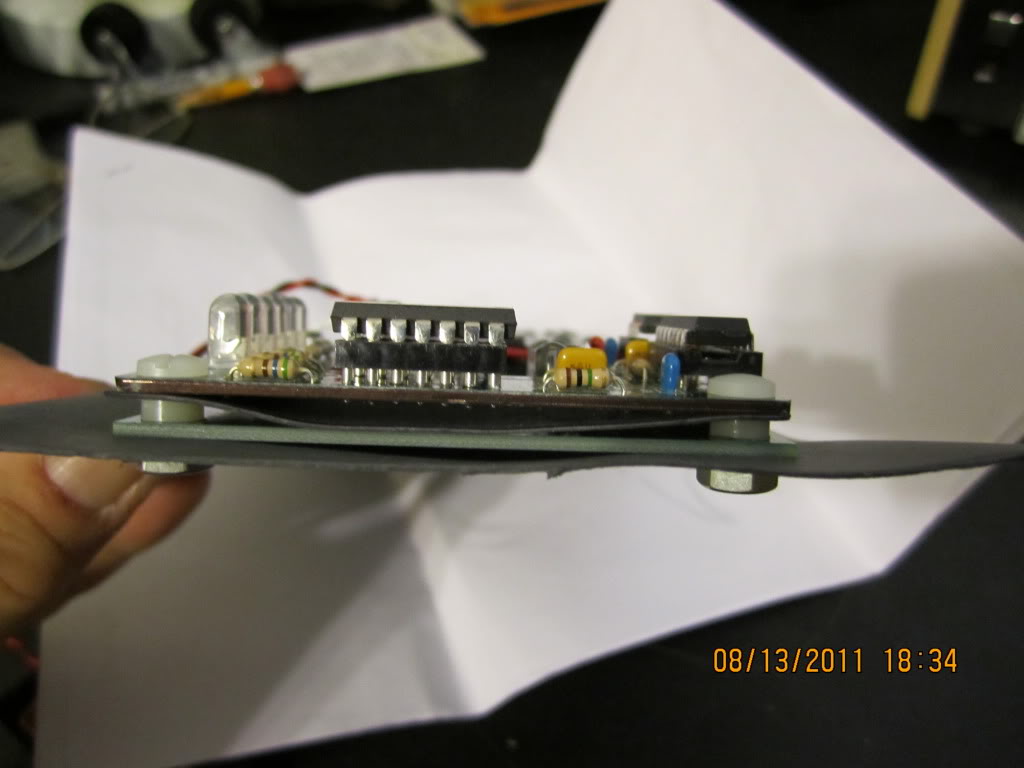

Side view of standoffs and insulation:



End view:



Video of the whole thing running:


(more blinkenlights )

Ei'luj


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Ei luj

New Member
MasterAnubis, Pred666...

many thanks, at one point I thought I'd never get it small enough & fit in there. Lotsa going on...

I just checked, and if I wanted to add it to the other P1 board- for the P1 Deluxe- it won't fit... it sticks 1/4" over the end of the board :0

---
Ei'luj


xdmray

Well-Known Member
looks good Julie. but since it is raised, and towards the bottom, how far is it going to stick out of the lid?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Ei luj

New Member
xdmray,

the little spacer under the daughterboard raise it about 3/8" higher than the main board.

Predwolf is building/designing a gaunt around the board, and thus the LED height can be figured in.

---
Ei'luj


Ei luj

New Member
many thanks Torredator :)

dimension correction: it should be 3/16" higher, not 3/8" :0

(need more coffee in A.M. lol )

---
Ei'luj


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Pau22

New Member
Hola, soy José de España, estoy buscando la plantilla de computadora para conectar un circuito. Alguien sabe dónde puedo encontrarlo.
