3D printing a 1:1 Terminator T-800 endoskeleton

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


avagoyamug

Active Member
Awesome! So you already finished the 1/1 endoskull?
Could you post some closeups of the skull? ...I'd be very curious on how the panelines and finer details come out..

Which layersize do you print this on? I'm planing on using a very fine resolution (like 0.1), but the skull alone will propably print hundreds of hours on this resolution...


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

clonesix

Sr Member
RPF PREMIUM MEMBER

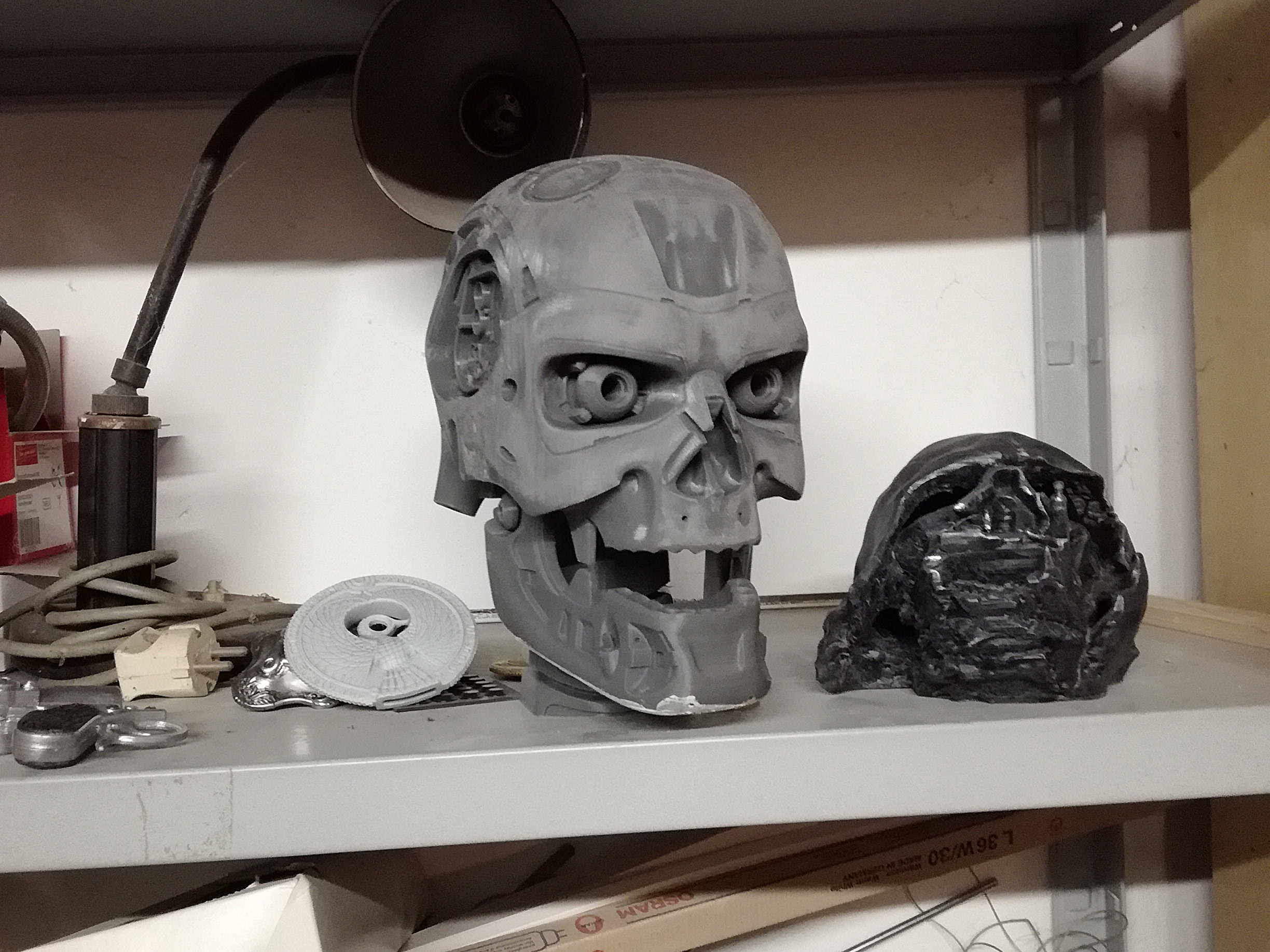

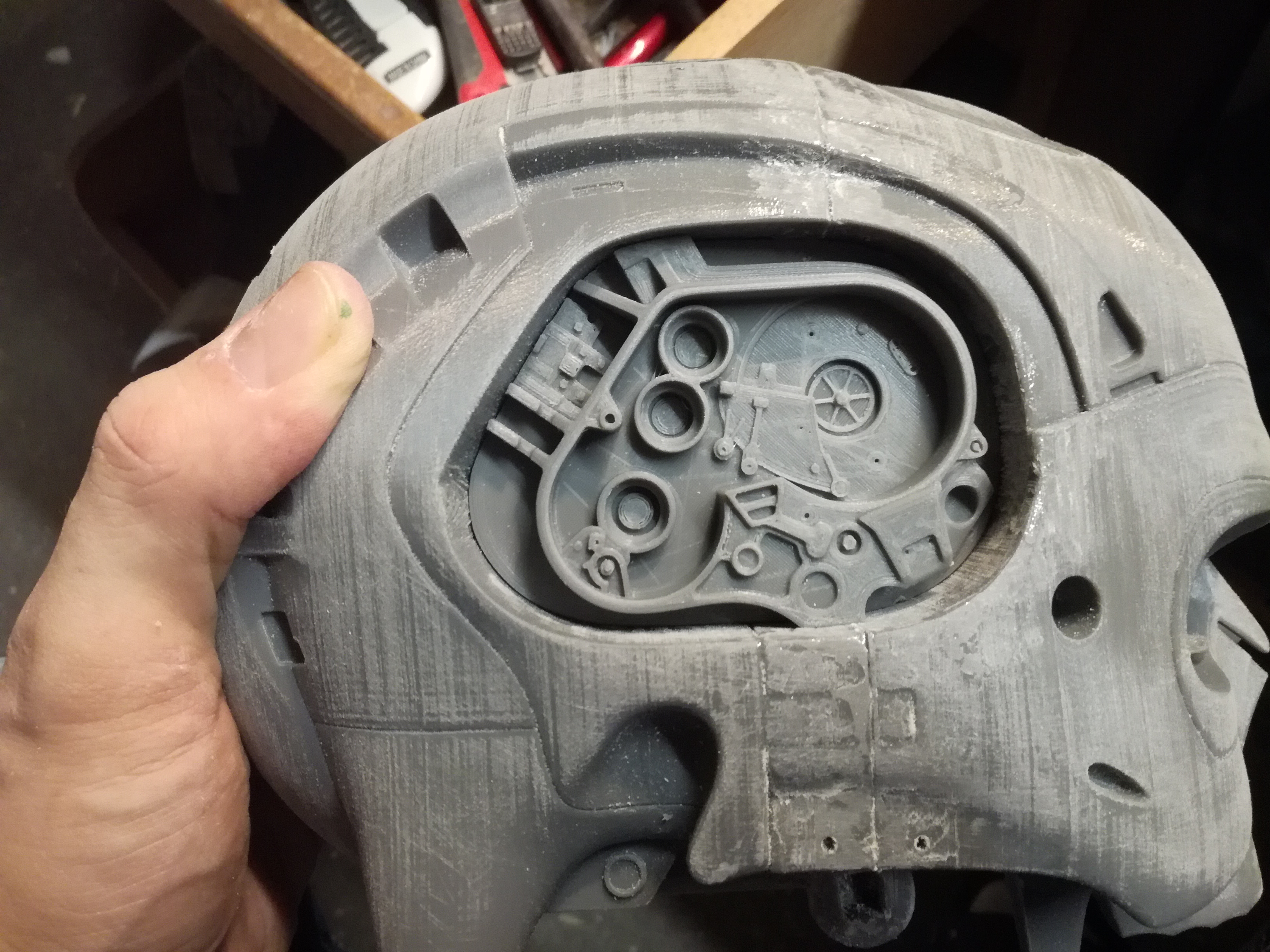

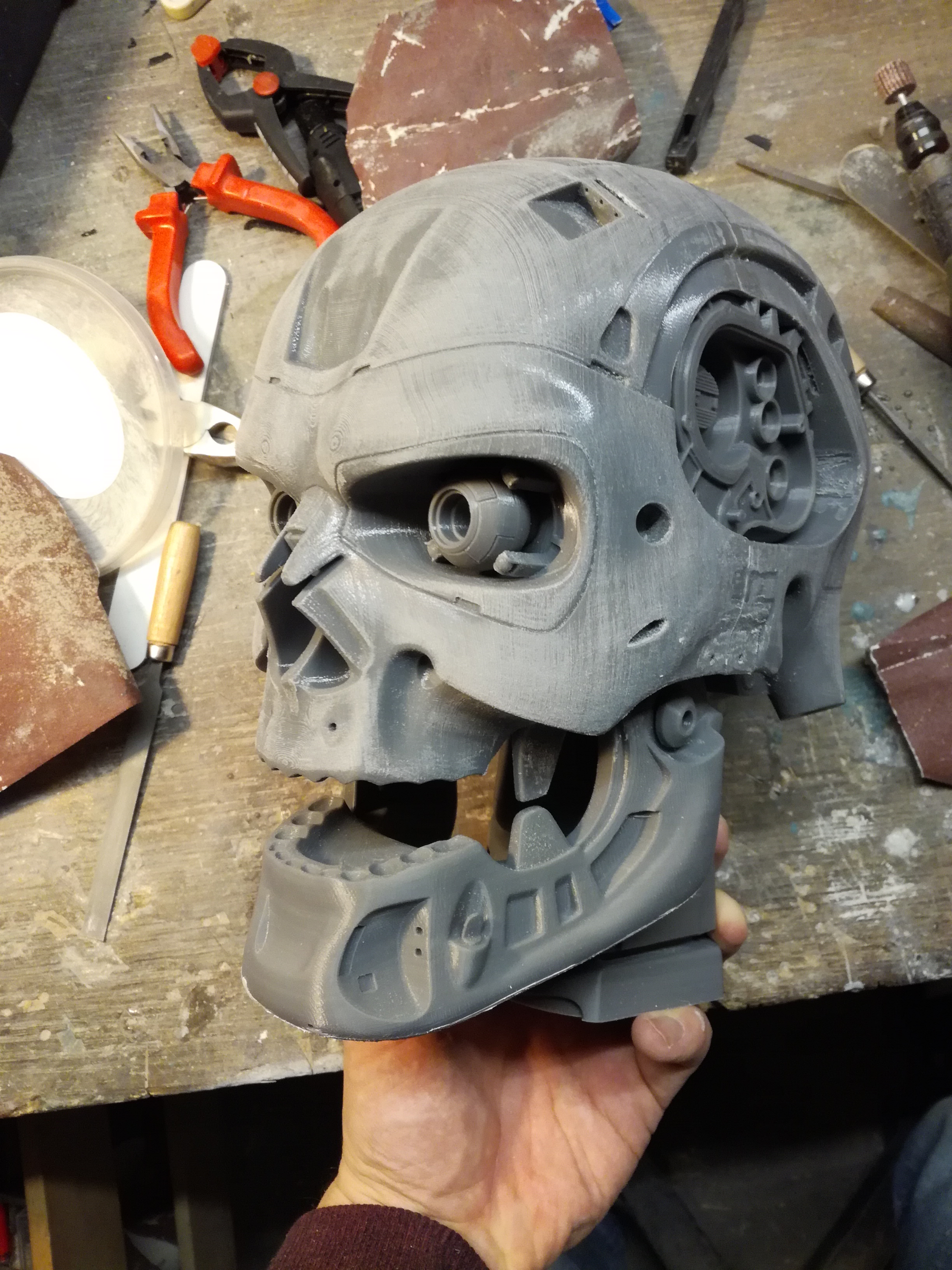

Here is a close up of the skull. The panel lines are faint and need to be scribed for better clarity, but they are there. I have heard mention of the two small holes under the ear to be reminiscent of the M1 skull.

Sure, there are things that could be made more accurate, but over all, a fine piece that is going to take some finish work, but has a large range of possibilities.

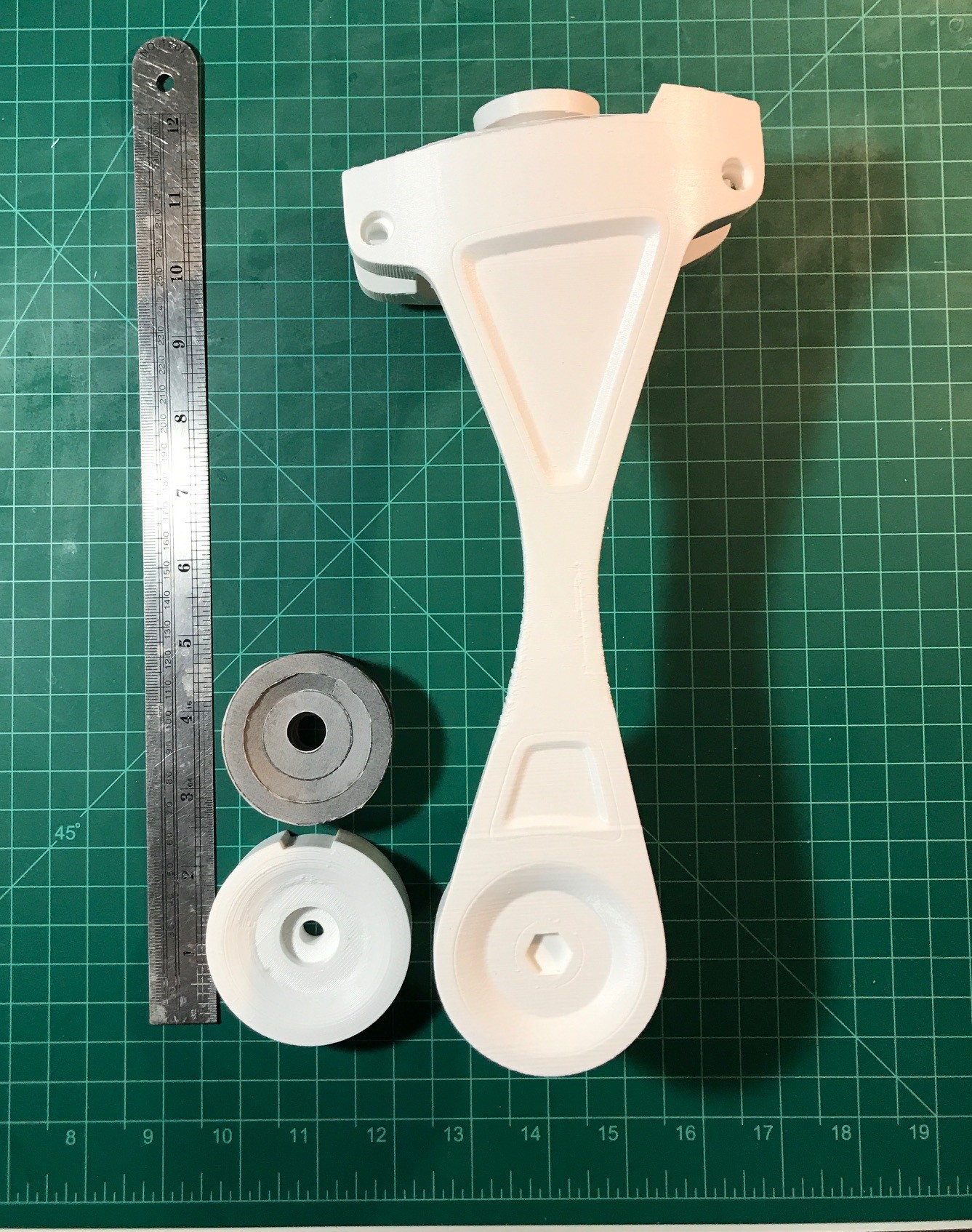

Next is a question for the experts: I feel the lower discs are larger than need be, at 2.5" diameter. For reference, I have a disc form the paper model with a diameter at 2.125". Can someone confirm the diameter?

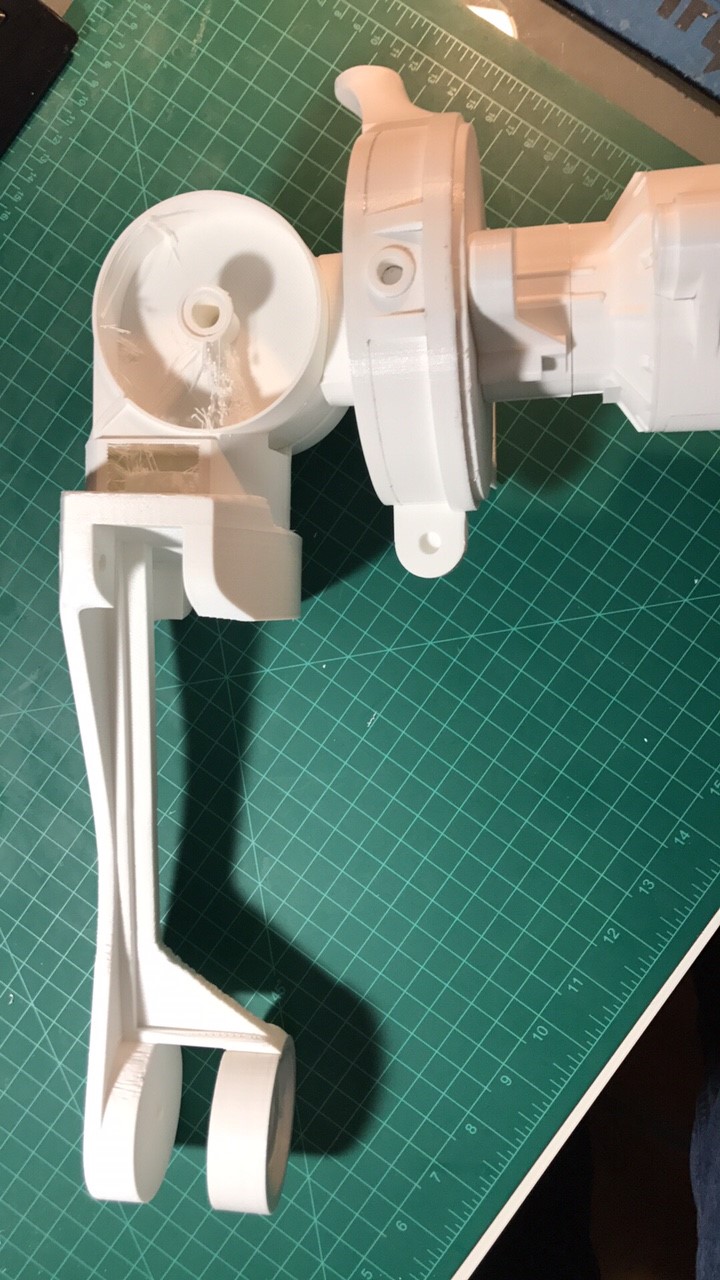

Lastly, This is what my shoulder joint would look like if the printer didn't run out of filament while I was at work:

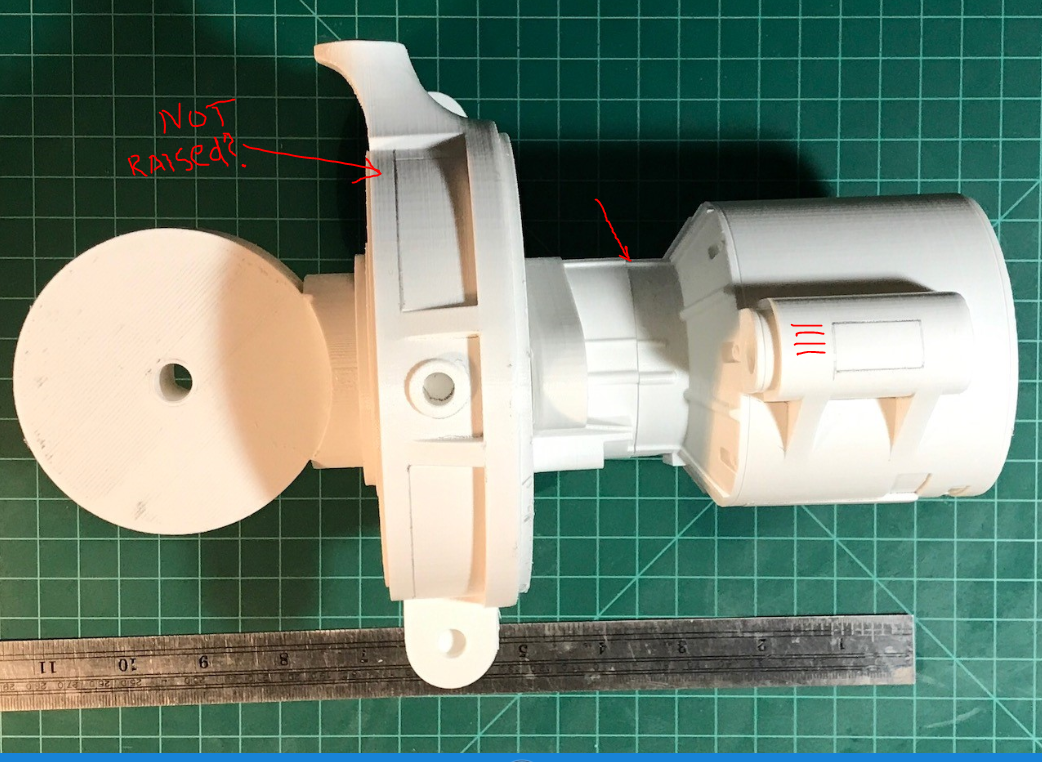

and I have a close up of the should assembly and a few questions. The outer ring of the shoulder gearbox, isn't it raised? This model has a line there that I had to use a pencil so it would show up in the photo. The other question is where there needs to be vents (marked in red) on the cylinder on the motor. I think they need to be added.



avagoyamug

Active Member
This helped a lot, actually. Thanks!
I already reworked the model a bit to help with the printing, improve overall shape and accentuate the panellines...
Will start printing soon after some freelance work is finished, and post some pics here (if you don't mind me highjacking).


bickers

New Member

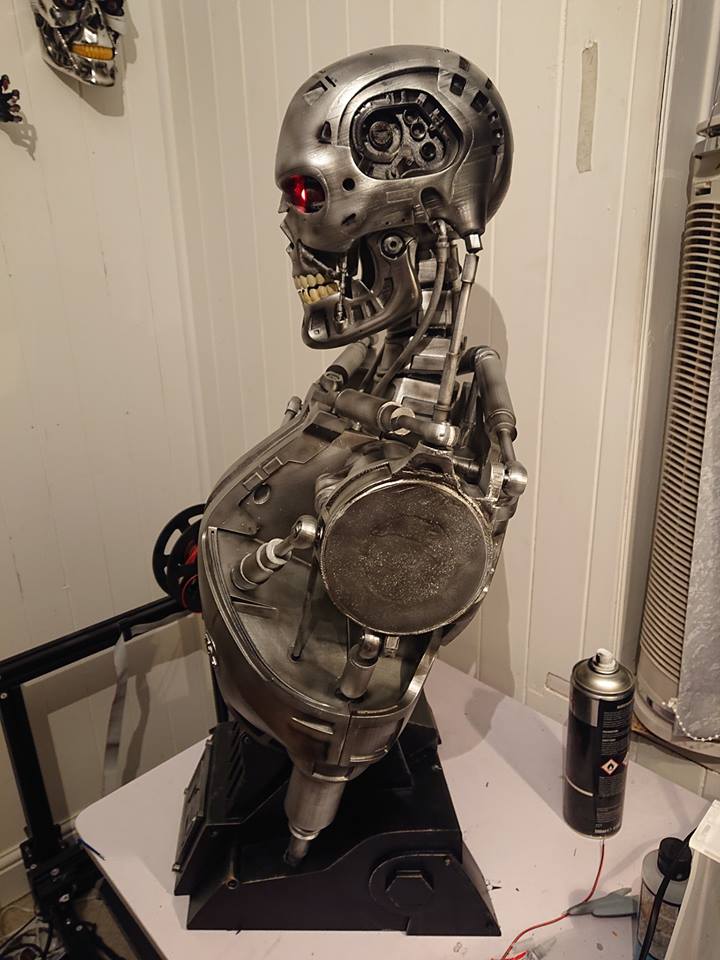

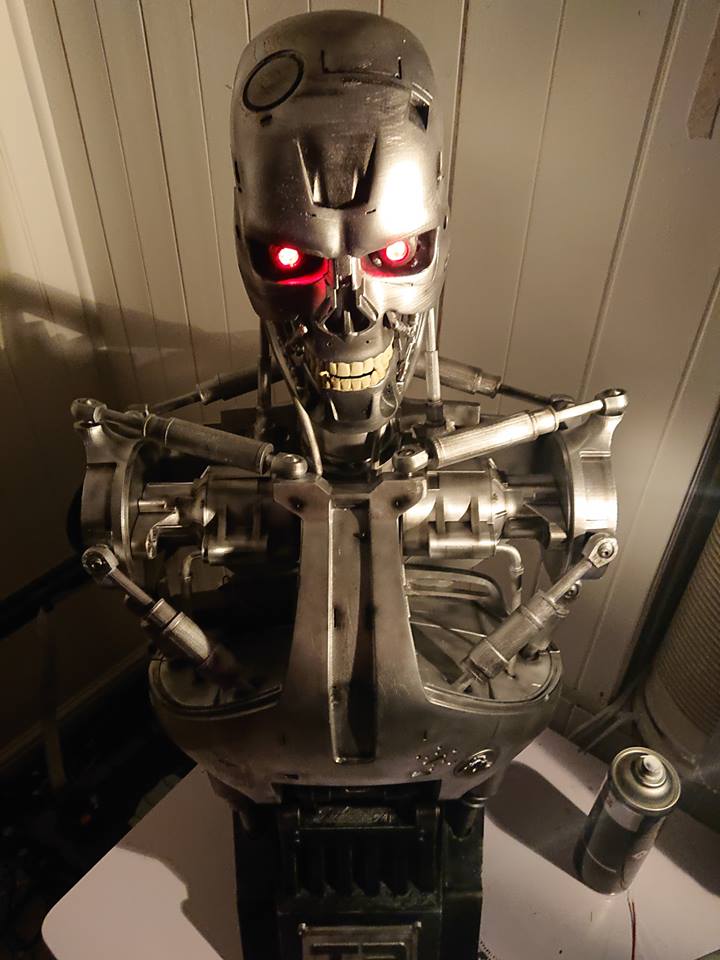

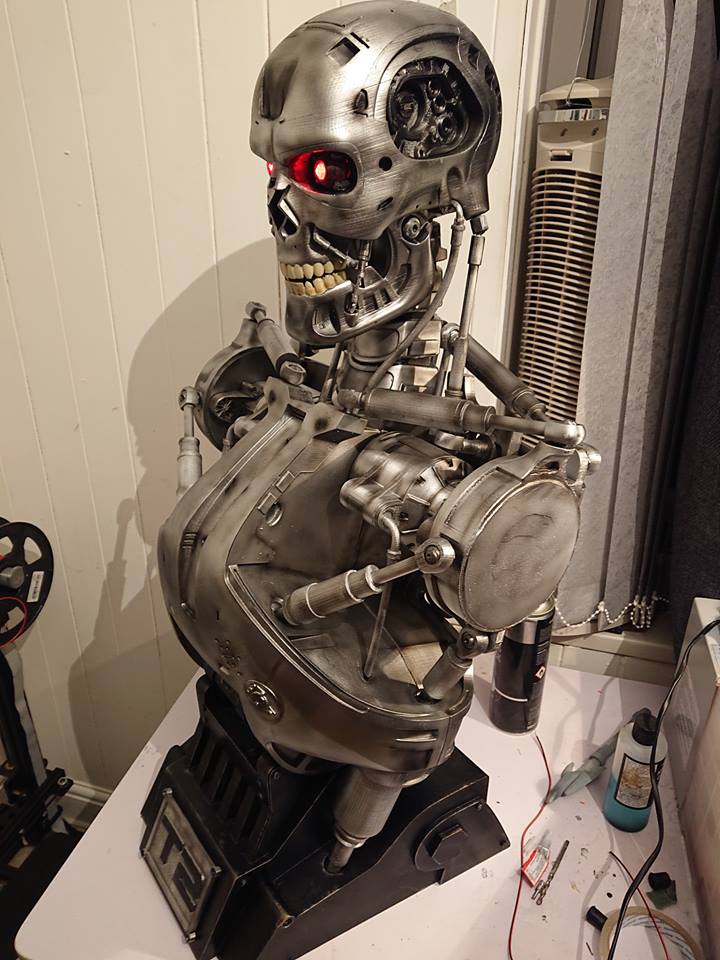

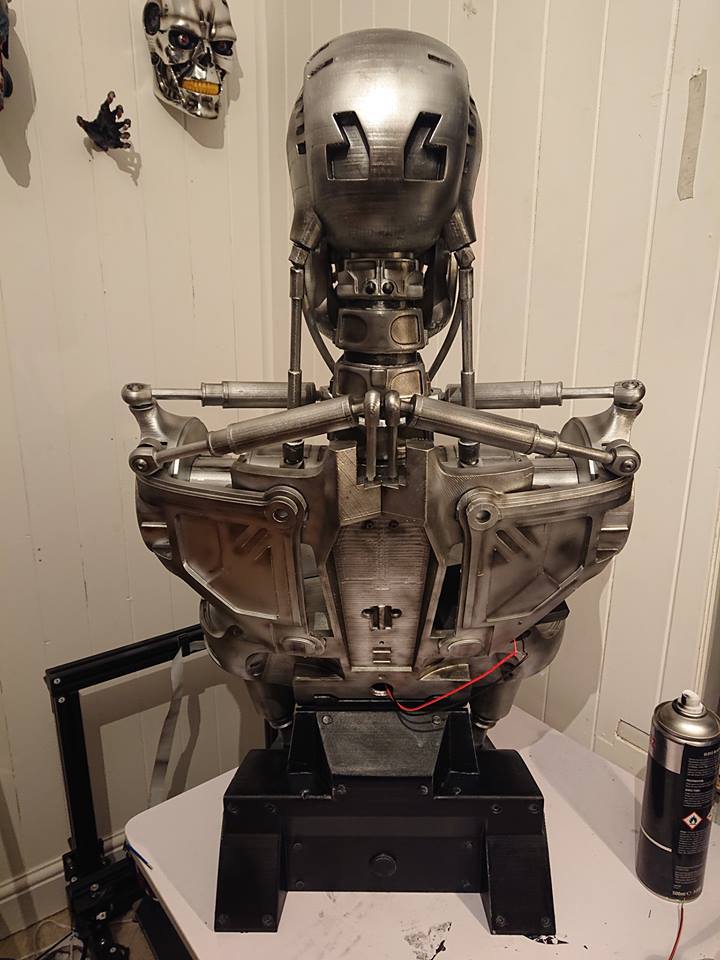

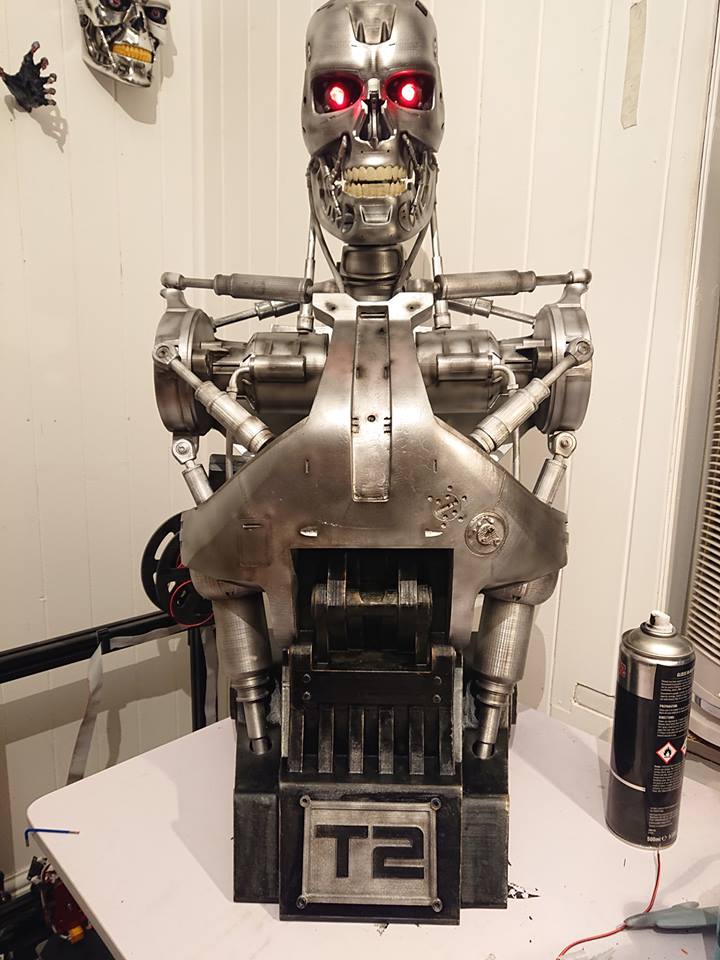

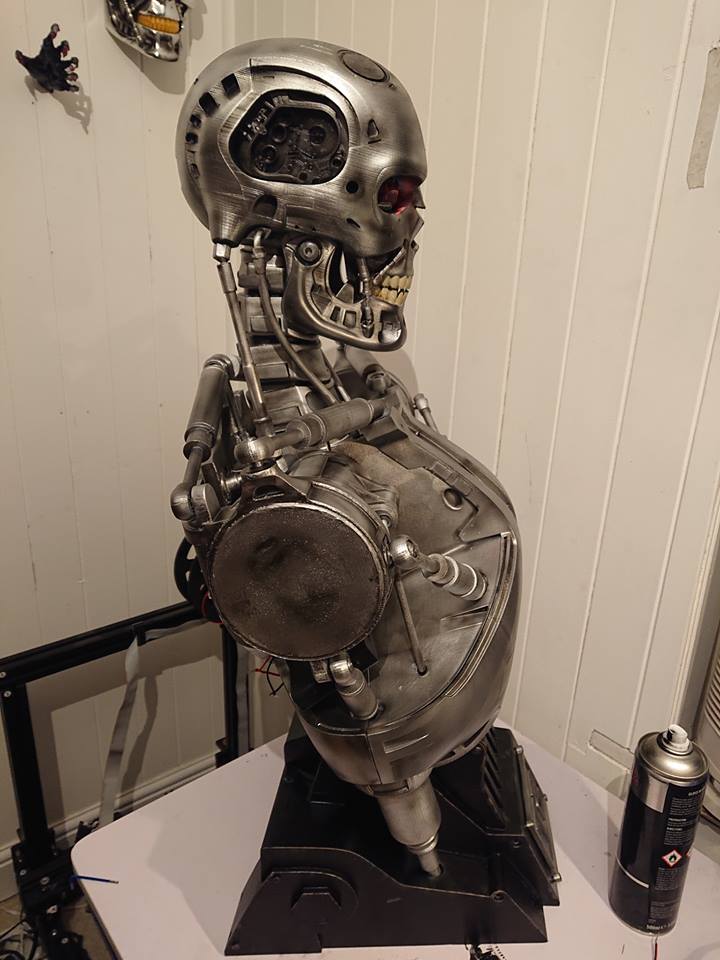

Hello I'm new to this forum. I have manged to do this full size bust 1:1 scale, 3d printed and airbrushed. would love to make a full size version. what do you think. was printed on a cr10s and cr10s5. over 500 hours of printing and over 2 weeks airbrushing.


Attachments

  • 50591988_10155733837881428_7622325060606361600_n.jpg
    79.8 KB · Views: 468
  • 50692563_10155733838316428_9014739456376176640_n.jpg
    76.7 KB · Views: 428
  • 50799468_10155733837996428_7744220188131721216_n.jpg
    70.5 KB · Views: 392
  • 50835172_10155733838656428_7595902138333528064_n.jpg
    68.9 KB · Views: 400
  • 51081753_10155733838071428_1389117772146933760_n.jpg
    80 KB · Views: 400
  • 51240378_10155733838401428_2181526533745672192_n.jpg
    96.5 KB · Views: 413
  • back.jpg
    83.1 KB · Views: 395
Last edited:

avagoyamug

Active Member
Pretty cool! You propably used the same model as a base, right?
Nice airbrushing job!

My printer is about to finish a freelancing job soon, then I'm going to start on my bust (only head and neck though)... so excited for it!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

avagoyamug

Active Member

clonesix

Sr Member
RPF PREMIUM MEMBER

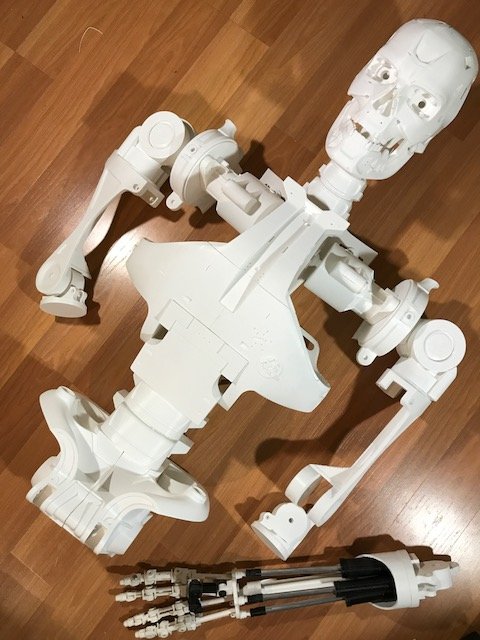

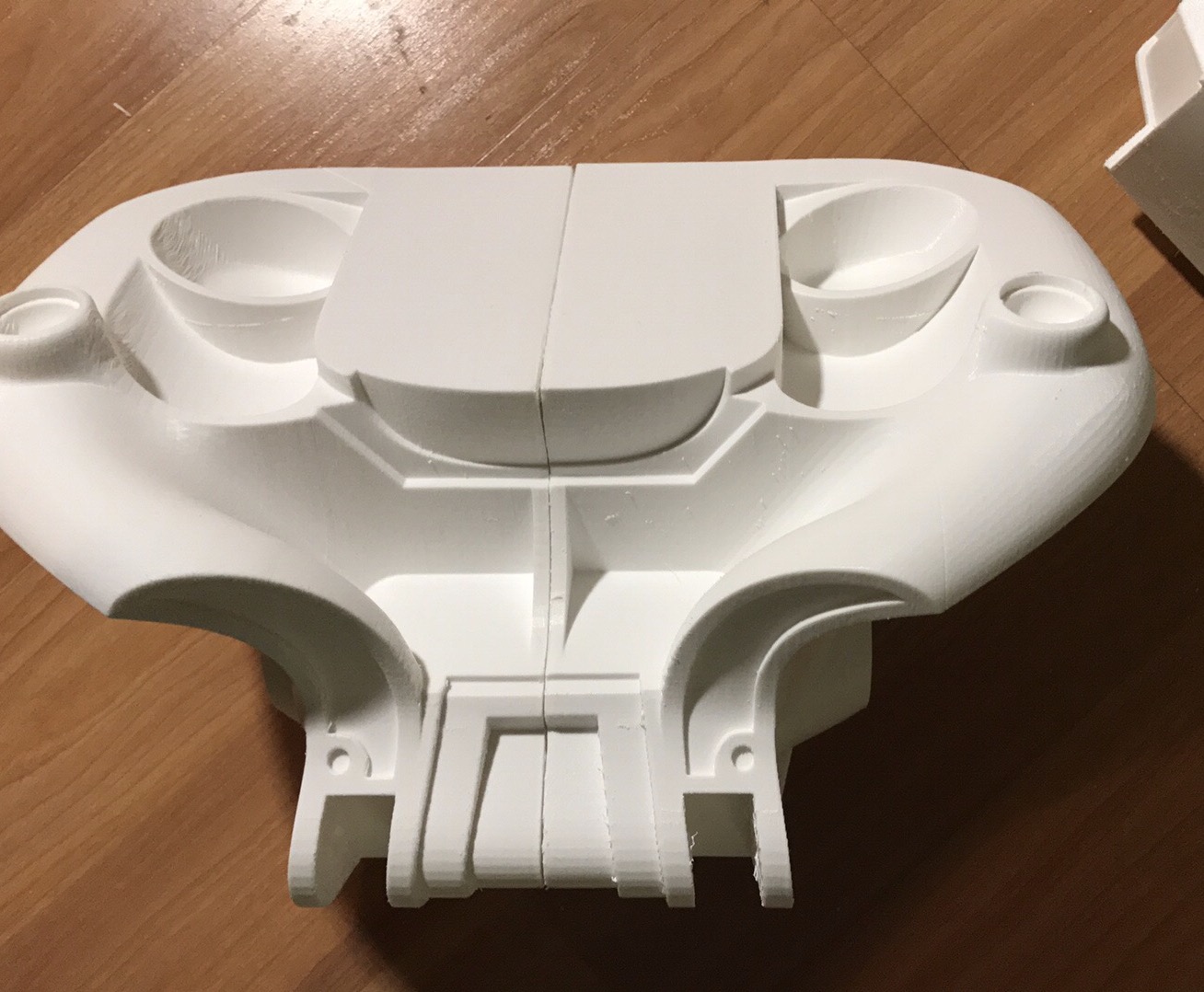

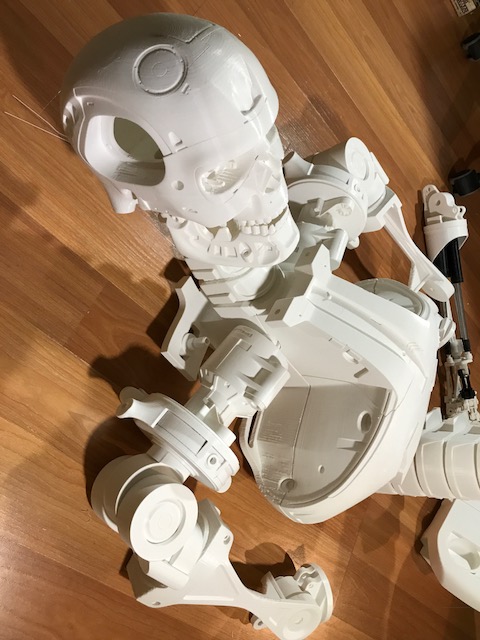

After a brief delay, while I hunted for a metric roller bearing, my printer is up and running. I printed the pelvis in two halves and soon this thing will stand!

I am thus far quite impressed with how well the files print and the detail that I am getting. As I continue to complete the parts and test them for fit, I make note of the mods that I feel I want to make.


Attachments

  • 2019.02.t002.jpg
    93.3 KB · Views: 202
  • 2019.2.t001.jpg
    259.7 KB · Views: 178
Last edited:

clonesix

Sr Member
RPF PREMIUM MEMBER
Cool. Is it just the picture or does the skull look a little narrow?

I am no expert, but as compared to my Sideshow endoskull, Yes, it is by up to 10 mm. As I complete the whole structure, I will see about making modifications. Right now, I am slowly getting pieces off the printer. The parts look very nice thus far and I haven't had any printing problems.

This is the closest that I have come to a 35 year dream of having a T-800 sitting in my living room. I have tried paper, PVC, Styrene, and clay and all have not brought me the dream. The 3d printer seems to be doing it. I will have a personal terminator!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Too Much Garlic

Master Member
Yeah, your effort is really paying off. And it's so easy to widen a 3D model by 10mm and re-print if it comes to that.

Can't wait to see it finished up. :)


clonesix

Sr Member
RPF PREMIUM MEMBER
I have been having printer issues. I replaced a bearing and I thought that fixed the problem, but not I am again getting bird's nests, and not fine prints. I need to do so calibration before I can risk more filament on the lower legs.

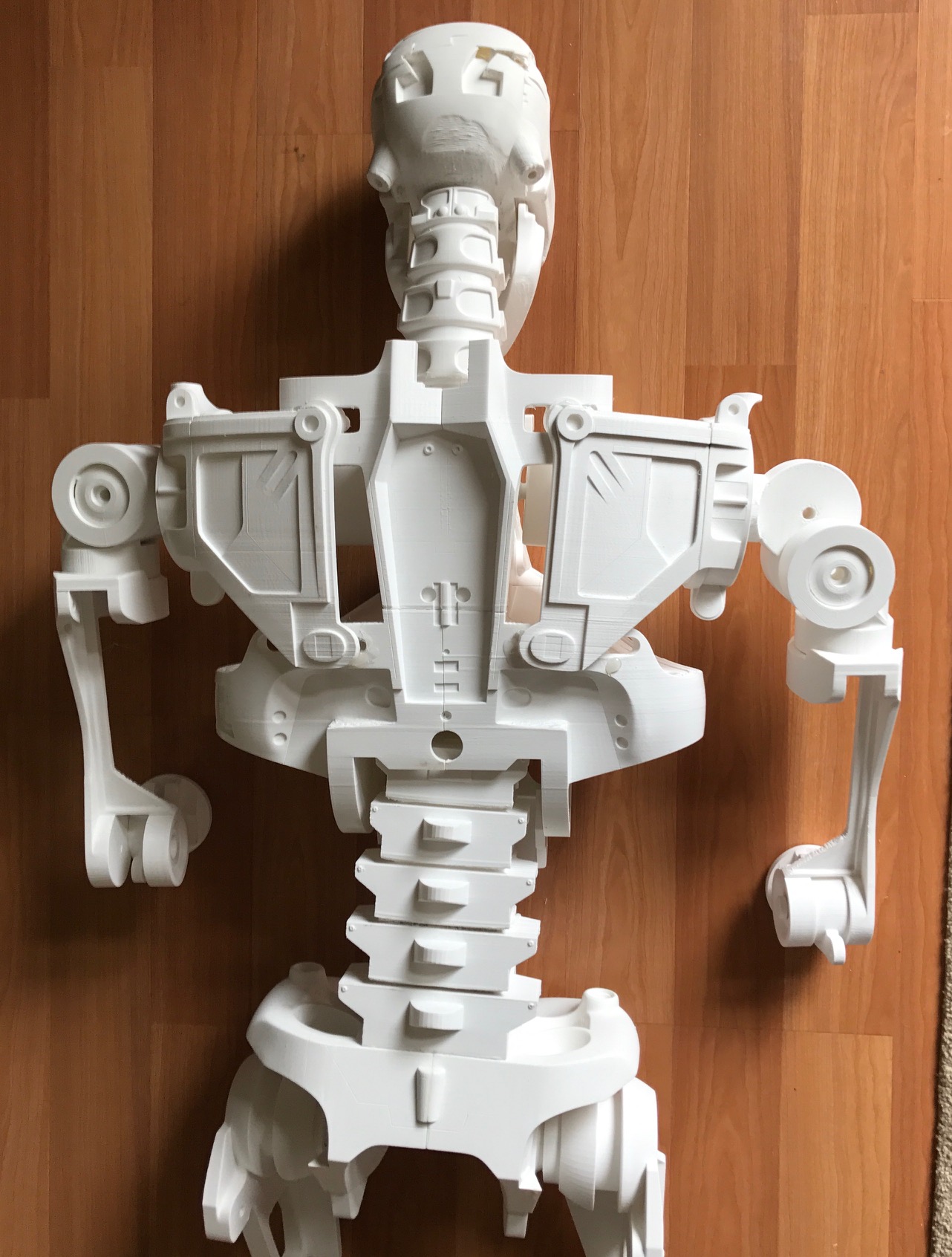

I have also learned the strength of the PLA prints. They break when dropped onto a hard floor, as a result, you can se a crack in the back of the skull from gravity.


Attachments

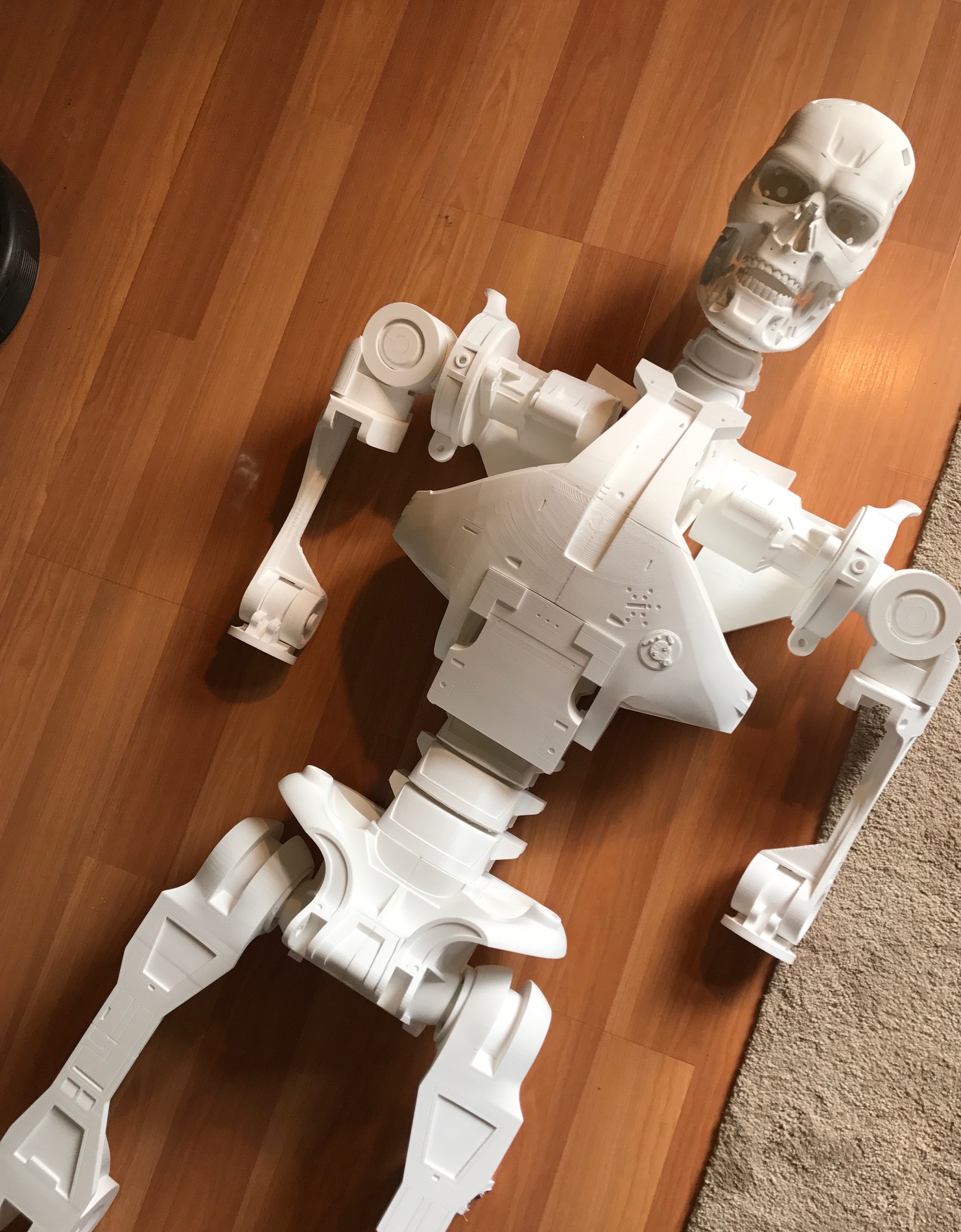

  • tors2.22.01.jpg
    395.3 KB · Views: 176

clonesix

Sr Member
RPF PREMIUM MEMBER
Weight? I can pick up and carry the whole thing easily. My guess is 10 kg at this point.

I am seeing the error of my design.

1. The pivot joints at the bicep an shin are weak and wont stand much stress. I will replace them with metal bolts and bearings to assure that nothing breaks easily.

2. the ball socket joints have a lock collar that has to be glued and permanent rather than able to unbolt and disassemble.

3. PLA is not as strong as I would like

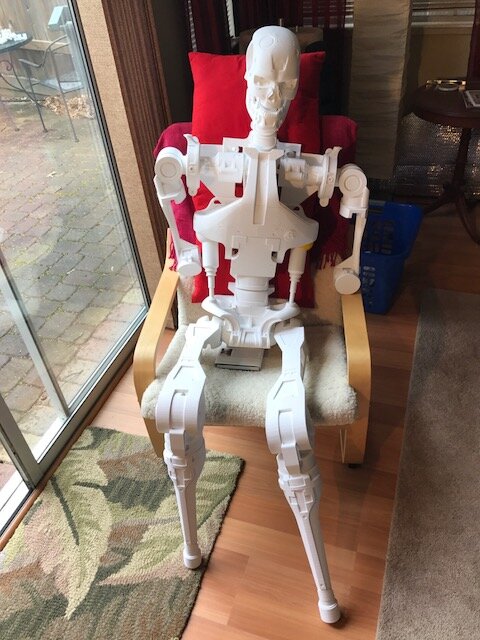

That said, This guy is sitting in my front room waiting on improvements:
