Hello fellow sabersmiths, am looking for some advice.

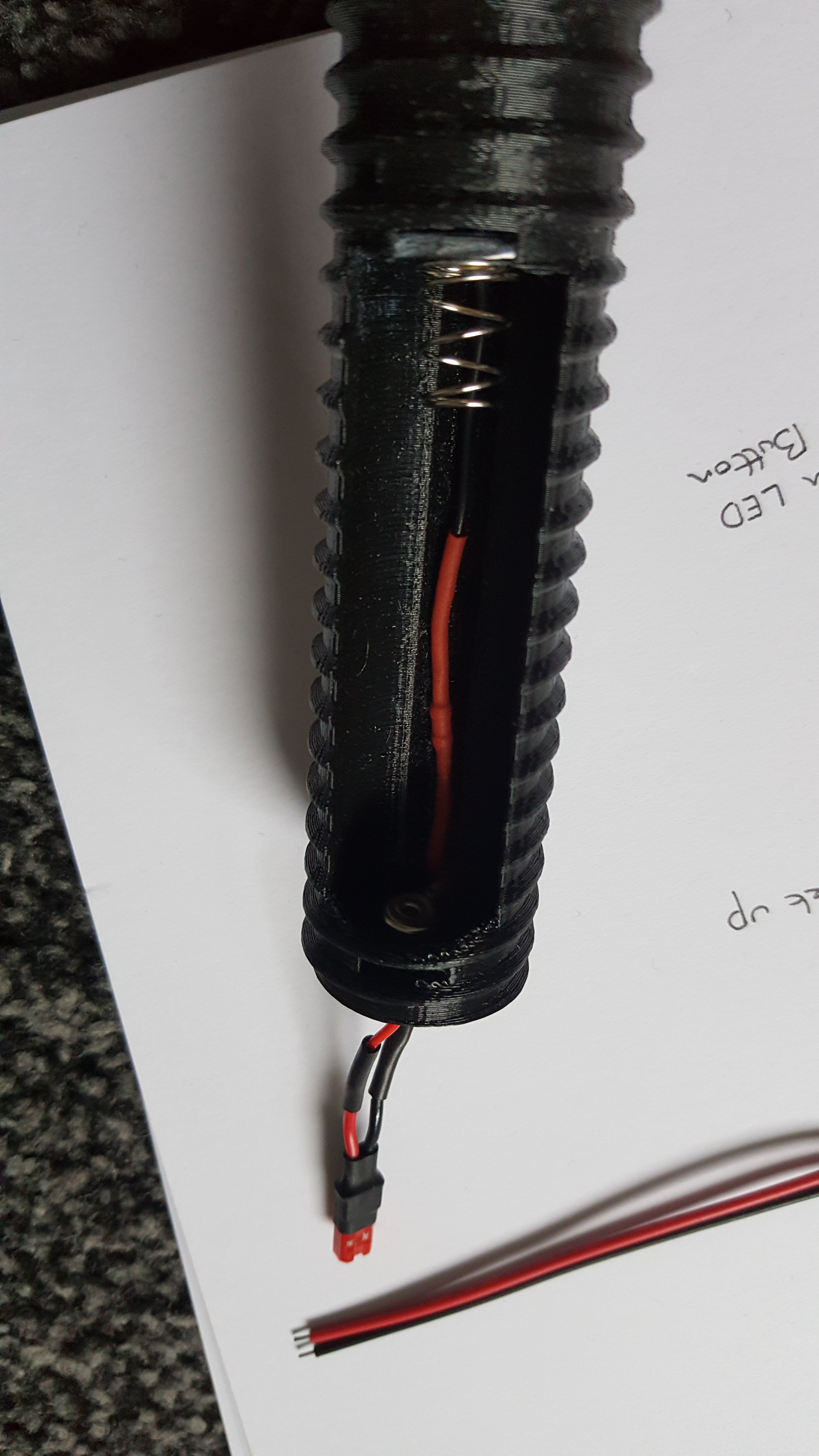

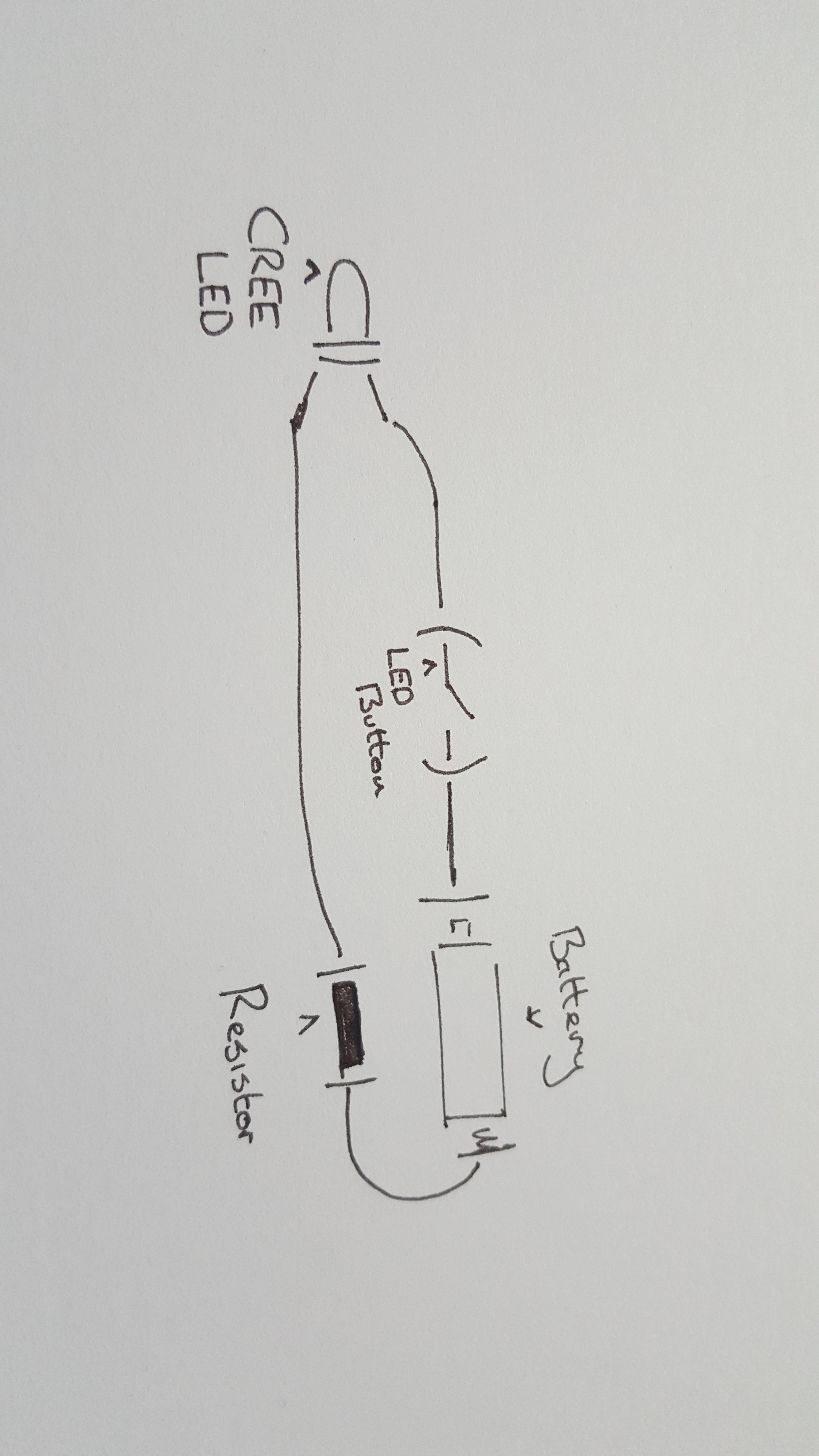

I've been try to make my own lightsaber for a while now with no luck. I've 3d printed all my parts from here Modular Lightsaber - 25 Saber Parts by Z9ld and using the twist part Modular Lightsaber UPGRADE: Electronic core (Light+sound) by enbager so that I can place a battery inside the twist part. Got some idea of who to wire it up but nothing I do is working. Could anyone please look over these and tell me where am going wrong thank you. For the button i've been using I simple on-off one as I can seem to work out how to wire up the 4 pin led button. Plus am really not sure on the type of resistor am using.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

levallois

New Member
All your resistors have same value :
Brown - Black - Black - Yellow - Brown [100*10kΩ ±1% ]
or Brown - Yellow - Black - Black - Brown [140*1Ω ±1% ]

So I think you have eight 140Ω resistors.

The 4 pin LED switch have 2 pins for LED and 2 Pins for switch.


Without specificity of your items (LED, HightPower LED… ) it will be complicated to have the good "values"

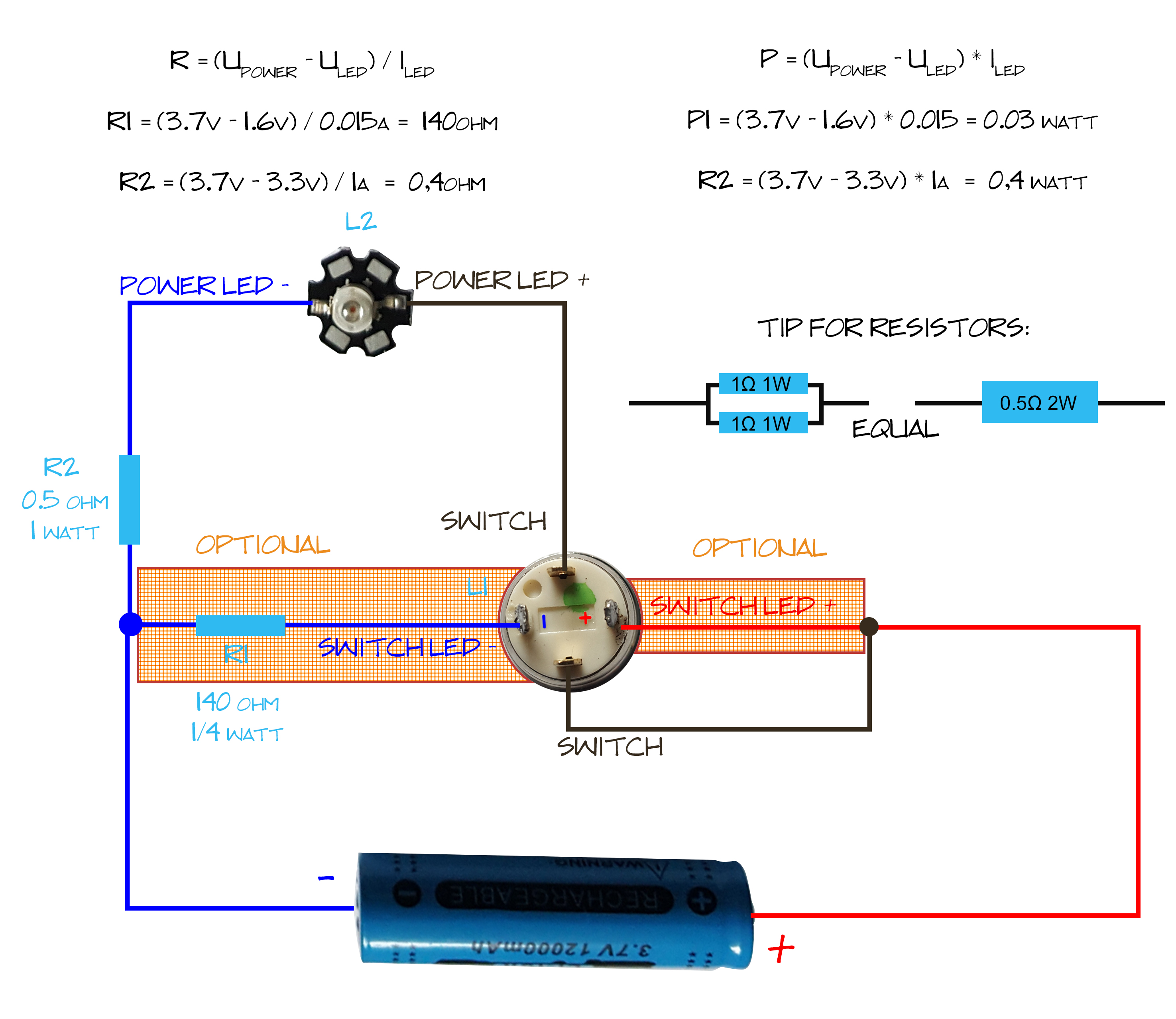

Maybe, this is the simple schem you looking-for
