1:1 Millennium Falcon Cockpit Replica - Group Build

[SofaKing01]

I think I speak for most people here when I say, "SO DO I!!"

Hey BBD! Come on down!



[SofaKing01]

Thanks to Izzy for that wonderful update and you, Greg for that beautiful cockpit window

Thanks, J! The canopy is finally getting to that point where I can move on to something else... speaking of which I have another update to post



[SofaKing01]

Hi Gang,

Part II: Little Details

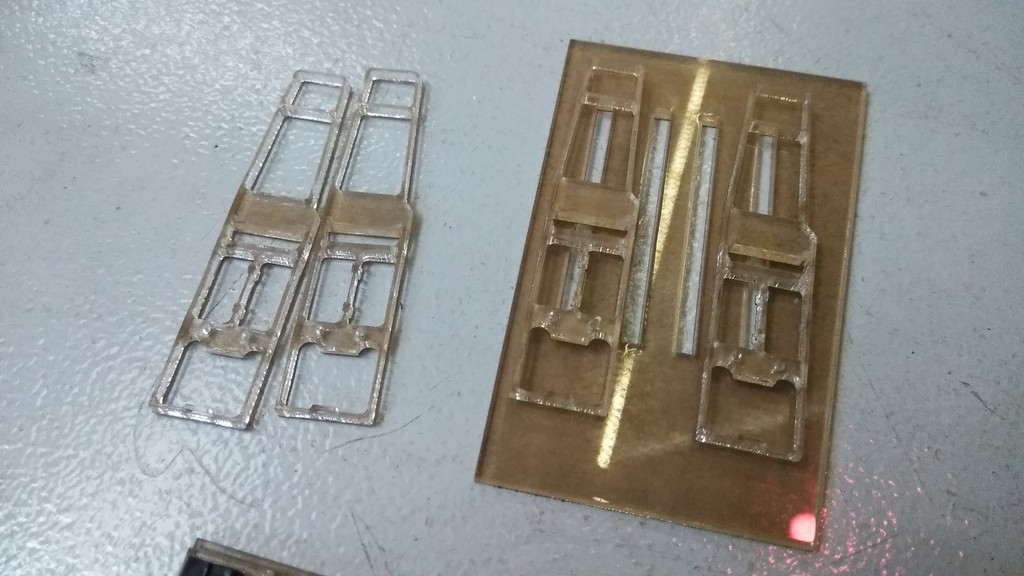

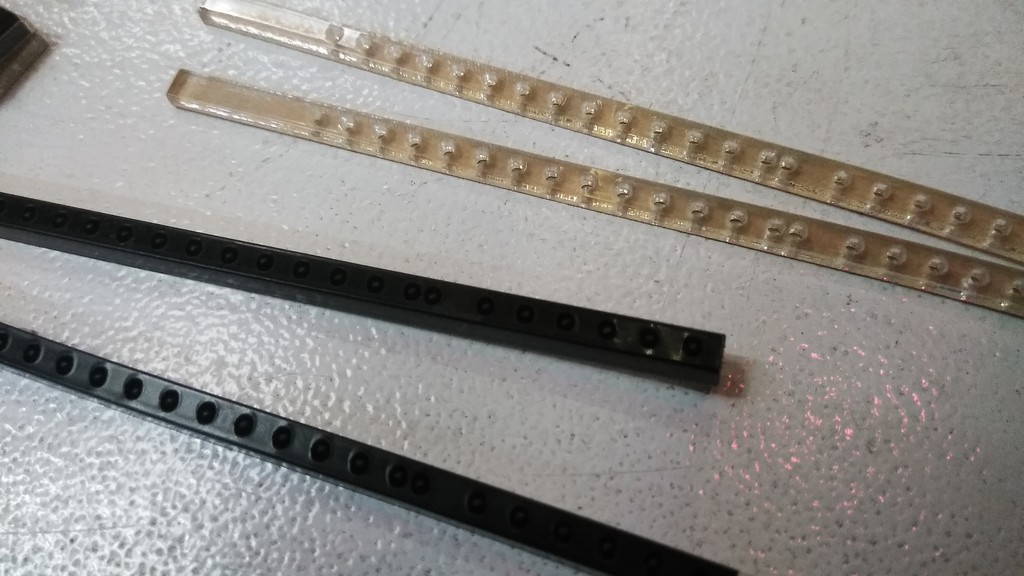

My adventures with the 1/4 and 1/6 scale greeblies continue

I might have to redesign this greeblie - the edges didn't align very well

New Throttle Housing and other 1/6th greeblies headed to Izzy

Upper console detail

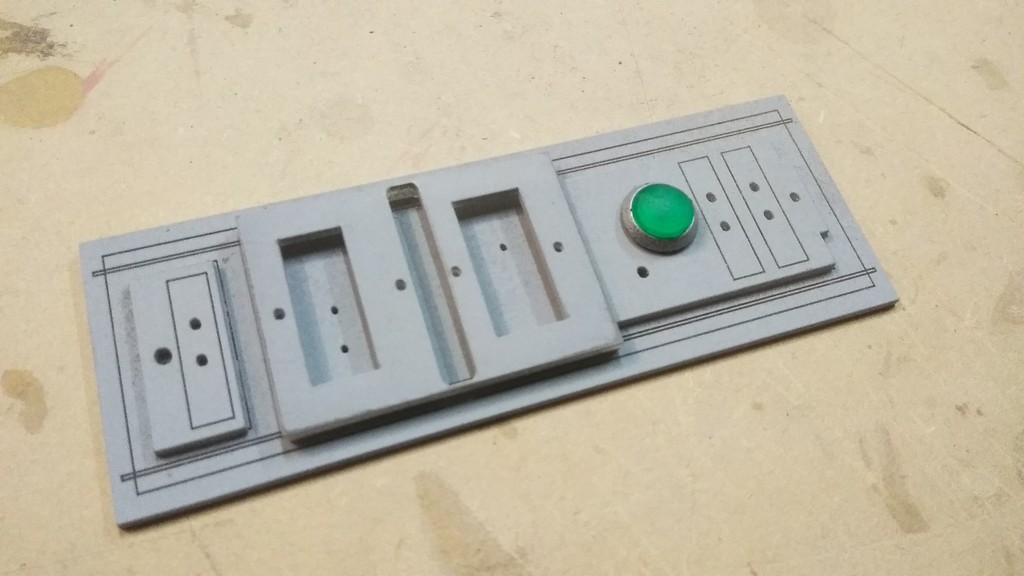

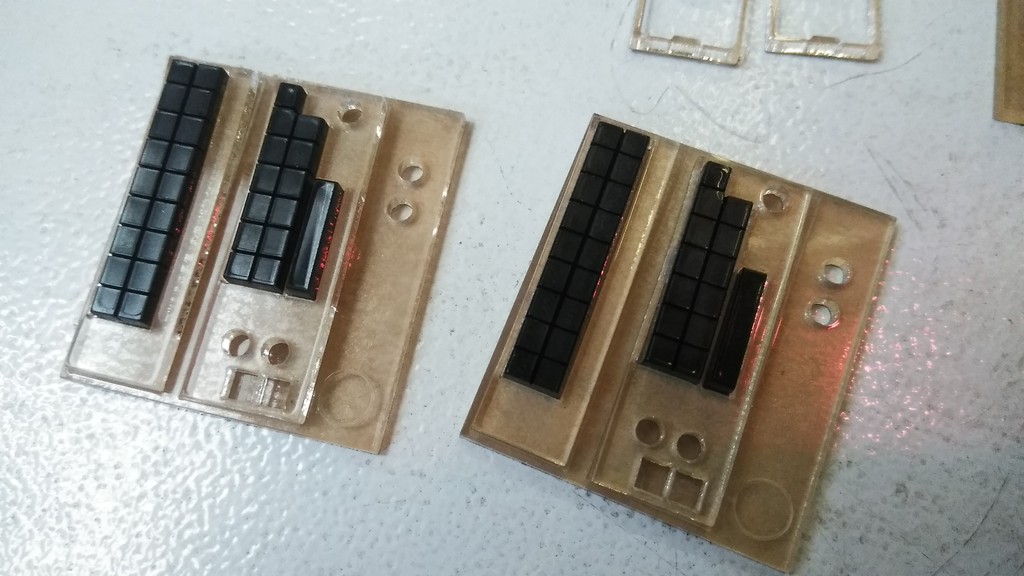

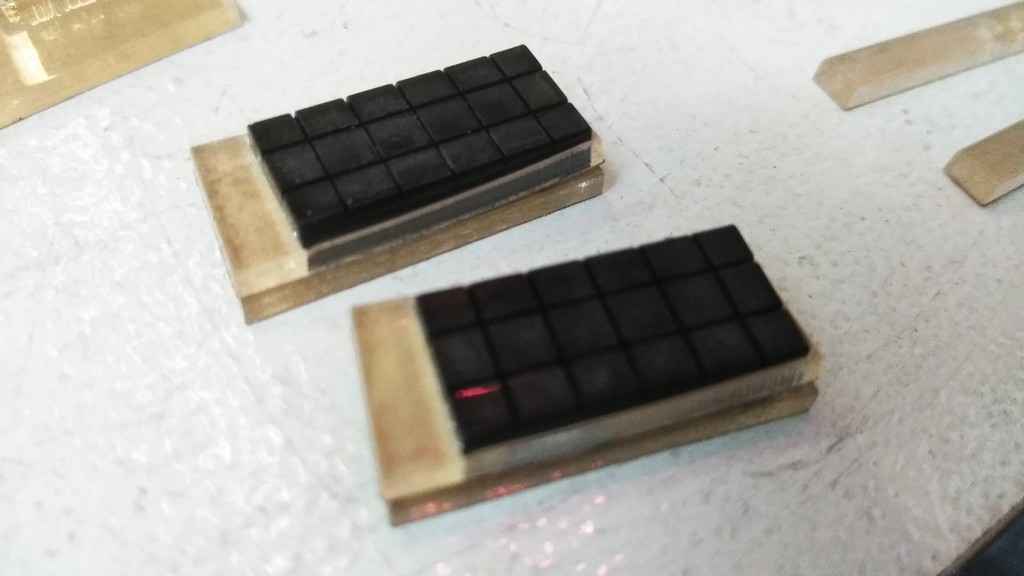

2 main button pads for the main console

Smaller button pad

A package arrived for me in the mail... All of Izzy's 3D models to include these AWESOME and 1/4 scale Dome Panel Lights!

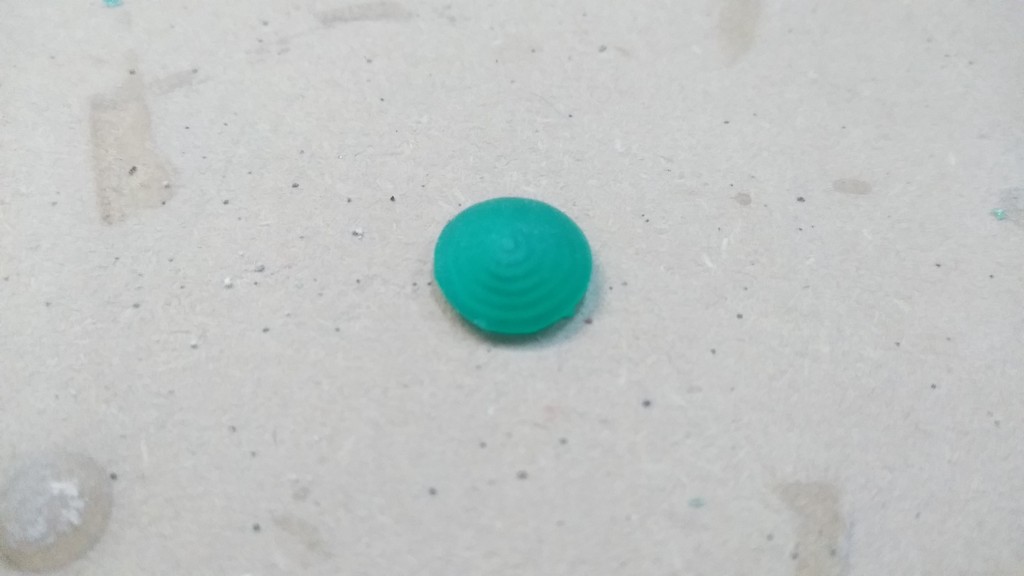

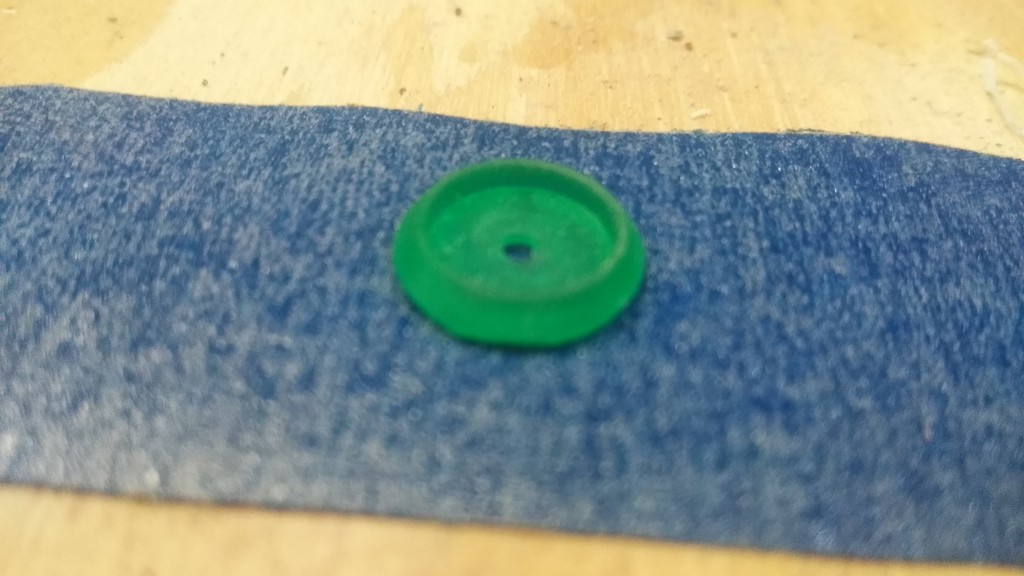

Lens

These are just test pieces but...

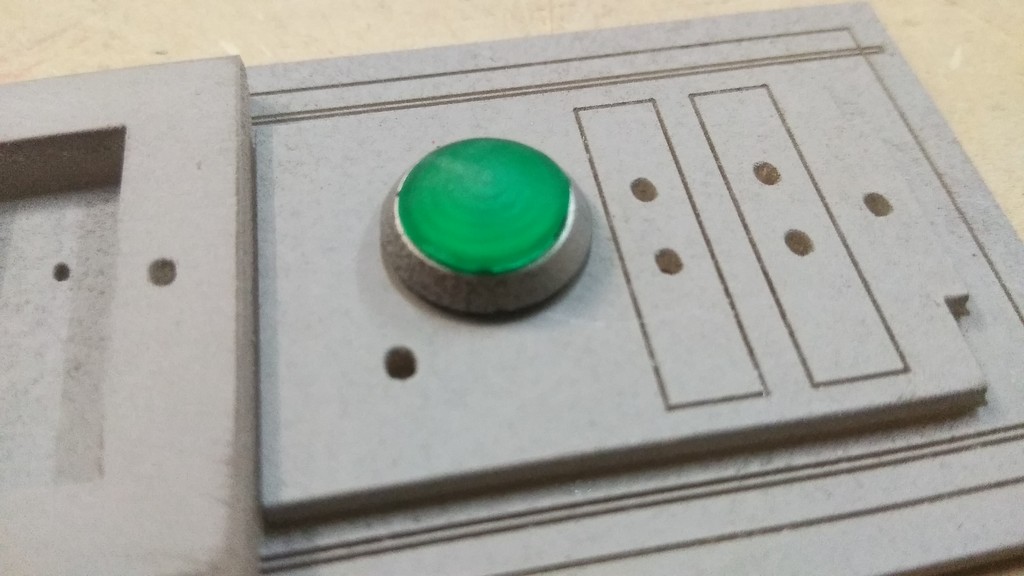

Painted the bezel silver

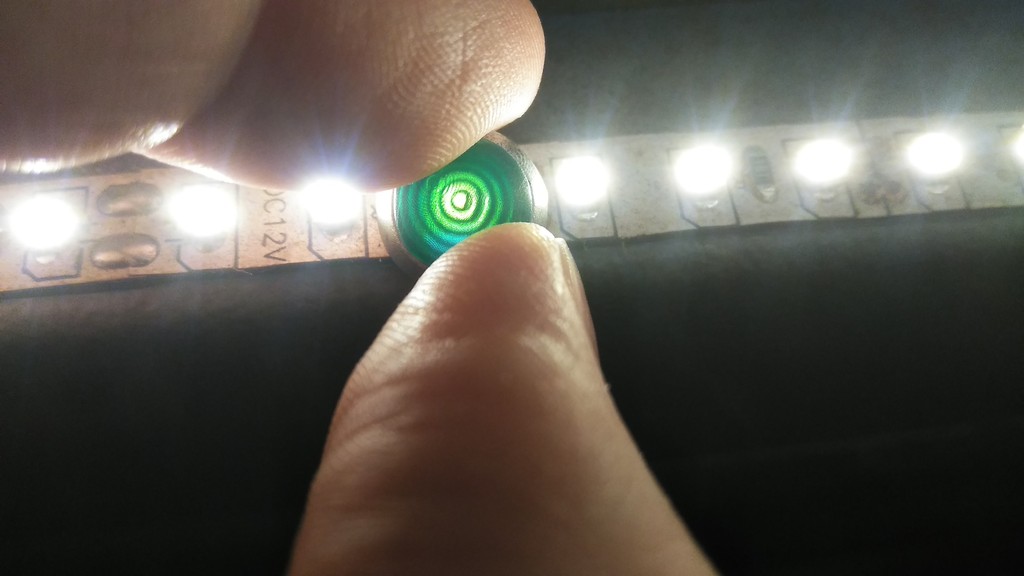

YES... the interior side of the lens shows the "Fresnel" effect! SO COOL!

Part III Below



[SofaKing01]

Part III - Fiberglass and Corridor Ring

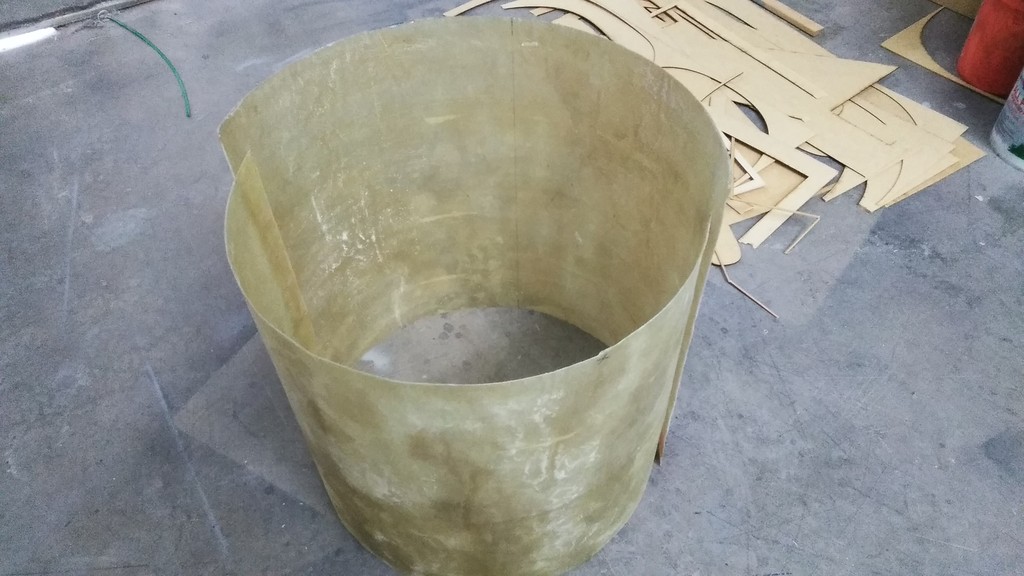

Back to the fiberglass body! I noticed a few areas of concern

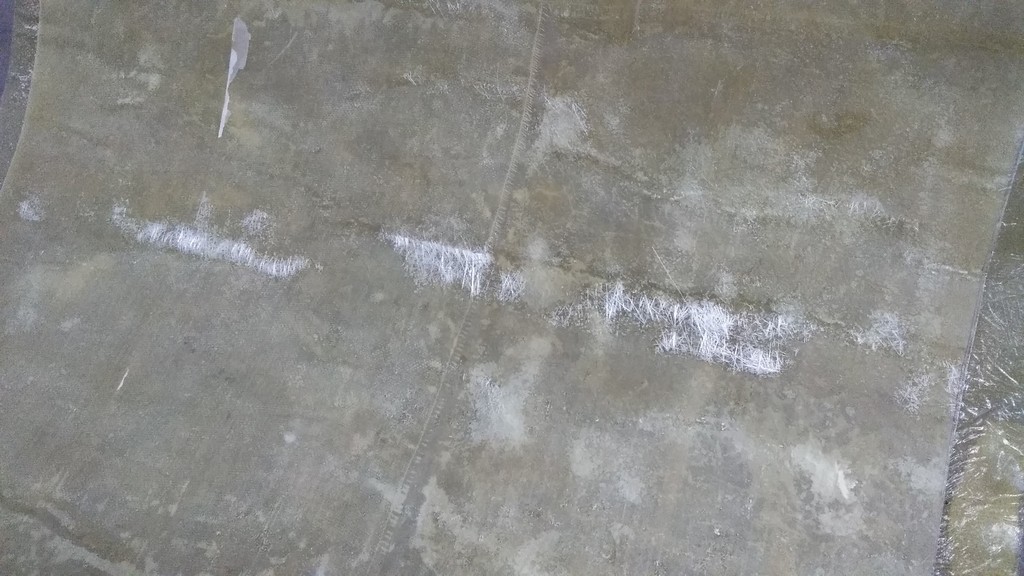

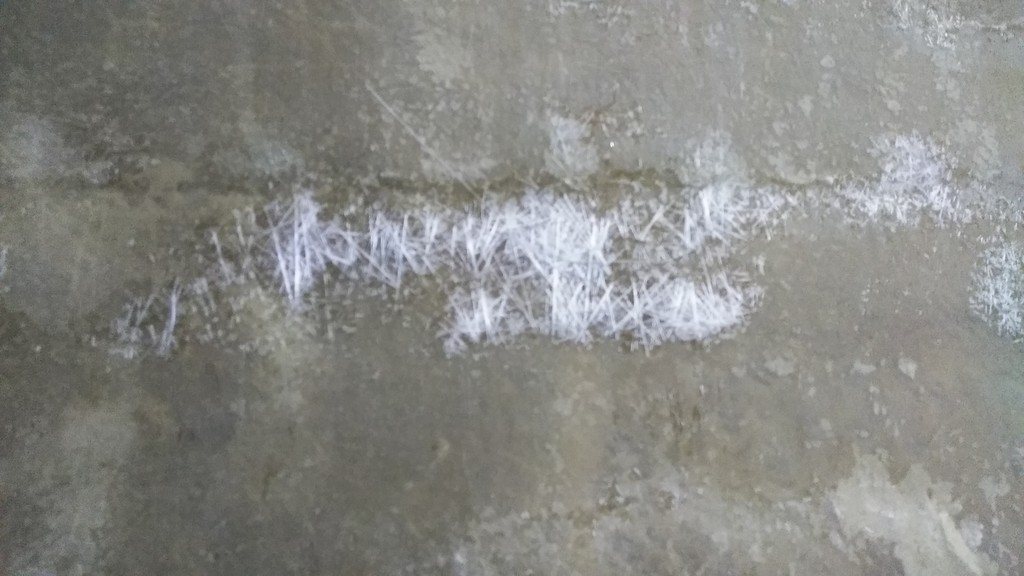

Dry fiberglass - not good

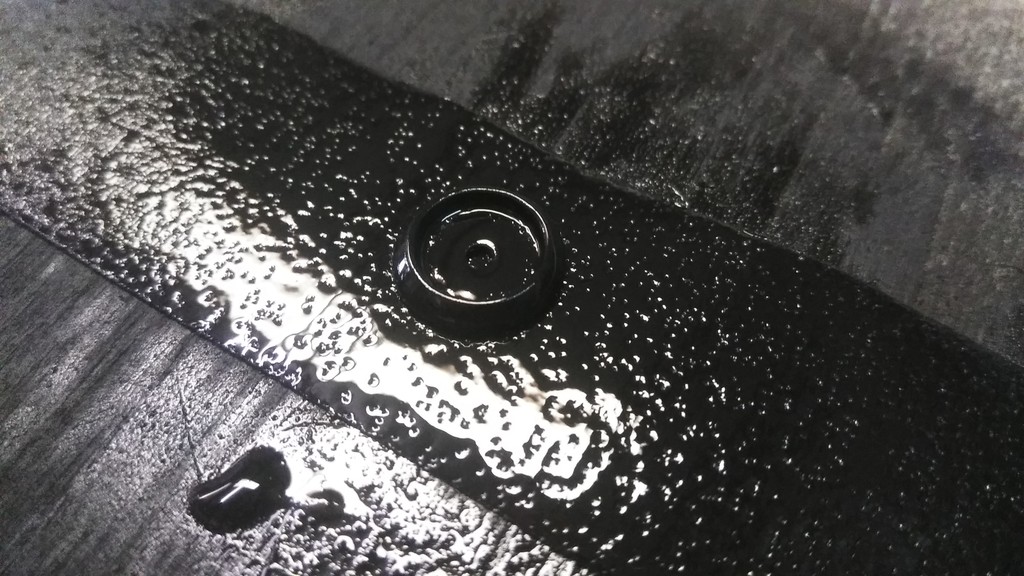

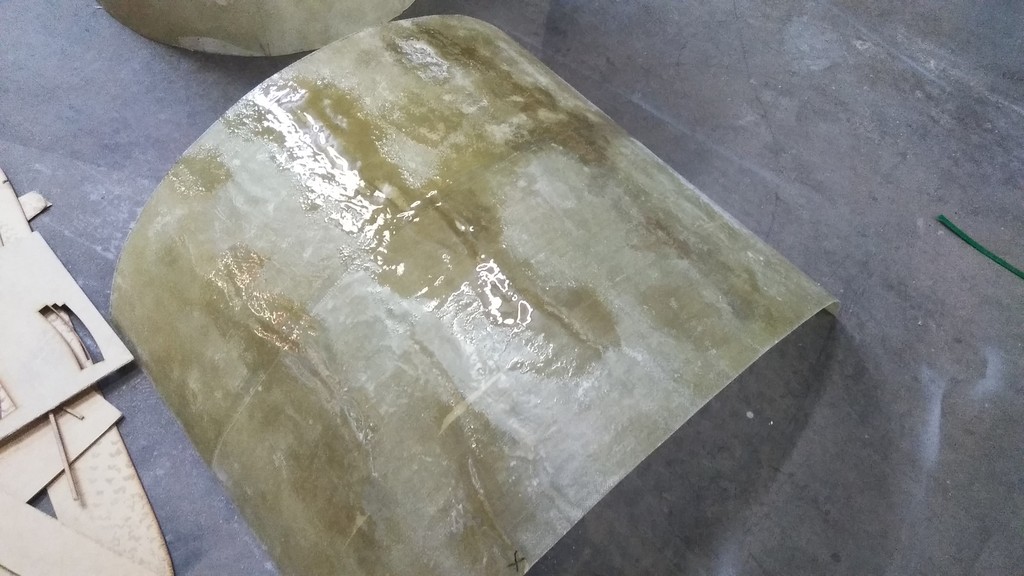

I broke out some resin and covered the dry areas and filled in any other areas of concern

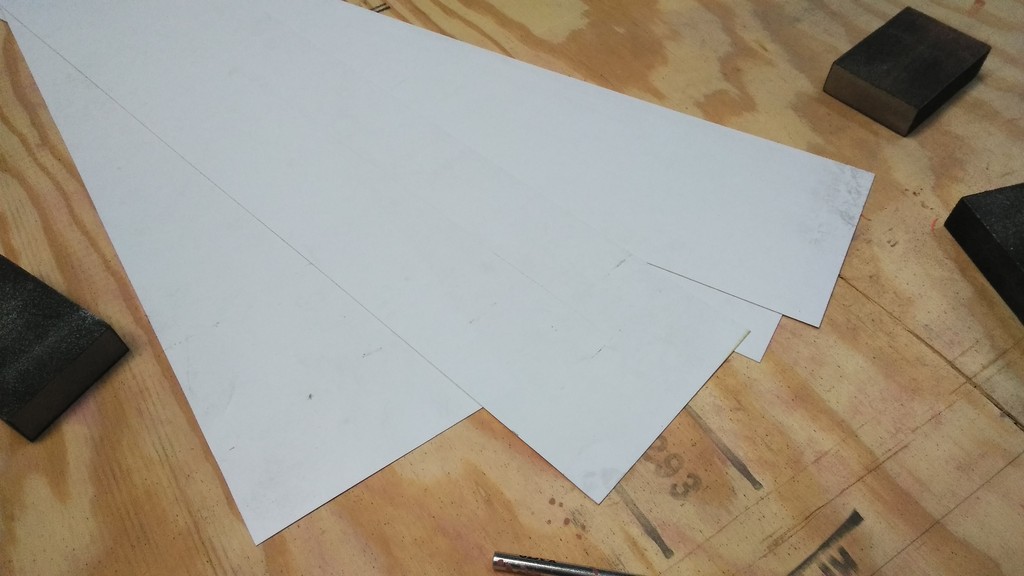

Cut some styrene pieces

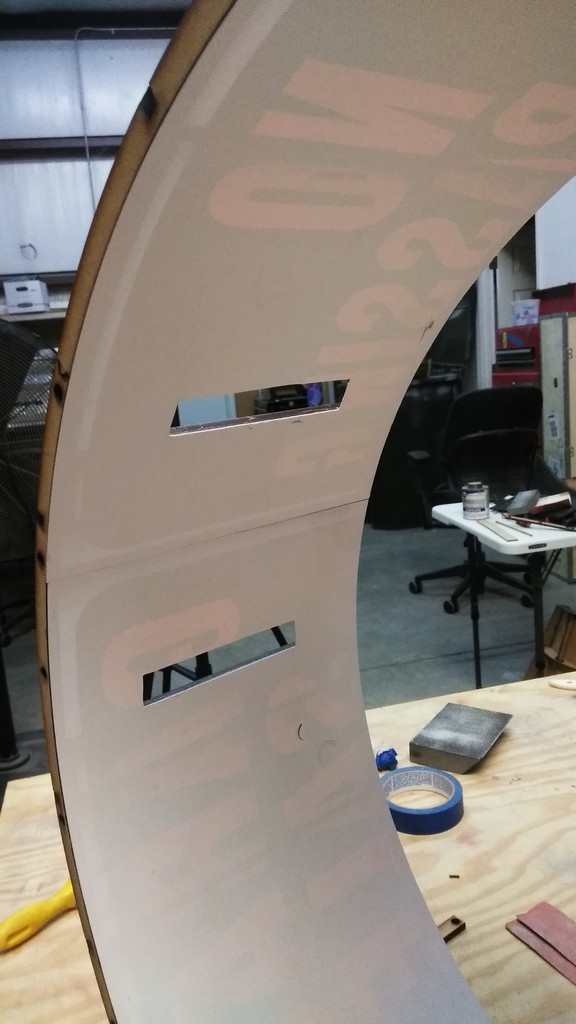

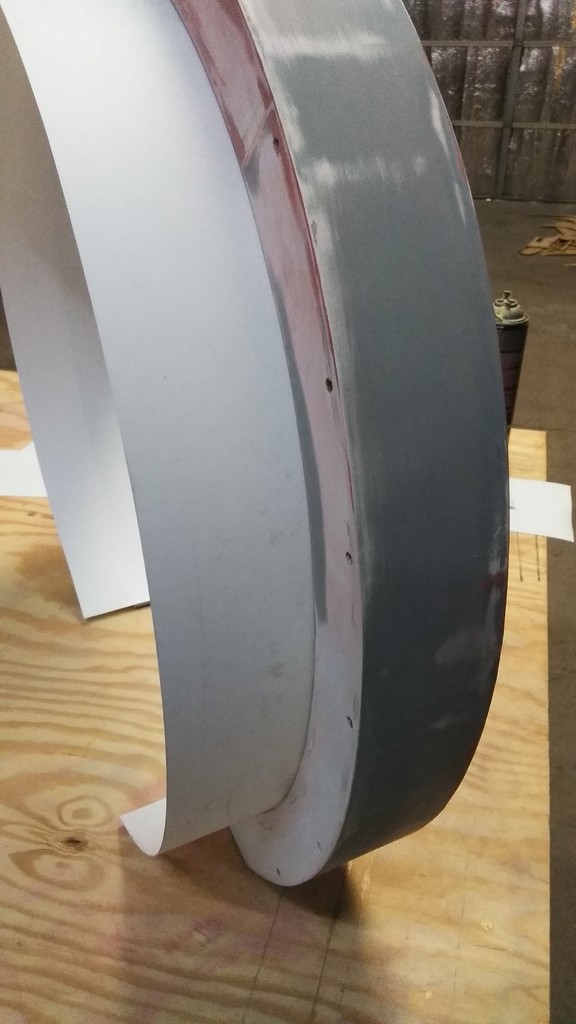

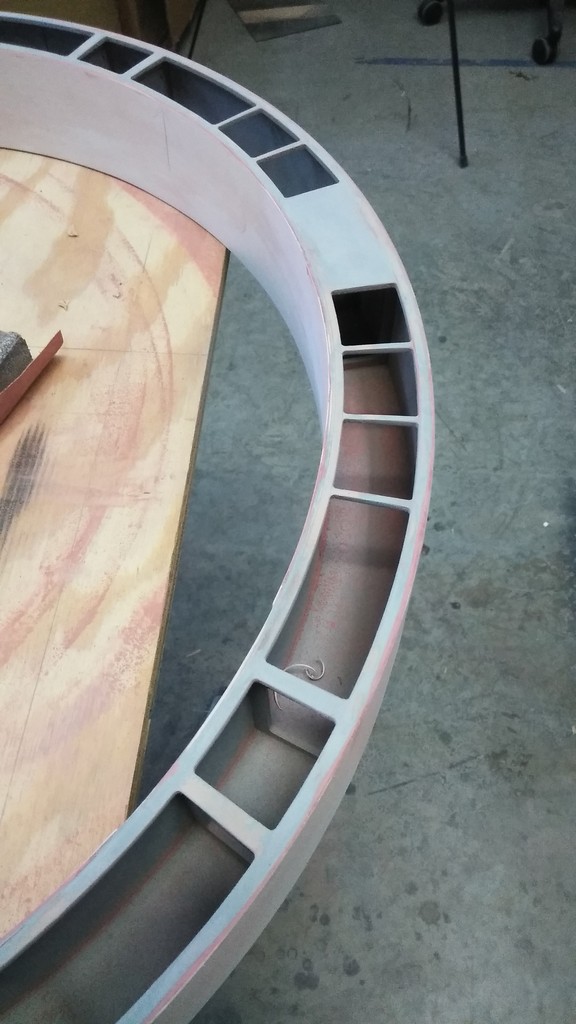

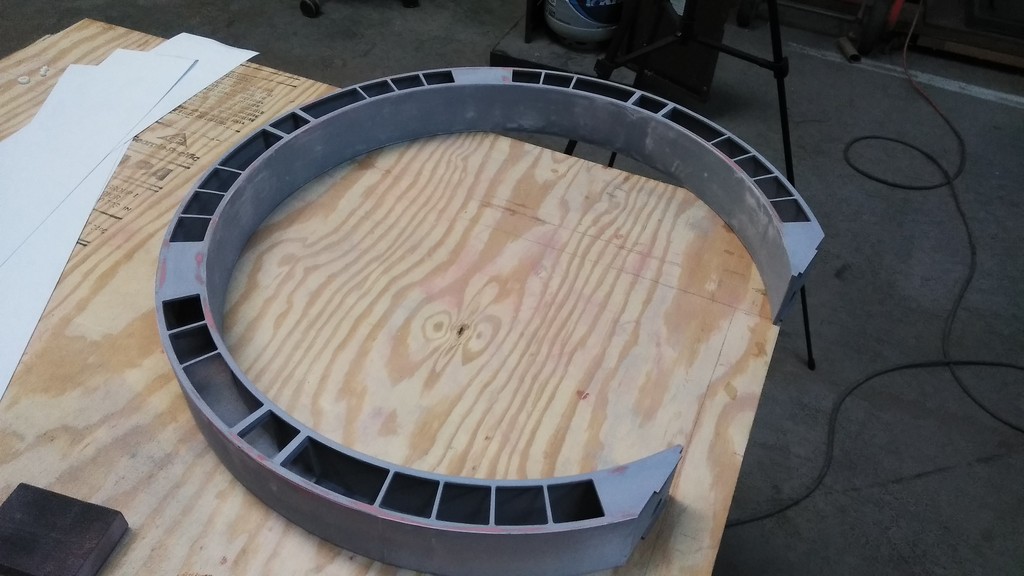

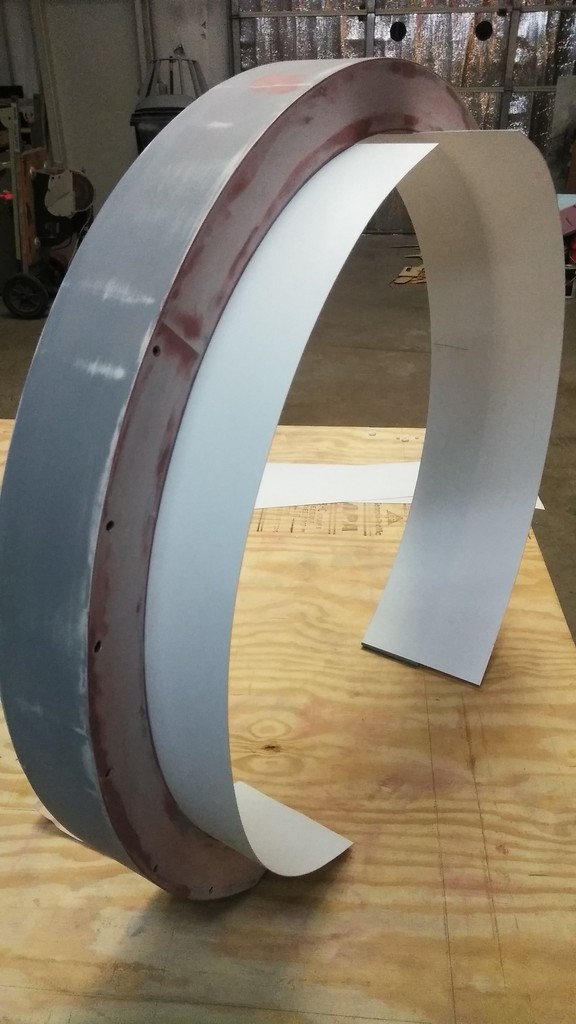

Time to add more layers to the outer & inner surfaces of the corridor ring

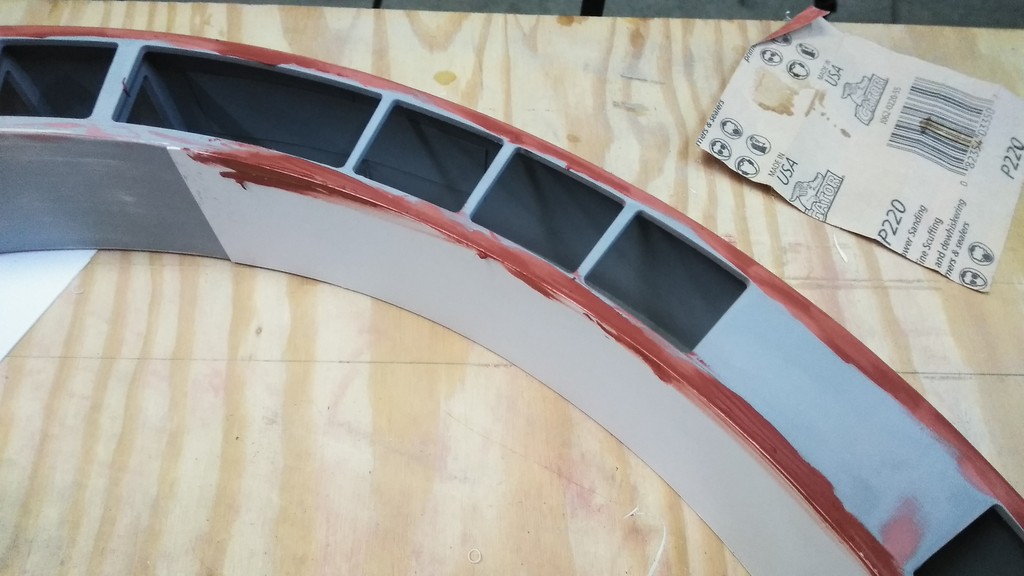

And of course more filler...

Honestly... this process never seems to end!

Another area of concern is how to mount the fiberglass halves to the main body - I designed and laser cut these beams

They will essentially mount here

The idea, if it works, after adhering the beams in place I will use flat head screws and simply screw the fiberglass to the beams

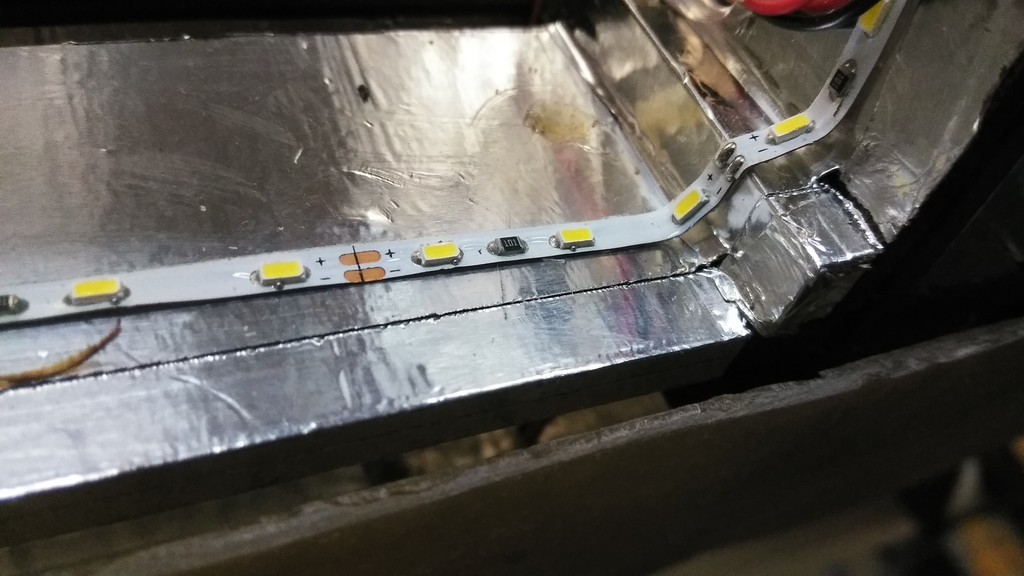

I have to remove some of the reflective HVAC tape

Other side

Part IV Below



[SofaKing01]

Part IV: The Cockpit Entrance Wall

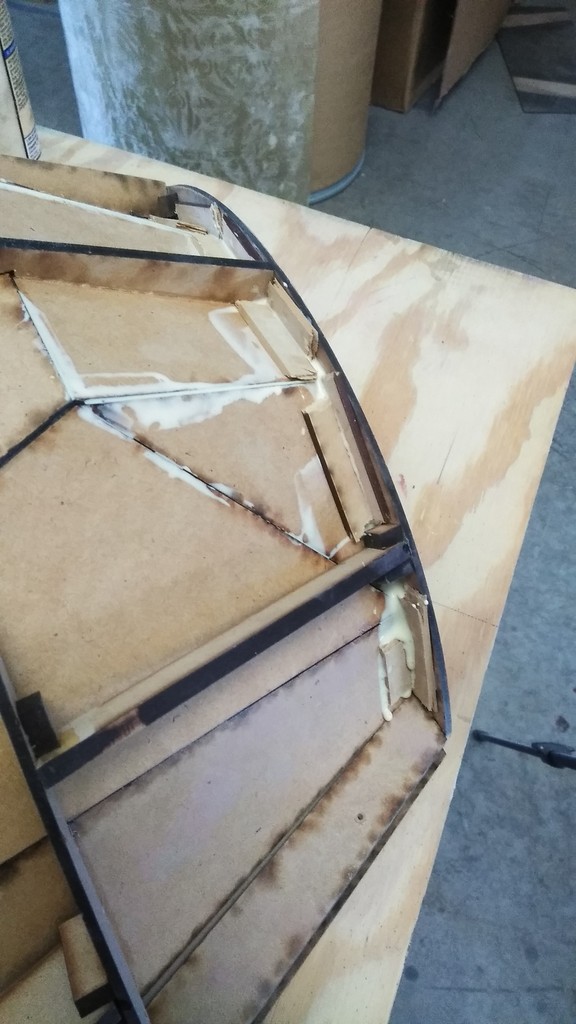

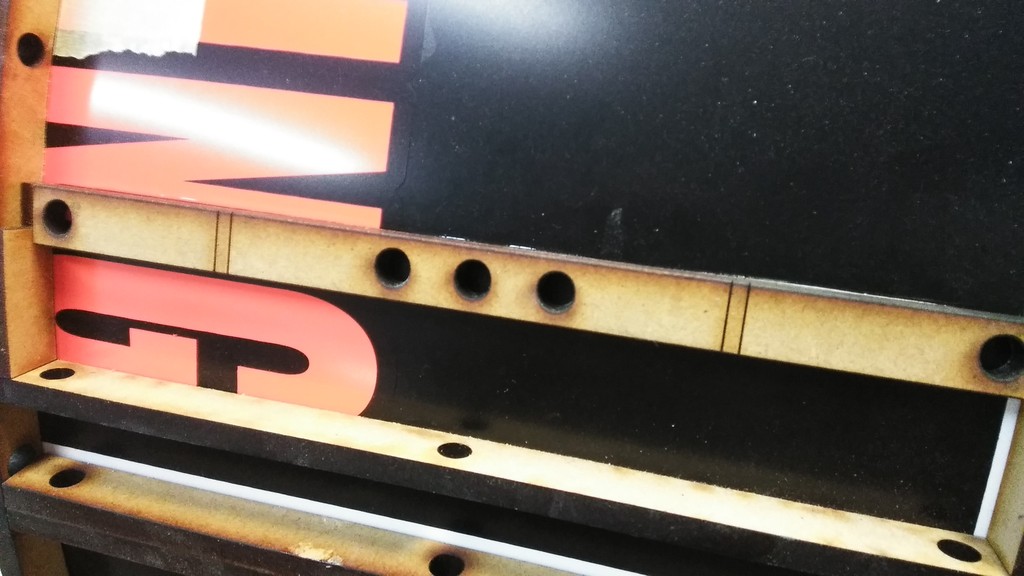

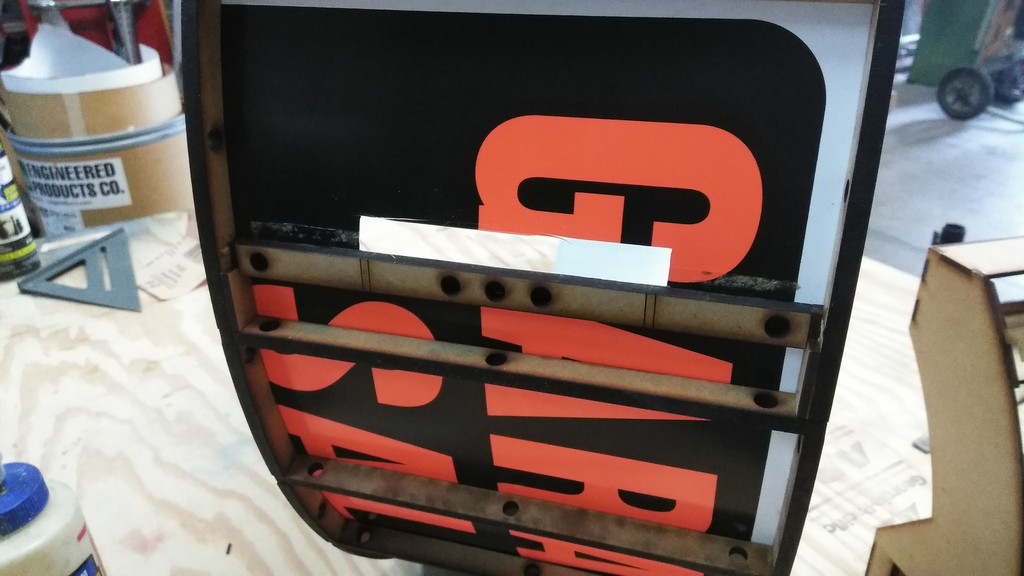

I then laser cut these other cross beams and adhere into place

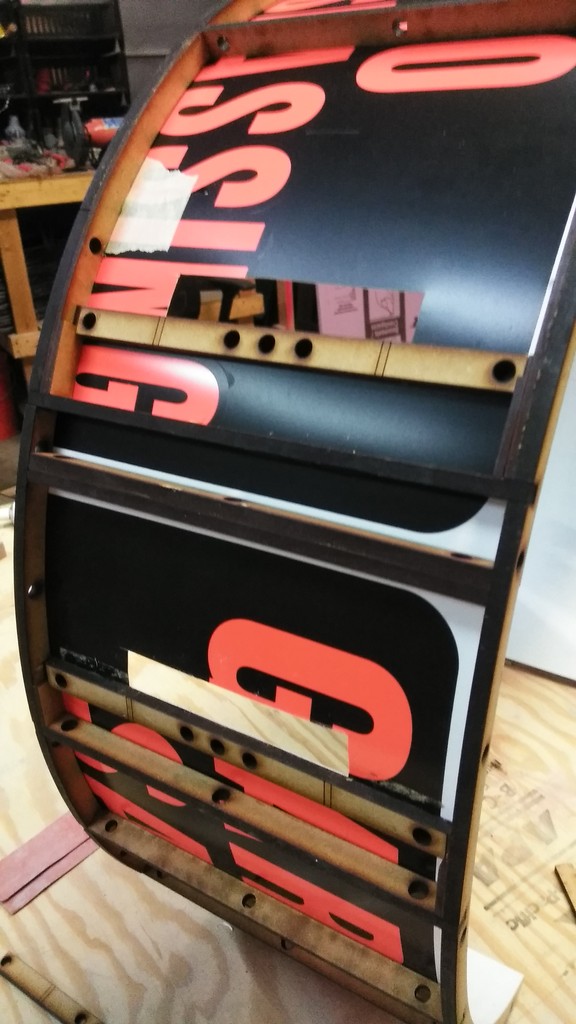

I then began to remove material from the wall

Repeated the process down below

What the heck is this thing for?

More to Follow! Part V coming!



[SofaKing01]

Hi Gang,

Its that time again!

Part V: The Entrance Wall Cont'd

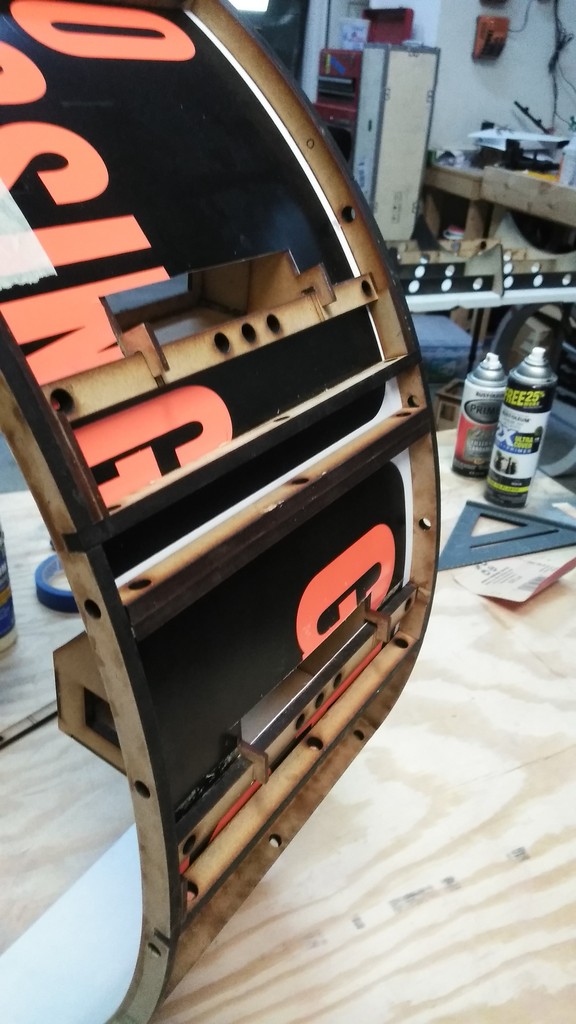

Now that I cut holes into the entrance wall it makes sense to make something to fill those holes?

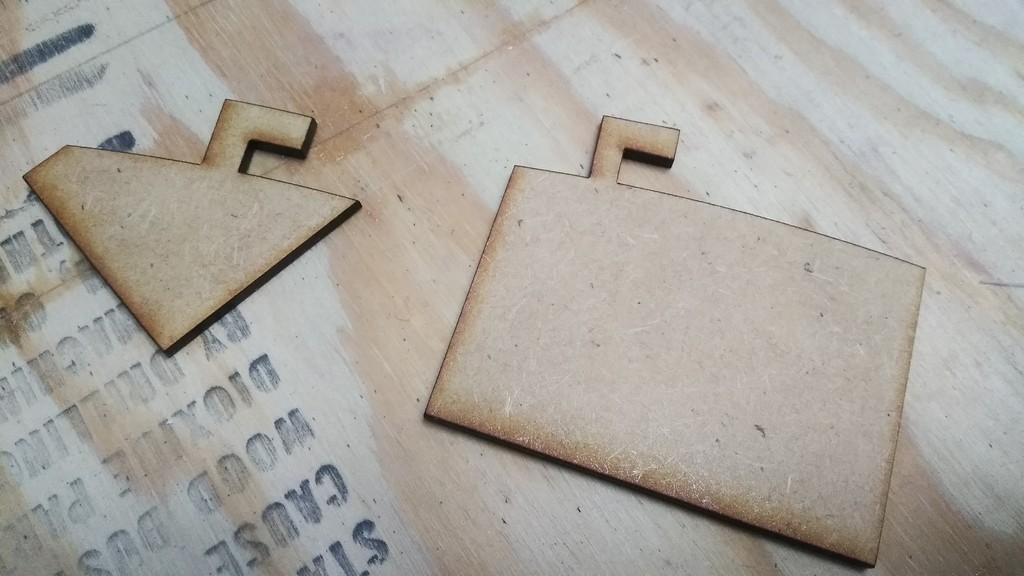

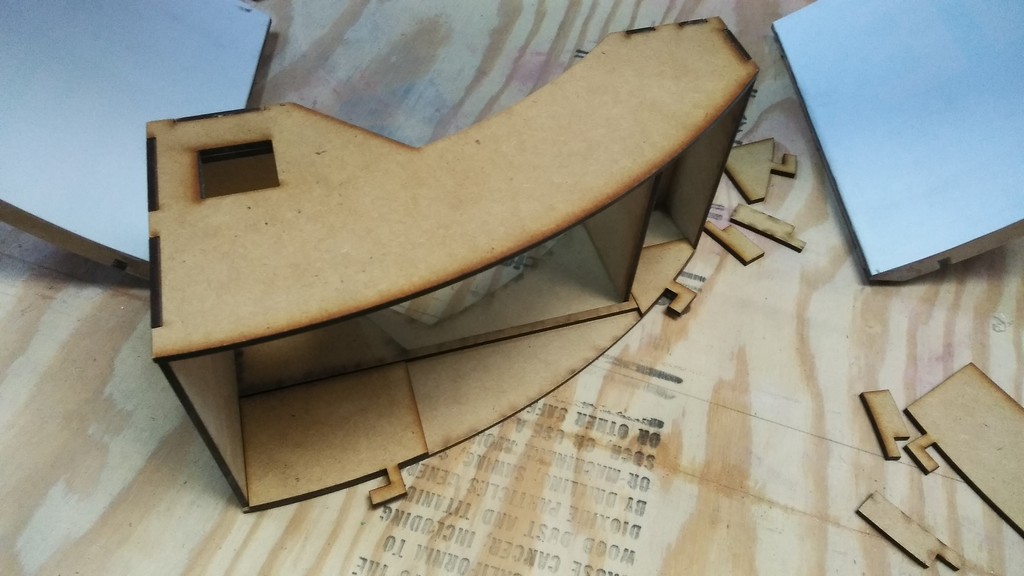

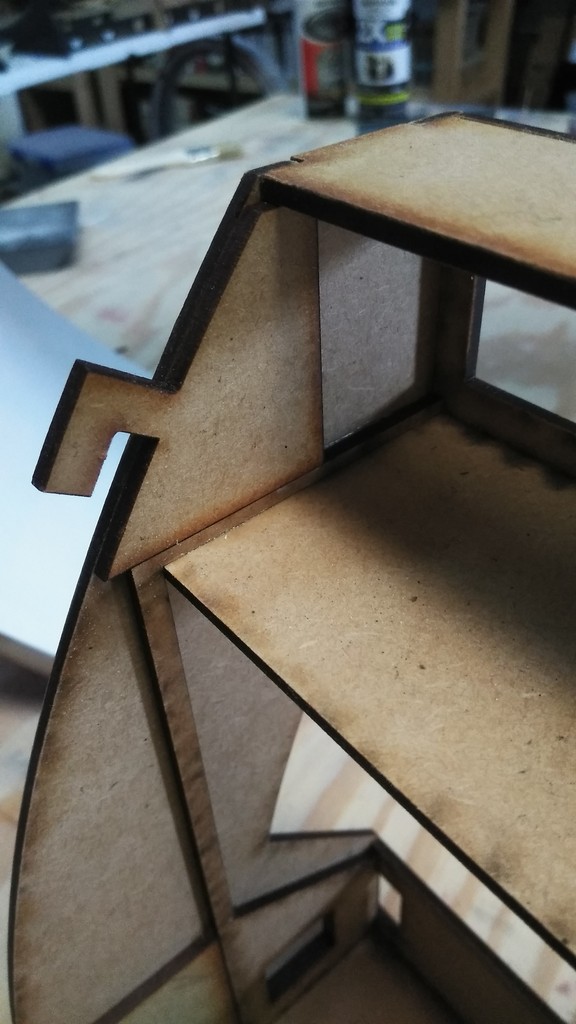

I laser cut these "hooks"

Mounted to the interior side of the maintenance panel

The hooks slip through the openings and simply "latch" to the cross beams

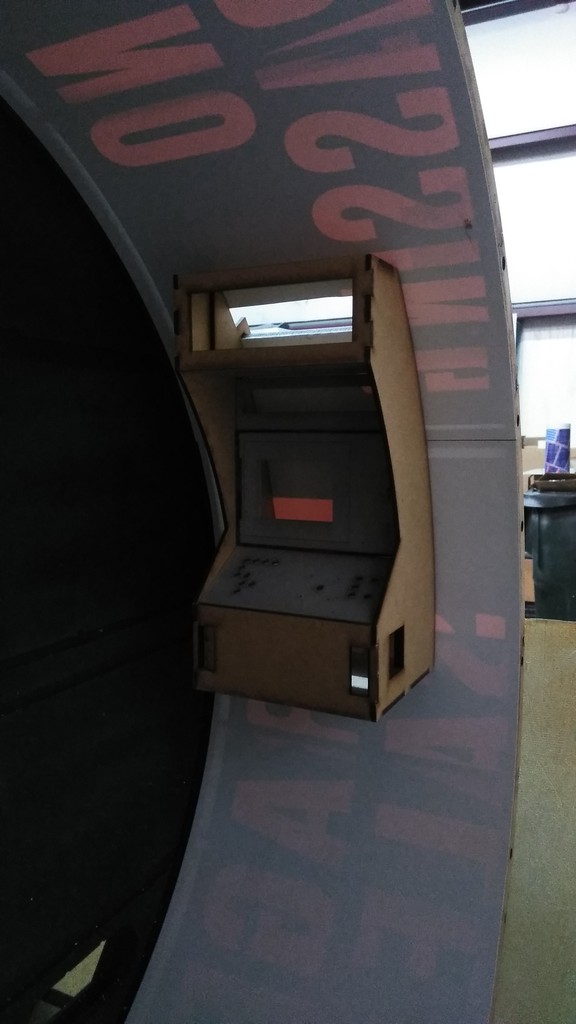

Temp added some beauty panels

And this...

Is where we "were"

This weekend's update... On the Way!

Stay Tuned!



[SofaKing01]

Hi Gang...

What the heck... the internet is working, Photobucket hasn't crashed and I have time... Let's get this weekend's activities posted! Part I of VI!

Part I: The Cockpit Nose

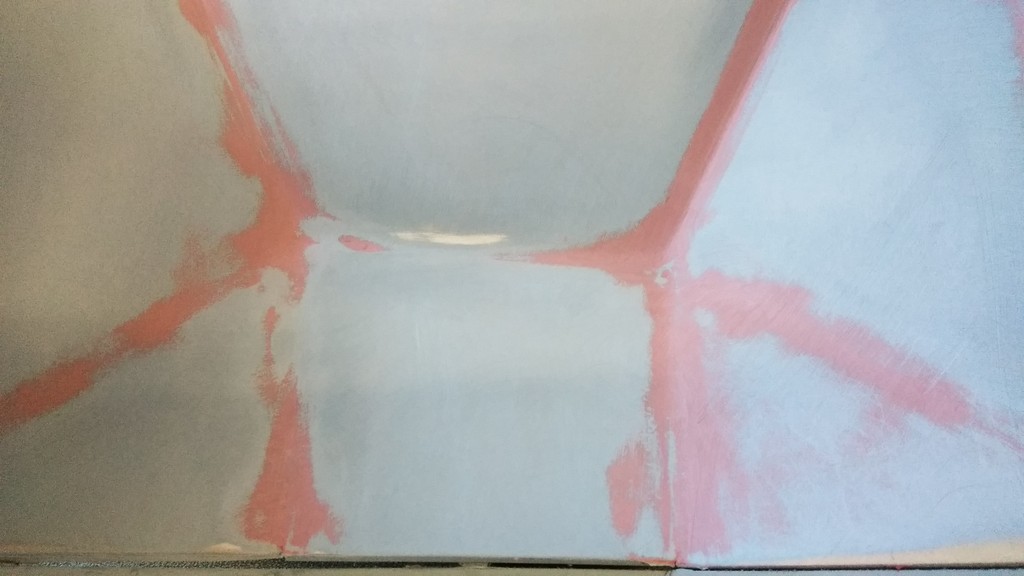

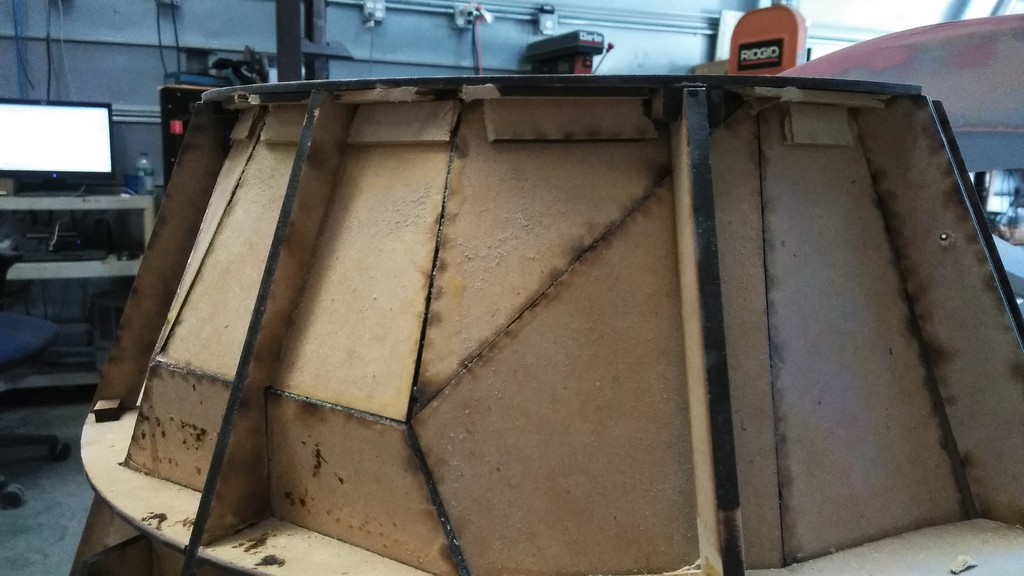

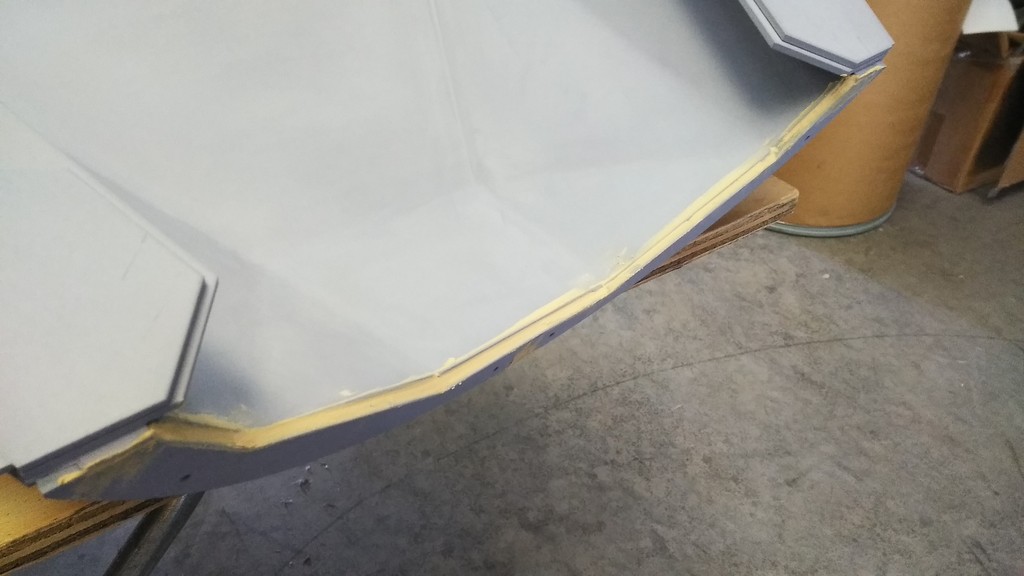

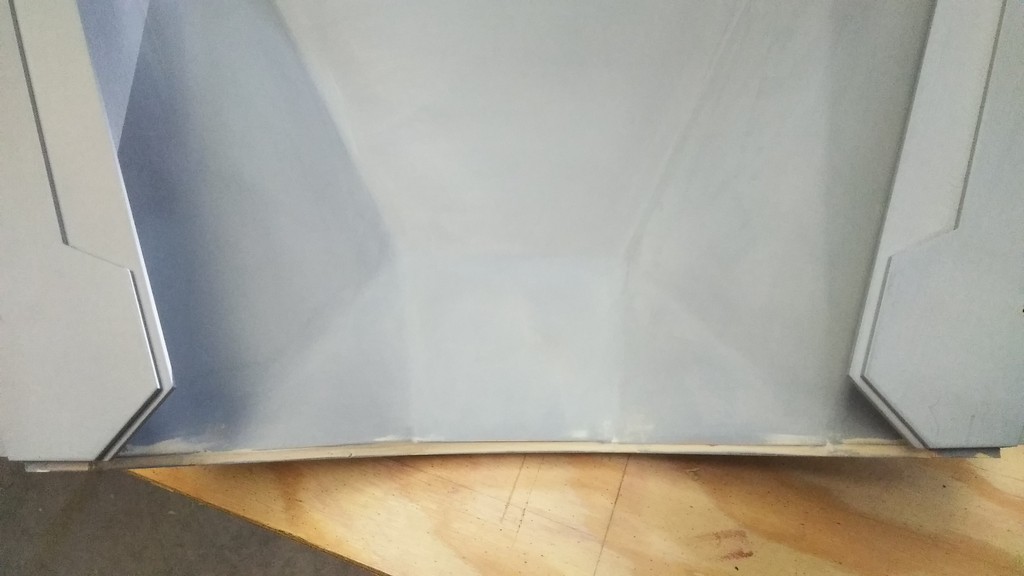

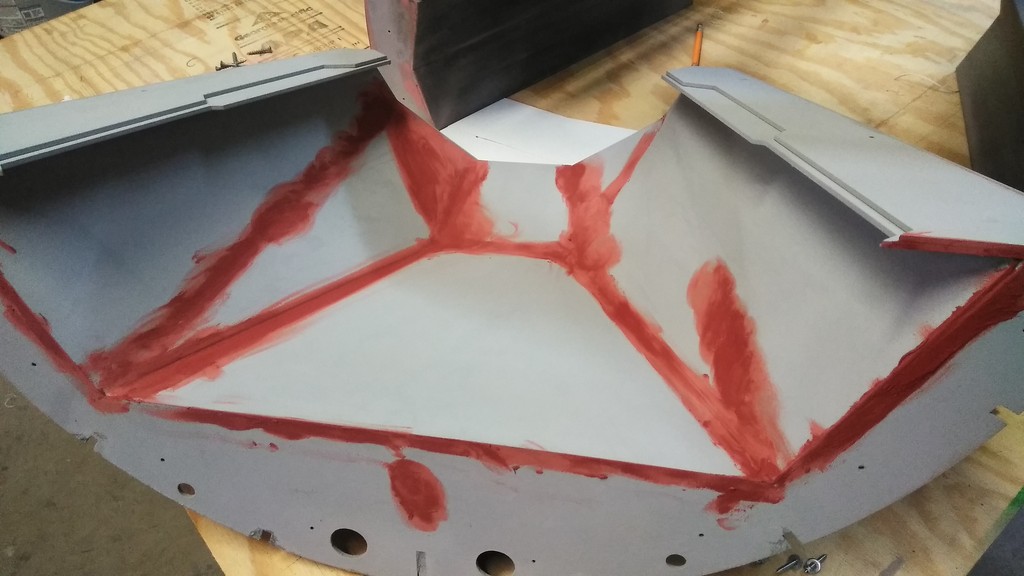

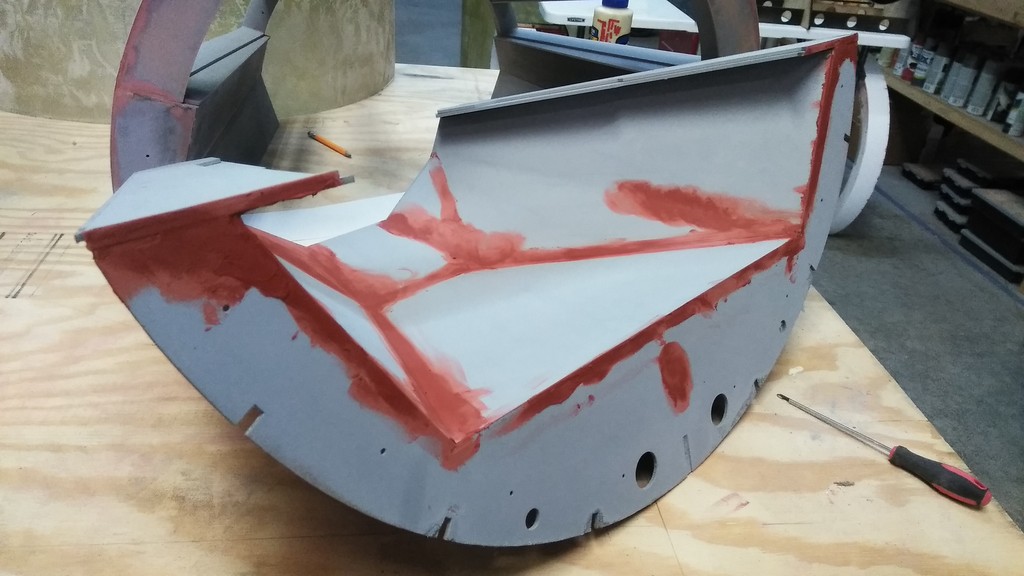

I spent a LOT of time trying to get the floor of the nose smooth

I spent a LOT of this weekend sanding...

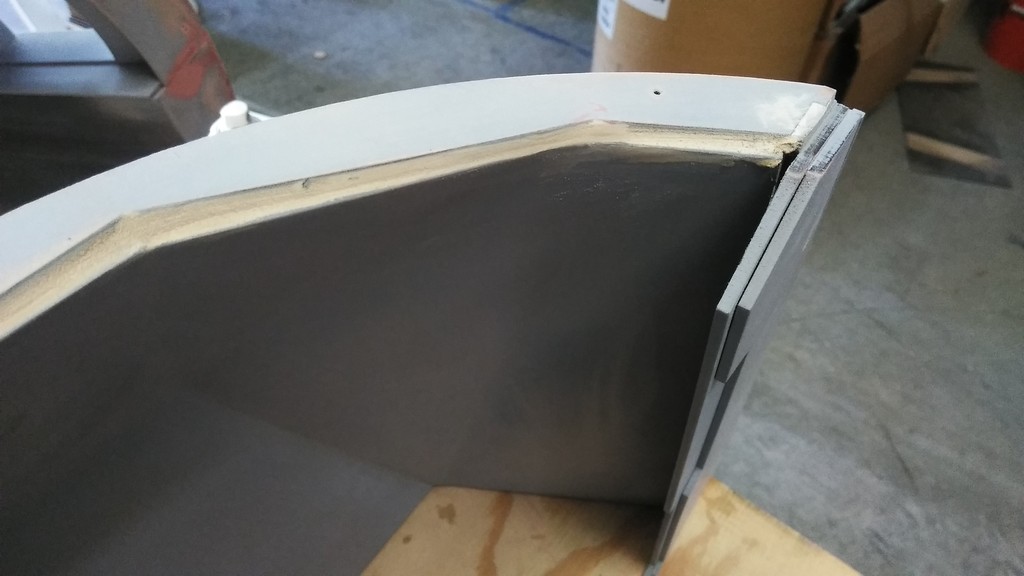

I reinforced the underside of the nose - its ugly but it worked!

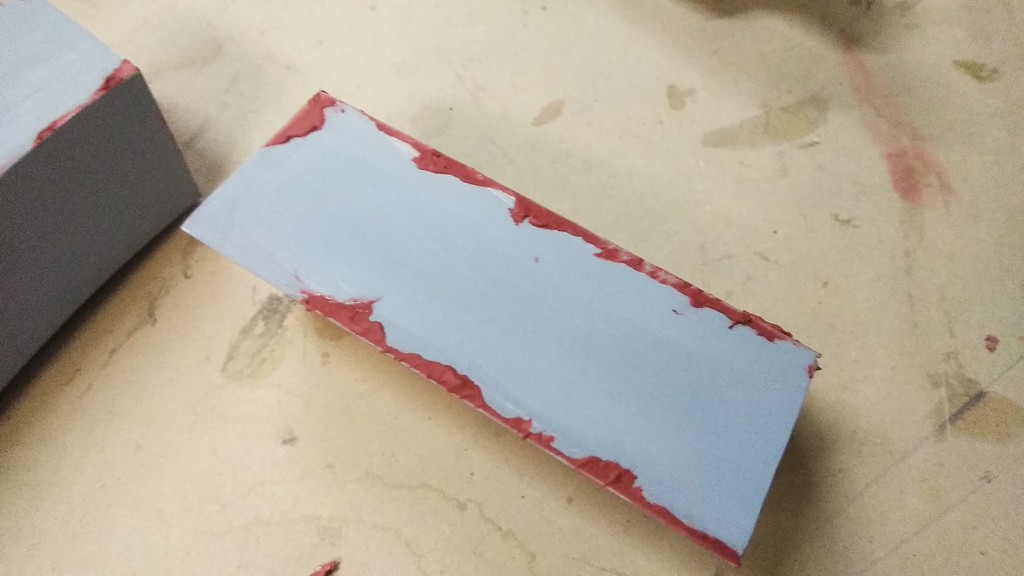

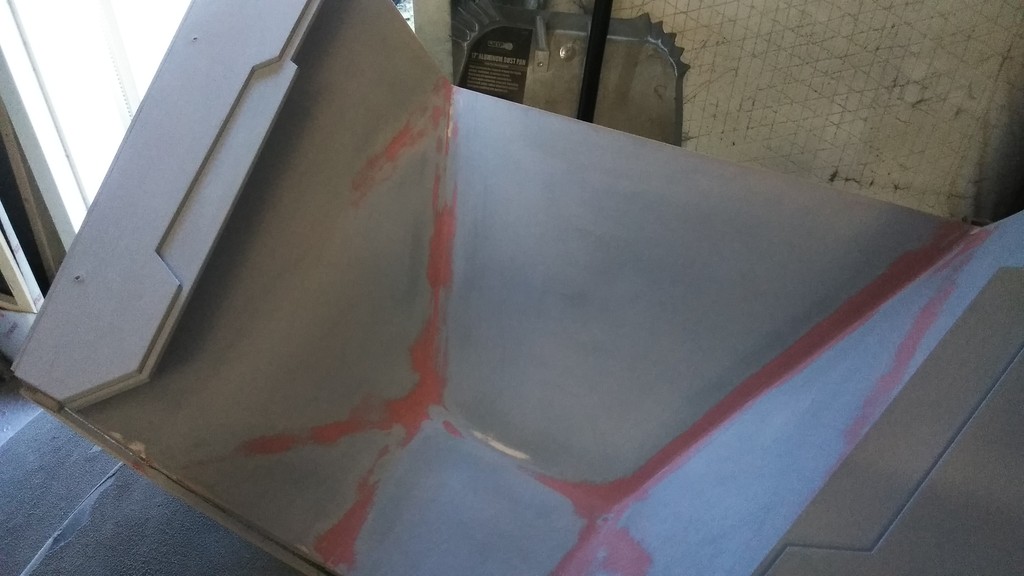

Added some filler

Sanded the edges clean

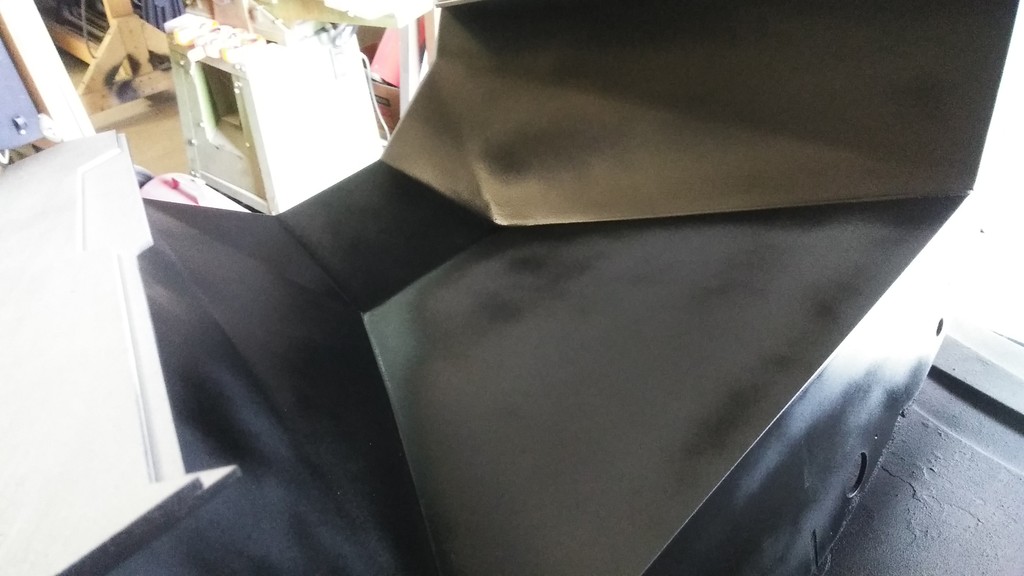

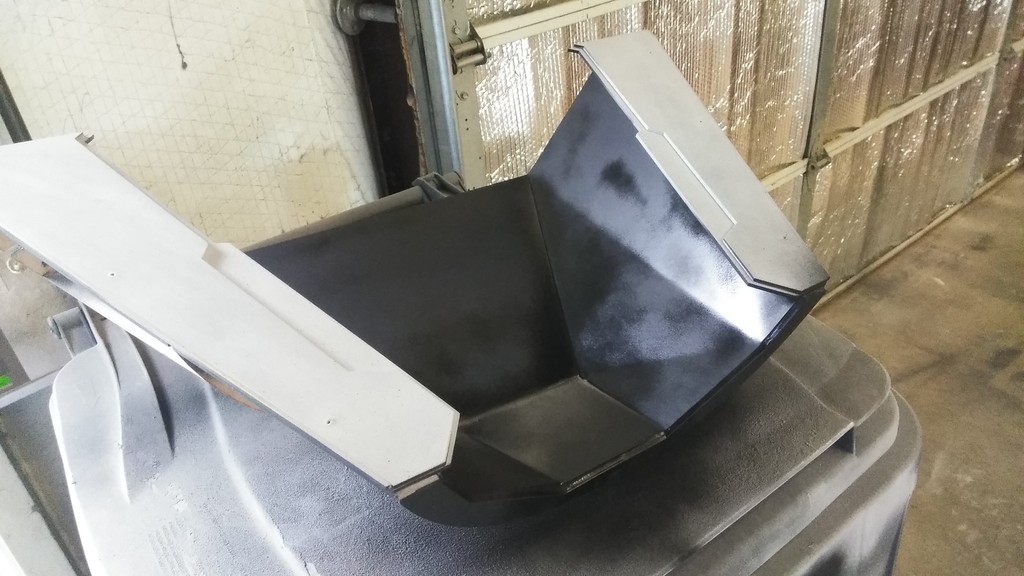

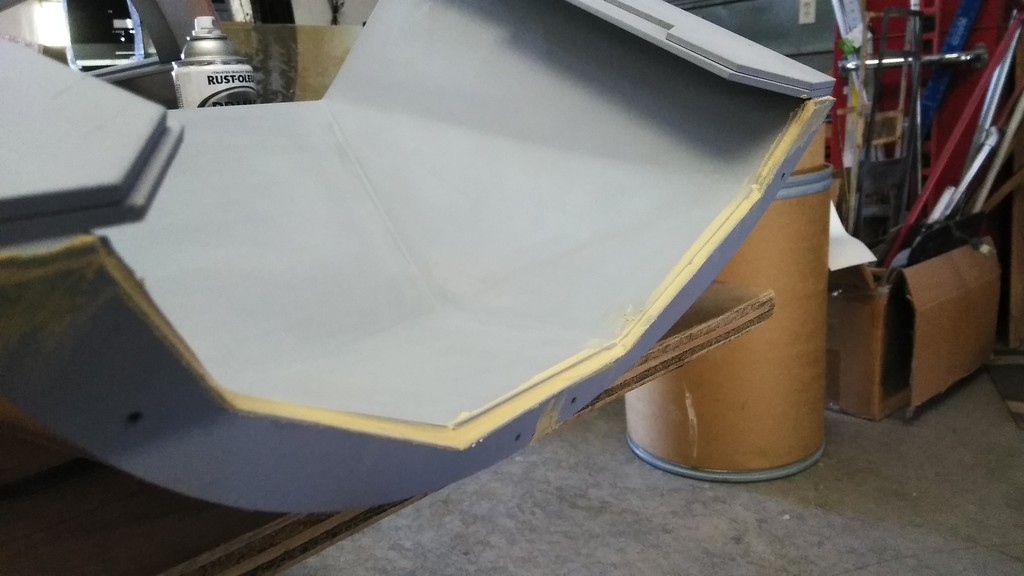

Then to change things up I sprayed black primer - I love the look! It's so close to final

More to Follow!

Working on EP 3 for the YouTube channel that highlights this weekend's progress... Stay Tuned!



[Snow Builder]

As always, fantastic. We had great weather this weekend, hopefully a little of it went your way.



[SofaKing01]

Hi Gang,

Another update!

Part II: The Fiberglass Skin

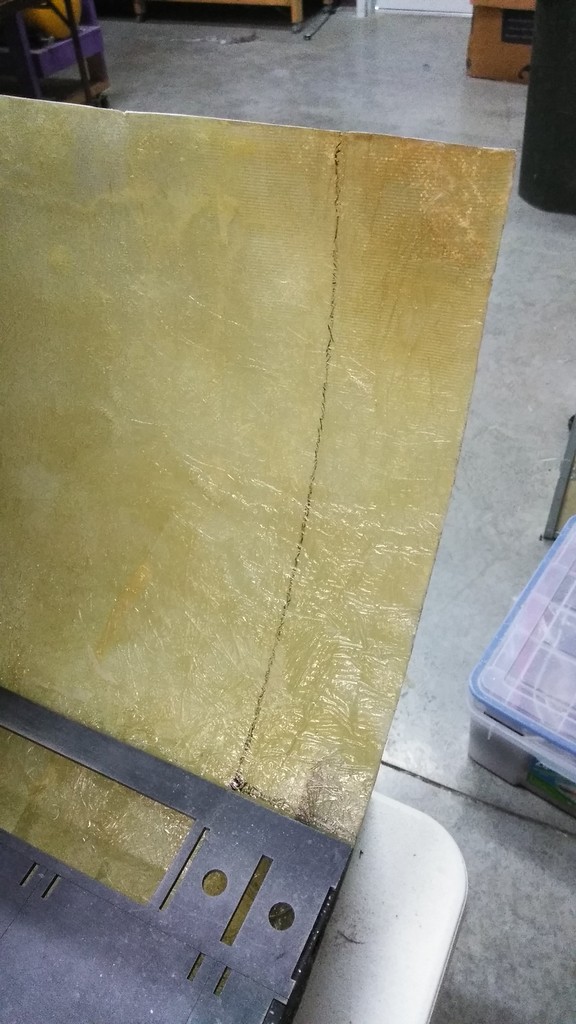

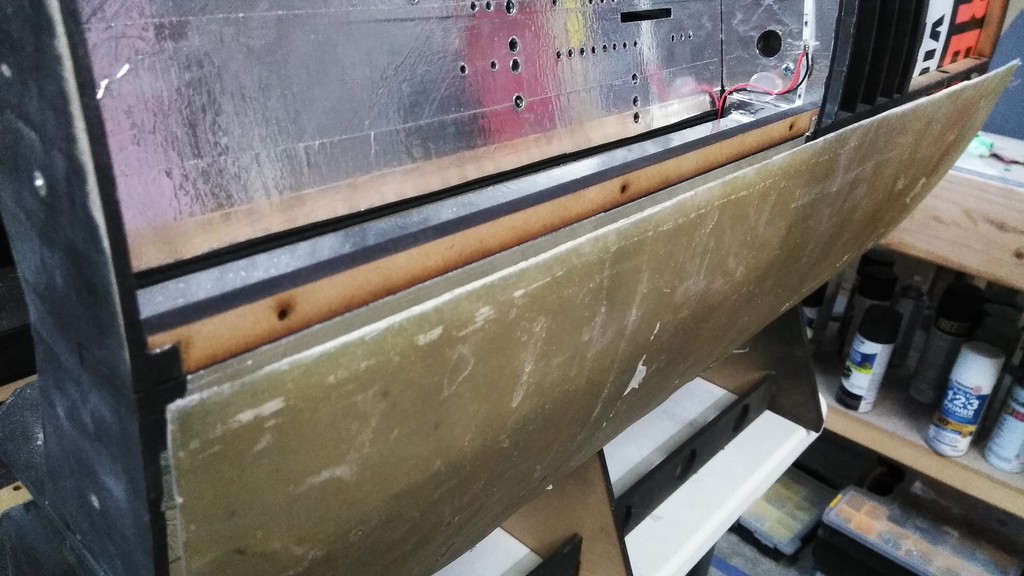

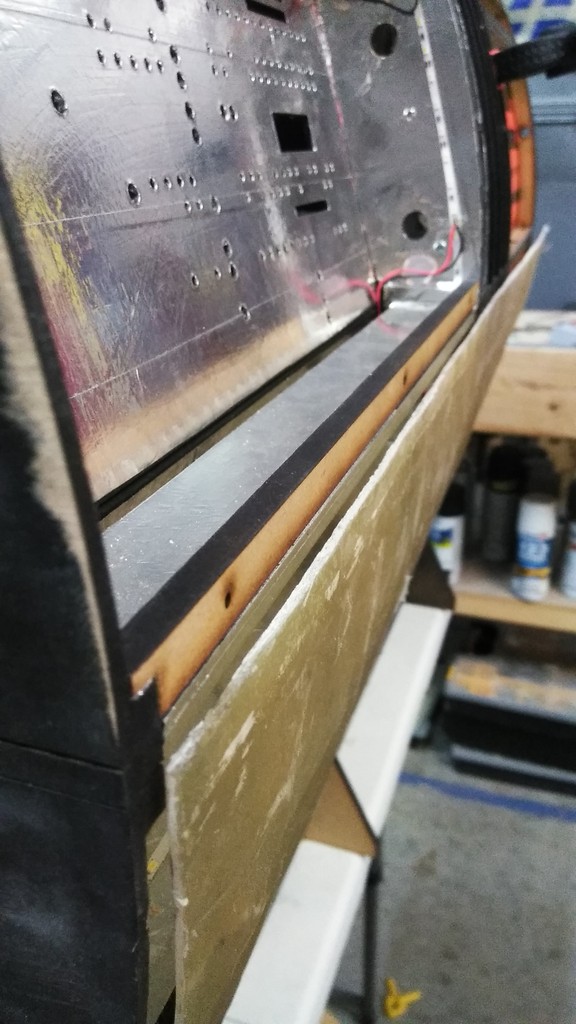

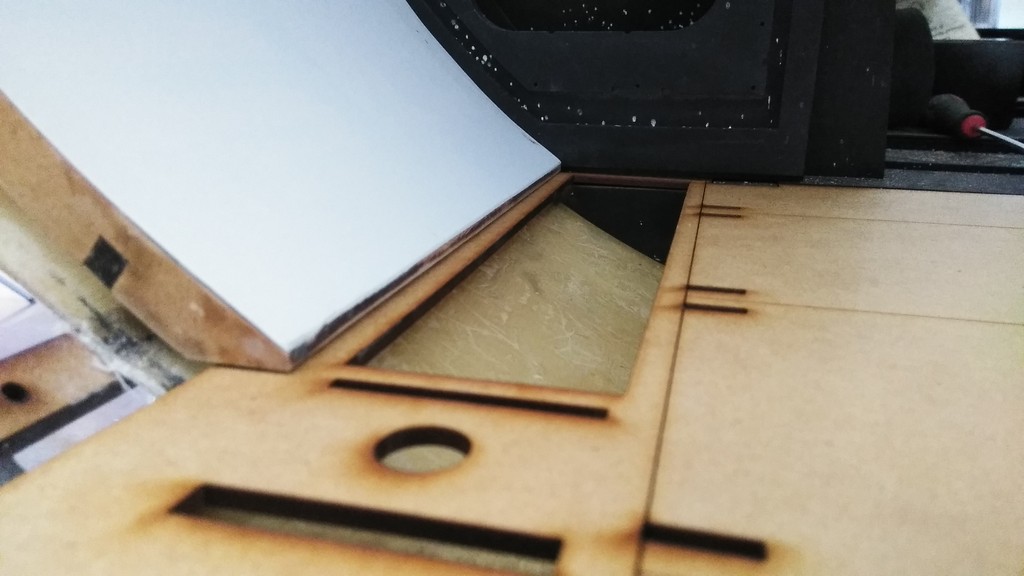

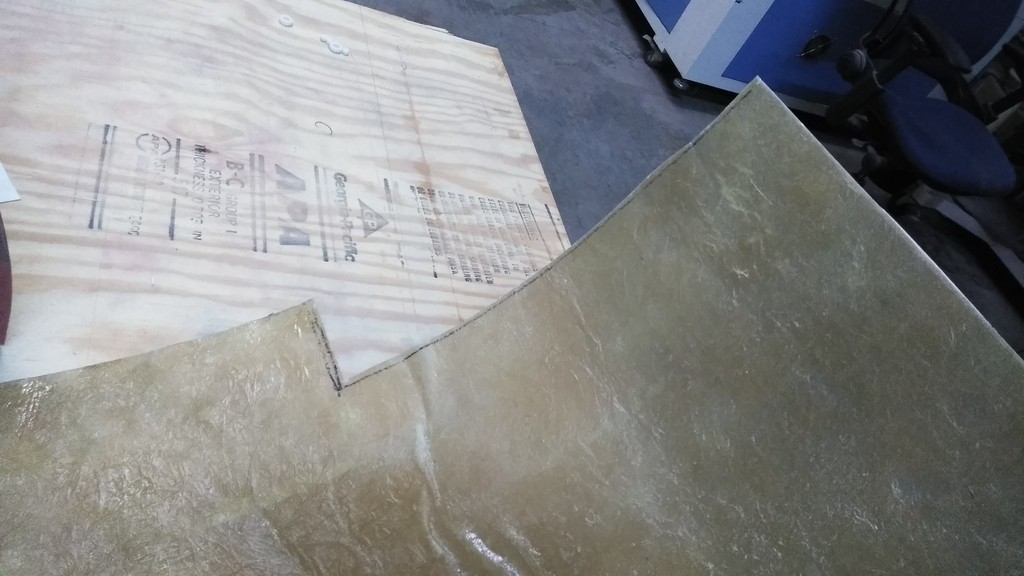

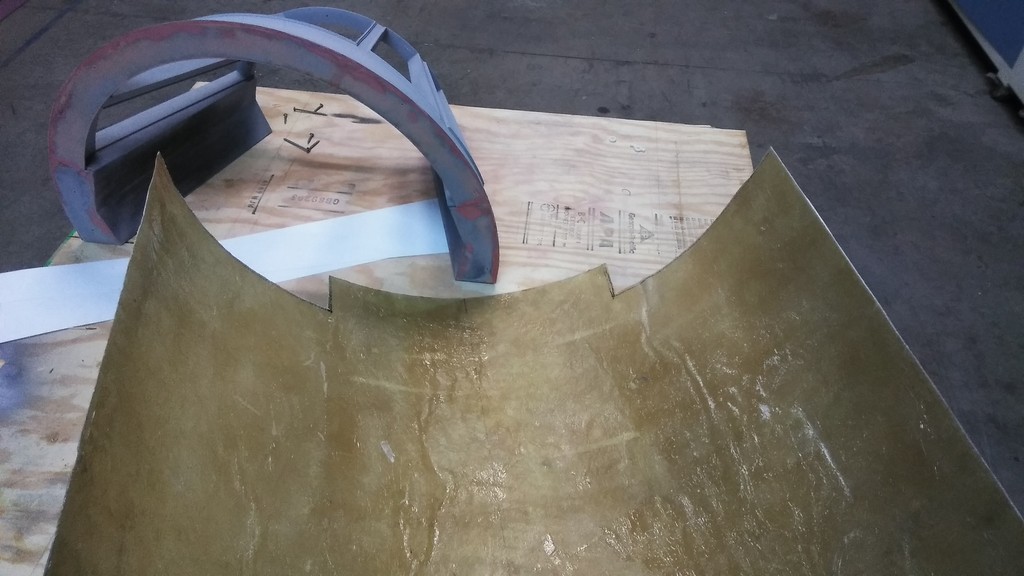

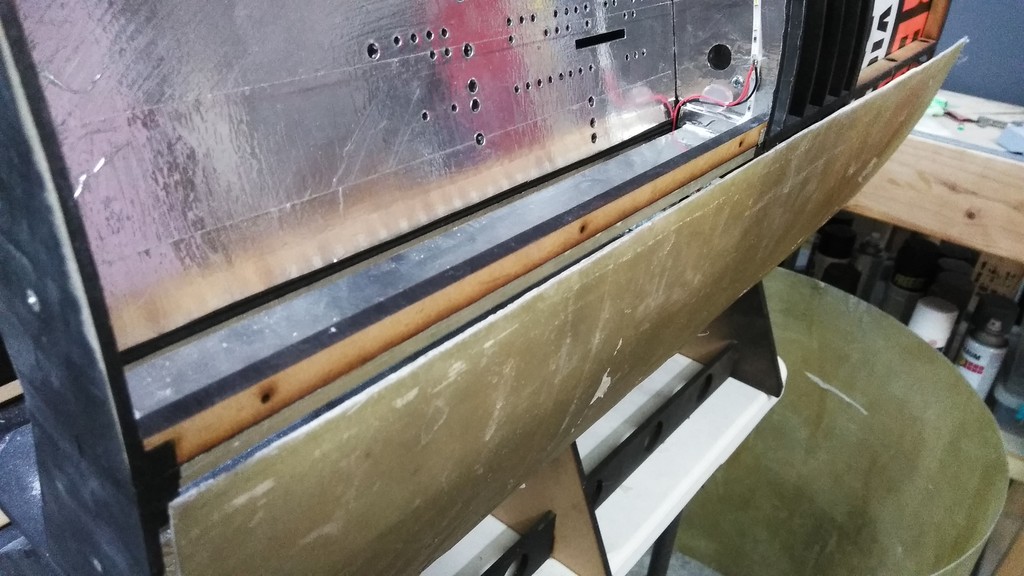

Just as I cut the upper skin I mod'd the lower fiberglass skin

I notched the sides leaving the bottom to cover the frame

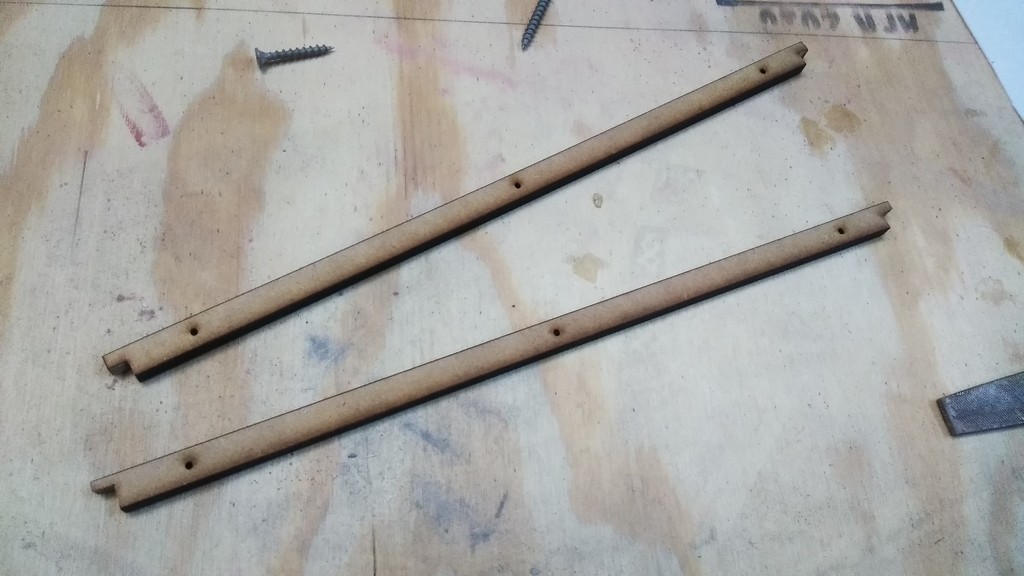

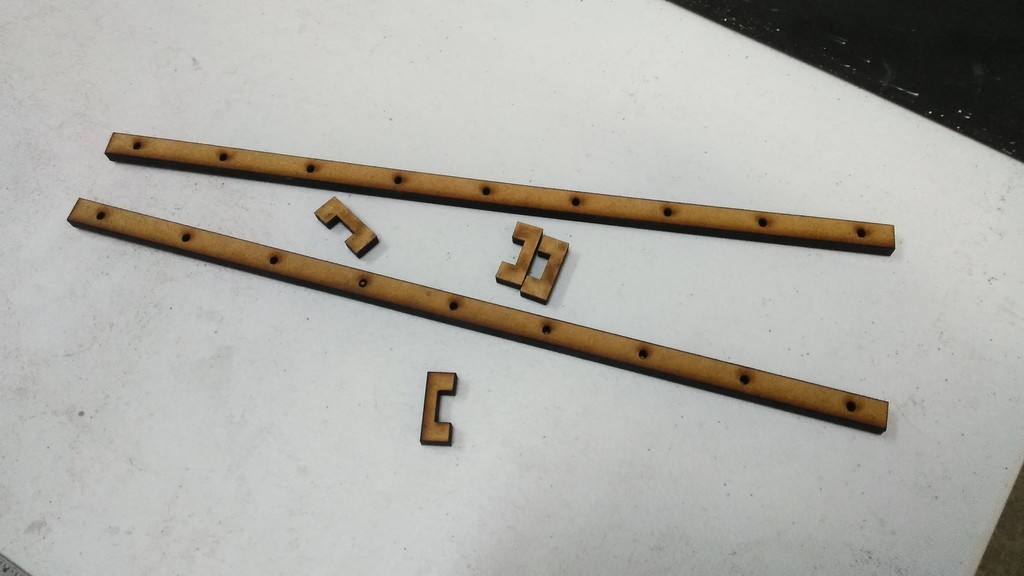

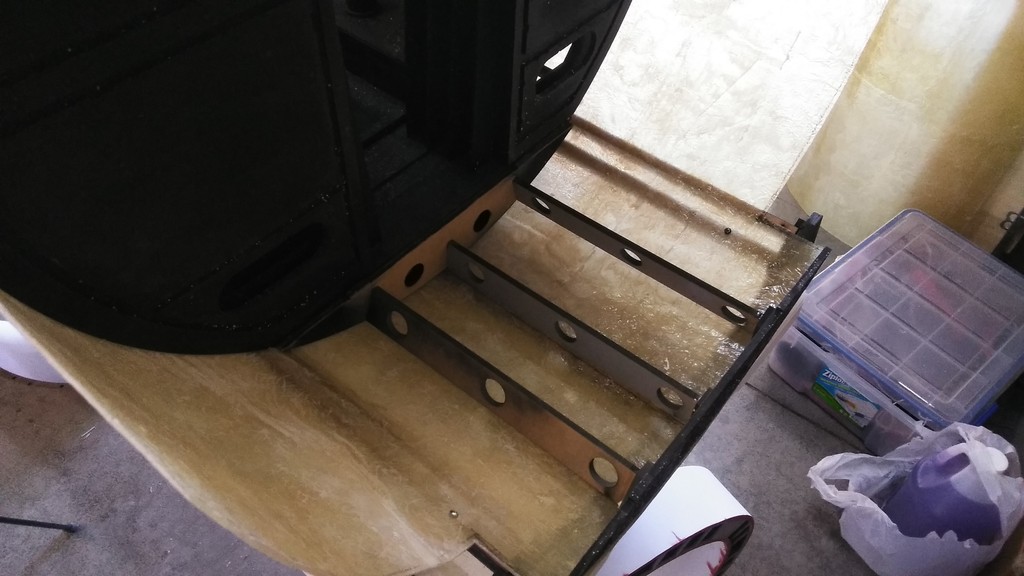

I laser cut these mounting strips

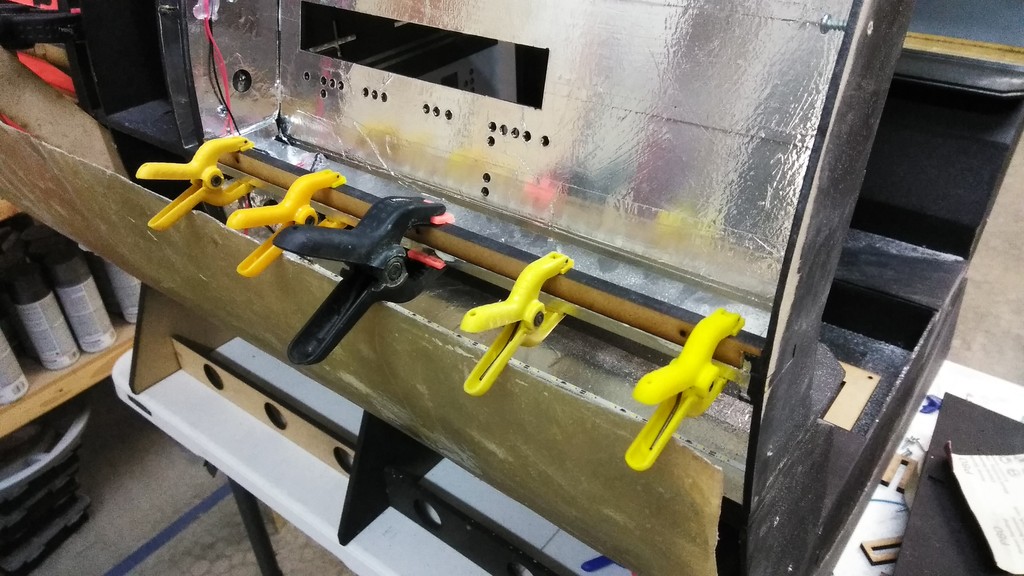

And adhered to the frame for the skin to mount

Part III - on the way!



[SofaKing01]

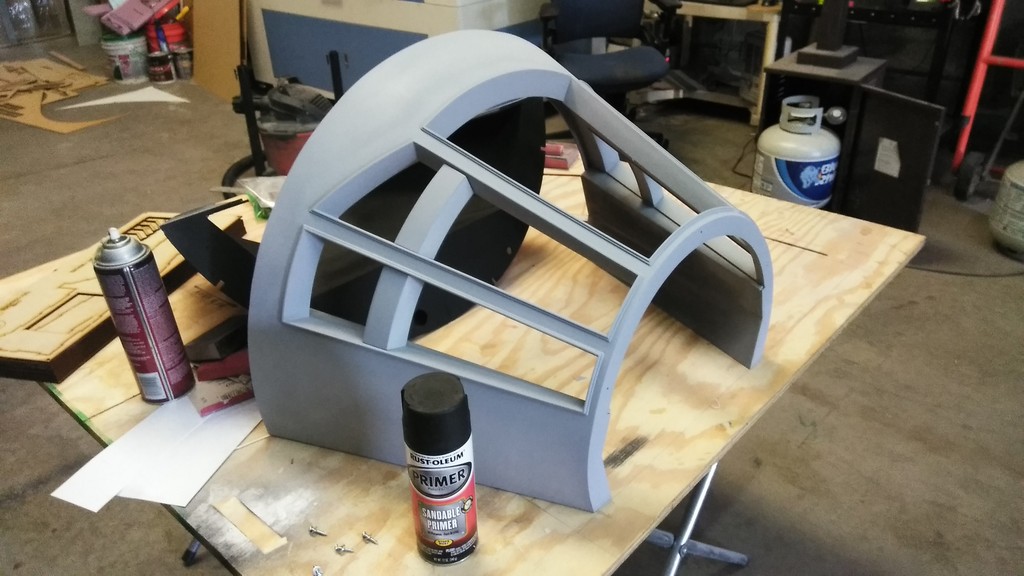

Part III: The Canopy

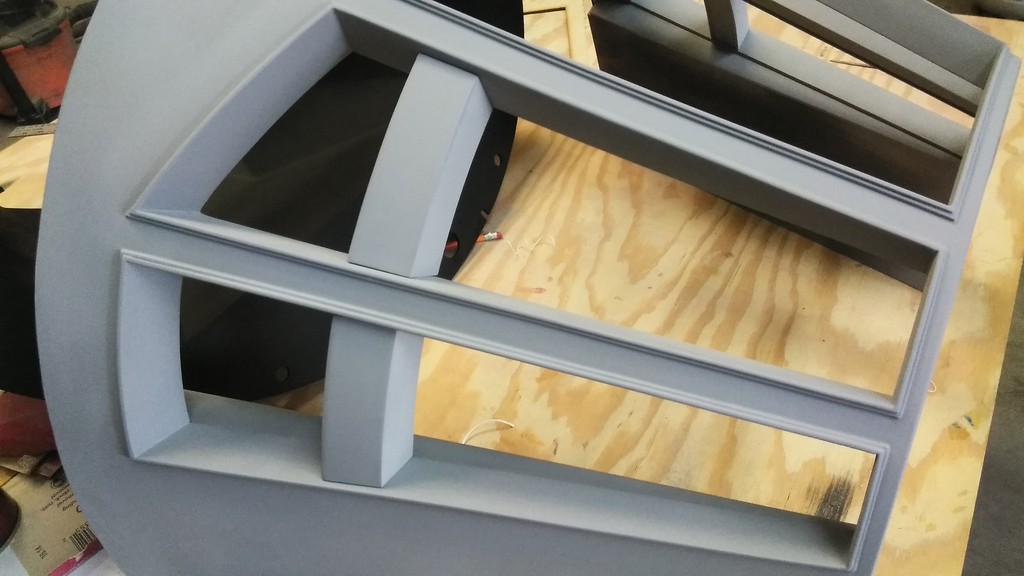

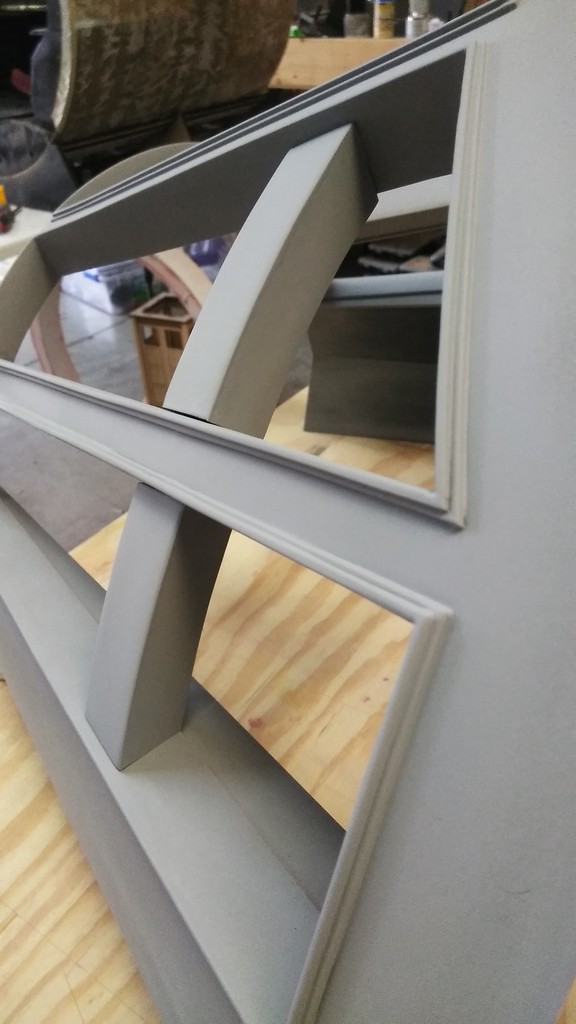

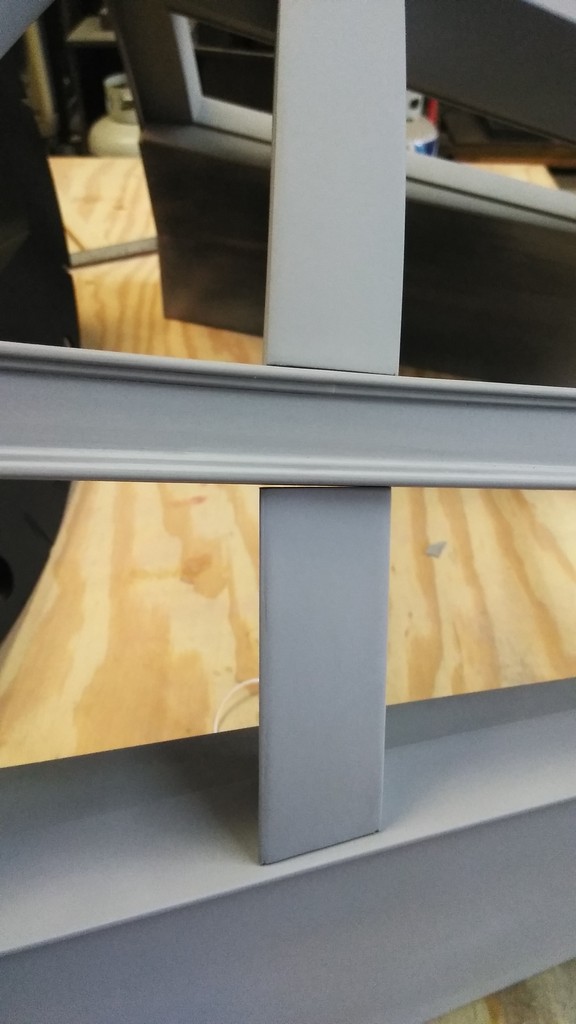

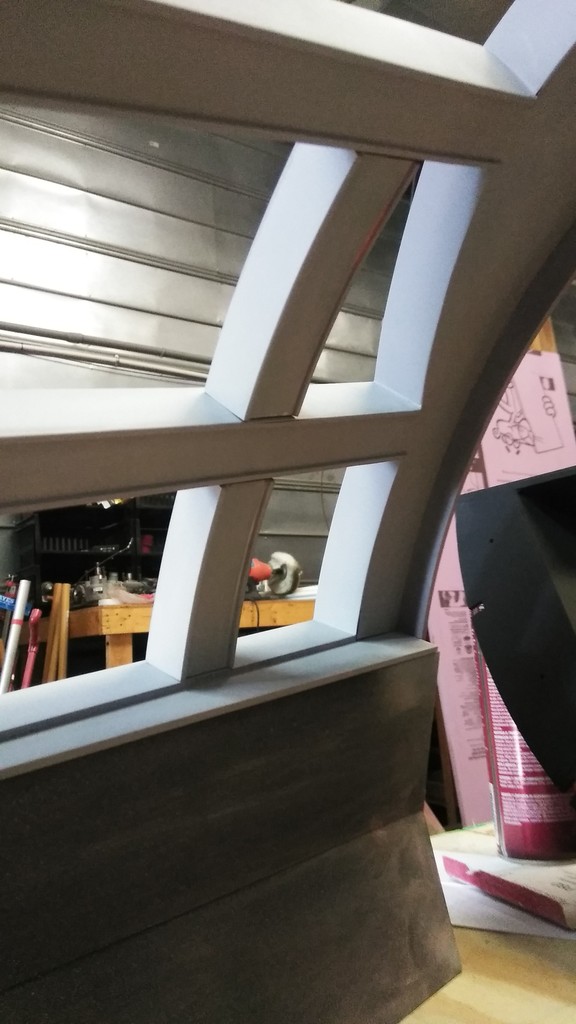

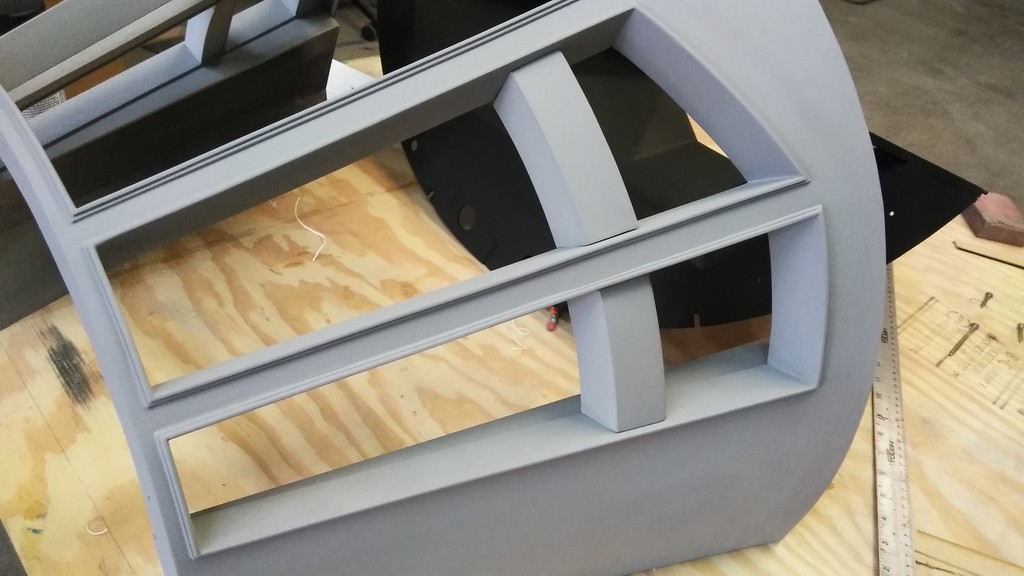

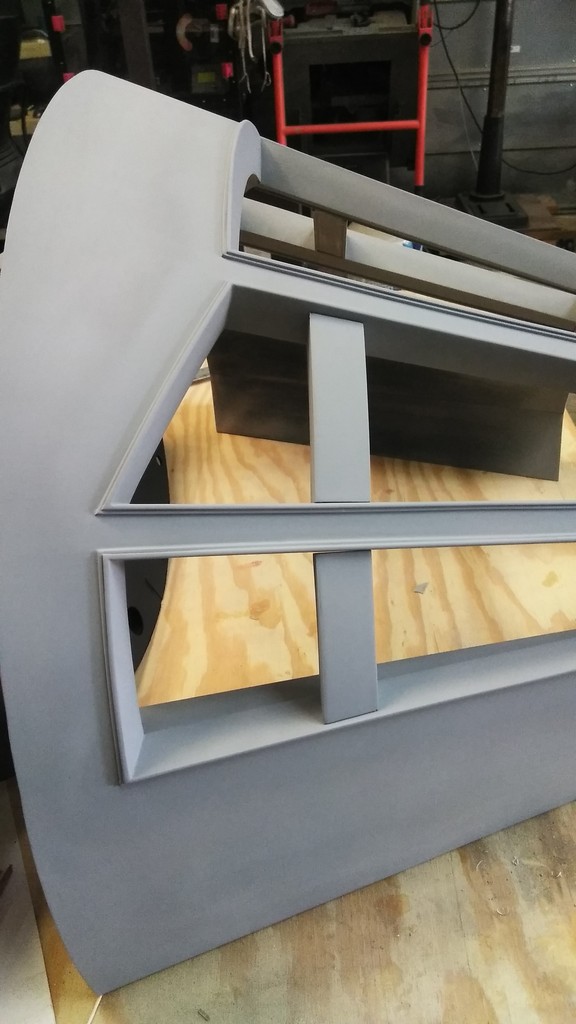

Work on the canopy continues - but we're getting close! Smoothed out the vertical beams

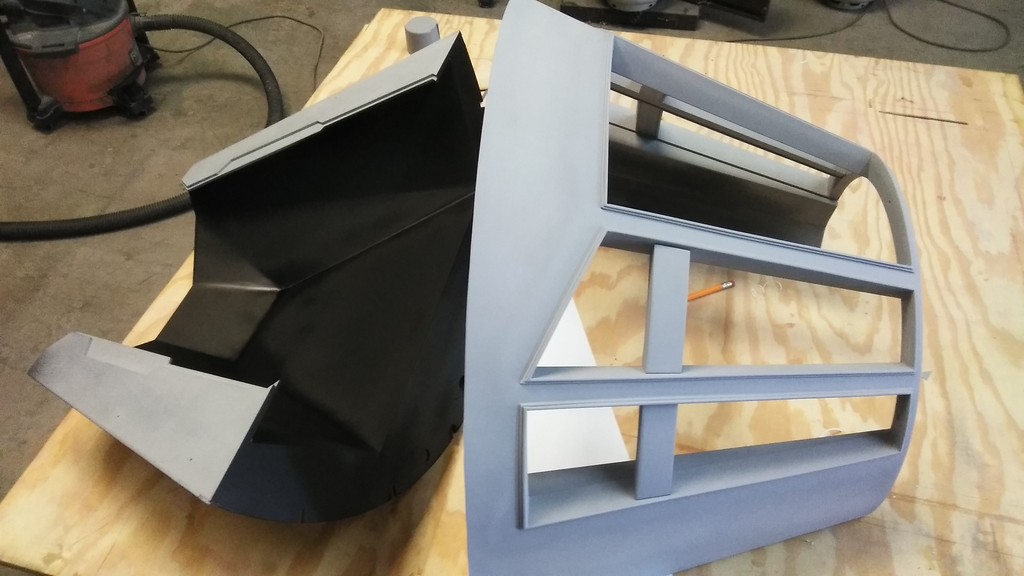

Painted the nose interior floor black and temp placed the vert beams

DEF a few gaps to fill

Love that angle!

The interior is going to be FUN!

More to Follow!



[SofaKing01]

Hi Gang,

Part IV: The 1/4 Scale Maintenance Console Greeblies

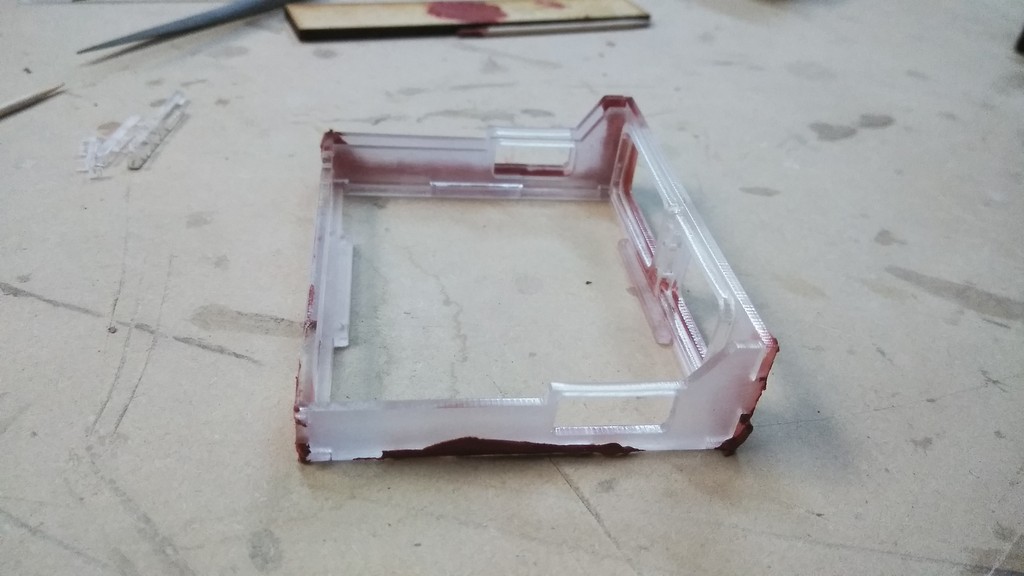

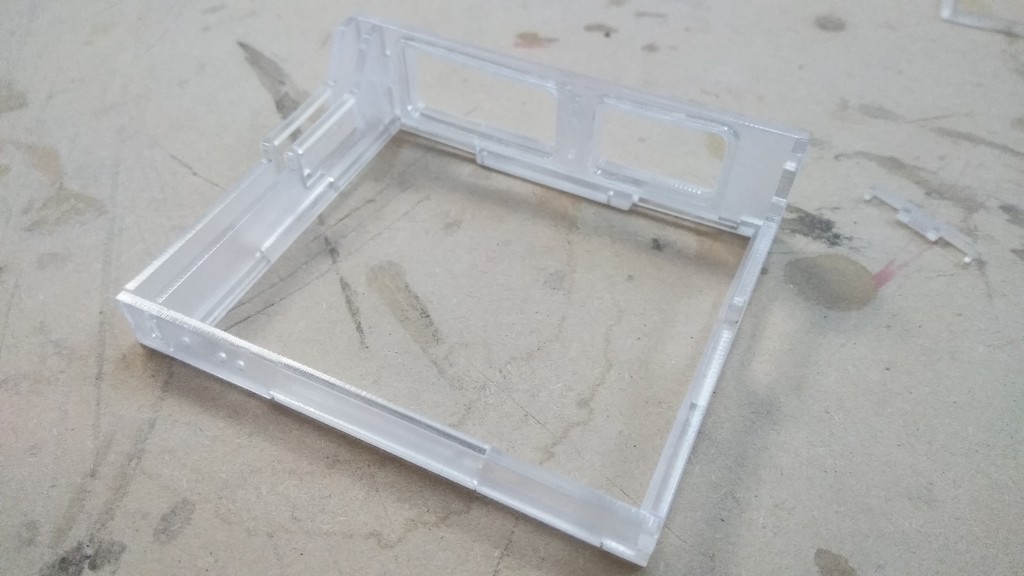

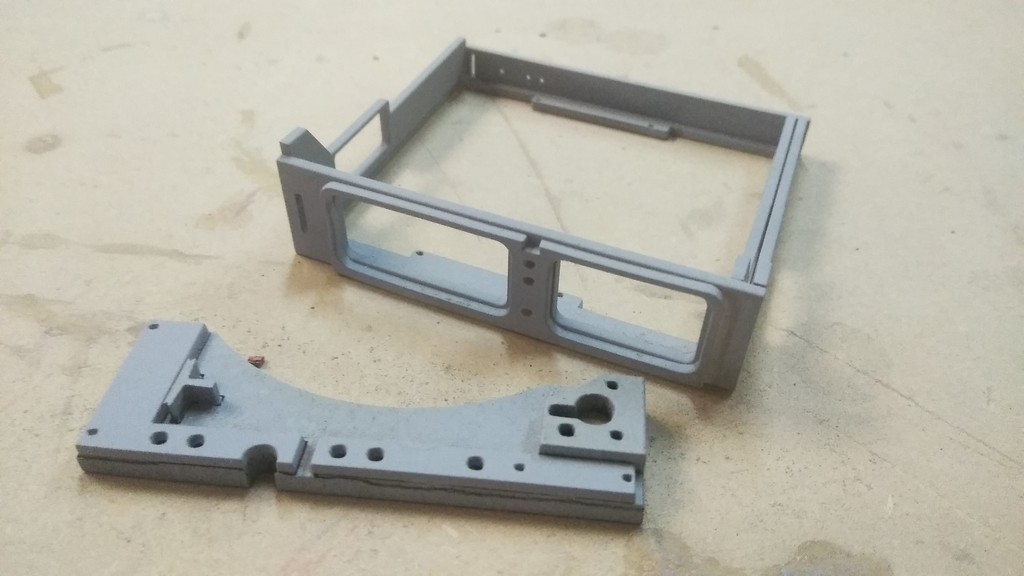

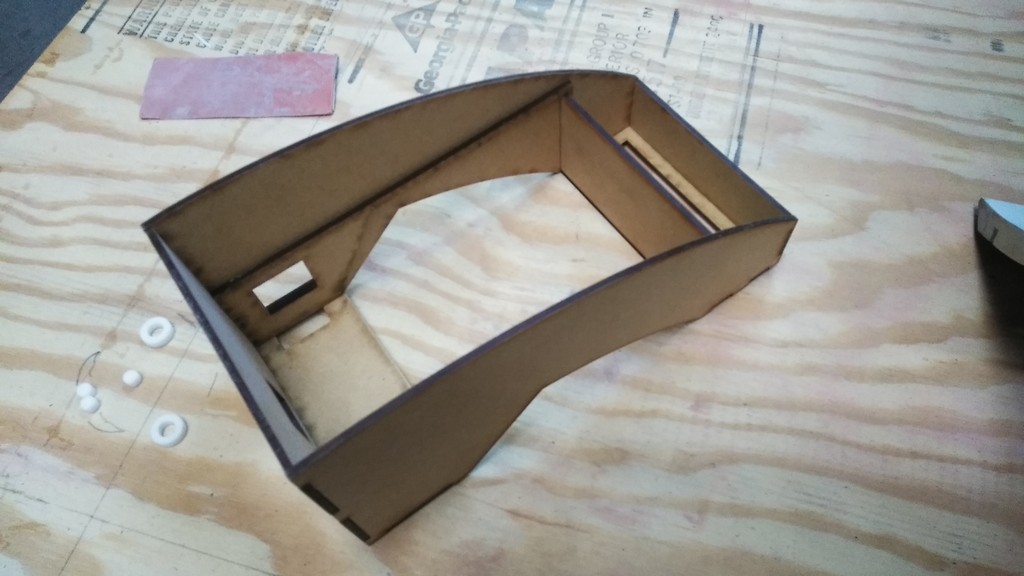

I redesigned this monitor surround with tabs for easier assembly

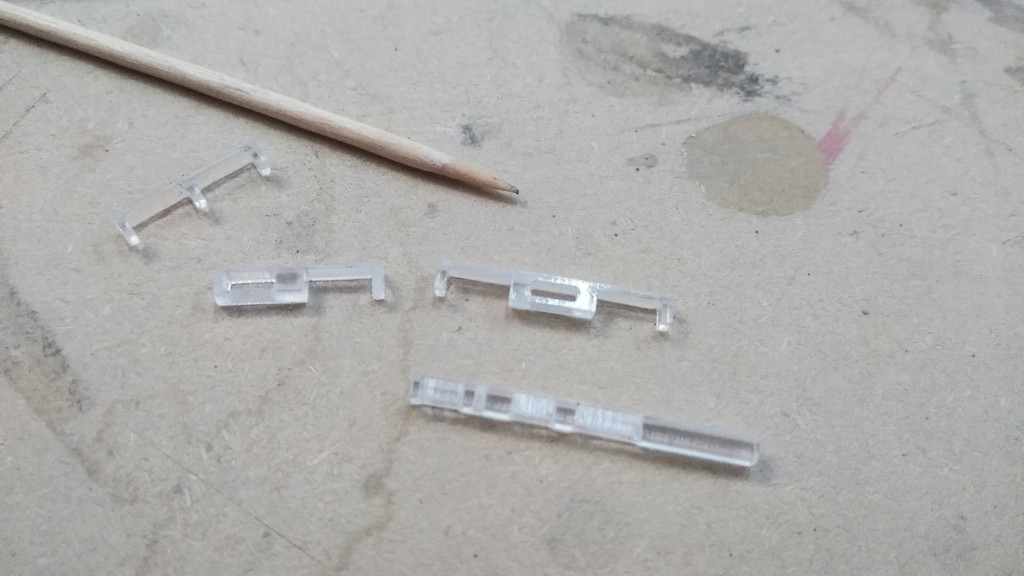

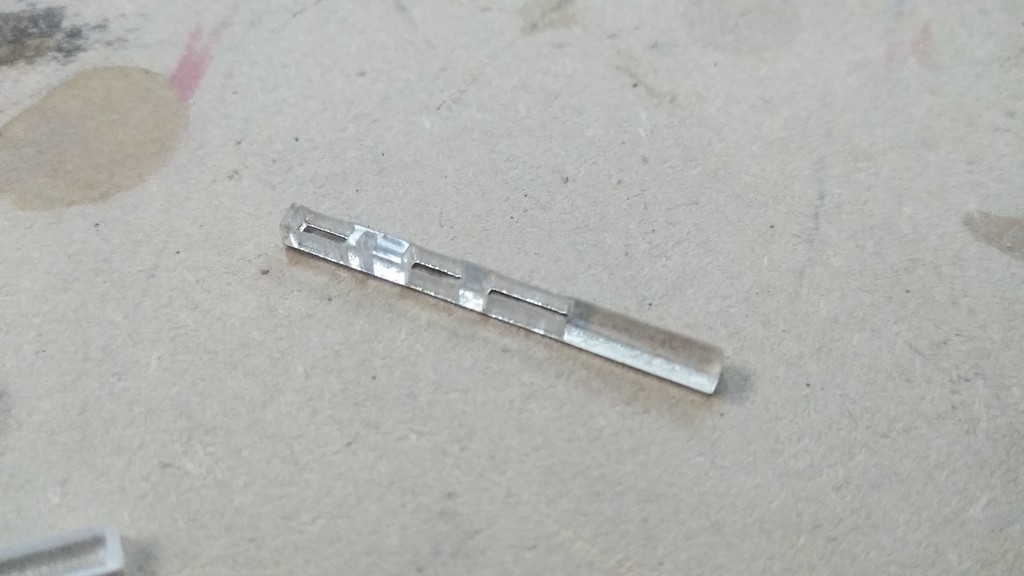

That's not a pencil... that's a toothpick! More little details laser cut and ready

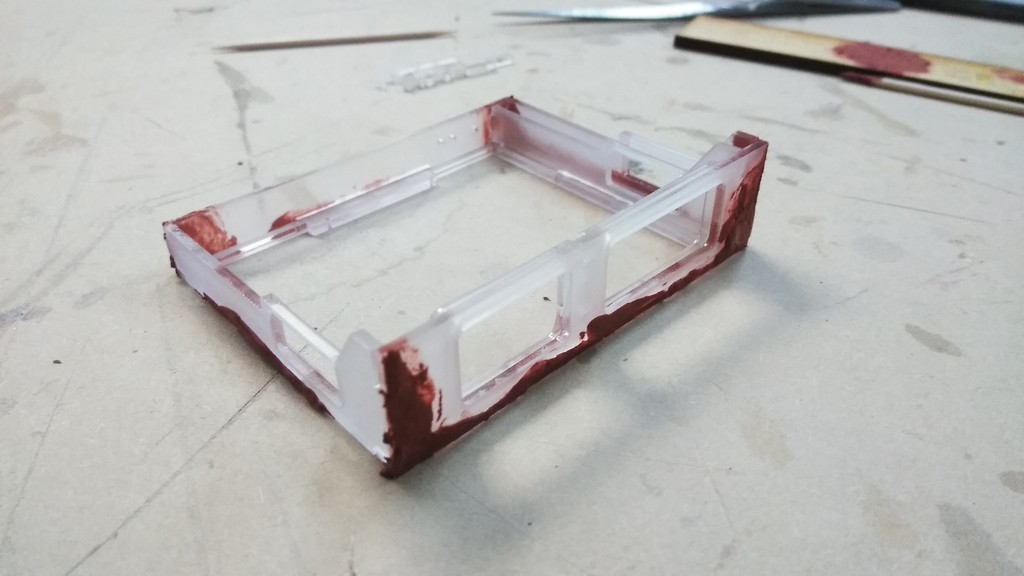

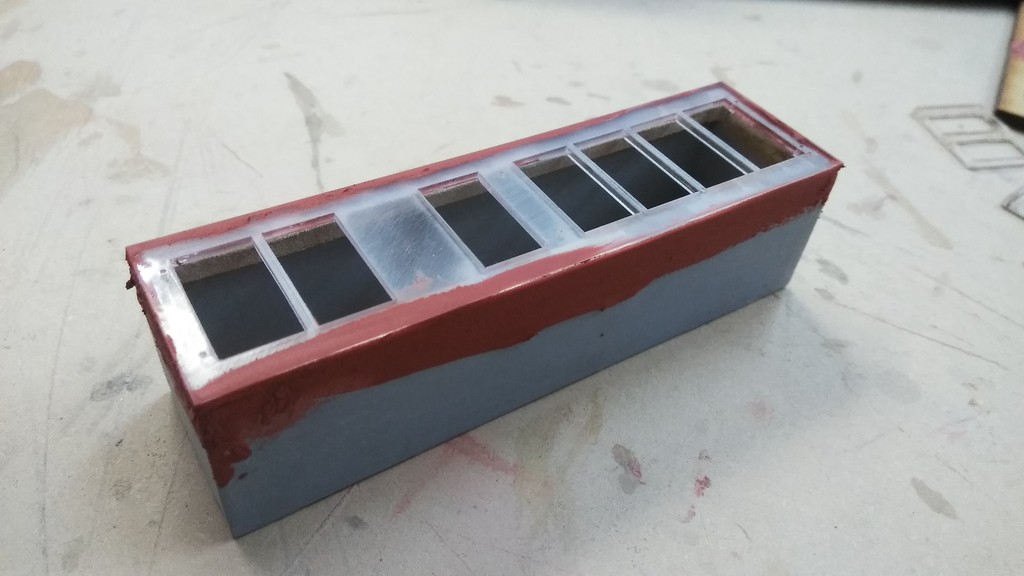

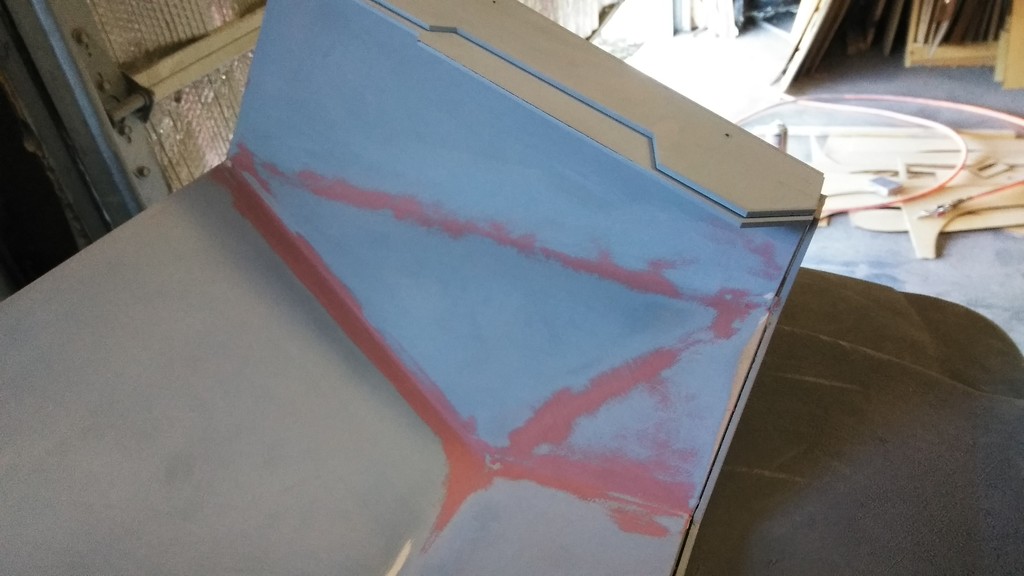

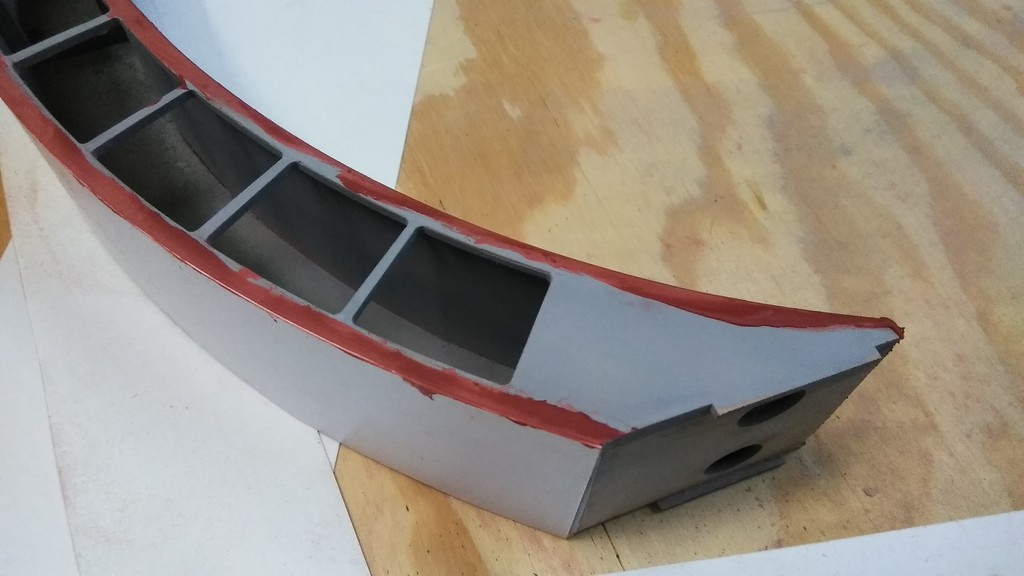

Filler

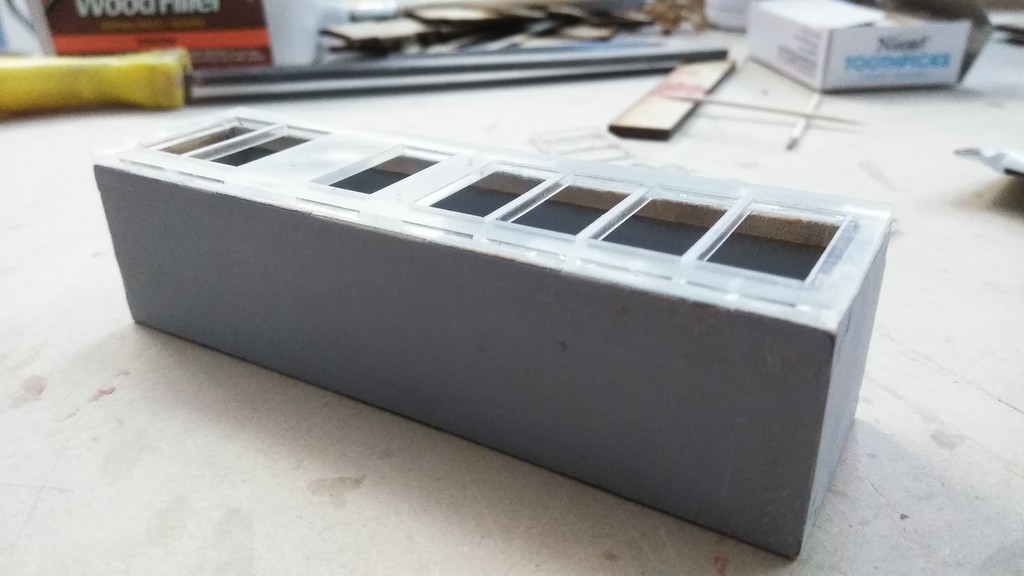

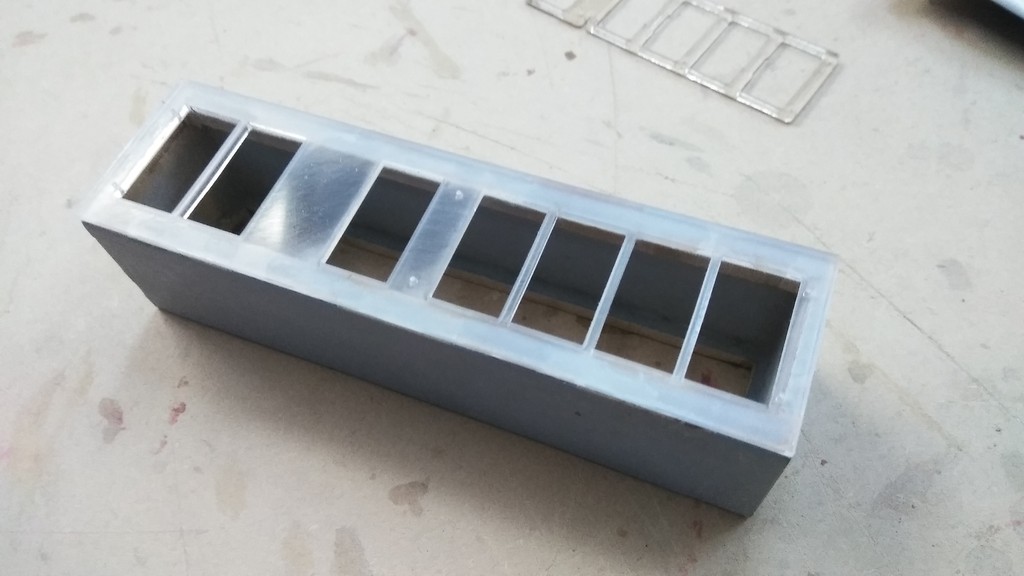

I fabricated a new "Gauge Cluster"

Cover & Trim Plate

Cover plate sanded and attached

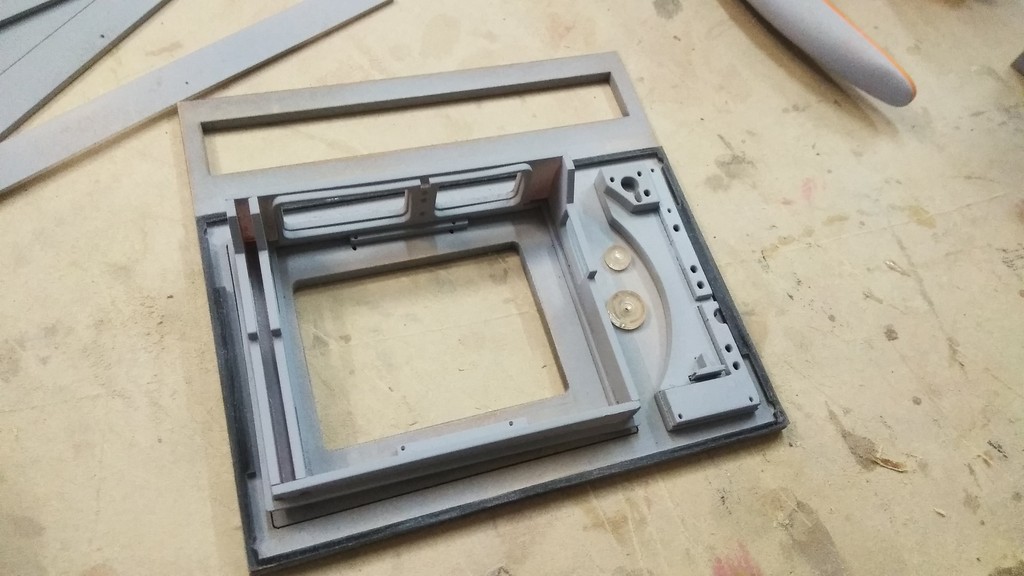

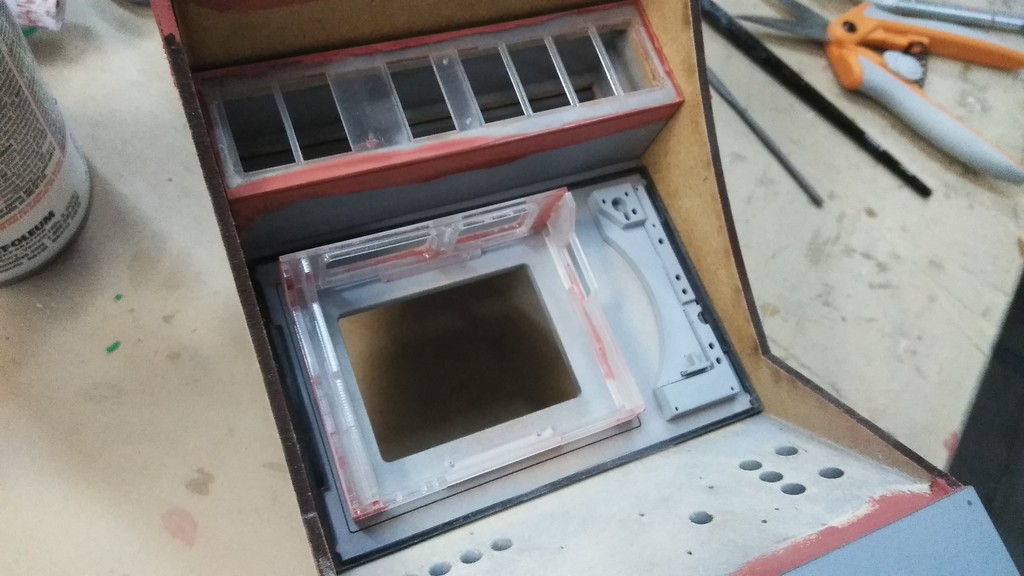

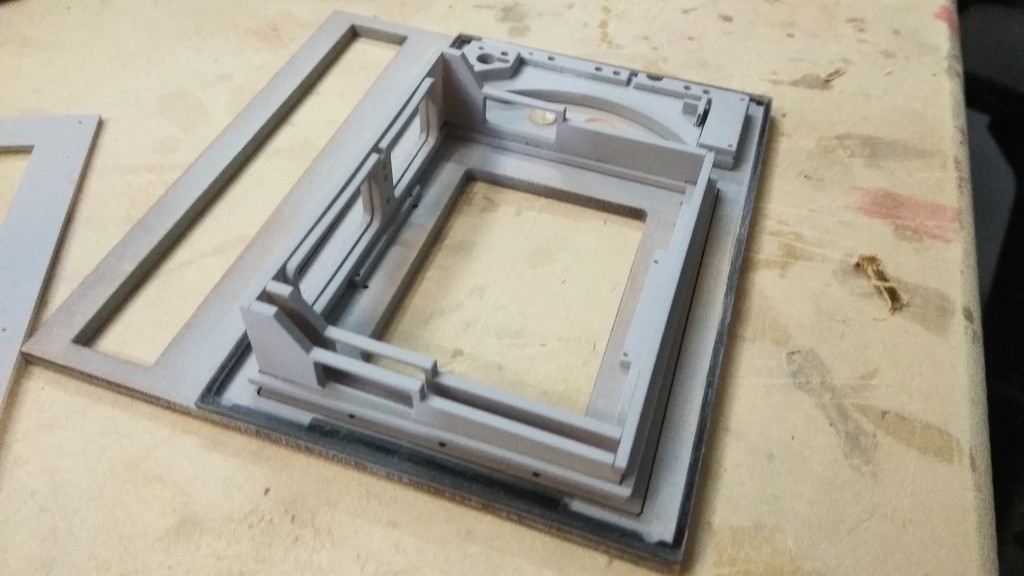

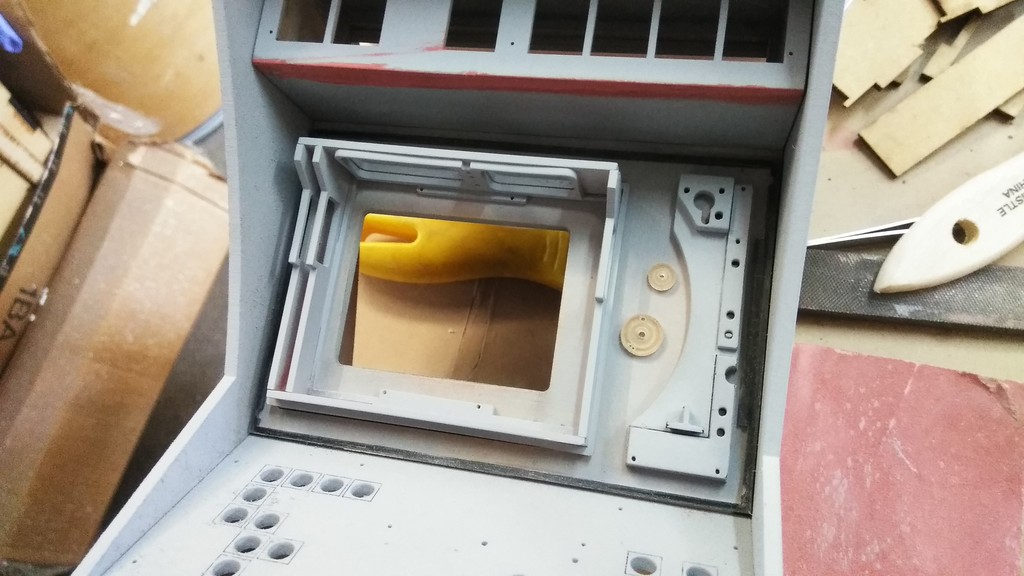

Monitor panel with dry fitted parts

More to Follow!



[Katuna]

A toothpick? Yikes! You'll go blind man!



[SofaKing01]

Hi Gang,

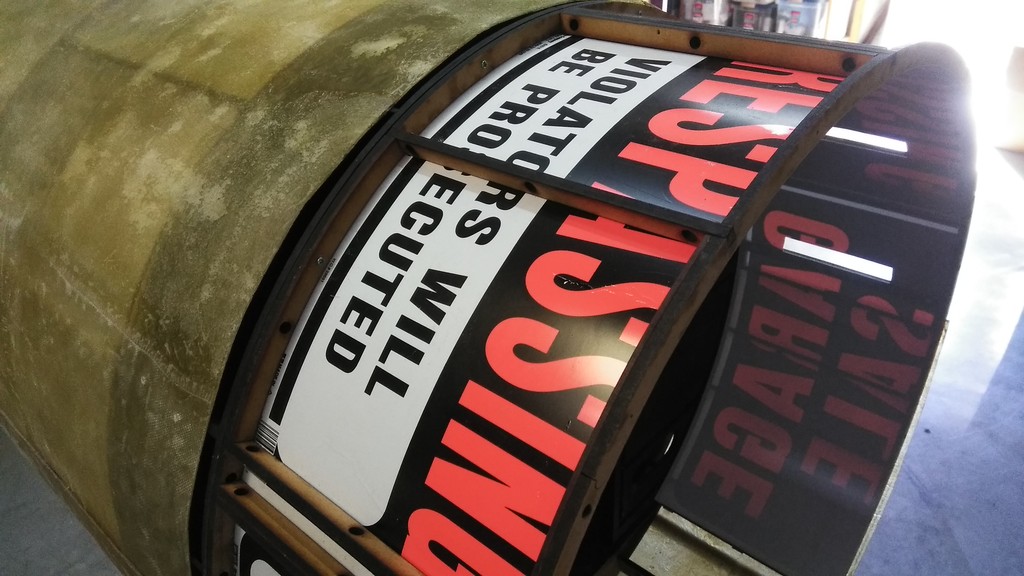

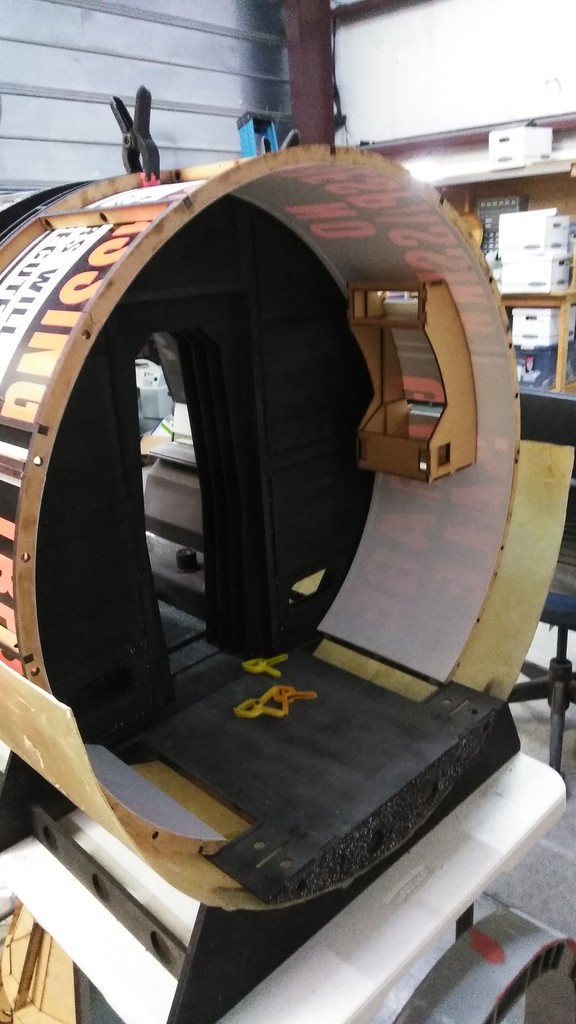

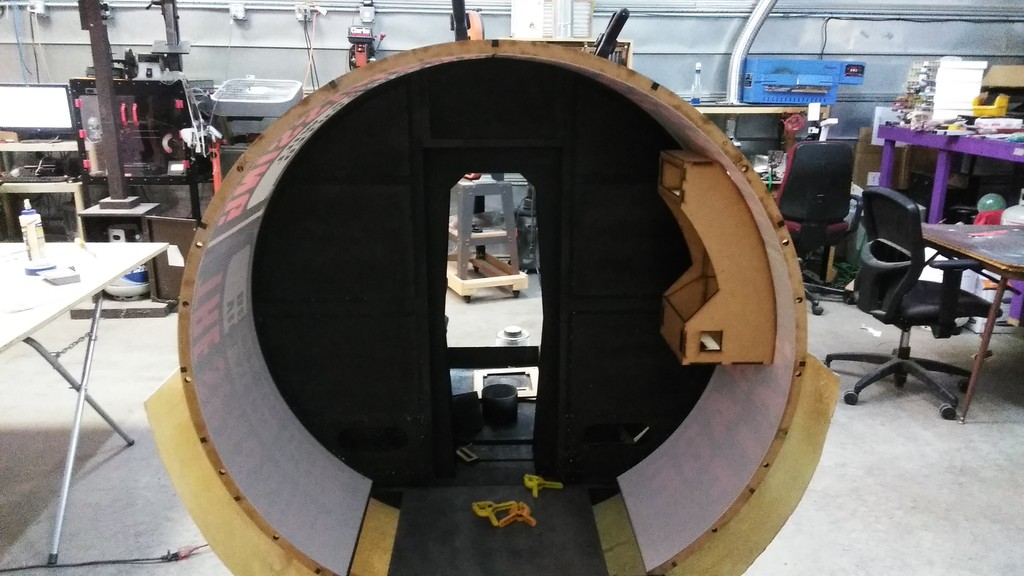

Part V: The Corridor Wall & Entrance

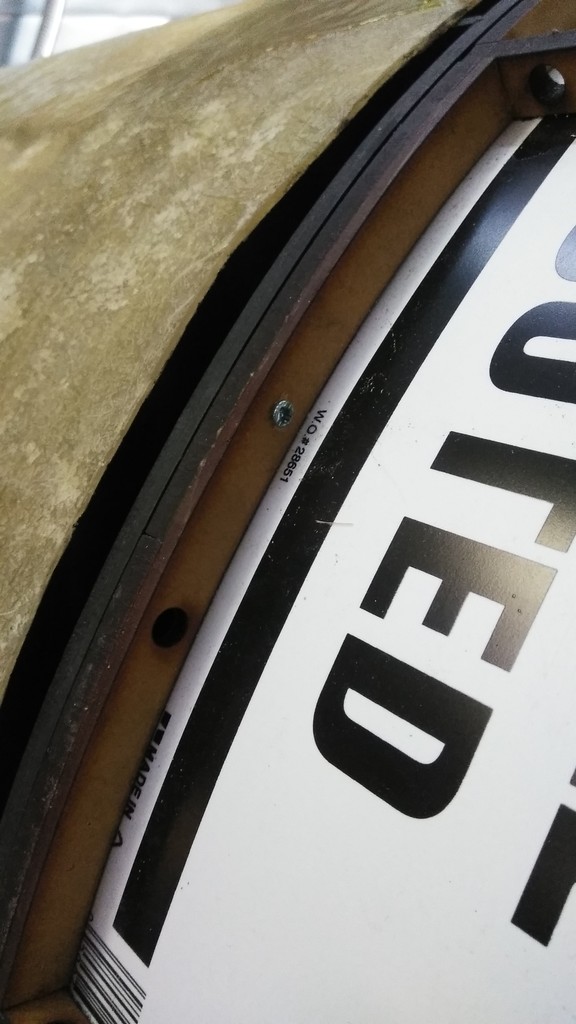

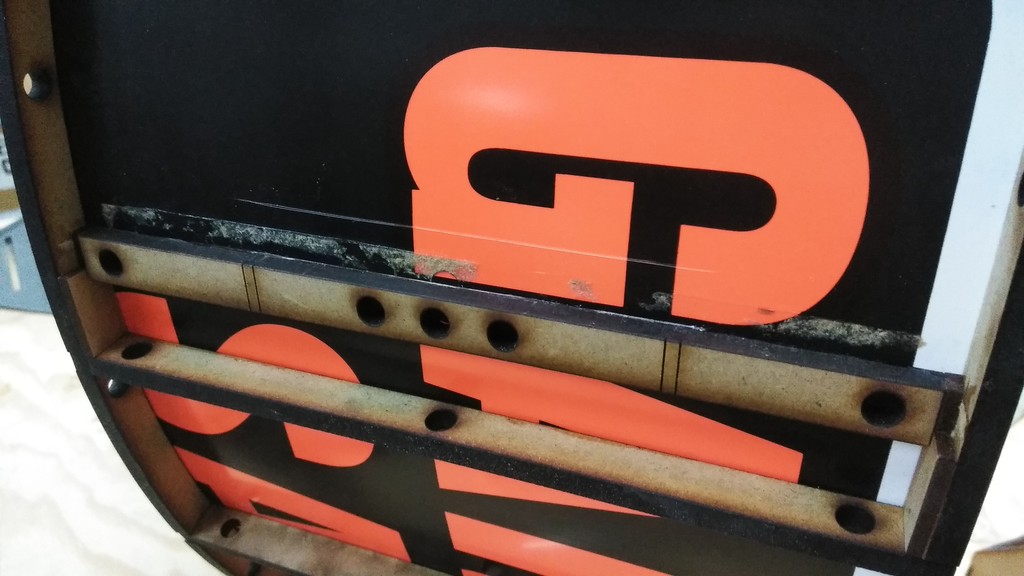

I drilled holes into the wall frame to help keep in place

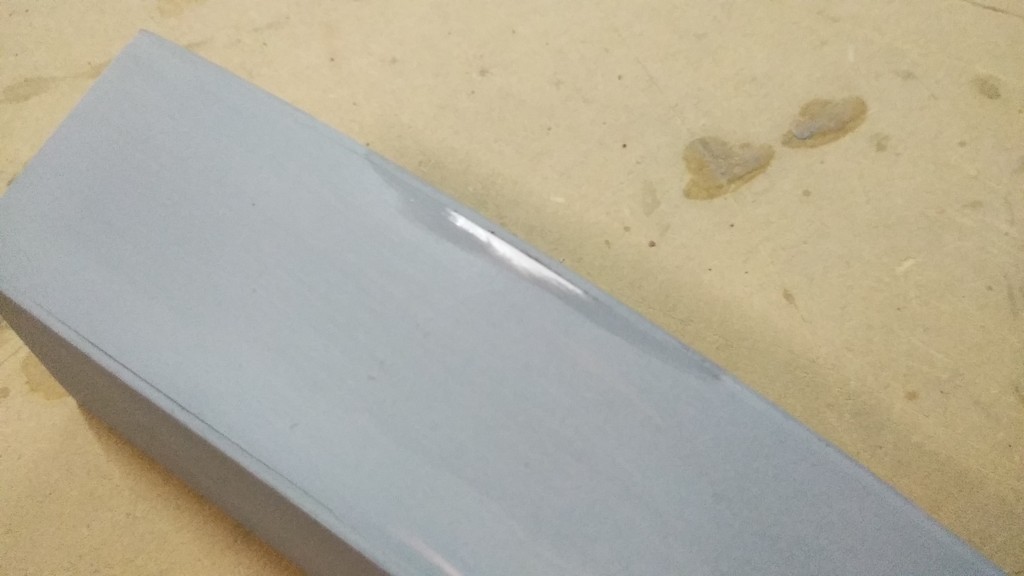

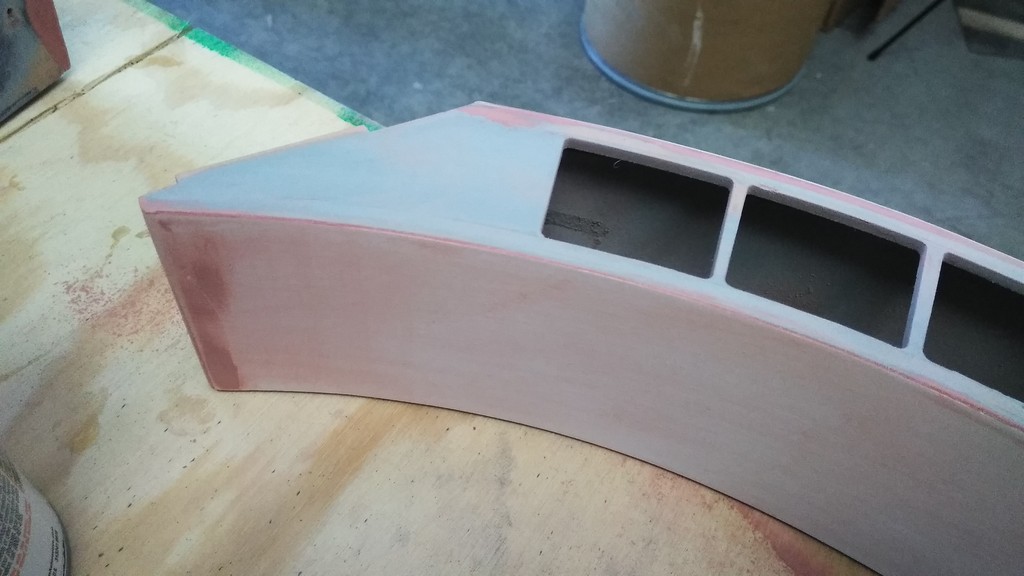

More work on this guy...

Sanding NEVER ends

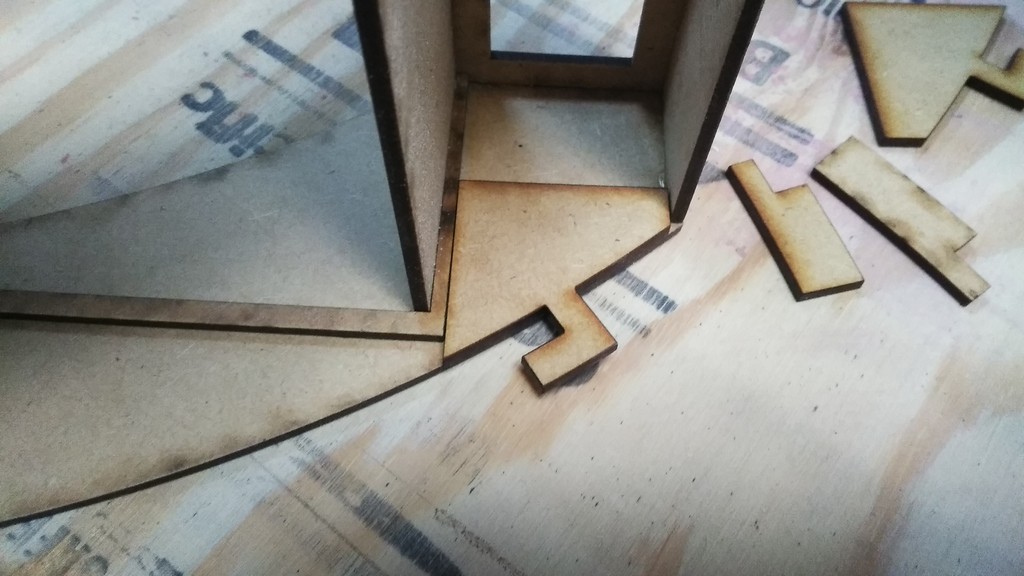

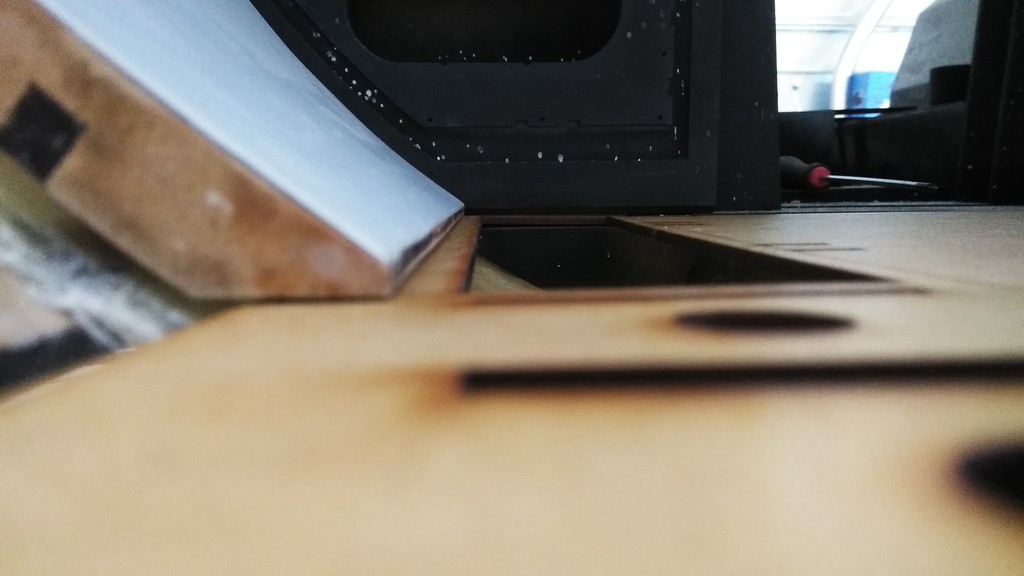

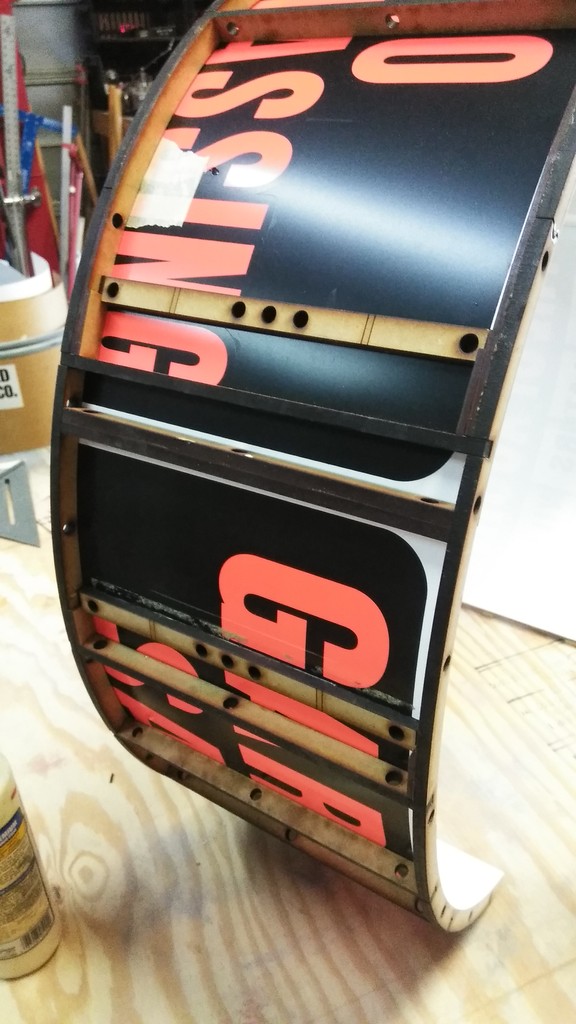

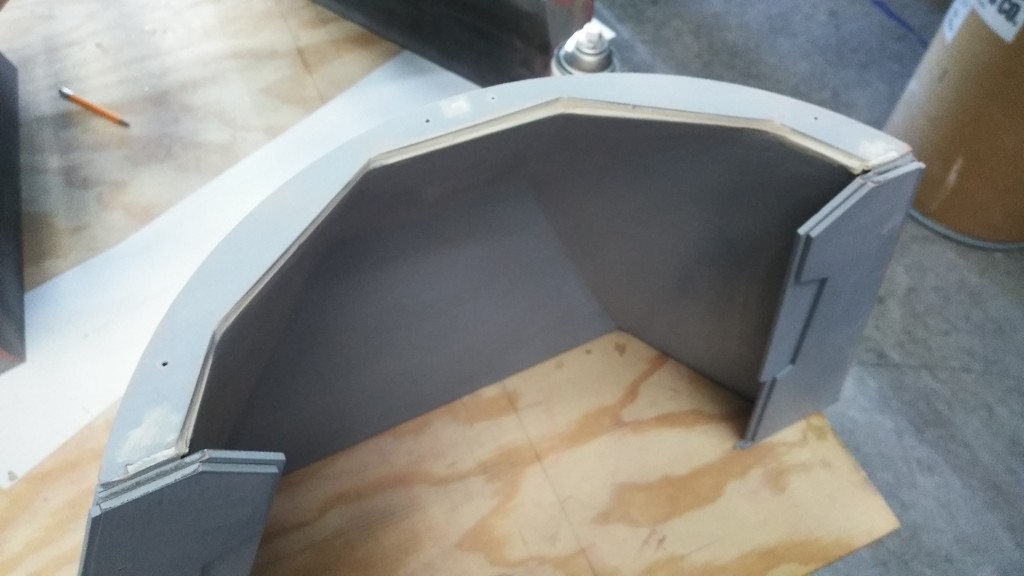

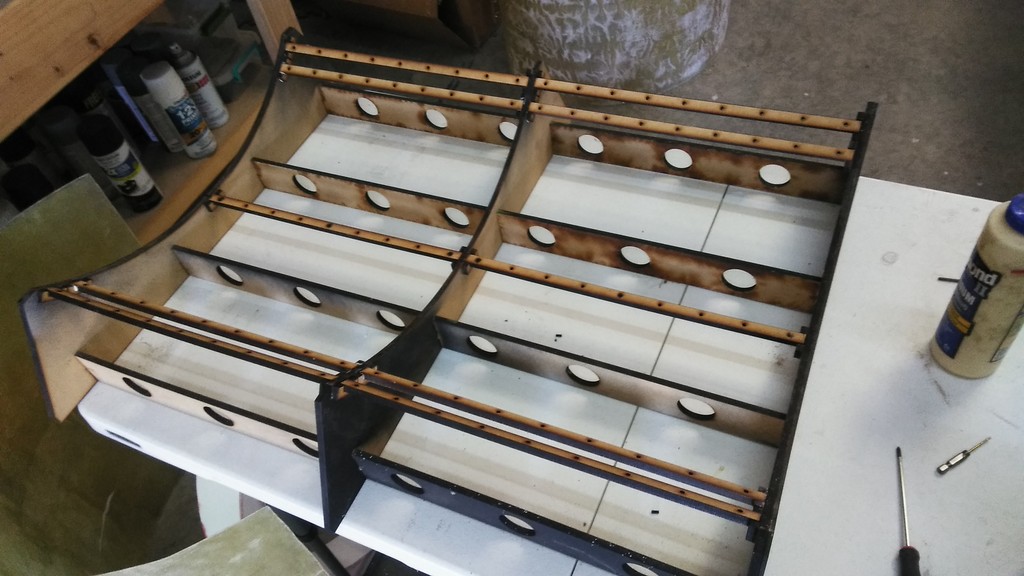

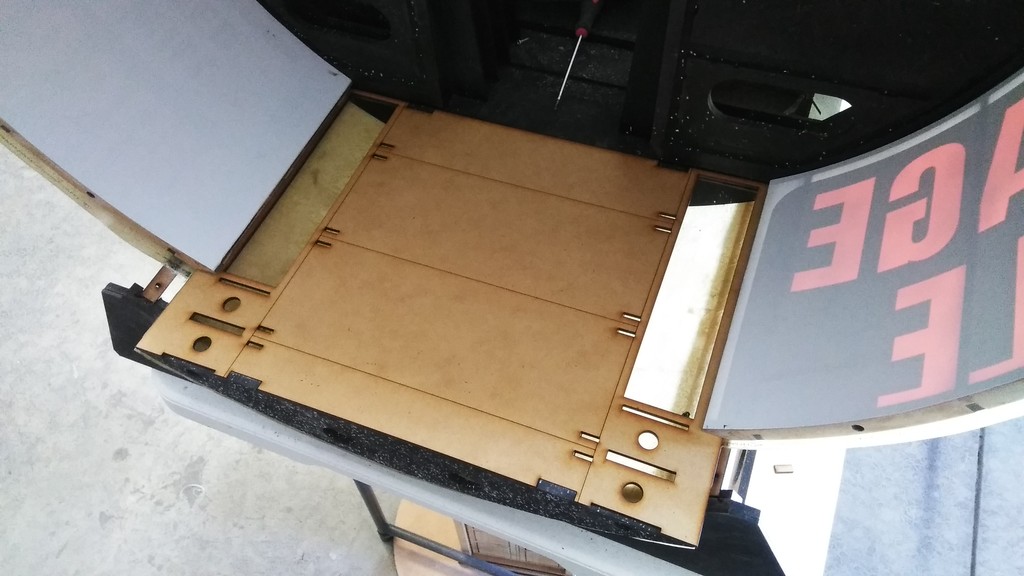

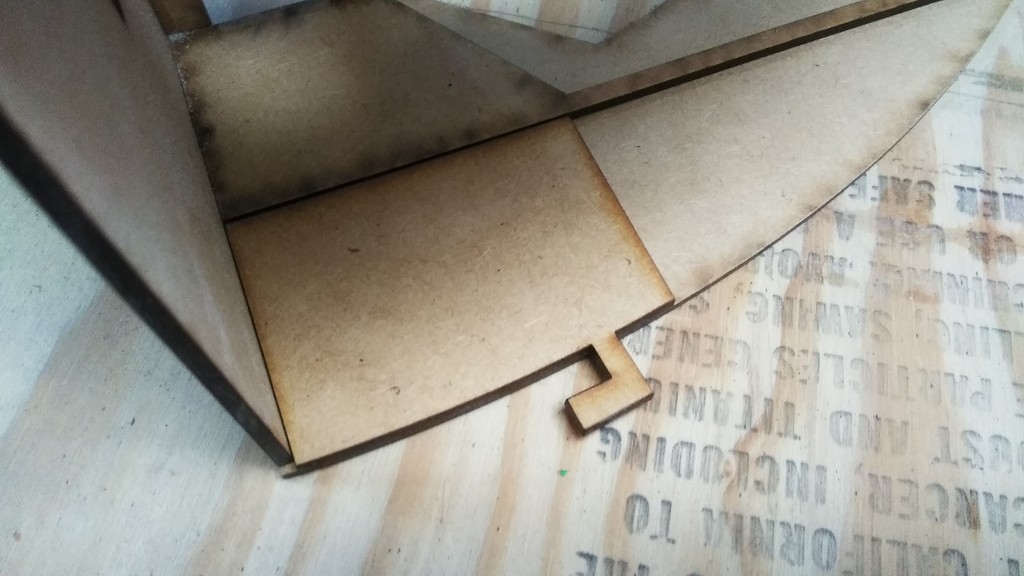

To help keep the walls in place I designed and laser cut a new floor with tabs cut

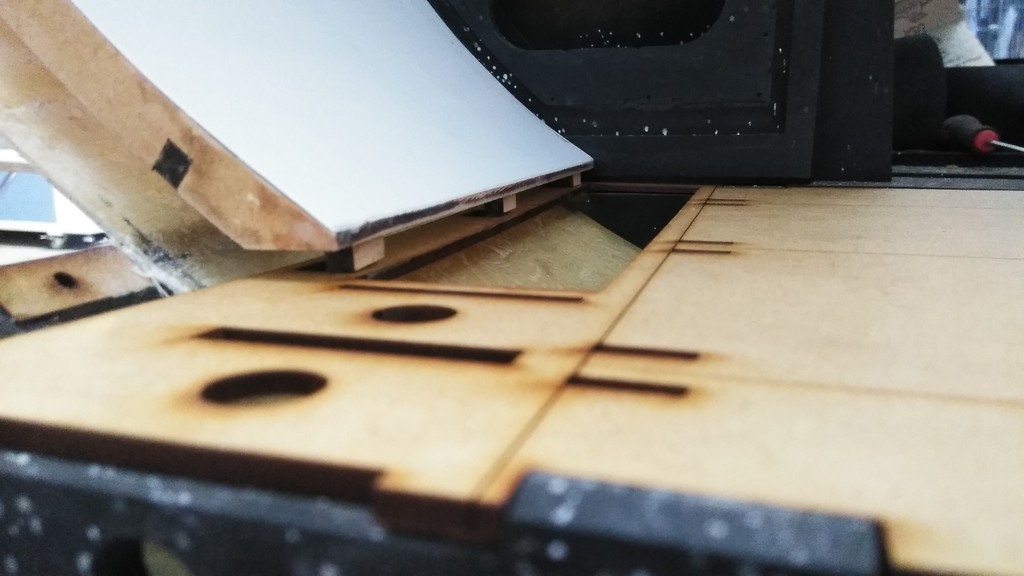

I added the tabs to the bottom of the frame and cut the holes in the floor

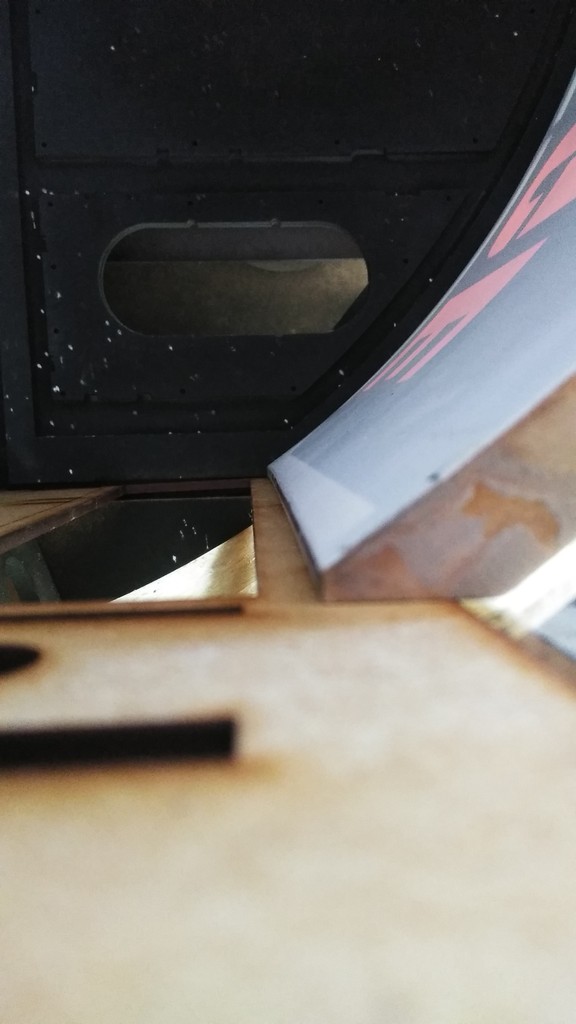

PERFECT!

Gee... a plan comes together?

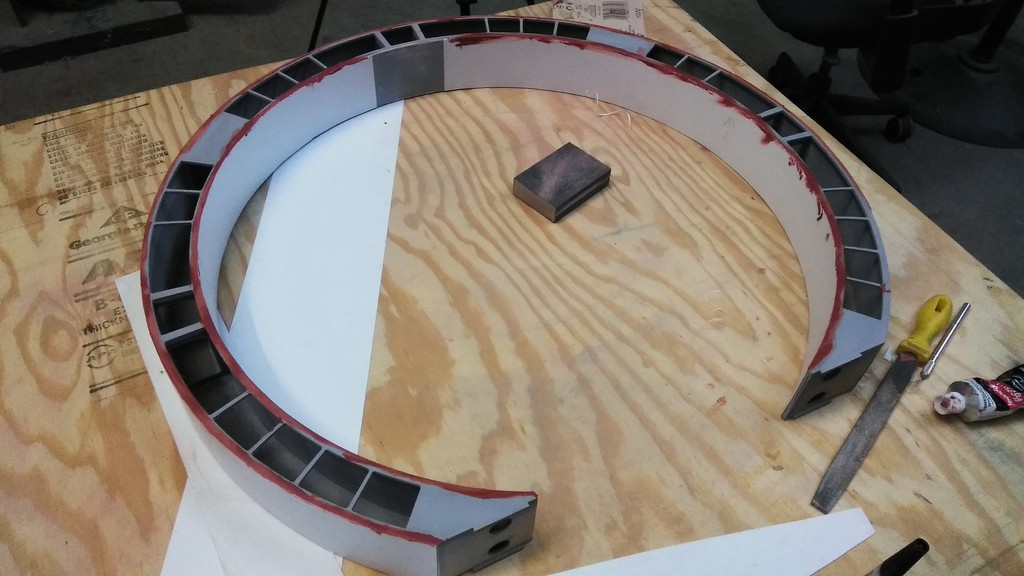

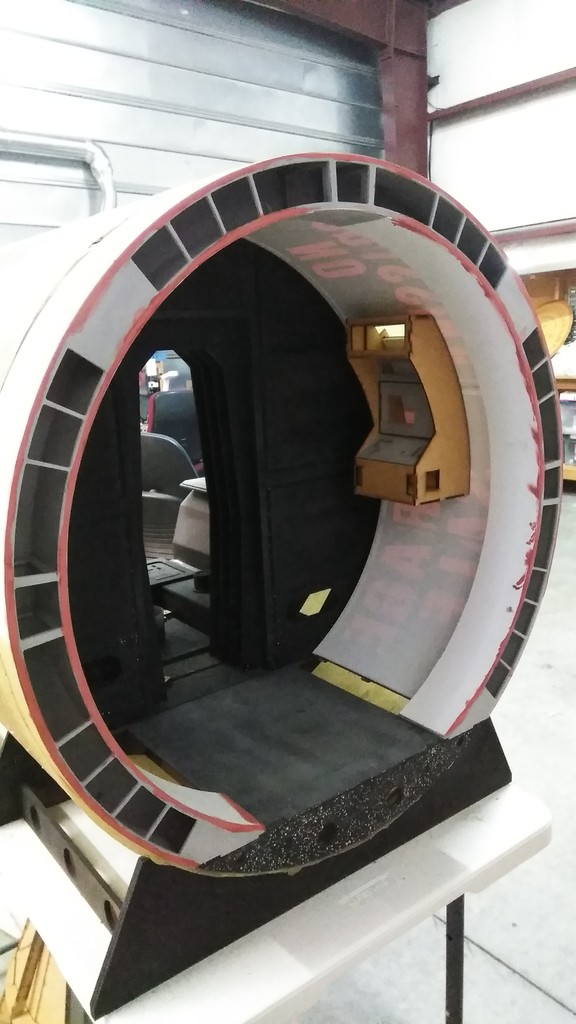

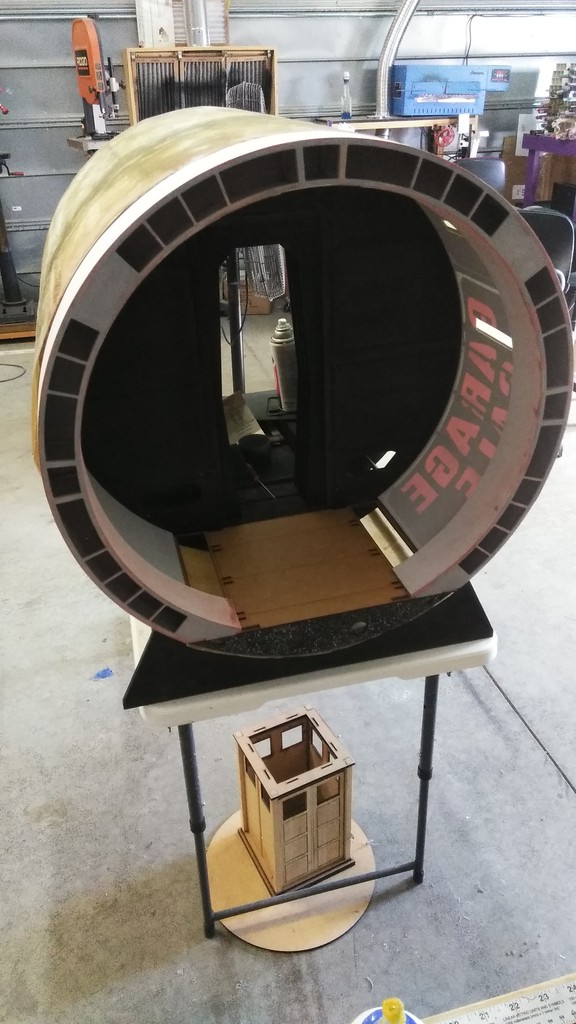

And its still a circle!

Part VI Below!



[SofaKing01]

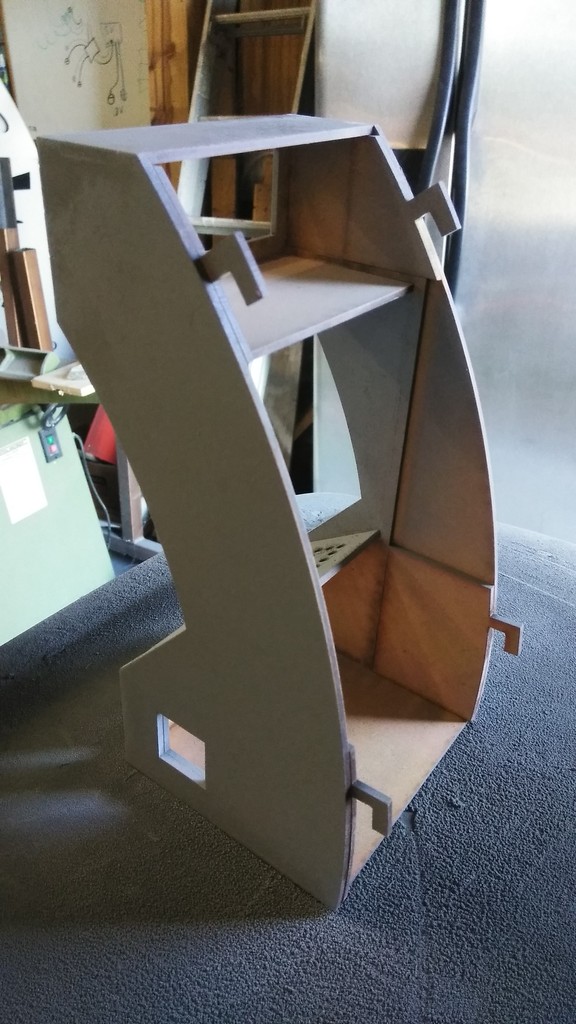

Part VI: The Maintenance Panel

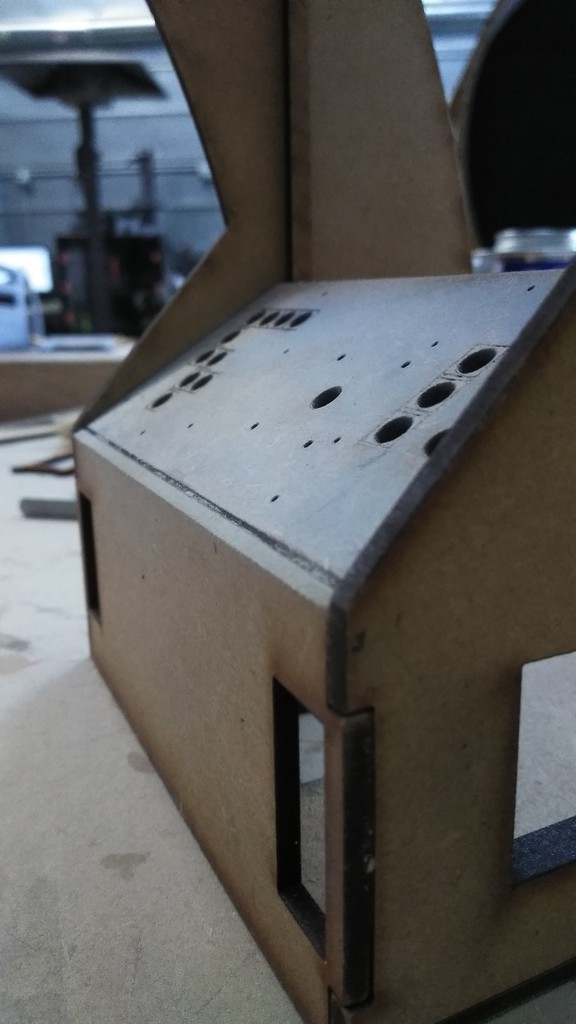

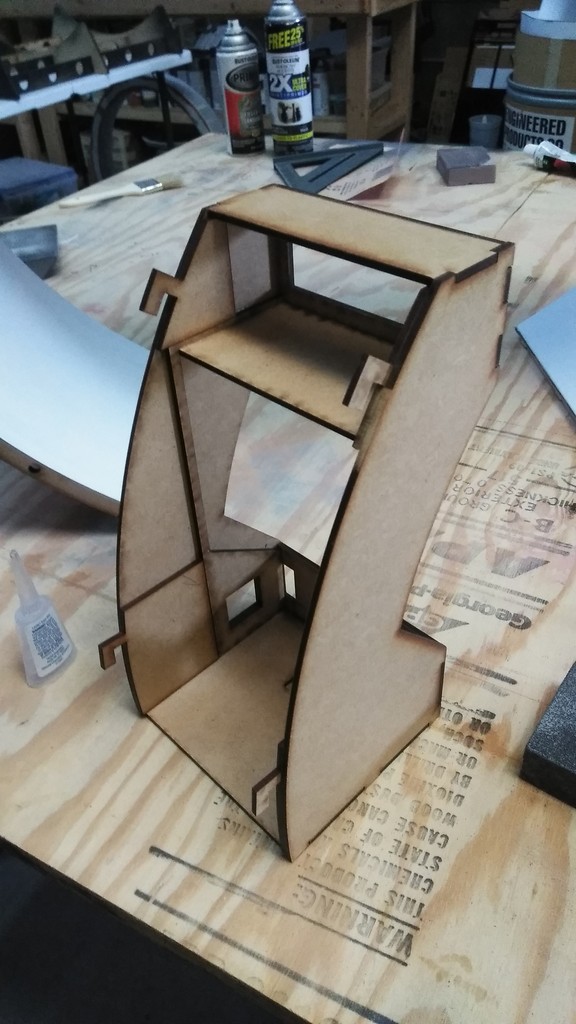

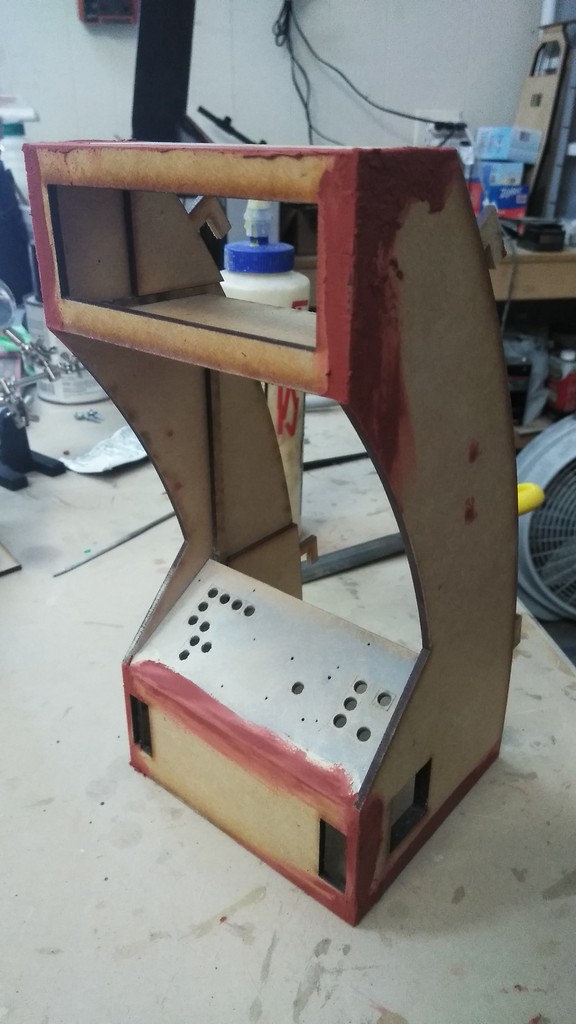

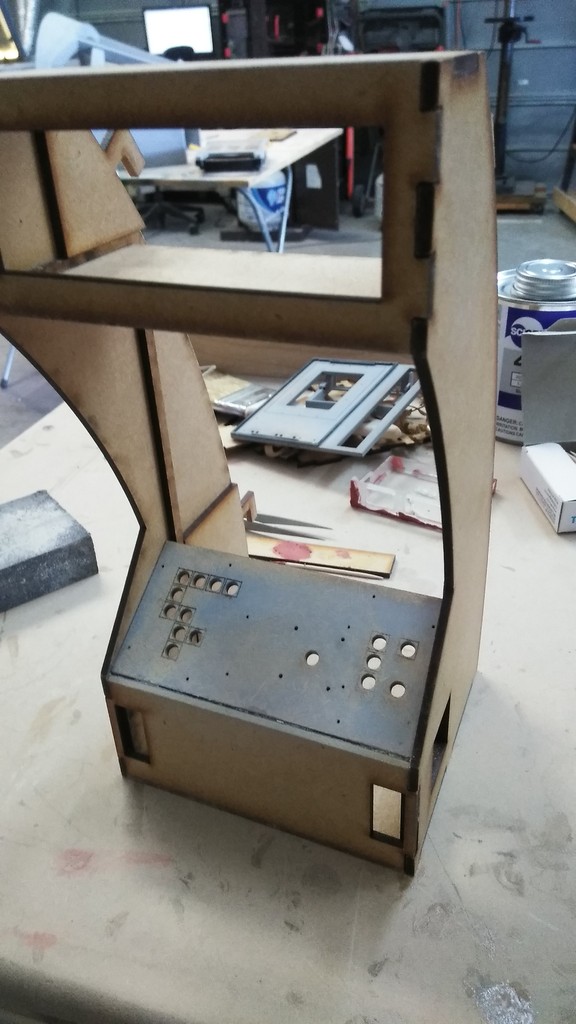

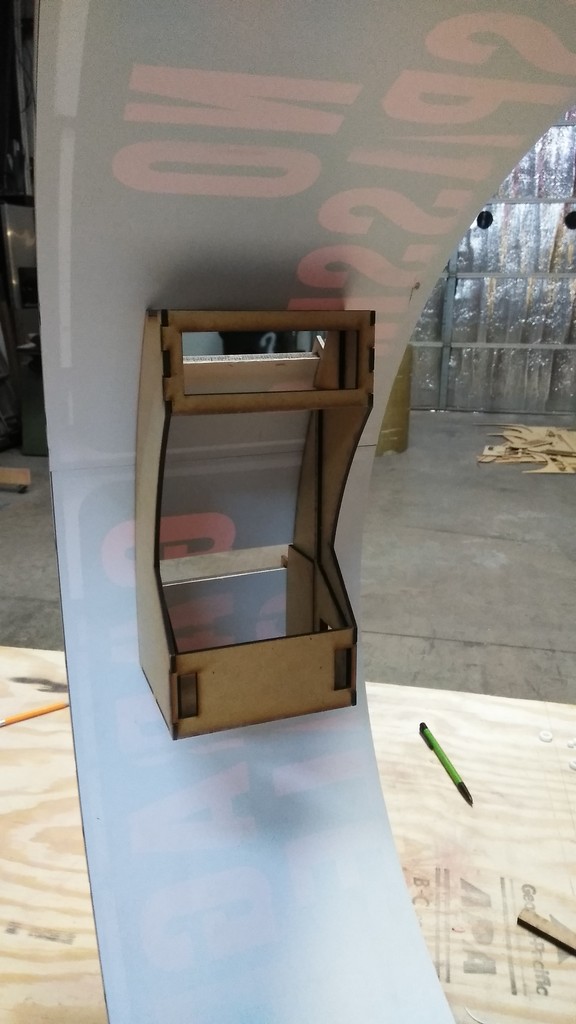

This little guy is starting to take shape!

Just like the full scale version I sanded the edges

OH JOY! Future sanding!

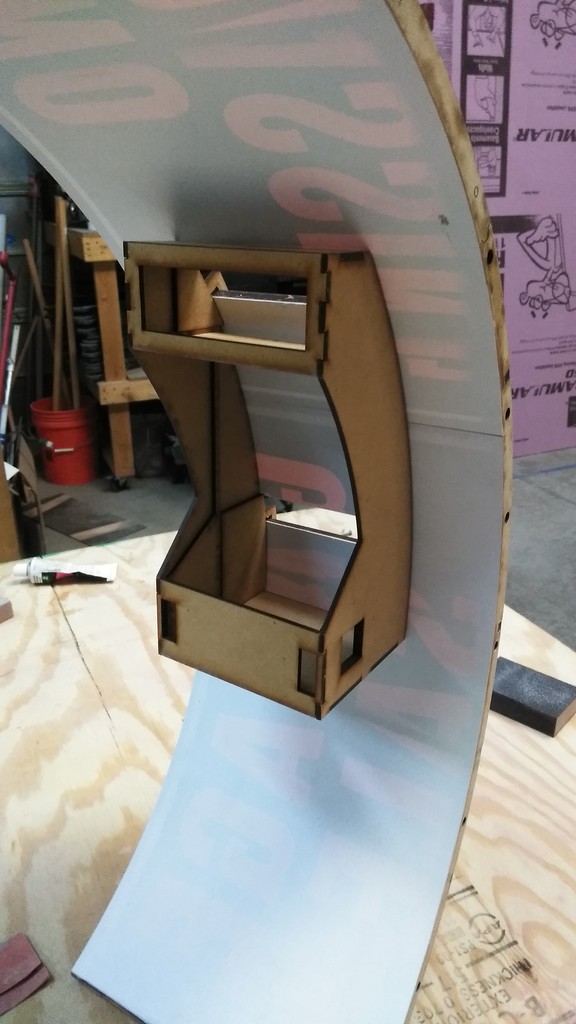

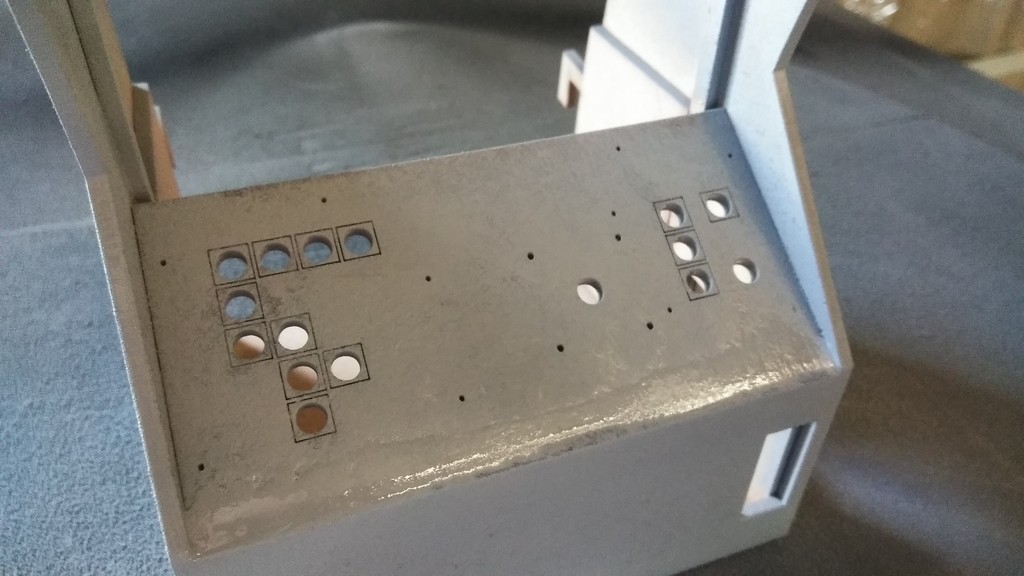

Dry fitting

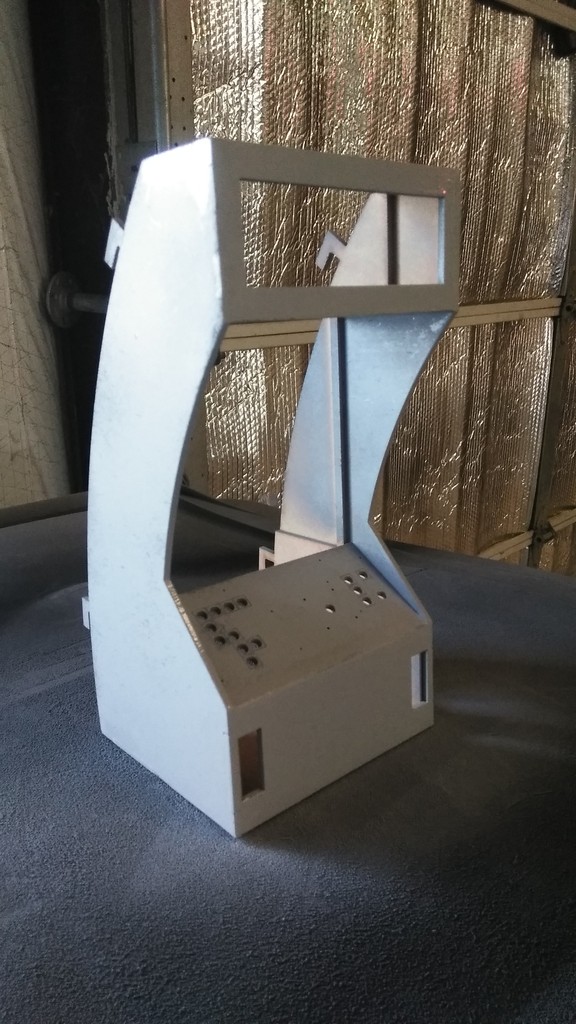

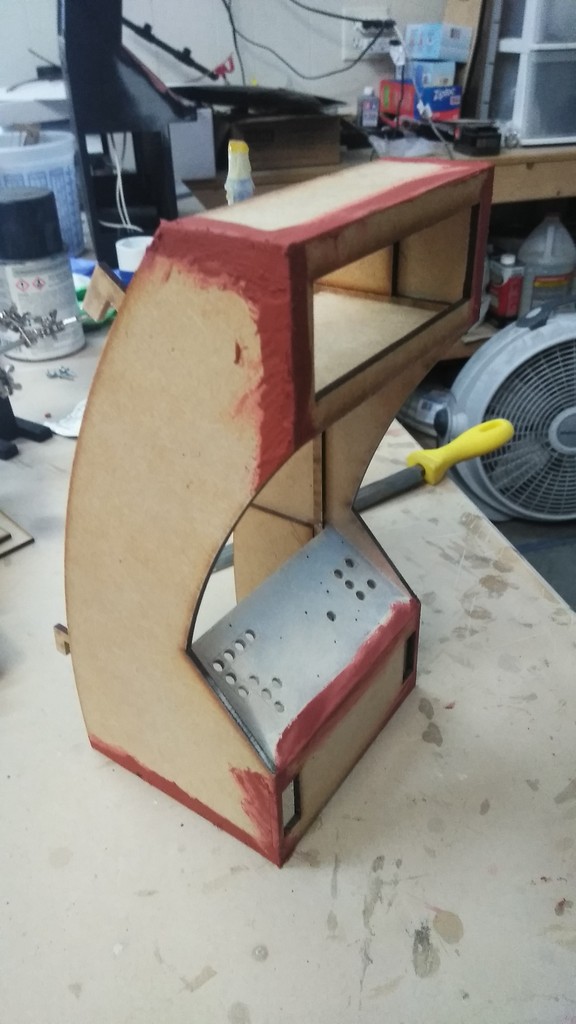

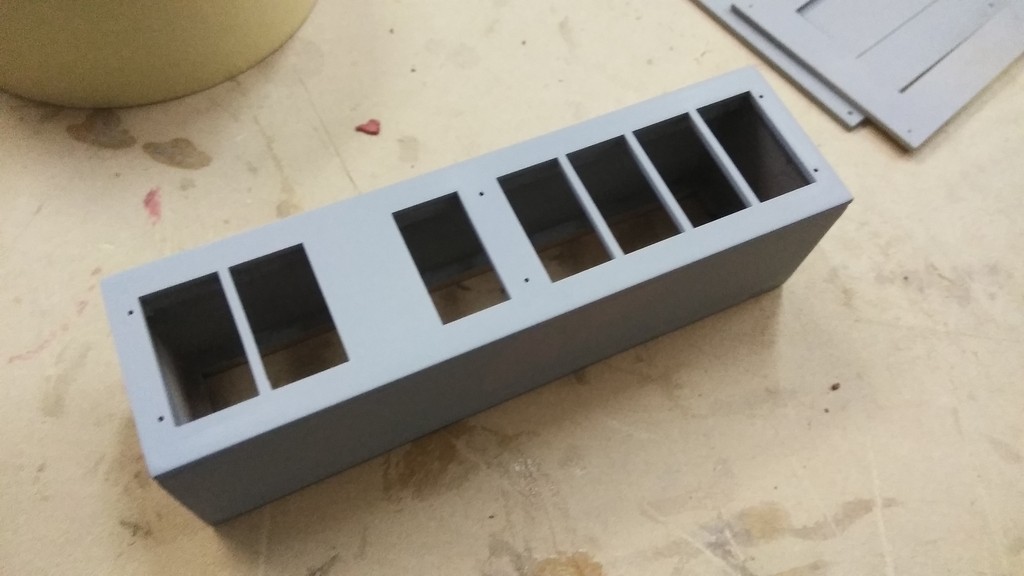

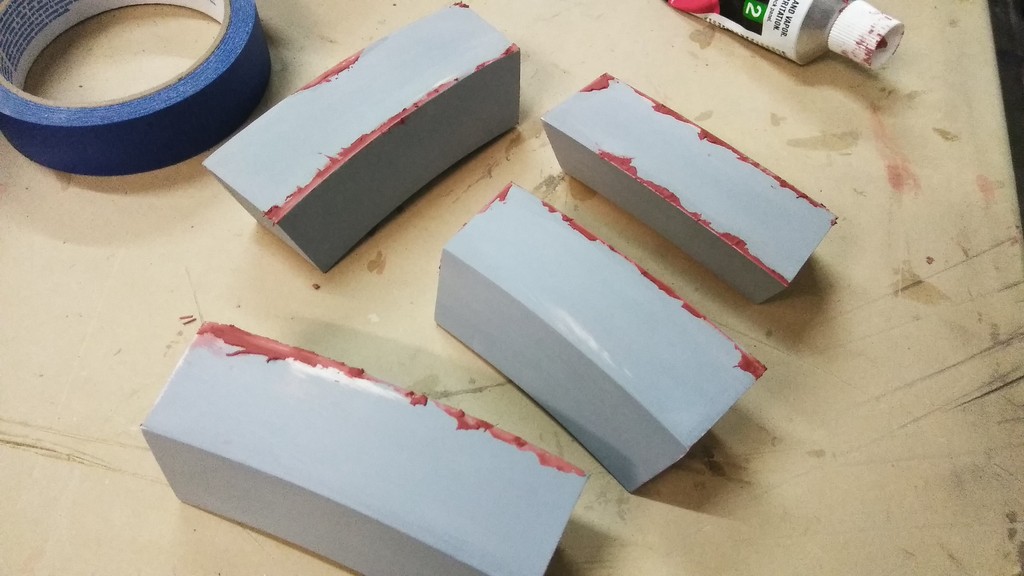

MMMMM Primer

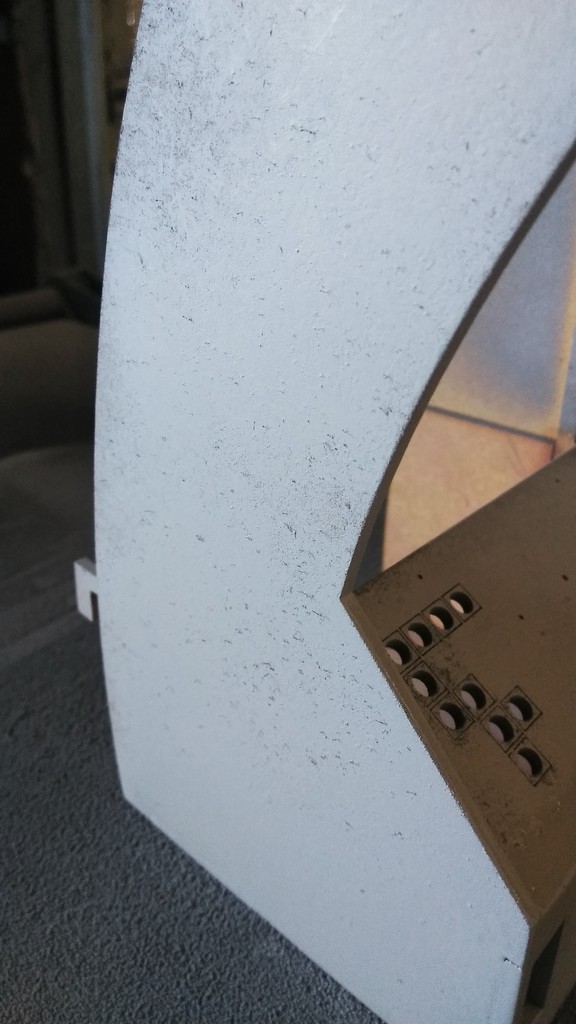

MMMMM Primer Fuzzies

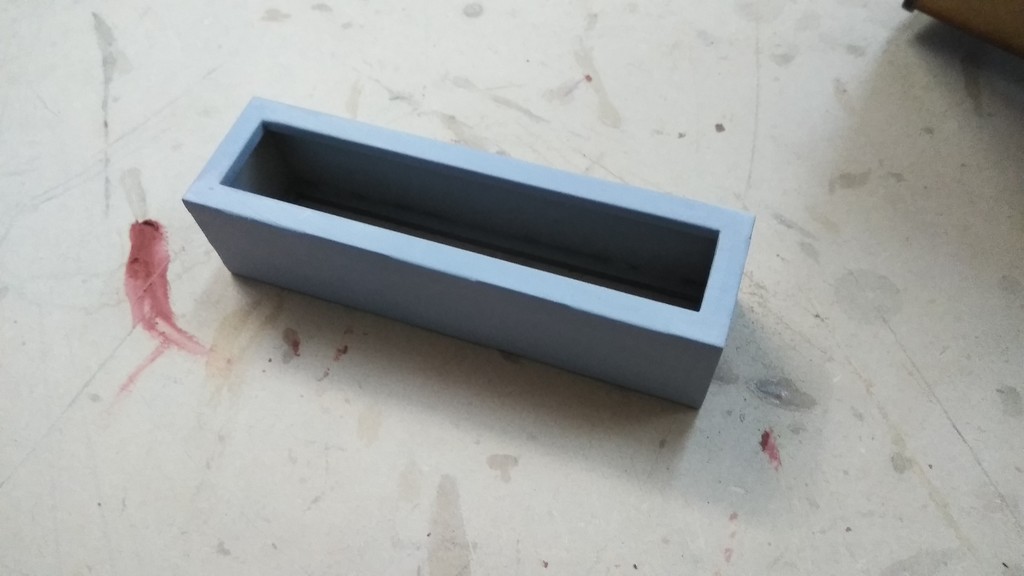

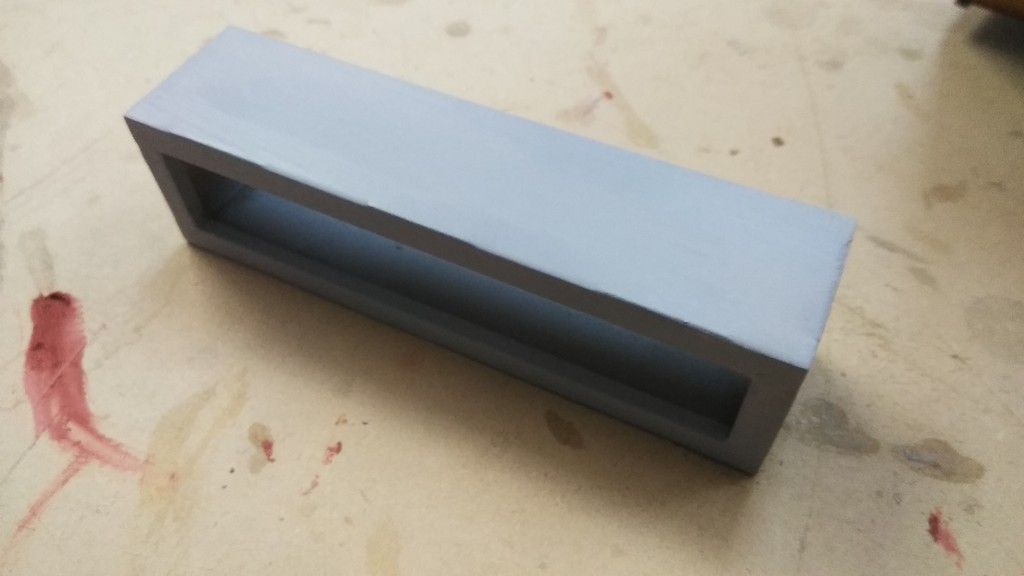

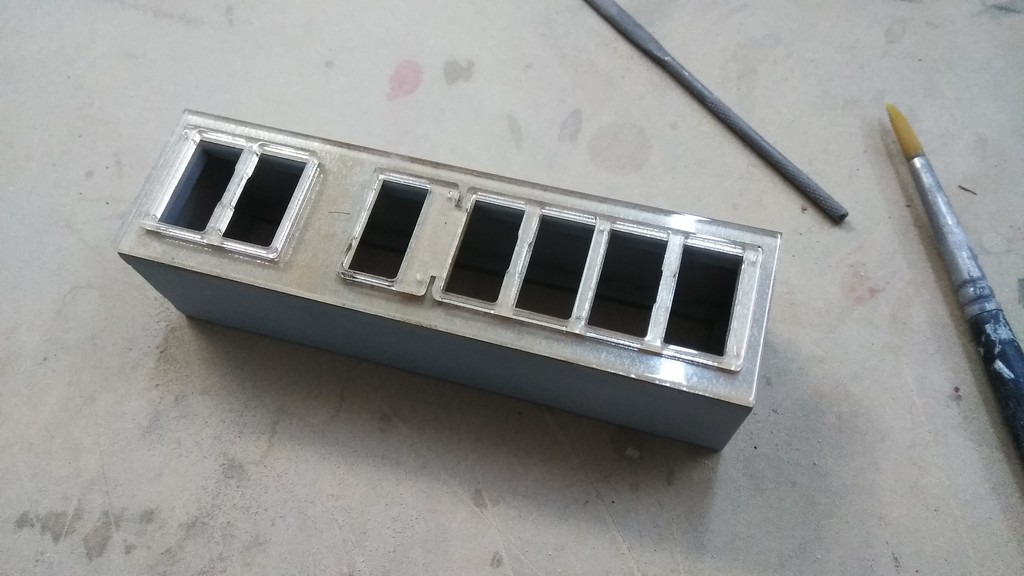

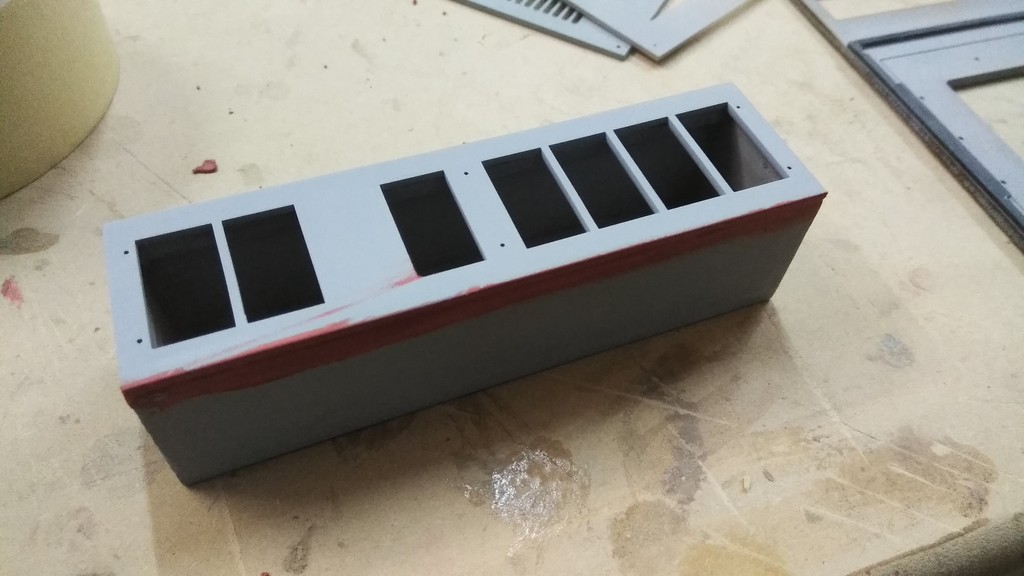

Gauge box

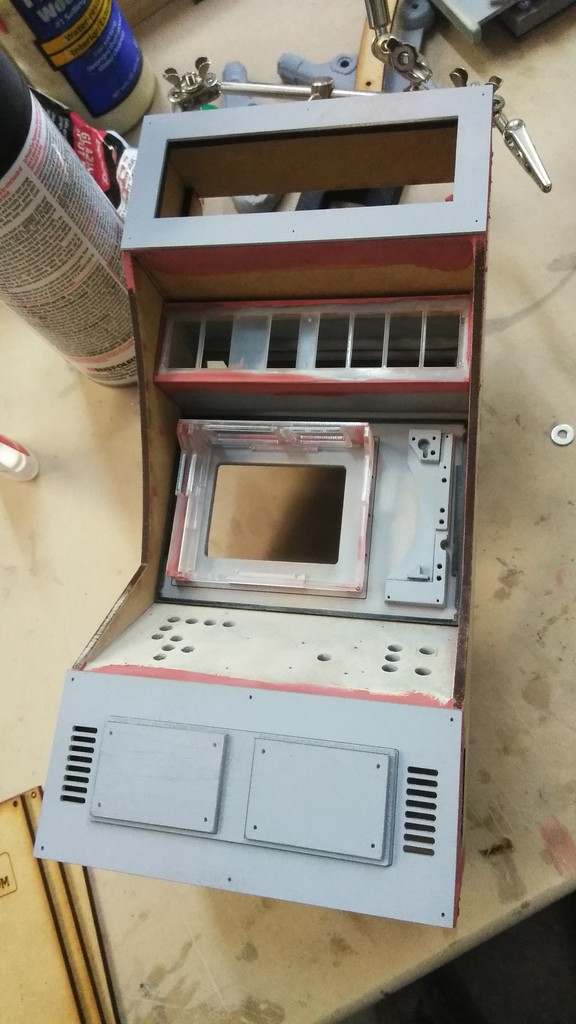

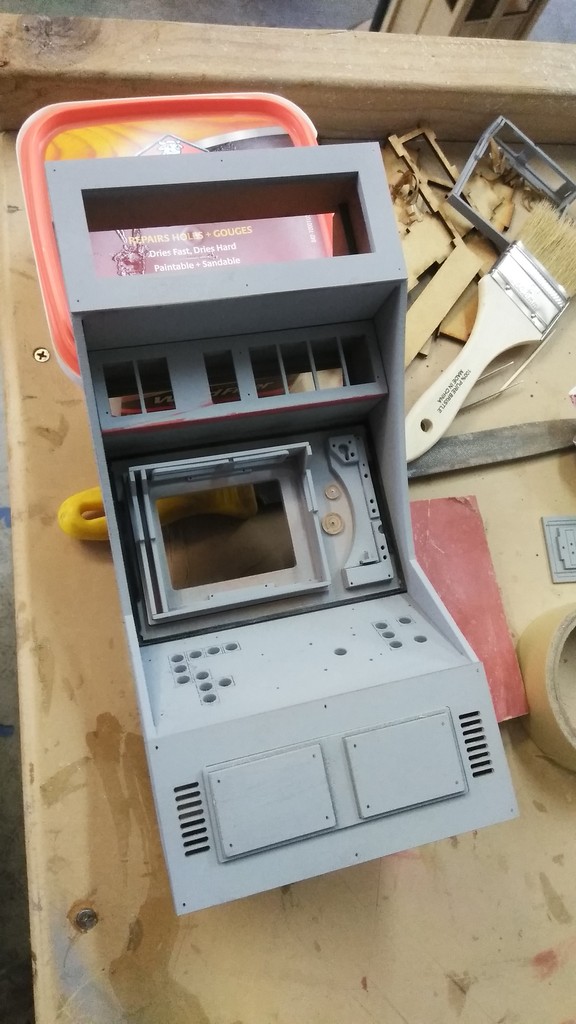

More dry fitting

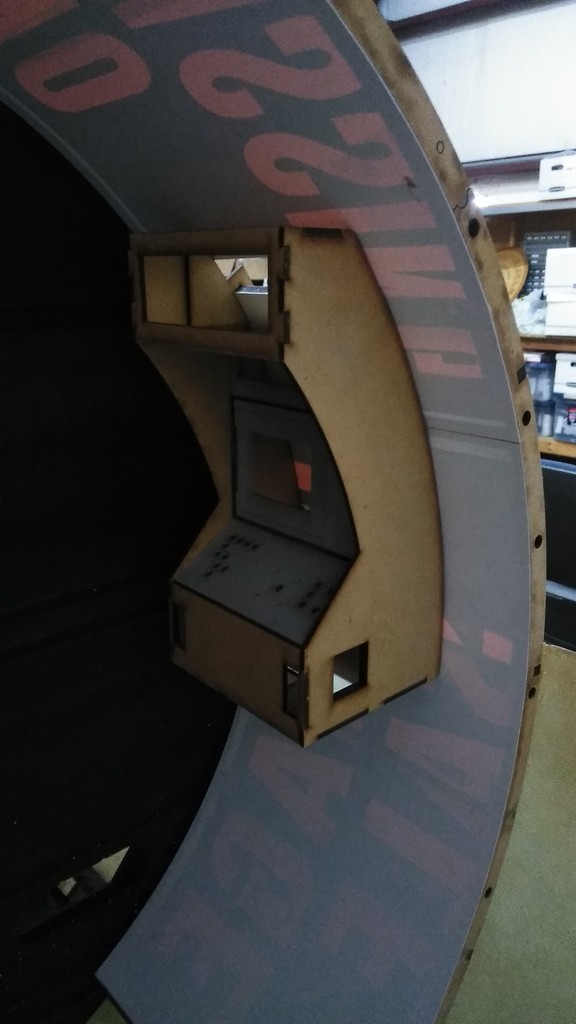

And this is where we are!

More to Follow!



[Roughneckone]

Part VI Below!

Um, actually that looked like a Tardis to me,!

Roughneck ne



[SofaKing01]

Hi Gang,

My apologies for not responding to all your comments! I've been really busy with work, projects, the YouTube channel and a flooded bathroom (which has kinda taken priority).

I appreciate all the kind words, positive comments and likes! You all rock!



[SofaKing01]

Um, actually that looked like a Tardis to me,!

Roughneck ne

Hey R,

That's exactly what that is!



[Friendly flyer]

Haha, the micro-Tardis is a blast!

Having built my fair share of Airfix kits in my day, I am hugely impressed by your micro-greebly parts!



[SofaKing01]

Hi Gang,

I just finished EP 3 of "What a Piece of Junk"! Enjoy



[joberg]

Great update Greg; love the fact that you can judge the scale better comparing it to your hand size (somewhat)
