Re: 1:1 Millennium Falcon Console Replica

Maybe you could use a syringe to strategically place the acetone and then use an ultra sharp blade (from what I understand scalpels are sharper than exacto blades or you could use a razor saw) to cut the plastic squares off. You probably will still need to do some paint fixes.

I've used hot glue to place LEDs in MDF before and it eventually gives out. Maybe super glue or gorilla glue? I would do some trials and test it out.

Loving this project so much!

Good luck.

Heath

Re: 1:1 Millennium Falcon Console Replica

Heath Norton said:
I've used hot glue to place LEDs in MDF before and it eventually gives out. Maybe super glue or gorilla glue? I would do some trials and test it out.
Click to expand...

I did that too. Although LED uses small power, because of it's size, the heat generated there will actually soften the hotmelt glue on long use.
Using superglue is better, just have to be careful not to let the top surface roughen (or sometimes it is purposely done to give wider/softer spread of light).

For higher wattage SMD LED, it is better to place it on top of a piece of metal plate(copper or Aluminum). The leg can be secured by using very small heat shrink tubes, or just run a vinyl tape, so it won't touch the metal. A thermal conductive paste is needed at the bottom of the LED. Securing the position with superglue on the sides.
The metal needed as heat sink (dissipate the heat generated by the component).

Re: 1:1 Millennium Falcon Console Replica

UPDATES!!!!!!! Enjoy!!! :)

After hours of measuring and pouring over screen grabs... I jumped in and started the front window/canopy!

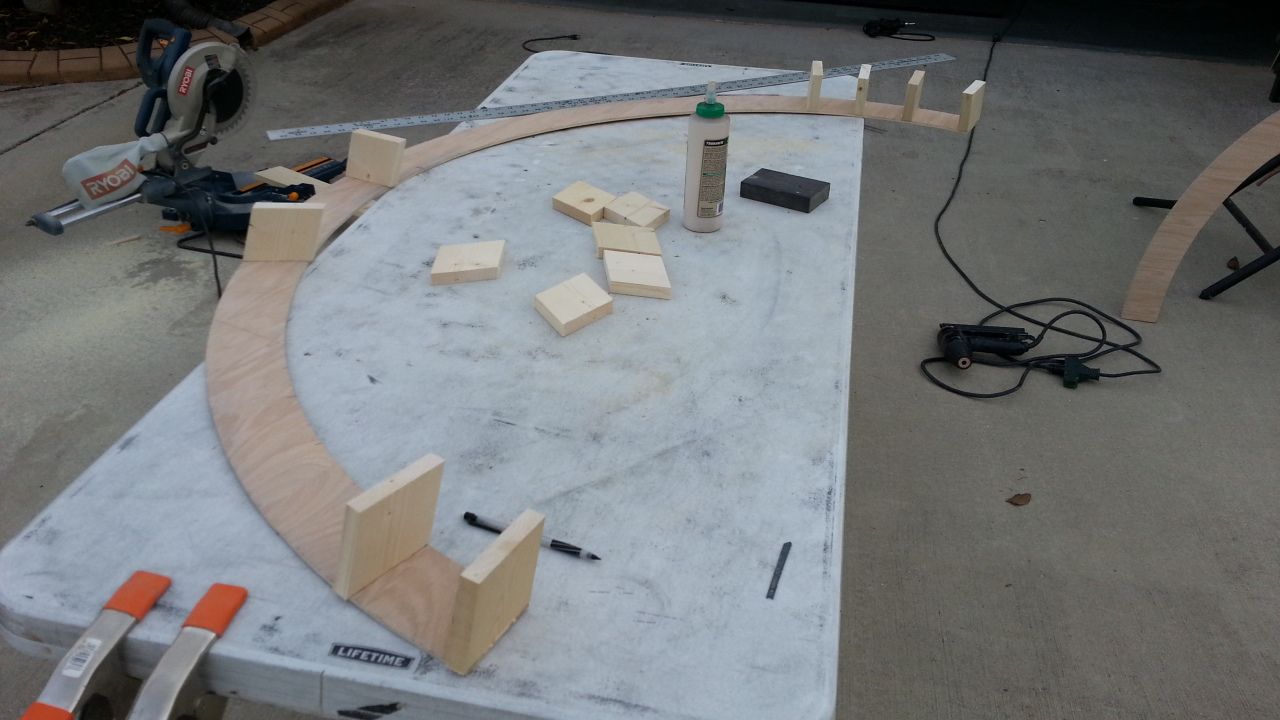

First of two cuts


I didn't realize how big the window actually was/is!

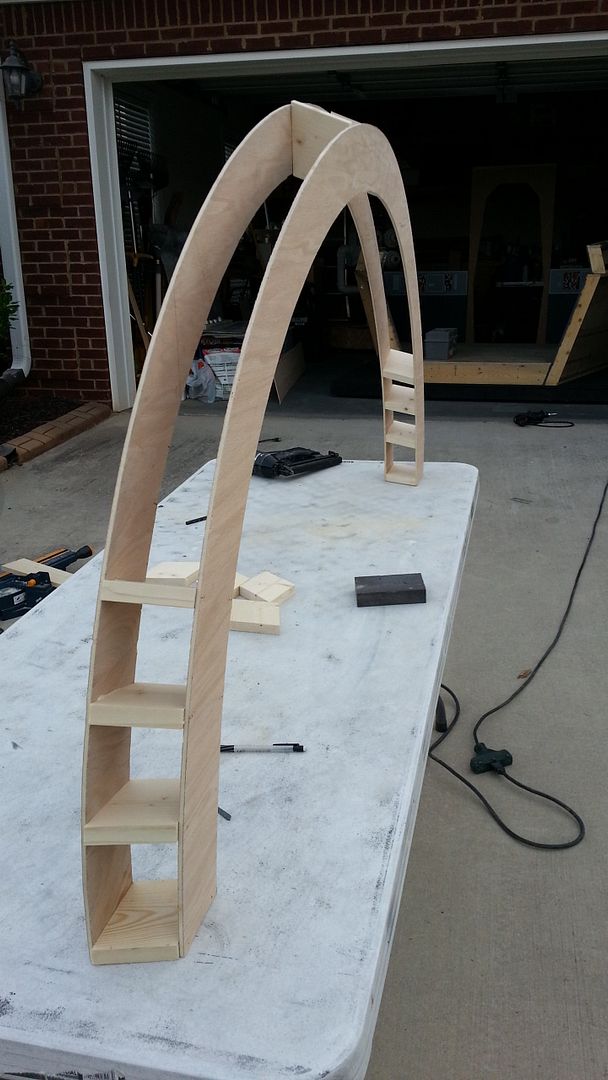

I took the same dimensions as the side panel and cut several supports to sandwich in between each panel

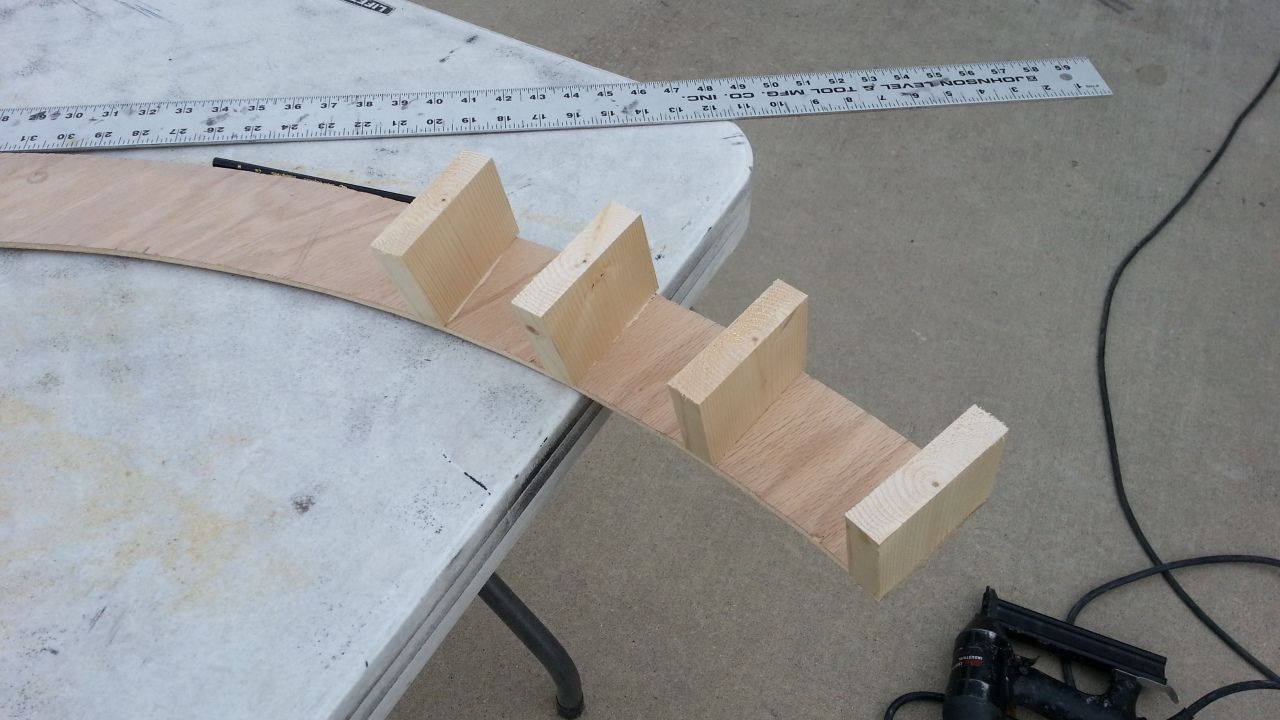

Adding more supports...

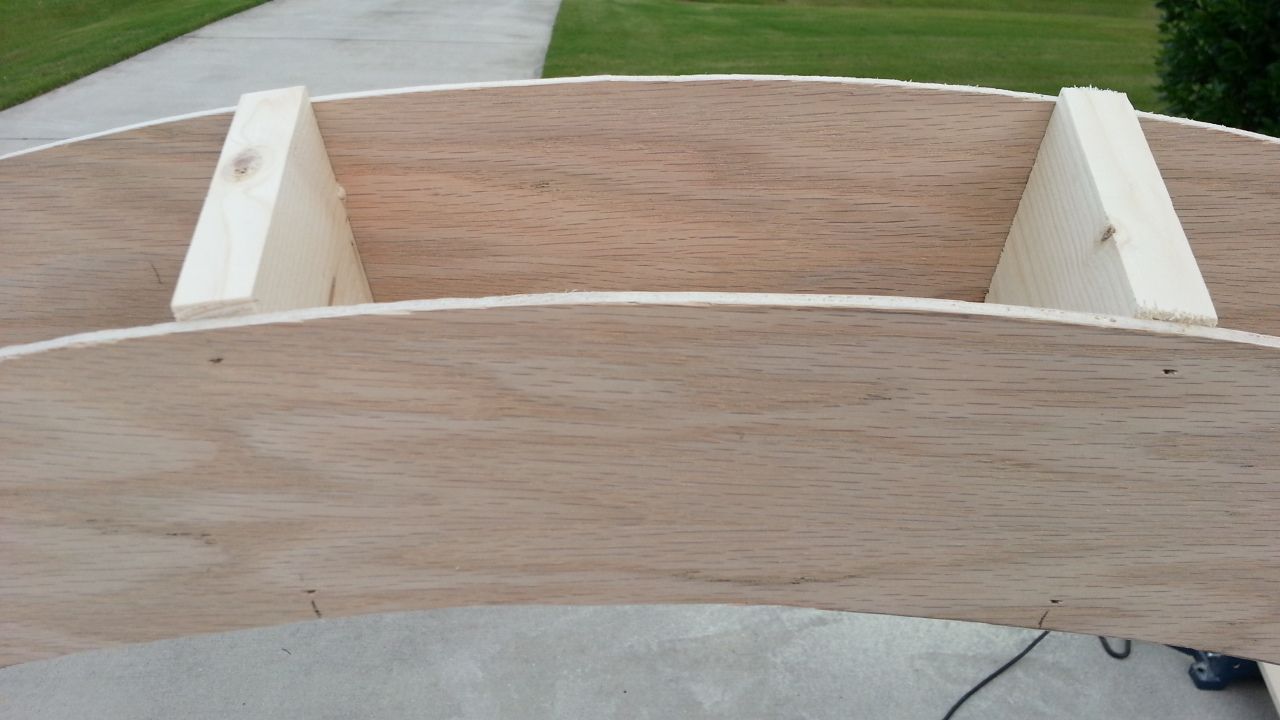

Notice the angle. I then have to skin this bad boy! I used 1/4 ply - very light and easy to move around




Top Dead Center

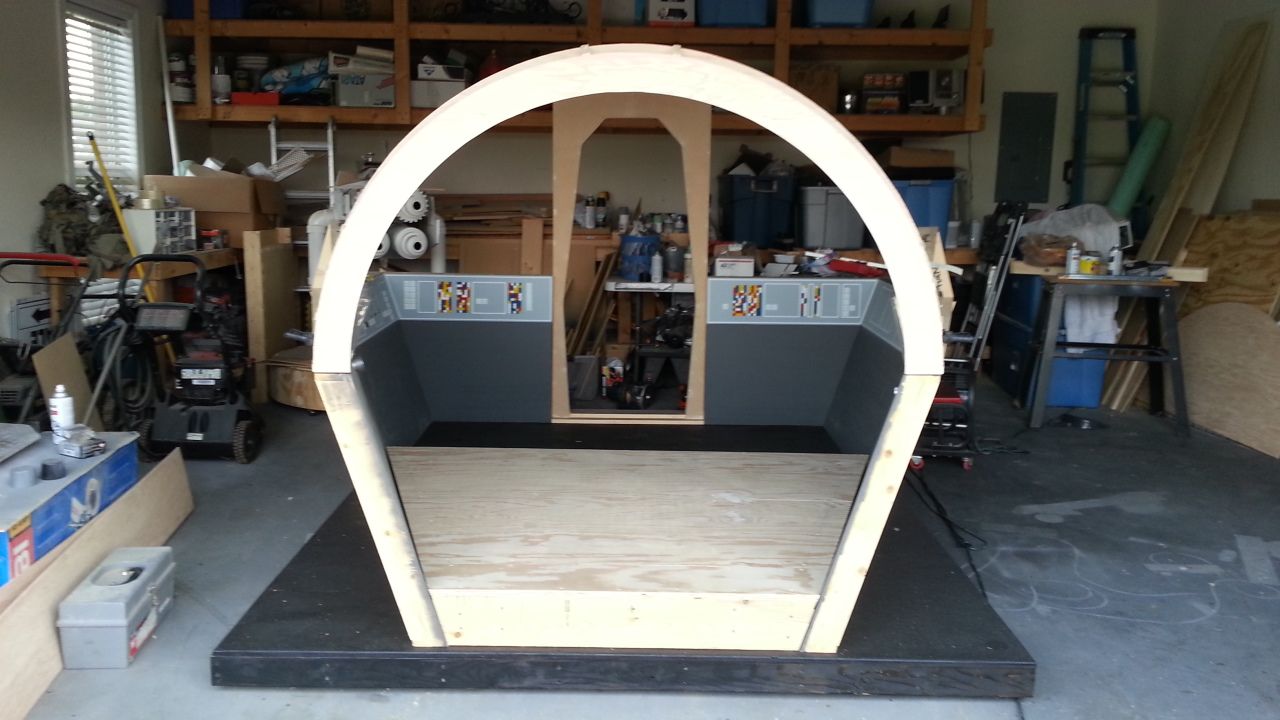

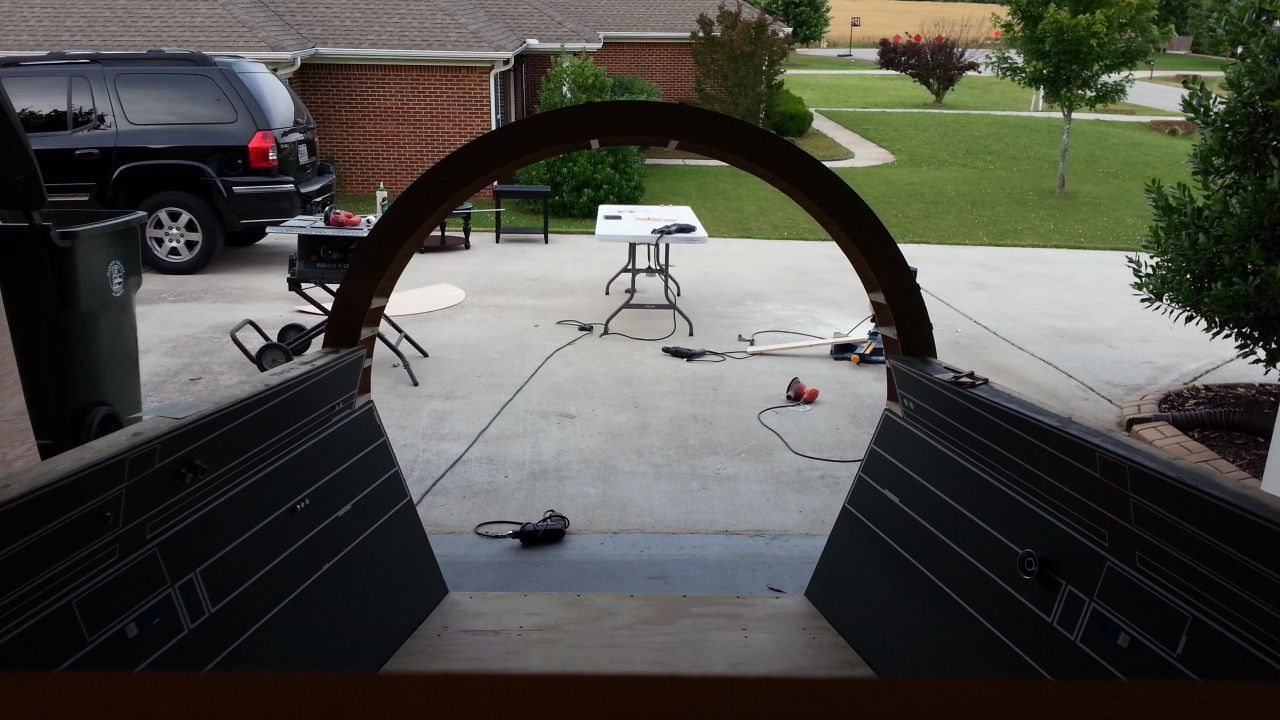

Hey! That's the beginning of a window!


So far so good!


Handy clamps make it easy! :)

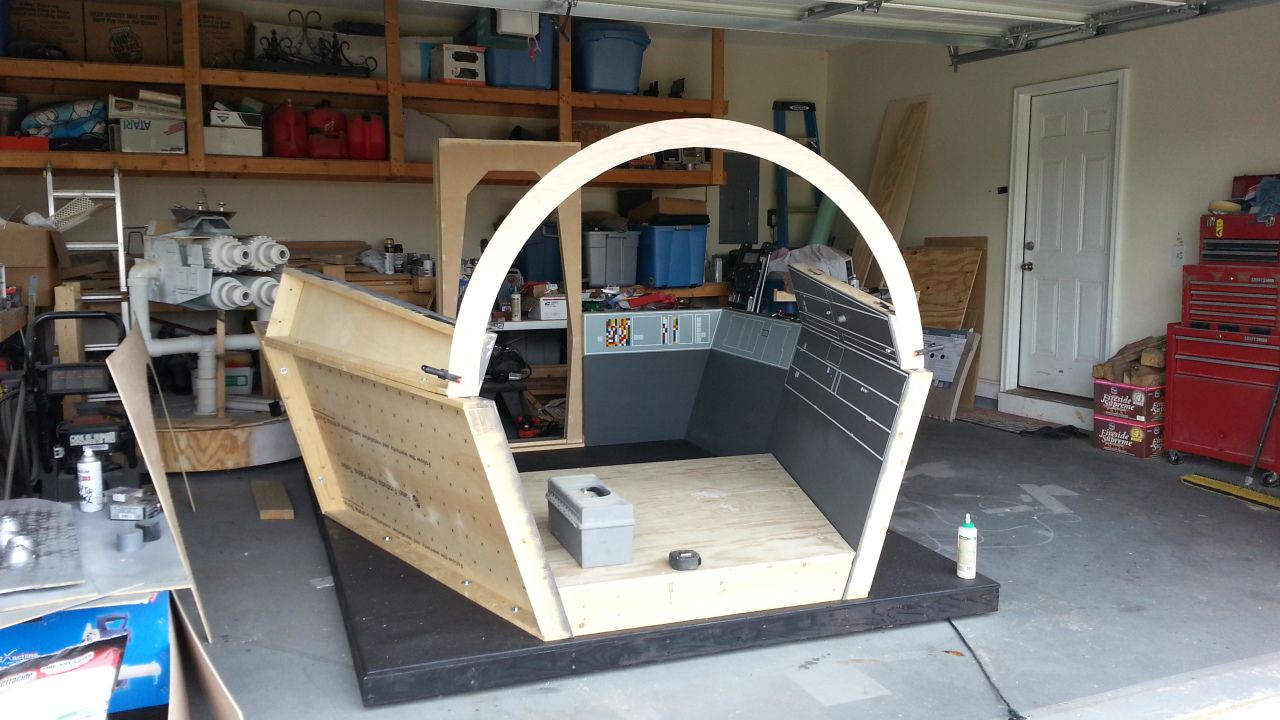

Side View

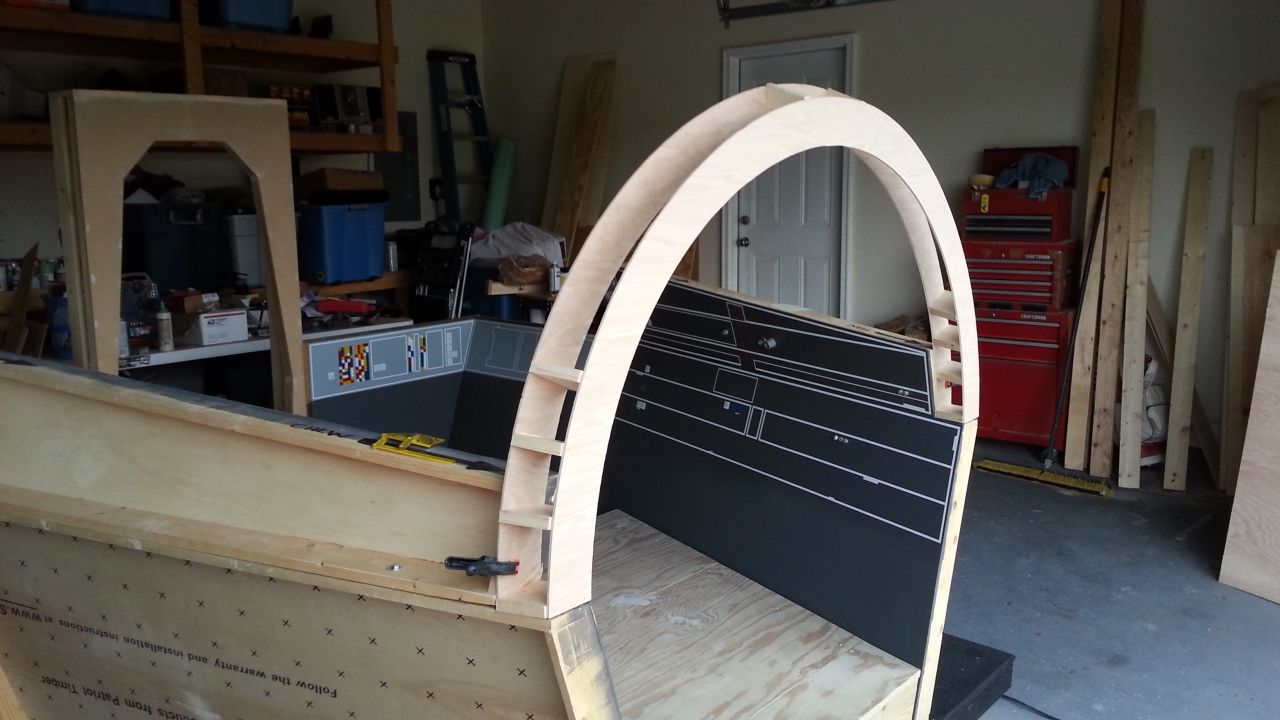

Side Rear

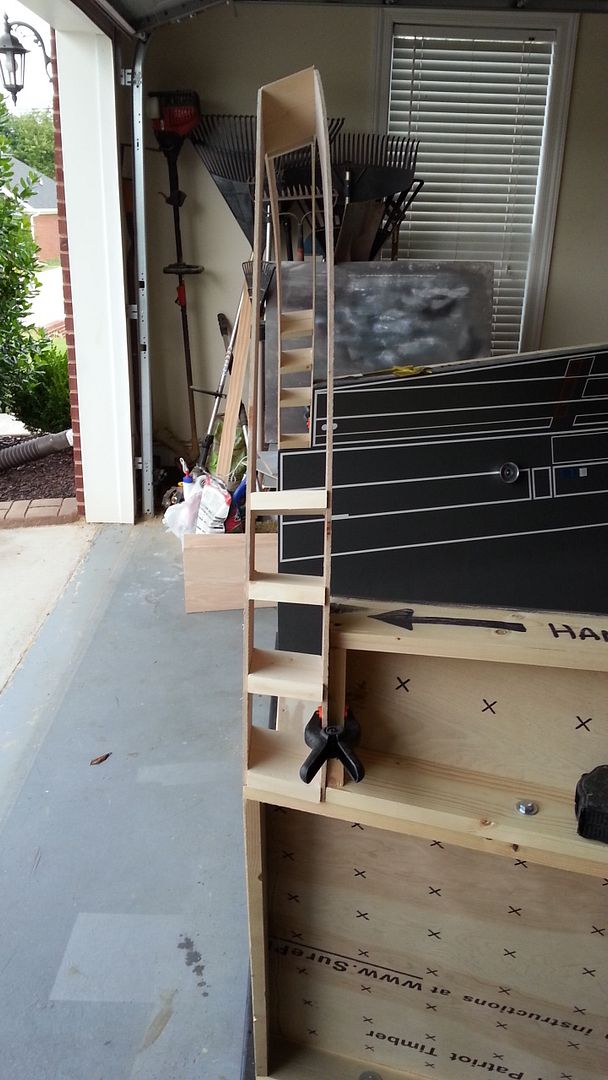

Looking from rear


Tomorrow - who knows... Platform? Window? ;)

Stay Tuned!

Re: 1:1 Millennium Falcon Console Replica

Tim Allen said:
Goo Gone and a Fishing line might do the trick.
Click to expand...

Hi Tim,

I quickly tried the fishing line... no luck so far. I'm going to try with gloves and hope to add more pressure... :)

- - - Updated - - -

Heath Norton said:
Wow! The window is looking great. So exciting to see. Heath
Click to expand...

Hi Heath,

Thanks so much! I spent a LONG time trying to figure out exactly how I was going to make this first shape... And while I know it won't be perfect from the original, I'm just hoping to get as close as possible... :)

- - - Updated - - -

greylocke said:
Uhhm Can I borrow the keys pops? :lol
Click to expand...

Sure... but don't take her past light speed... It needs a new Alluvial Damper...

- - - Updated - - -

red4 said:
You can almost fly out your garage.
Click to expand...

She might not look like much now... ;)

- - - Updated - - -

trainman said:
Taking shape. Love it!
Click to expand...

Thanks much! She's getting there. There are so many little projects going on with this one build: door, platforms, LEDs, canopy, knobs, etc... I know by the time I'm finished I'll have the worst case of ADD ever! :)

Last edited:
Re: 1:1 Millennium Falcon Console Replica

UGH... It's raining... Let's hope its just a quick storm...

Re: 1:1 Millennium Falcon Console Replica

SofaKing01 said:
Sure... but don't take her past light speed... It needs a new Alluvial Damper...

Thanks much! She's getting there. There are so many little projects going on with this one build: door, platforms, LEDs, canopy, knobs, etc... I know by the time I'm finished I'll have the worst case of ADD ever! :)
Click to expand...

But, but she'll go .5 past light speed, I really want to show the girls she's still got it. :rolling

Re: 1:1 Millennium Falcon Console Replica

Push that storm over here. I hate clear skies; they bring nothing but heat and boredom.

Re: 1:1 Millennium Falcon Console Replica

Hi Gang,

It looks like rain will be here all day... UGH... But, I did pick up a few goodies for the back panel behind Chewie. I've been thinking how I'm going to go about recreating the F4 Phantom targeting screen...

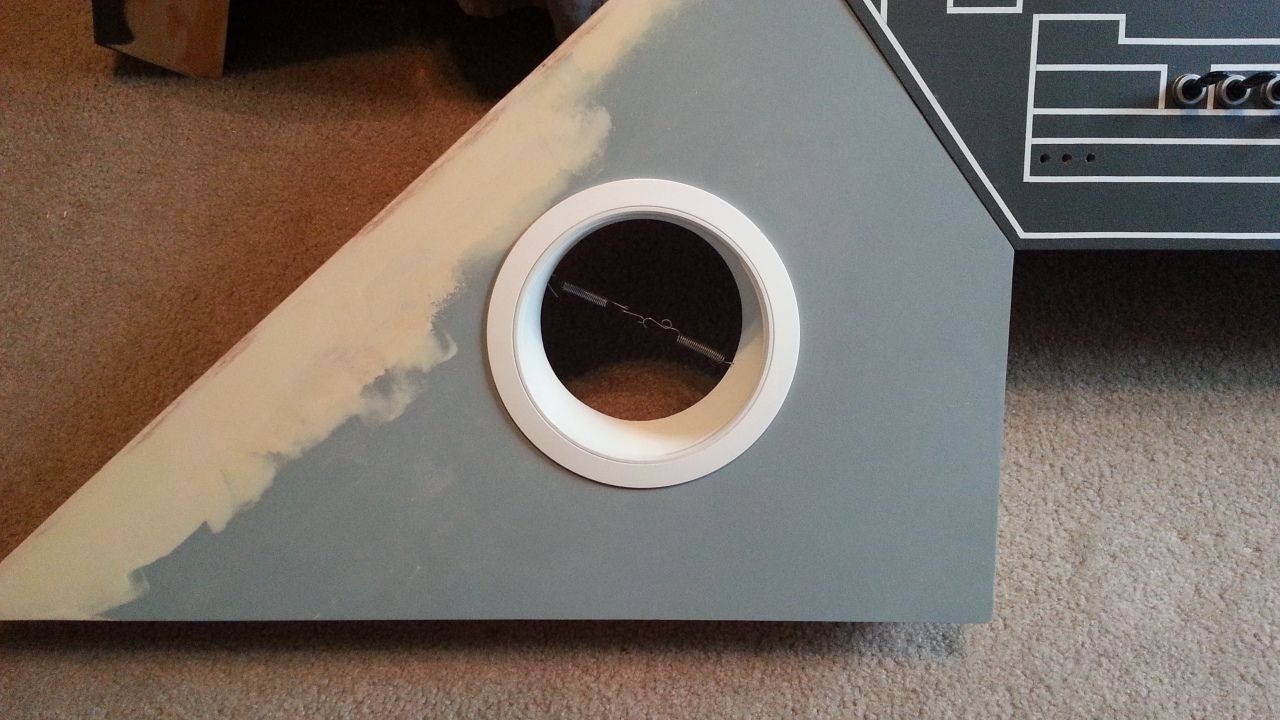

I picked up a recessed light for a few bucks. The hole is 6.5 inches and the light 6 inches.


The radial design would fit over top and hide the trim piece


And if all else fails... I'll just do this... ;)


Let's hope the rain stops... I was really looking forward to getting out there!

Re: 1:1 Millennium Falcon Console Replica

ivanstark said:
i saw every page of your thread. is ****ing really awesome.

ganbatte kudasai.
がんばってください。
Click to expand...

Hi G,

Thank you for the VERY kind words! Just checked out your build. AMAZING STUFF! I might tap you for some electronics advice! :) Thanks again!

- - - Updated - - -

Michael Bergeron said:
That's going to be a b**** to skin. :lol

Looking great!
Click to expand...

Thank you, Sir! I don't think it will be that difficult. I have a little trimming to do on those edges that are poking out - my fault for not trimming. There are some thin bendable boards available. I just have to make sure I have enough surface to apply / adhere the skin. Of course, I say that now... lol

- - - Updated - - -

red4 said:
Push that storm over here. I hate clear skies; they bring nothing but heat and boredom.
Click to expand...

With pleasure! :)

Re: 1:1 Millennium Falcon Console Replica

SofaKing01 said:
Thank you, Sir! I don't think it will be that difficult. I have a little trimming to do on those edges that are poking out - my fault for not trimming. There are some thin bendable boards available. I just have to make sure I have enough surface to apply / adhere the skin. Of course, I say that now... lol
Click to expand...

It's the angle that will make it tough. Unless you're good at math. ;)

Re: 1:1 Millennium Falcon Console Replica

Michael Bergeron said:
It's the angle that will make it tough. Unless you're good at math. ;)
Click to expand...

OH I see what you're saying... This is the approach I'm taking. I'm going to "roll" the frame across a thin sheet of ply and take very rough measurements leaving 2-3 inches of play on each side and at the ends. I'll then cut the ply, adhere to the frame and then trim the excess... Again... I say that now... :)

And I'm not good at math...

EDIT: Taking into consideration what you just mentioned... :) I got my supervisor with me...

Last edited:
