"Wyvern" project by JmenArtWorkshop.

[Jmen]

Hello guys, this thread is not about a creature - this thread is about 3D printed compound bow called "Wyvern"

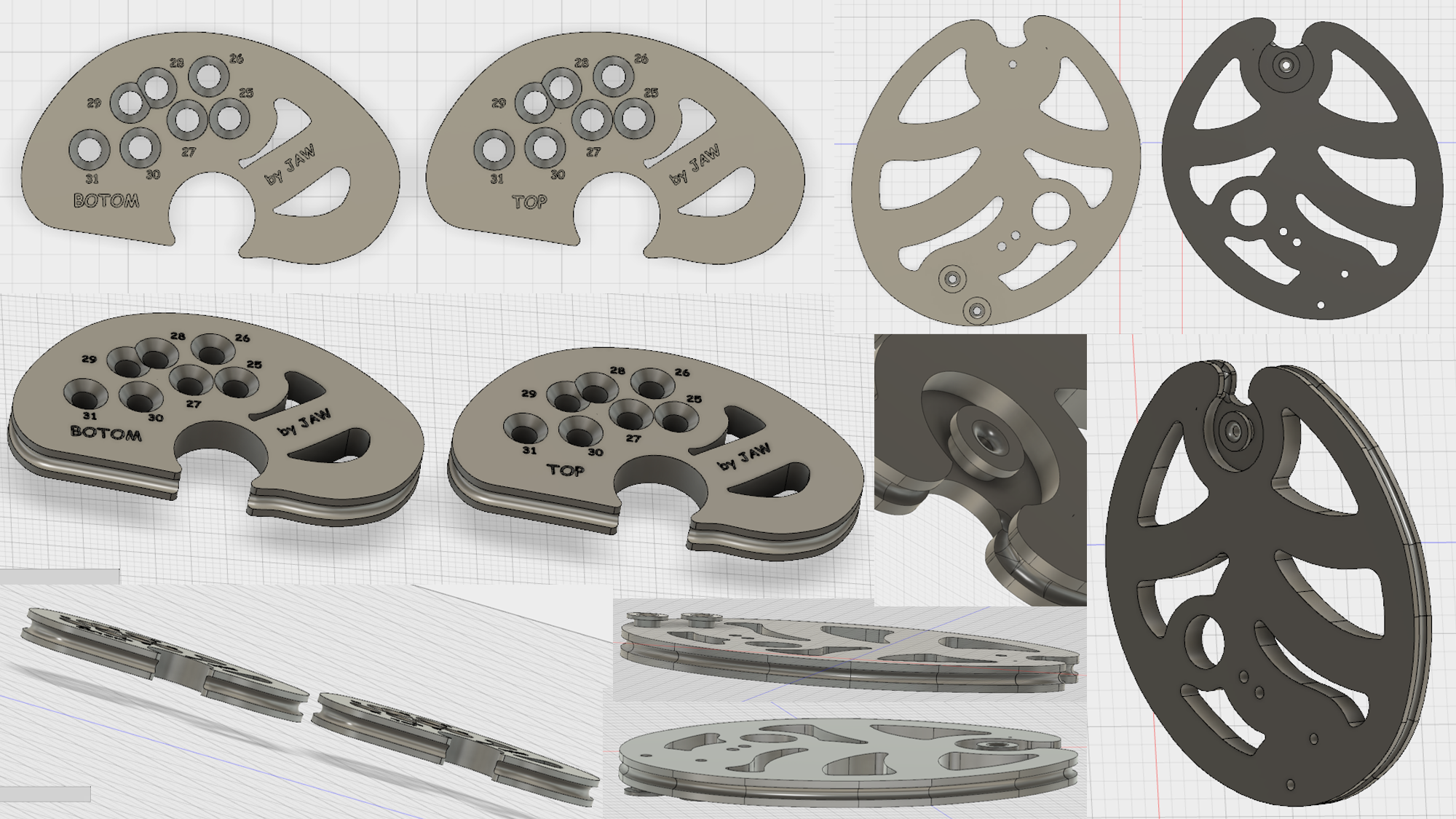

Some of this files was found in the net, but most of them was made in Fusion 360 by me. This is not for sale and i will not share it. This is for my own use only.
I will post pictures and videos here of all the steps from the start to finish. So lets get started.



[Jmen]

Pictures. Riser. White ABS-pro.



[Alcadude]

Cool.is this going to be able to work?



[Jmen]

Cool.is this going to be able to work?

Thnx.
Yes, its gonna be 40-45lb. 100% functional.



[George]

Awesome new project,J. Looking forward to seeing this take shape



[Jmen]

Awesome new project,J. Looking forward to seeing this take shape

Thank you, G) Soon)



[Jmen]

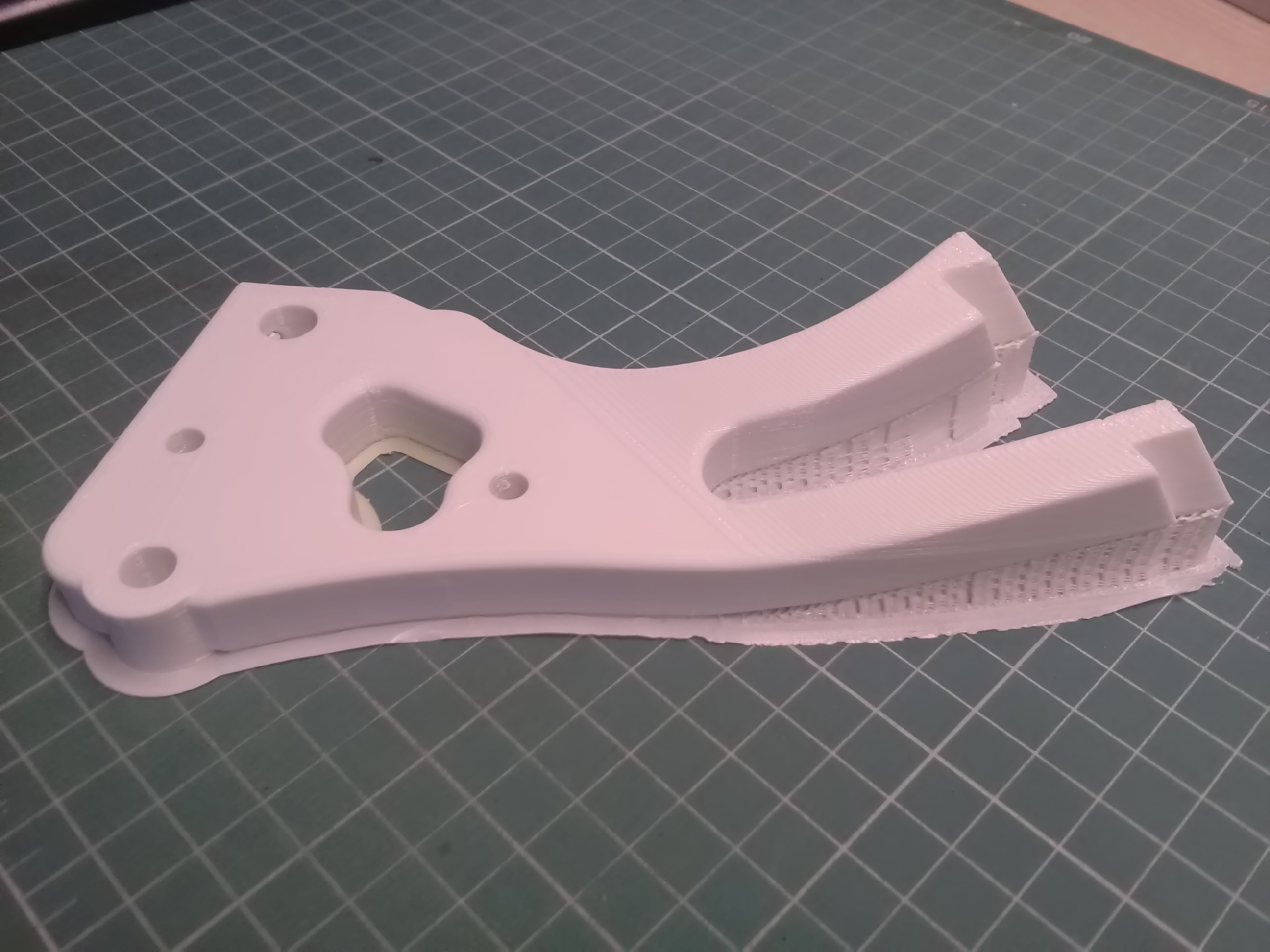

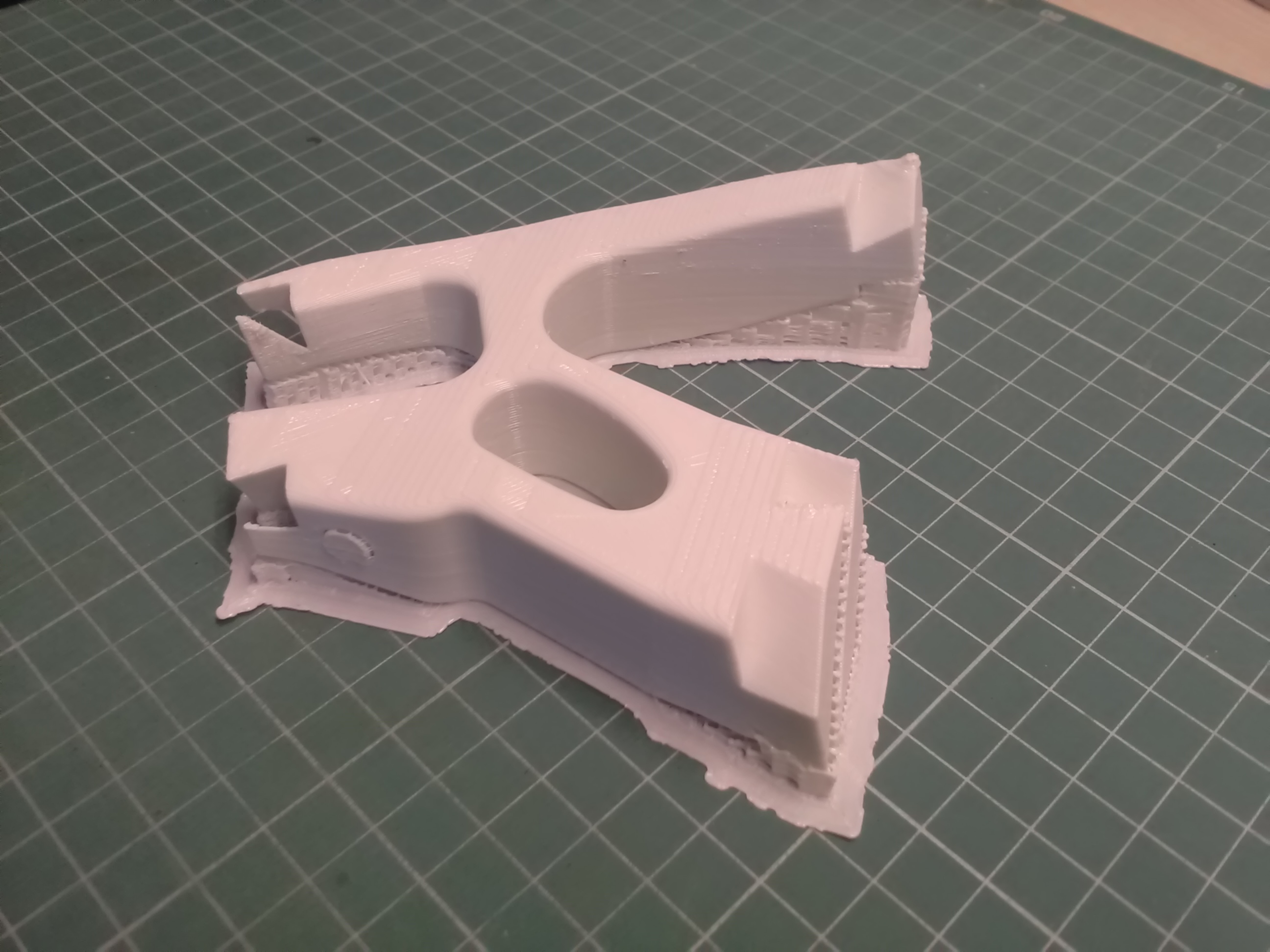

Some new pictures. Not cleaned yet.
