Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Nope didn't think you gave up. You're like me though, we have a more than a couple irons in the fire at any given time....
Yep, I had a feeling the look you are getting on the helm has a lot to do with your build style too, it just looks proportioned the way I would want mine. I'm just hoping the lower torso builds easily with the way the templating is layered.
I'm pretty pumped to see this come together



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Ultron, Ant-Woman, and the Patriot. Just a few things.

I'm going to do the arms first but I'll be sure to post updates when I get down to the abdomen.



[Rodolfo]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

WOW msleeper! Fantastic work!! Great progress!! Can´t wait to see more updates!!



[prostheticsoul]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Submit or perish.

Did you modded the file so the parts in the chest where are "cuts" didnt show ? YOu have a complete piece i dont know if you understand what i mean :/



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

I didn't mod the file, I just taped the 2 pieces together. I tossed out my printed files already or else I'd take a photo and show you. But all you do is tape the adjoining edges together along the seam. Then I used a heat gun to heat up and gently bend the breast armor in to shape before gluing everything together.



[prostheticsoul]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

I think i understand what you mean. Thanks.



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

I am re-doing the helmet tonight, I'll take some photos to show you what I mean then.



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Did you modded the file so the parts in the chest where are "cuts" didnt show ? YOu have a complete piece i dont know if you understand what i mean :/

I think i understand what you mean. Thanks.

Okay here's the process. You cut out the individual parts, then tape them together along the edges to create single, contiguous templates.

Here's the mohawk:


The sides:


The jaw and ear piece:

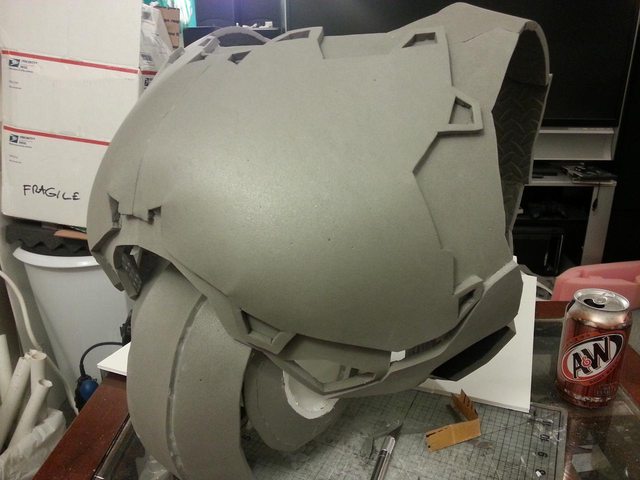

And then here is the face with the sides/temples glued and attached. The jaw/ears are also there, upside down with the white foamcore board ear cups. This is 3 pieces total - the 2 sides and the face:



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Makin' progress.



Quick question Lael: Does the inset little detail part go on the outer elbow side, or the inner? I can't tell which direction is "up" from your renders.



[laellee]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Makin' progress.

[url]http://i.imgur.com/AbpfVmSl.jpg[/URL]

Quick question Lael: Does the inset little detail part go on the outer elbow side, or the inner? I can't tell which direction is "up" from your renders.

Do you mean that indent shown on the left? The indent is more outside/back on the bottom of the bicep. The extended flap on the bottom edge of the bicep (the red-lined stuff on the right) would sit behind the forearm's elbow covering, and that indented area allows a space for the forearm to 'mesh-up' with the bicep when the arm is stretched out straight. (wow I am bad at describing stuff)

I put together this mash-up, hopefully it helps better explain the orientation:


Hopefully helps?



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Yeah that should be fine. Can you post that bottom render without the shoulder bells? Thanks.



[laellee]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

I'll do you one better- email incoming..



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Working on the shins: Are they identical on the left and right sides? I don't mean the left and right legs, I mean can I only print one side of the templates and use that for both?



[laellee]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Yuppers they are. Feels like a million years ago when I did this, I keep having to go back to make sure on stuff :lol

So yep they are identical just mirrored.



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Okay cool, that should save me some time!

Did you ever finish up the hand plates/gauntlets? I was going to make generic Iron Man type fingers/palms.



[laellee]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Yeah about that..... I modeled a couple of different ones, both attached to the forearm and free, but I just didn't trust them for range of motion (when twisting the wrist). Lemme go look in the folder, and I'll see what I had for one.



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

No problem. I honestly don't think it really needs it so don't worry if you don't have anything that will work.



[laellee]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Yeah about that..... I modeled a couple of different ones, both attached to the forearm and free, but I just didn't trust them for range of motion (when twisting the wrist). Lemme go look in the folder, and I'll see what I had for one.

OK, just did it now while waiting for paint to dry...



Pretty lame-o, but I think the left one will pep out in foam nicely and just work better. It's just a no-frills cover though, so freehanding with it could turn out better?

Here's the pdo of both:
july15oldguardstarts.pdo



[msleeper]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

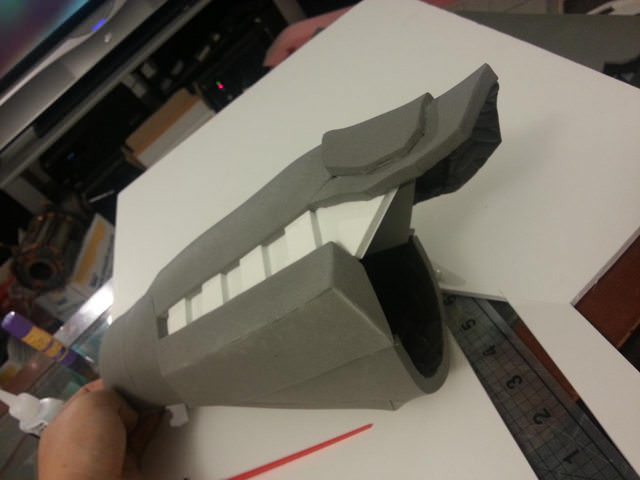

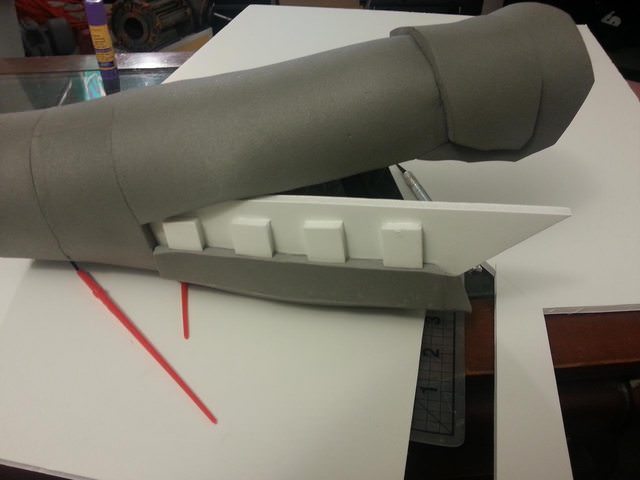

Finished the forearms. I need to figure out tabs so I can connect the forearms and the biceps but that isn't really difficult.

For the "grille" areas, I used 1/8" foamcore board to make it nice and rigid. I have to say laellee I really like the design aesthetic in the forearm!



[Xela 0 aleX]

Re: ULTRON for Pepakura ** 5/9 FOAM HELMET TEMPLATE ADDED **

Finished the forearms. I need to figure out tabs so I can connect the forearms and the biceps but that isn't really difficult.

[url]http://i.imgur.com/Ttj1PRYl.jpg[/URL]

[url]http://i.imgur.com/Cv6BVxBl.jpg[/URL]

[url]http://i.imgur.com/e9hxVuil.jpg[/URL]

[url]http://i.imgur.com/YvWxqZOl.jpg[/URL]

For the "grille" areas, I used 1/8" foamcore board to make it nice and rigid. I have to say @laellee I really like the design aesthetic in the forearm!

I must say that there looks beautiful better than mine that's for sure! Great job gonna have to redo mine like that
