Greetings,

I though I'd share about my Tron Legacy Identity disc build. The project waited a couple of years before getting started. Hitting december, I decided that all that backlog had to go somewhere, so I tackled the build right after christmas...

Specs / particulars

- 197 LEDs
- Soul Inertia retrofit kit. Disappointed by the amount of bubbles in the outer ring but I'll leave with it.
- USB rechargeable, 2x li-ion 14500 batteries in parallel, individually protected
- USB mass storage / flash drive (2GB). It's a freakin' storage disc or WHAT ?
- Crystal focus v7.5 sound board + slightly modified firmware + arduino for rapid prototyping
- 2 fonts from Novastar (with and without ambiance). I've added a few sounds as the fonts were made for CFv5
- Sam / Rinzler disc transition (color changing)
- swing / clash / flash on clash / spin Fx / lockup, inherited from the SW lightsaber context
- smooth ignition / retraction (97 LEDs)
- pulse mode in idle, wake up on move
- audio player (I've put the whole Daft Punk album in there)
- motion powered activation
- motion controlled font choice and audio tracks

Primer WIP. Trying to get rid of all the copyright marks and ugly text. Leaving the sound vents and former on/off switch for the micro USB access. On the latter can be read E O l. I left those as it reads as end of line and I found it cool.

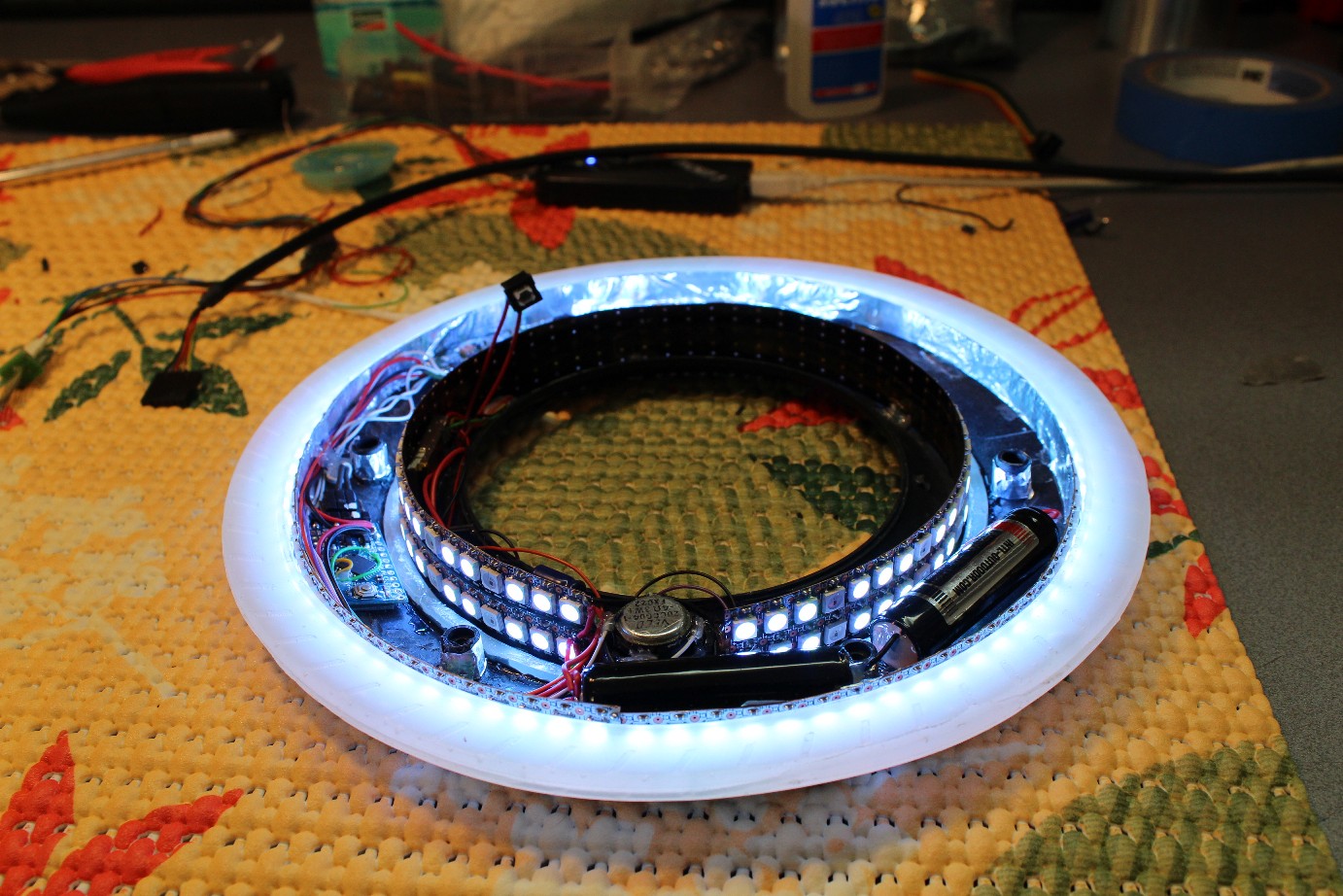

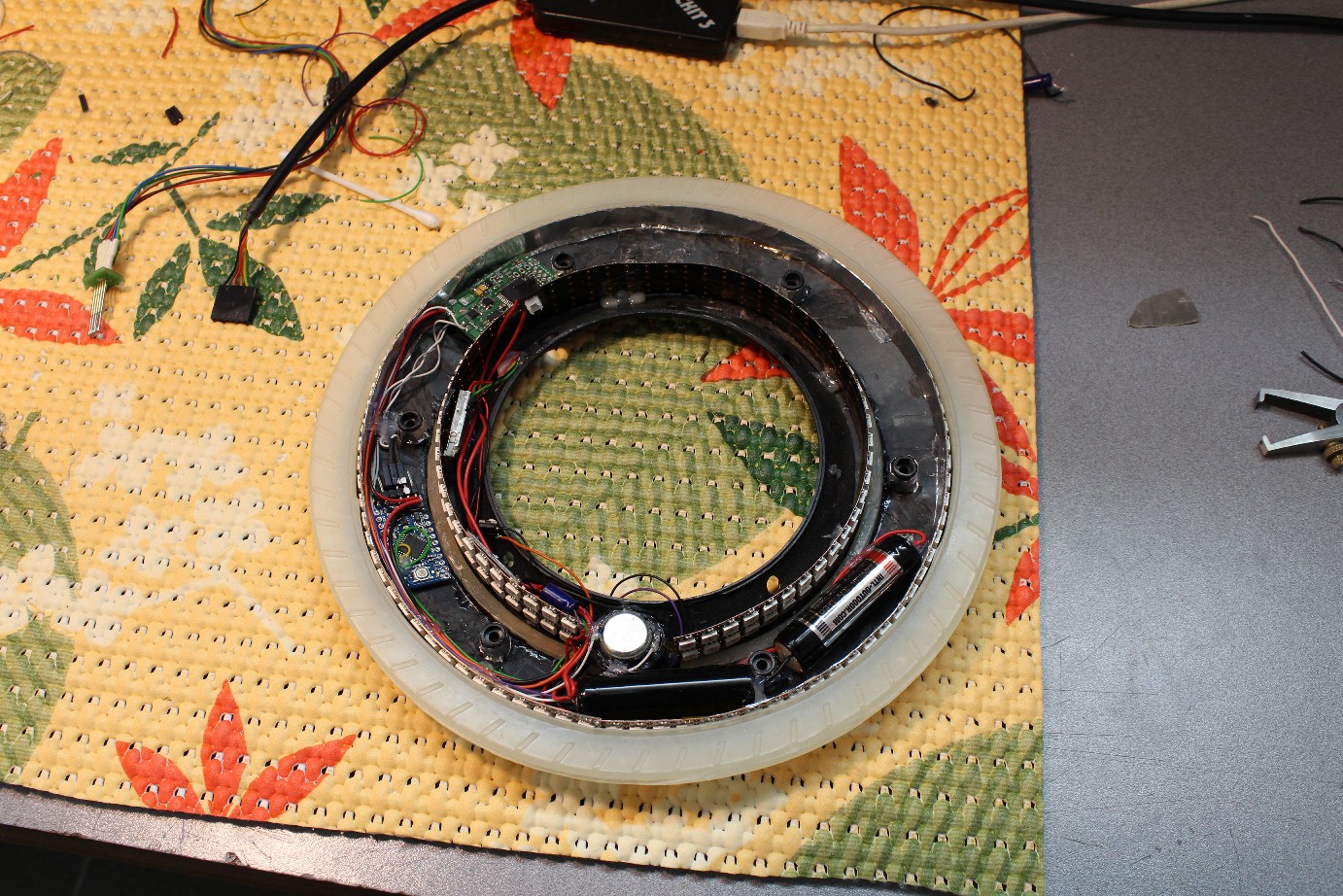

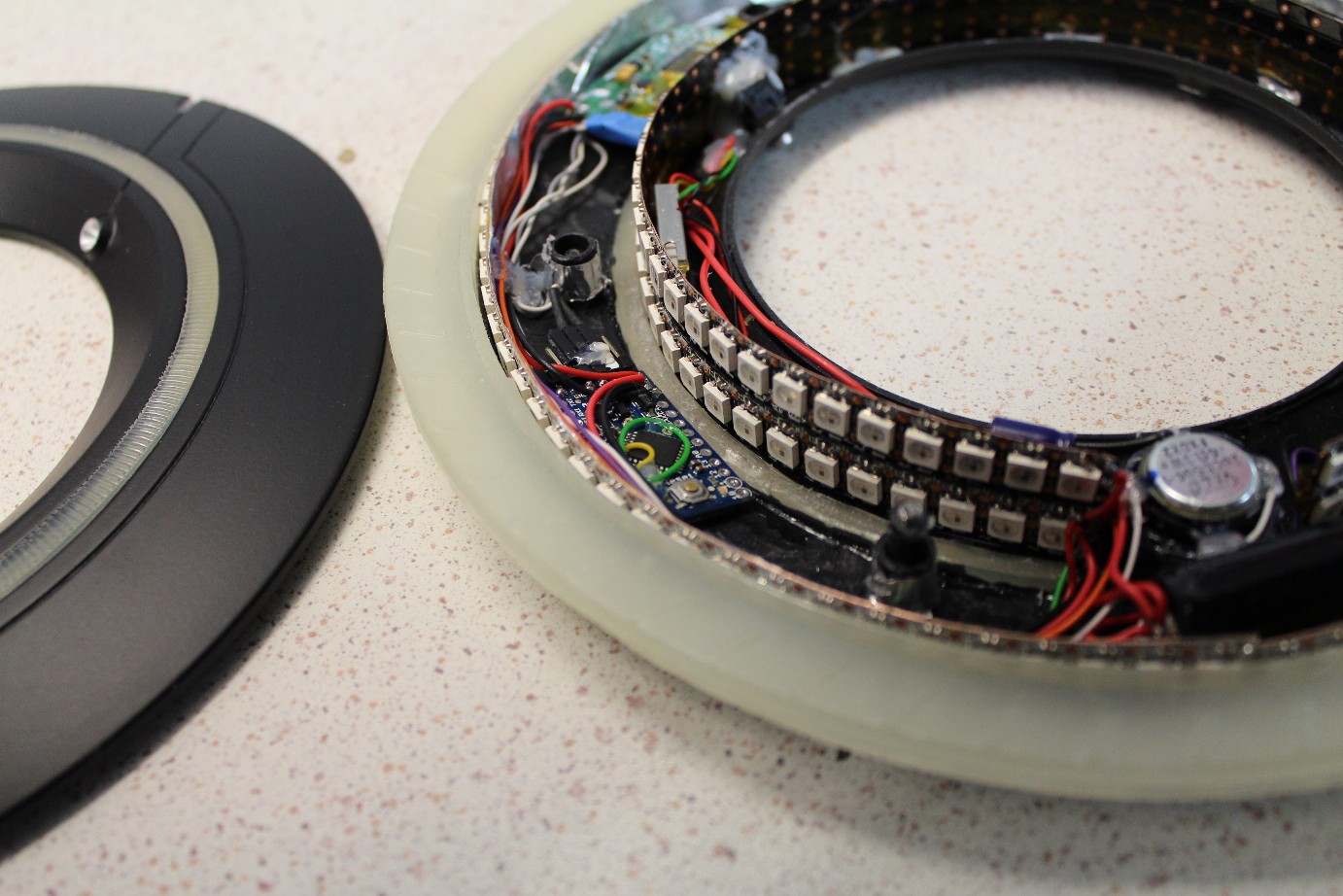

The internals are quite clean despite of the number of LED used. I plead guilty for using a fair amount of hot glue to isolate connections and have the LEDs stay in place over a short amount of time, and not wasting epoxy.
- 4 ohm 20mm speaker
- hidden switches using fake magnets in the back
- internal reflector with alu tape to maximize diffusion / reflection for the inner ring and avoid internal shadows due to the electronics.

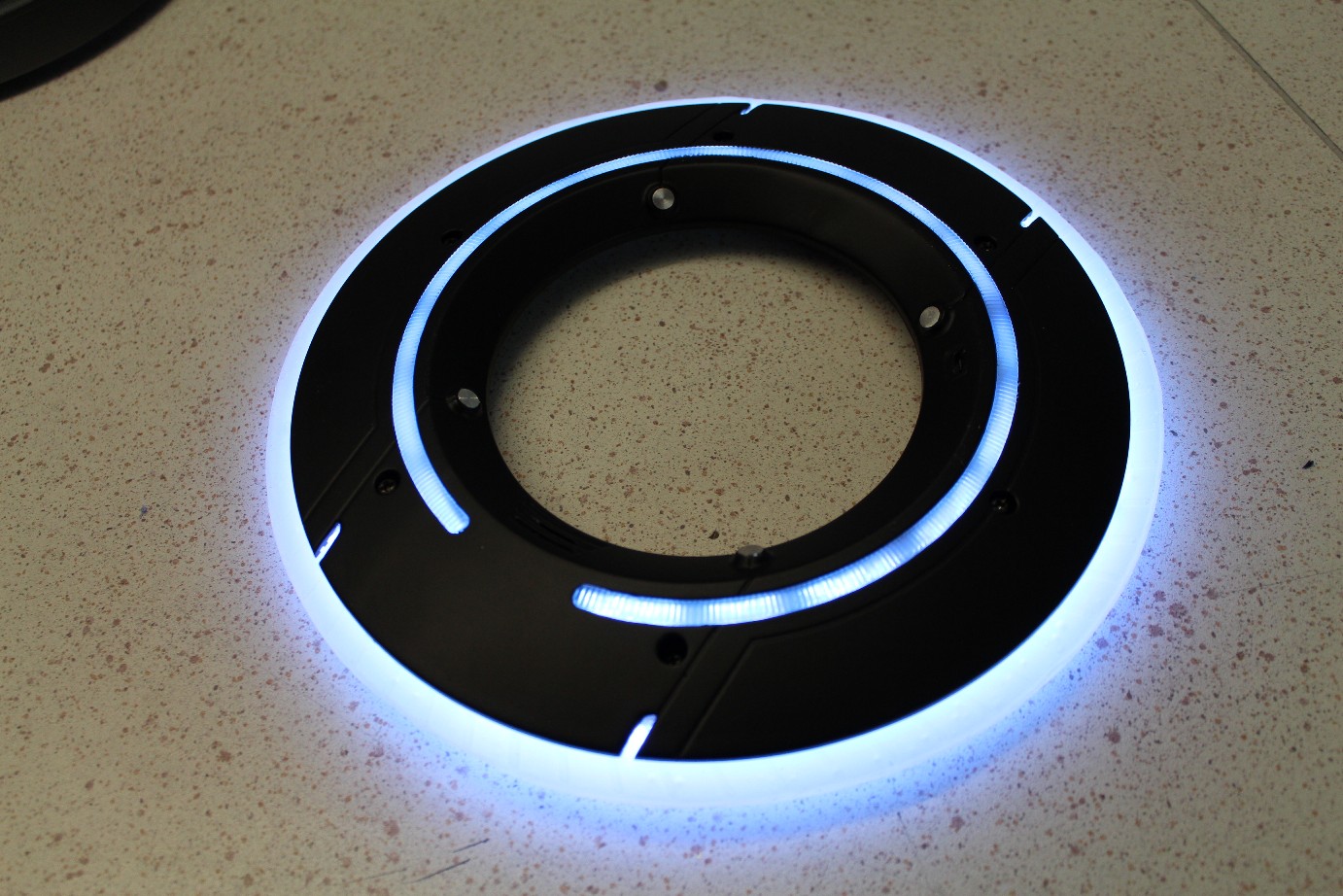

- proper 16 segment boot sequence, measured 250 ms per step via movie analysis and key frames. I had to cheat though, I didn't have the right multiple for the LEDs, so some segments are slightly shorter to match the amount of segments.
- spinning blade effect with dimmed pattern (not just on / off), very realistic

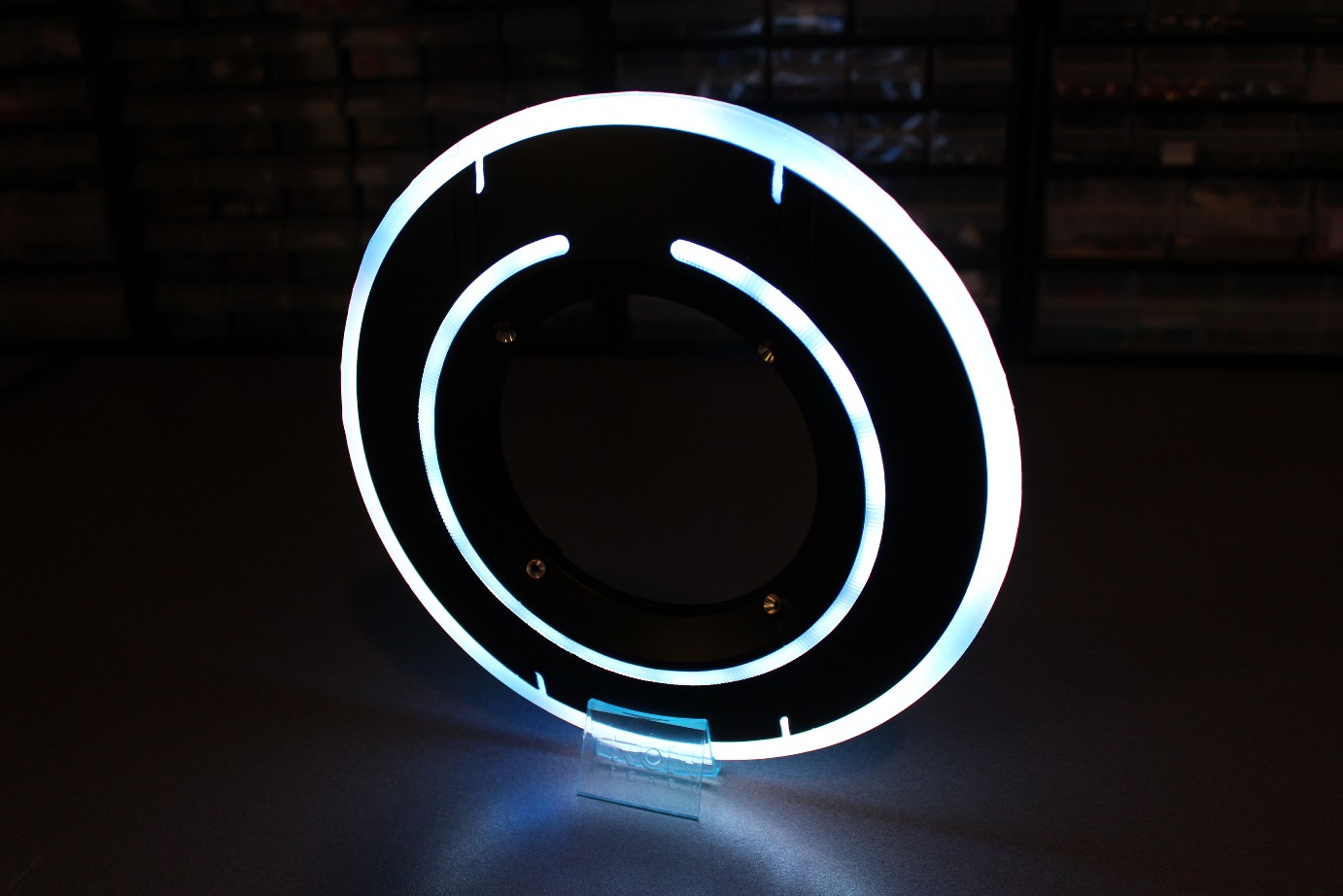

I know it's far from being accurate. I decided to totally mask the former activation switch from the toy though it seems the engraved contour appears on the original prop. Added some alu bezels to match the ref pictures I've seen in this forum. Hope you'll enjoy !

Video

Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

propmaster2000

Sr Member
Hi erv,

I too made some effort to enhance the Sam Tron Disc as well. I did mine some time ago without addressable, RGB LED strips.
I ended up having to create an internal diffusing and light blocking module to help the light transfer around the disc perimeter,
but the down fall was it took up a bit of room, but I think the results turned out ok.

I had to make my own flexable (strip), dual sided copper circuit board (layout to eching) to hold 56 single color LEDs, as well as for the 16 LEDs
around the center ring. No sound.
It is amazing how much simpler micro controllers and addressable LED strips makes short work of electronics these days. :)

Yours really looks great and works well, given the space available in the toy.
Nice job.

propmaster2000

.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Nismo

Well-Known Member
Fantastic work! thanks for sharing I have recently been looking into arduino ran prop's as so far I have only done remote controlled animatronic type builds.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Crimson490

Well-Known Member
RPF PREMIUM MEMBER
Brilliant. It does everything the original toy should have done. I esp. love that you can listen to Tron music on it! =)


erv

Well-Known Member
I esp. love that you can listen to Tron music on it! =)
thanks ! my Blade Runner "hum-brella" offered to Vangelis has the same thing in it. Not a game changer per say but it sorts of embeds some of the spirit of the movie, and I like it.


mugatu

Sr Member
RPF PREMIUM MEMBER
Awesome build. Love Tron, love the discs. And this one is phenomenal. The movement sensorsd pitch-changing effect as well as when you first light up. The sound and everything is just amazing.


agliarept

Sr Member
RPF PREMIUM MEMBER
can i ask what light strip you used for the outer ring? I can't tell if its a double or single row of SMD lights.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

erv

Well-Known Member
thanks a lot ! I really enjoyed it as it converged at the right pace, except for primer drying time lol. The sound fonts were ready for a quite a while, as Novastar authored those back in 2011 maybe (Crystal Focus v5 era). I only needed to allocate a proper time frame to work on it.
