Wondering if anyone could spare a template for the top shroud 2 pieces? To be printed on like A4 paper?
T'is the season! Luke's Holiday Special lightsaber!
- Thread starter NeoRutty
- Start date
PLEASE AND THANKS.
it’s the last big part. Apart from the red lamp button
it’s the last big part. Apart from the red lamp button
OH what about also a paint stencil for the black painted bit beneath the shroud.
I kind of assumed I'd do that in black vinyl like the arrows so they match.
So what you could to is stick the whole thing on and then if you want black vinyl, just peel off the border. If you want it painted, peel off the rectangle, leaving the border, then mask off and paint. Dual purpose.
Last edited:

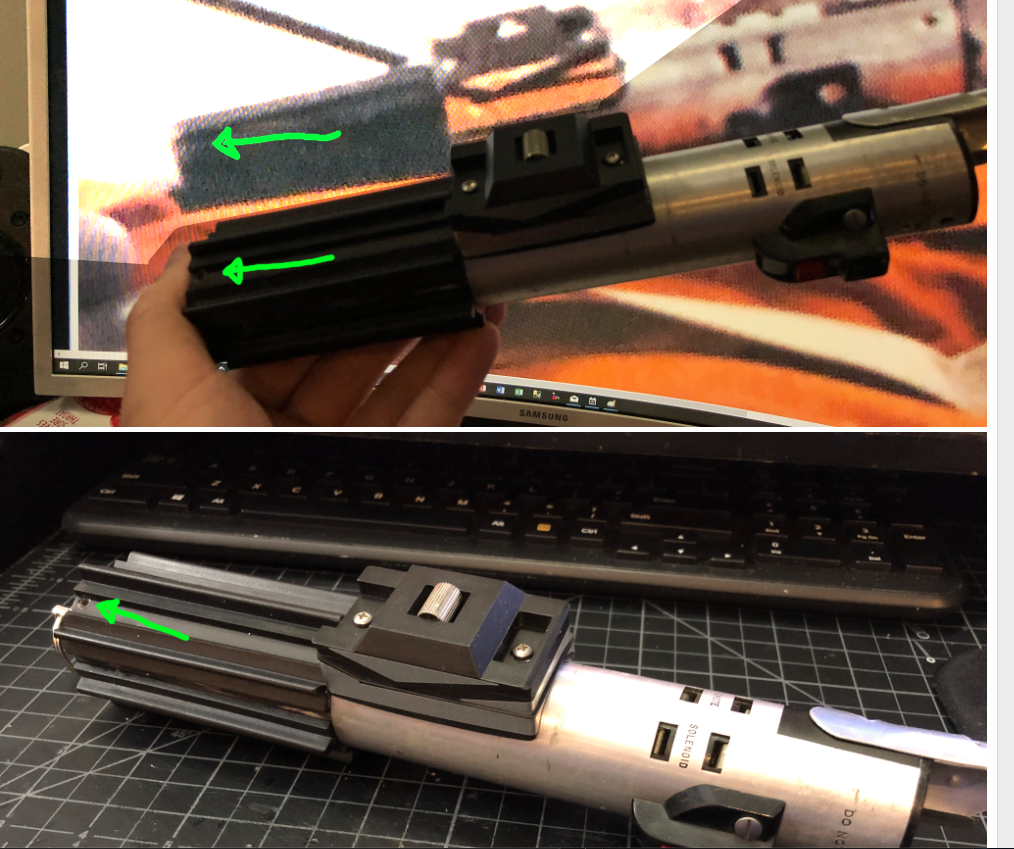

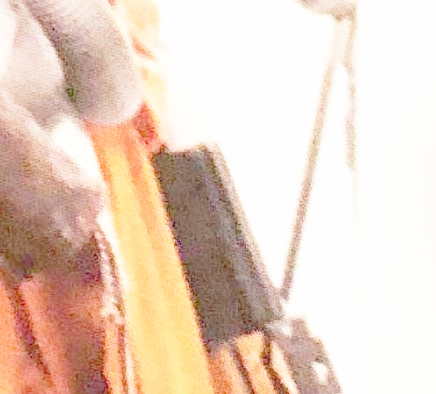

I'm pretty sure that's just a photo artifact. It's in line with the grip rather than between them so I doubt that's a set screw. Danny just did that on mine because he likes mechanical assembly better than glue (I agree).

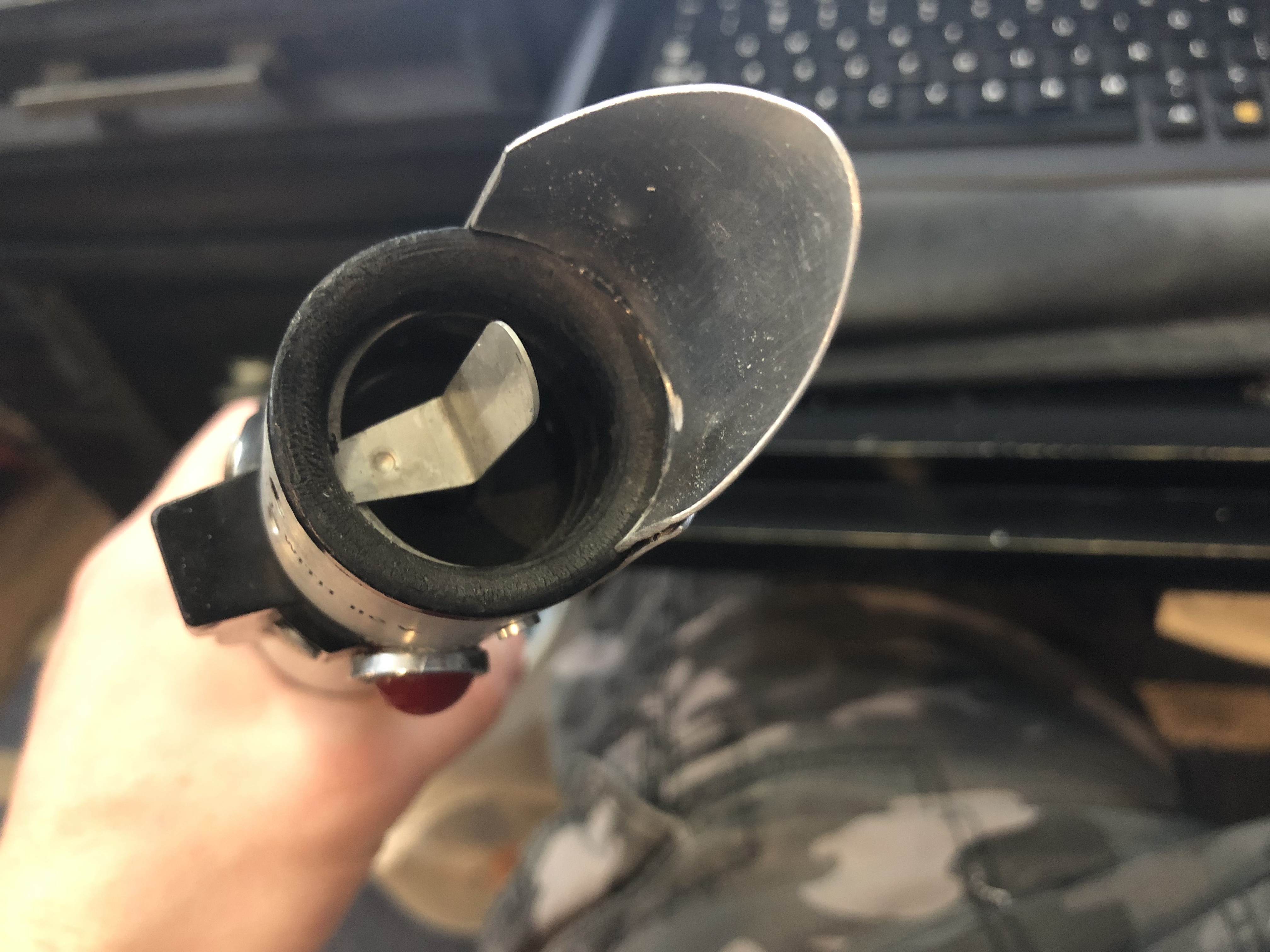

Question: I’ve noticed that L-shaped metal piece coming out of the bulb holder in the reference photos, as well as some builds of this saber. My Graflite didn’t come with one, and I’m not seeing any indication of it after a cursory search for photos and info on the flash handle. An original part of the flash, or a custom part?
Original. It's the bulb contact. you have to remove it, bend it, flip it, and put it back in.
See post #4
Sorry for the late reply guys. Trent those end caps look gorgeous!!
I don’t see any set screws I only added a set screw because I like mechanical attachment encase it has to be removed down the line
There is nothing even with these grips, they are all over the place. If one wanted they could cover each set screw with a grip. I took a little liberty and let it stay exposed on one
I don’t see any set screws I only added a set screw because I like mechanical attachment encase it has to be removed down the line
There is nothing even with these grips, they are all over the place. If one wanted they could cover each set screw with a grip. I took a little liberty and let it stay exposed on one
CAKComedyProps
Active Member

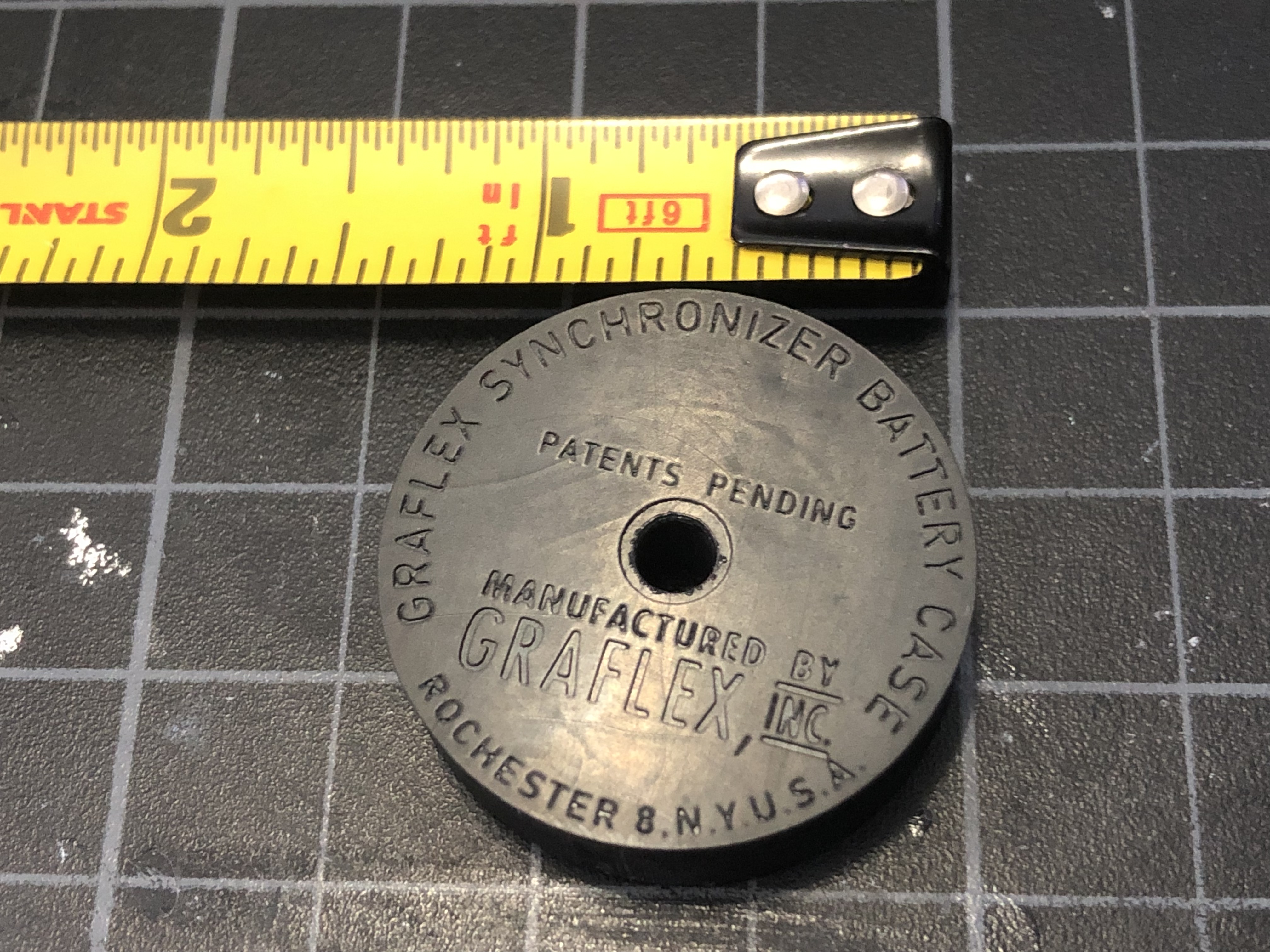

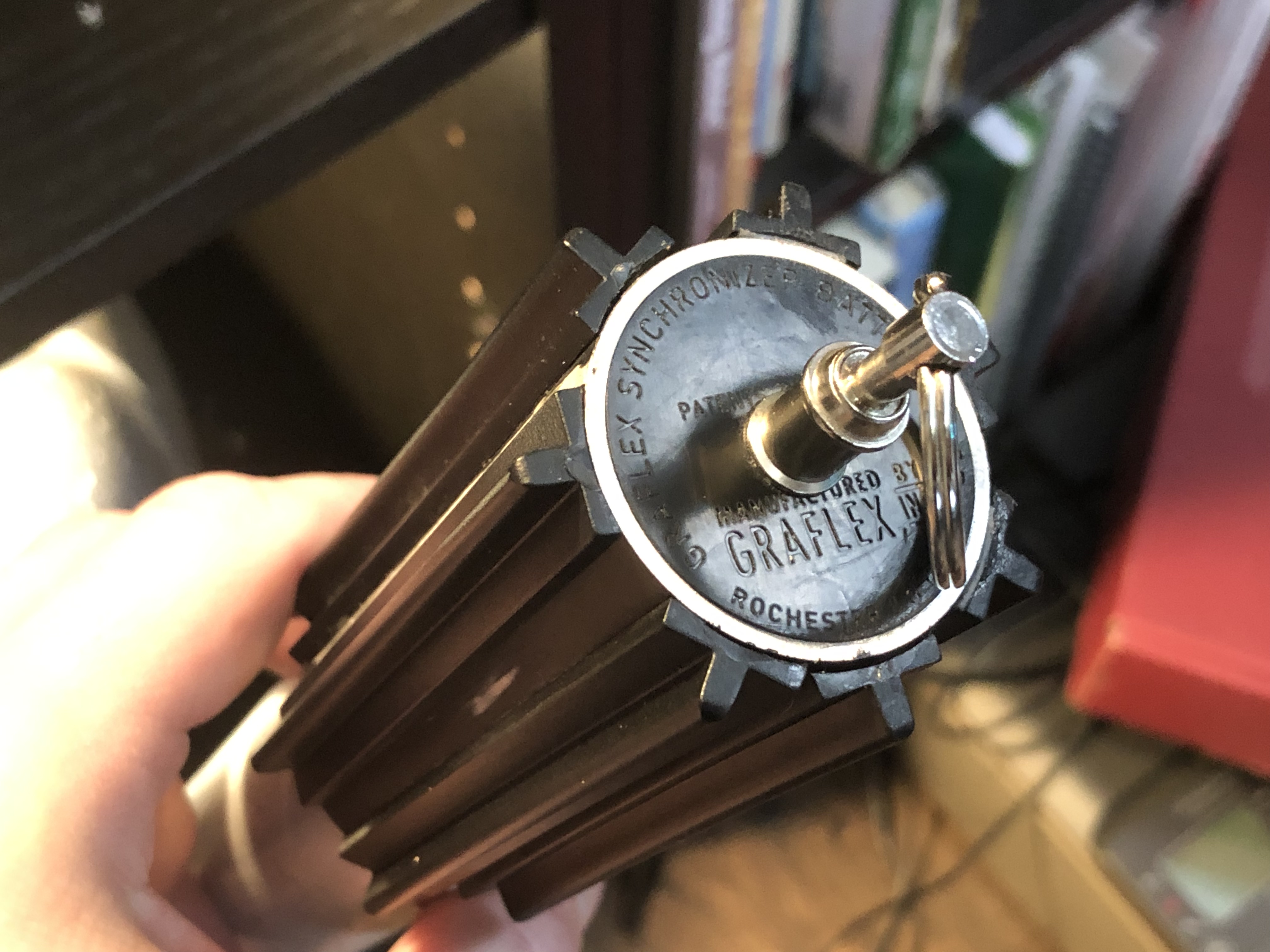

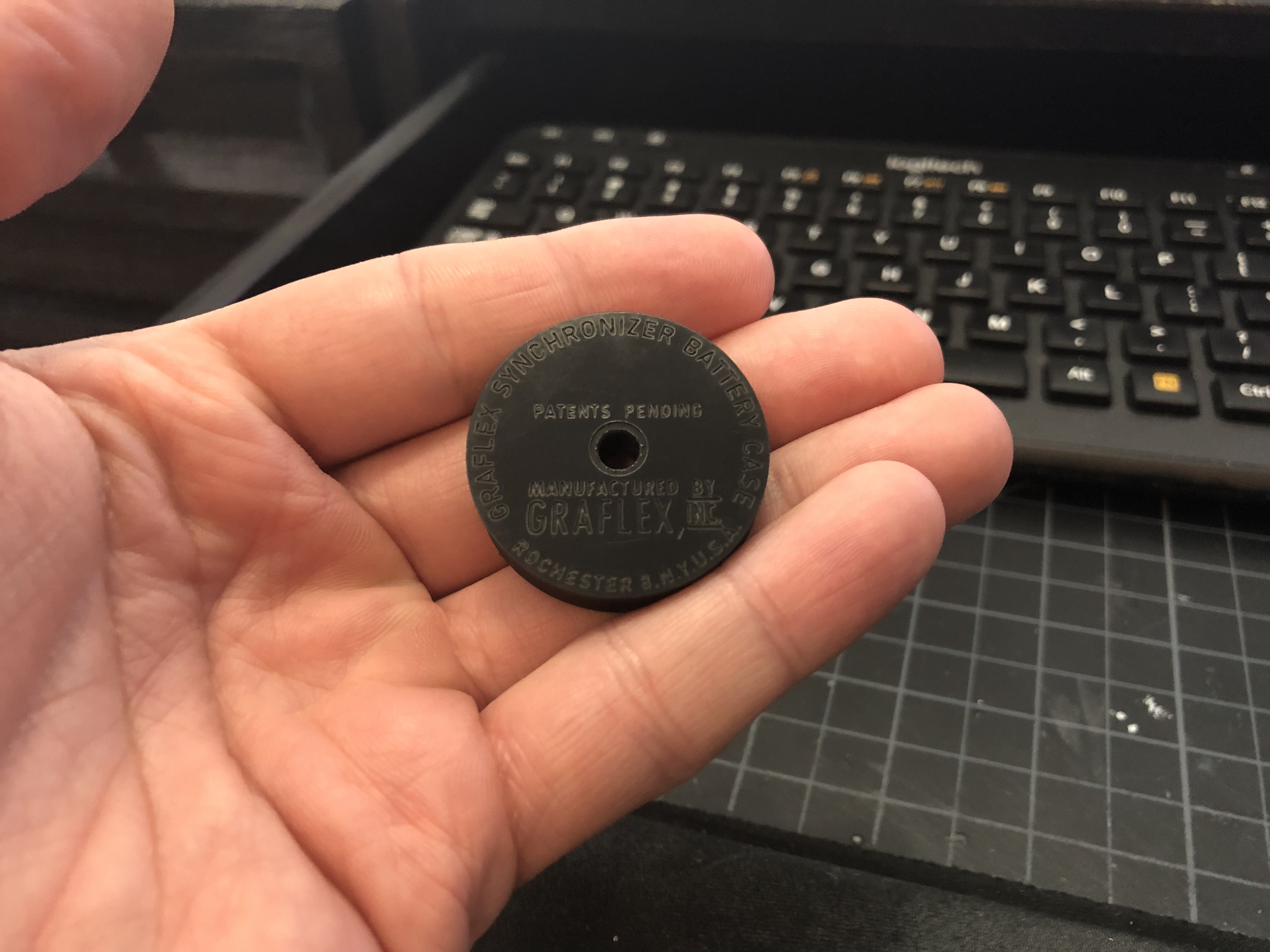

I put my vintage cap into the end, just need to upload pics when I have time.
I just can’t stop thinking about how happy all those ebay sellers who’ve spent years trying to push off Graflites for Graflex prices are going to be in the coming days as this gathers steam.
Glad I’ve had a few in a box for years! I always end up with one when I buy a lot with something else in it.
Glad I’ve had a few in a box for years! I always end up with one when I buy a lot with something else in it.
I was thinking the same thing. A seller of camera parts had like 10 or so available and I think he sold out. He seemed so happy when I asked him a question lol
Sloppy test job but you get the idea.
