Not much progress today, but I did get a chance to spray a gloss coat onto the calves:


I also took a quick inventory of the servos and microcontrollers I'm going to build into the suit:


I may have overdone it...



[Nessy]

Re: Just What This Forum Needs: Another Ironman Build

You just know it is going to be good when Thorsolli worries about "over doing it"



[Megatron]

Re: Just What This Forum Needs: Another Ironman Build

ummm any chance you going to work on a War Machine too?
nice work and thanks for sharing all those great pics



[fyreant]

Re: Just What This Forum Needs: Another Ironman Build

helluva job so far man..

oh and... subscribed!



[msleeper]

Re: Just What This Forum Needs: Another Ironman Build

If it's worth doing, it's worth over-doing, right?



[The Ronin]

Re: Just What This Forum Needs: Another Ironman Build

Dude, every freaking time I think I might be able to do something as cool as you are, YOU GO AND RAISE THE BAR AGAIN!!!

Seriously though, I follow all your stuff just because I learn new things EVERY time you update. Thank you for sharing your craft with us.



[Megatron]

Re: Just What This Forum Needs: Another Ironman Build

chrome wrap...



[thorssoli]

Re: Just What This Forum Needs: Another Ironman Build

You just know it is going to be good when Thorsolli worries about "over doing it"

I suppose I'm getting a bit of a reputation...

ummm any chance you going to work on a War Machine too?

I have detailed files...


It might be a while though. I really want to bring that one to life, but I've got to figure out how to fund the rest of the Mk2/3 build first.

If it's worth doing, it's worth over-doing, right?

I'm not sure I completely agree with you, but I'm over-doing it all the same.

...I follow all your stuff just because I learn new things EVERY time you update. Thank you for sharing your craft with us.

No problem. Just make sure you pay it forward as you develop your own skills.

chrome wrap...

Chrome wrap is a great way to expedite a faux plating effect on a large piece (such as a car) but with something smaller with all of the fine details you find on any of the armor parts, you'll lose resolution.

UPDATE TIME:
Over the past few days I've made not-quite-enough progress on the boot:


I have managed to shine up the front of the lower leg pieces:


Then I did some more cleanup work on the hand parts (which have been sitting on the shelf untouched for far too long):




After cleaning off the last residue of support material, it was time to make the mitts shiny too:


I stacked the fingers up on some clay and started prepping them for molding:


Then I started pouring rubber:


Between the hand parts, the chest, the back, the waist, and the pelvis, I used up most of a five-gallon bucket of silicone yesterday:








I started laying up mothermolds this afternoon, but I took a brief break to grab lunch and update the thread here. This is how the chest looks right now:


And the waist:


Today I'll finish the mothermolds for the chest, back, waist, and pelvis. I'll also lay up jacket molds for the wrist covers:


Then all I need to do is finish up the boot prototypes, build molds for everything below the pelvis, pull casts of all the pieces, trim, assemble, prime, paint, plate, wire, and wear.

Should be done in no time...

...but then again I could just be smoking crack.



[omarbou1]

Re: Just What This Forum Needs: Another Ironman Build

mannn cant believe you have that file.. :O i dont dare namming them the cgi !!
anyway i think you will have the most complet iron man suit of all time ... i mean it ..
you just surprise me each update !!

awesome progress !



[Spardax]

Re: Just What This Forum Needs: Another Ironman Build

Wooow! this is a fantastic and long work for one of the most accurate IM armors



[Megatron]

Re: Just What This Forum Needs: Another Ironman Build

I was thinking gold chrome wrap for the face plate..have you looked into Alsa Corp | The World's Most Exotic Paints and Finishes

there film is 4mil / 100 microns
rattle can paint is thicker then that



[Elderpred13]

Re: Just What This Forum Needs: Another Ironman Build

Nice work, very crisp, and clean.



[Sploinker]

Re: Just What This Forum Needs: Another Ironman Build

AH HA! I see now why your projects always end up being so awesome! Your secret ingredient -- SOY SAUCE!



[thorssoli]

Re: Just What This Forum Needs: Another Ironman Build

there film is 4mil / 100 microns
rattle can paint is thicker then that

I'm not worried about the thickness. I'm worried about trying to stretch it to fit into all of the nooks and crannies.

AH HA! I see now why your projects always end up being so awesome! Your secret ingredient -- SOY SAUCE!

You've found me out. Blast!

Time for an update:

It's been a busy day. It started with adding some fiberglass to stiffen up the mothermold for the back:


And the chest:


And the waist:


I stiffened up the pelvis molds too, but I neglected to snap any pics.

Once the glass had hardened, I pried the mothermolds off and peeled the rubber jackets off of the prototypes:


The prototypes never fare well in this process:


Once I'd cleaned out the molds, it was time to start layering up resin in the back:


and the waist:


and the chest:


Once the resin layer was set up, I reinforced it with fiberglass as well. Here's the chest:


and the back:


and the waist:


Today also marked my first attempt at casting any glove parts. I think they came out alright:


The next step will be to cut the front and back pieces apart along the gap and fit them up with magnets so they'll snap together around my hand:


Since I'd neglected to do it the day before, I finally got around to setting up the right fingers for molding:

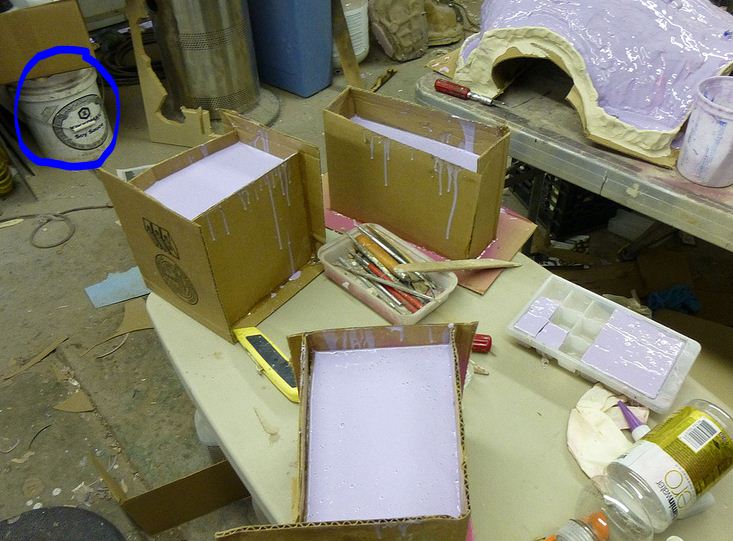

Then I built a box around them and filled it with silicone:
