The Bad Batch Tech's Datapad Functional Replica

the.rebel.agent

Sr Member

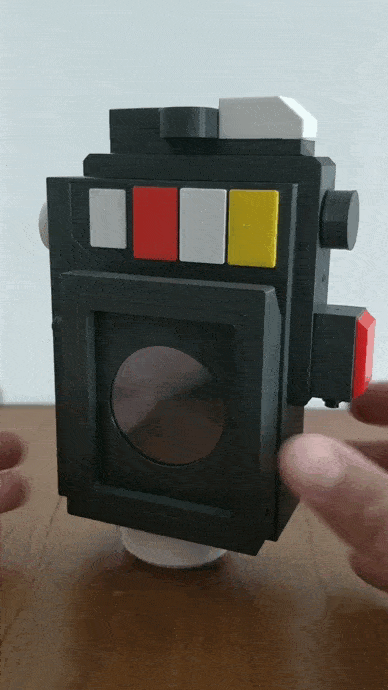

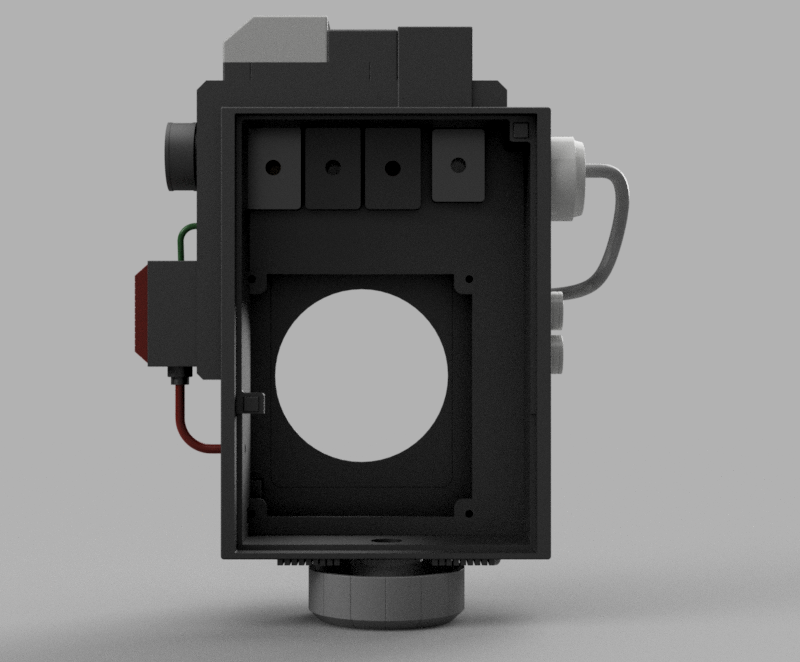

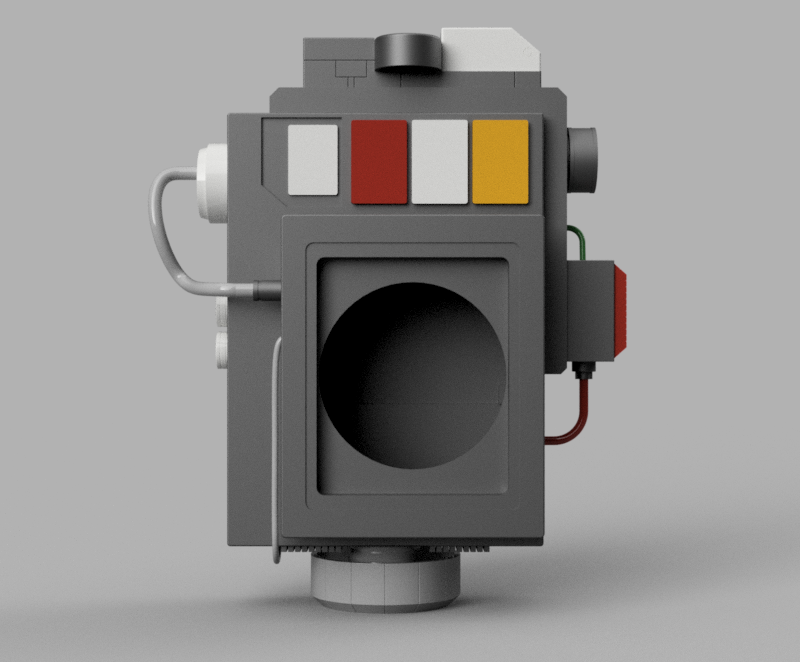

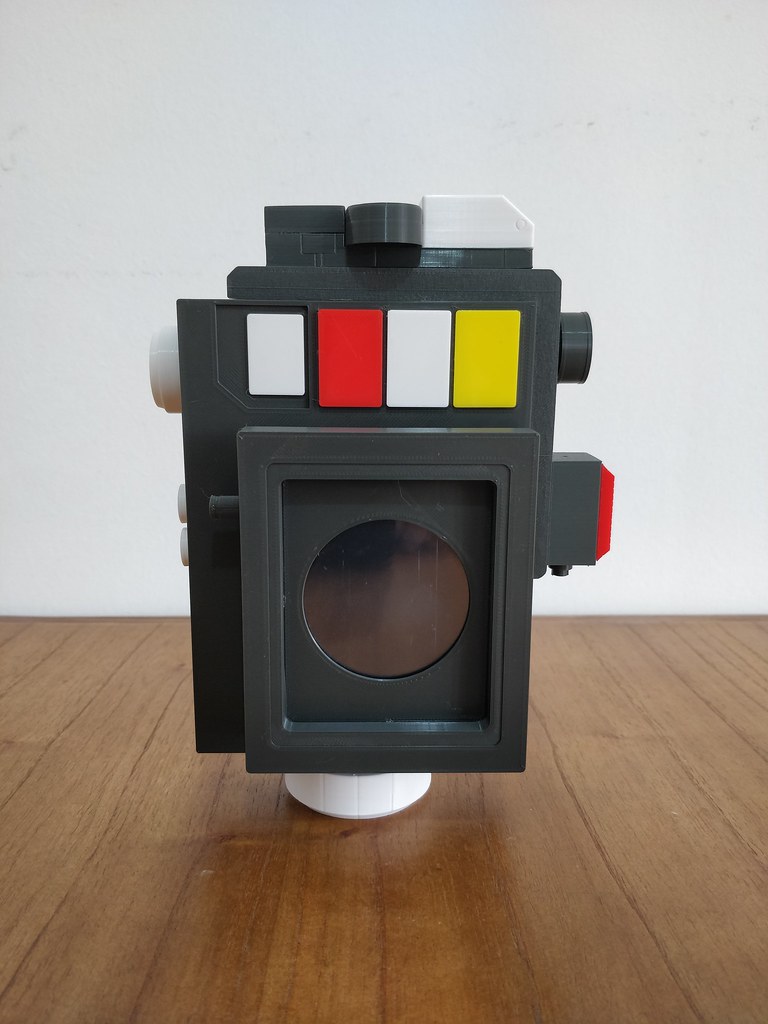

Since the show aired, I felt in love with this character and his abilities to master the technology. A Nerd clone If we can say that. Since information technology is part of my profession and I an super Star Wars Fan, I modeled this Datapad in Fusion360:




I realized that could be done to install electronics, so I did it that way!

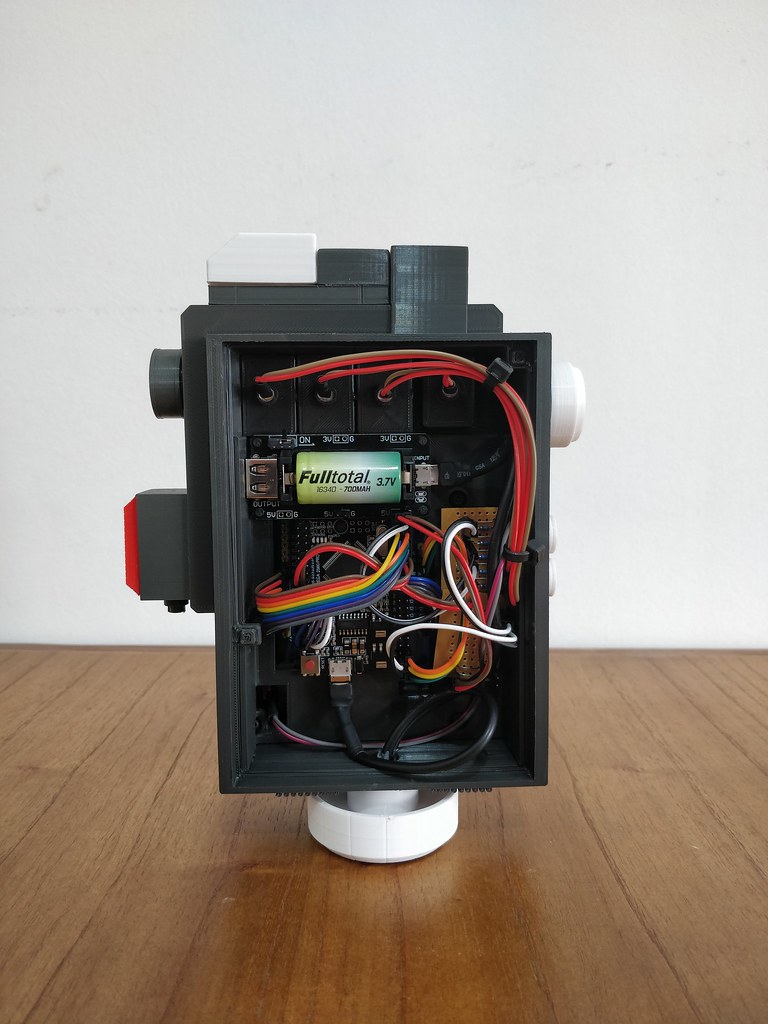

Designed the electronics and developed the firmware (Arduino Mega 2560 and a 3.5 inches TFT LCD Arduino Shield):

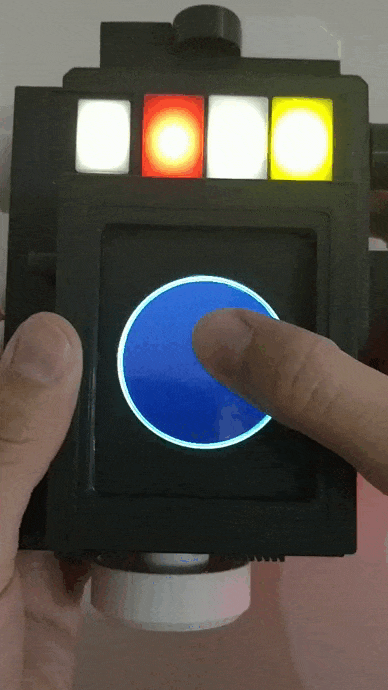

and I recreated/replicated almost every displayed screen on the show (some of them have sounds like beeps):



Source code and electronic circuit could be download for free from here:

you can adapt firmware and electronics to work with almost every other model. You can check other screens on my instagram reels:

Any question regarding the circuit or the software will be more than welcome.
