T1 and T2 Endoskeleton Research Thread

[ghostman]

ghostman: Looking good. The jaw looks positioned a little crooked. Too much towards the right (left in the pictures.) I think if you move it a little to the other side, so the bottom teeth center line up with the top teeth center more, it would look better.

Since it's been so diffuclt to find castings or scans of the complete SWS spine, we may get it sculpted by a talented artist.
ghostman, I was wondering if we would be allowed to use your spine photogrammetry model as visual and 3D reference, as even though it isn't 100% it still has a cool look and some accurate shapes here and there that can assist us in getting this made properly? If you get the Cinemaquette spines recreated with photogrammetry, would we be allowed to use those too, as reference?

Nokitten: That's a really impressive looking piece. Great work.

I think I did a good job of photogrammetry.
But upper jaw is a little rough compared to the lower jaw.
I took this photo at ISO 100 and f/11.
I'll stop down to f/22 to increase the depth of field and try again.
I'm worried about blurring because the shutter speed slows down as I stop down the aperture...
I will try again on a brighter cloudy day when the light is more diffused.

Of course, I plan to shoot Cinemaquette after this.
But getting this skull in print-ready condition first.



[DeltaDesignRus]

I think I did a good job of photogrammetry.
But upper jaw is a little rough compared to the lower jaw.
I took this photo at ISO 100 and f/11.
I'll stop down to f/22 to increase the depth of field and try again.
I'm worried about blurring because the shutter speed slows down as I stop down the aperture...
I will try again on a brighter cloudy day when the light is more diffused.

Of course, I plan to shoot Cinemaquette after this.
But getting this skull in print-ready condition first.

Before you process the scans obtained from Metashape, you should try RealityCapture; maybe it will provide better results, and then less manual work will be required. At the same time, you will demonstrate how both programs handle the same dataset.



[Too Much Garlic]

Spent 4 hours fixing the toes into single solid pieces... made the mistake of not saving along the way... and suffered for it. The program stalled and all that work was lost. Got really demoralized, so haven't done anything since. It was my own fault. It still sucks.



[ghostman]

The skull is on loan and must be returned after the work is completed first.
Cinemaquette will be filmed afterwards.
Last time I shot 24 pictures per round, this time I plan to shoot 48.
The nostrils will be better than last time.
The sputtering paint was thick in some areas, so I reapplied some of it.
The contrast was high because it was taken on a sunny day.
I will take more pictures on an overcast day when the light is more diffused.

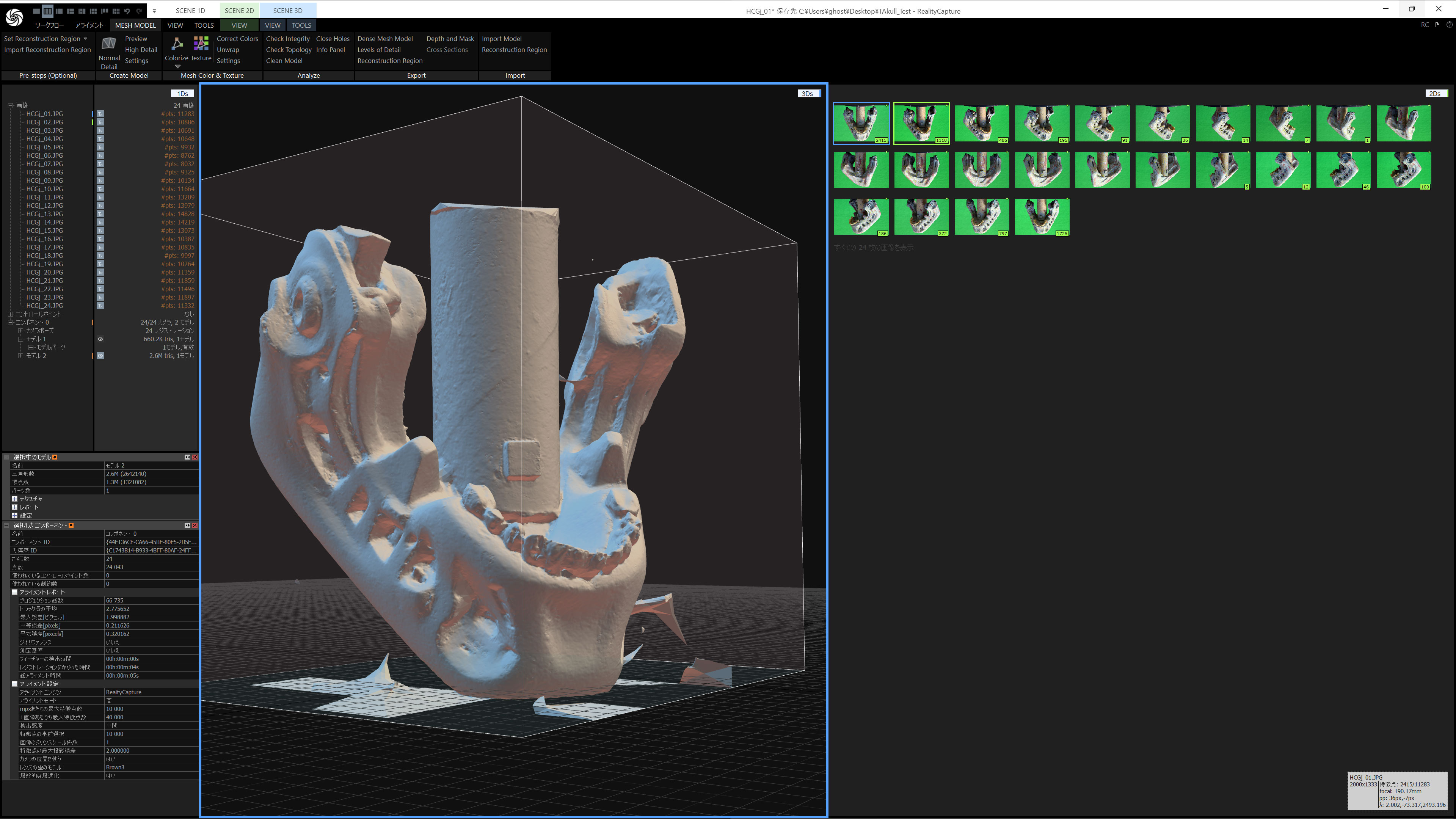

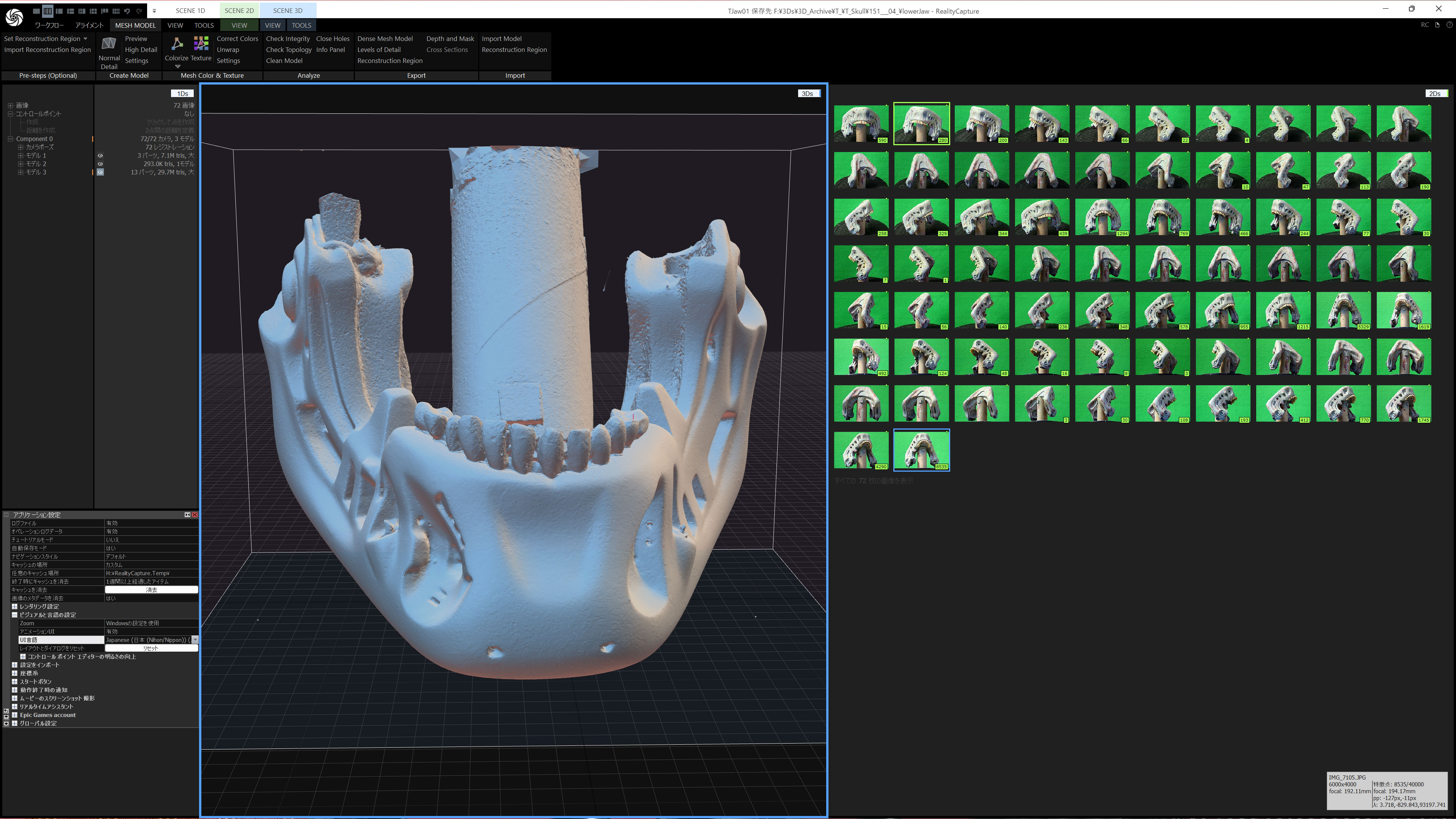

I tried photogrammetry only on the lower jaw with RealityCapture.
The calculation is indeed very fast.



[DeltaDesignRus]

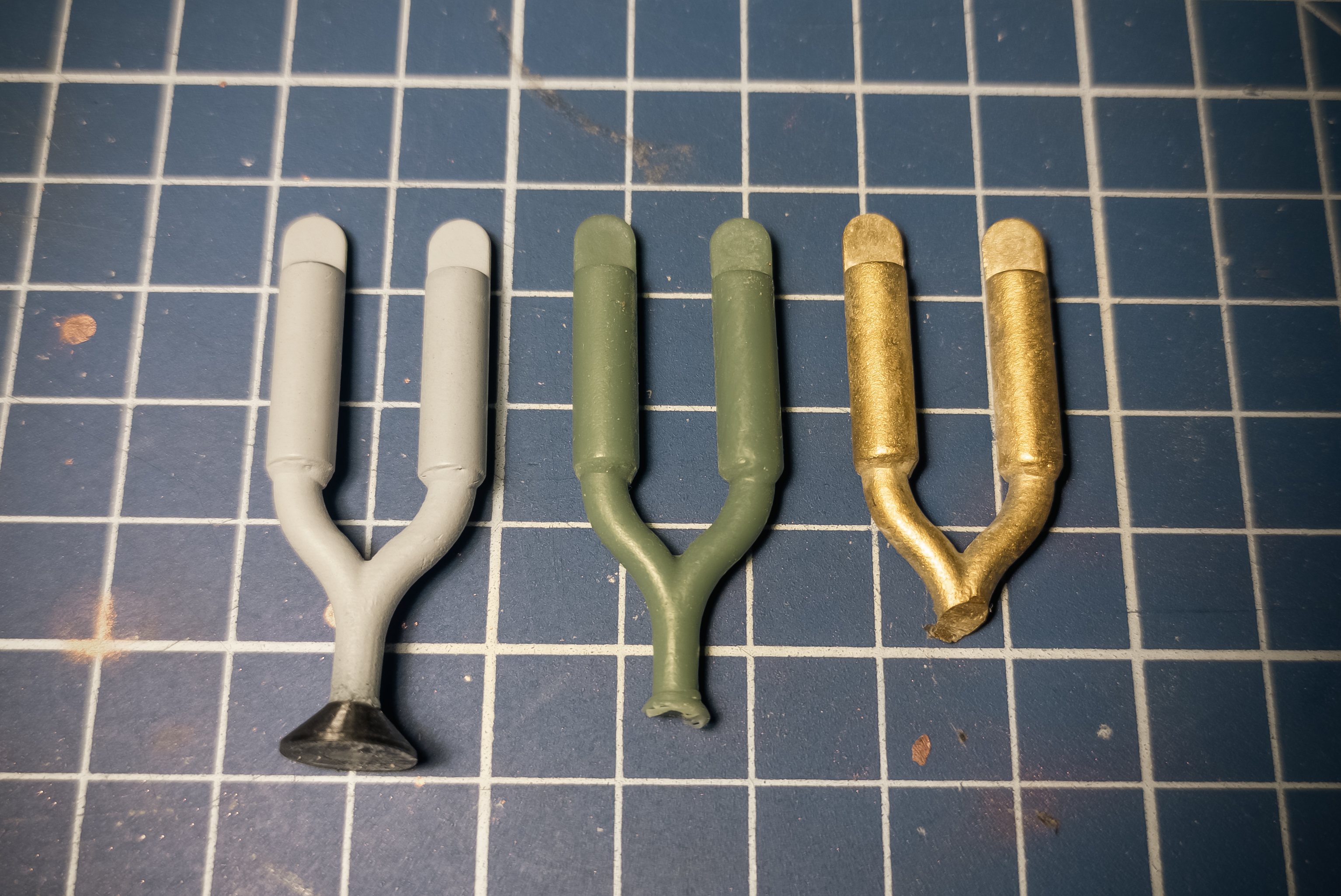

I've reached the brass casting. Since my skull is at a reduced scale (approximately 85%), I had to make these parts at the same scale as the skull. Cast in brass, after processing, they will be nickel-plated. Not all parts are here yet; the rest will be cast another time. This was just a trial, but it exceeded my expectations; the quality is quite good.



[Too Much Garlic]

Ghostman: cool and sharp result.

DeltaDesignRus: looks cool, but what are those test parts?


Did a little work on the LFS skull yesterday, so now top and bottom are fused back together. The bond may not be very strong as I only used apoxie sculpt, but I may try adding some UV-resin to seal it more, before filling it completely and try to make it seamless.



[DeltaDesignRus]

DeltaDesignRus: looks cool, but what are those test parts?

Jaw pistons



[Too Much Garlic]

LOL, I'm so freaking dumb.

Cool.



[ghostman]

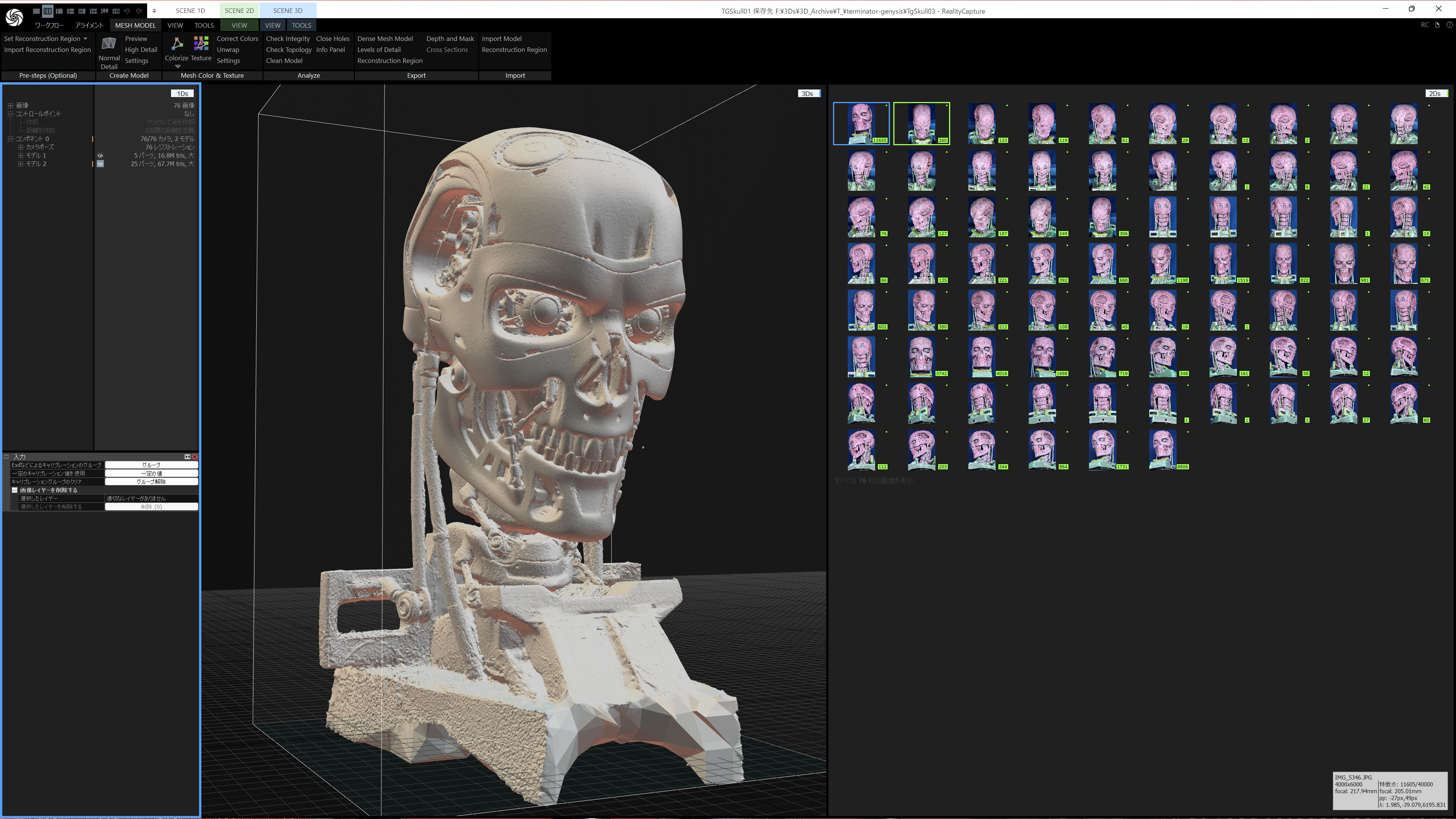

I used RealityCapture to calculate the Genisys skull I took earlier.
The calculation that took more than half a day with Metashape
RealityCapture took only a few dozen minutes. It's so fast and beautiful!
I hate that it's free (in a good way).
Where does Metashape stand, which I bought for 20,000 yen? (Haha.......)



[ghostman]

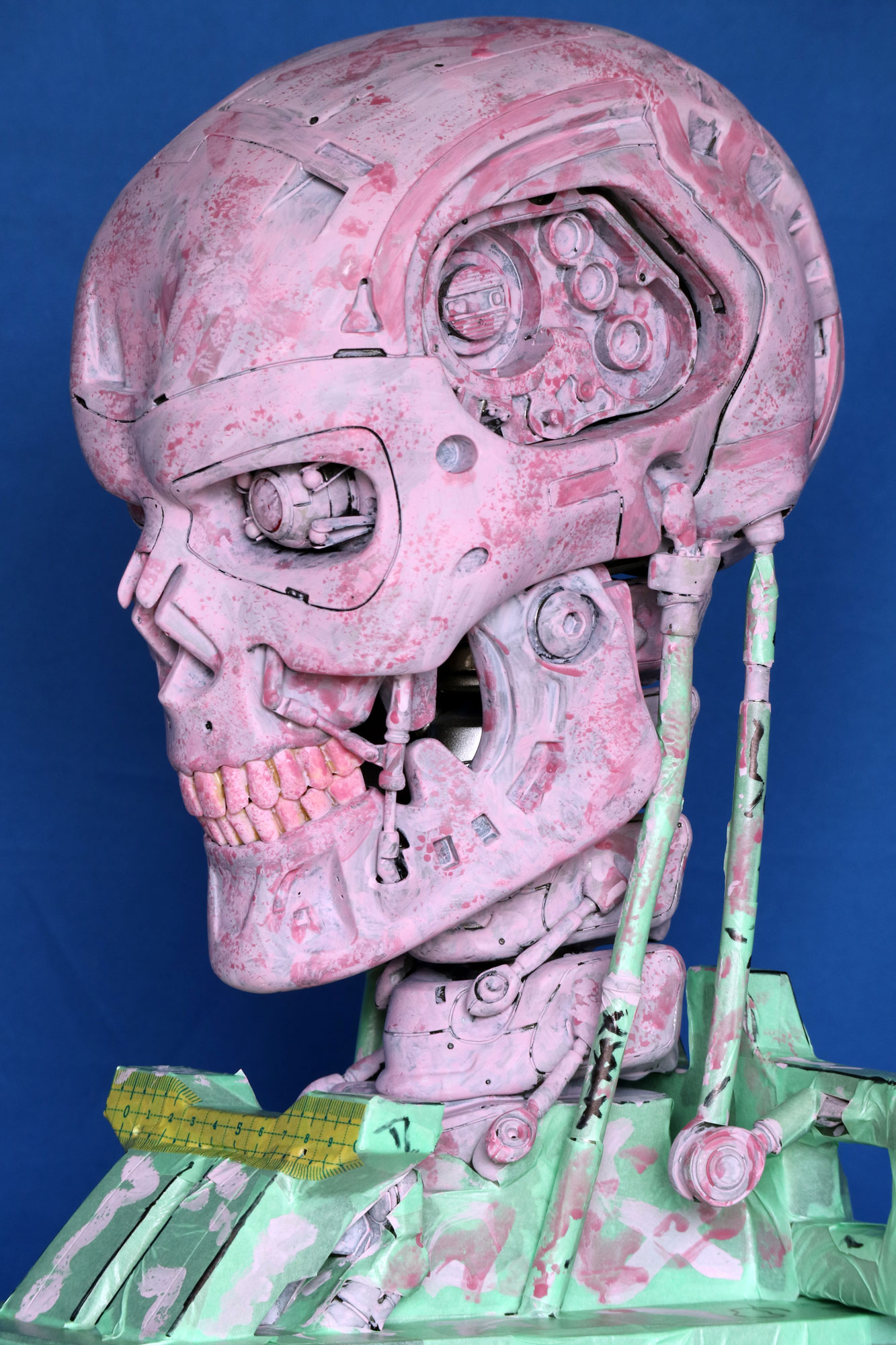

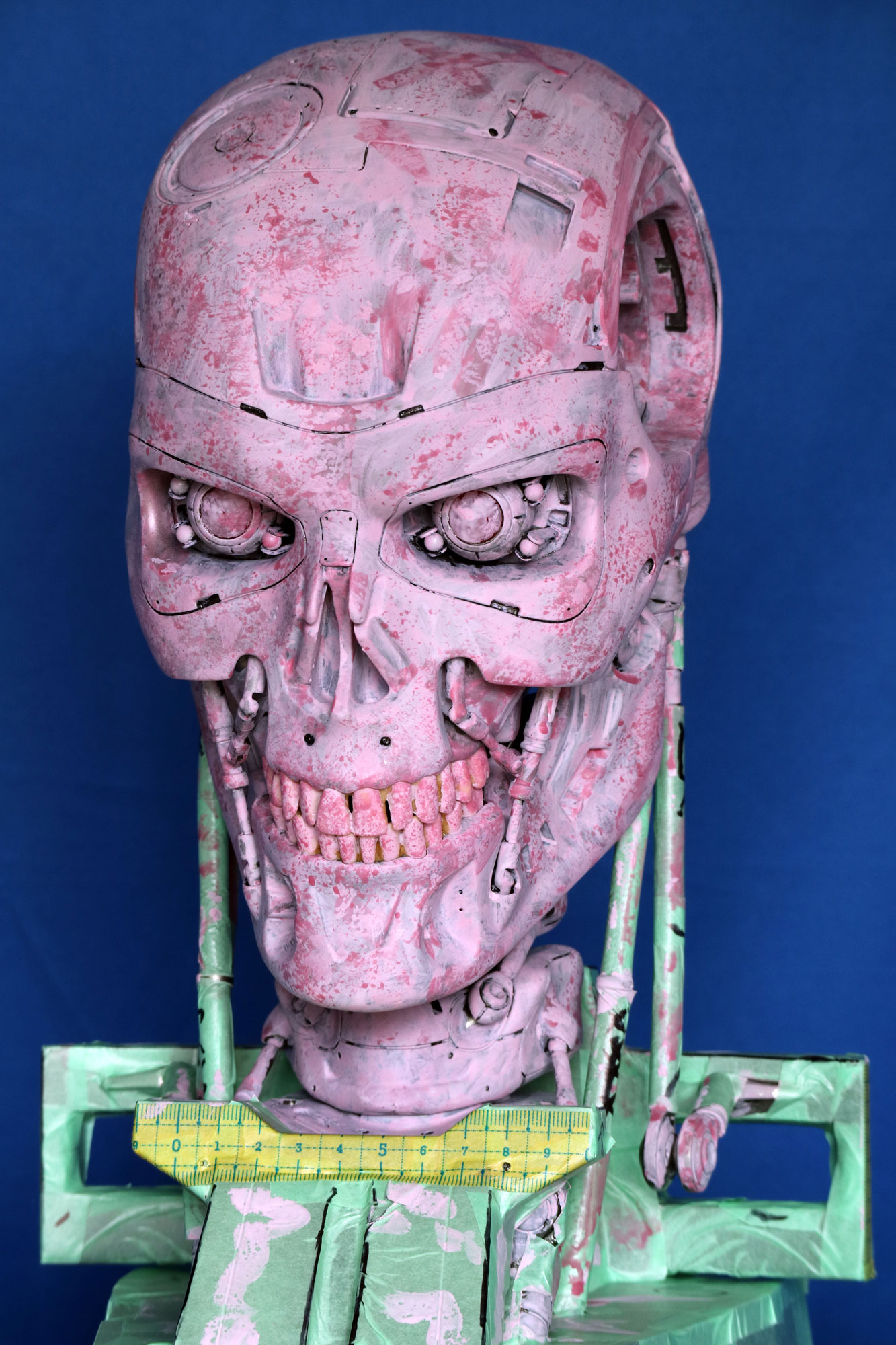

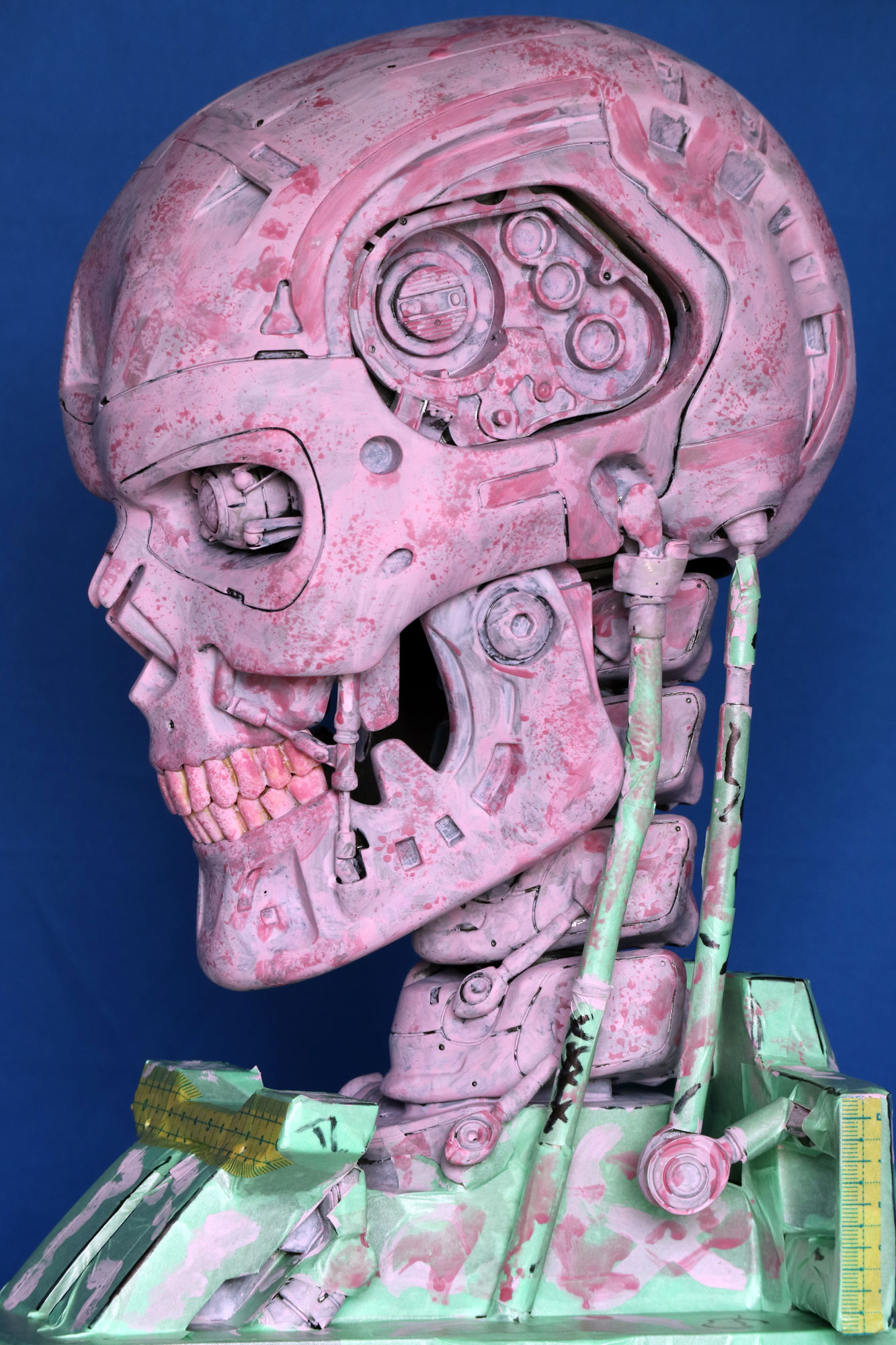

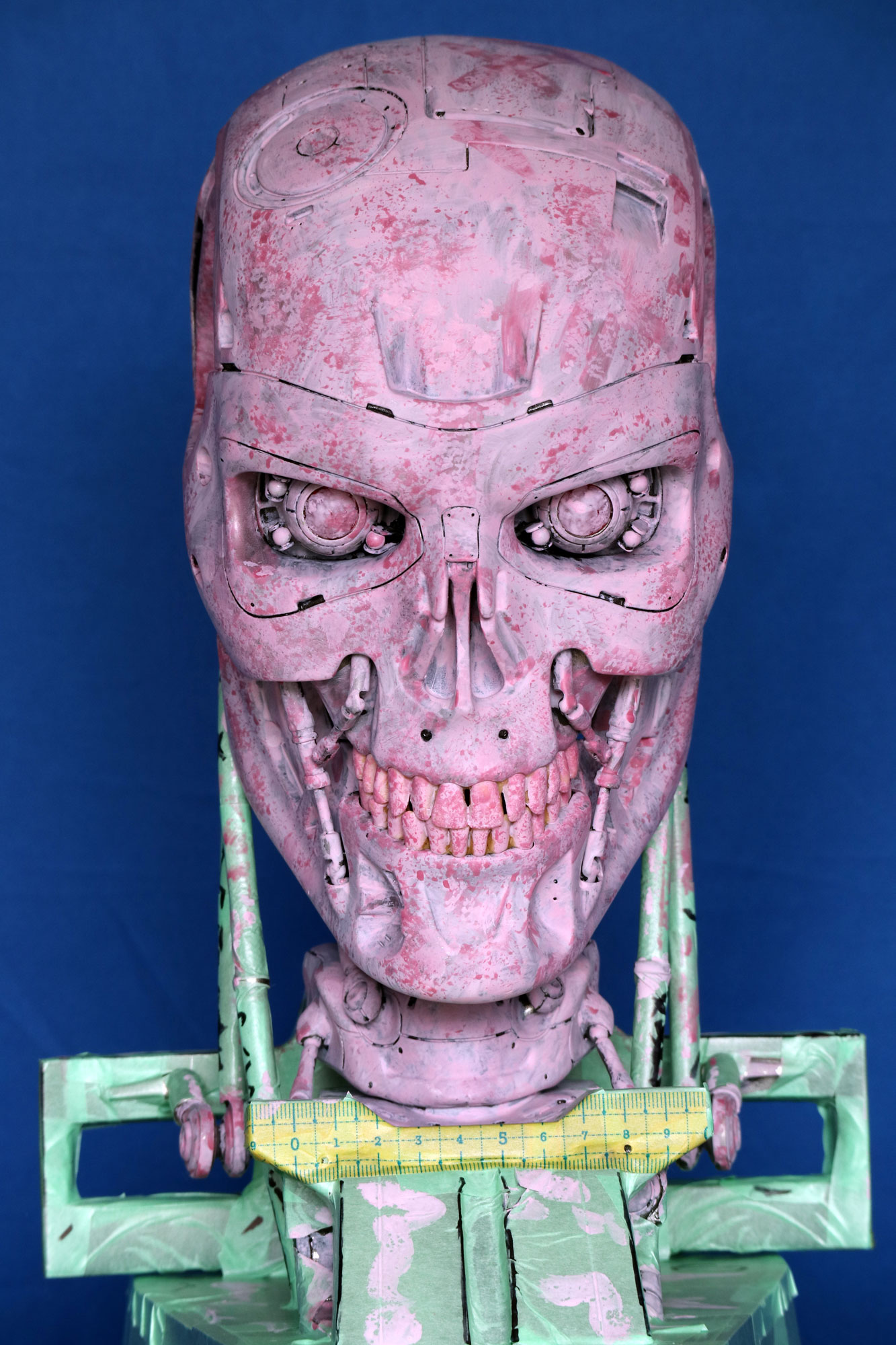

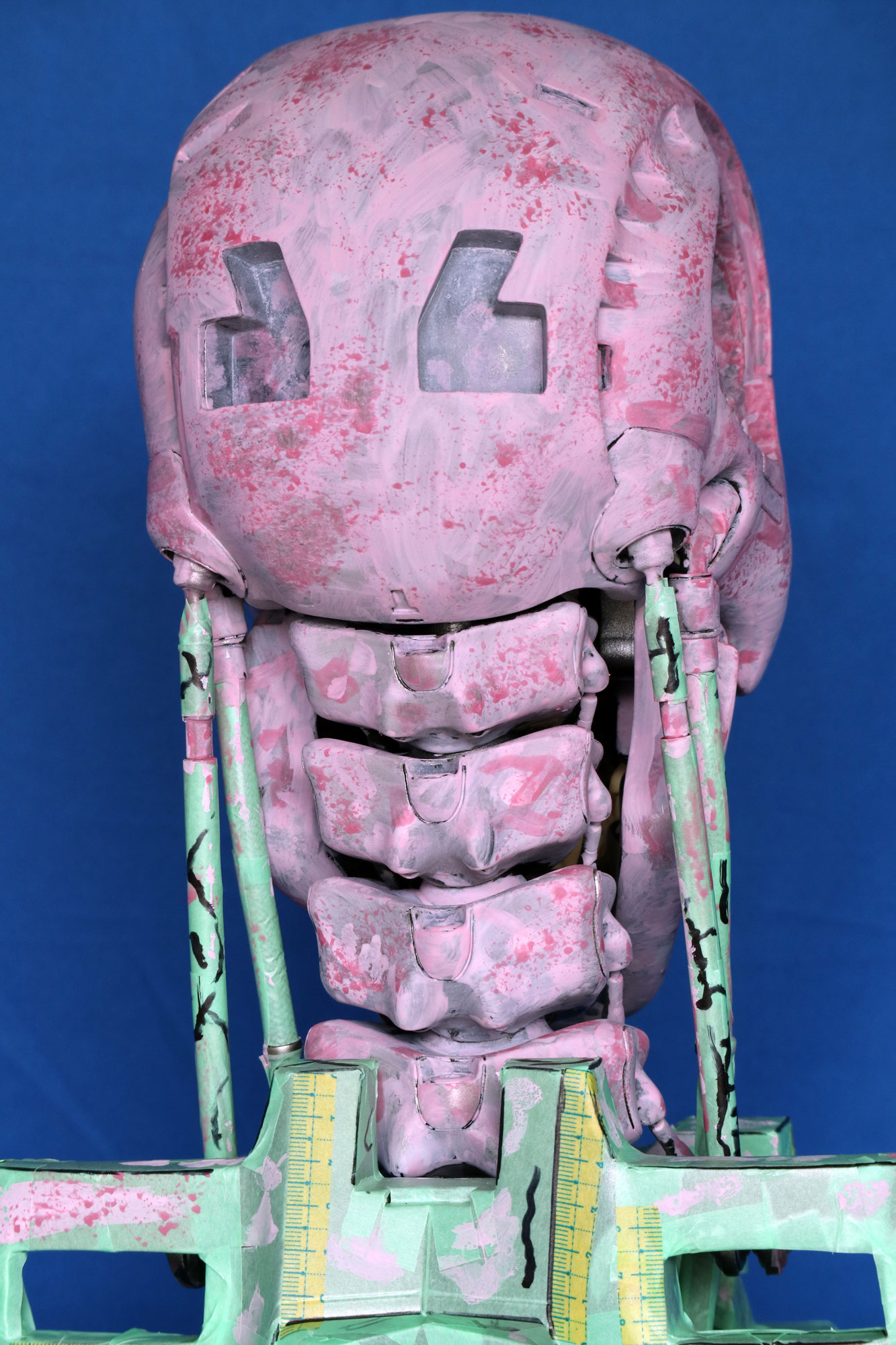

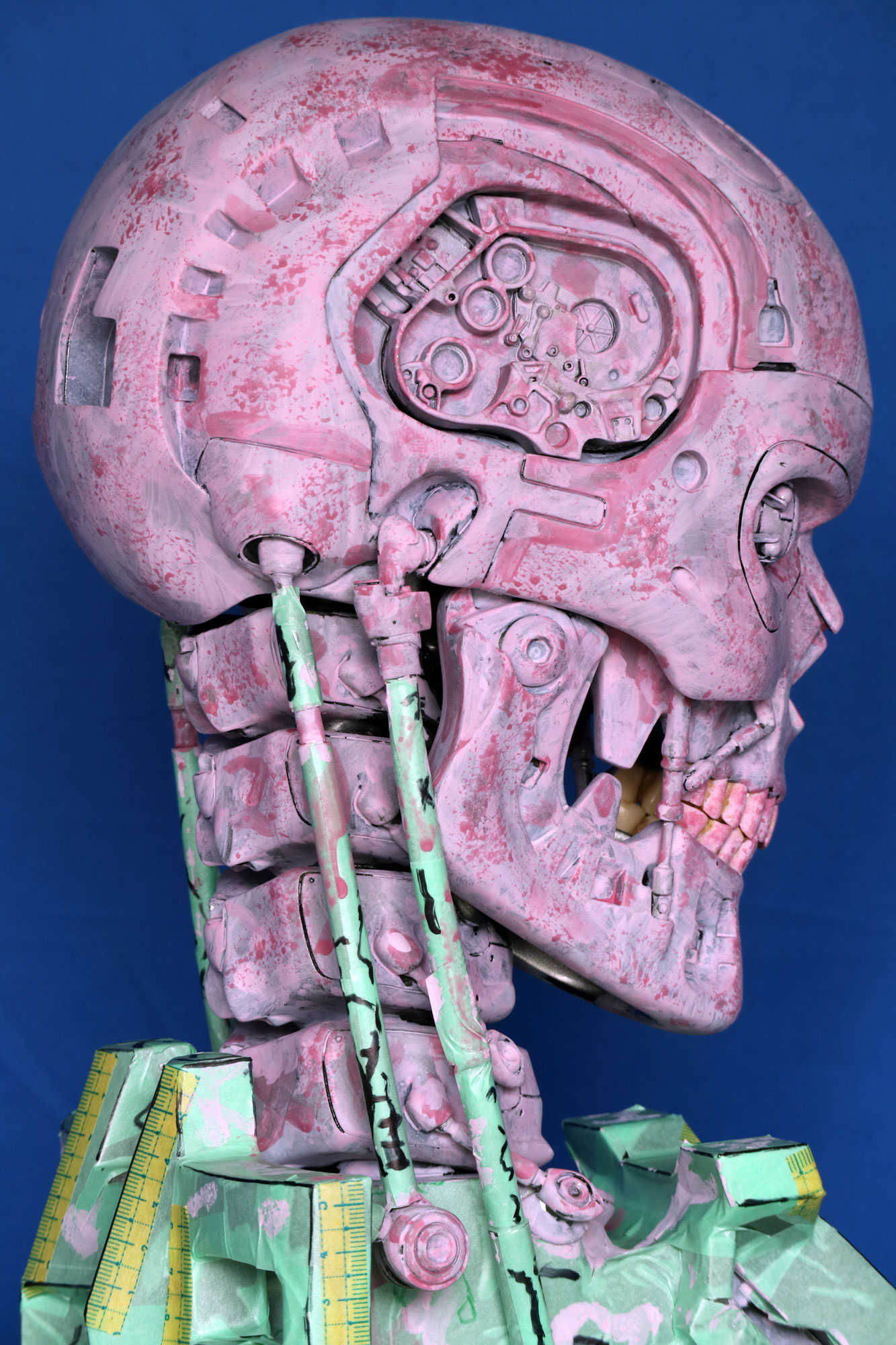

I share the photos of the genysis skull.
If you have photogrammetry software, please try if you can make it 3D.
The quality size of the photo is reduced from the original.



[gizmo]

Ghostman: cool and sharp result.

DeltaDesignRus: looks cool, but what are those test parts?

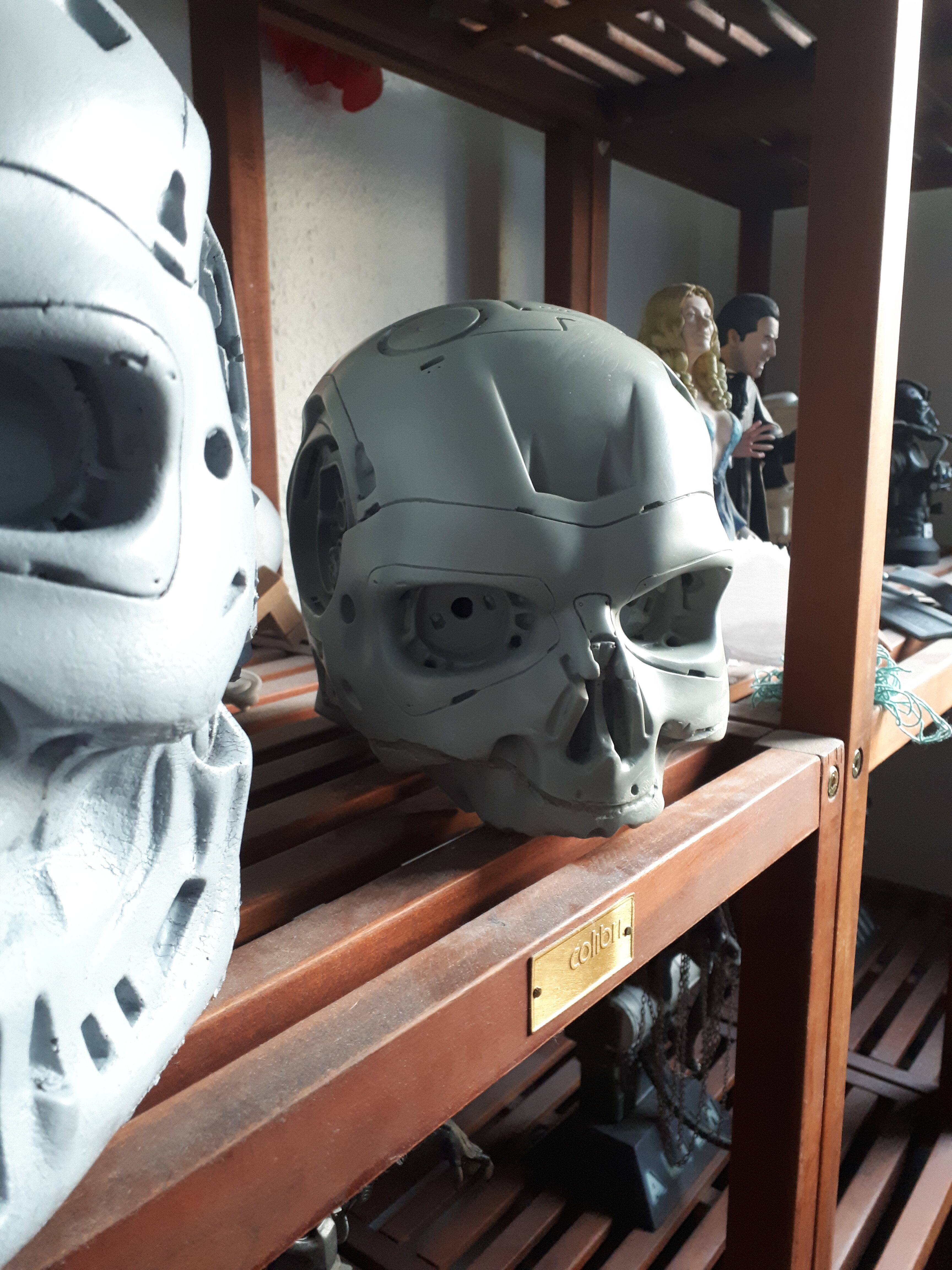

Did a little work on the LFS skull yesterday, so now top and bottom are fused back together. The bond may not be very strong as I only used apoxie sculpt, but I may try adding some UV-resin to seal it more, before filling it completely and try to make it seamless.

View attachment 1816331

That makes a big difference. Nice work. I’m thinking I’m just going to keep mine as is. Once my man cave is back up and running I plan to have a shelf with my T1, LFS, And M1 displayed raw and untouched together.



[gizmo]

Hi all. Some screenshots and photos of my 3D printing project based on the Skynet-2029 endoskull. But I made a lot of changes using photos from this forum - Thanks! Printed small draft model without the latest improvements. Still needs some finishing touches.

Beautiful!!!!



[DeltaDesignRus]

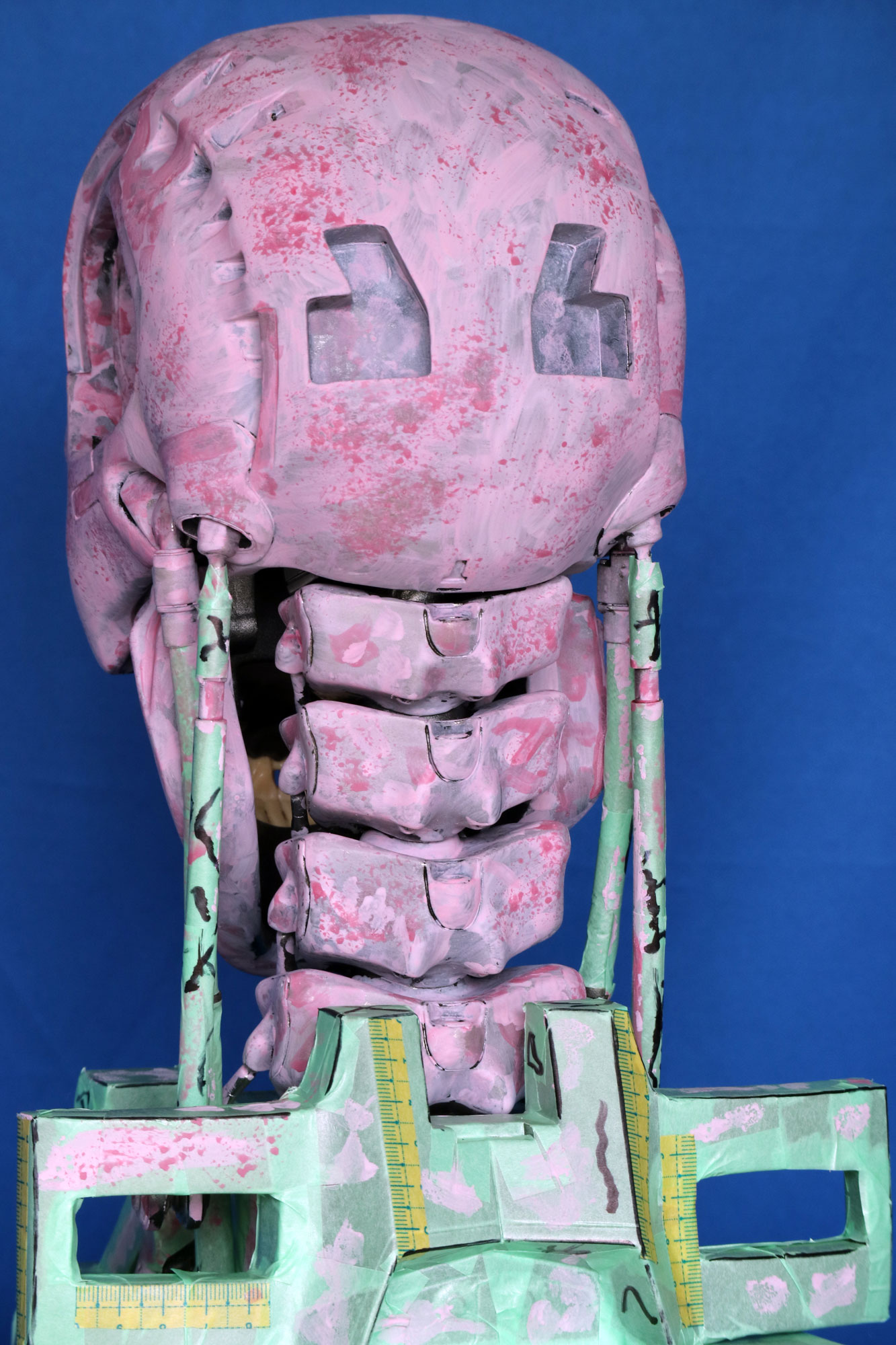

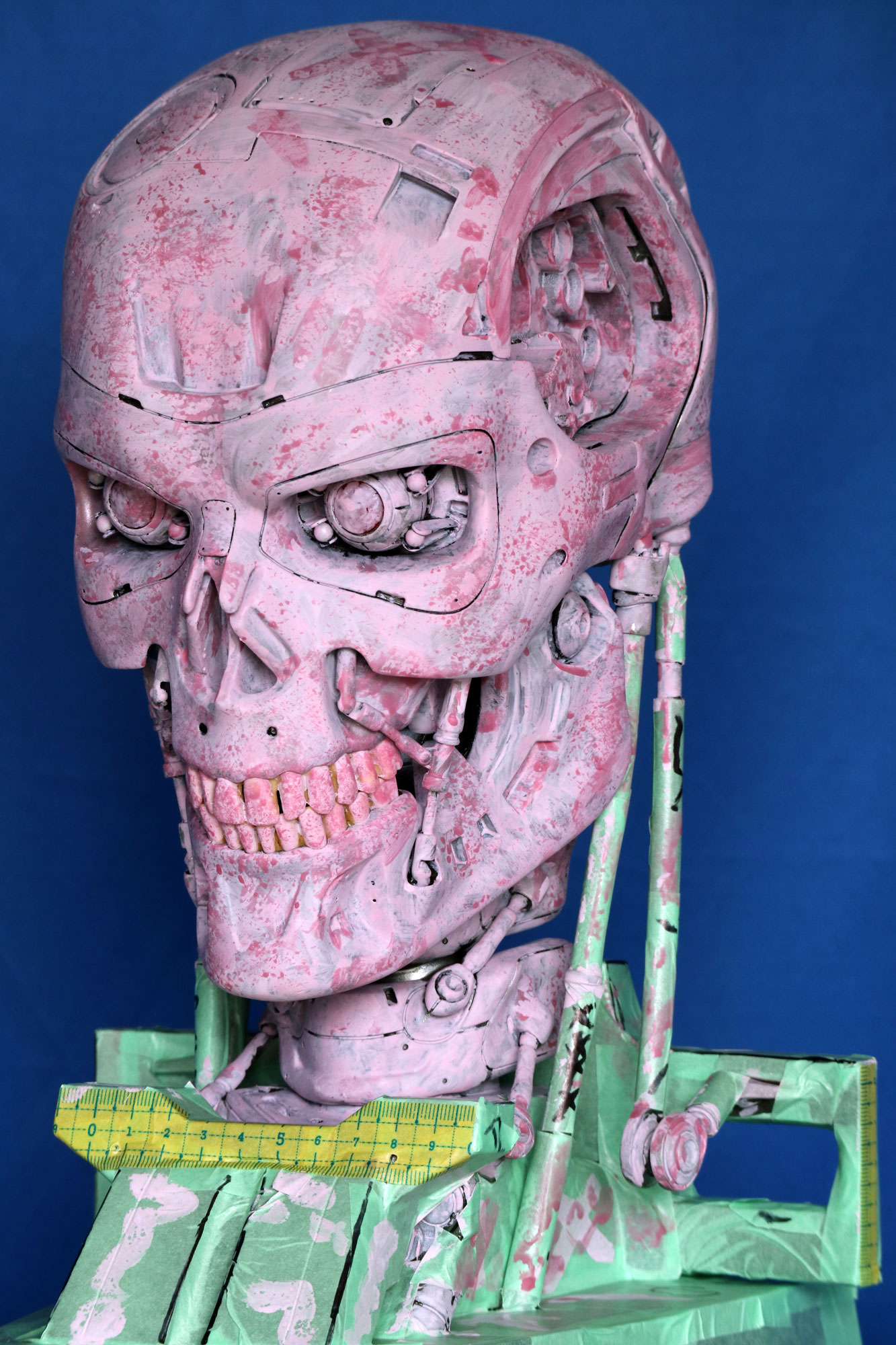

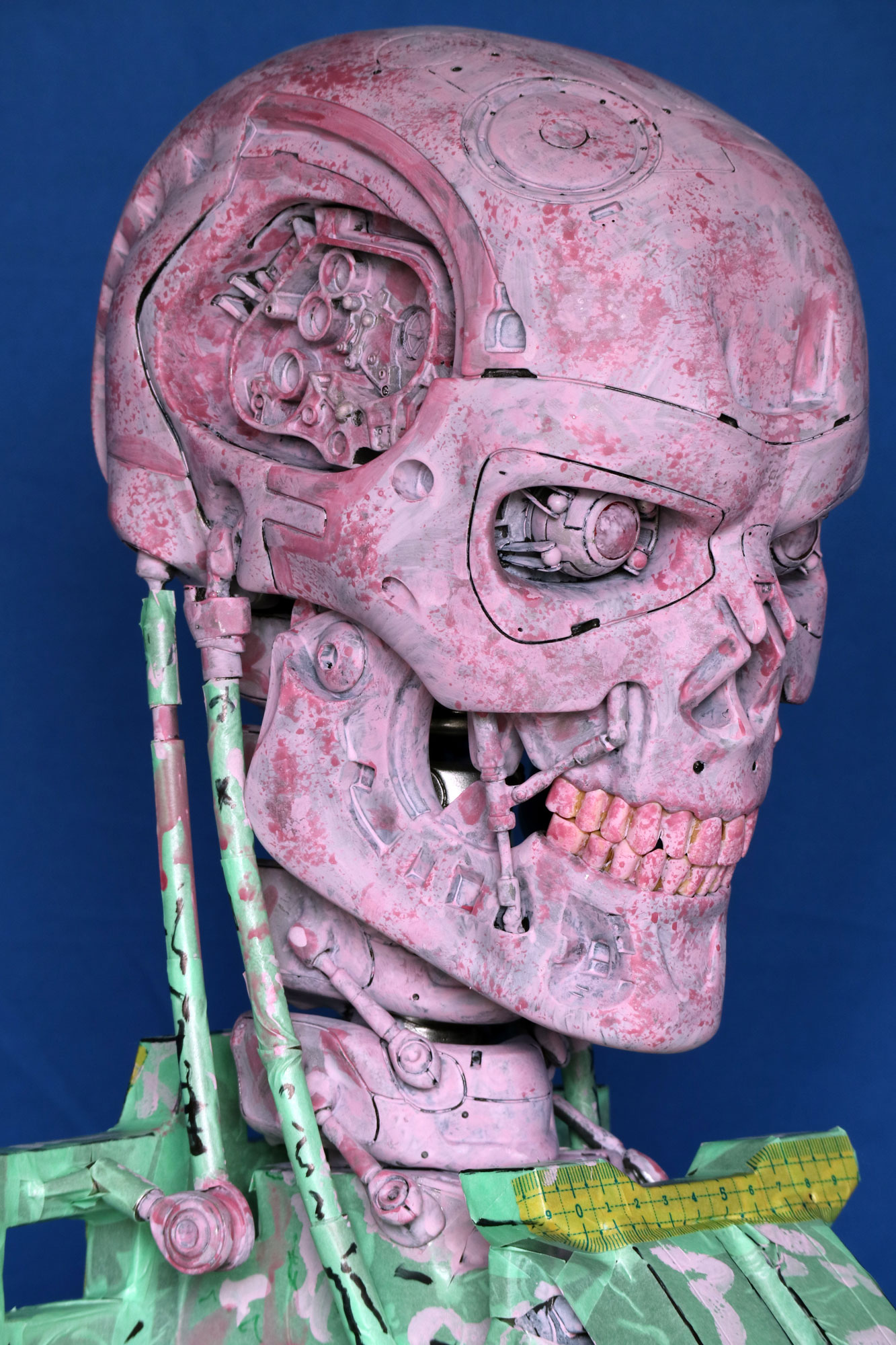

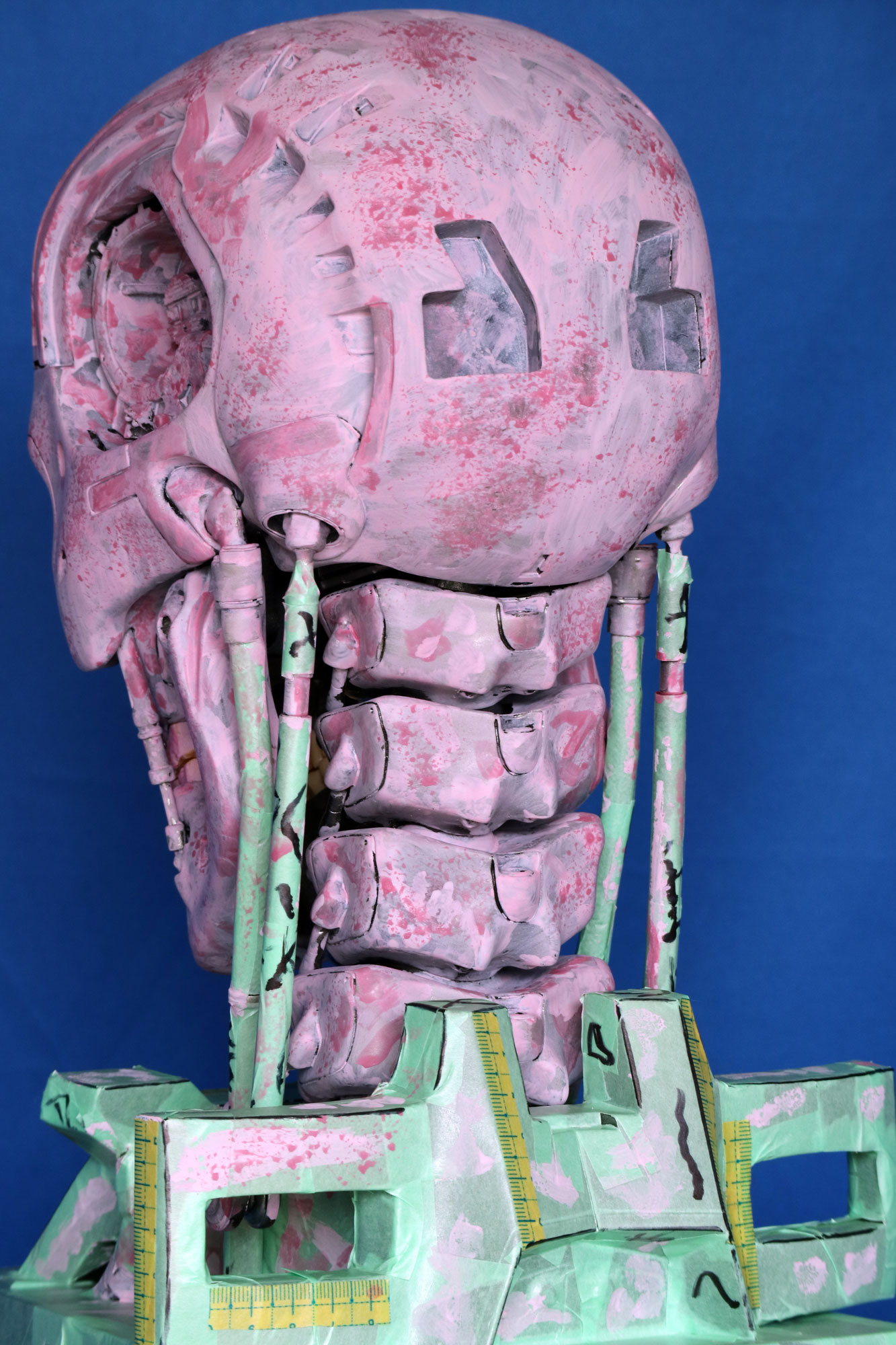

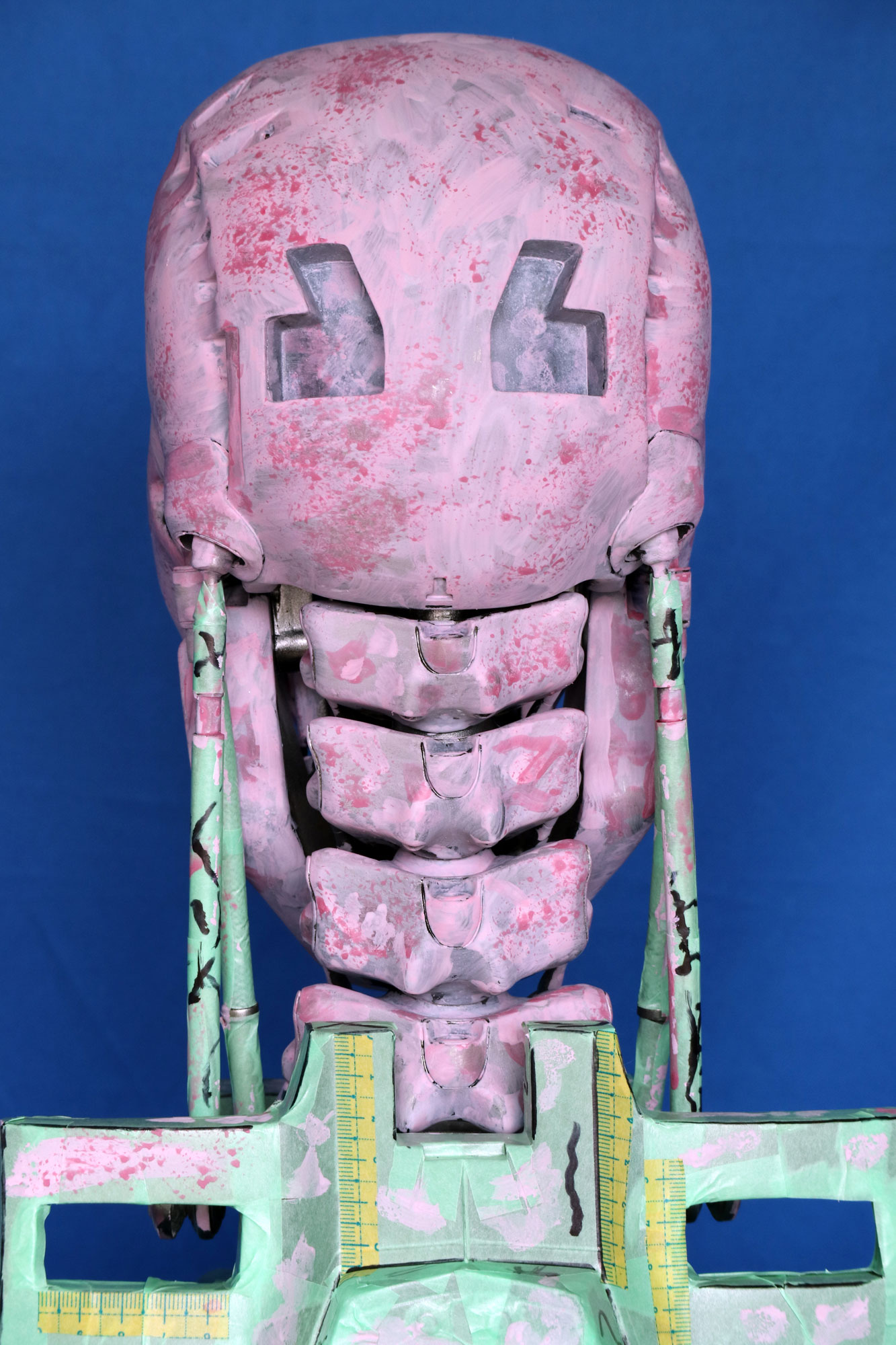

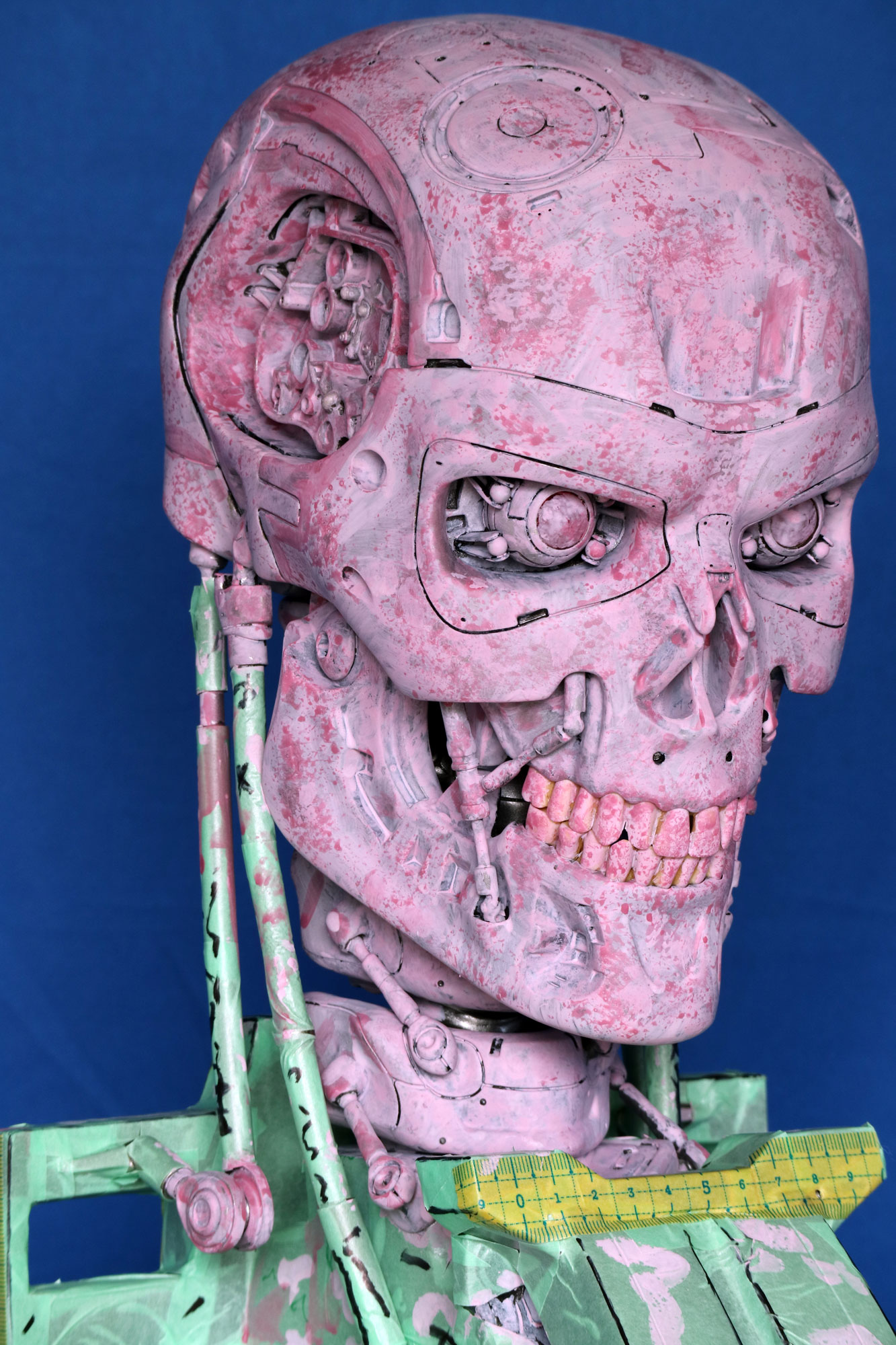

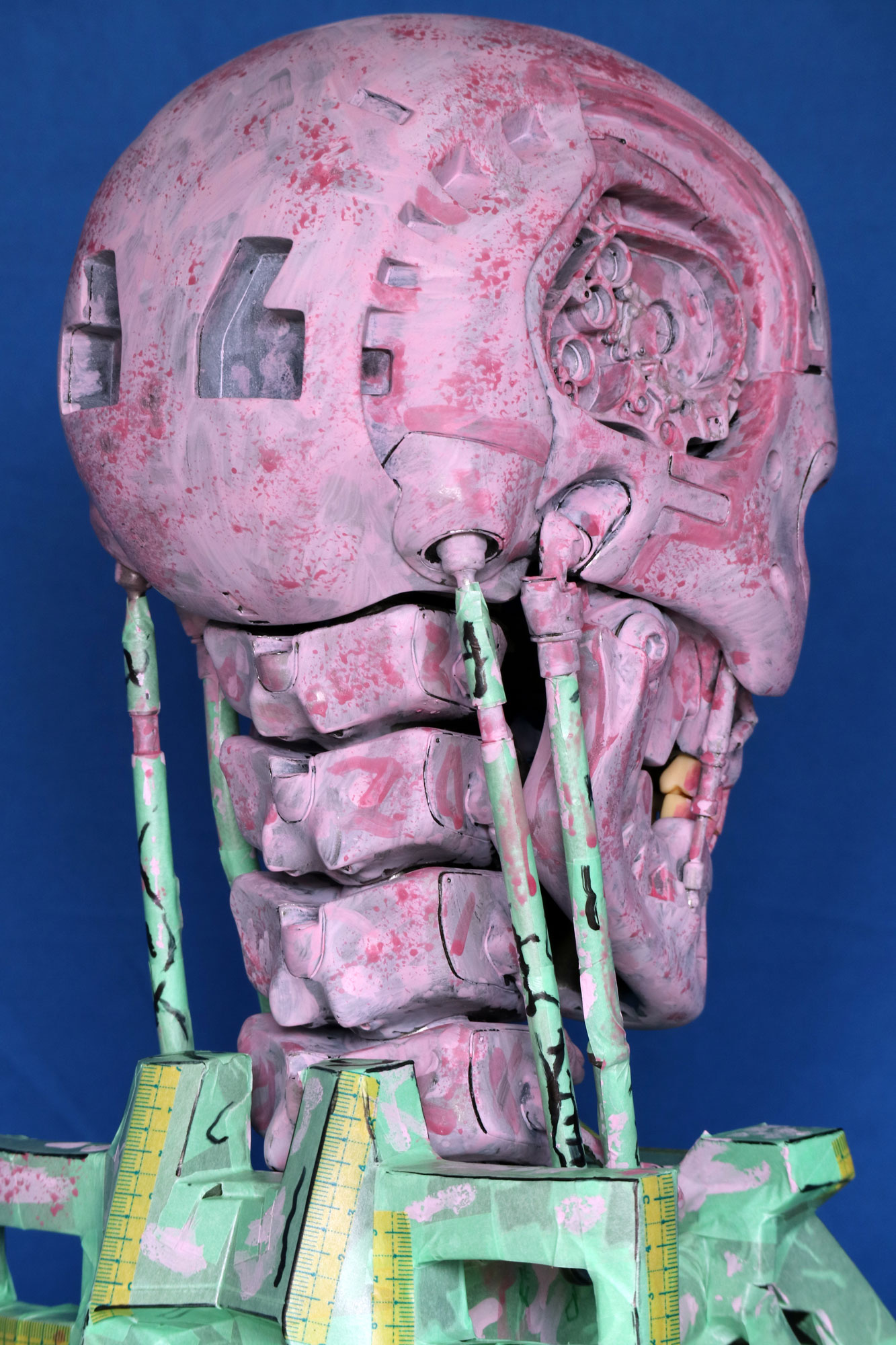

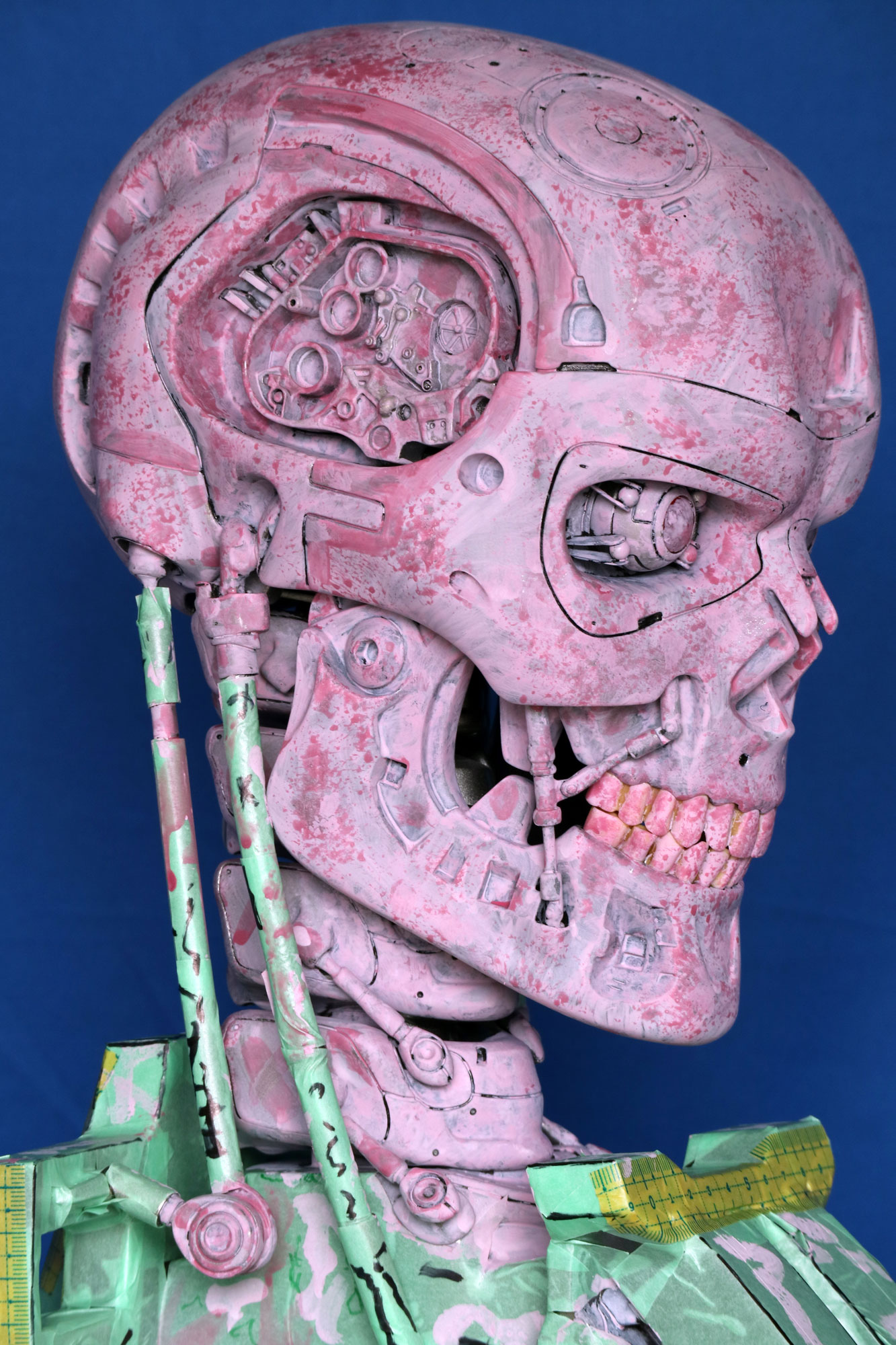

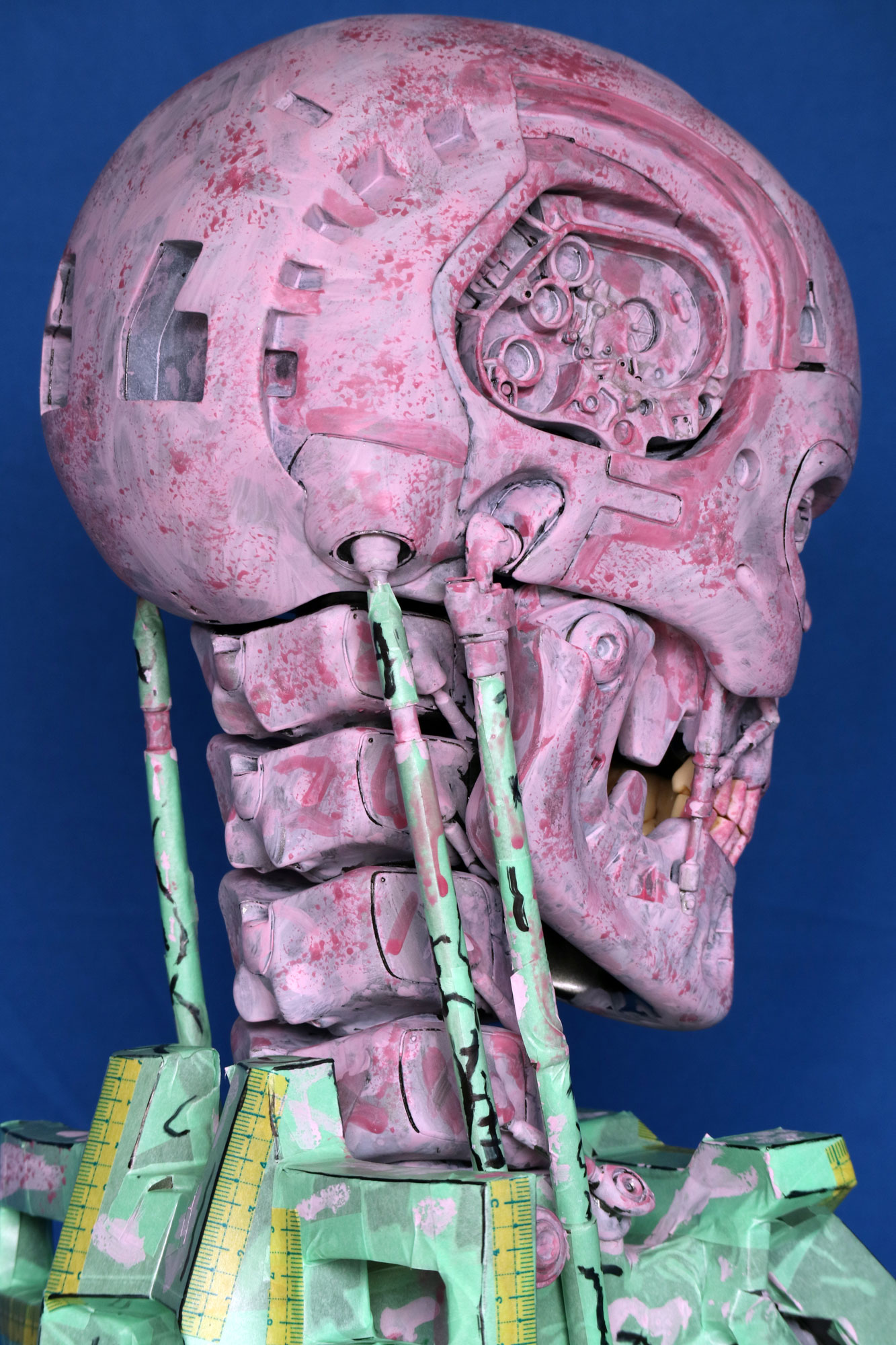

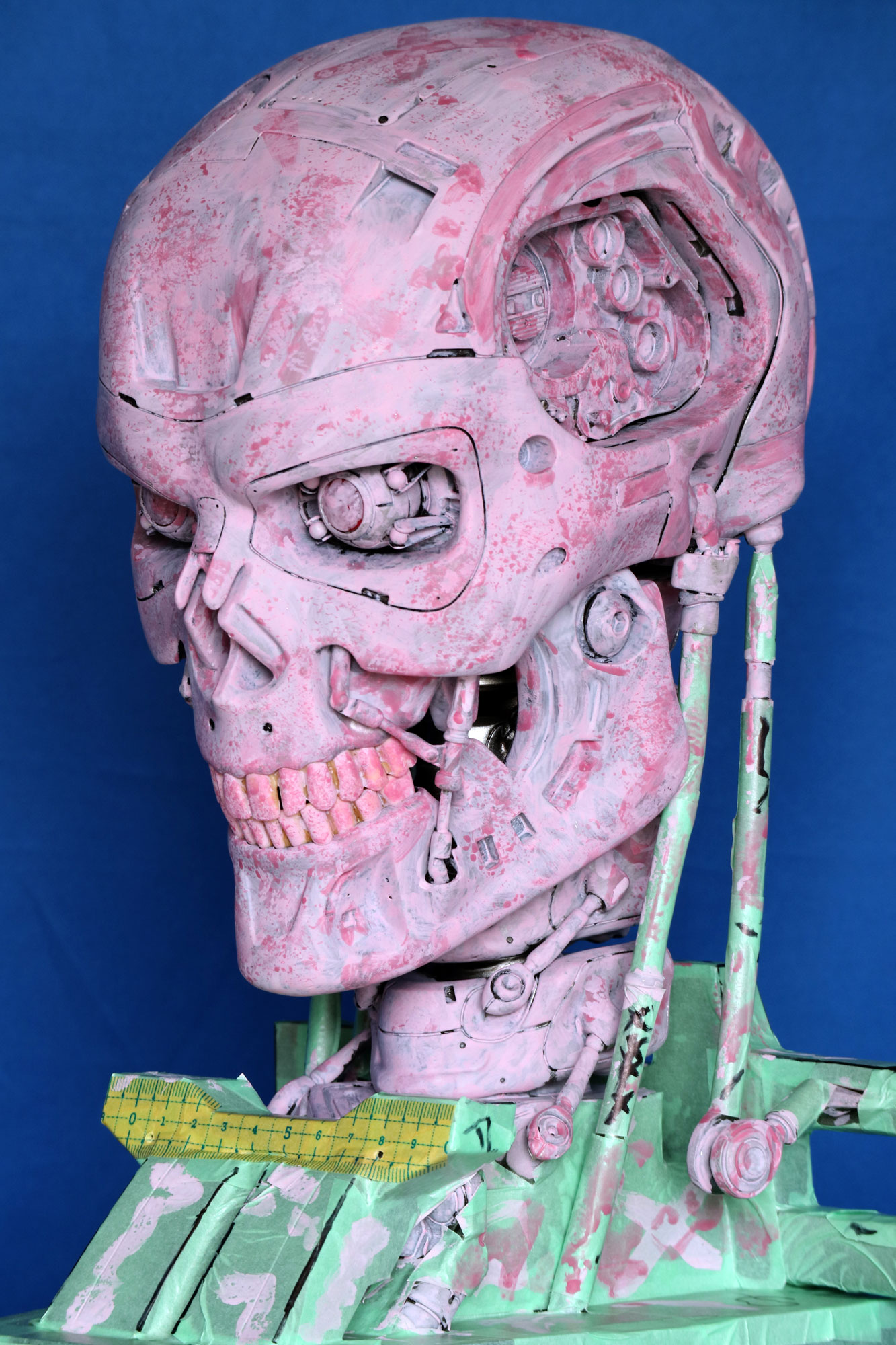

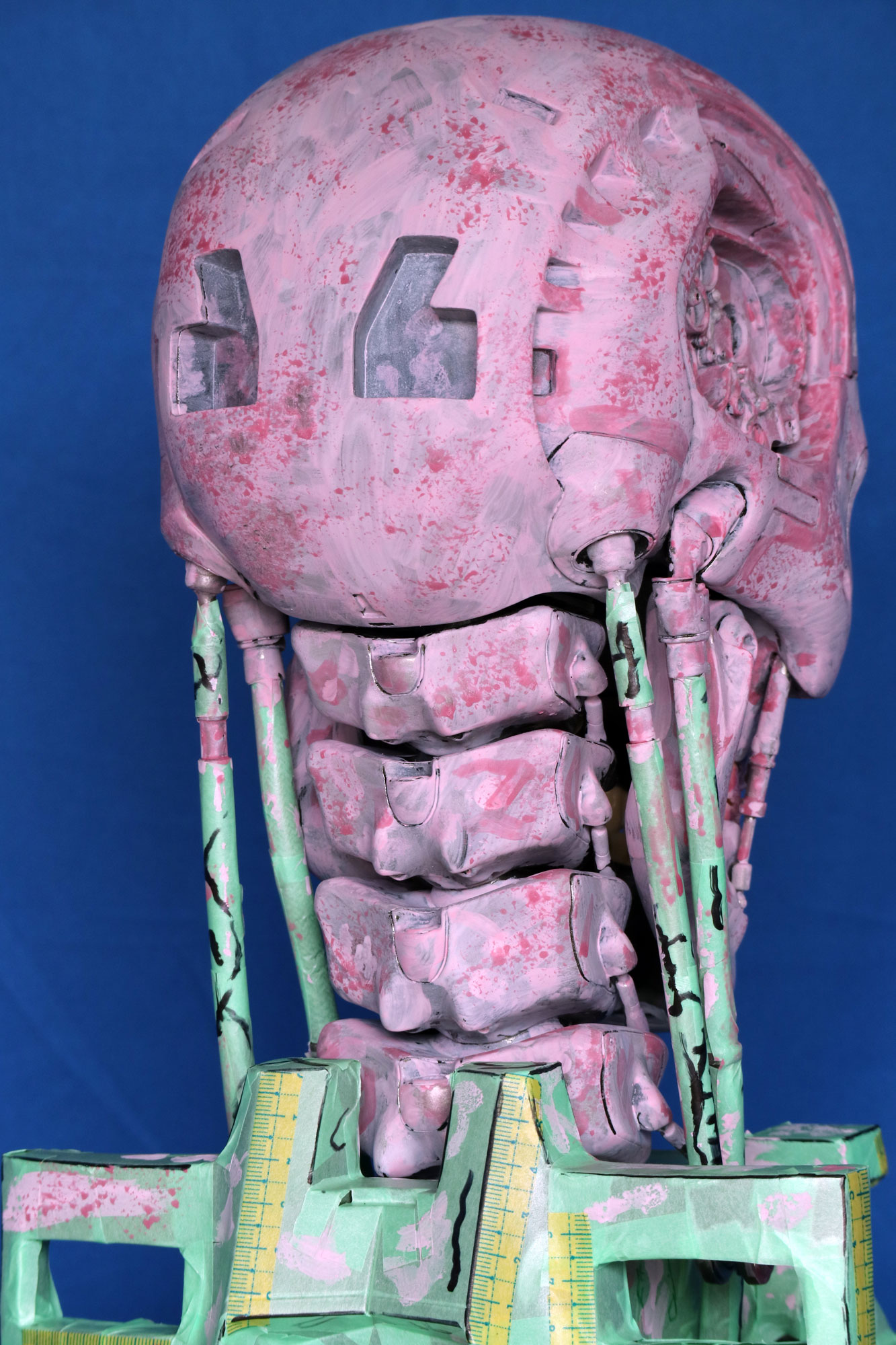

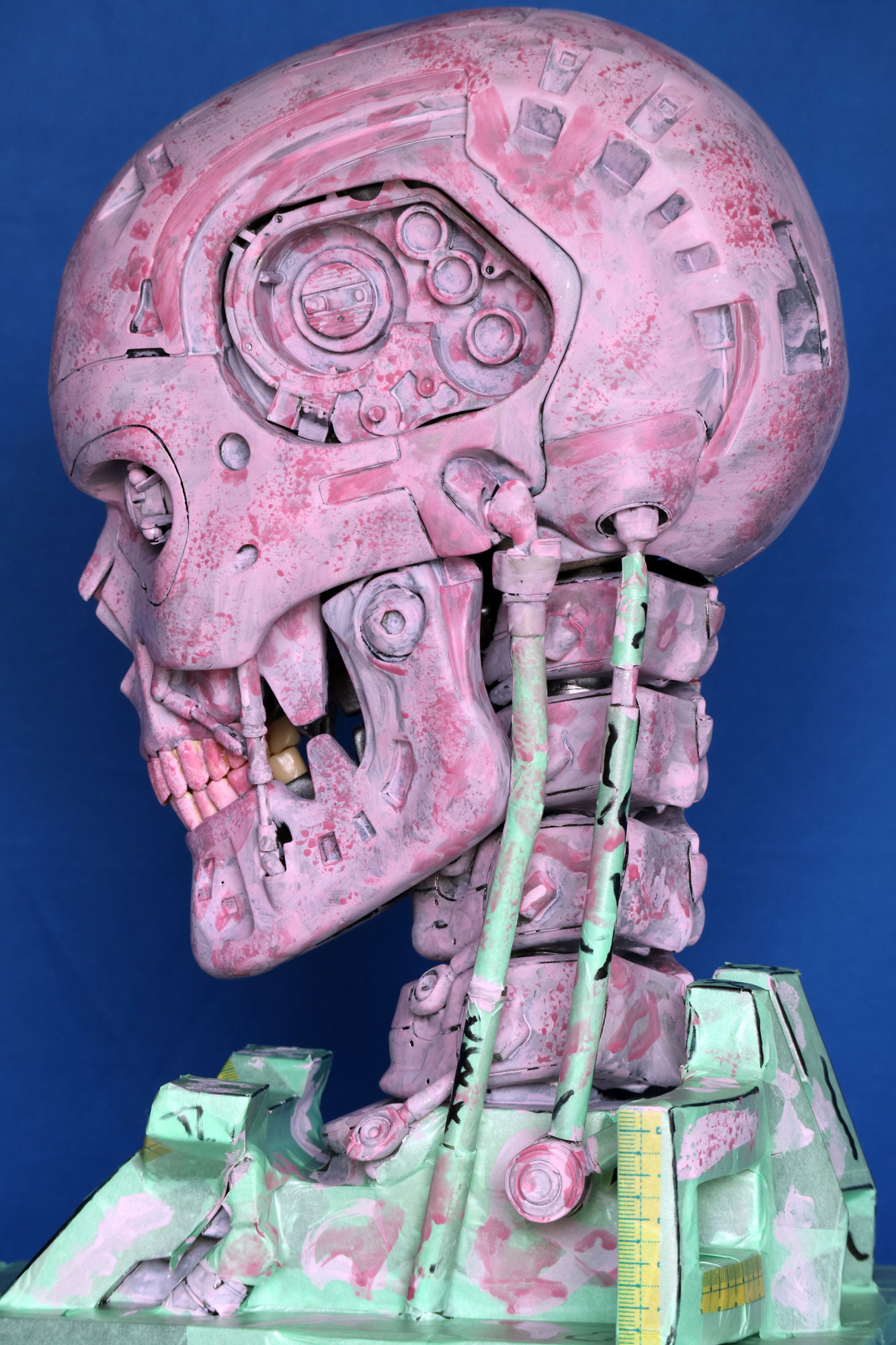

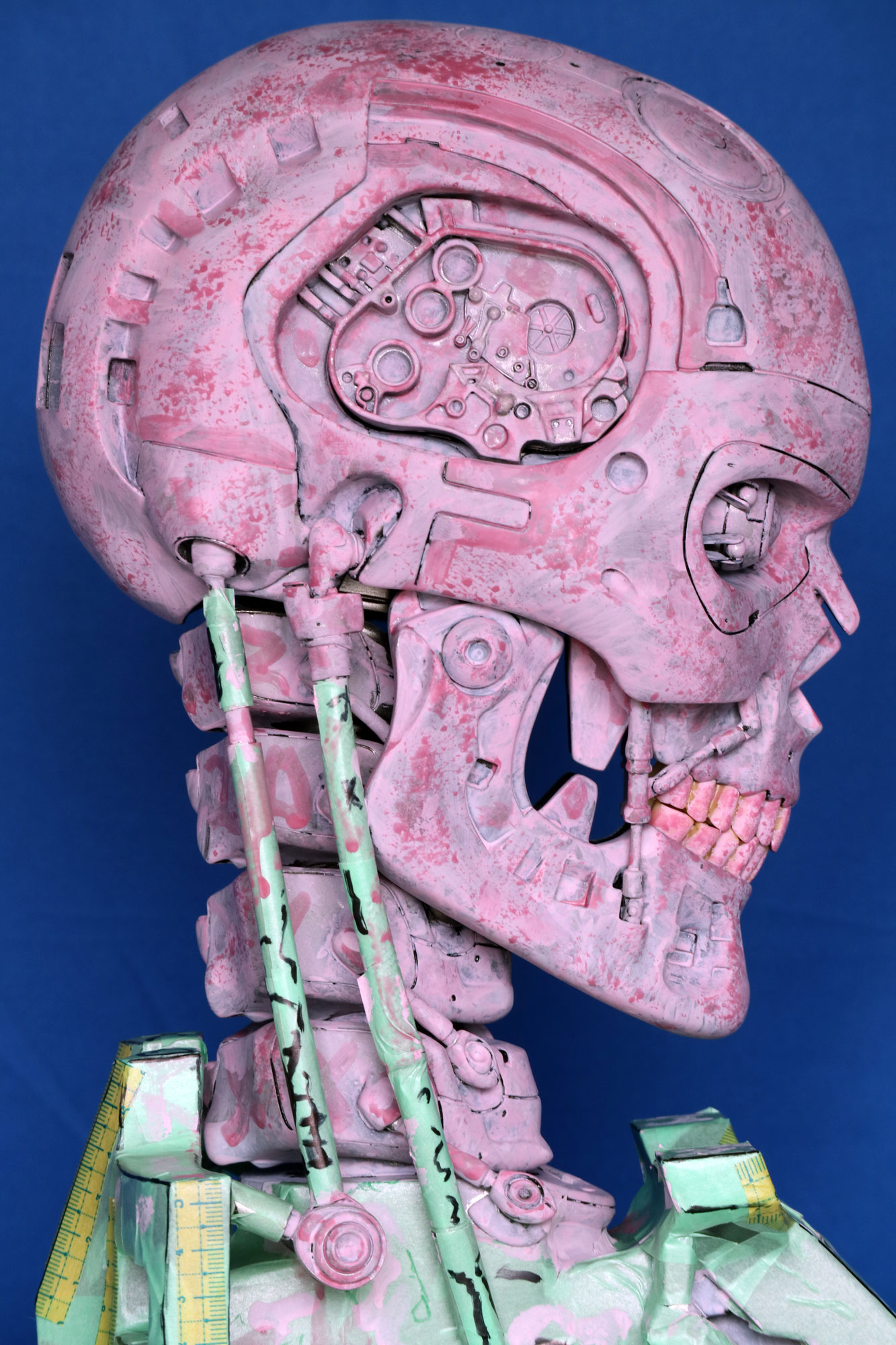

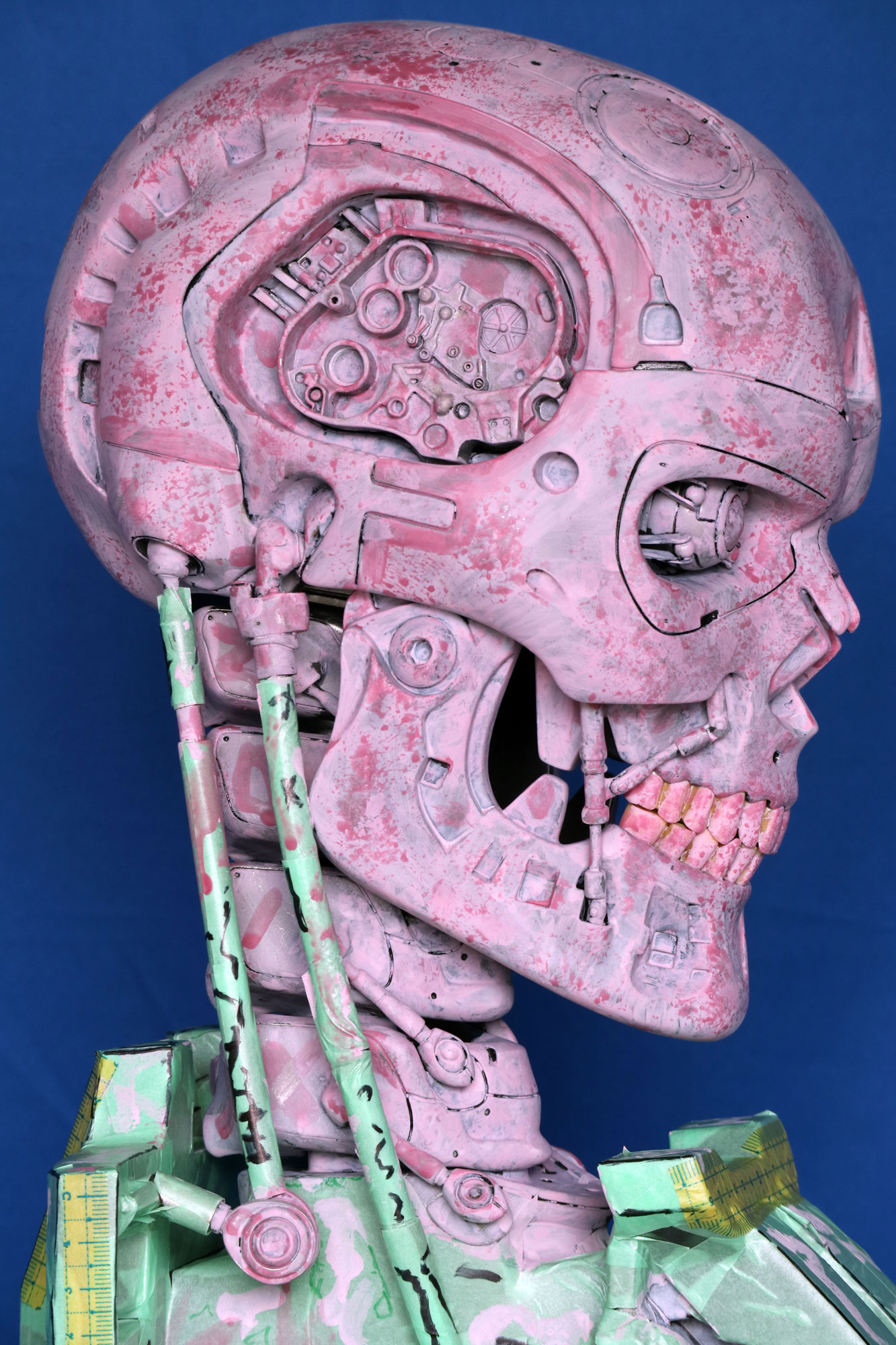

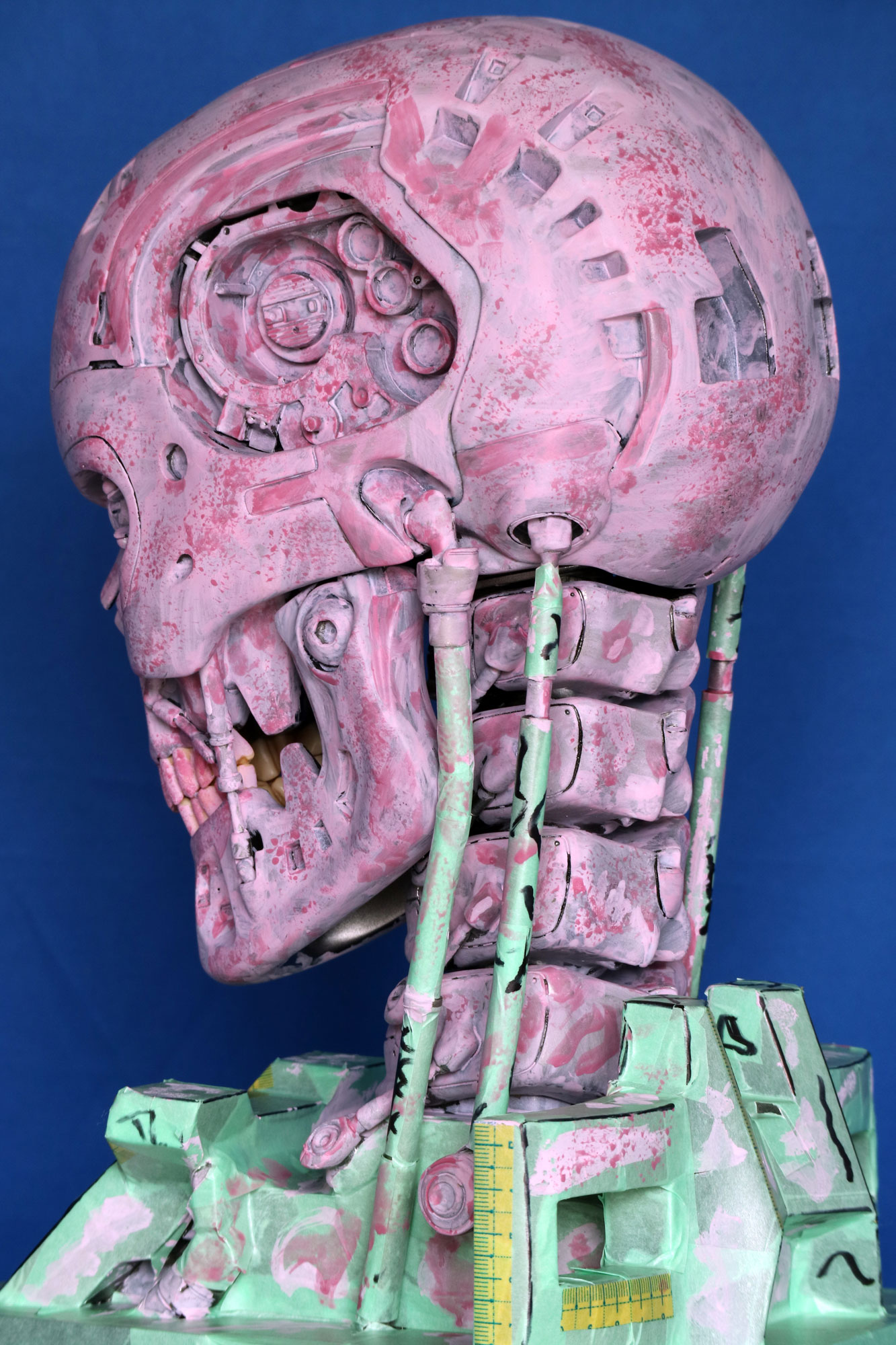

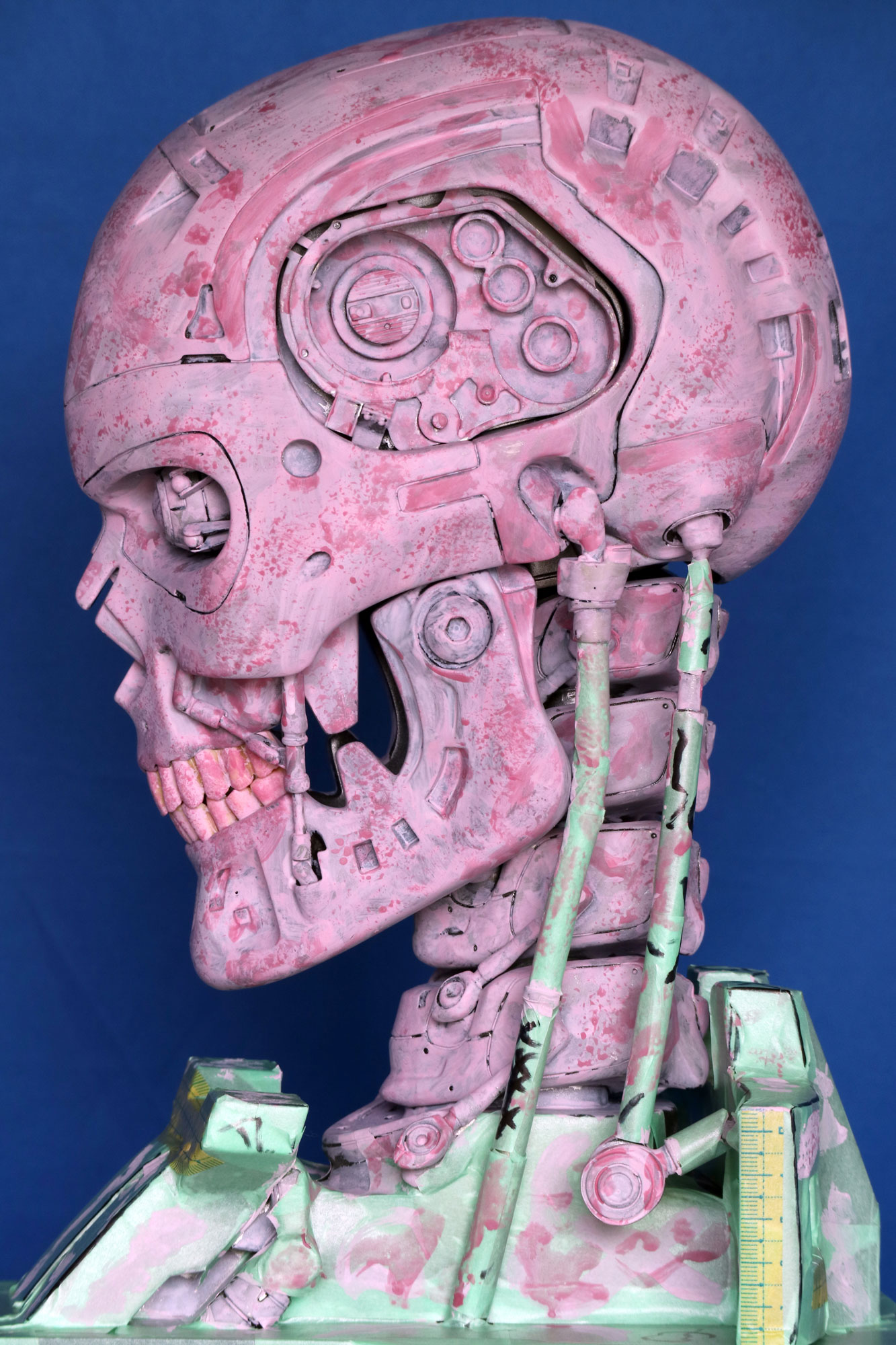

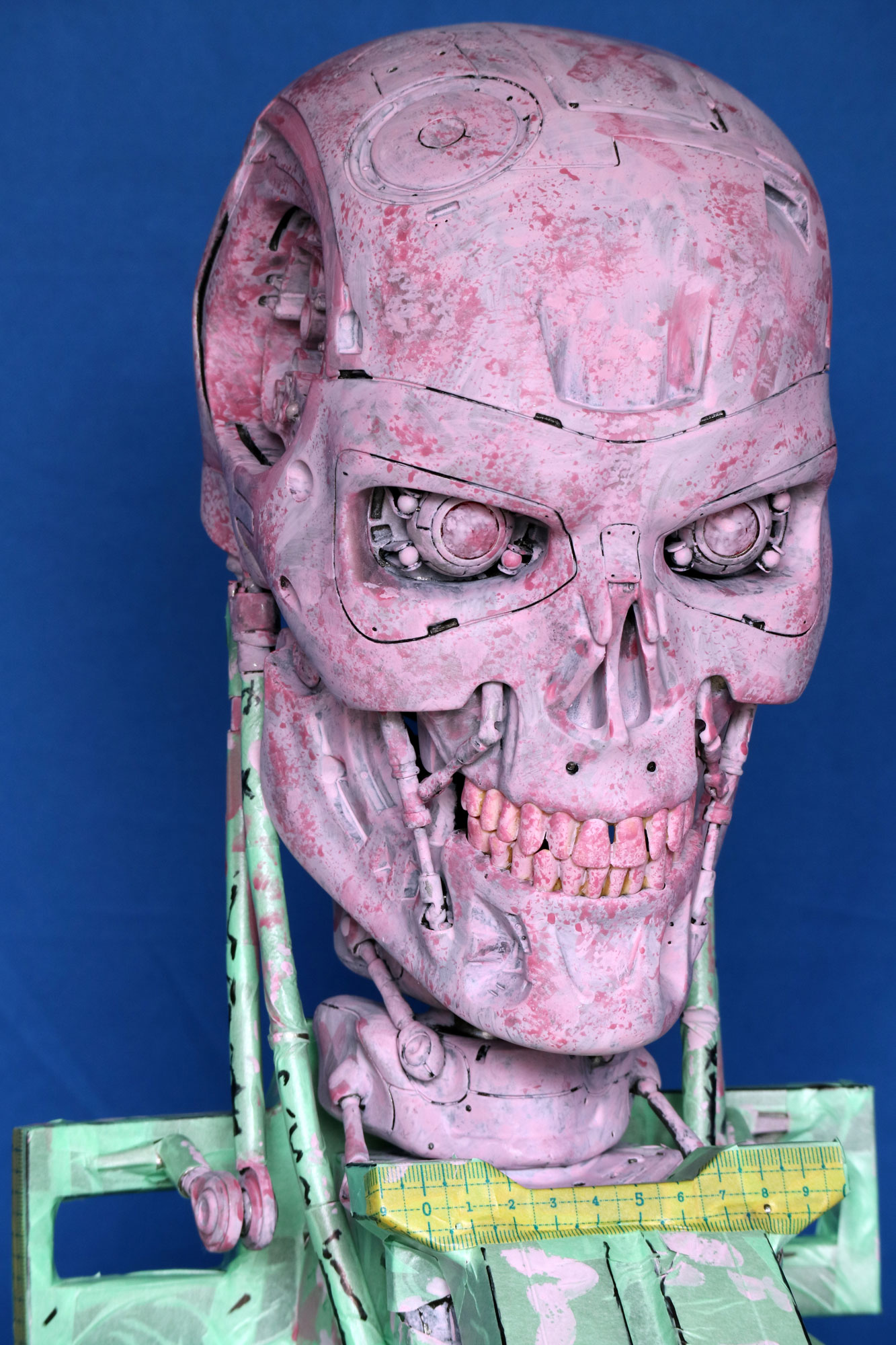

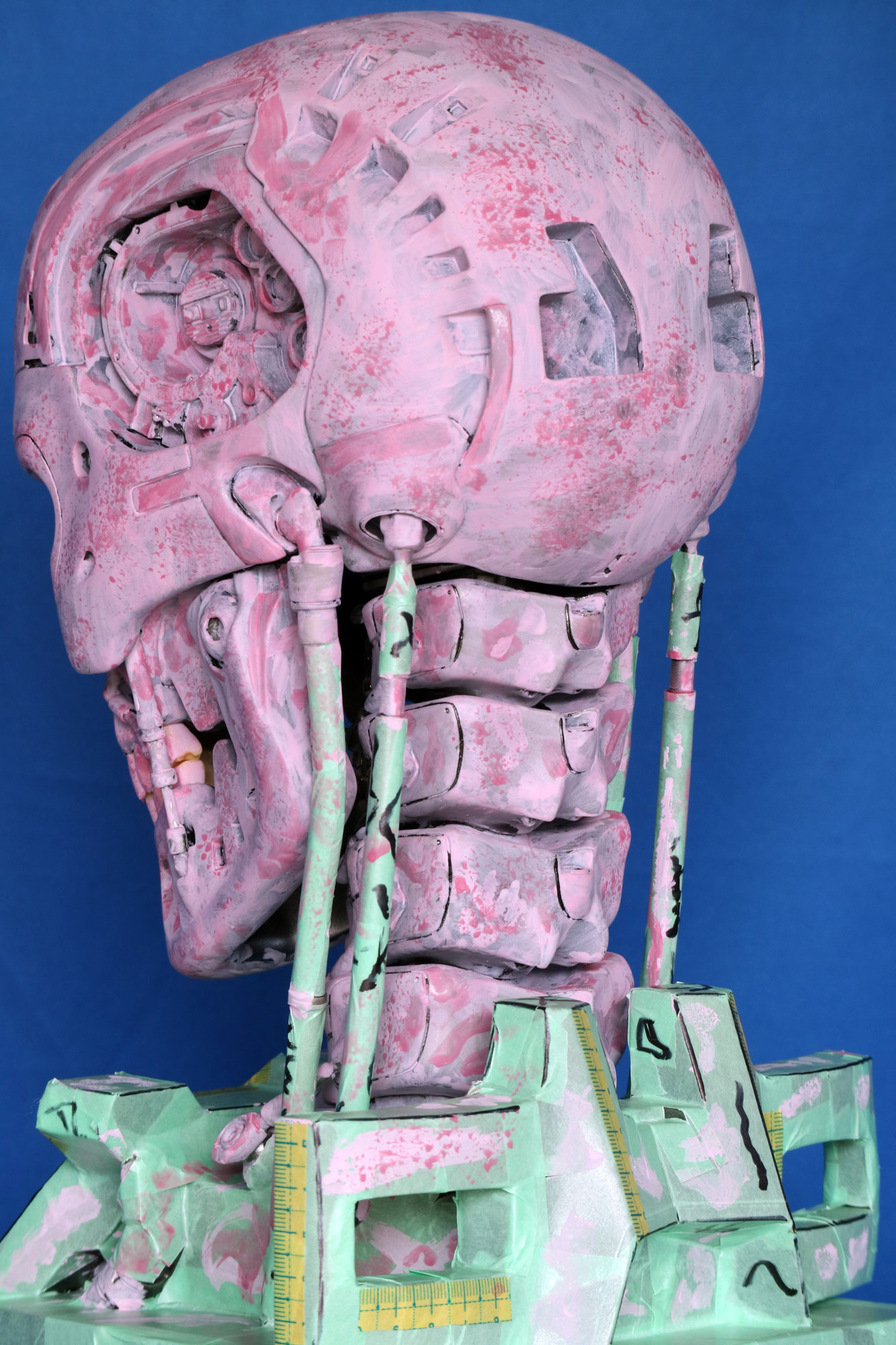

I share the photos of the genysis skull.
If you have photogrammetry software, please try if you can make it 3D.
The quality size of the photo is reduced from the original.
View attachment 1816933View attachment 1816934View attachment 1816935View attachment 1816936View attachment 1816938View attachment 1816939View attachment 1816940View attachment 1816941View attachment 1816942View attachment 1816943View attachment 1816944View attachment 1816945View attachment 1816946View attachment 1816947View attachment 1816948View attachment 1816949View attachment 1816950View attachment 1816951View attachment 1816952View attachment 1816953View attachment 1816954View attachment 1816955View attachment 1816956View attachment 1816957View attachment 1816958

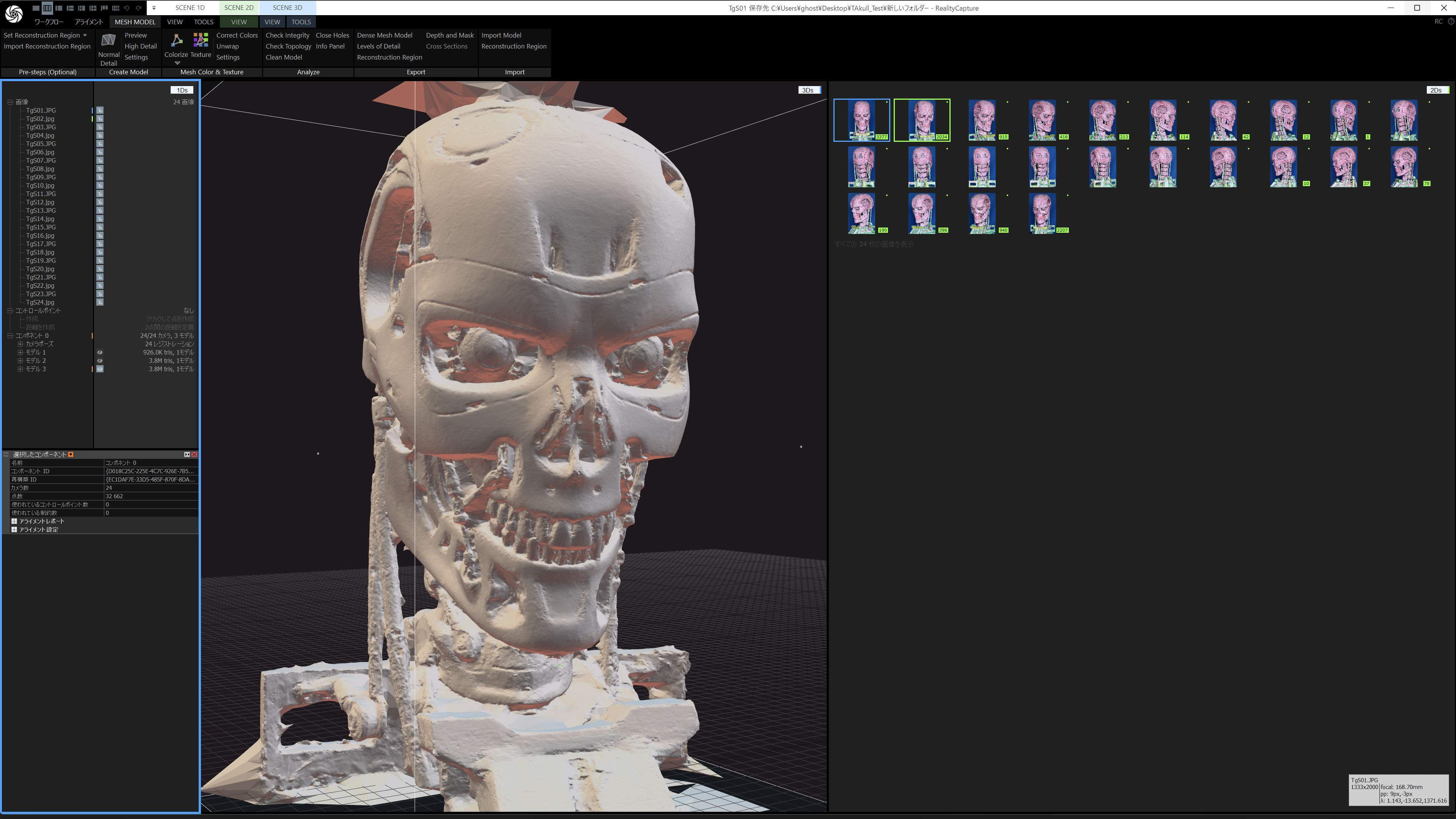

I scanned it and confirmed that the skull is almost perfectly symmetrical, just as I expected.



[Too Much Garlic]

I would suggest to stay away from using black when doing these splotch-work photo sessions, as the software may perceive them as depressions, so you won't get a smooth surface. Instead of black you could use other dark colors or keep the black to small specks. Any scan I have seen where there was high contrast and something dark/black used next to something really light, the scanner interpreted it as being at different depths. So for smooth parts... too high contrast and having sections go too dark will have a negative effect on the final model.

Just a thought.



[joberg]

Fantastic pics



[ghostman]

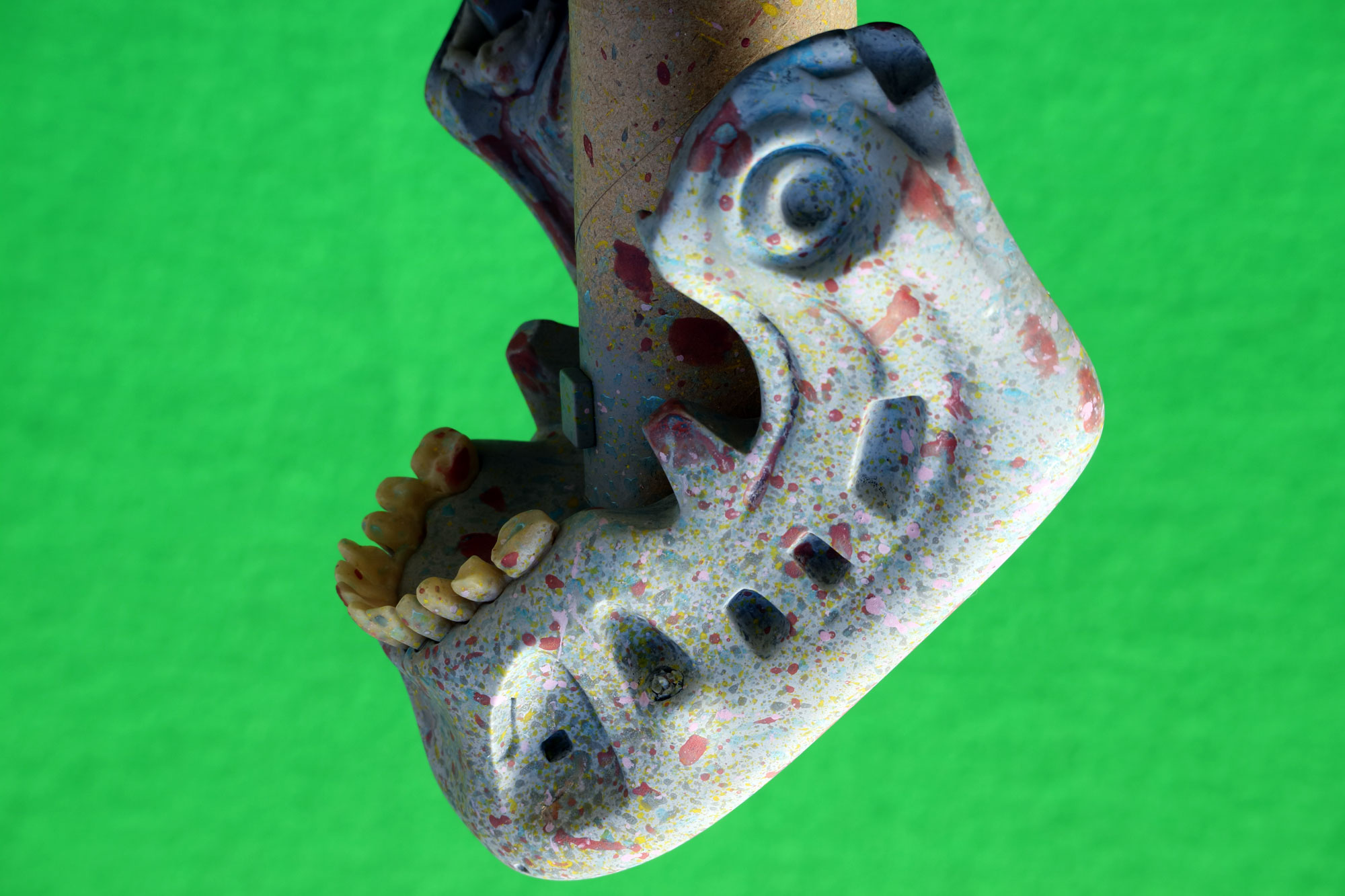

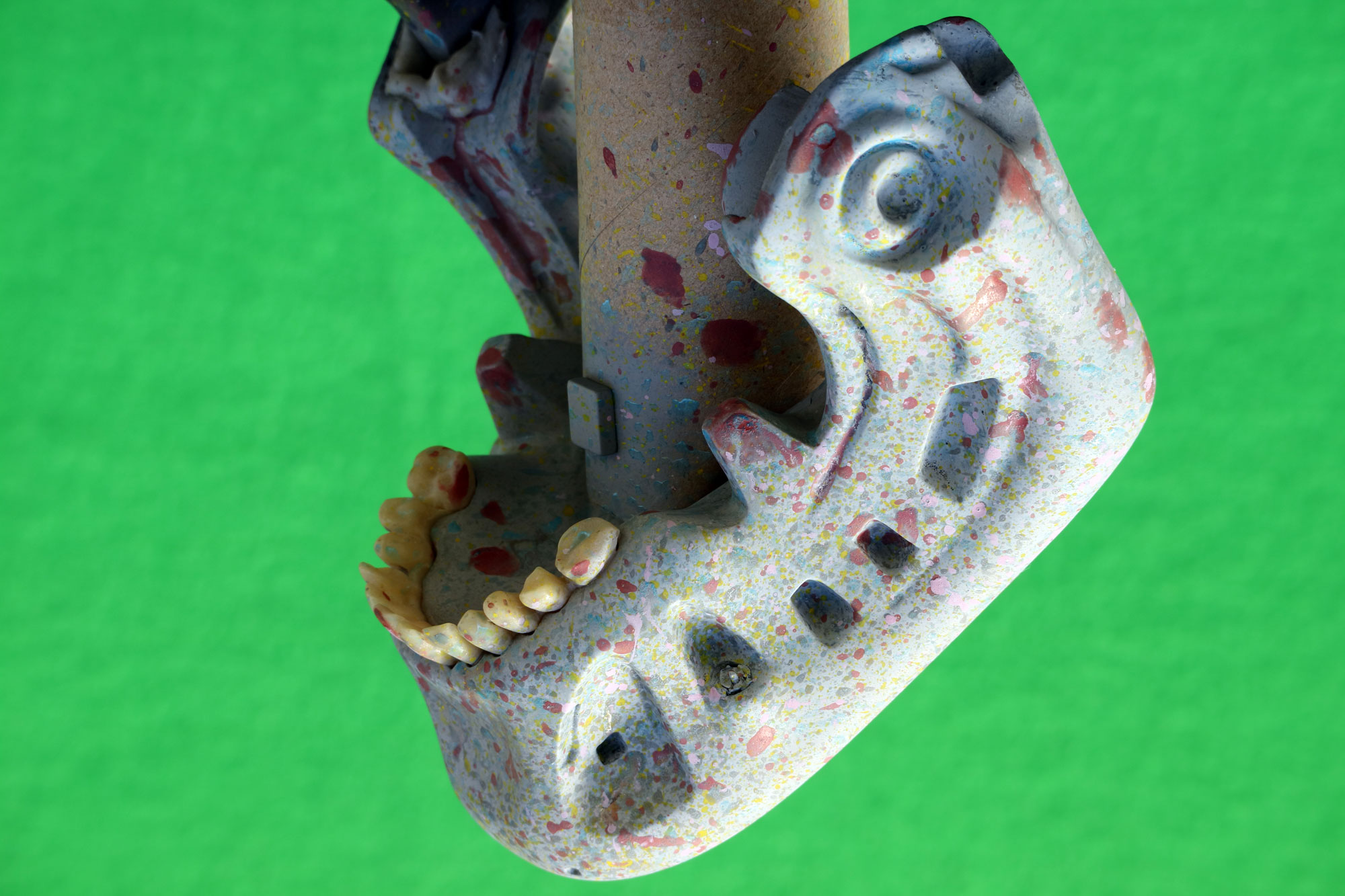

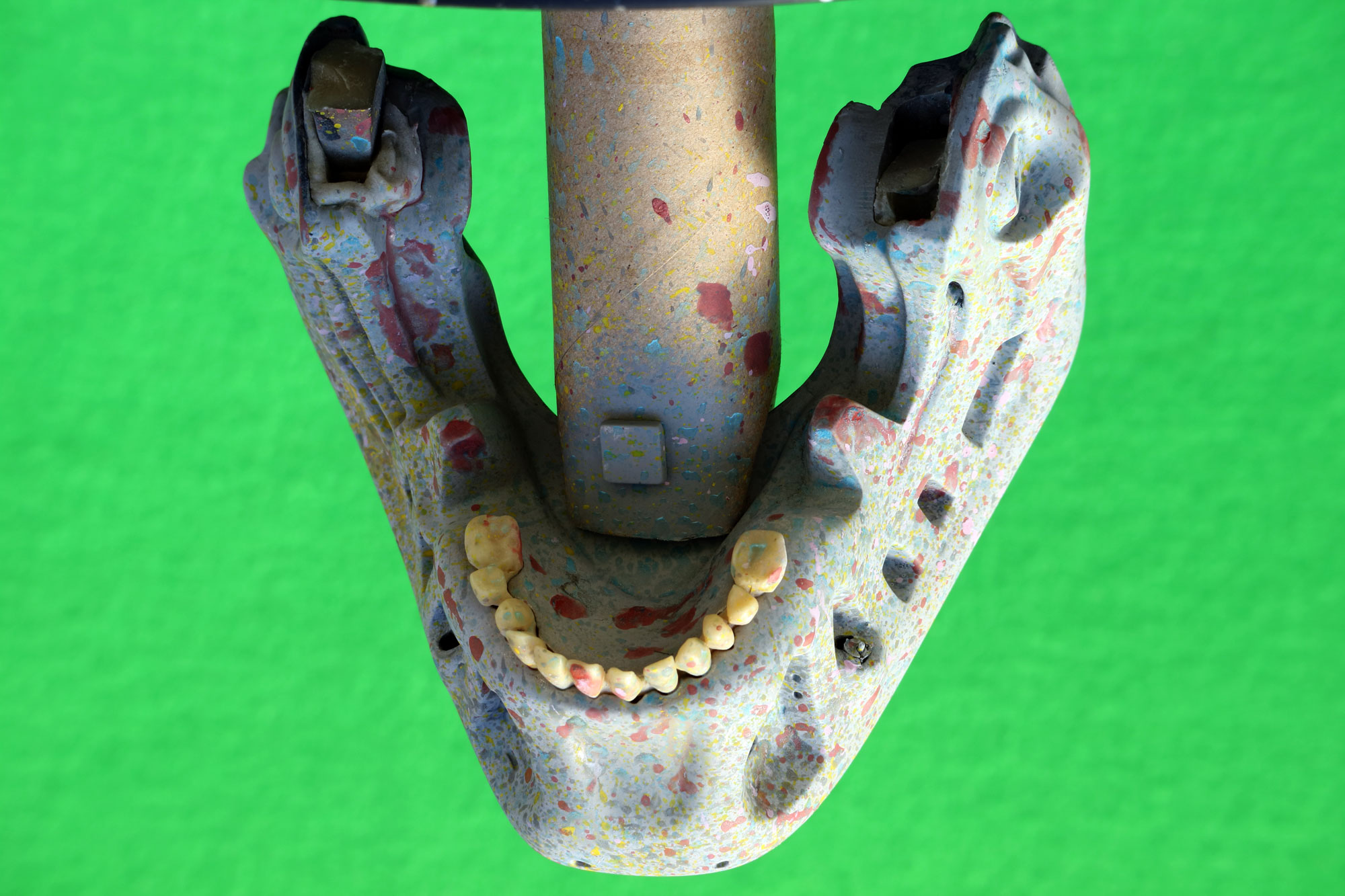

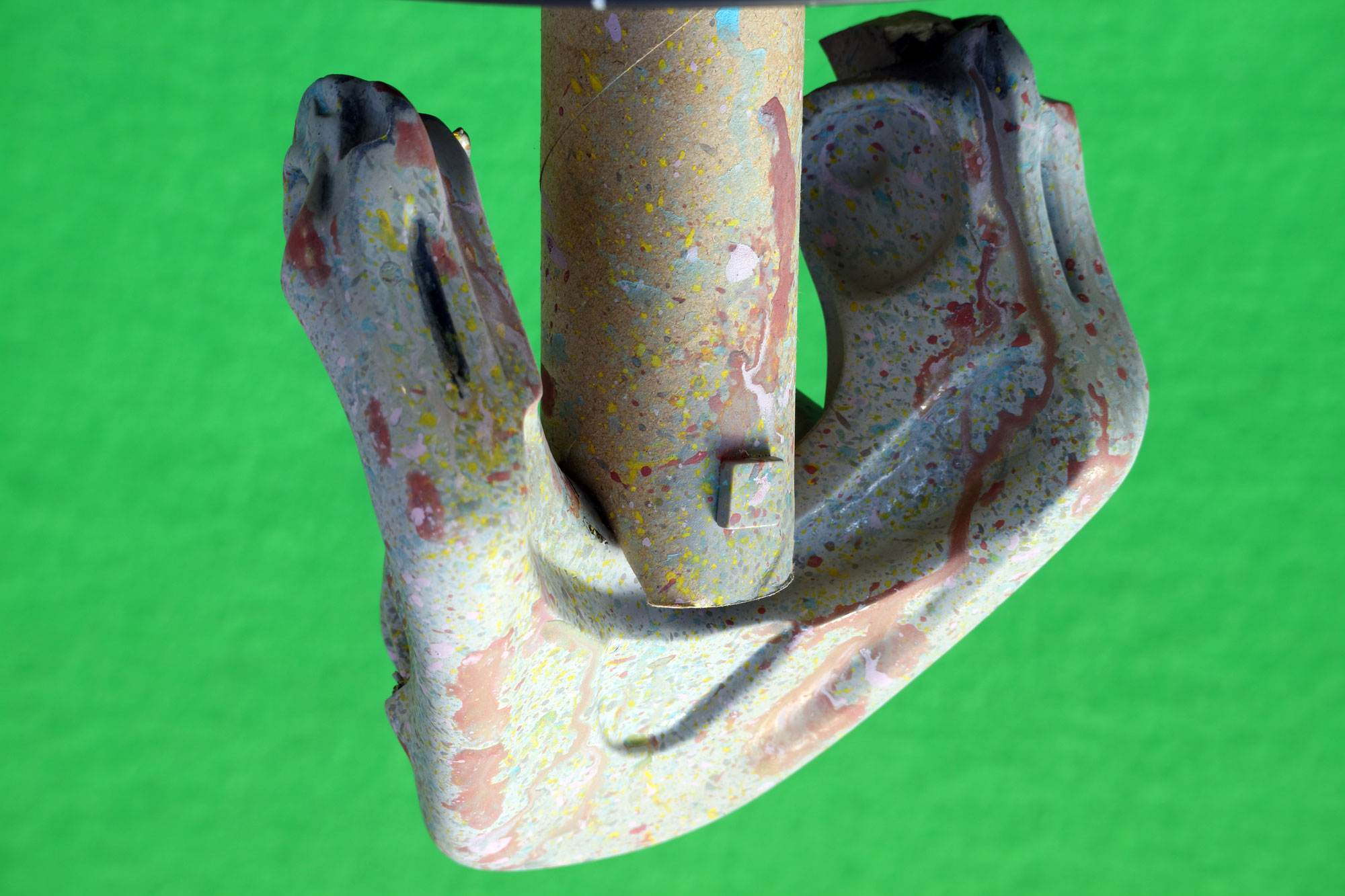

I share the photos of the HCG lower jaw.
If you have photogrammetry software, please try if you can make it 3D.
The quality size of the photo is reduced from the original.



[ghostman]

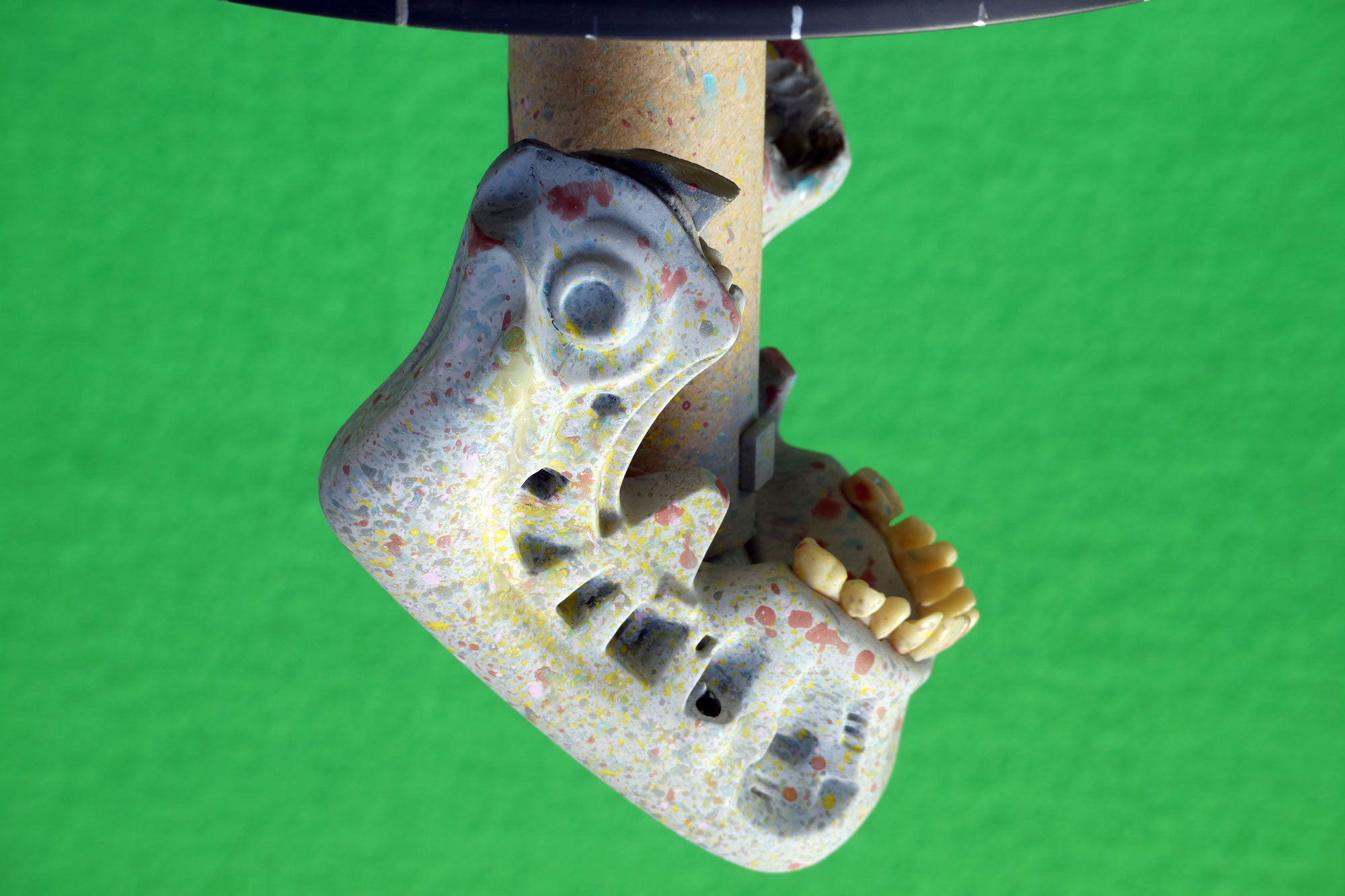

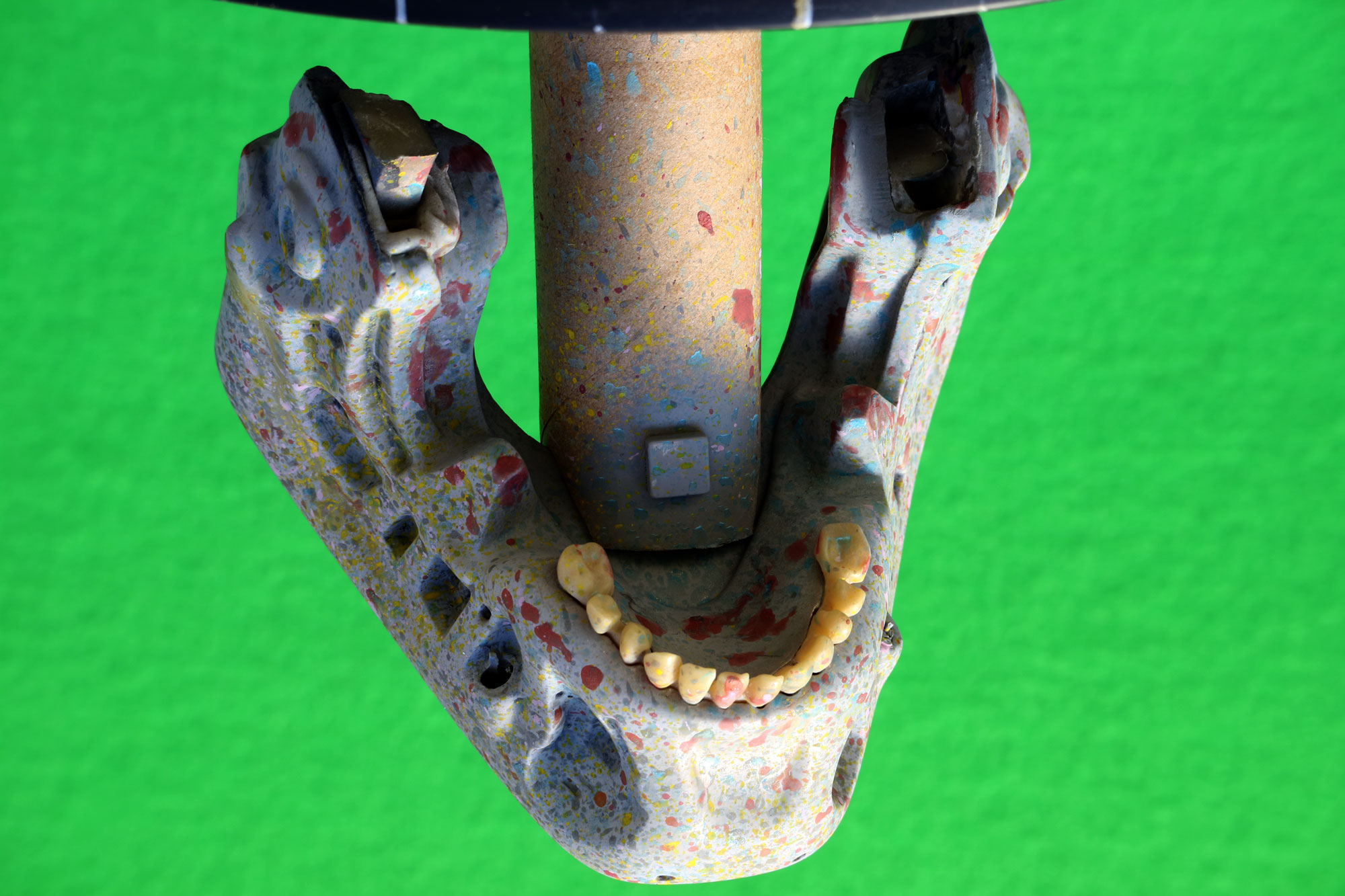

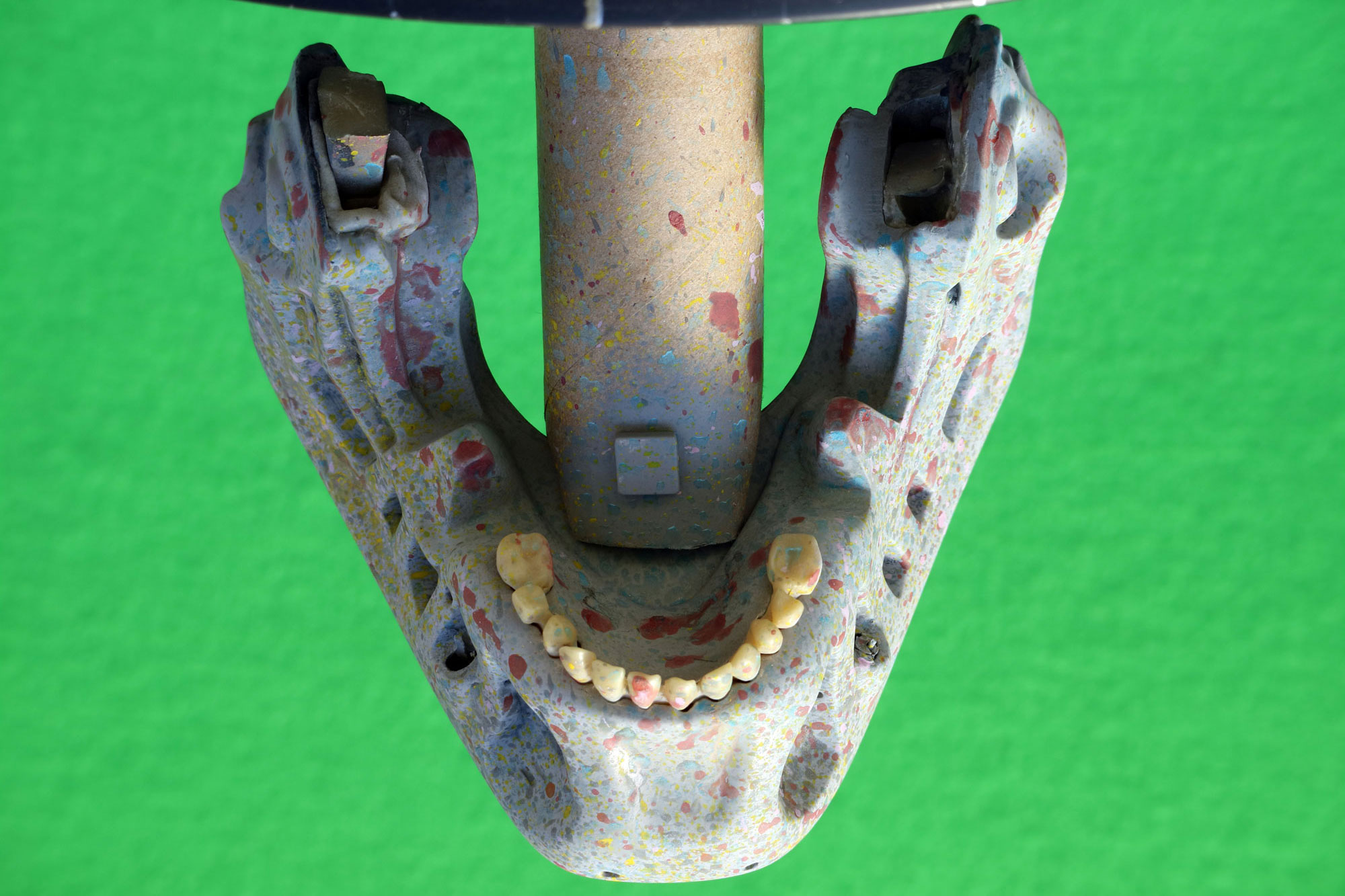

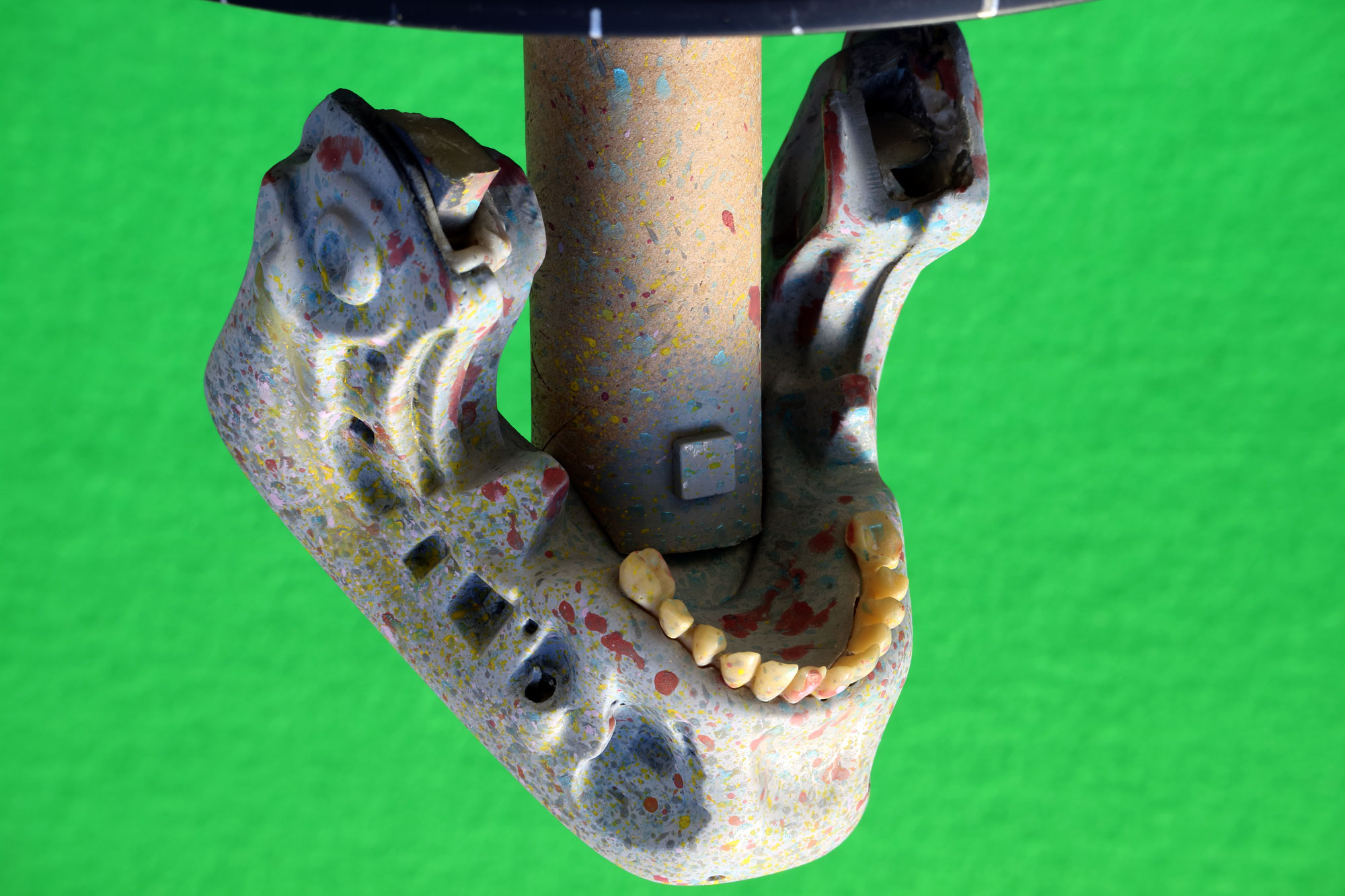

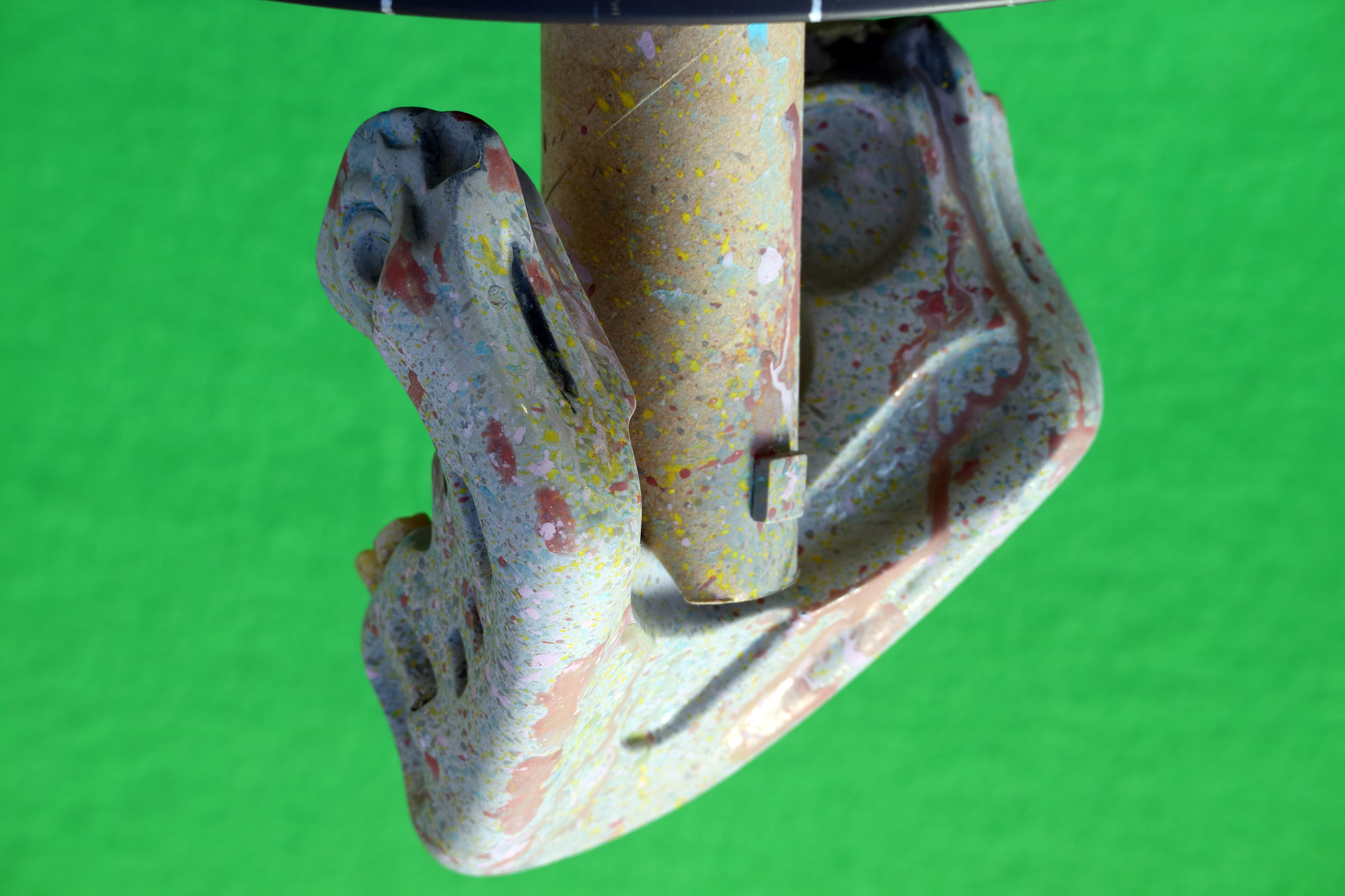

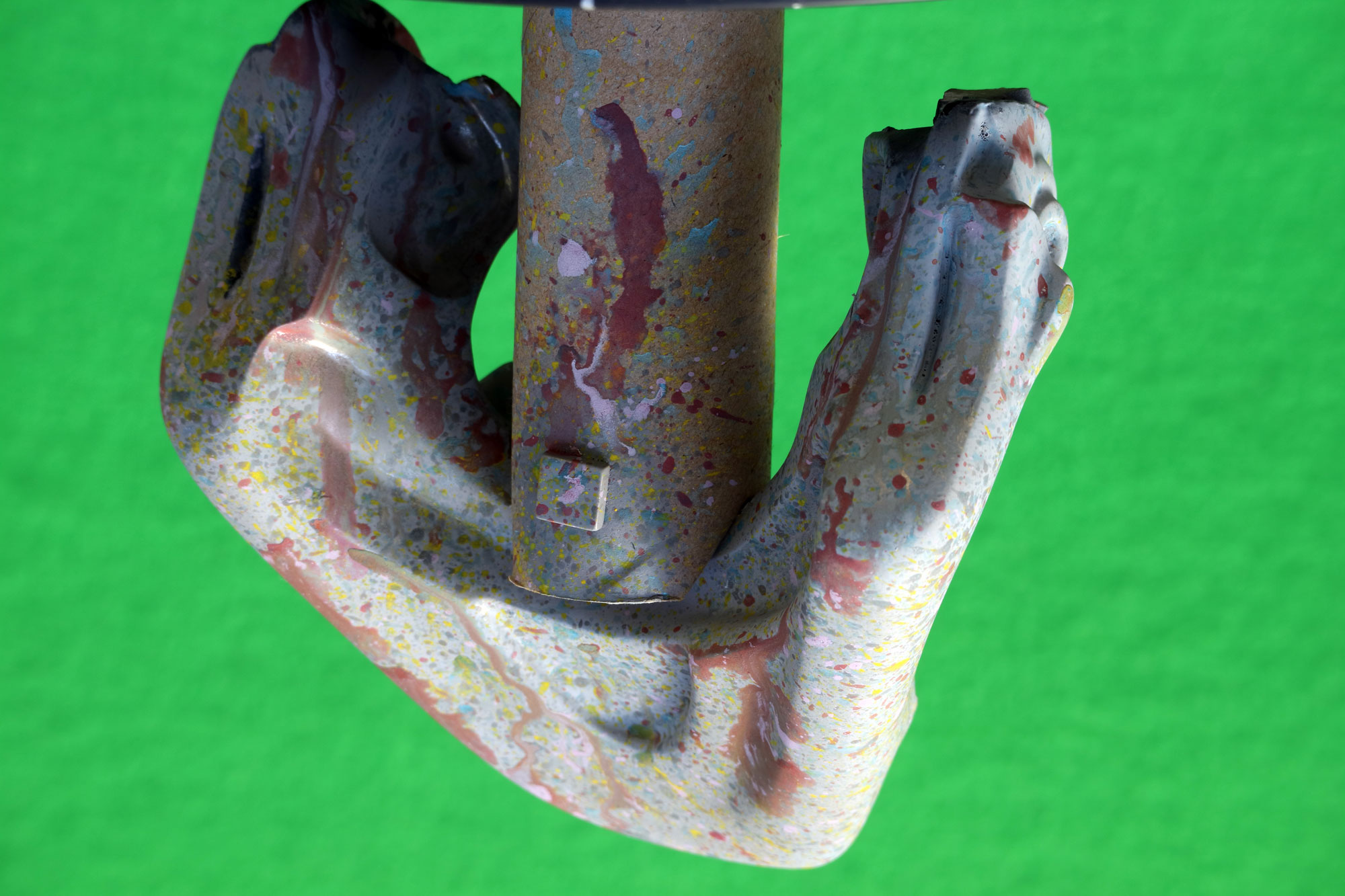

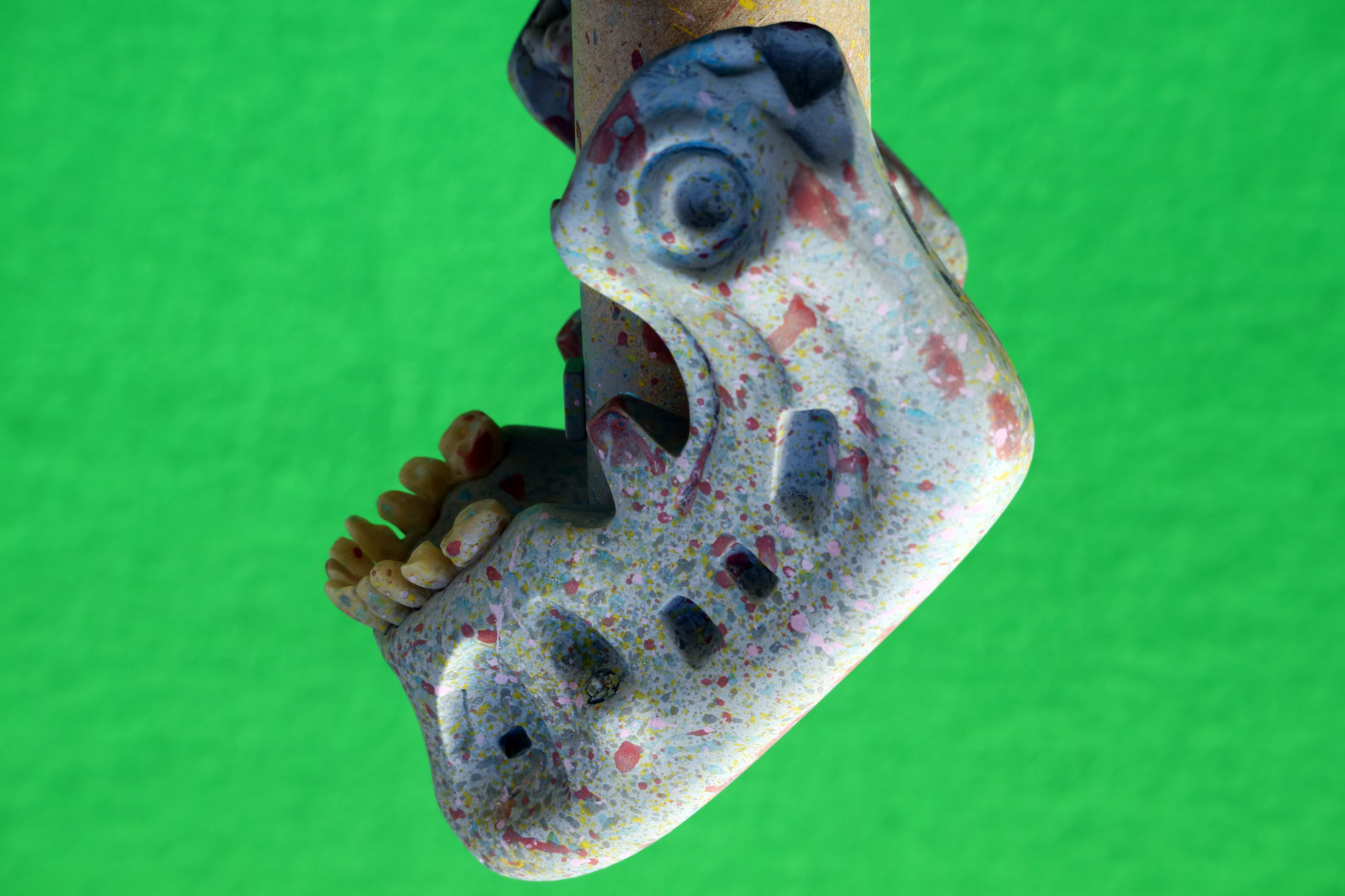

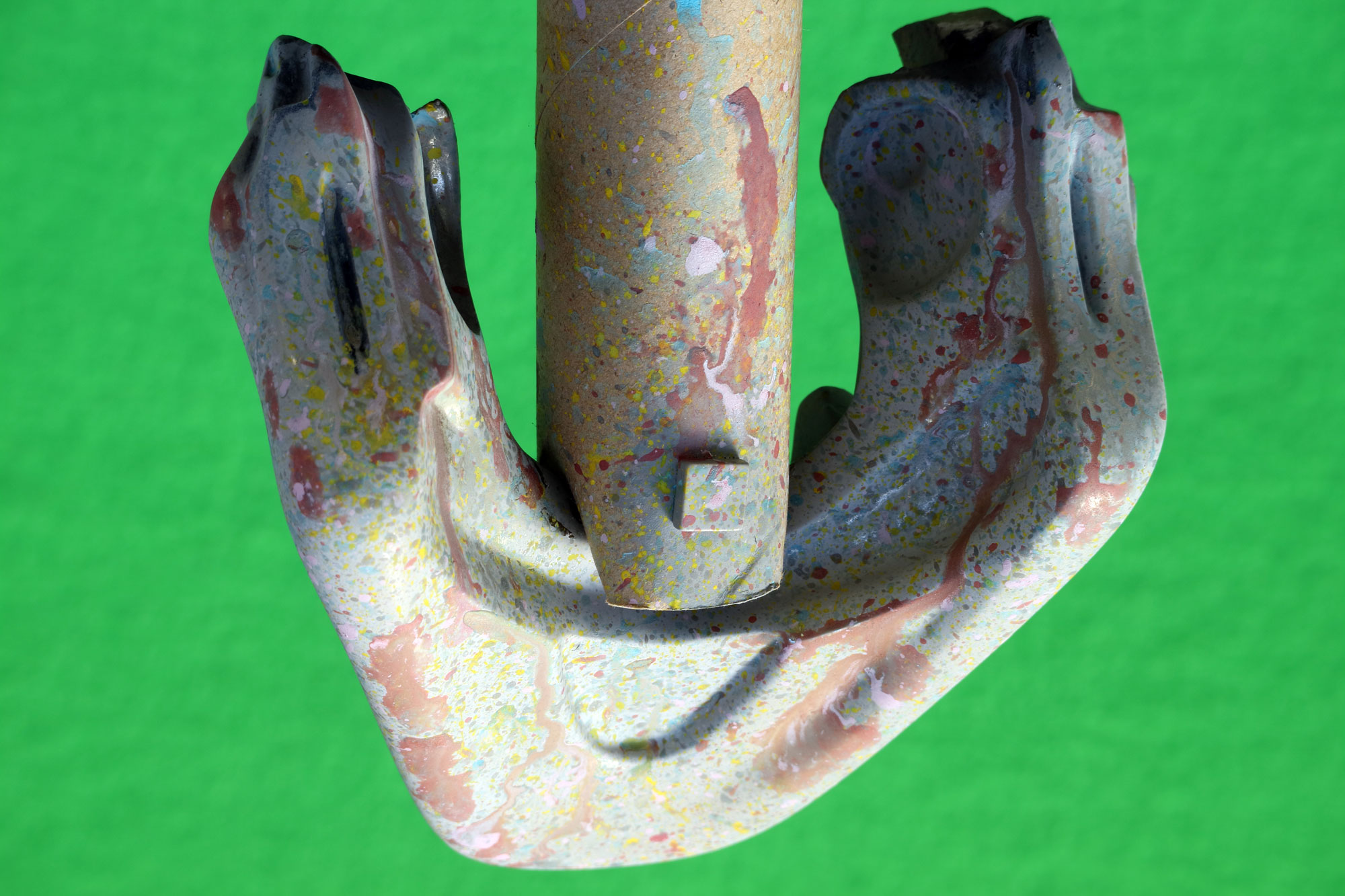

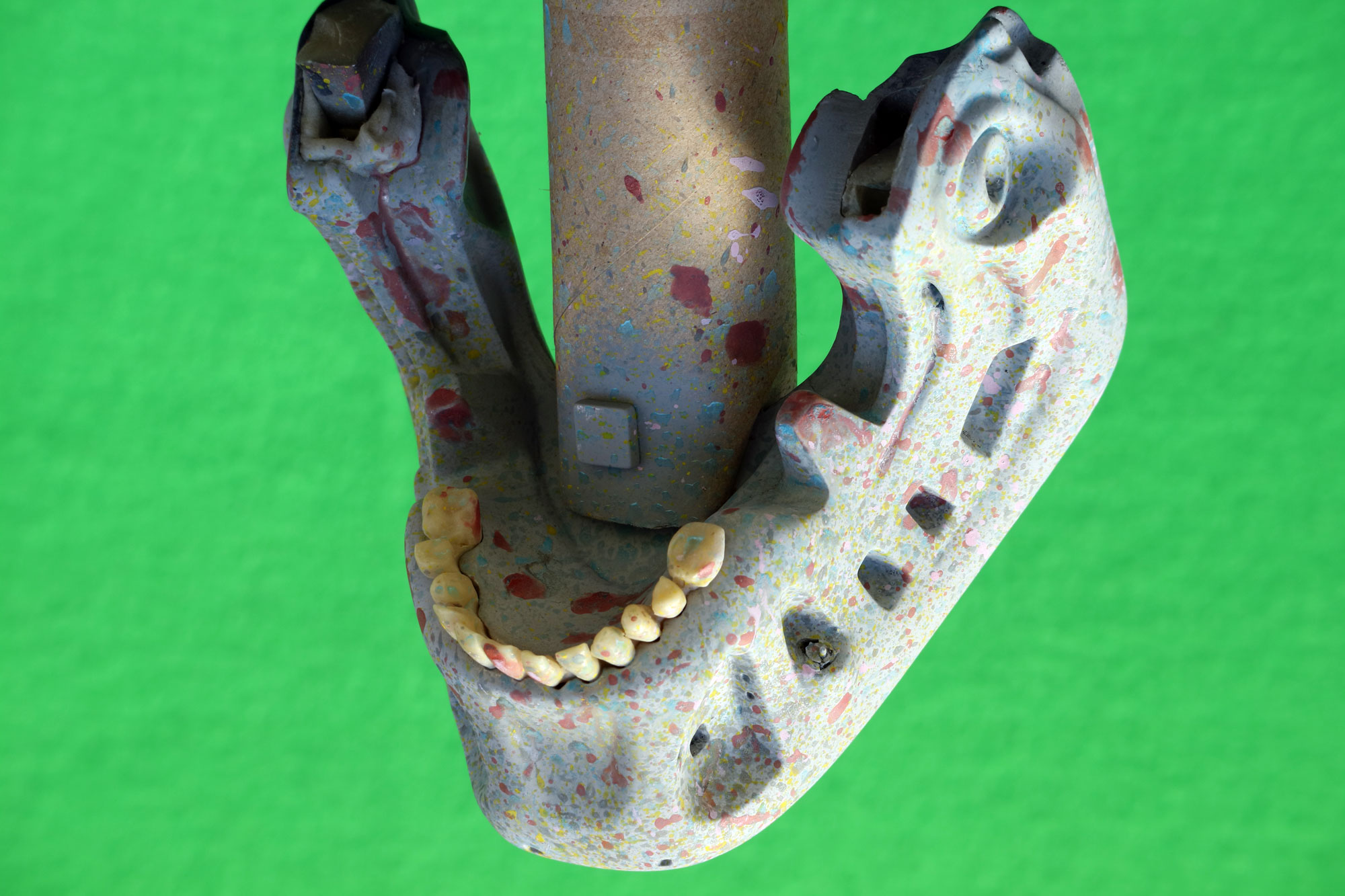

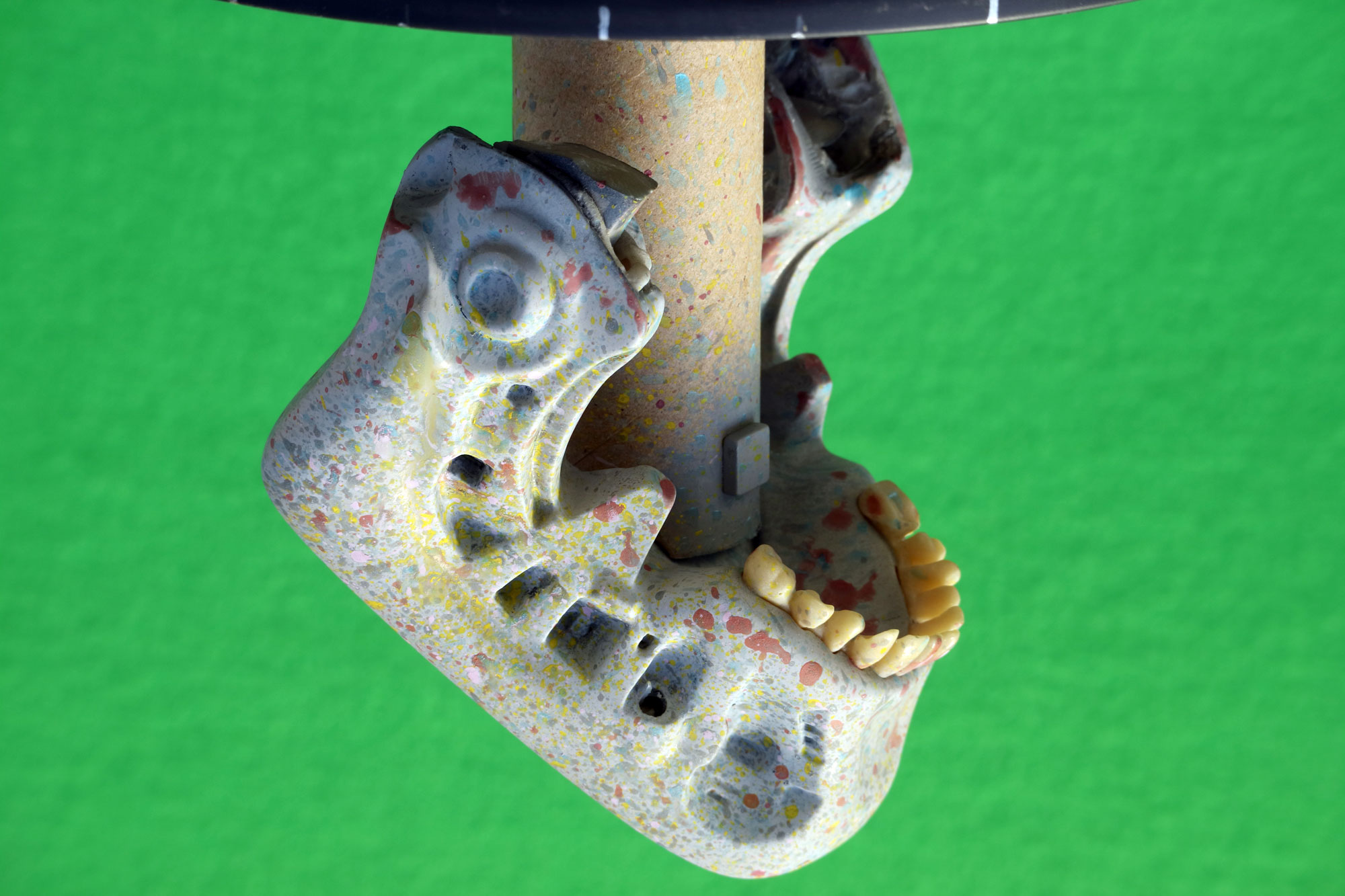

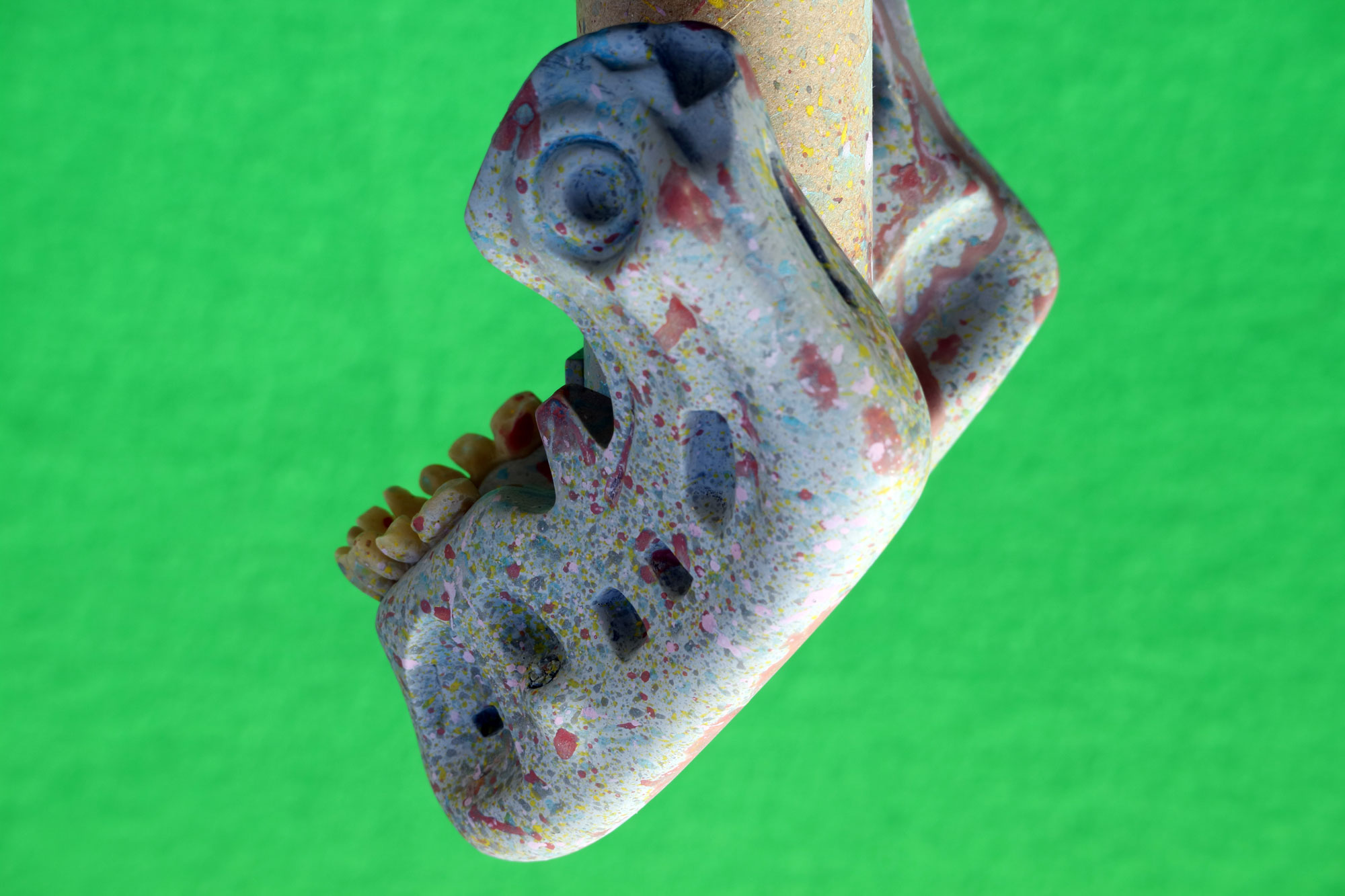

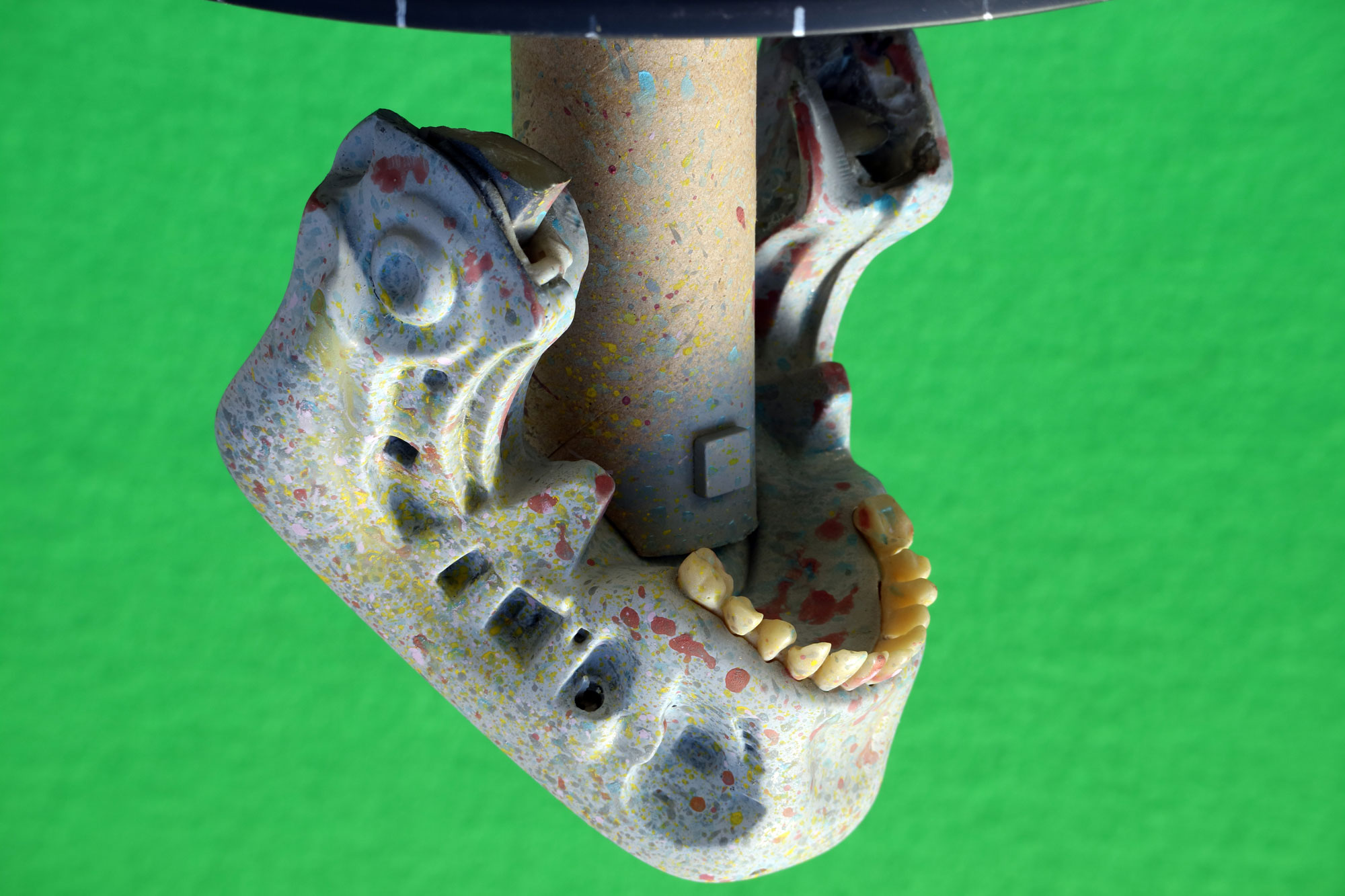

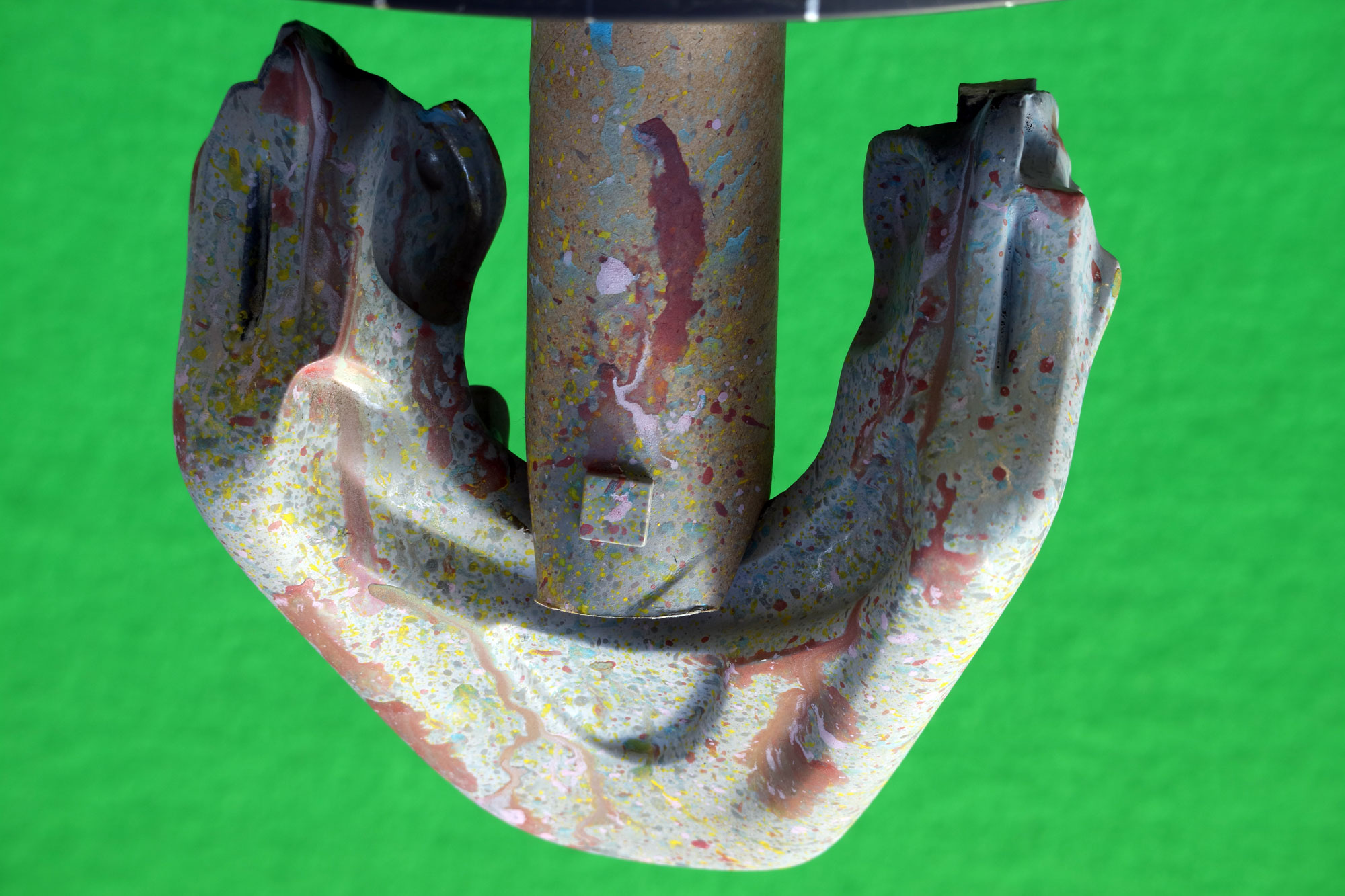

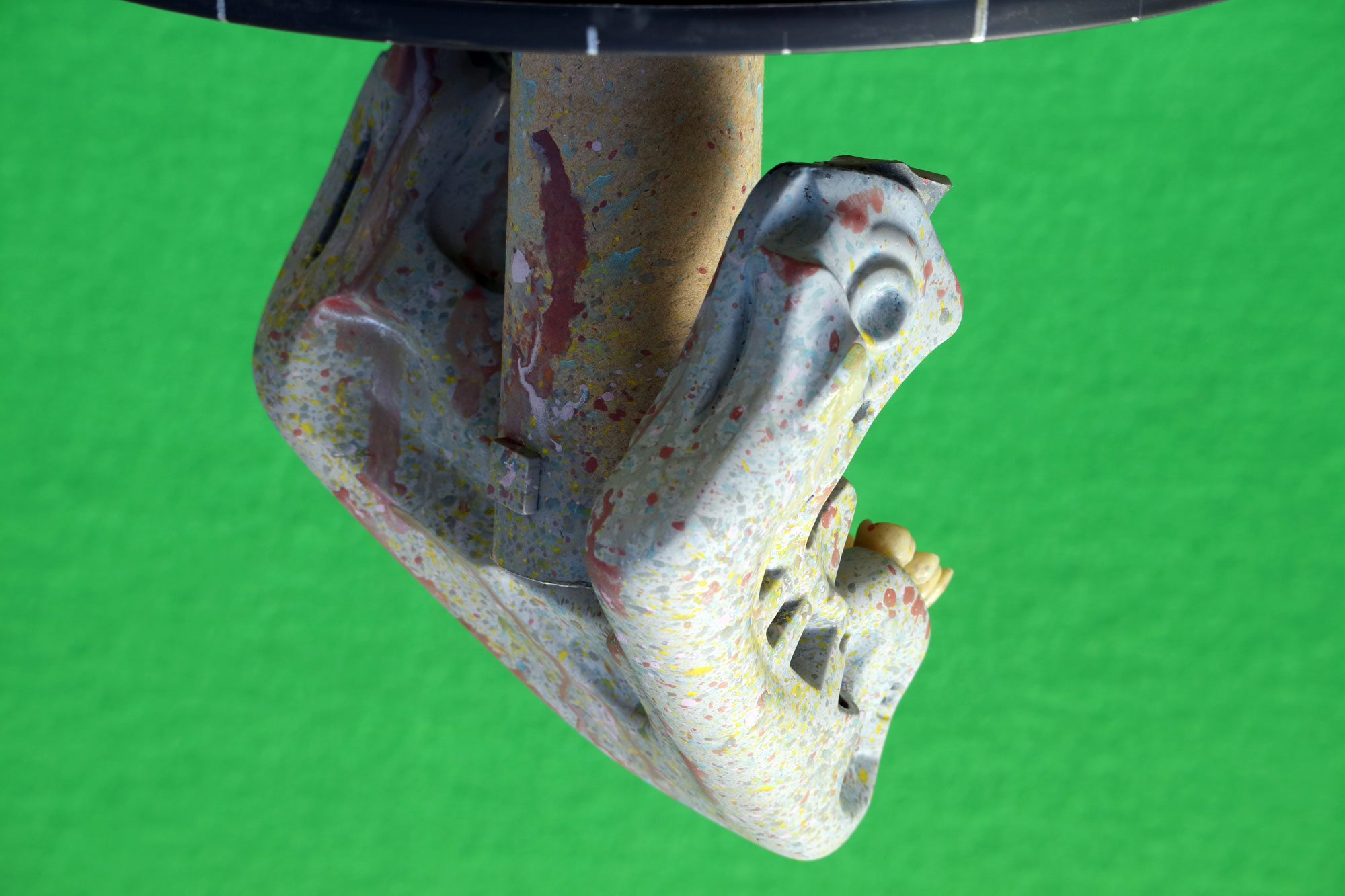

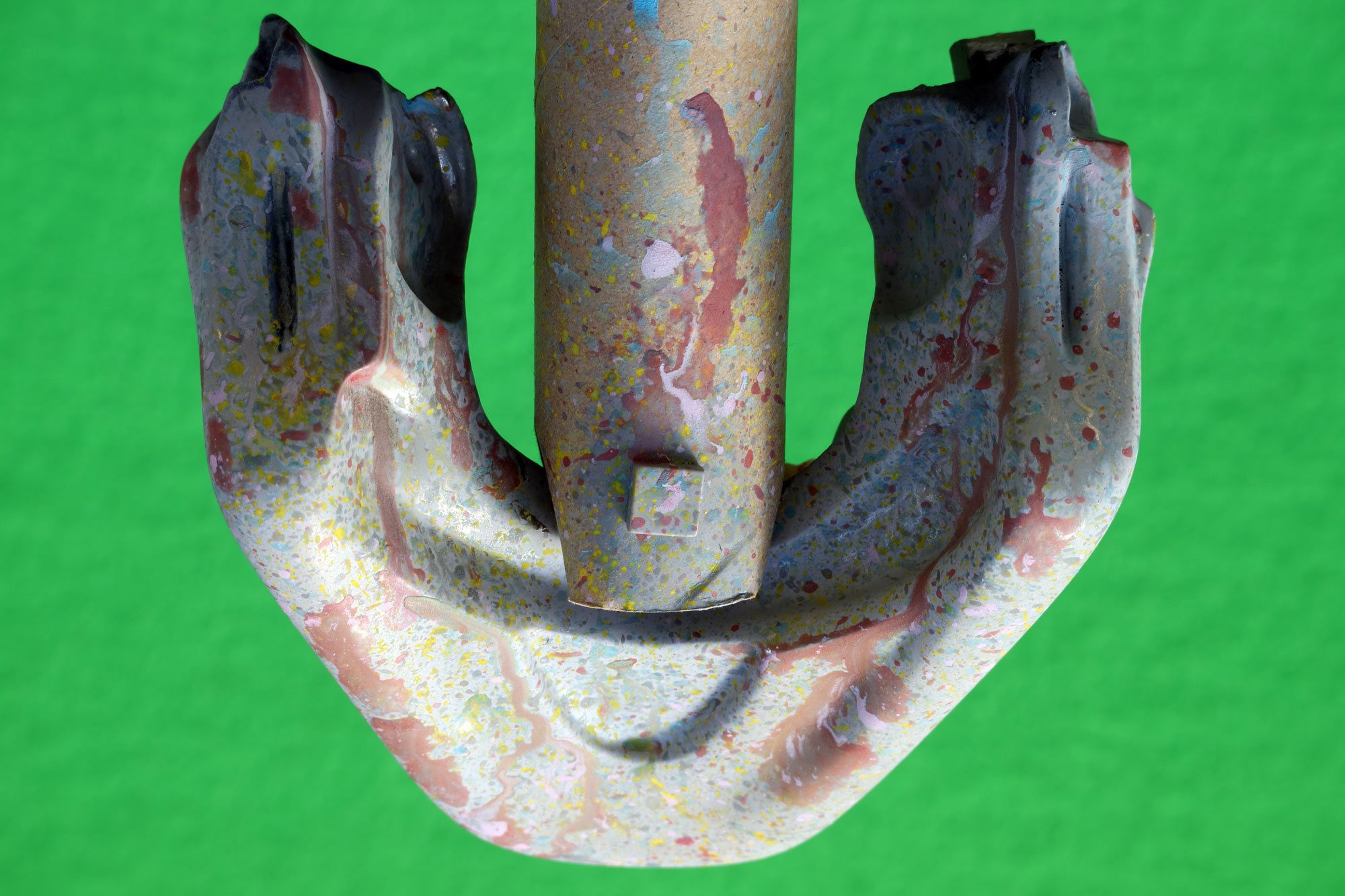

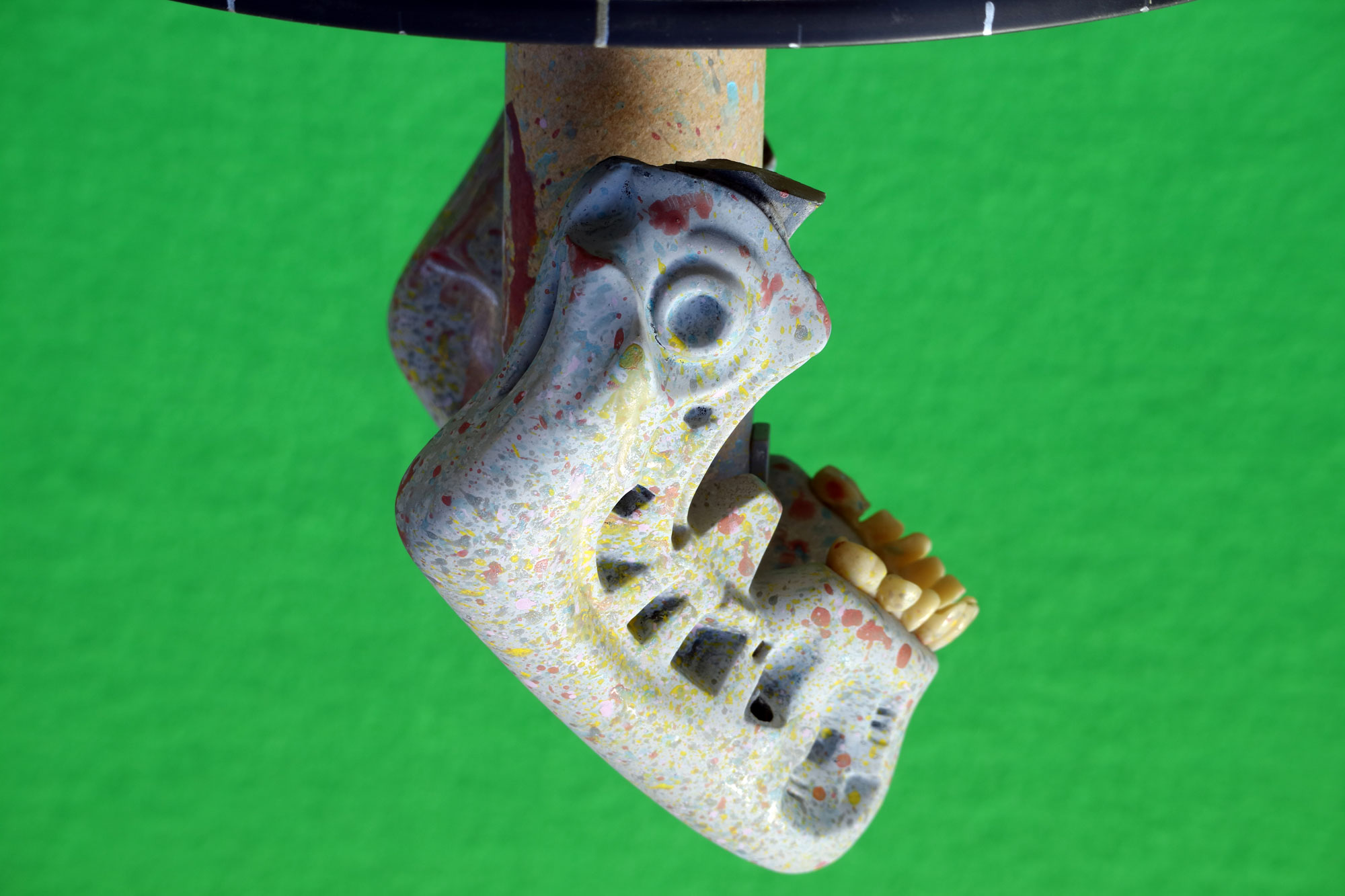

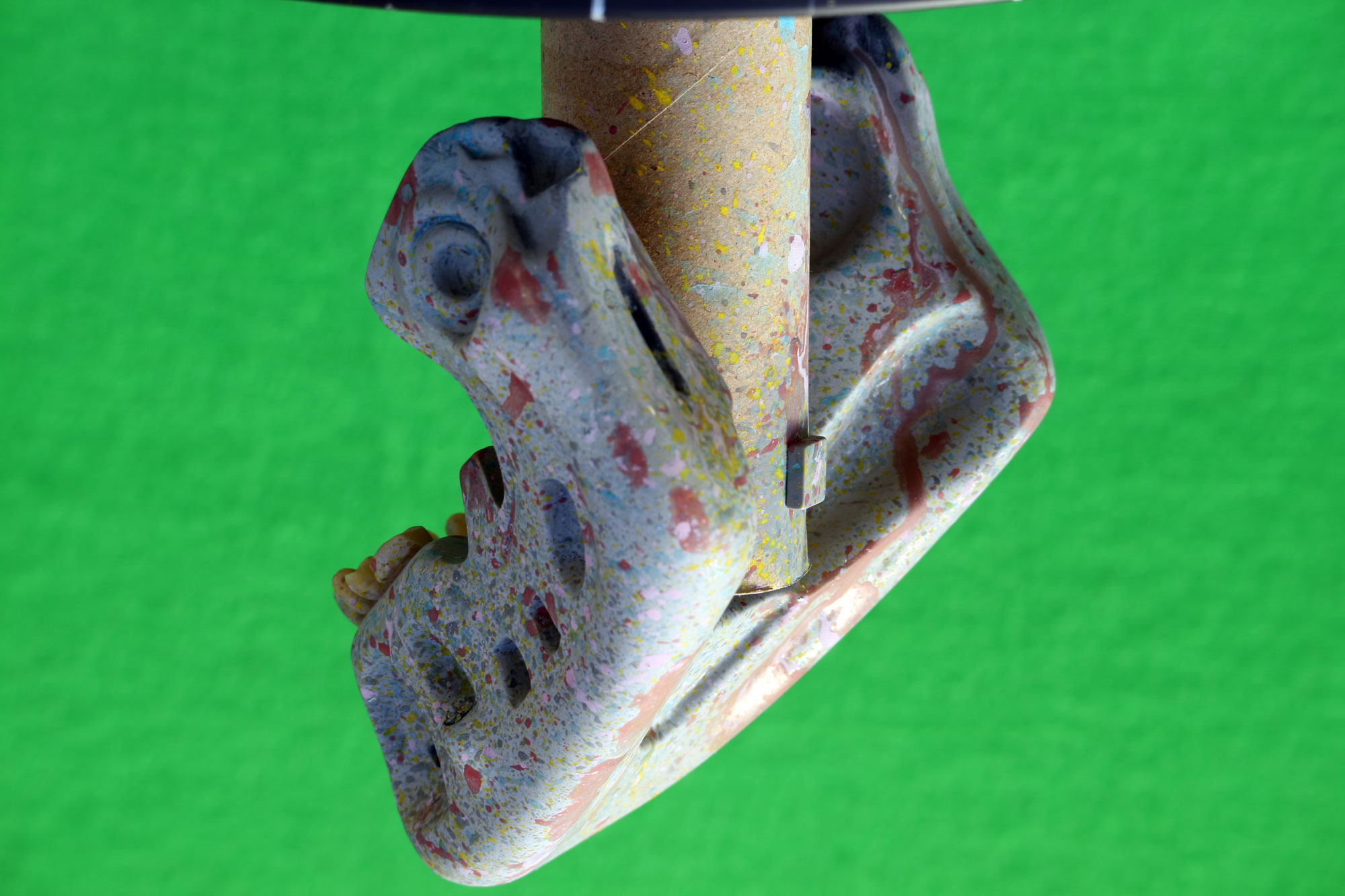

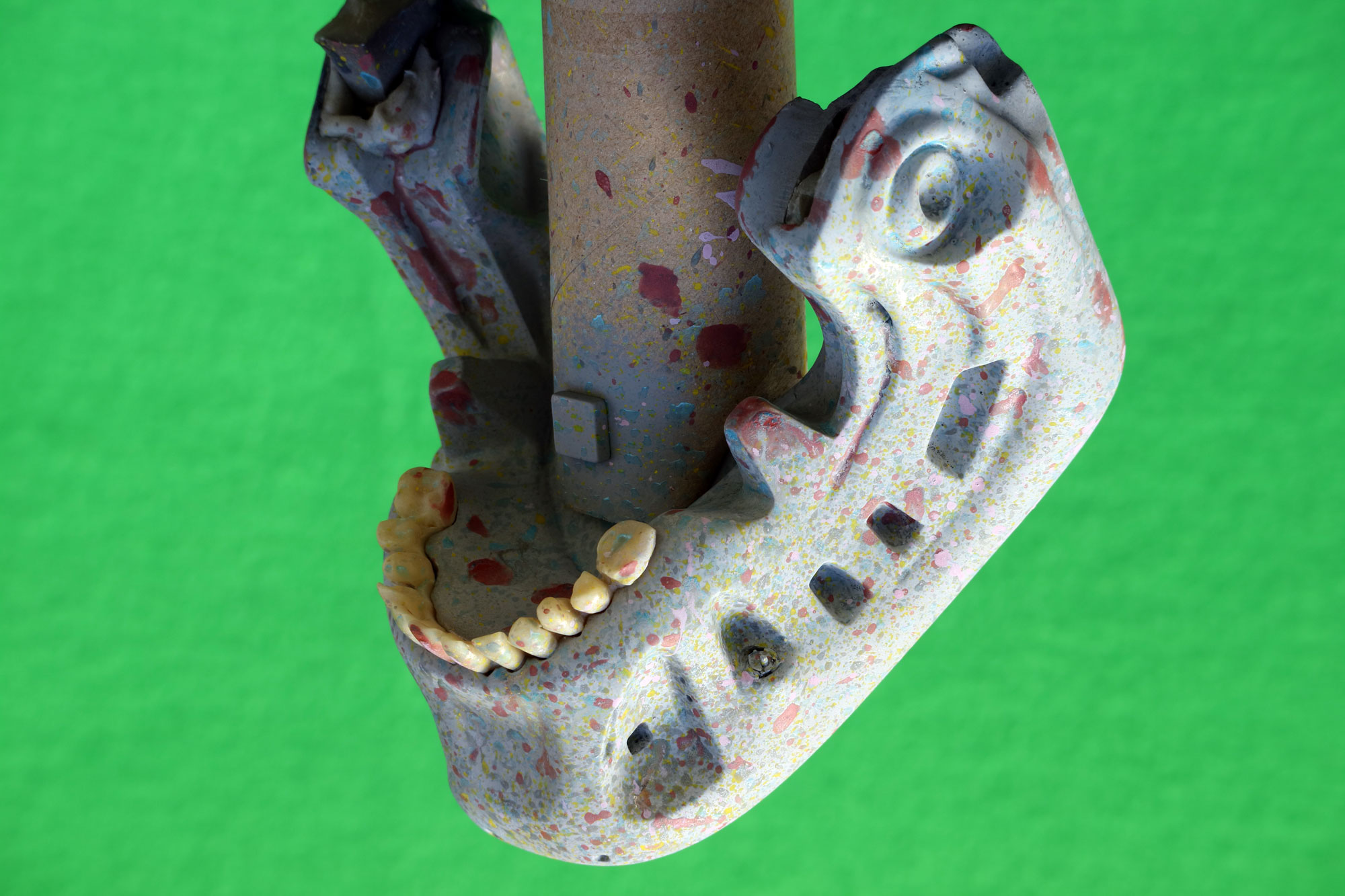

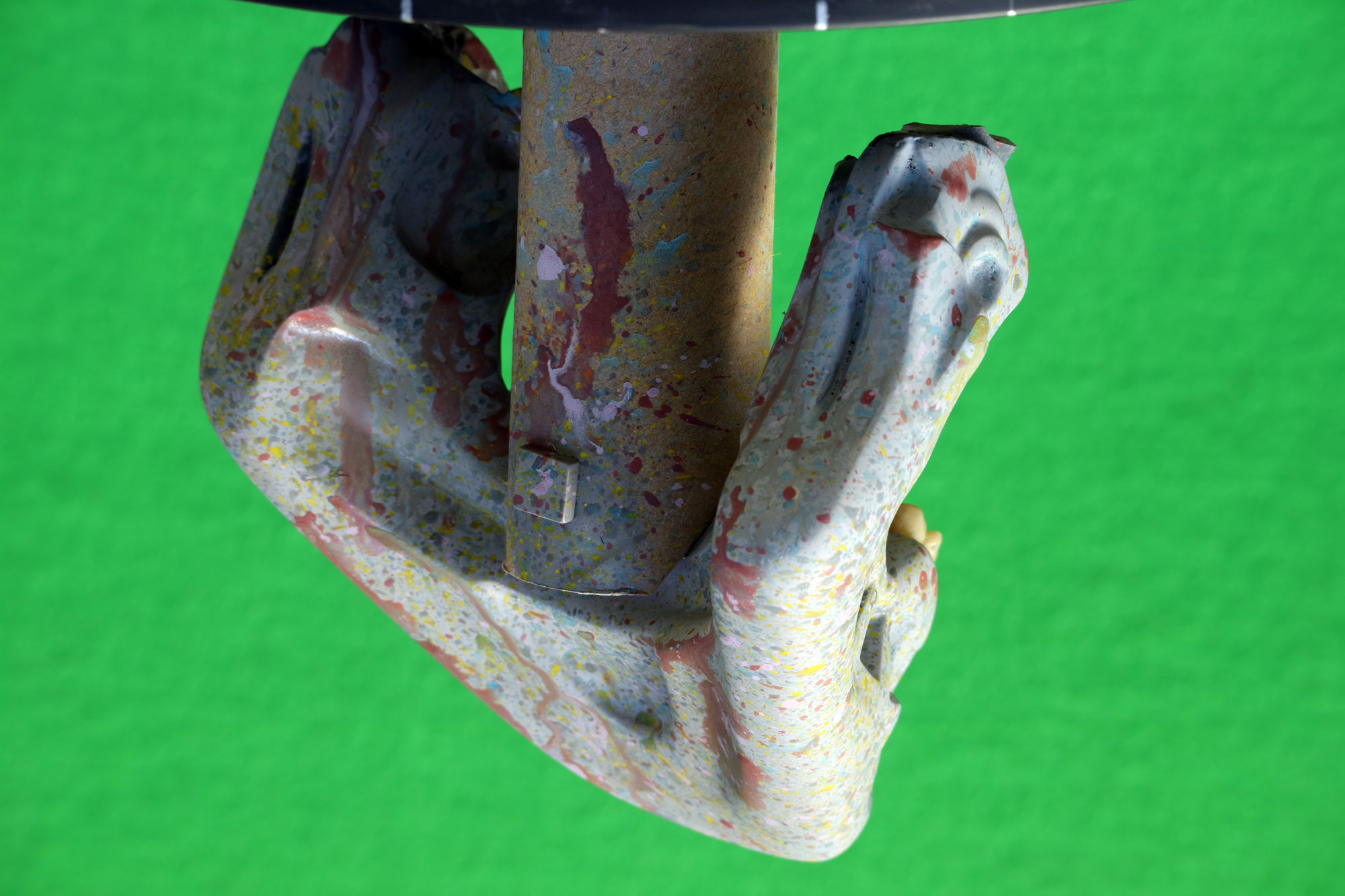

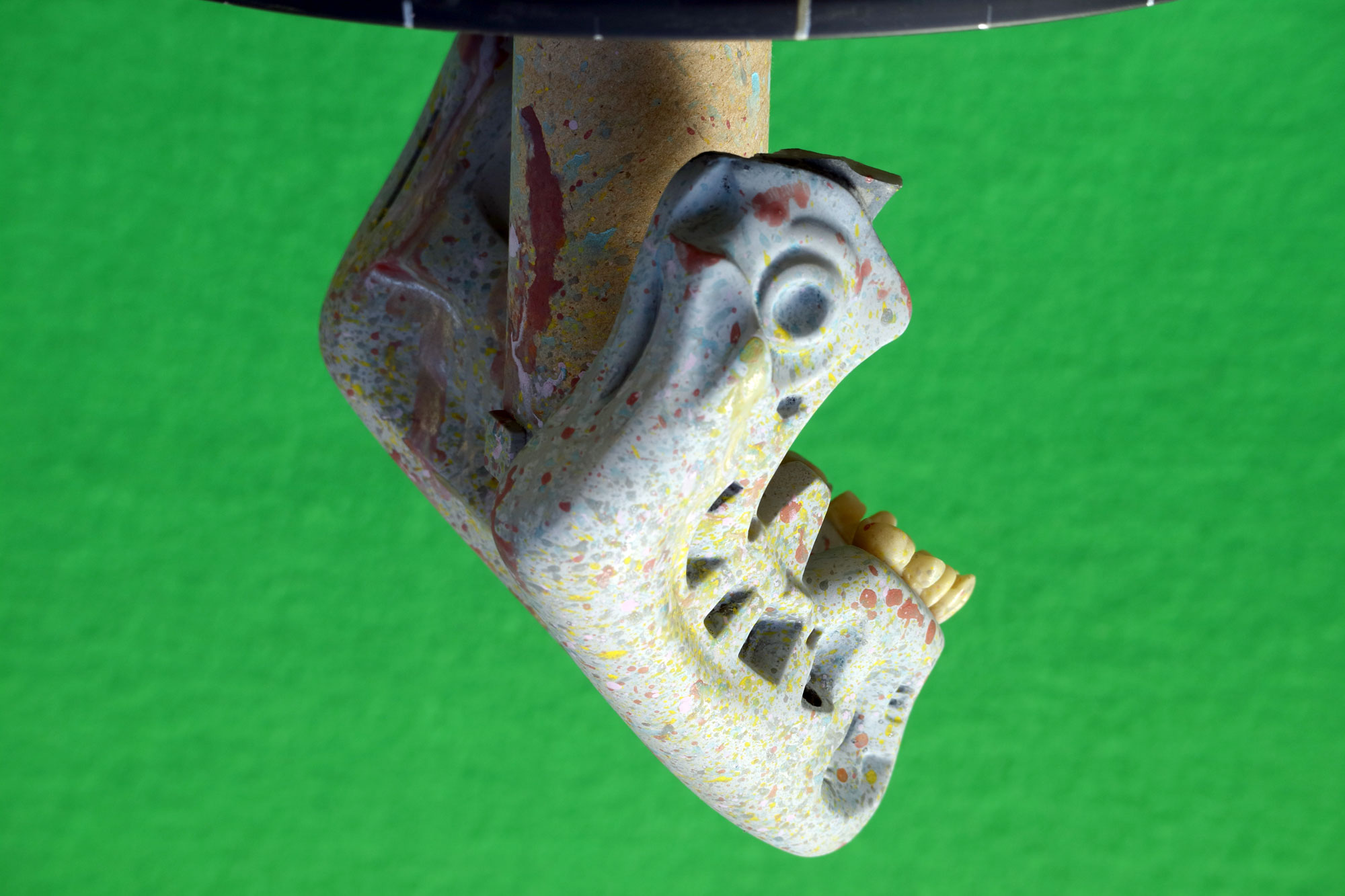

I share the photos of the HCG lower jaw.
If you have photogrammetry software, please try if you can make it 3D.
The quality size of the photo is reduced from the original.View attachment 1817261View attachment 1817262View attachment 1817263View attachment 1817264View attachment 1817266View attachment 1817267View attachment 1817268View attachment 1817269View attachment 1817270View attachment 1817271View attachment 1817272View attachment 1817273View attachment 1817274View attachment 1817275View attachment 1817276View attachment 1817277View attachment 1817278View attachment 1817279View attachment 1817281View attachment 1817283View attachment 1817284View attachment 1817285View attachment 1817286View attachment 1817287View attachment 1817288

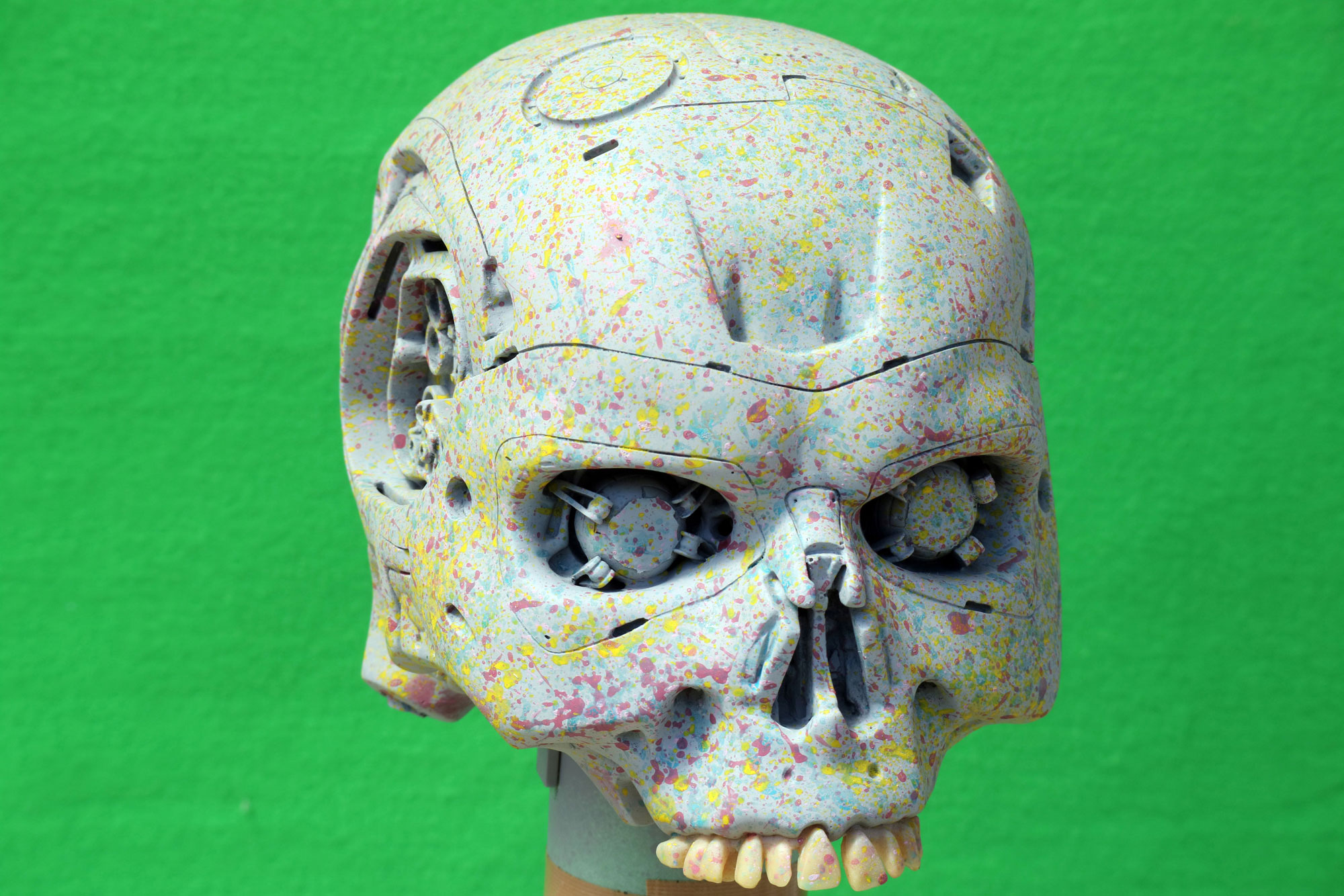

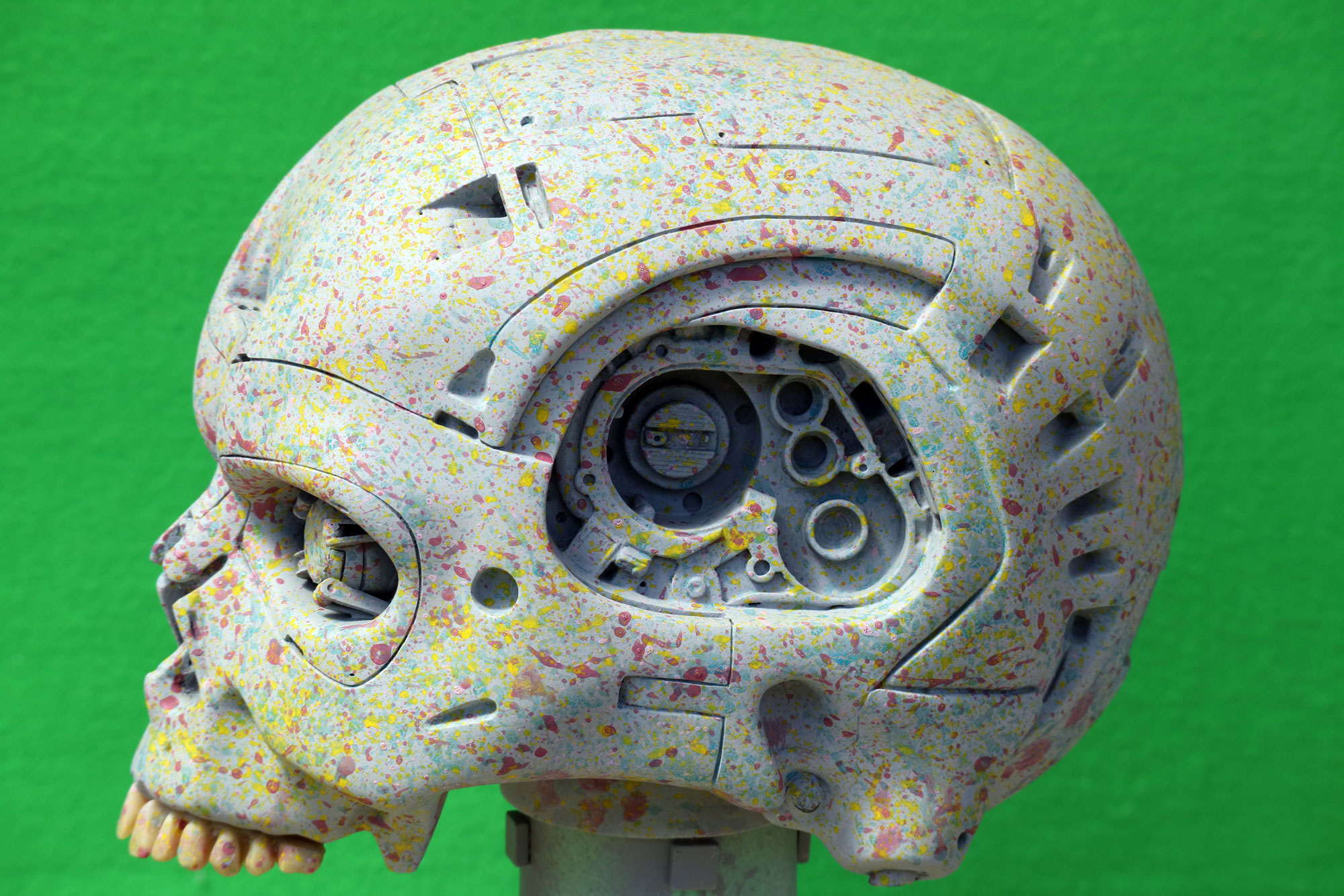

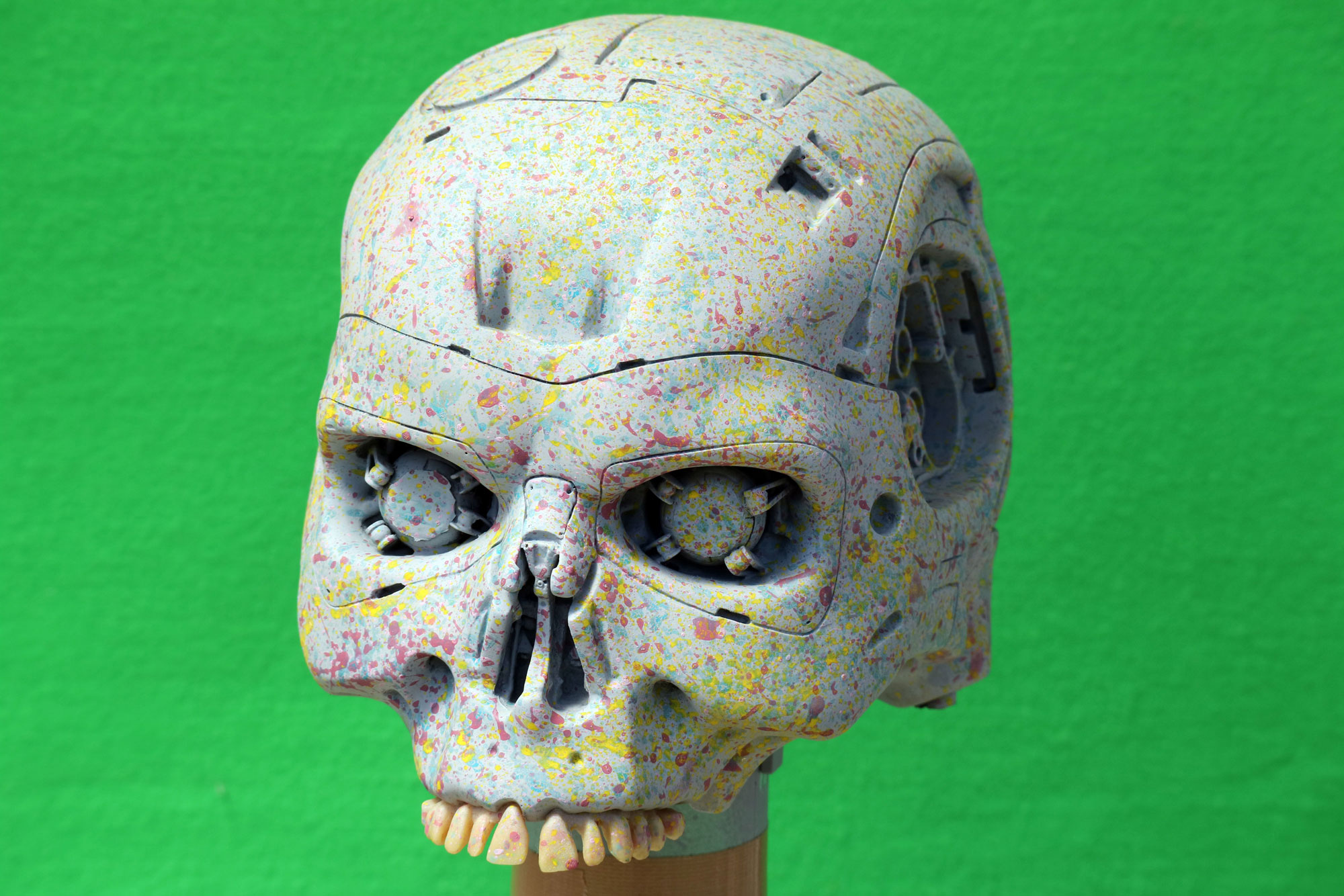

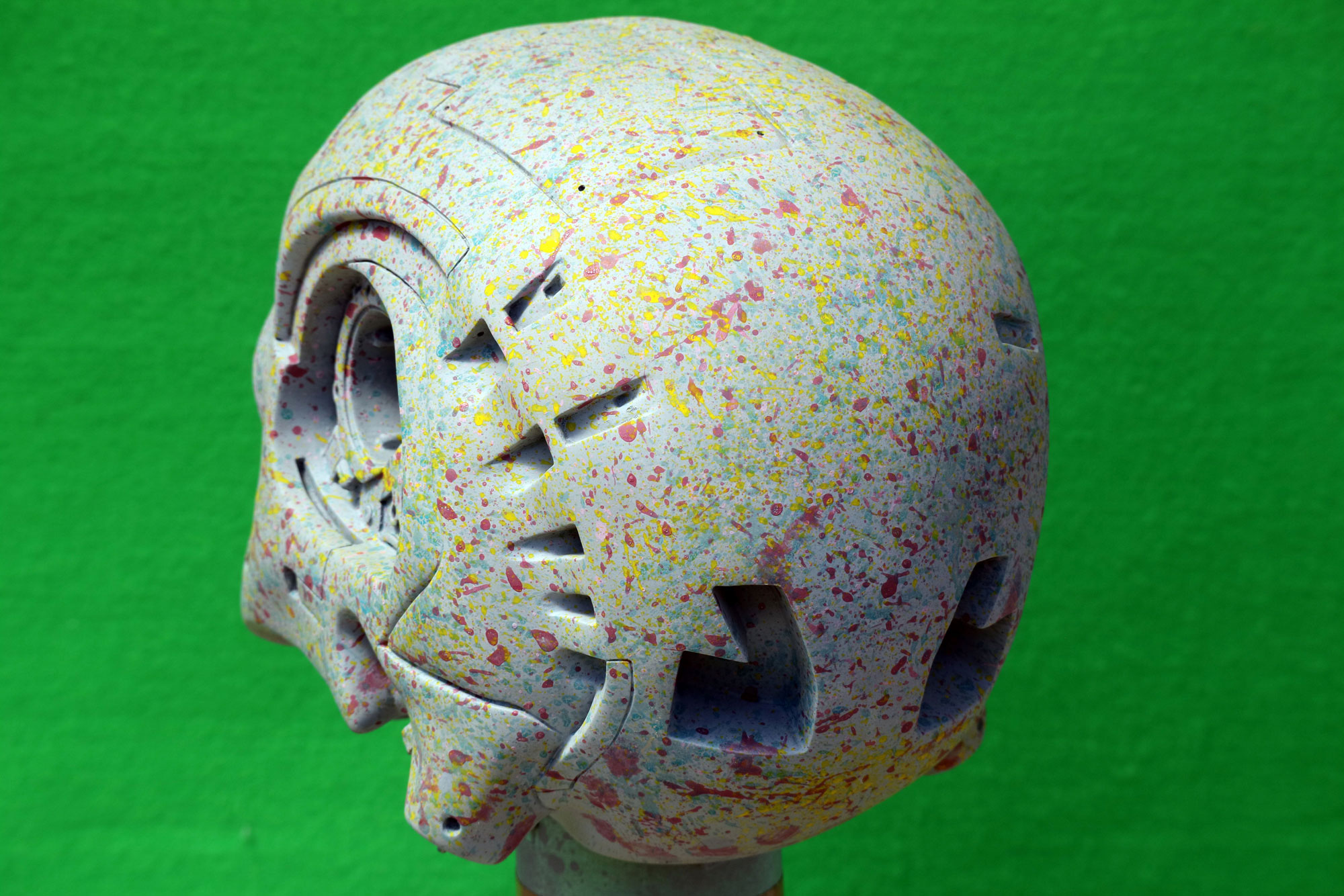

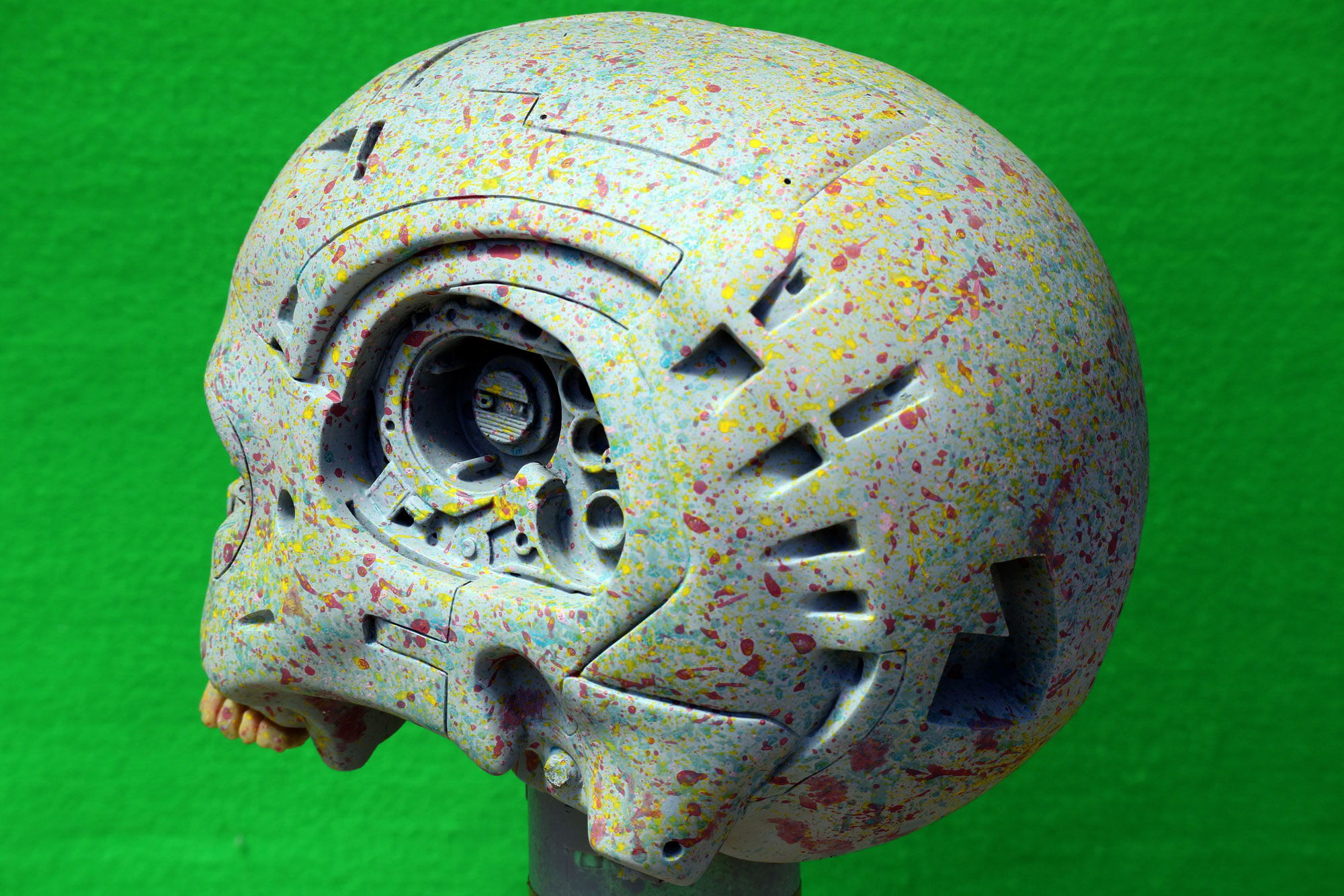

I share the photos of the HCG Skull.
If you have photogrammetry software, please try if you can make it 3D.
The quality size of the photo is reduced from the original.



[ghostman]

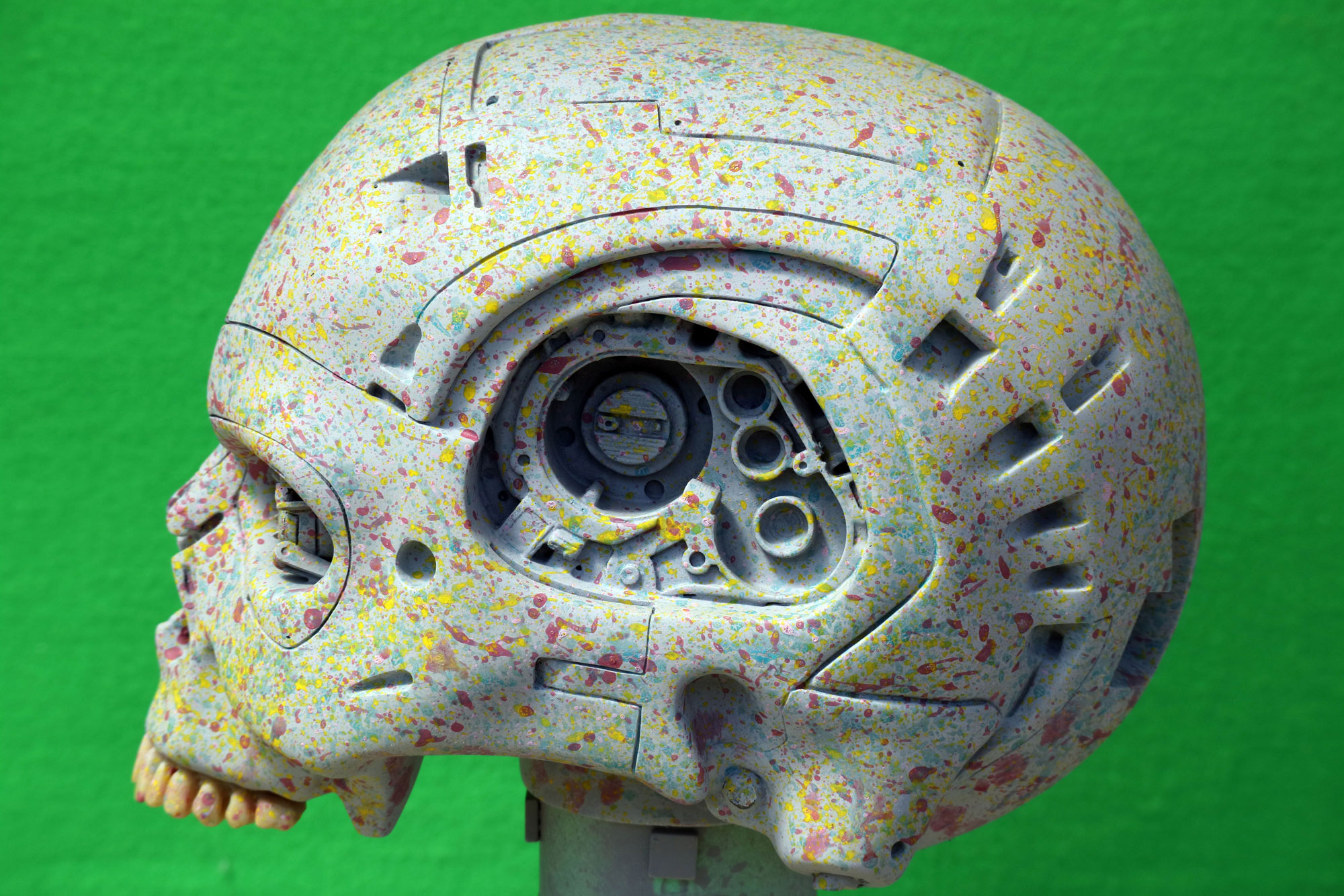

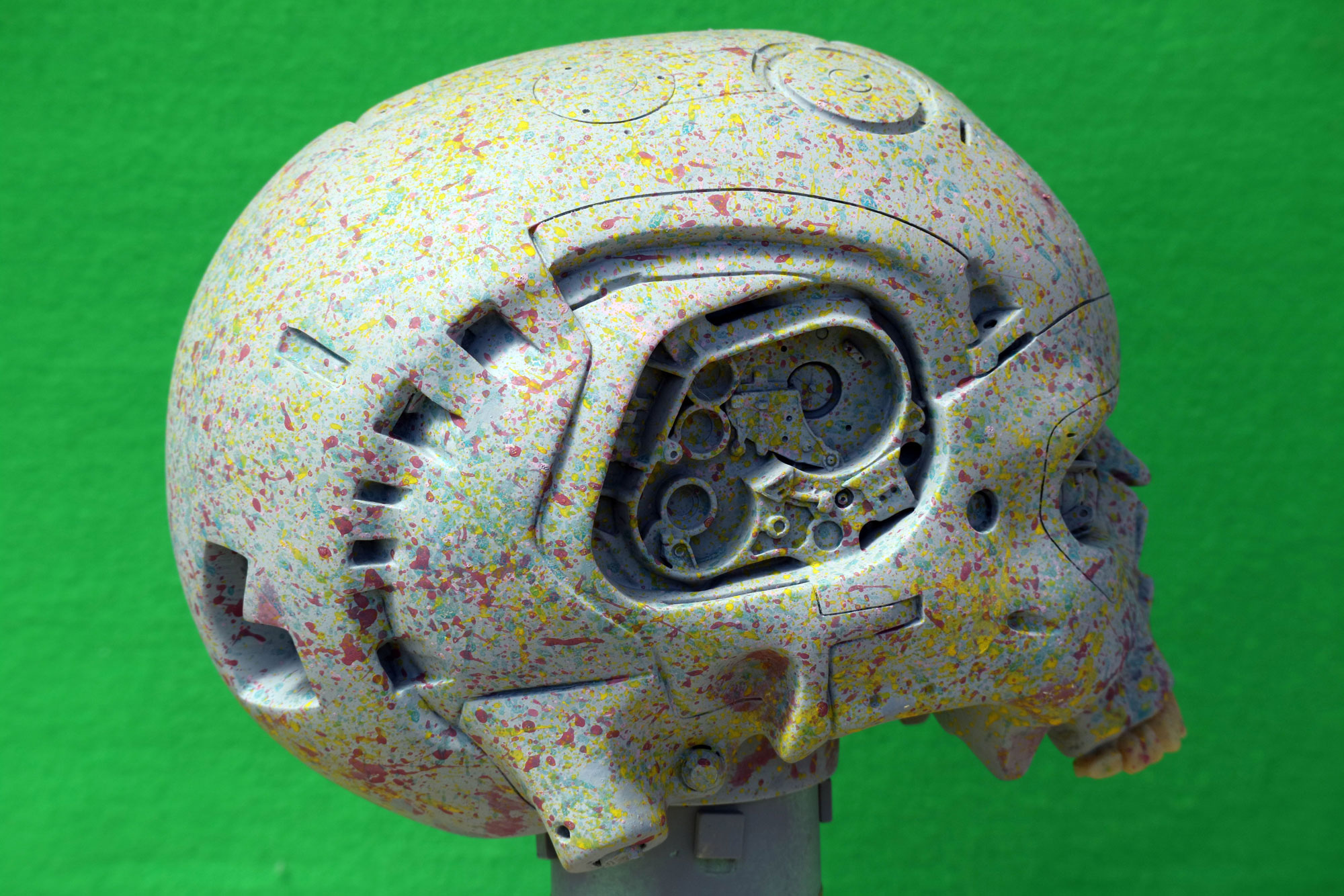

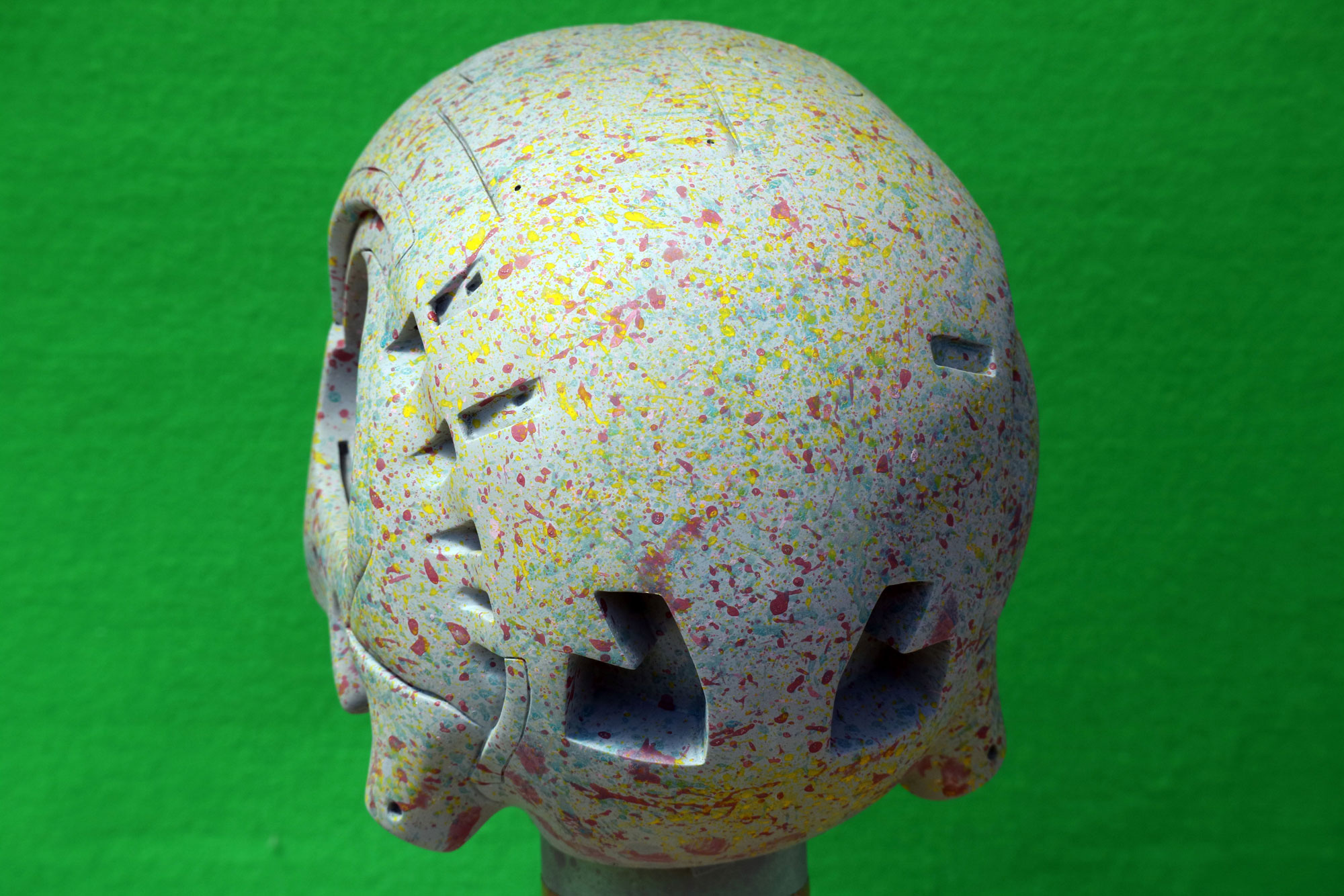

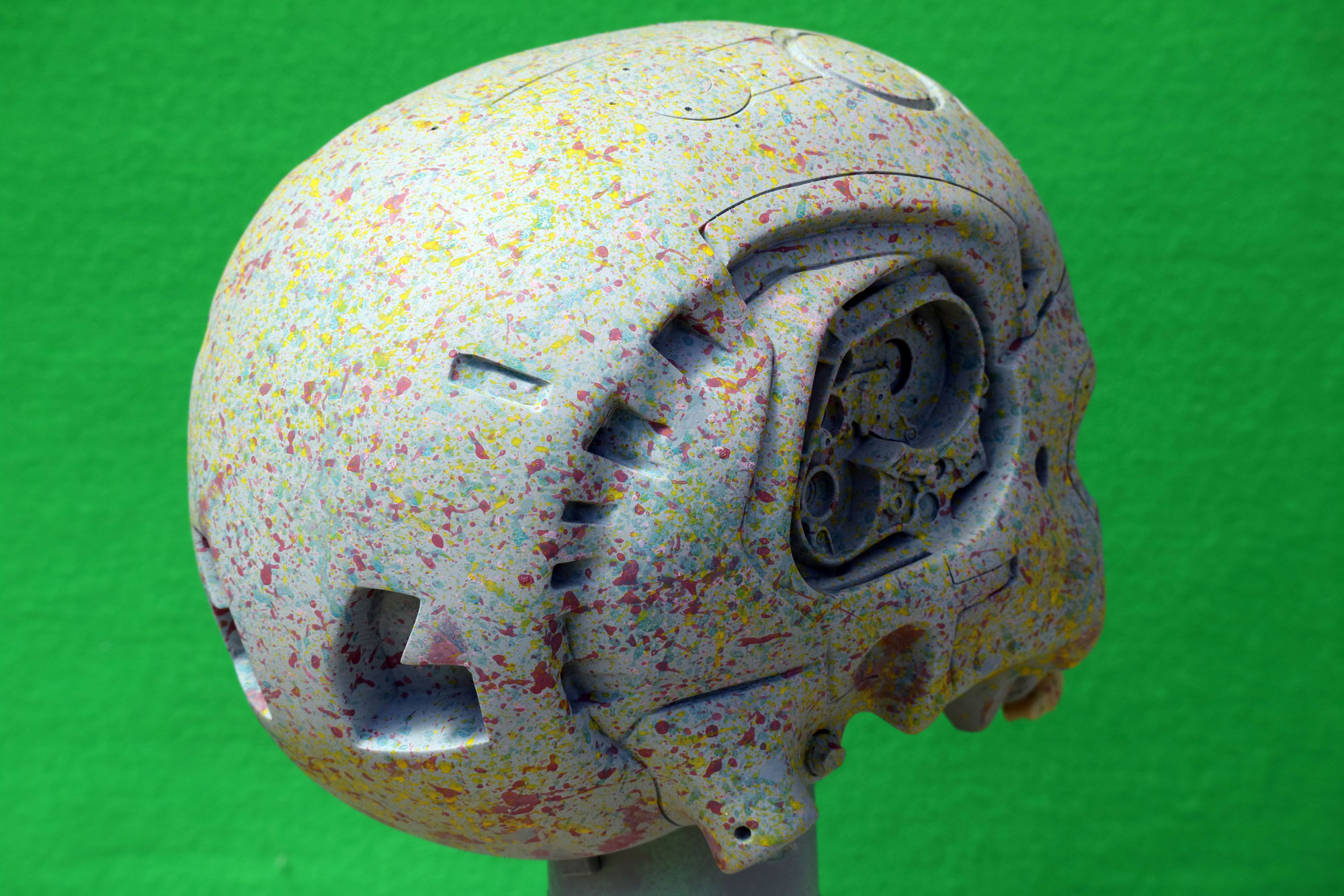

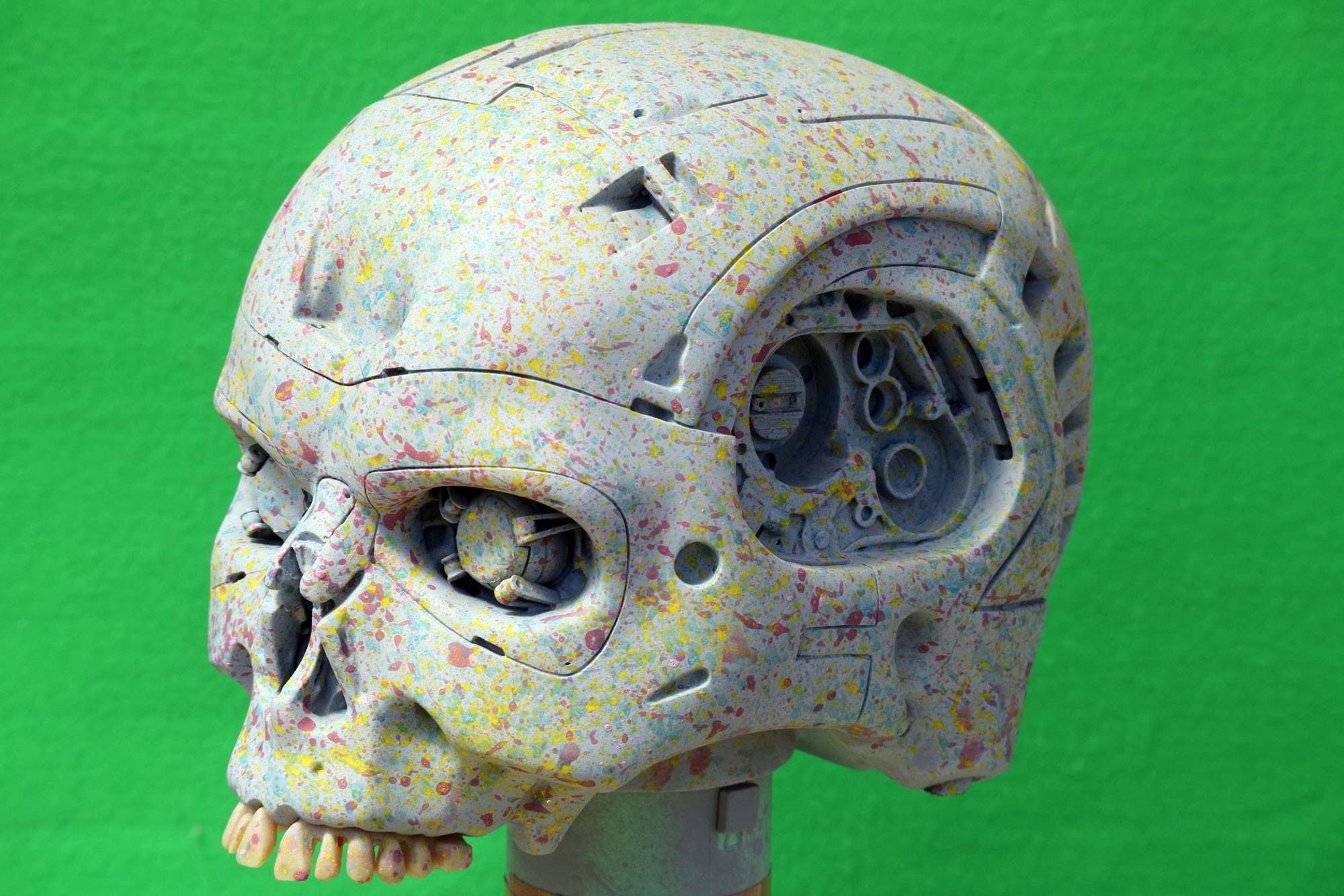

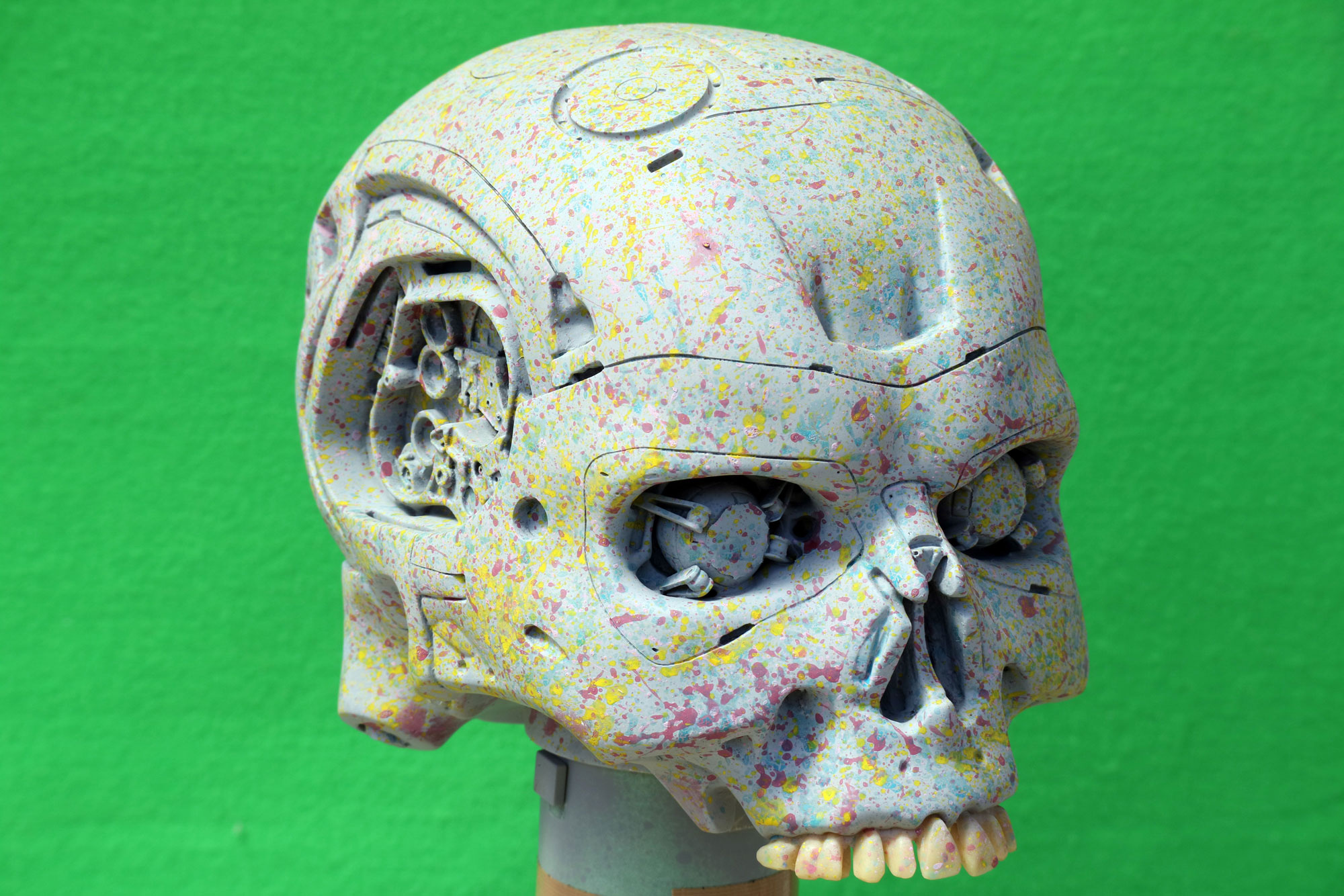

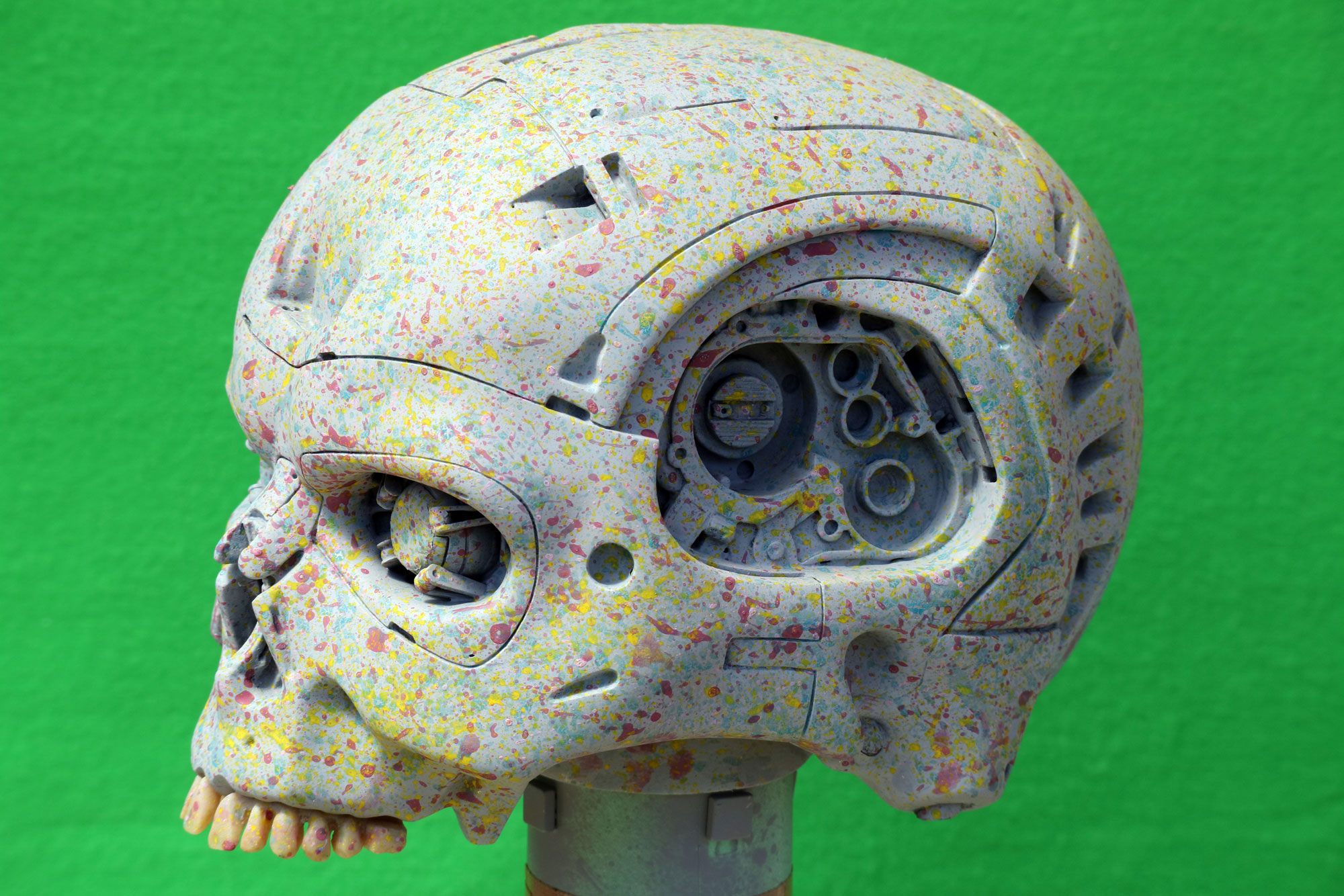

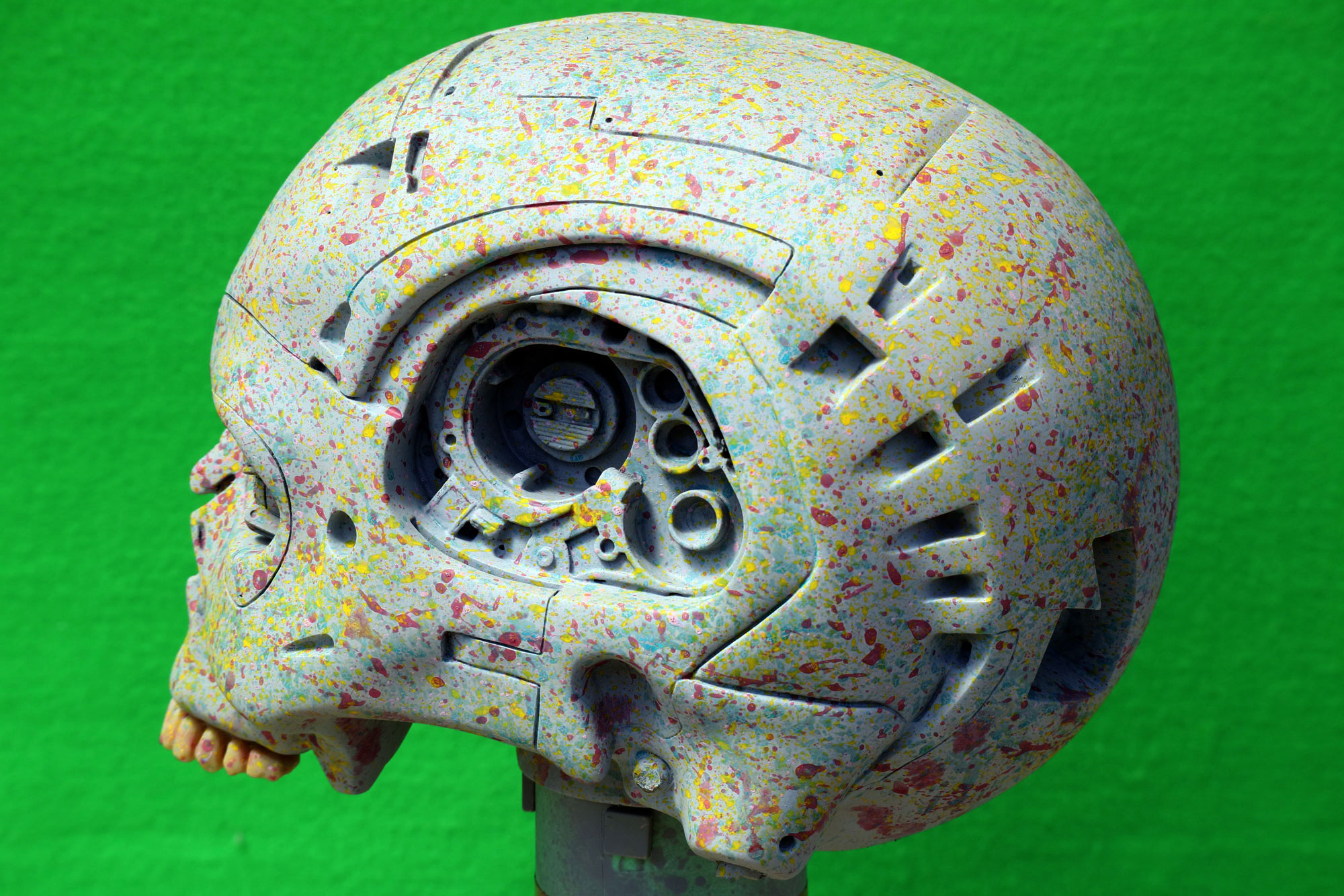

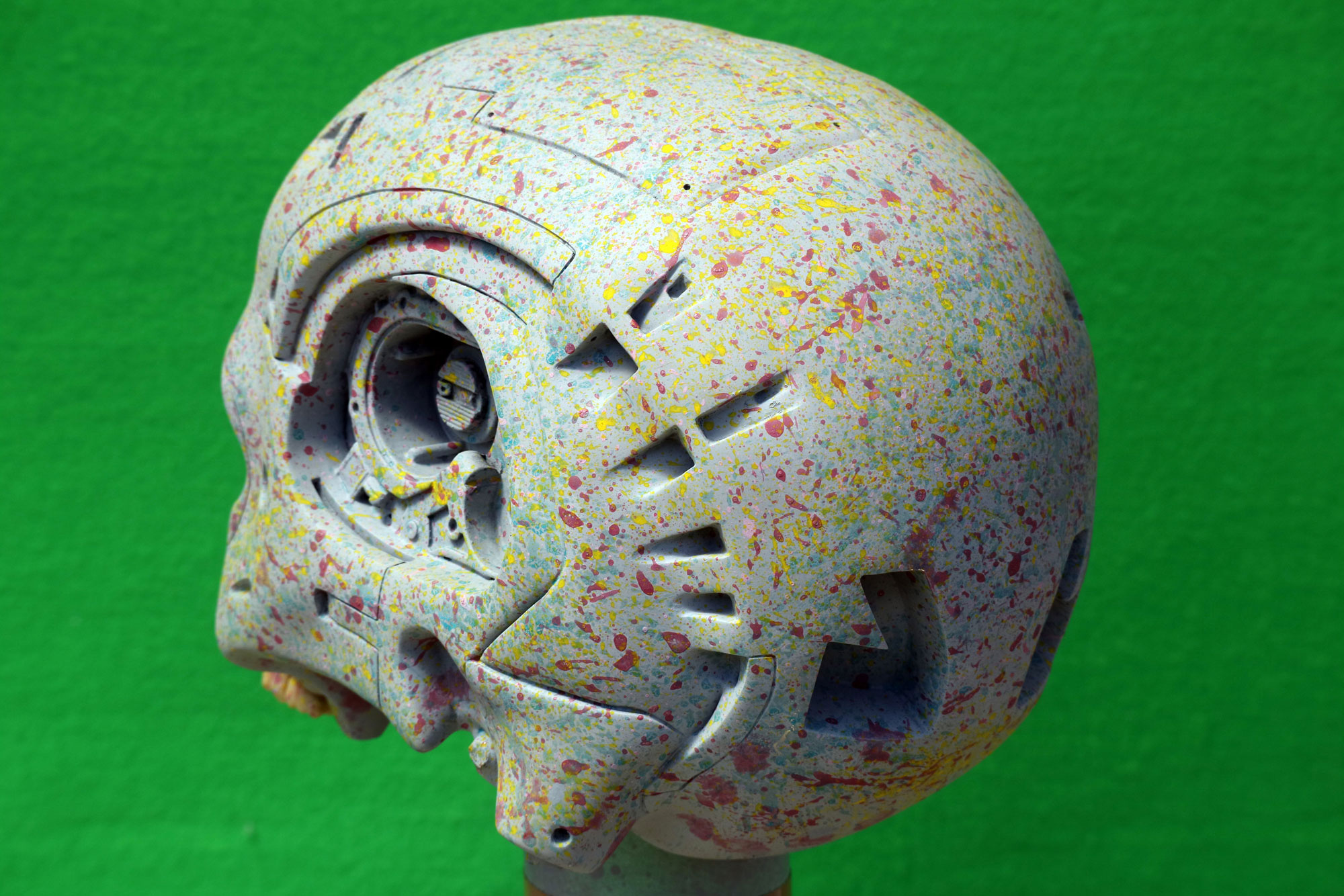

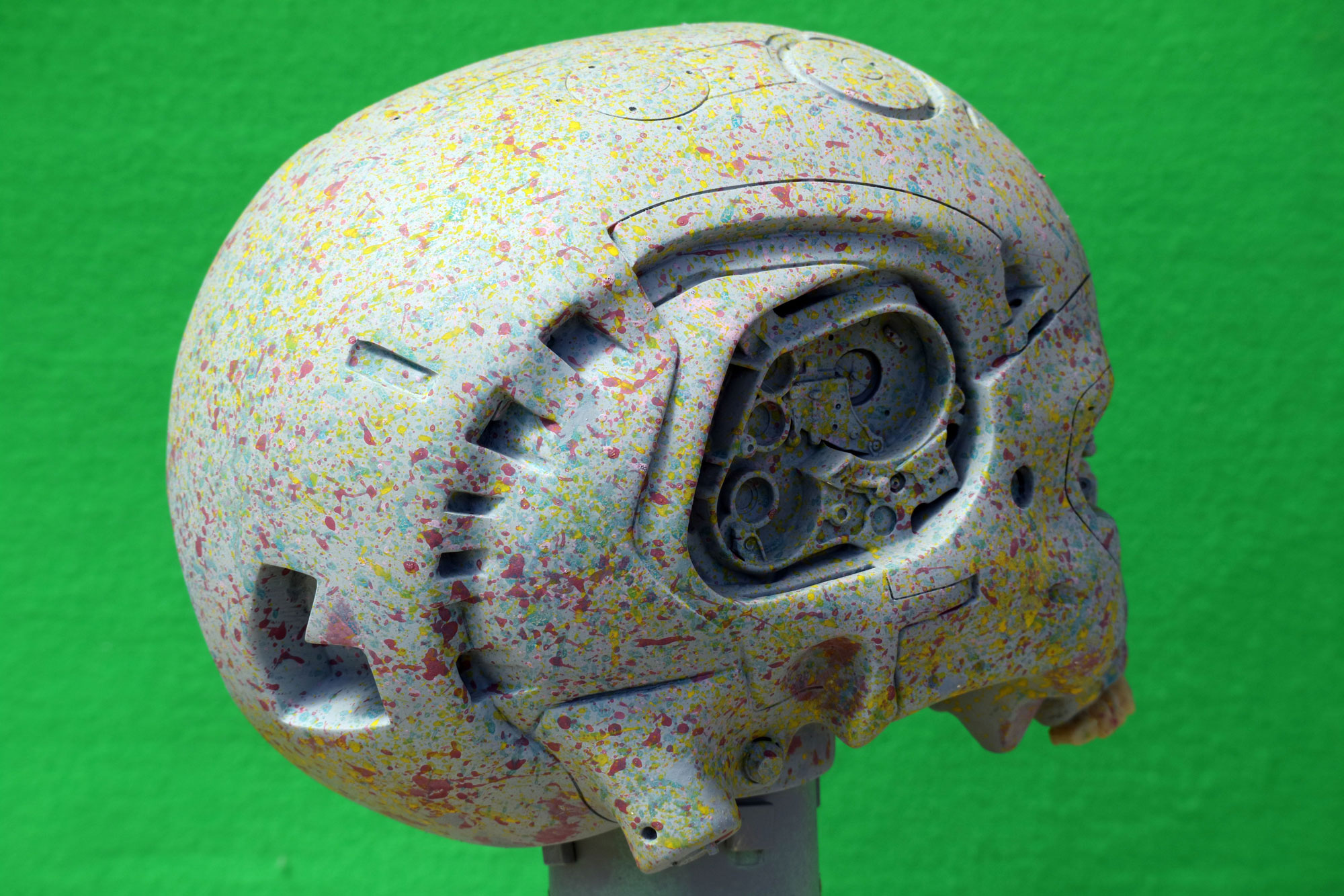

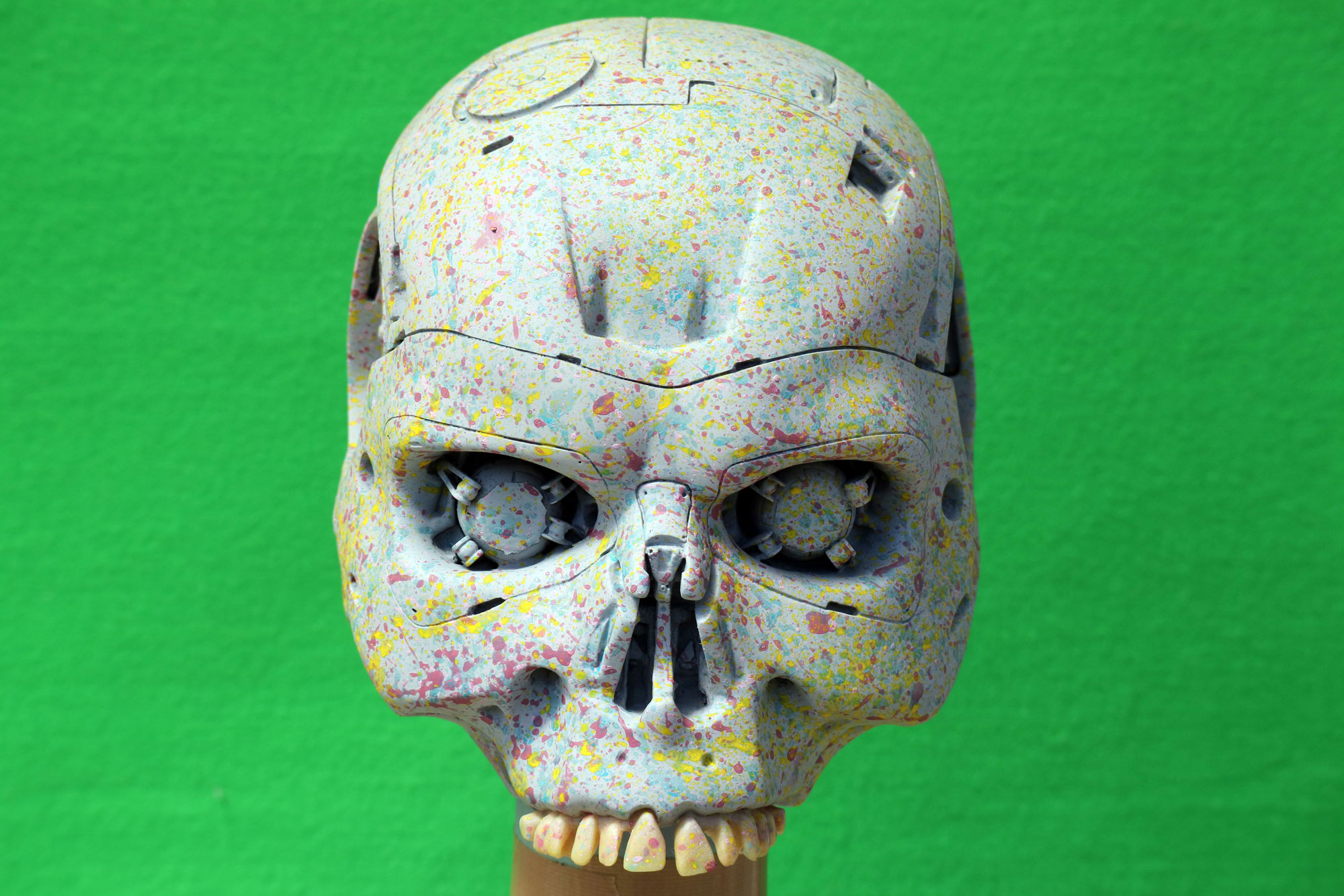

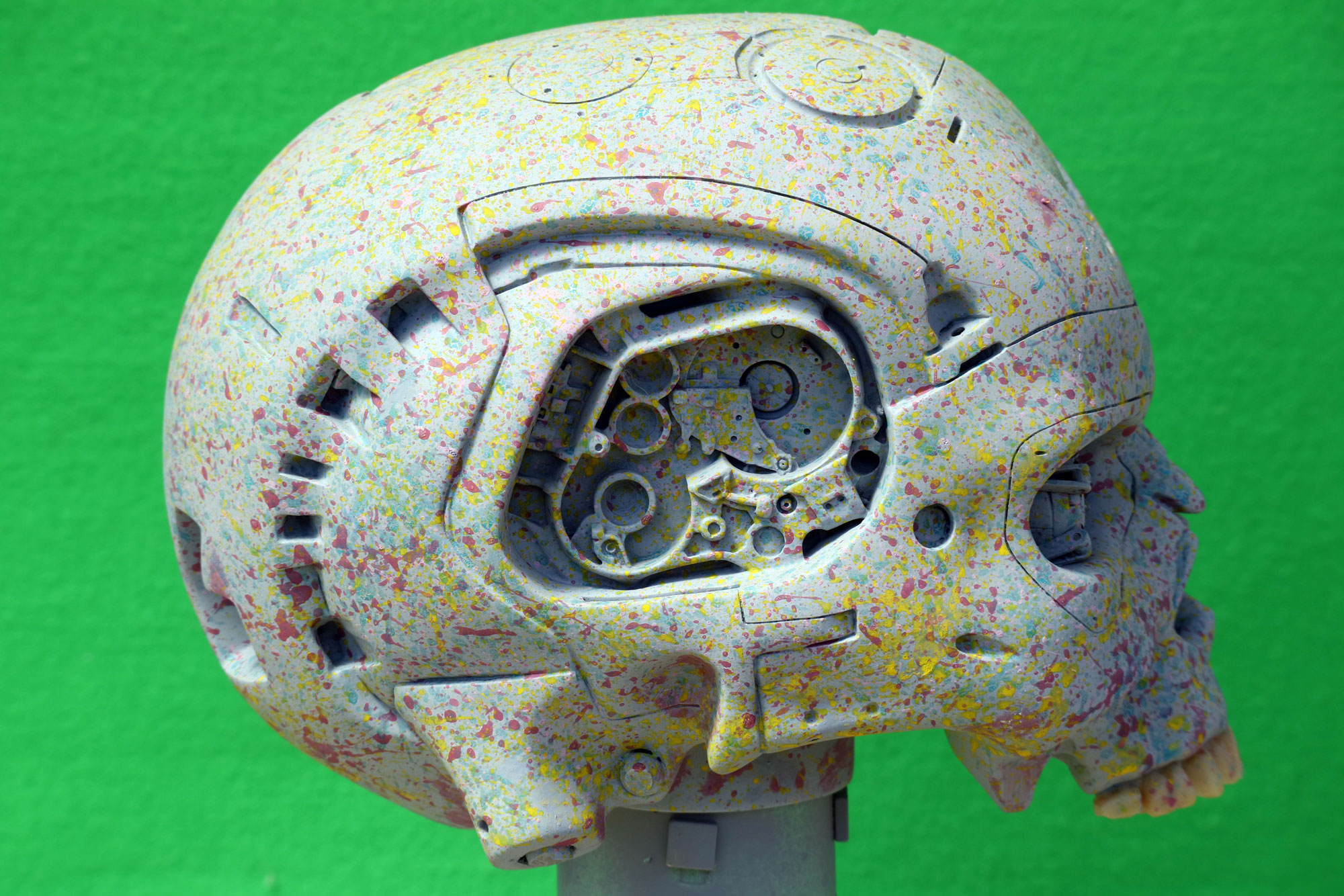

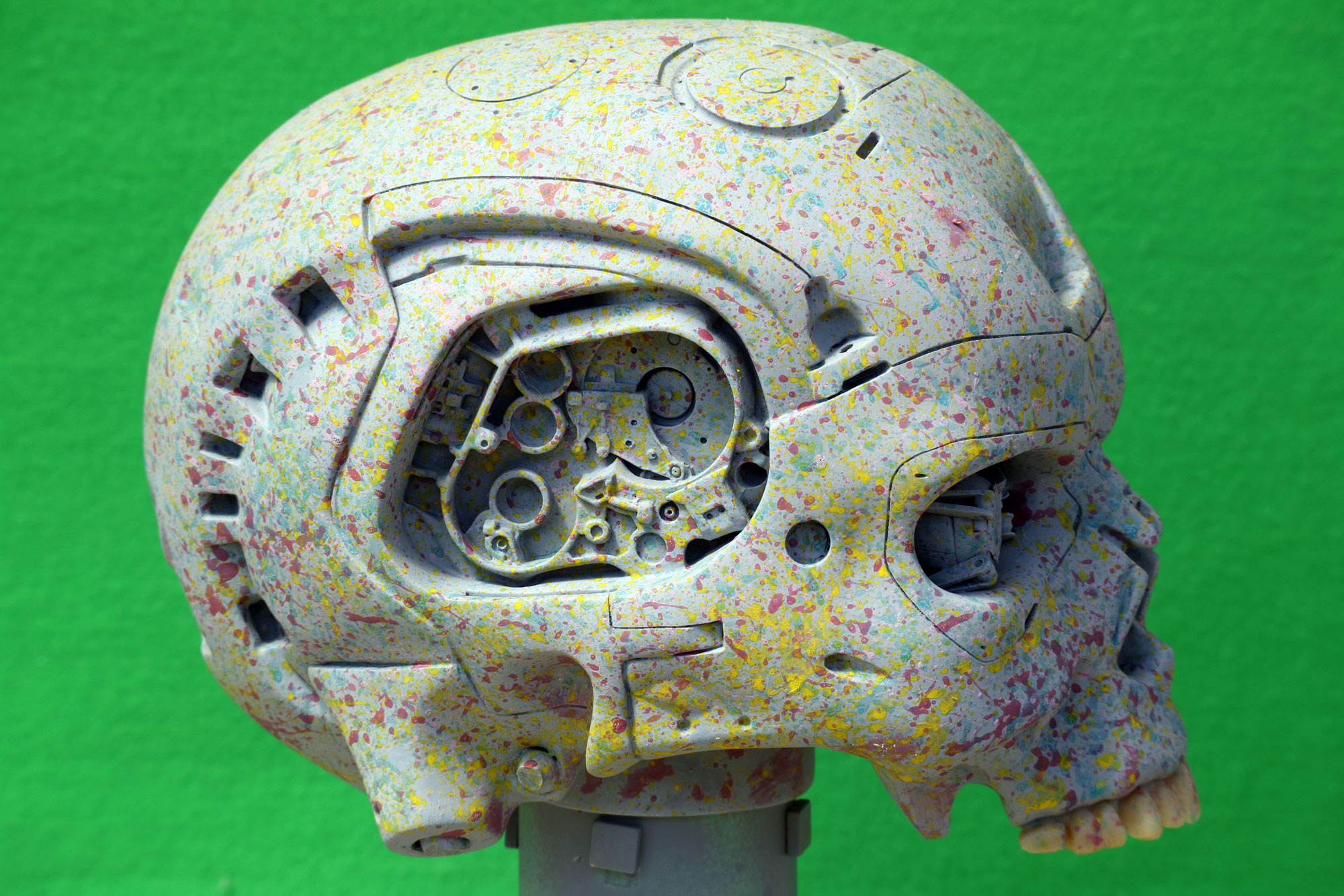

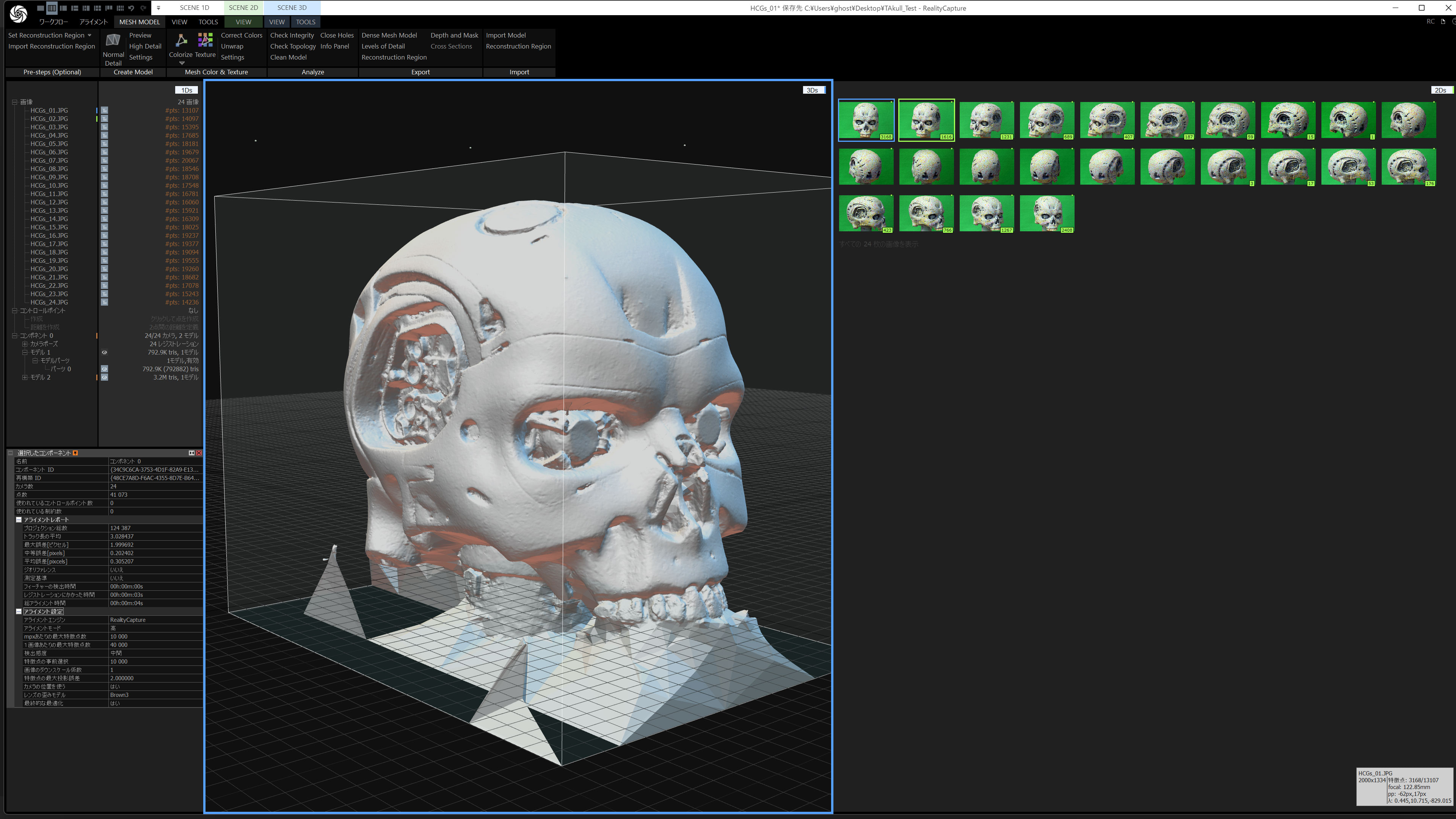

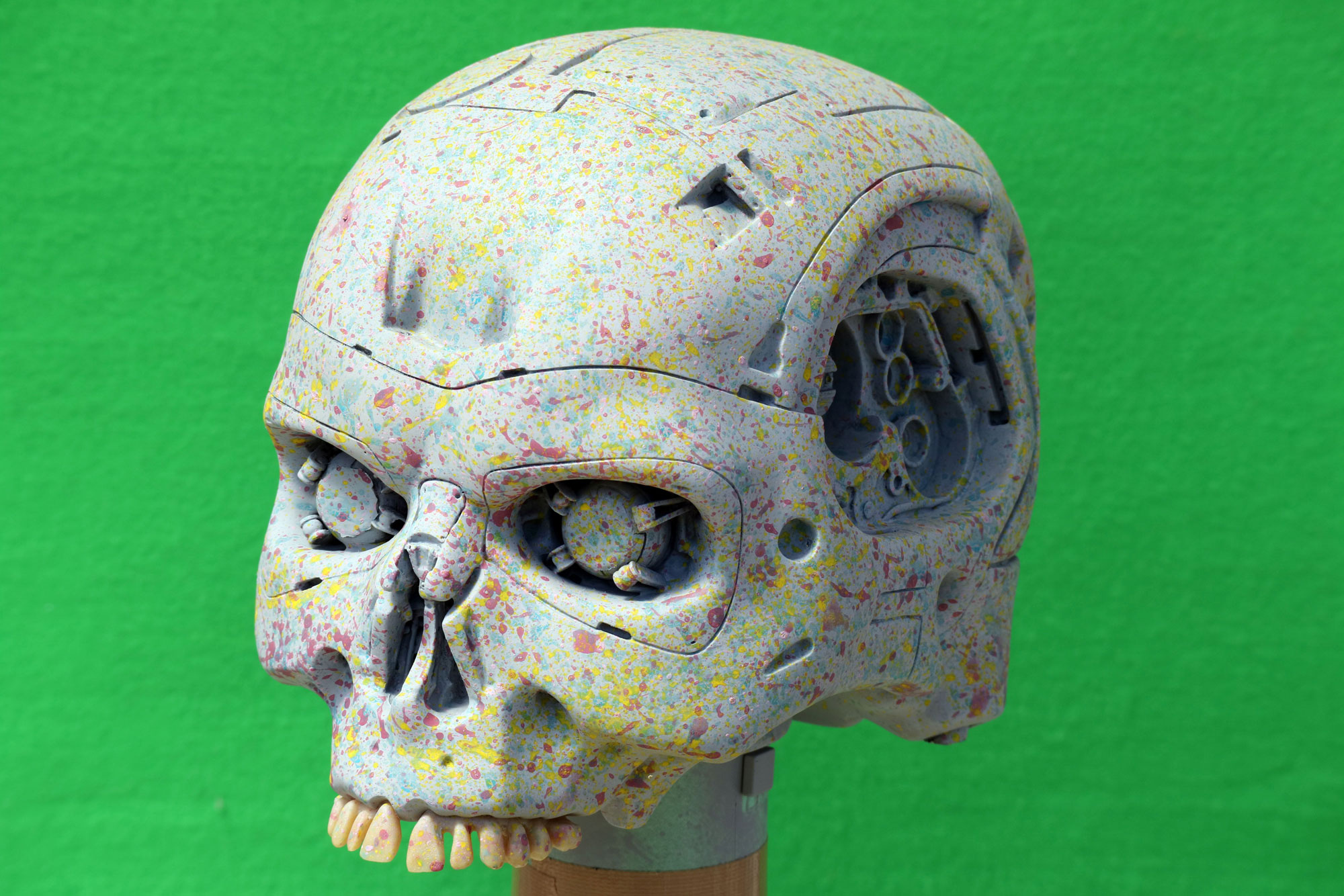

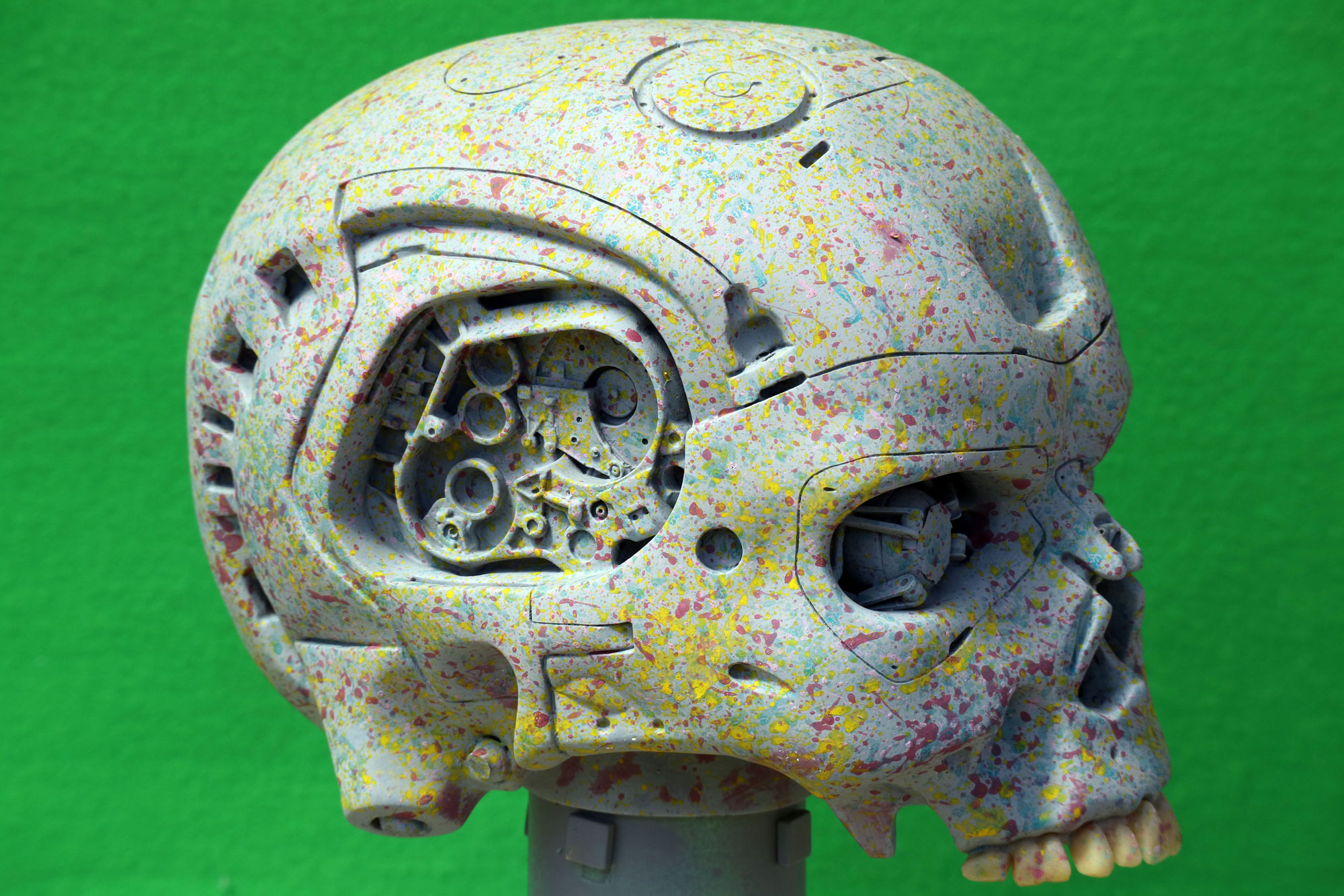

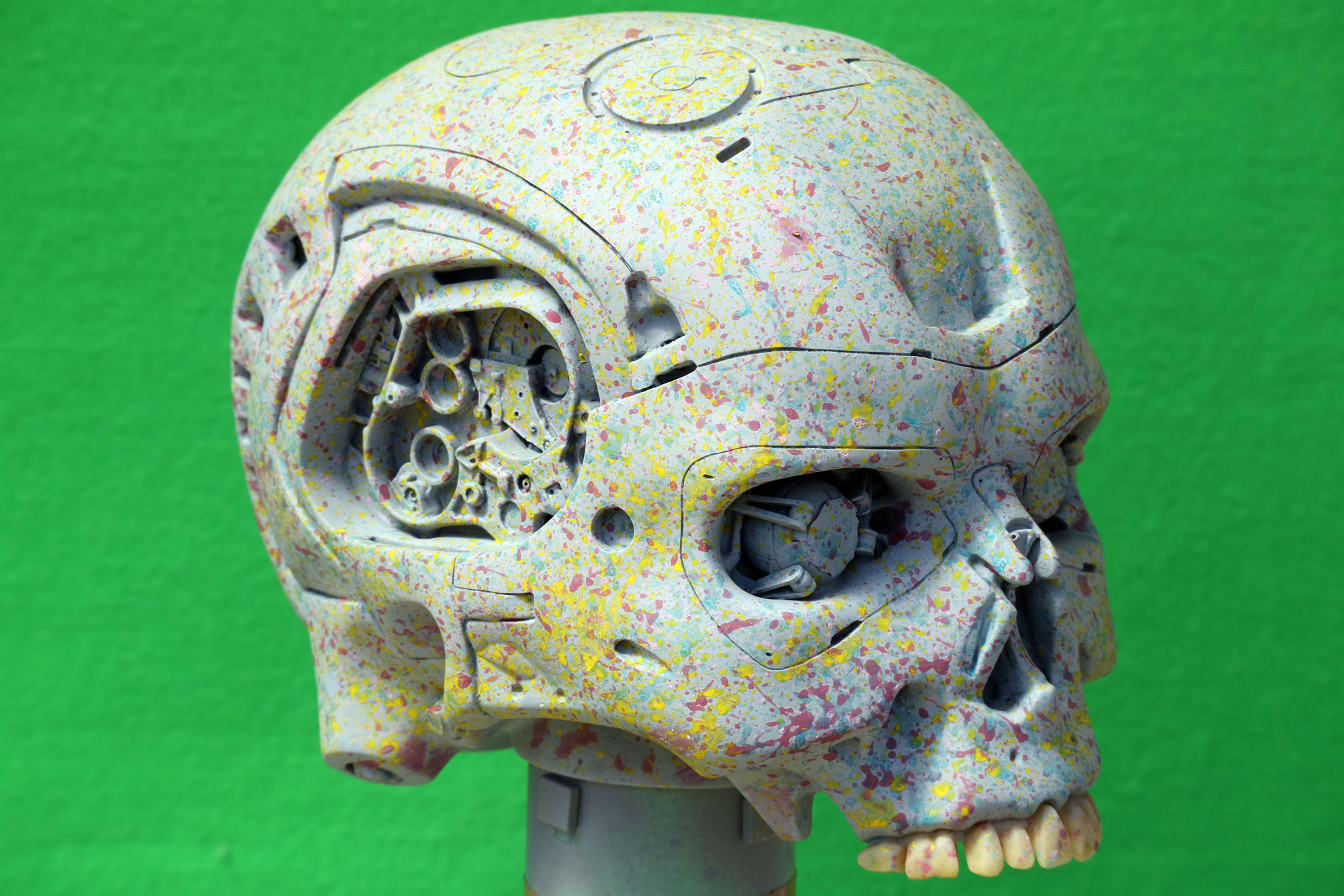

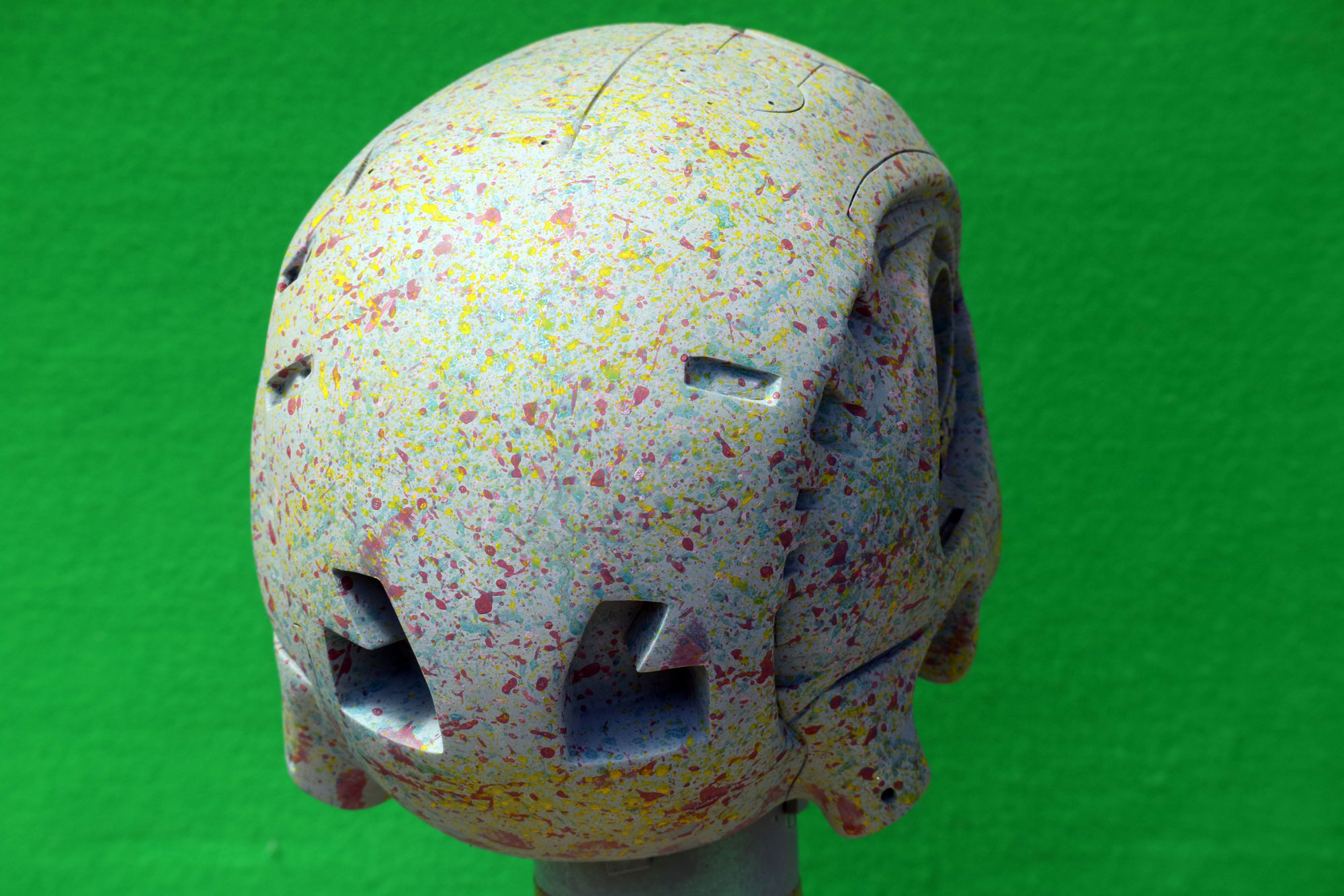

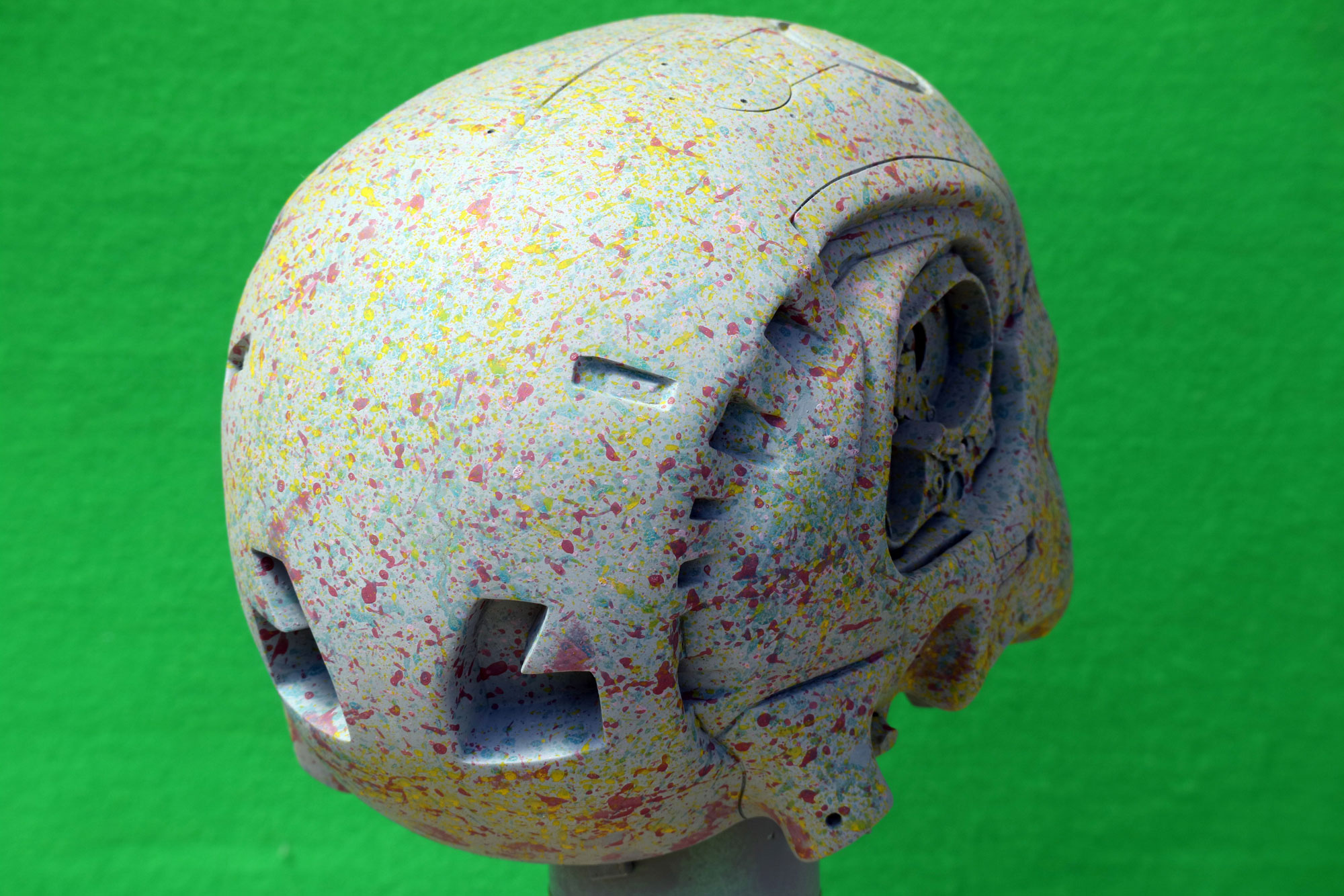

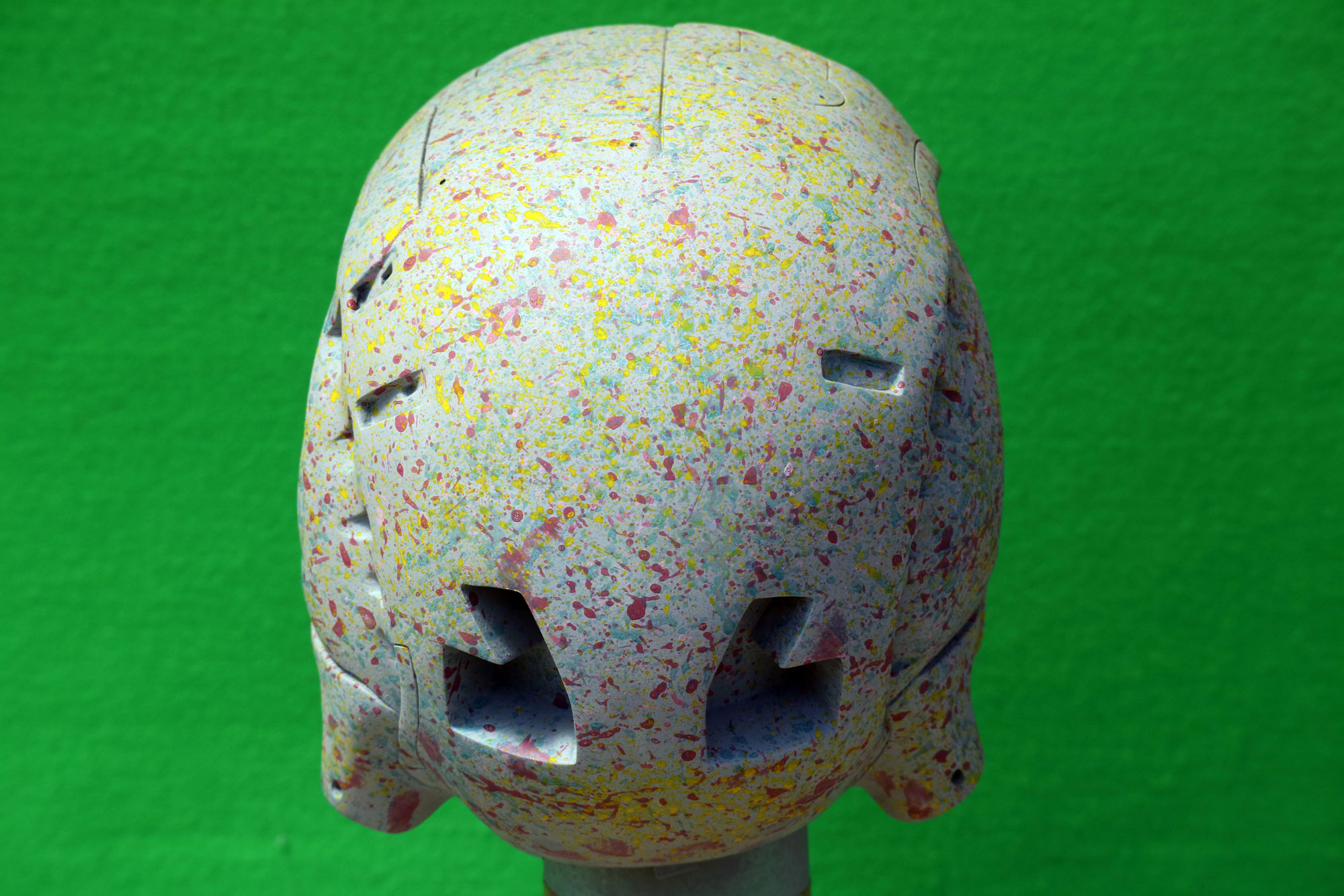

I share the photos of the HCG Skull.
If you have photogrammetry software, please try if you can make it 3D.
The quality size of the photo is reduced from the original.
View attachment 1817441View attachment 1817442View attachment 1817444View attachment 1817445View attachment 1817446View attachment 1817447View attachment 1817448View attachment 1817449View attachment 1817450View attachment 1817451View attachment 1817452View attachment 1817453View attachment 1817454View attachment 1817455View attachment 1817456View attachment 1817457View attachment 1817458View attachment 1817459View attachment 1817460View attachment 1817461View attachment 1817462View attachment 1817463View attachment 1817464View attachment 1817465View attachment 1817466

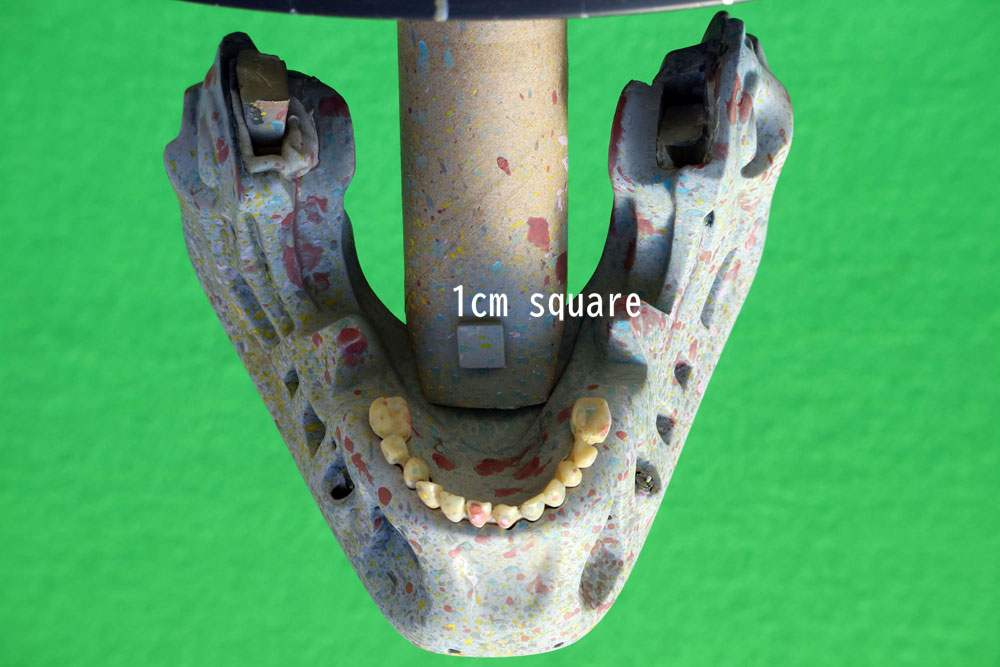

1 cm square.



[DeltaDesignRus]

I share the photos of the HCG Skull.
If you have photogrammetry software, please try if you can make it 3D.
The quality size of the photo is reduced from the original.
View attachment 1817441View attachment 1817442View attachment 1817444View attachment 1817445View attachment 1817446View attachment 1817447View attachment 1817448View attachment 1817449View attachment 1817450View attachment 1817451View attachment 1817452View attachment 1817453View attachment 1817454View attachment 1817455View attachment 1817456View attachment 1817457View attachment 1817458View attachment 1817459View attachment 1817460View attachment 1817461View attachment 1817462View attachment 1817463View attachment 1817464View attachment 1817465View attachment 1817466

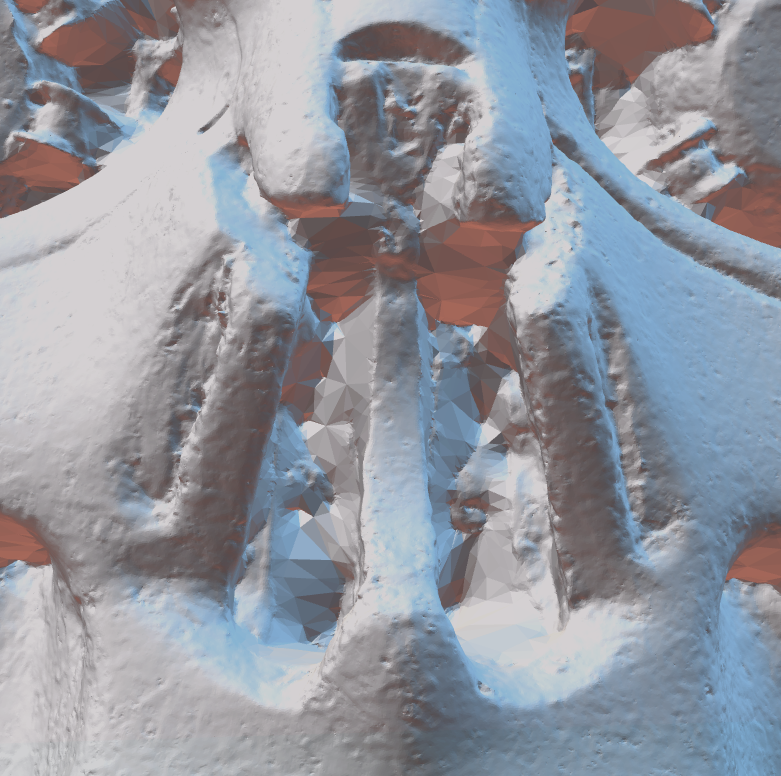

Since your direct messages are turned off, I'll ask here. Have you taken detailed photos of the inside of your nose?



[Kroenen77]

Awesome Terminator thread.Thanks for sharing.
