So, spent a few days trying to figure out what body-cam the Squid Games Soldiers used. Realized it didn't *quite* line up with anything out there that I could find in S. Korea marketplaces or US/International, and that this would mean fabricating.

Used a screen grab to get the proportions and details, and designed it- then used a stock photo of the harness- and sized it to a model of the clip that's on the front. Internal component carriers for a Raspberry Pi Zero-W, Pi-Cam2.1, adafruit 400mAh li-ion battery and charger, including port for charging it once assembled. LED cutouts go clean through the case- as do the speaker holes, though I'm only planning on wiring the yellow LED's.

Now, I think - it's about time to print :)

Figure I'll do print in FDM first to check sizing, then print it on the Saturn for detail.

No plans to release the STL set yet- debating doing kits.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

falloutboy

Well-Known Member
RPF PREMIUM MEMBER

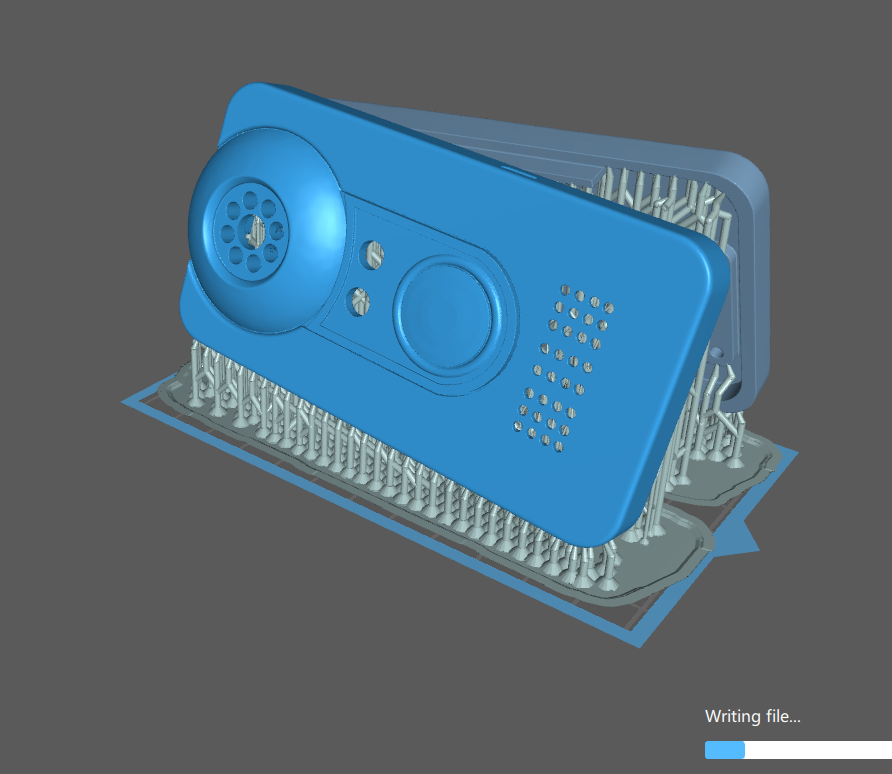

Bah. Heck with it- lets see if it fits using resin first.
Will fit on the Mars2 Pro by the skin of it's teeth- so, don't have to wait for the saturn to finish first :)


Attachments

  • Untitled.png
    186.8 KB · Views: 21
Last edited:

zapwizard

Sr Member
RPF PREMIUM MEMBER
It looks like your 3D model is pretty good. I also wonder if it is a was a repurposed video doorbell or trailcam and not a body cam.
To make the black/clear labels you can laser-cut acrylic, mask off the backside for the clear areas and then used black spray paint on the rest.


falloutboy

Well-Known Member
RPF PREMIUM MEMBER
It looks like your 3D model is pretty good. I also wonder if it is a was a repurposed video doorbell or trailcam and not a body cam.
To make the black/clear labels you can laser-cut acrylic, mask off the backside for the clear areas and then used black spray paint on the rest.
re-cased trail cam is my guess personally? The setup is very much in line with some of the small ones out there.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

falloutboy

Well-Known Member
RPF PREMIUM MEMBER

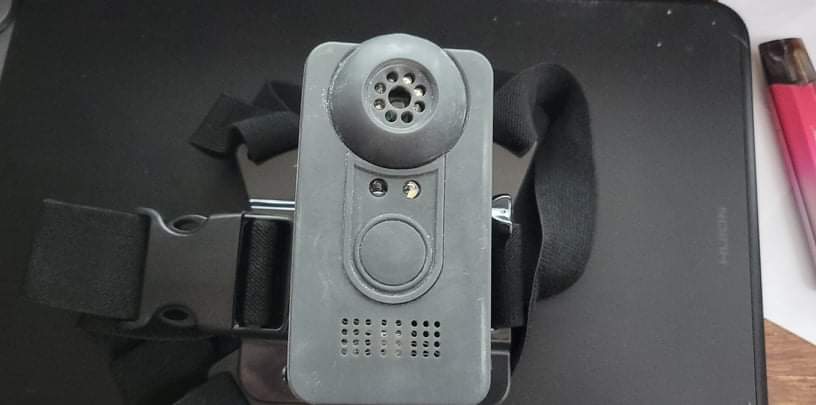

Test print of the camera body are a success. Just have to print a flush mount for the chest carrier. No post/ cleanup work done yet.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

falloutboy

Well-Known Member
RPF PREMIUM MEMBER

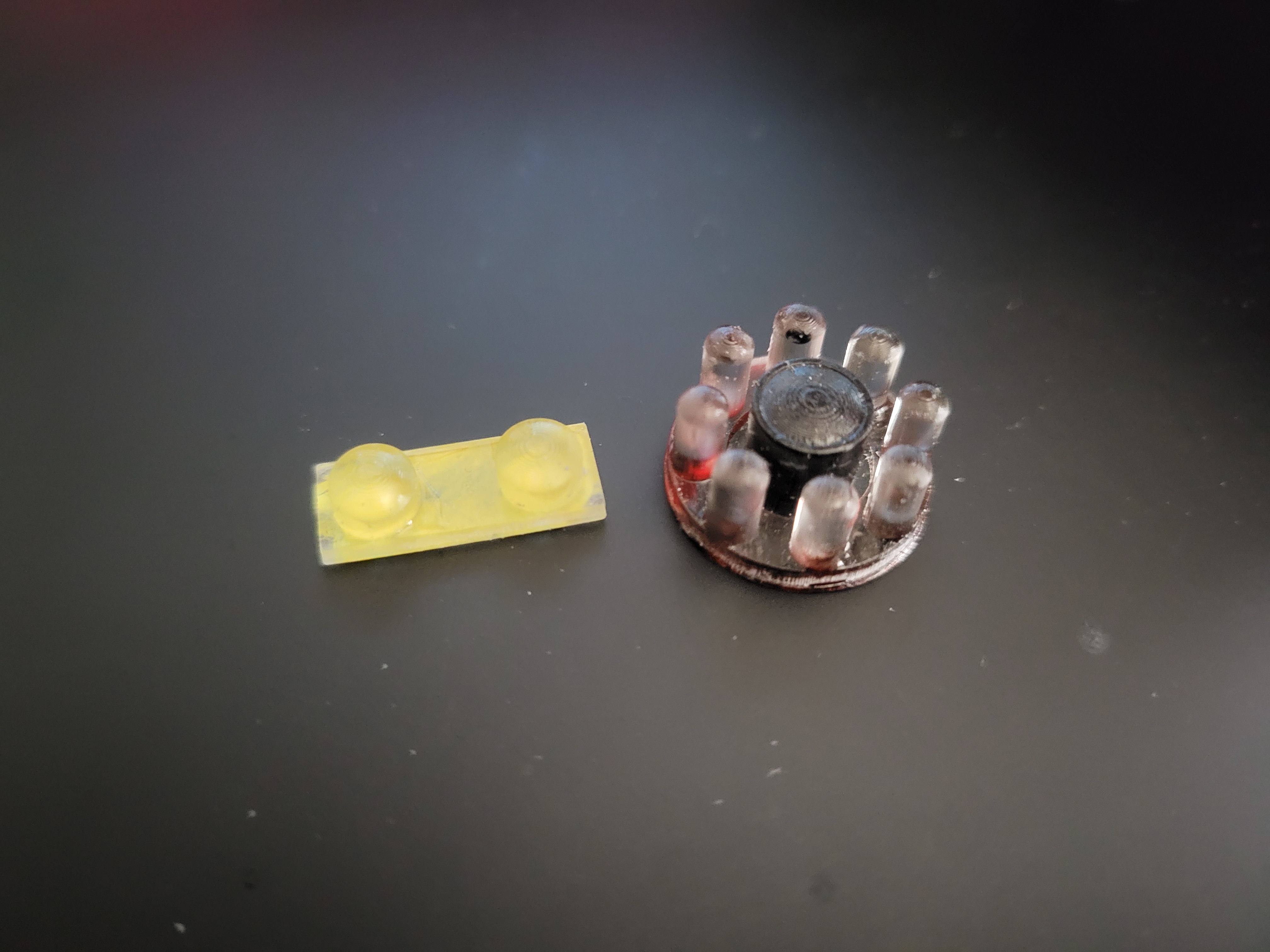

Decided to do non functional only for now. So, made clear inserts for the light/camera area


Attachments

  • 20211016_134654.jpg
    2.8 MB · Views: 8
