Scratch built Darth Maul 1:1 Lightsaber

[Sock2k]

Just wanted to share with you guys my first prop, made for my Darth Maul costume:

It features a petit cruton controlling sound and light effects, and a LED Engin LZ4 10W in each end (Red colour only)

A video of the milling:

Shows the 4 different sections of the hilt.

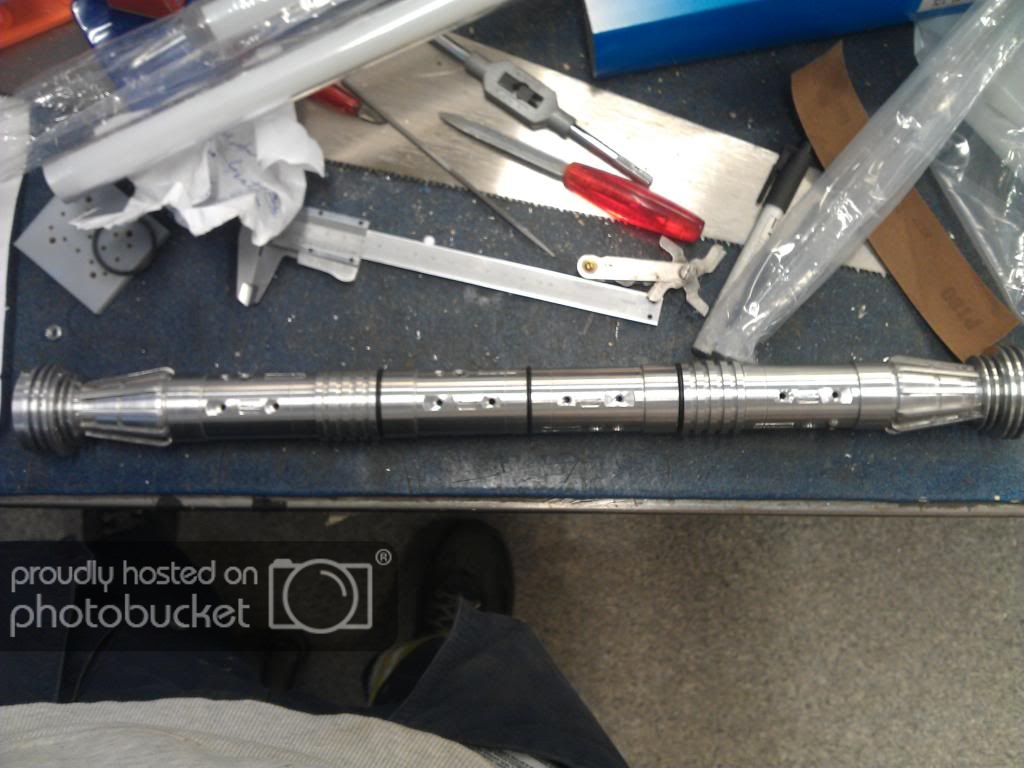

The hilt finished, before buttons and painting.

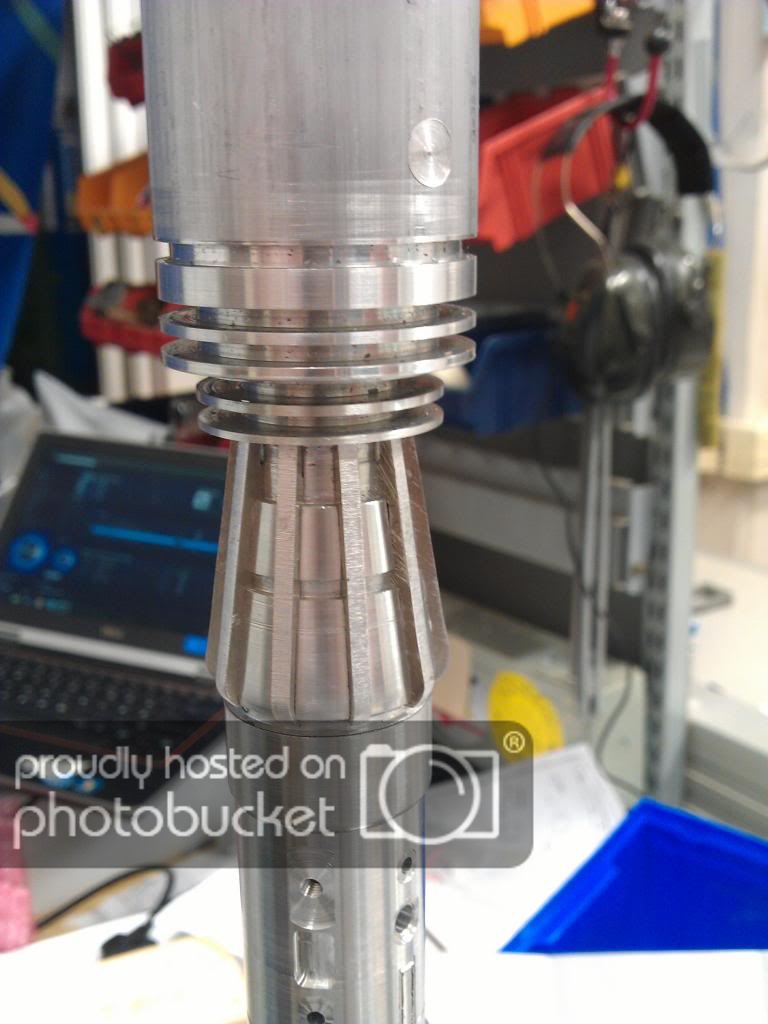

Emitter before cutting of the end.

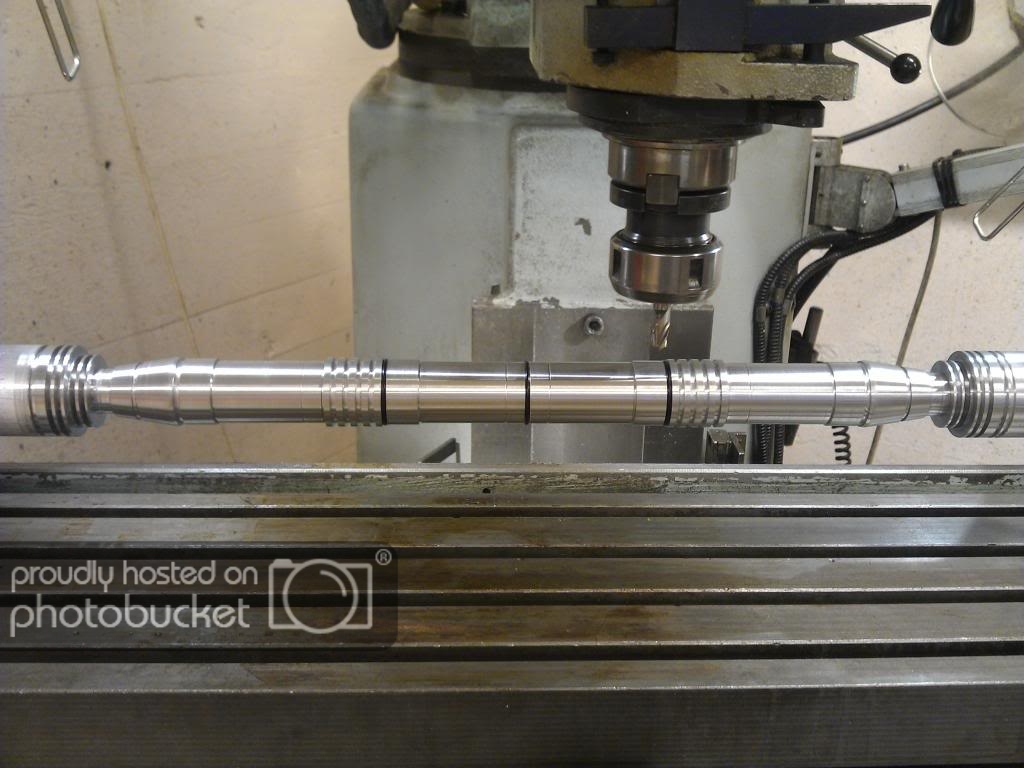

Milling the hilt

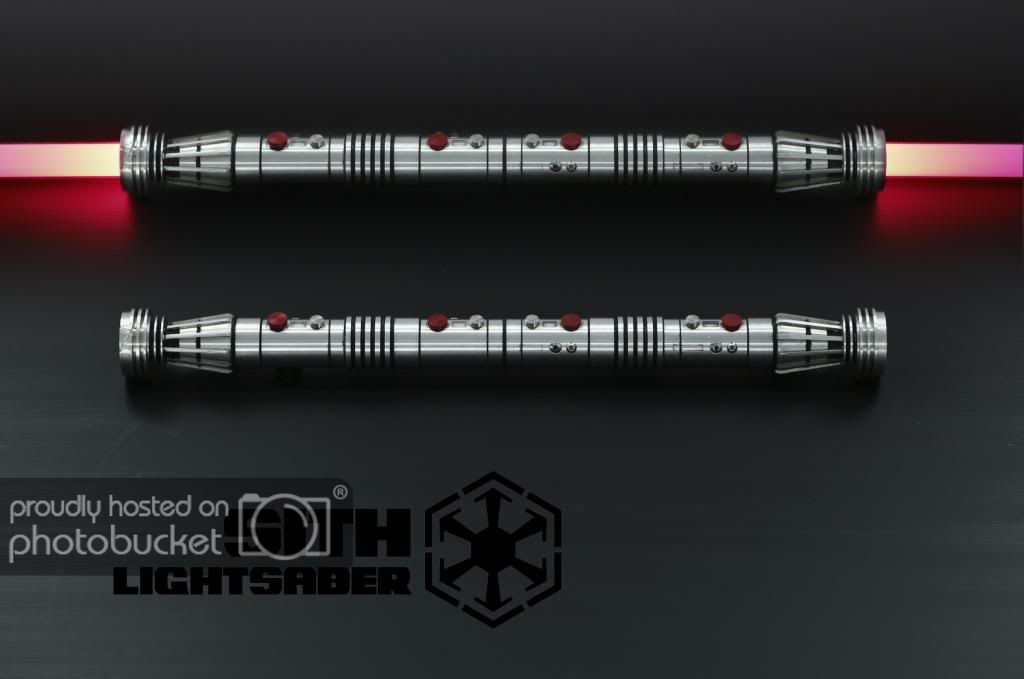

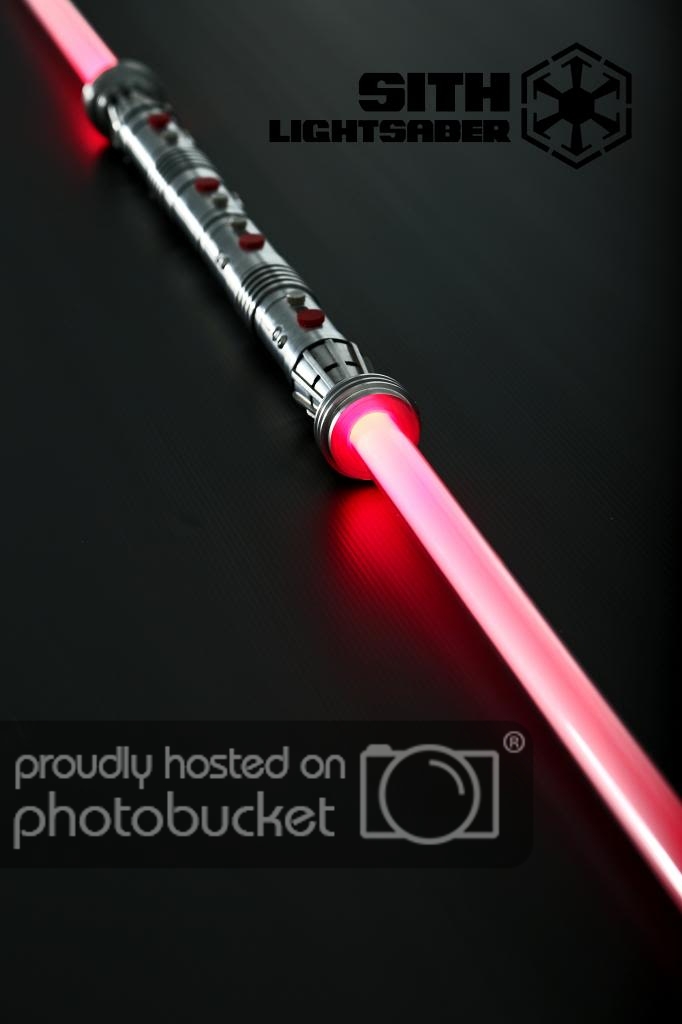

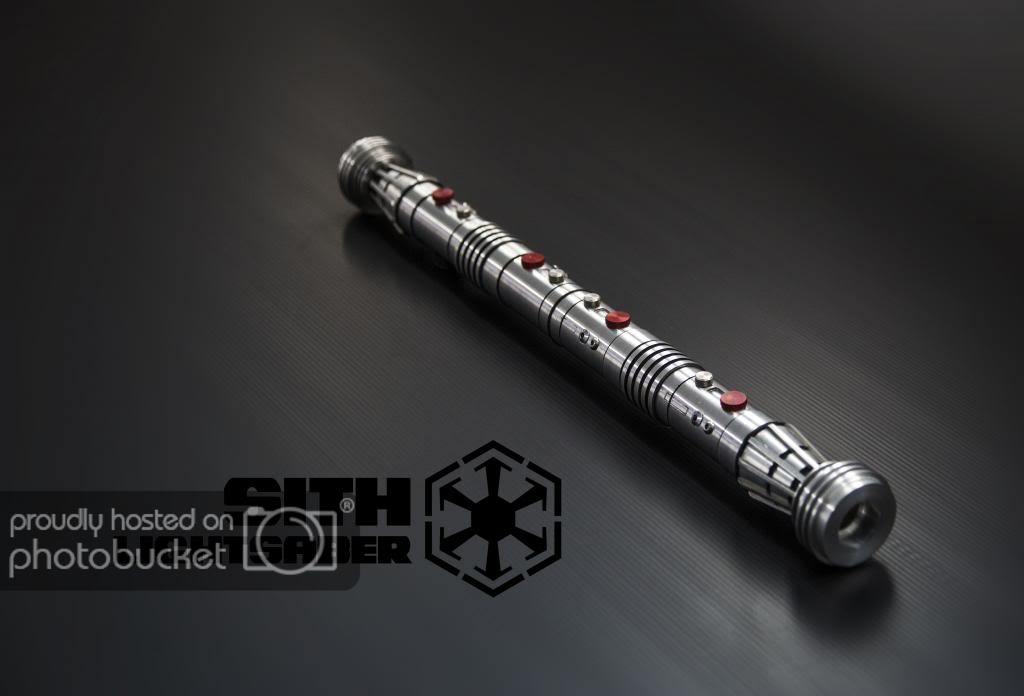

Pretty happy with the result



[Popeanator]

Wow, amazing job. Did you use a lathe and a mill?



[Kasss Gnarl]

Great job with that, it looks beautiful!



[Sock2k]

Wow, amazing job. Did you use a lathe and a mill?

Thanks!
I've used a lathe and a mill, yes (not CNC, but manually operated)
I also had the fins on the emitters laser cut from 3mm aluminum plate.



[corkster]

Very cool lightsaber!



[DonToby]

Very very cool!

How long is the lightsaber? And what is the diameter of the mid-sections?



[thd9791]

oh my god! That's amazing! I forget all the things you can do with a metal lathe....I know nothing about electronics, but this legit looks like the real prop, wonderful work!



[runewolf42]

Wow! I'd love to have a none functioning one to wear on my belt when I am not carrying my hasbro ones.



[Sym-Cha]

Absolutely crazy skills ... how did I miss this the first time around This is the only lightsaber still absent from my collection that I've been wanting ... yet never came to research properly due to lacking funds or priority.

Chaim



[ARKM]

I missed this one as well. Awesome work. Too bad the OP has been gone from the RPF since Oct. 2013 so he will not see any new posts to this thread.



[ldermeister]

Hey great job! I'm actually doing the same project but am stuck on finding all the little accessories that go on the saber. Do you have a list of sources you purchased the red buttons, silver buttons, LED holders, and button screws from?



[Pedro]

Man, you metal shop guys blow my mind. Wow!
