rocketeer helmet

Discussion in 'Replica Costumes' started by glyntheelf, Aug 15, 2015.

  1. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53
    so ive started work on a Rocketeer costume. starting with the helmet.

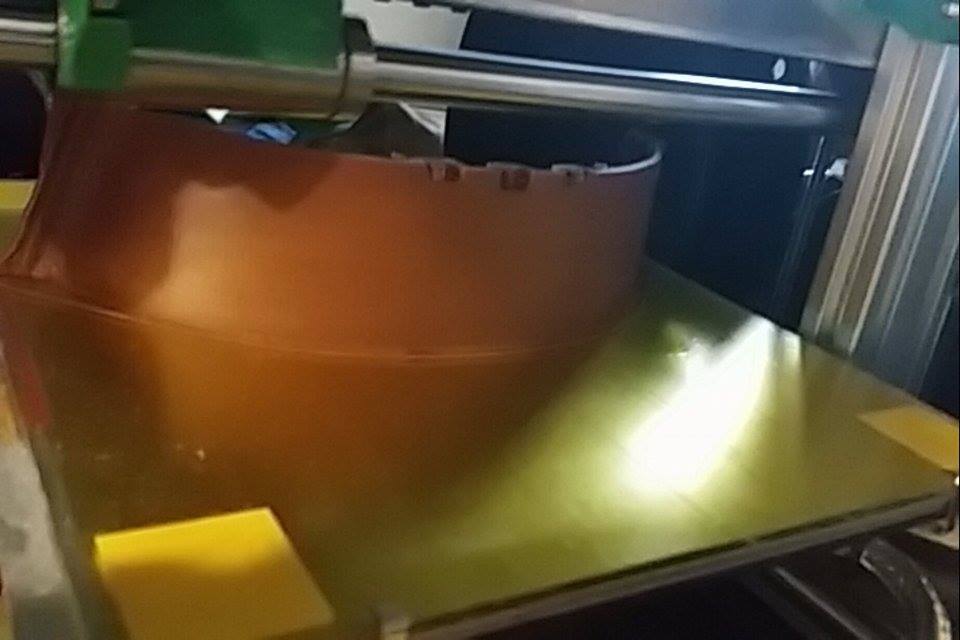

    the helmets being 3d printed

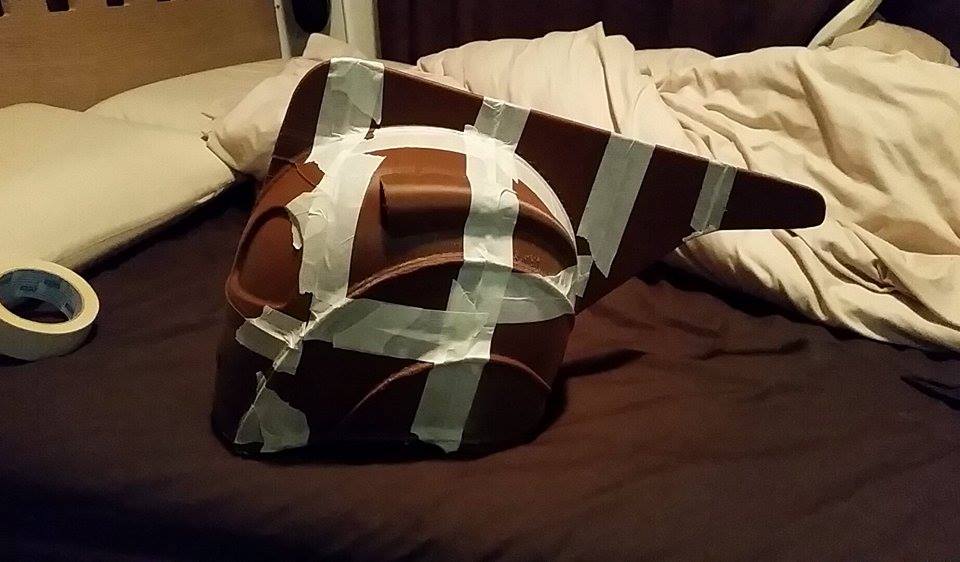

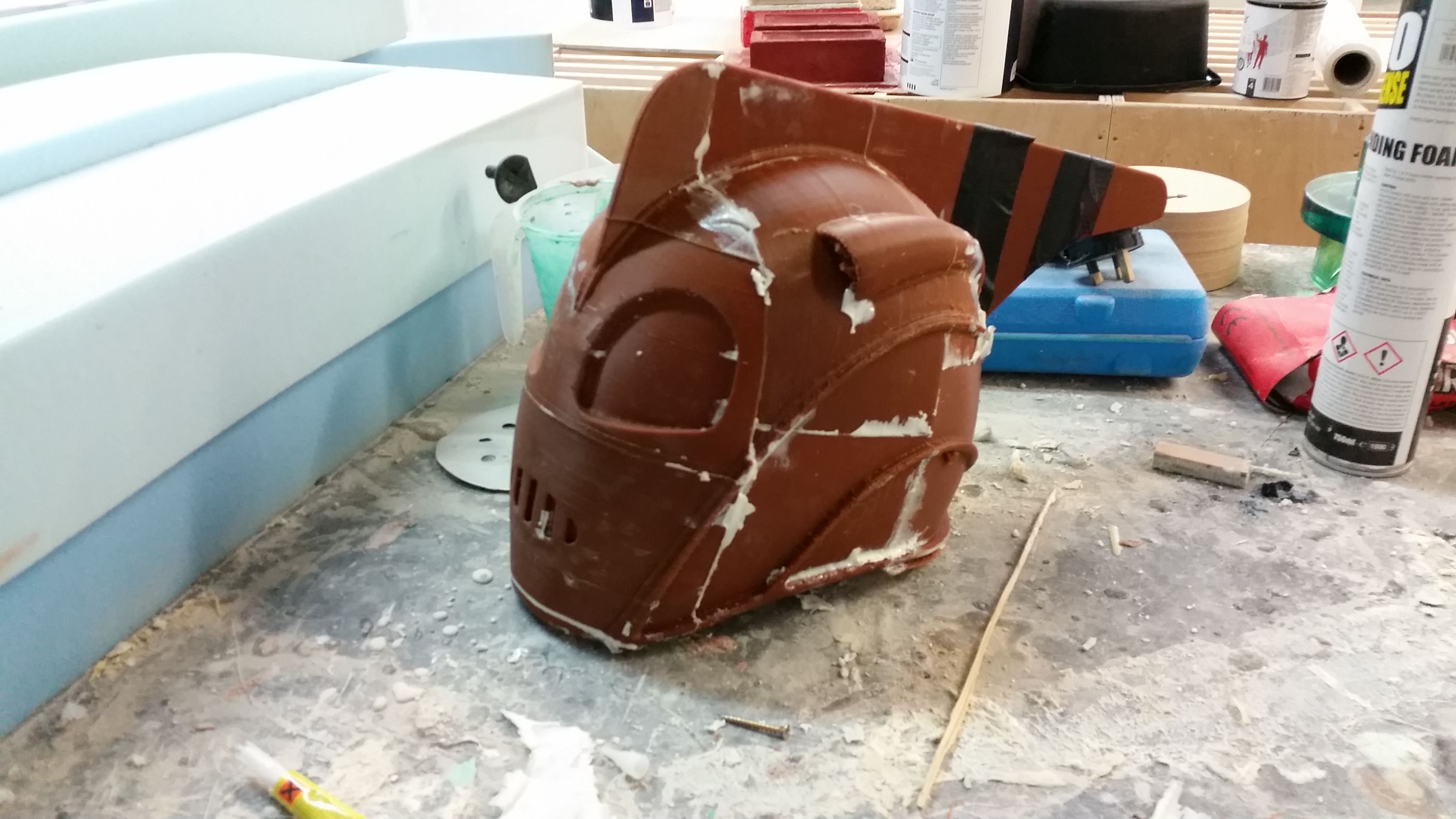

    after a very long time ive finely got it all taped together to make sure it all fits nice.

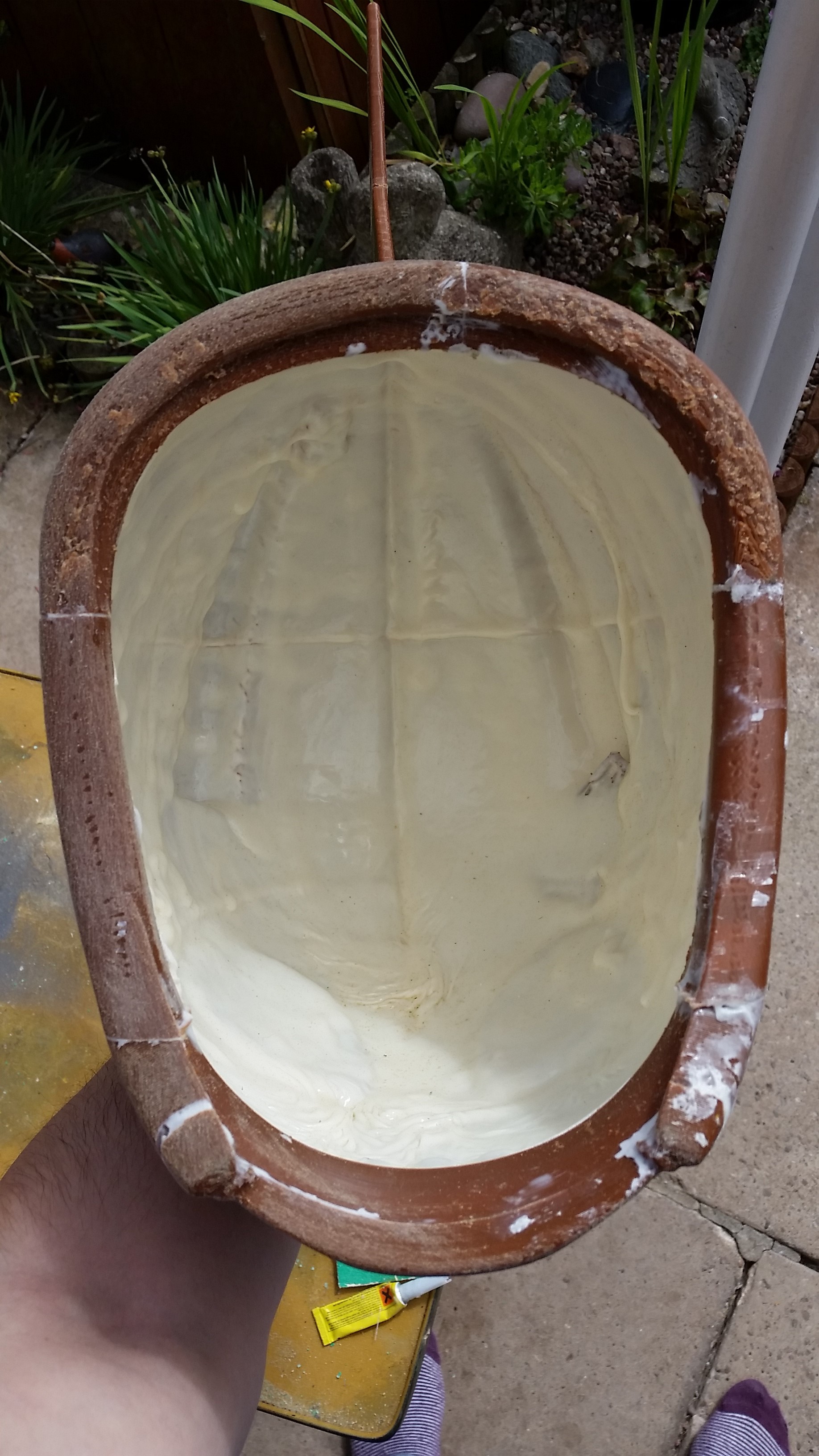

    i then slush cast the inside with fast cast resin.

    the fast cast fills in any gaps and holes saving a bit of work filling with epoxy resin.

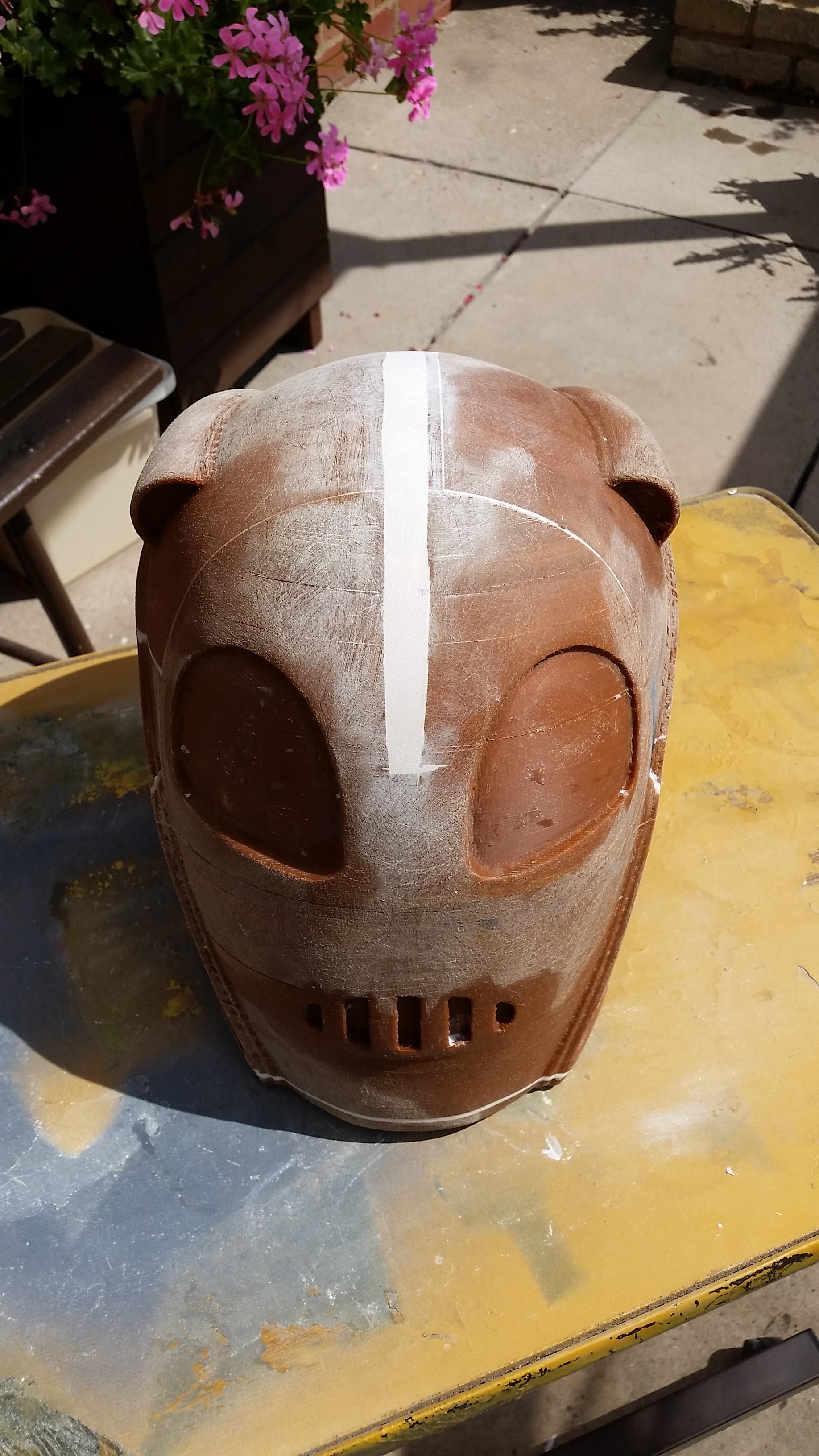

    i then started to sand it with 60 grit sandpaper, thats should give it a good bed for the filler primer to bite onto.

    and that's where im at so far, i plan on chopping off the fin so i can make a single part as its not that strong as it is. i also plan on making it out of polyurethane in the end. hope you finheads like it and if you guys have a any tips and tricks please let me know.

    next up will be the glove flight controls.

  2. Ein

    Ein Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,540
    That's quite clever! I like it. Never thought to slush cast a 3d print like that just to hold it together. It looks like you didn't get too much leakage, too.

    The fin being a single piece is definitely the right idea.

    Did you make the files you printed?

  3. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53
    thanks Ein, no i didn't make the file i had to edit it a little to be able to print it and re-size it. i believe it was this file by davypenno2
    http://www.thingiverse.com/thing:850699
    slush casting works a treat. best to sand the insides to help it bite but other then that its great.

    Last edited by a moderator: Nov 9, 2018
  4. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53

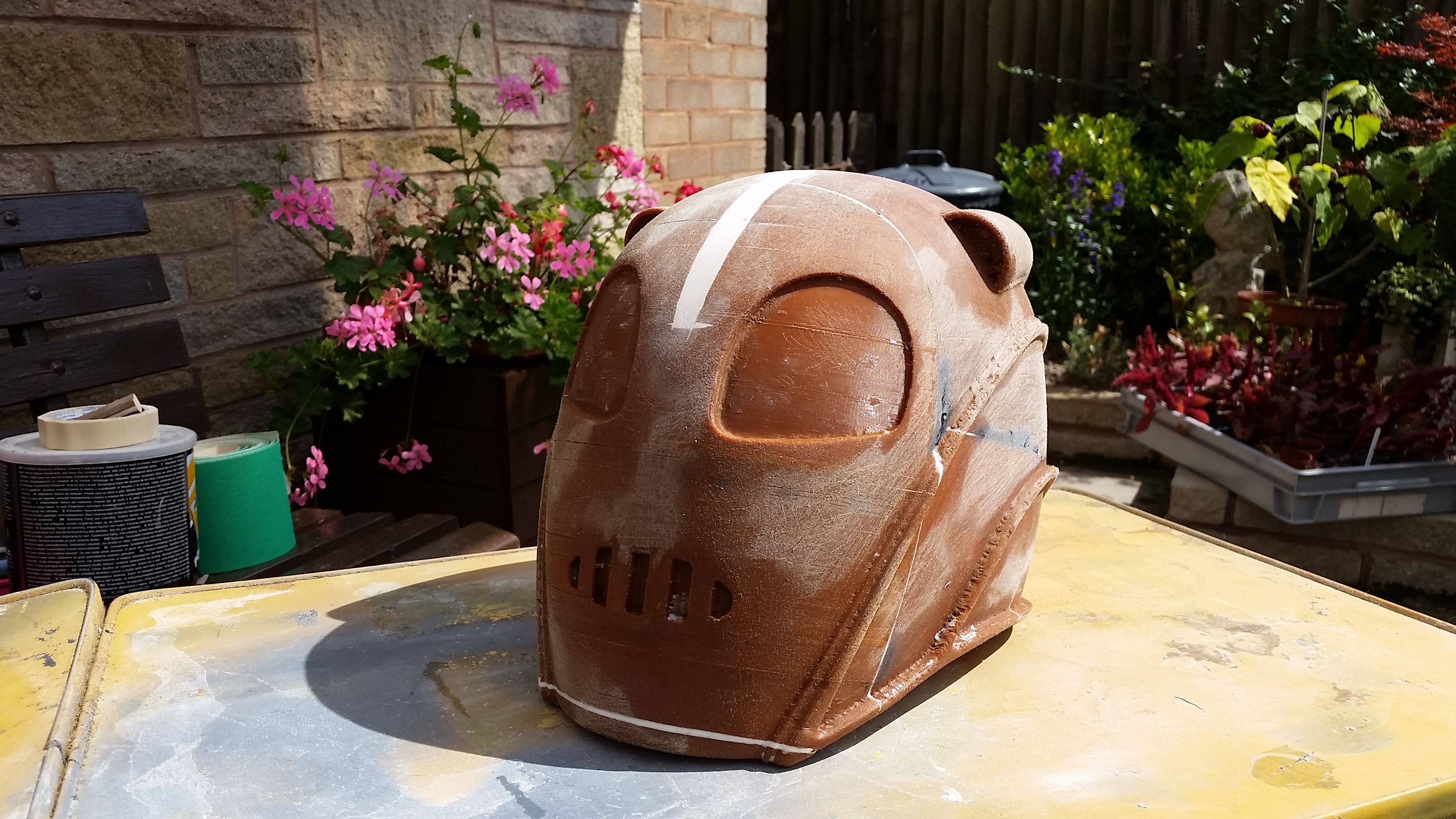

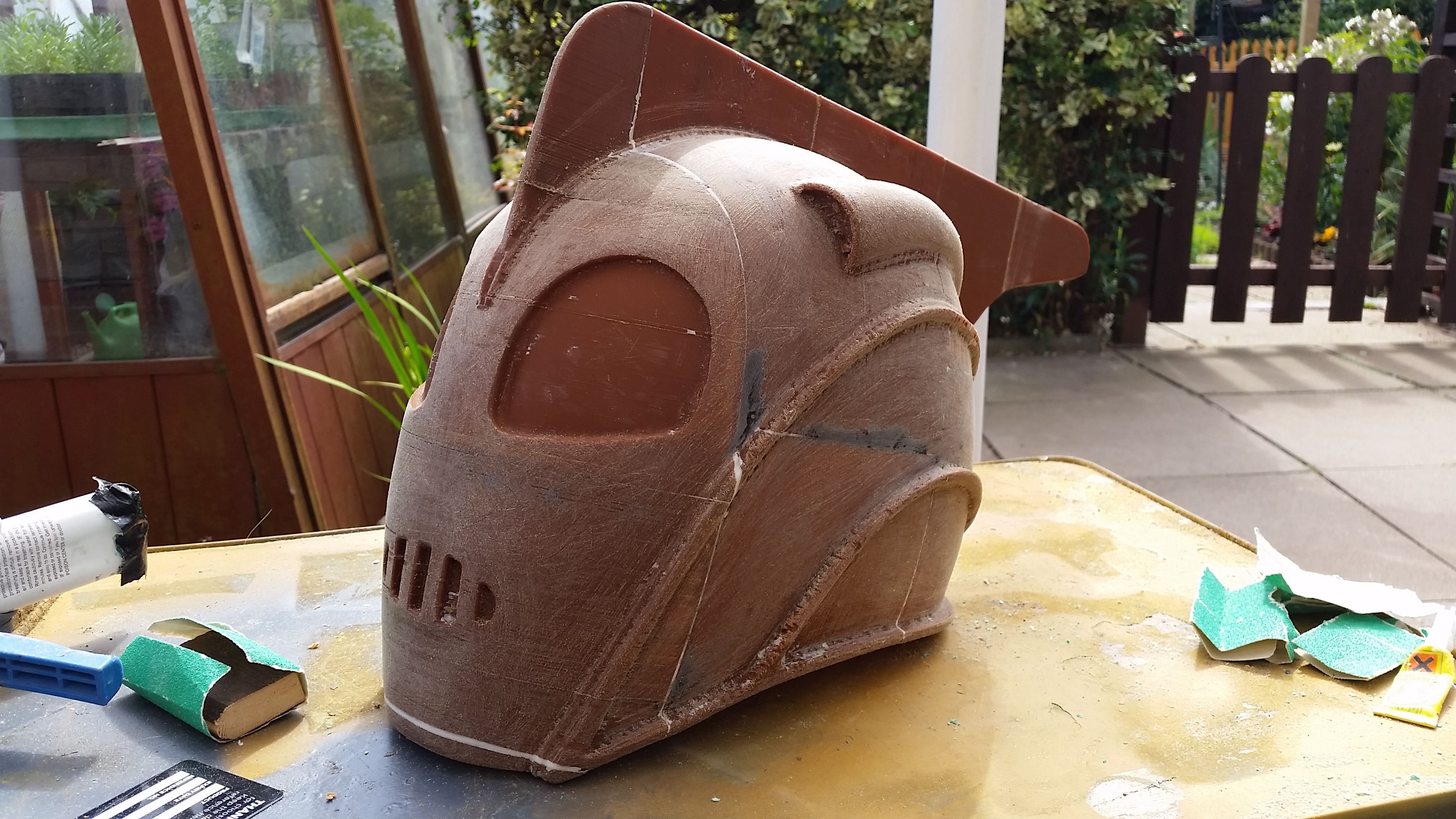

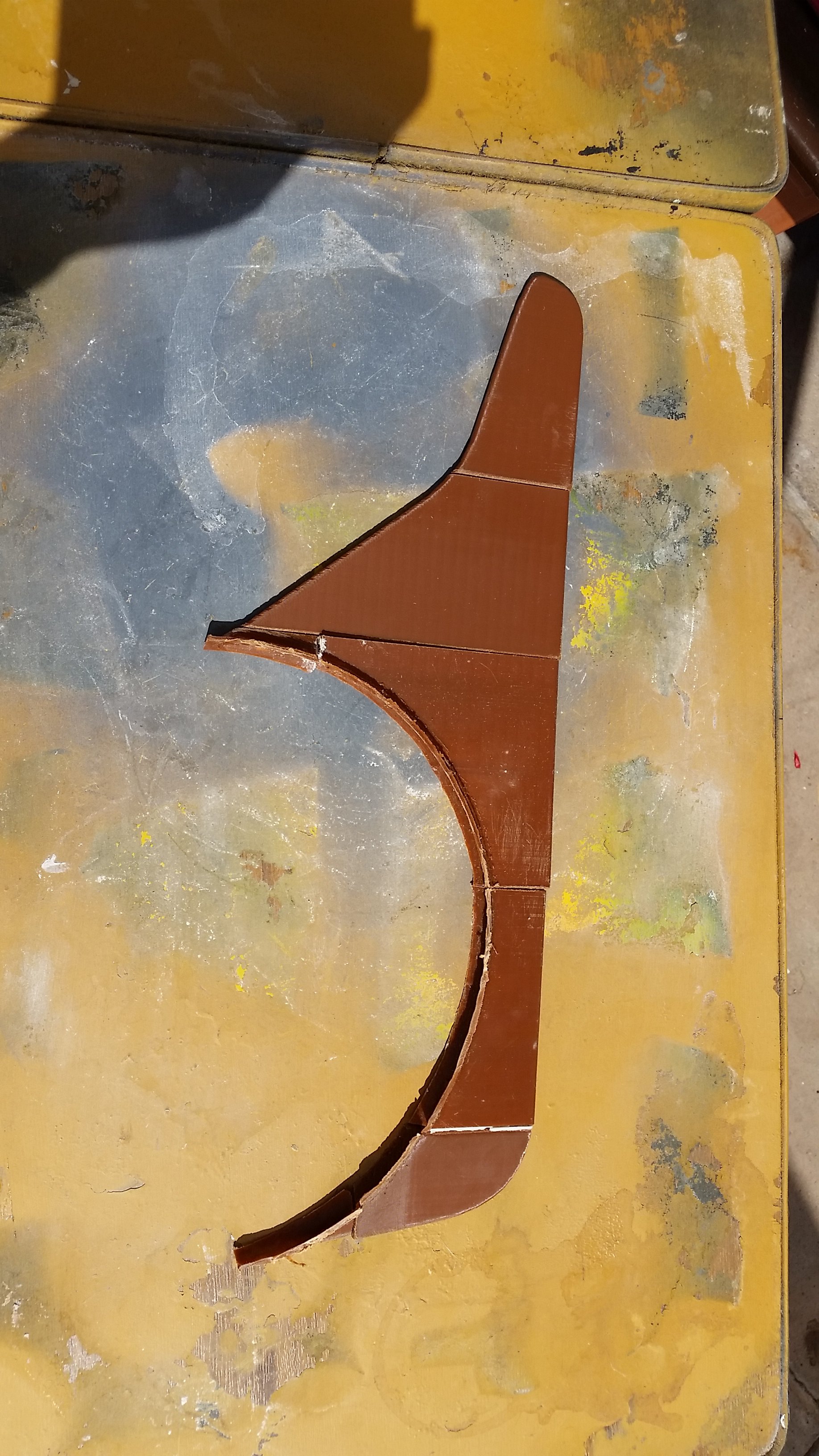

    i chopped the fin off today and finished sanding

    i cut just below the 3d printed plastic leaving the resin in tacked, that way it keeps it strong then filled in the gap with car filler.

    iv now can use the fin as a template to make it one piece.

    when i come to fixing the fin to the helmet i will wax the fin first then add the weld lines to the helmet and fin. this way i will be able to remove the fin so it makes it easyer to cast.

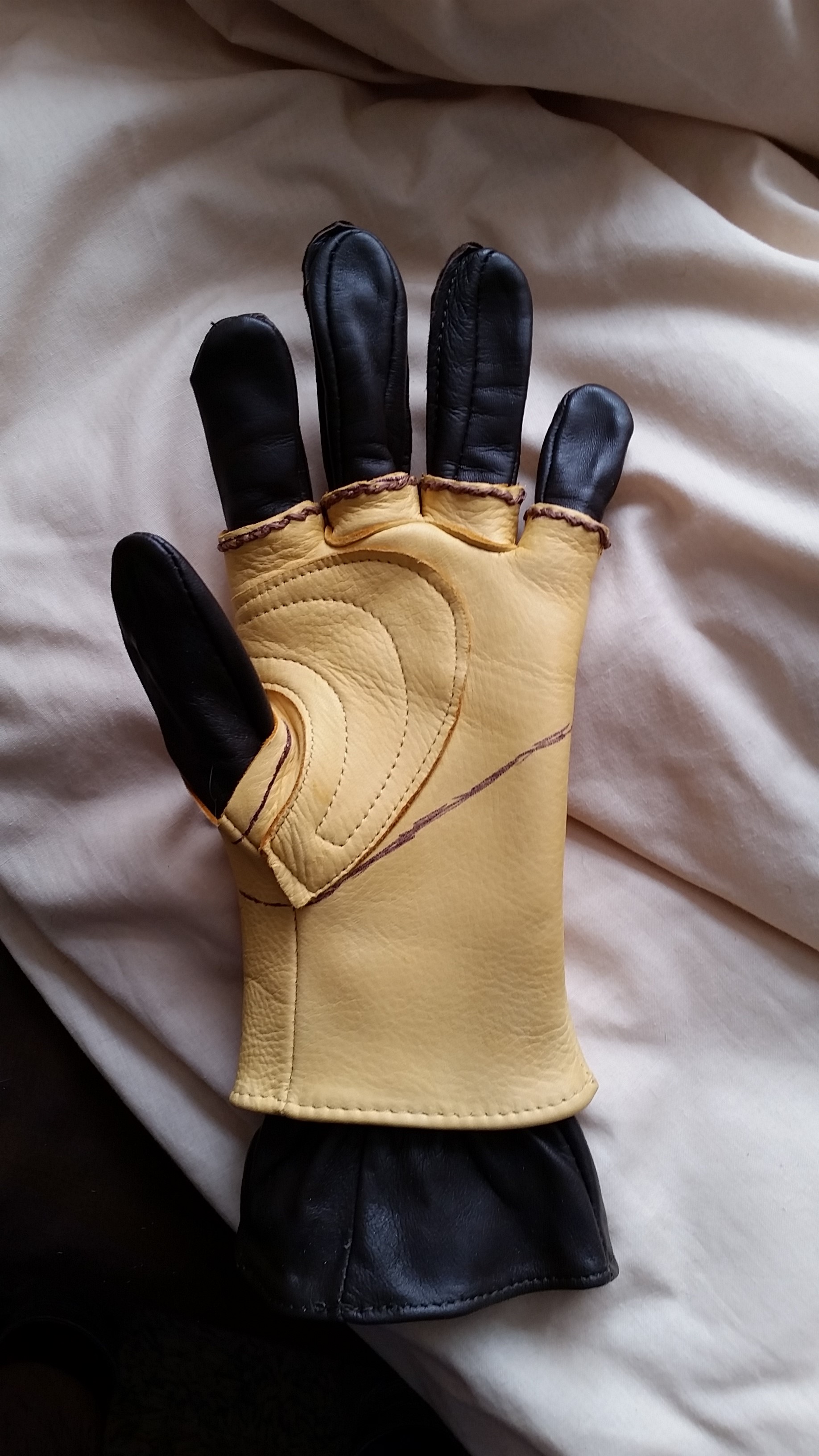

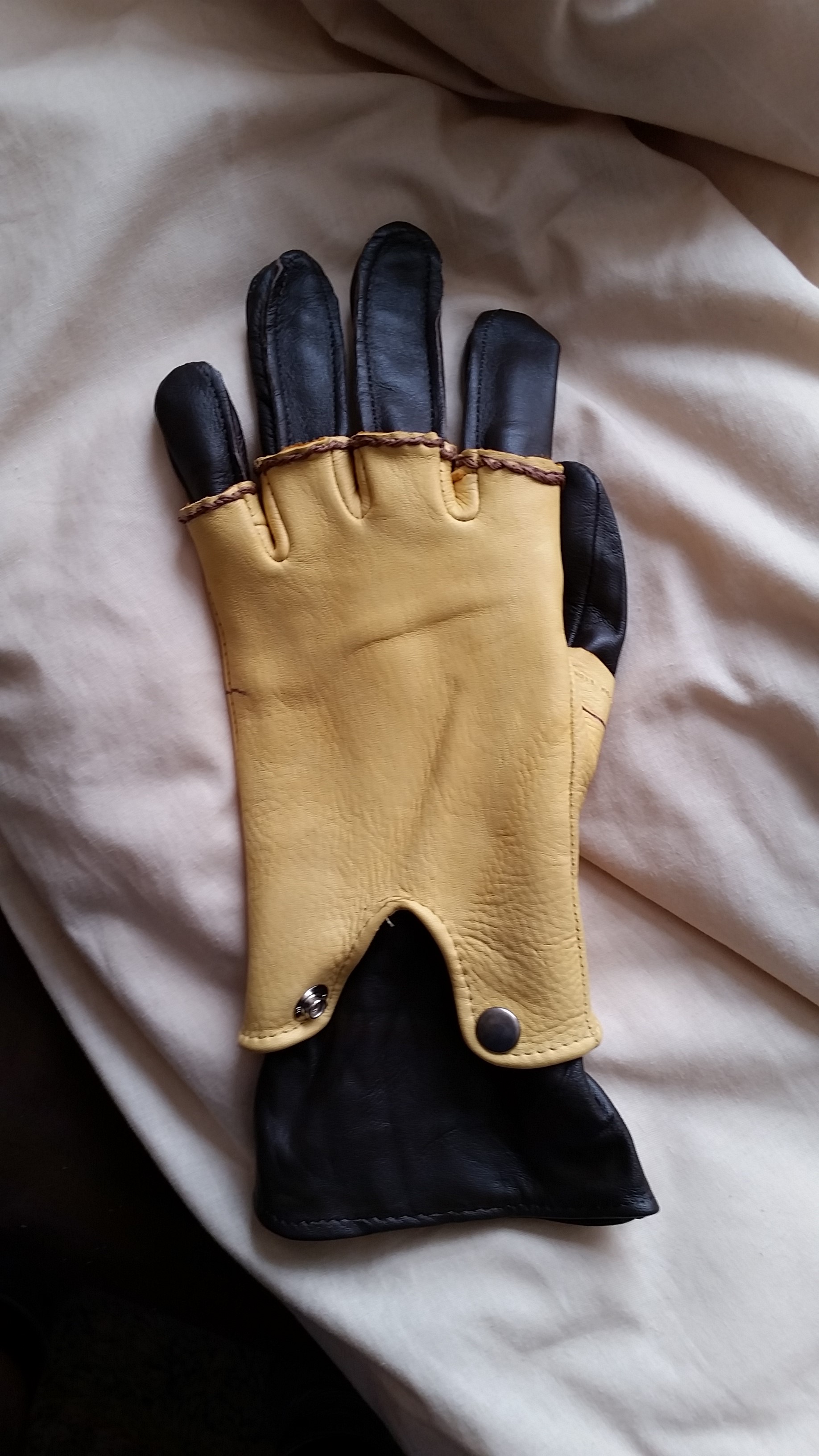

    ive also made a slow start on the gloves. still need to cut them down.
    20150816_131002.jpg 20150816_131008.jpg

  5. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53

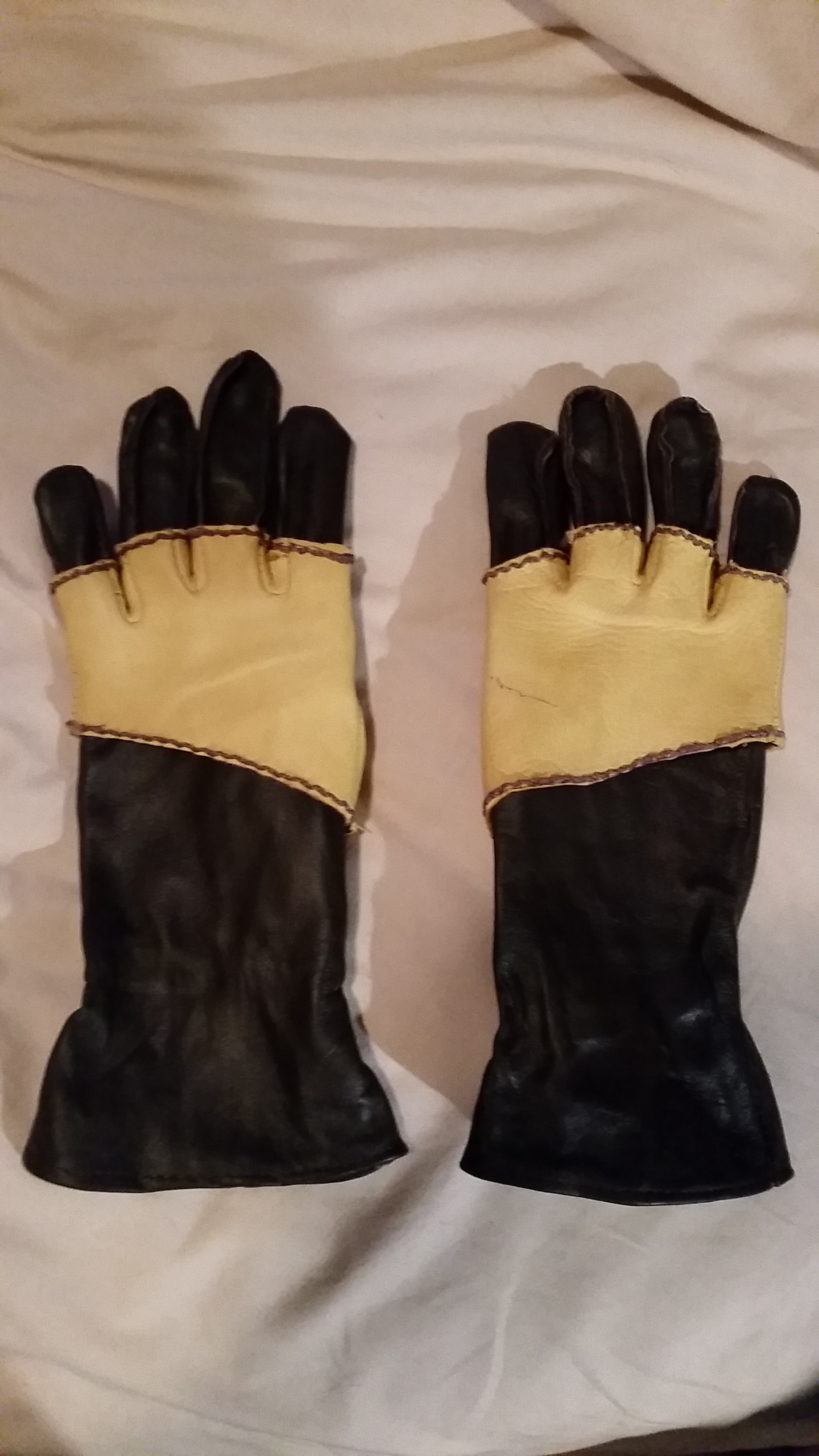

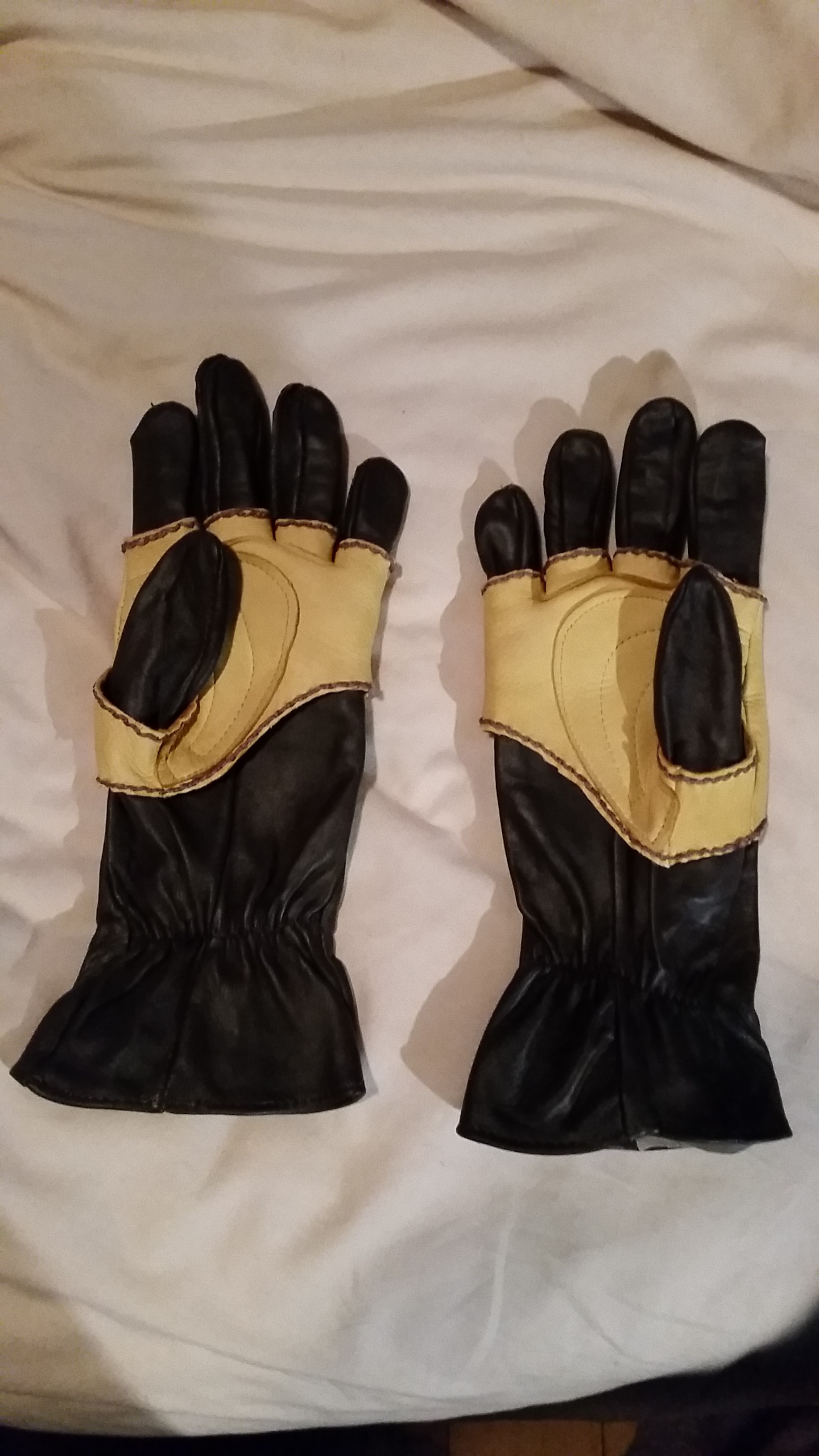

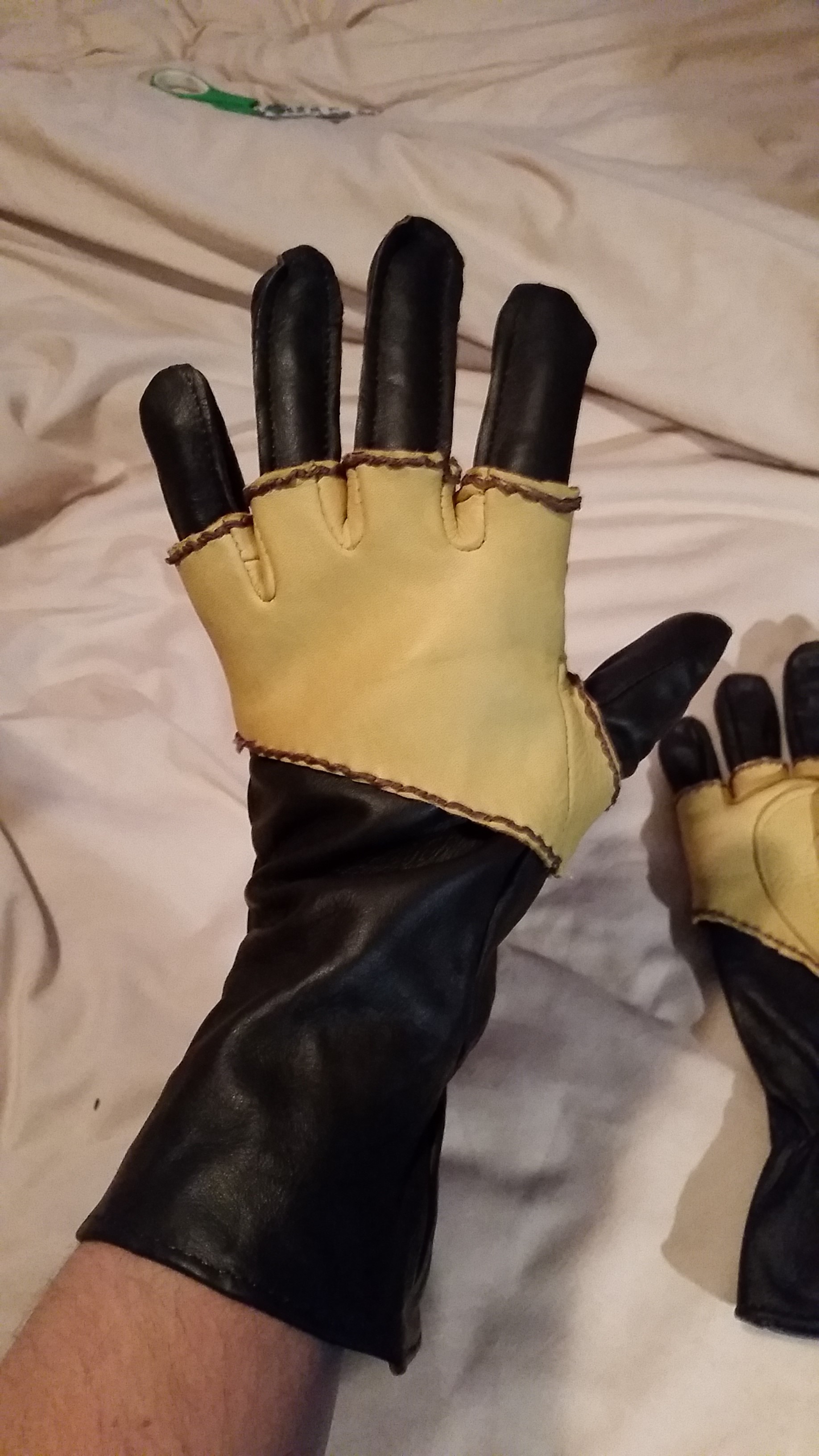

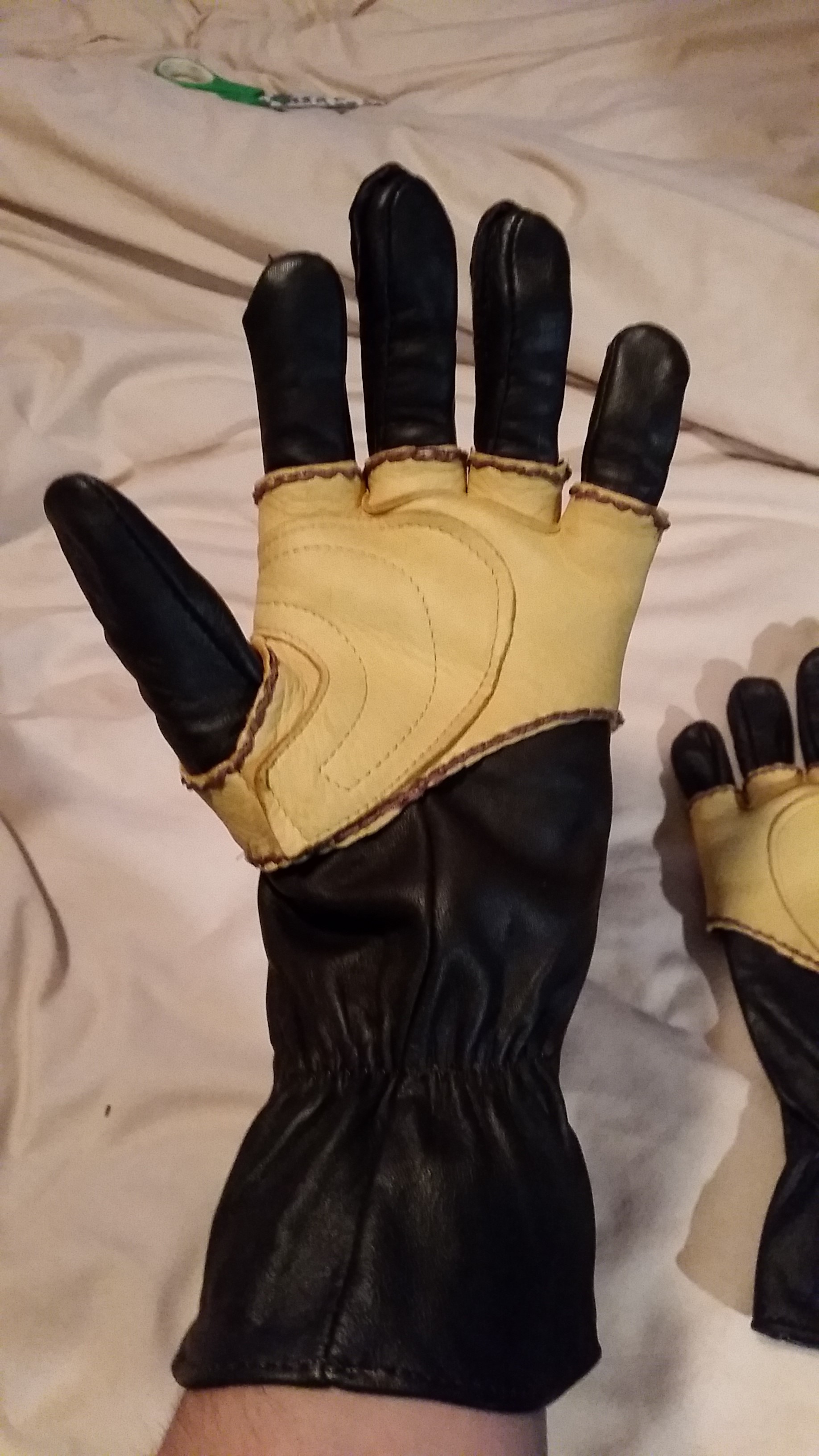

    took all day but my gloves are cut and stitched read for dyeing and the rest of the leather to be added.
    20150816_204539.jpg 20150816_204547.jpg 20150816_204602.jpg 20150816_204607.jpg

  6. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Subbed...that helmet sure looks great. Eager to see the rest:)

  7. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53

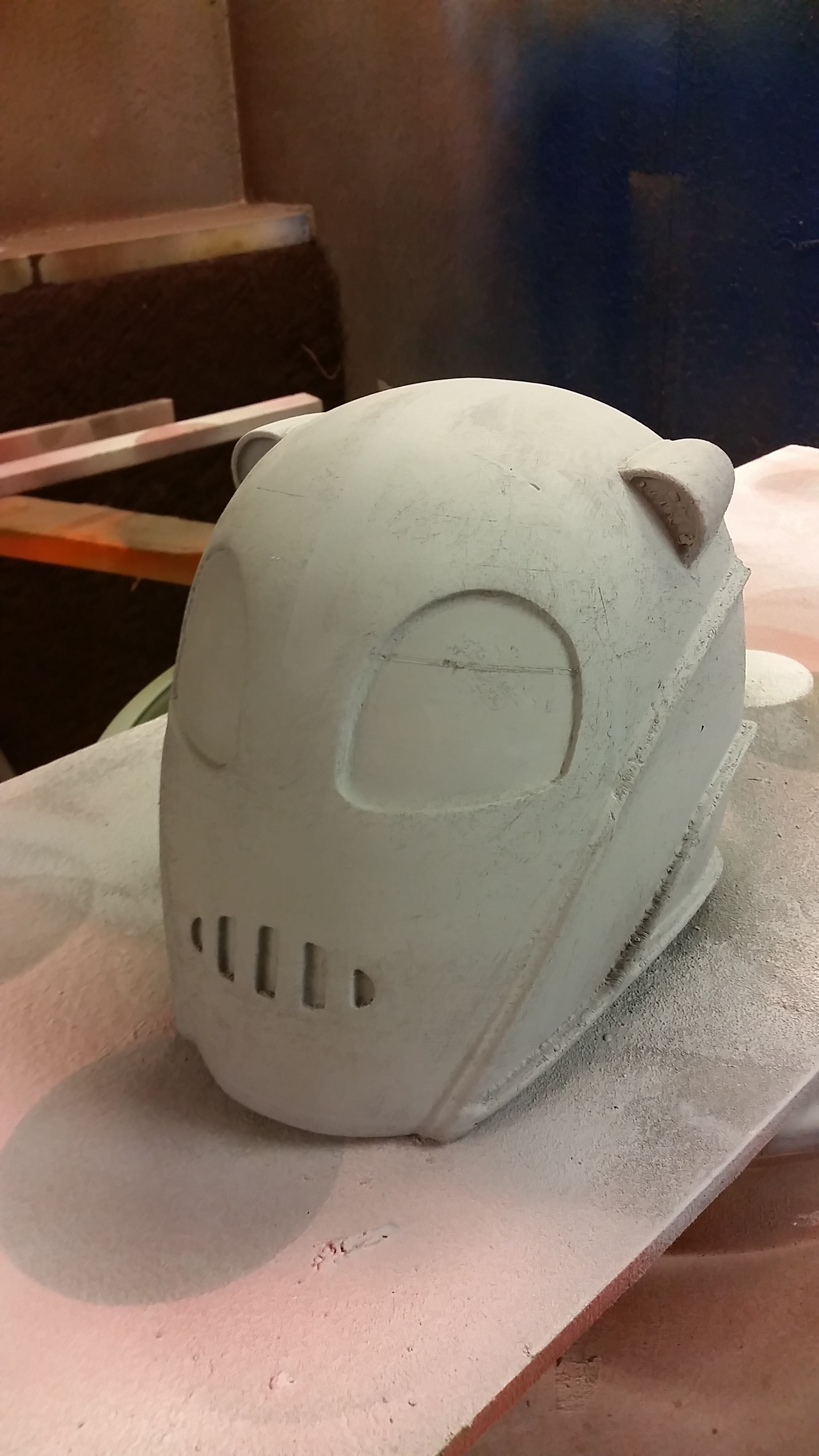

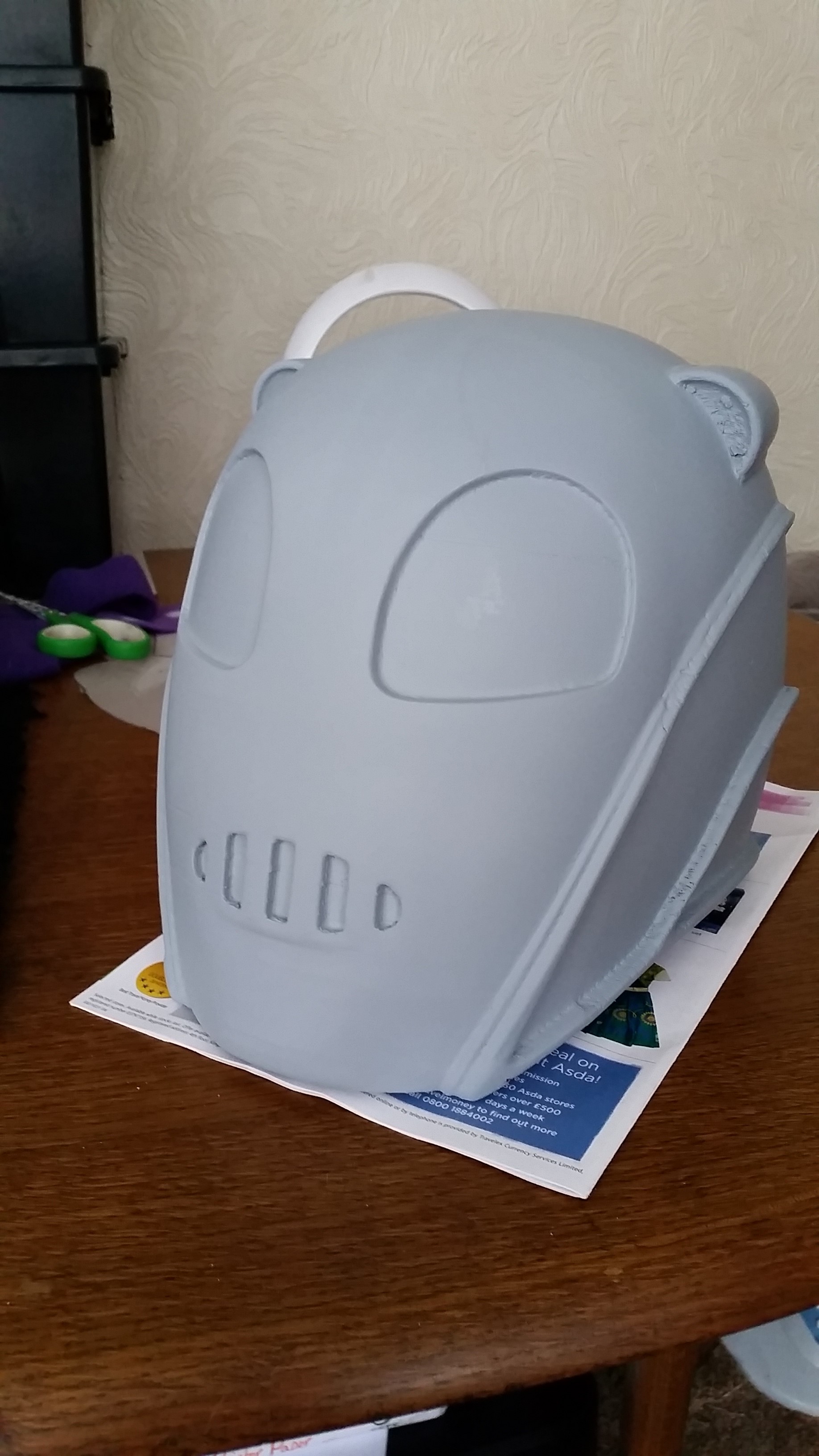

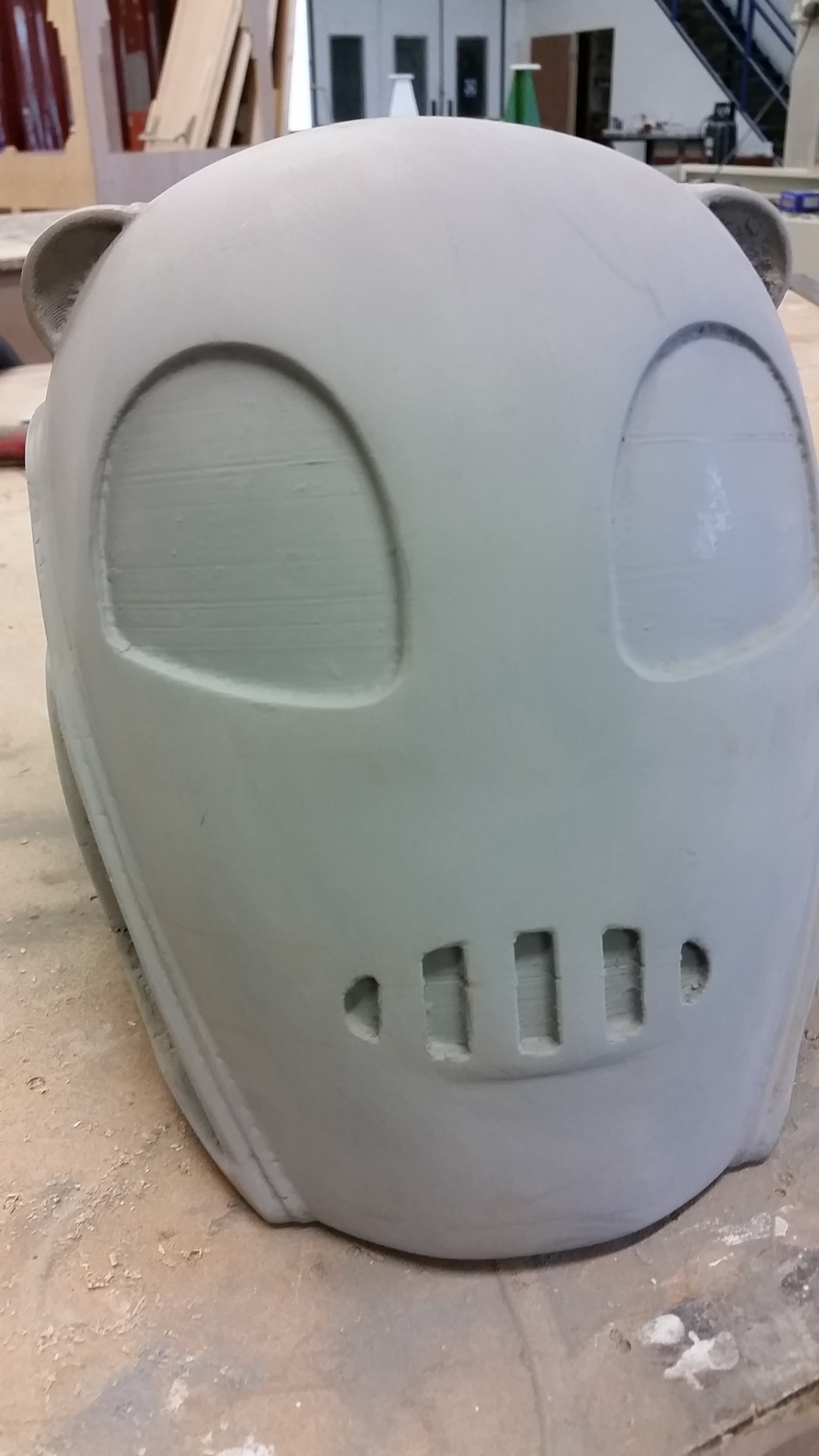

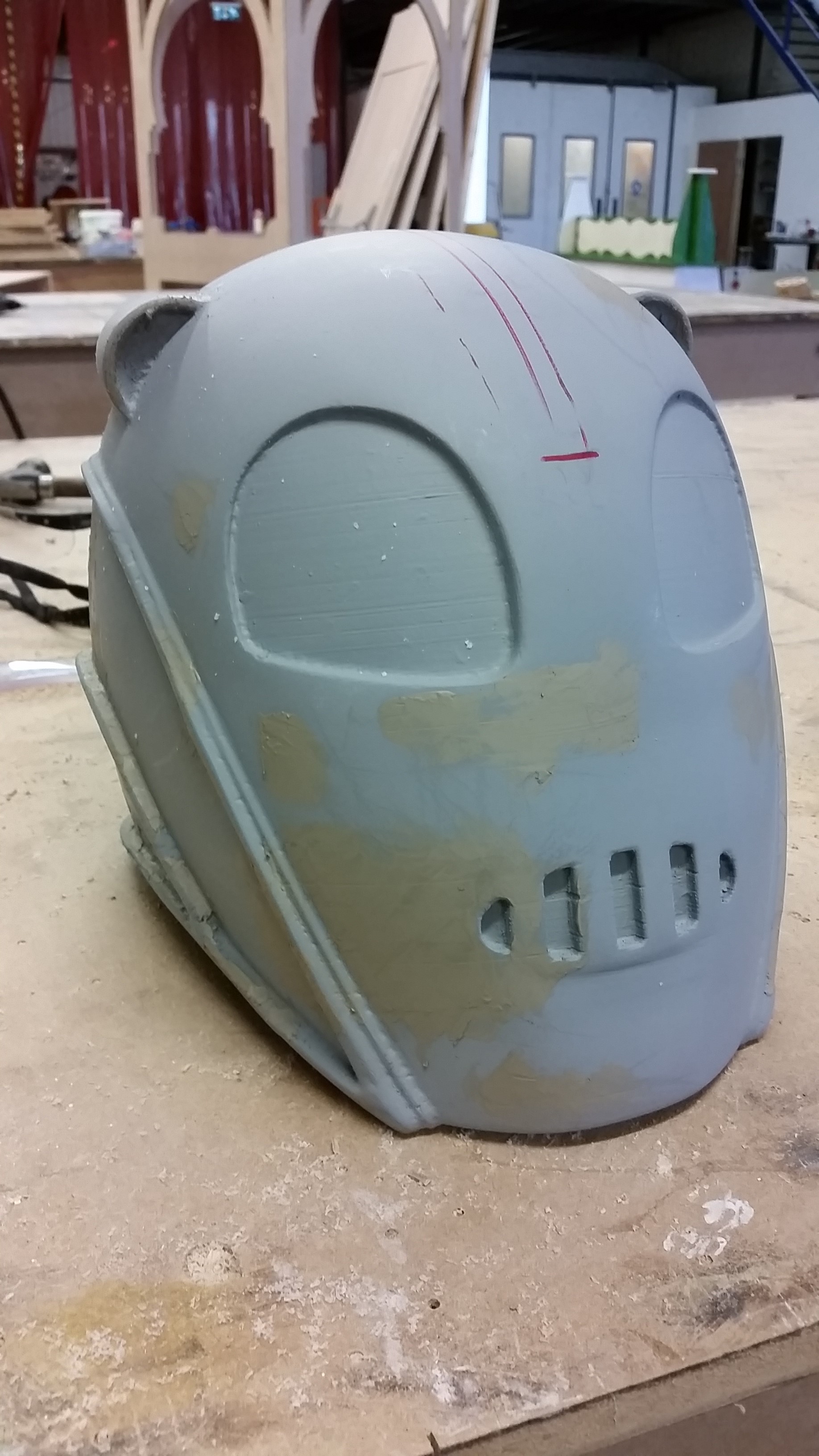

    today i finally got to give it a few coats of filler primer. the first coat its just a thin coat. this raises the plastic fibers so that i can sand them off with 120 grit paper as you can see in the first pic. the dark patches are where the fibers are standing up.

    i then gave it i good few coats to help fill in the gaps i then sanded the gaps back to the plastic leaving only the primer in the grooves. then another good coat

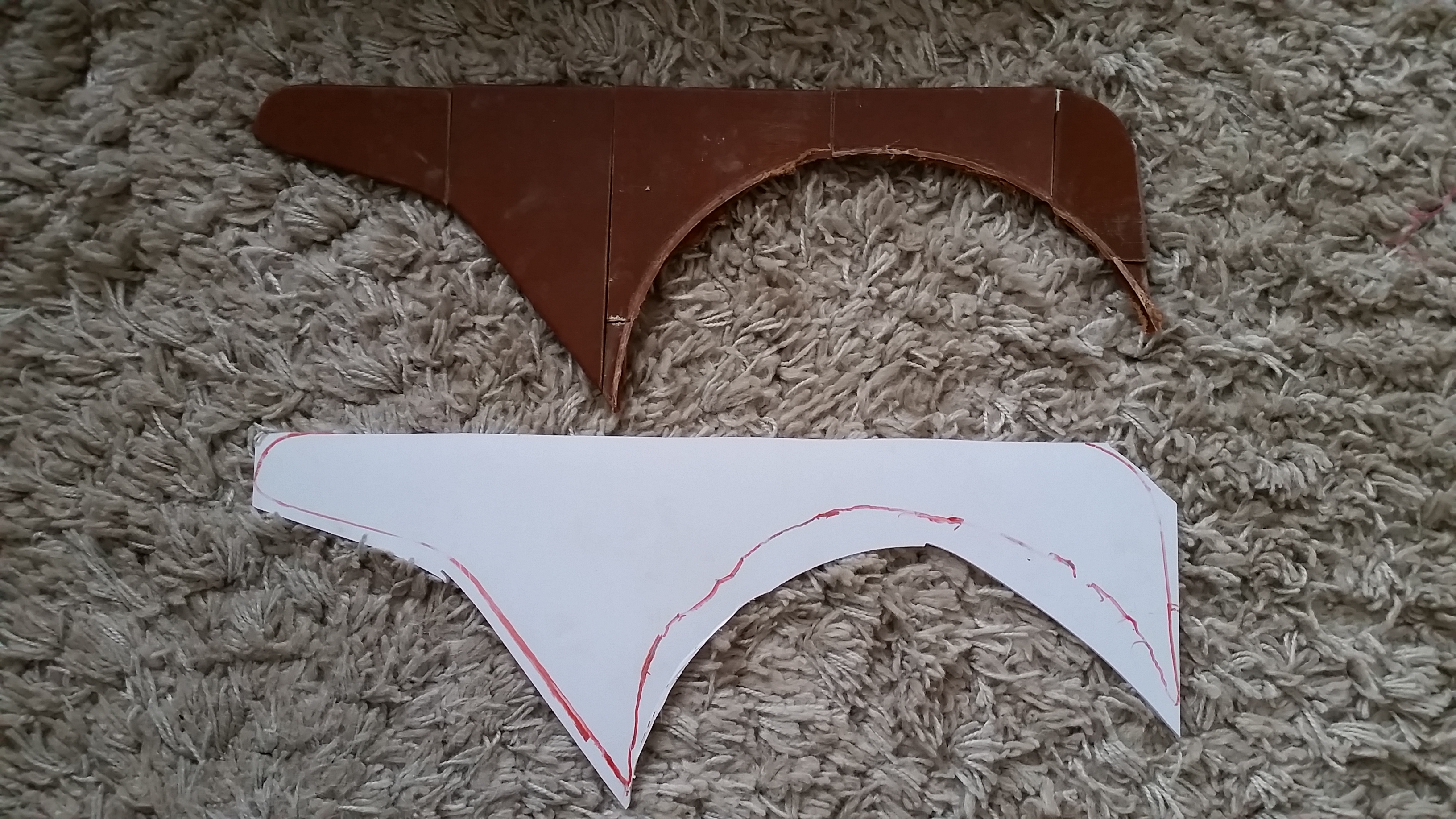

    i also made a start on the fin, i traced round the original onto a 5mm polycarbonate sheet
    still needs sanding and shaping but it will be perfect for what i need.

  8. JPH

    JPH Sr Member

    Trophy Points:
    1,340
    why not make the fin out of aluminum? unnamed-28.jpg

  9. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53
    Good idea JPH I just had the polycarbonate knocking around. But I might have a look to see if I have any aluminium. Would definitely be better.

  10. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53
    today i used some cellulose stopper to fill in some big lines and pin holes, if you have never used this stuff its great it like a very thick paint that can be sanded withing minutes and isn't as hard to sand as body filler.

    stopper applied
    then sanded off with the gaps gone

  11. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Looking spiffy:cool

  12. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53

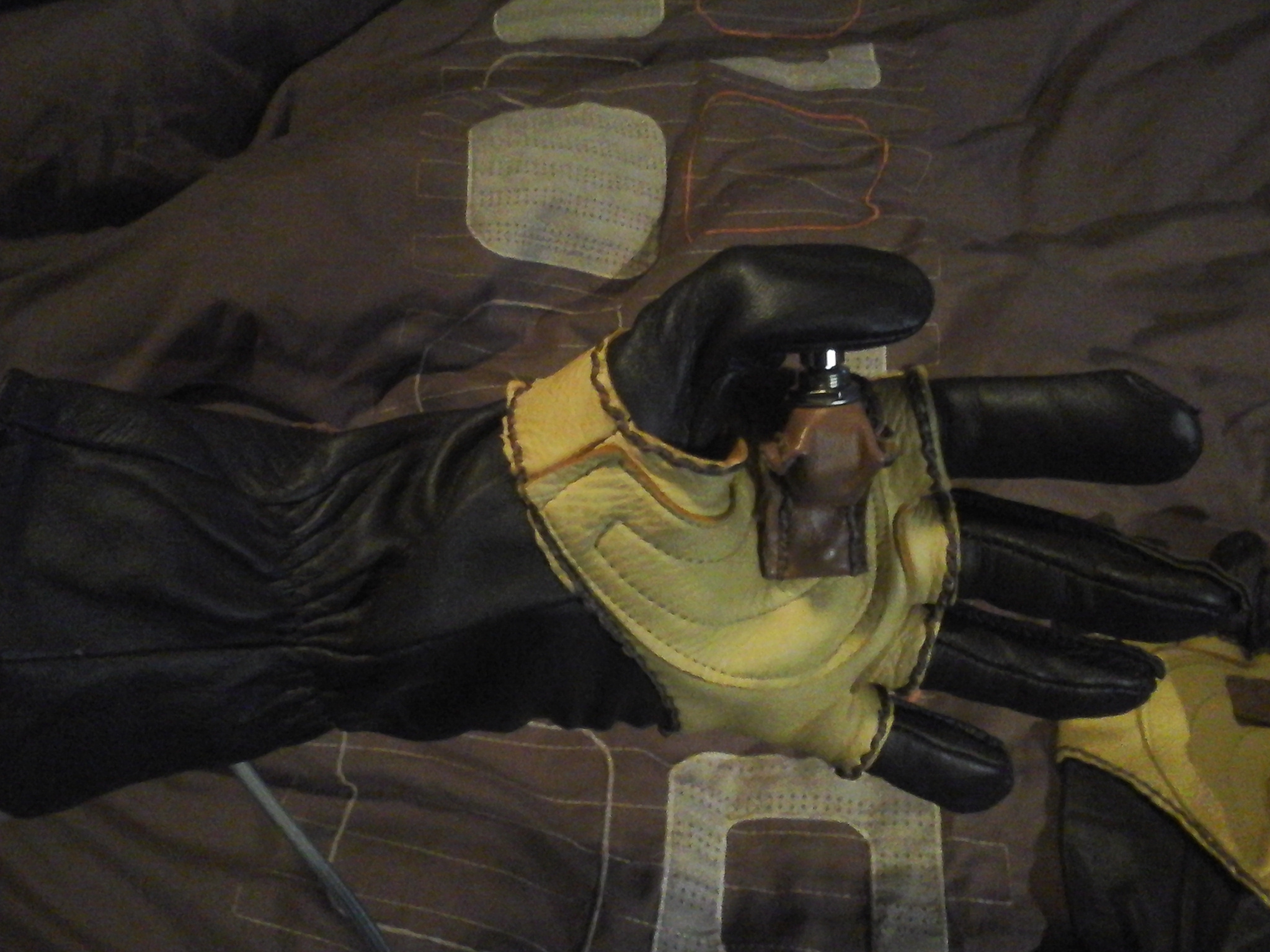

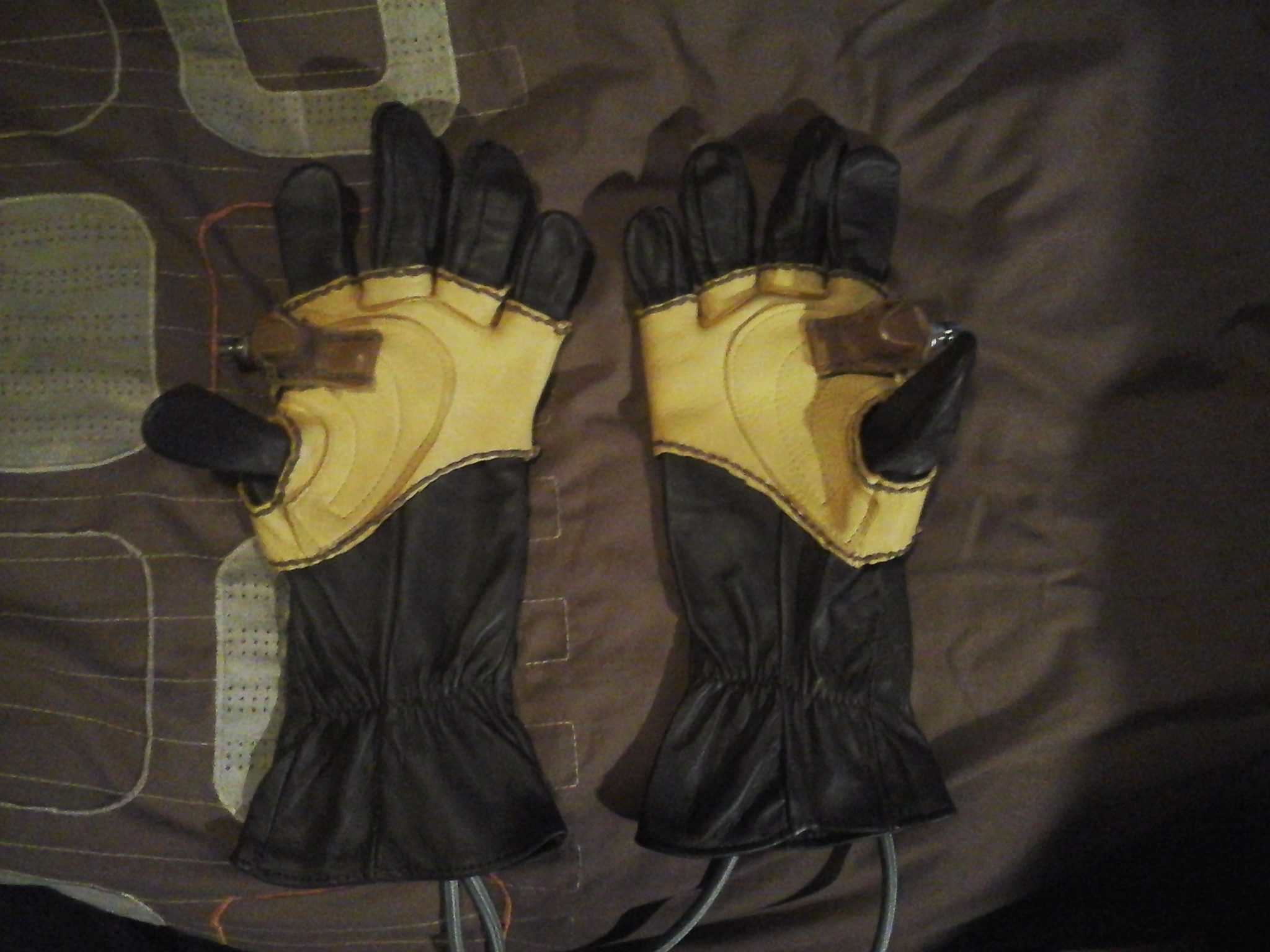

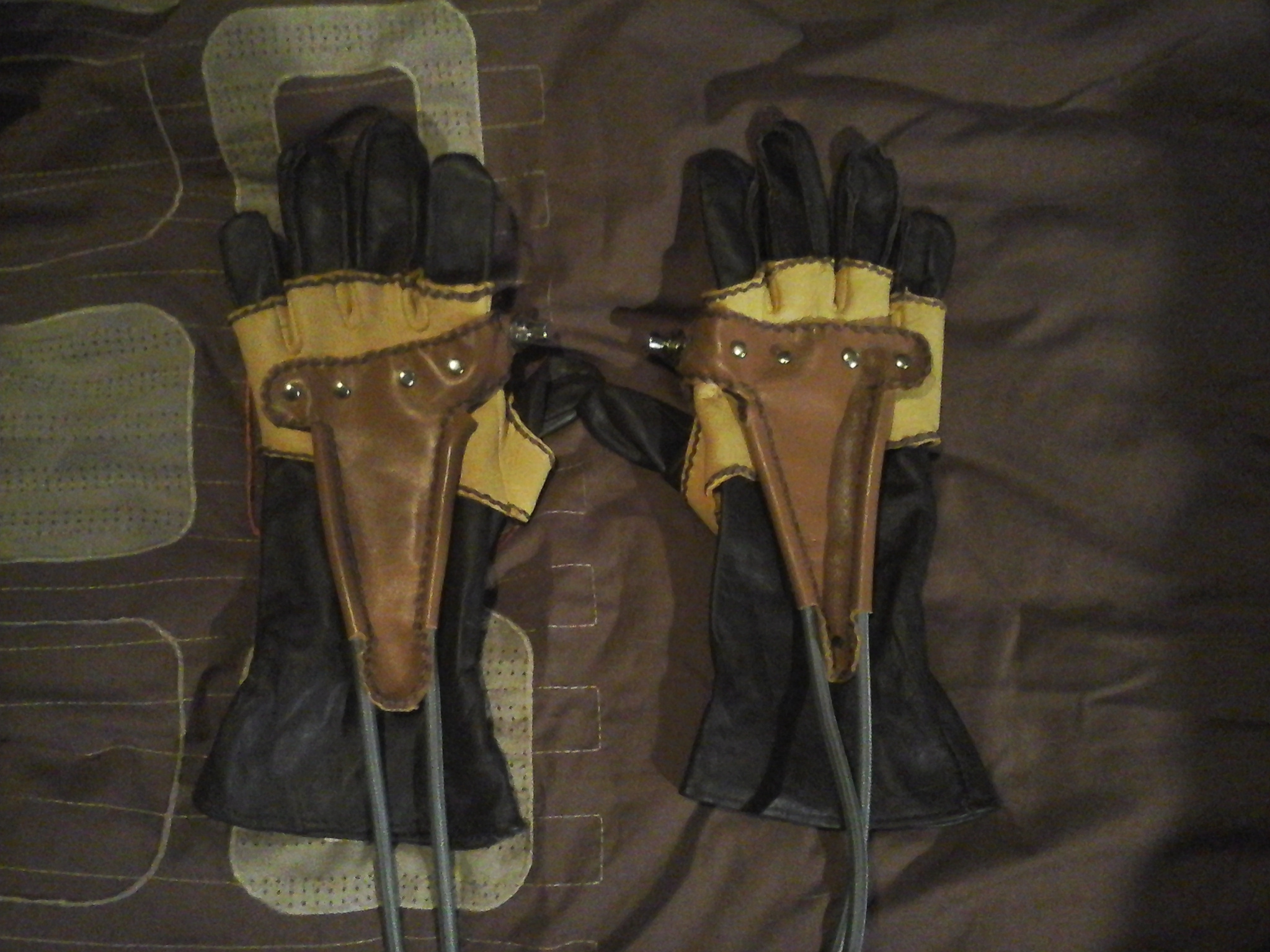

    ive been doing some work on the glove controls for the past week
    20150831_214127.jpg 20150831_214144.jpg 20150831_214220.jpg 20150831_214229.jpg

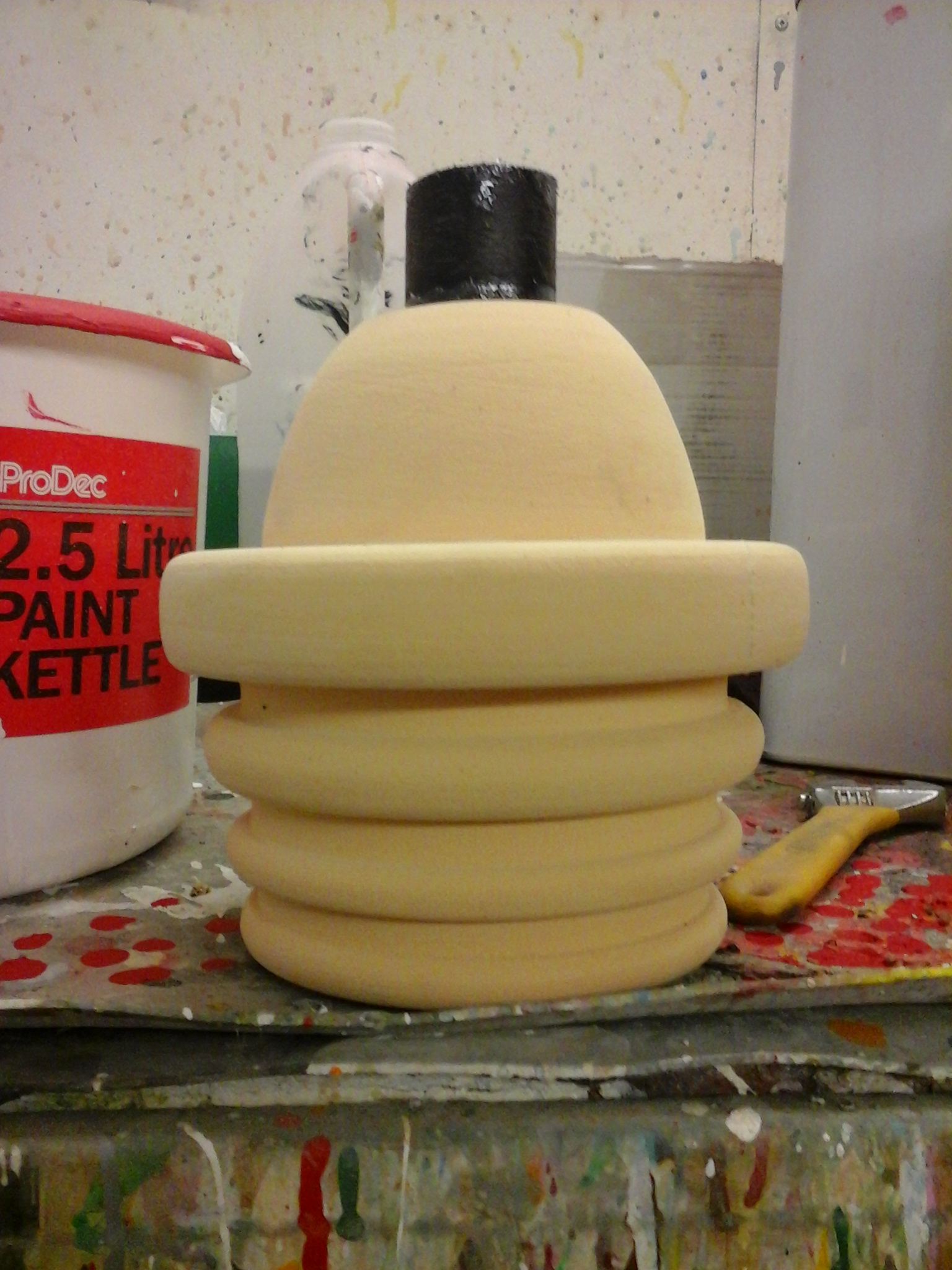

    ive also made a rocket base/booster using a lathe and some high density foam. i will make a mold and make two hollow casts of this

  13. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53

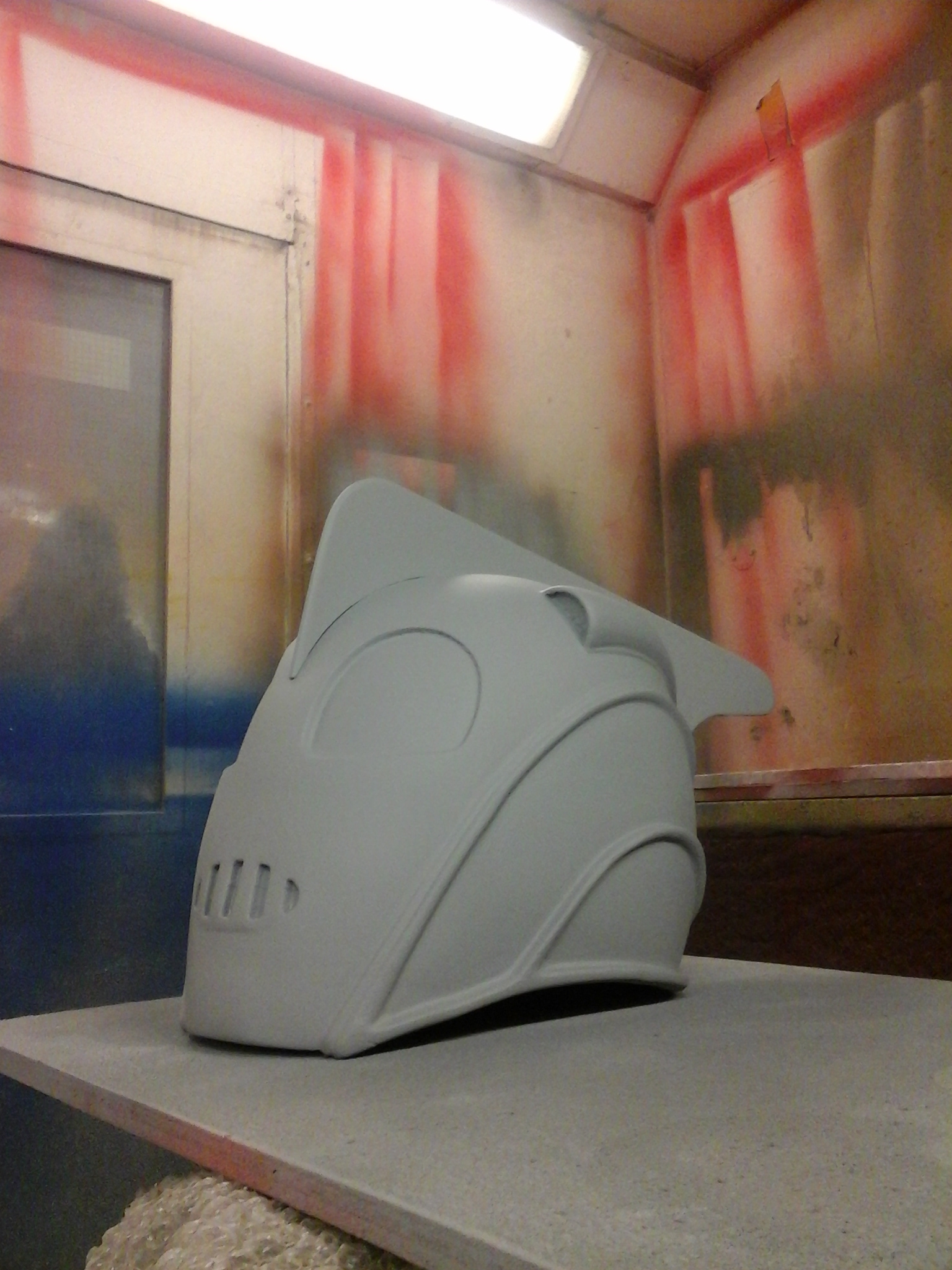

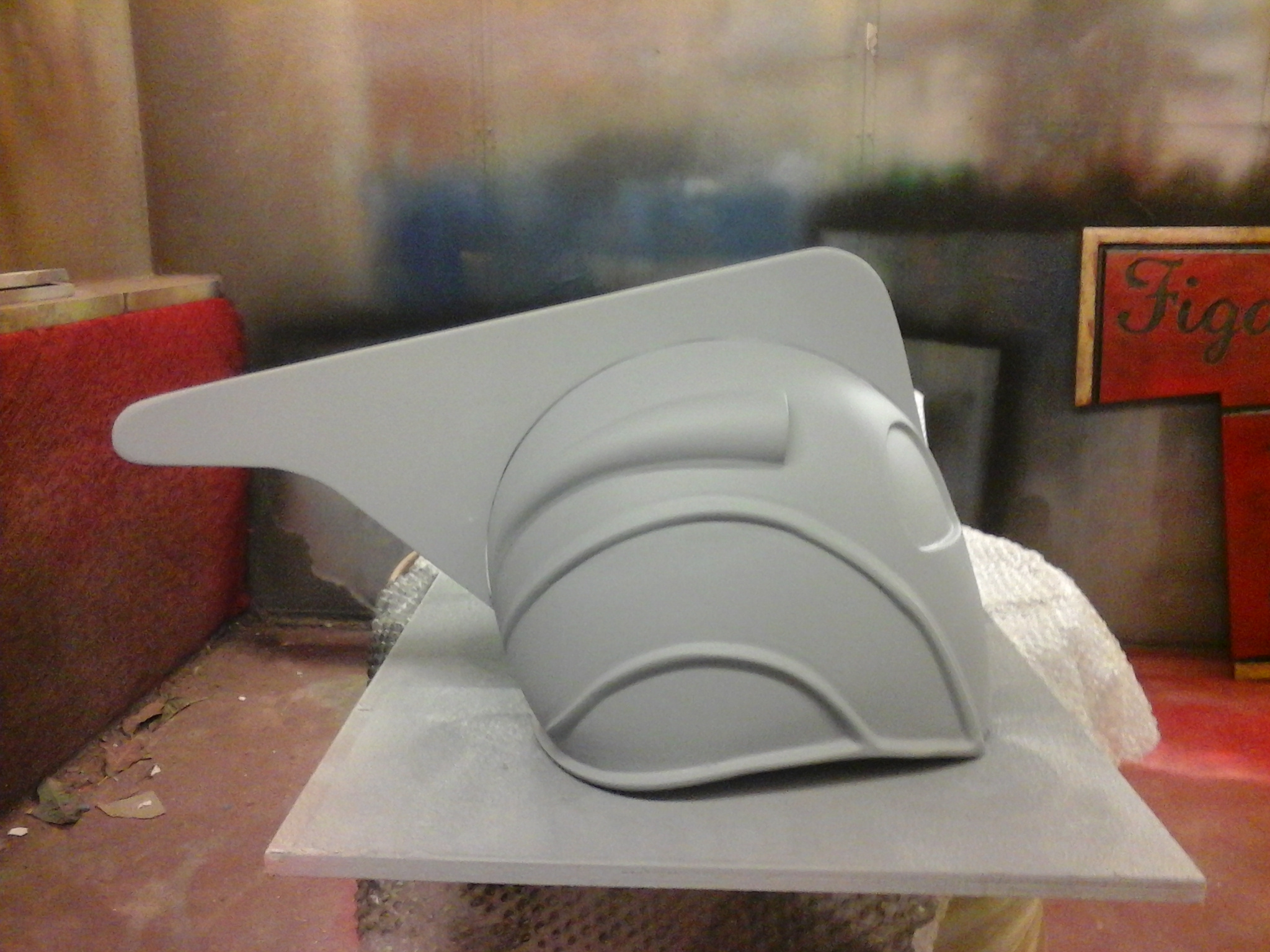

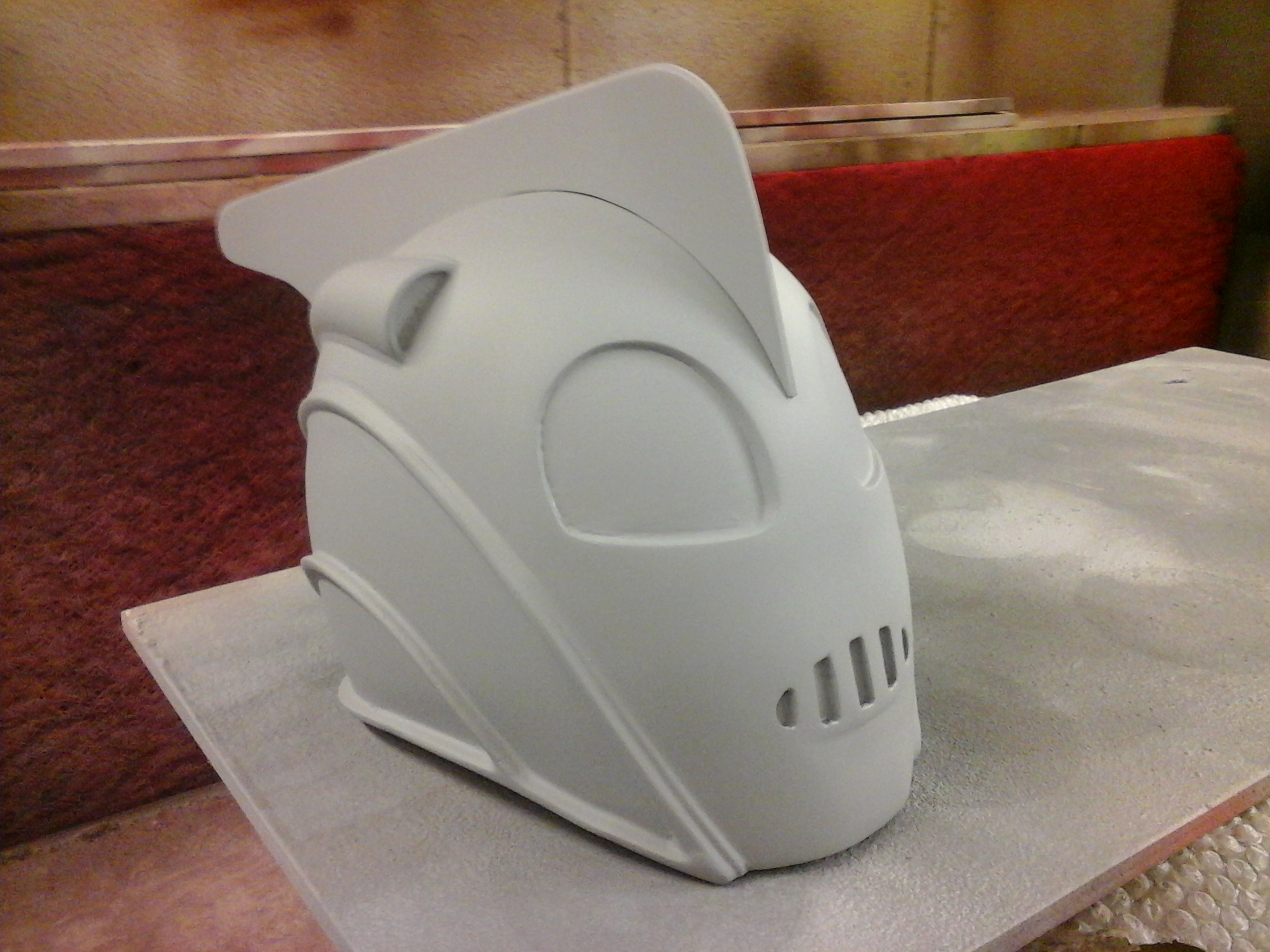

    ive done a bit more work on the helmet, almost time to add the weld lines and cast.

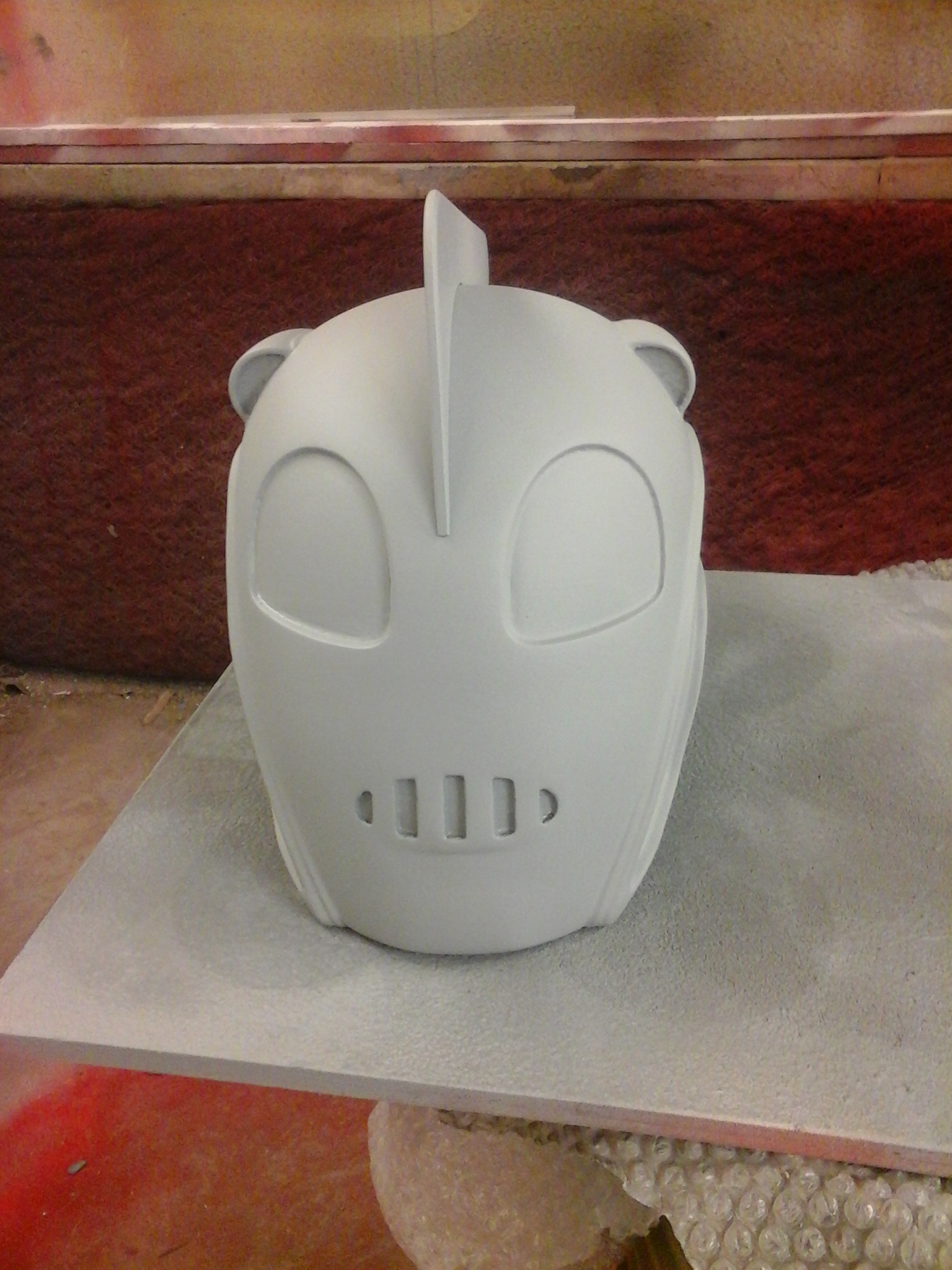

    20150903_174223.jpg 20150903_174207.jpg 20150903_174152.jpg 20150903_174142.jpg

  14. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53

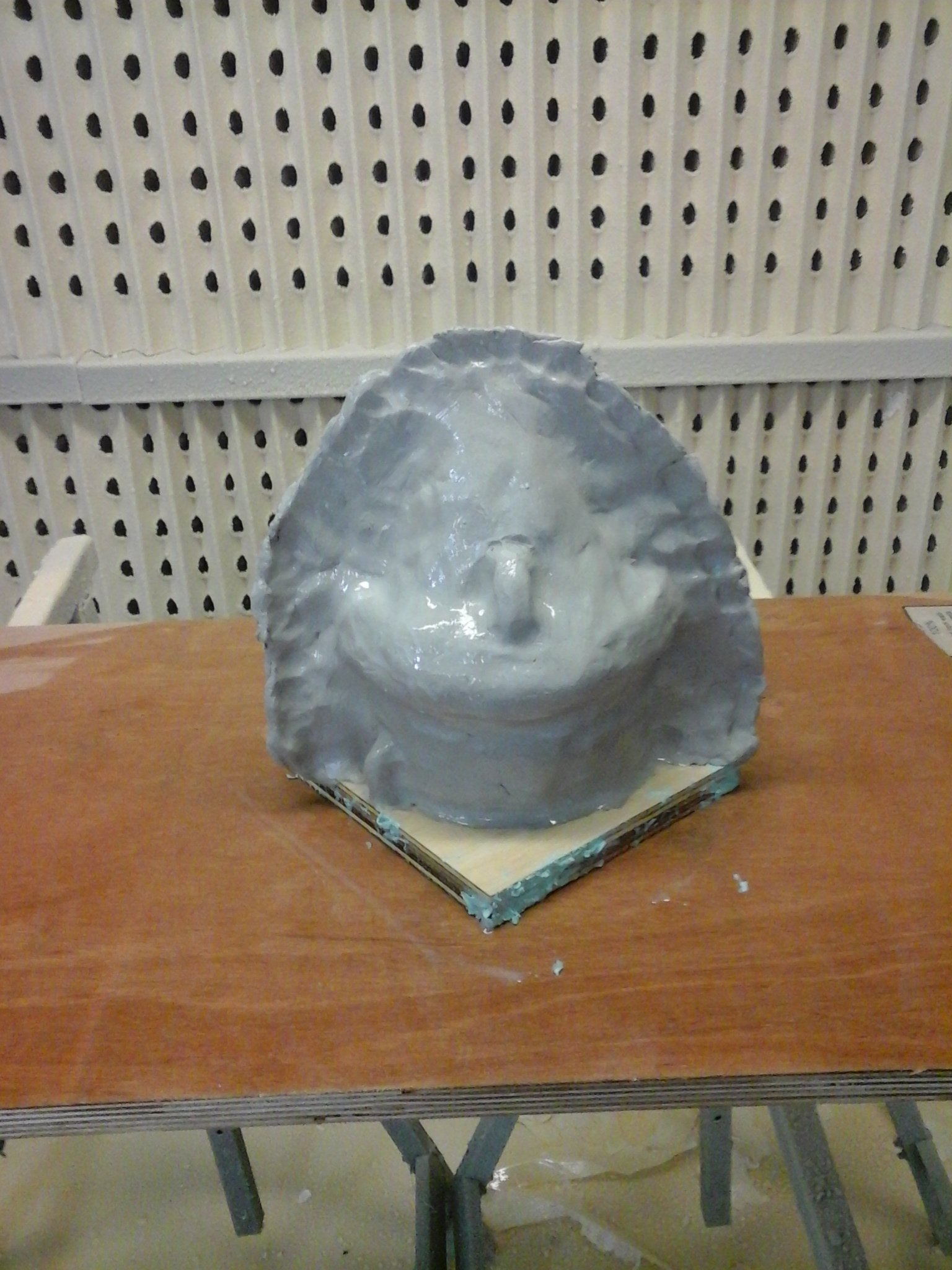

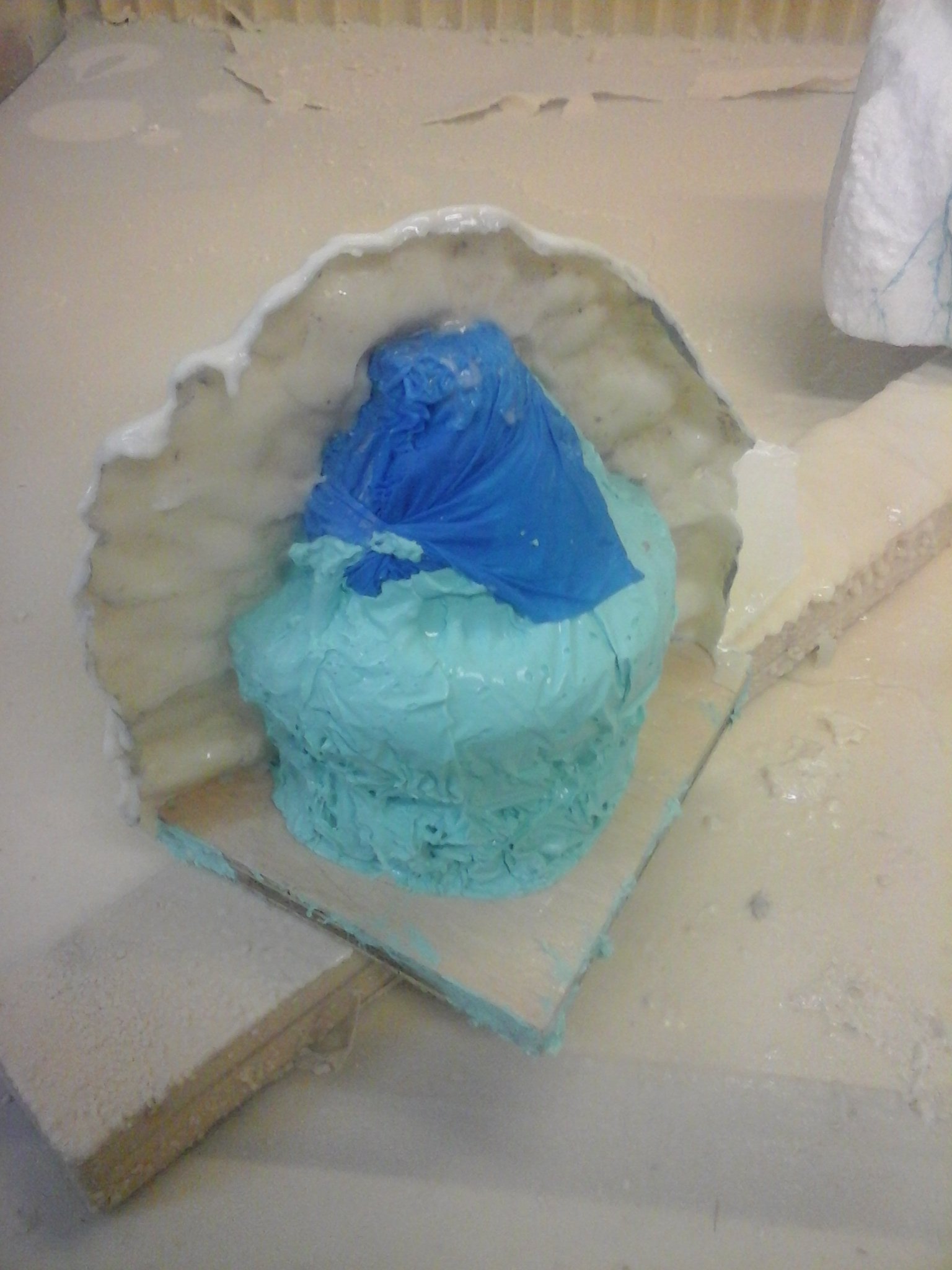

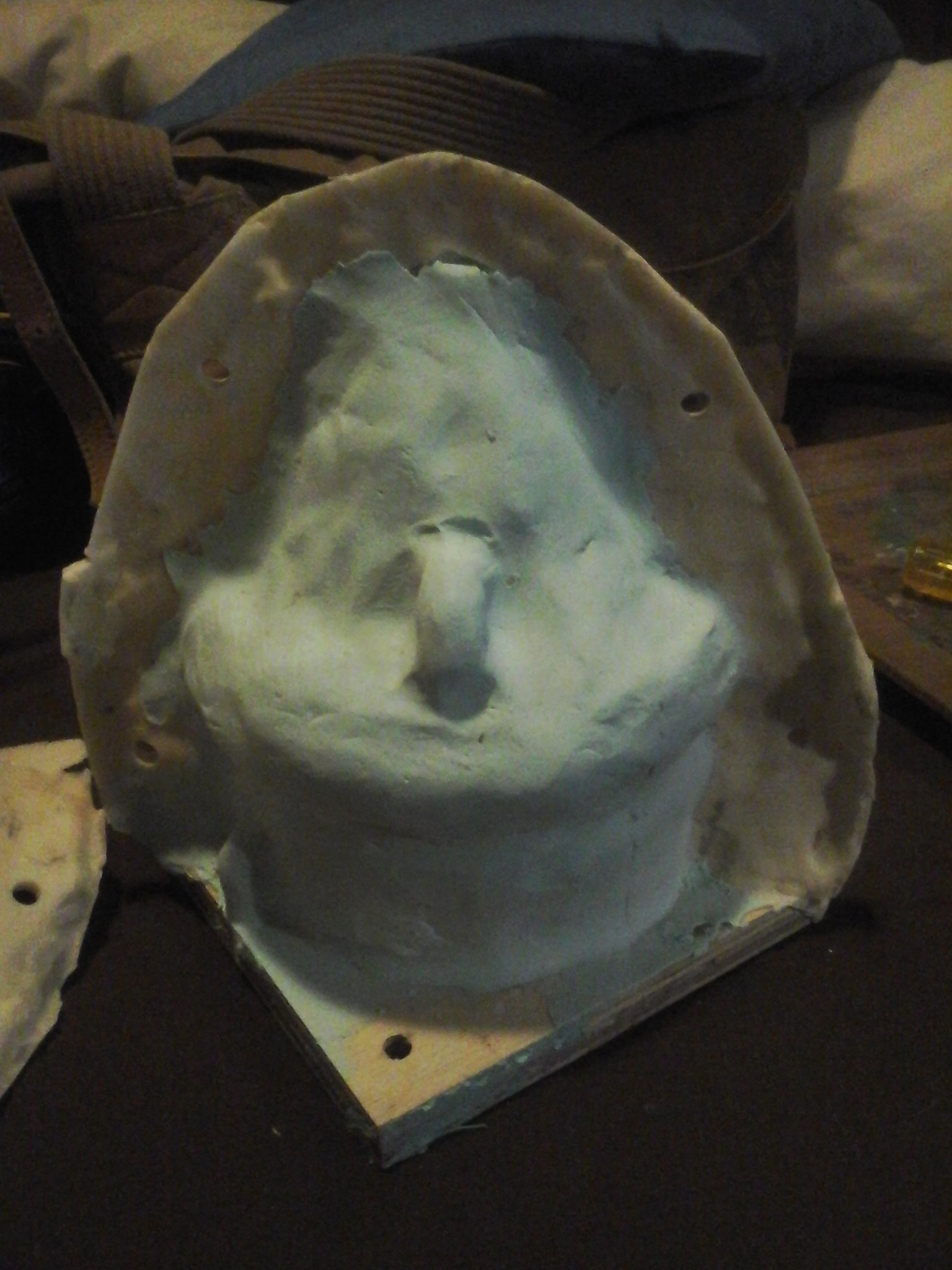

    hay guys its been a while since i last posted but i have been working on my project. i cast my rocket boosters

    20150914_133123.jpg 20150928_202500.jpg 20150925_122804.jpg 20150928_202512.jpg 20151127_163057.jpg

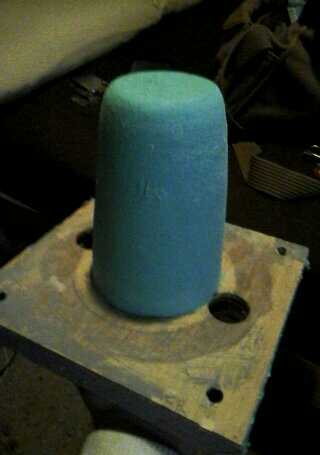

    i also had to make a silicon *coff* plug for the inside of the boosters

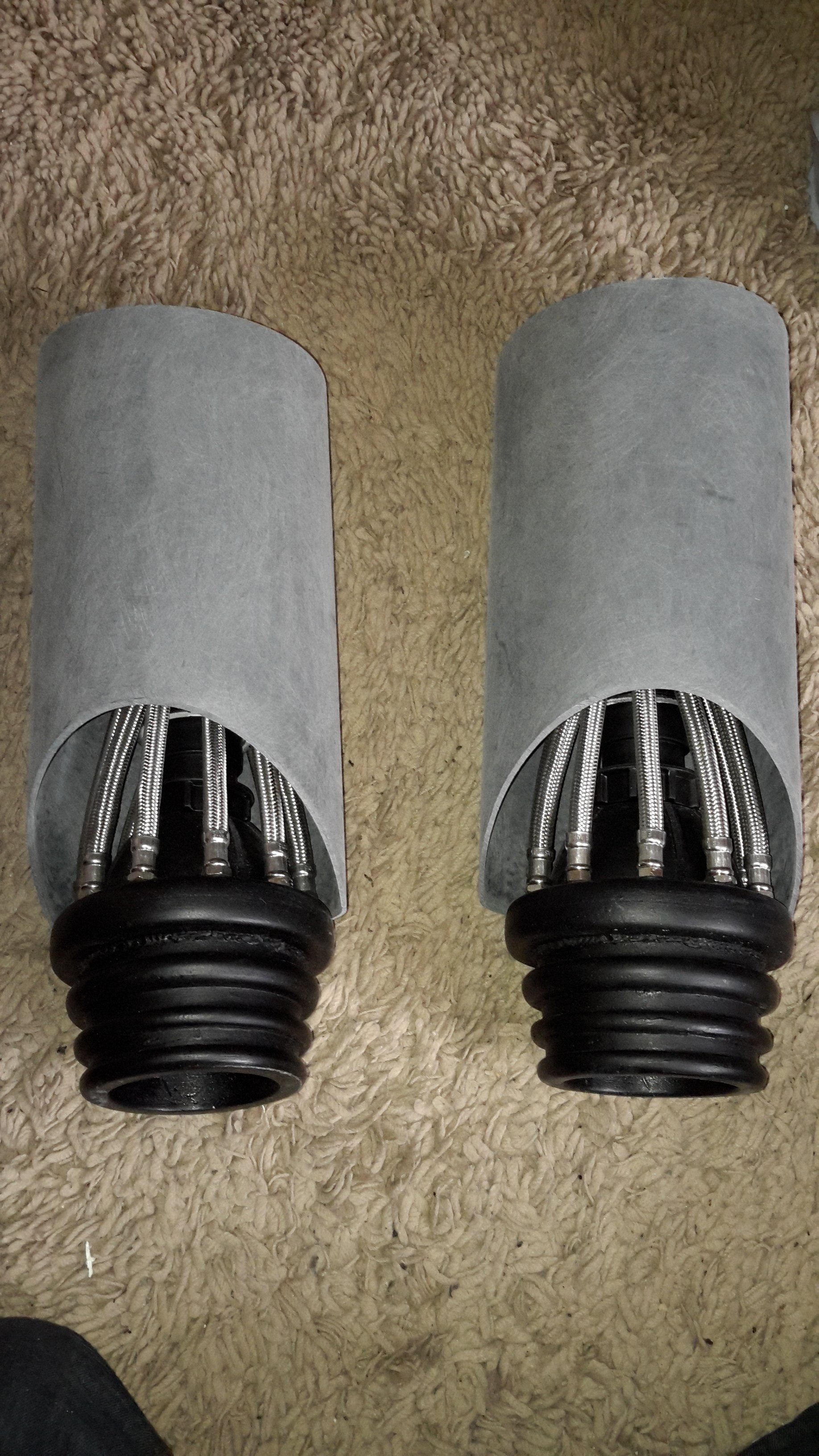

    as for the fuel pipes i got some flexable water pipes and screwed some bolts into the end then cut the heads off and screwed then into some pre drilled holes on the booster


    the gray pipe i will be using is 6" soil or drainage pipe.

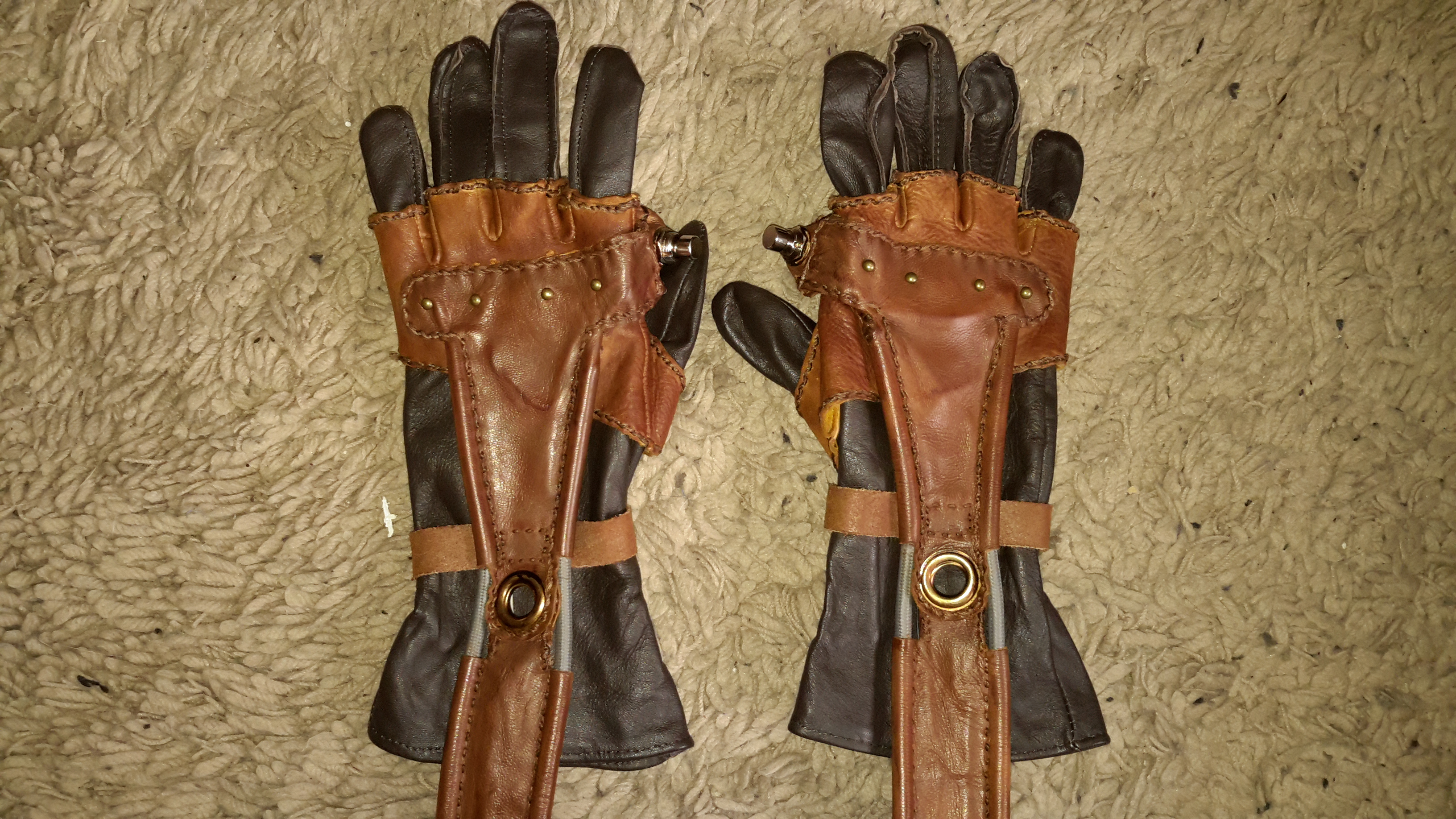

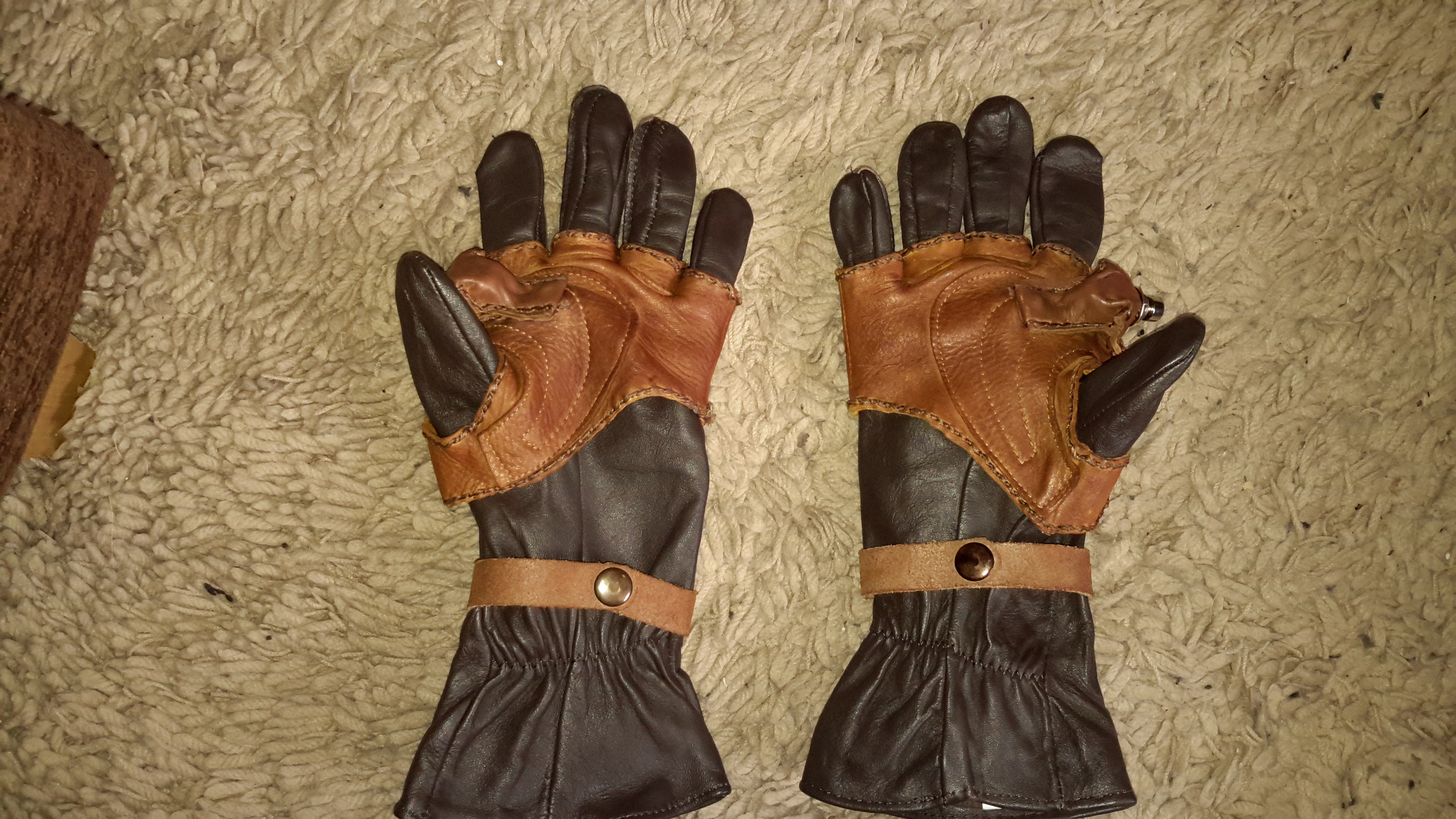

    the gloves are almost fully complete now, i want to add some straps up the arms to keep the cables in place if i dont have a jacket on but that will be a small addition.

    20160320_122748.jpg 20160320_122726.jpg

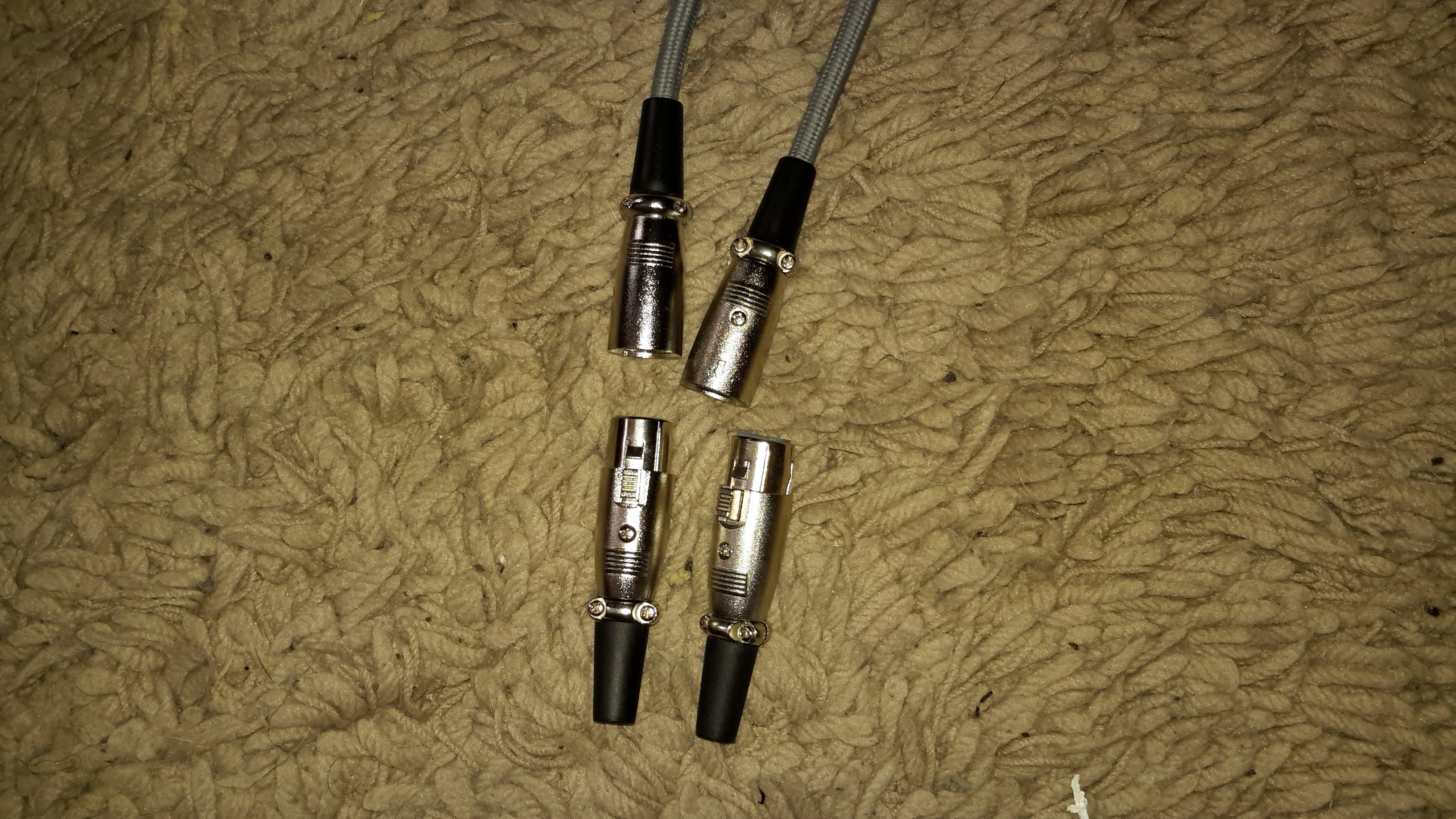

    to connect the buttons to the jetpack i have some 3 pin connectors


    these will be great so i dont have to struggle getting out the pack and gloves at the same time.

    ive also bought most the costume now,


    ive also orderd some gaiters to go with some boot.

    this is the jacket i ordered

    http://www.ebay.co.uk/itm/Custom-Ta...460140?hash=item35dd250f2c:g:HuQAAOSwPe1UJALn

    and the breeches

    http://www.ebay.co.uk/itm/111848930239?_trksid=p2057872.m2749.l2649&ssPageName=STRK:MEBIDX:IT

  15. glyntheelf

    glyntheelf Jr Member

    Trophy Points:
    53

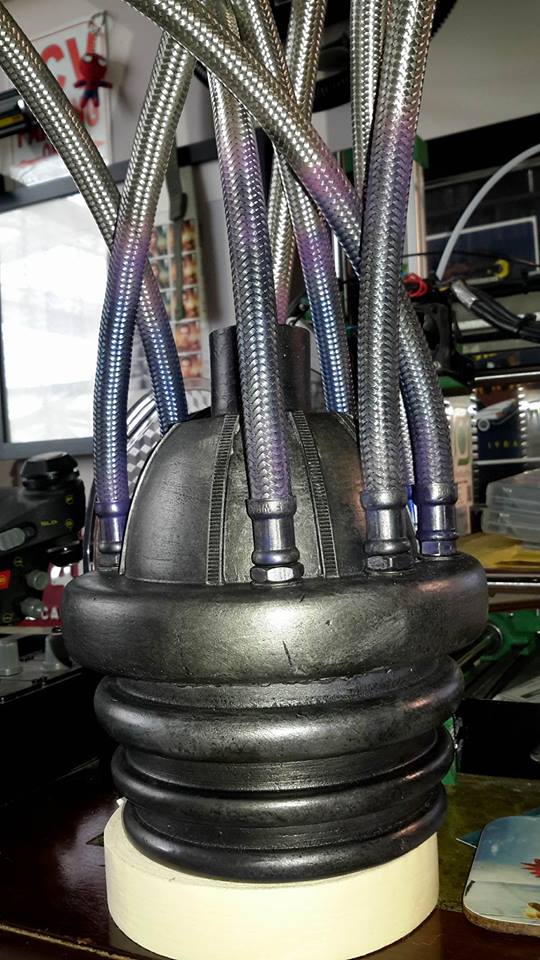

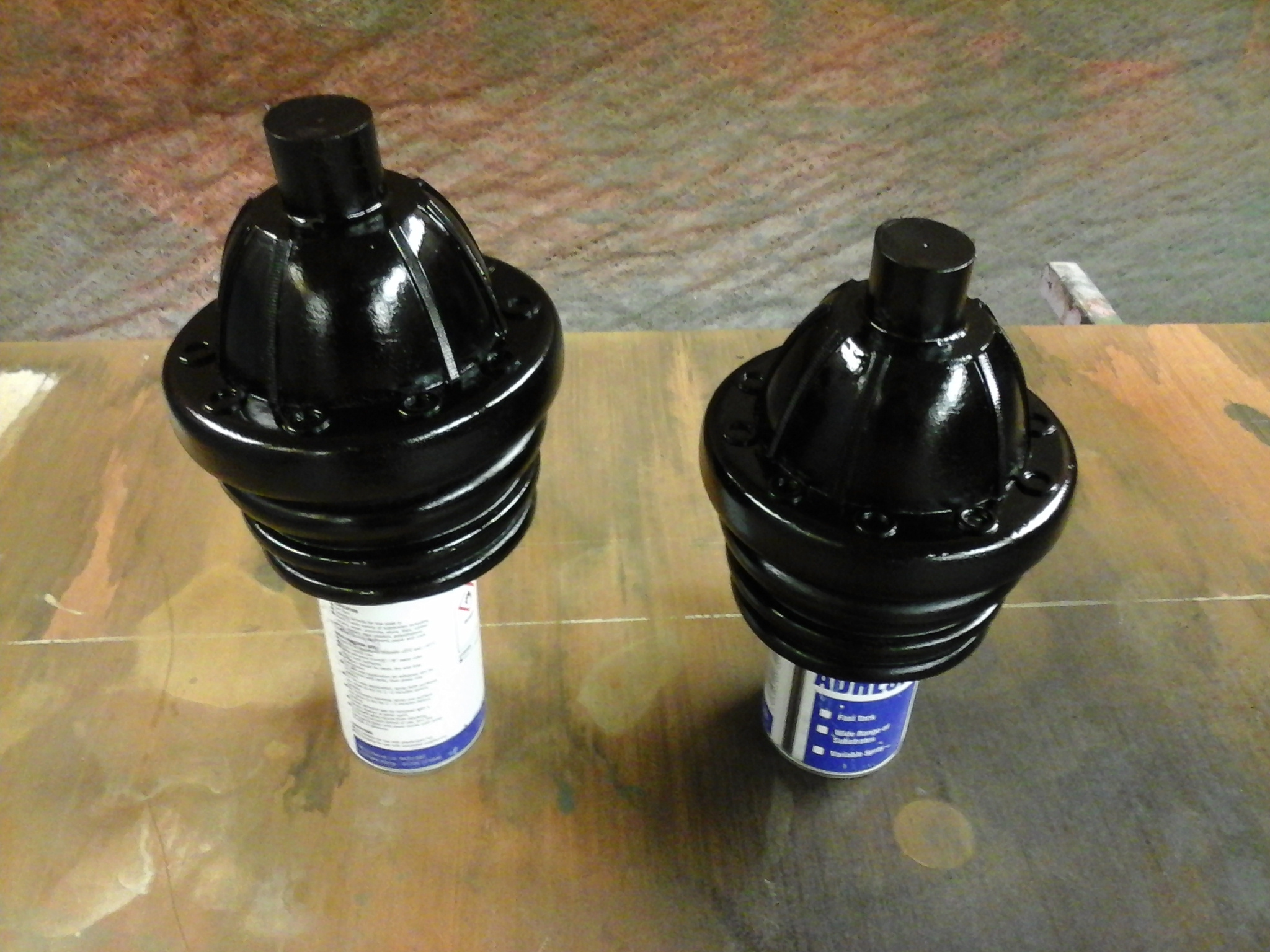

    bother boosters are finished and painted.
