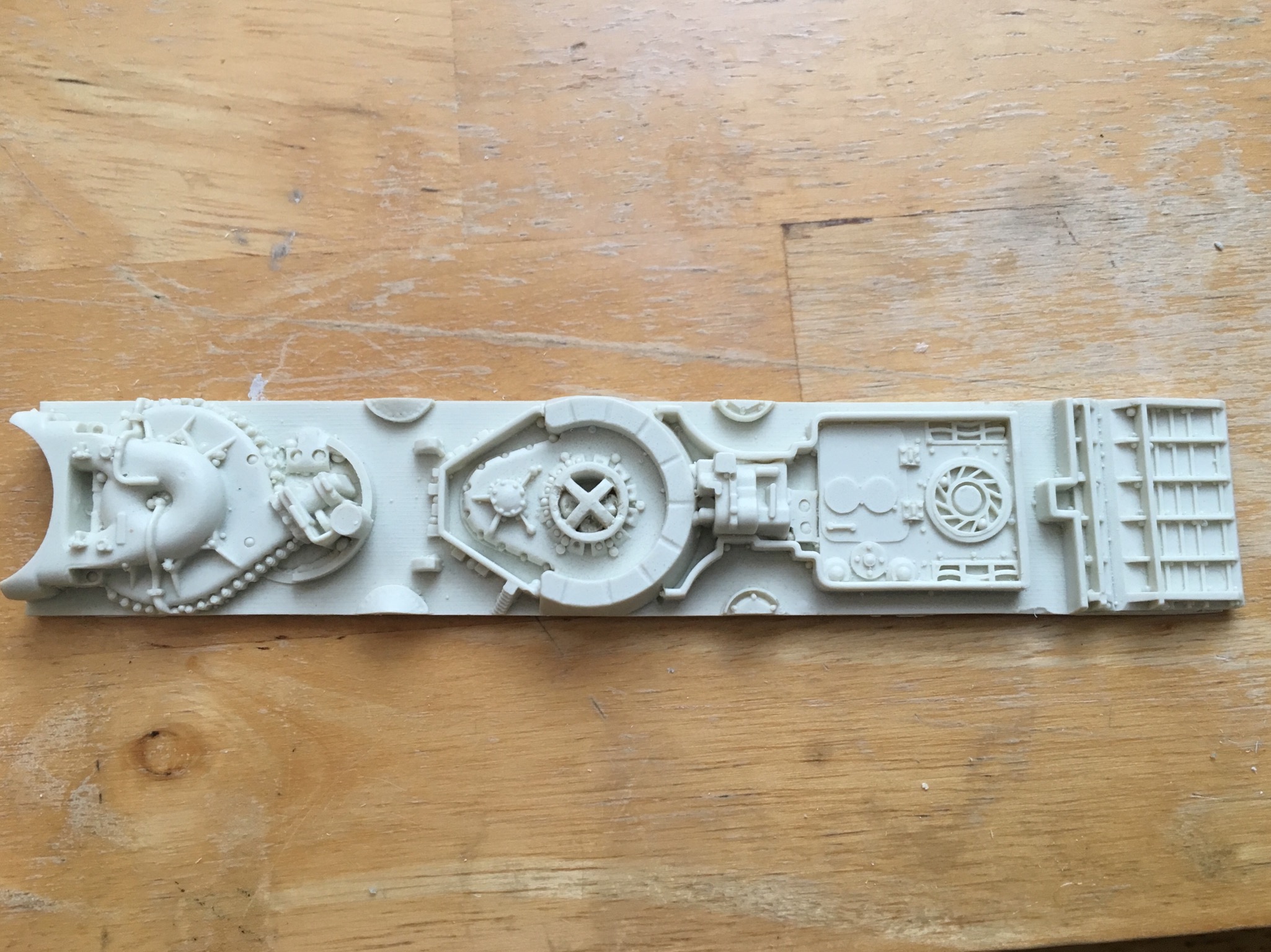

I have this one, if it helps.


Attachments

  • 10733EAF-2A1C-40A2-9DB4-3D2FF4FE77A0.jpeg
    644.9 KB · Views: 159

Studio Kitbash

Sr Member
RPF PREMIUM MEMBER

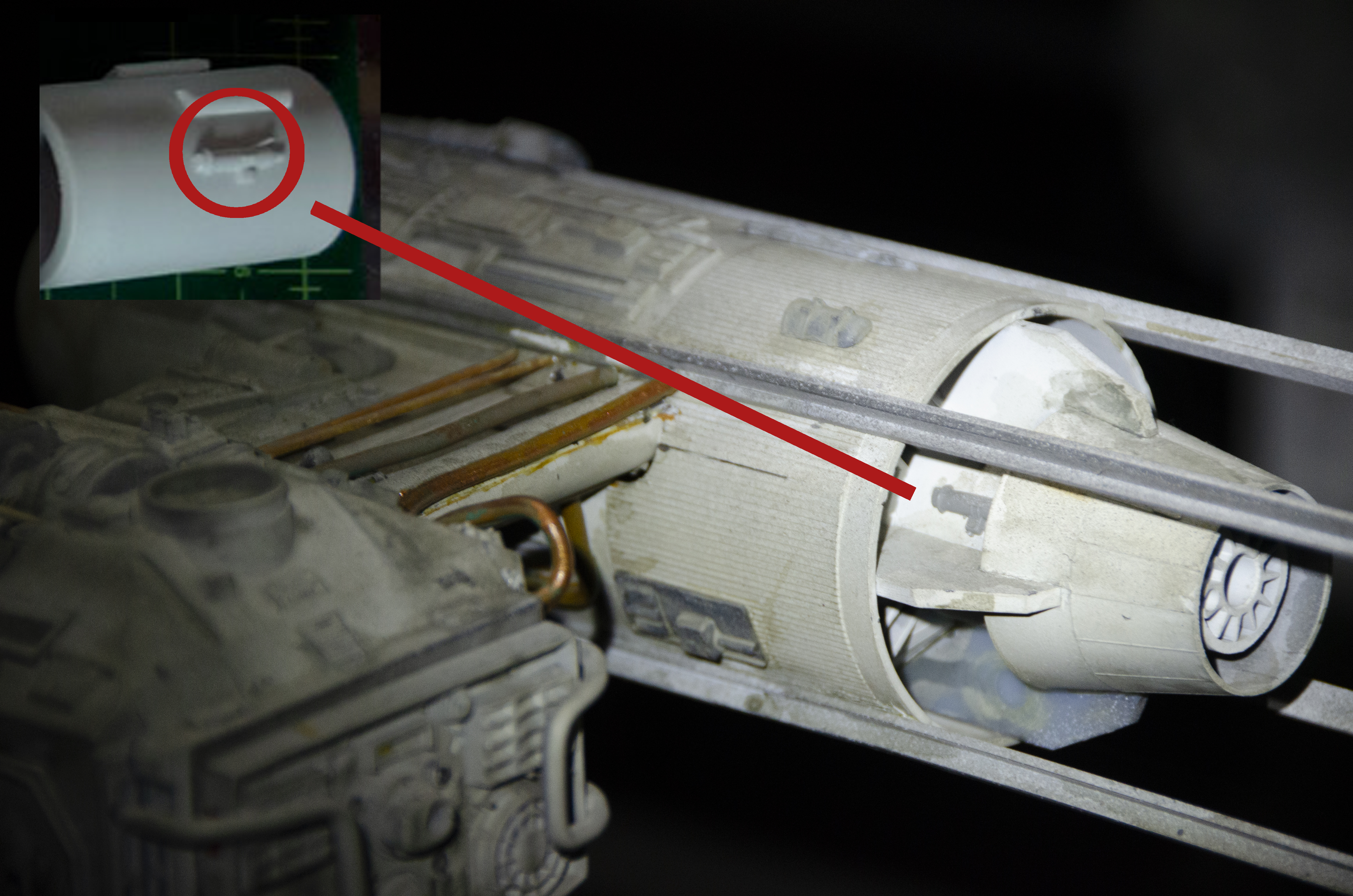

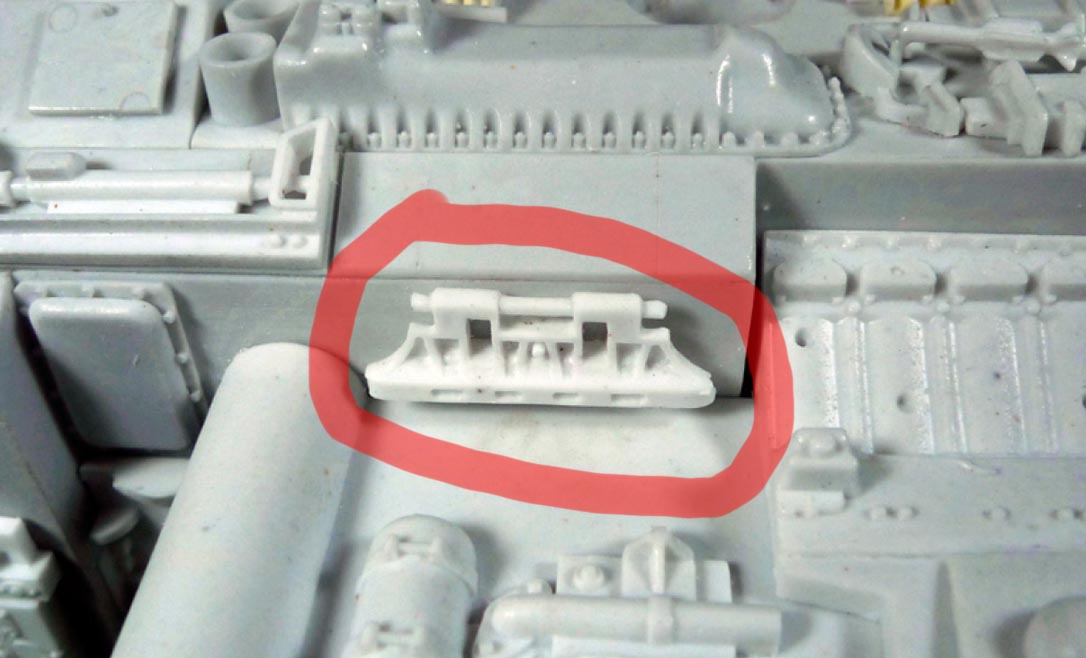

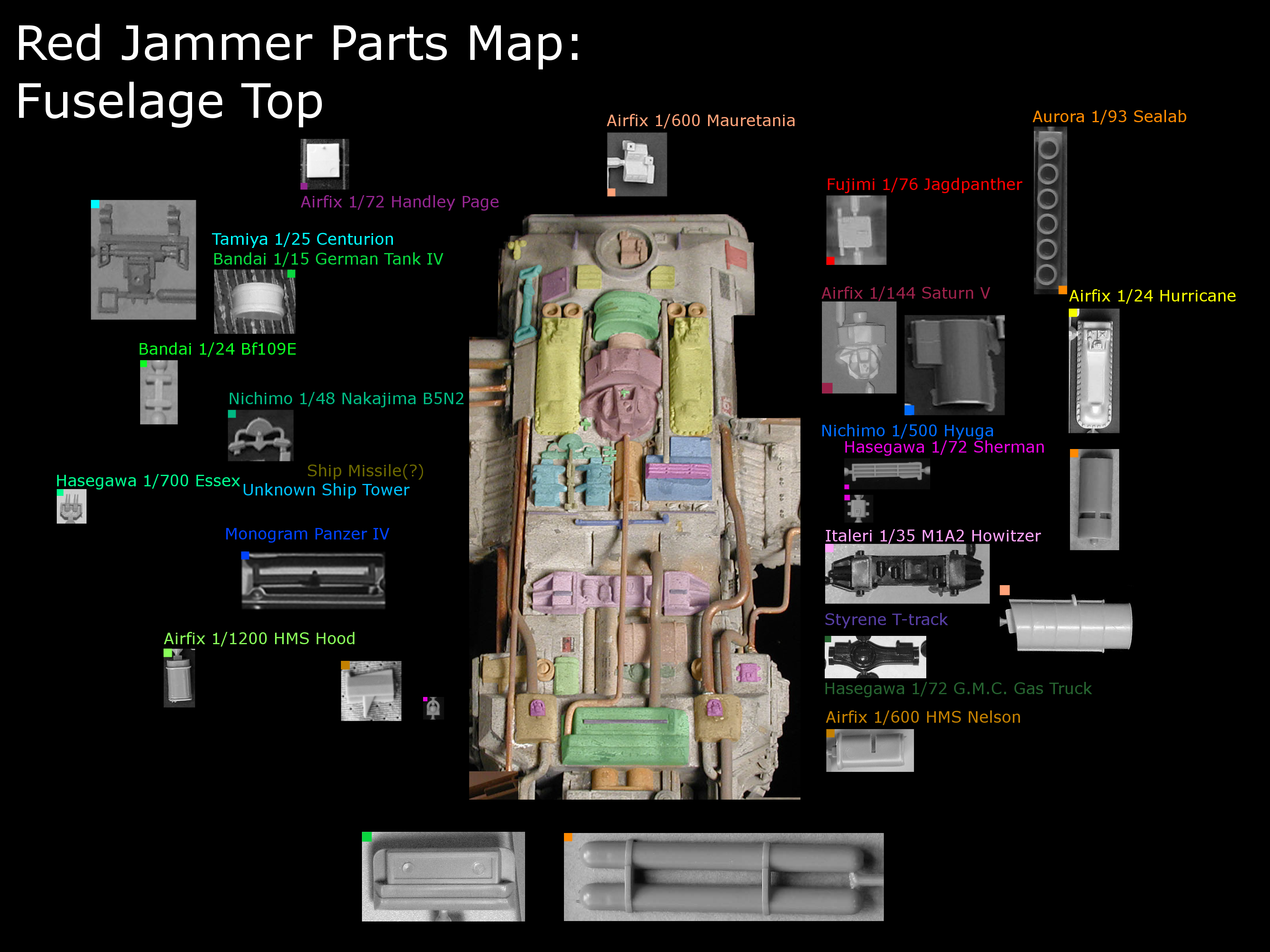

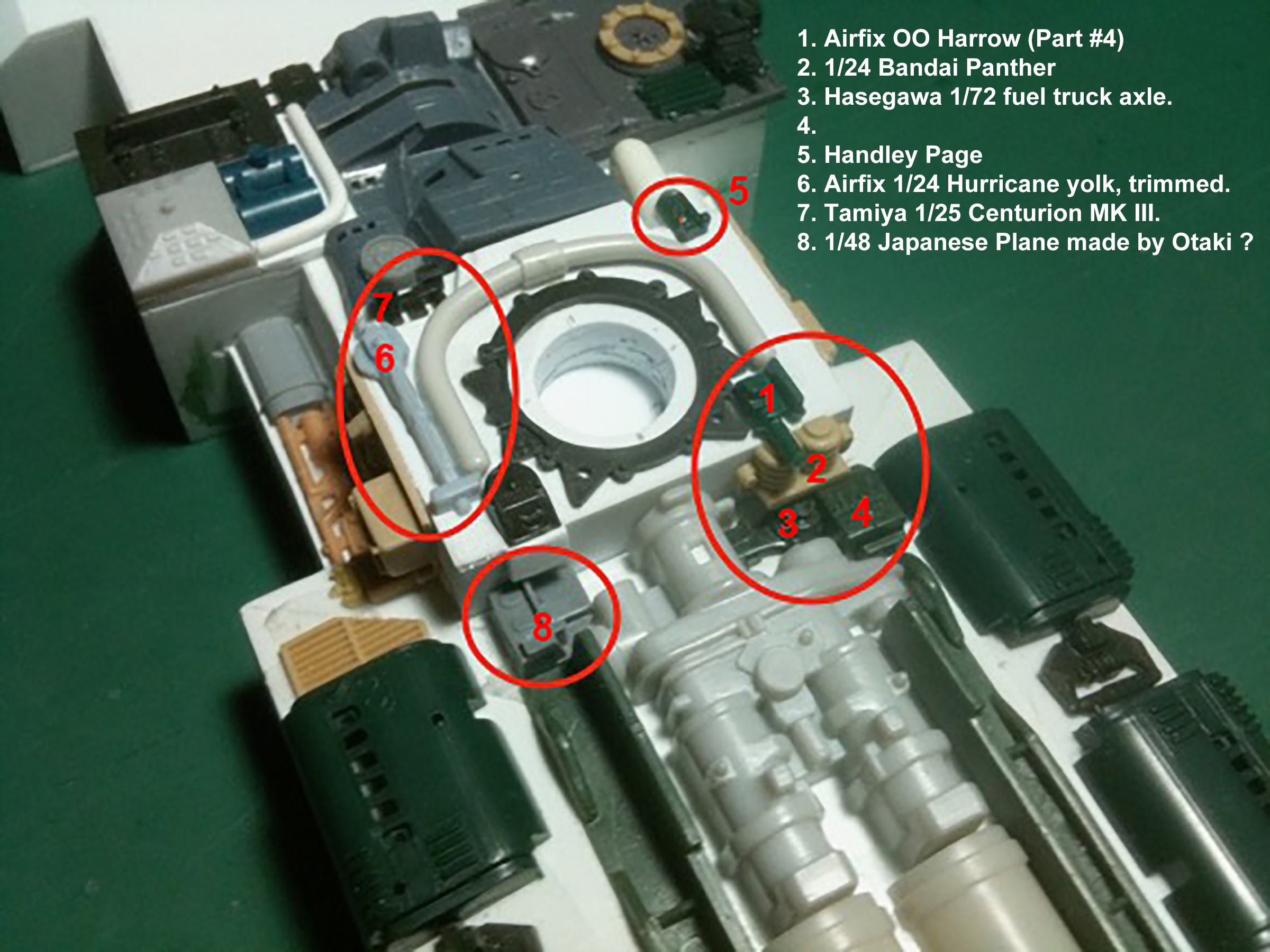

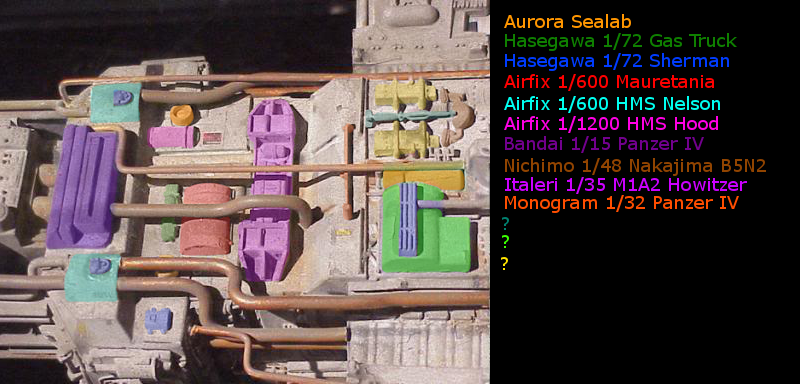

Anyone have a clear photograph of the 1/25 Centurion part on the "Red Jammer Fuselage Underside" that sits just in front of the mounting hole? It's on the Parts Map, but the picture is so fuzzy it's not at all clear whether it's a stand-alone part or a heavily modified subsection of a larger part. A clear photo of either your build, or the part, or simply a higher-res underside shot would greatly help in Identifying Sprue Letter and Part Number. Thanks!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Studio Kitbash

Sr Member
RPF PREMIUM MEMBER
Green Mystery Part #3 Identified:

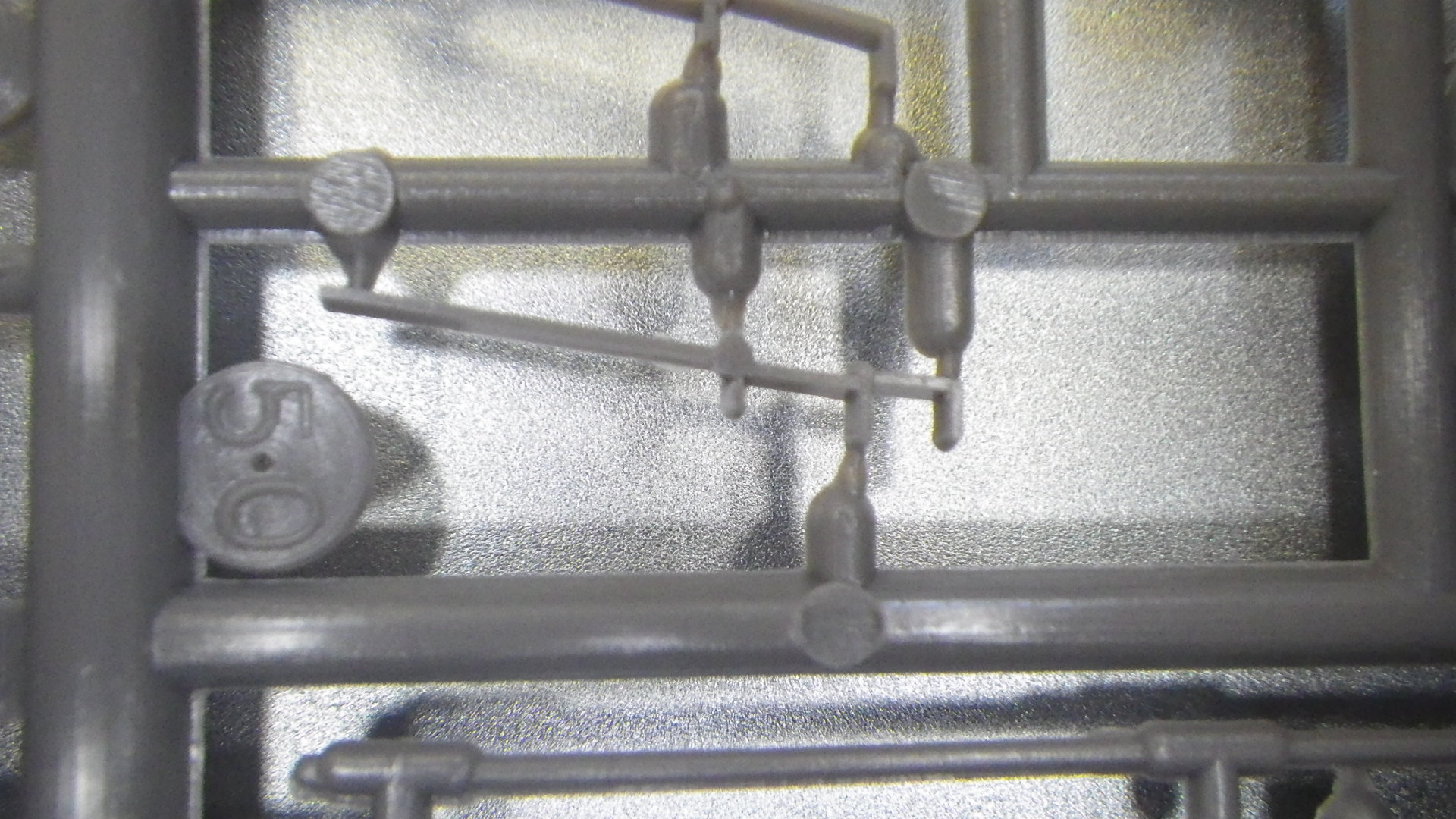

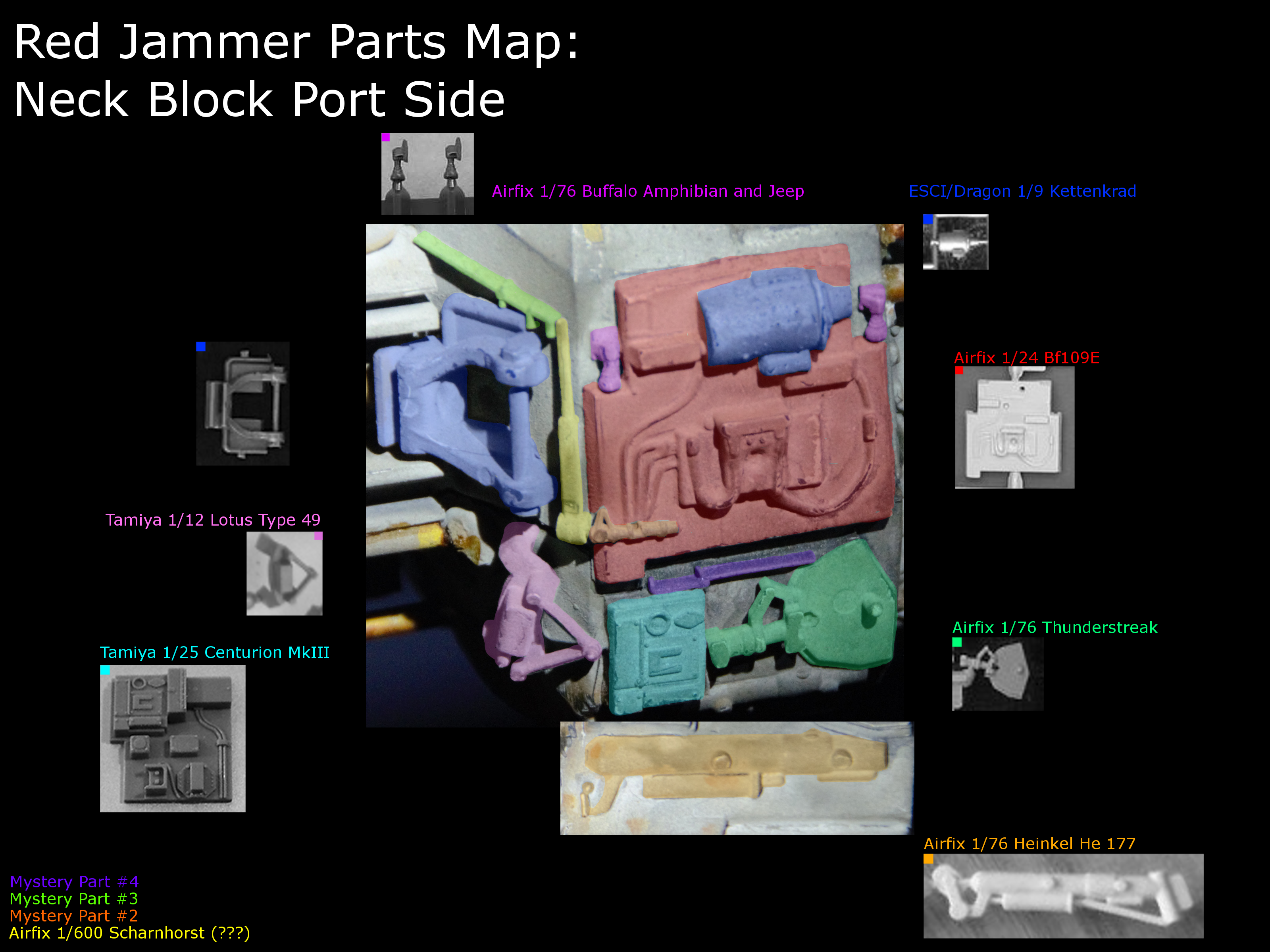

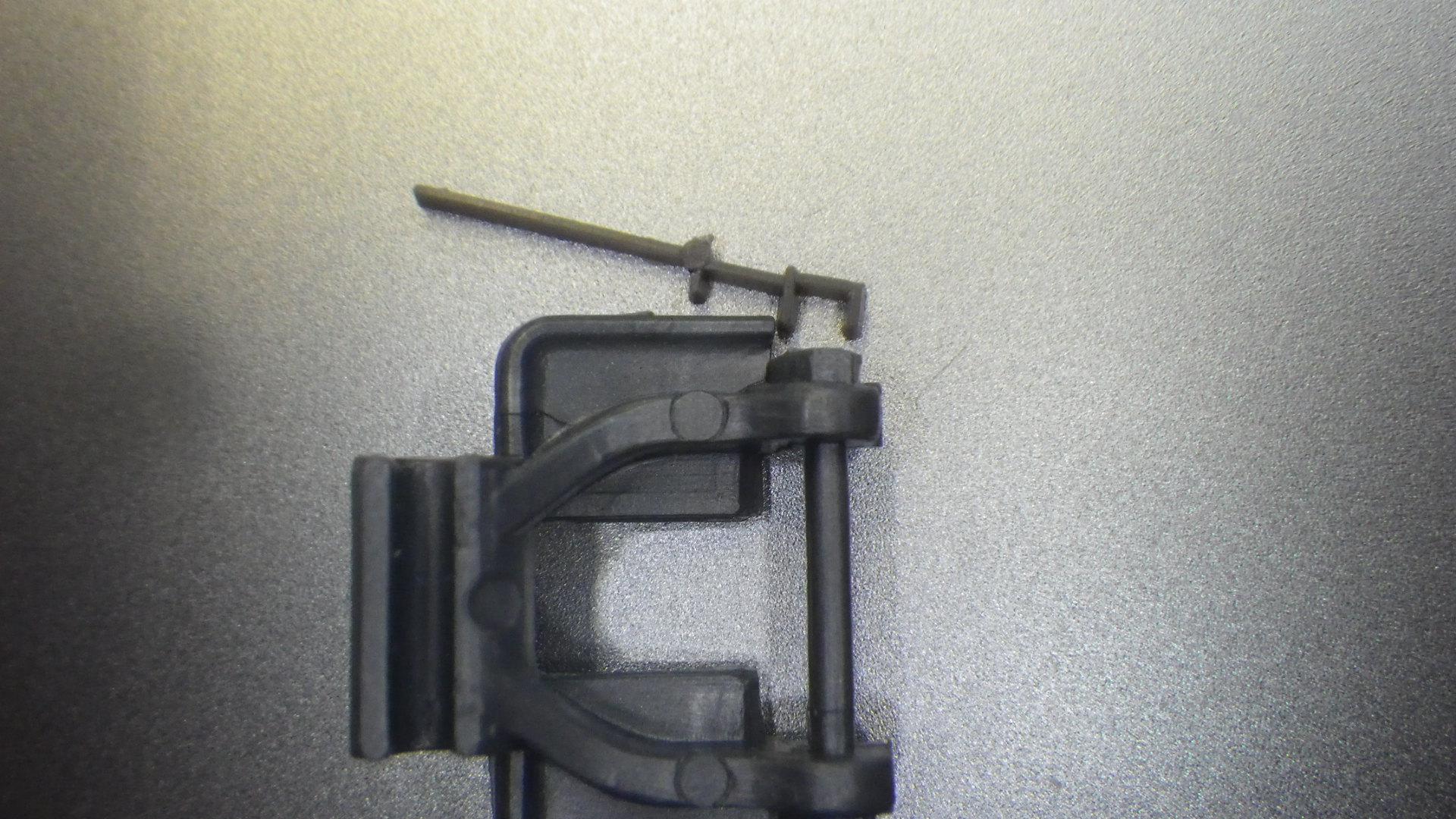

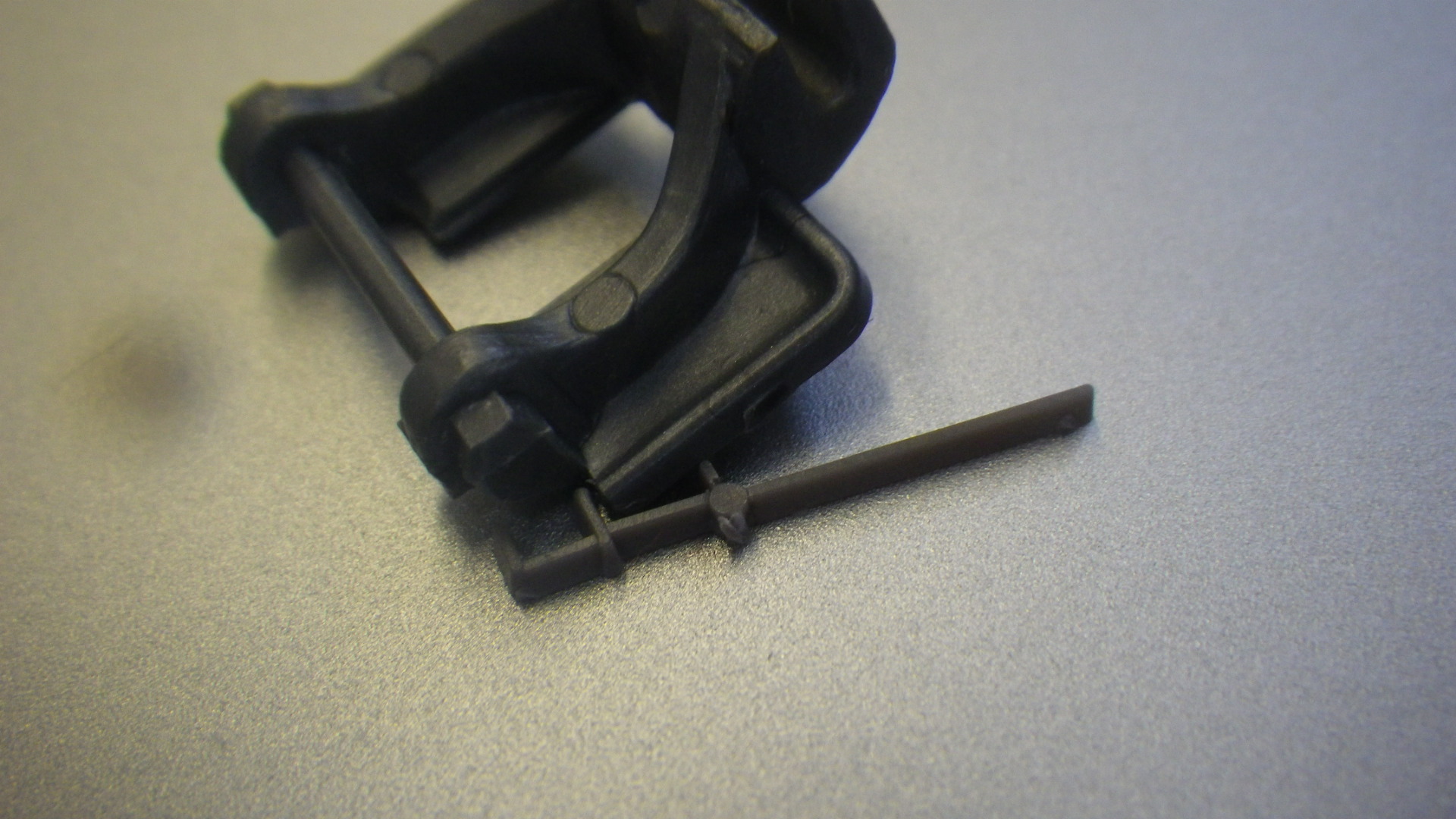

On Parts Map 3, "Red Jammer Parts Map: Neck Block Port Side" the "Mystery Part #3" highlighted in green is Part #50 ("Gangway") from the vintage Otaki 1/600 Yamato.

IMGP7032.JPG IMGP7035.JPG IMGP7037.JPG


And yes, it took me 2.5 years to find this kit.


Attachments

  • IMGP7032.JPG
    458.4 KB · Views: 144
  • IMGP7035.JPG
    487.4 KB · Views: 137
  • IMGP7037.JPG
    475.2 KB · Views: 131
Last edited:

Studio Kitbash

Sr Member
RPF PREMIUM MEMBER
You scored a vintage one? nice!

Yes, turns out the GREEN background Otaki Yamato is also a boxing that contains the original molding of the kit. Just be sure to avoid the Yellow background boxing and the Silver background boxing. Set your Ebay search for "OT1-28 Otaki Yamato 1/600", and either be awake between 1:30 AM and 2:30 AM when Ebay sends out their alerts, or do searches on International Sellers at least once a night/morning every day for two years and you too will get lucky. (I am under the impression that International Sellers do not "show up" in Saved Searches, which is how I found mine in Germany of all places. The guy who had it wrote the price he paid for it in 1977 on the inside box top, and it was less than 12 Deutschemarks.

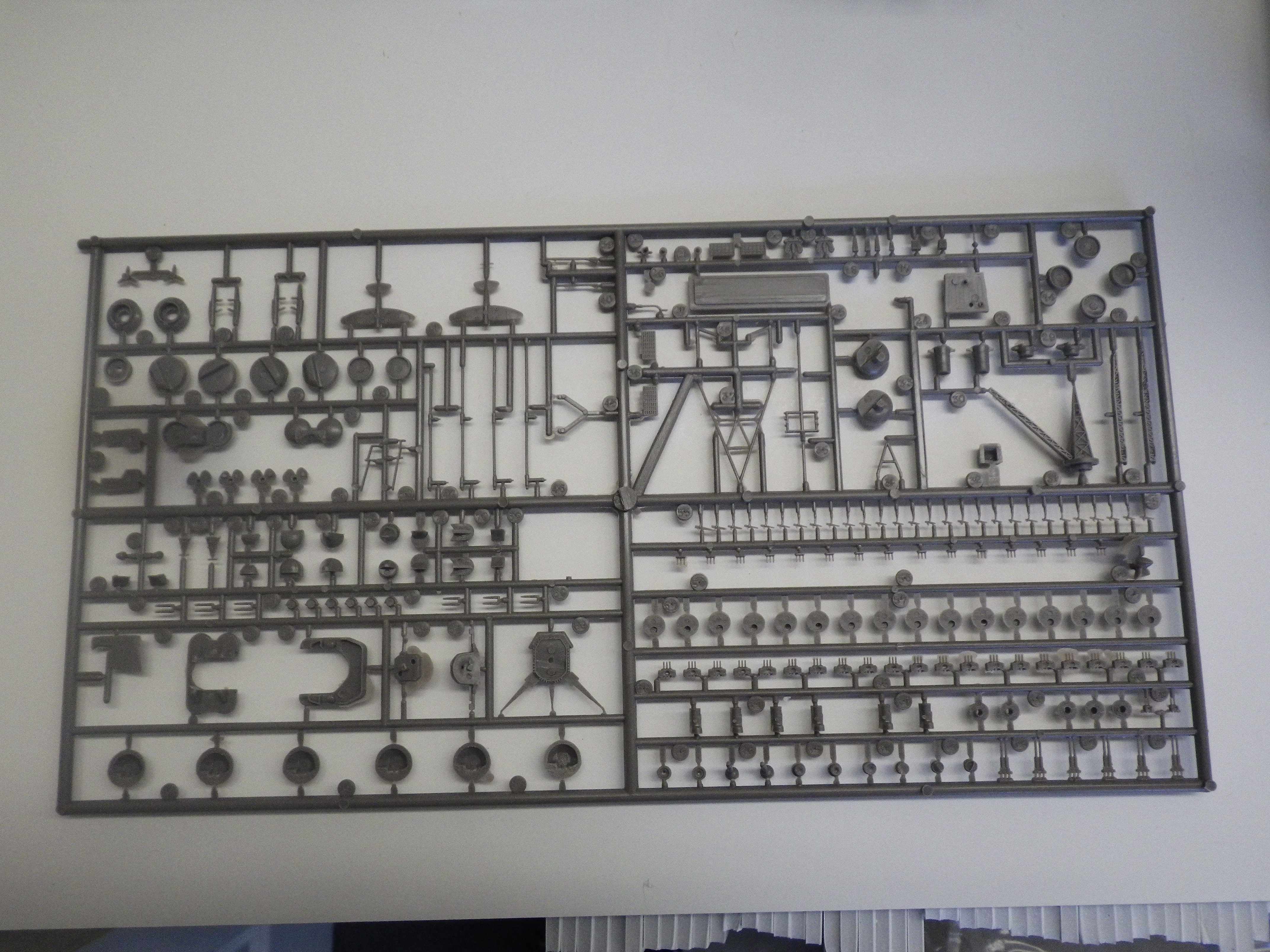

fullsizeoutput_ecc6.jpeg IMGP6999.JPG

Meanwhile, if anyone needs a casting let SJanish know (and he's a much better mold-maker), and he'll make one for you.

Last edited:

sjanish

Sr Member
RPF PREMIUM MEMBER
Here is a picture of my Otaki Yamato castings. Go find my thread in Project Runs if you are interested in a set plus lots of other parts for the Y-wing.

y4mWHDnUHVXfJkahqtPrAiOuLM33xibGohg5uq0zReL_lb8JGVxcaiqXqxOD5eChM3M116eMzWz2V3VpD_yqcjWIKDQnb6EK7QtY0ouInvZlqymi8mOsujotNyr72Cak5jFC9_p5HPH0dJYtsY3u_PEMCtPmjOq1sbPeI6RlJ8QEKaBFfPBLVWhQUD3VkM1xwbbqjUdj7R0Z-Ckd3sn2d5Kvw


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Studio Kitbash

Sr Member
RPF PREMIUM MEMBER
Plastruct Order Part Numbers for Piping are

90101 3/64" O.D. Butyrate Coated Wire (sub for 1/32" ??? - need only 1 piece)

90102 1/16" O.D. Butyrate Coated Wire (Need 8 pieces)

90103 3/32" O.D. Butryate Tubing (Need 22 pieces, so 2 packages minimum)

90104 1/8" O.D. Butyrate Tubing (2 pieces, PLUS 2 for stirrup pipes)

90105 3/16" O.D. Butyrate Tubing (Need 2 pieces)


dtssyst

Sr Member
Big Dog, Please update the parts maps in the first thread with this and the new information listed above/before this post.
