Ray Gun Show Off Thread!


Sr Member
Forgot this one: prop replica prototype for a range of figures called "Space Vixens":



And this one, all made from parts found in charity shops, hence the name, "Help the Aged":


Also made from charity shop bits, "Princess Alice":




Yes, think that's it...


Sr Member

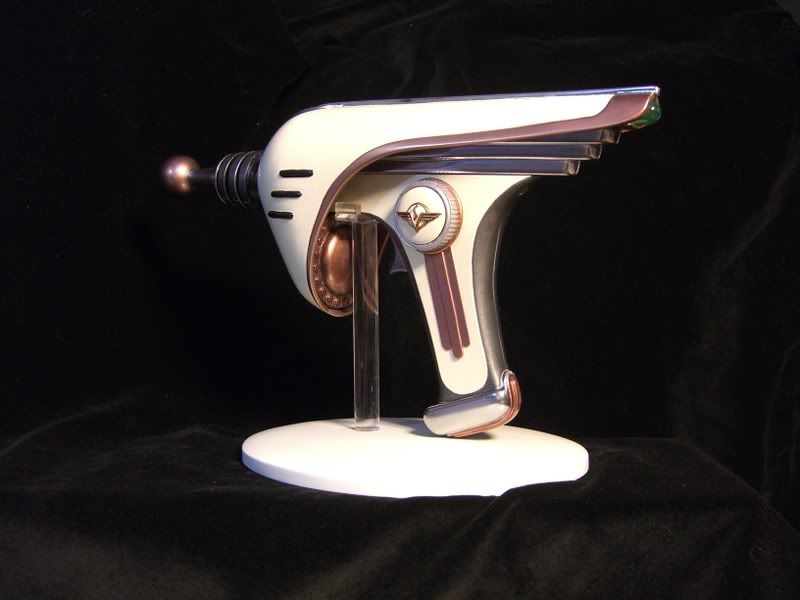

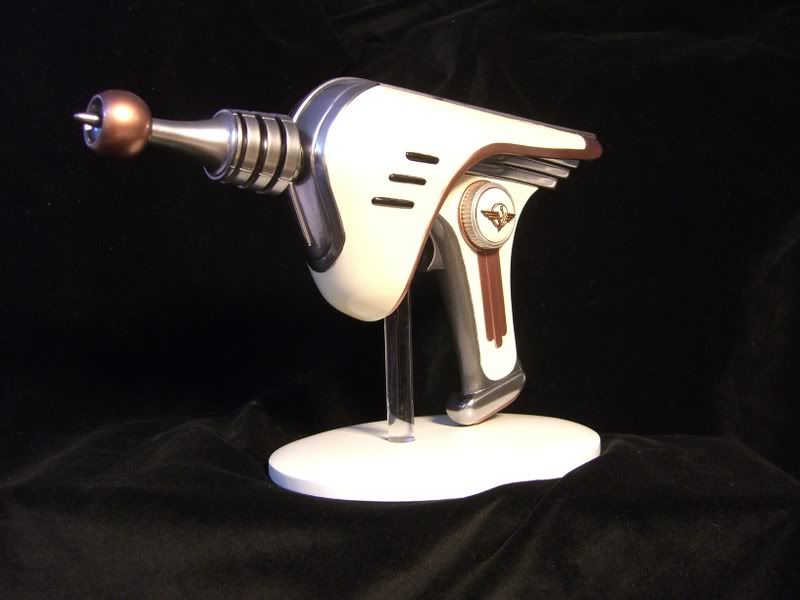

Forgot this one: prop replica prototype for a range of figures called "Space Vixens":

View attachment 1352655

View attachment 1352656

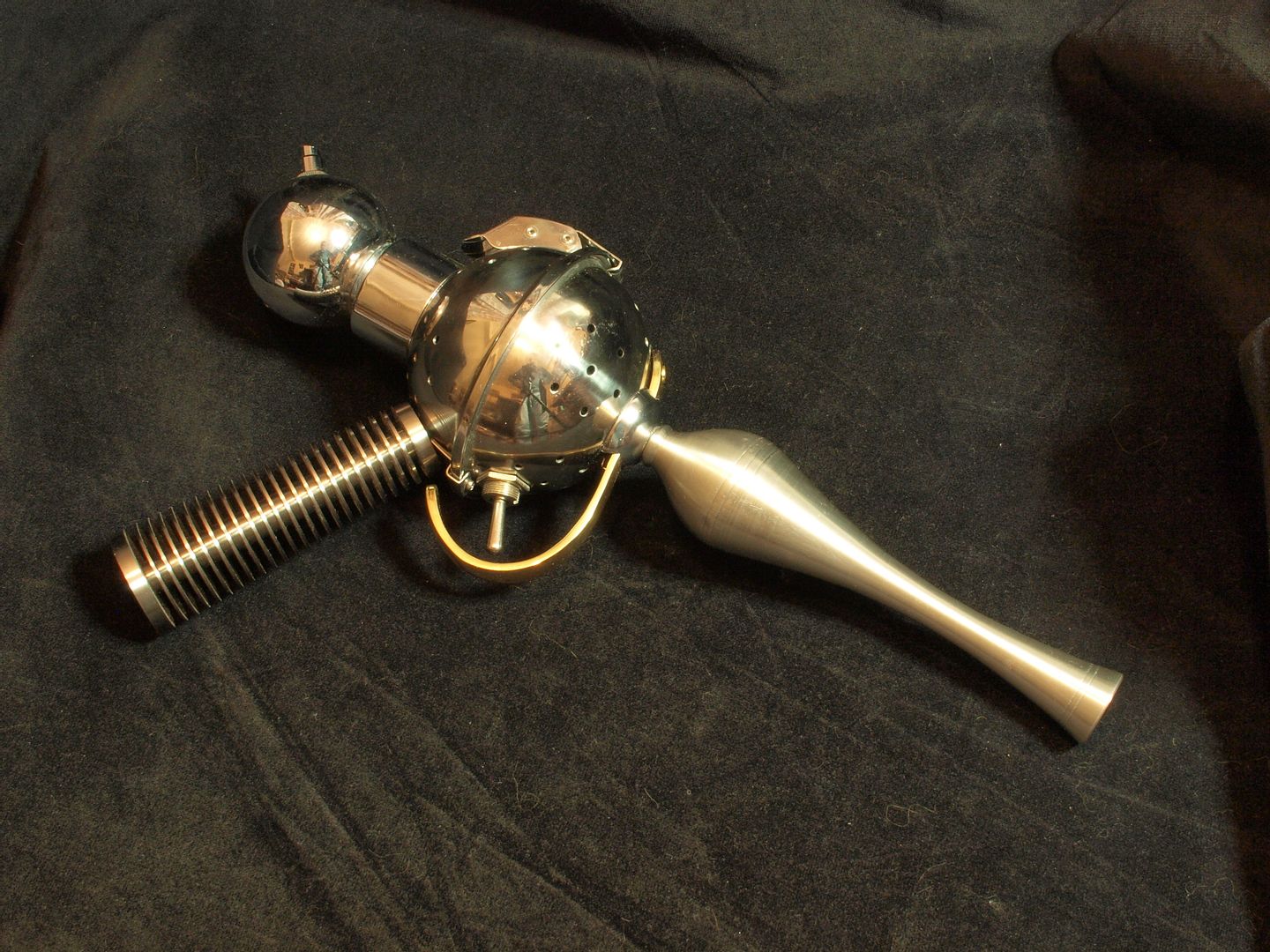

And this one, all made from parts found in charity shops, hence the name, "Help the Aged":

View attachment 1352657

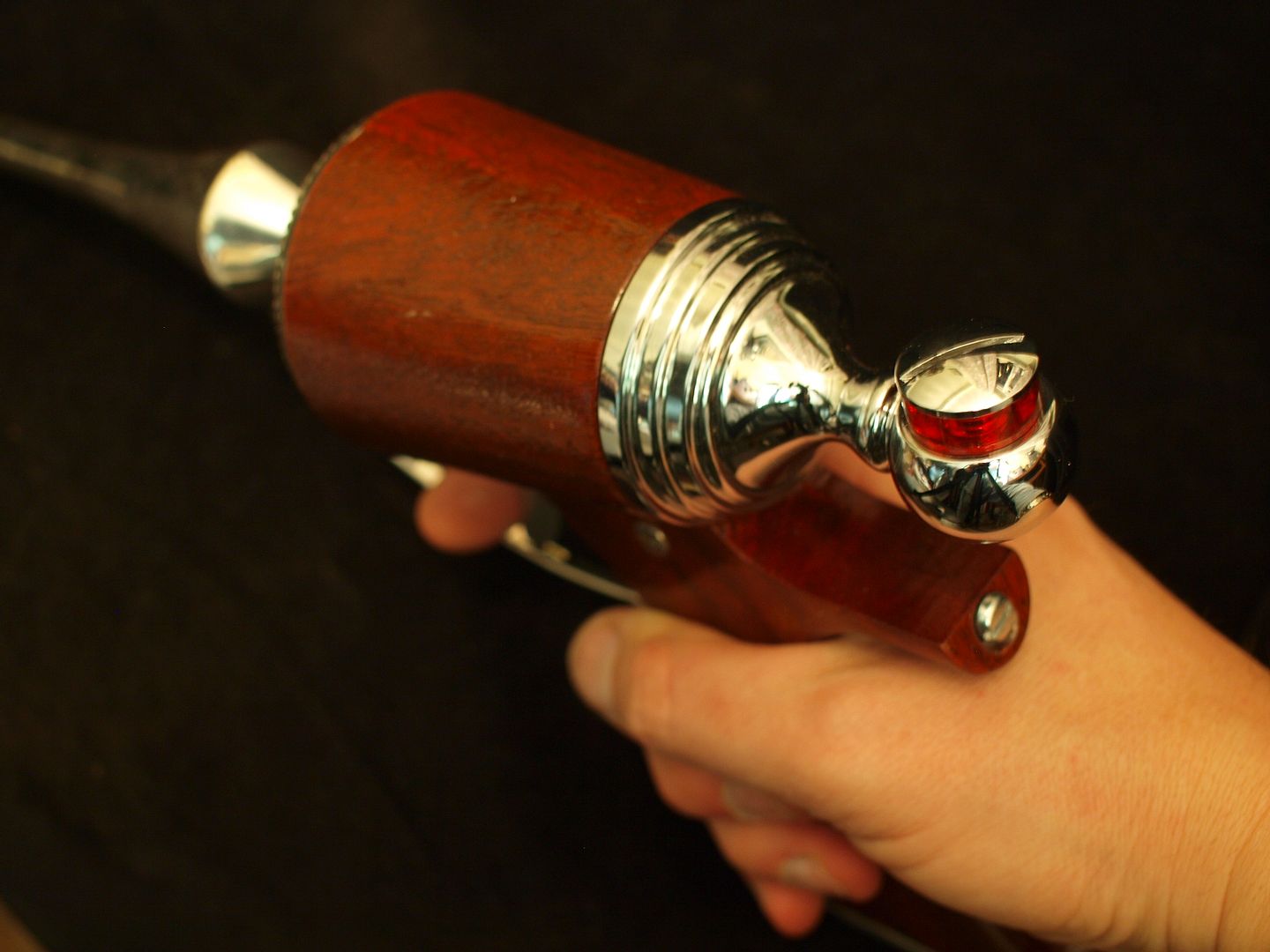

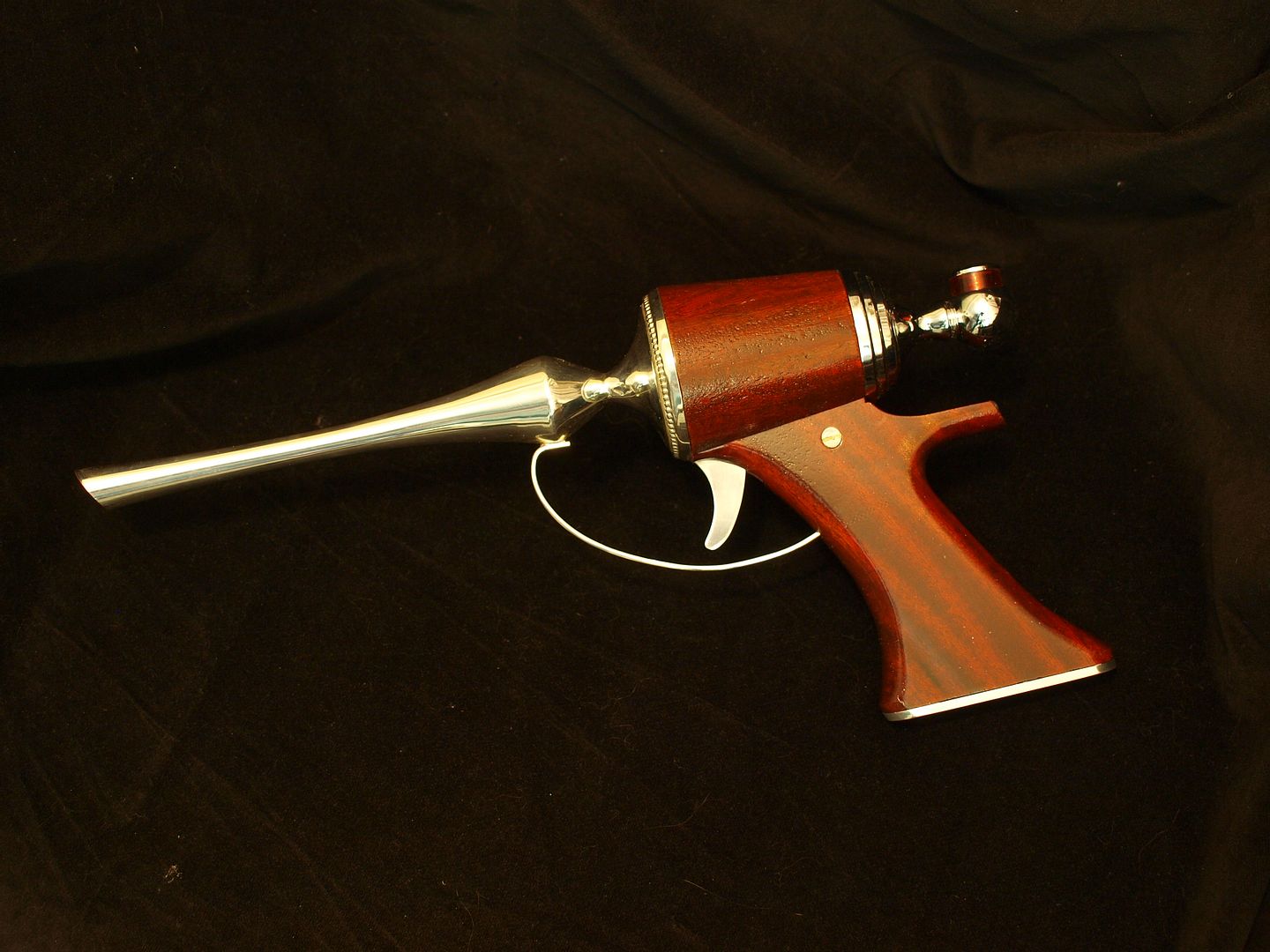

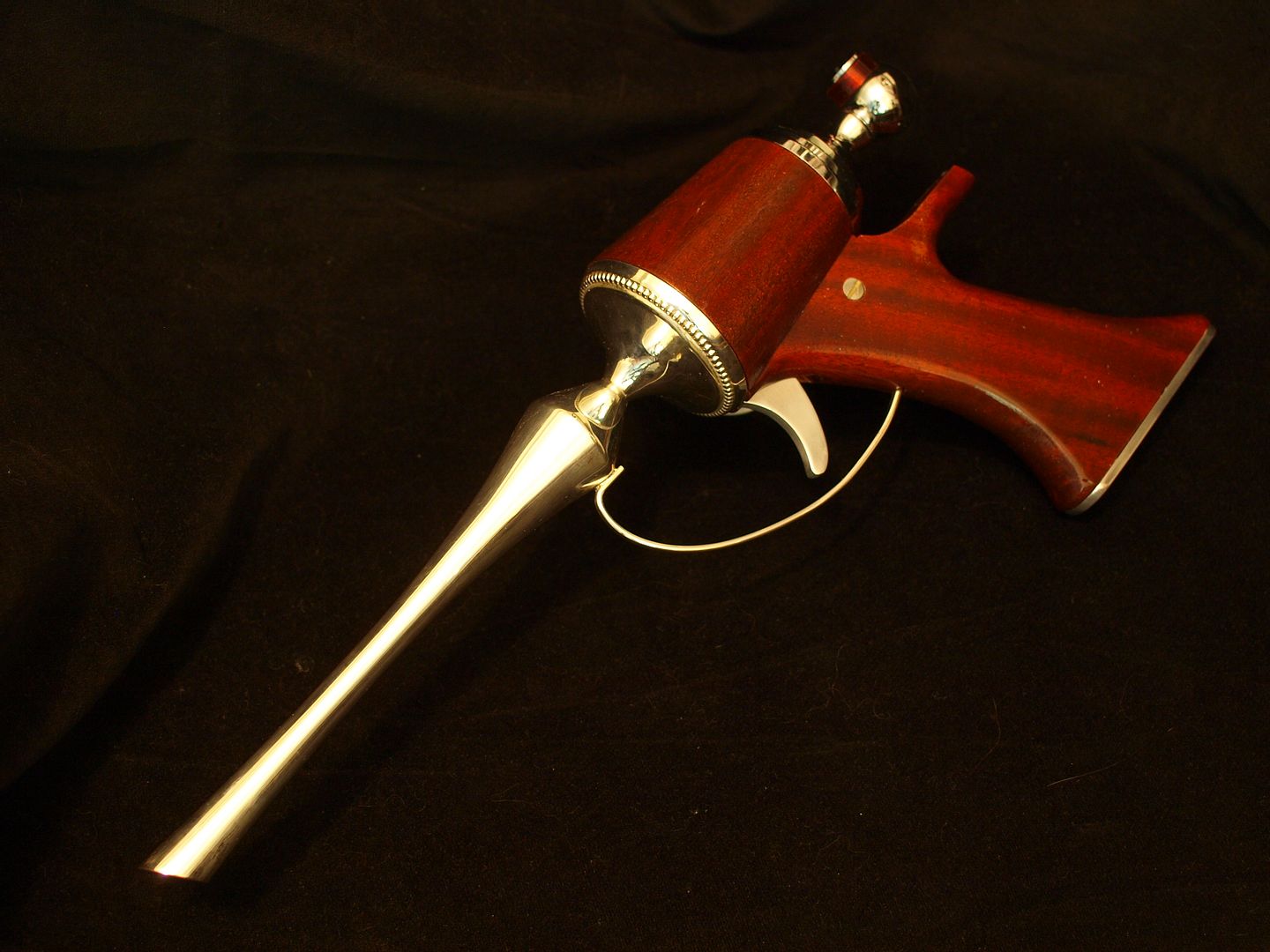

Also made from charity shop bits, "Princess Alice":

View attachment 1352658

View attachment 1352659

View attachment 1352660

Yes, think that's it...

Those are all awesome, but that Space Vixens one is really beautiful.


Sr Member
Agreed! Your work is incredible.
the DOCTOR do you have any build pics for the Vixen prototype?

Unfortunately, I lost a lot of pictures in a hard drive crash, including the build pictures of this Raygun, from memory, the curved part of the shell was moulded in fibreglass over a former, the straight part was a piece of 3" drain pipe, the handle was layers of Chemiwood/Modelboard, and the emitter was a lathe turned piece of fast cast resin.


Well-Known Member
All of these are amazing, so thanks for sharing! They look really fun to make too. Now I won't look at anything with a handle in quite the same way again :D

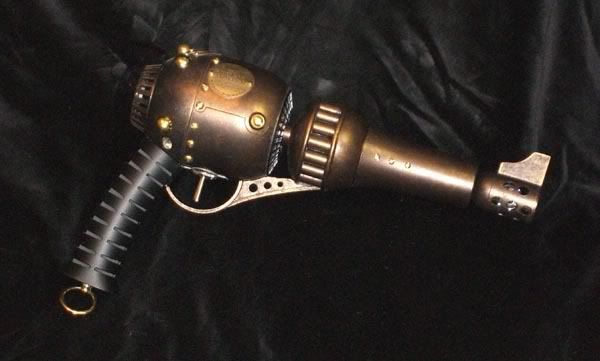

Rayguns, eh? Well, my first one from many years ago, was the Trubshaw, made from EMA/Plastruct domes and offcuts, went 'BRRRZAP!' and lit up:

View attachment 1352293

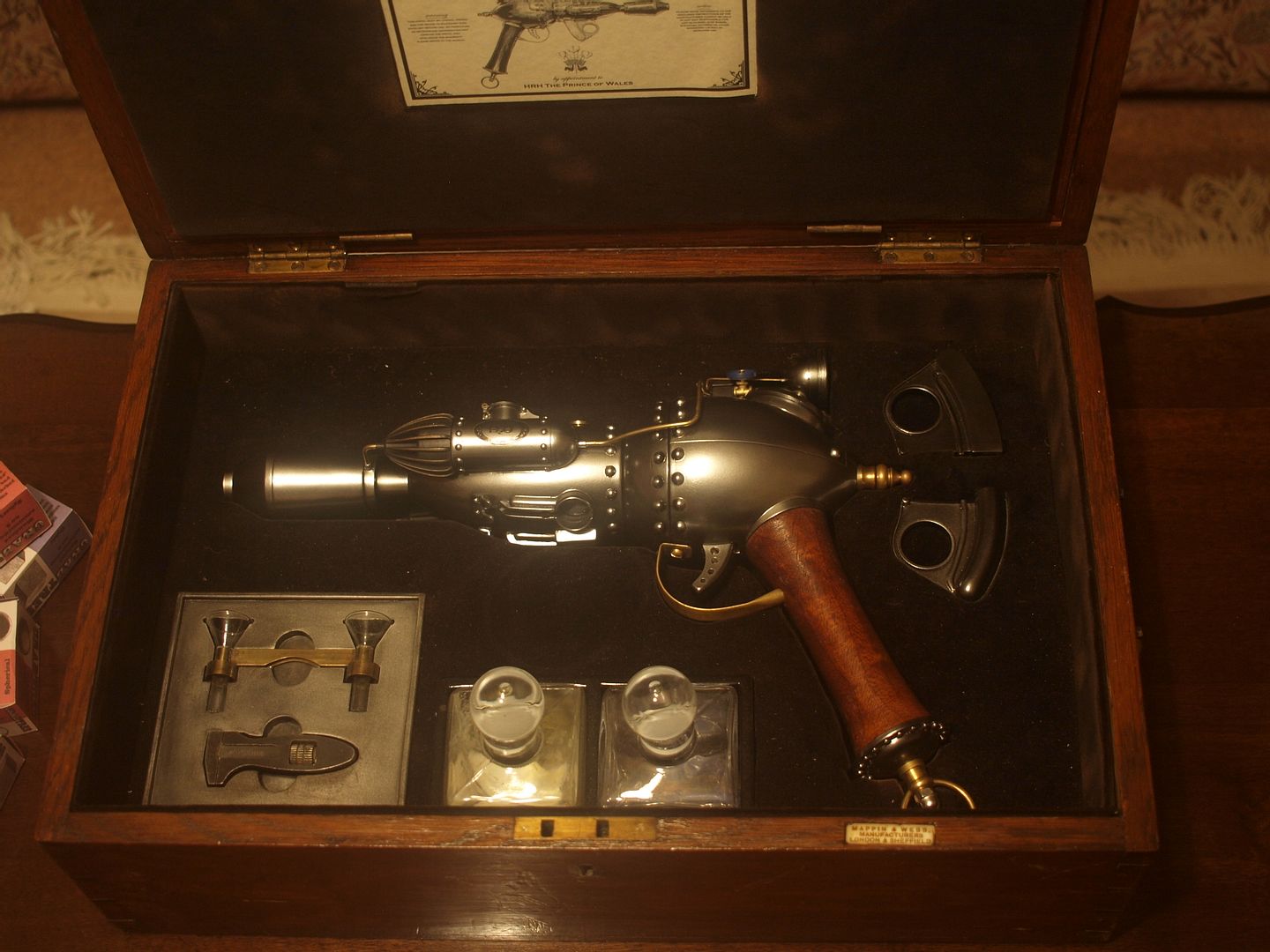

Then came the Steam Pistol, a projectile weapon, using sulphuric acid and water as propellant, firing either round or cube bullets, like the Puckle Gun:

View attachment 1352294

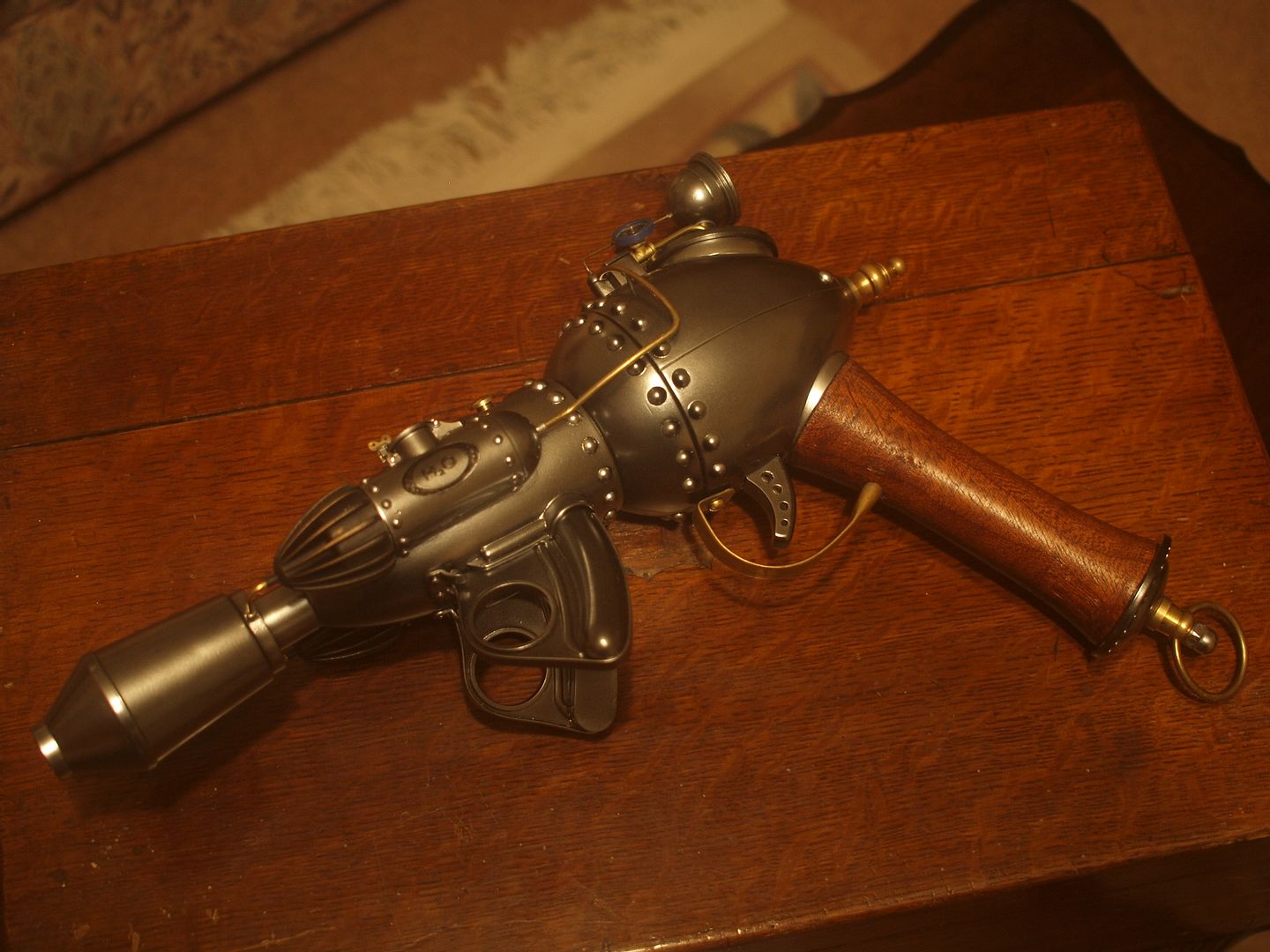

Two magazines, pump to prime, and an antique cutlery canteen for a box:

View attachment 1352295

The pistol itself is made from acrylic wine and champagne glasses, brass, hardwood, and bits from the bits box.

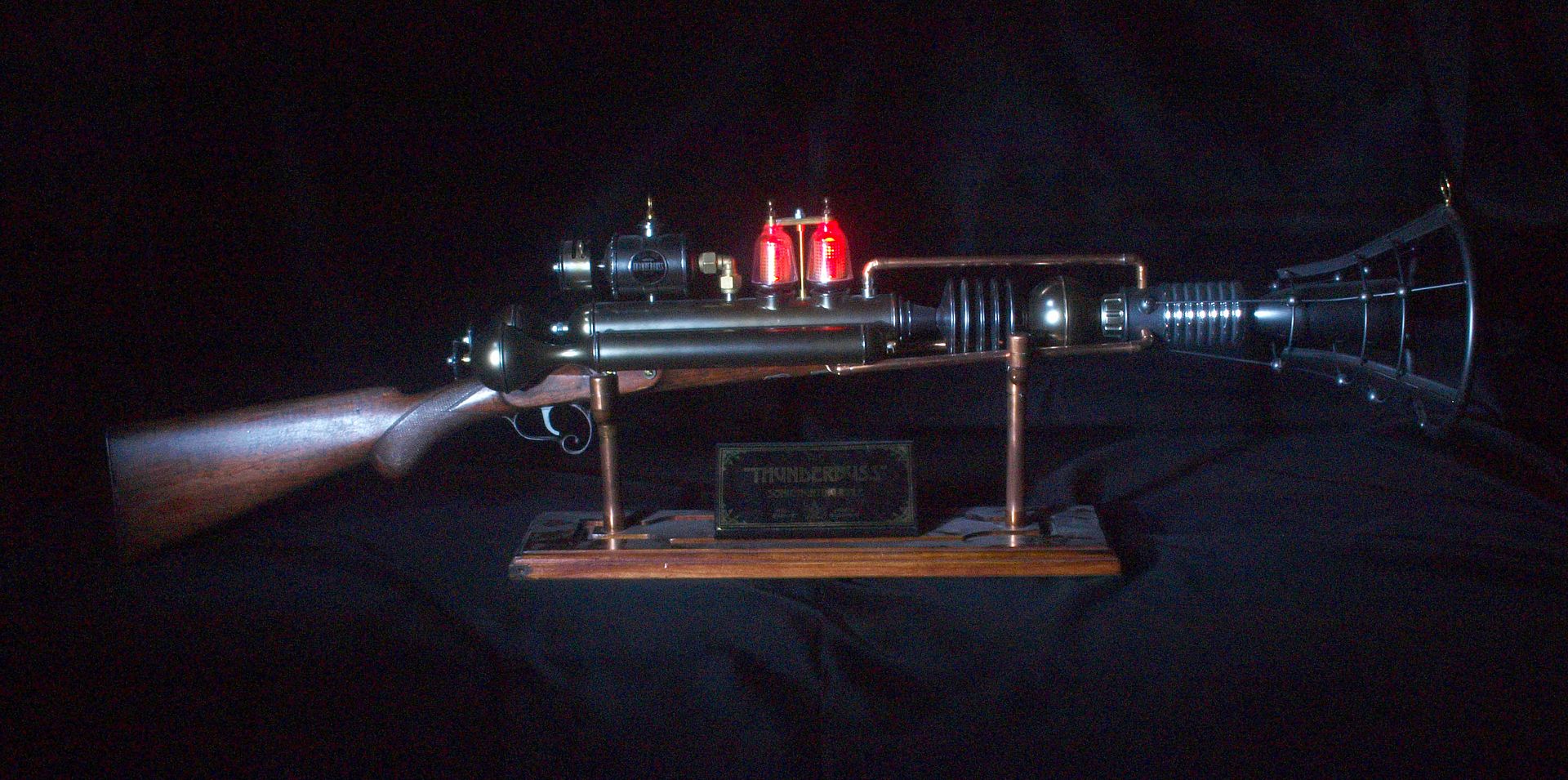

First rifle, the Thunderbuss, a sonic fowling piece:

View attachment 1352296

Mainly Plastruct tube (a local model shop had a going out of business sale), built on a rook rifle stock, more brass, bits of plastic vase, and this one lights up, and is waiting for the guts of a Minion fart gun to be added.

View attachment 1352297

Then I got asked by a famous author of far-fetched-fiction to make his wife a raygun, she, being known as Lady Raygun, got a raygun called the "Lady Raygun Lady's Raygun":

View attachment 1352298

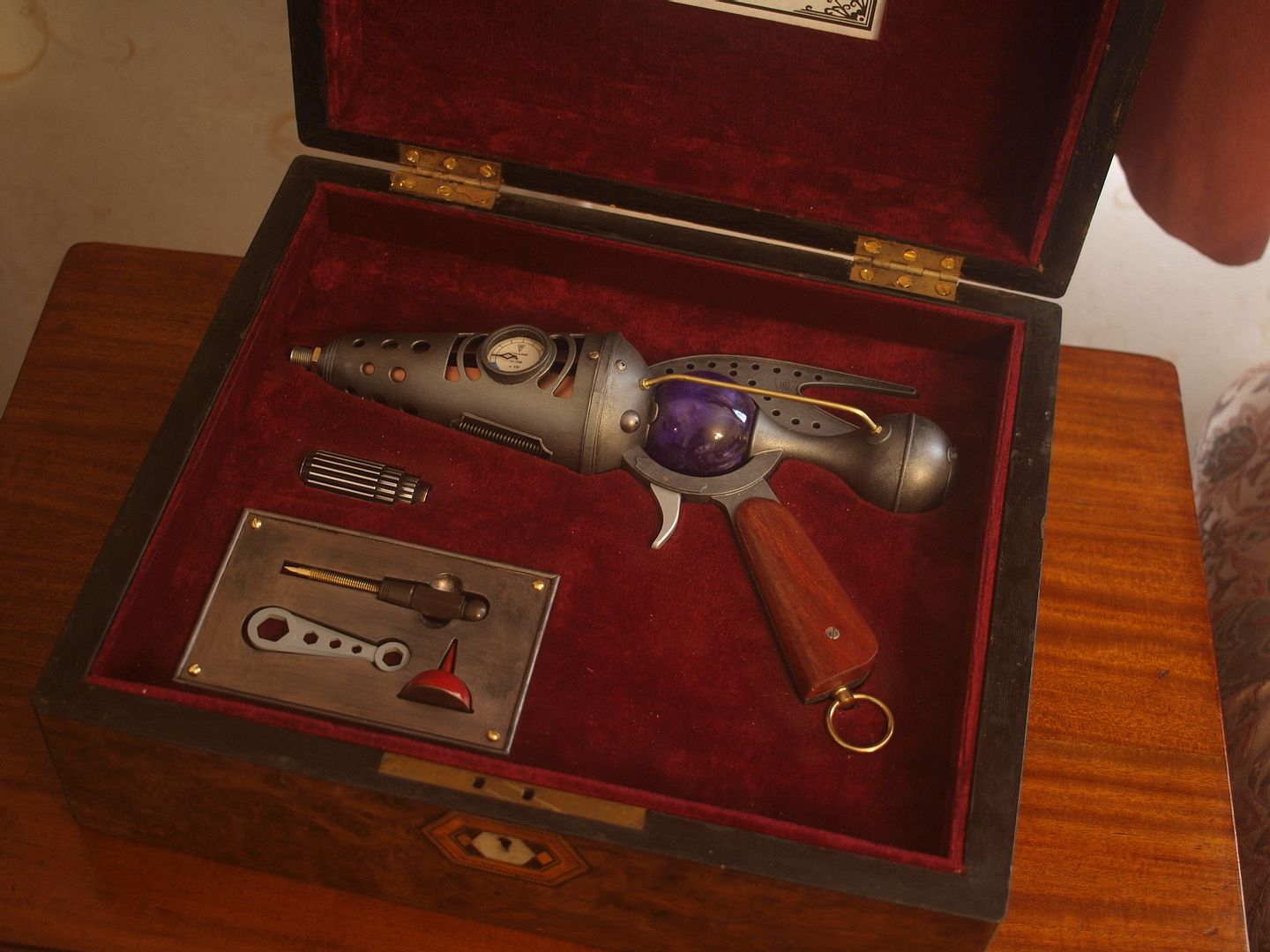

The brief was "A feminine looking pistol with a nice box", which wasn't a double entendre (I think):

View attachment 1352299

Made from acrylic baubles, acrylic vase parts, acrylic sheet and an acrylic glass:

View attachment 1352300

I was subsequently asked to build a pistol for the aforementioned author, which became the COMMODORE:

View attachment 1352301

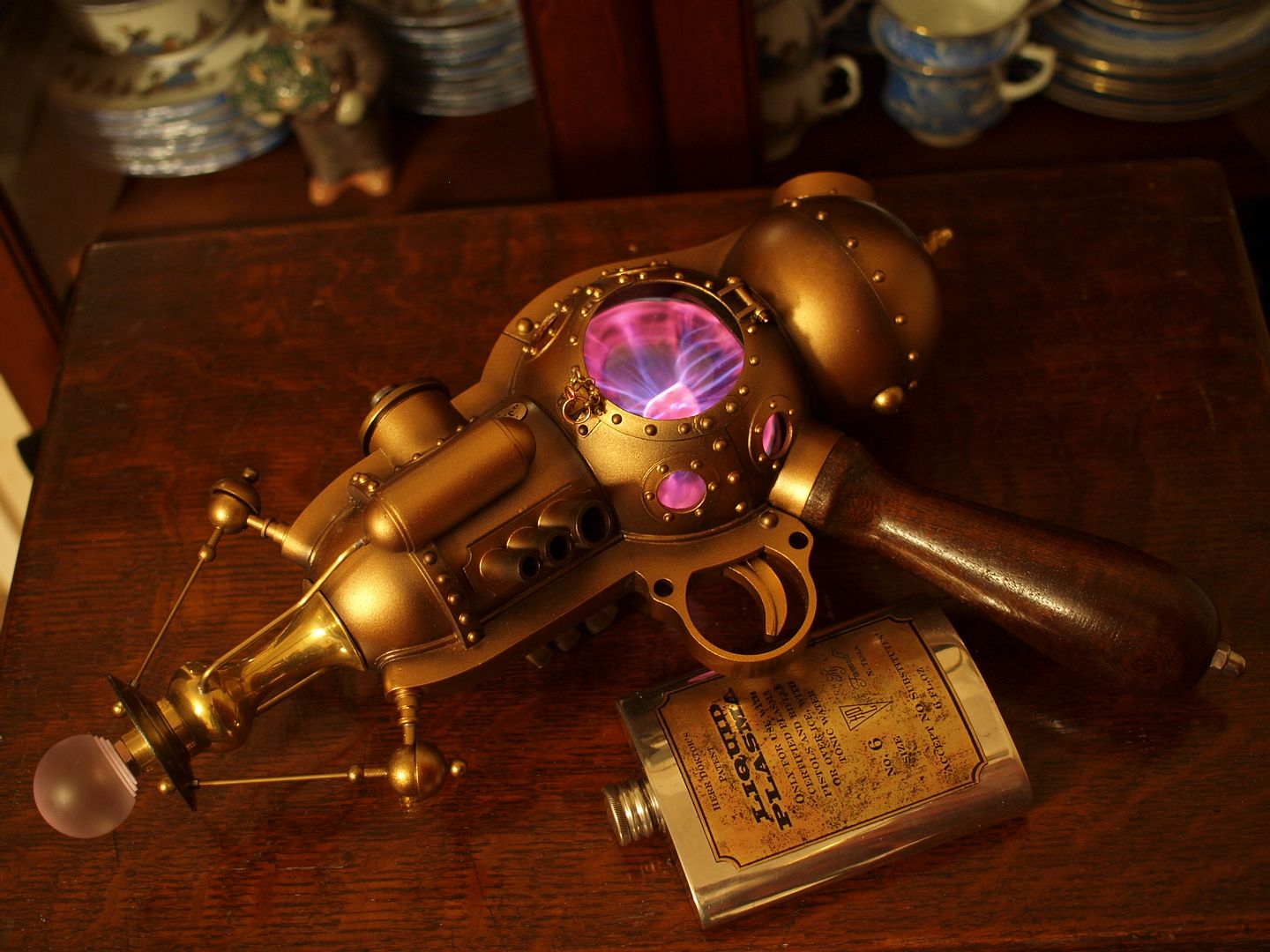

More acrylic baubles, and a working plasma ball, again, with an antique box, and accessories:

View attachment 1352302

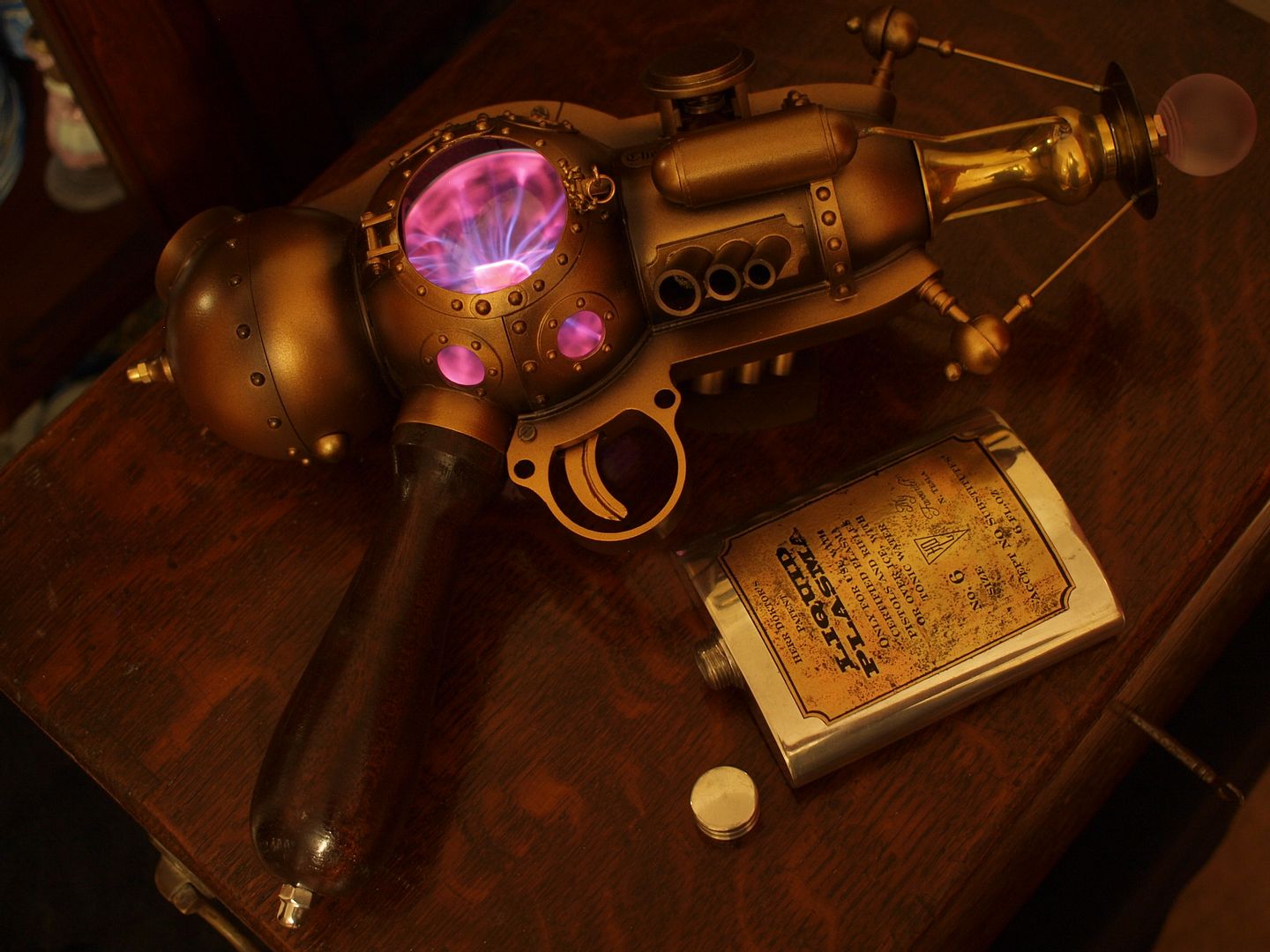

Turned wooden handle, made to look like a belaying pin, in keeping with the nautical theme:

View attachment 1352654

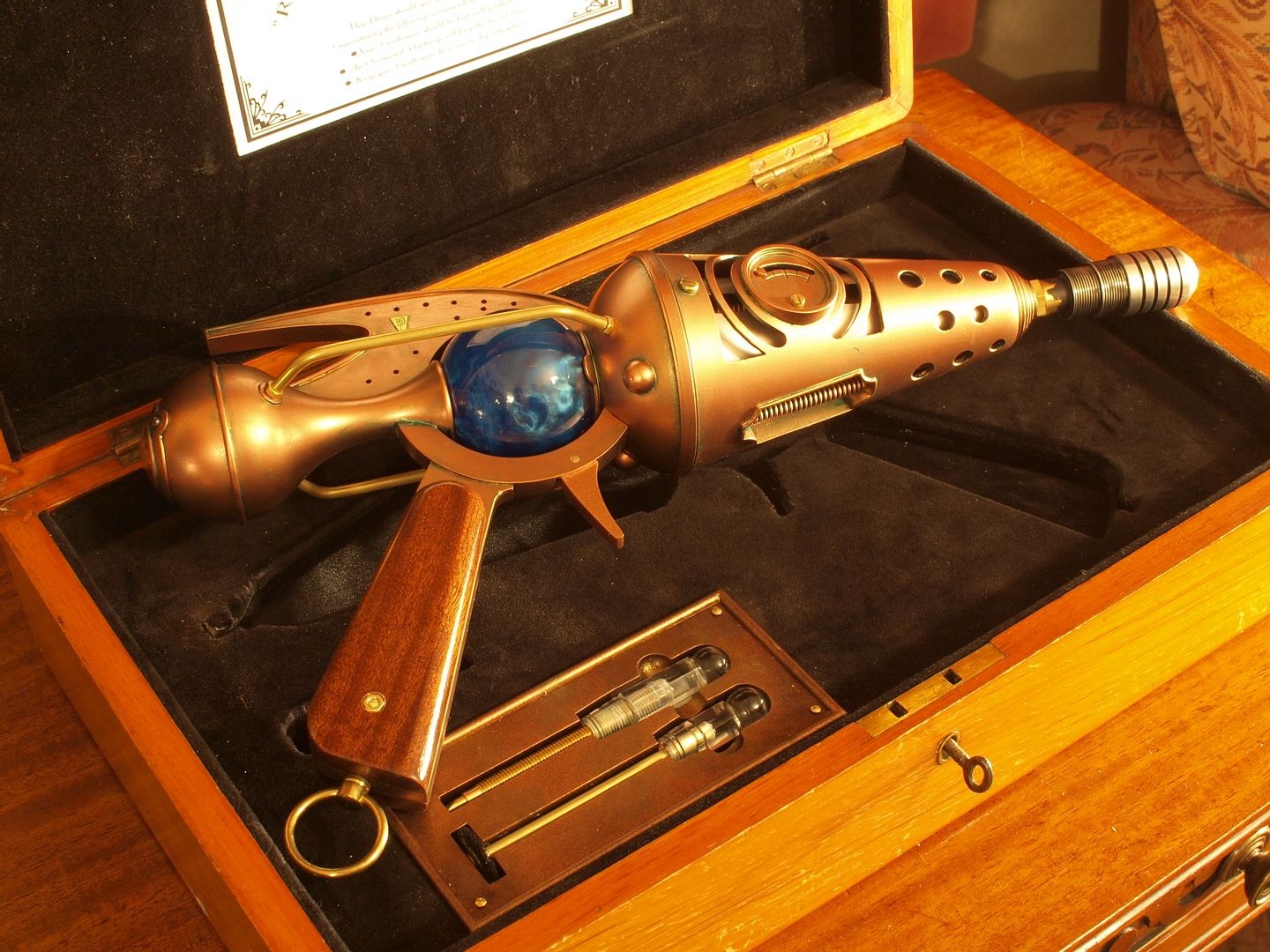

Another commission, based on the Lady Raygun, for a gentleman in the us, as a Christmas gift from his wife:

View attachment 1352304

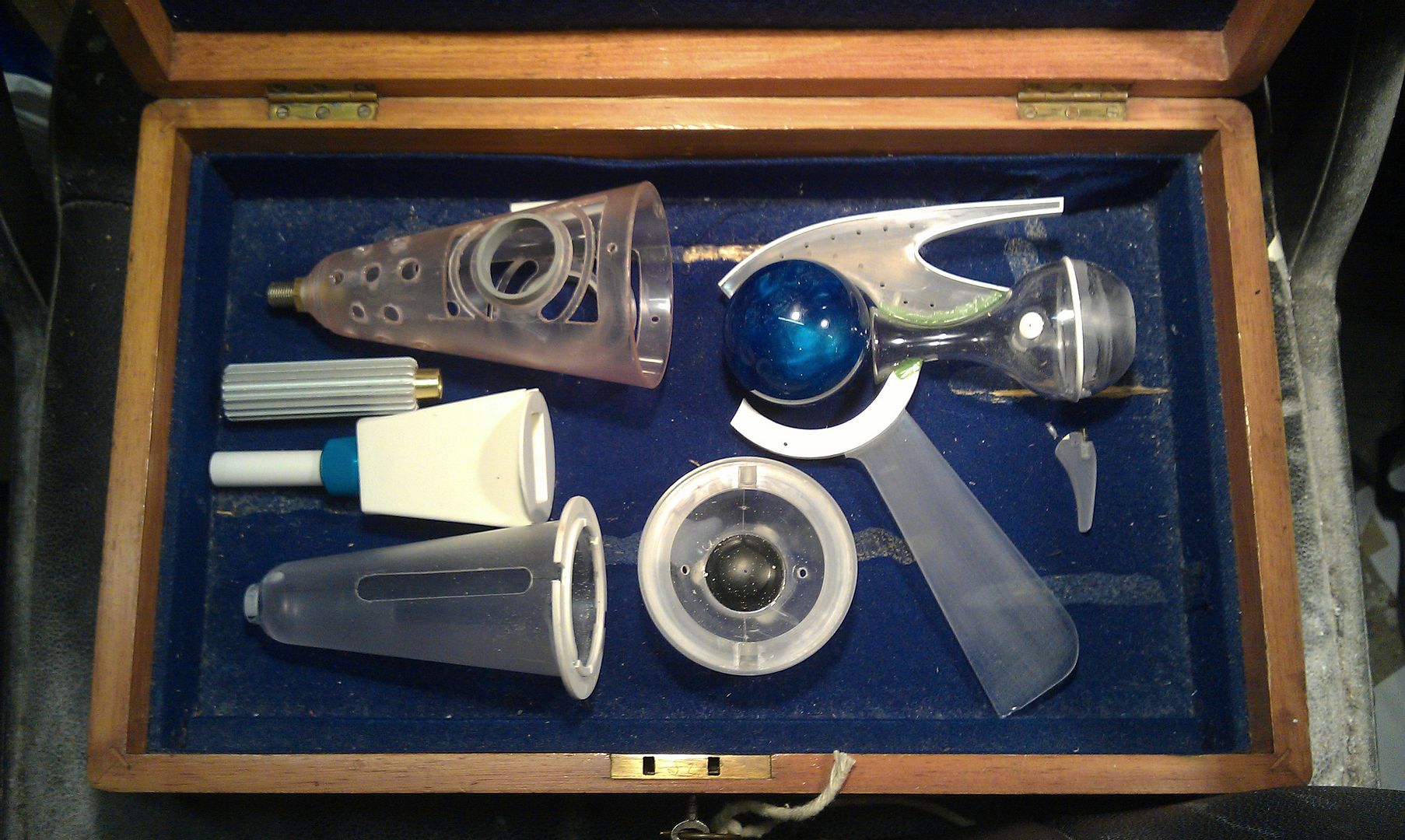

Actually have some better in progress shots for this one:

View attachment 1352305

View attachment 1352306

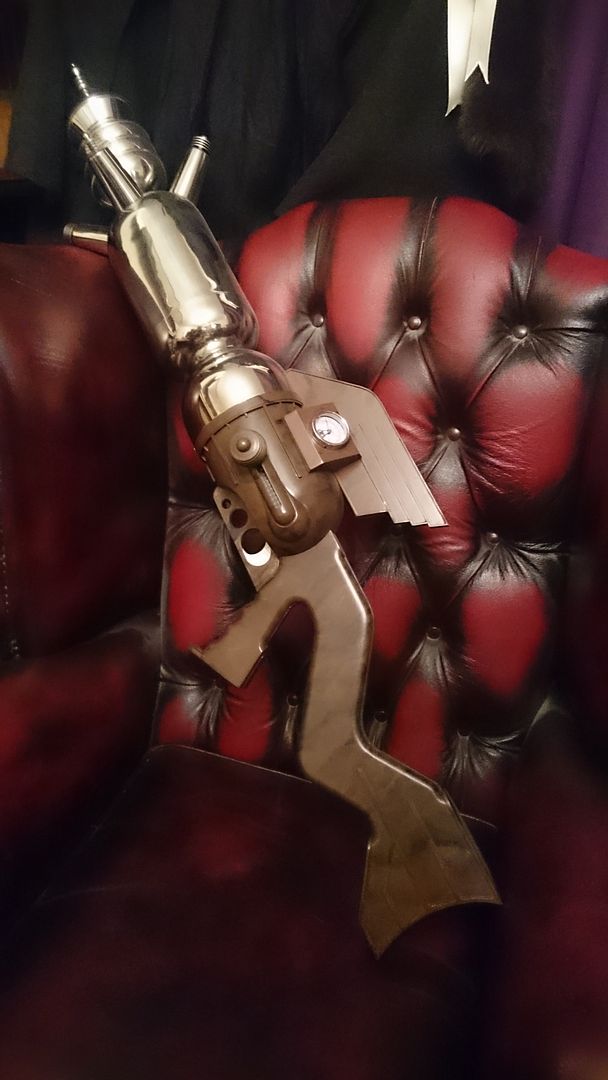

My other rifle, inspired by WETA's Pomson 3000:

View attachment 1352307

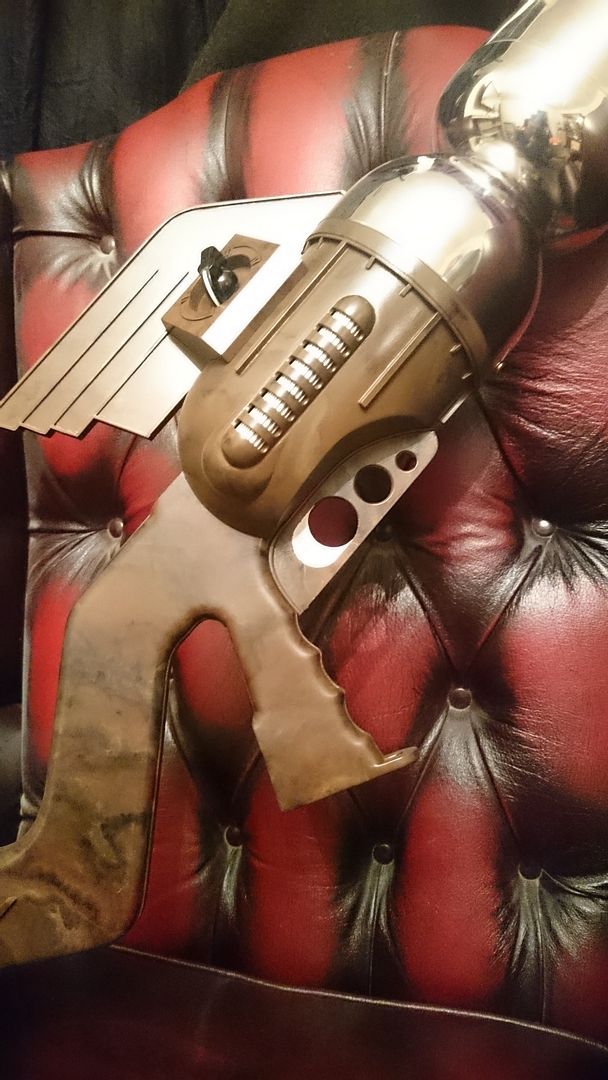

The stock has a faux Bakelite finish, or "Fakelite", as I like to call it. ;)

View attachment 1352308

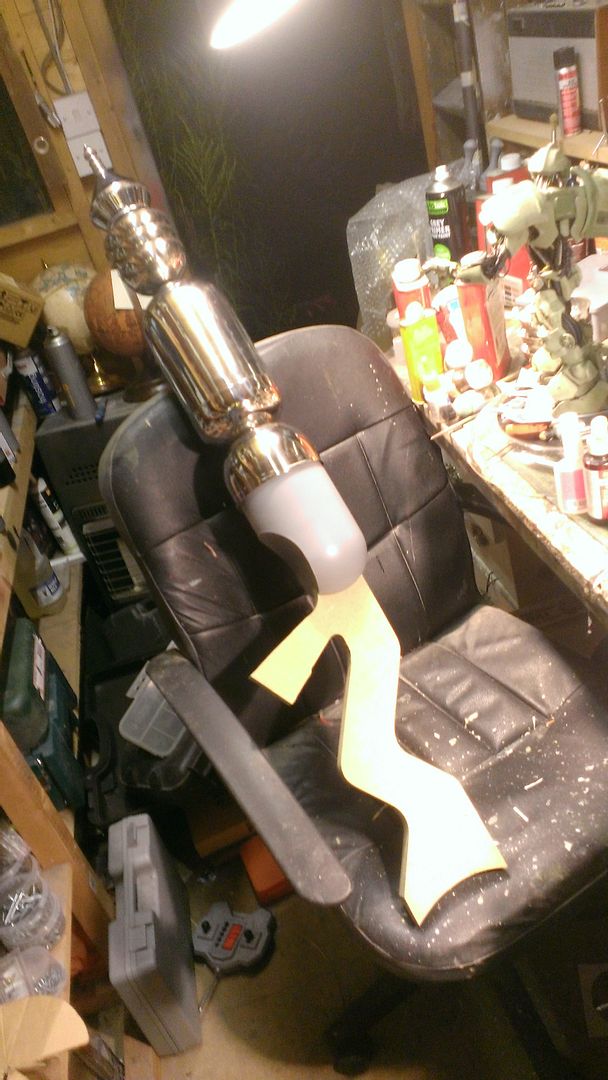

This one is mainly stainless steel kitchenware, and came about because of a piece of 25mm MDF in the bin at work, which became the stock:

View attachment 1352309

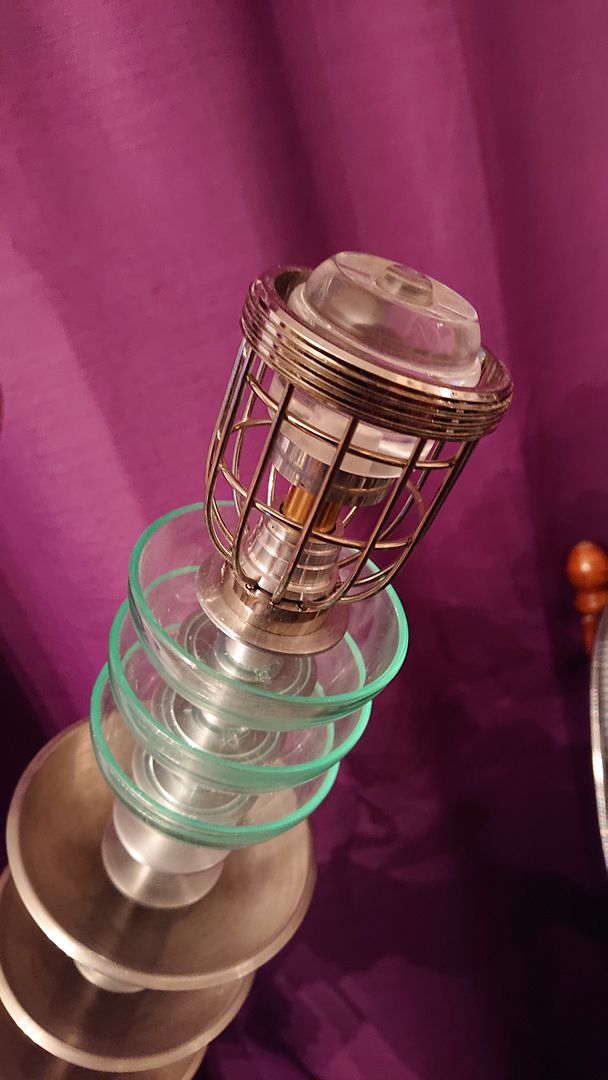

Most recently, I've been working on this:

View attachment 1352310

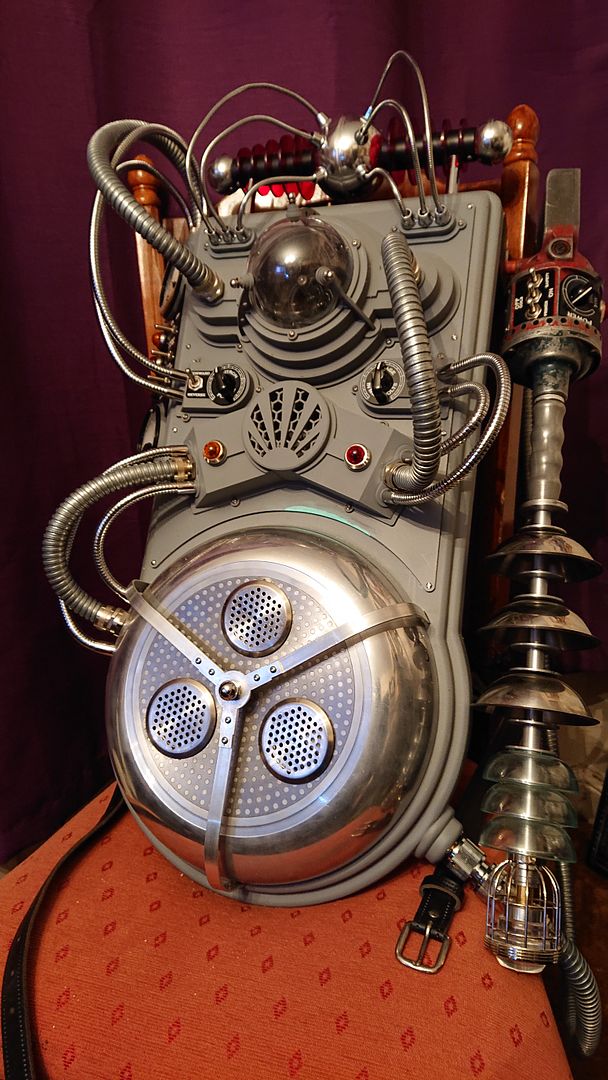

...which may or may not be the thrower from a 1930s Dieselpunk take on the Ghostbusters Proton Pack:

View attachment 1352311

Well, that's all I can think of for now...
The one with the working plasma ball... A thing of beauty. What an amazing collection!


Sr Member
We’re currently traveling around New Zealand so haven’t been in the workshop for a while. But in our travels I’ve picked up a bunch of vintage drills for ray gun builds, so hope to get some made up over the next couple months.

I picked up this open wheel metal model race car that was just begging to be messed with…


After about 3 days of tinkering…









Super stoked with this one. She’s a keeper!


Sr Member
Picked up a bunch of vintage drills over the last few months. Here in NZ we’re in a full on lock down which has giving me some time to focus on getting them finished. There’s 12 in total.

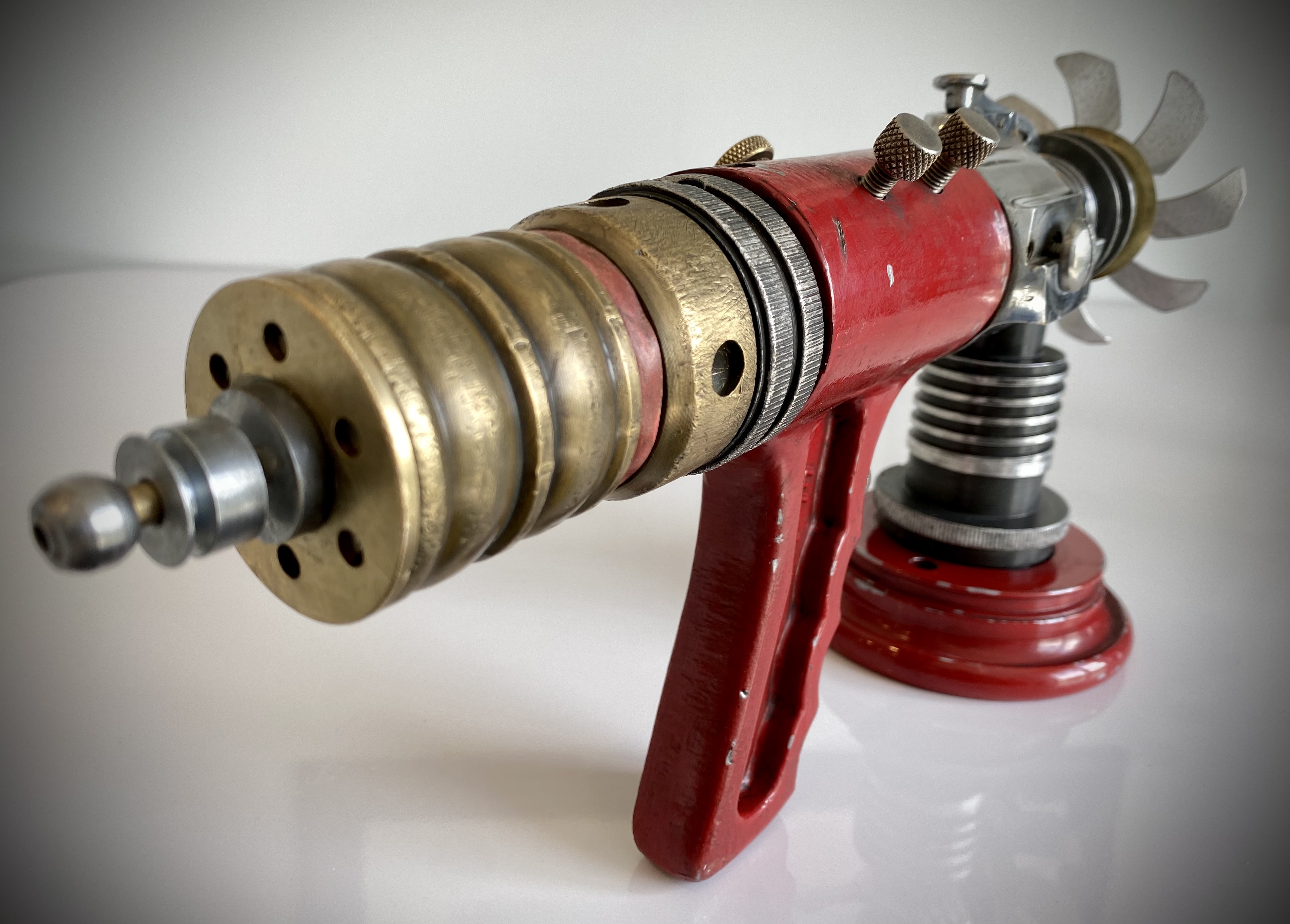

First up, all metal build from a firefighters hose nozzle. Before…





This beauty weighs a tonne! Lol.
More to come…
