Ranch/Dagobah Luke LS Reference Help

[Media Man]

I'm currently working on cutting the grips to length and doing my best to match each length difference and am having trouble finding a picture of the opposite side of the clamp. Does anyone have it?



[scarf man]

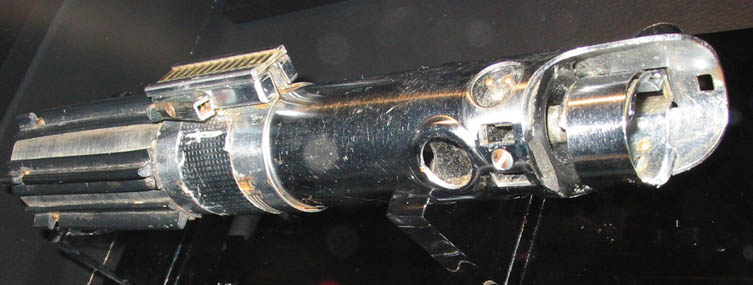

Best one I have is from jdebord ’s OPB.

Edit: Had another root around and found this one too.



[Sn4k3]

That is the dagobah hilt



[scarf man]

That is the dagobah hilt

Yes, it’s what he asked for. Ranch and Dagobah are both names for this prop. It was called the ranch saber because back in the day it was on display at the Skywalker Ranch in Northern California.



[Media Man]

Lol thank you for the help. I'm trying my best to make it as accurate as i can so these pictures are very helpful. I might make a guide about my findings in regards to the asymmetric things. I'm using todds t track and have all the grips positions accurate to the asymmetry which i don't see often on builds.



[Sym-Cha]

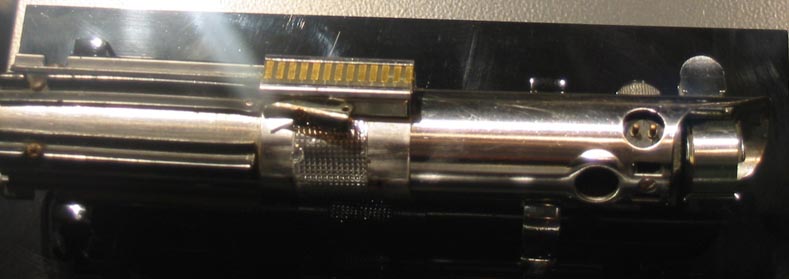

From my Photobucket Archive ... collected from online :

Chaïm



[Media Man]

Thank you as well Chaïm



[Benjo]

Here are a few more pictures collected online. I hope it will help you as much as it dit when I did my own ranch lightsaber replica.
I ended up with an ugly lightsaber prop at the time, uneven grips spacing and all. It's kind of a sloppy job on that one, even the middle band on the clamp isn't applied straight.



[Media Man]

Thank you as well! I haven't seen some of those before
