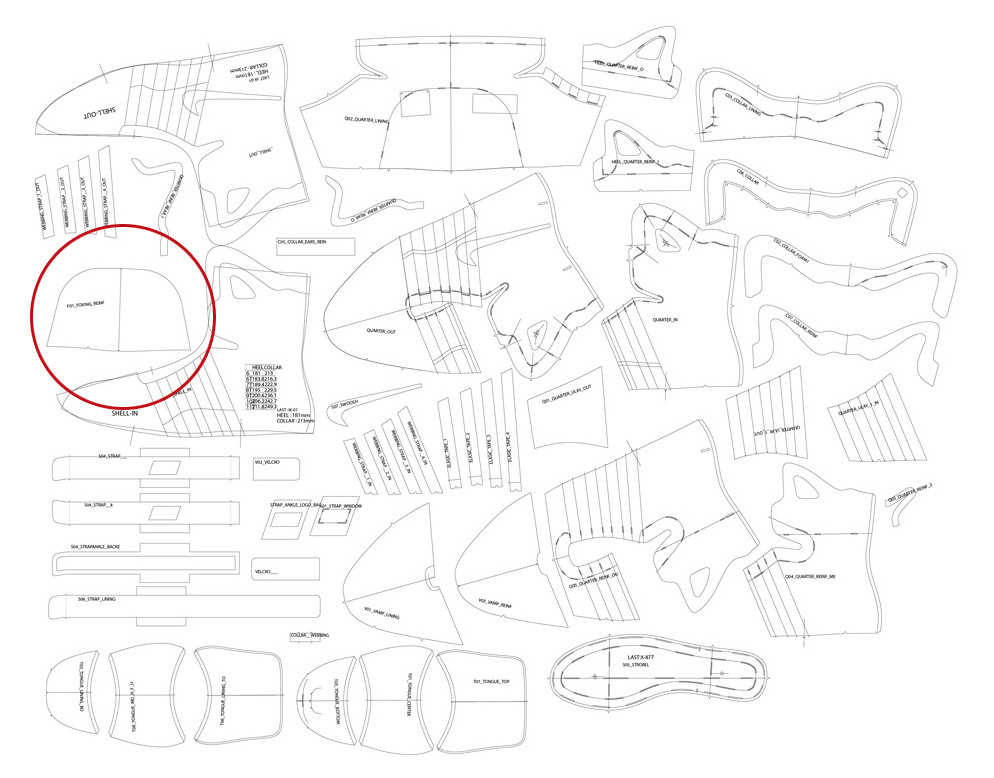

Yup! Here's the piece on the pattern:
View attachment 312358

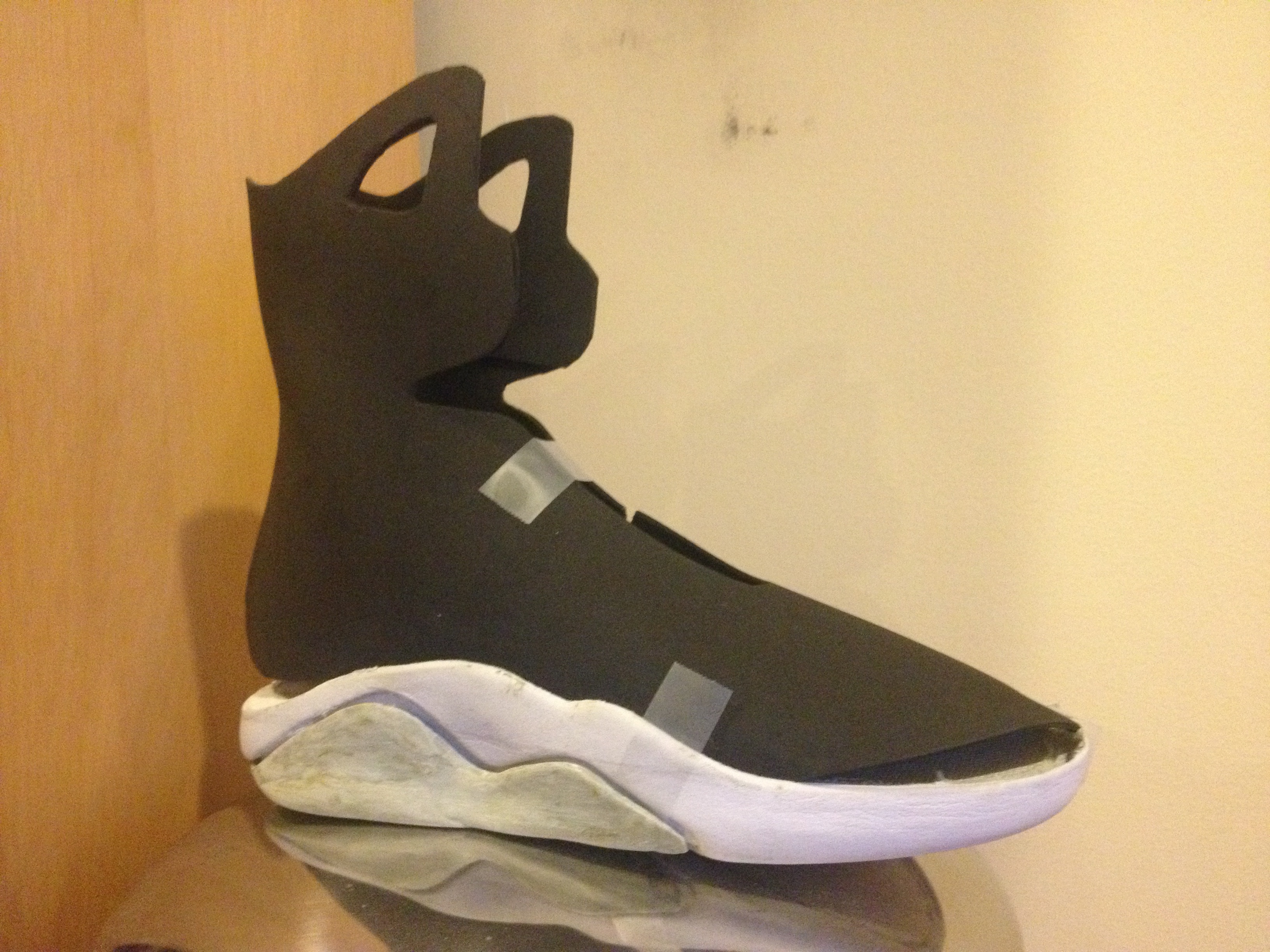

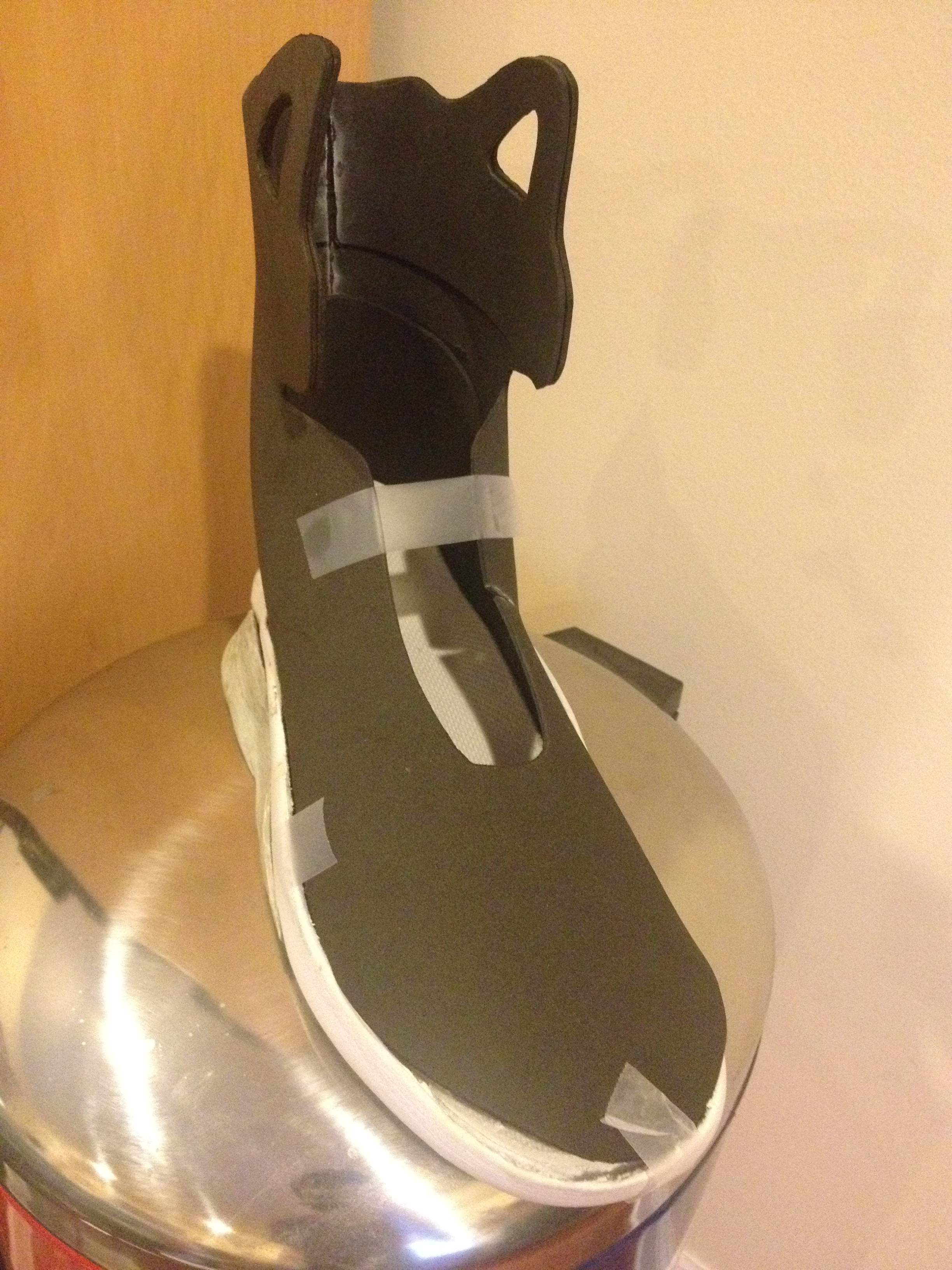

I'm still not entirely sure it belongs where I put it, but it makes sense and seems to be doing a good job of adding extra support to my foam test.
There are only a few pieces on the patterns I can't quite work out, that seem to be indicated as needing to be made out of the structural material (Rather than fabric)
Interestingly, there is a foam "inner core" to the puffy white cuff, but only the part that extends above the ears.
It really has been interesting studying this pattern. For instance, my guess about the ribs being made of the same fabric as the outer shell of the uppers and sewn where the stretch laces are visible, before being folded under appears to be correct. At least, if my ability to read highly compressed writing is any good. :lol
The double layering of foam around the ears is something I believe I pointed out in the original K-Mag thread, so it's interesting to have that confirmed as well...and to have tried it in practice now.
As we get further away from the V2s, it might actually become more cost effective to start investigating how to build these entirely from scratch
as a group. Otherwise, this road is going to lead some people to spending $300 dollars just for soles and heel cups...we may need to start a "Open Source Mag Project" to create a share information and files for those looking to take on that level of task.
Thoughts?
-Nick
