New Martian helmet model and build

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Empiricus

Well-Known Member
RPF PREMIUM MEMBER
My compressor was too weak to expand the acrylic fast enough. Also I bet Weta is using an oven to control expansion better. I decided to model a dome based on the measurements I get on the finished helmet. If I have some mm deviation here and there I can account for it. Probably negative silicone lined form. If I find a used compressor with a large tank I might try again to expand the dome.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Empiricus

Well-Known Member
RPF PREMIUM MEMBER

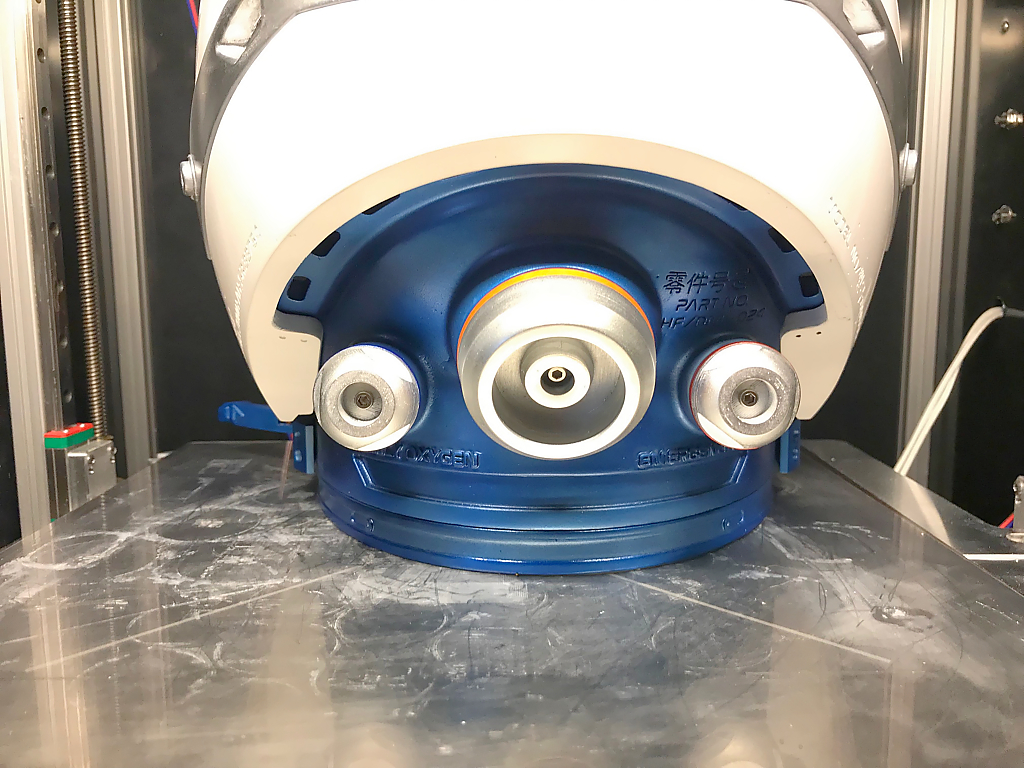

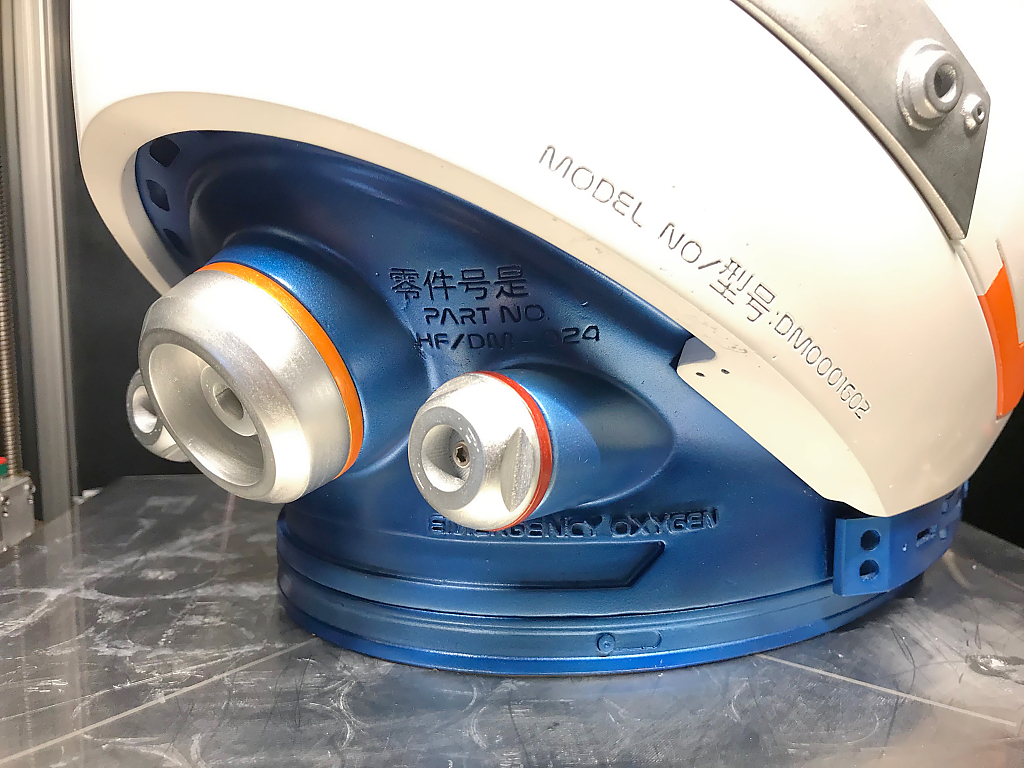

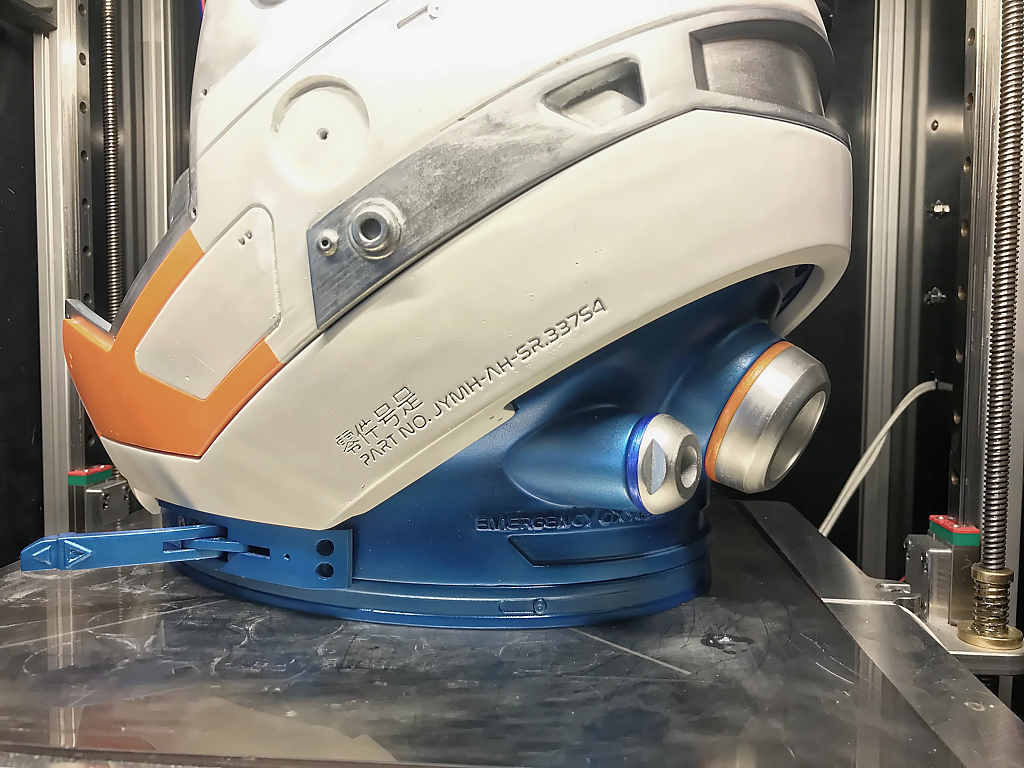

The Base of the helmet coming together.


Attachments

  • IMG_2893_DxO-1.jpg
    897.3 KB · Views: 283
  • IMG_2894_DxO.jpg
    830.1 KB · Views: 279
  • IMG_2896_DxO.jpg
    803.1 KB · Views: 288

Empiricus

Well-Known Member
RPF PREMIUM MEMBER

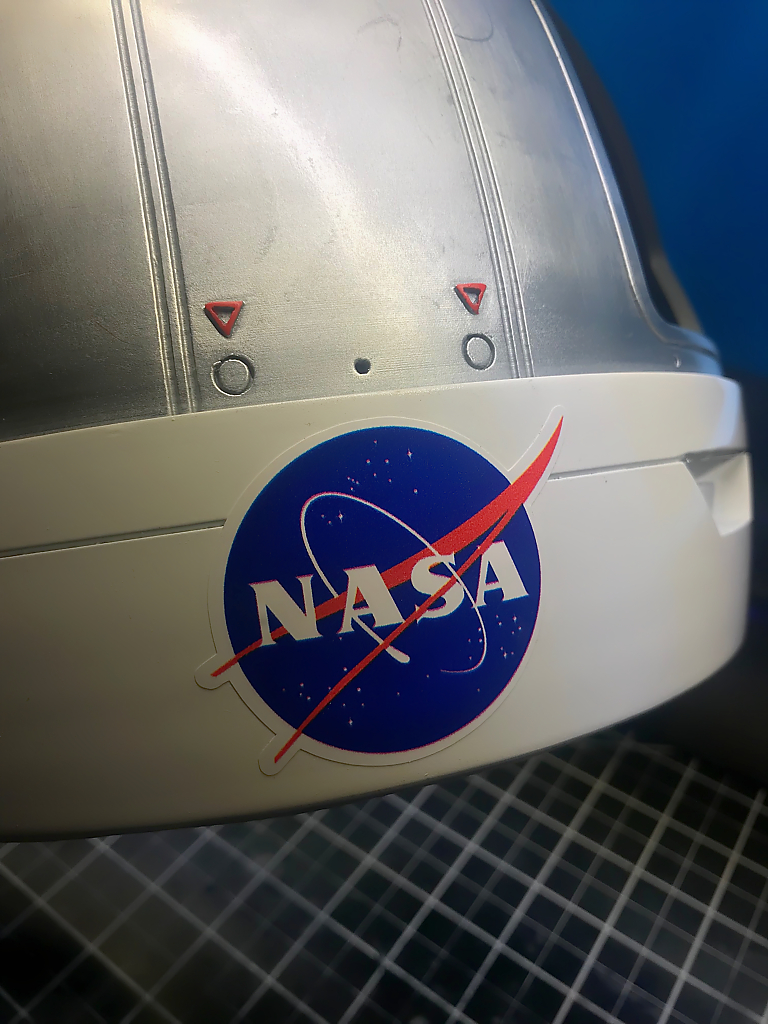

Need to find a better Nasa emblem. These poor qualilty ones won't due. Can anyone recommend a source for better about 2 inch Nasa vinyls?


Attachments

  • IMG_2911_DxO.jpg
    716.1 KB · Views: 224

Kiwimaddog

Well-Known Member
RPF PREMIUM MEMBER
Need to find a better Nasa emblem. These poor qualilty ones won't due. Can anyone recommend a source for better about 2 inch Nasa vinyls?

I bought some water decal transfer sheets and printed an emblem(free .ai file found on google) onto these. Worked pretty well I think.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Empiricus

Well-Known Member
RPF PREMIUM MEMBER

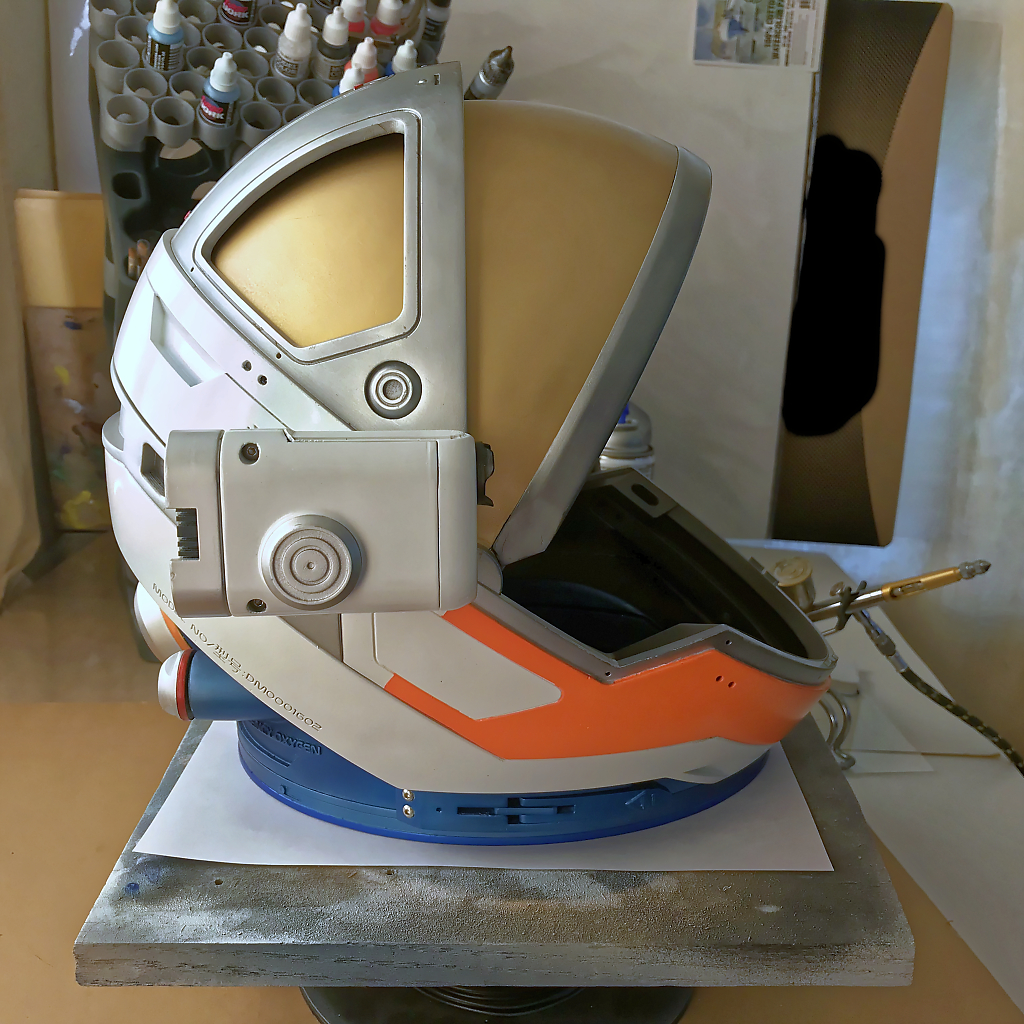

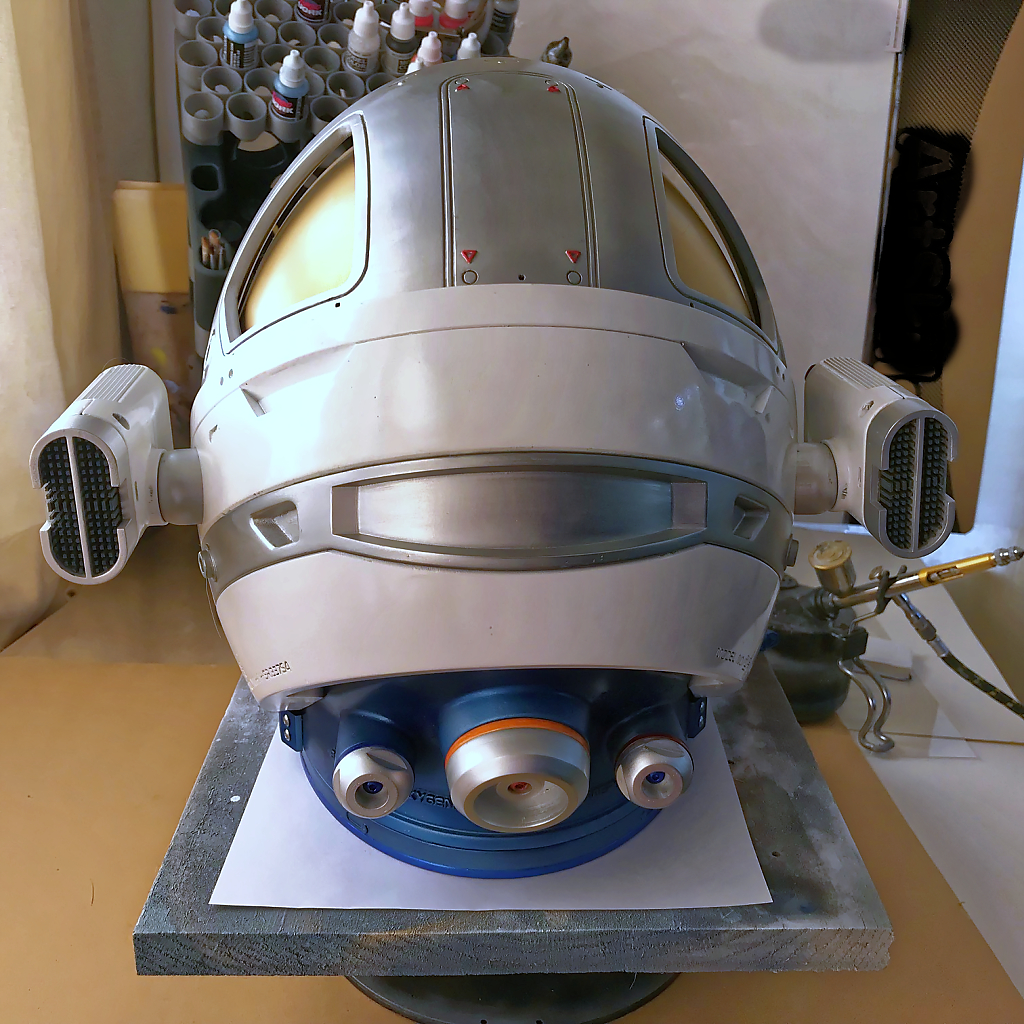

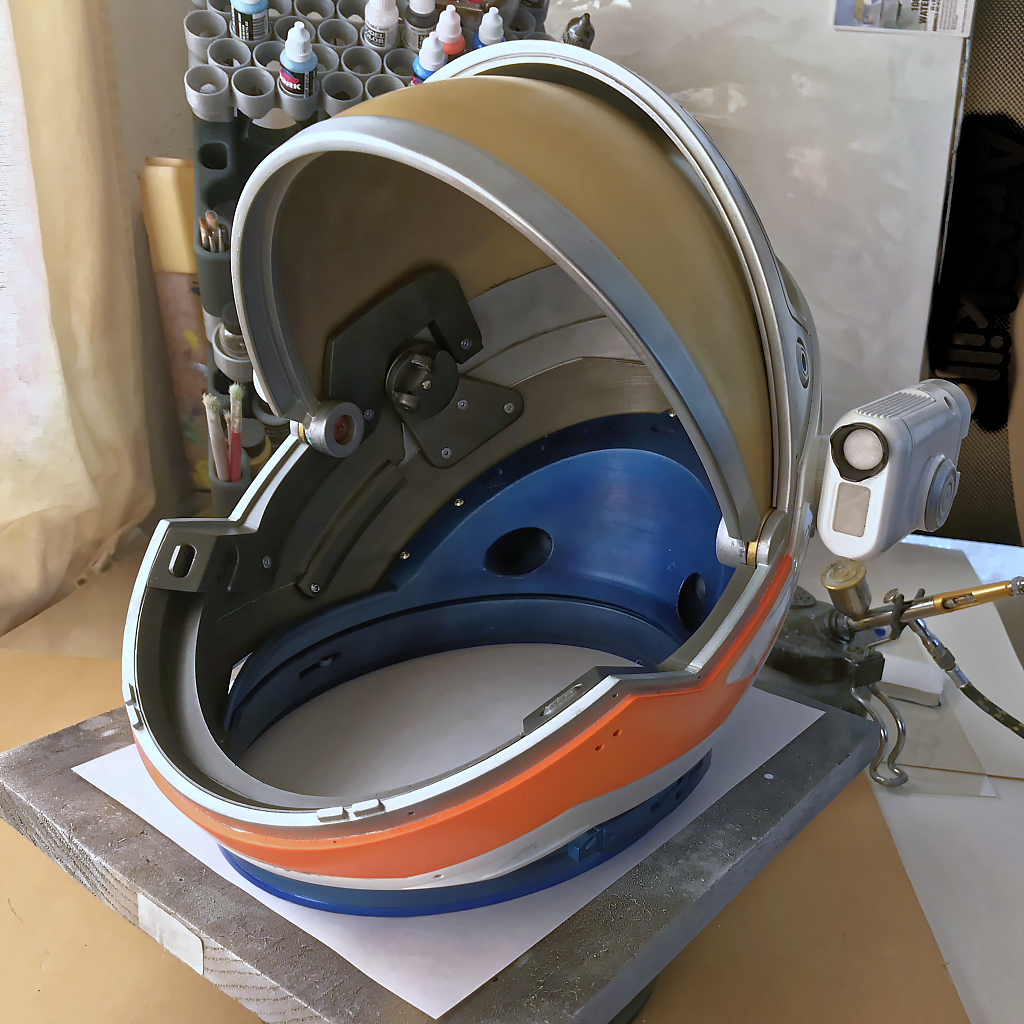

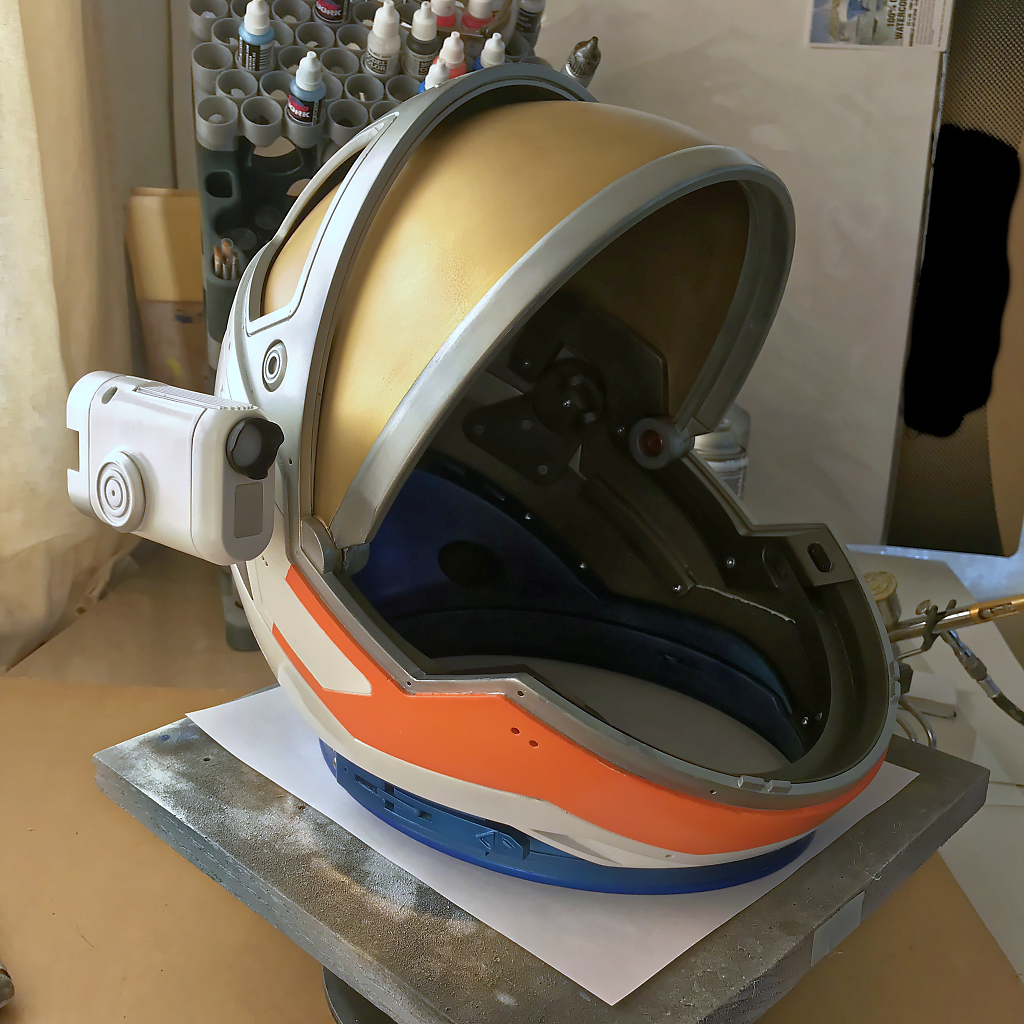

Finally time to assemble. Over 50 parts. Still a lot of detail work and I need to print all the gratuitous decals. Time to order the electronics - there goes another $150. Then I can focus on the dome and the head strap. Also need to find a snoopy cap. Was good to wait with the dome as the dimensions turned out a little different from the 3D model I did after printing sanding and painting.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Empiricus

Well-Known Member
RPF PREMIUM MEMBER

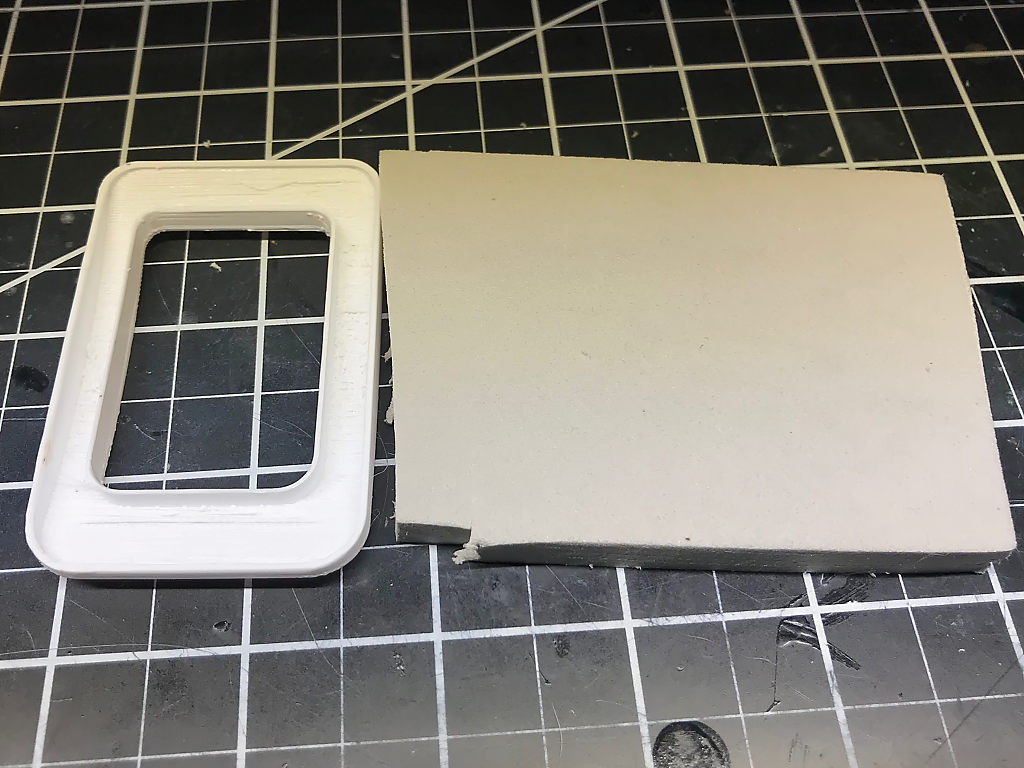

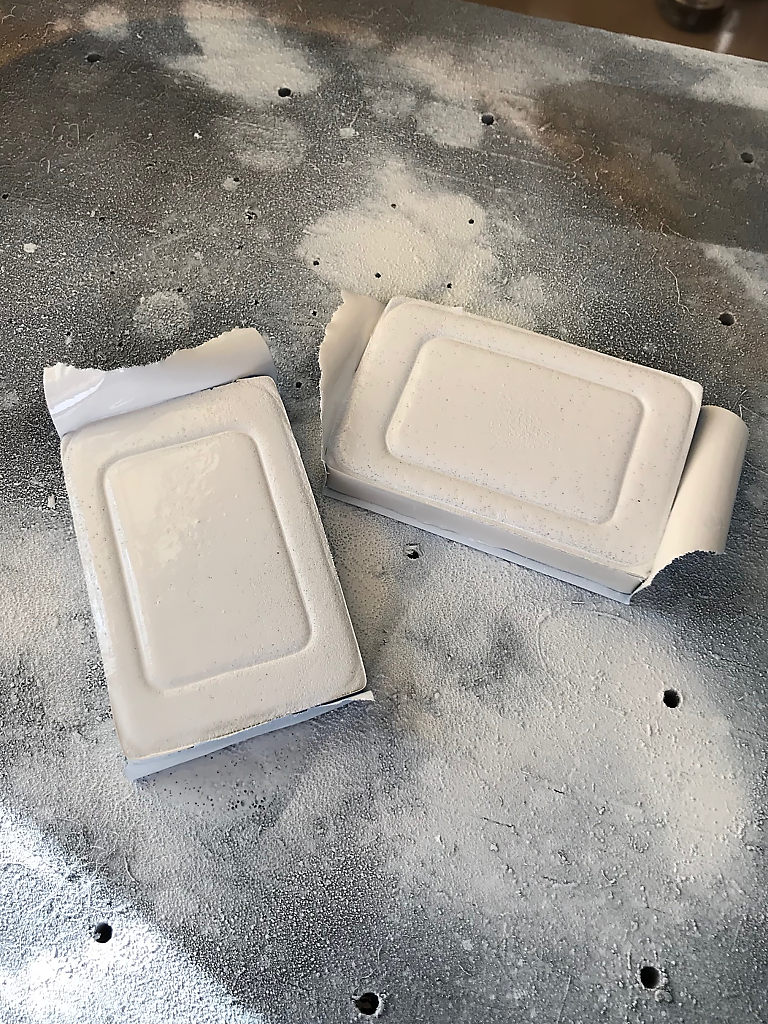

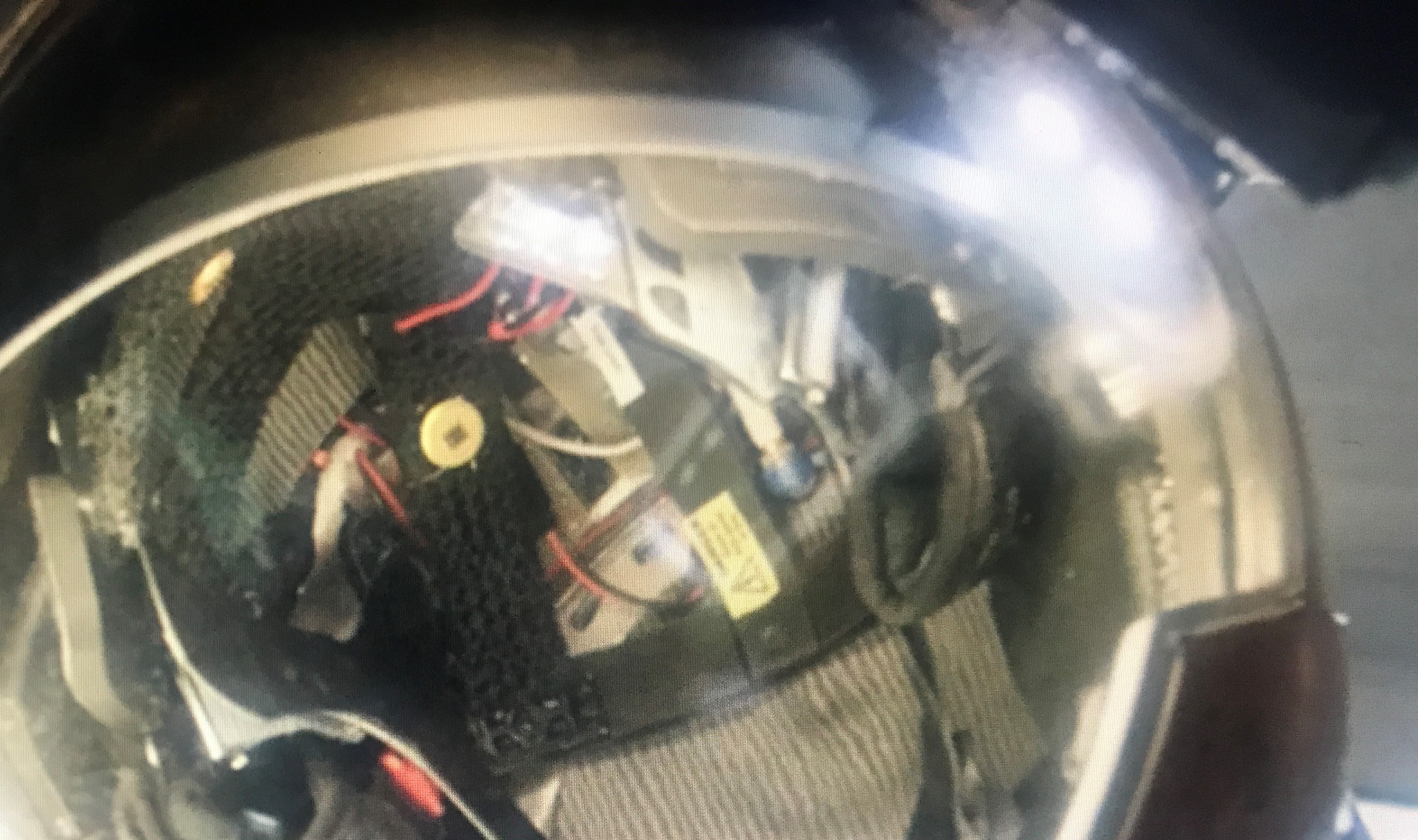

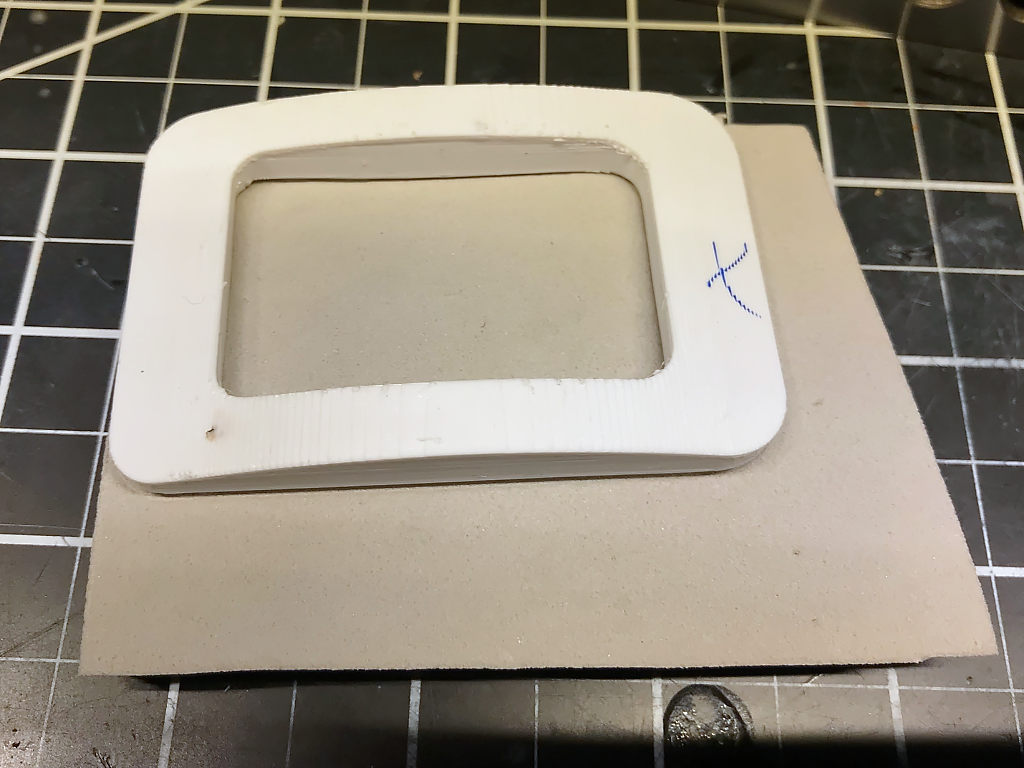

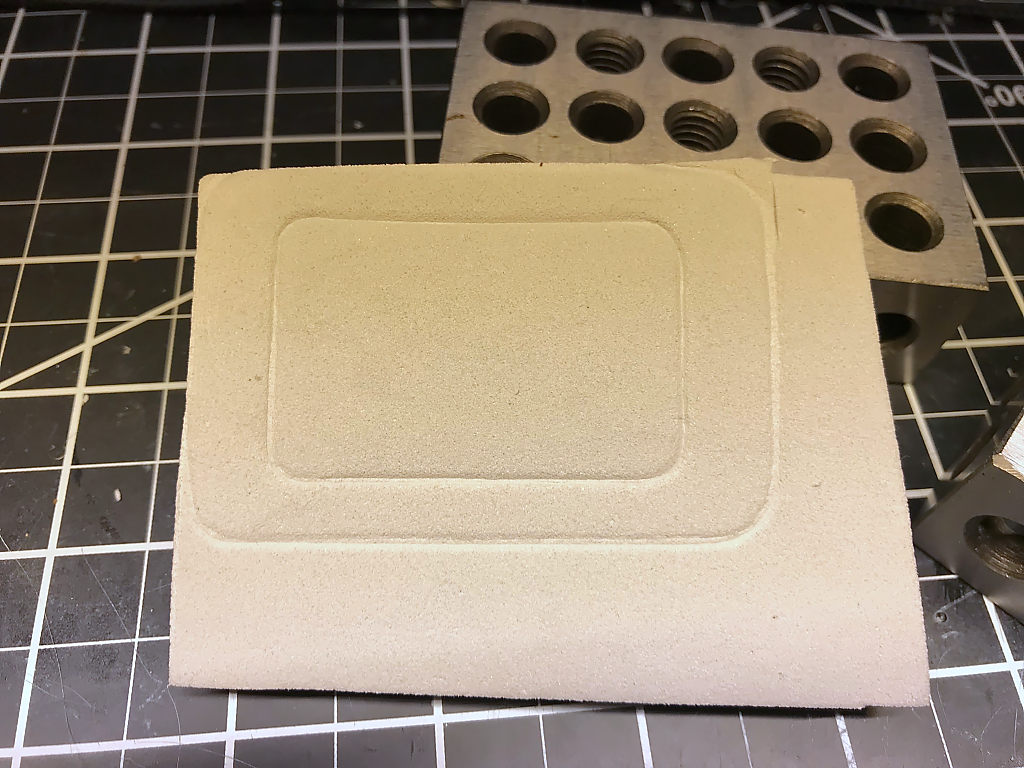

Did some foam pads for the head harness. These are visible in screen captures. They have a line imprinted and are whitish on the outside. I printed a stamp to impress onto grey foam and spray painted the surface.


Attachments

  • IMG_2383b.jpg
    1.4 MB · Views: 212
  • IMG_2927_DxO.jpg
    129.3 KB · Views: 217
  • IMG_2928_DxO.jpg
    101.7 KB · Views: 206
  • IMG_2929_DxO.jpg
    148.4 KB · Views: 195
  • IMG_2930_DxO.jpg
    272.6 KB · Views: 200

Empiricus

Well-Known Member
RPF PREMIUM MEMBER

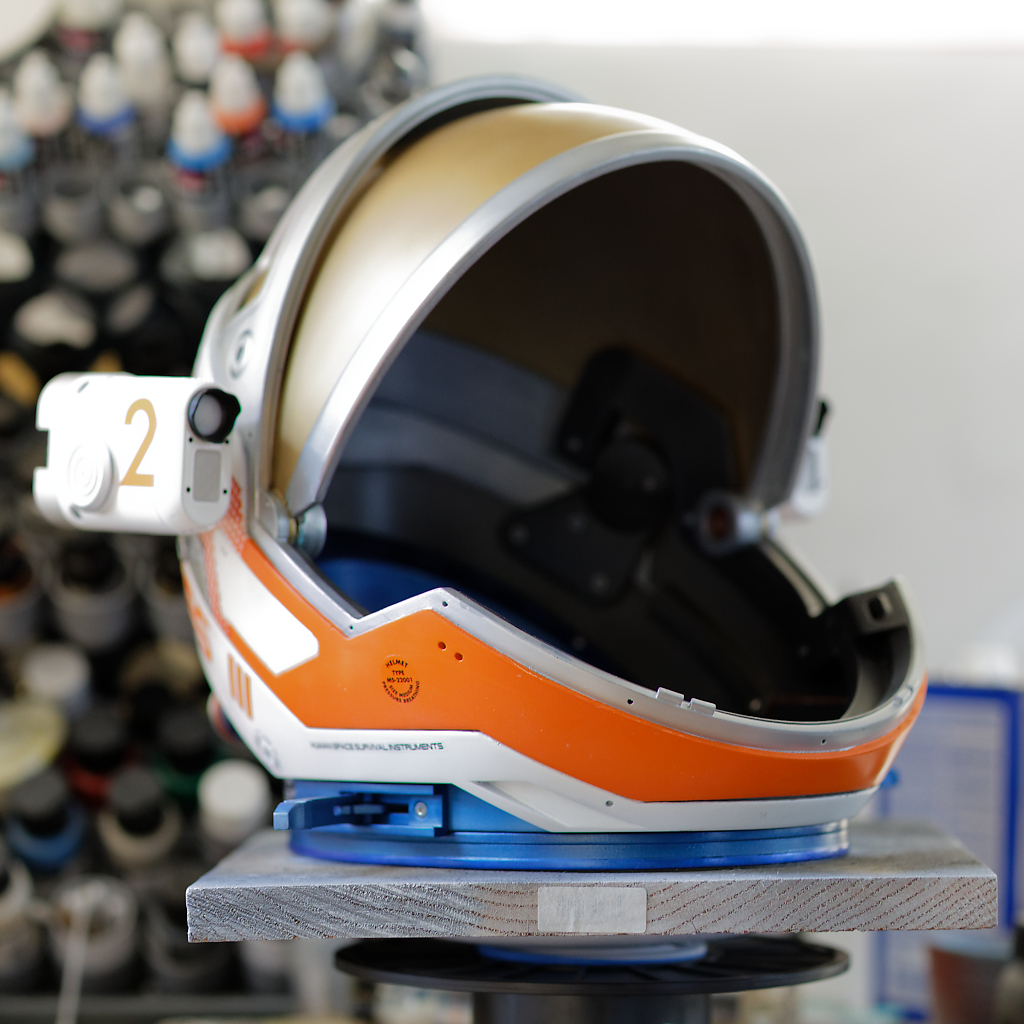

Finished the decals. Outside is done and ready for weathering. Working on the head harness. Adafruit feather I want is back ordered again so darn on the electronics. I used Royal elements water decals for inkjet printers and sealed with Alclad Gloss Klear Kote. Aqua gloss Clear would also work.


Attachments

  • IMG_9958_DxO.jpg
    828.2 KB · Views: 189
Last edited:

Empiricus

Well-Known Member
RPF PREMIUM MEMBER

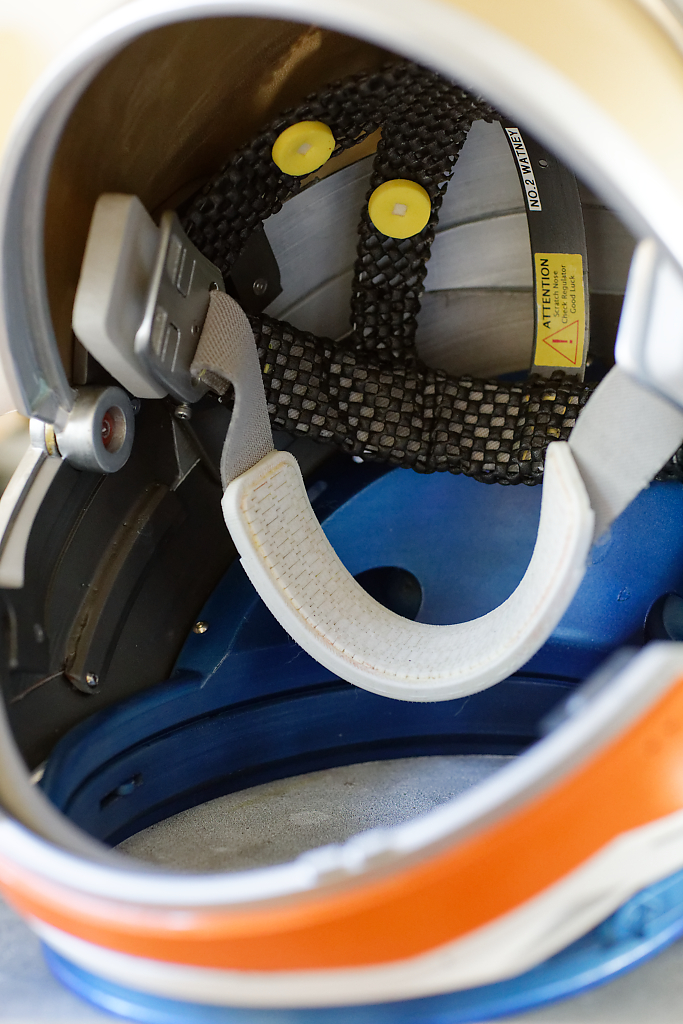

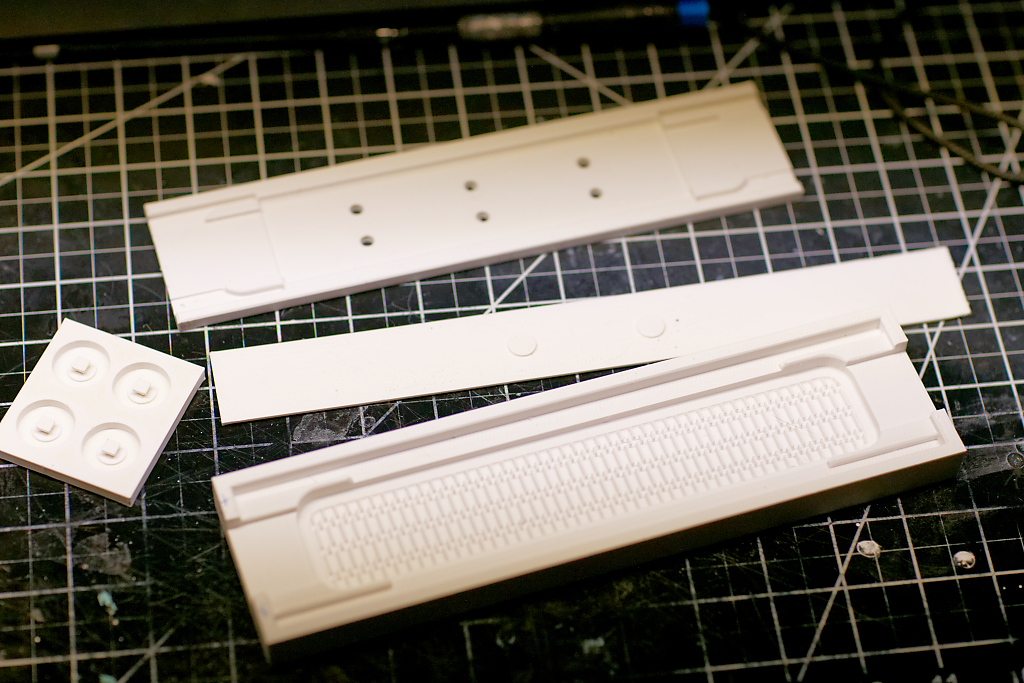

Finished the head harness. Some changes for comfort. Couldn't find the right material for the head band and my sewing stinks, so printed a mold and cast it from silicone. Also the yellow sensors are silicone. Now I waiting for the back ordered electronics.

Last edited:

Empiricus

Well-Known Member
RPF PREMIUM MEMBER

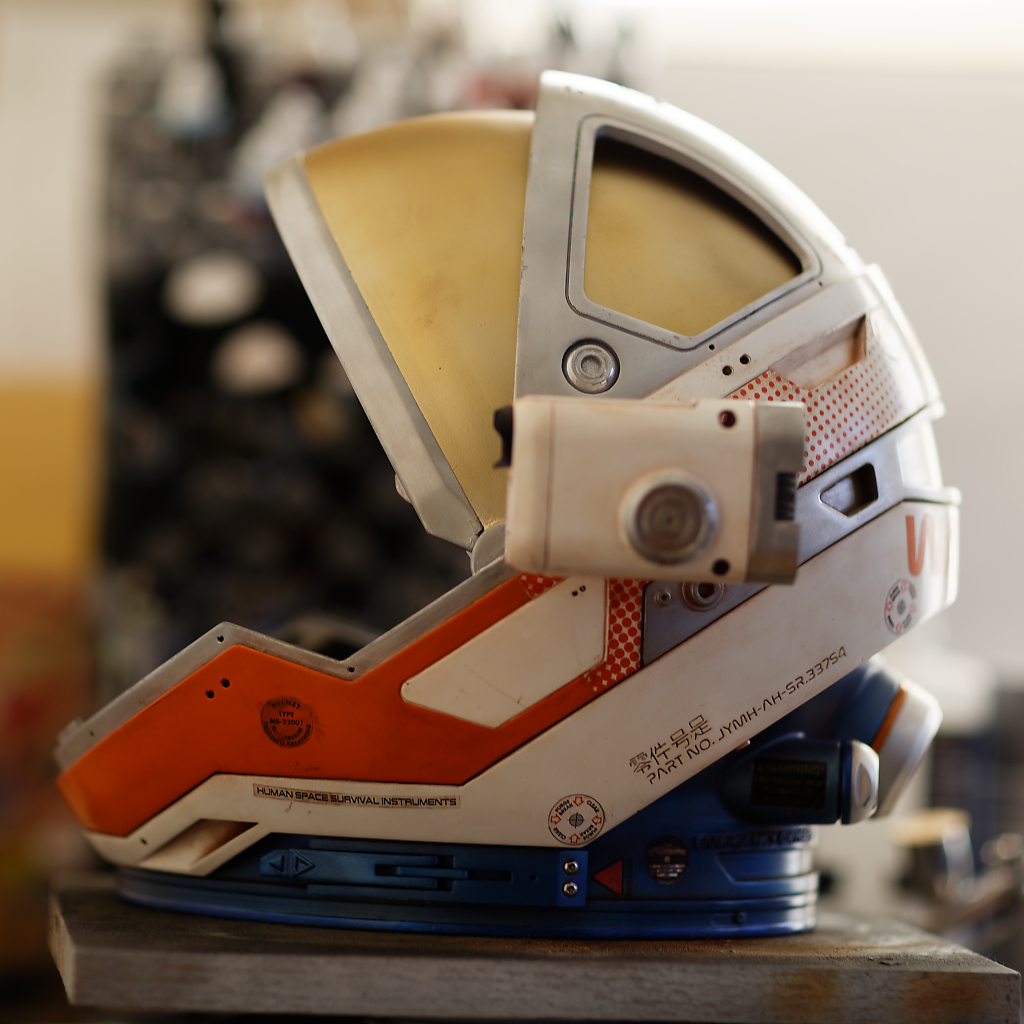

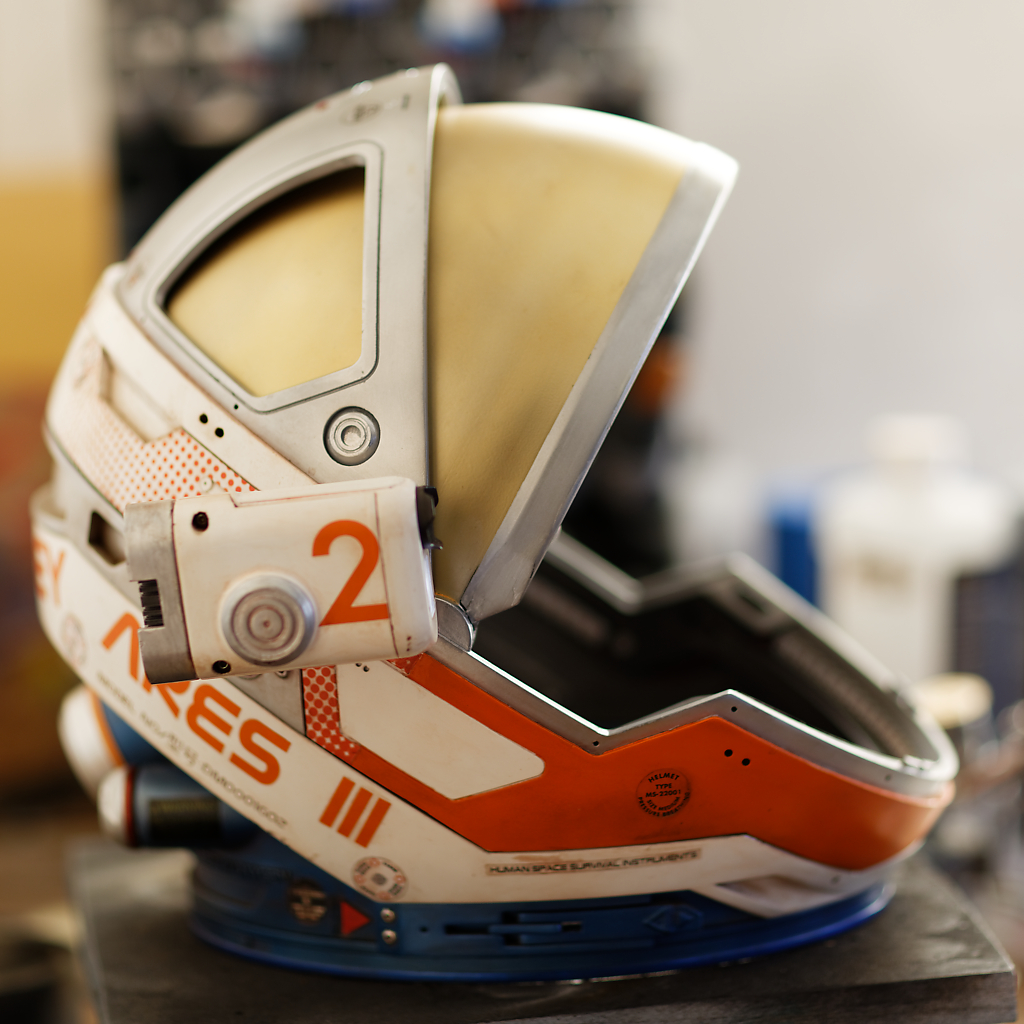

All weathered up and the electronics installed. I used powder weathering from Humbrol and Milk powder paint. It is easy to adjust and remove if need be.







Attachments

  • IMG_0133_DxO.jpg
    803.7 KB · Views: 200
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Empiricus

Well-Known Member
RPF PREMIUM MEMBER

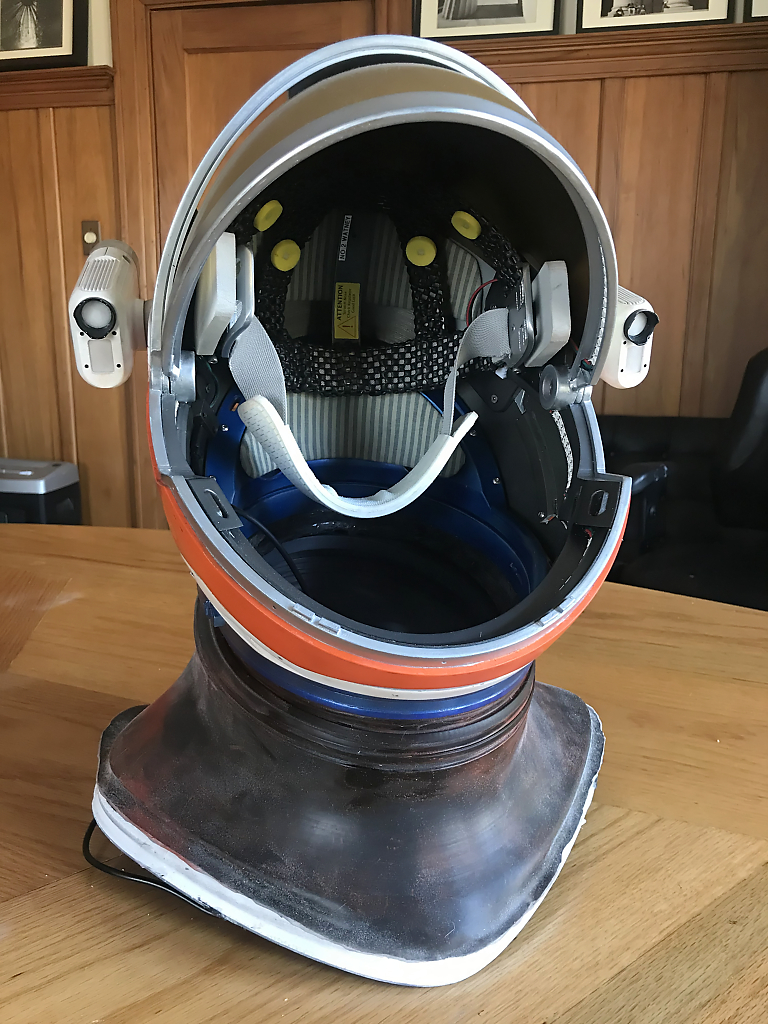

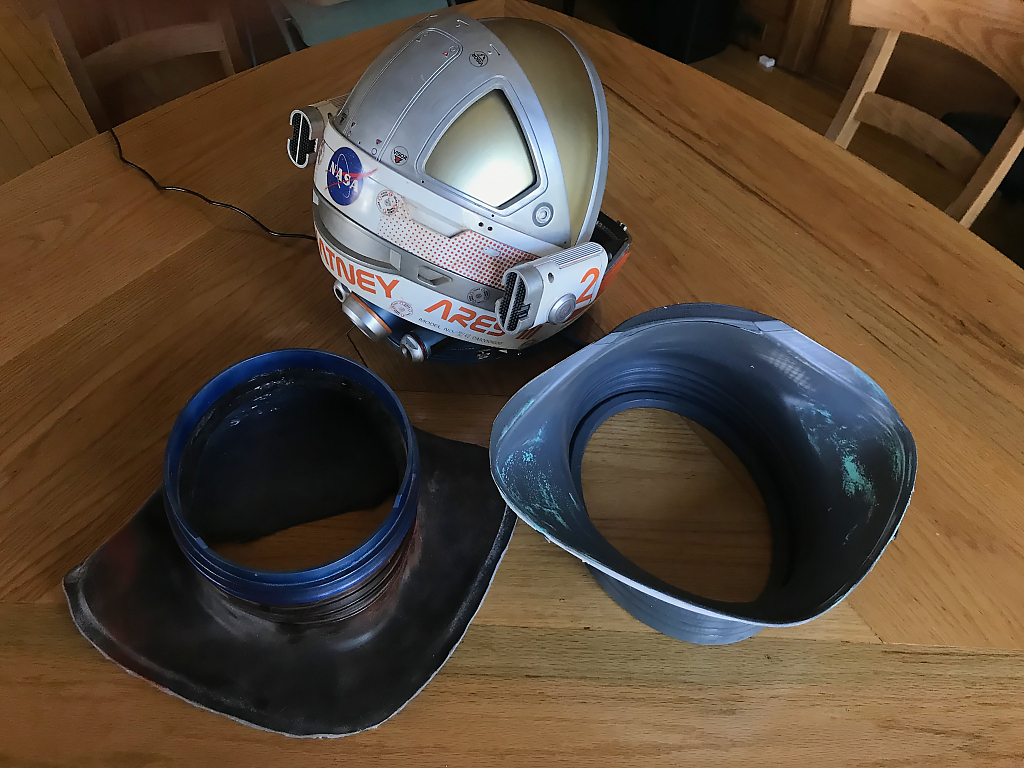

I did a neck silicon cover for the helmet. In the movie there are two different ones. This one makes most sense to me. Did 4 layers of Dragon skin FX-Pro in a 3D printed form. First layer tinted black. Talcum and some Milk powder weathering.


laellee

Master Member
RPF PREMIUM MEMBER
Wow, beautiful. And it's within the '98%', the percentage I came up with for the 98% that is NOT ADDICTED to prop accuracy like we are here :) Seriously, that looks better than the screen-used, well done.
