I have decided to build a Merr- Sonn Munitions Inc GRS-1 snare rifle. When I was a kid Zuckuss was my favorite action figure. I saved all the UPC symbols I needed, mailed them in and got Zuckuss in the mail. Kenner messed at the time and switched names on the two bounty hunters and called Zuckuss 4-Lom. They also cut the barrel off the toy gun that came with the figure which I actually really thought it was a cool looking gun.

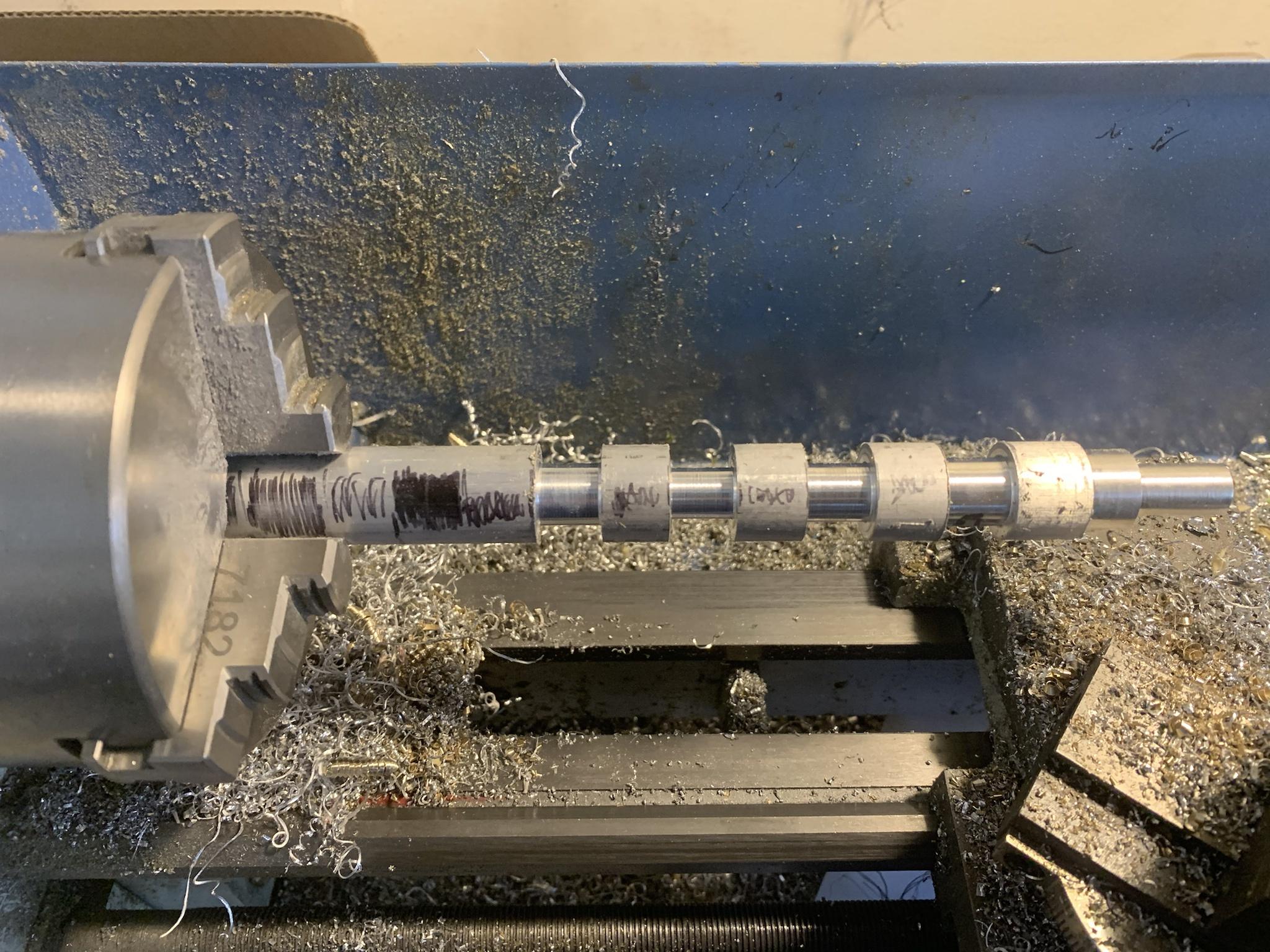

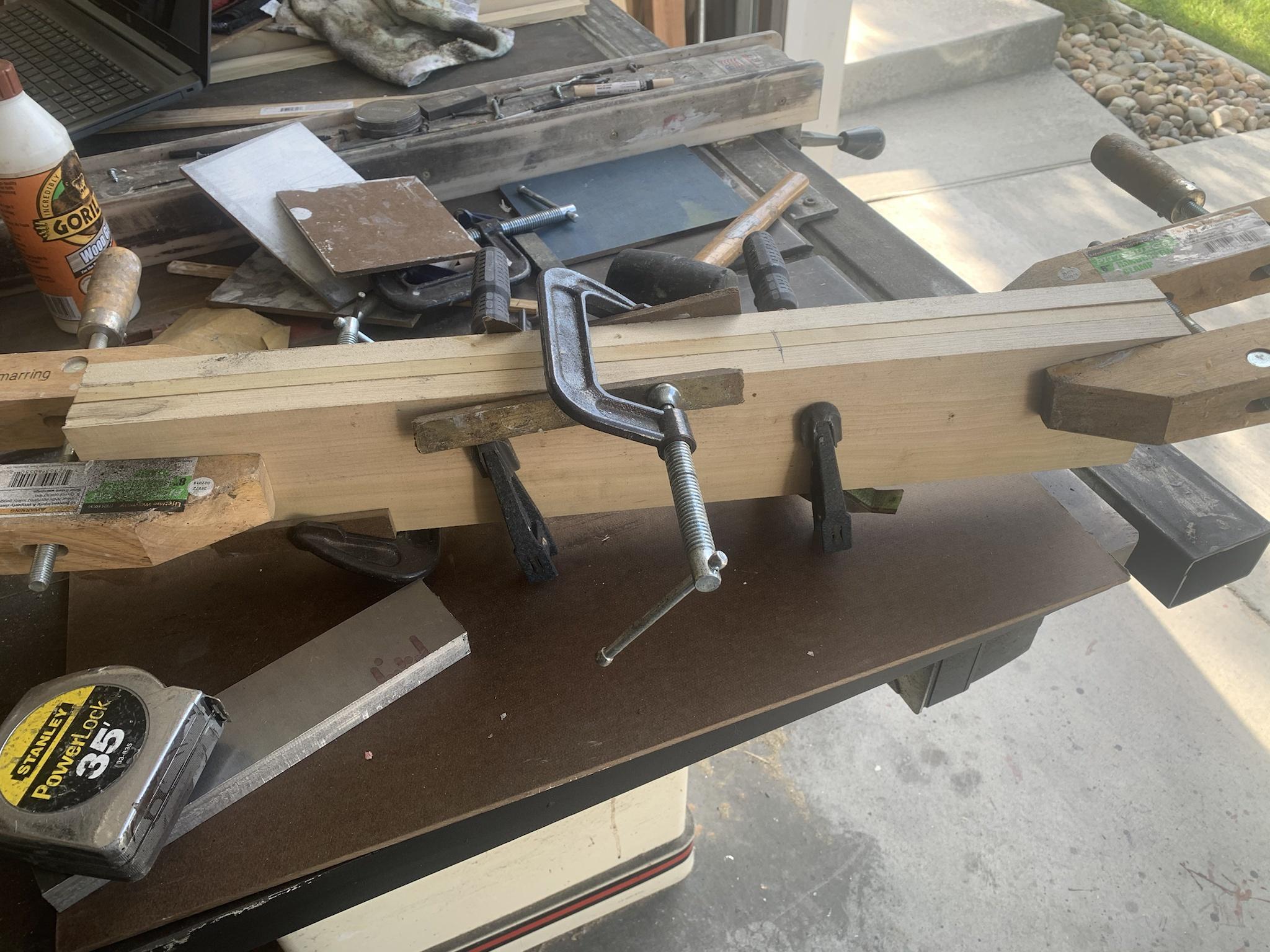

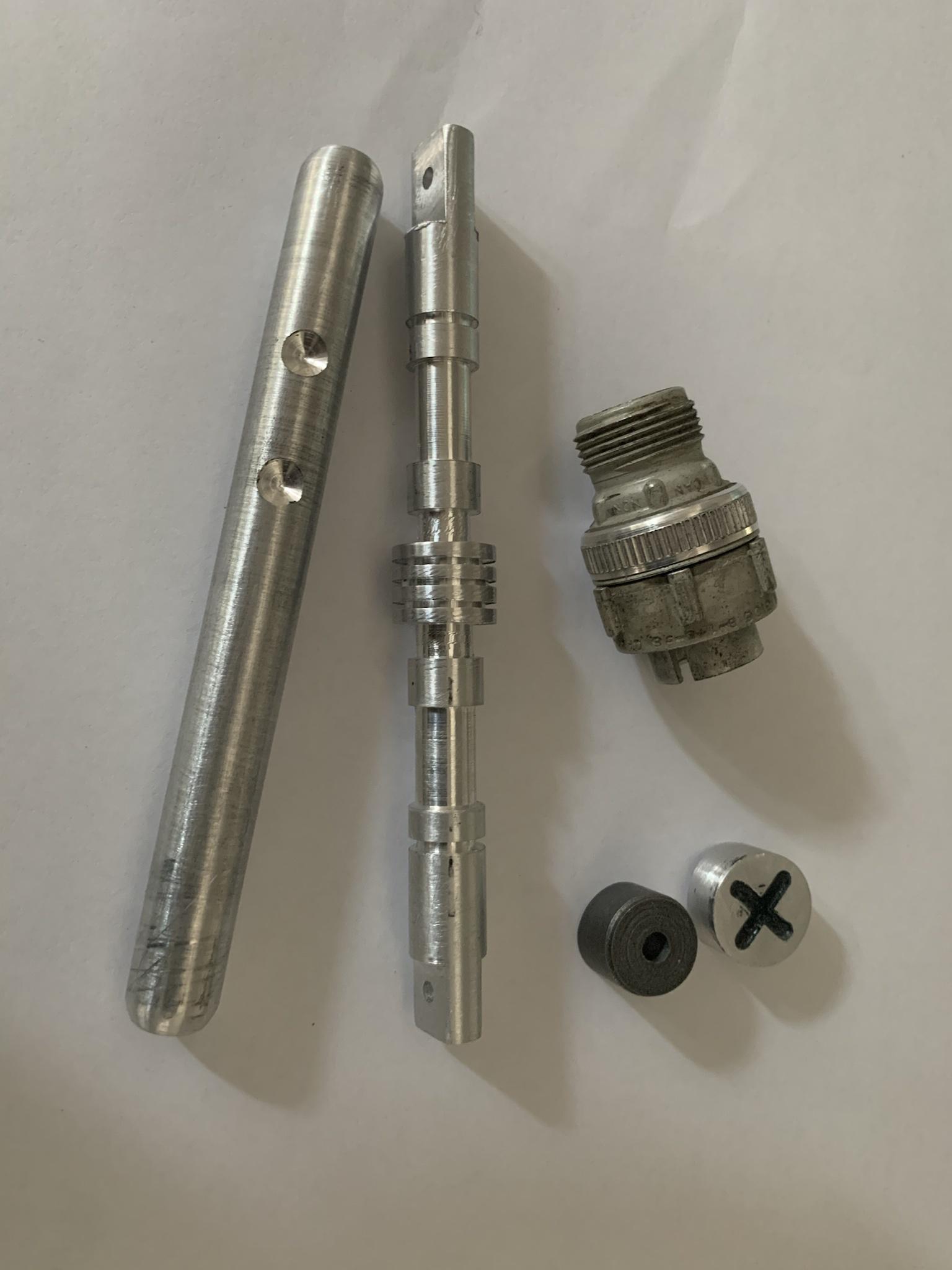

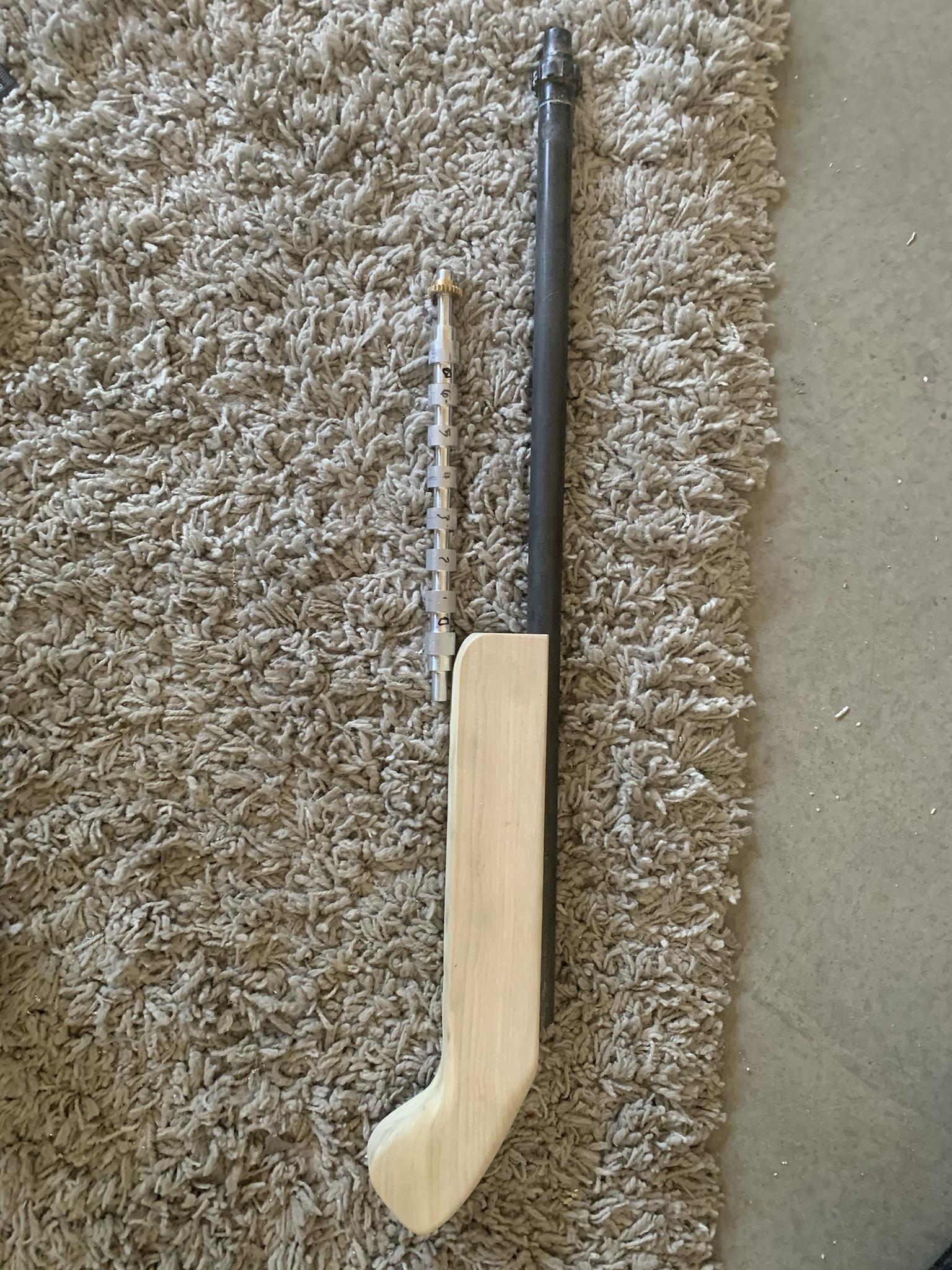

I started off gluing boards together for the gun stock which I ended up milling down because it ended up being to thick. I then worked on the making a flash hider and the part that looks like a large crank shaft. I found a nice 3/4" gear to slide onto the end of it..

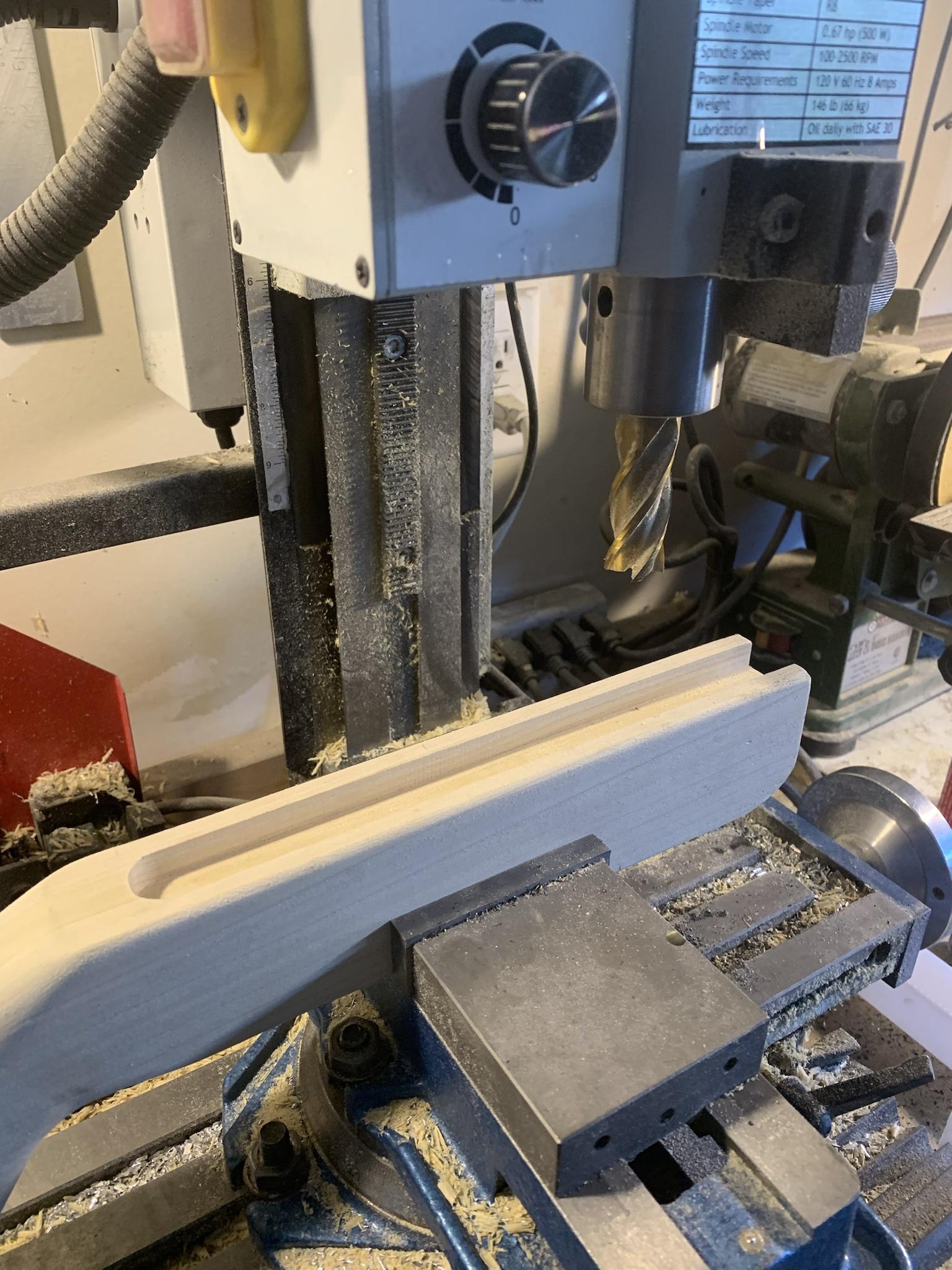

I ended up finding some 3/4" steel pipe and with a little sanding and bluing I had a gun barrel. Then I needed to mill a slot in my stock for the barrel to fit.

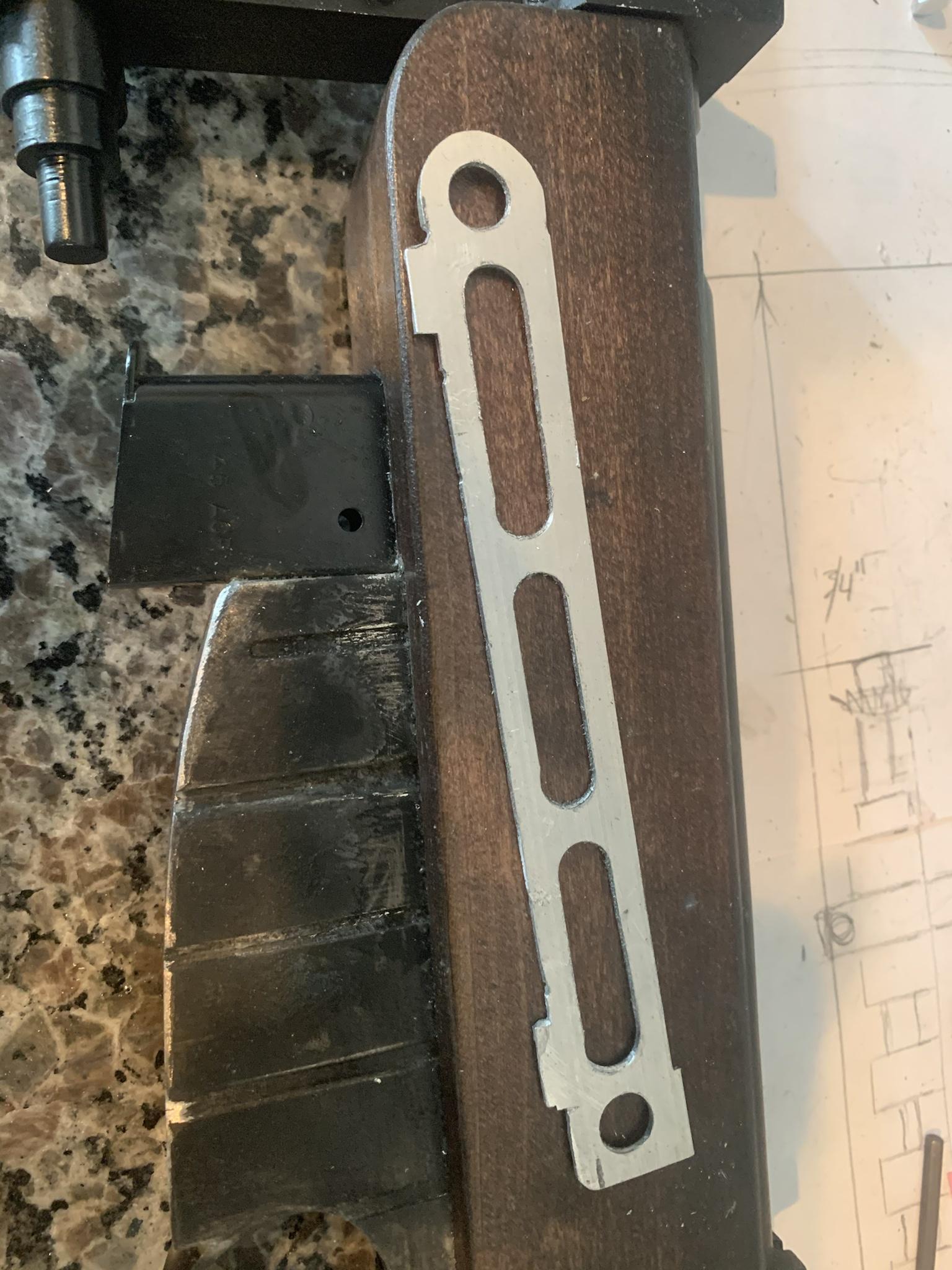

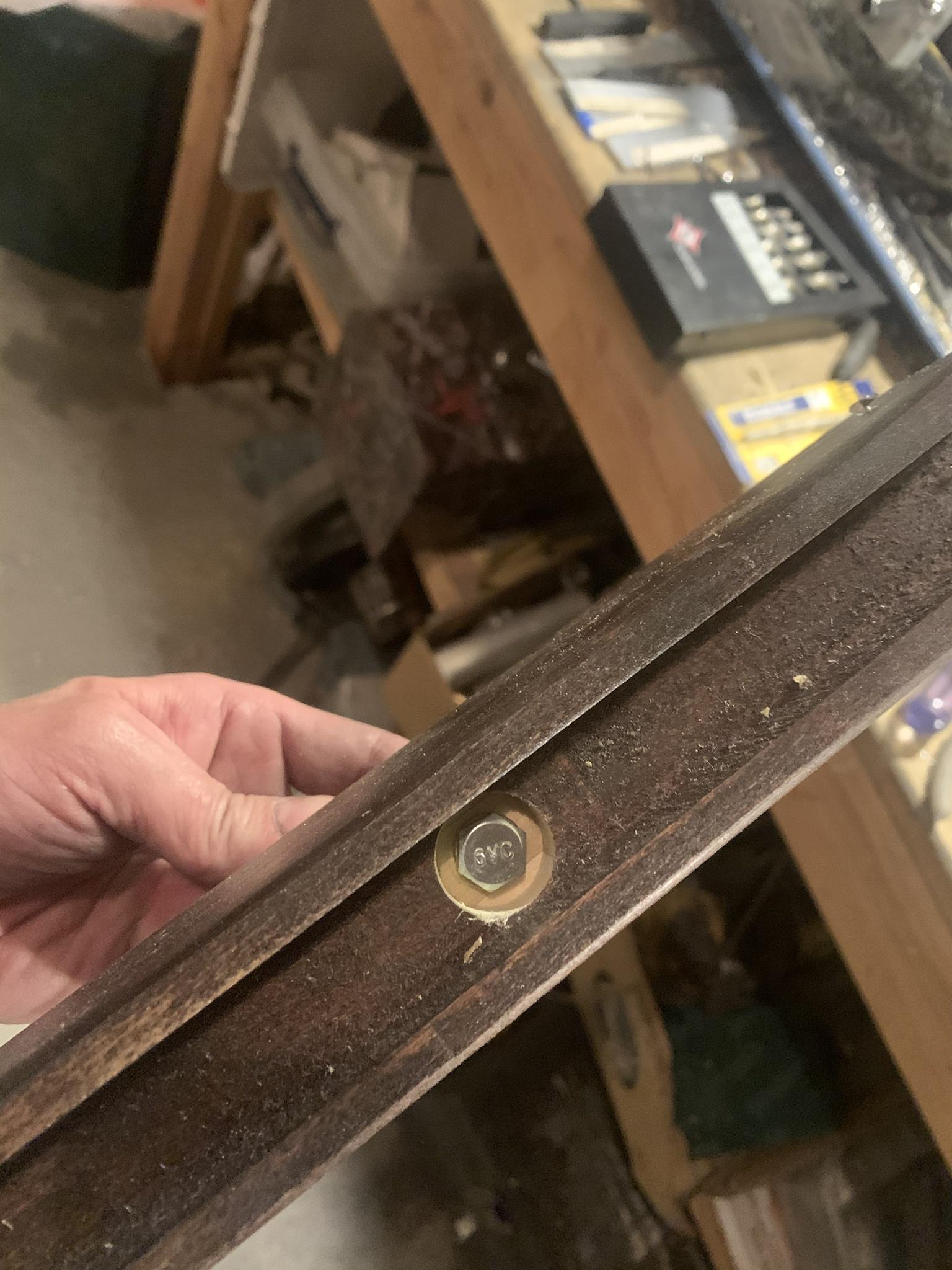

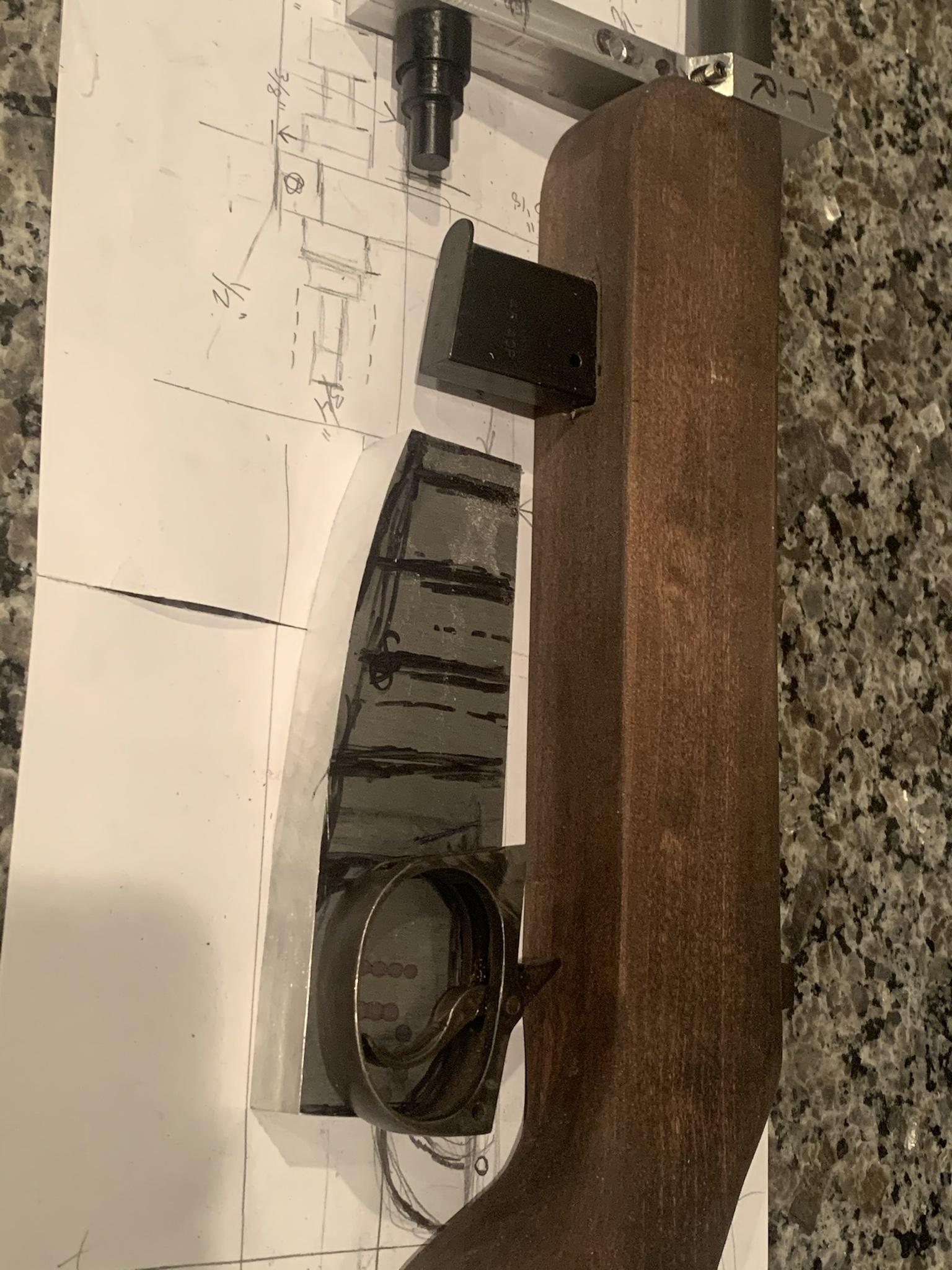

Found a magazine that looked the correct size after searching for vintage gun magazines one night. I ended up getting a Enfield SMLE rifle trigger to use. The Enfield magazine was too small with the incorrect marking locations so ended up making one out of 3/4" thick piece of raw aluminum. Then counter sink and bolted that sucker under the barrel location.

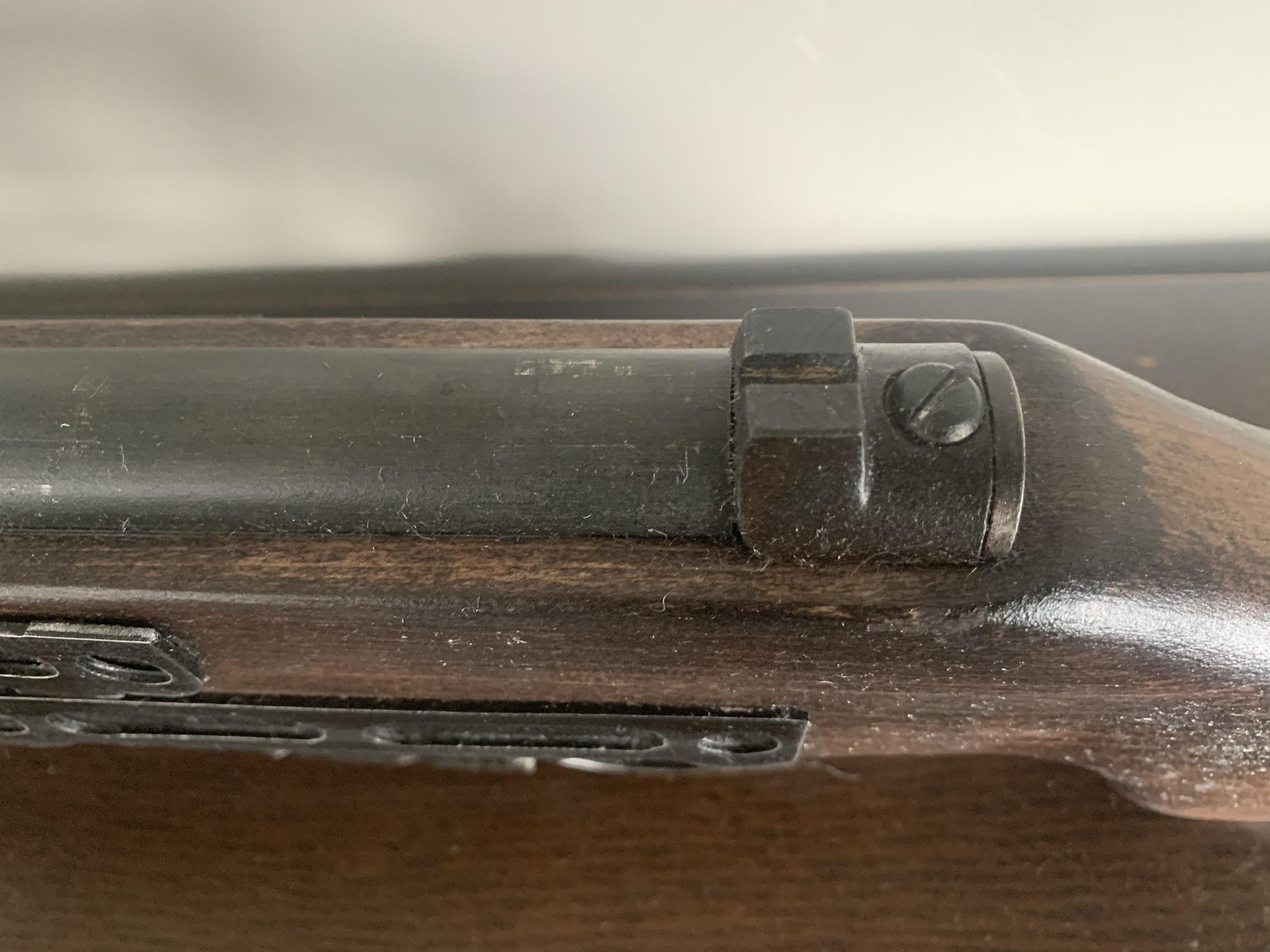

Towards the end I decided the back end of the gun was just too plain and boring and with Zuckuss covering the back end with his hand in basically the only screen shot you can get I decided to do a little interpretation. I made a gun sight from parts of my Enfield rifle. It's held with one screw so I can easily remove it if desired.

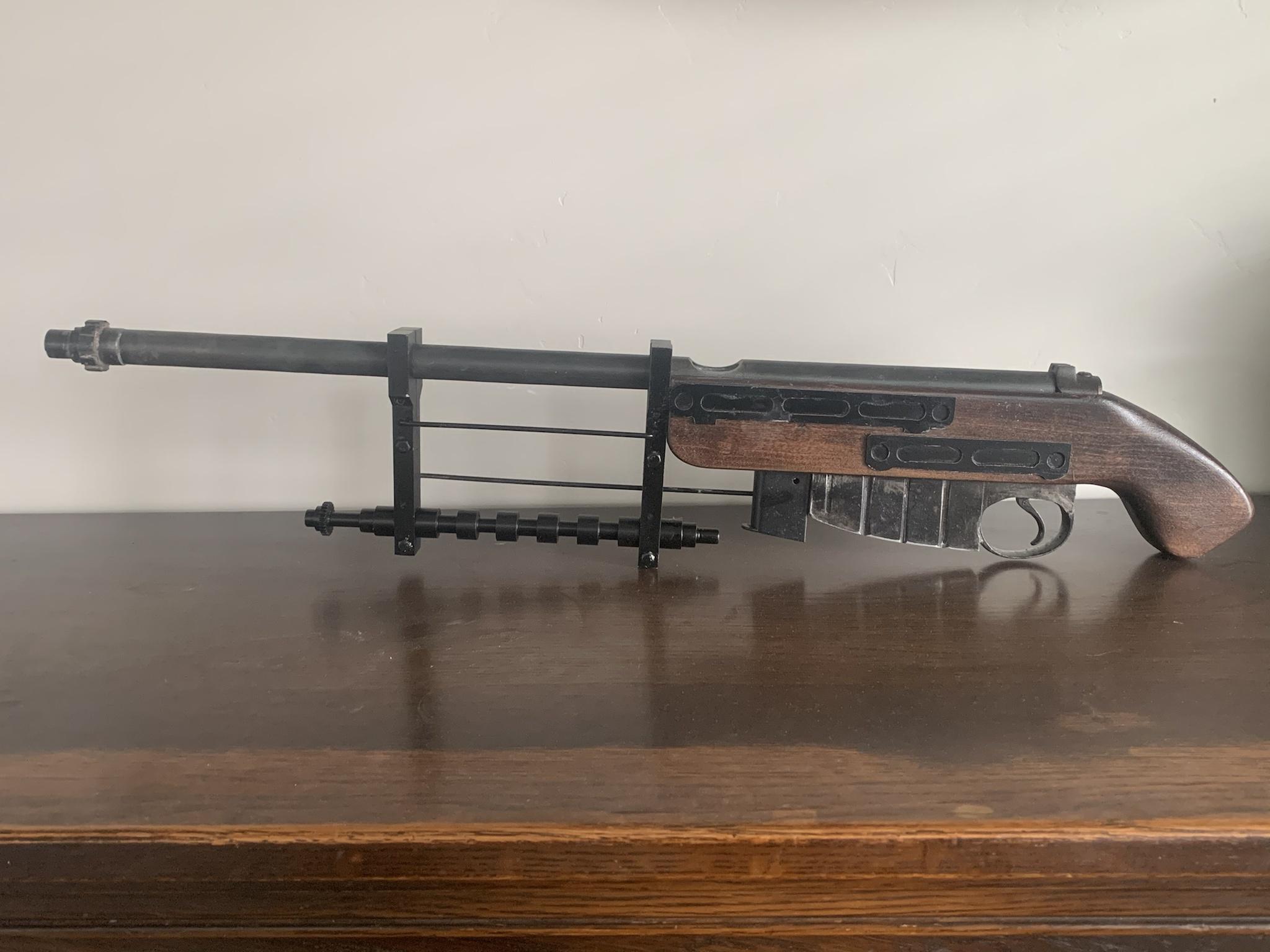

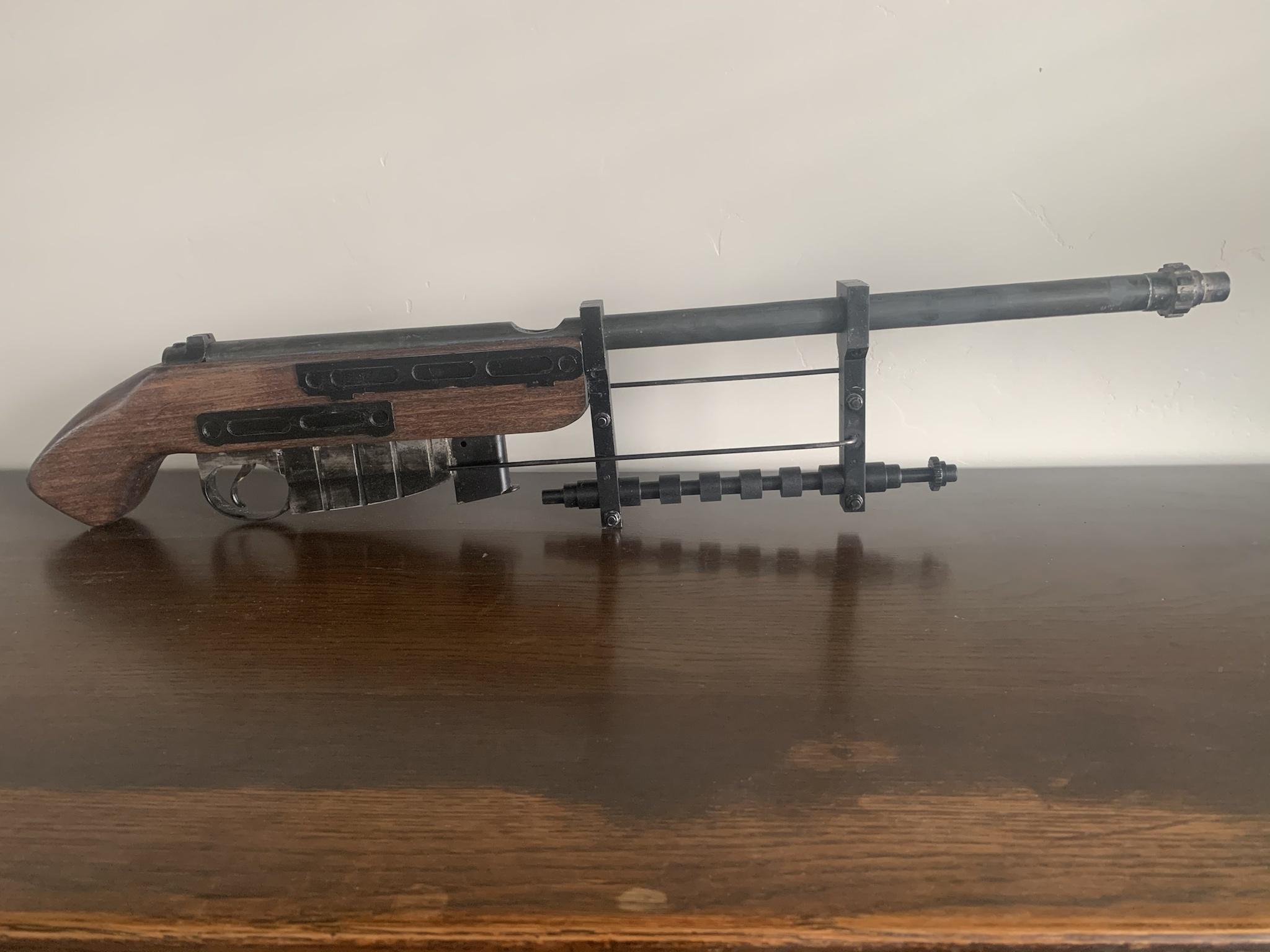

After lots of sanding, painting and details I finished it. I also drilled out space in the stock and made a small leaf spring so the trigger would actually have some tension instead of just flopping around doing nothing.
