My Lifesize 1:1 Jawa Build - 1st Attempt

Discussion in 'Star Wars Costumes and Props' started by azheat01, Jan 1, 2012.

  1. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    I've always wanted to build one to add to my mini theater, thinking it wouldn't be nearly as expensive or complicated as my Boba Fett or HIC. I told my wife I could do it for under $150, lets see how it goes.

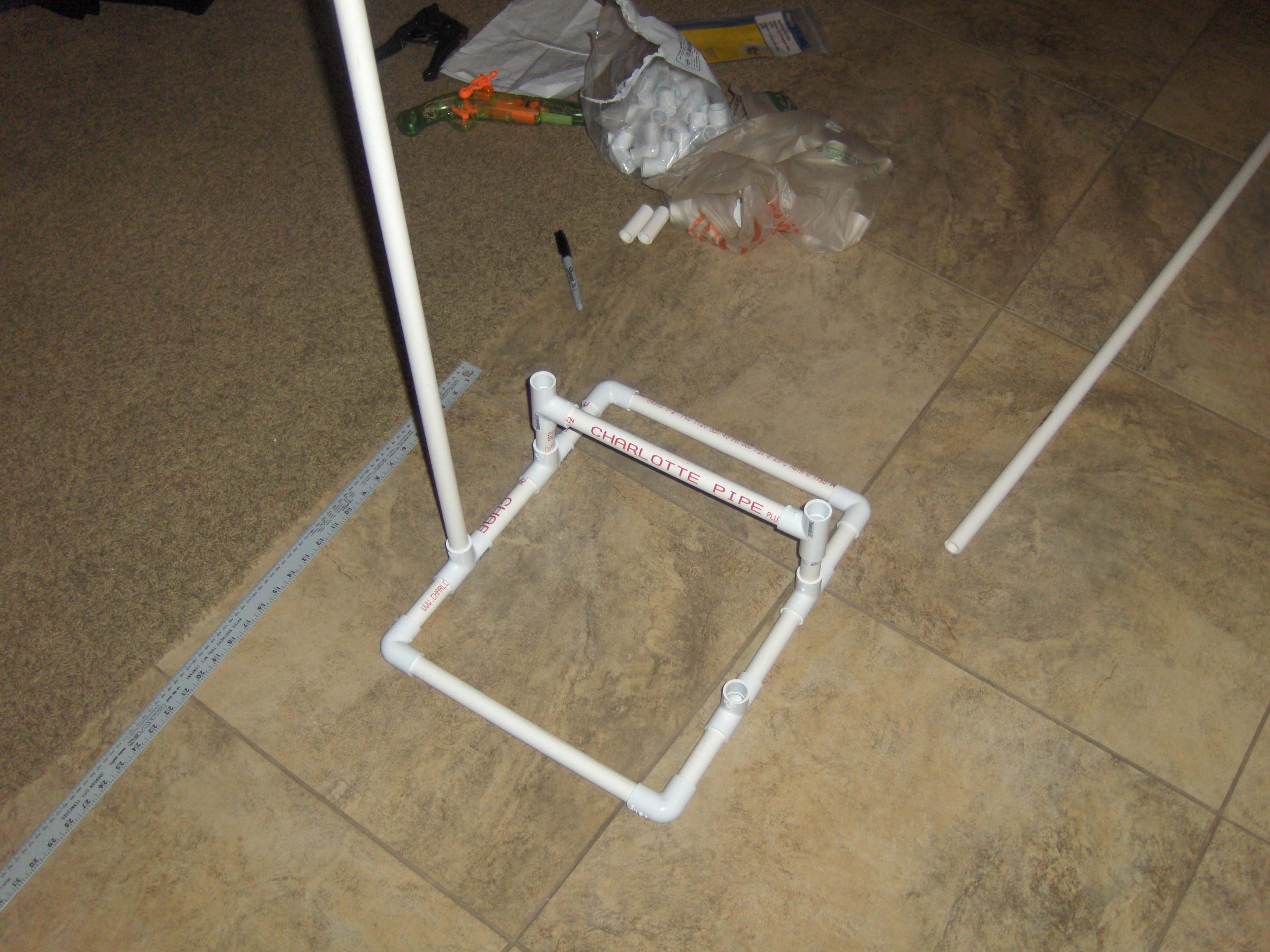

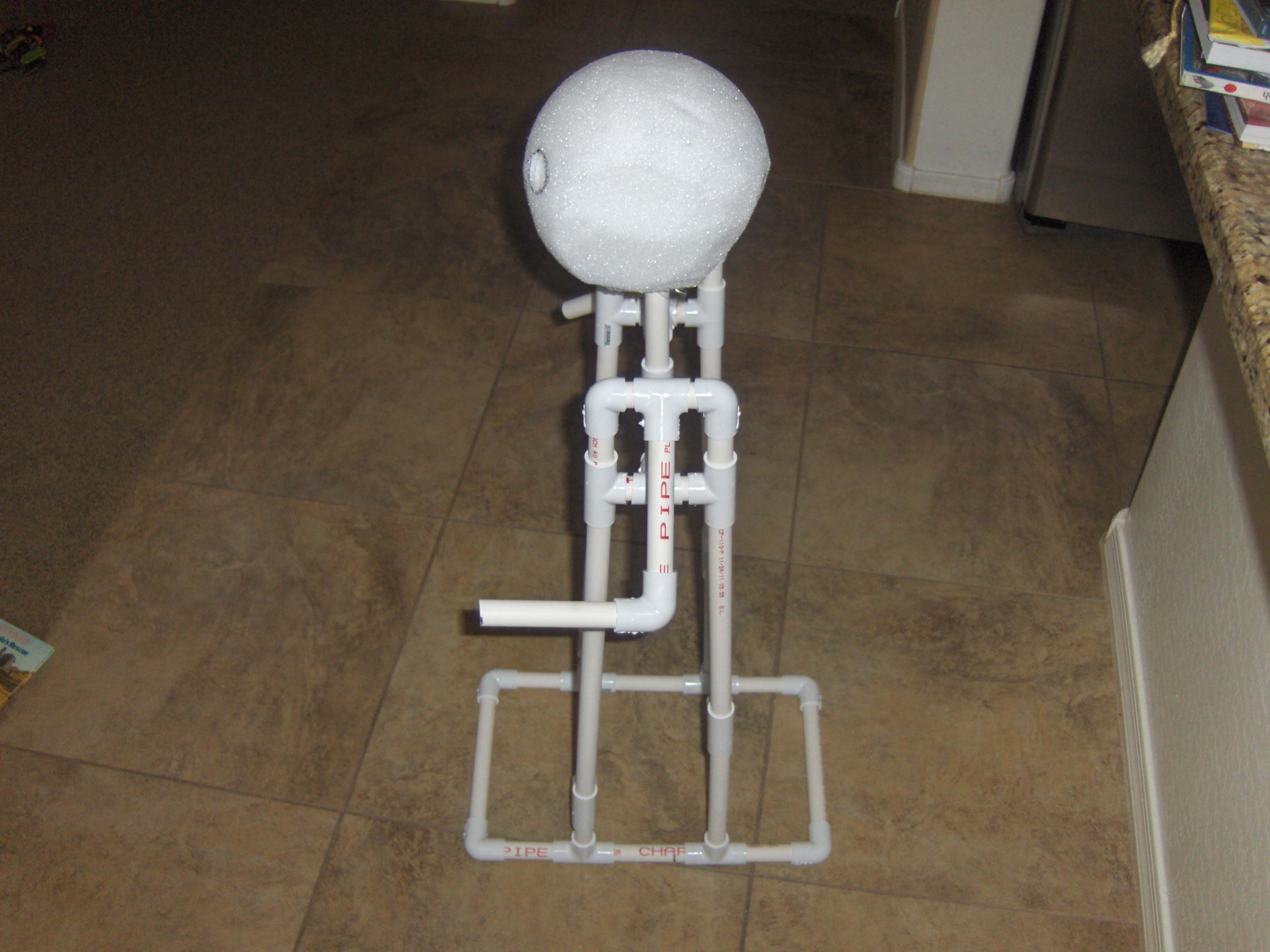

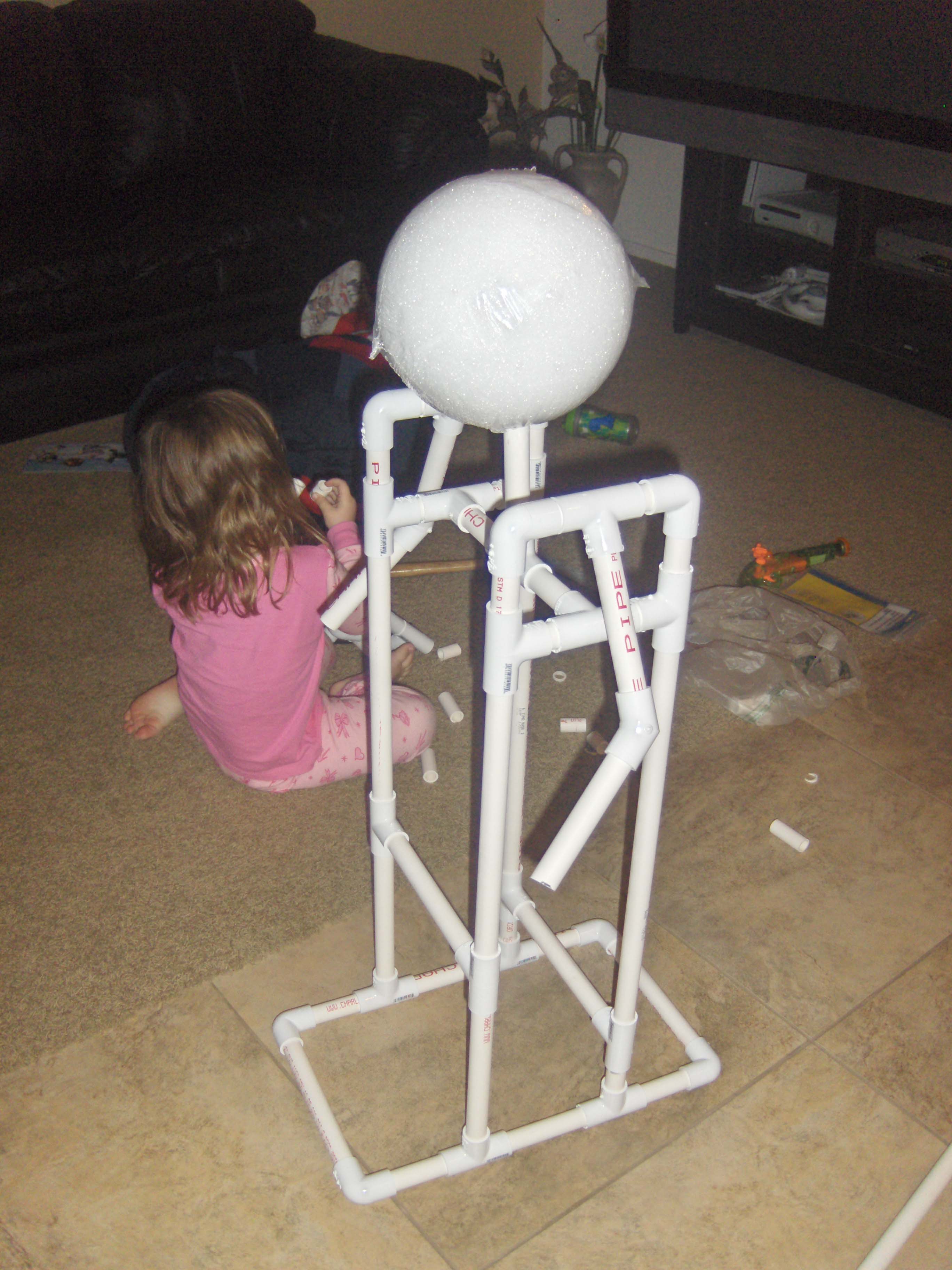

    The body frame is being built with 1/2 schedule 40 pipe. The head is a styrofoam ball from Walmart.




    After stepping back I noticed the frame was a bit too wide and a bit too broad at the top of the shoulders. I am using my 3 and 5 years old to get some approximate sizing. I decided to take the top of the shoulders in a bit and pulled about 2" out in the body width.

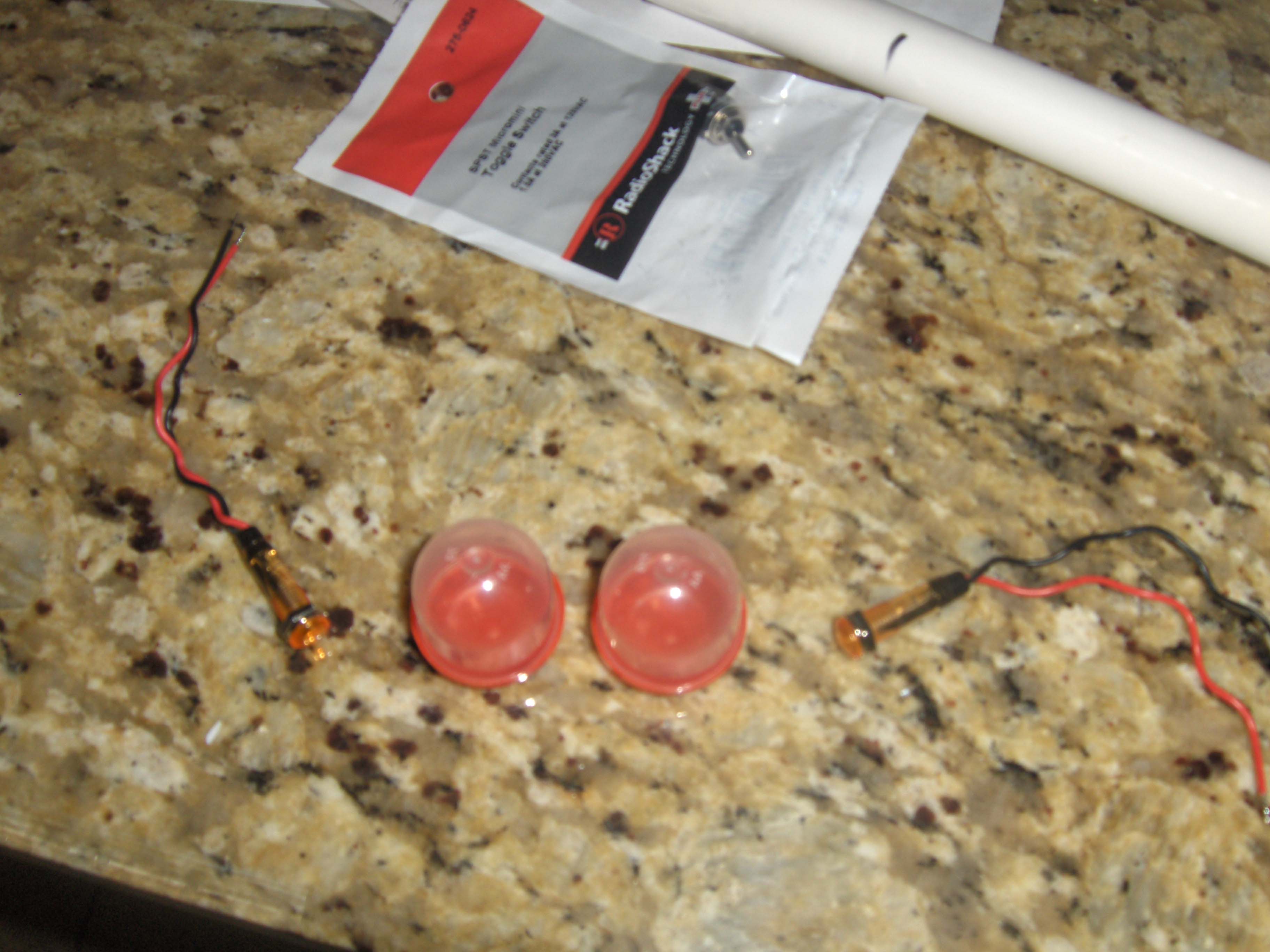

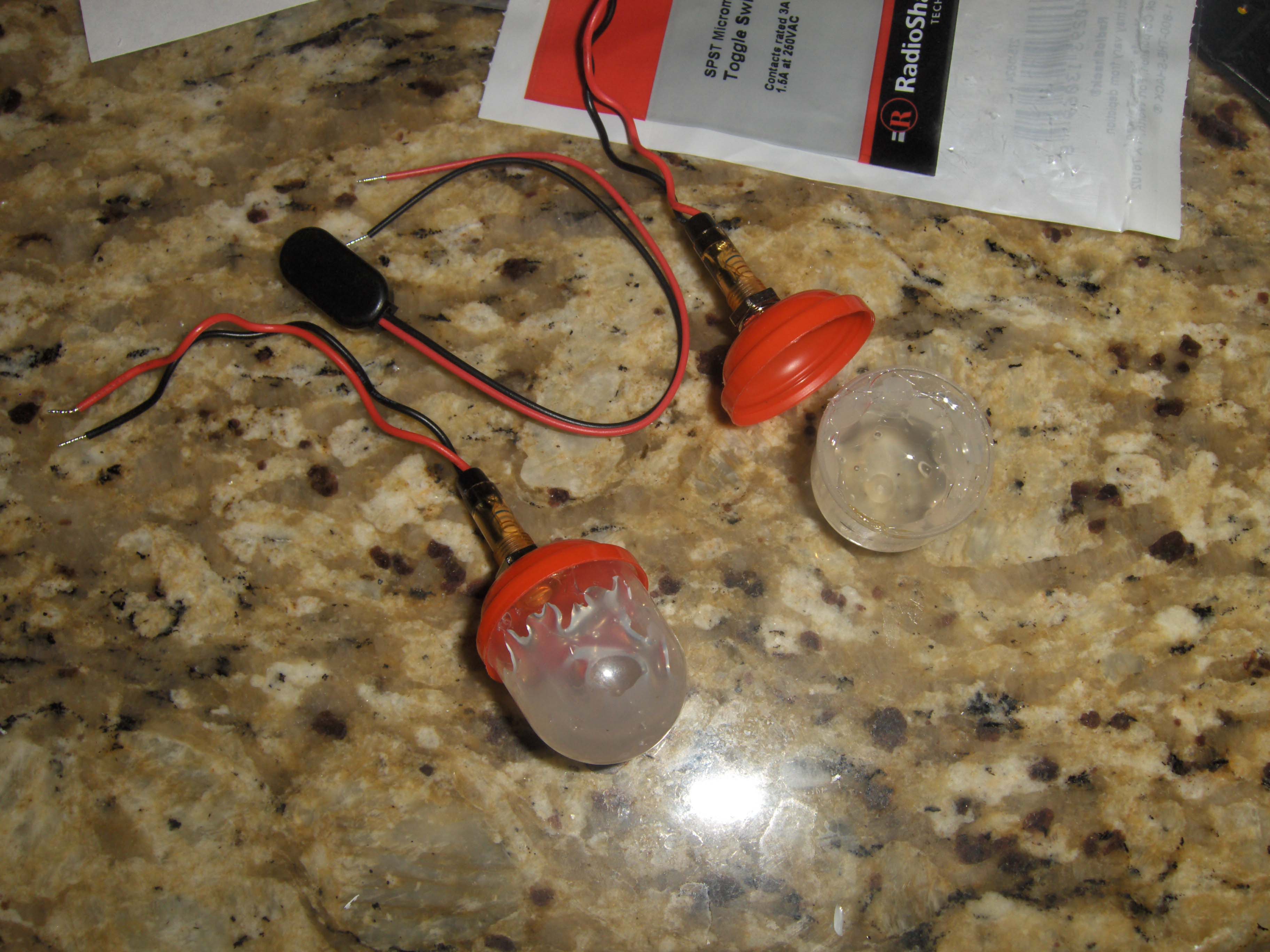

    I am using the same trick for the eyes that I used on my HIC panel. Those 25 cent toy machine dispenser capsules, the small ones. I bought 2, drilled holes on the bottom, and added 2 orange LEDs on a resistor so I could power them with one 9V battery. I then partially filled them with hot glue to help diffuse the light.

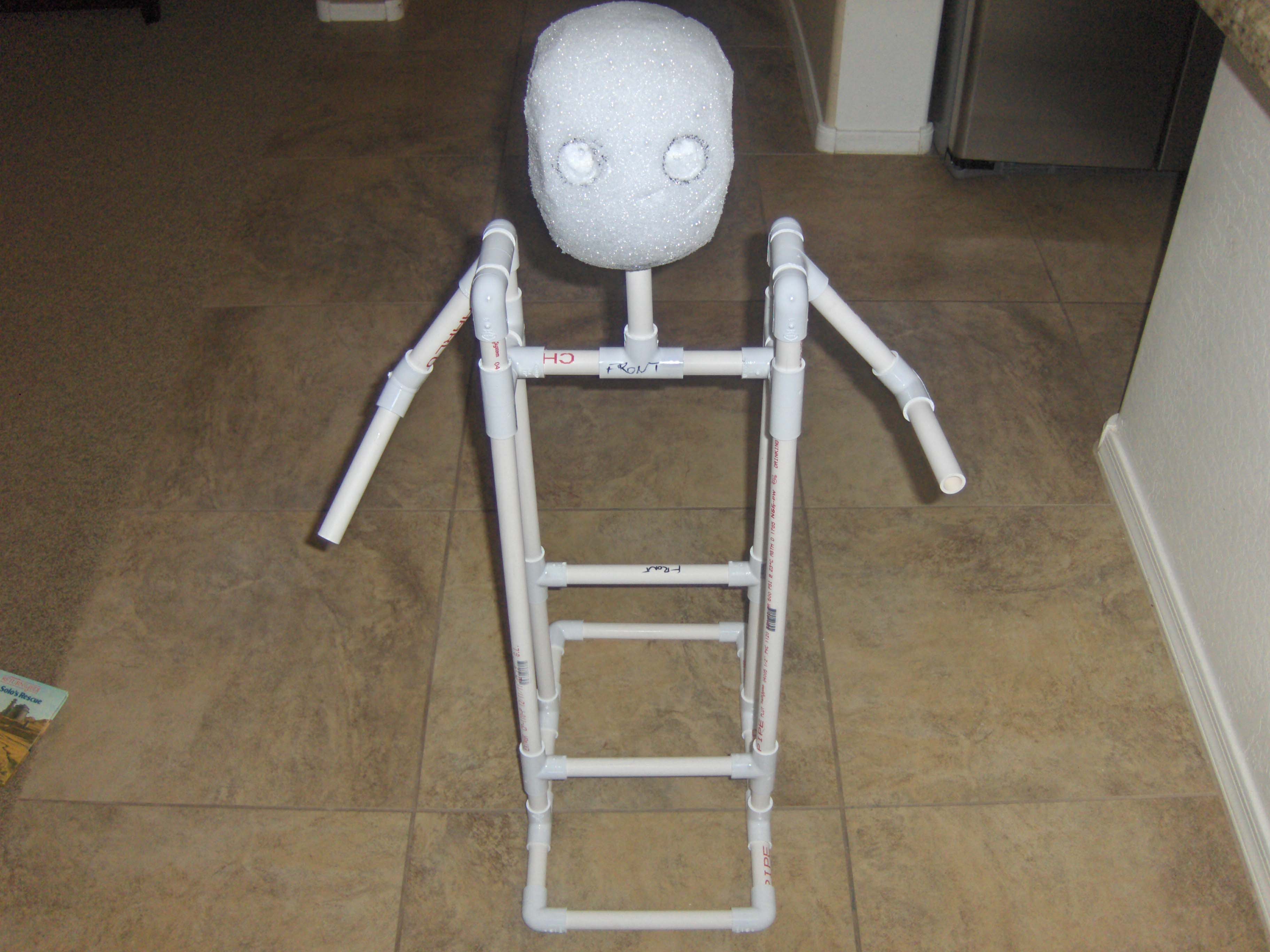

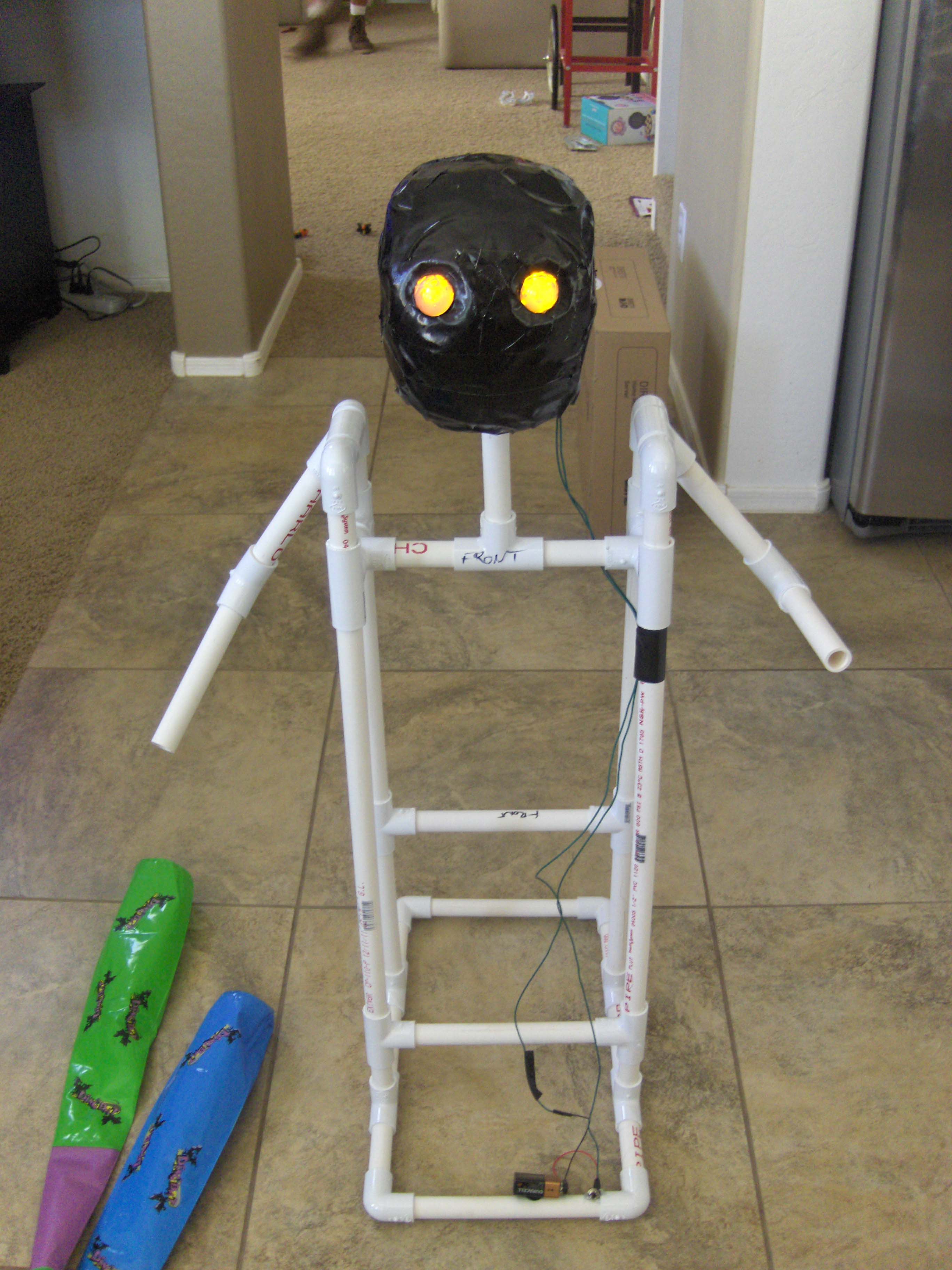

    I shaped down the head, added the eyes, and placed a toggle switch at the bottom that can be accessed from under the Jawa's cloak. I also wrapped the head in black duck tape.

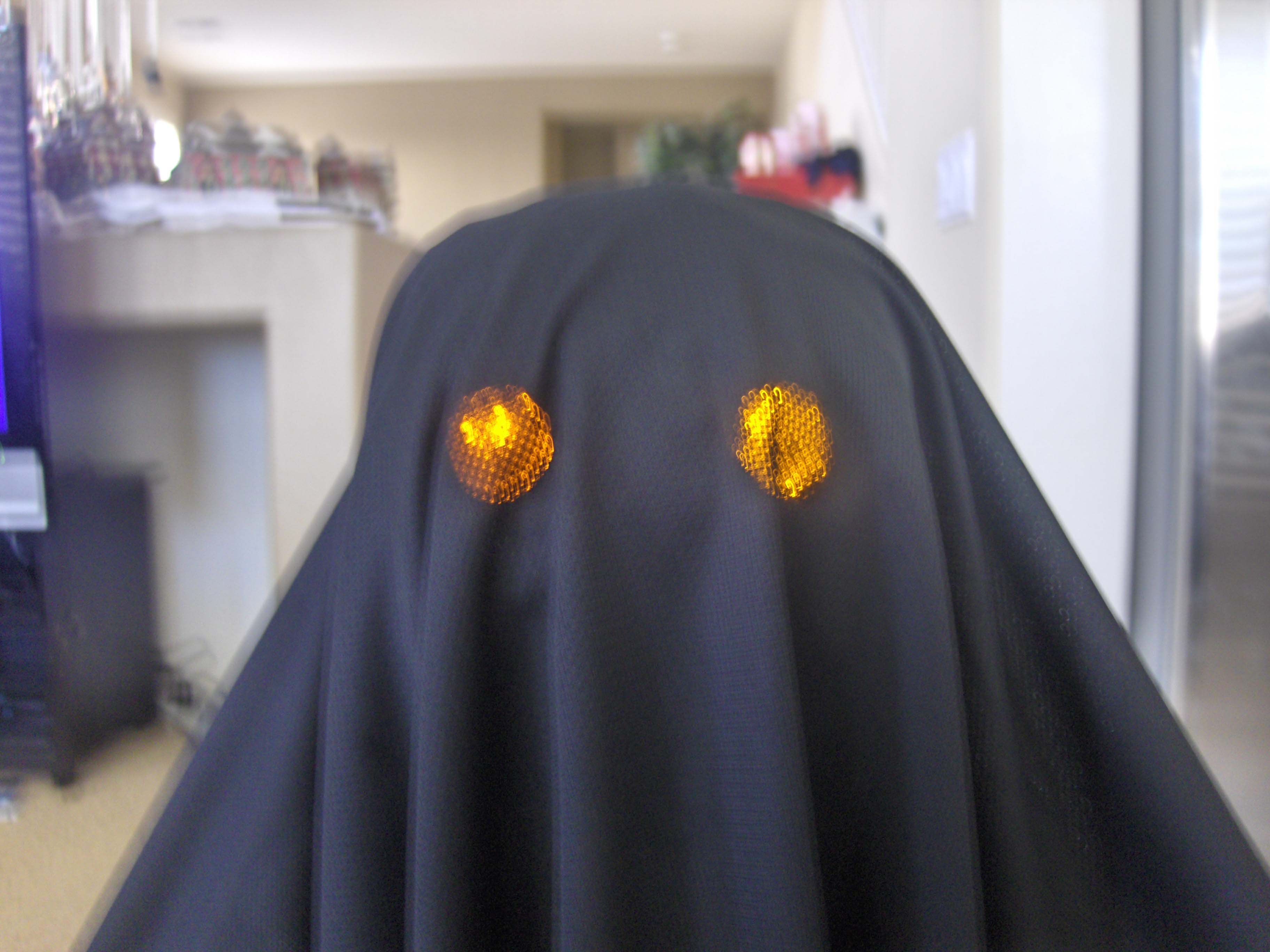

    I bought some real cheap fabric, $2.00 a yard, that I'll wrap the head in. It has a pattern that you can see in front of the eyes that I think looks real good.


    So far here is where I stand on budget:

    Pipe and Connectors - $8.00
    Head - $10.00
    Eye Capsules - $1.00
    LEDs and Switch - $8.00
    Black Duck Tape - $2.00
    Fabric - $2.00

    Subtotal - $31.00

    Last edited: Aug 10, 2015
  2. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    I knew the most expensive part would be the bandoliers, I have seen them going easily for over $100.00 each. I am not spending that much, especially since screen accuracy is not something I worry about. I went to my local Army Surplus store and after walking around for about a half hour I found these ammo pouches and straps. I figure I would be able to dye these and use paint to weather / highlight.

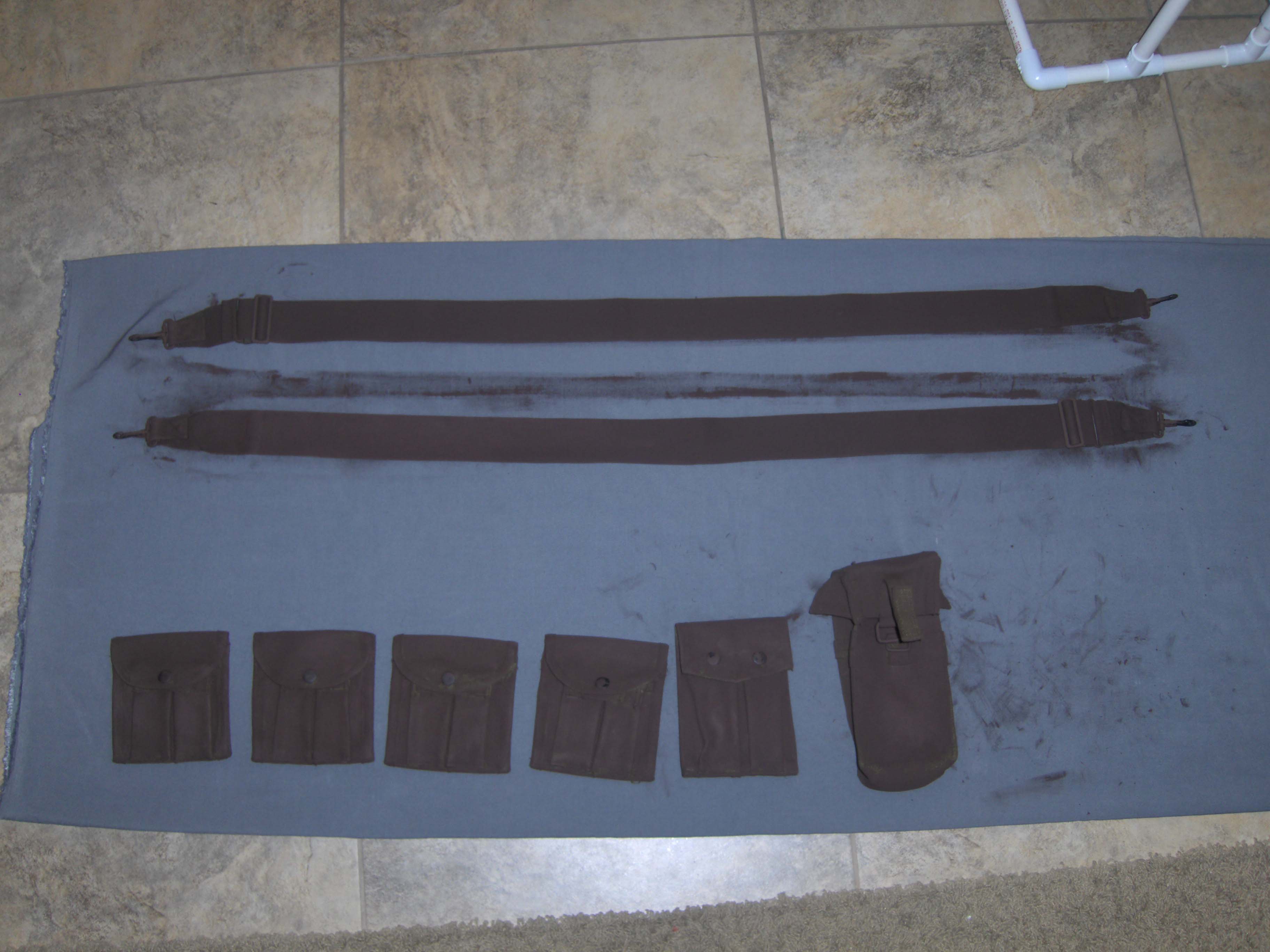

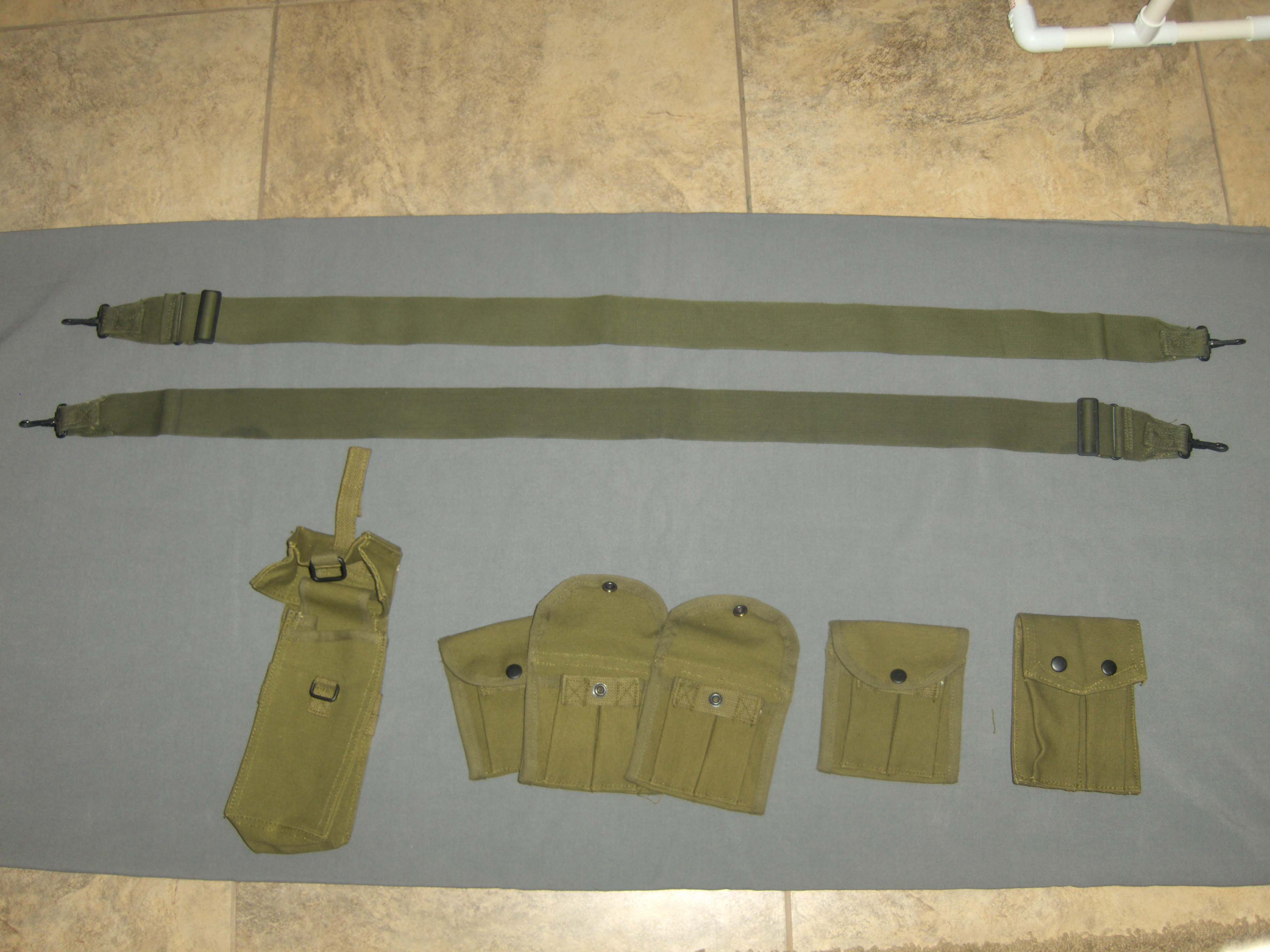

    I bought 6 pouches, only 4 of which are the same size, and 2 straps. After dying them and touching them up with some acrylic paint, I think I am satisfied (I will still be weathering these with some tan and brown colored paint as well as some black charcoal). I was going to try and lighten them, but after holding them against the fabric I bought for the cloak, I think I like it darker. Any lighter and it would be too close to the fabric for my liking.


    The total on these was $32.00 plus $5.00 for dye / paint.

    Brings my subtotal to about $68.00.

    Last edited: Aug 10, 2015
  3. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

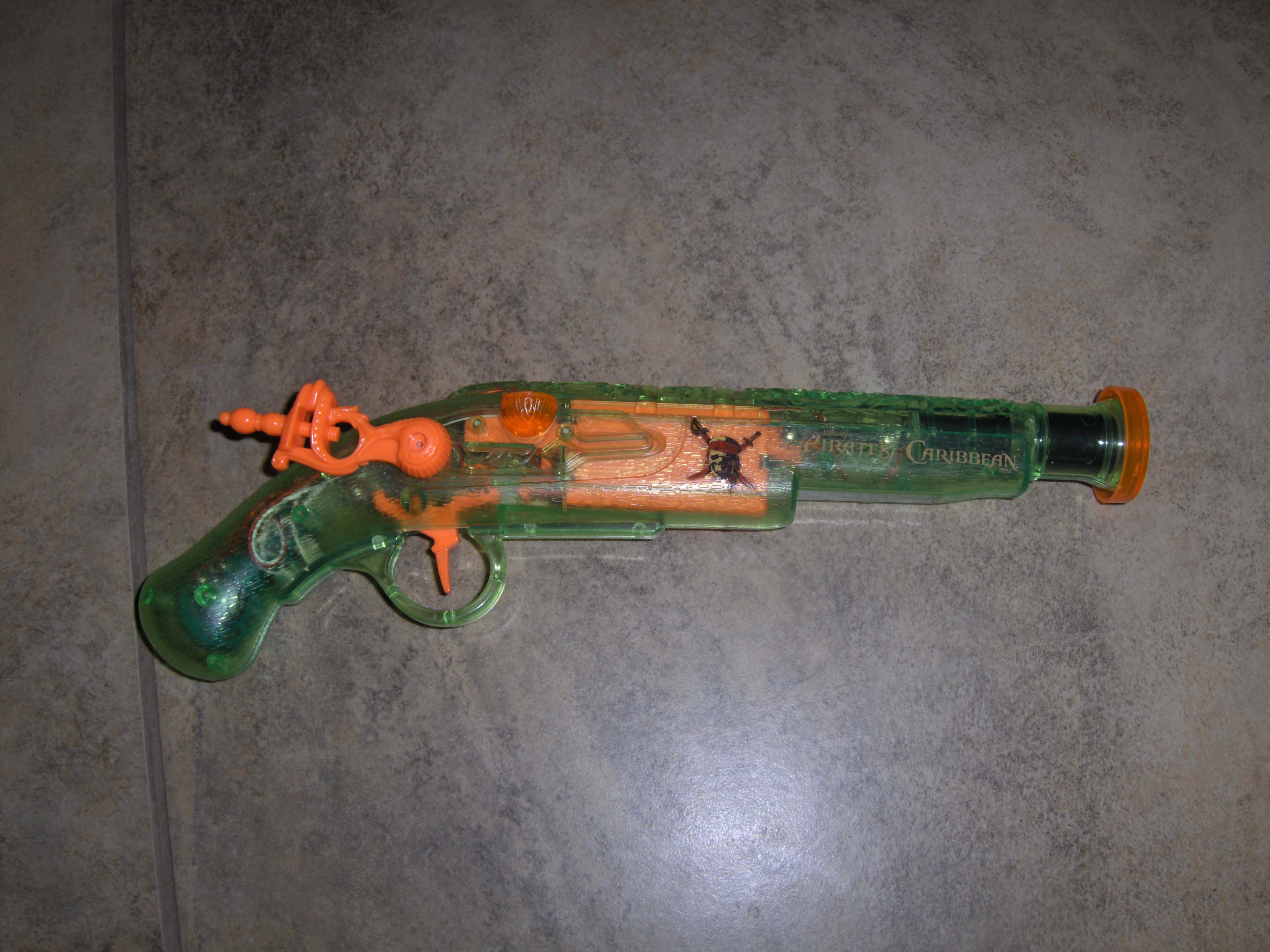

    For the gun, I am requisitioning my son's Disneyland "Pirates of the Caribbean" pistol. Santa was good this year and he is intrigued by this project, so I don't think he minds.

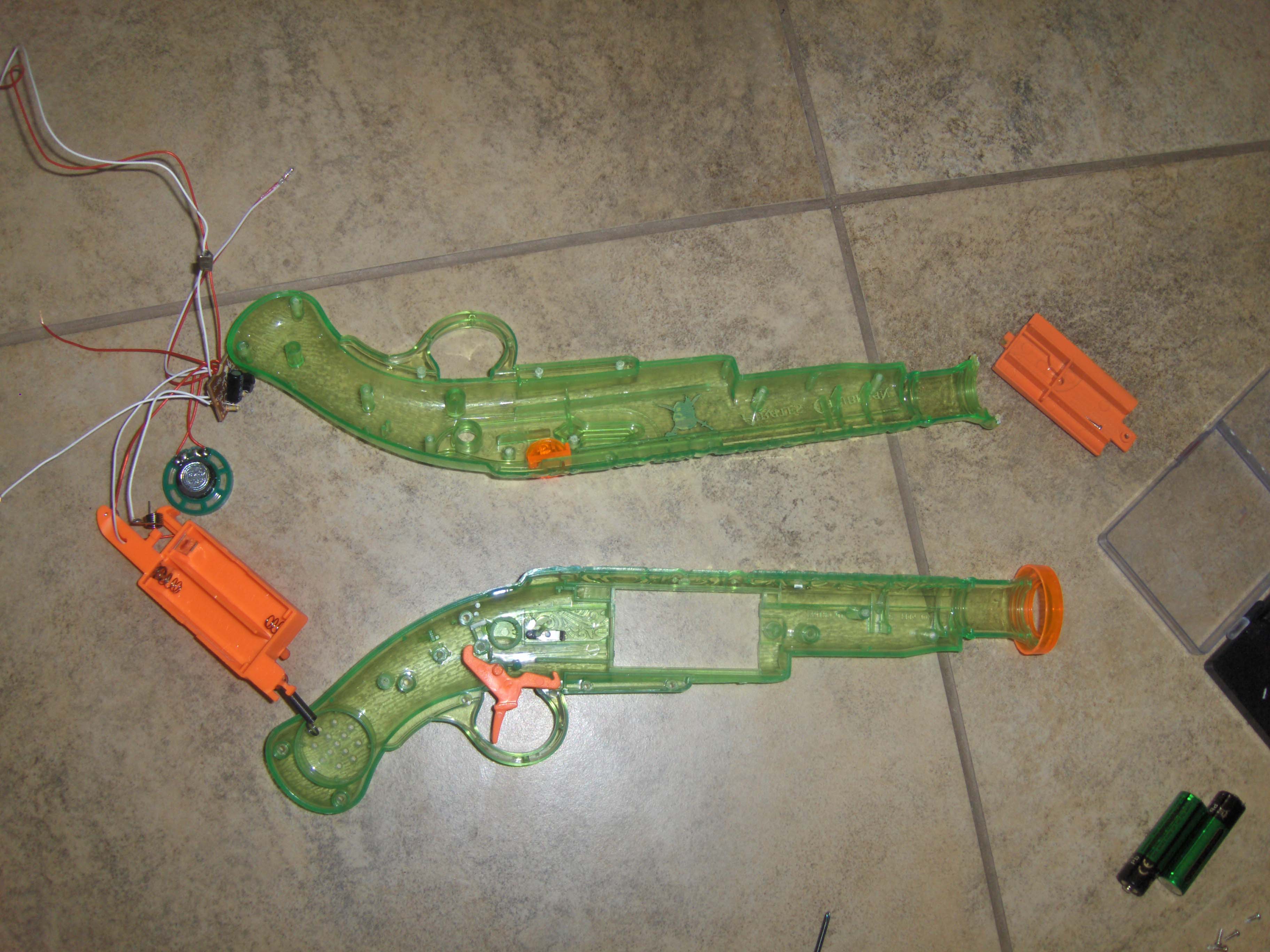

    I disassembled the pistol and removed the electronics.


    After removing the electronics I noticed the gun was very light, and by the time I add the PVC pieces, it will be front heavy. So I hot glued a bunch of nuts and bolts into the handle and near the barrel to help balance it. I cut off the front portion of the gun barrel and used a 5/8" wooden dowel and leftover schedule 40 to rebuild it.

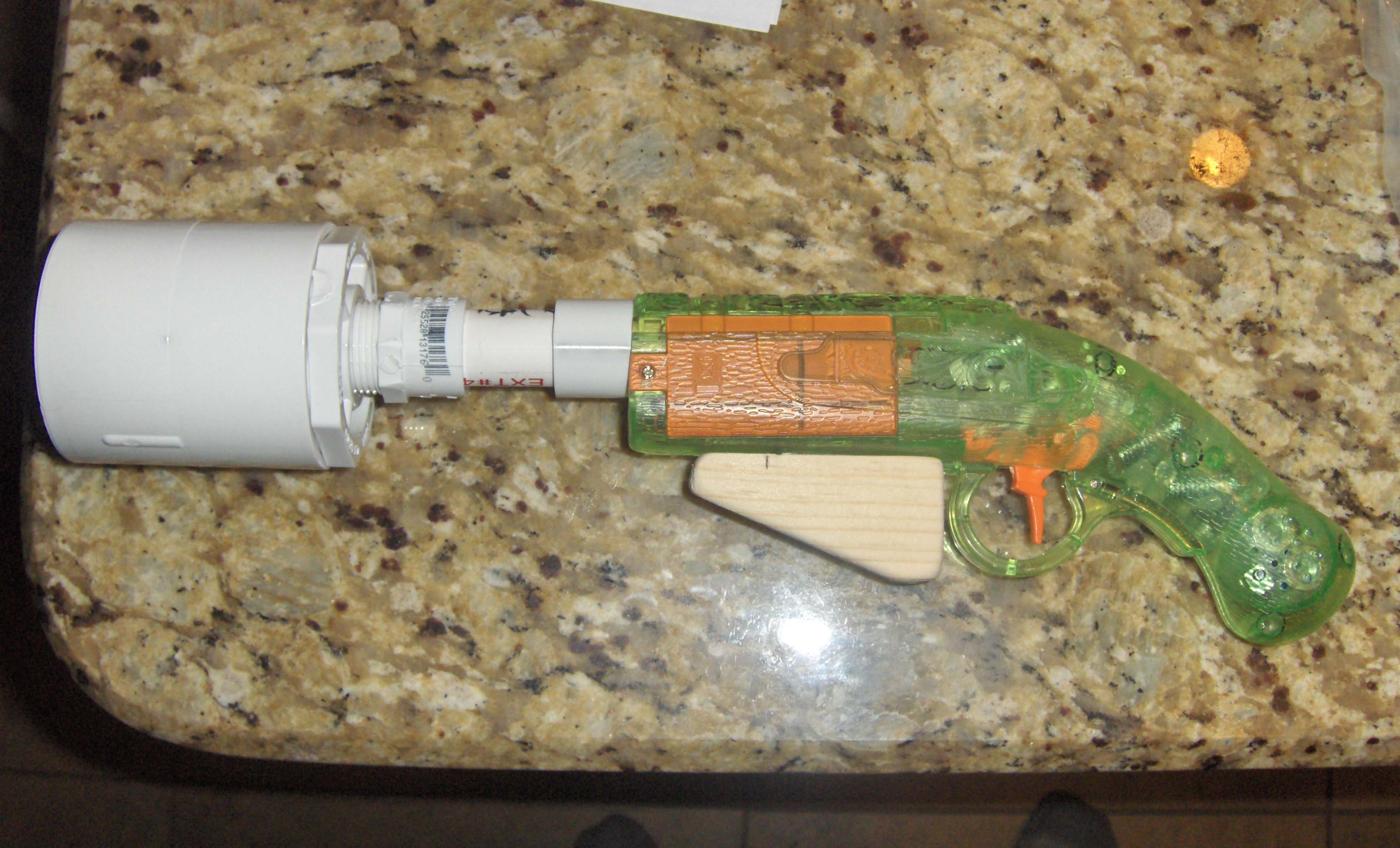

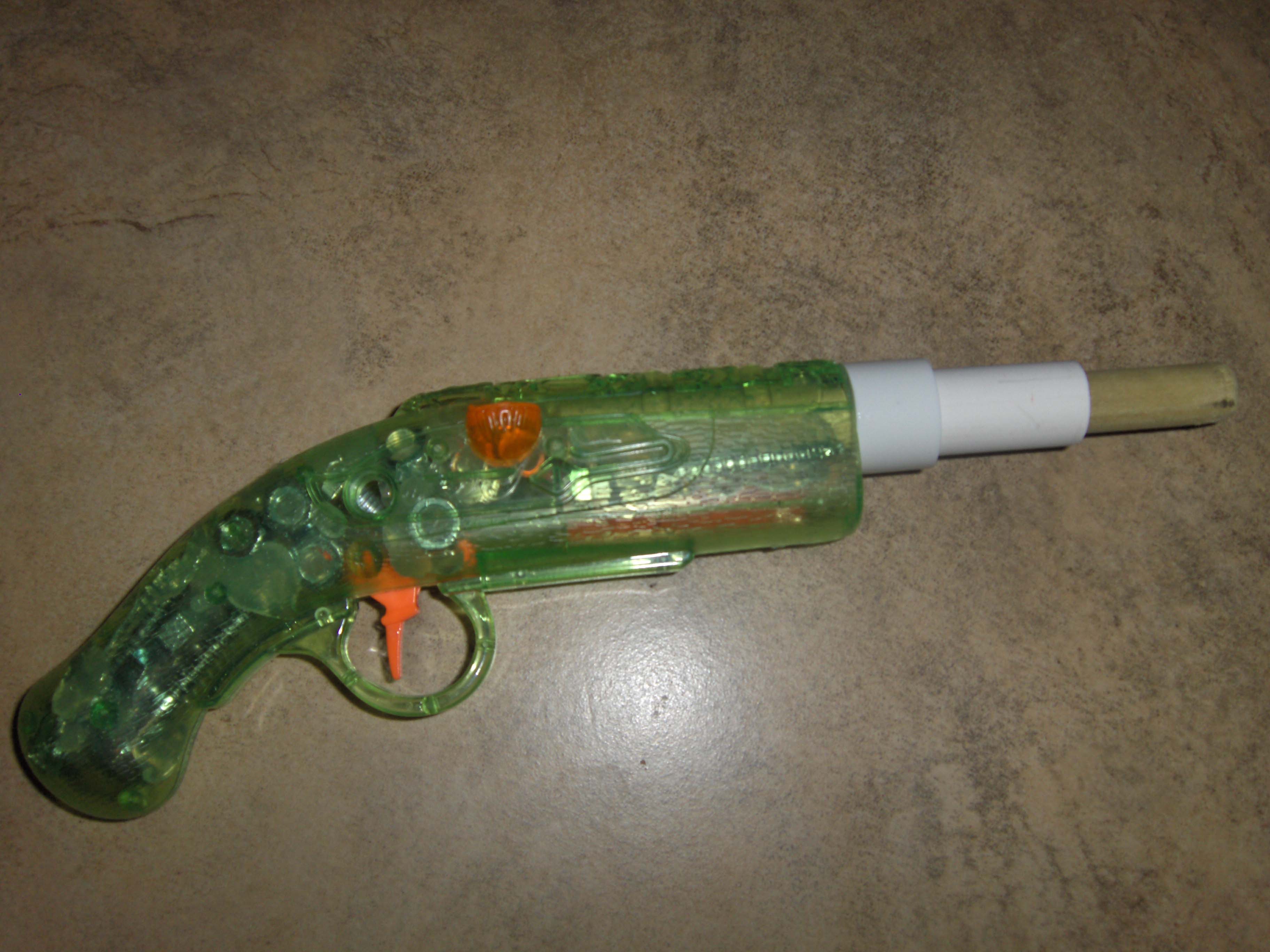

    I bought a few more plumbing fixtures of various different sizes and finished out the barrel. I also took a piece of scrap wood and shaped it so I could add it as a magazine.

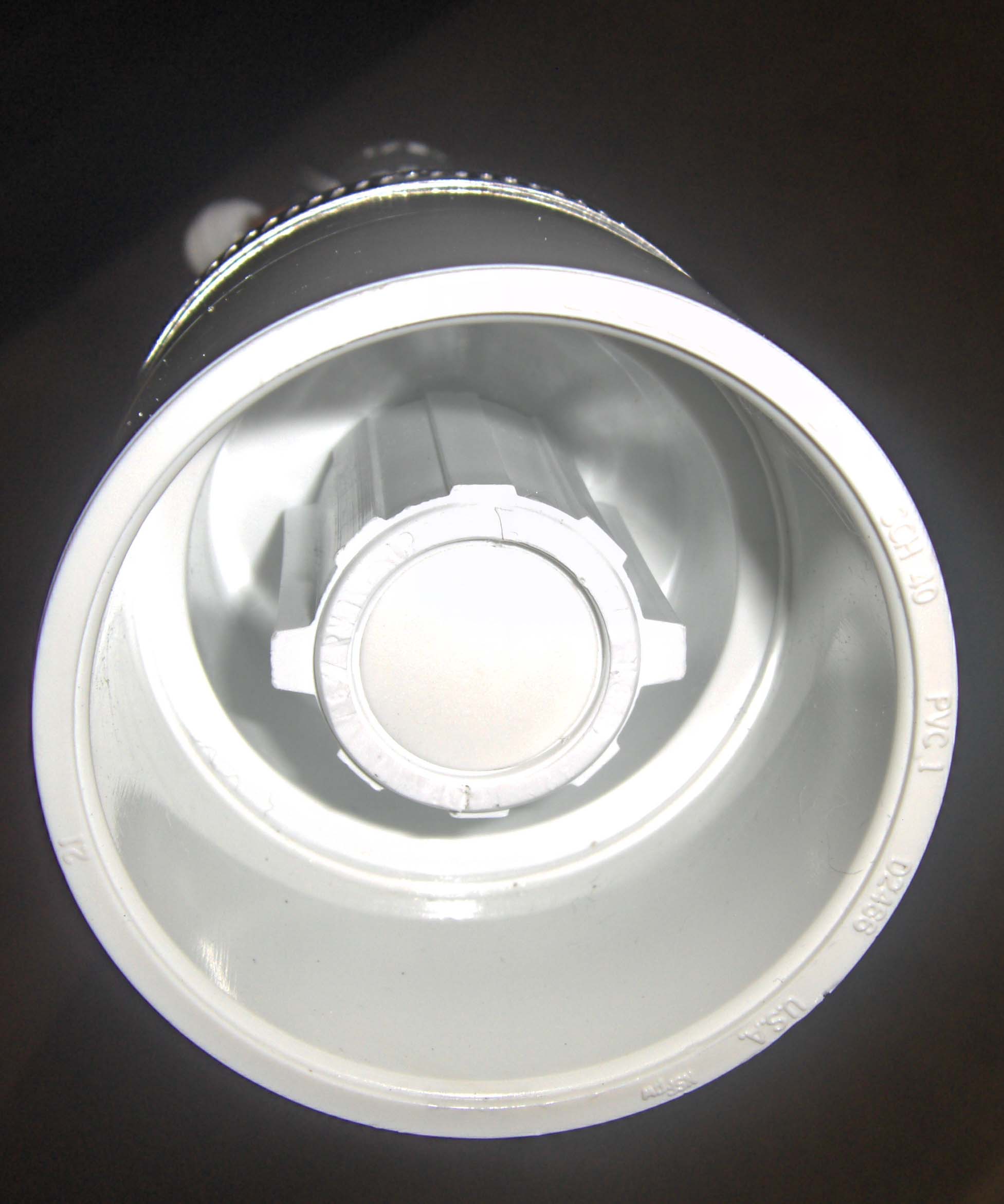

    The barrel end is just a bit shorter than I would like, but I am about to take a trip to Home Depot / Lowes to see if I can extend it a little. If not, it will have to do. I am also looking to add some other odds and ends to finish out the entire gun.

    Although the pistol is something I already had on hand, I need to figure it into the cost. It was about $20.00, and the plumbing fixtures and wooden dowel were another $9.00.

    This brings the entire project's subtotal to about $97.00.

    Last edited: Aug 10, 2015
  4. Mole

    Mole Well-Known Member

    Trophy Points:
    566
    Re: My Lifesize Jawa Build - 1st Attempt

    Nice start! Especially like the blaster. My little girl has just asked me to make her a Jawa costume so I'll be watching this with interest.

  5. TallDarkandDisfigured

    TallDarkandDisfigured Sr Member

    Trophy Points:
    1,731
    Re: My Lifesize Jawa Build - 1st Attempt

    Great start! I've had my PVC mannequin made for 6 years and still haven't finished it. :lol Kinda sad I know.. I even have material here for the robe, I just need to learn how to dye it properly.

    I'll be watching for more inspiration..

  6. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Re: My Lifesize Jawa Build - 1st Attempt

    I'm loving this. The blaster is great!

  7. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Thanks guys.

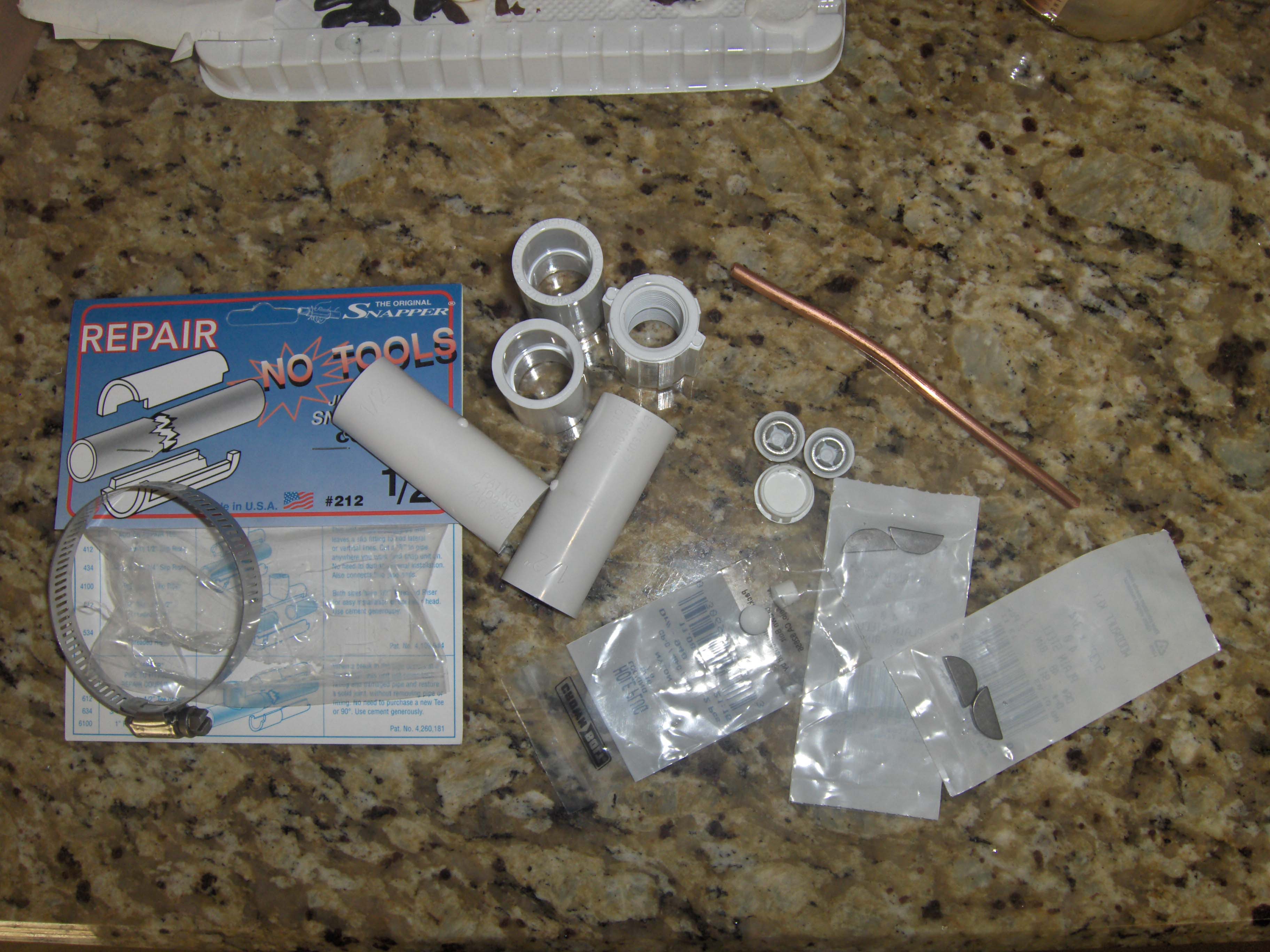

    Took another quick trip to the Depot and picked up a few last pieces for the blaster. I have taken several liberties with the design. I really wanted to replicate the bolt lever of the old Lee Ensfield, so I threw something together with copper wire and two cap nuts. It's OK, I think once I paint this it will come together.

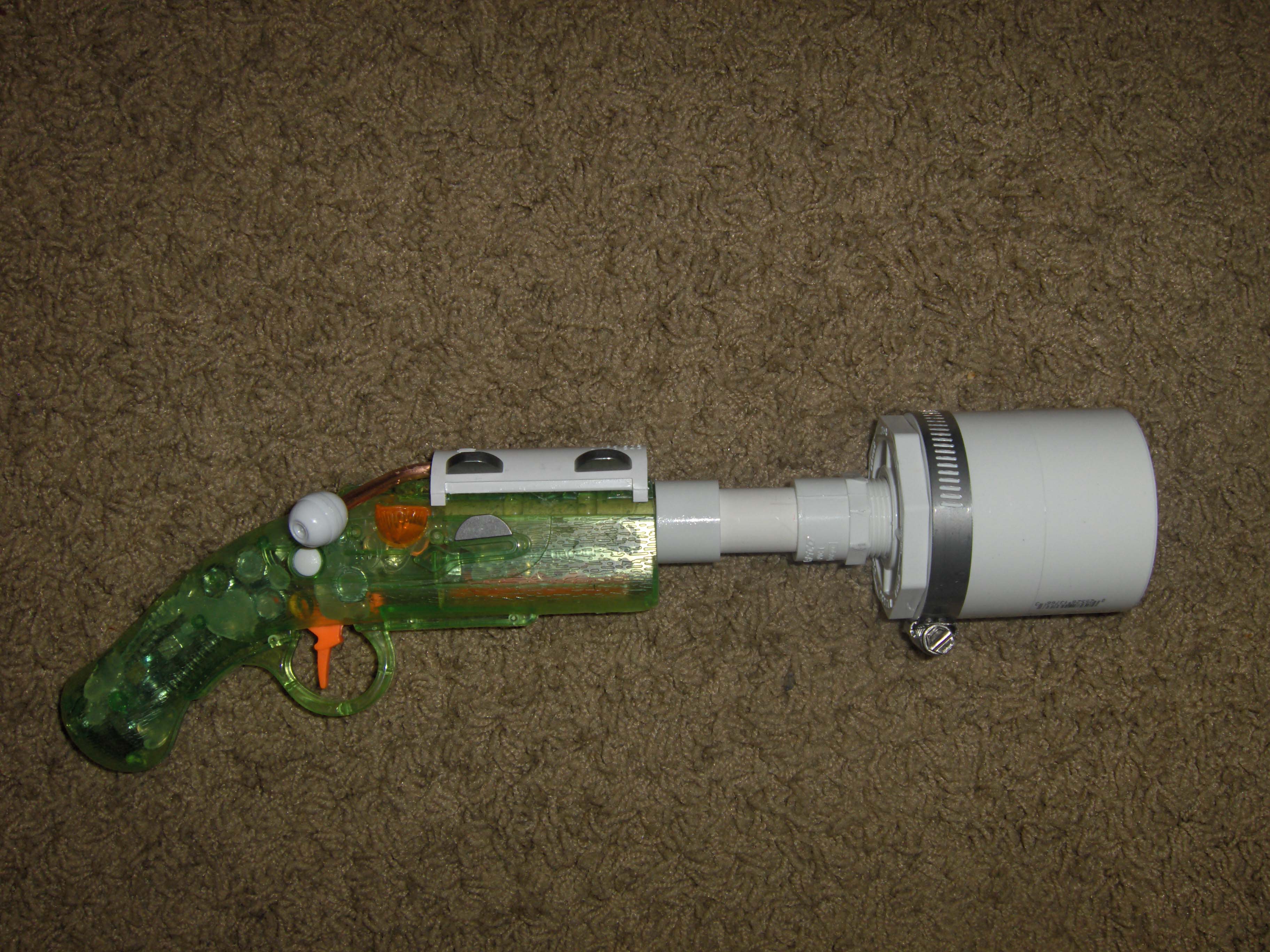

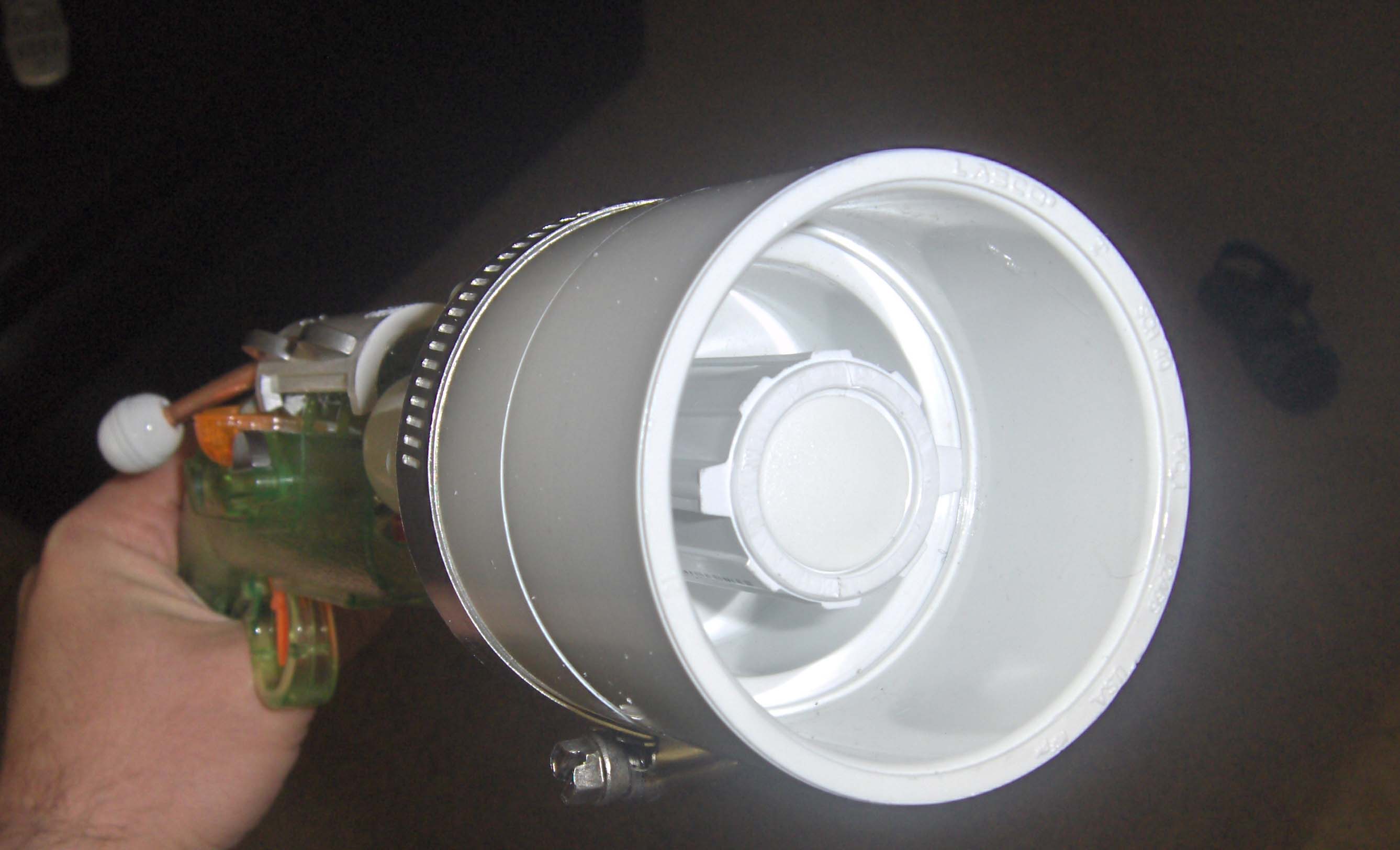

    I added a hose clamp to the barrel, a 1/2 inch PVC pipe repair half to the top, some metal Woodruff keys to the right side, and I wanted to do something inside the front barrel so I added 1/2 PVC grooved pipe and a plug.

    All I have left on this is the magazine and then it's ready for primer.





    Another $10, puts me at $107.00 thus far.

    Last edited: Aug 10, 2015
  8. mickpell

    mickpell New Member

    Trophy Points:
    2
    Re: My Lifesize Jawa Build - 1st Attempt

    Loving this build
    Especially like the look of the gun

  9. Hobo Wan Kenobi

    Hobo Wan Kenobi Well-Known Member

    Trophy Points:
    867
    Re: My Lifesize Jawa Build - 1st Attempt

    Looking good.

  10. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

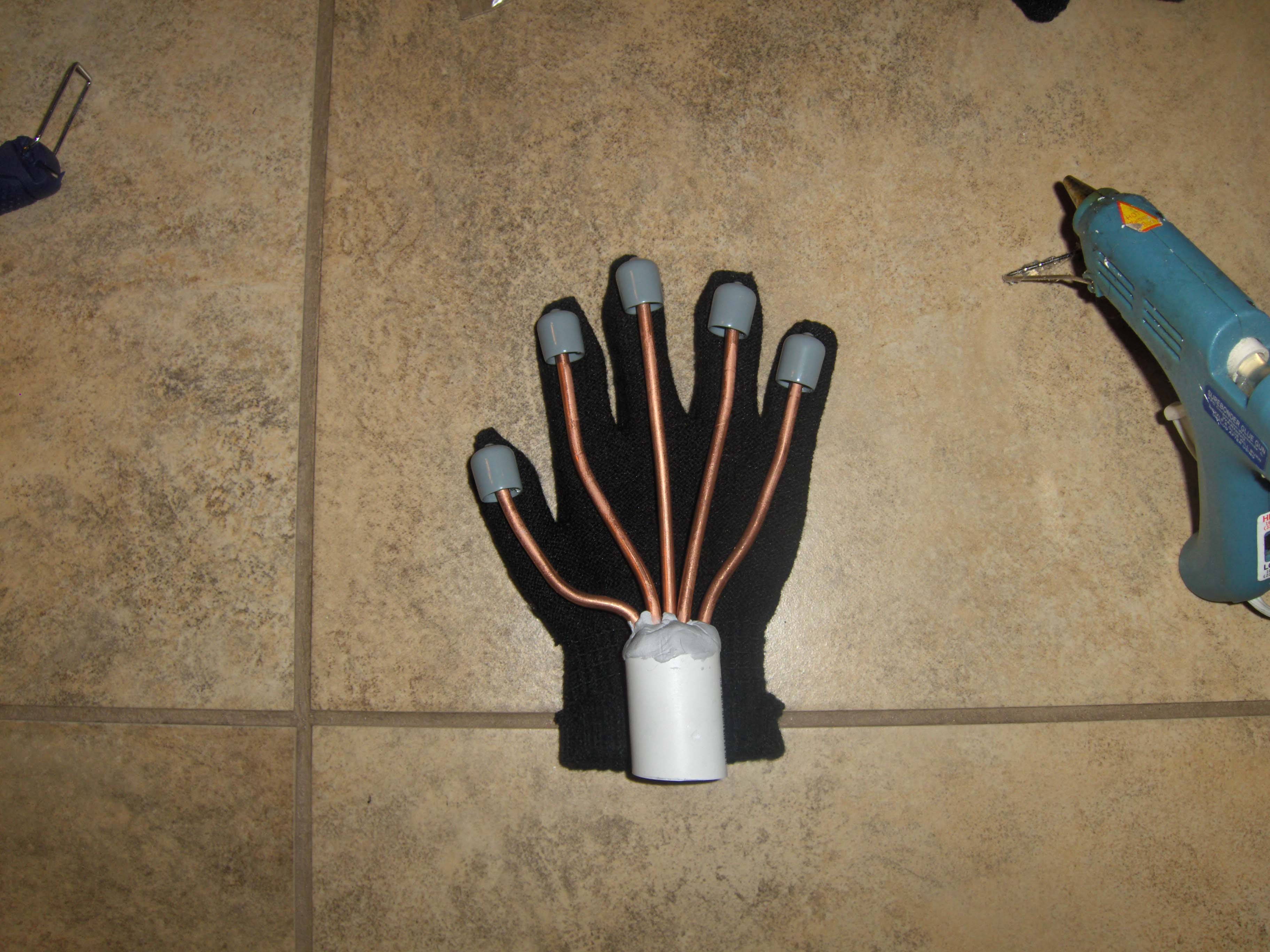

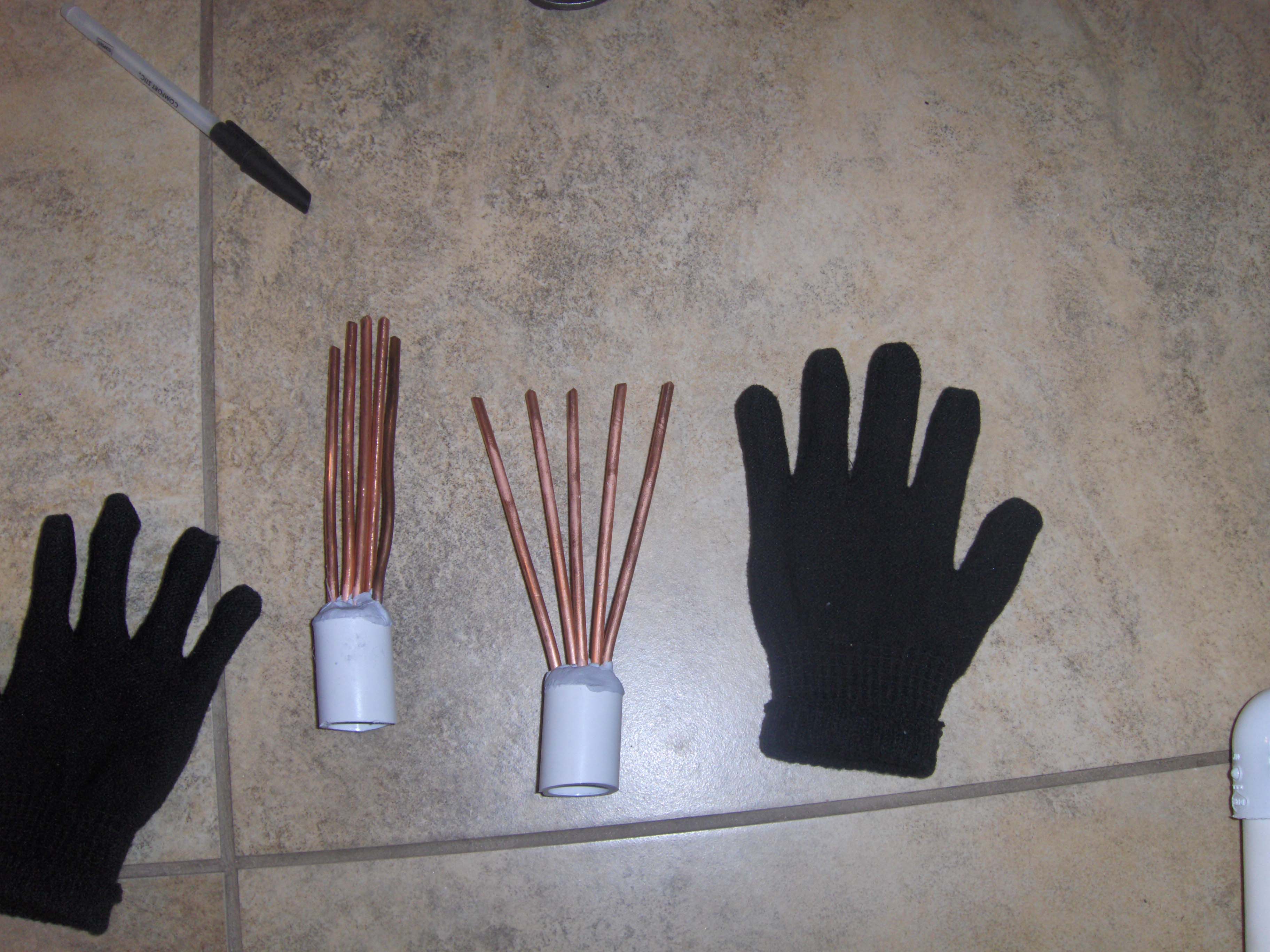

    For the hands I am modifying the design that I did for my Stormtrooper. I bought a pair of children's gloves for $1.00 at Target. I took a 1/2" PVC coupler and shortened it. I also bought some lengths of medium gauge copper wire for the fingers. This will make the hand much stronger and will let it hold its shape and the weight of the blaster.

    I then cut the wires to length and hot glued rubber nail protectors to the tips. The wire is held into the coupler with 5 minute epoxy putty; they won't budge no matter how many times you re-position them. I still need to fill out the fingers and palm, but you get the idea.

    When I am done, the 1/2" coupler will slide right onto the arms. These work great if you want pose-able hands.



    Last edited: Aug 10, 2015
  11. HAL9000

    HAL9000 Sr Member

    Trophy Points:
    1,036
    Re: My Lifesize Jawa Build - 1st Attempt

    Amazing work. Really smart thinking.

    Funny - the pipe framework with the foam head on reminds
    Me of somw of those sad-looking flesh fair robots from AI

  12. TallDarkandDisfigured

    TallDarkandDisfigured Sr Member

    Trophy Points:
    1,731
    Re: My Lifesize Jawa Build - 1st Attempt

    Great work on the hands, I might have to borrow that idea for my own. On my first one I just used wire shaped like a hand (like when you draw around your hand with a pen) they looked good but weren't sturdy enough to hold anything.

  13. DBCooper

    DBCooper Well-Known Member

    Trophy Points:
    866
    Re: My Lifesize Jawa Build - 1st Attempt

    Jawa looks great so far. Can't wait to see it finished.

    TallDarkandDisfigured -

    Your avatar made me laugh, I love it. :lol

    Best,
    DBCooper

  14. TallDarkandDisfigured

    TallDarkandDisfigured Sr Member

    Trophy Points:
    1,731
    Re: My Lifesize Jawa Build - 1st Attempt

    Wish I could take credit, but I found on google. Perfect for a Canadian Vader freak like me.

  15. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

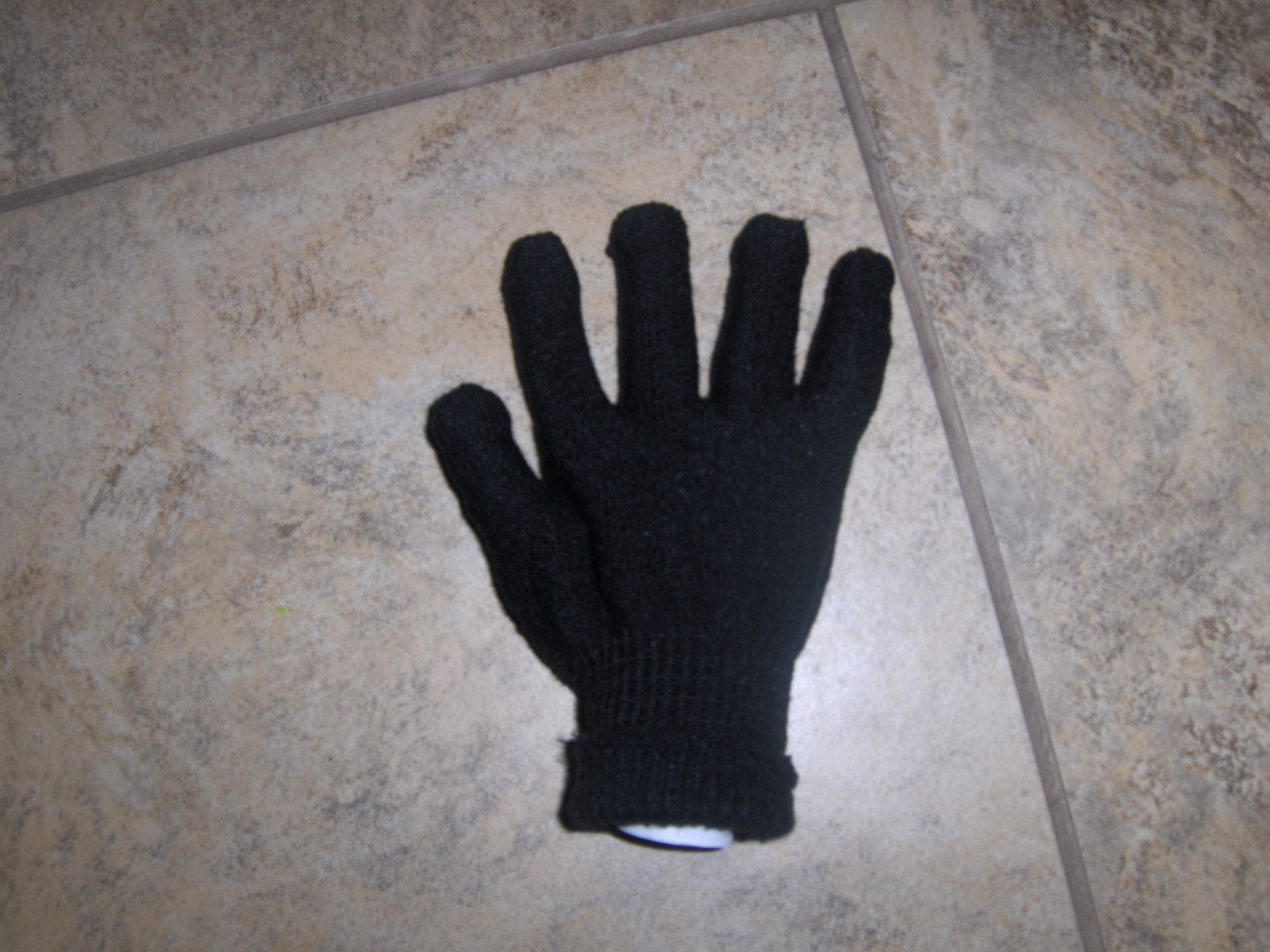

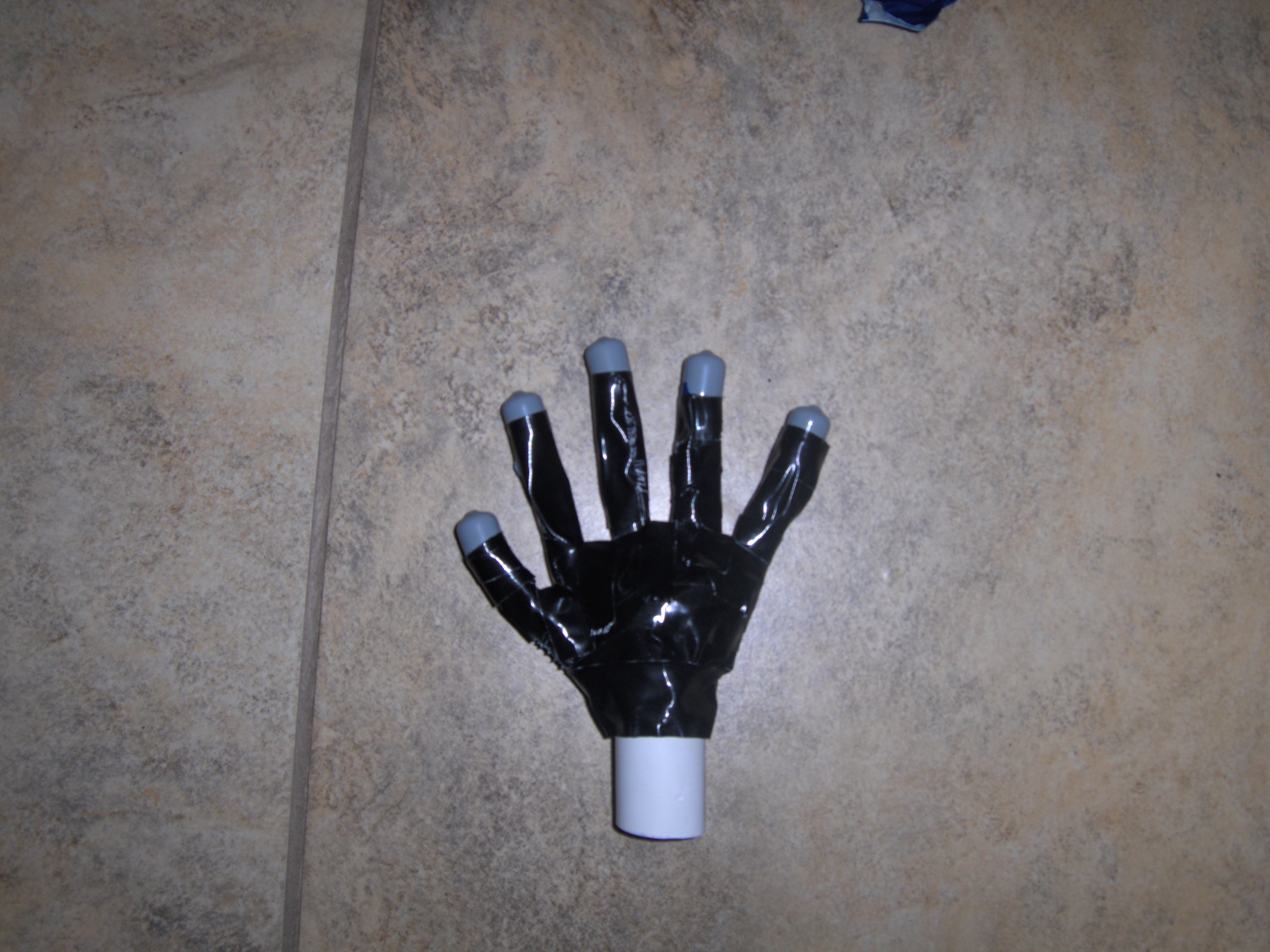

    Finished up the hands and did some work on the blaster. For the hands, I loosely wrapped each finger with duck tape (if you ever try this, don't wrap them tight, you'll never get them to bend). I then built up the palms and wrists (not pictured). The gloves fit nicely and they feel sturdy.

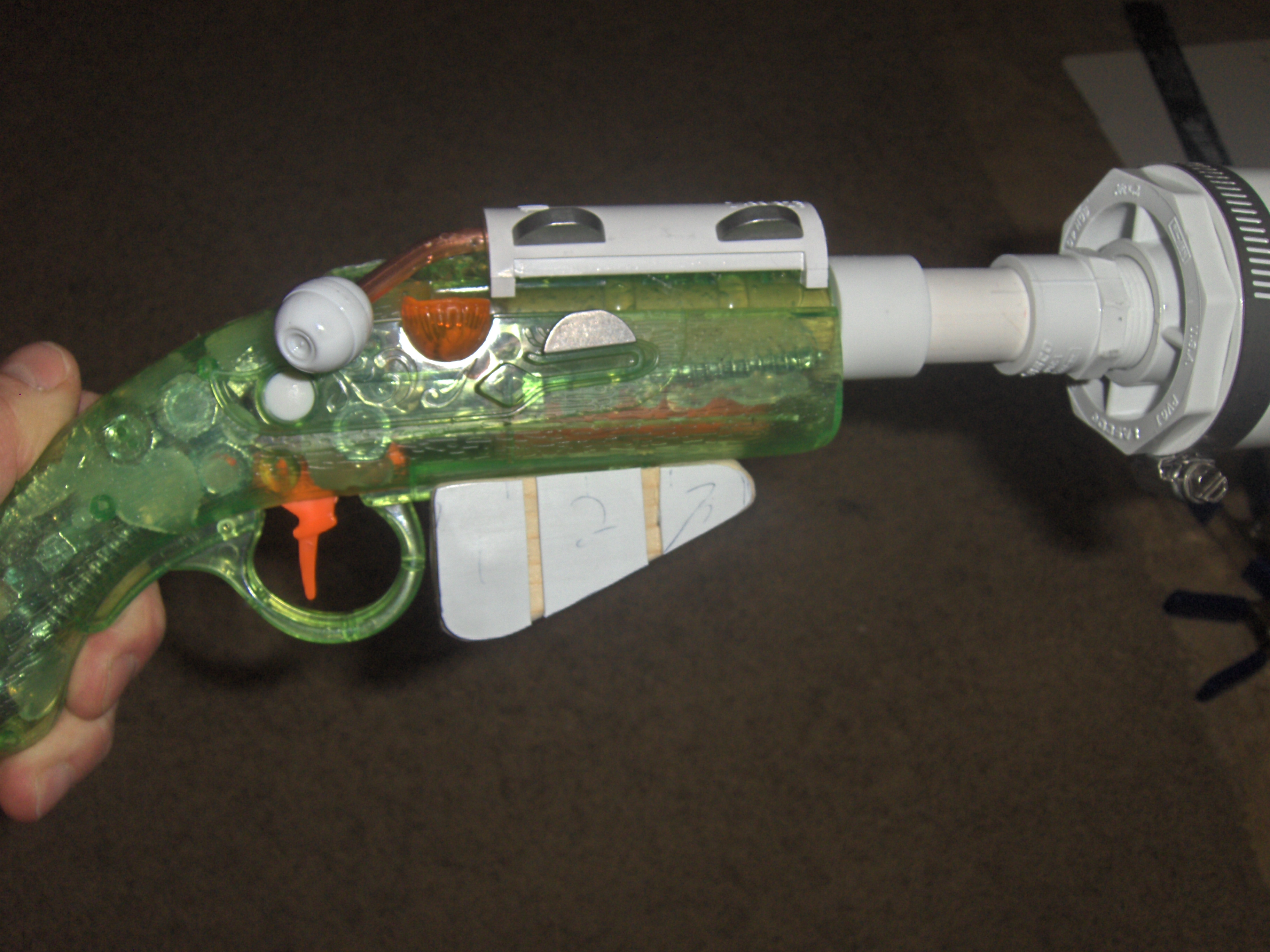

    Also did a little work on the blaster. I finished up the magazine, I cut up a "For Sale" sign for the side detail. Did a few other touch ups, then hit it with the first coat of primer. I like it, I think it will look much better after final paint and weathering.



    I remember seeing a Jawa blaster kit on eBay for around $75.00, but not in a while. I'd love to eventually get a more accurate one, but for the money, I can live with this for now.

    There's a lot more I could have done to this gun, but I really didn't want to get too wrapped up in it. This was a last minute project that I was finally able to pull the trigger on, keeping my fingers crossed it turns out the way I envisioned.

    Last edited: Aug 10, 2015
  16. JoeLuna33

    JoeLuna33 New Member

    Trophy Points:
    17
    Re: My Lifesize Jawa Build - 1st Attempt

    Looking good so far. I love the repurposed POTC gun. I did a simliar thing for my wifes Baroness costume for last Halloween with some old laser tag guns.

  17. tk 9464

    tk 9464 Member

    Trophy Points:
    191
    Re: My Lifesize Jawa Build - 1st Attempt

    Wow. Looking really cool so far. Love to see it complete...

  18. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Thanks for all the great comments. I am getting ready to tackle the robe, which has stalled me a bit. Just want to get it right the first time.

    Last edited: Aug 10, 2015
  19. TallDarkandDisfigured

    TallDarkandDisfigured Sr Member

    Trophy Points:
    1,731
    Re: My Lifesize Jawa Build - 1st Attempt

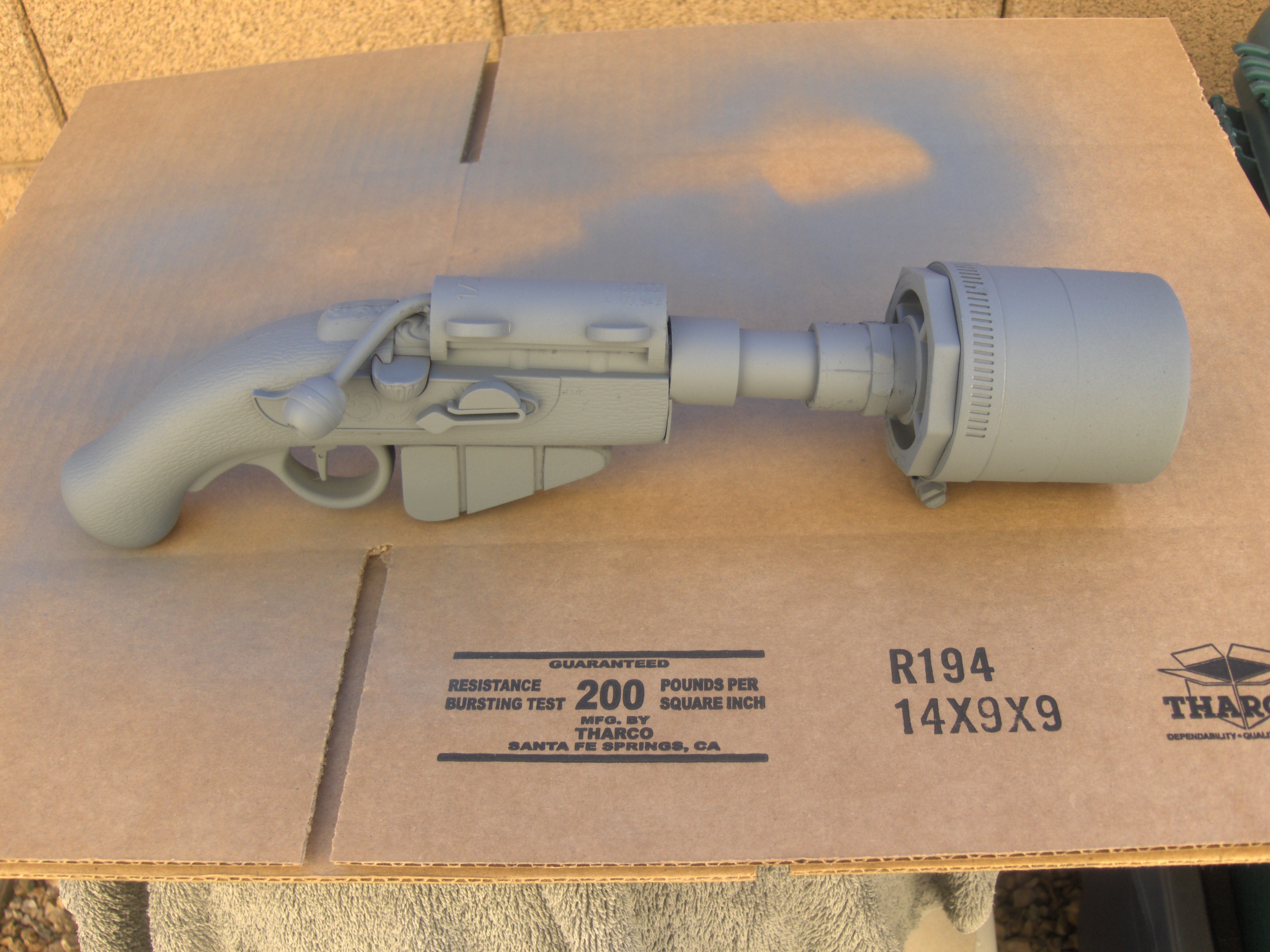

    Just the coat of primer on the blaster really makes the difference. A little paint and weathering, and it's gonna be great!

  20. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Thanks! It's a lot of fun, although time consuming, to build something like this from scratch with a Laser Tag or other toy gun. Very rewarding when it comes out how you expected, and extremely frustrating when it doesn't!

    My camera died so bear with me on the photos.

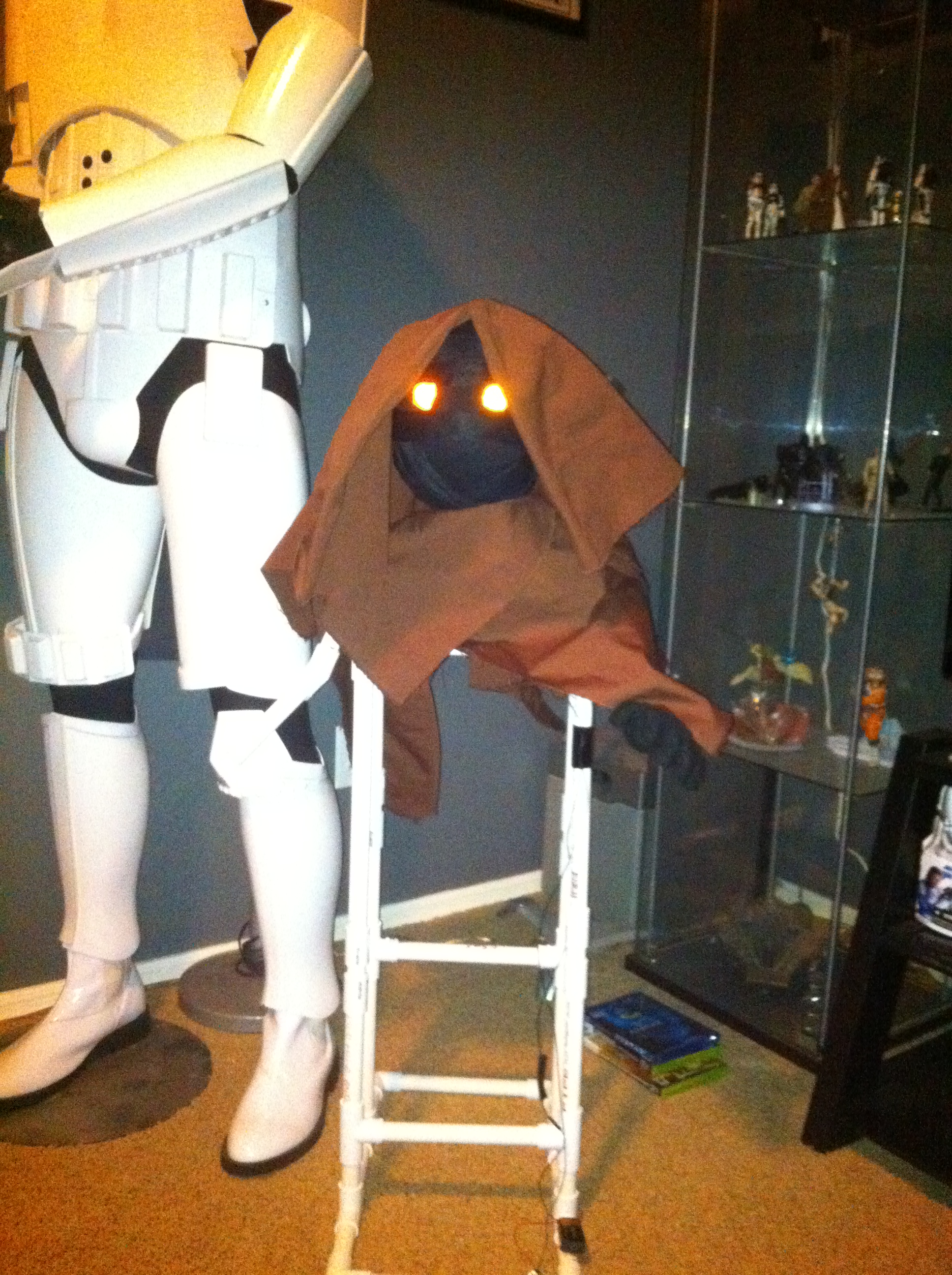

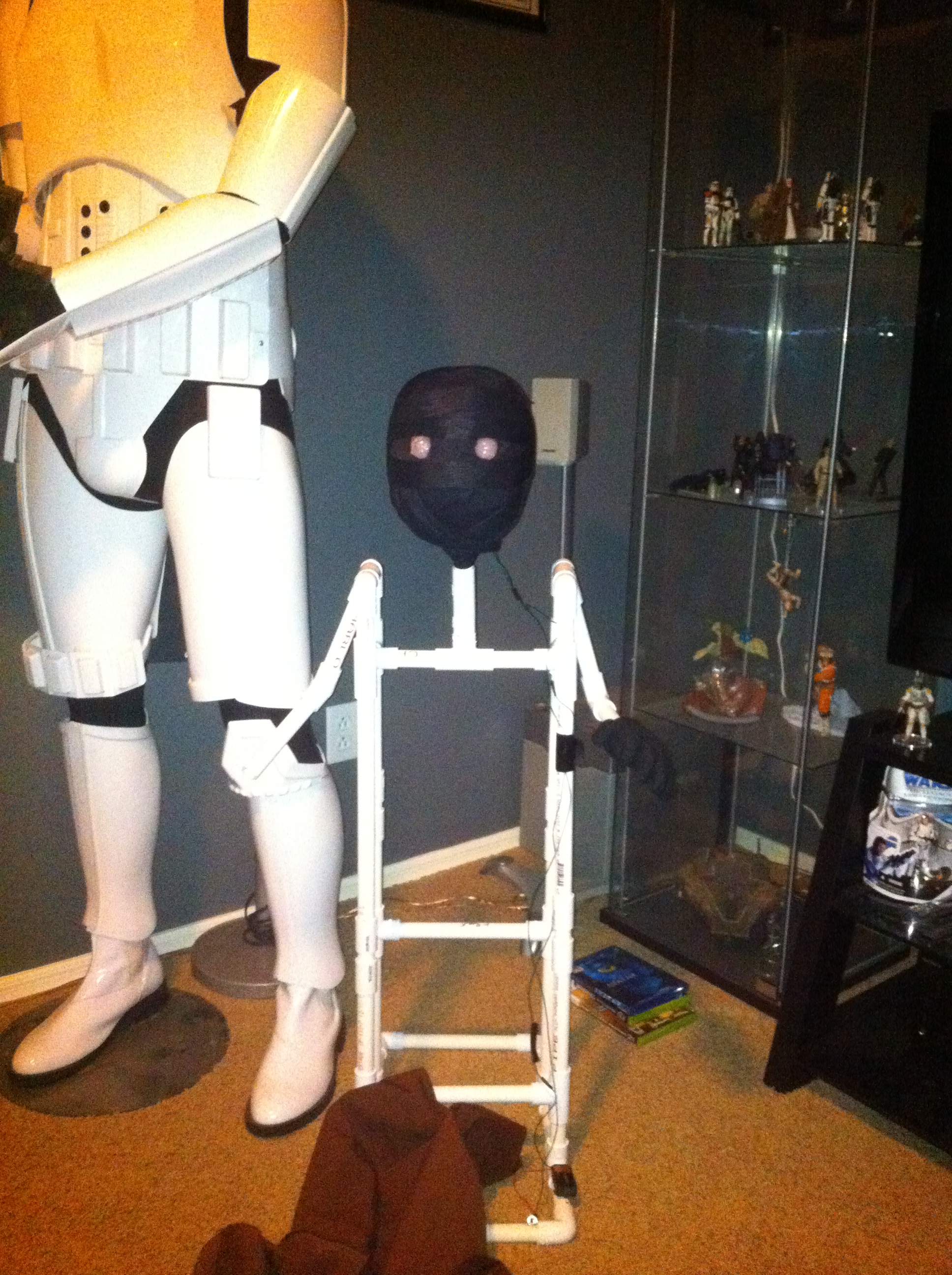

    Today I had to do a quick fix with the height. After placing my frame next to my Stormtrooper, I realized the Jawa was too short for my liking (about 36.5"). So I added about 3.5" to the body (2.25" inches to the body and 1.25" to the neck). This is the final result, which I am happy with. Now it puts him at just above 40". His neck may look a bit long in the first photo, but by the time I add padding to the shoulders and body, it will fill in. I did a quick test with the robe material and I can live with this. I also wrapped his head in the black mesh fabric, but decided to leave the eyes uncovered.

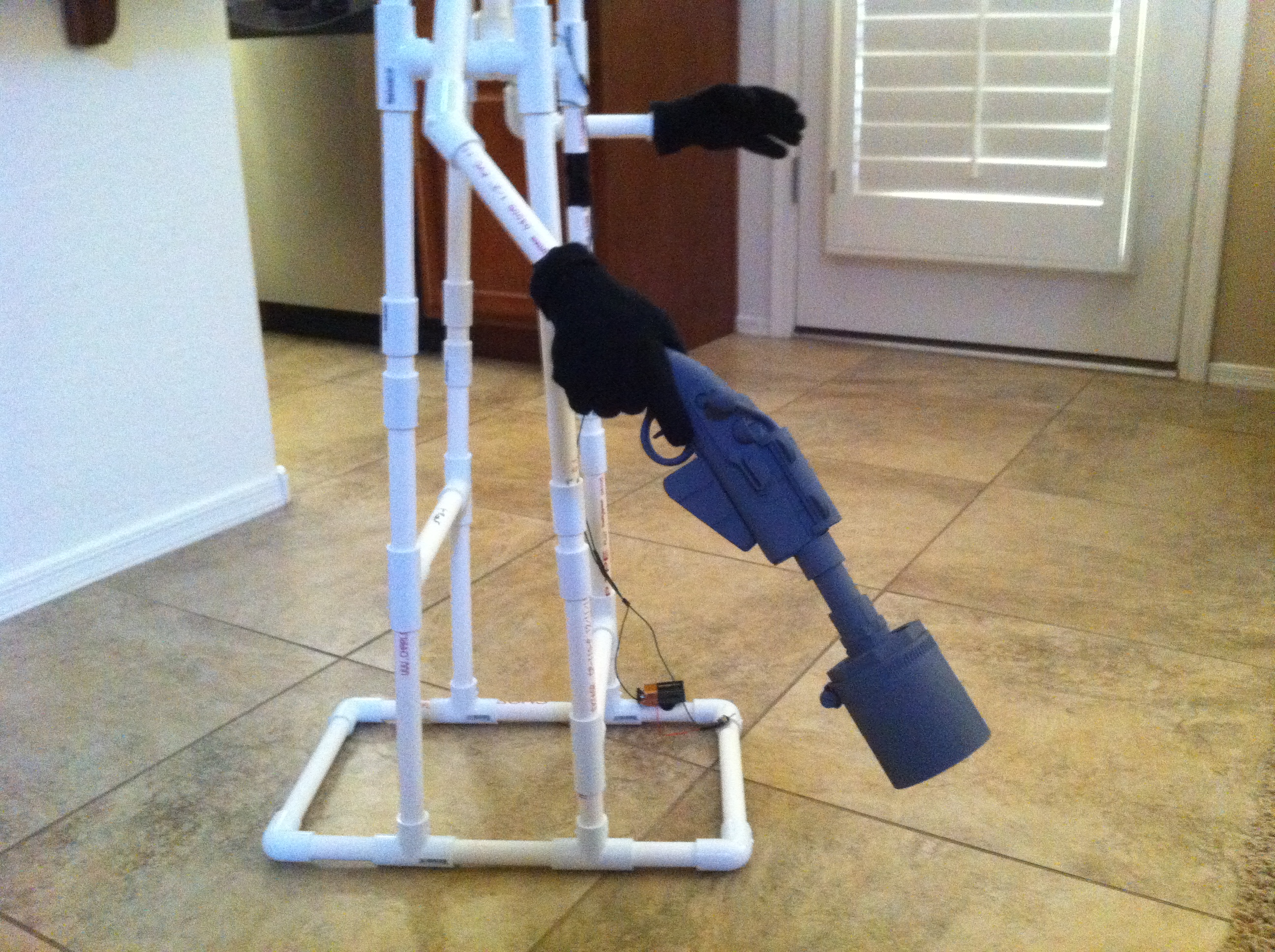

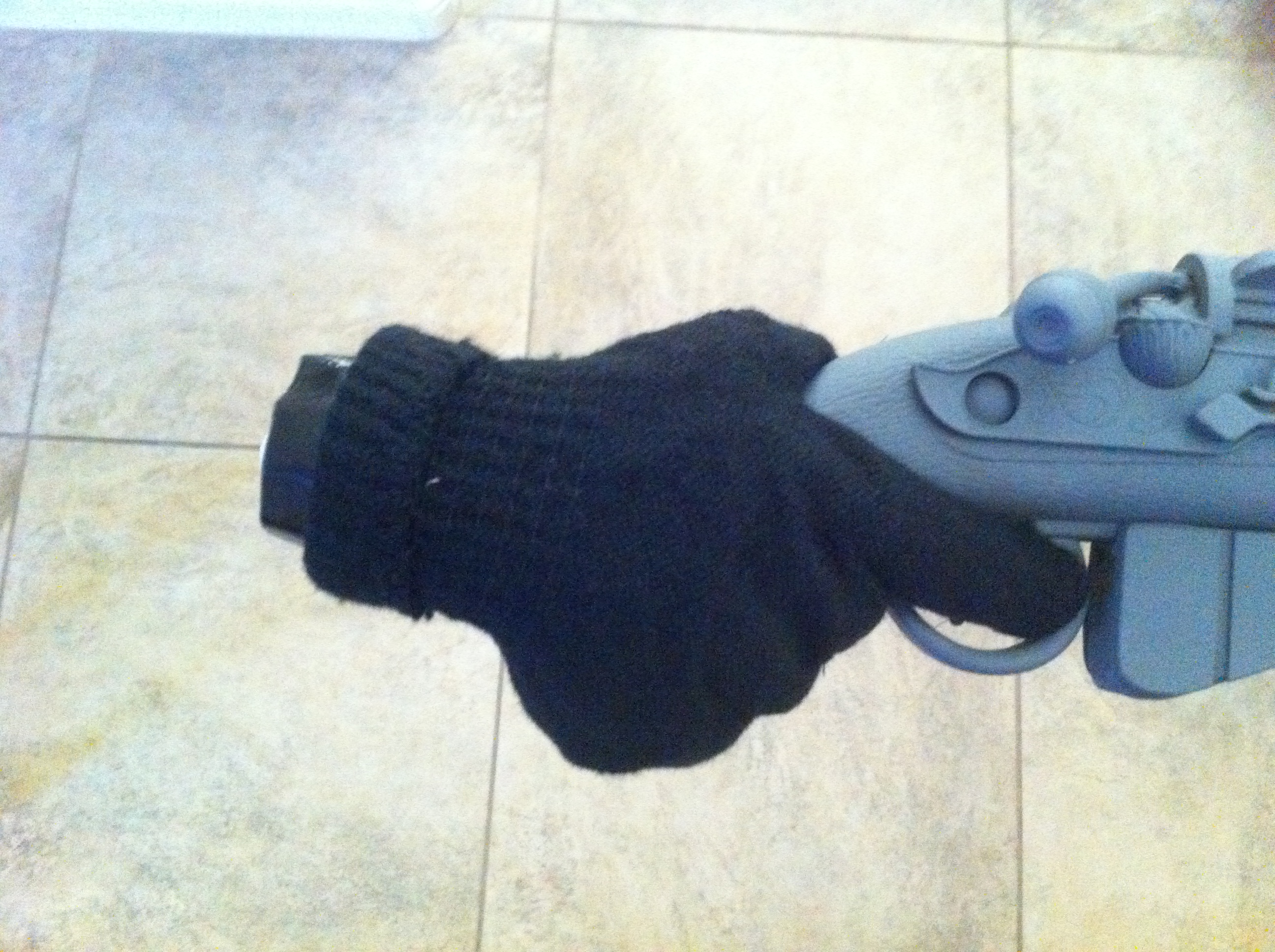

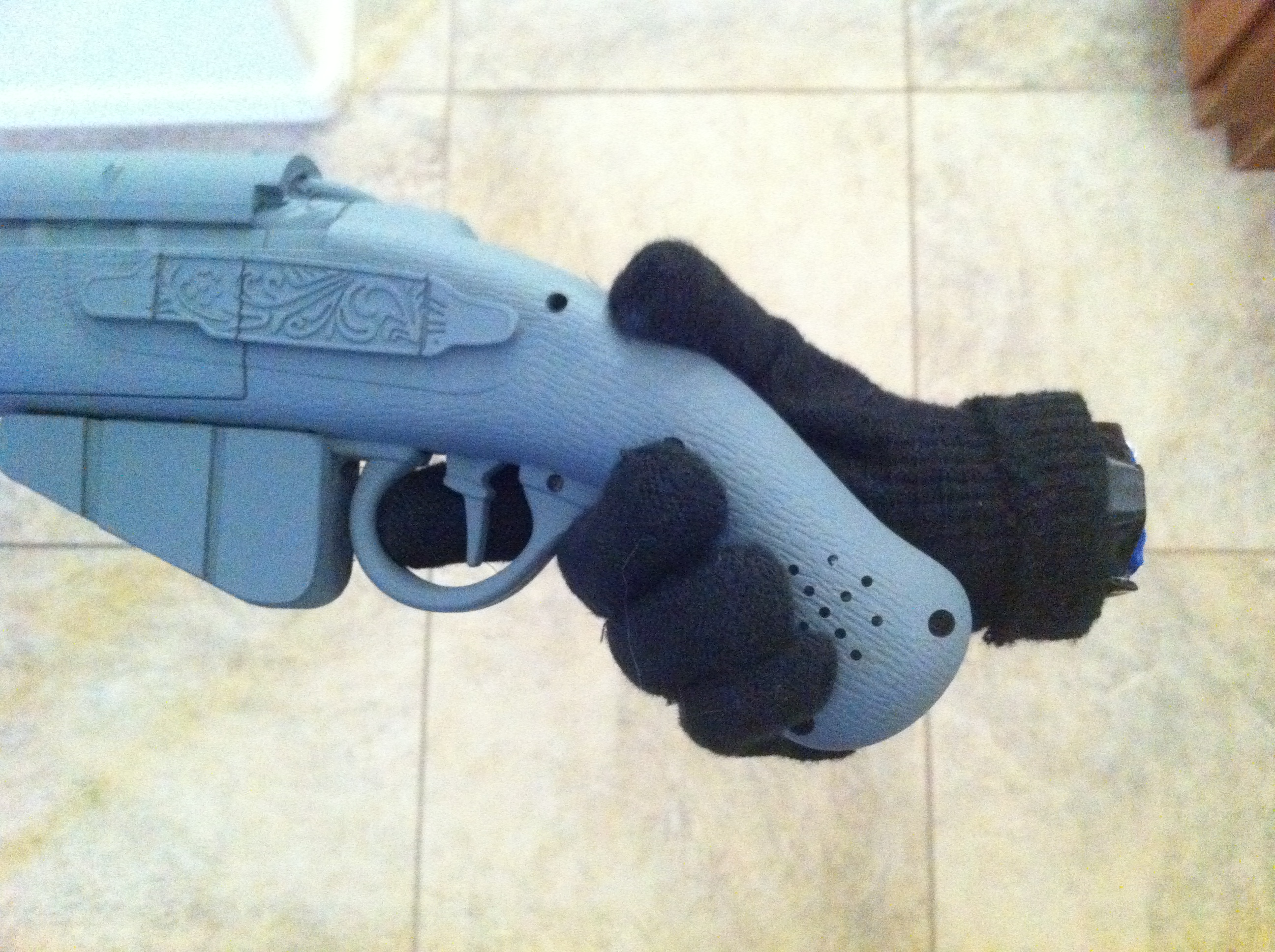

    Next I finalized the hand position for the blaster. These came out great; holds the blaster perfectly. I'm real happy with how this turned out. I used pliers to bend the fingers to the right position, that's how thick the copper wire is I used. They won't move a bit.




    It's getting there. I need to do some final tweaking on the blaster (removing some of the PVC markings and covering some of the ornate detail) before I move onto the final coat and weathering.

    I'll try and work on the robe next.

    Last edited: Aug 10, 2015
  21. Mara Jade's Father

    Mara Jade's Father Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,376
    Re: My Lifesize Jawa Build - 1st Attempt

    So far it looks like a Terminator Jawa who has been through hell.

    "Hasta la utinni, baby!" :p

  22. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Thanks, I agree, I am looking forward to finishing the blaster.

  23. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Ha, my son laughs every time he hears that "utinni" sound clip. I'm actually thinking about wiring this with a small speaker and having a push button switch that plays that sound. My wife got me "The Sounds of Star Wars" book last Christmas and they have a great audio clip in there I could isolate.

    But that will have to wait for now!

  24. Mara Jade's Father

    Mara Jade's Father Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,376
  25. Hobo Wan Kenobi

    Hobo Wan Kenobi Well-Known Member

    Trophy Points:
    867
    Re: My Lifesize Jawa Build - 1st Attempt

    The coolest and easiest thing I did to mine was shove a light down the barrel of the gun. It gets almost as much attention as the Jawa does

    [​IMG]

  26. TallDarkandDisfigured

    TallDarkandDisfigured Sr Member

    Trophy Points:
    1,731
    Re: My Lifesize Jawa Build - 1st Attempt

    HWK, I love what you did there, I think I post that comment every time you post that picture. :lol But I plan to steal your idea, :lol just a heads up.

    Gotta get off my butt and get back to work on mine. It's tough when the closest fabric or crafty type store is a 4 hour round trip...

  27. vinci

    vinci New Member

    Trophy Points:
    2
    Re: My Lifesize Jawa Build - 1st Attempt

    hahaha looks great!

  28. Hobo Wan Kenobi

    Hobo Wan Kenobi Well-Known Member

    Trophy Points:
    867
    Re: My Lifesize Jawa Build - 1st Attempt

    It wasn't my idea to begin with hahahaha. I think I first saw this done on some guys Sandtroopers T-21 Blaster Rifle

  29. BoboFatt

    BoboFatt Member

    Trophy Points:
    191
    Re: My Lifesize Jawa Build - 1st Attempt

    For that price, you can't beat it. Nice job!

  30. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Thanks!

    Tried my hand at sewing the robe since my wife was working. Despite my grandfather being a tailor for 40+ years, it's a skill I need to work on! :) This is just a preliminary fit, which I am happy with. This was placed right over the frame, so I still need to add the batting to give it some shape. I have seen robes that open in the front and some that are one piece. Since this will be a static display, I opted for the one piece. This was the most nerve-racking part. When I bought this fabric it was on sale and they only had about 2 yards, so I had one crack at it.


    Here's the blaster with the first coat of black. (I'll have better pictures shortly).


    Last edited: Aug 10, 2015
  31. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    I started to work with the foam batting. I glued pieces to the PVC to bulk up the body a bit. This stuff was on sale for about $4.00 a yard at Joanns, I picked up a yard and a quarter.


    I then wrapped the body in some cheap black felt material, cost about $2.00 a yard.


    I took the robe outside and dragged it through the gravel just to dirty it a little. It's kinda hard to see in the photo. The rest of the weathering will be done with paint.


    One thing I did do is narrow the structure at the top and midsection by removing about 3 inches of pipe. I then adjusted the foam batting, put on the robe, and finished the hood. Instead of using a hanger, I bought 2 feet of solid core coated wire, I believe it was 12 gauge, and sewed that into the front of the hood to keep the shape.

    I'll probably adjust the opening, not sure how open I want it.




    I decided to take the extra PVC pipe, cut it into small pieces, wrap in black duck tape, and place in the bandolier to give it some shape and weight. For the left side pouch, I just stuffed it with craft paper.


    From here I think I'll finish up the blaster and start weathering. The only other thing I wanted to do is make a droid caller. I know you can get them one line for about $20 - $30, but I decided to build my version using these pieces, which ran me about $7.00.


    Last edited: Aug 10, 2015
  32. Mole

    Mole Well-Known Member

    Trophy Points:
    566
    Re: My Lifesize Jawa Build - 1st Attempt

    He's so cute!

  33. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Re: My Lifesize Jawa Build - 1st Attempt

    I am inspired to build my own. Very nice work man, I love the creativity. How much would you say the project ran you total? It seems like you saved a bundle and ended up with a high valued item.

  34. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    My budget was $150 or less, I have a few odds and ends left, but will post final cost as soon as I wrap this up. I think right now I am just under $150.00.

    Last edited: Jan 6, 2012
  35. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    A little work on my improvised droid caller. The top piece will be a faucet aerator which I just painted, should have this caller put together tonight.


    Finished the weathering with the spray cans. I used black, tan, and a brown; it's hard to see in the photos, but it came out real nice. I was heavier with the black around the feet, wrists, and hood rim.



    I'll add a little bit here and there with the acrylic paints when I finish the blaster and weather the bandolier.

    Last edited: Aug 10, 2015
  36. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Finished the droid caller so I am calling it a night. I used a 1.5" male PVC adapter, 1.5" female PVC connector, replacement faucet aerator, a rubber washer, generic plastic plug, 2 knurl knobs, and a retaining clip. I painted the aerator and top PVC piece satin nickel.

    This is just small enough to fit perfectly in the Jawa's left hand. This was a fun piece to build, very inexpensive and easy.





    Last edited: Aug 10, 2015
    mac3kuby likes this.
  37. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Re: My Lifesize Jawa Build - 1st Attempt

    The droid caller is AMAZING!

  38. chuckysdream

    chuckysdream Well-Known Member

    Trophy Points:
    510
    Re: My Lifesize Jawa Build - 1st Attempt

    I love your project. But i think the hood is too large, too overhanging. The rest is awesome.

  39. TallDarkandDisfigured

    TallDarkandDisfigured Sr Member

    Trophy Points:
    1,731
    Re: My Lifesize Jawa Build - 1st Attempt

    Best $7 droid caller I've ever seen. You just keep upping the creativity bar here.

  40. Bonded Hawk

    Bonded Hawk Well-Known Member

    Trophy Points:
    566
    Re: My Lifesize Jawa Build - 1st Attempt

    Ok now I have to try one also. This is a very neat and inspiring build.

    Bonded Hawk

  41. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Thanks guys...I appreciate the feedback.

    It's funny because there were 2 or 3 other pieces of hardware I was going to add but decided since it's going to be in his hand and mostly covered, and because I want to stay close to my budget, why bother. Maybe next time, I have several other ideas for another one of these!

    Yes, I have been looking at that also. I still need to play with the hood some to get it to my liking.

  42. ralphee

    ralphee Sr Member

    Trophy Points:
    2,495
    Re: My Lifesize Jawa Build - 1st Attempt

    An amazing thread and great insight into how you really can make something jaw dropping for very little money, i love it.
    As for the hood, hmm id maybe just tweak it back some, well, i like it oversized anyway.

    lee

  43. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Thanks!

    About to finish this guy up, just need to work on the blaster.


    Here is the base coat of brown that I mixed. I know there are some great tutorials out there on how to paint a wood grain pattern, but I won't be getting that detailed. I am using a combination of acrylic, enamel, and spray paint to finish this.


    I then put on a scattered second coat of darker, redish brown. I also did a bit of weathering, which is not one of my strong points.




    Just a little more and I can call this done.

    Last edited: Aug 10, 2015
  44. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Re: My Lifesize Jawa Build - 1st Attempt

    Finished up the blaster.






    And here are some final shots with blaster and droid caller in hand. I also did a slight modification to the hood to make it look a bit smaller.




    And here is his final display location in my man cave:


    There are a few things I could tweak on him, like fraying the cuffs, but I am fine with how this turned out for now. This took me about 5 days to complete. It's not my ideal version, but I think he looks great.

    After tallying the receipts, here's about what I spent:

    Pipe and Connectors - $8.00
    Head - $10.00
    Eye Capsules - $1.00
    LEDs and Switch - $8.00
    Black Duck Tape - $2.00
    Head Fabric - $2.00
    Robe Fabric - $18.00
    Bandoliers / Dye - $37.00
    Blaster - $20.00 (which I already had on hand)
    Blaster PVC Parts - $19.00
    Gloves - $1.00
    Hand Hardware - $4.00
    For Sale Sign - $3.00
    Batting - $5.00
    Black Felt - $2.00
    Droid Caller - $7.00
    Spray Paints - $8.00

    I already had the enamel and acrylic paints on hand, so I won't count those. So excluding my time, unless I missed something, this sucker cost me around $155.00!

    I think it was a good bargain.

    Last edited: Aug 10, 2015
  45. Mole

    Mole Well-Known Member

    Trophy Points:
    566
    Re: My Lifesize Jawa Build - 1st Attempt

    Great work! Just goes to show with a bit of imagination you can build almost anything. Well done!

  46. mickpell

    mickpell New Member

    Trophy Points:
    2
    Re: My Lifesize Jawa Build - 1st Attempt

    $155 that is such a cool build
    Cracking work - well done:lol

  47. Adam C.

    Adam C. Well-Known Member

    Trophy Points:
    915
    Re: My Lifesize Jawa Build - 1st Attempt

    It really did turn out great. Thanks for posting all of the steps you took in creating everything too. Very informative. :thumbsup

  48. vaderdarth

    vaderdarth Master Member

    Trophy Points:
    2,741
    Re: My Lifesize Jawa Build - 1st Attempt

    very cool!!!! :)

  49. Scurvy Dog

    Scurvy Dog New Member

    Trophy Points:
    17
    Re: My Lifesize Jawa Build - 1st Attempt

    Fantastic! Your weathering on the gun looks good too!

  50. keysersoze30

    keysersoze30 Well-Known Member

    Trophy Points:
    935
    Re: My Lifesize Jawa Build - 1st Attempt

    amazing job, looks fantastic

    and also a great build thread, very inspirational, congrats


Share This Page
