My Bioshock Adam Syringe build.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


PropDad

New Member

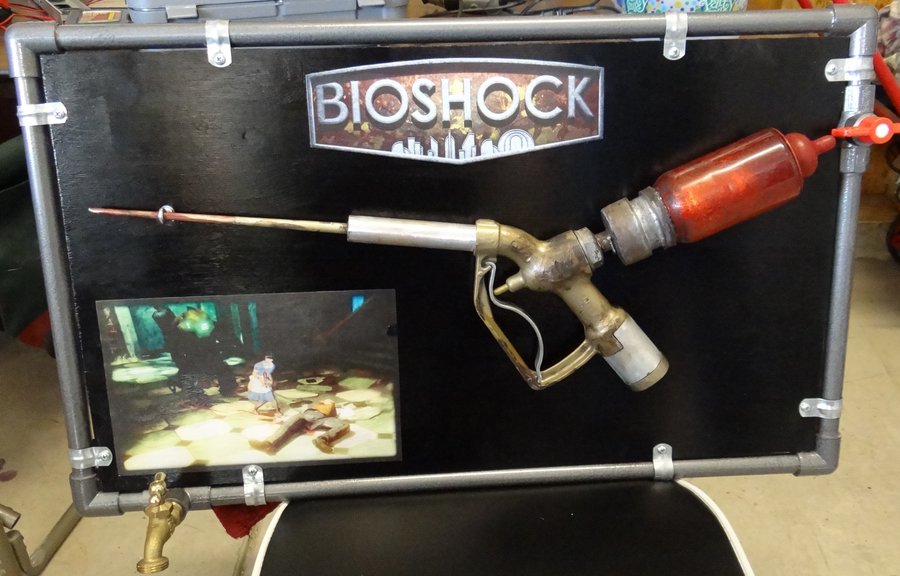

Prop Dad here from Cosplay4UsAll. I have posted here only a couple of times but have never walked through a build. I am going to build one of our Adam Syringes and post as many pics and answer as many questions along the way. I started making these when my daughter wanted to do a little sister cosplay in Spring 2012. She came to me and her mother for help. She showed me one that Volpin had made and following his blog I decided to try my hand at doing the same. Volpin had done a great job and to be honest I had never done anything like this EVER. The greatest thing I learned along the way was that there is no one certain way to make stuff and I now look at every object out there differently. So follow me as I turn this...

adam syringesA.jpg

Into reality.

FYI in case anyone was wondering I was "assigned" my name from Johnny at Junkers Cosplay.

Also feel free to make suggestions along the way as I have made a few revisions already from the original I build.

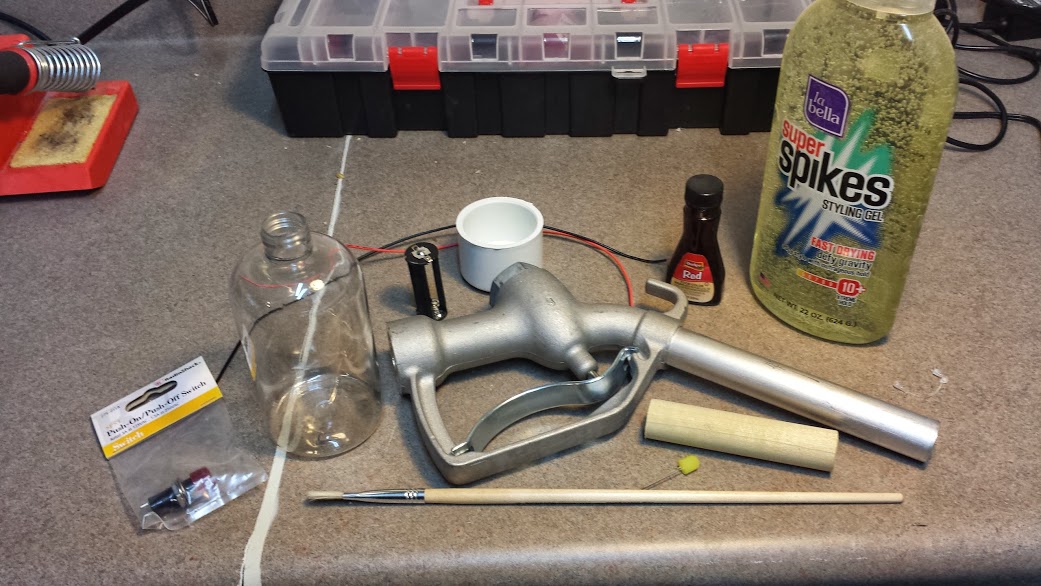

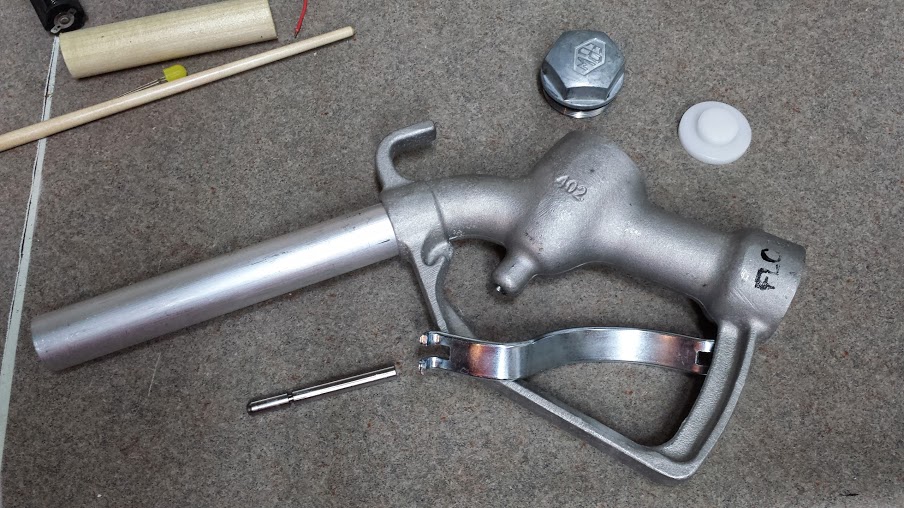

What we have here in the first picture is almost everything I use during the build.




Update

Link to full album!

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

division 6

Master Member
There are red shampoos and hair gels that you can use instead of adding food coloring to what you have there.
One of the brands is a nice red color and has tiny bits of pomegranate in it that has the in game look.

This might help.


PropDad

New Member
Where abouts did you manage to find the gas pump?

I forget what site I got them from last time but it was a farm/tractor supply place. After doing quite a bit of research I did come up with these part numbers for the company who ACTUALLY makes the nozzles. I say actually because some places resell them under different names and part numbers.

Re: division 6, NICE! Thanks for the pic.

More pics from me.

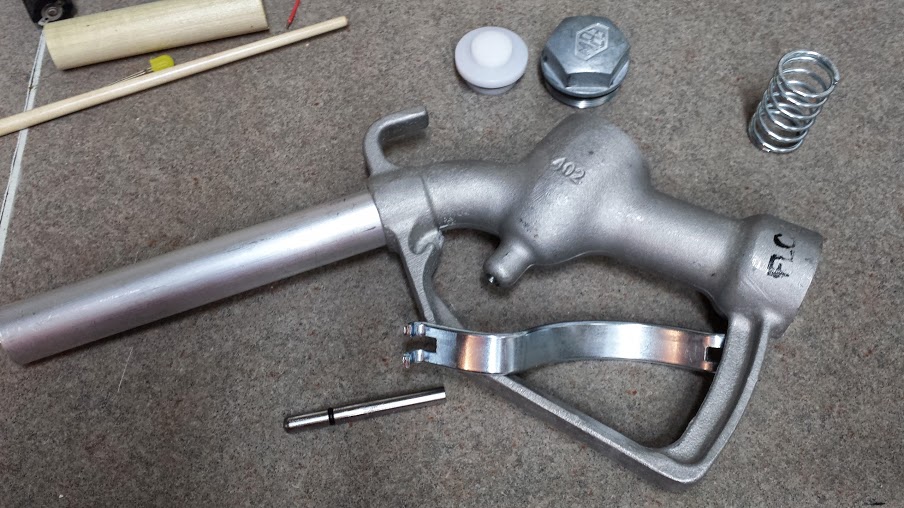

I disassemble the nozzle...


remove the rubber o-ring from the valve rod. This will make it easier to slide in and out to activate the switch/light. I also put aside the parts that will not be going back in.


Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

PropDad

New Member

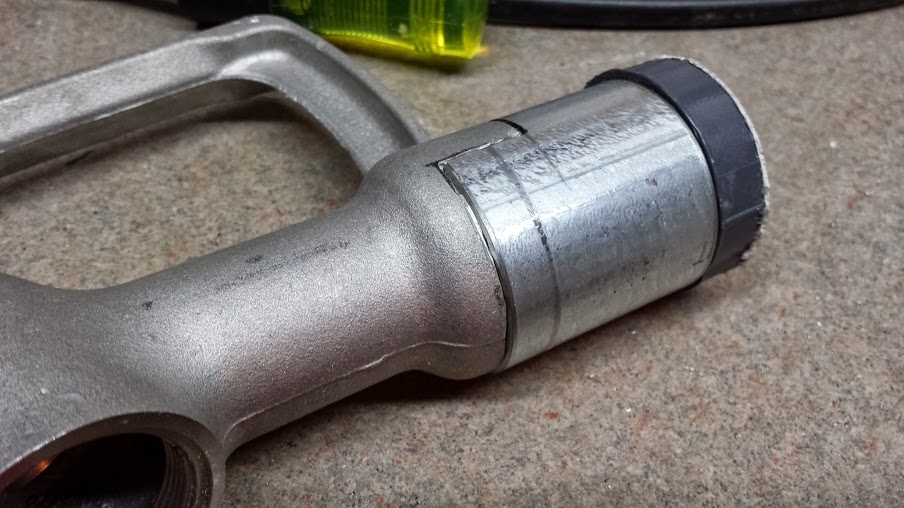

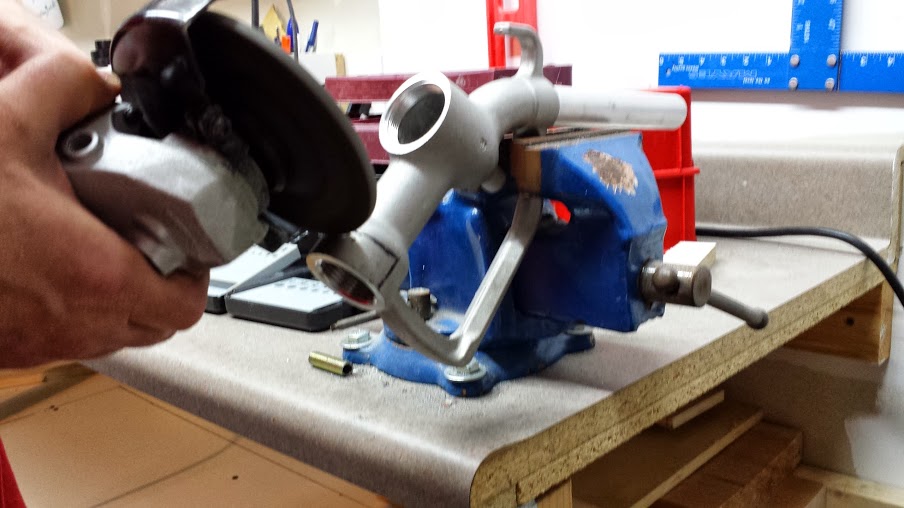

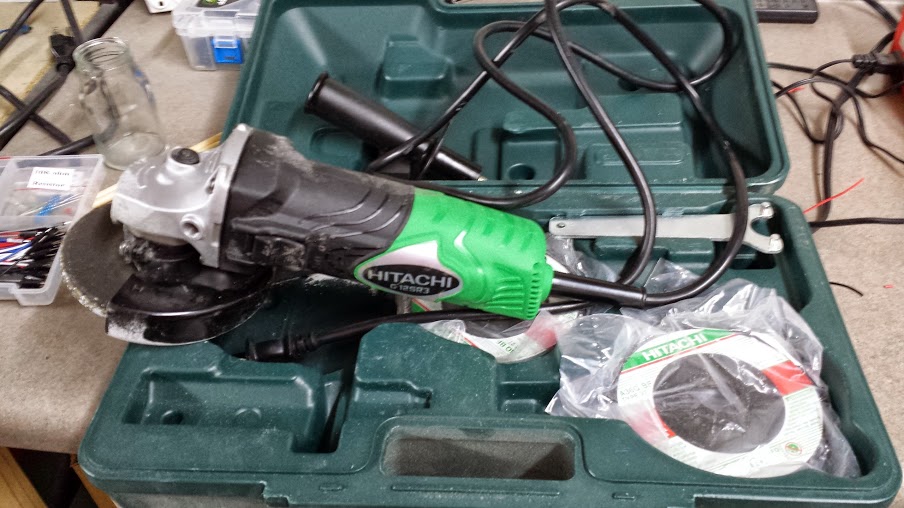

This part is the one I hate the most. Grinding down the handle. I was using a bench grinder for the majority of this until someone here pointed out the dangers of the aluminum gumming up on the well, heating and expanding, and possibly the wheel exploding. Since I like to keep my organs intact I picked up this sweet little angle grinder on clearance for $45..

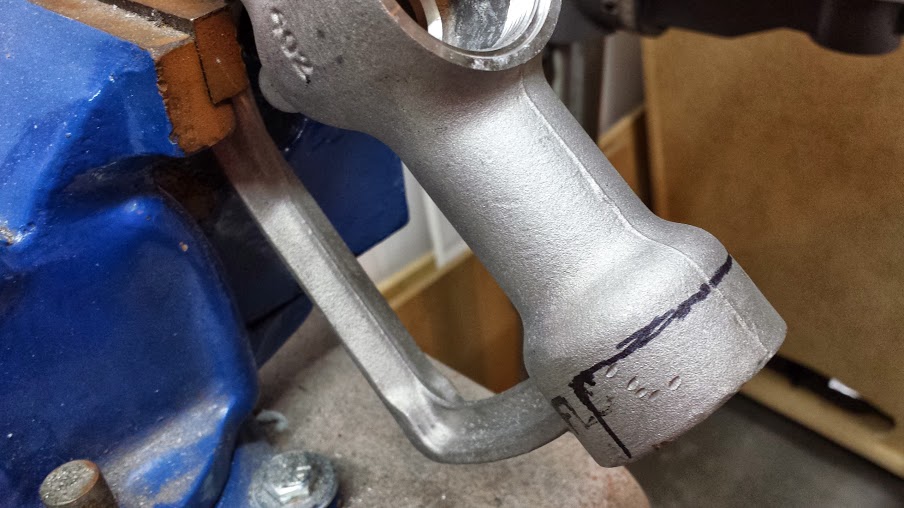

The wheel is softer than a bench grinding wheel so it disintegrates and does not gum up. I mark off where I want to grind...

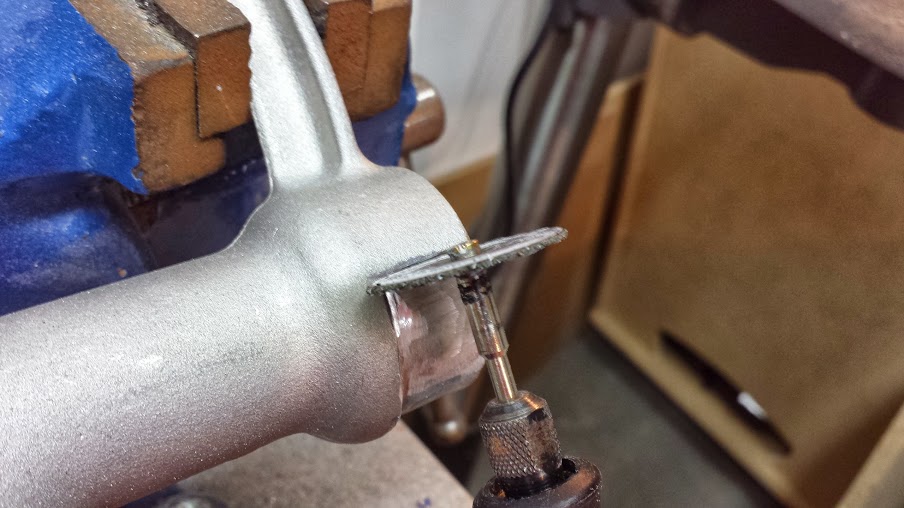

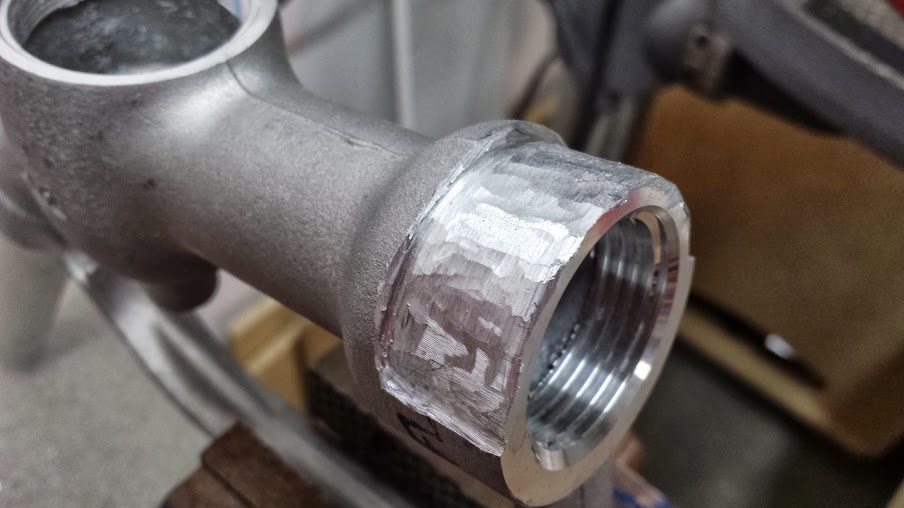

and go to work


For the finer edges I use a Dremel

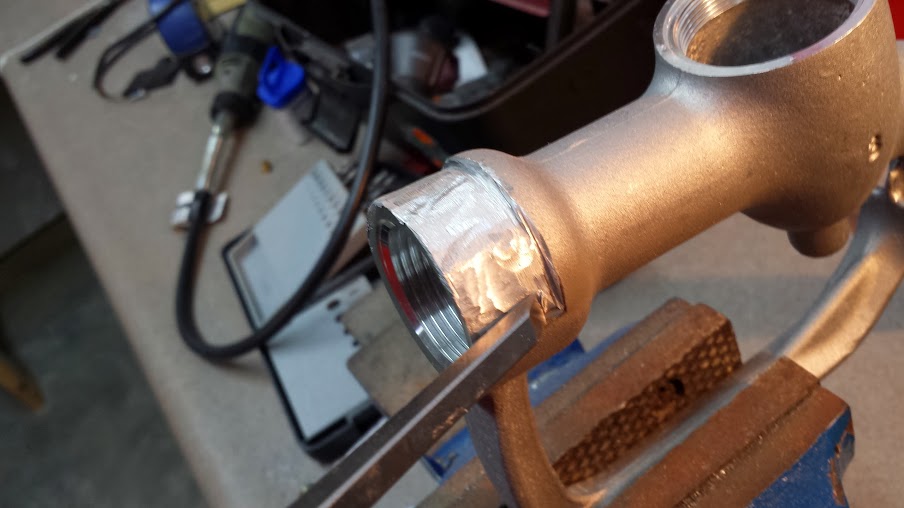

and a chisel


Pretttty.

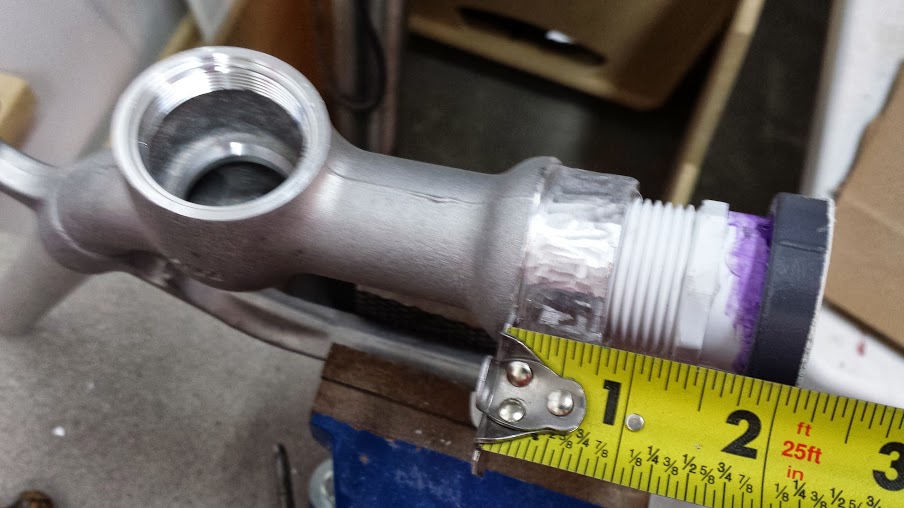

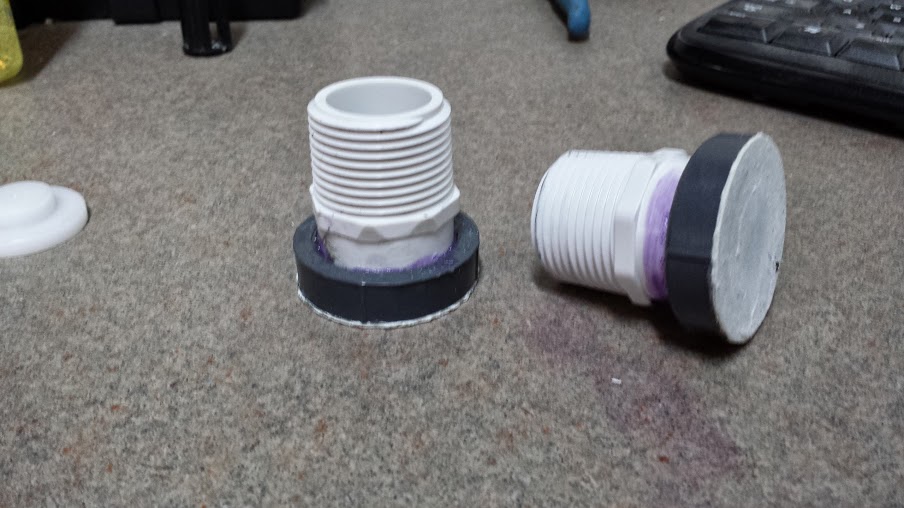

Sorry for this next pic. I made these before I decided to post this build here. It is a couple of PVC pieces glued together and Epoxie Sculpt on one end.

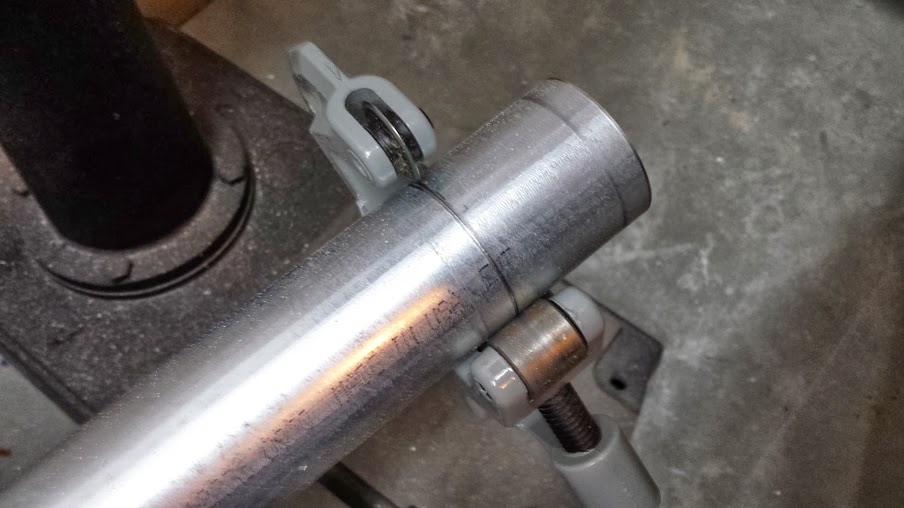

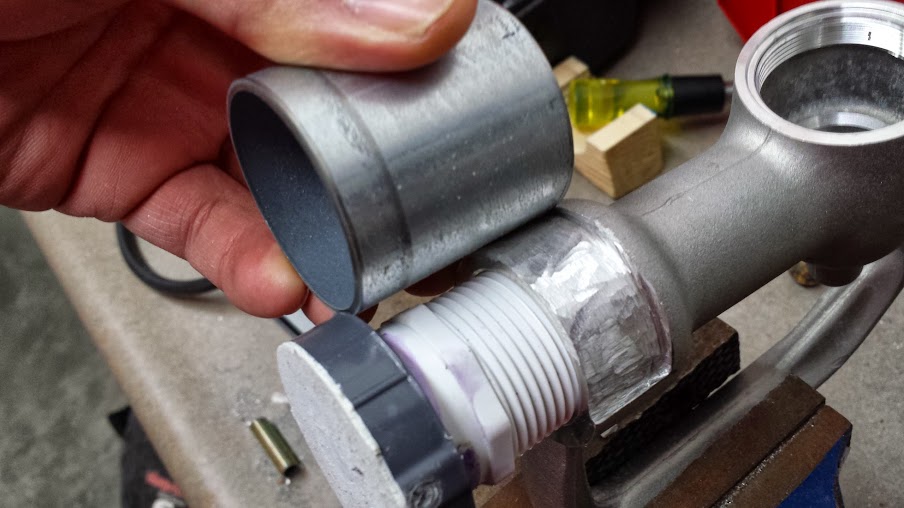

I screw in this piece to get a measurement for my next part to cut.

20131020_172543.jpg 20131020_172837.jpg 20131020_173008.jpg

And last on this comment, I have notched this to fit on the end of the handle.


More latter!!

Last edited:

PropDad

New Member
A little more progress. Cutting and more grinding.

20131022_135506.jpg 20131022_135202.jpg

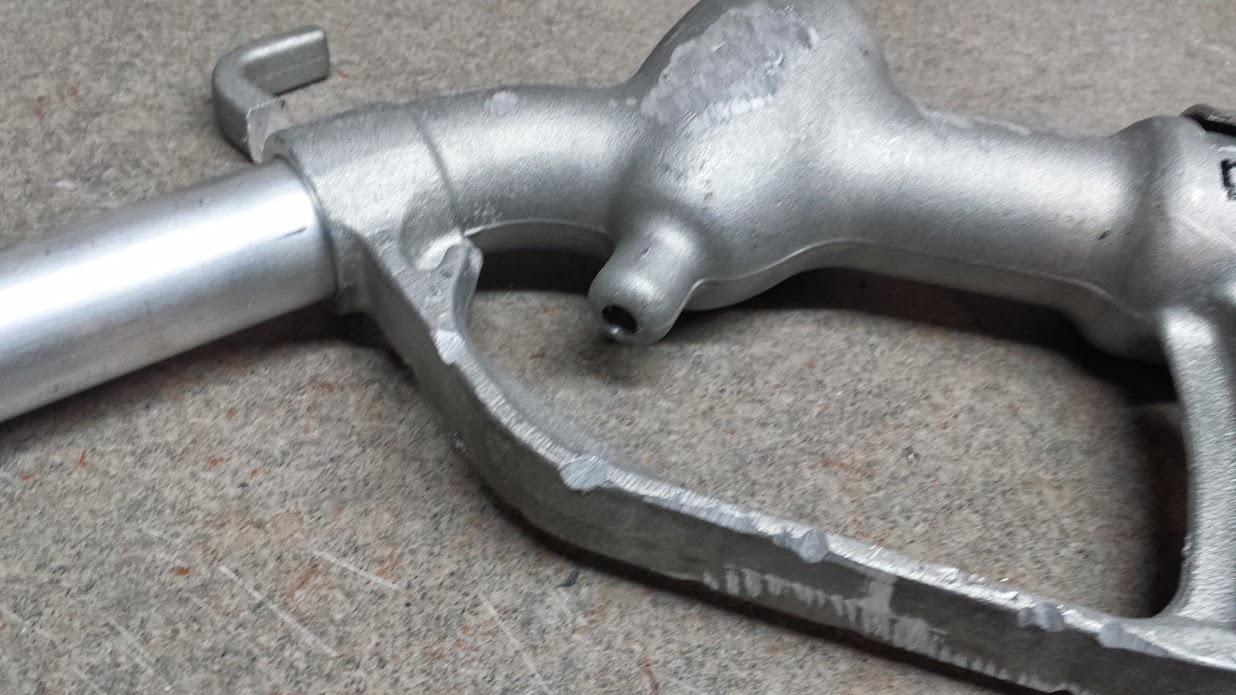

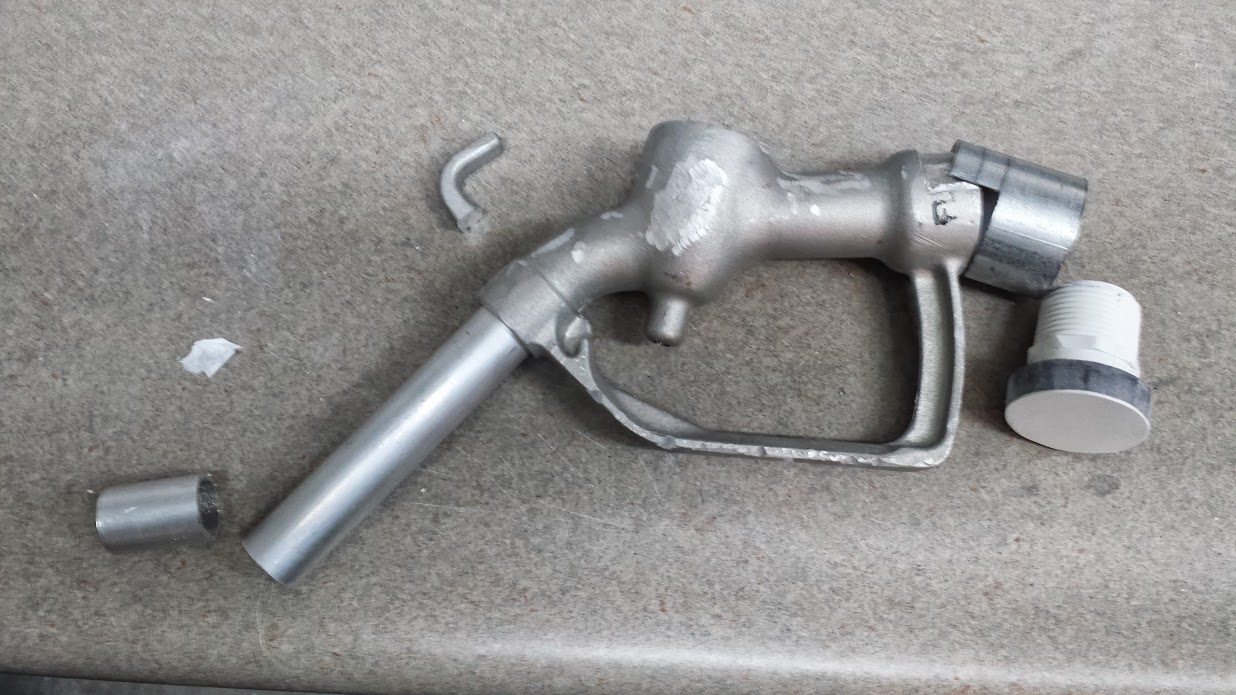

I have cut the end of the nozzle and the hook off. I have also made a bunch of cuts/scratches. This will help grab paint during the weathering process later on. I have sanded the Apoxie Sculpt smooth as well. Now the handle is ready for paint (my wife) and I will move on to other bits while she is doing that.

Last edited:

PropDad

New Member

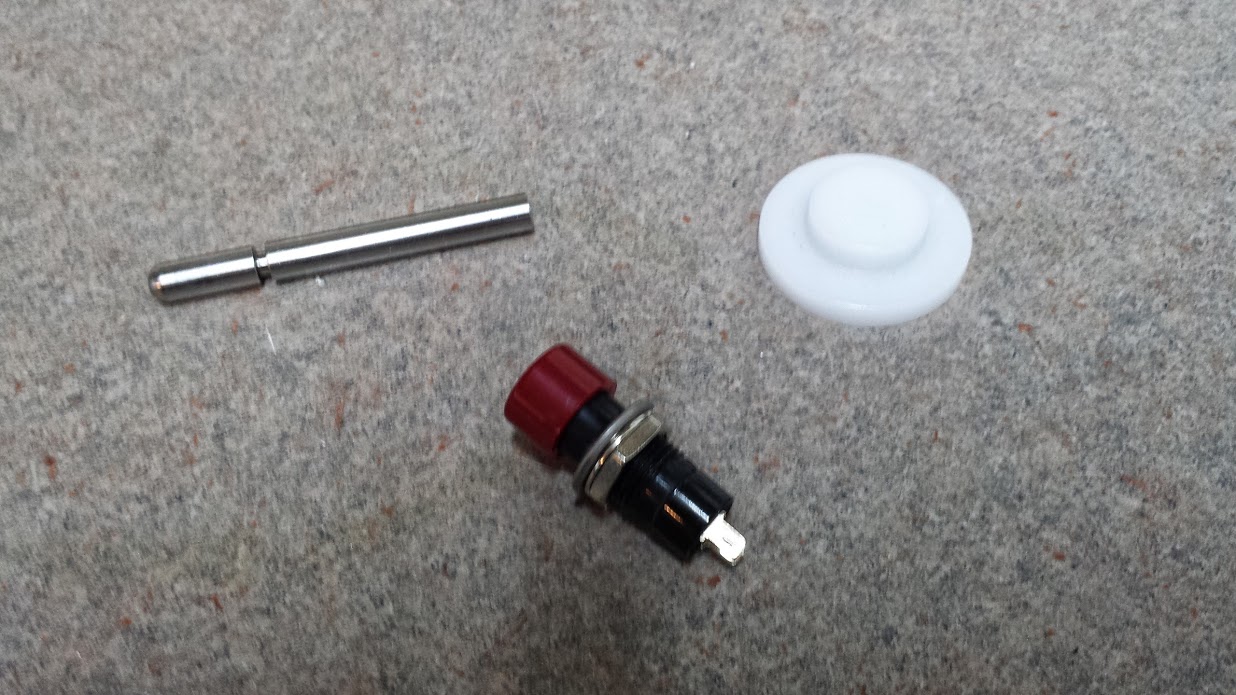

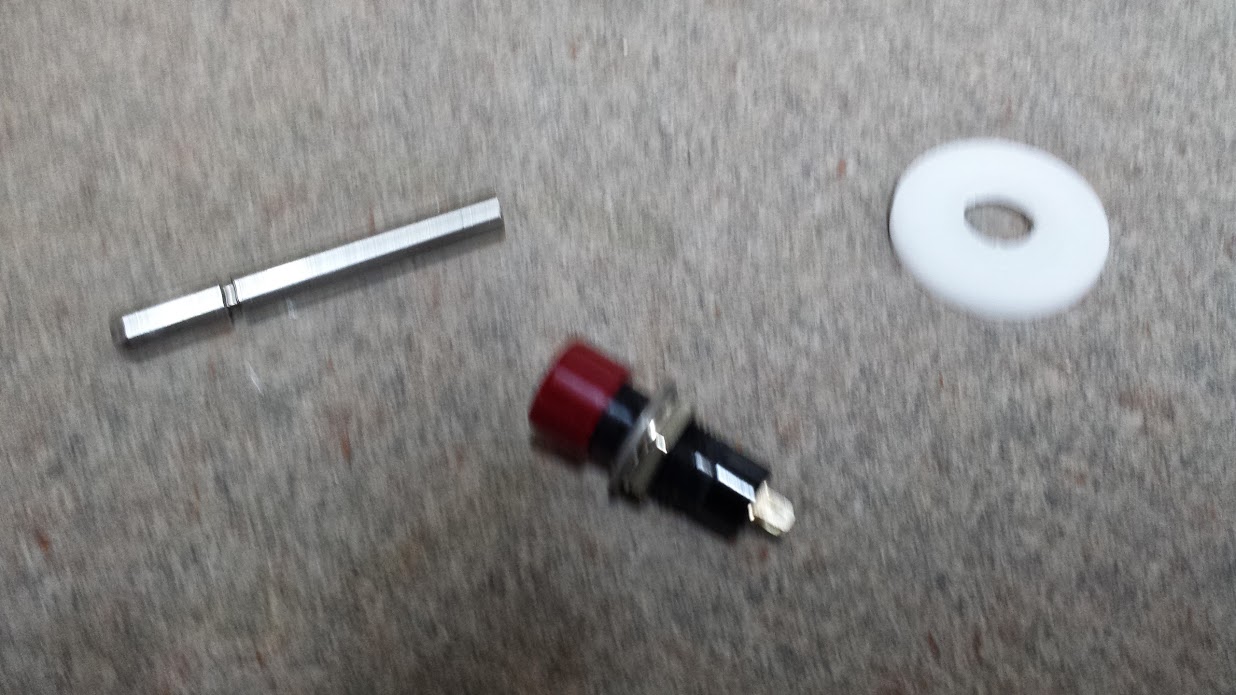

Todays update is installing the switch. The white disc is a left over piece from the valve assembly. The rod is what pushed the valve open.

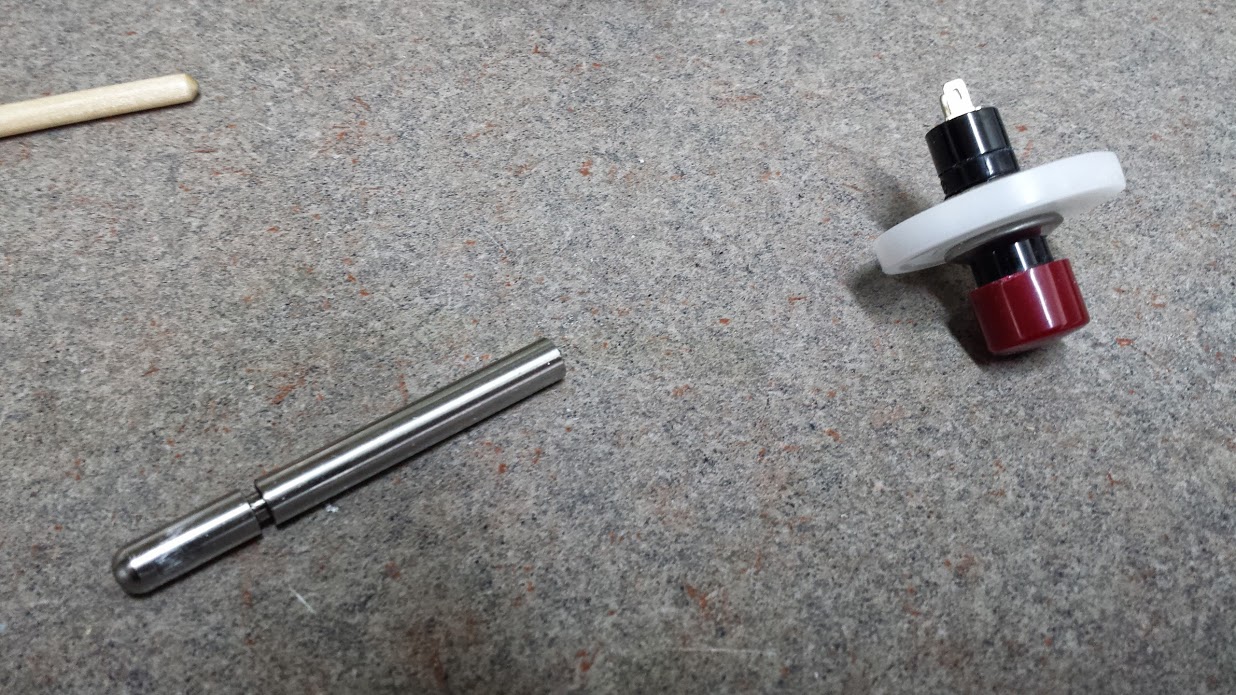

20131024_130136.jpg 20131024_130451.jpg 20131024_130644.jpg

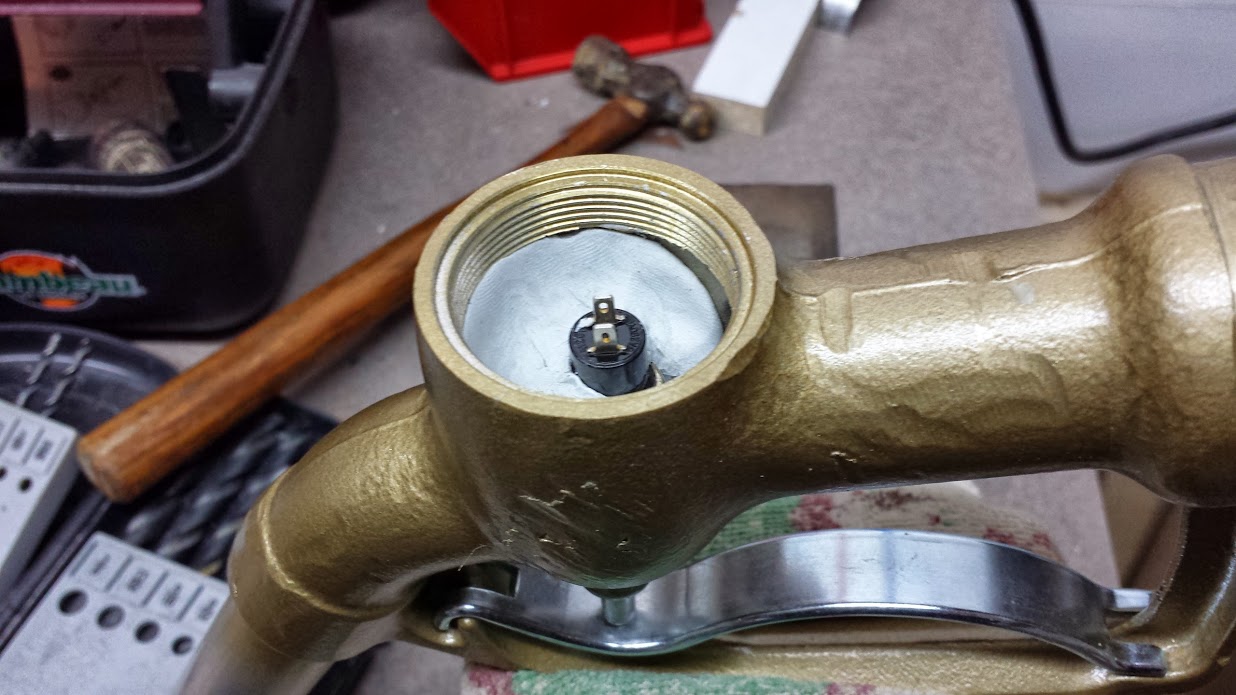

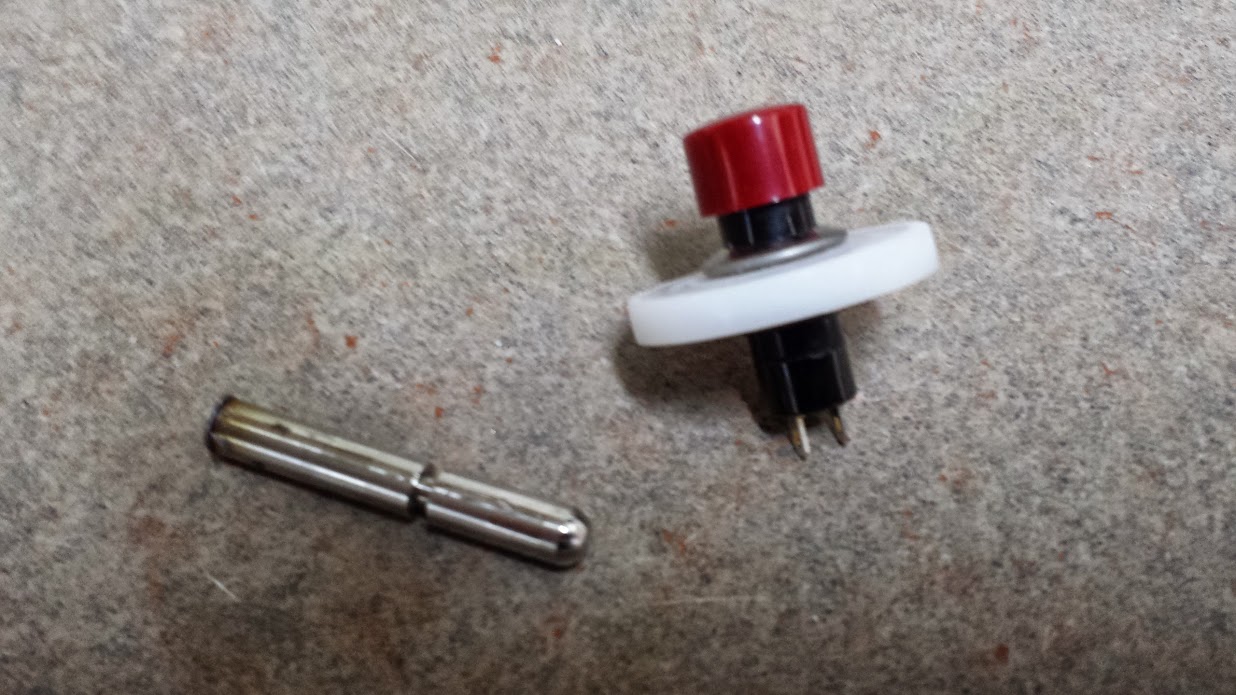

I cut down the rod to make room for the depth of the switch and then set the switch into the handle with Apoxie Sculpt.

20131024_132132.jpg 20131024_133223.jpg


PropDad

New Member
This next step is a revision of the original that I made here.

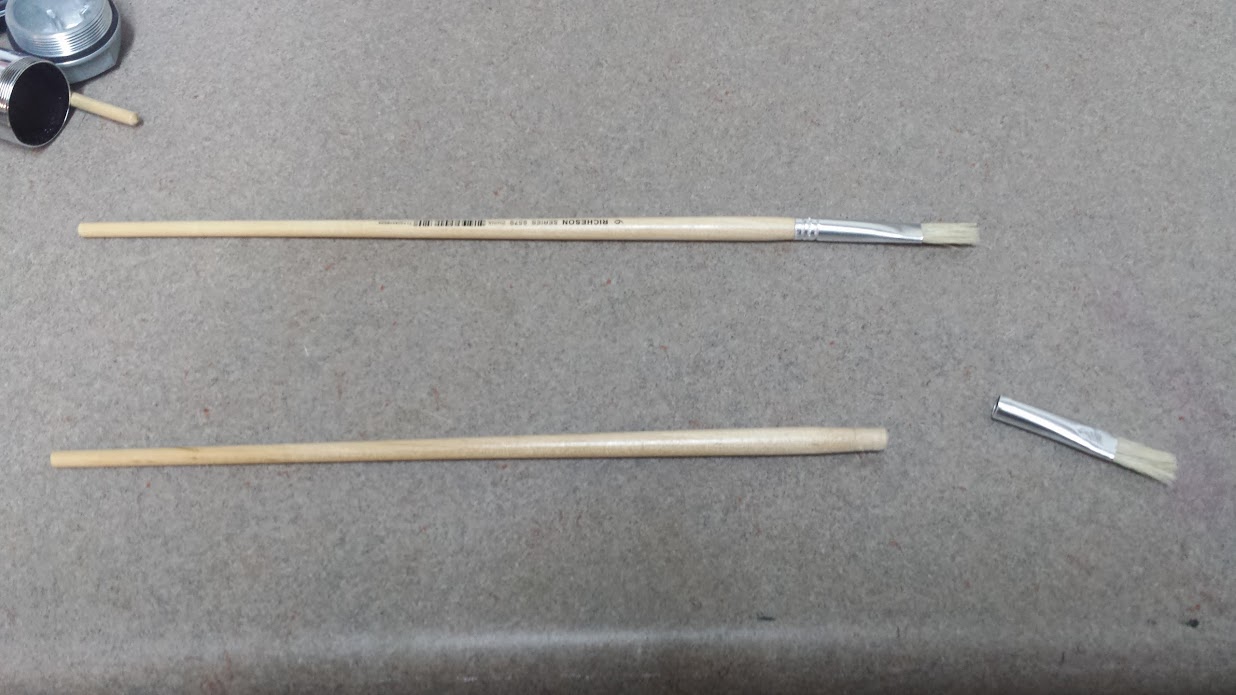

I used to just stick some Apoxie Sculpt in to the end of the nozzle and use a paint brush handle for the needle. We had a customer request that the needle be removable. Below is the change I made

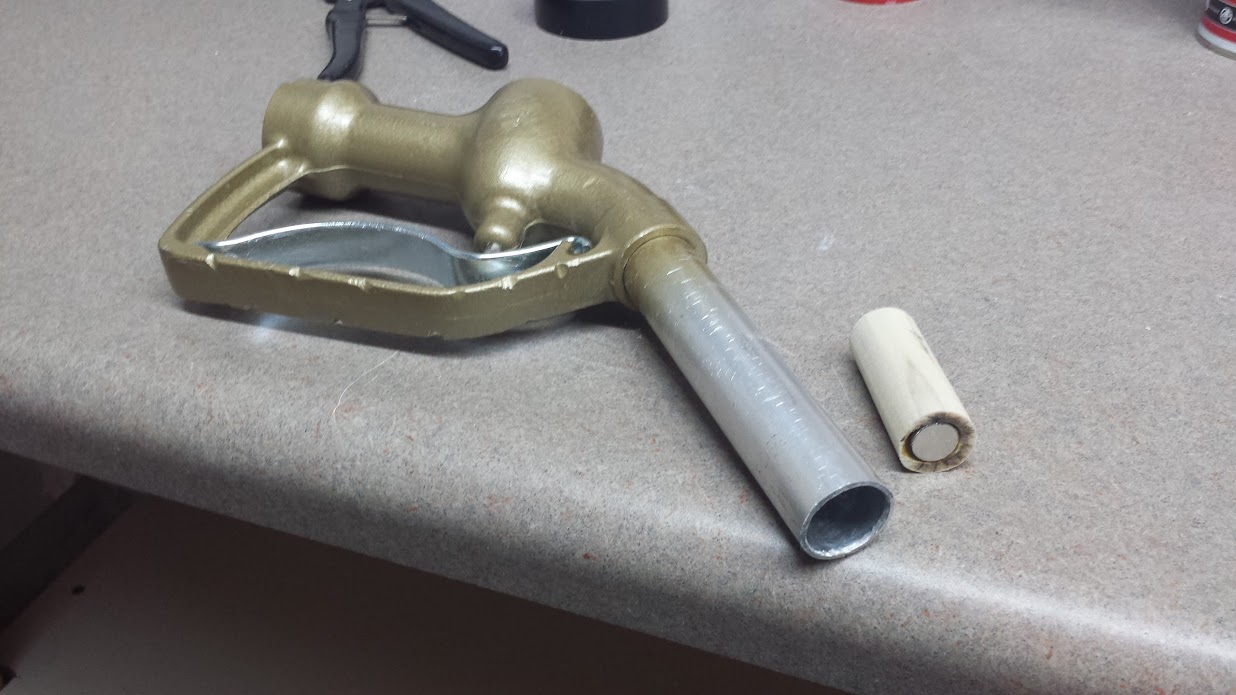

The dowel rod that was seen laying next to the handle in the first pic has now been cut in half and magnets attached.

20131026_164748.jpg 20131026_164758.jpg

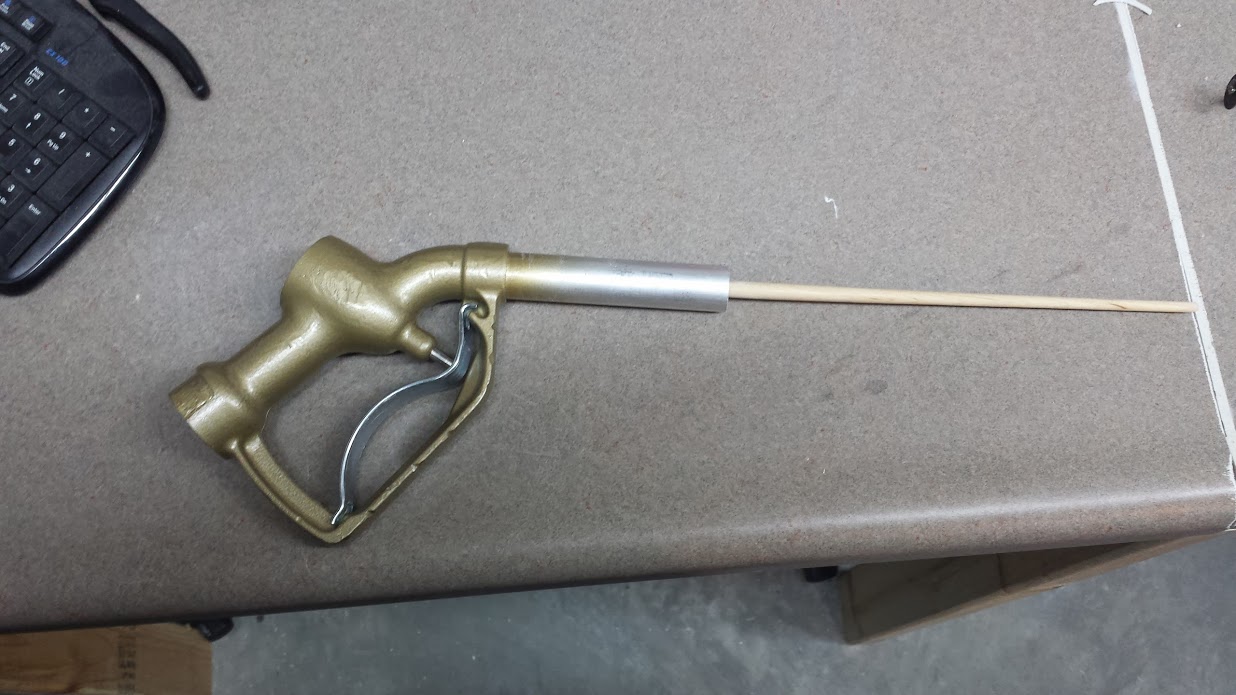

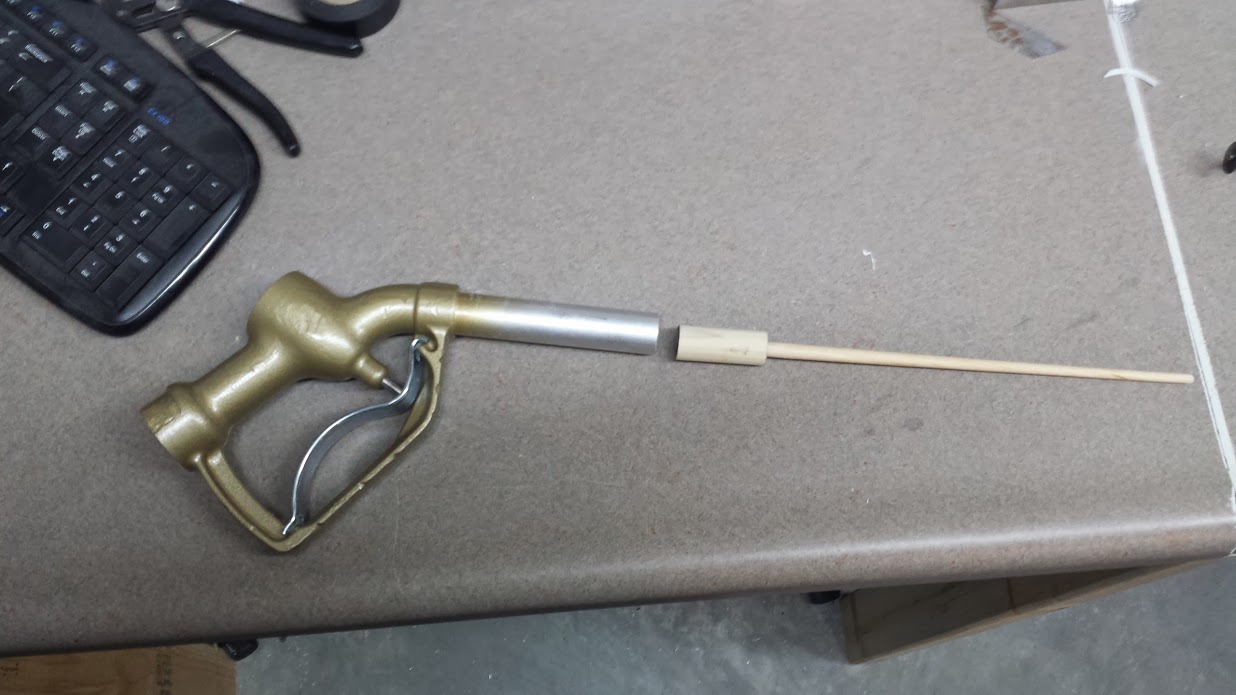

After that I drill a hole that the paint brush can be set into and glue it.

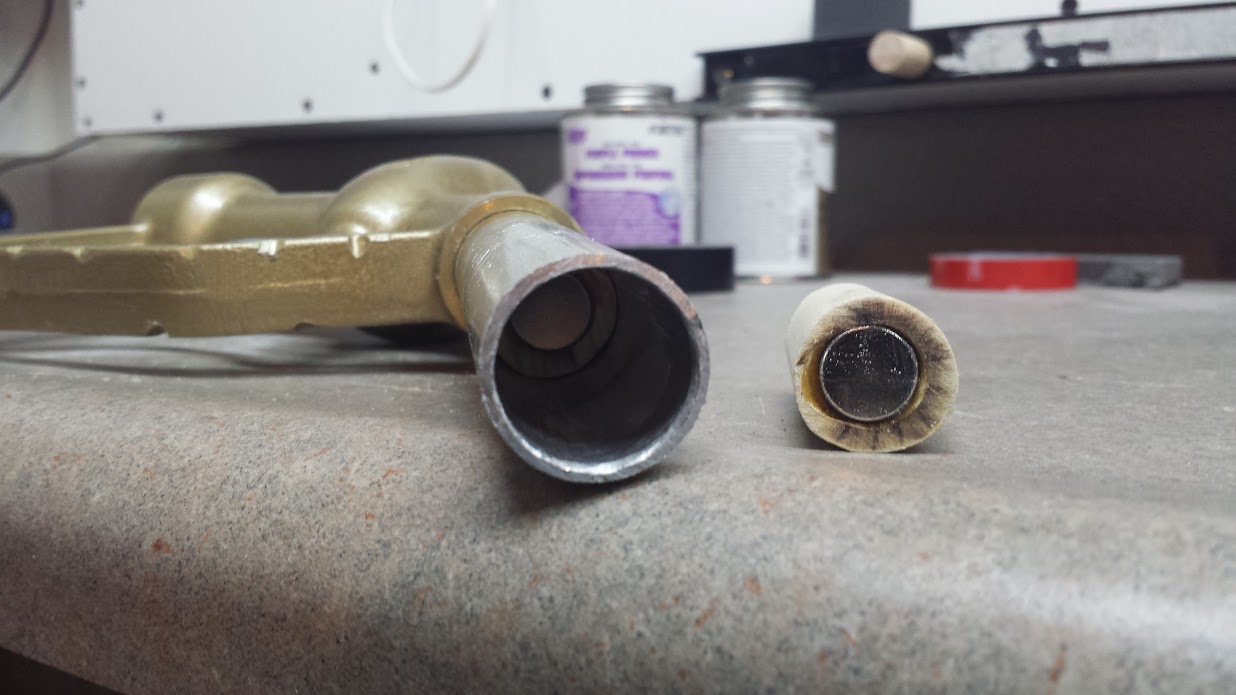

20131026_165637.jpg 20131026_173122.jpg 20131026_173129.jpg

As you can see it simply slides in and out.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

PropDad

New Member

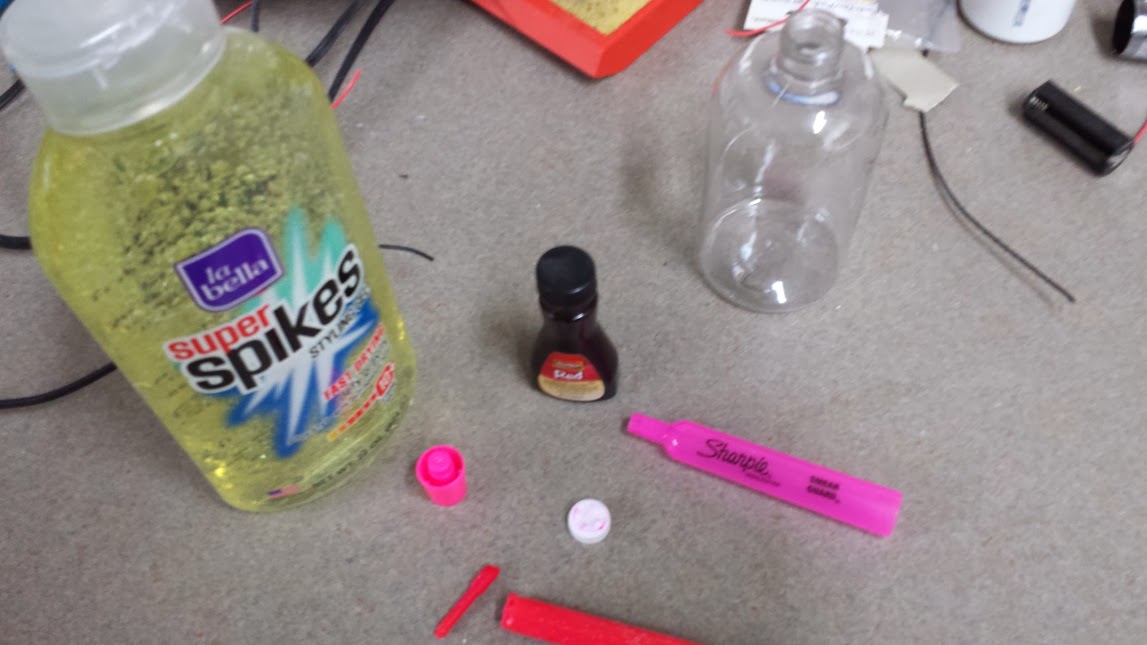

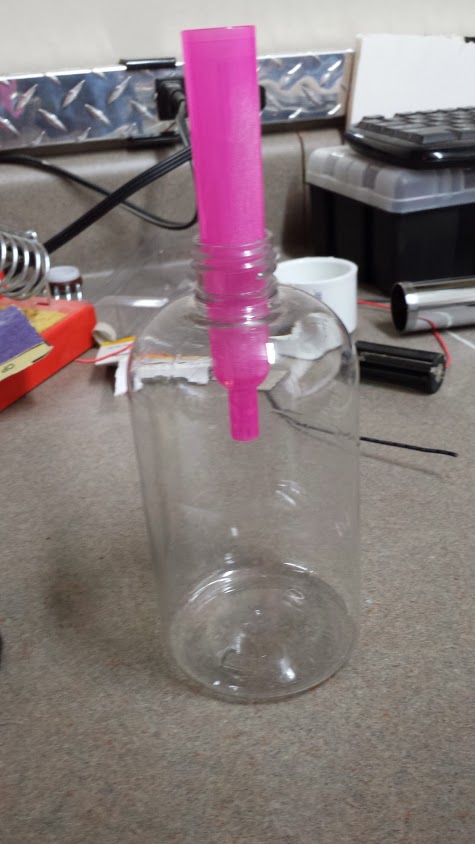

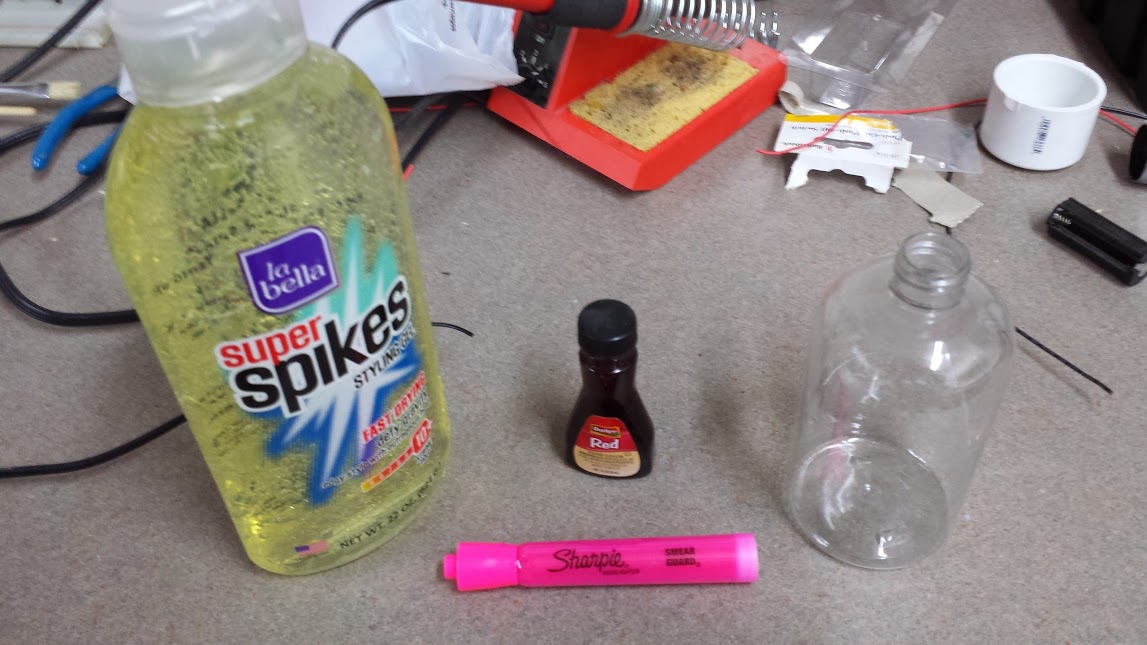

Thanks guys. Sorry I have not updated in awhile. I have gotten caught up in a commission request. Few more photos here. This is where I use food coloring and hair gel to create the ADAM. Once the ADAM is in the bottle I use the body of a marker to help transmit the LED light more towards the center of the bottle.

20131027_121536.jpg 20131027_121858.jpg 20131027_121908.jpg 20131027_122145.jpg

This next part (video) is not from this specific build but it is how I get the ADAM in to the bottle which can be kind of funny to watch.


Last edited by a moderator:

PropDad

New Member
Hey hey!! Sorry have not posted an update in awhile, was busy with another project. Today I made a little bit more progress....

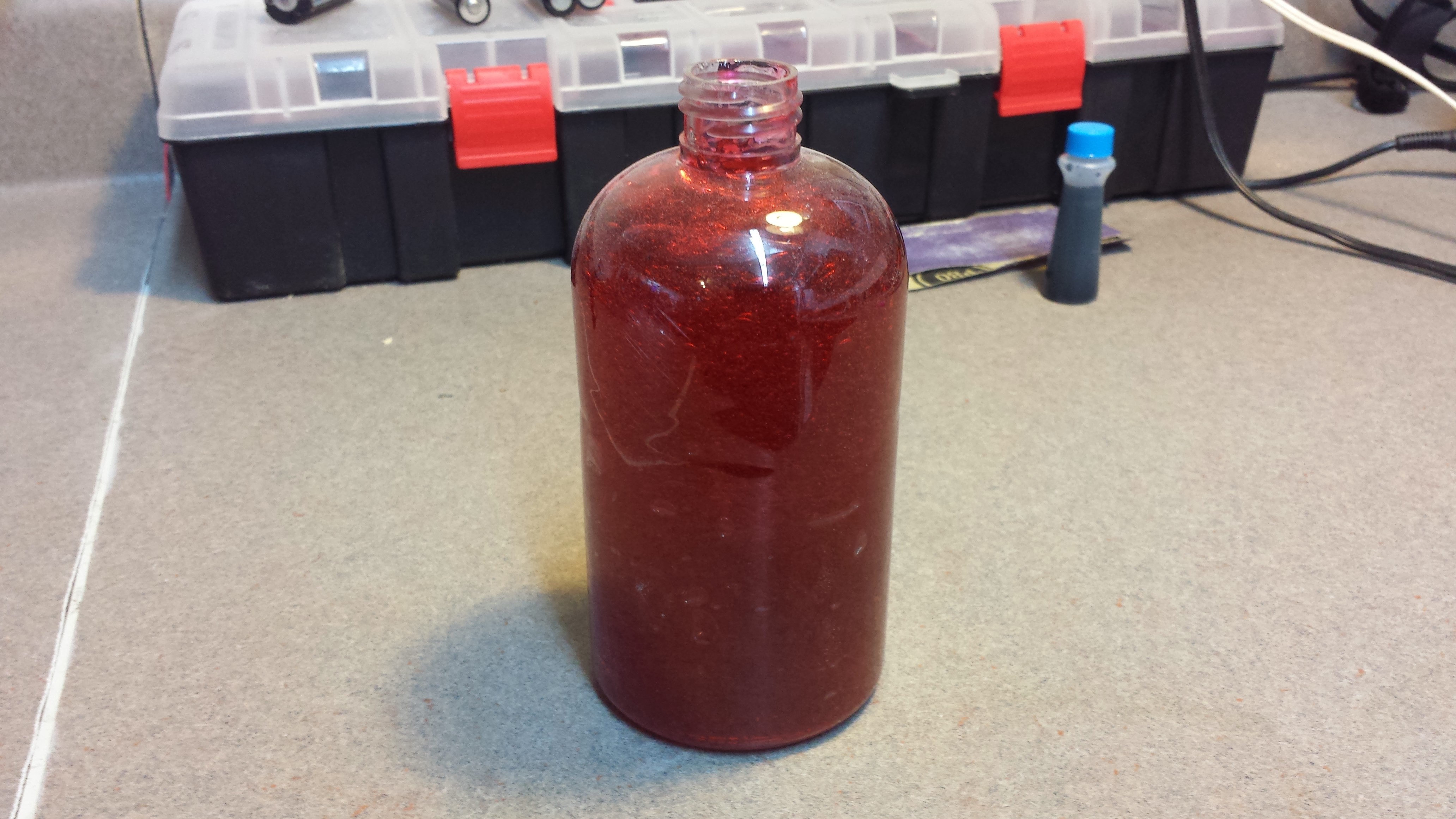

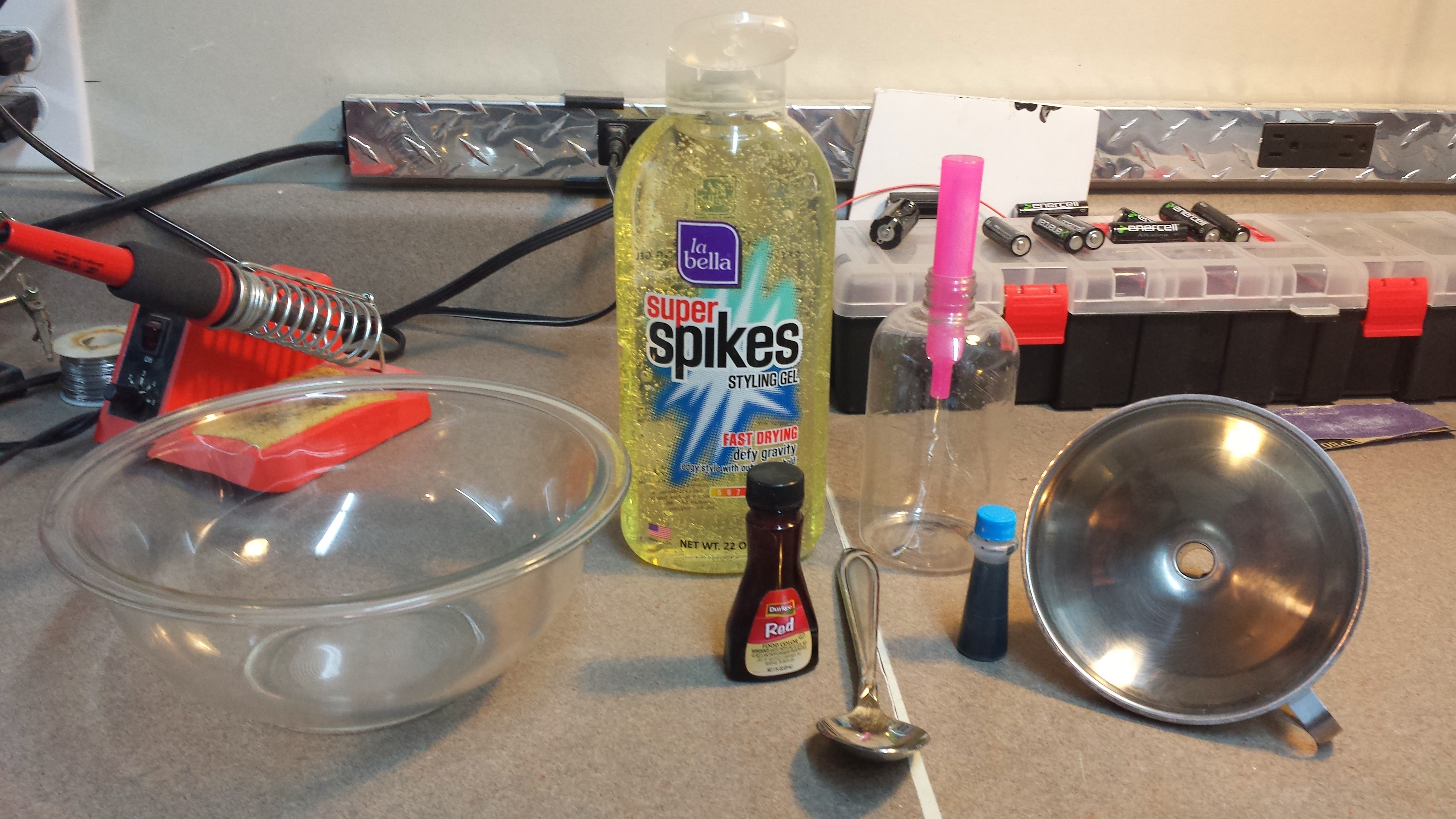

20131127_220239.jpg 20131127_220519.jpg 20131127_220559.jpg 20131127_220729.jpg 20131127_221857.jpg 20131127_222021.jpg 20131127_222149.jpg 20131127_223933.jpg 20131127_224545.jpg 20131127_225200.jpg

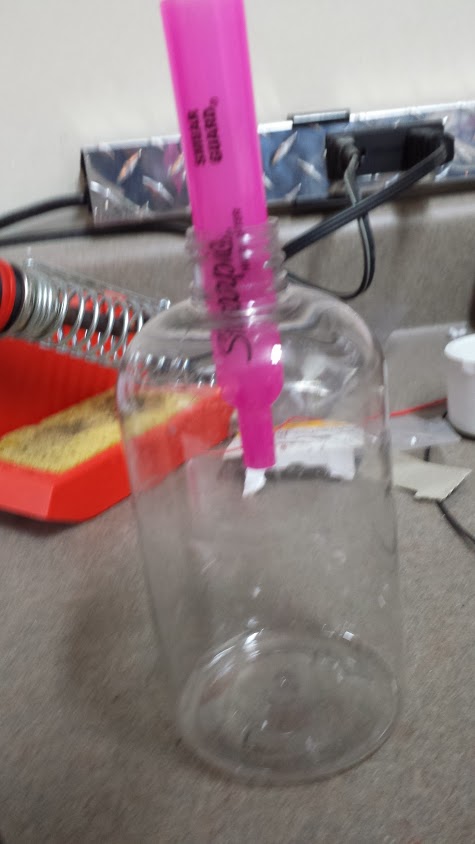

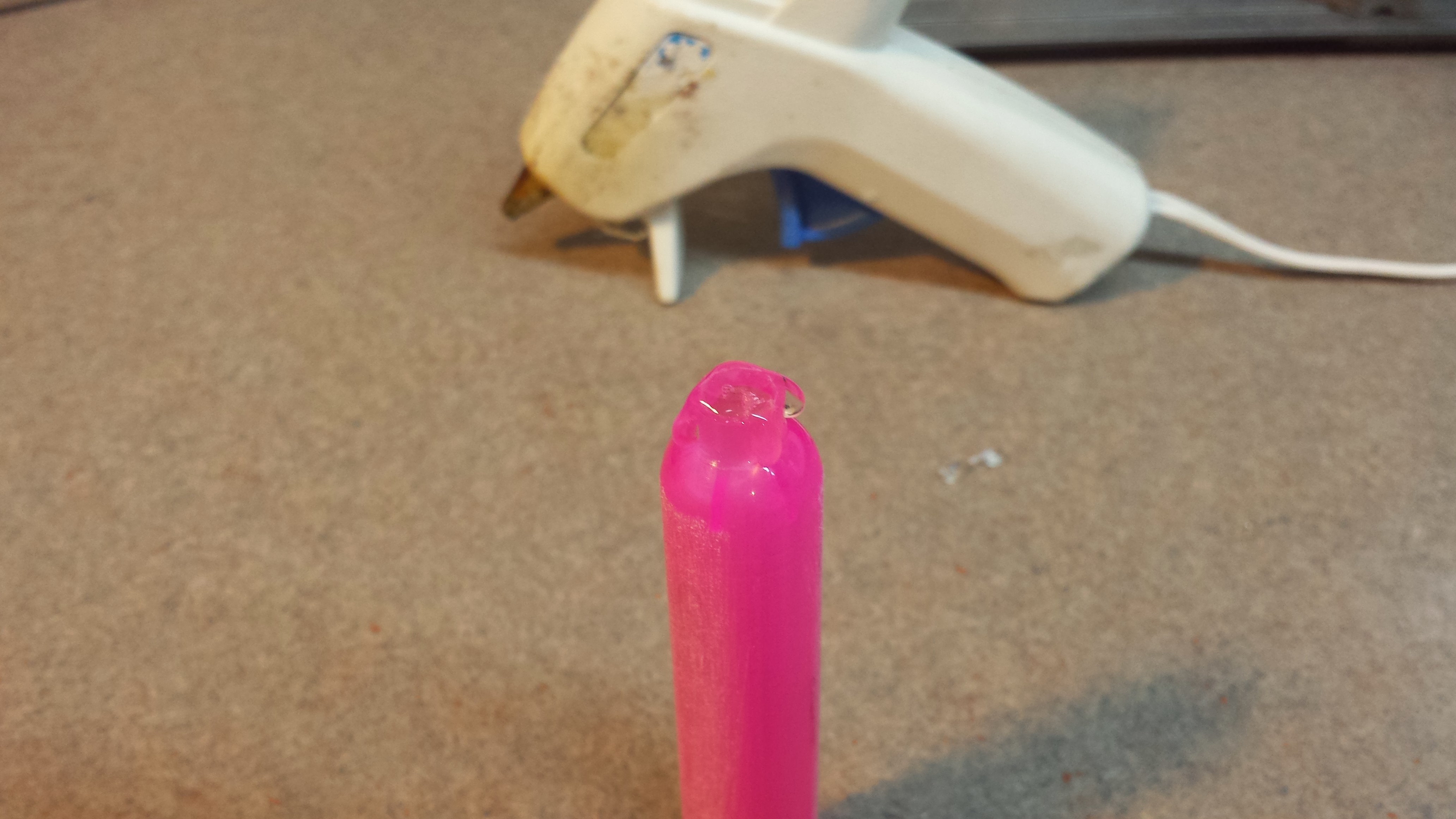

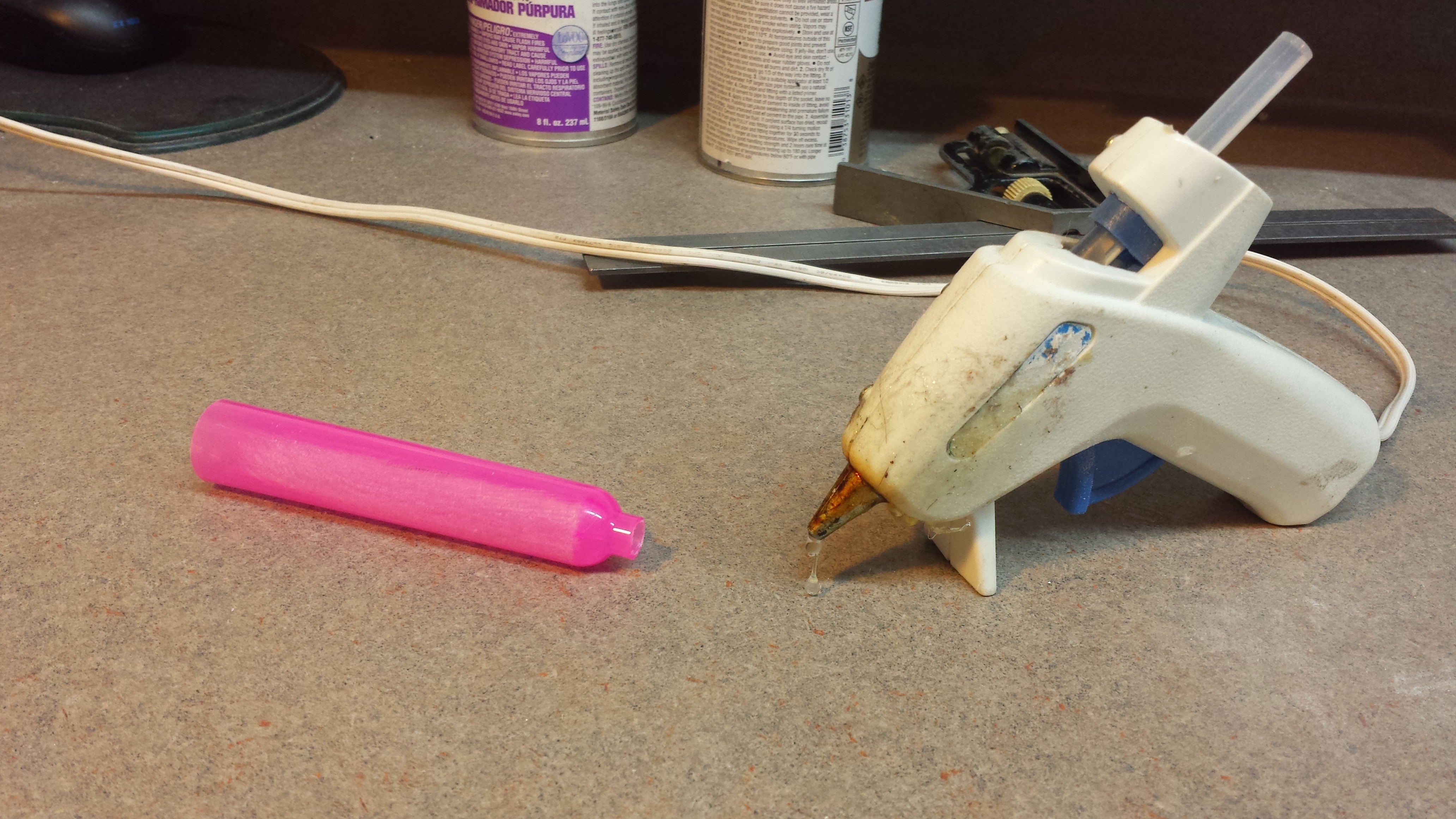

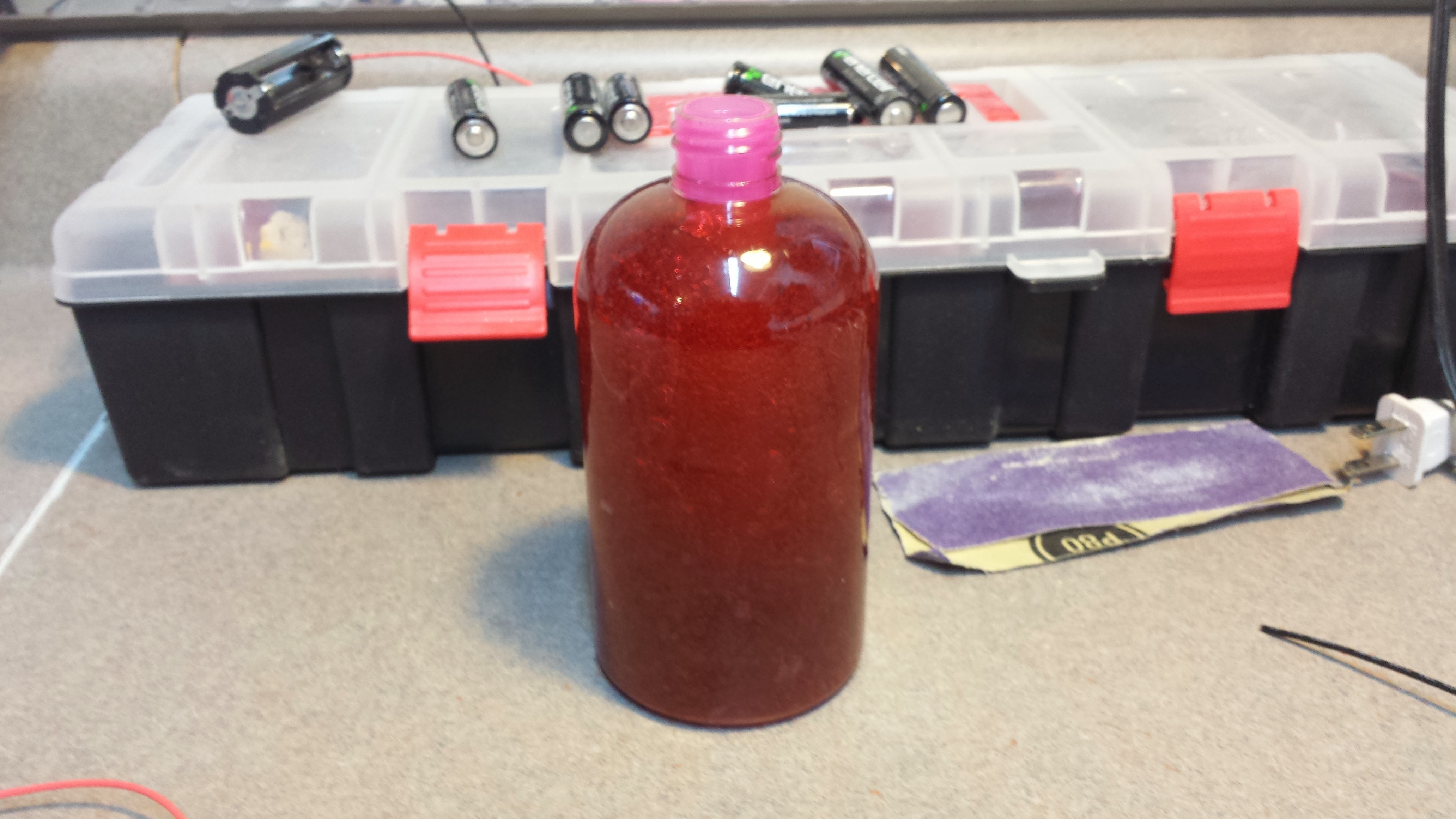

So, no need to cover how I got the "ADAM" into the bottle as I posted a video before. I use the highlighter marker body for a couple of reasons. 1) It is a way to seal the bottle. It fits the neck perfectly when inserted. 2) It allows me to get the LED into the middle of the ADAM.

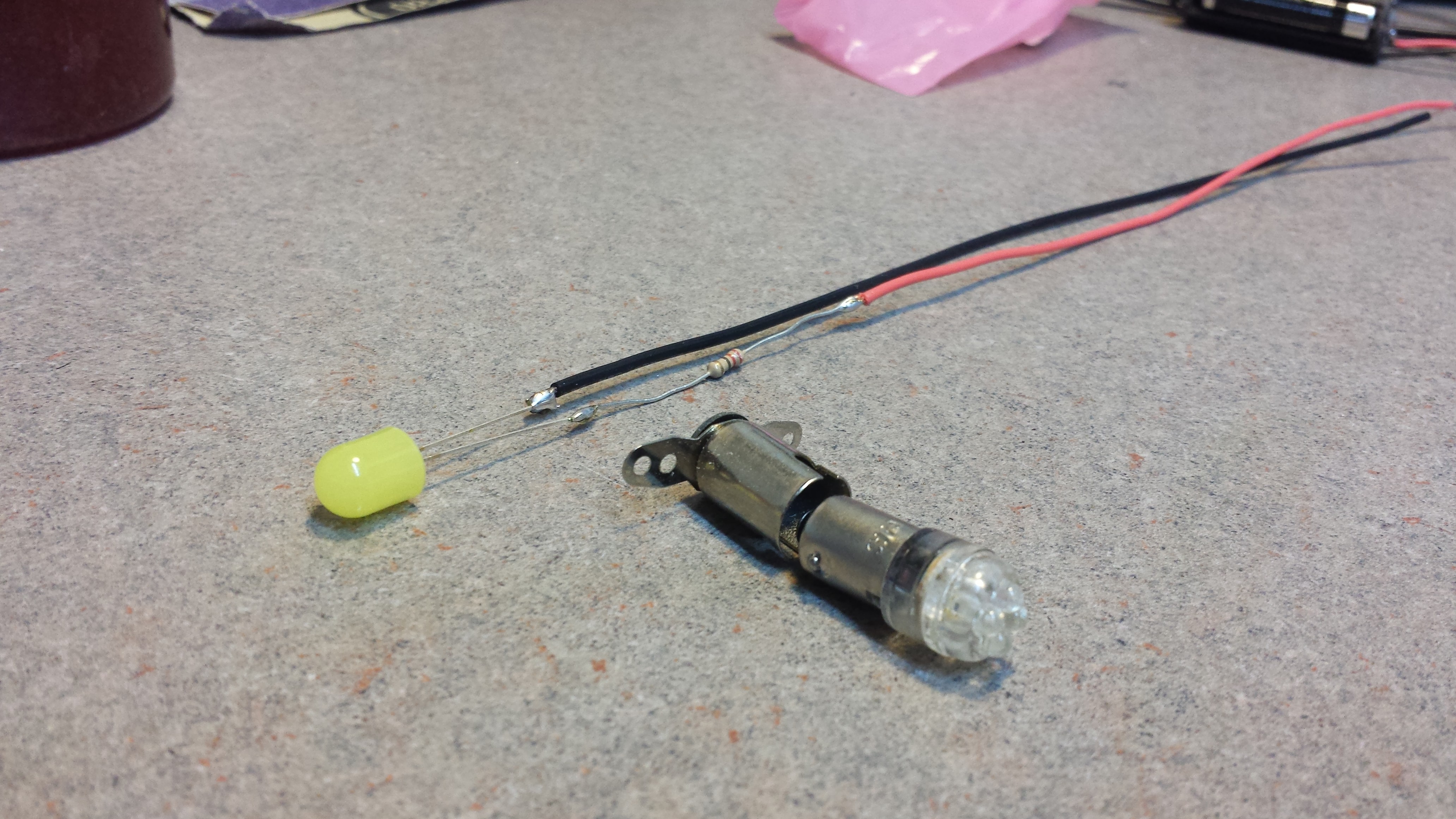

The picture with the 2 LEDs shows the one I used before and the new one I am going to use this time. The new one being the bare LED without the base.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

PropDad

New Member
Thanks! Few more pics today :)

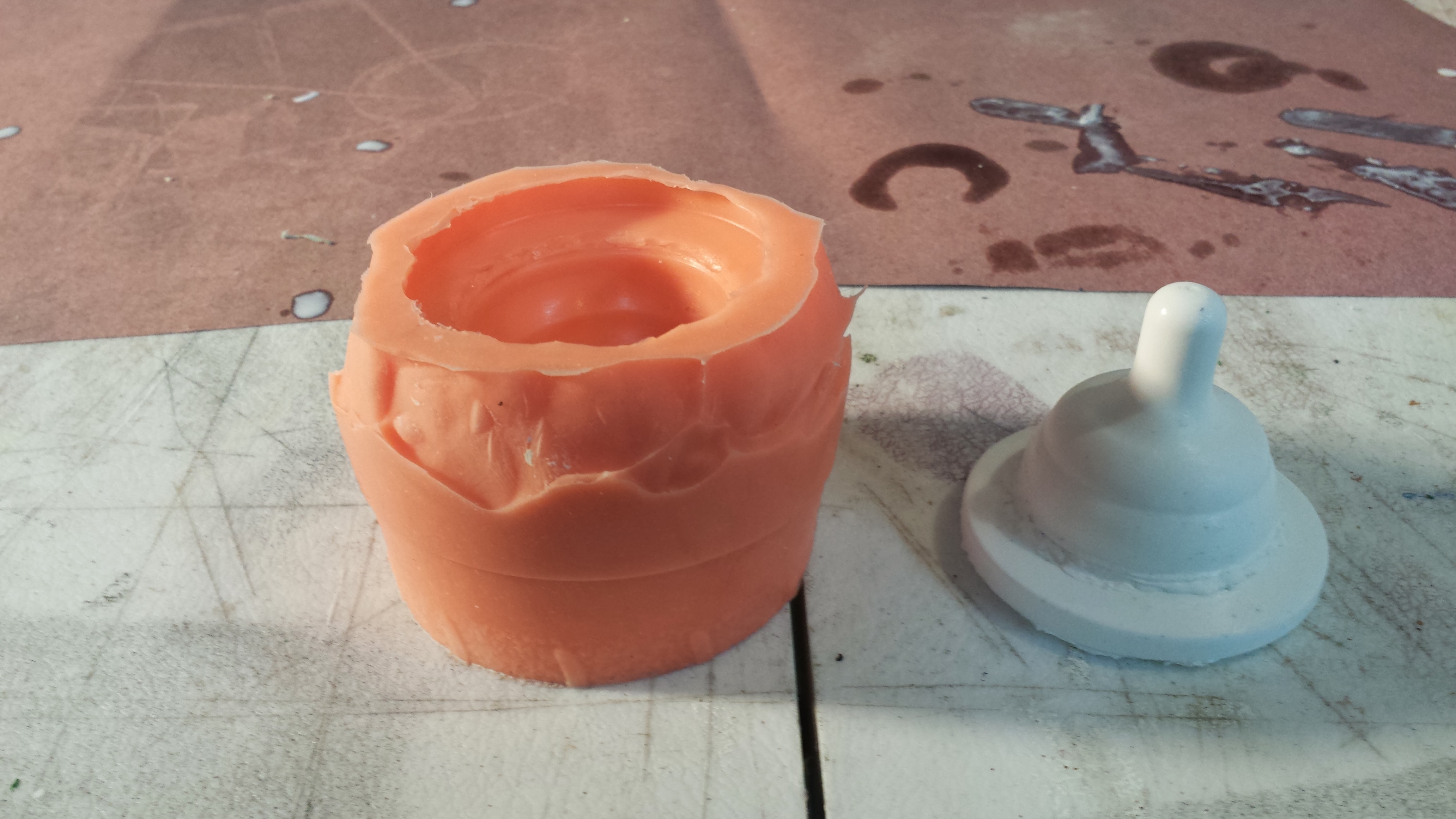

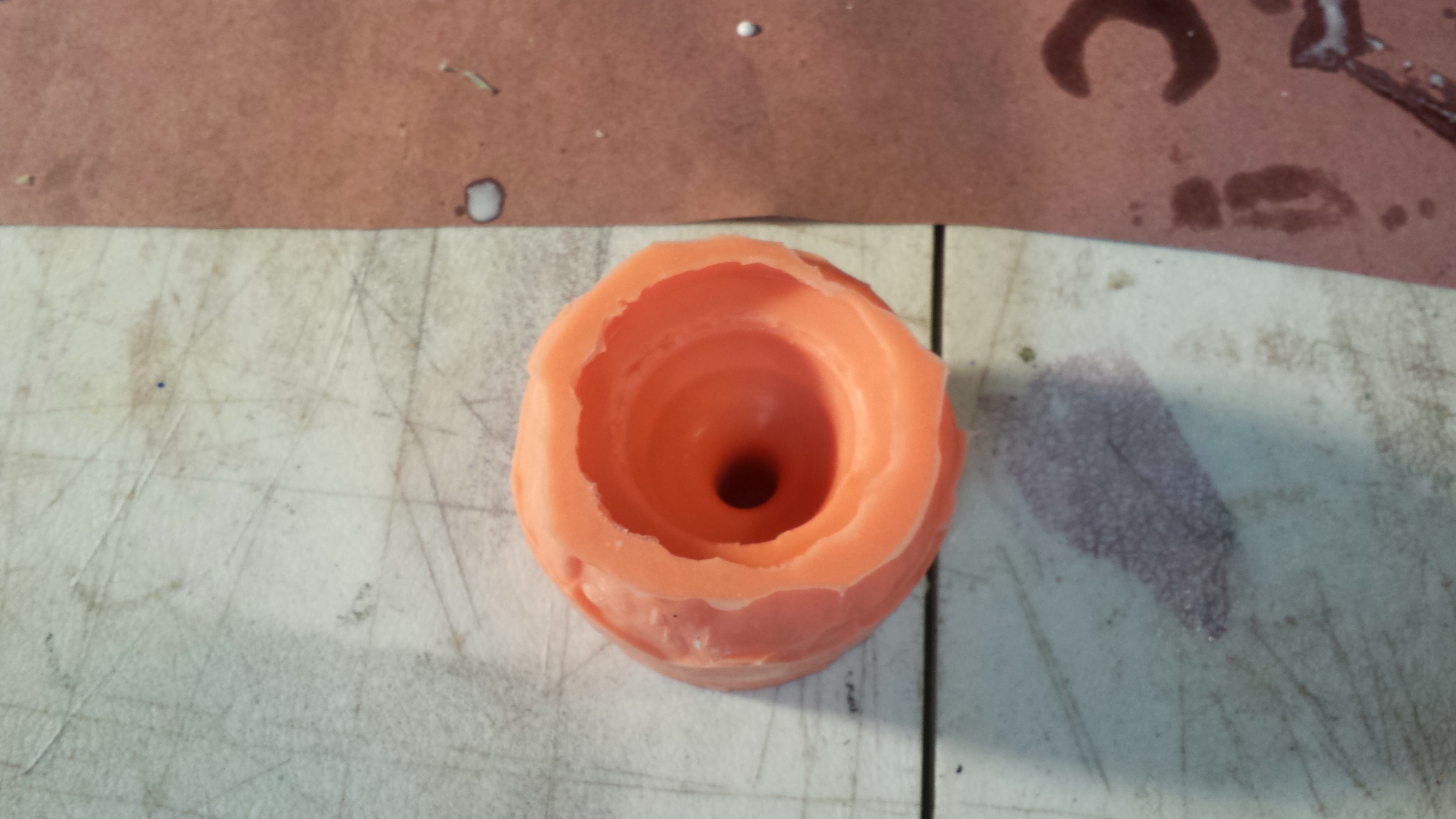

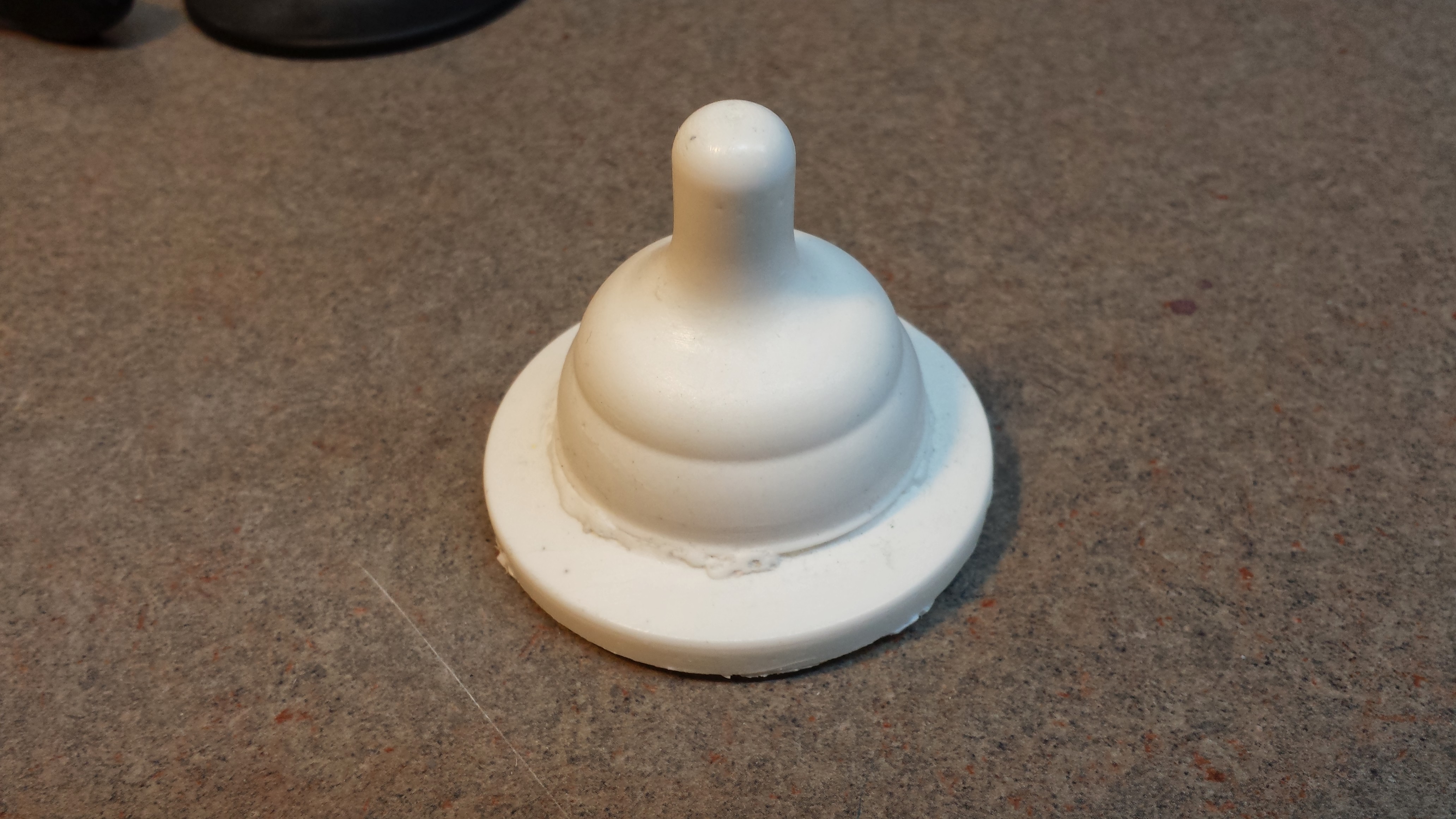

Today I get to show you a resin cast nipple!! After a couple of these things and realizing paint does not want to stick to a latex baby nipple very well we decided to make a cast. It helped in adhesion 2 ways. 1, getting rid of the latex. 2, not using a flexible material helped too.

20131208_182523.jpg 20131208_182540.jpg 20131208_182600.jpg

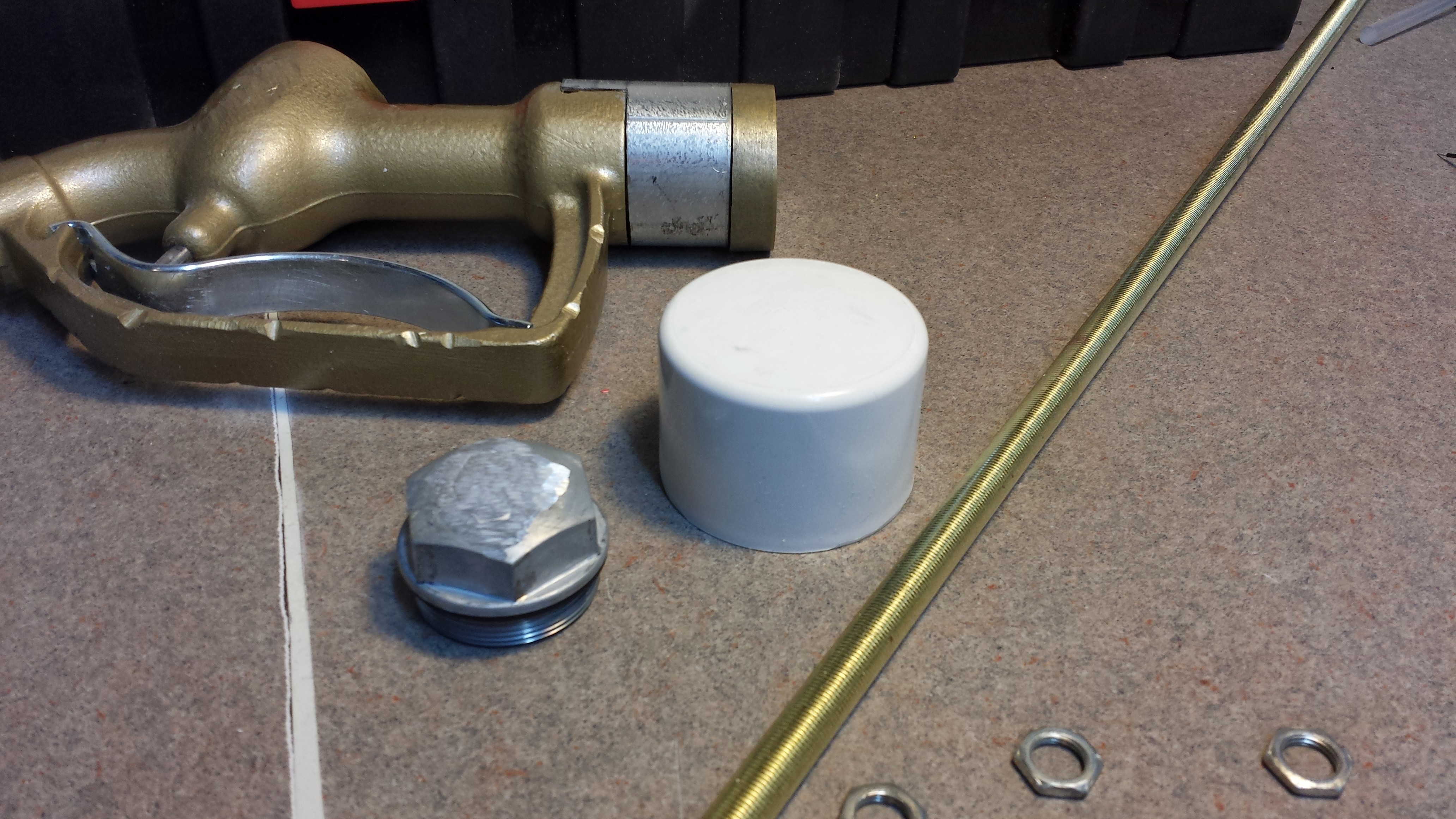

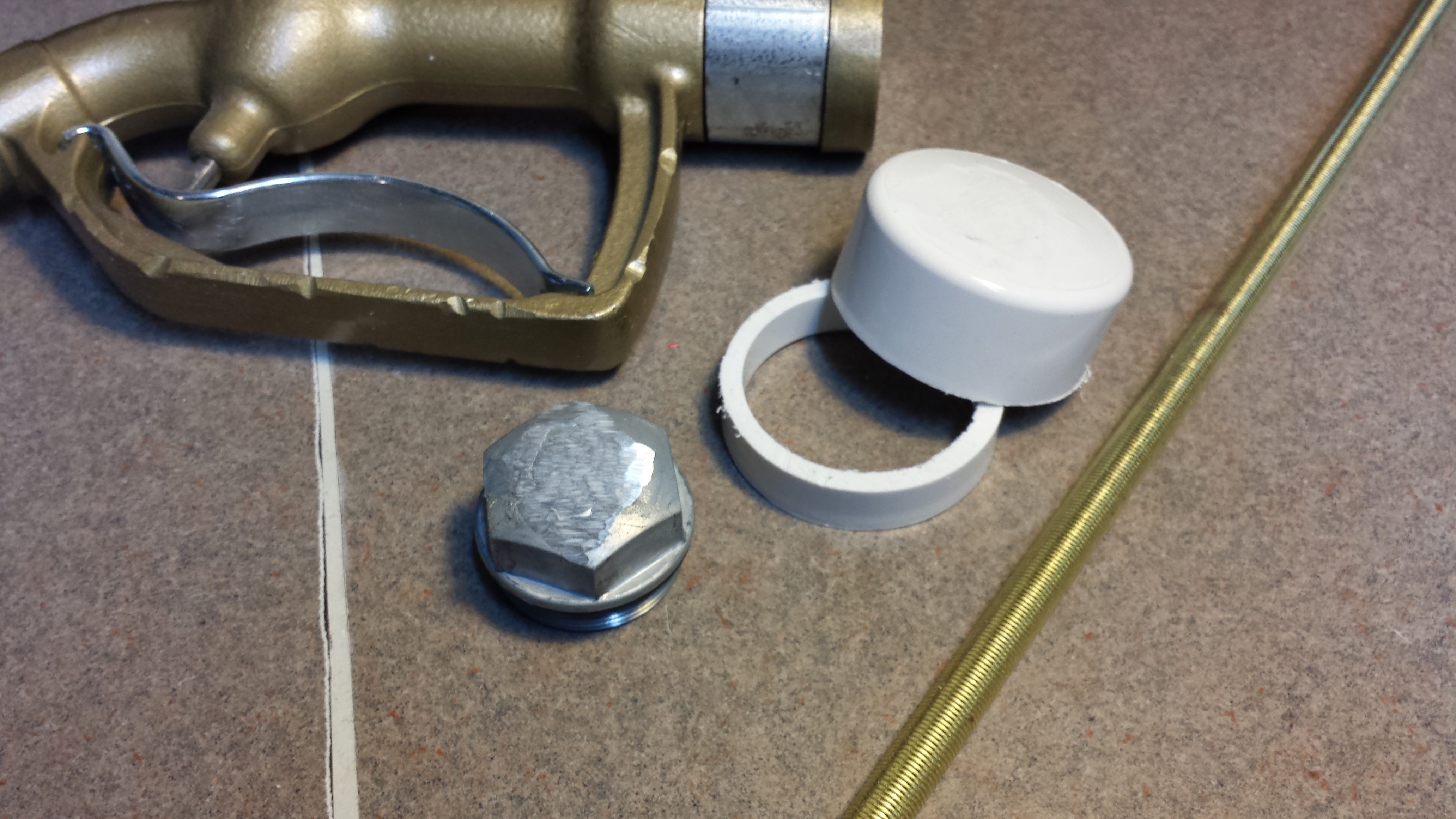

After that, grinding cutting and drilling. Hmm, this sounds like an adult thread :p

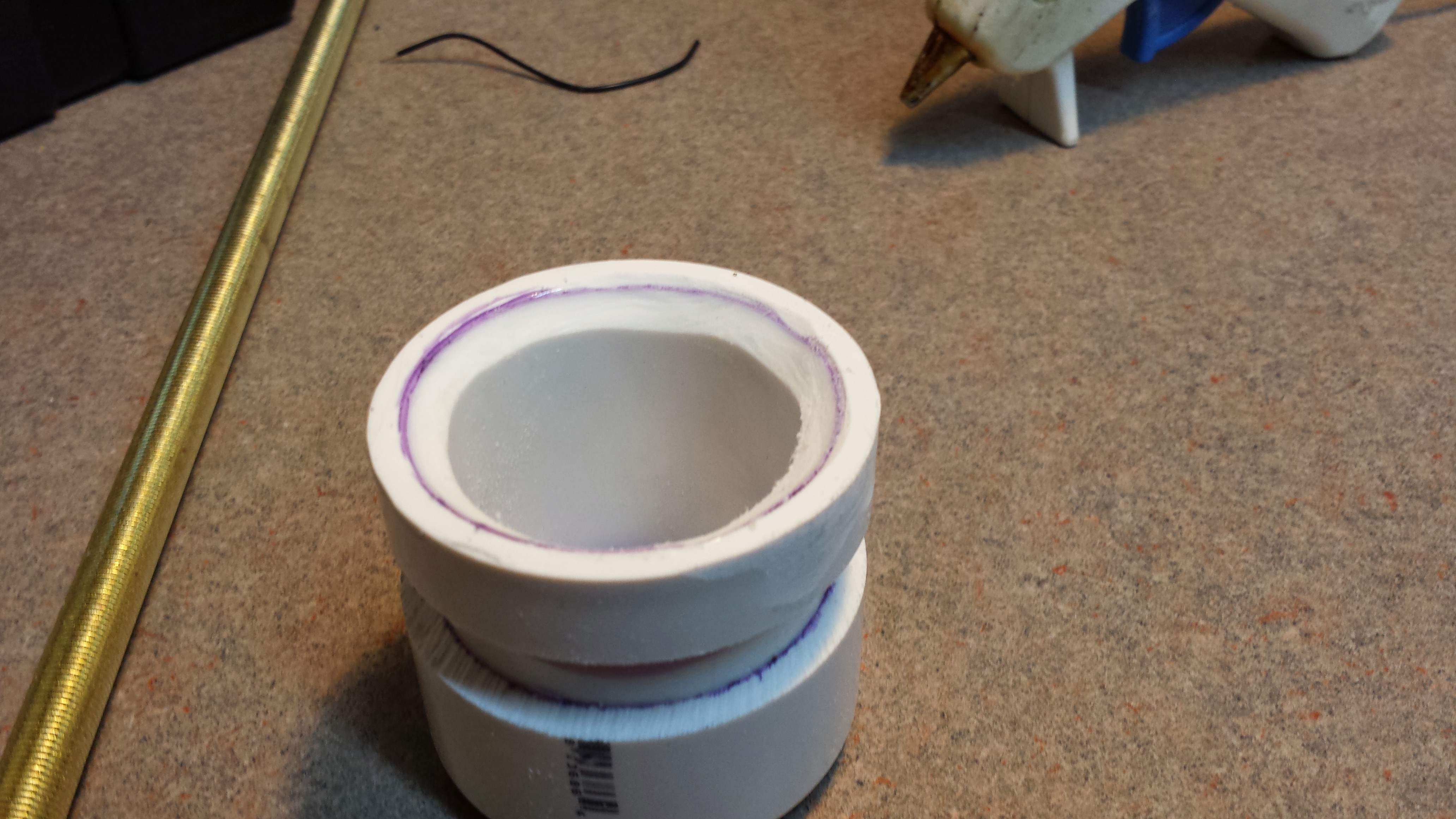

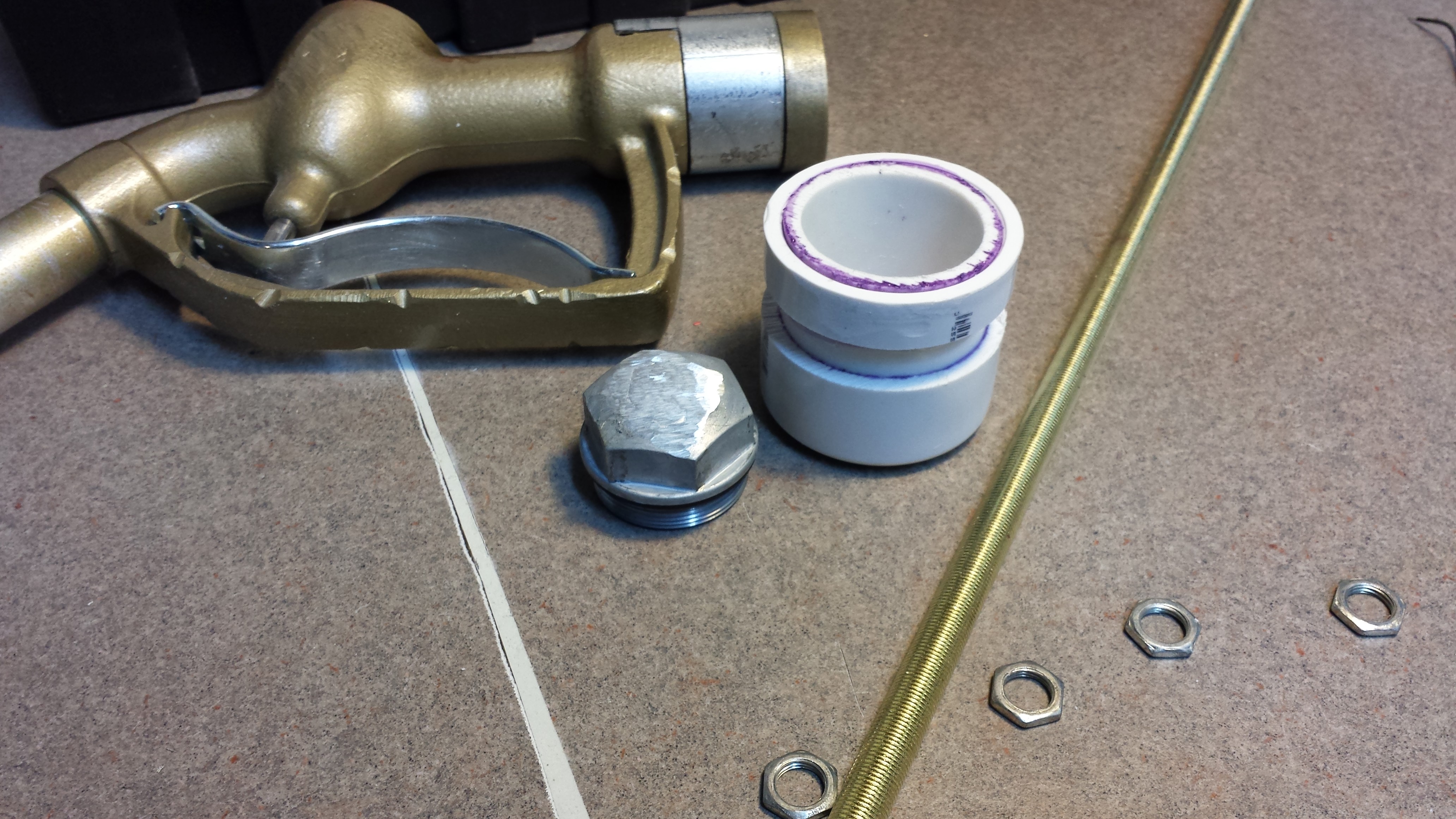

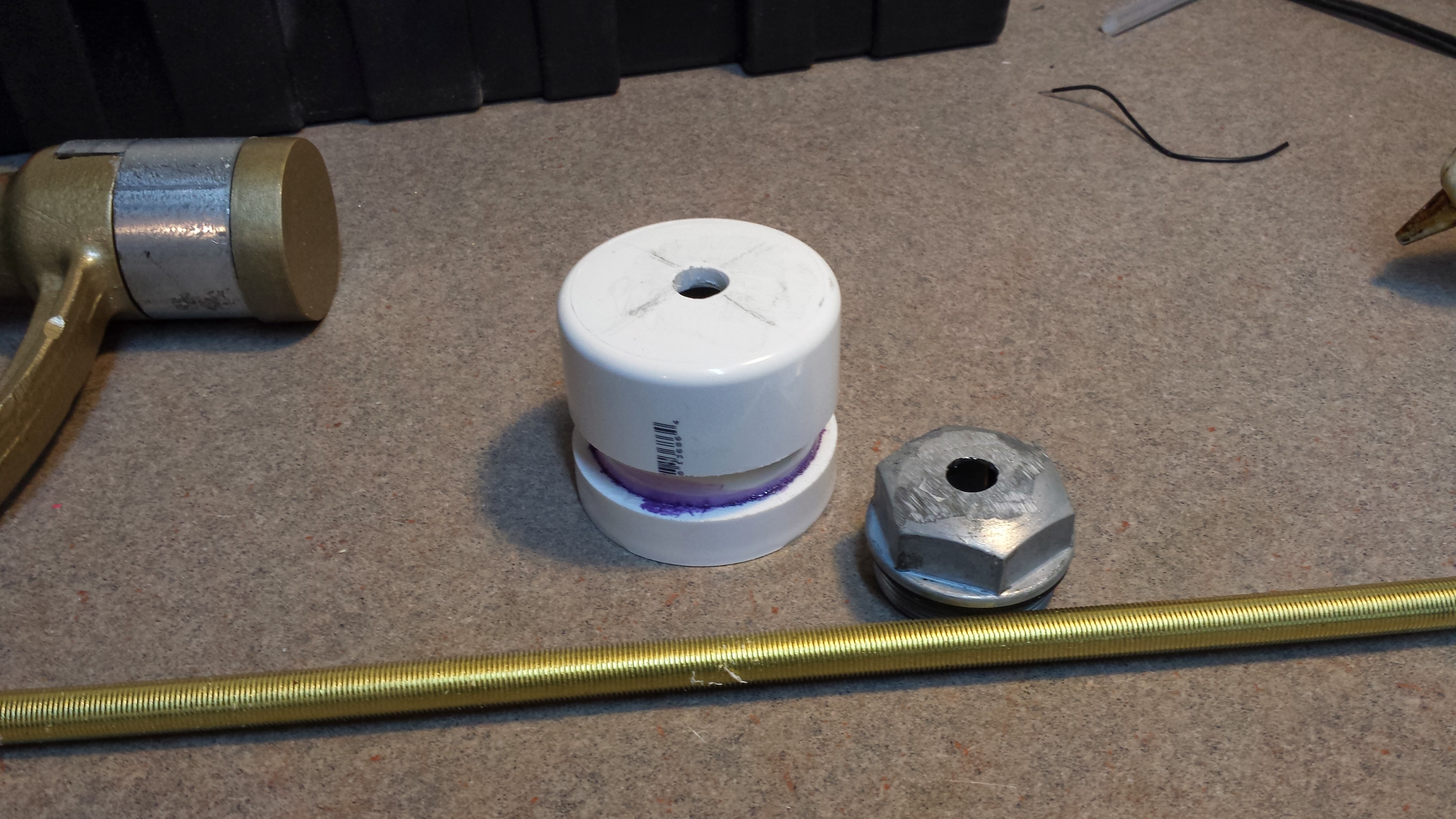

20131208_185320.jpg 20131208_185634.jpg 20131208_185846.jpg 20131208_190825.jpg 20131208_192532.jpg 20131208_192600.jpg 20131208_193244.jpg

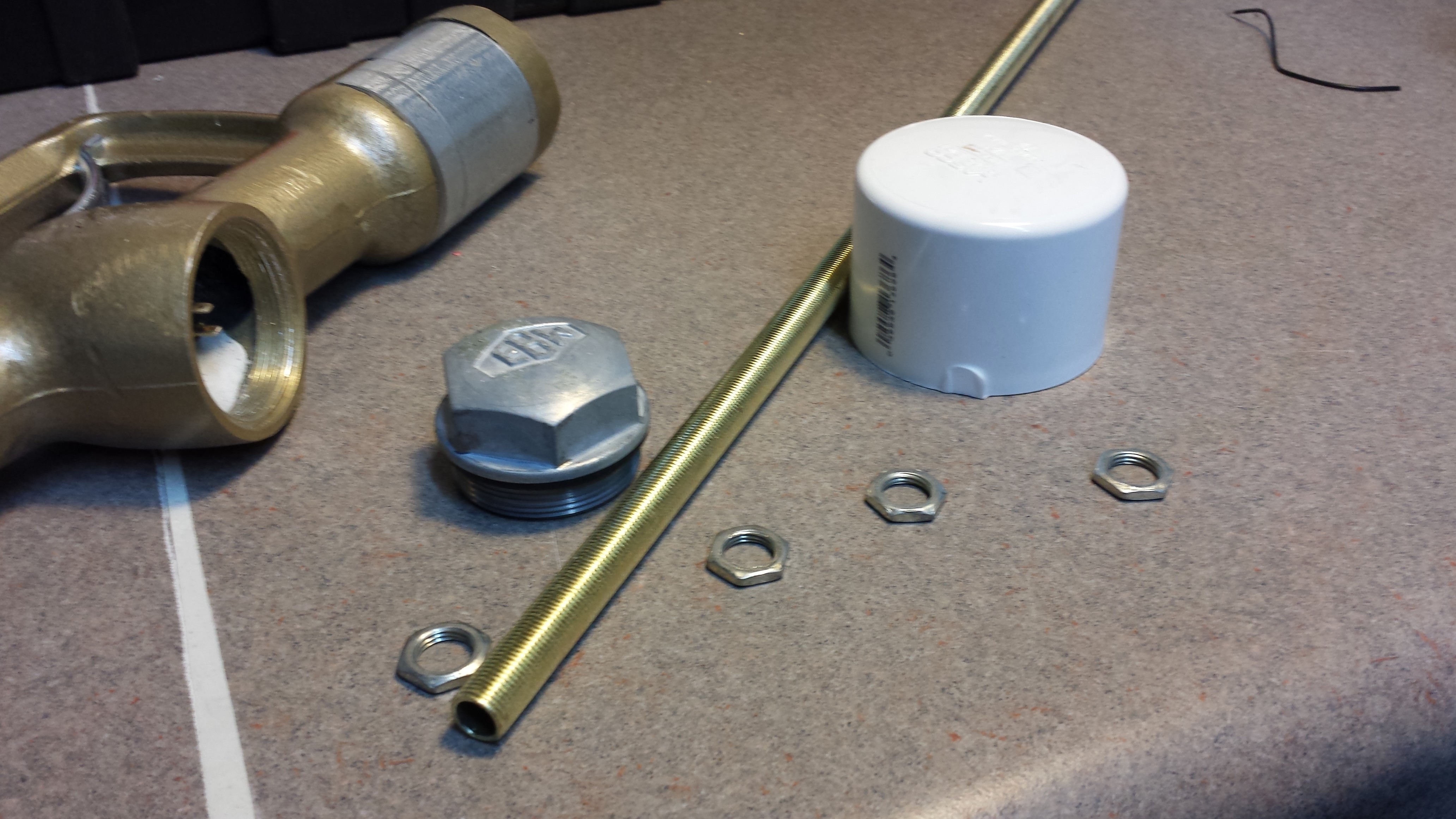

The threaded hollow tube will be used to run wires to the LED in the bottle.


PropDad

New Member

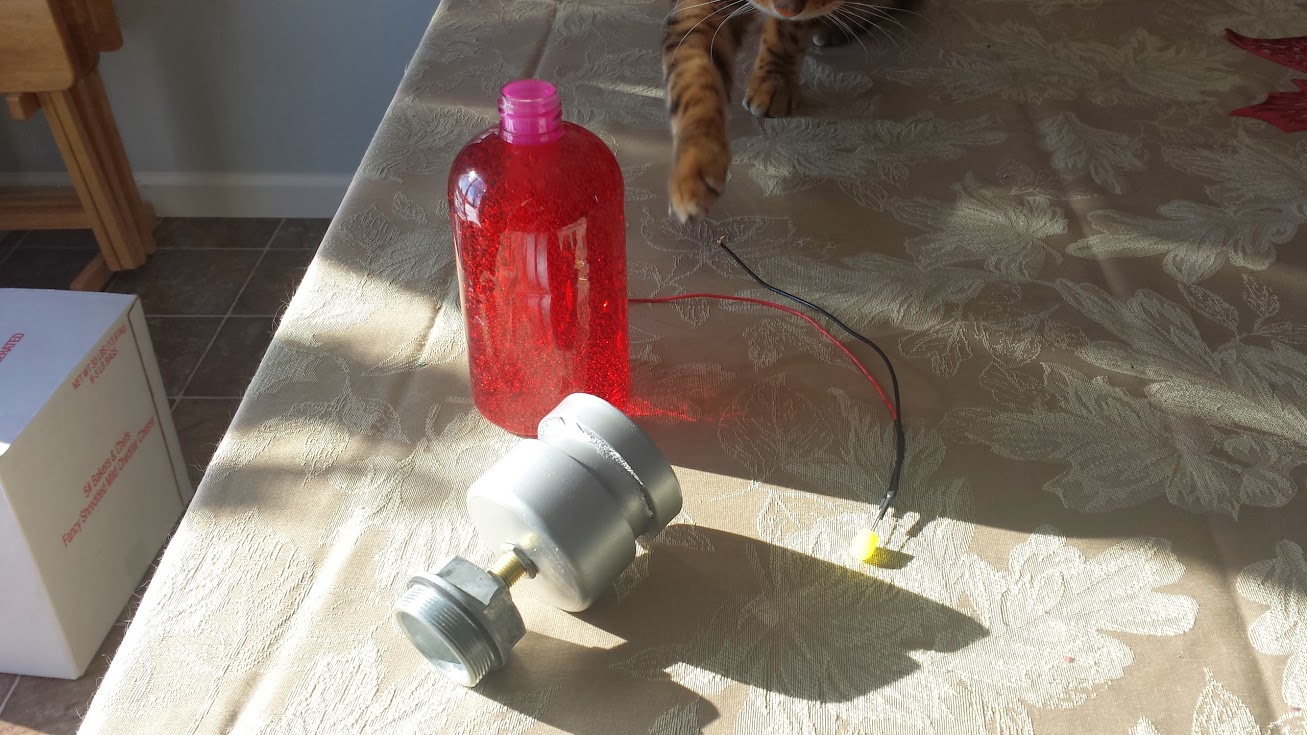

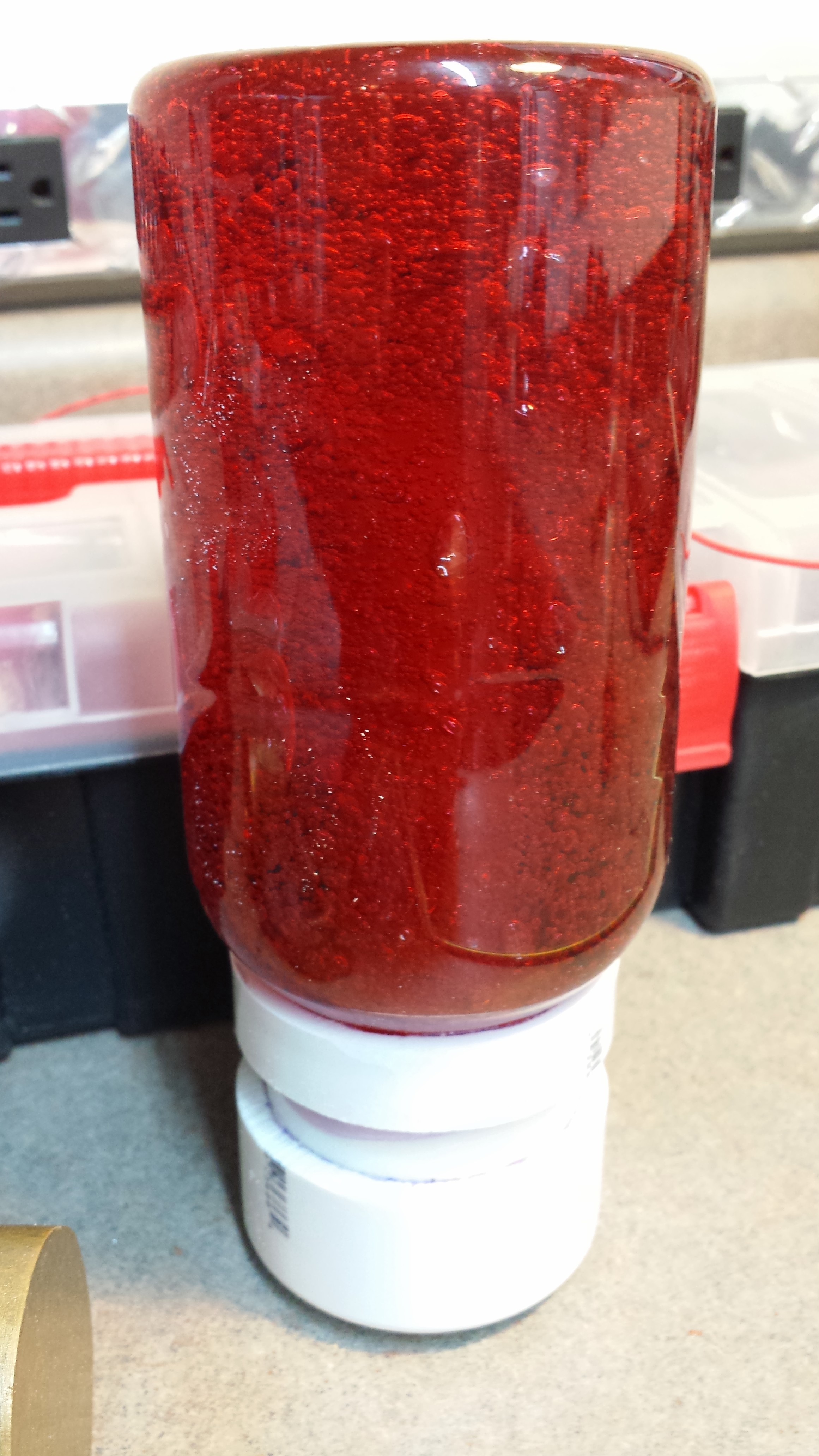

PVC has been painted. Threaded tube cut to length and screwed together. LED set into bottle and then bottle is hot glued to PVC. This is done in 2 spots. First line of glue goes where the bottle seats into the PVC. After that is set then it is glued again around the edge/seam. This does 2 things. It adds strength and also gives a weld effect especially after weathering.

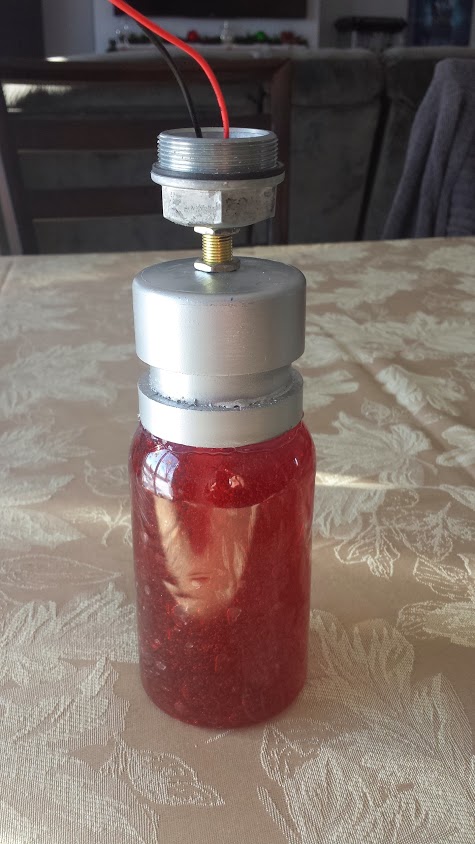

20131210_132823.jpg 20131210_134945.jpg
