Country Paul

Sr Member
Looking really good so far, I like the finish you've got from the AB I struggled to get a uniform finish,

Good idea gluing the nut inside, I'm a bit worried about mine loosening

Can't wait to see this finished


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

maxspr1

Well-Known Member

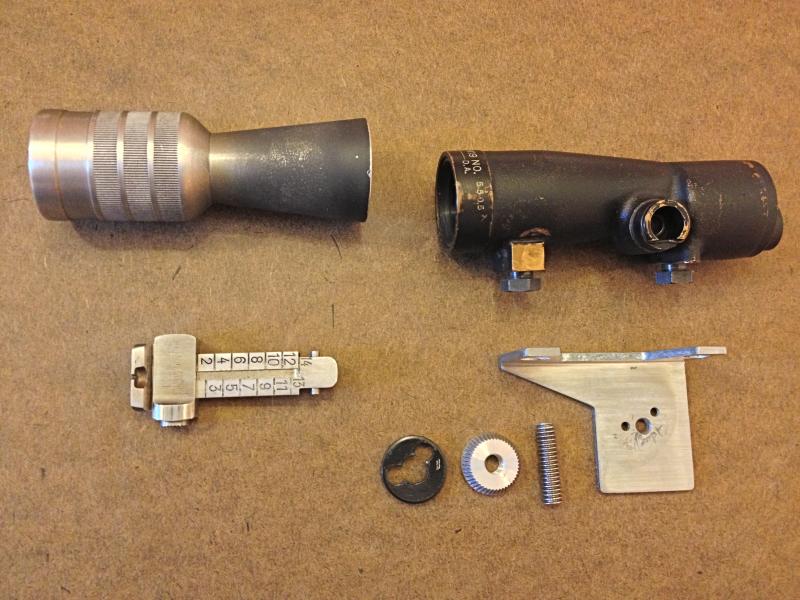

Here are all the remaining miscellaneous parts, ready to go. I decided to give the upper and lower Mauser body parts another coat of oil, so they're curing in the basement along with the flash hider, which I stripped and re-weathered with Aluminum Black scuffed up and partially and strategically removed with metal polish. I'm planning on finishing this build tomorrow night if I can!


maxspr1

Well-Known Member

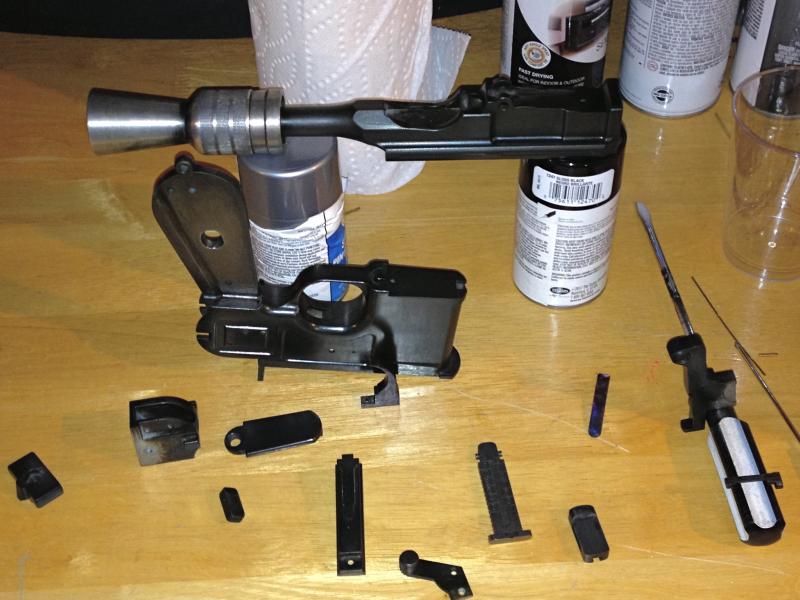

Still waiting for the finish to cure, but here are all the metal parts after bluing and oiling:
A lot of these pieces look darker and glossier in the photo than they do in person...weird. I tried so hard to match a vintage Mauser finish as closely as possible, but the Aluminum Black was really difficult to control--I couldn't get the finish smooth and even until I got it pretty dark, closer to an MGC or even a Denix finish. I can't even remember the number of applications of the stuff I sponged on. Sometimes unexpected colors showed up (browns and actual blues, mostly) and I had to steel wool a piece and start over. As difficult as the bluing was, I still like the new blued finish more than the thick glossy black paint that this prop had originally.


maxspr1

Well-Known Member
WHEW! I was finally able to finish up this long outstanding project this weekend.
What was the hold-up? The bluing (and real life interruptions, of course). I tried all the Birchwood Casey products (Perma Blue, Super Blue, Aluminum Black, even Brass Black, since zinc is apparently a component in brass). As you can see above, each time I thought everything was going to turn out fine...but when the bluing dried and cured, almost every separate piece was a different color. The upper part of the Mauser and some of the smaller parts always came out different shades of brown metallic, while other pieces such as the lower part of the Mauser either looked just right or had a definite blue tint. Sometimes parts were a streaky mix of brown and blue. If all the parts were the same color (whatever that color was), I would have been happy to call it a day, but I hated how everything looked when it was all put together and it was clear that no two parts were the same color. My best guess for why this was happening is that the zinc MR used was a slightly different alloy for each part. I don't know enough about metals to make a better guess, but that's the only reason I could come up with that would explain why the results were consistent in their variation no matter what Birchwood Casey darkening agent I used. So, out of frustration, I put the project on a shelf for a while and did some research.

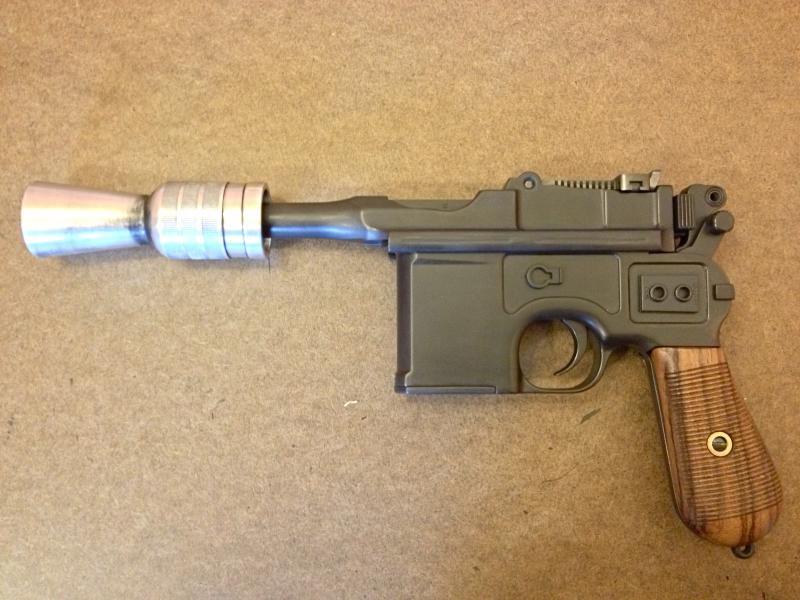

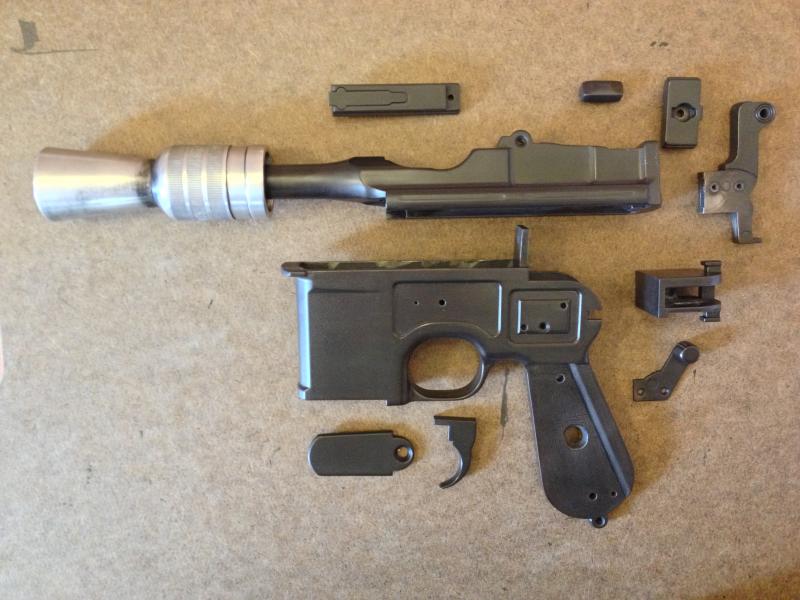

Ultimately, I found a product called Blue Wonder Gun Blue online. It was supposed to work a little differently than the Birchwood Casey chemicals and since I had tried nearly everything else, I decided to take a chance. So after stripping everything down to the bare metal again, I gave the Blue Wonder a try and it worked almost flawlessly, giving me an even consistent color over all the parts that looks extremely close to a real Mauser's metallic gray finish. Here are the results:

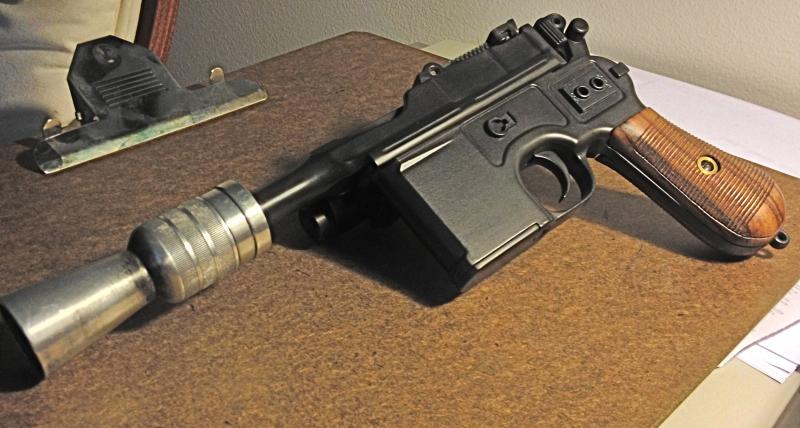

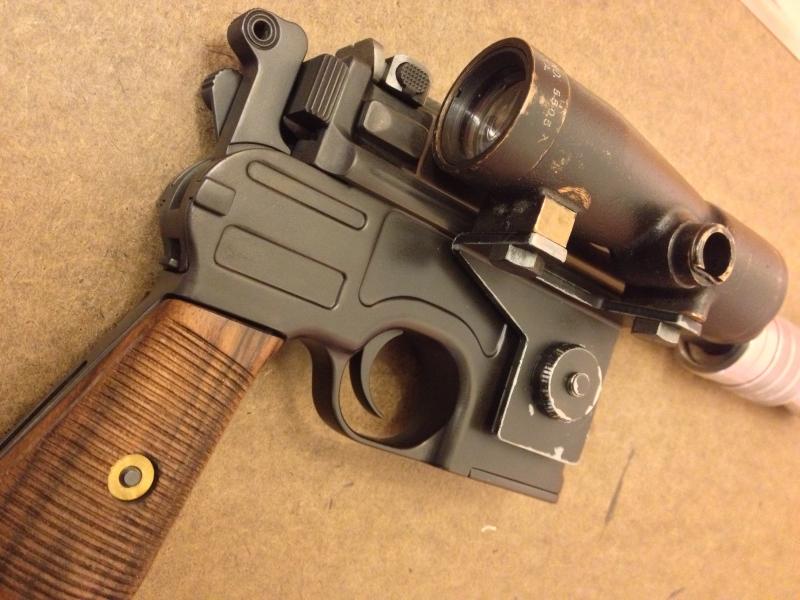

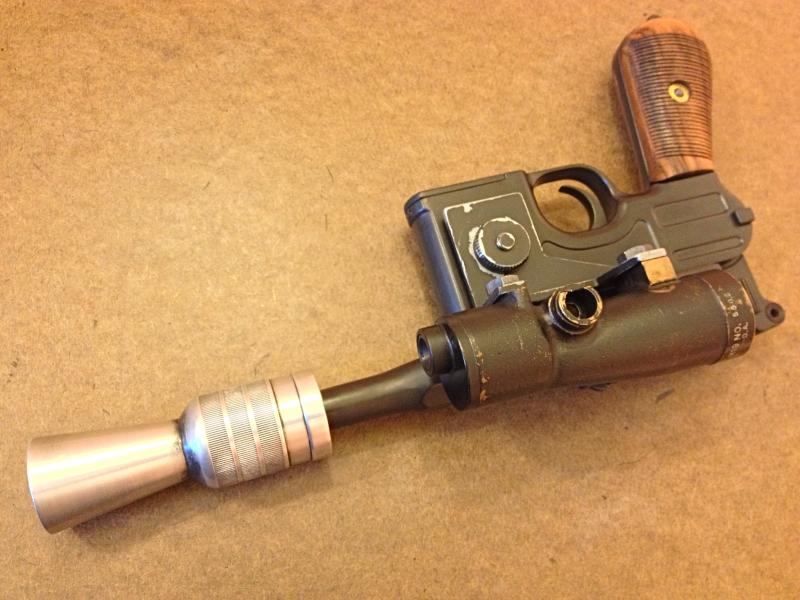

I did say almost flawlessly, though: while I got consistency, I couldn't really control the lightness/darkness of the color. I really wanted to match the lighter almost bare steel color of the real thing on the slide, hammer and a couple of other parts but the Blue Wonder was very streaky and spotty until unless I went pretty dark with it. Anyway, below are some more photos of the finished reassembled piece. Here's a summary of everything that went into this:
- Disassembled the stock Master Replicas DL44
- Stripped of all gloss black paint on body and black spray on barrel
- Re-weathered barrel using BC Aluminum Black strategically removed in places using metal polish
- Replaced painted plastic MR grips w/real wood C96 grips along with new brass escutcheons and new blued steel grip screw
- Replaced MR scope & bolts w/real vintage M19 scope and vintage scope bolts

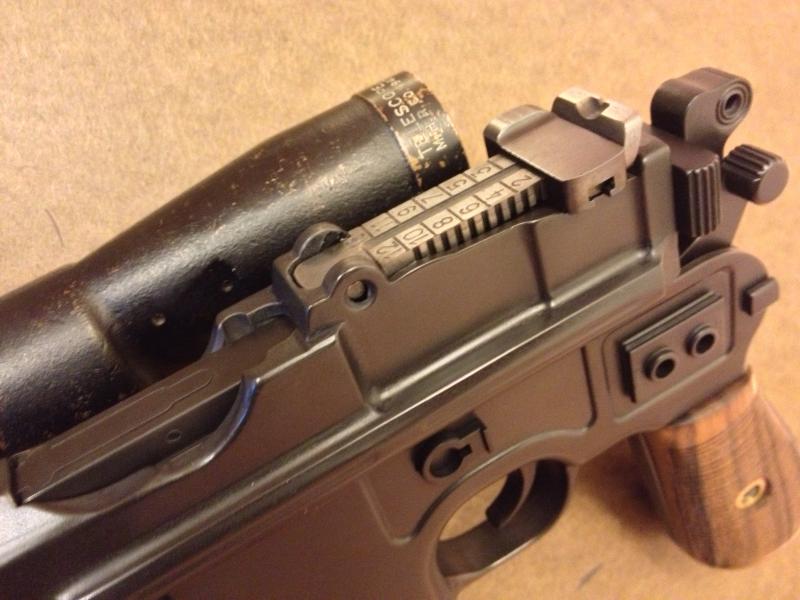

- Replaced numberless/non-functional MR sight real working C96 sight parts (after modifying upper part of Mauser body to accept a real sight)

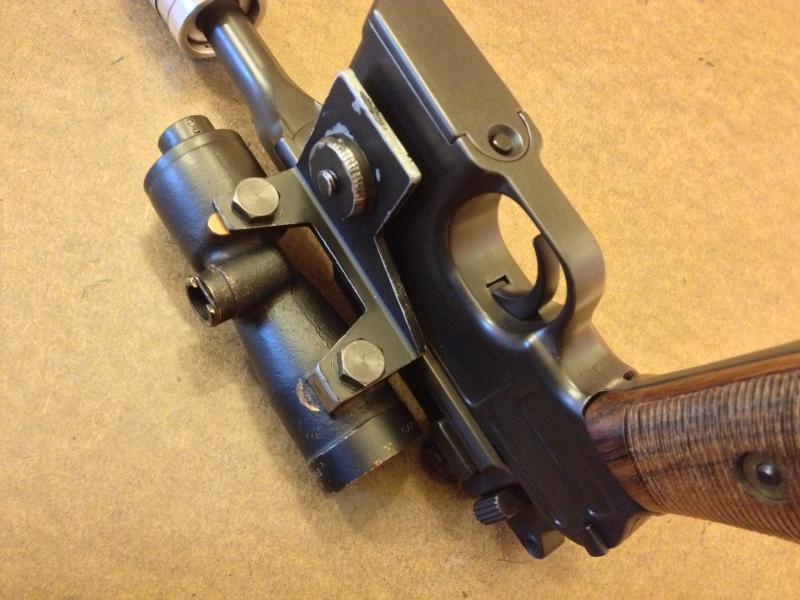

- Replaced MR scope bracket knob assembly with a custom made aluminum threaded knob and threaded steel rod
- Blued Mauser body and parts

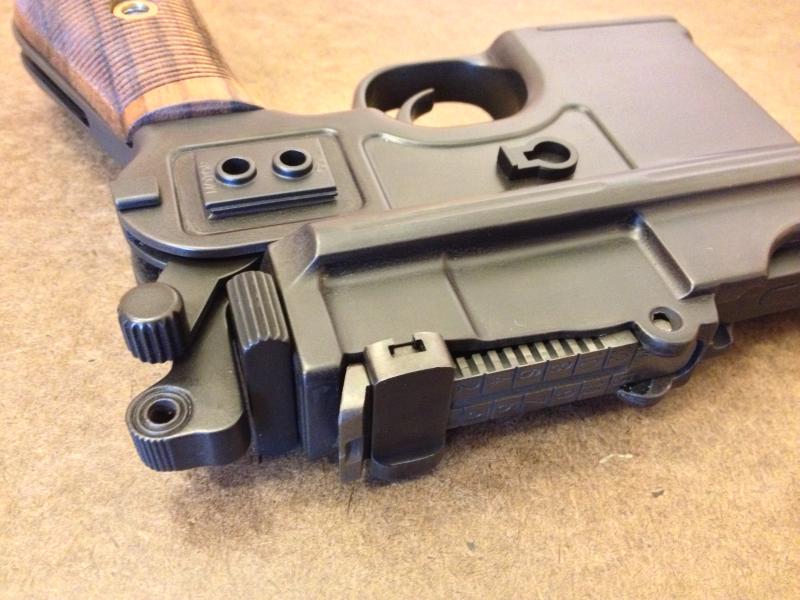

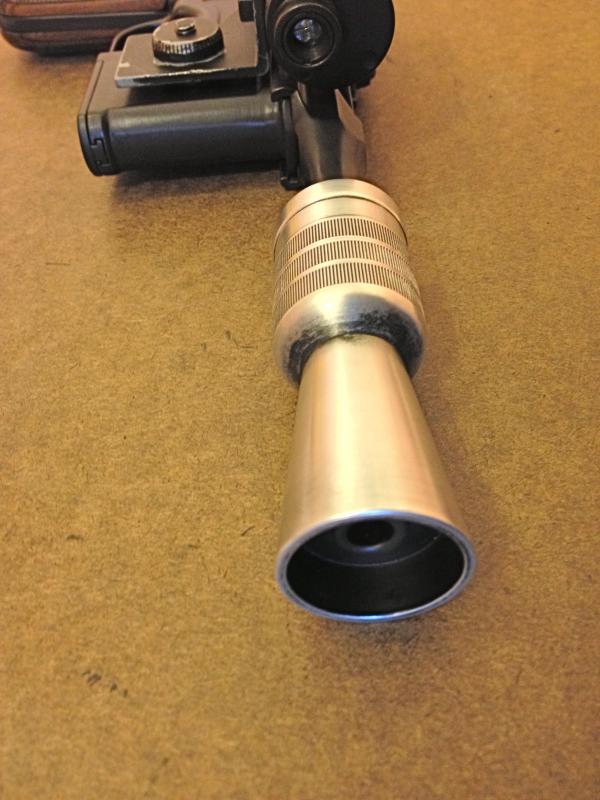

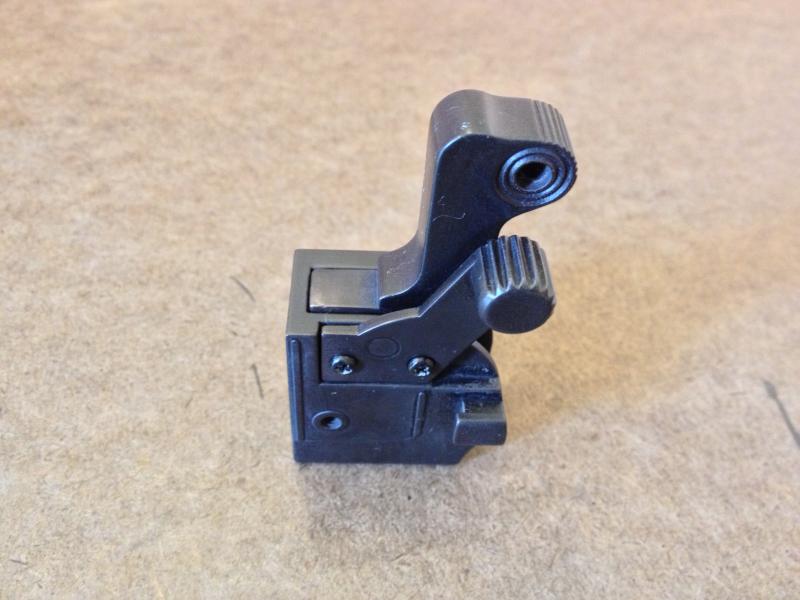

IMG_0059_zps6f2a05a2.jpg IMG_0060_zpse85582c5.jpg IMG_0062_zpsc00a5bfb.jpg IMG_0069_zpsa4c8bf79.jpg IMG_0065_zpscb58de56.jpg IMG_0070_zps09427ac3.jpg IMG_0075_zps9de9b826.jpg IMG_0079_zps849ce672.jpg IMG_0080_zpsb927ebf5.jpg IMG_0087_zps5f511dbf.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Country Paul

Sr Member
Been waiting to see this build finished & it looks absolutely fantastic, great job

All the little mods & changes are totally worth it & really take the look up a notch
