I'm looking to motorized the hasbro legend series iron man helmet. There's plenty of information on motorizing self made helmets but the design of this one makes it impossible to follow any tutorial out there. If anyone could help it would be greatly appreciated because I really have no idea where to begin.
Motorized iron man helmet
- Thread starter Mibity
- Start date
-
- Tags
- iron man iron man 2
propmaster2000
Sr Member
One of the things you will have to do is cut the two slots on top to accept the servo driven face plate support levers.
Then remove the magnets holding the face plate.
Mount 2 servos facing in opposite directions on the inside top between the slots and then make 2 measured/adjustable levers to
connect to the face plate so it pivots upward.
Adjust them so it closes properly, then tighten levers securely...
Make two brackets to hold the servo motors in place.
The speed, pivot angle and servos exact location will need to be factored in.
Many servos will require some kind of microcontroller (PIC, Parallax, Arduino, etc.) to control the servos in opposite directions since they
will be mounted bottom to bottom.
Be aware, you will have to increase your battery capacity and supply voltage to around 5 volts or higher with a regulator to run the
microcontroller and 2 servos.
Post progress pictures
.
Then remove the magnets holding the face plate.
Mount 2 servos facing in opposite directions on the inside top between the slots and then make 2 measured/adjustable levers to
connect to the face plate so it pivots upward.
Adjust them so it closes properly, then tighten levers securely...
Make two brackets to hold the servo motors in place.
The speed, pivot angle and servos exact location will need to be factored in.
Many servos will require some kind of microcontroller (PIC, Parallax, Arduino, etc.) to control the servos in opposite directions since they
will be mounted bottom to bottom.
Be aware, you will have to increase your battery capacity and supply voltage to around 5 volts or higher with a regulator to run the
microcontroller and 2 servos.
Post progress pictures
.
Last edited:
propmaster2000
Sr Member
I guess I am the only one keeping this alive
Have you gotten any further on this modification?
.
Have you gotten any further on this modification?
.
KilTheMaskedGuy
Well-Known Member
are you seriously scrapping this
xl97
Master Member
You do not need any 'slots'...
it really depends on the mechanical approach you want to take.. there any MANY variants out there that do not have any 'slots' cut into the bucket.
The threads posted around here.. (I have posted code and wiring diagrams in both as well).. are still valid.
In fact they are pretty much mechanical design agnostic. The mechanical set-up is up to you.
I have also like the approach done by TheRealTonyStark (Ryan Brooks).. where he has a single servo mounted under the middle piece with two arms on side to make his move.
I have the same Hasbro Helmet.. but havent had much time/motivation to work on getting it motorized.

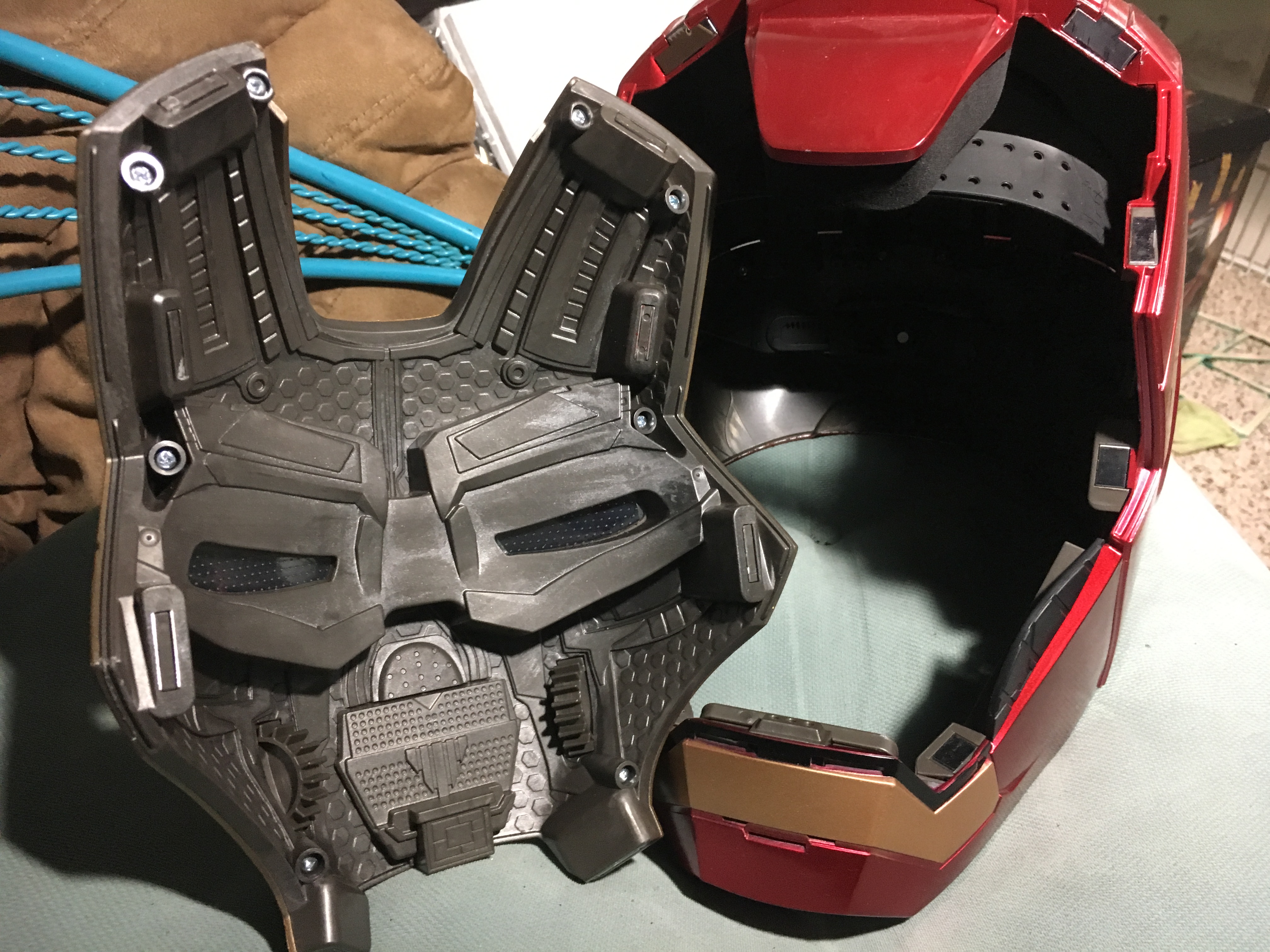

Your first step will be the remove the magnets.
it really depends on the mechanical approach you want to take.. there any MANY variants out there that do not have any 'slots' cut into the bucket.
The threads posted around here.. (I have posted code and wiring diagrams in both as well).. are still valid.
In fact they are pretty much mechanical design agnostic. The mechanical set-up is up to you.
I have also like the approach done by TheRealTonyStark (Ryan Brooks).. where he has a single servo mounted under the middle piece with two arms on side to make his move.
I have the same Hasbro Helmet.. but havent had much time/motivation to work on getting it motorized.
Your first step will be the remove the magnets.
propmaster2000
Sr Member
Mibity , There are many versions of this helmet being motorized. Some are more simpler then others and more accurate.
It of course depends on your abilities and how much effort you want to put into it.
Cutting slots is just one option to consider if you are mounting the servos back a bit and you want it sliding up and back.
Mounting the servo on the forehead tab is another option. Youtube shows many variations.
Whatever you decide is best for you. Looking forward to pictures and video of your version.
.
It of course depends on your abilities and how much effort you want to put into it.
Cutting slots is just one option to consider if you are mounting the servos back a bit and you want it sliding up and back.
Mounting the servo on the forehead tab is another option. Youtube shows many variations.
Whatever you decide is best for you. Looking forward to pictures and video of your version.
.
Gio Sigghi
New Member
https://m.facebook.com/story.php?story_fbid=402948483389050&id=298606680489898
I suggest my solution. The stl of the helmet is not mine, the mechanism yes.
I suggest my solution. The stl of the helmet is not mine, the mechanism yes.
xl97
Master Member
Sure does.. that I helped him with initial wiring and code..
then it transformed into more. (with more code and alternate wiring diagrams)
it depends on what wiring diagram you follow to know what code to use. (it varies)
