MCU Spider-Man - 3D Print Files/Pattern - FREE

Version 4.2
Ready for test print...
https://drive.google.com/file/d/0B_sNvgA37t6qbnhOMElRT2loUFE/view?usp=sharing

At this point, the top and bottom are to be attached with velcro. The plan is to have them snap together once the base model looks good.
These files are a ways from being final, but if anyone gets to printing before me, please give me some feedback... Thanks.


*** These files are for personal use and not to be used in ANY commercial fashion without permission..... Thank you.

Last edited:
kenlandrum said:
Version 4.1
Ready for test print...
https://drive.google.com/file/d/0B_sNvgA37t6qZmZfVV9Kak5xT28/view?usp=sharing

At this point, the top and bottom are to be attached with velcro. The plan is to have them snap together once the base model looks good.
These files are a ways from being final, but if anyone gets to printing before me, please give me some feedback... Thanks.

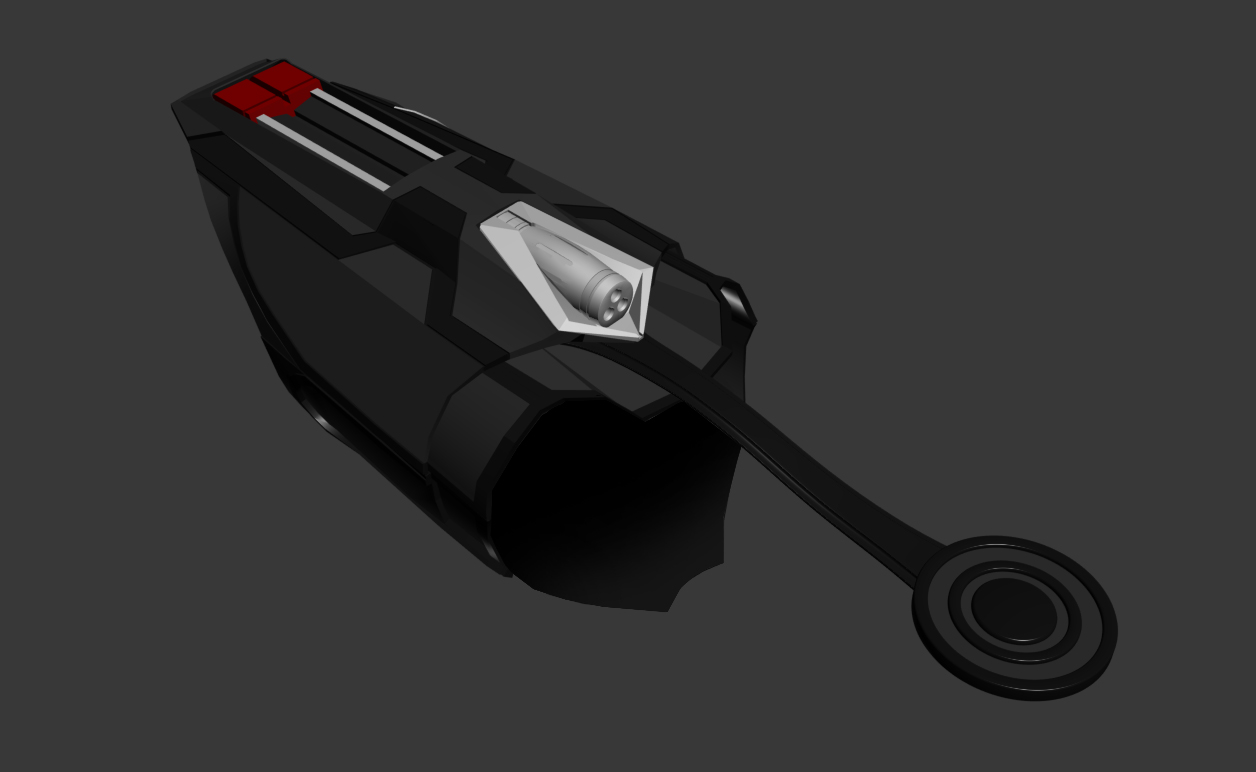

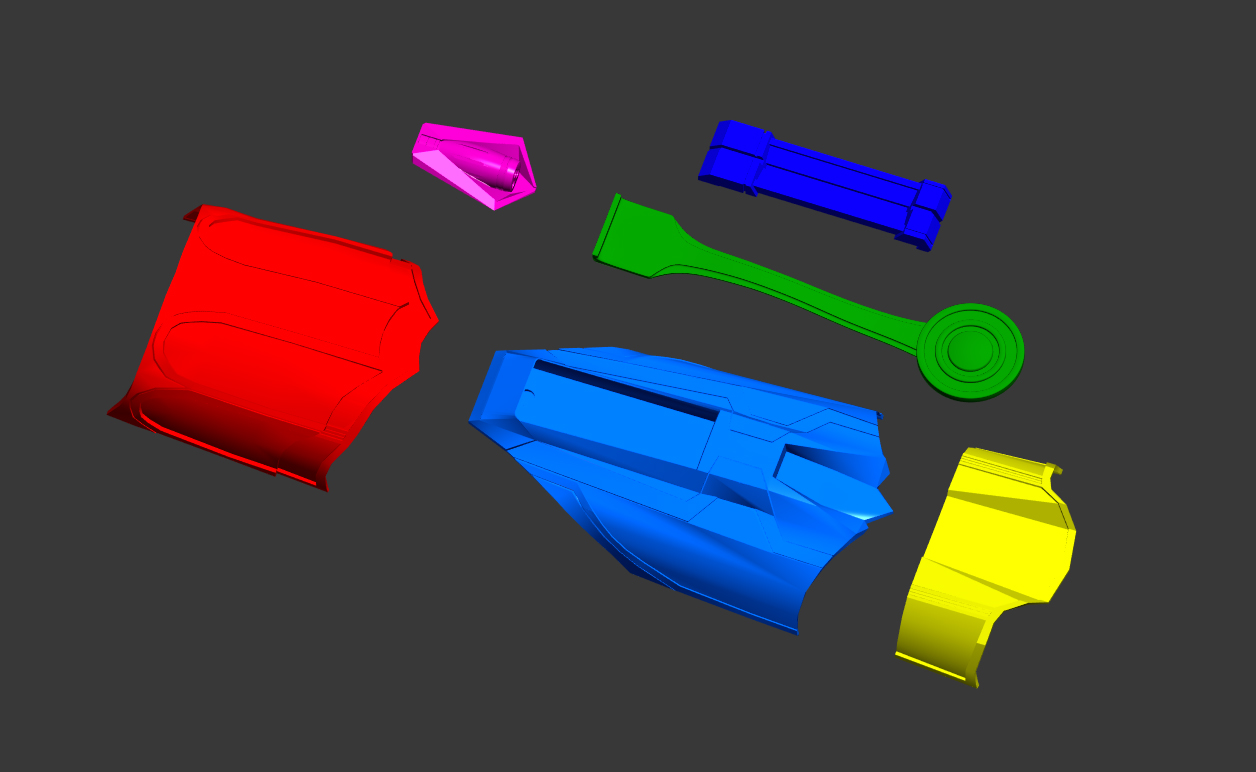

View attachment 752579View attachment 752580View attachment 752581

*** These files are for personal use and not to be used in ANY commercial fashion without permission..... Thank you.
Click to expand...
Ken, The new web shooters look amazing! One small thing, though, is that I feel that the trigger should be thicker in comparison to the button. I will be printing these very soon, so I might be able to give you some feedback. Keep up the good work!

kenlandrum said:
Version 4.1
Ready for test print...
https://drive.google.com/file/d/0B_sNvgA37t6qZmZfVV9Kak5xT28/view?usp=sharing

At this point, the top and bottom are to be attached with velcro. The plan is to have them snap together once the base model looks good.
These files are a ways from being final, but if anyone gets to printing before me, please give me some feedback... Thanks.

View attachment 752579View attachment 752580View attachment 752581

*** These files are for personal use and not to be used in ANY commercial fashion without permission..... Thank you.
Click to expand...

These are beautiful!!!

Yes, I see that too. I have revised the trigger and will also be fixing some thin walls in the lower cuff. I'm going to do a test print this weekend and release revised parts next week. I also hope to work out the snap together cuff part as well. Since these shooters are modular, parts can be revised without reprinting everything... that's the idea at least.

----------------------------edit---------------------------
4.2 has replaced 4.1
fixed LC thin shell and wider trigger

Last edited:
kenlandrum said:
Yes, I see that too. I have revised the trigger and will also be fixing some thin walls in the lower cuff. I'm going to do a test print this weekend and release revised parts next week. I also hope to work out the snap together cuff part as well. Since these shooters are modular, parts can be revised without reprinting everything... that's the idea at least.

----------------------------edit---------------------------
4.2 has replaced 4.1
fixed LC thin shell and wider trigger
Click to expand...
I see. I printed the parts last night, and they turned out wonderfully. However, my printer had trouble orienting the models because they were all one file, so will you be releasing files that are only the nozzle, only the trigger, etc.?

5P1D3RM4N said:
That is the right link for the back spider; thanks for putting it up!
Also, I printed the trigger and the wrist cuff on an SLA machine, in flexible resin, and I did notice that the walls were a bit too thin on the cuff, so anybody planning to print this I would use a solid resin or filament for these.
Click to expand...

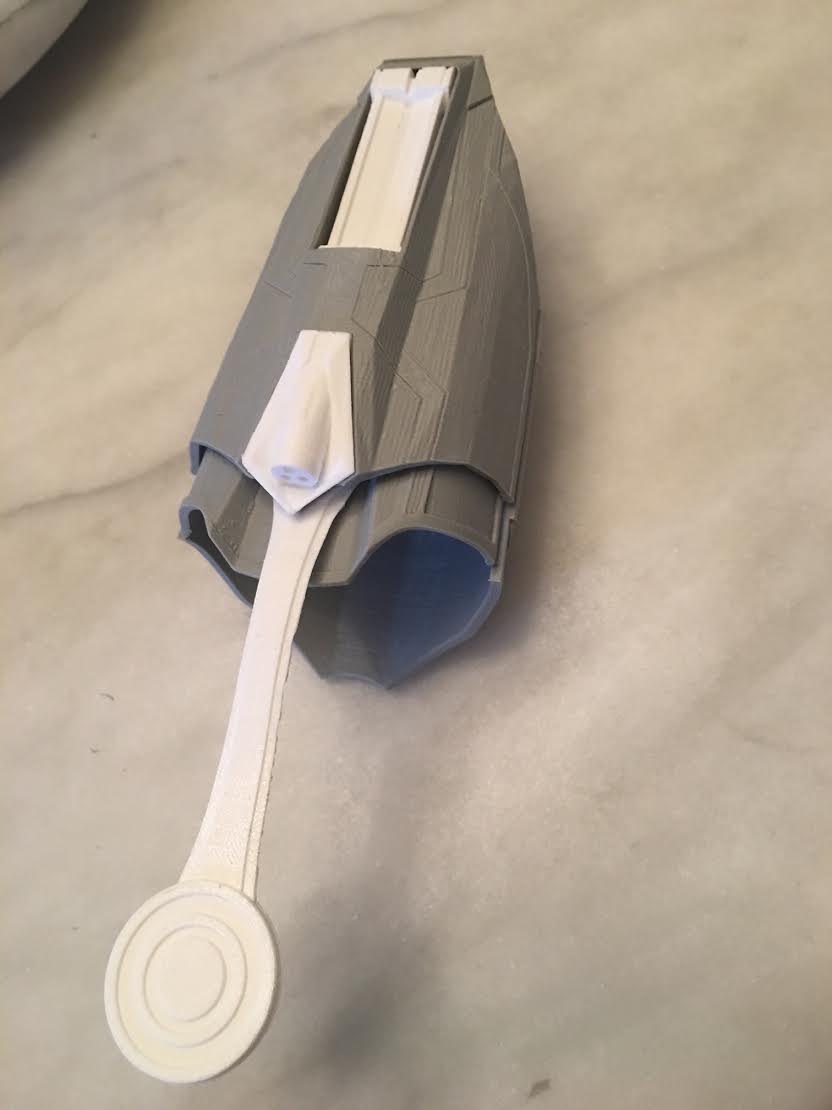

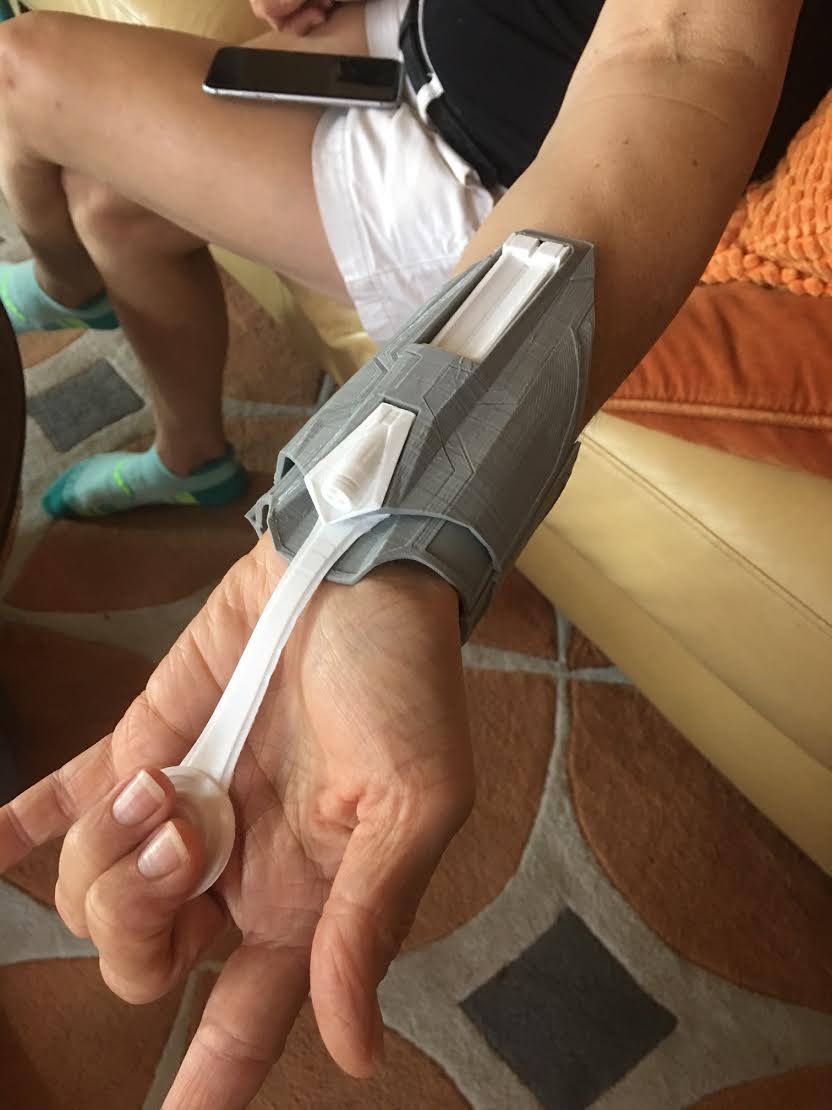

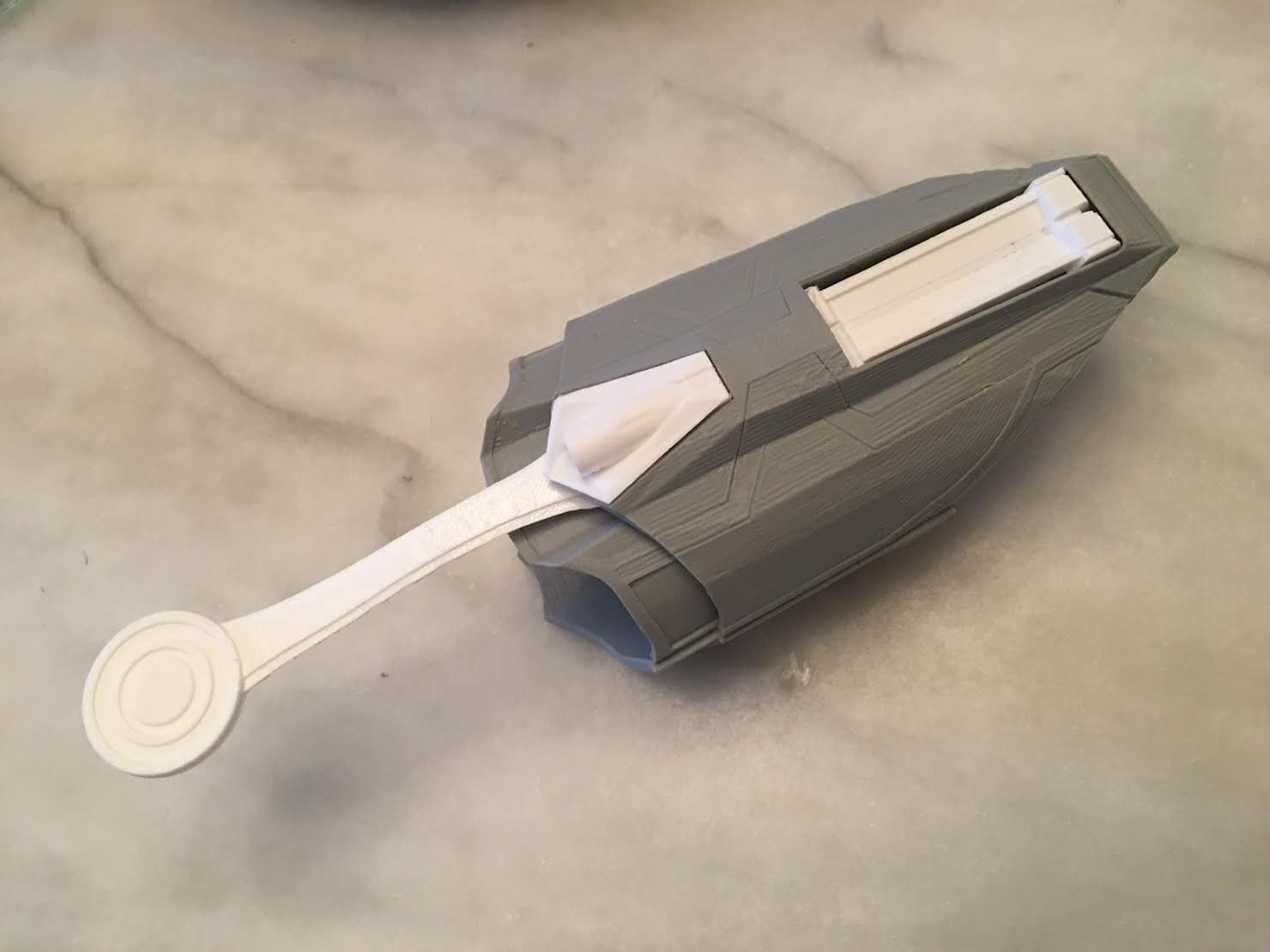

yes, I printed these parts as well this weekend.
Here's the rundown it looks like the trigger is fine but I'm still gonna make it just a bit thicker. As for the lower cuff it definitely has a few problems in the geometry which are being fixed also. Seems like the cartridge and the nozzle are OK but I won't know for sure till I print the main part to see how they fit... i'll try and post the revised parts this week sometime.

I see. Looking forward to it! BTW, the nozzle and the main body of the shooter looked awesome, as well as the cartridge, but I feel that the cuff on the backside of the wrist should be two parts as well, so that when making the classic spiderman trigger push it will be easier to bend your wrist backwards.

Hey, Ken, will you be making Homecoming patterns for just the mask?
I think it would be easier to prototype the lenses that way.

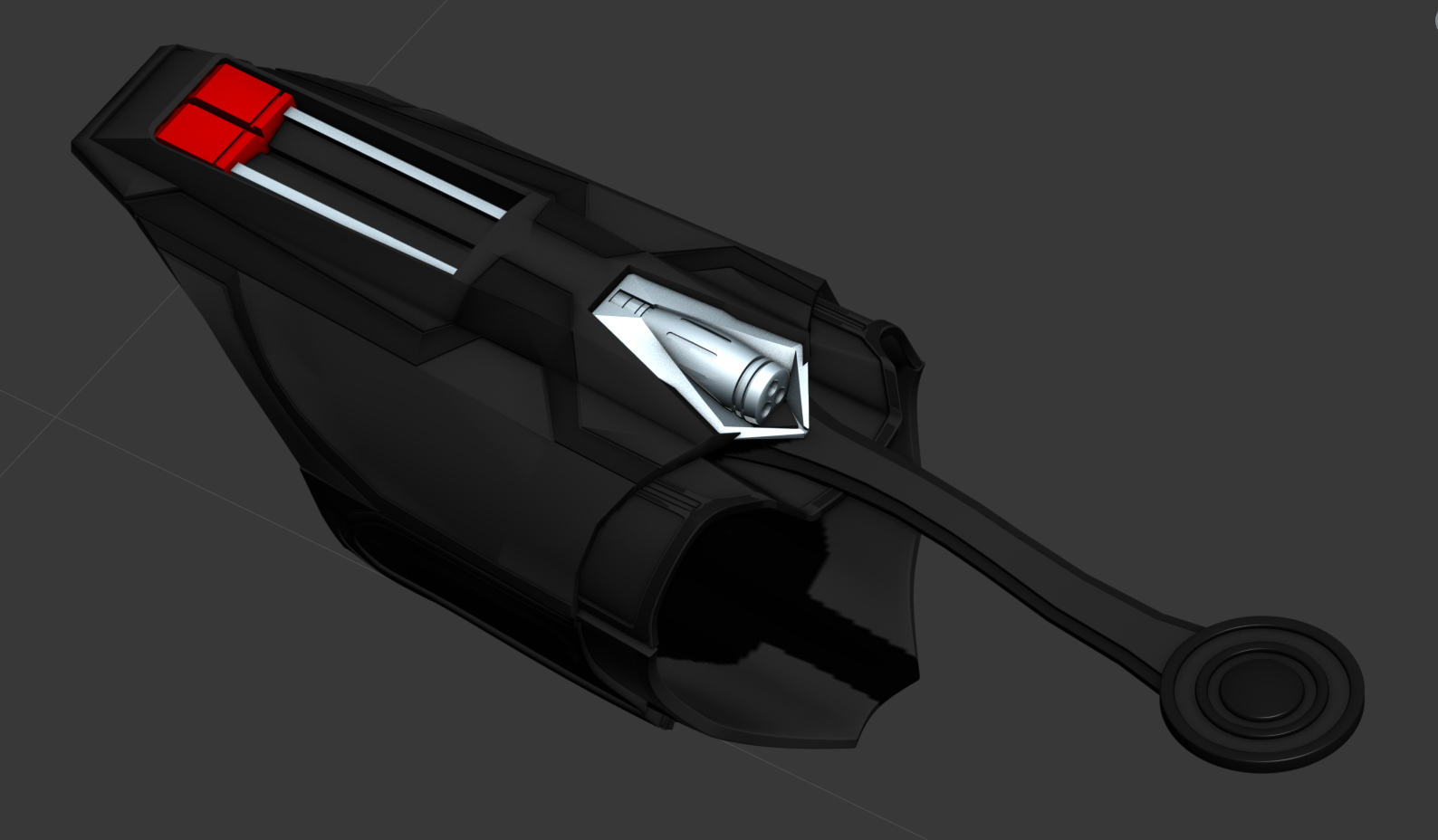

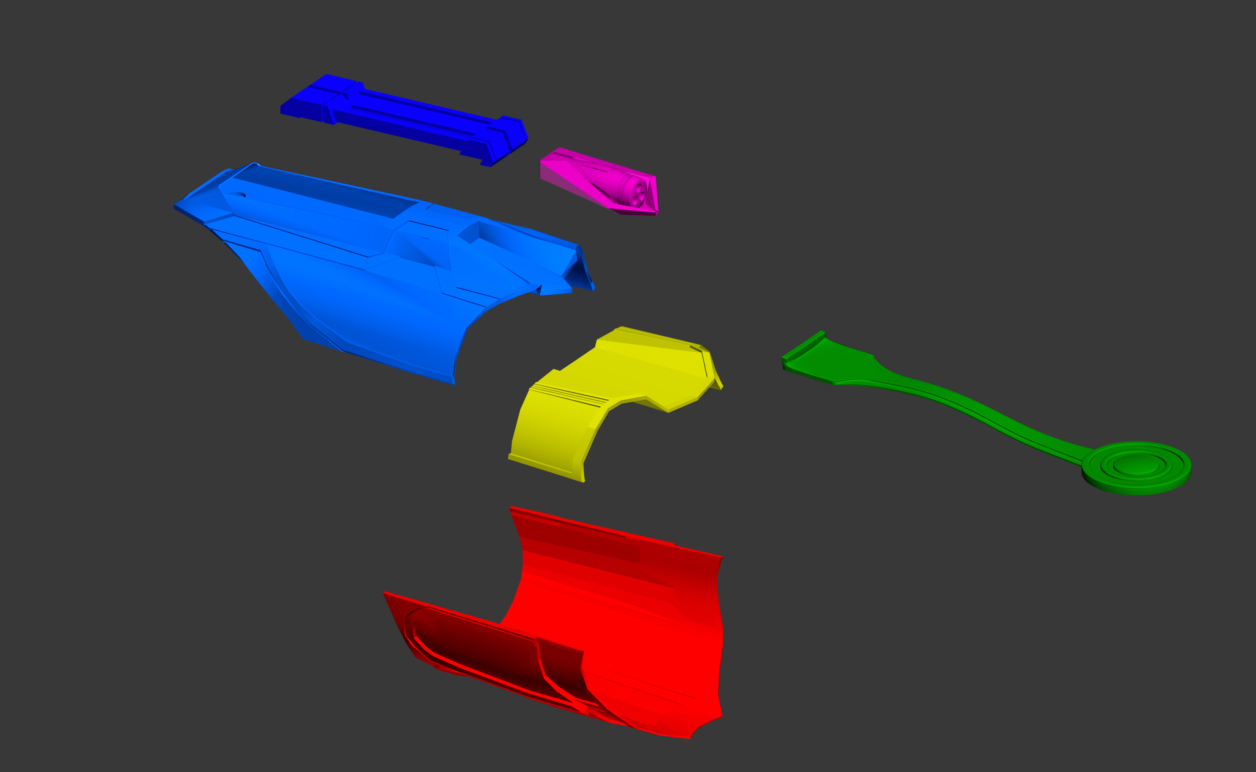

Looks great, Ken! I printed the V4.4 and it came out really nicely. I will be reprinting the top, however, because my supports weren't that great. Awesome files, though!

idk if it is already posted but can someone post an updated file for a mask only template? Thankyou! AWESOME V4 file btw i love it so much
