haasofprops

Member
I recently just finished building a bow inspired by the one Hawkeye uses in his new series on Disney +. I have been wanting to make a bow for a long time without blowing the budget and this gave me the perfect excuse to actually sit down and do it. I started with a wooden grip and thought I could make the rest of the bow with PVC. The PVC turned into a mistake, because it didn't have enough tension to shoot an arrow more than 10ft. So, I switched gears and used 48" long aluminum rulers which worked perfectly. With the aluminum rulers I could shoot an arrow over 30ft!

I made a template, if you're interested here is the link:

Here is the build video along with some build pics.

hawkeye bow 1.jpg

hawkeye bow 2.jpg
hawkeye bow 3.jpg
hawkeye bow 4.jpg
hawkeye bow 5.jpg
hawkeye bow 6.jpg
hawkeye bow 7.jpg

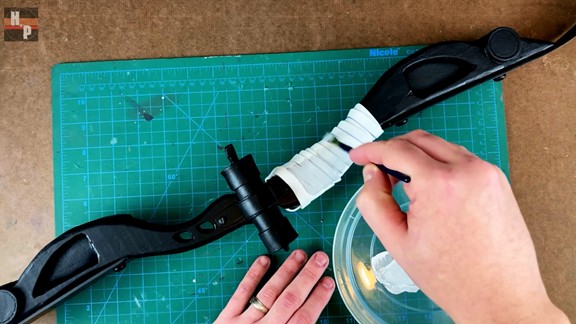

hawkeye bow 8.jpg
hawkeye bow 9.jpg

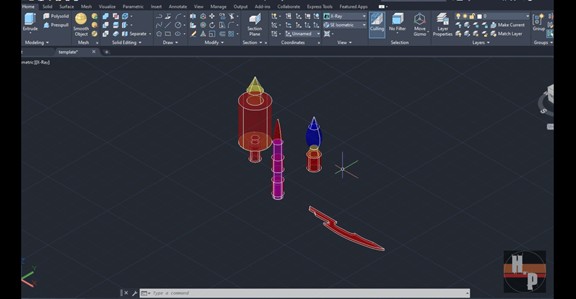

To make the arrows to accompany the bow I adapted some arrows which I purchased from a thrift store. I drafted the arrowheads in AutoCAD, and printed them on an Ender 3 Pro. These arrowheads were then attached to the shaft and fletching of the original arrows.

Here is link to the .stl files: Hawkeye_Arrowheads - Haas_of_Props.rar

Here is the building process video and some build pics.

arrows 1.jpg

arrows 2.jpg

arrows 3.jpg

arrows 4.jpg

arrows 5.jpg
