I've been working on upgrading my home theater system since last August from a 6.1 system to a hybrid 11.1.6 system with Dolby Atmos, DTS:X and Auro-3D. That's 11 speakers on the floor, 1 subwoofer (for now) and 6 speakers overhead. I was originally going to put drapes along the front half of the room and movie posters in the back and then I got onto this notion of having movie props (mostly full size with a few scale ones) on the shelves under the posters and then it spilled into the front as well and even the half bathroom off the side of the theater.
Let's take a visual tour.... (click on pics for larger view)

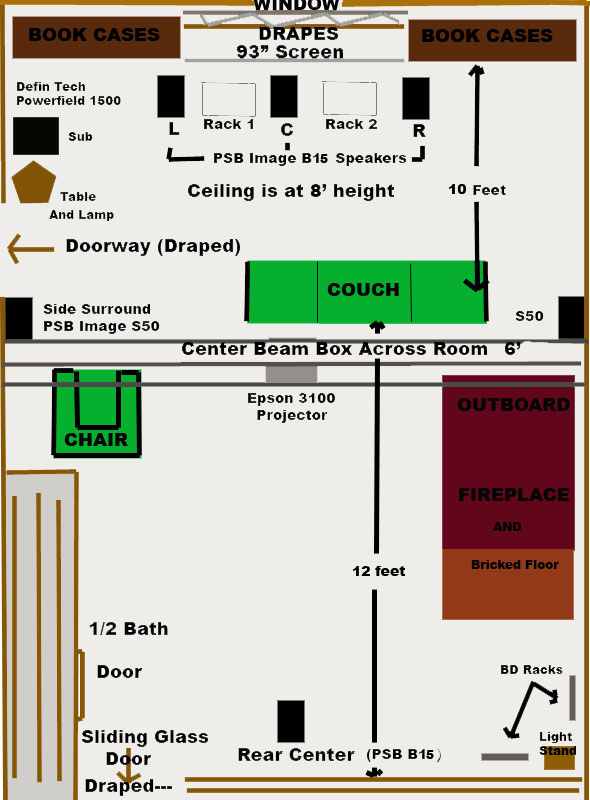

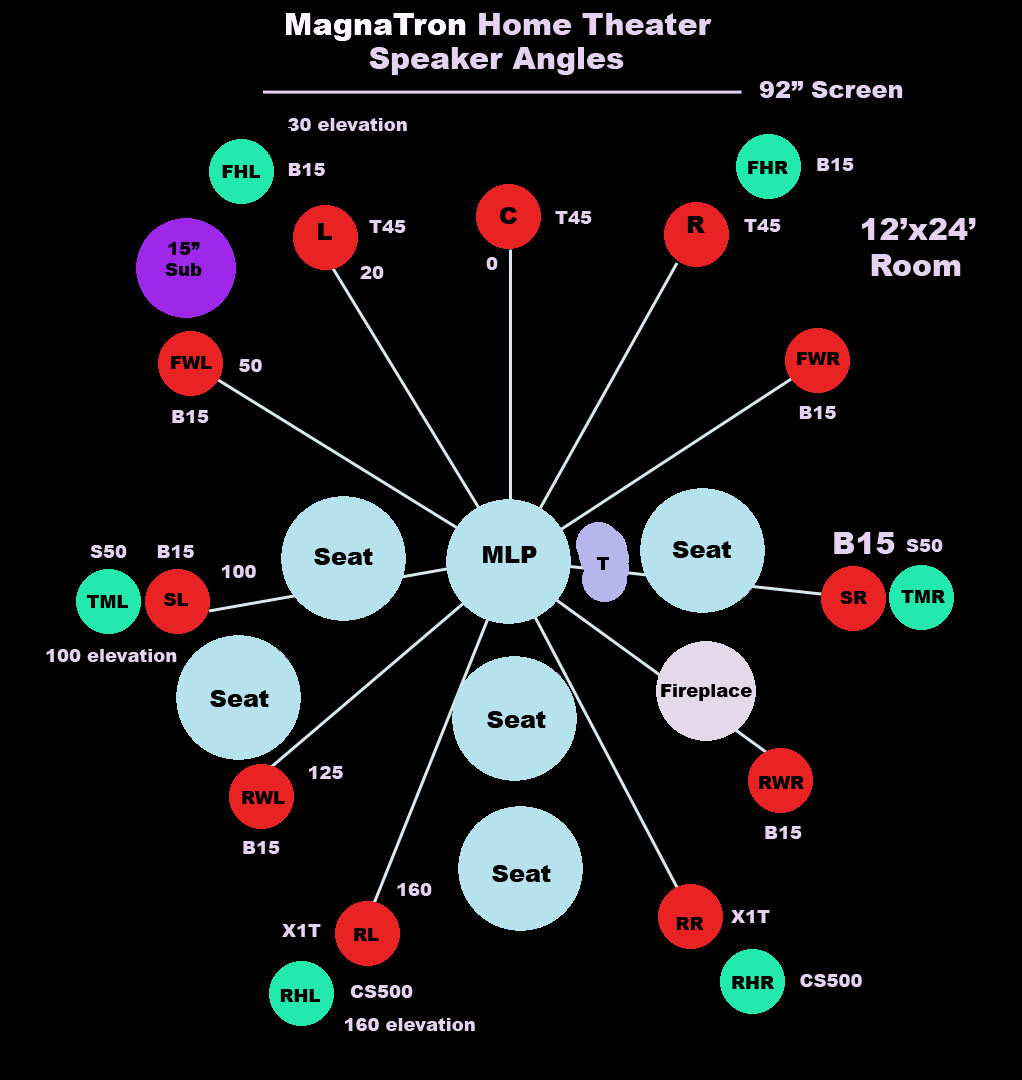

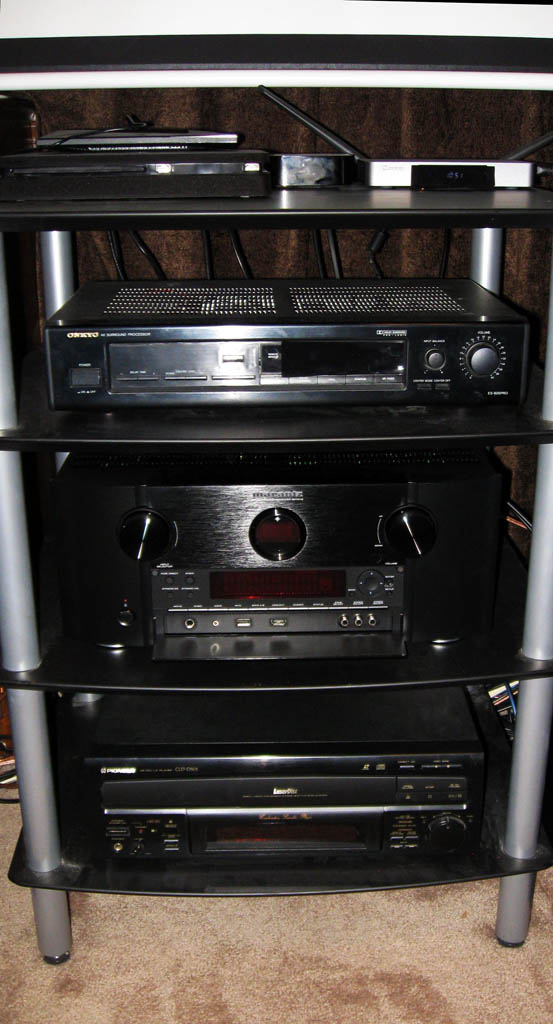

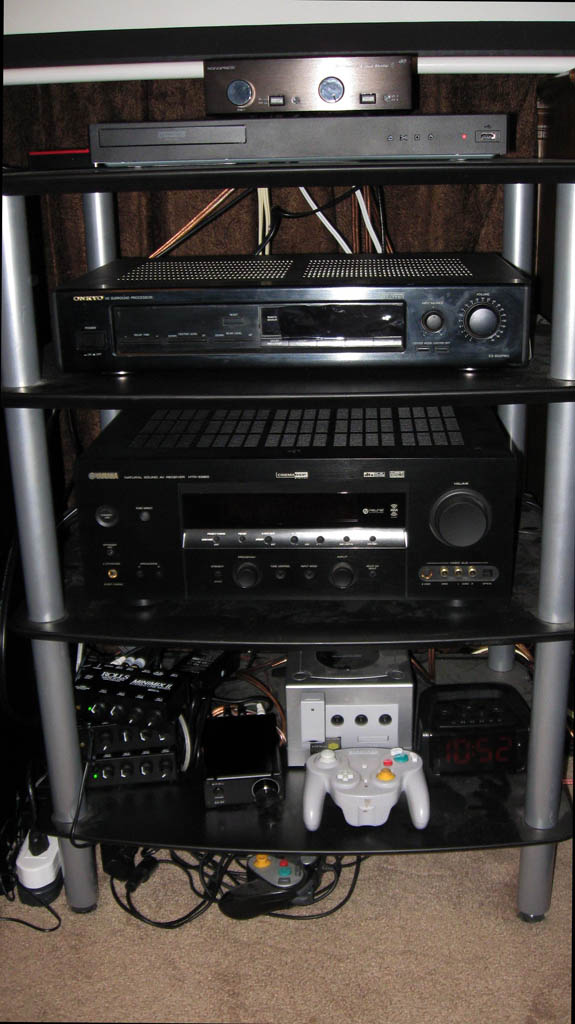

Original Layout Diagram followed by proposed/final speaker layout angles below. Speakers are all PSB brand with mostly matching drivers (PSB Image T45, B15, S50, Imagine X1T and CS500 are used) except the subwoofer which is a 15" model from Def Tech. I use multiple receivers and outboard mixers and processors to add more channels to the base 7.1.4 layout (Dolby Pro Logic "center" extraction creates "top middle" between front and rear heights and mixers create 'matrixed' front wides and surround #2 (basically rear wides for between the 2nd/3rd row of seating). The primary AVR is a Marantz SR7012 with Audyssey Room Correction:
View attachment 1013960 View attachment 1013961View attachment 1014009View attachment 1014008

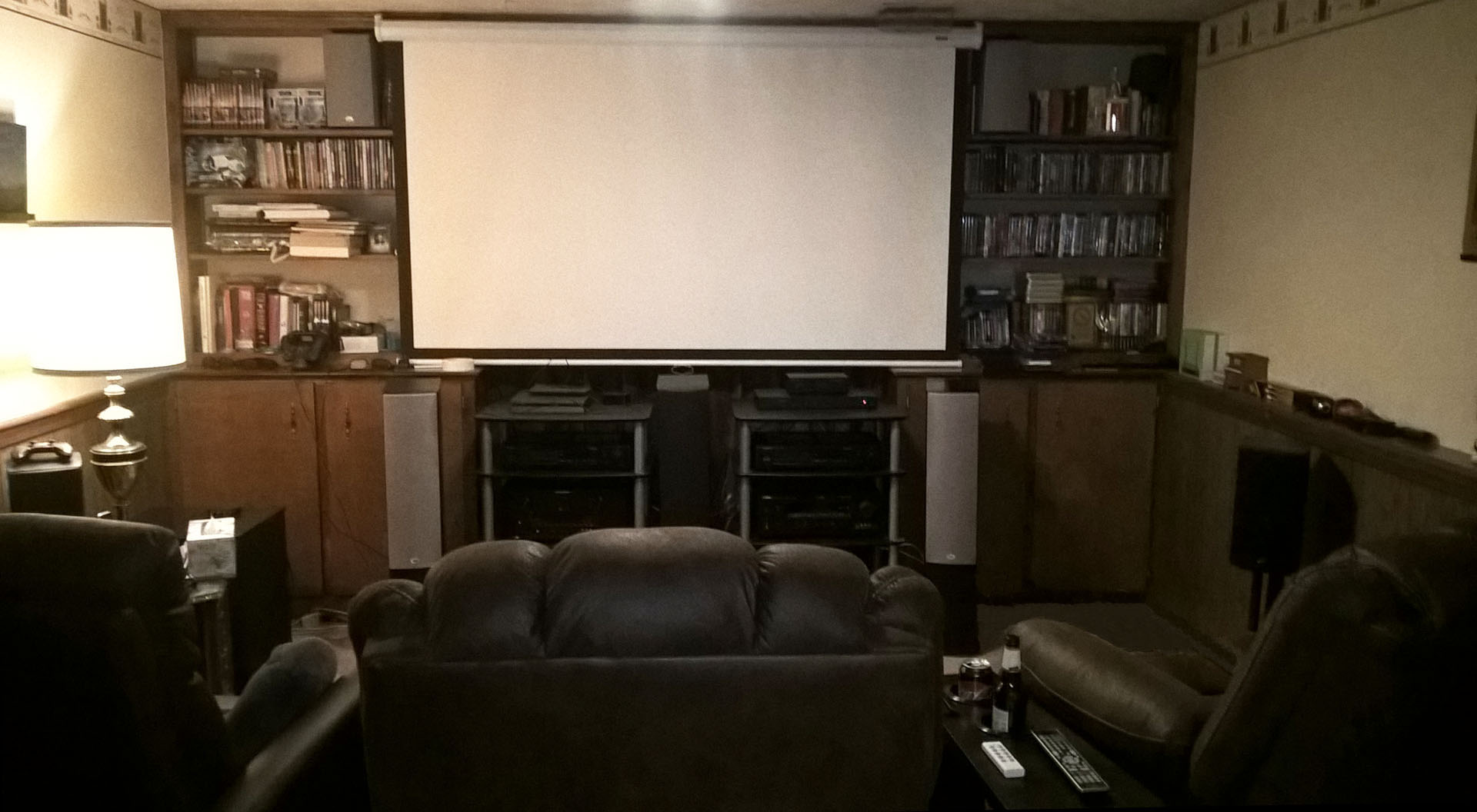

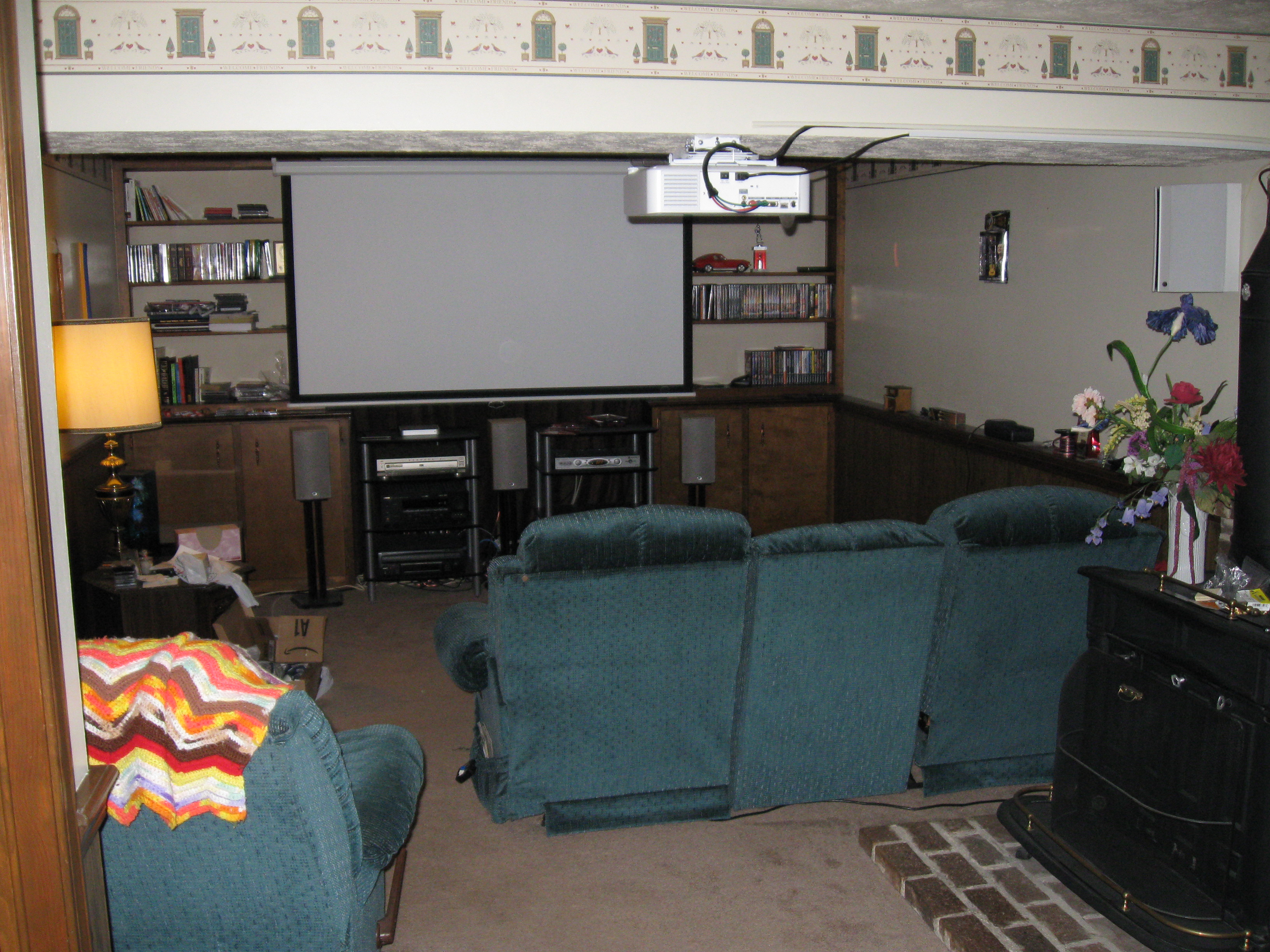

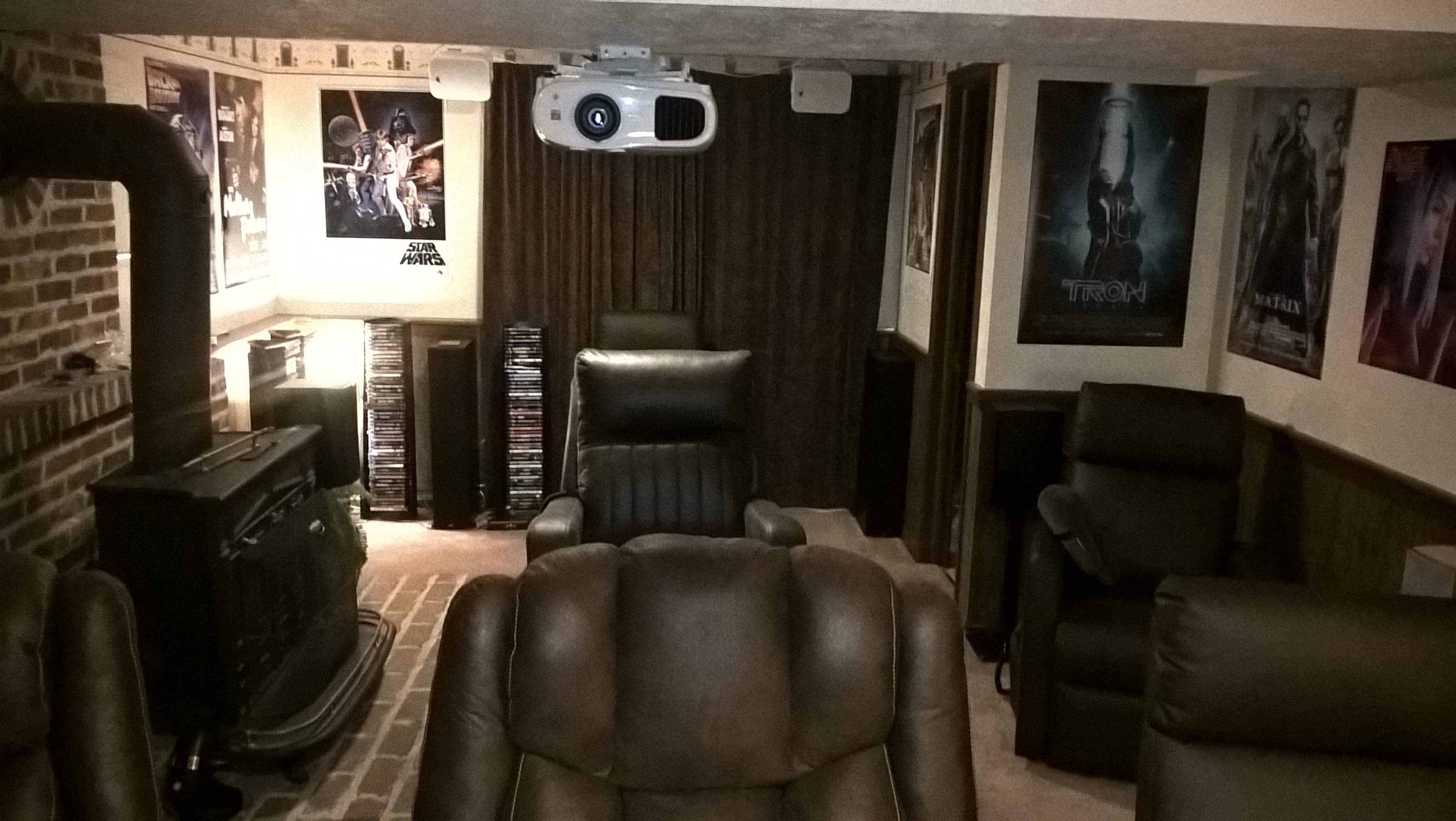

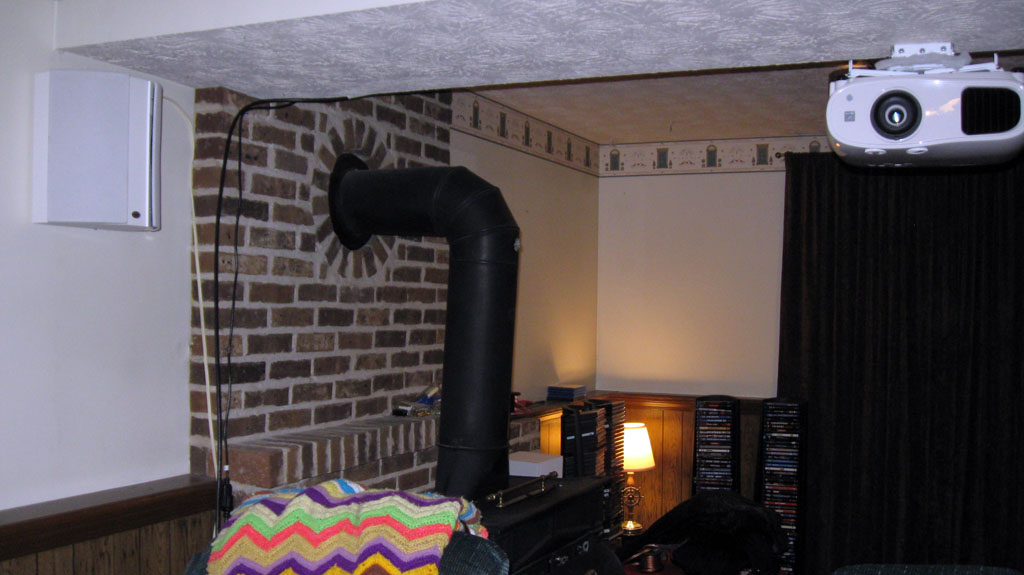

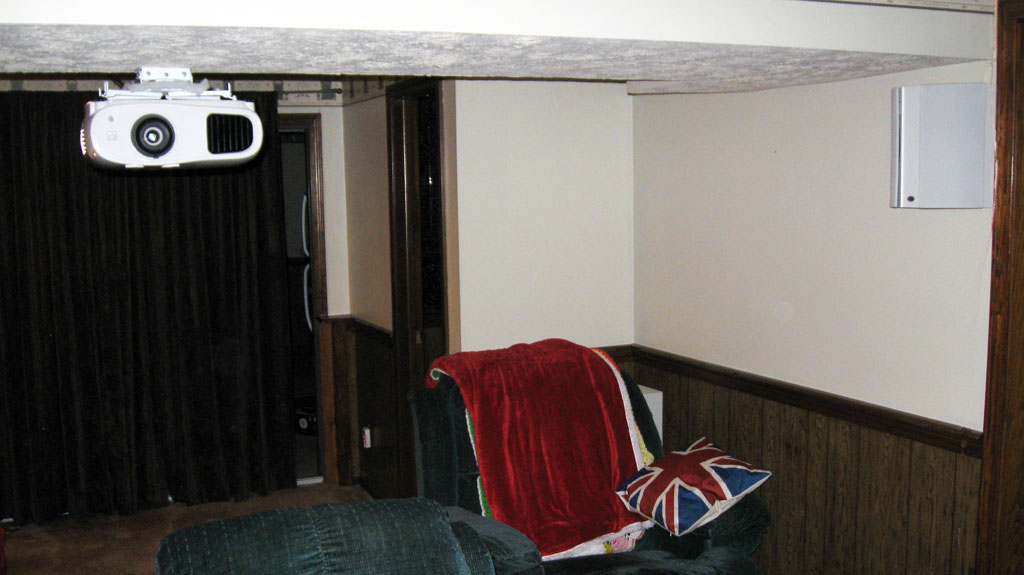

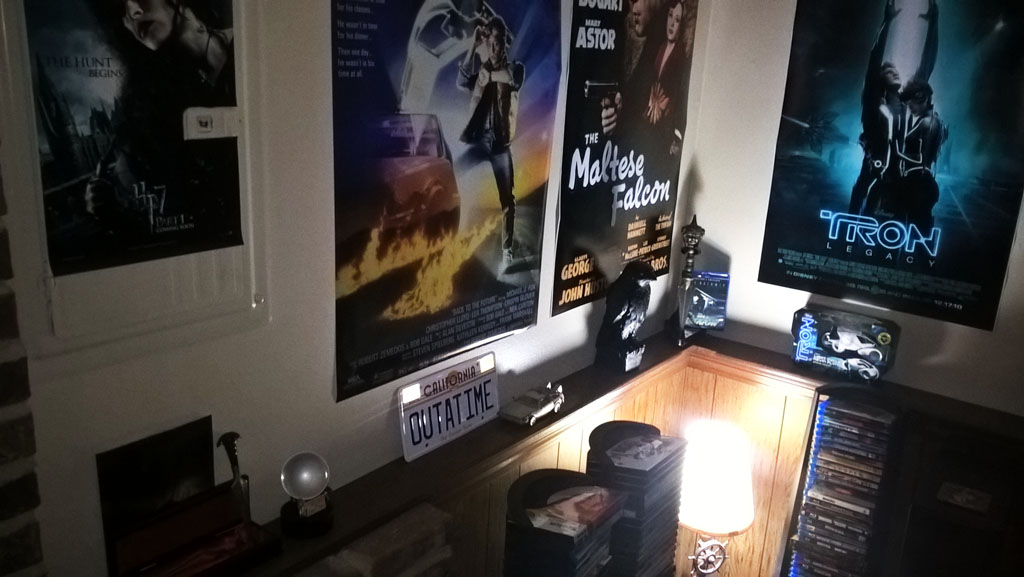

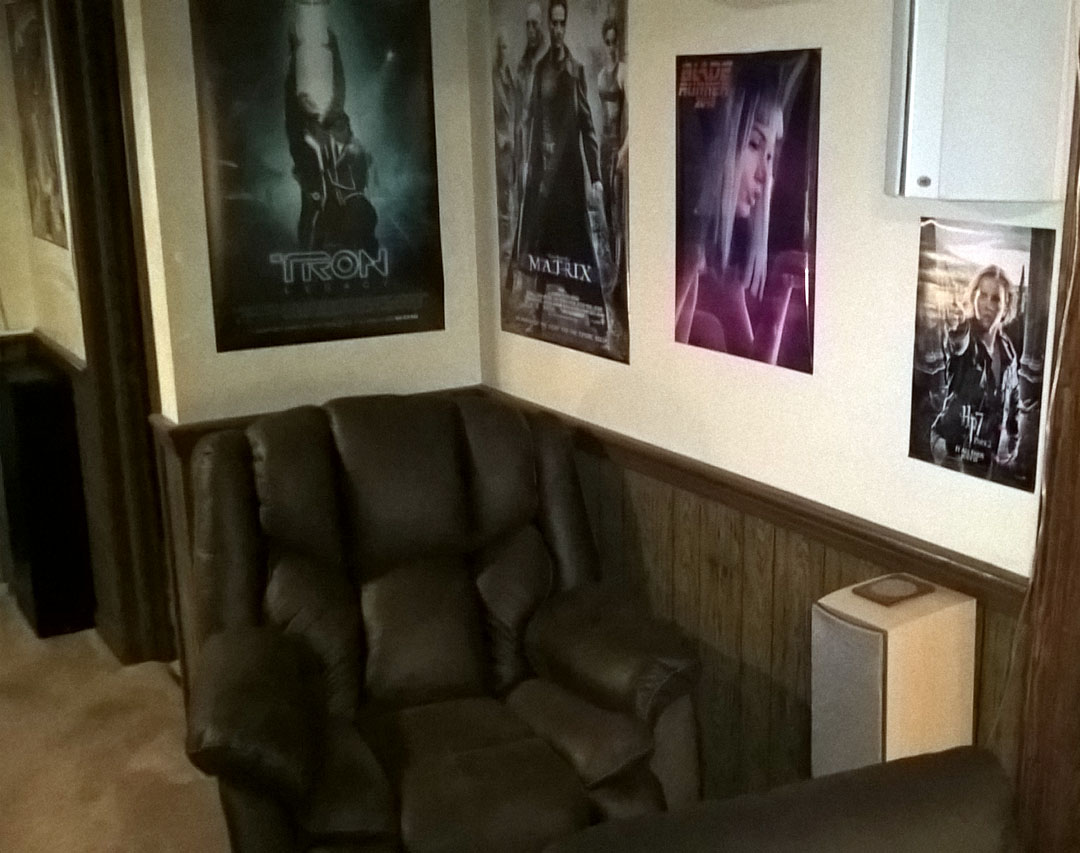

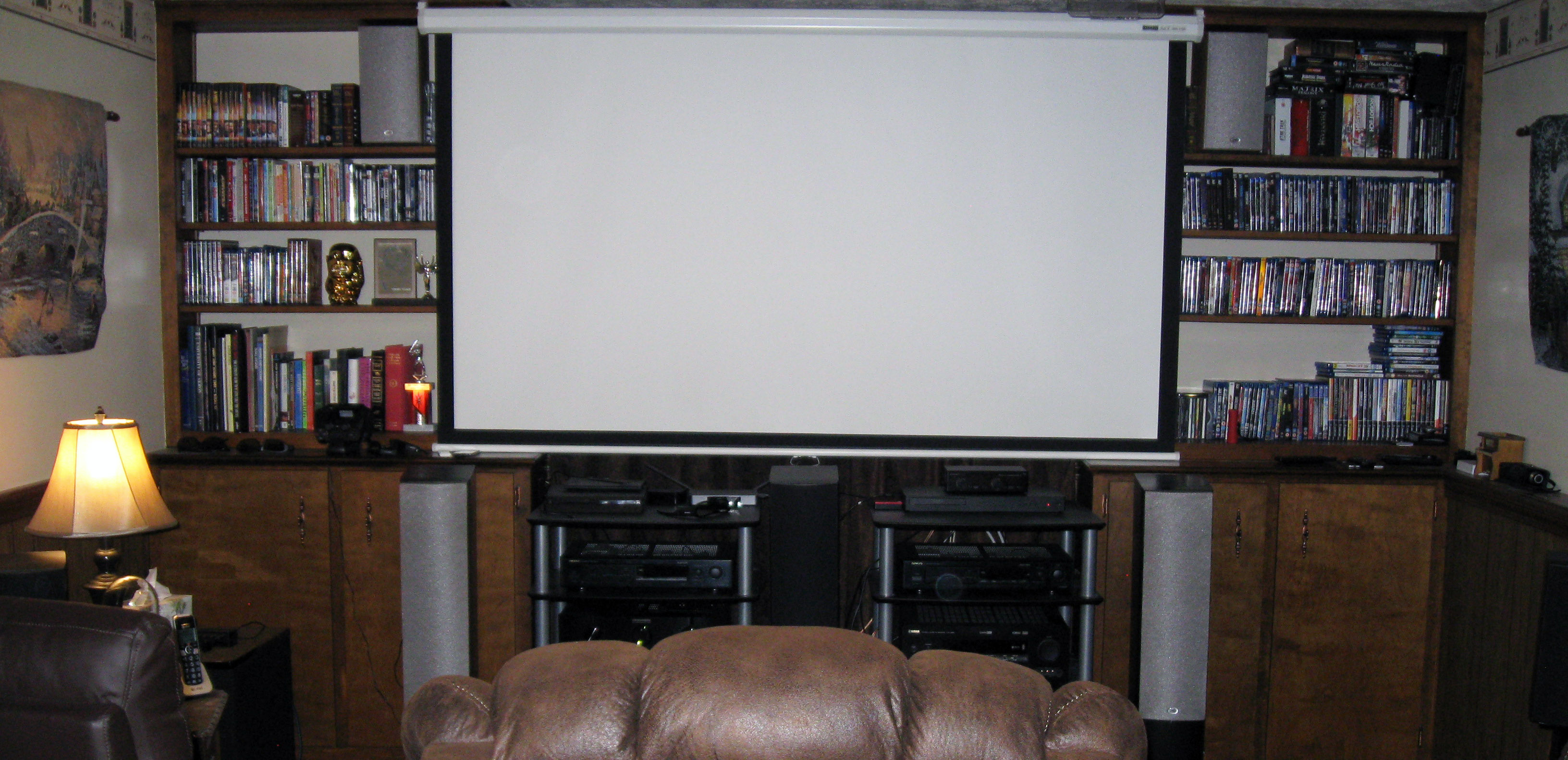

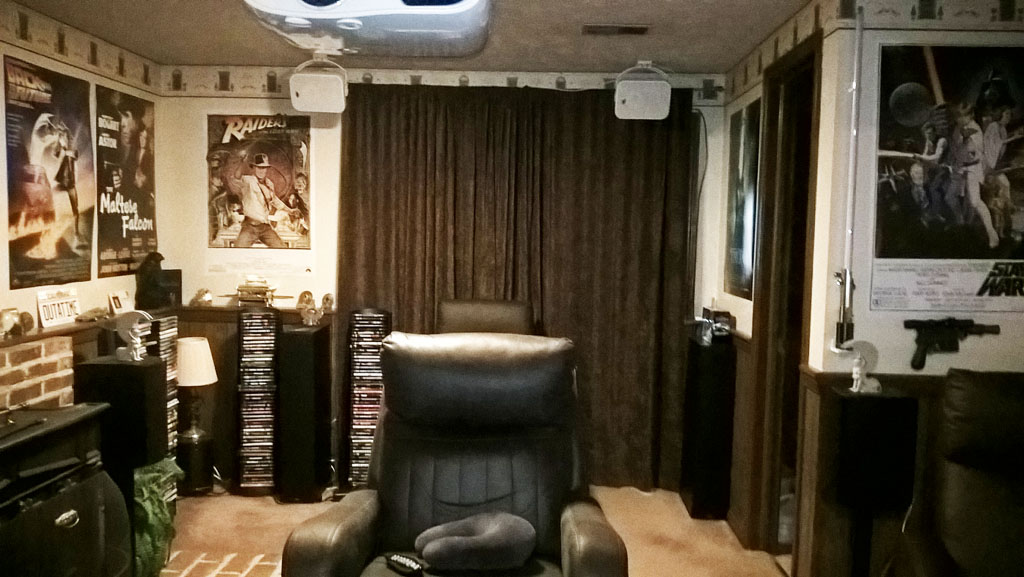

Finished Layout Room Evolution (Star Wars and Tron posters get swapped later for props reasons):
View attachment 1013974View attachment 1013964View attachment 1013975View attachment 1013963 View attachment 1013962View attachment 1013976View attachment 1013977
Time for Some Props:
View attachment 1013983 View attachment 1013984 View attachment 1013985View attachment 1013991 View attachment 1013987 View attachment 1013990View attachment 1013989
View attachment 1013992View attachment 1013993View attachment 1013995View attachment 1013996 View attachment 1013997View attachment 1014005View attachment 1013986
Raiders of the Lost Ark Props (More on the way: Hasbro 1/6 Scale Ark is next):
View attachment 1013998View attachment 1013994View attachment 1014000 View attachment 1014001 View attachment 1014002 View attachment 1014003 View attachment 1013999
Even the Bathroom isn't safe! These guys invaded and are up to no good! (Fifth Element Stones with tea cup candle holders on top are on their way for the big shelf on the left side of the bathroom; you know use scented candles in them matching the elements in case someone takes a blast!
)
View attachment 1014007
Thanks for viewing my home theater in progress!
I have plans to add a second sub and possibly a 2.35:1 screen with a 4K/3D projector with power zoom memory (currently an Epson 3100 2K/3D projector and 92" 16:9 screen).
I'm looking at getting a "Raven Bar" medallion soon and a Hasbro 1/6 scale Ark of the Covenant is on the way as well and some more "memory orbs" for the Blade Runner 2049 "reader" as well as an alternate crystal ball for the Harry Potter prophesy stand with fading light puck behind it that shows a the Milky Way galaxy in the ball when it lights up (laser engraved).
