Immortan Joe Progress Log - 3d Models, W.I.P. photos, and Con Results!
- Thread starter Ein
- Start date
Ein
Sr Member
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.

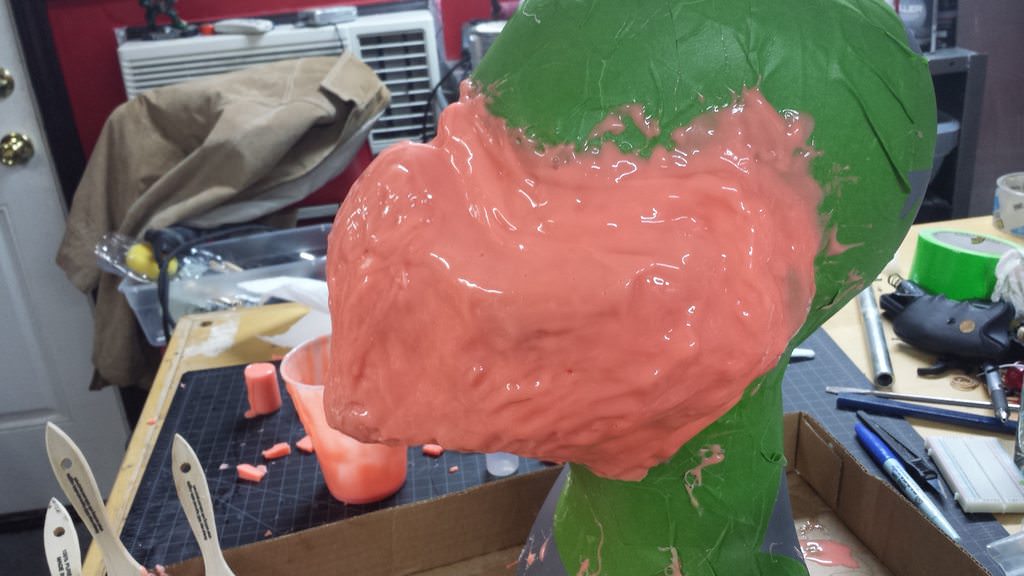

I think I know how to do this right up until I have to build the hard shell mother mold. I feel like this'll have to be a two-part mother mold unless I really go crazy with the Rebound 25, but I haven't figured out how to separate the halves yet.
I think I know how to do this right up until I have to build the hard shell mother mold. I feel like this'll have to be a two-part mother mold unless I really go crazy with the Rebound 25, but I haven't figured out how to separate the halves yet.
Hamsterstyle
Well-Known Member
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.

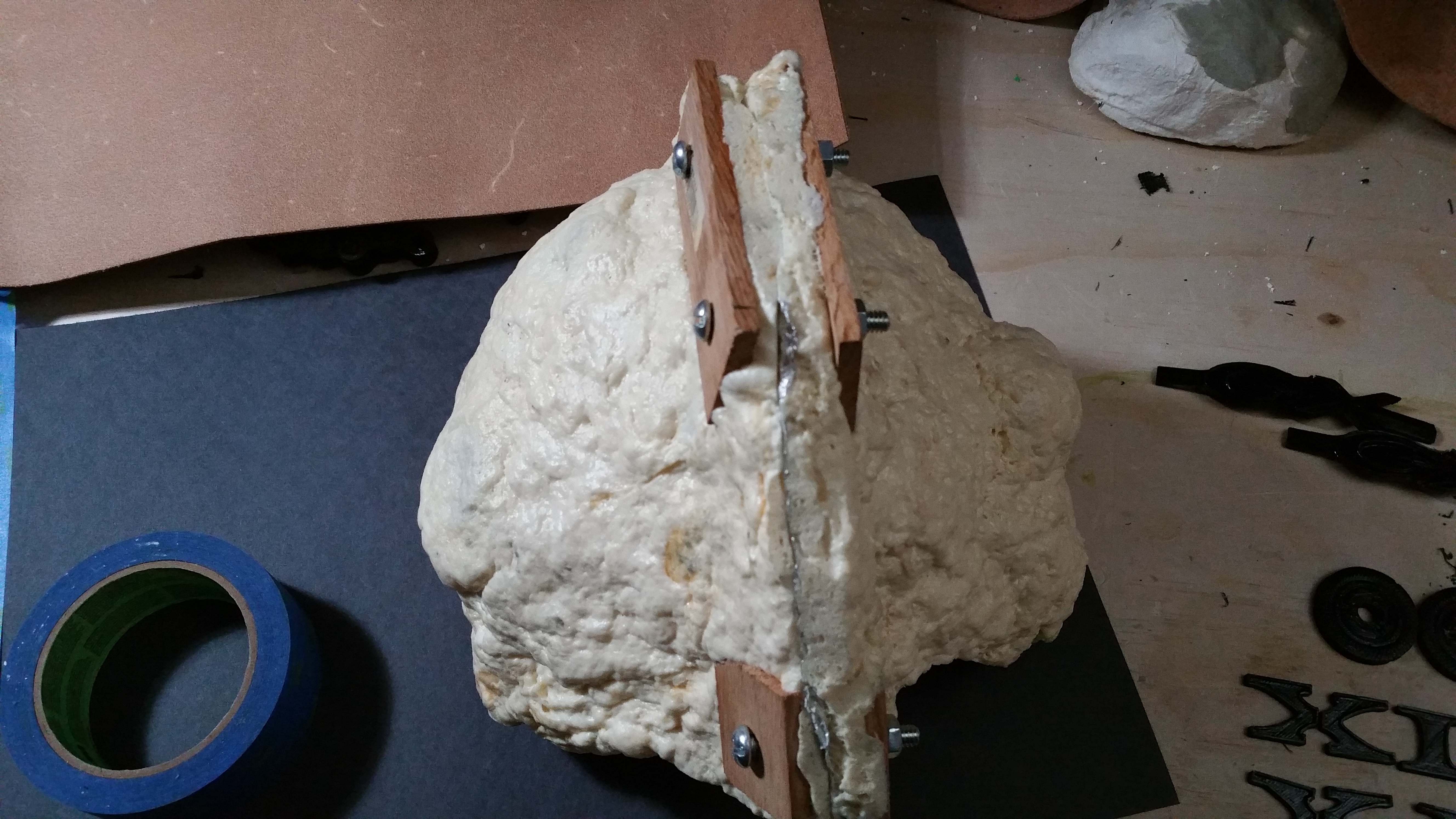

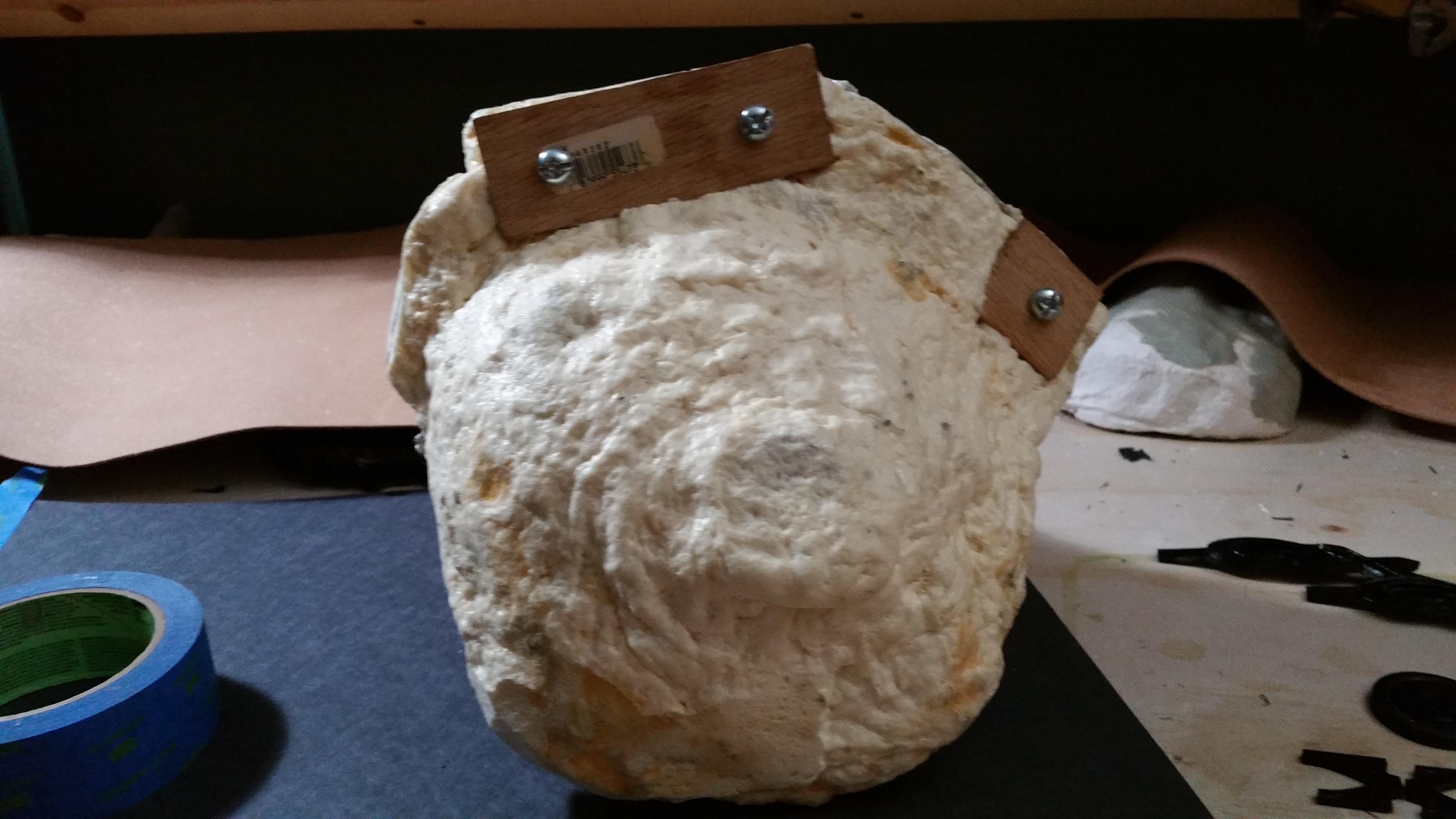

Here is how I did mine. The outer two piece shell on this holds very very tight, almost too tight actually. But it works.
I just stick the wood blocks in there so I have a nice flat surface to hold the bolts in place.
Here is how I did mine. The outer two piece shell on this holds very very tight, almost too tight actually. But it works.
I just stick the wood blocks in there so I have a nice flat surface to hold the bolts in place.
Ein
Sr Member
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.
Thanks for those images, @Hammerstyle. I have Plasti-Paste from Smooth-On for this purpose, but the idea of using wood is a good one. I might try a bit of MDF that I have layin' around.

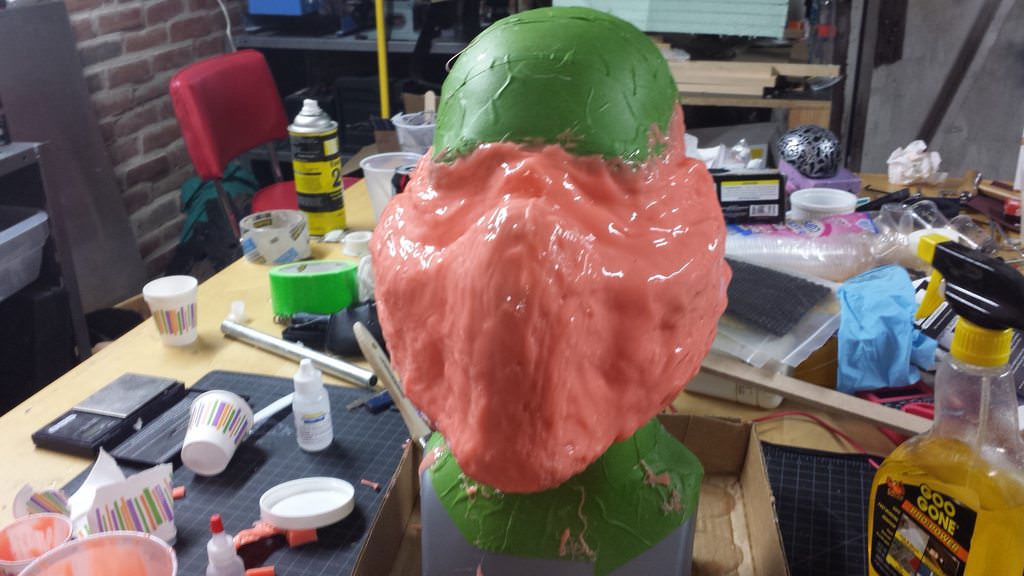

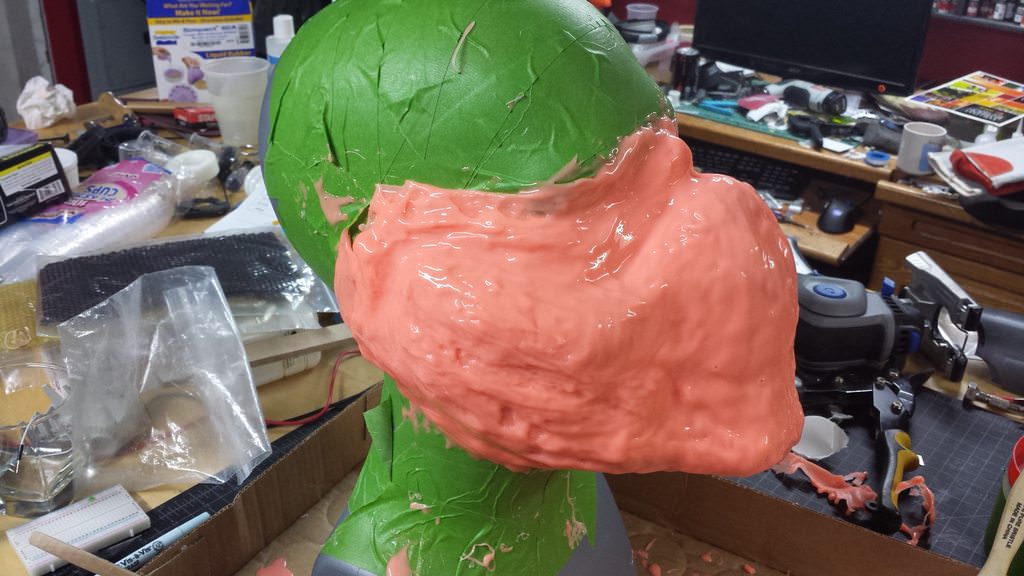

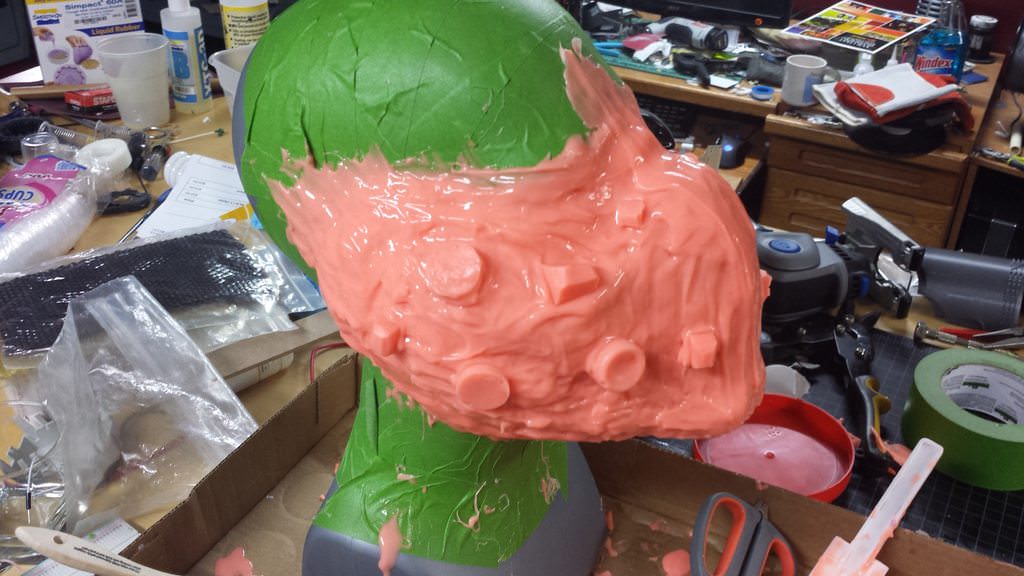

I think I'm at the point where I need to add some registration keys and a final coat. Maybe? I may have to smooth the edges of the rubber a bit onto the green tape so I don't have an undercut to try and build the master mold over first.
Thanks for those images, @Hammerstyle. I have Plasti-Paste from Smooth-On for this purpose, but the idea of using wood is a good one. I might try a bit of MDF that I have layin' around.
I think I'm at the point where I need to add some registration keys and a final coat. Maybe? I may have to smooth the edges of the rubber a bit onto the green tape so I don't have an undercut to try and build the master mold over first.
Attachments
Last edited by a moderator:
Ein
Sr Member
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.

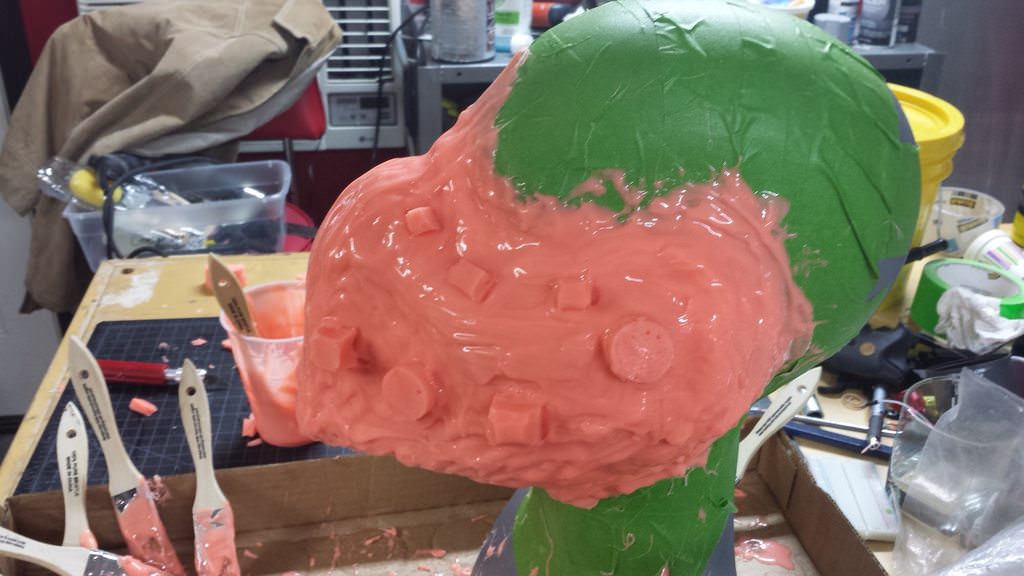

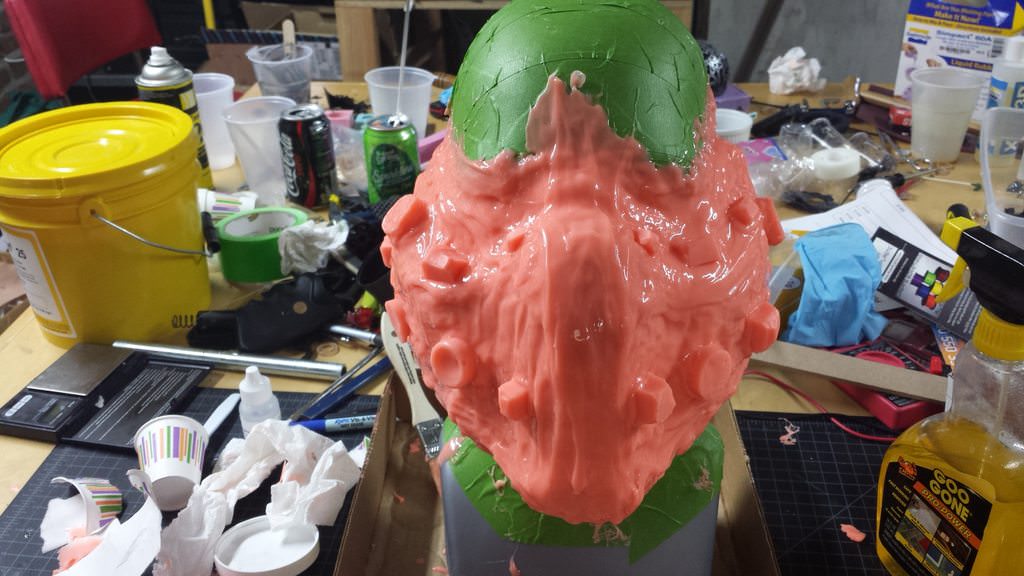

Crude registration keys and a thicker line down the middle for me to work with.
The way I have seen this done is to grab a sharp knife and score a thin line straight down the middle of the seam through the thickened middle section, about 1/8 of an inch deep, and then stick a ton of index cards / playing cards / whatever into that seam so that I get a dividing wall. Then I'll put sonite wax on the rubber, mold release the whole thing, and cover it in a layer of plasti-paste so I start making my mother mold.
This is what I'm referencing, basically:
The alternative, as I have seen it, is to simply make a clay wall on one side that you brush up against, which I imagine would also probably work just fine... save for the fact that most of the clays I have don't seem to stick too well to the rubber.
Crude registration keys and a thicker line down the middle for me to work with.
The way I have seen this done is to grab a sharp knife and score a thin line straight down the middle of the seam through the thickened middle section, about 1/8 of an inch deep, and then stick a ton of index cards / playing cards / whatever into that seam so that I get a dividing wall. Then I'll put sonite wax on the rubber, mold release the whole thing, and cover it in a layer of plasti-paste so I start making my mother mold.
This is what I'm referencing, basically:
The alternative, as I have seen it, is to simply make a clay wall on one side that you brush up against, which I imagine would also probably work just fine... save for the fact that most of the clays I have don't seem to stick too well to the rubber.
Attachments
Last edited by a moderator:
Bigboss1o1
Active Member
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.
It's glorious!!!
Sent from my iPhone using Tapatalk
It's glorious!!!
Sent from my iPhone using Tapatalk
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.
Whooaah! Those turned out great, fantastic work! If you ever decide to print off more to sell, please let me know!
Whooaah! Those turned out great, fantastic work! If you ever decide to print off more to sell, please let me know!
Bigboss1o1
Active Member
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.
DITTO!!!
Sent from my iPhone using Tapatalk
DITTO!!!
Sent from my iPhone using Tapatalk
Bigboss1o1
Active Member
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.

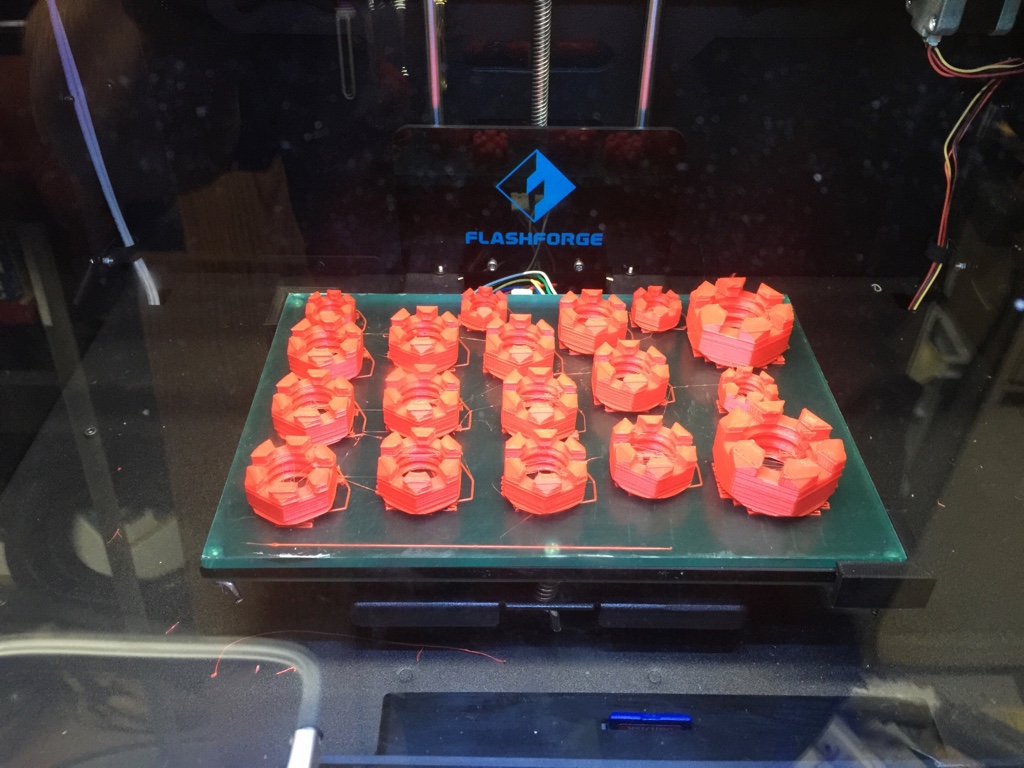

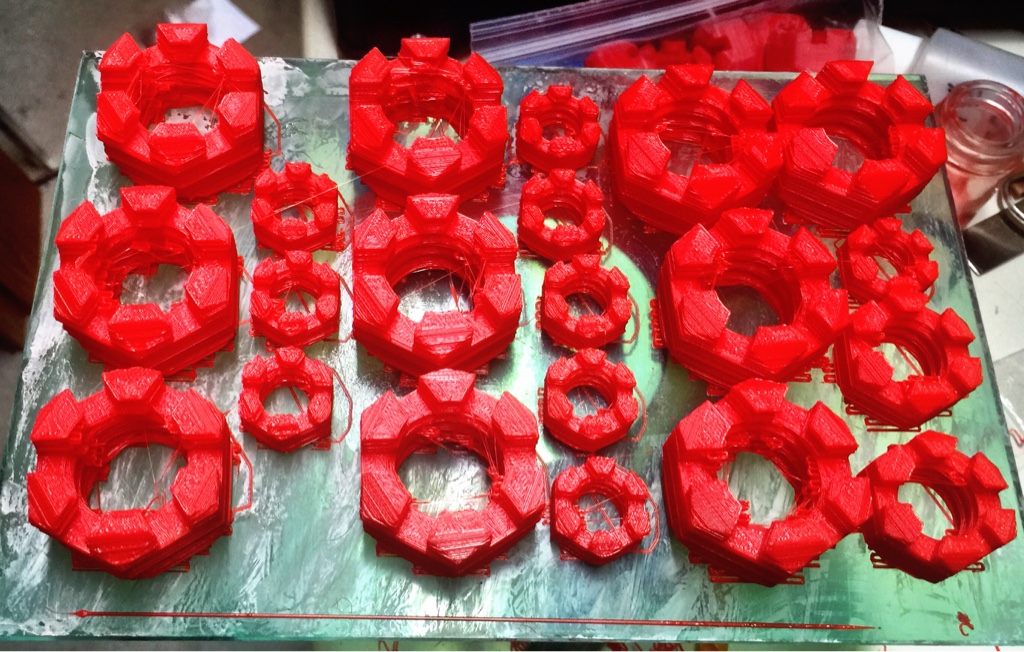

Sounds like a plan how many did you print of each?
Sent from my iPhone using Tapatalk
Sounds like a plan how many did you print of each?
Sent from my iPhone using Tapatalk
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.

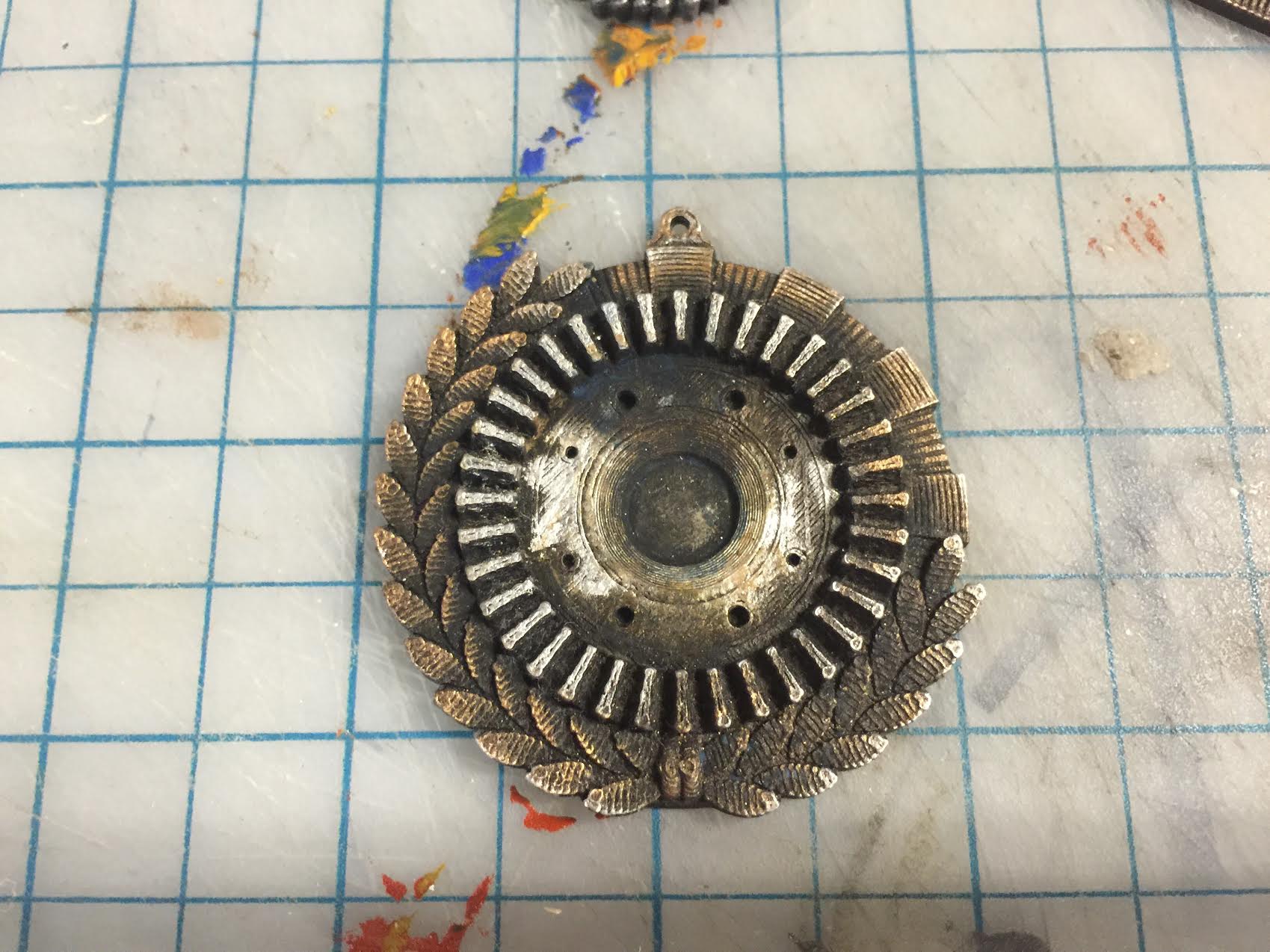

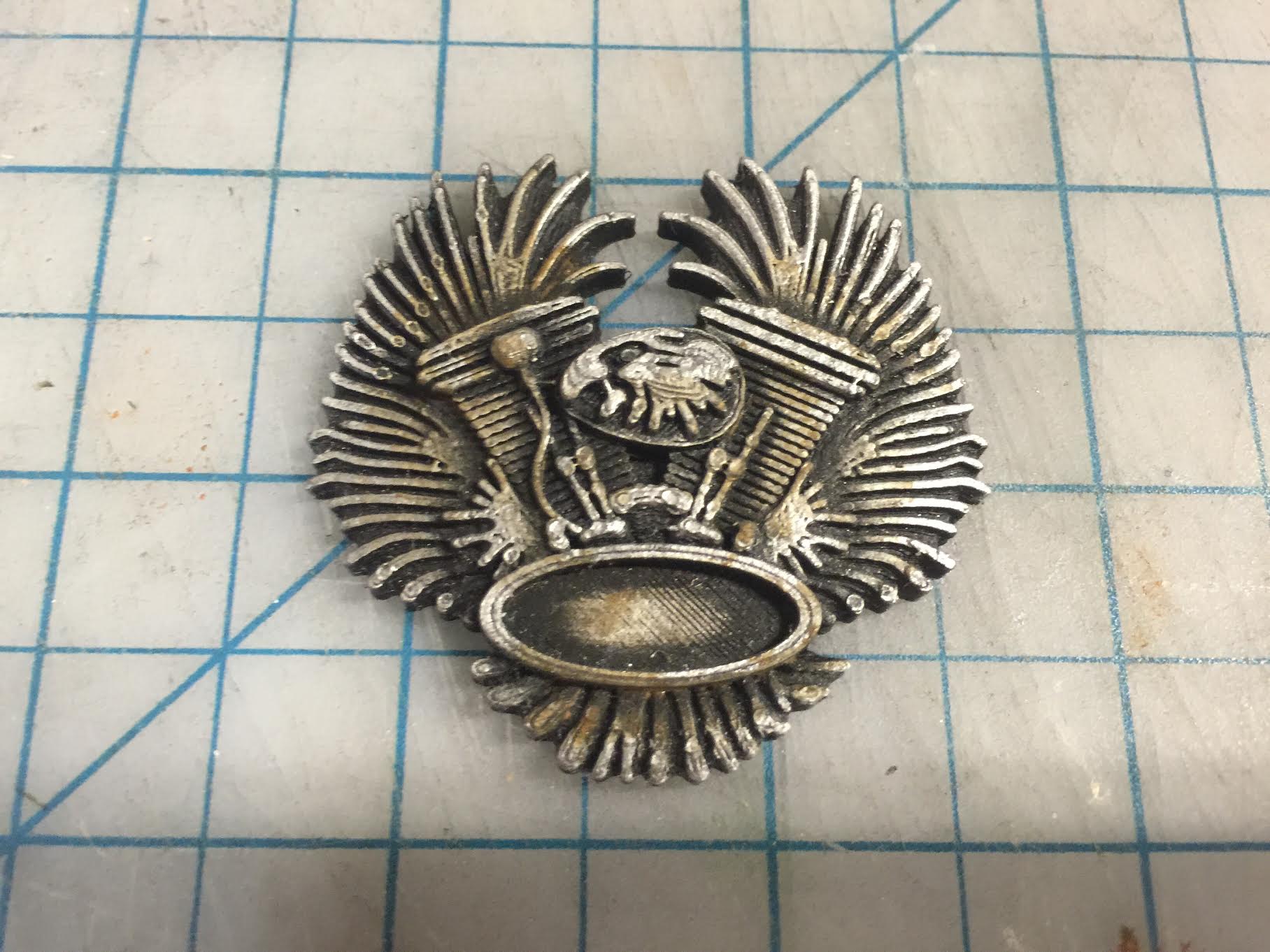

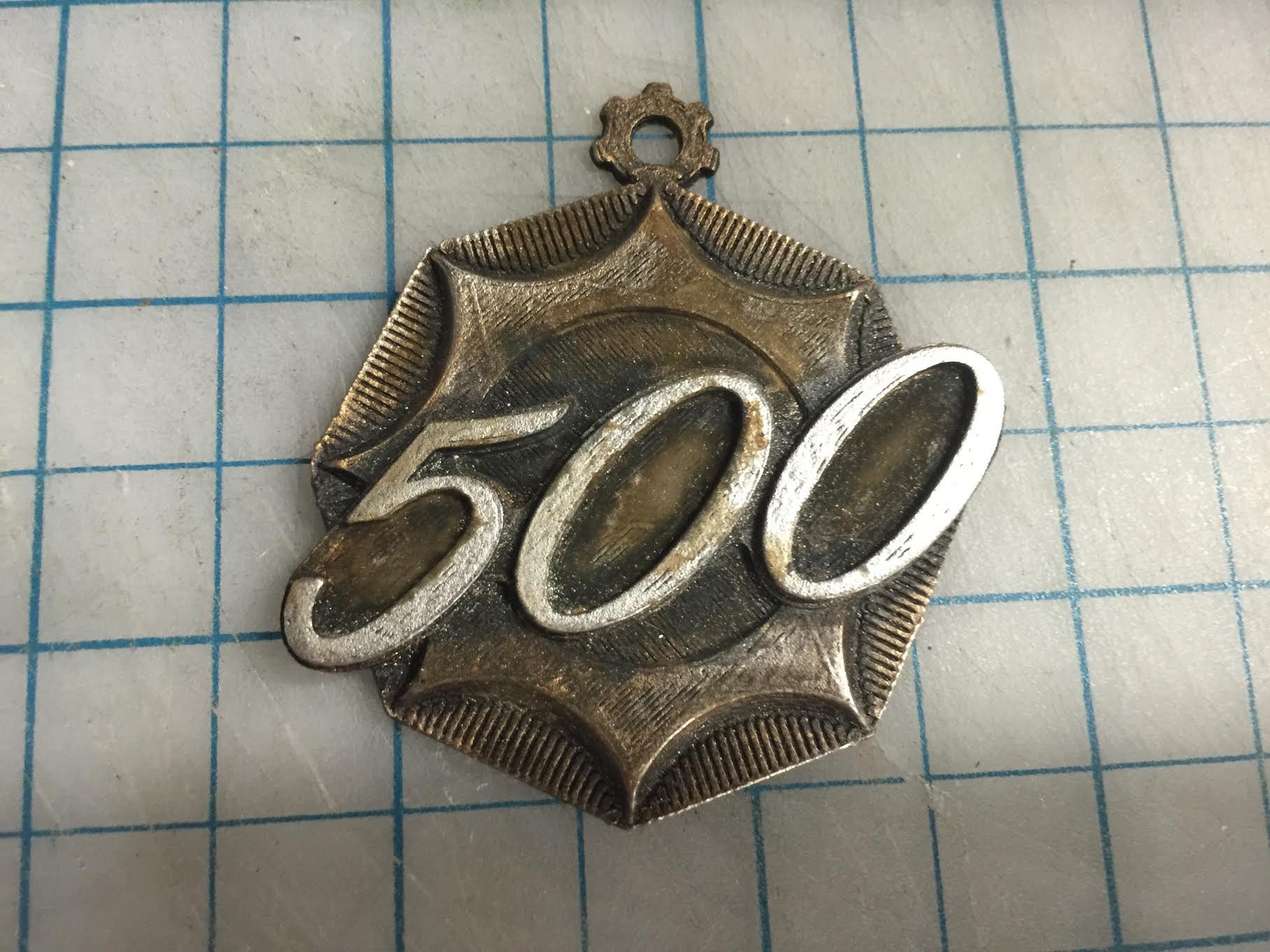

Terrific work, those look fantastic! Great job with the weathering!
Awesome, thank you so much! That's one more thing I can cross off my list!
Terrific work, those look fantastic! Great job with the weathering!
Awesome, thank you so much! That's one more thing I can cross off my list!
Morgenes
Active Member
Re: Immortan Joe Progress Log - 3d Modelling and various other bits.
Found a very close match for the 'keyhole' badge, it's doesn't seem to be precisely it, but it's the closest I've found:
http://www.ebay.com/itm/141669275384?_trksid=p2055119.m1438.l2650&ssPageName=STRK:MEBIDX:IT
8 of them left.
Found a very close match for the 'keyhole' badge, it's doesn't seem to be precisely it, but it's the closest I've found:
http://www.ebay.com/itm/141669275384?_trksid=p2055119.m1438.l2650&ssPageName=STRK:MEBIDX:IT
8 of them left.
