So Ive been meaning to do a tutorial on this for sometime now ..and the perfect opportunity finally arose. Ive been working on a film with Mark Hamill the past month. Mark is an amazing guy who loves to tell great stories. It isnt the first time he has worked with our studio. We did all his stuff as CockKnocker for Jay and Silent Bob strike back. Turns out at the end of that film he never got the hand as promised to him by Kevin Smith. As a surprise, I made him one from the molds to give him as a gift. I felt this was a great time to document how we seam and fill latex and foam items.

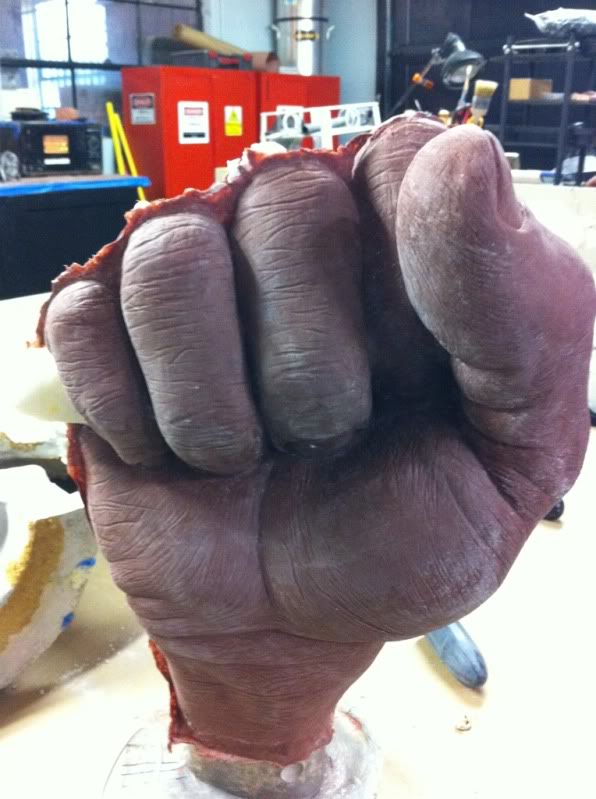

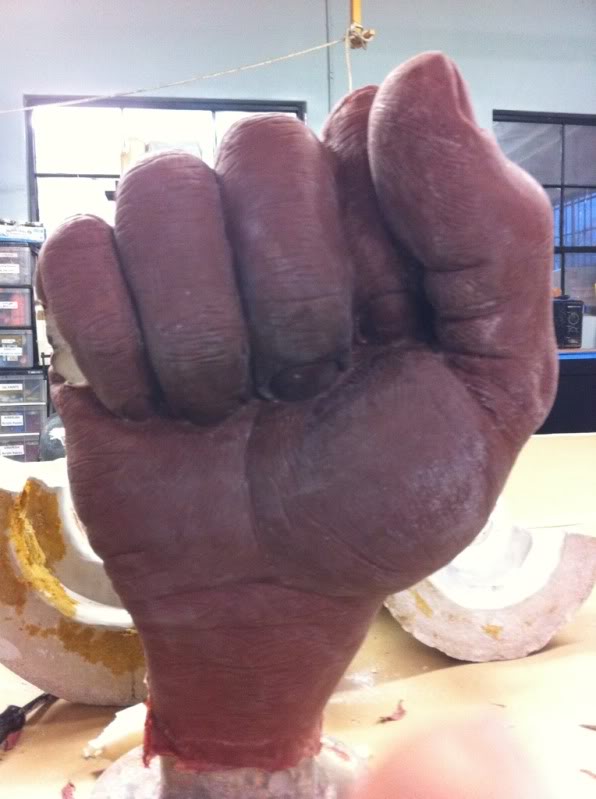

I started by running a latex and polyfoam hand ( there is a stone core in the middle that was coated with polyfoam release so Marks hand will fit inside) Notice the large seam from casting this in two pieces, then placing the core inside before closing the mold for foam ..injected into a pour hole.




Next I use small curved cuticle scissors to remove the latex flash ...in some places, I actually cut the seam completely away so that there is almost a centimeter or two of gap between latex halves ..exposing the polyfoam.






Ok ..trimming all done




Now Im gathering my materials to create latex bondo ( sometimes known as cabo patch).

you will need cabosil ( a silica filler much akin to fine ground fiberglass ) BE CAREFUL this stuff is very dangerous to breath when its in its fine dust state ..so wear a respirator when handling)

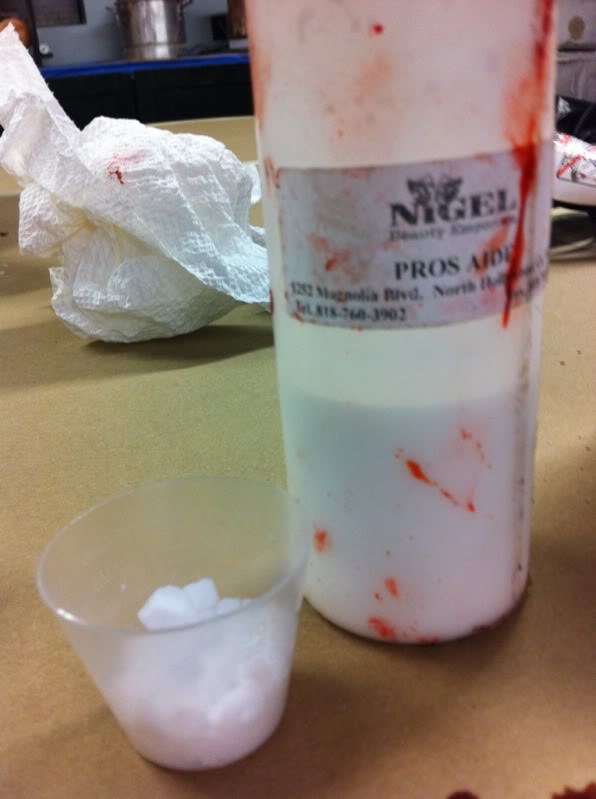

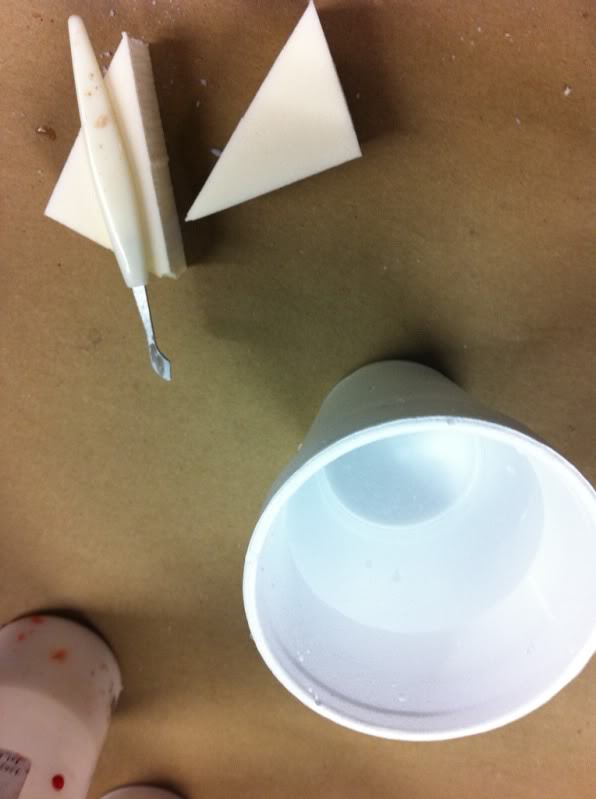

You will also need Prosaid, a small plastic cup and some stir sticks, a cup of water and some small sponges ( im using makeup sponges)






mix the prosaid and the cabosil until you get a frosting-like consistency



Using the stir stick I spackle heavily the seam area with the latex bondo

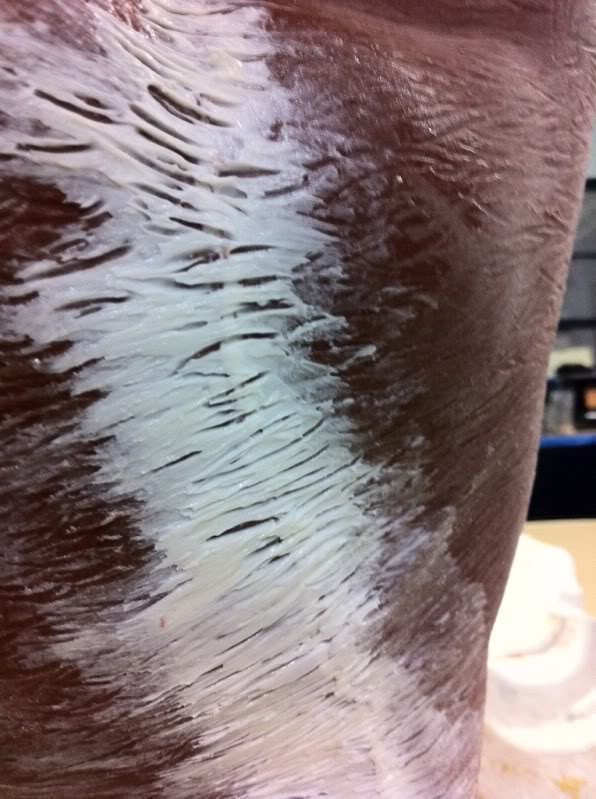

Now ..using a sculpting tool, I carve the texture lines back into the bondo, keeping consistent the patterns in the sculpt.



Using a wet sponge, I start to blend and feather the edges of the bondo ..and smooth out the body of the patch ( much like sanding an area of body filler on resin)

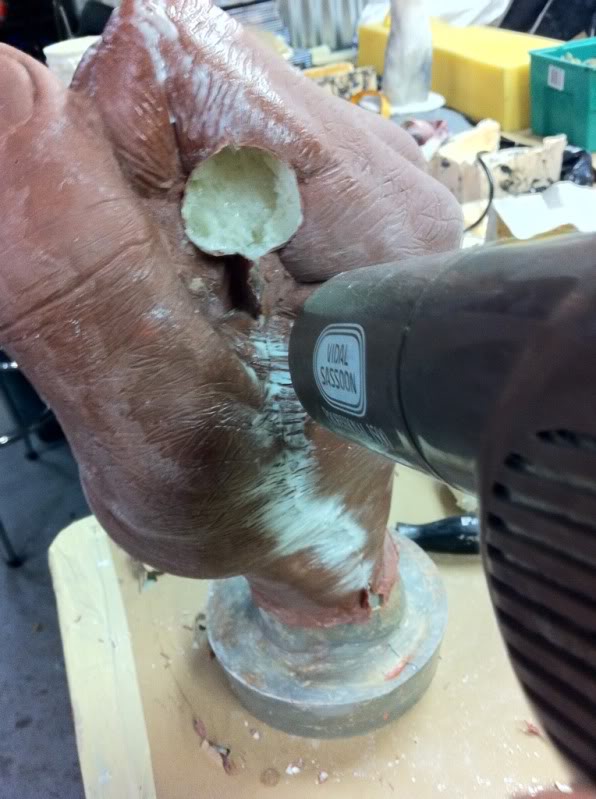

I then use a hair dryer to dry up the patch and excess sponge water

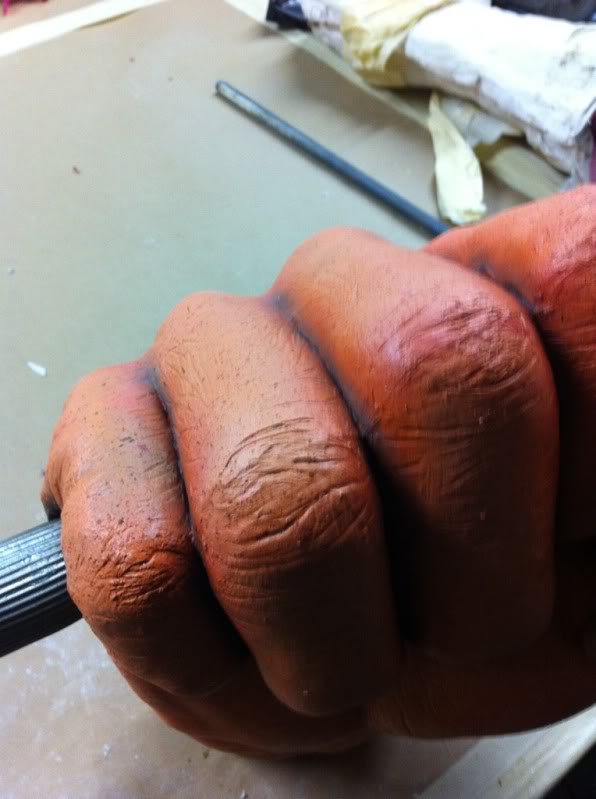

After a few minutes, I brush on some baby powder or talc to remove the tackiness of the bondo...then prep it for paint.



Trying it on for size.




And the payoff. Mark was so ecstatic about the gift ..It was hilarious when he showed up on set wearing it




So theres my tutorial ..hope it helped a bit



...oh ...and keeping this a little on pred-topic ...look who else is on this film with me. Wish I could talk a little bit more about it..Ill share more when I can



Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

khan1

New Member
damd,you're a lucky guy.nice tutorial where can you get the cabosil,does monstermakers have this?


Eaglewood

Sr Member
damd,you're a lucky guy.nice tutorial where can you get the cabosil,does monstermakers have this?


I know my local Smooth-on guy carries it (cabosil)-- shouldnt be too hard to find. and YES-- use a respirator with this for sure-- it goes everywhere-- dont try tp pour it!
George-- great tutorial-- Ill be using it for sure!!!!

Awesome job you have there!


Estelle

New Member
Most excellent tutorial –and one very well executed too. I’ve been looking for something like this for a while, hopefully to help me render minor surface repairs to my 1:1 pred. Thanks!
~Estelle


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

MEANGENE83

Sr Member
I recently learned that Cabosil is simply Fumed-Silica.

Cabosil I think is a brand name if I am not mistaken.

Smooth-on sells it under the name Urefil-9 (something like that)

It is advertised by smoothon as a urethane resin and rubber filler.

By the way this Huntorial Kicks Ass!!!!


khan1

New Member
I recently learned that Cabosil is simply Fumed-Silica.

Cabosil I think is a brand name if I am not mistaken.

Smooth-on sells it under the name Urefil-9 (something like that)

It is advertised by smoothon as a urethane resin and rubber filler.

By the way this Huntorial Kicks Ass!!!!
thanks meangene and eaglewood :)


Effects Guy

New Member
That is a great tutorial. I love the great shots of sculpting texture into bondo. One can never get enough of Cock Knocker. I never realized that hand was just latex and polyfoam.


ptgreek

Active Member
ha ..the original was foam latex, Mike. Kevin Smith promised it to Mark ..then kept it instead. So when we started production on Sushi Girl, I ran a latex and polyfoam version for him ..something that would last a bit longer in his trophy room. I convinced Mark to wear it to set during a jewel heist scene. None of the other cast members knew what was coming ..it was hilarious . I have video
