nekollx

New Member
Hey everyone, yeah i know first post, hopefully you'll at least give me a chance :p

So i found this place via the XRobots group on facebook, particularly the Iron Girl project and just had to register this place is pretty neat.

Anyway introduction over you came here for power ranger props, that is the title after all.

So a while ago i posted a parts list to my tweeter

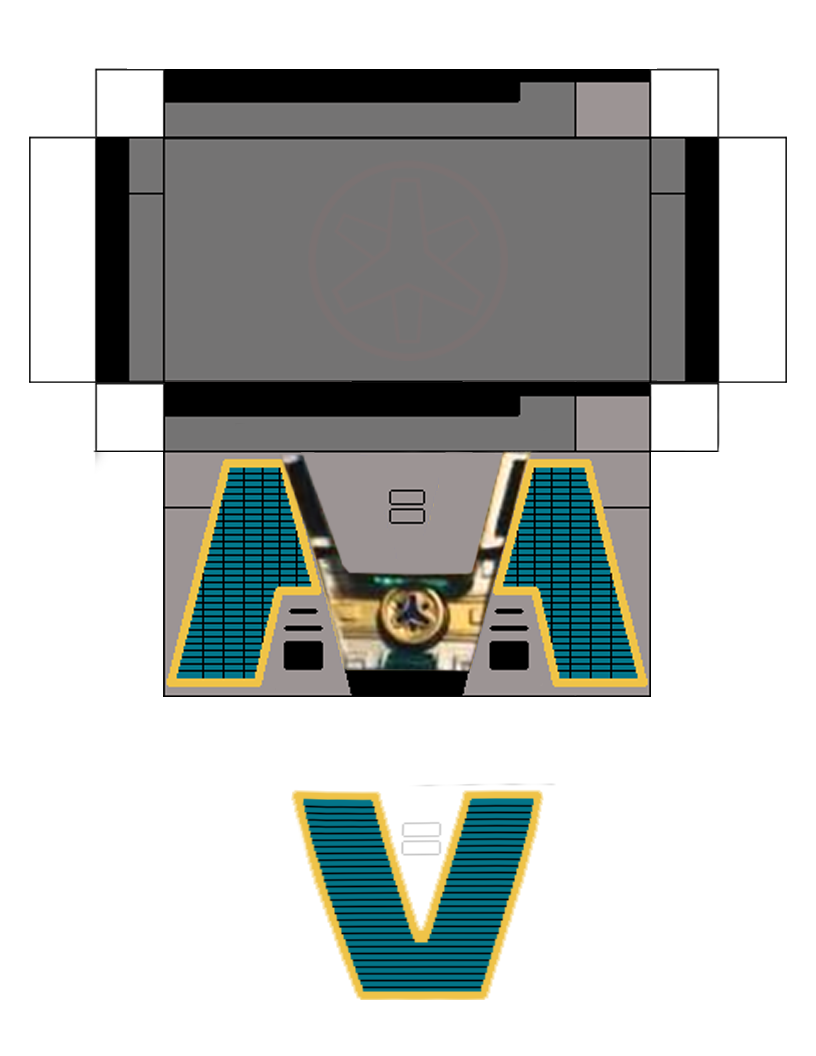

Titanium Morpher Band For Printing.pngTitanium Morpher For Printing.pngTitanium Morpher.jpg

And it works great as we can see here
https://www.youtube.com/watch?v=0BJ1Zakmpck&list=PLtJW4lMh4C_8N46QJuP7wiDvwTPE8j1hq&index=35
and here it all throw into a cardboard case https://www.youtube.com/watch?v=egvfOxt3Ymo&list=PLtJW4lMh4C_8N46QJuP7wiDvwTPE8j1hq&index=34

I haven't made another update video because ive had to replace my sound board twice now trying to mount it on a bread board, for some reason if i dont mount it and leave it loose it works just found but the second i put it on a bread board it blows out the sound board, and since i lack a 3d printer i cant just 3d print a case to mount it to and my solder pen or wire seemed to be broken or bad as i could never solder anything to it. As i'm between paychecks ATM the projects been hanging in the air but someone with a 3d printer interested in recreating my project could easily take my notes, audio files, etc and recreate it so i thought I'd share.

I also have notes for recreating the SPD morpher with duel lcd/tft screens

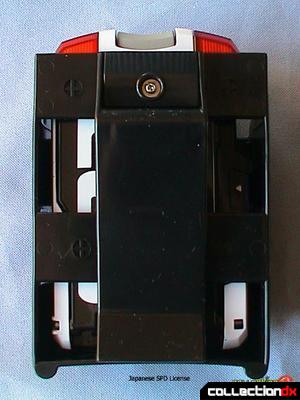

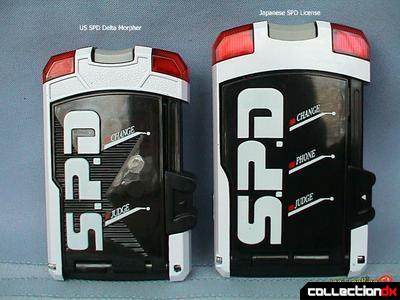

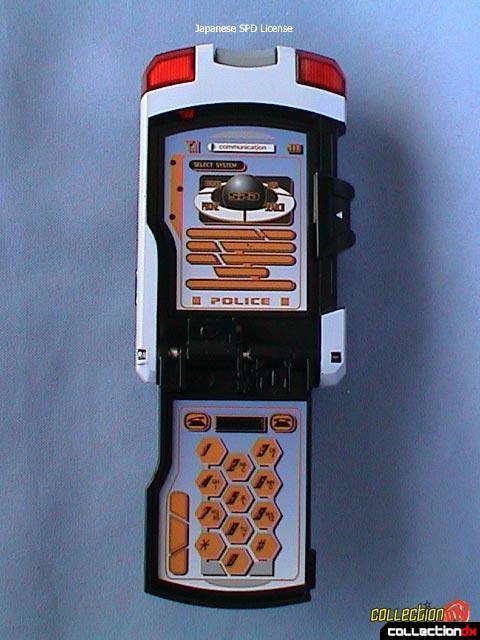

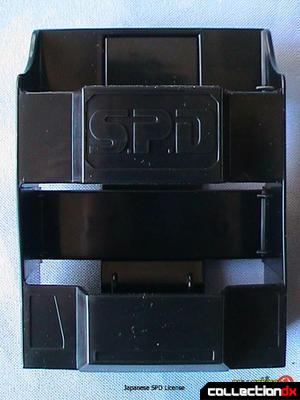

deka-ar-license.jpgSPDlicense1.jpgSPDlicense3.jpgSPDlicense4.jpgSPDlicense6.jpgSPDlicense7.jpg

but that's on hold until Titanium Power is finished.

now the part list in my original pick did not take into account a trinket or a lio power pack but i did update it later on in my notes and discovered the same set of parts could be used to make a Gaia Memory from Kamen Rider Double https://www.youtube.com/watch?v=G1ZcVVyPBL4&list=PLtJW4lMh4C_-1tXvbu5i36xUZRoD8glZq&index=8 if your curious for the parts list.


Trinket to control the leds ($6.95)
https://www.adafruit.com/products/1501

Adafruit Audio FX Sound Board + 2x2W Amp - WAV/OGG Trigger -16MB ($29.95)
https://www.adafruit.com/products/2217

Mini Metal Speaker w/ Wires - 8 ohm 0.5W ($1.50)
https://www.adafruit.com/products/1890

Adafruit Pro Trinket LiIon/LiPoly Backpack Add-On ($4.95)
https://www.adafruit.com/products/2124

Lithium Ion Polymer Battery - 3.7v 100mAh ($5.95)
https://www.adafruit.com/products/1570
Or
Lithium Ion Polymer Battery - 3.7v 1200mAh ($9.95)
https://www.adafruit.com/products/258

Some RGB Neopixels (2 of 4) (optional) for the side pins, heck you could probably pull it off with 1 meaning a pack is good for between 2 and 4 memories ($7.95)
https://www.adafruit.com/products/1312

Some mind of button system here's a ten pack for $2.50 your only gonna need 3 through
https://www.adafruit.com/products/1119

Total cost: $59.75 with parts left over.

Anyway i hope you enjoyed!

Last edited:
